SGC ADSP User Manual

We Make HF Better

SGC, Inc. 13737 SE 26th Street Bellevue, WA 98005 USA 425-746-6310 (ph) 425-746-6384 (fx)

email: [e-mail] www.sgcworld.com

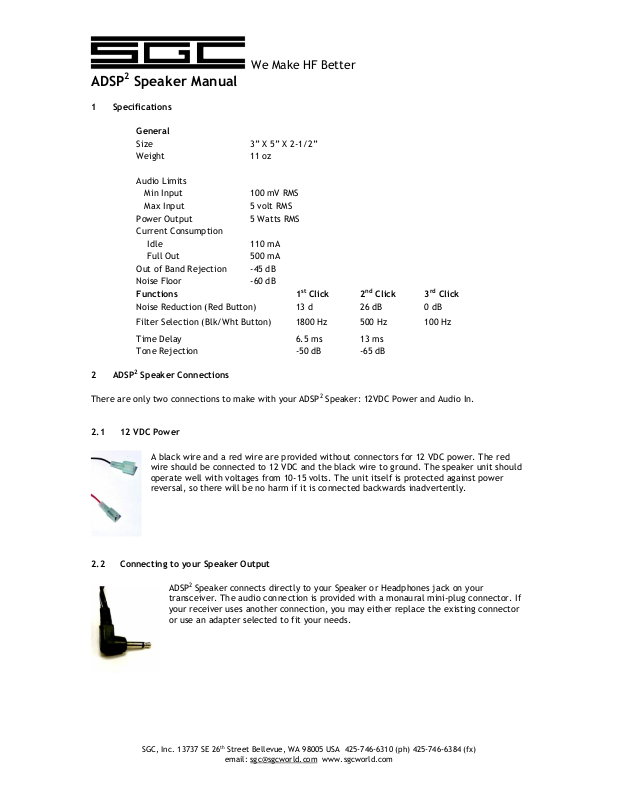

ADSP2 Speaker Manual

1 Specifications

General

Size

3” X 5” X 2-1/2”
Weight

11 oz

Audio Limits
Min Input

100 mV RMS
Max Input

5 volt RMS
Power Output

5 Watts RMS
Current Consumption
Idle

110 mA
Full Out

500 mA
Out of Band Rejection

-45 dB
Noise Floor

-60 dB

Functions

1st Click

2nd Click

3rd Click

Noise Reduction (Red Button)

13 d

26 dB

0 dB

Filter Selection (Blk/Wht Button)

1800 Hz

500 Hz

100 Hz

Time Delay

6.5 ms

13 ms
Tone Rejection

-50 dB

-65 dB

2 ADSP2 Speaker Connections

There are only two connections to make with your ADSP2 Speaker: 12VDC Power and Audio In.

2.1 12 VDC Power

A black wire and a red wire are provided without connectors for 12 VDC power. The red
wire should be connected to 12 VDC and the black wire to ground. The speaker unit should
operate well with voltages from 10-15 volts. The unit itself is protected against power
reversal, so there will be no harm if it is connected backwards inadvertently.

2.2 Connecting to your Speaker Output

ADSP2 Speaker connects directly to your Speaker or Headphones jack on your
transceiver. The audio connection is provided with a monaural mini-plug connector. If
your receiver uses another connection, you may either replace the existing connector
or use an adapter selected to fit your needs.

We Make HF Better

SGC, Inc. 13737 SE 26th Street Bellevue, WA 98005 USA 425-746-6310 (ph) 425-746-6384 (fx)

email: [e-mail] www.sgcworld.com

3 Speaker Operation

The ADSP2 Speaker operation is easy with a “One Touch” control for noise reduction and tone interference
rejection. When power is applied to the ADSP2 Speaker, the small red LED will light to let you know power
is on. On initial power up, the speaker is in bypass mode and the audio signal is connected directly to the
speaker. When the first level of noise reduction is enabled, one green LED will light. When the second
level of noise reduction is enabled, two green LEDs will light. There is no LED indication for the filter
level, which can be determined by sound.

4 Troubleshooting

At times, the LEDs may become out of sequence. When this or other problems occur, un-hook the power
and re-apply. This should re-set the speaker. For other questions, contact SGC technical support.

5 Standard Warranty

SGC LIMITED PRODUCT WARRANTY
(1 Year Parts and Labor)
And SOFTWARE LICENSE

You have purchased an SGC equipment product together with a license to use the software installed in
that product. Please return the warranty registration card that accompanies this product, so that we can
assure that you receive proper warranty service and important notices that may affect the product. This
SGC product is warranted to be free from defects in workmanship and material for a period of 1 year from
the original buyer’s date of purchase. In the event of a defect, malfunction or failure of which SGC
receives notice during the 1 year period, SGC, at its’ option, will repair or replace the product free of
charge to the buyer. The buyer must contact SGC for a Return Material Authorization Number (RMA) and
deliver the product back to SGC with this RMA number and written proof as to date of purchase. SGC will
ship a new or repaired product to the buyer, reserving discretionary right to return a newer model that
offers at least equal performance. The foregoing warranty extends to the original buyer and does not
include (a) buyer’s cost to return the product to SGC, (b) buyer’s costs to remove or reinstall the product
for warranty work, or © added costs of special expedited shipment that may be requested by buyer.
Except for the limited warranty stated above, and to the full extent permitted by law, SGC disclaims any
other express or implied warranties and liability for any incidental, consequential, special or exemplary
damages in connection with its product, even if SGC or its agents are advised that such damages are
foreseeable. (Note: Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above exclusion may not apply to you). There is no warranty with respect to (a) the
product’s transmission range or geographical coverage which can vary by location (b) non-performance
caused by using an inadequate or improper antenna or grounding system or © routine maintenance,
periodic adjustment and performance testing of the product or system. SGC customarily charges a flat fee
for repairs performed outside of the warranty coverage. To inquire about such charges, please contact
SGC.

END USER SOFTWARE LICENSE

SGC warrants that the SOFTWARE included in this product will perform in substantial accordance with the
documentation. SGC grants to the original end user of its product a non-exclusive worldwide license to
operate the software installed therein. This license shall be transferred to any person or entity that
subsequently acquires lawful ownership of the product. This license shall be limited to using the software
for contemplated operation of SGC’s product. This license does not permit any end user to (a) modify or
adapt SGC’s software or to merge it into another program (b) reverse engineer, disassemble, or otherwise
attempt to discover SGC’s software source code or © sub license or otherwise transfer SGC’s software for
any use other than operating the product originally purchased from SGC.
