LP-3 Beverage/Ice Dispenser

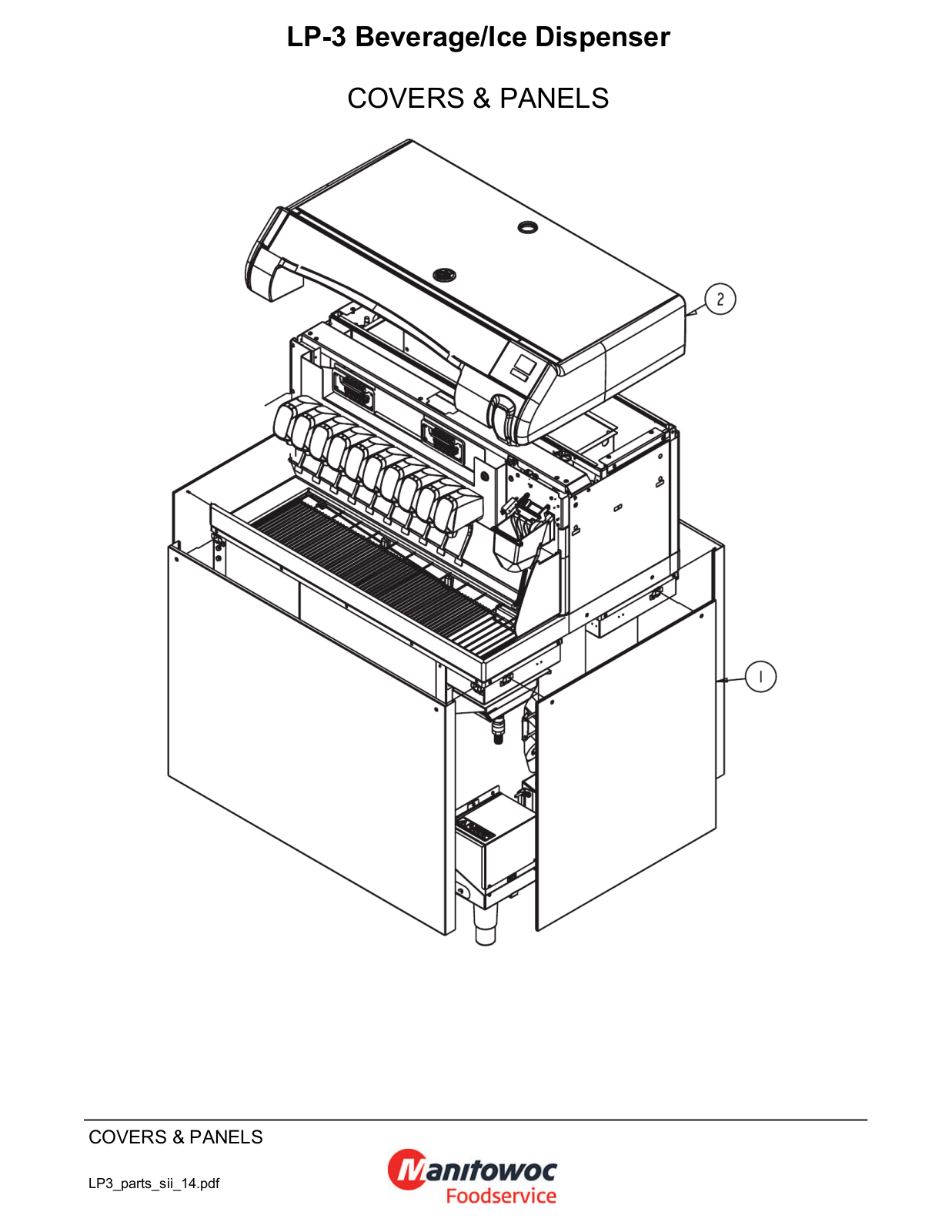

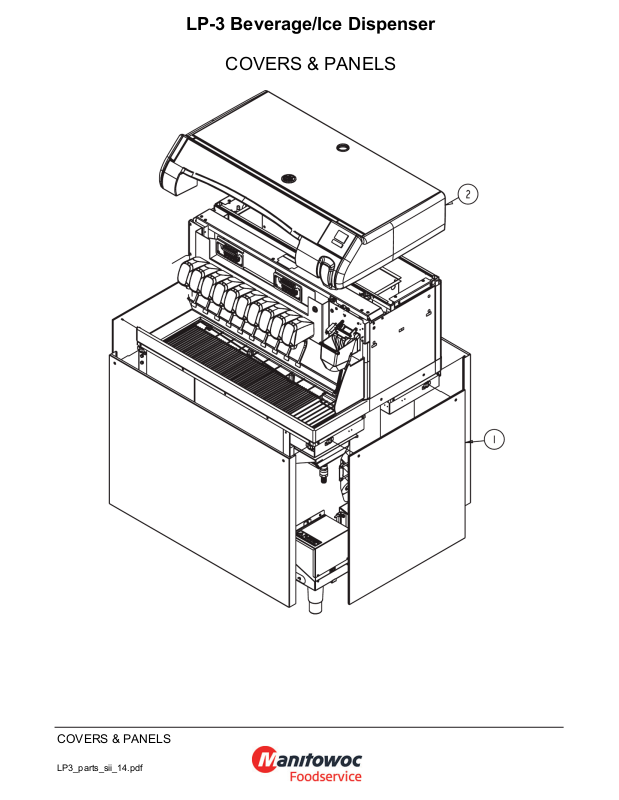

COVERS & PANELS
COVERS & PANELS
LP3_parts_sii_14.pdf
LP-3 Beverage/Ice Dispenser

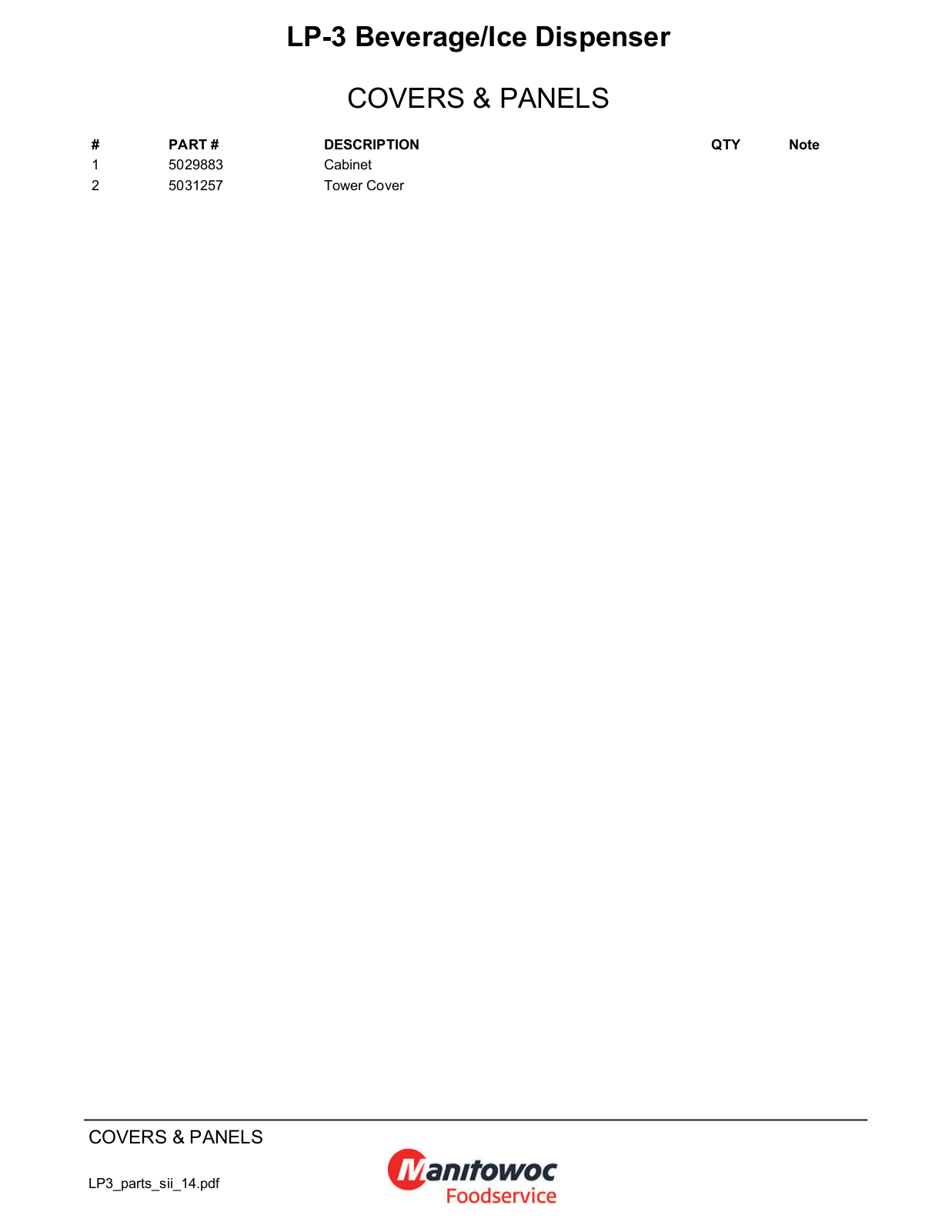

COVERS & PANELS
# PART # DESCRIPTION QTY Note
1 5029883 Cabinet
2 5031257 Tower Cover
COVERS & PANELS
LP3_parts_sii_14.pdf
LP-3 Beverage/Ice Dispenser

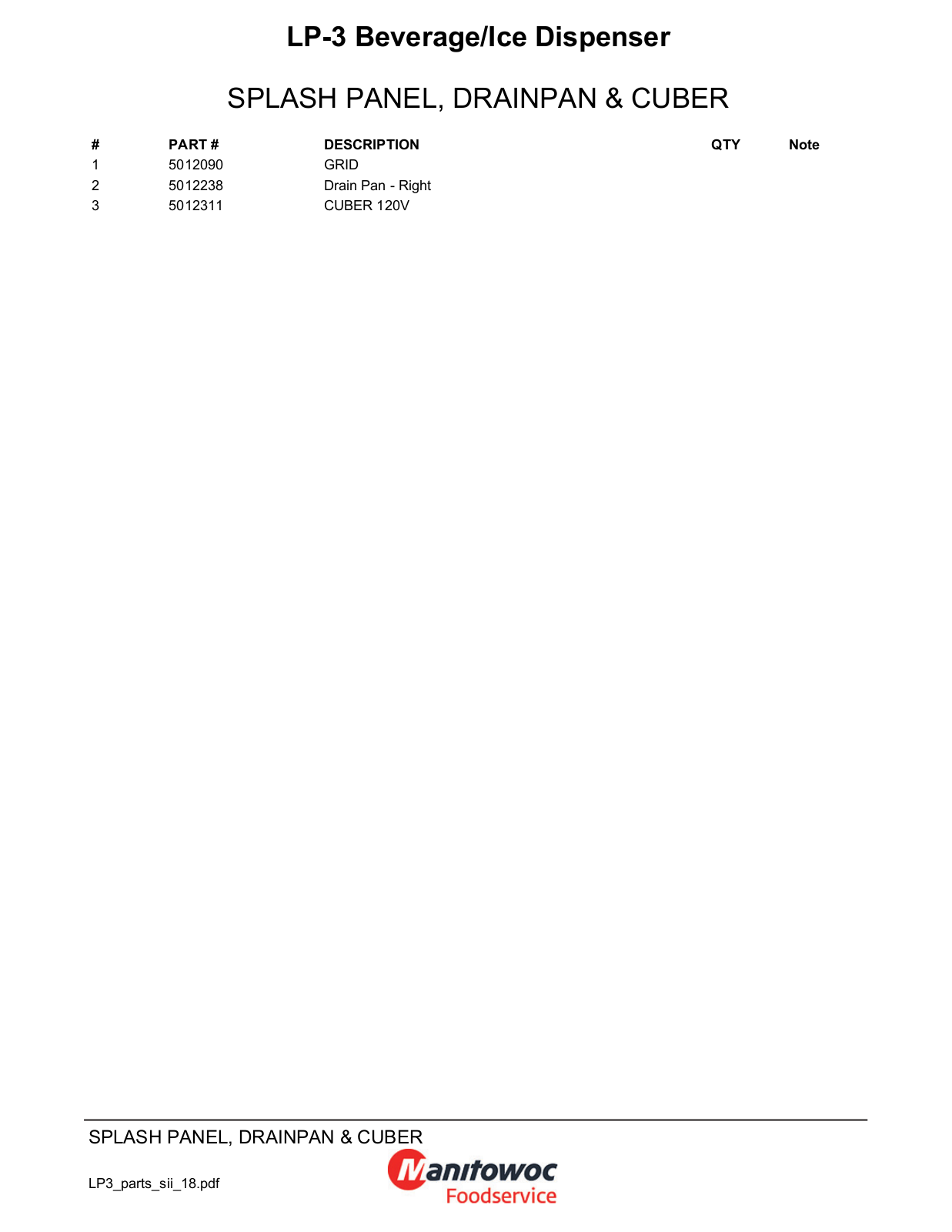

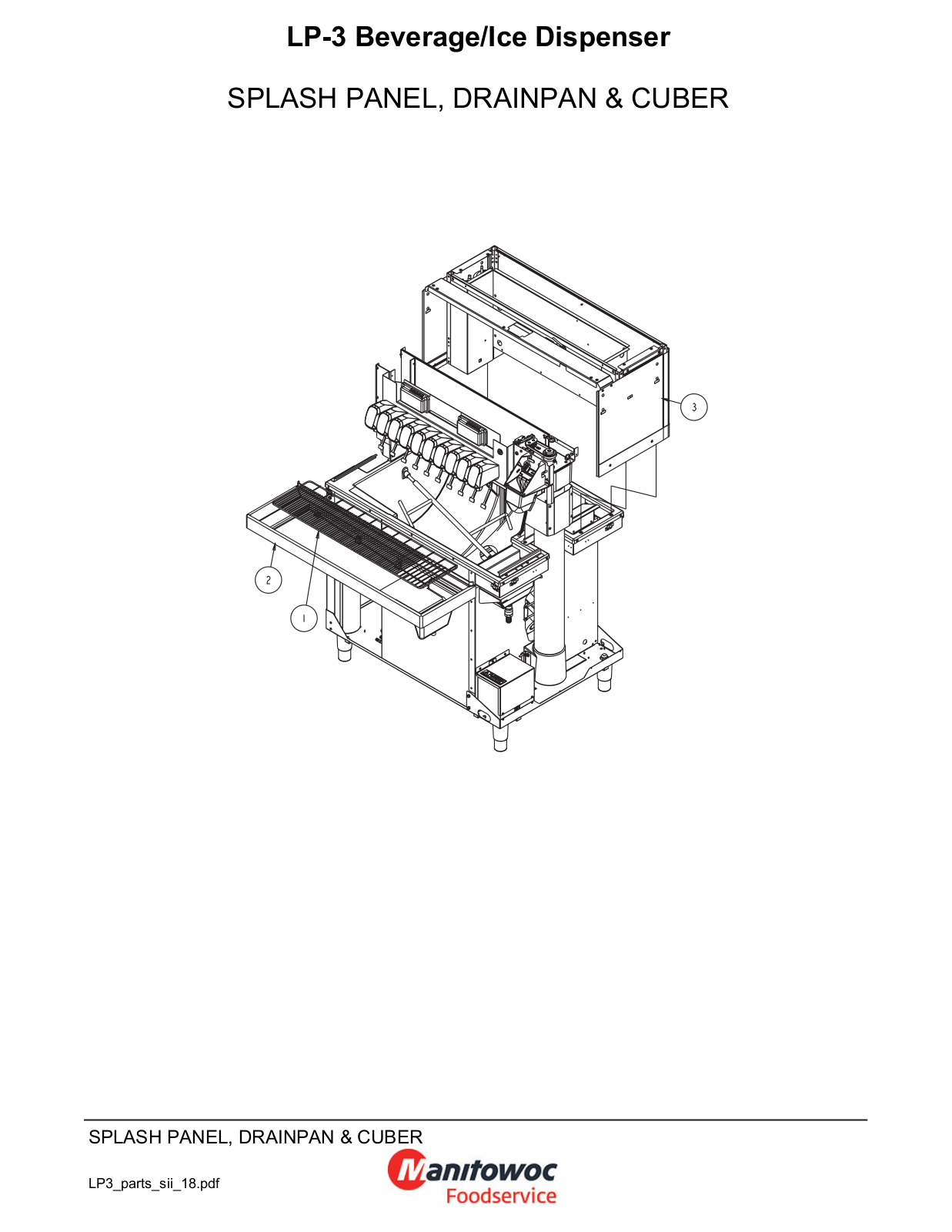

SPLASH PANEL, DRAINPAN & CUBER
SPLASH PANEL, DRAINPAN & CUBER
LP3_parts_sii_18.pdf
LP-3 Beverage/Ice Dispenser
SPLASH PANEL, DRAINPAN & CUBER
# PART # DESCRIPTION QTY Note
1 5012090 GRID
2 5012238 Drain Pan - Right
3 5012311 CUBER 120V
SPLASH PANEL, DRAINPAN & CUBER
LP3_parts_sii_18.pdf
LP-3 Beverage/Ice Dispenser

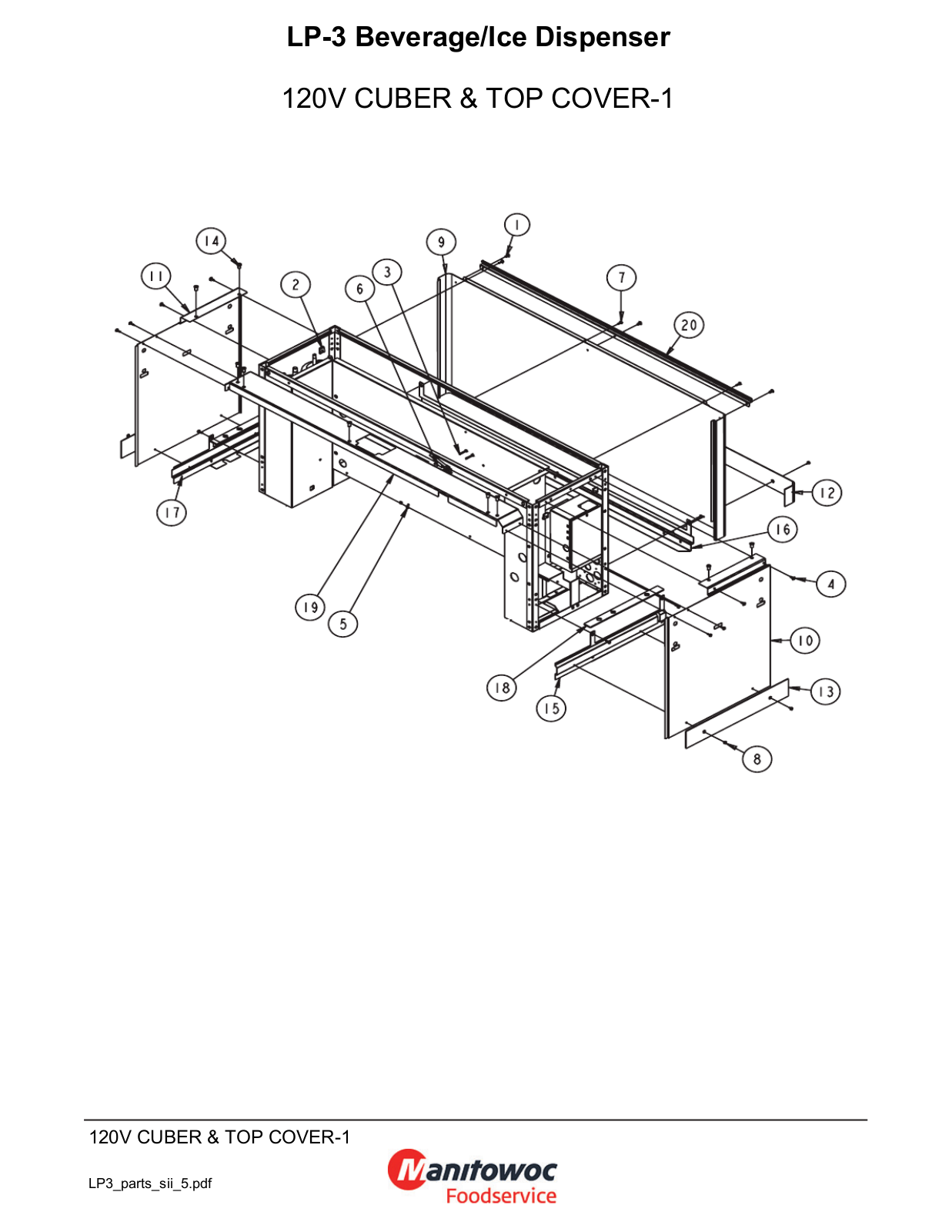

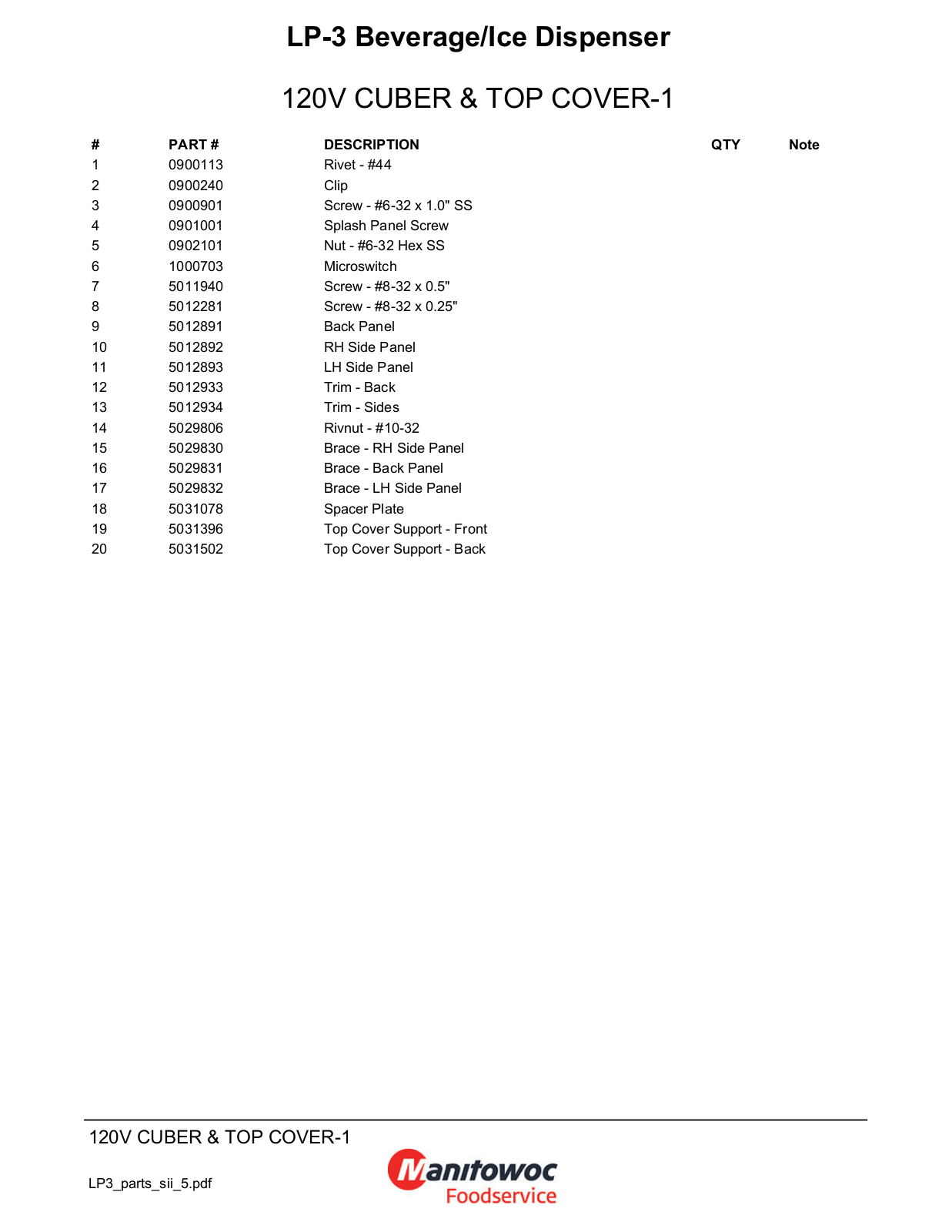

120V CUBER & TOP COVER-1
120V CUBER & TOP COVER-1
LP3_parts_sii_5.pdf
LP-3 Beverage/Ice Dispenser
120V CUBER & TOP COVER-1
# PART # DESCRIPTION QTY Note
1 0900113 Rivet - #44
2 0900240 Clip
3 0900901 Screw - #6-32 x 1.0" SS
4 0901001 Splash Panel Screw
5 0902101 Nut - #6-32 Hex SS
6 1000703 Microswitch
7 5011940 Screw - #8-32 x 0.5"
8 5012281 Screw - #8-32 x 0.25"
9 5012891 Back Panel
10 5012892 RH Side Panel
11 5012893 LH Side Panel
12 5012933 Trim - Back
13 5012934 Trim - Sides
14 5029806 Rivnut - #10-32
15 5029830 Brace - RH Side Panel
16 5029831 Brace - Back Panel
17 5029832 Brace - LH Side Panel
18 5031078 Spacer Plate
19 5031396 Top Cover Support - Front
20 5031502 Top Cover Support - Back
120V CUBER & TOP COVER-1
LP3_parts_sii_5.pdf
LP-3 Beverage/Ice Dispenser

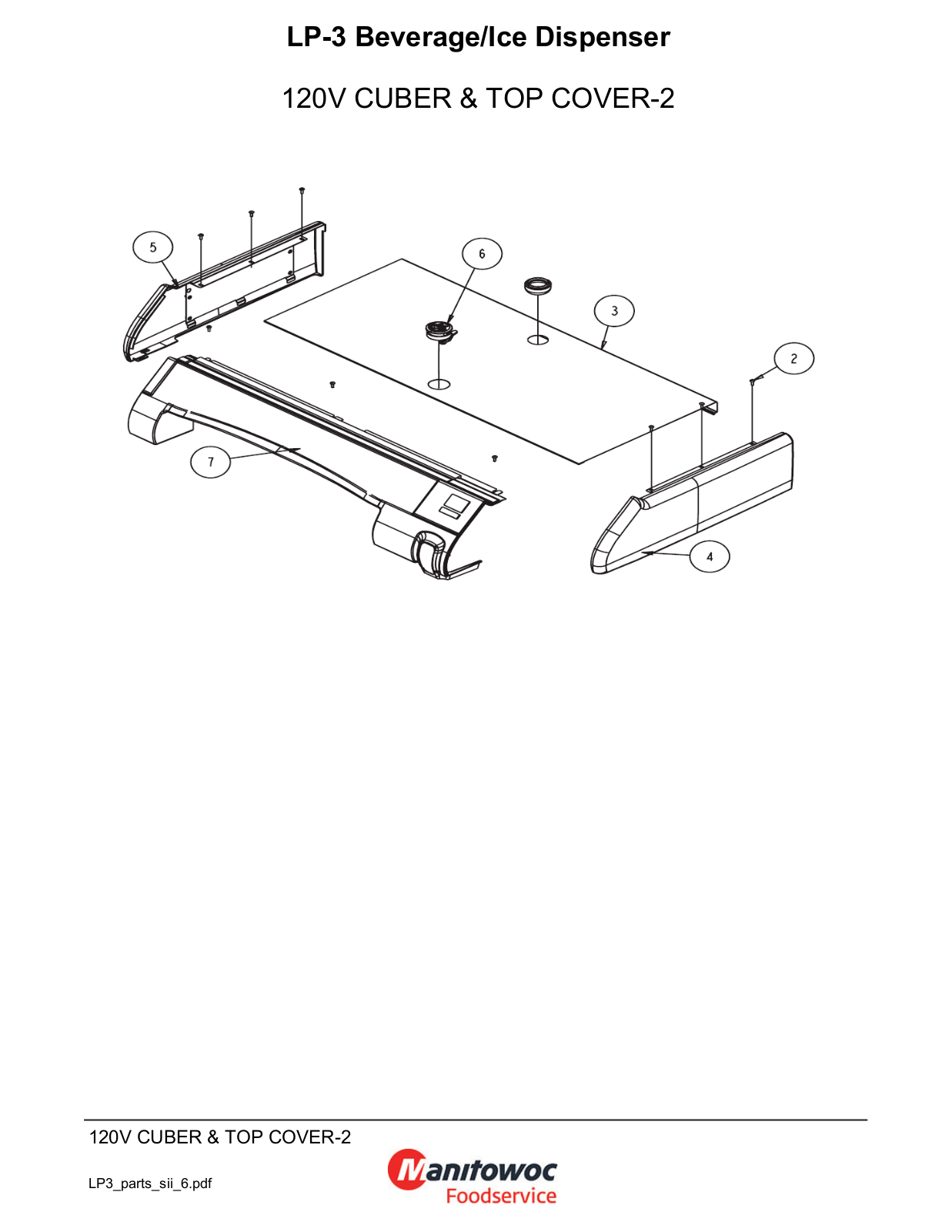

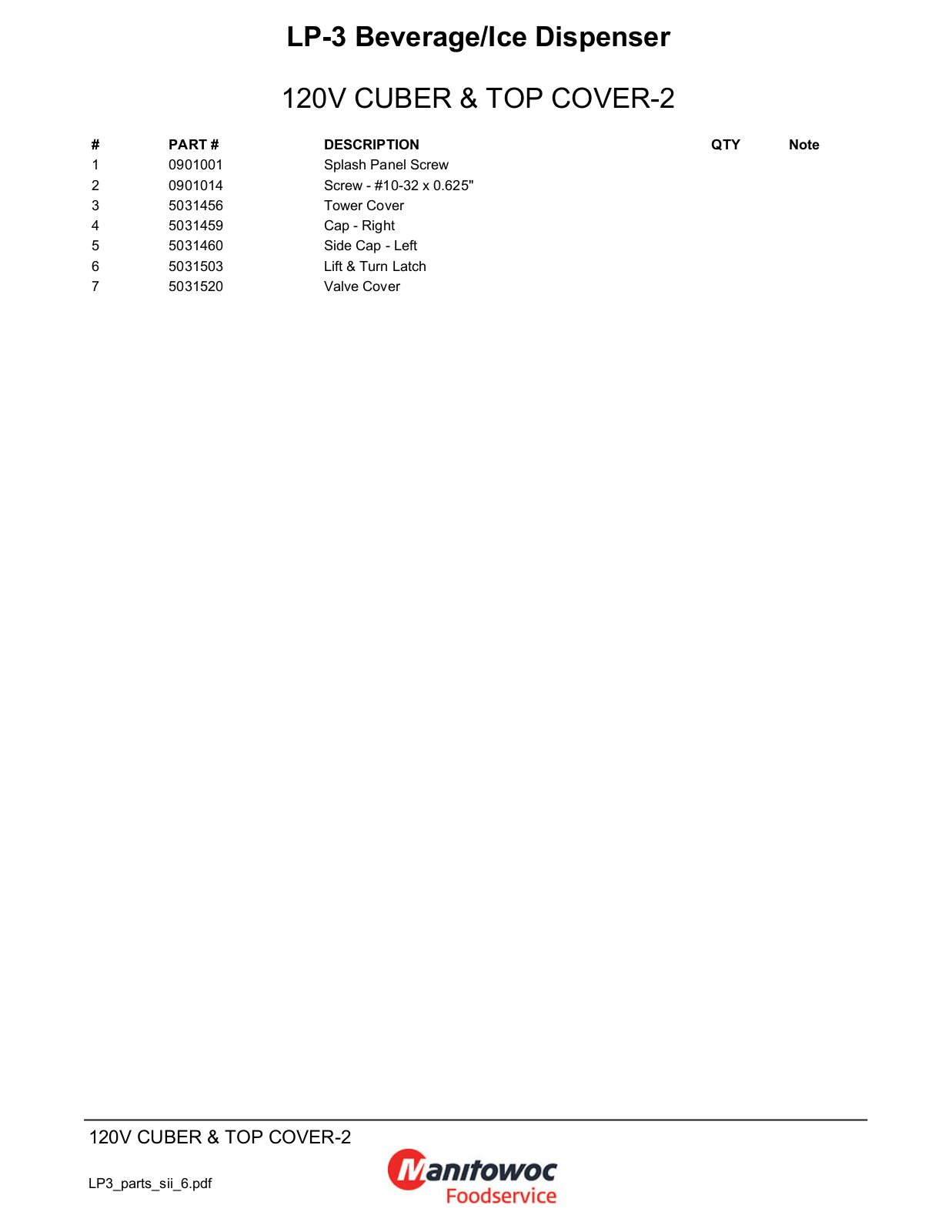

120V CUBER & TOP COVER-2
120V CUBER & TOP COVER-2
LP3_parts_sii_6.pdf
LP-3 Beverage/Ice Dispenser
120V CUBER & TOP COVER-2
# PART # DESCRIPTION QTY Note
1 0901001 Splash Panel Screw
2 0901014 Screw - #10-32 x 0.625"
3 5031456 Tower Cover
4 5031459 Cap - Right
5 5031460 Side Cap - Left
6 5031503 Lift & Turn Latch
7 5031520 Valve Cover
120V CUBER & TOP COVER-2
LP3_parts_sii_6.pdf
LP-3 Beverage/Ice Dispenser

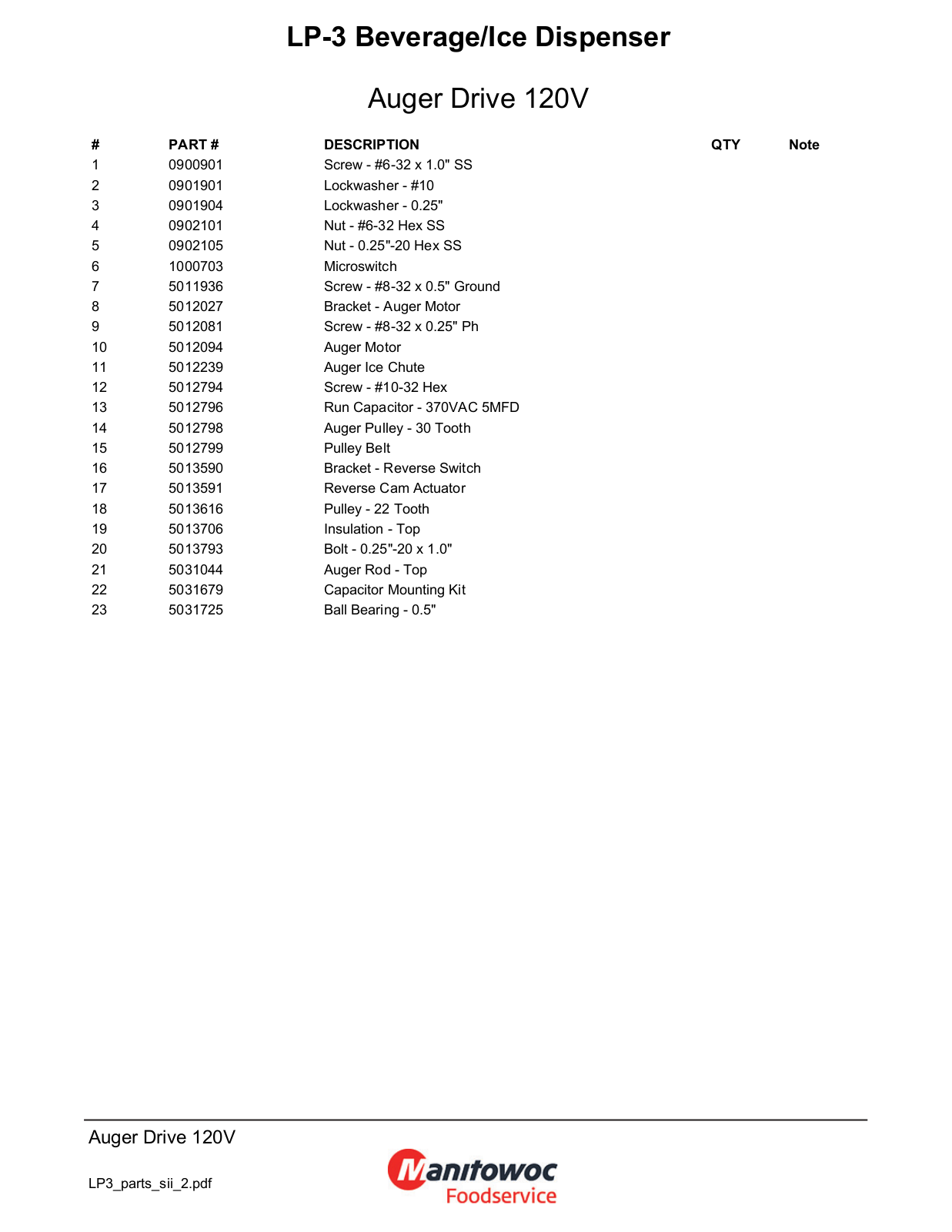

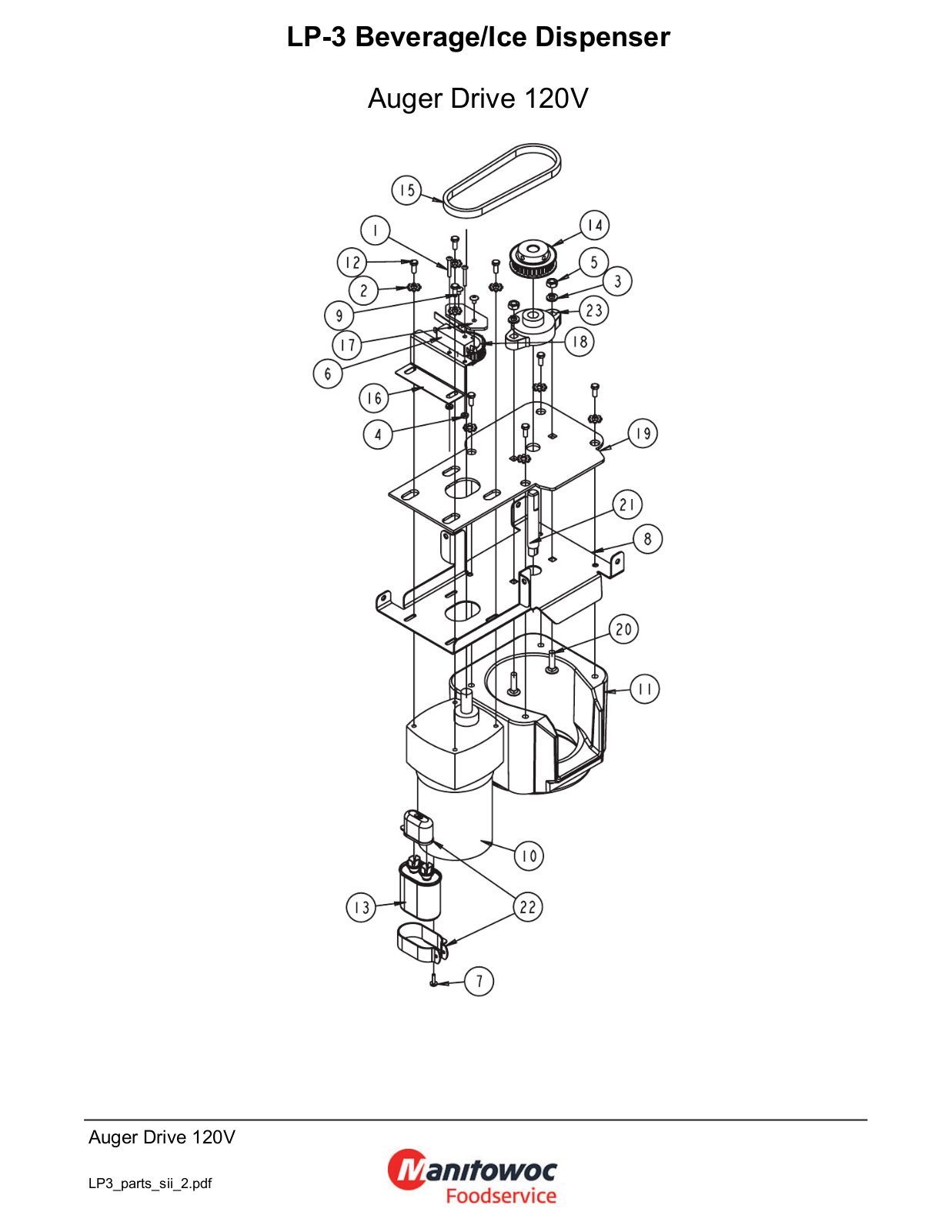

Auger Drive 120V
Auger Drive 120V
LP3_parts_sii_2.pdf
LP-3 Beverage/Ice Dispenser
Auger Drive 120V
# PART # DESCRIPTION QTY Note
1 0900901 Screw - #6-32 x 1.0" SS
2 0901901 Lockwasher - #10
3 0901904 Lockwasher - 0.25"
4 0902101 Nut - #6-32 Hex SS
5 0902105 Nut - 0.25"-20 Hex SS
6 1000703 Microswitch
7 5011936 Screw - #8-32 x 0.5" Ground
8 5012027 Bracket - Auger Motor
9 5012081 Screw - #8-32 x 0.25" Ph
10 5012094 Auger Motor
11 5012239 Auger Ice Chute
12 5012794 Screw - #10-32 Hex
13 5012796 Run Capacitor - 370VAC 5MFD
14 5012798 Auger Pulley - 30 Tooth
15 5012799 Pulley Belt
16 5013590 Bracket - Reverse Switch
17 5013591 Reverse Cam Actuator
18 5013616 Pulley - 22 Tooth
19 5013706 Insulation - Top
20 5013793 Bolt - 0.25"-20 x 1.0"
21 5031044 Auger Rod - Top
22 5031679 Capacitor Mounting Kit
23 5031725 Ball Bearing - 0.5"
Auger Drive 120V
LP3_parts_sii_2.pdf
LP-3 Beverage/Ice Dispenser

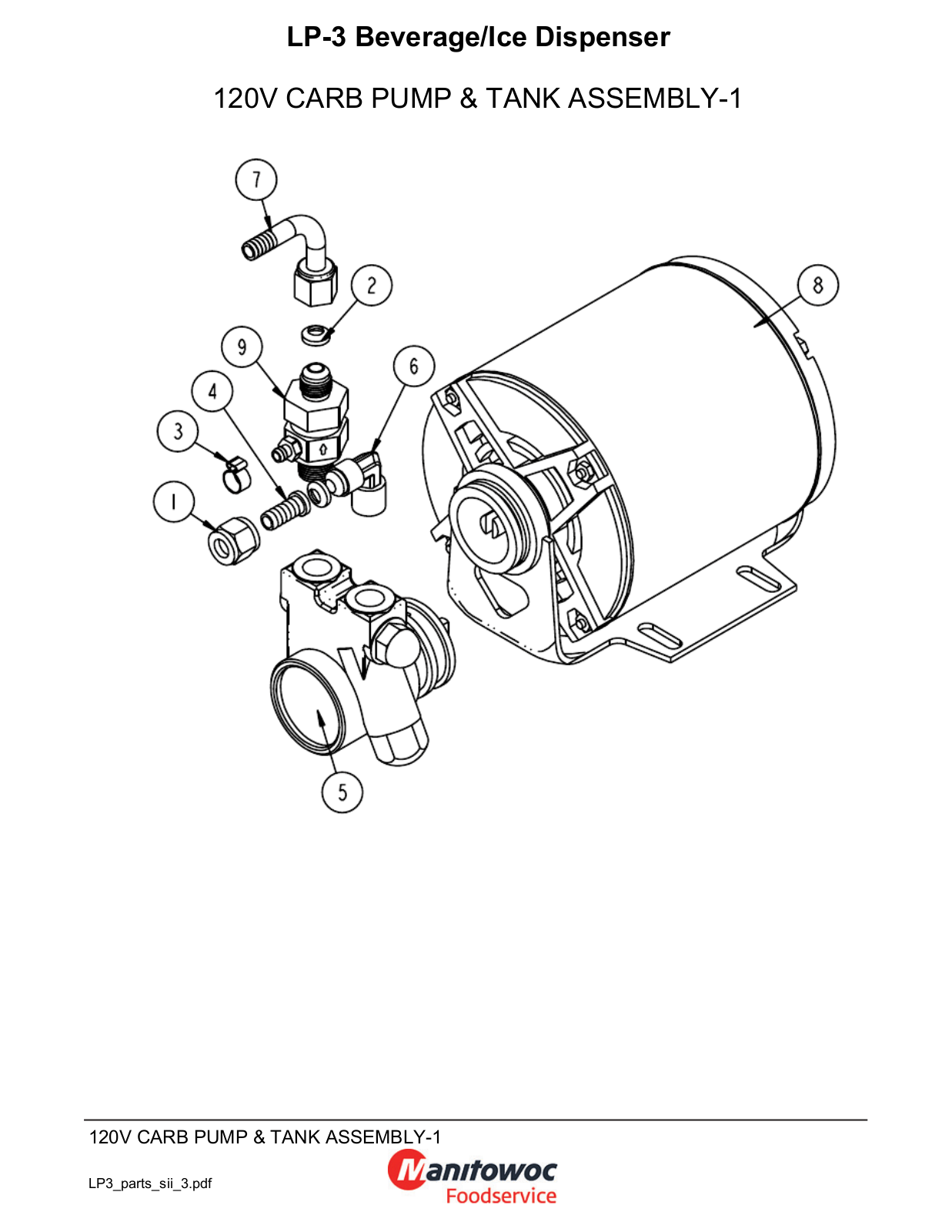

120V CARB PUMP & TANK ASSEMBLY-1
120V CARB PUMP & TANK ASSEMBLY-1
LP3_parts_sii_3.pdf
LP-3 Beverage/Ice Dispenser
120V CARB PUMP & TANK ASSEMBLY-1
# PART # DESCRIPTION QTY Note
1 1701110-ORA Nut - 0.375" x 0.5625" Swivel Fitting
2 1701115 Washer - 0.375” Black Nylon
3 1701301 Clamp - 0.5"
4 5009025 Swivel Fitting - 0.375" Barb
5 5009613 Carb Pump Head - 5 GPH
6 5009983 Elbow Fitting - 0.375" x 0.375"
7 5010781 Elbow Fitting - 0.375" Barbed
8 5028931 Carb Pump Motor - 115V
9 5031042 Check Valve - 0.375" x 0.375"
10 5030533 Carb Tank Tube
120V CARB PUMP & TANK ASSEMBLY-1
LP3_parts_sii_3.pdf
LP-3 Beverage/Ice Dispenser

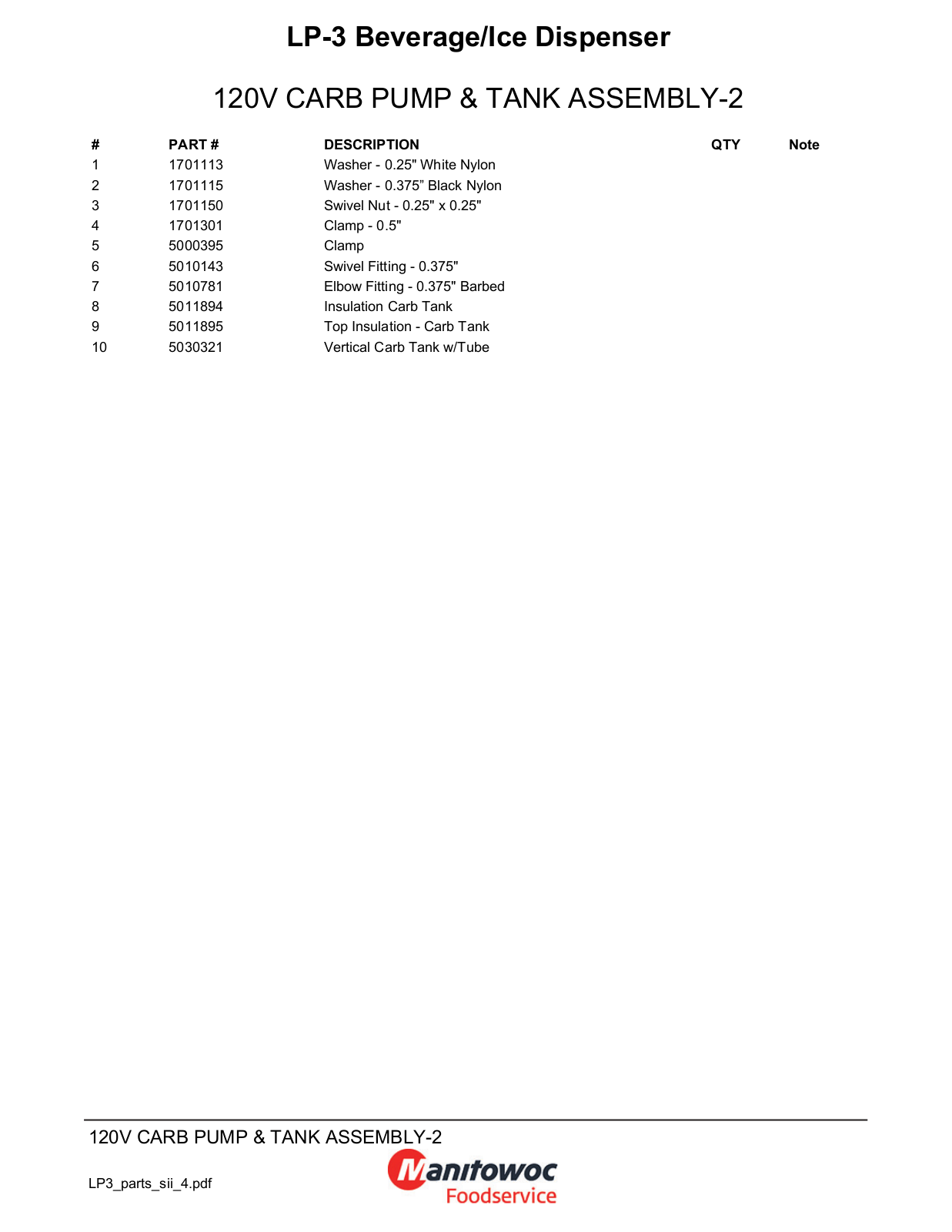

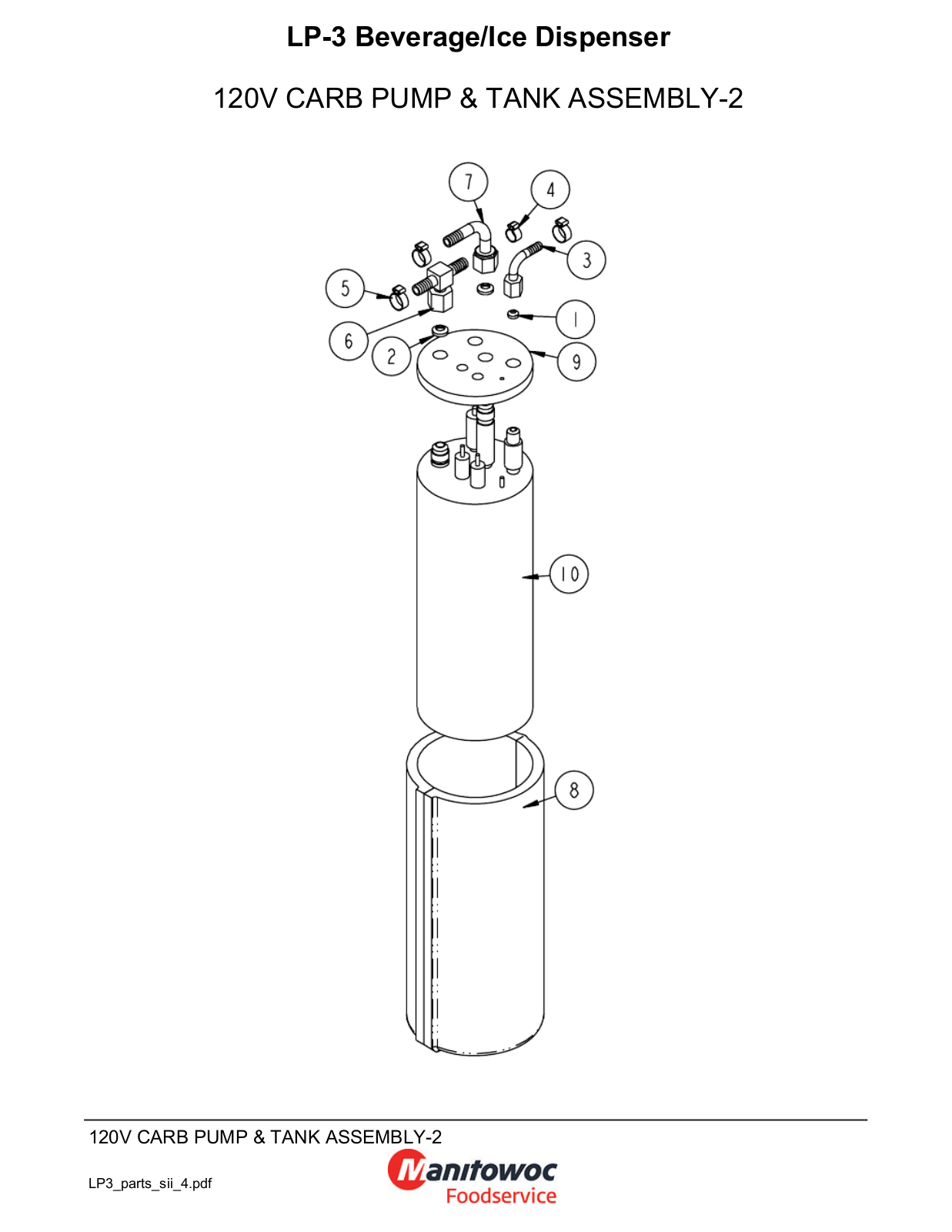

120V CARB PUMP & TANK ASSEMBLY-2
120V CARB PUMP & TANK ASSEMBLY-2
LP3_parts_sii_4.pdf
LP-3 Beverage/Ice Dispenser
120V CARB PUMP & TANK ASSEMBLY-2
# PART # DESCRIPTION QTY Note
1 1701113 Washer - 0.25" White Nylon
2 1701115 Washer - 0.375” Black Nylon
3 1701150 Swivel Nut - 0.25" x 0.25"
4 1701301 Clamp - 0.5"
5 5000395 Clamp
6 5010143 Swivel Fitting - 0.375"
7 5010781 Elbow Fitting - 0.375" Barbed
8 5011894 Insulation Carb Tank
9 5011895 Top Insulation - Carb Tank
10 5030321 Vertical Carb Tank w/Tube
120V CARB PUMP & TANK ASSEMBLY-2
LP3_parts_sii_4.pdf
LP-3 Beverage/Ice Dispenser

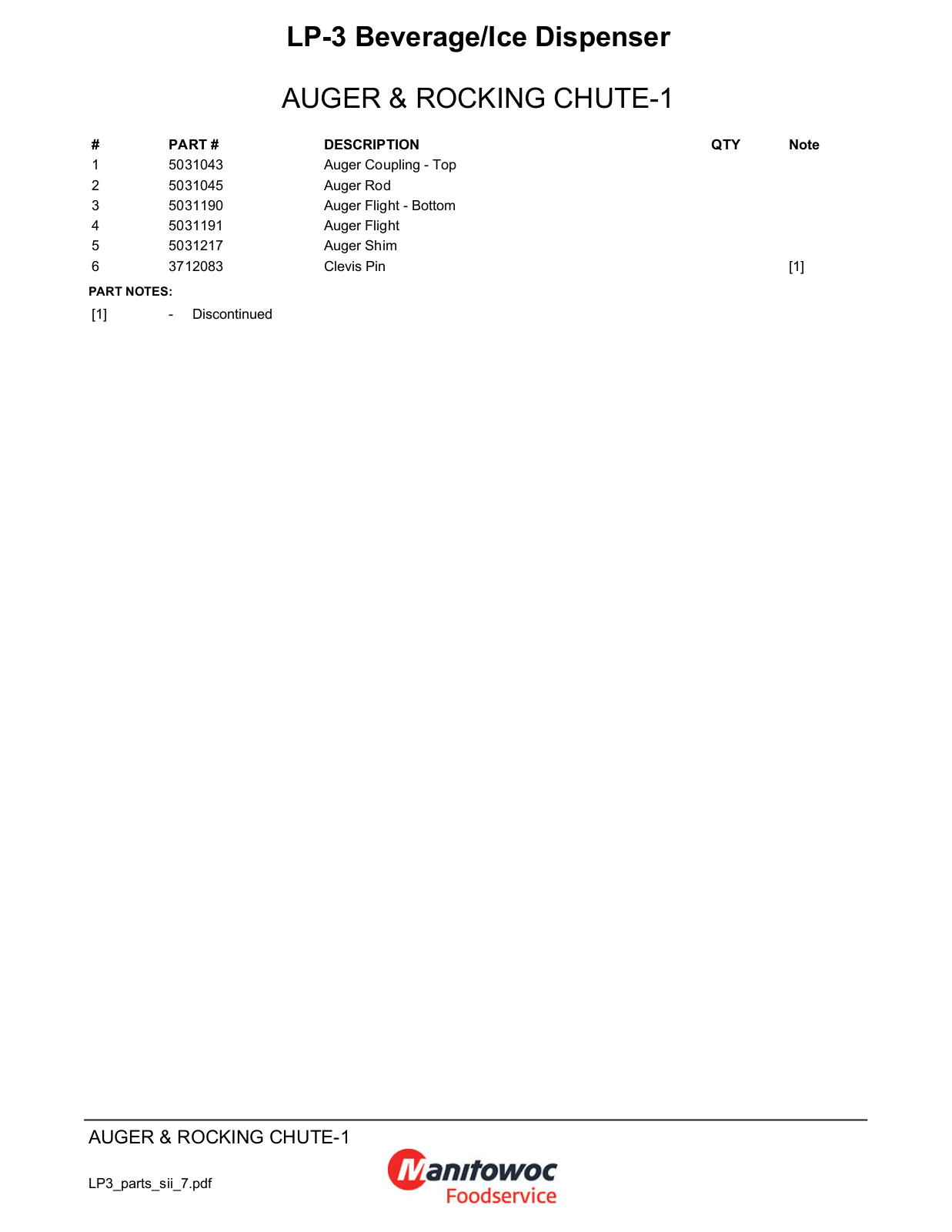

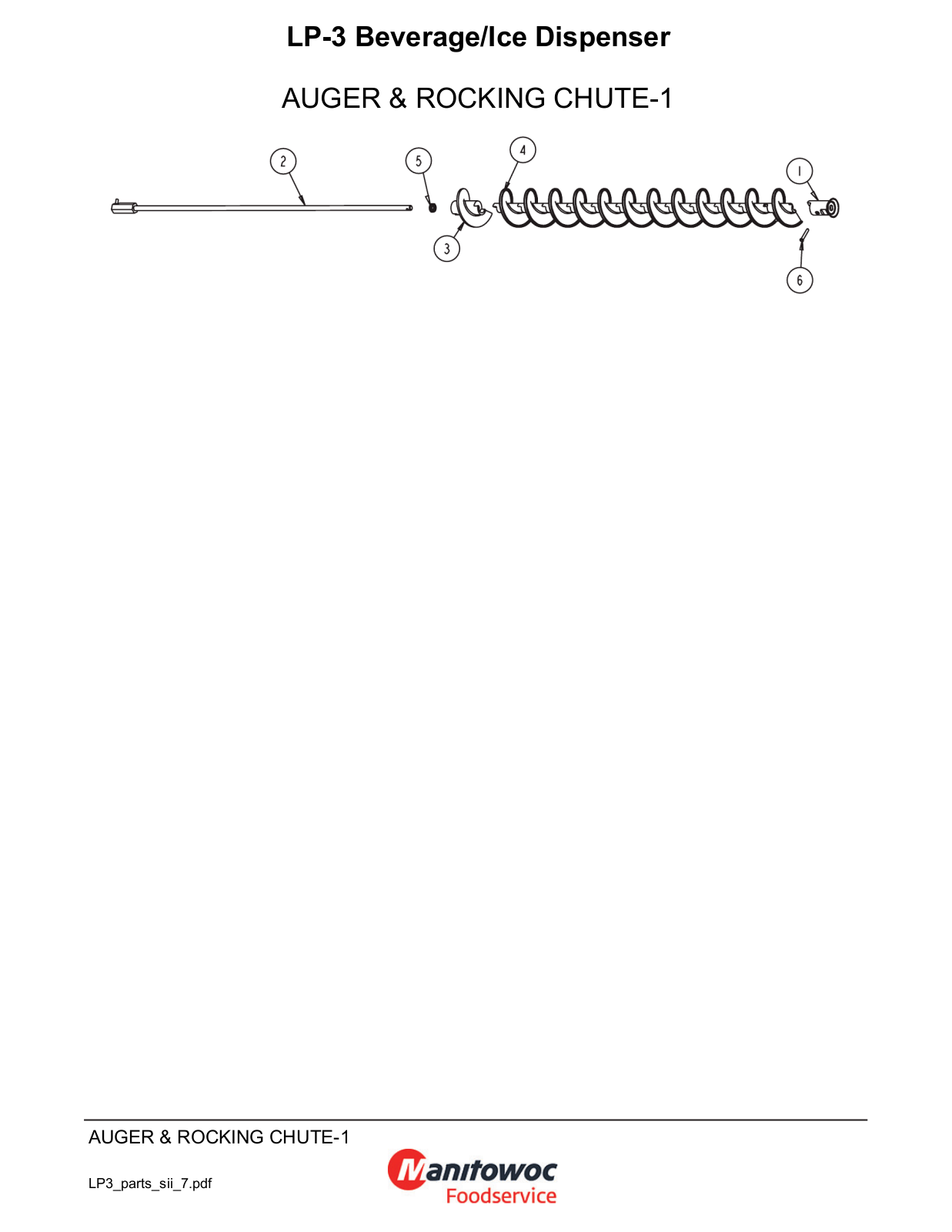

AUGER & ROCKING CHUTE-1
AUGER & ROCKING CHUTE-1
LP3_parts_sii_7.pdf
LP-3 Beverage/Ice Dispenser
AUGER & ROCKING CHUTE-1
# PART # DESCRIPTION QTY Note
1 5031043 Auger Coupling - Top
2 5031045 Auger Rod
3 5031190 Auger Flight - Bottom
4 5031191 Auger Flight
5 5031217 Auger Shim
6 3712083 Clevis Pin [1]
PART NOTES:
[1] - Discontinued
AUGER & ROCKING CHUTE-1
LP3_parts_sii_7.pdf
LP-3 Beverage/Ice Dispenser

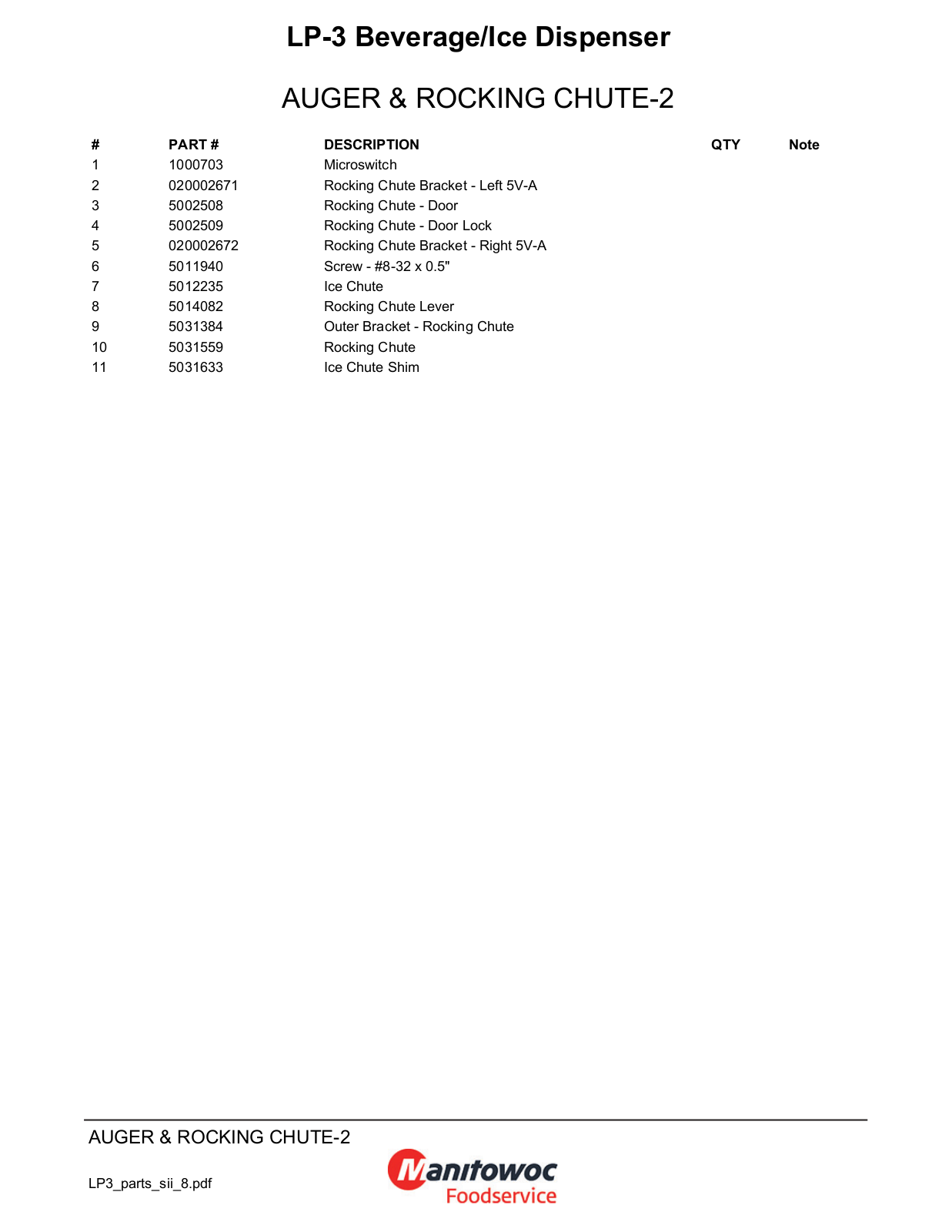

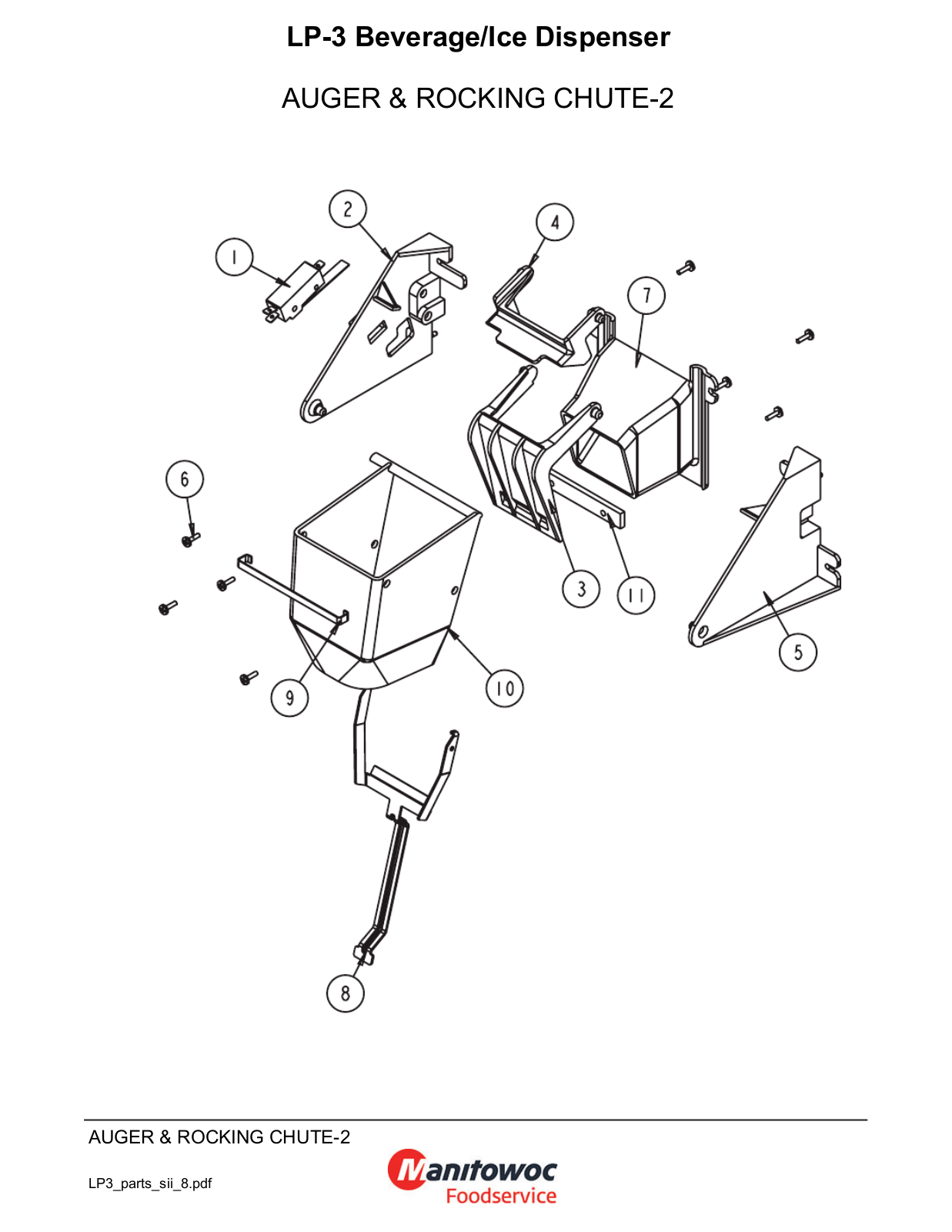

AUGER & ROCKING CHUTE-2
AUGER & ROCKING CHUTE-2
LP3_parts_sii_8.pdf
LP-3 Beverage/Ice Dispenser
AUGER & ROCKING CHUTE-2
# PART # DESCRIPTION QTY Note
1 1000703 Microswitch
2 020002671 Rocking Chute Bracket - Left 5V-A
3 5002508 Rocking Chute - Door
4 5002509 Rocking Chute - Door Lock
5 020002672 Rocking Chute Bracket - Right 5V-A
6 5011940 Screw - #8-32 x 0.5"
7 5012235 Ice Chute
8 5014082 Rocking Chute Lever
9 5031384 Outer Bracket - Rocking Chute
10 5031559 Rocking Chute
11 5031633 Ice Chute Shim
AUGER & ROCKING CHUTE-2
LP3_parts_sii_8.pdf
LP-3 Beverage/Ice Dispenser

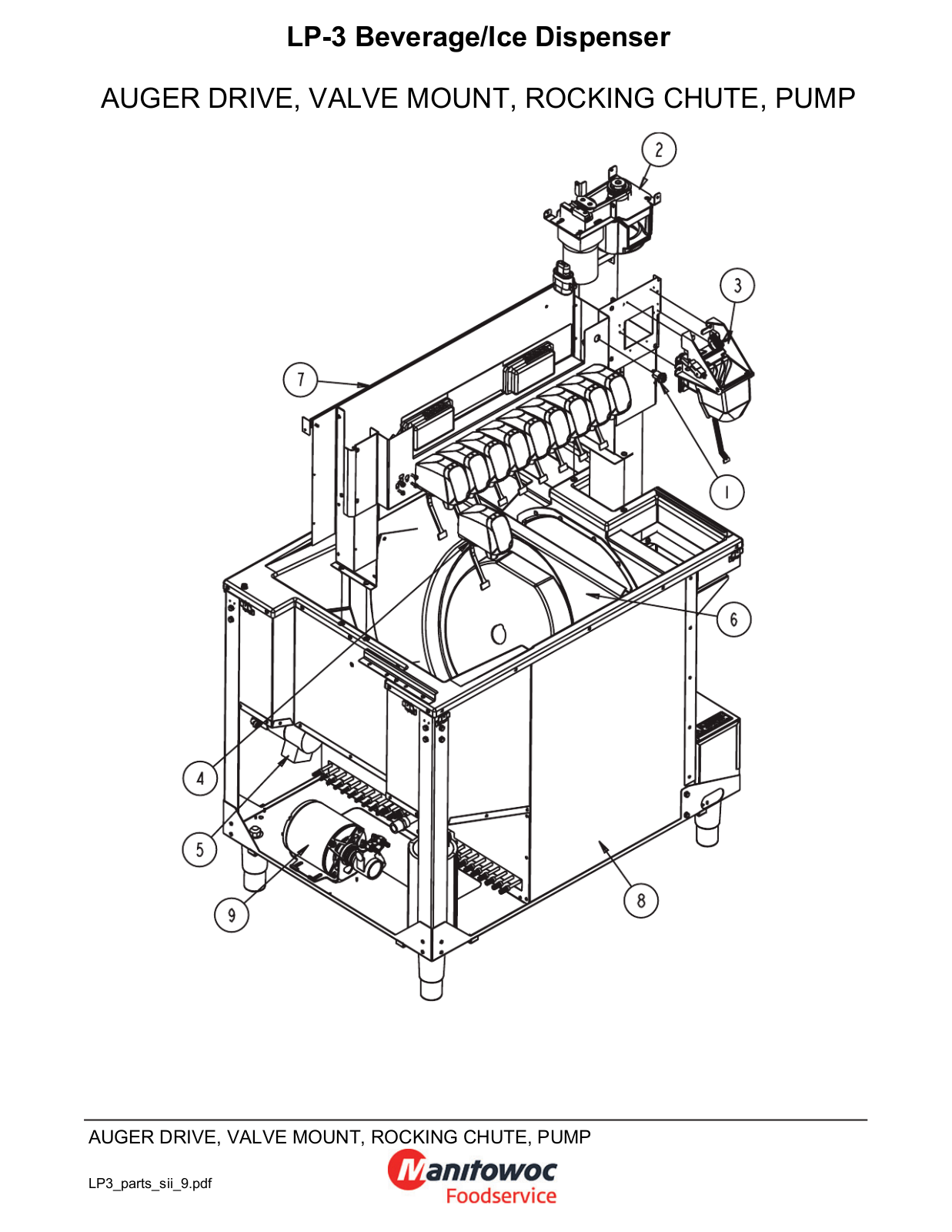

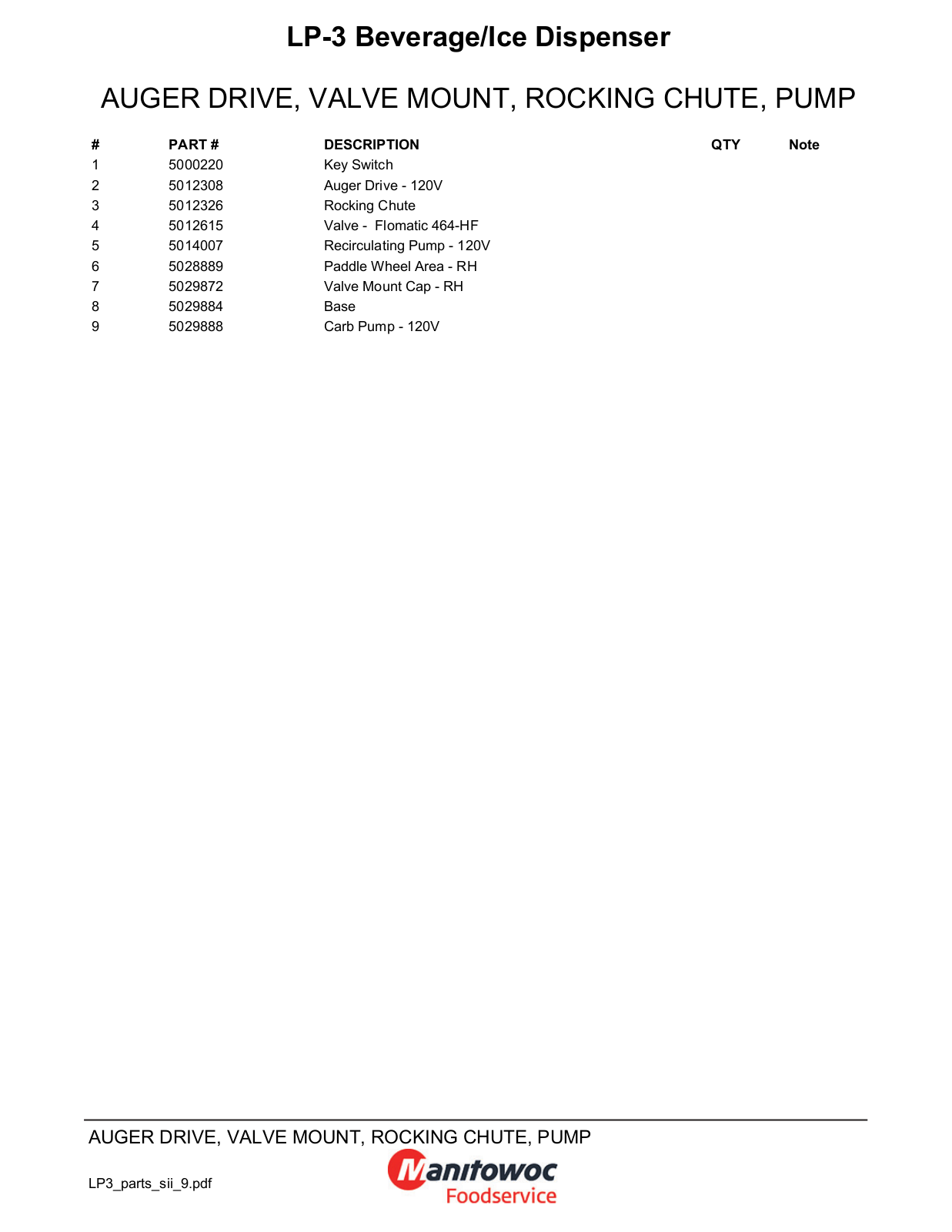

AUGER DRIVE, VALVE MOUNT, ROCKING CHUTE, PUMP
AUGER DRIVE, VALVE MOUNT, ROCKING CHUTE, PUMP
LP3_parts_sii_9.pdf
LP-3 Beverage/Ice Dispenser
AUGER DRIVE, VALVE MOUNT, ROCKING CHUTE, PUMP
# PART # DESCRIPTION QTY Note
1 5000220 Key Switch
2 5012308 Auger Drive - 120V
3 5012326 Rocking Chute
4 5012615 Valve - Flomatic 464-HF
5 5014007 Recirculating Pump - 120V
6 5028889 Paddle Wheel Area - RH
7 5029872 Valve Mount Cap - RH
8 5029884 Base
9 5029888 Carb Pump - 120V
AUGER DRIVE, VALVE MOUNT, ROCKING CHUTE, PUMP
LP3_parts_sii_9.pdf
LP-3 Beverage/Ice Dispenser

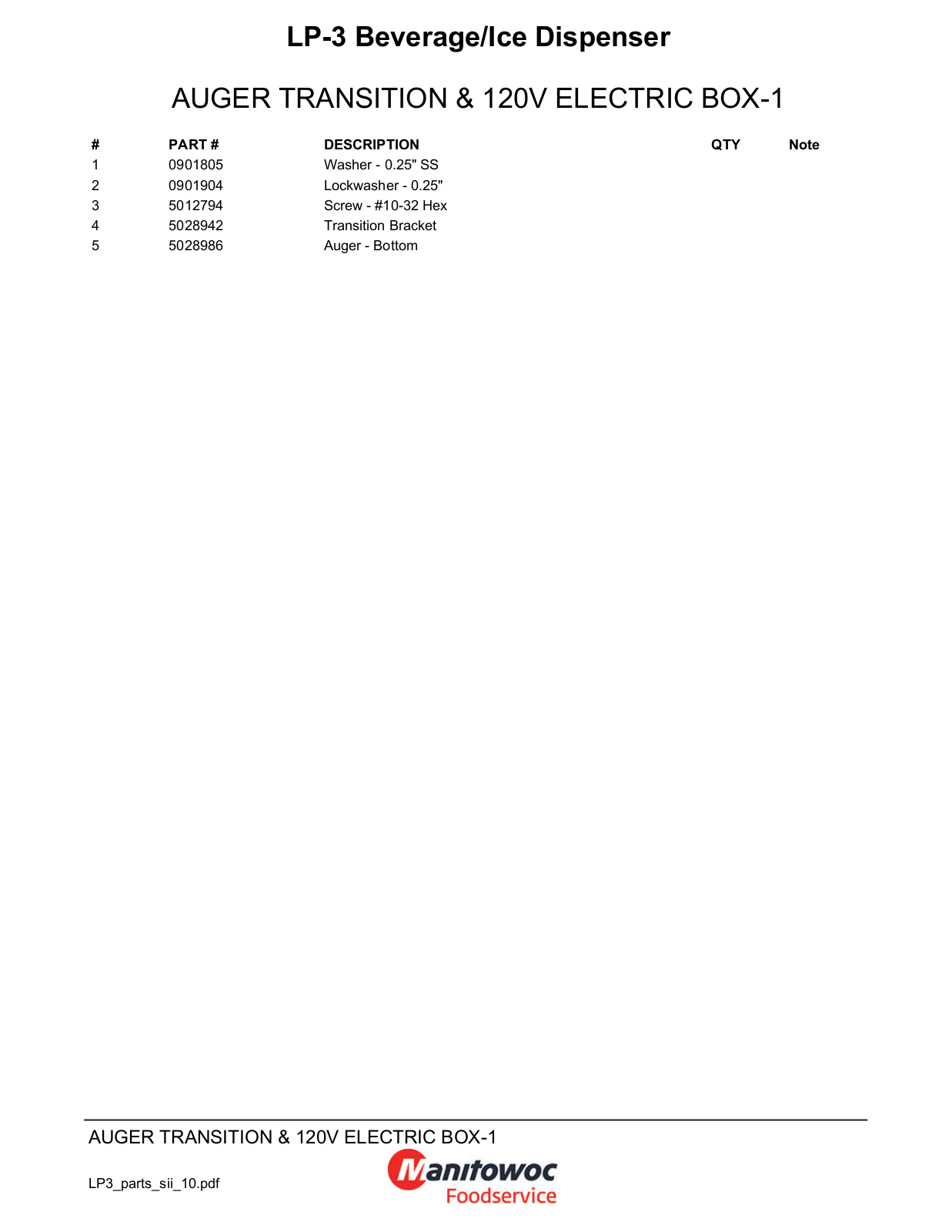

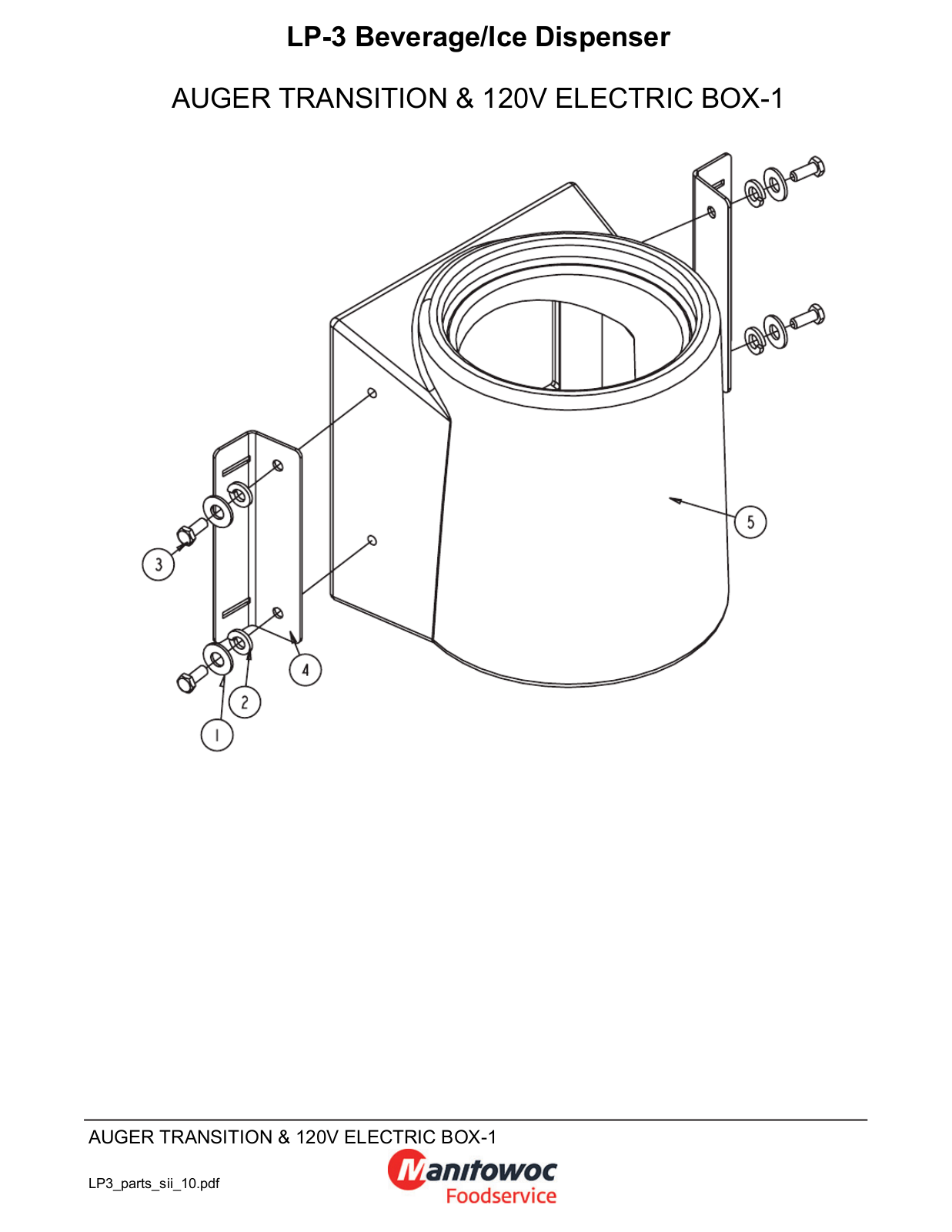

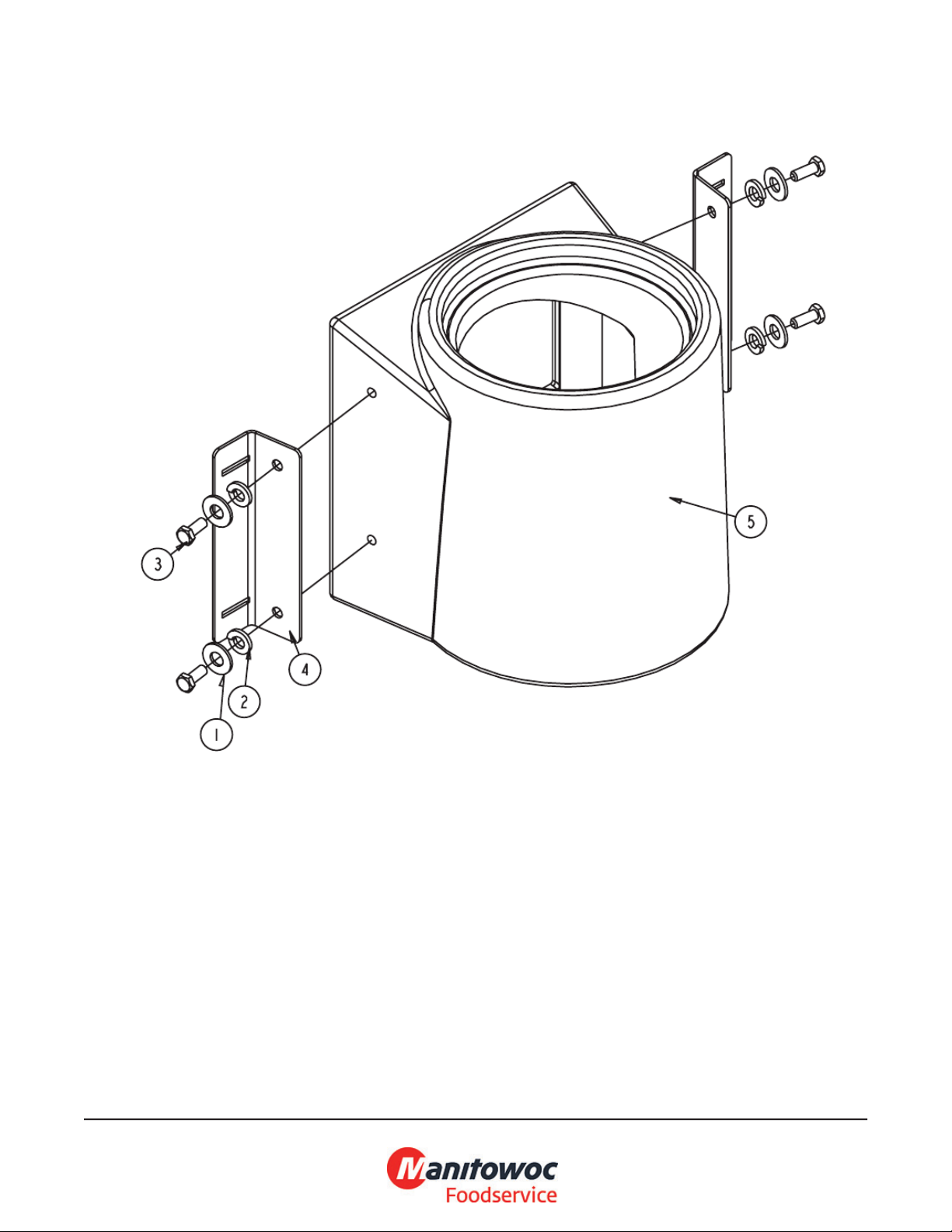

AUGER TRANSITION & 120V ELECTRIC BOX-1
AUGER TRANSITION & 120V ELECTRIC BOX-1
LP3_parts_sii_10.pdf
LP-3 Beverage/Ice Dispenser
AUGER TRANSITION & 120V ELECTRIC BOX-1
# PART # DESCRIPTION QTY Note
1 0901805 Washer - 0.25" SS
2 0901904 Lockwasher - 0.25"
3 5012794 Screw - #10-32 Hex
4 5028942 Transition Bracket
5 5028986 Auger - Bottom
AUGER TRANSITION & 120V ELECTRIC BOX-1
LP3_parts_sii_10.pdf
LP-3 Beverage/Ice Dispenser

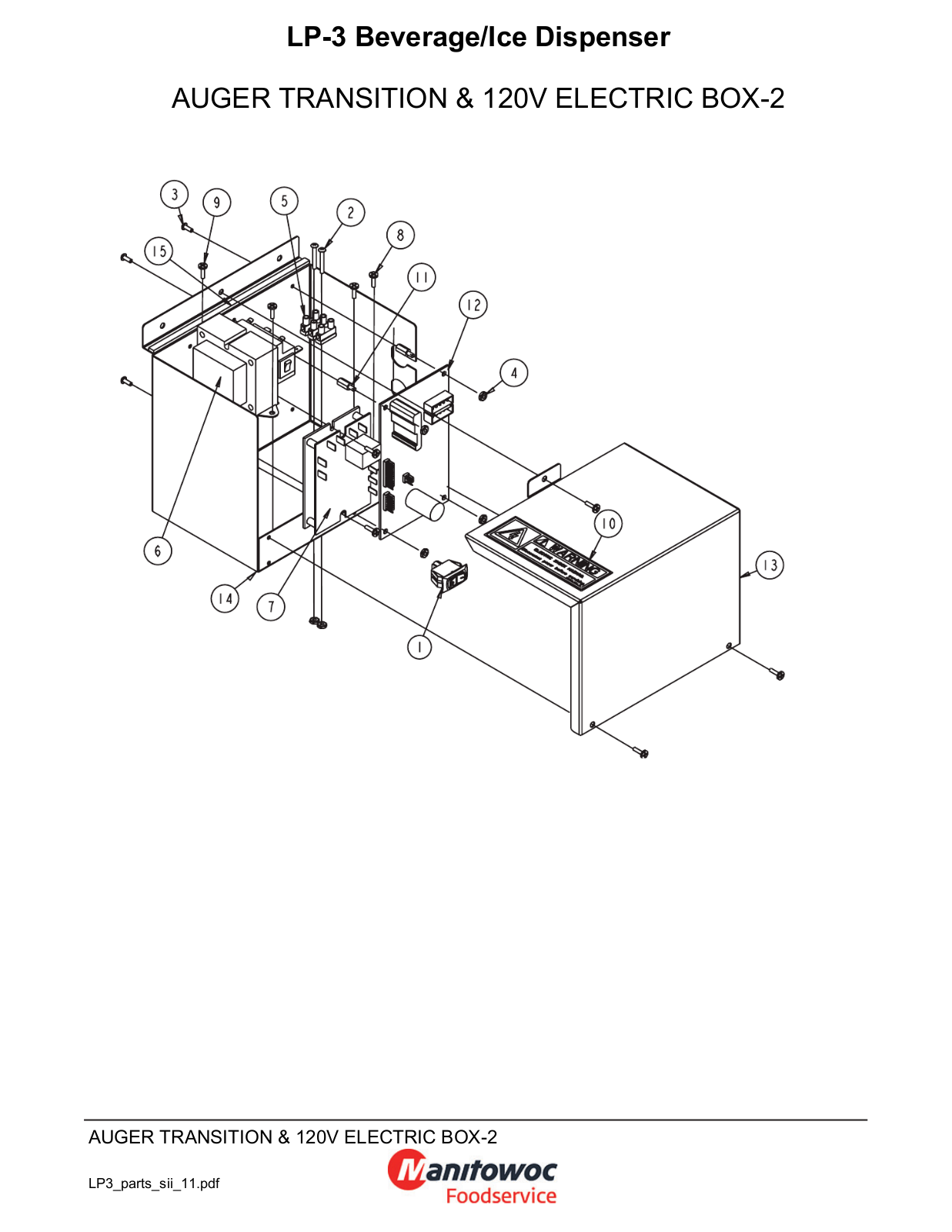

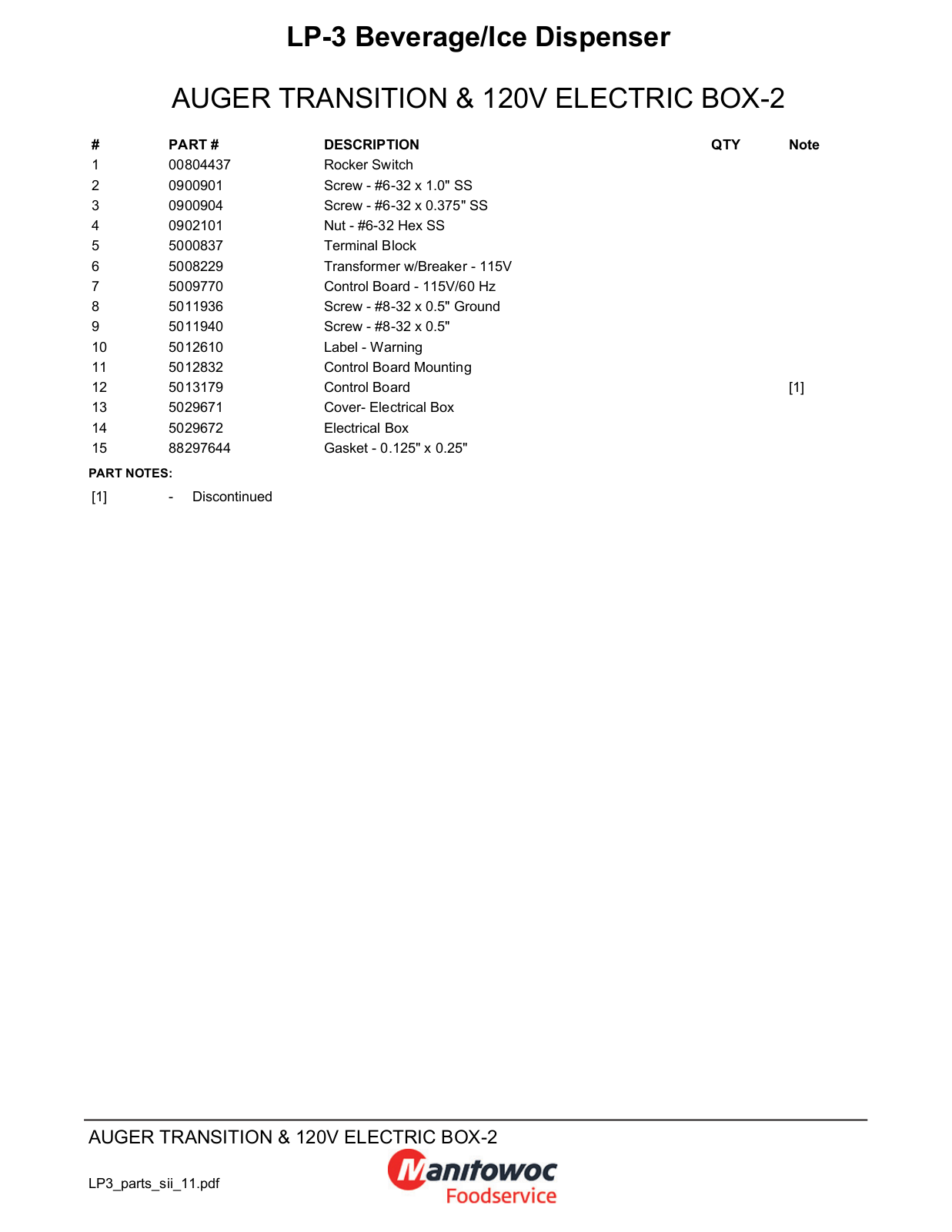

AUGER TRANSITION & 120V ELECTRIC BOX-2
AUGER TRANSITION & 120V ELECTRIC BOX-2
LP3_parts_sii_11.pdf
LP-3 Beverage/Ice Dispenser
AUGER TRANSITION & 120V ELECTRIC BOX-2
# PART # DESCRIPTION QTY Note
1 00804437 Rocker Switch
2 0900901 Screw - #6-32 x 1.0" SS
3 0900904 Screw - #6-32 x 0.375" SS
4 0902101 Nut - #6-32 Hex SS
5 5000837 Terminal Block
6 5008229 Transformer w/Breaker - 115V
7 5009770 Control Board - 115V/60 Hz
8 5011936 Screw - #8-32 x 0.5" Ground
9 5011940 Screw - #8-32 x 0.5"
10 5012610 Label - Warning
11 5012832 Control Board Mounting
12 5013179 Control Board [1]
13 5029671 Cover- Electrical Box
14 5029672 Electrical Box
15 88297644 Gasket - 0.125" x 0.25"
PART NOTES:
[1] - Discontinued
AUGER TRANSITION & 120V ELECTRIC BOX-2
LP3_parts_sii_11.pdf
LP-3 Beverage/Ice Dispenser

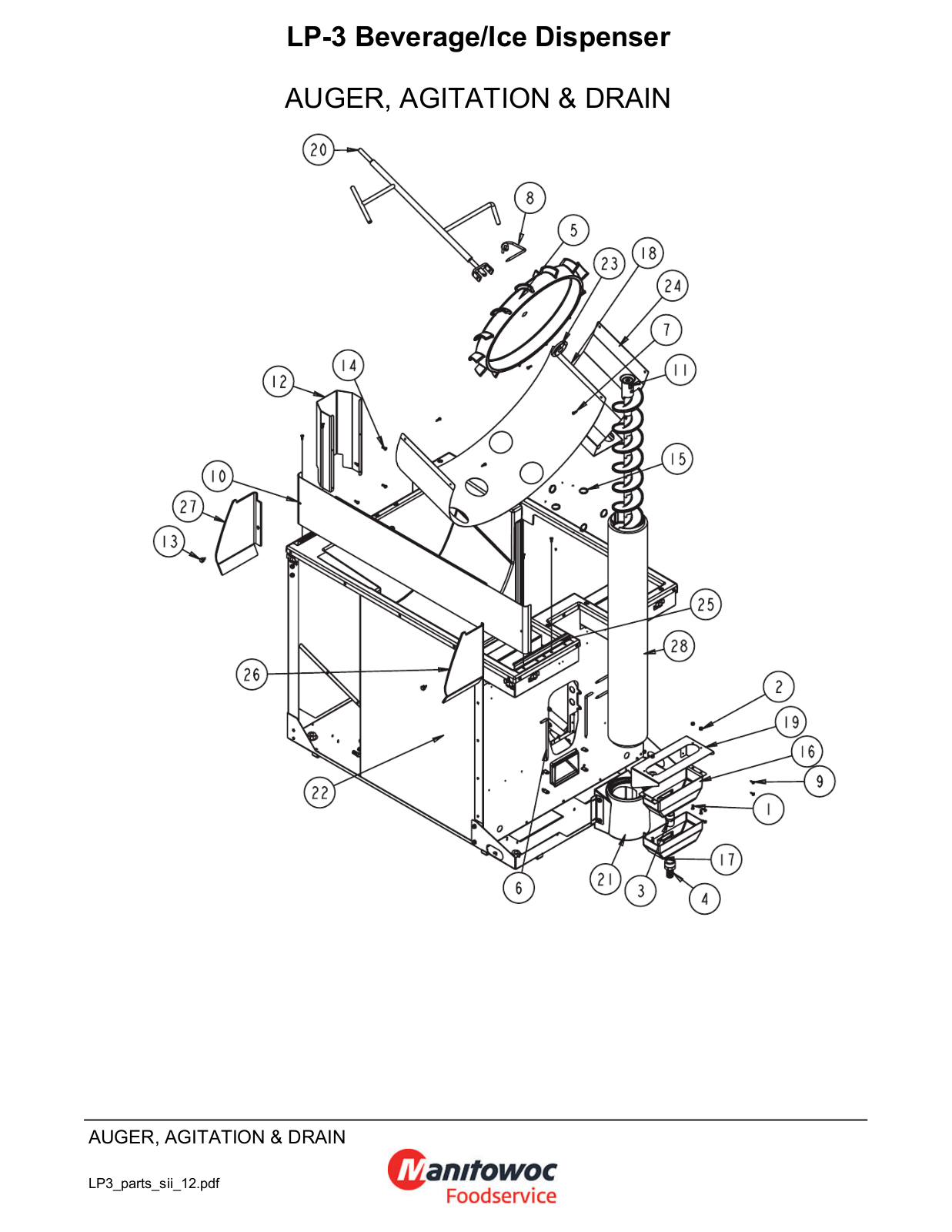

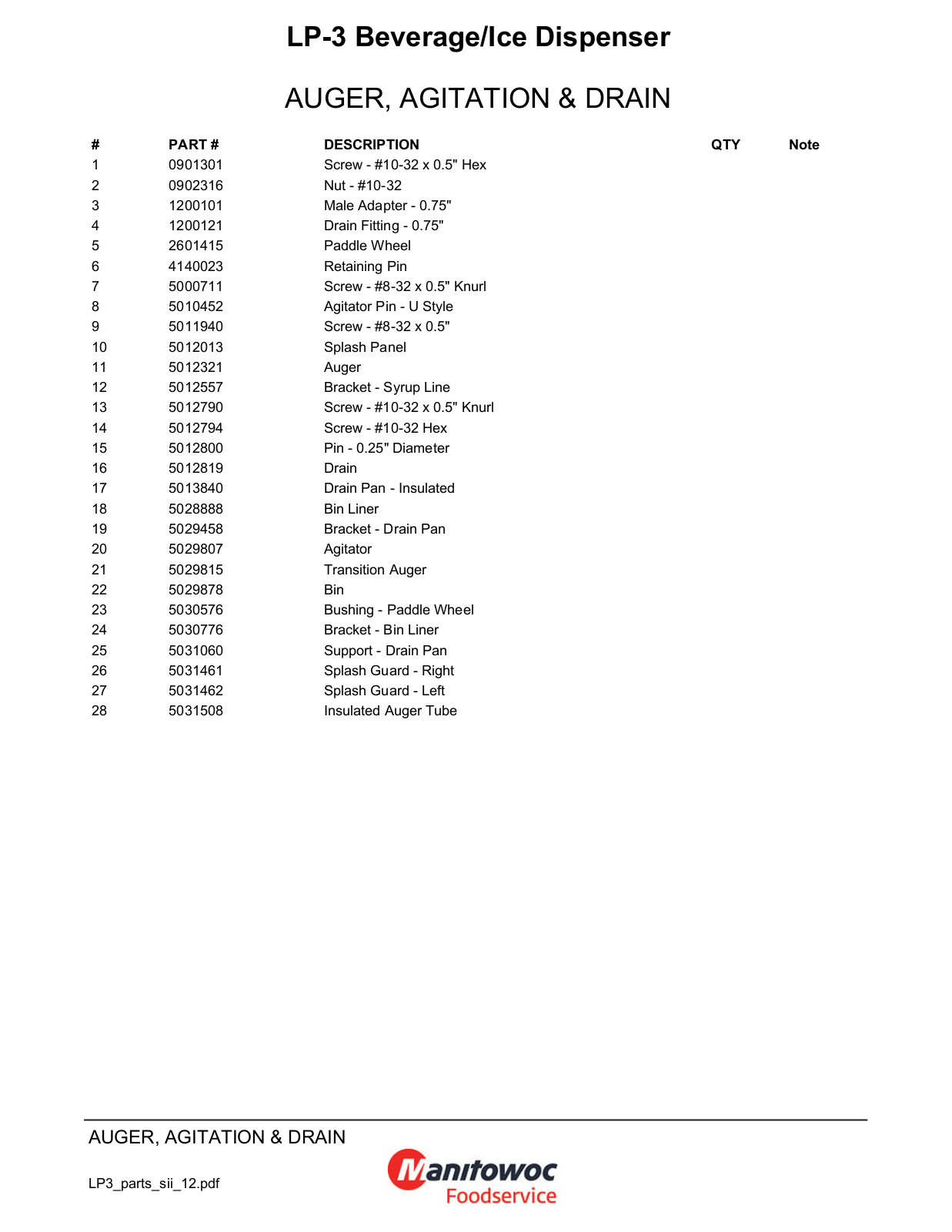

AUGER, AGITATION & DRAIN
AUGER, AGITATION & DRAIN
LP3_parts_sii_12.pdf
LP-3 Beverage/Ice Dispenser
AUGER, AGITATION & DRAIN
# PART # DESCRIPTION QTY Note
1 0901301 Screw - #10-32 x 0.5" Hex
2 0902316 Nut - #10-32
3 1200101 Male Adapter - 0.75"
4 1200121 Drain Fitting - 0.75"
5 2601415 Paddle Wheel
6 4140023 Retaining Pin
7 5000711 Screw - #8-32 x 0.5" Knurl
8 5010452 Agitator Pin - U Style
9 5011940 Screw - #8-32 x 0.5"
10 5012013 Splash Panel
11 5012321 Auger
12 5012557 Bracket - Syrup Line
13 5012790 Screw - #10-32 x 0.5" Knurl
14 5012794 Screw - #10-32 Hex
15 5012800 Pin - 0.25" Diameter
16 5012819 Drain
17 5013840 Drain Pan - Insulated
18 5028888 Bin Liner
19 5029458 Bracket - Drain Pan
20 5029807 Agitator
21 5029815 Transition Auger
22 5029878 Bin
23 5030576 Bushing - Paddle Wheel
24 5030776 Bracket - Bin Liner
25 5031060 Support - Drain Pan
26 5031461 Splash Guard - Right
27 5031462 Splash Guard - Left
28 5031508 Insulated Auger Tube
AUGER, AGITATION & DRAIN
LP3_parts_sii_12.pdf
LP-3 Beverage/Ice Dispenser

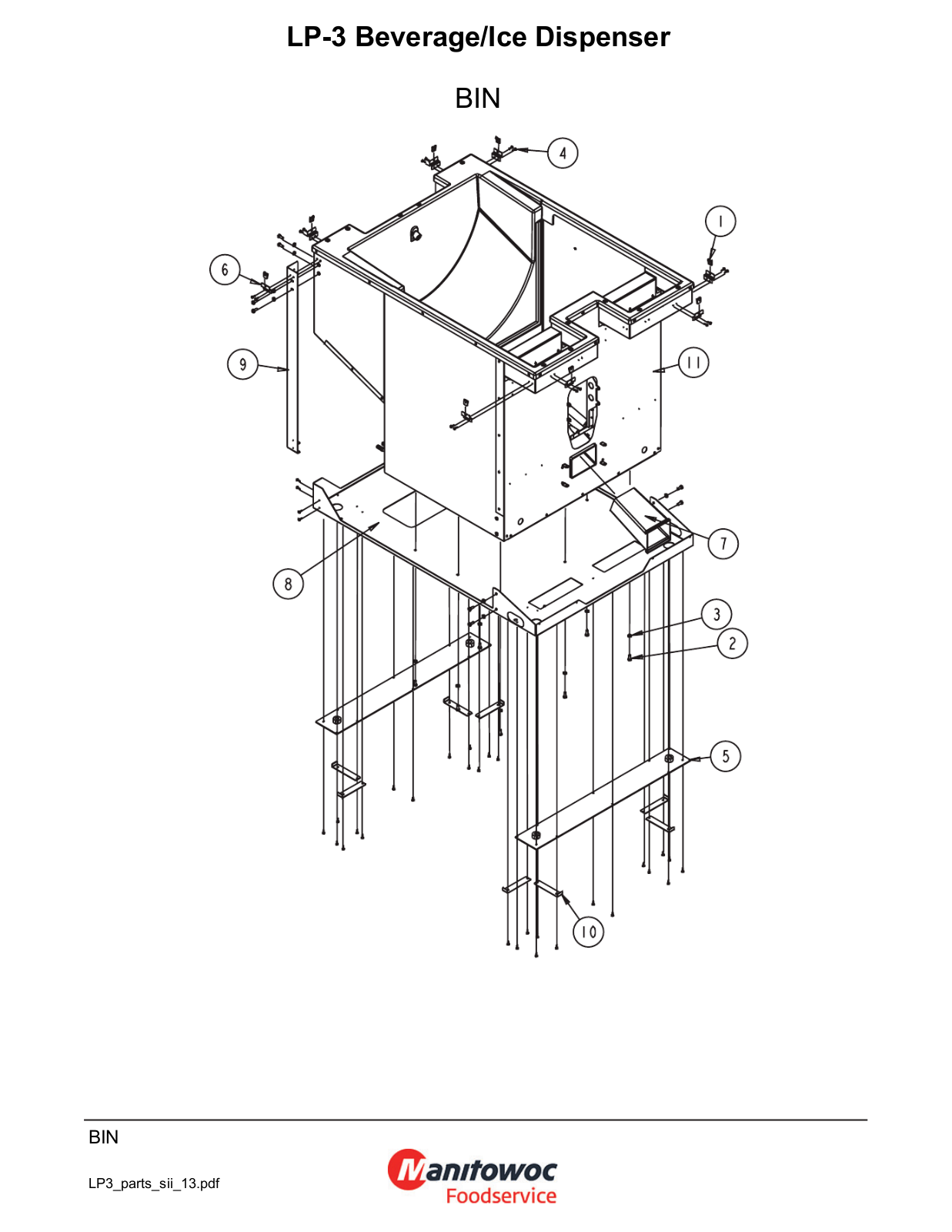

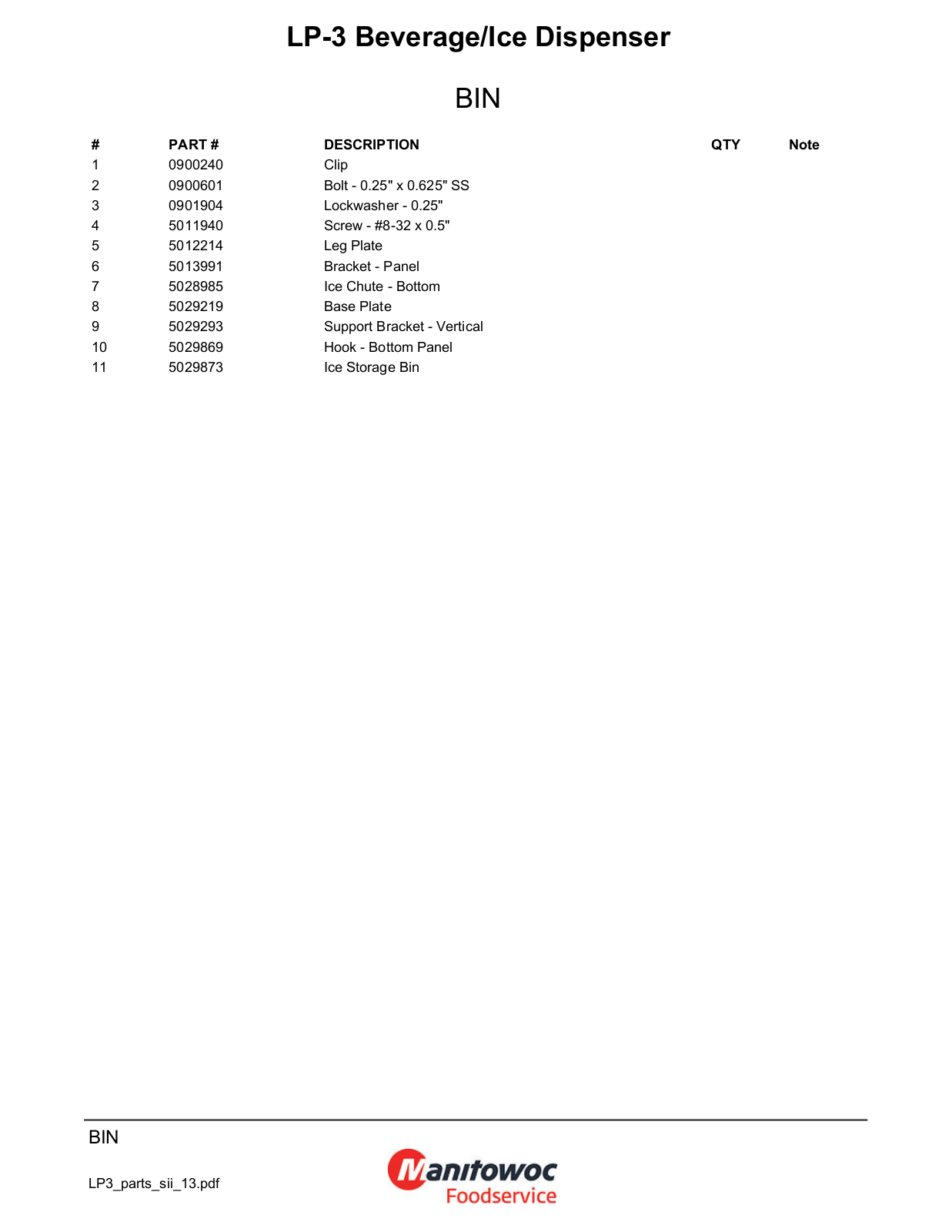

BIN
BIN
LP3_parts_sii_13.pdf
LP-3 Beverage/Ice Dispenser
BIN
# PART # DESCRIPTION QTY Note
1 0900240 Clip
2 0900601 Bolt - 0.25" x 0.625" SS
3 0901904 Lockwasher - 0.25"
4 5011940 Screw - #8-32 x 0.5"
5 5012214 Leg Plate
6 5013991 Bracket - Panel
7 5028985 Ice Chute - Bottom
8 5029219 Base Plate
9 5029293 Support Bracket - Vertical
10 5029869 Hook - Bottom Panel
11 5029873 Ice Storage Bin
BIN
LP3_parts_sii_13.pdf
LP-3 Beverage/Ice Dispenser

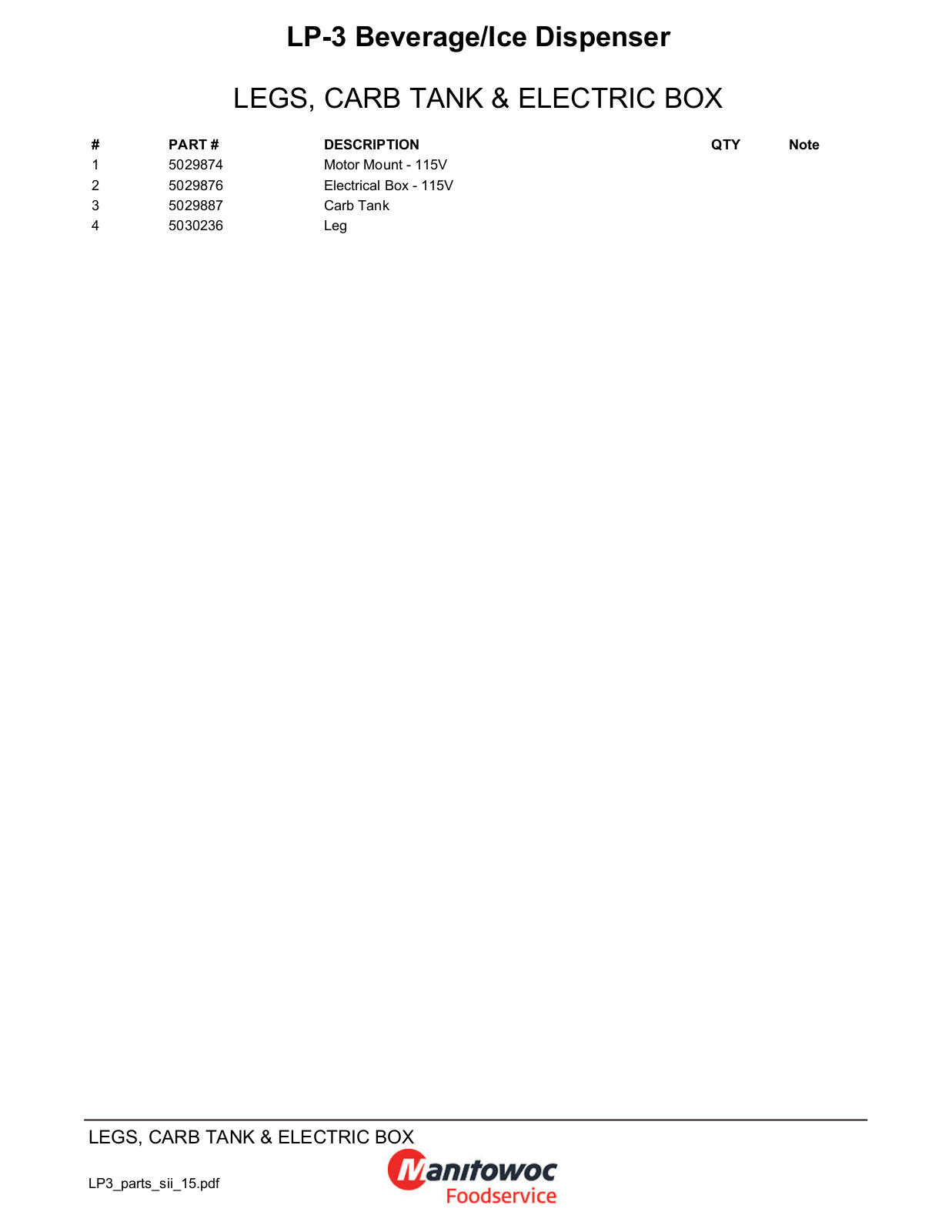

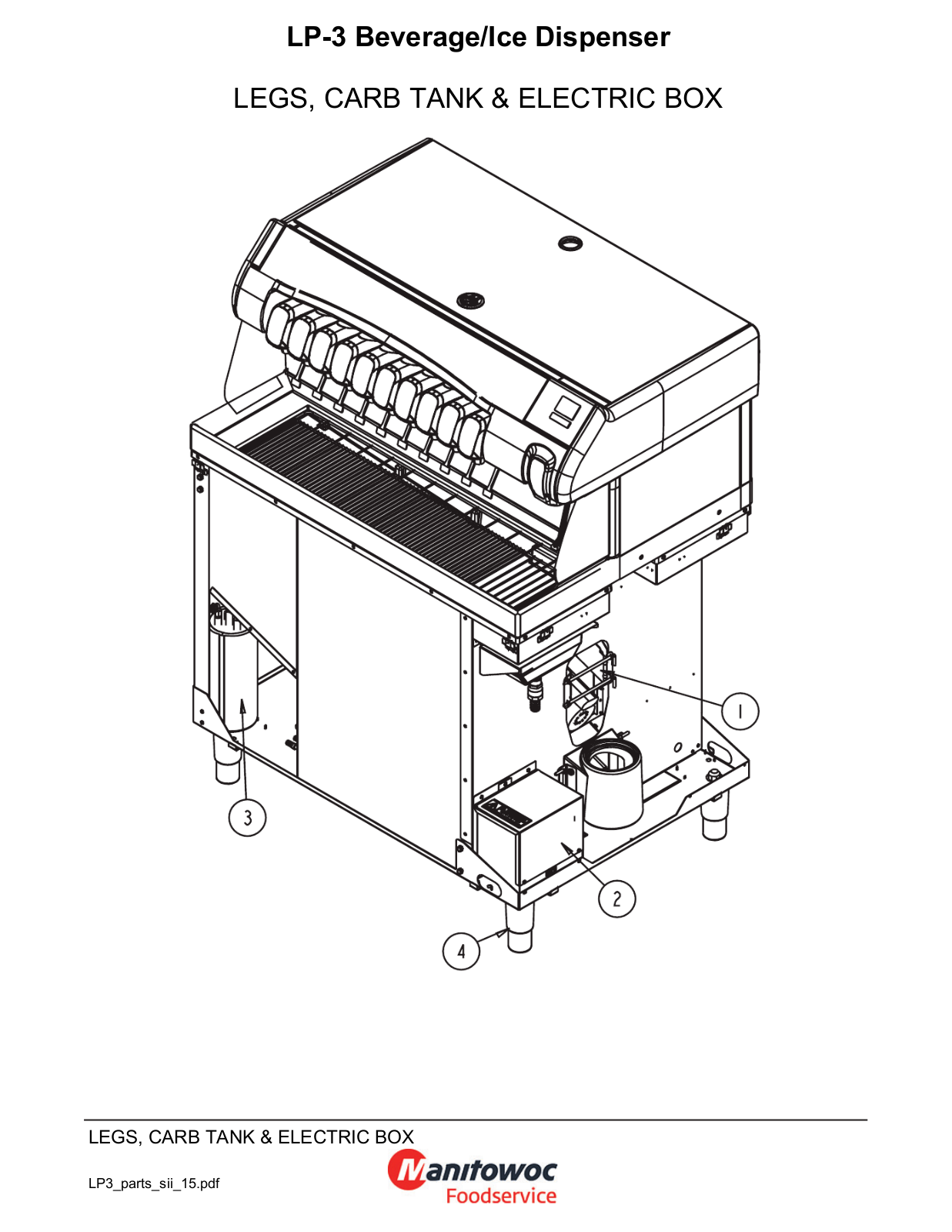

LEGS, CARB TANK & ELECTRIC BOX
LEGS, CARB TANK & ELECTRIC BOX
LP3_parts_sii_15.pdf
LP-3 Beverage/Ice Dispenser
LEGS, CARB TANK & ELECTRIC BOX
# PART # DESCRIPTION QTY Note
1 5029874 Motor Mount - 115V
2 5029876 Electrical Box - 115V
3 5029887 Carb Tank
4 5030236 Leg
LEGS, CARB TANK & ELECTRIC BOX
LP3_parts_sii_15.pdf
LP-3 Beverage/Ice Dispenser

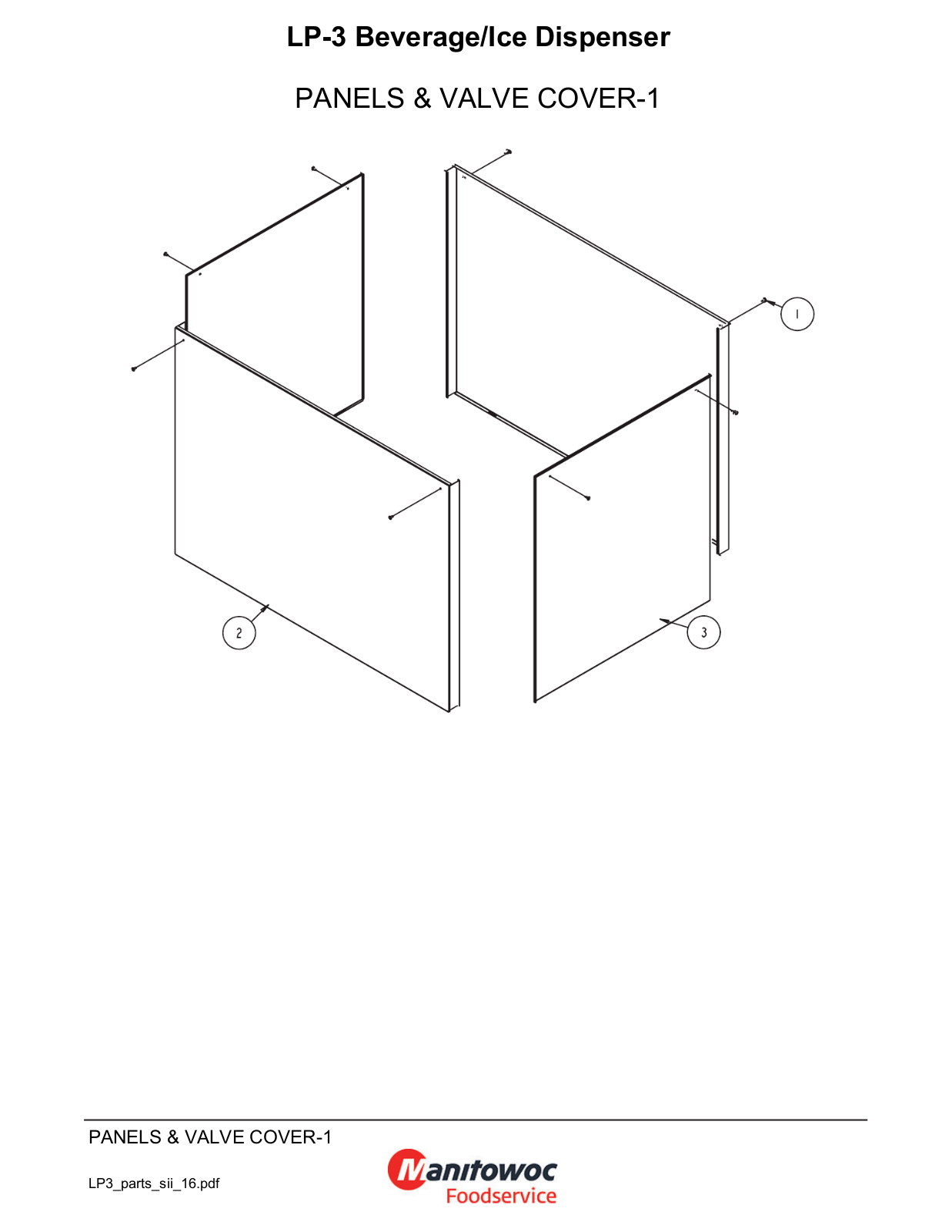

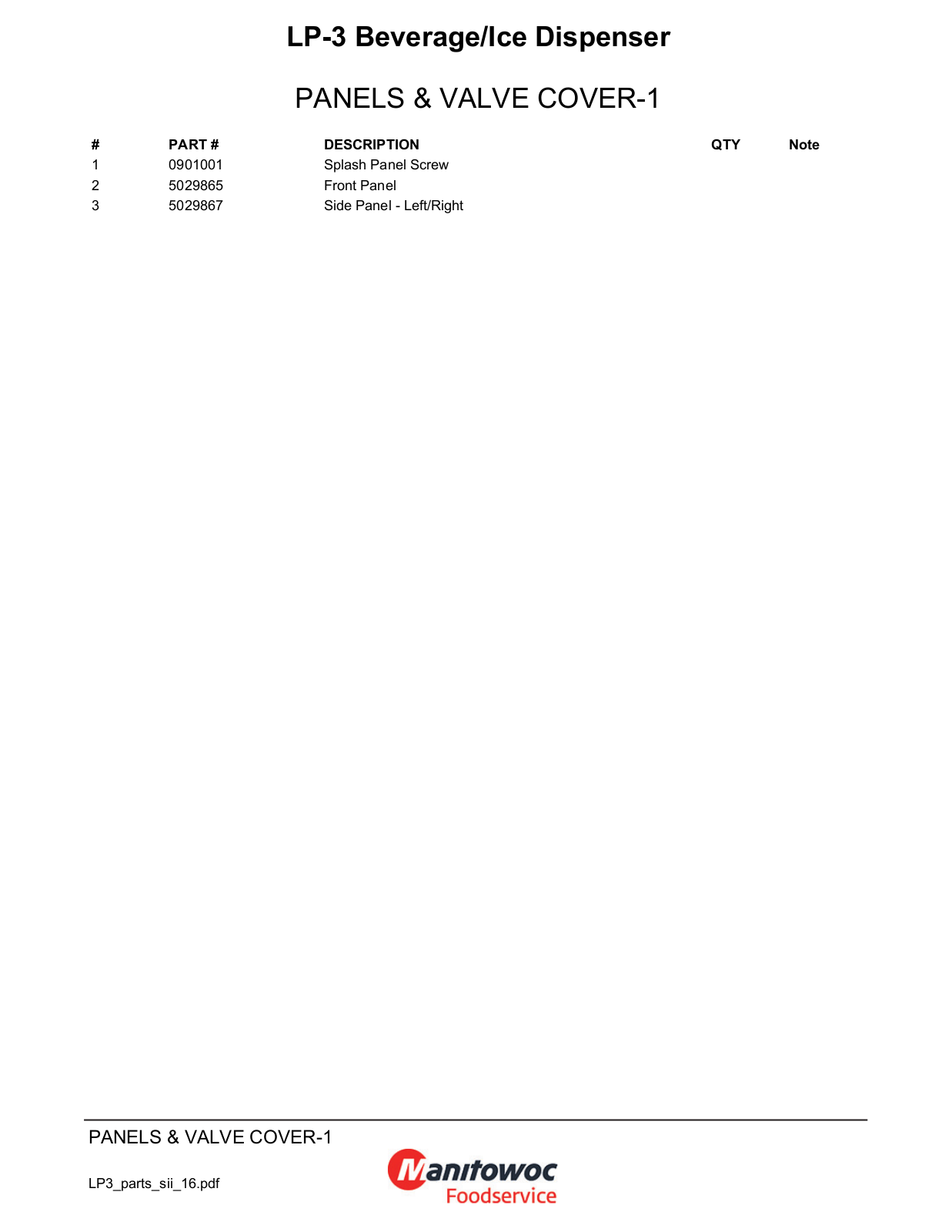

PANELS & VALVE COVER-1
PANELS & VALVE COVER-1
LP3_parts_sii_16.pdf
LP-3 Beverage/Ice Dispenser
PANELS & VALVE COVER-1
# PART # DESCRIPTION QTY Note
1 0901001 Splash Panel Screw
2 5029865 Front Panel
3 5029867 Side Panel - Left/Right
PANELS & VALVE COVER-1
LP3_parts_sii_16.pdf
LP-3 Beverage/Ice Dispenser

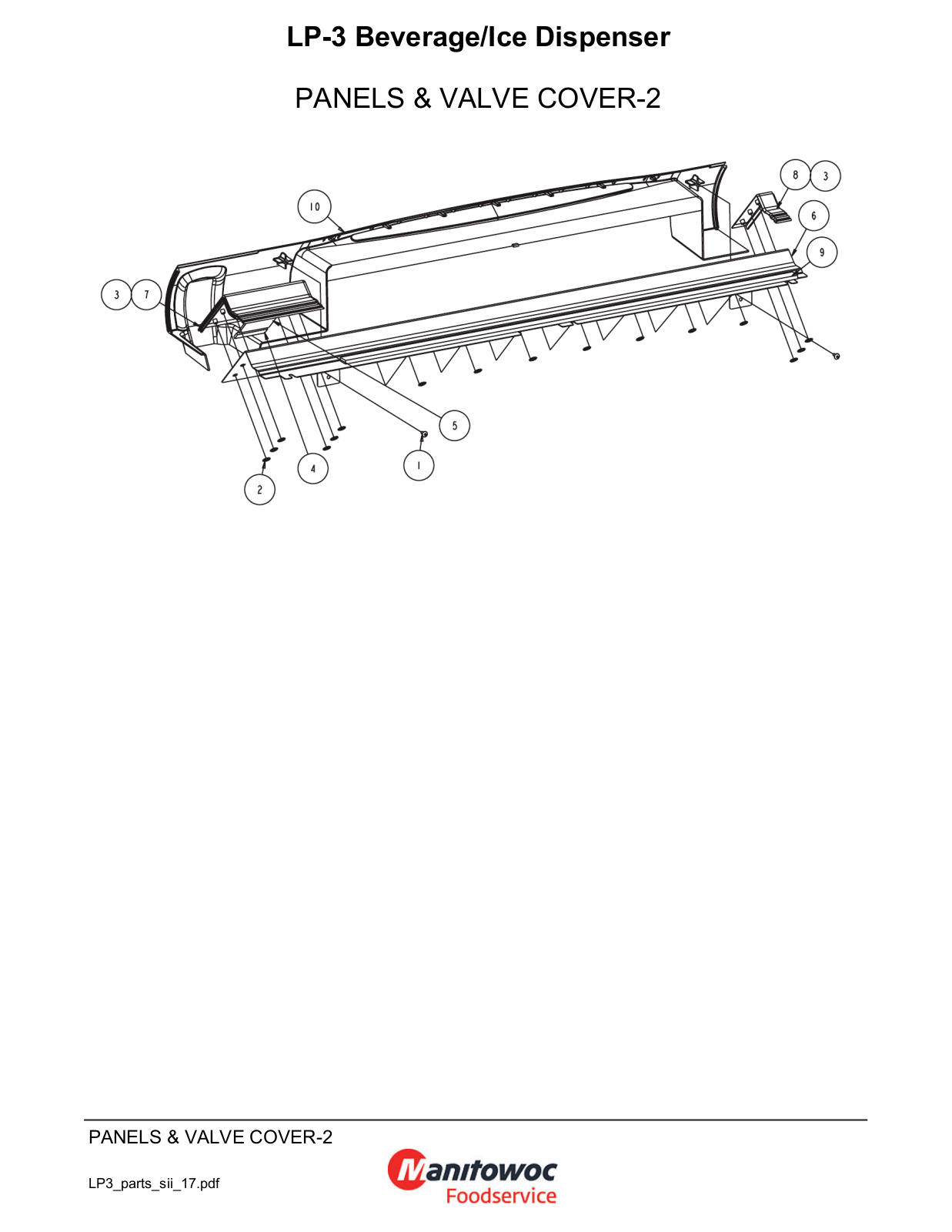

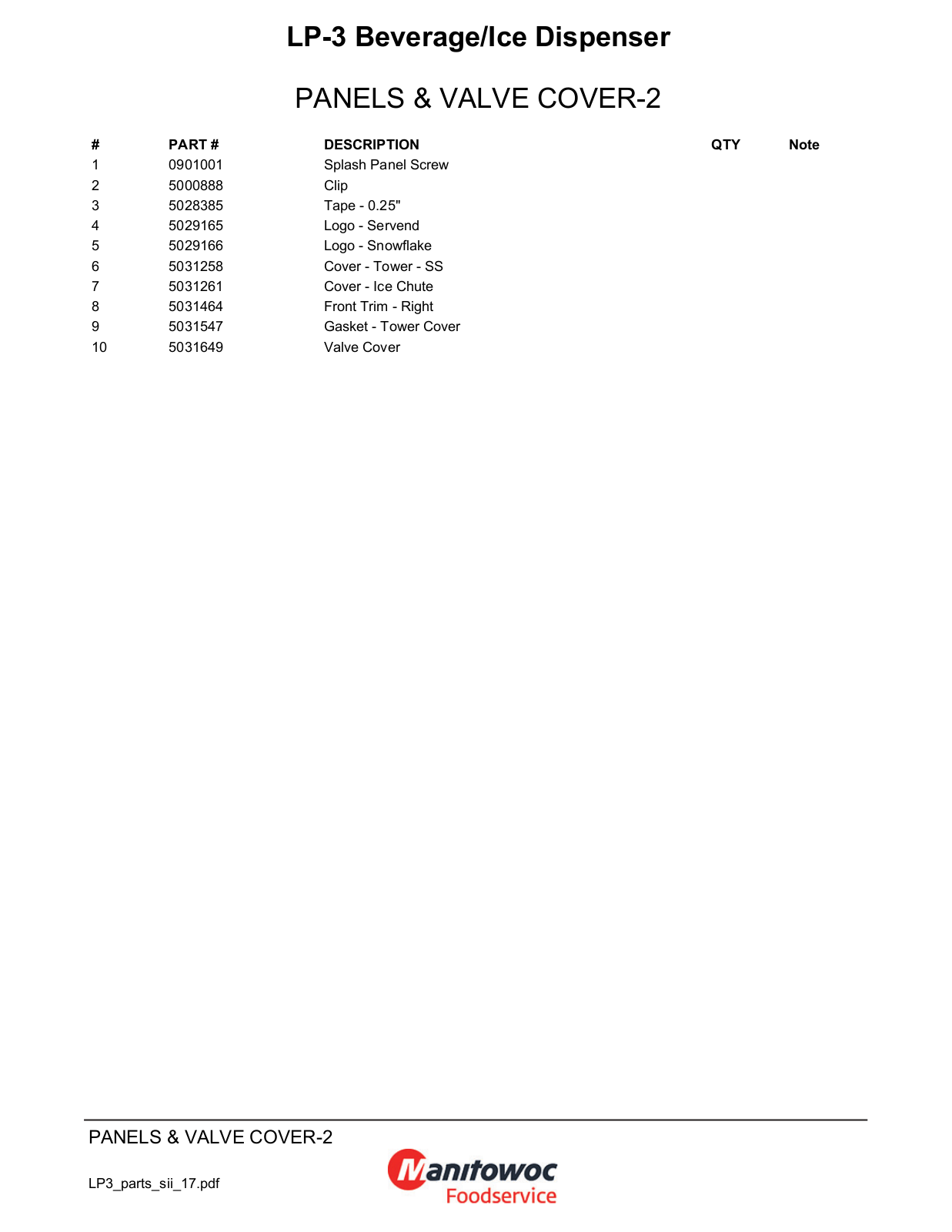

PANELS & VALVE COVER-2
PANELS & VALVE COVER-2
LP3_parts_sii_17.pdf
LP-3 Beverage/Ice Dispenser
PANELS & VALVE COVER-2
# PART # DESCRIPTION QTY Note
1 0901001 Splash Panel Screw
2 5000888 Clip
3 5028385 Tape - 0.25"
4 5029165 Logo - Servend
5 5029166 Logo - Snowflake
6 5031258 Cover - Tower - SS
7 5031261 Cover - Ice Chute
8 5031464 Front Trim - Right
9 5031547 Gasket - Tower Cover
10 5031649 Valve Cover
PANELS & VALVE COVER-2
LP3_parts_sii_17.pdf
LP-3 Beverage/Ice Dispenser

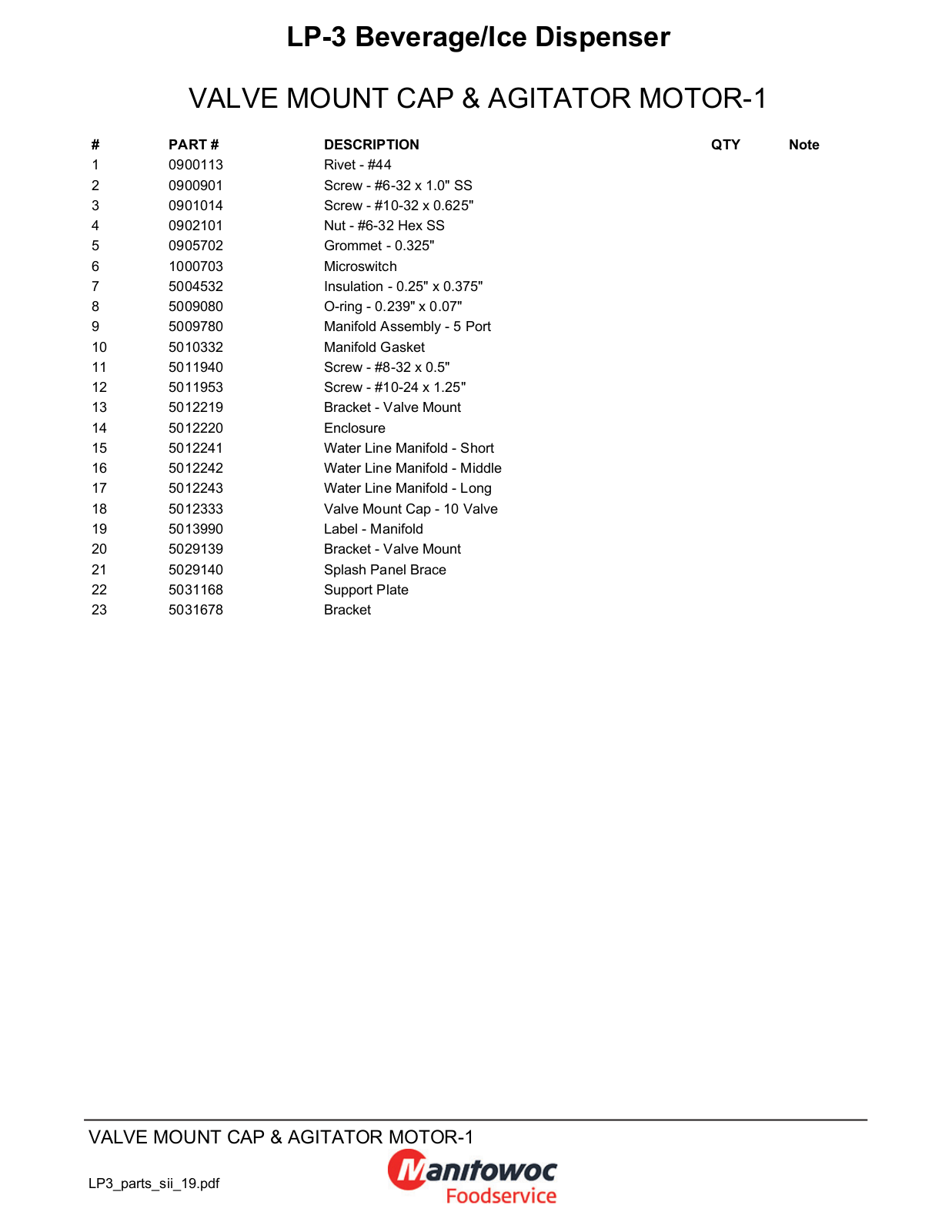

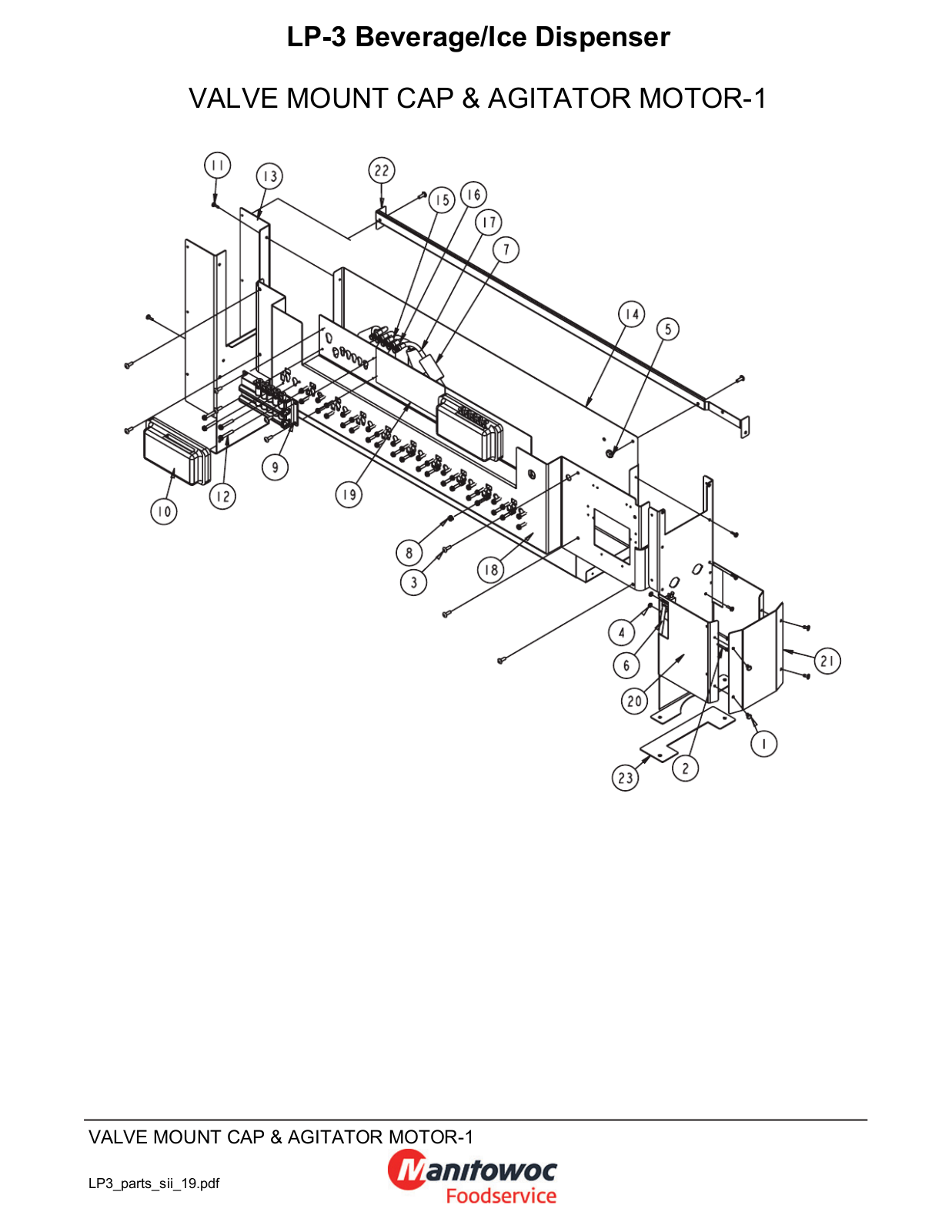

VALVE MOUNT CAP & AGITATOR MOTOR-1
VALVE MOUNT CAP & AGITATOR MOTOR-1
LP3_parts_sii_19.pdf
LP-3 Beverage/Ice Dispenser
VALVE MOUNT CAP & AGITATOR MOTOR-1
# PART # DESCRIPTION QTY Note
1 0900113 Rivet - #44
2 0900901 Screw - #6-32 x 1.0" SS
3 0901014 Screw - #10-32 x 0.625"
4 0902101 Nut - #6-32 Hex SS
5 0905702 Grommet - 0.325"
6 1000703 Microswitch
7 5004532 Insulation - 0.25" x 0.375"
8 5009080 O-ring - 0.239" x 0.07"
9 5009780 Manifold Assembly - 5 Port
10 5010332 Manifold Gasket
11 5011940 Screw - #8-32 x 0.5"
12 5011953 Screw - #10-24 x 1.25"
13 5012219 Bracket - Valve Mount
14 5012220 Enclosure
15 5012241 Water Line Manifold - Short
16 5012242 Water Line Manifold - Middle
17 5012243 Water Line Manifold - Long
18 5012333 Valve Mount Cap - 10 Valve
19 5013990 Label - Manifold
20 5029139 Bracket - Valve Mount
21 5029140 Splash Panel Brace
22 5031168 Support Plate
23 5031678 Bracket
VALVE MOUNT CAP & AGITATOR MOTOR-1
LP3_parts_sii_19.pdf
LP-3 Beverage/Ice Dispenser

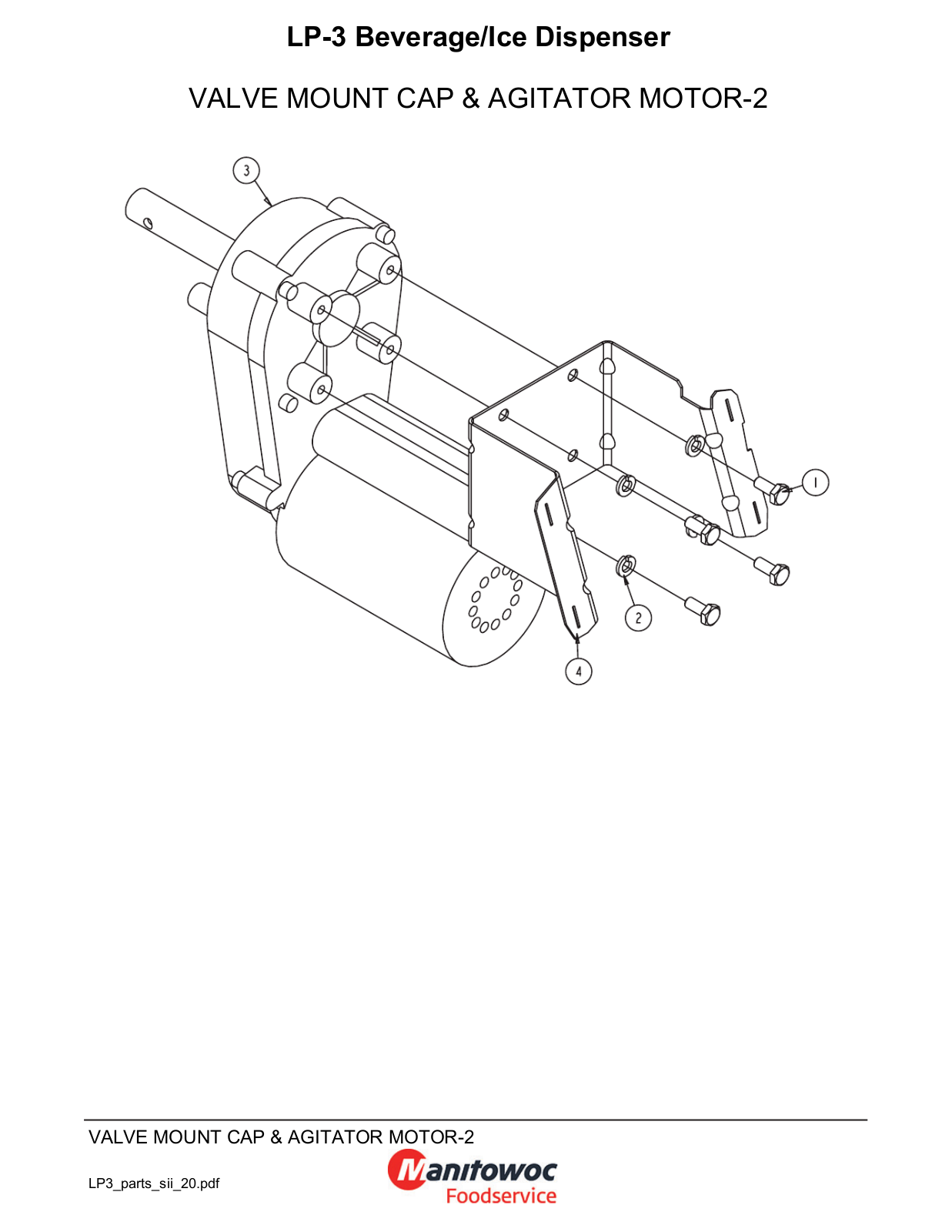

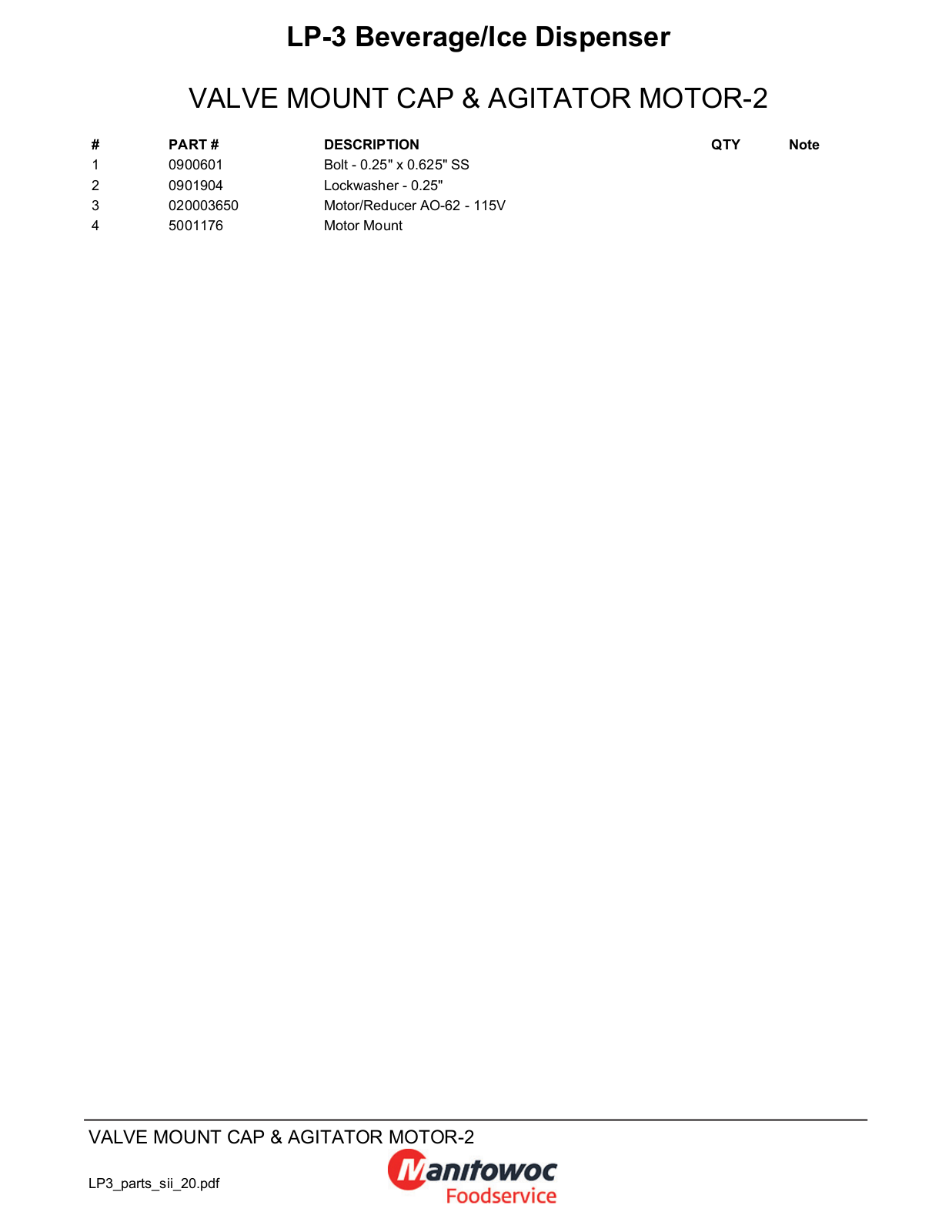

VALVE MOUNT CAP & AGITATOR MOTOR-2
VALVE MOUNT CAP & AGITATOR MOTOR-2
LP3_parts_sii_20.pdf
LP-3 Beverage/Ice Dispenser
VALVE MOUNT CAP & AGITATOR MOTOR-2
# PART # DESCRIPTION QTY Note
1 0900601 Bolt - 0.25" x 0.625" SS
2 0901904 Lockwasher - 0.25"
3 020003650 Motor/Reducer AO-62 - 115V
4 5001176 Motor Mount
VALVE MOUNT CAP & AGITATOR MOTOR-2
LP3_parts_sii_20.pdf
