H265 Series Dispenser
H265 BASE EXPLODED VIEW
H265 BASE EXPLODED VIEW
H_parts_sii_1.pdf
H265 Series Dispenser
H265 BASE EXPLODED VIEW
# PART # DESCRIPTION QTY Note
1 7015701 Agitator
2 2601415 Paddle Wheel
3 O101702 Mushroom Bushing
4 2600711 Power Cord - 115V/60 Hz
5 88295922 Legs - 6.0"
6 7015908 Motor Insulator Spacer
7 1001707 Capacitor Strap
8 0400232 Bin Insulator Gasket
9 020003650 Motor/Reducer AO-62 - 115V
9 5000869 Gear Motor - 220-240V
10 7015911 Motor Support - Bottom
11 7010053 Motor Brace
12 4540000 Motor Splash Guard
13 4545906 Drain Pan Assembly
14 4540042 Ice Bucket
19 4540058 Manual Fill Area Cover
20 2602011 Bin Support
21 5010452 Agitator Pin - U Style
22 0905413 Cable Clamp
23 7015914 Electric Box
24 1000507 Electric Junction Box Cover
25 0903903 Screw - #6 x 0.5" Ground
26 7015913 Door Assembly [1]
27 1001319 Agitation Timer - 100V/50-60 Hz
27 5000353 Agitation Timer - 240V/50 Hz
28 7010059 Timer Block Cover
29 0903205 Radiator Clamp - Size 72 Large
30 4540054 Front Panel Restraint Cable
PART NOTES:
[1] - See Page 16 For Components
H265 BASE EXPLODED VIEW
H_parts_sii_1.pdf
H265 Series Dispenser
H265 STANDARD FRONT EXPLODED VIEW
H265 STANDARD FRONT EXPLODED VIEW
H_parts_sii_6.pdf
H265 Series Dispenser
H265 STANDARD FRONT EXPLODED VIEW
# PART # DESCRIPTION QTY Note
15 1001120 Push Button Switch Assembly
16 4540008 Plastic Front Panel
17 4540056 Cable Restraint Bracket
18 5002739 Pushbutton Microswitch
H265 STANDARD FRONT EXPLODED VIEW
H_parts_sii_6.pdf
H265 Series Dispenser
H265 COIN MECHANISM EXPLODED VIEW
H265 COIN MECHANISM EXPLODED VIEW
H_parts_sii_2.pdf
H265 Series Dispenser
H265 COIN MECHANISM EXPLODED VIEW
# PART # DESCRIPTION QTY Note
1 194-6 Screw for top plate
2 17M-1 Pull back spring
3 194-4 Top plate assembly
4 194-11 Screw 6/40 x 3/4
5 194-7 Screw for slide stop
6 194-9 Slide stop
7 194-1BK Housing
8 18M-5 Ratchet dog
9 17M-4 Ratchet spring
10 194-3-A Bottom plate
11 194-3-2 Adjusting screw
12 194-3-1 Gauging screw [1]
13 194-3-3 Hex nut / screw gauging adjustment [2]
14 194-3-2A Adjusting stop for lug tokens [3]
15 194-3-3A Screw gauging adjustment [4]
16 194-2-X Slide
PART NOTES:
[1] - alternate to item # 14
[2] - alternate to item # 15
[3] - alternate to item # 12
[4] - alternate to item # 13
H265 COIN MECHANISM EXPLODED VIEW
H_parts_sii_2.pdf
H265 Series Dispenser
H265 COIN MECHANISM FRONT EXPLODED VIEW
H265 COIN MECHANISM FRONT EXPLODED VIEW
H_parts_sii_3.pdf
H265 Series Dispenser
H265 COIN MECHANISM FRONT EXPLODED VIEW
# PART # DESCRIPTION QTY Note
15 Coin slide [1]
16 5006233 Empty Light 115 Volt 60 Hz
16 5006233 Empty Light 115 Volt 60 Hz
16 5006707 Low Ice light 240 Volt 50 Hz
16 5006707 Low Ice light 240 Volt 50 Hz
16 5006707 Low Ice light 240 Volt 50 Hz
17 4542005 Coin mechanism reinforcement plate
22 5003919 Front panel for coin mechanism Complete assembly
22 4542010 Front panel for coin mechanism Front only
27 4542017 Coin box
29 0200909 Money box with key
30 4542020 Coin box bracket
31 1001601 Low Ice Thermostat
32 0301209 Empty when lit sticker
33 0301336 Coin Mechinism sticker
34 88297696 Screws for coin mechanism 10-32 x 1/2 "
35 1001301 Dispense Timer - Coin Operation
PART NOTES:
[1] - See H265 COIN MECHANISM EXPLODED VIEW
H265 COIN MECHANISM FRONT EXPLODED VIEW
H_parts_sii_3.pdf
H265 Series Dispenser

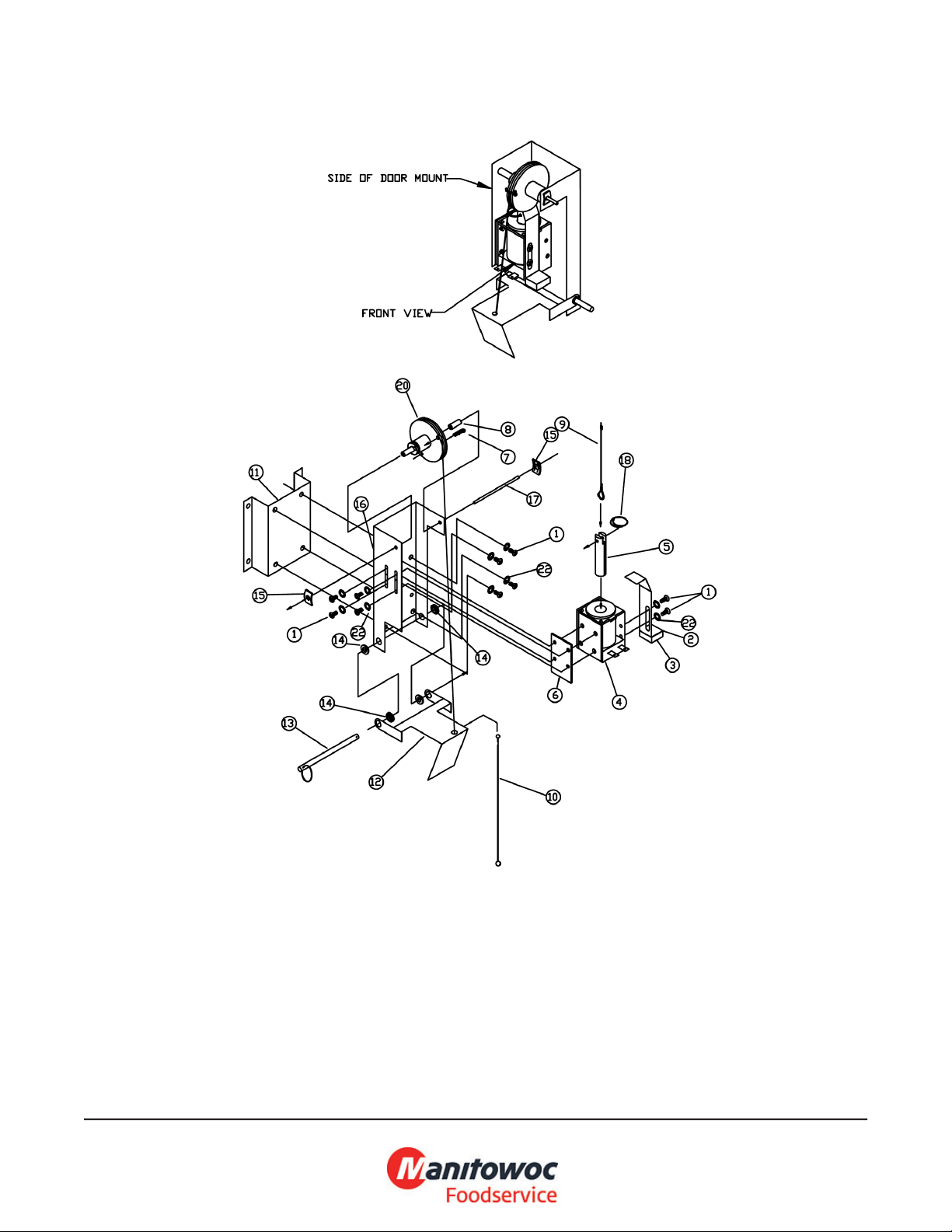

H265 DOOR EXPLODED VIEW
H265 DOOR EXPLODED VIEW
H_parts_sii_4.pdf
H265 Series Dispenser
H265 DOOR EXPLODED VIEW
# PART # DESCRIPTION QTY Note
1 0900911 Screw - #8-32 x 0.25" SS PH
2 7050014 Door Stop Assembly
3 2602422 Door Stop Foam
4 1001202 Solenoid Coil 100 Volt 50/60 Hz
4 5000352 Solenoid Coil 240 Volt 60 Hz
5 Solenoid Plunger [1]
6 2602420 Solenoid Padding
7 0905209 Hitch Pin
8 2602407 Pulley Spacer
9 1100906 Cable Solenoid to Pulley
10 1100905 All other models
11 4530013 Door Mount Base
12 7010005 Door Assembly
13 0905218 Cotterless Hitch Pin
14 1100415 Door Bushing
15 0900231 Tinnerman Nut - #8-32
16 7010035 Solenoid Door Mount
17 7060009 Pulley Rod
18 0905251 Circle Cotter Pin
20 2602401 Pulley
22 0901915 Starwasher - #8 SS
PART NOTES:
[1] - included with coil
H265 DOOR EXPLODED VIEW
H_parts_sii_4.pdf
I
C
E
{
1
2
3
4
5
6
7
H265 Series Dispenser
H265 MASTER KEY SWITCH FRONT EXPLODED VIEW
H265 MASTER KEY SWITCH FRONT EXPLODED VIEW
H_parts_sii_5.pdf
H265 Series Dispenser
H265 MASTER KEY SWITCH FRONT EXPLODED VIEW
# PART # DESCRIPTION QTY Note
1 O904609 Lock assembly [1]
2 O904403 Knurl Screw - #8-32 x 0.5"
3 7055914 Cable restraint
4 1000701 Microswitch
5 4542002 Switch mounting plate
6 O904501 Microswitch extender
7 4542000 Key lock front panel
PART NOTES:
[1] - Customer supplied or use
H265 MASTER KEY SWITCH FRONT EXPLODED VIEW
H_parts_sii_5.pdf
H265 Series Dispenser
H265 WATER STATION FRONT EXPLODED VIEW
H265 WATER STATION FRONT EXPLODED VIEW
H_parts_sii_7.pdf
H265 Series Dispenser
H265 WATER STATION FRONT EXPLODED VIEW
# PART # DESCRIPTION QTY Note
1 1700171 Flomatic Water Valve 202
2 1701113 Washer - 0.25" White Nylon
3 1701150 Swivel Nut - 0.25" x 0.25"
4 1701122 Barbed Fitting - 0.375" x 0.25"
5 13.3-706R Clamp - 0.5" SS
6 2602565 Tubing - 72.0" w/0.25" Insulation
7 5001563 Front Panel
H265 WATER STATION FRONT EXPLODED VIEW
H_parts_sii_7.pdf
