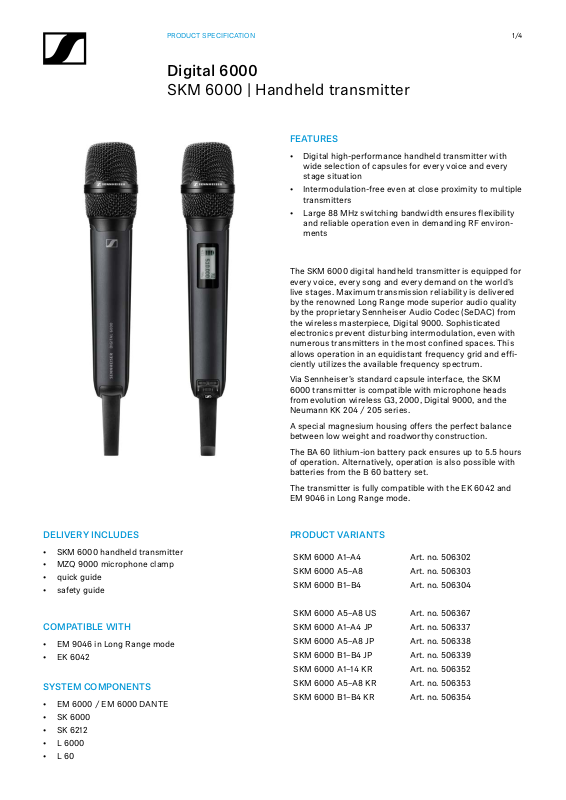

Sennheiser SKM 6000 BK Datasheet
PRODUCT SPECIFICATION
Digital 6000
SKM 6000 | Handheld transmitter
FEATURES
• Digital high-performance handheld transmitter with
wide selection of capsules for every voice and every
stage situation
• Intermodulation-free even at close proximity to multiple
transmitters
• Large 88 MHz switching bandwidth ensures flexibility
and reliable operation even in demanding RF environments
The SKM 6000 digital handheld transmitter is equipped for
every voice, every song and every demand on the world’s
live stages. Maximum transmission reliability is delivered
by the renowned Long Range mode superior audio quality
by the proprietary Sennheiser Audio Codec (SeDAC) from
the wireless masterpiece, Digital 9000. Sophisticated
electronics prevent disturbing intermodulation, even with
numerous transmitters in the most confined spaces. This
allows operation in an equidistant frequency grid and efficiently utilizes the available frequency spectrum.
Via Sennheiser’s standard capsule interface, the SKM
6000 transmitter is compatible with microphone heads
from evolution wireless G3, 2000, Digital 9000, and the
Neumann KK 204 / 205 series.
A special magnesium housing offers the perfect balance
between low weight and roadworthy construction.
The BA 60 lithium-ion battery pack ensures up to 5.5 hours
of operation. Alternatively, operation is also possible with
batteries from the B 60 battery set.
The transmitter is fully compatible with the EK 6042 and
EM 9046 in Long Range mode.
1/4
DELIVERY INCLUDES
• SKM 6000 handheld transmitter
• MZQ 9000 microphone clamp
• quick guide
• safety guide
COMPATIBLE WITH
• EM 9046 in Long Range mode
• EK 6042
SYSTEM COMPONENTS
• EM 6000 / EM 6000 DANTE
• SK 6000
• SK 6212
• L 6000
• L 60
PRODUCT VARIANTS
SKM 6000 A1–A4 Art. no. 506302
SKM 6000 A5–A8 Art. no. 506303
SKM 6000 B1–B4 Art. no. 506304
SKM 6000 A5–A8 US Art. no. 506367
SKM 6000 A1–A4 JP Art. no. 506337
SKM 6000 A5–A8 JP Art. no. 506338
SKM 6000 B1–B4 JP Art. no. 506339
SKM 6000 A1–14 KR Art. no. 506352
SKM 6000 A5–A8 KR Art. no. 506353
SKM 6000 B1–B4 KR Art. no. 506354
PRODUCT SPECIFICATION
Digital 6000
SKM 6000 | Handheld transmitter
SPECIFICATIONS ACCESSORIES
2/4
Frequency range 470 to 718 MHz,
subdivided into 3 ranges:
SKM 6000 A1 – A4:
470 – 558 MHz
SKM 6000 A5 – A8:
550 – 638 MHz
SKM 6000 B1 – B4:
630 – 718 MHz
Modulation scheme Digital modulation
Long Range Mode
Audio codec SeDAC (Sennheiser Digital
Audio Codec)
Switching bandwidth 88 MHz
Frequency stability < 5 ppm
Tuneability 25 kHz steps
Encryption AES 256 and Digital 9000
encryption
Lower cut-off-frequency
(−3 dB)
RF output power 25 mW rms, 50 mW peak
Audio frequency response 30 Hz to 20 kHz (3 dB)
Audio Gain Can be set in 3 dB steps
Operating time 5.5 h (with BA 60 battery
Power Consumption Max. 960 mW
Dimensions (H × W × D) 270 × 40 mm
Weight Approx. 350 g (with BA 60
Adjustable: 60 Hz, 80 Hz,
100 Hz, 120 Hz
from 0 dB to + 62 dB (for
each capsule)
pack)
battery pack and ME 9005
microphone module)
BA 60 Rechargeable battery Art. no. 504702
B 60 Battery compartment Art. no. 504700
Microphone heads:
MMD 835-1 BK dynamic, cardioid,
black
MMD 845-1 BK dynamic,
super-cardioid, black
MMD 865-1 BK condenser,
super-cardioid, black
MMD 935-1 BK dynamic, cardioid,
black
MMD 945-1 BK dynamic,
super-cardioid, black
MMK 965-1 BK true condenser,
switchable, black
MMK 965-1 NI true condenser,
switchable, nickel
MD 9235 BK dynamic,
super-cardioid, black
MD 9235 NI dynamic,
super-cardioid, nickel
MD 9235 NI/BKdynamic, super-
cardioid, nickel-black
ME 9002 electret, omni-
directional, black
ME 9004 electret, cardioid,
black
ME 9005 electret,
super-cardioid, black
Neumann
KK 204
Neumann
KK 204 BK
Neumann
KK 205
Neumann
KK 205 BK
condenser,
cardioid, nickel
condenser,
cardioid, black
condenser,
super-cardioid, nickel
condenser,
super-cardioid, black
Art. no. 502575
Art. no. 502576
Art. no. 502581
Art. no. 502577
Art. no. 502579
Art. no. 502582
Art. no. 502584
Art. no. 502585
Art. no. 502586
Art. no. 502591
Art. no. 502587
Art. no. 502588
Art. no. 502589
Art. no. 008651
Art. no. 008652
Art. no. 008653
Art. no. 008654
