Sega TOKIO-TABLET User Manual

1 What’s Included
The following components are included with your purchased product:
z 7 Inch Tablet PC z Power Adapter z USB Cable z Quick Guide z User Manual
2 Getting Started
Before using your Tablet PC for the first time, please read this manual carefully and follow the instructions as described below.
User Manual
3 Battery Charging
The tablet is equipped with a built-in rechargeable Lithium-ion battery. It is suggested to fully charge the battery before use. We strongly recommend using the power adapter included in the supplied packaging, using other adapter may damage the tablet and void the warranty. Charging Process z Connect the power adapter to your tablet, and plug the power
adapter into the nearest electrical outlet.
z Users can still use the tablet while it is being charged.
1
4 Appearance and Buttons
4.1 Webcam
4.2 Volume +, Volume-
Press on the Volume +, Volume – buttons to increase or decrease the sound volume.
4.3 Micro SD Card Slot
4.4 Power Jack
4.5 Micro USB Port
Connect to PC by using the USB cable provided for data transmissi on, charging or connect to external USB devices.
4.6 Earphone Jack
Standard 3.5mm earphone jack
4.7 Power Switch
Turn on/off tablet
4.8 Back Camera
2
5 Turn ON/OFF Tablet
5.1 Turn On: after the battery has been fully charged, press & hold the power
switch for around 3 seconds to turn on the device. Screen lock will be showed after starting up.
5.2 Turn Off: When the tablet is ON, press & hold the power switch for around 3 seconds and the system will popup out power off option, tap OK to turn off the tablet.
5.3 Lock screen: quickly press P ower Switch and release to lock screen.
5.4 Unlock screen: slide the lock icon toward onto the unlock icon to unlock the screen and go to main desktop.
3
Remarks:
z When battery power has been used up, the tablet will shut down itself
automatically .
z If you illegally turn off the device, restart will scan and rest ore the disk, it
may take longer time to enter into system.
6 Extended Storage
You can use Micro SD card as extended storage, this tablet accepts maximum 32GB branded Micro SD card.
6.1 Install the Micro SD card: insert the Micro SD card into the TF card slot of the tablet according to correct direction. The tablet will read the SD card as soon as the card is well installed.
6.2 Remove the Micro SD card: press on the card inward a little bit to unlock, then the card will be automatically ejected a little bit for your convenient removal.
6.3 Below are some important notices when use the Micro SD card: Put the card in the right direction(the cards back side should face
down to LCD screen) when insert it into the tablets card sl ot.
Do not remove the card while it is being reading or saving data.  Do not use the card in the conditions of high temperature.  Keep your card in a safe place from liquids and corrosive chemicals.
4
7 Connection with PC
7.1 Using the USB cable provided to connect the tablet with PC, an icon
will appear on the top of screen, tap on it, and tap on USB connected”, then below USB connection screen interface will pop up, tap Turn on USB storage” to connect to PC, in the connecti on mode, you can copy or delete the file from/to PC.
8 Tablet Desktop Interface
8.1 After starting up, you will enter into below main desktop screen interface:
8.2 On the main desktop interface, you can manage main interface app icons:
press on the icon and hold it for 3 seconds, then you can drag anywhere in
5
the main interface.
8.3 Delete icons: press the icon and hold it for 3 seconds, and drag the icon onto the icon, t hen you can delete that icon from desktop.
8.4 The desktop screen has been separated into two areas by a white line, touch on any blank area above the white line and hold your touch for around 3 seconds, the dialog box Choose wallpaper from” will pop out as shown below:
You can choose the wallpaper from different sources and change the wallpaper.
6
8.5 Status Bar Descriptions
Icons descriptions(at the bottom of the screen, from left to right): Back to previous interface; Back to main desktop screen ; Display the Apps performed previously; Screen shot; Volume decrease; Volume increase.
Icons descriptions (on the right top corner of the screen, from left to right): Bluetooth connection; Wi-Fi connection; Battery capacity; Current time.
8.6 Quick Guide For Touch Operations
z During operations, by tapping on the back icon at the left bottom
corner of the touch screen, you can return back to previous step or previous screen interface.
z No matter which interface you are on the screen, you can go back to main
desktop screen by tapping on the icon located at the left bottom corner of the main screen.
z Tapping on the icons to increase or decrease the sound volume. z Tap on to see all history of Apps performed previously.
You can drag the icons upward or downward to delete them from history. z On the main desktop interface, you can touch the icon to see all the
APPS, tap on any App icon and hold it for around 3 seconds, you can drag that App icon onto main screen interface.
7
9 Basic Settings
9.1 WIRELESS & NETWORKS
z Wi-Fi
Tap on Wi-Fi setting and slide the OFF bar rightward to ON position to open Wi-Fi, all available Wi-Fi networks will be listed, tap on your Wi-Fi network and start to connect. If the Wi-Fi network does not need a password, tap "connect" to start the connection; If the Wi-Fi network needs a password, then input the password and tap “connect” to start the connection. If the Wi-Fi network has been successfully connected before, that information will be stored, connection will be done automatically. Once your tablet connects to Wi-Fi successfully, the Wi-Fi icon will appear on the right top corner of the
screen.
If the Wi-Fi network has been hidden, tap on and follow the steps to add and connect the network manually. You can tap on menu key located at the right top corner to get more options and settings for your Wi-Fi network.
8
z Ethernet
Tap on Ethernet slide the OFF bar rightward to ON position to access Ethernet configuration
z Bluetooth
Tap on Bluetooth slide the OFF bar rightward to ON position, then the device will automatically sc an and list all available Bluetooth devices. Tap on the Bluetooth device name to start the connection. You can also tap on SEARCH FOR DEVICES to manually search all available Bluetooth devices, or tap on for more settings.
9
z Data Usage
To check the data usage details. You can also tap on for more settings.
z More
Select to tu r n on /off Airplane mode, to setup VPN, Portable hotspot and Mobile networks.
10
9.2 DEVICE
z Sound
Settings on Volumes(volume of media, alarms and notifications), Default
notification sound, you can also tick to select or untick to unselect the Touch sounds, Screen lock sound.
z Display Settings on display Brightness(slide the bar to adjust the screen
brightness), Wallpaper, Sleep(idle time before sleep), Daydream, Font size, and Accelerometer calibration.
11
Ǐ
z Storage
To view the internal storage details. You can also check the storage details of external Micro SD card, USB Disk, you can Erase the SD card(Erases all data in the SD card), unmount the SD card or external USB devices safely here.
Ǐ
Remarksǐ:
In order to safely remove the Micro SD card or USB Disk, please tap on
the option Unmount SD card or Unmount USB Disk”, confirm the selection, after this, you can safely remove SD card or USB Disk safely.
z Battery
To display the battery usage details.
12
z Apps
To Manage the applications. Tap on the directories(DOWNLOADED, ON SD CARD, RUNNING or ALL) and s elect the application which you want to uninstall, you will enter into the following screen interface, tap on Uninstall, then you can remove that application from tablet.
9.3 PERSONAL
z Location access
To turn ON/OFF the function of Access to my location and Wi-Fi & mobile network location”.
13
z Security
Settings for Screen lock, Owner info, Make passwords visible, Device
administrators, Unknown sources, Verify aps, Trusted credentials, Install from SD card, Clear credentials.
Screen lock: you can completely disable the screen lock, but it is recommended to use for protection, such as Pattern, PIN or Password.
Pattern: select "Pattern" and draw the unlock pattern by connecting at least 4 points, and then tap on "Continue", and draw the same pattern to confirm. After setting up the unlock pattern, whenever you unlock the screen, you need to draw the pattern before get the screen unlocked.
14
PIN: select "PIN" and enter at least 4 dig its, tap "Next" to input the same digits to confirm. A f ter se tting up th e unlock PIN, whenever you unlock the screen, you need to draw the pattern before get the screen unlocked
Password: select "Password" and enter your password, tap "Next" to input the same password to confirm. After setting up the unlock Password, whenever you unlock the screen, you need to draw the pattern before get the screen unlocked
15
Owner info: select "Owner info" and enter the owner info of the tablet, tick on the selection "Show owner info on lock screen", then your owner info will be displayed on each lock screen. Make password visible: select to make your password visible when you input the pa ssword.
Device administrators: view or deactivate device administrat ors. Unknown sources: select to allow installation of apps from unknown
sources. Ve ri f y a p p s: dis allow or warn before installation of apps that may cause harm to the tablet.
Trusted credentials: tap on it to see a list of trusted CA certificates. Install from SD card: install certificates from SD card.
16
z Language & input
Settings on language selection, option of spell checker, personal
dictionary, selection of Keyboard & Input methods, Google voice typing, and settings on Voice Search, Text-to-speech output, Pointer speed.
z Backup & reset
Option of Backup up my data”, to perform Factory data reset(erase all data on tablet).
 
Warning: once you perform the Factory data reset”, it will erase all personal data in tablet, make sure to back up your personal data before performing this function.
17
9.4 ACCOUNTS
z Add account
To add a corporate account, Email account or Google account by following the prompts.
9.5 SYSTEM
z Date & time
You can select to use network-provided date, time, or you can manually setup date, time and time zone and you can also select to use 24-hour time format and choose the date format
18
z Accessibility
You can setup some system settings here. You can choose the options of
Large text, Auto-rotate screen, and you can setup the Accessibility shortcut, Text-to-speech output, Touch & hold delay, Enhance web accessibility, System performance.
z Developer options
Some advanced settings for the tablet.
19
z About tablet
Some additional informations about your tablet.
10 Apps Installation
You can download the App s from Google Play S tore and install them online, or you can install the Apps from your Micro SD card or USB devices. Just tap on the APK file and run the installation, you can finish the installation and run that App right away.
Remarks:
Make sure the below option has been selected before you install any apps from Micro SD card or USB devices: Settings Security Unknown sources
20
11 Introductions of Basic Applications
z Browser
After connecting your tablet to Wi-Fi network, tap the Browser icon on desktop to open web browser. The following interface pops up immediately:
Then you can start web surfing now, during web surfing, tap on the menu icon located at the right top corner of the screen to get more options:
Refresh: to refresh the page Forward: if you go back to previous page, use Forward to go to the page
just visited.
New tab: to open a new page. New incognito tab: pages that you view wont appear in browser history
or search history.
Share Page: share the page with your friends via mail. Find on page: to search on page. Request desktop site: to set the page as desktop site. Save for offline reading: to save the page for offline reading. Page info: to show the page that you visited. Settings: more settings on General, Privacy & security, Accessibility, Advanced, Bandwidth management, Labs, Browser Mode.
21

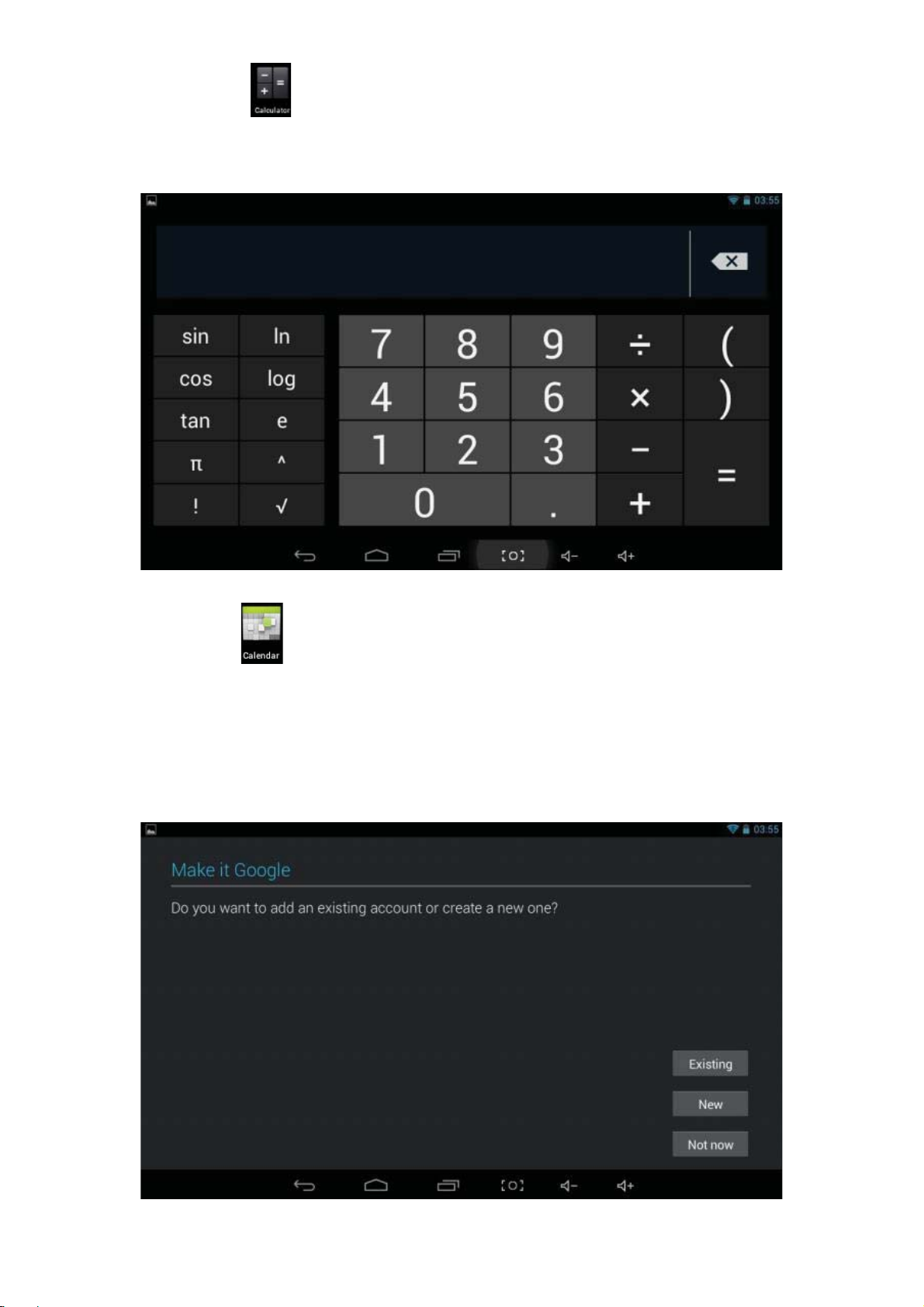

z Calculator
The tablet is with built-in calculator, tap on the Calculator icon to carry out your calculations:
z Calendar
Users can use the Calendar to check date, time and memorandum or add memorandum etc. But before doing this, you have to sign in the Google Account.
1 Tap on the Calendar icon, then a dialog box of “Make it Google” will
pop up.
22
2 If you do not have a Google Account, then tap “New” to create a new
Google account, if you already had a Google Account, tap on Existing” to sign in, tap Not now to quit the sign in.
3 After tapping on “Existing, you need to input your Google account
and password, then tap “Sign in” to go forward.
4 After you finish the sign in, you will enter into below calendar
interface. You can check date and add memorandum etc. To add a memorandum, tap on the icon , tap on the menu button to popup more options of Refresh, Search, Calendars to be displayed, settings.
z Camera
Tap on the Camera icon to run the application. The camera is located at the right corner of tablet top, aim at it when you take photo or video. Tap to start to take photo or video. Tap on the icon to switch between Panorama mode, photo mode and video mode. If you want to take photo, select the icon to take photo; if you want to take video, select the icon to take video. Tap on the icon to get more settings for the photograph, tap on the icon to switch between front camera and back camera.
The photos or videos will be saved automatically to internal memory, select “File ManagersdcardDCIMCamera” to see the photos or videos just took. When you are running the camera, you can also view the photos or
23
videos which were just took by sliding the screen. When you view the
photos or videos, tap on the menu icon to get more options of Delete, Slideshow, Edit, Rotate left, Rotate right, Crop, Set picture as, Details.
z Clock
Tap on the Clock icon to run the application. After running the Clock application, you can setup alarm clock, your location. Tap on menu icon for more settings on your clock. It also has the function of timer and stopwatch . .
24
z Downloads
Run the app to check all downloads history.
z Email
You can enter one or more personal email address which you would like to access through this tablet. Tap on Email icon to setup your email account according to the procedures. You can receive or send e-mails after set up. To read emails, tap on the Email icon, it will access email inbox right away and show you all the e-mails you received. If you have setup multiple accounts, tap on the Inbox icon located at the left top corner of screen, you can see all the email accounts, access to t he desired email account by tapping on it, tap on the specific email which you want to read. You can also Reply, Reply all, Forward or Delete the emails. On the Inbox screen, you can Compose New Email, Refresh Inbox, type on menu icon for more settings on your Email account.
z Gmail
After you signed in the Google Account(when you run the Calendar app), tap on the Gmail icon, all emails will be listed, tap on the email which you want to read. You can Reply, Reply all, Forward or Delete your e-mail, you can also Compose new e-mail, Search, Label the emails and
25
refresh the inbox. Type on menu icon for more settings on your Email account.
z File Manager
Tap on File Manager icon to browse the files saved in your memory devices(Internal Storage, External SD card or U-Disk). You can also view the files by categories(Music, P icture, Movie, Ebook).
Tap on corresponding memory devices(Internal Storage, Exte rna l SD card or U-Disk) to see the files inside. Tapping on the file and hold it for 3 seconds, you will have the options of: Delete File, Rename File, Copy File, Move( C ut) File, Email File, send by Bluetooth and Property. You
can also Copy, Move or Paste files between each memory device. When you tap on a folder and hold it for 3 seconds, you will have the options of
Delete Folder, Rename Folder, Copy Folder, Move(Cut) Folder, Zip Folder, Paste into folder, Extract here and Property.
How to copy file: tap on the file and hold it for 3 seconds, select Copy, then tap & hold on the folder which your file needs to be copied into, select Paste into folder to copy your file into that folder.
z Play Store
After you signed in the Google Account(when you run the Calendar app ), tap on the Play Store icon to enter into Play Store. You can download more apps from the Play Store.
26
If you want to download apps from Play Store, tap on the app icon which you want to download, follow the procedures to download the app and install it onto you tablet.
z Music
To play the music, tap on the Music icon to run the application. All songs will be listed and tap on your desired song to play it.
z Sound Recorder
To start the sound recorder, tap on the Sound Recorder icon to run the application. Tap on the icon Tap on the icon Tap on the icon to switch the recording file format, AMR or AAC. Once you stop the recording, system will prompt:
to start recording.
to stop recording.
Discard Done
Tap on Discard to discard the recording; Tap on Done to save the recording. Tap on the icon The recorded files can be found under File Manager folder.
to play the recording just recorded.
27
z Gallery
To play the videos or photos, tap on the Gallery icon to run the application. All videos and photos will be listed and tap on your desired video or photo to play it.
28
12 Forced shutdown
In case of your tablet was down and you are unable t o turn it off according to standard procedures, use a paper clip to trigger the reset button located at the back of the tablet or press on the power switch and hold it for 7 seconds, the tablet will be turned off.
13 Factory data reset
To restore the tablet to original factory settings and erase all personal informations, tap on “SettingsBackup&resetFactory data reset”. Warning: after reset the device, Google account, personal data, system settings, and downloaded applications will be removed from your tablet.
14 Battery Management
The battery is not fully charged from factory, so it is recommended that you charge the battery for at least 4 hours before you start to use the device. The rechargeable battery is designed and manufactured to be used and recharged frequently. As same with all of lit hium batteries, the c apacity of the battery reduces each tim e it is charged. However, you can still try to prolong the battery’s lifetime by following the suggestions below:
Use your Tablet at least once a week.
Fully charge the battery regularly.
Never leave the battery fully discharged for a long period of time.
Always keep the device and the battery away from heat and moisture.
15 Charge Battery
Plug the power adapter into an electrical wall outlet and then connect to the device to fully charge the battery before use. You can also charge the battery by using the USB cable. When fully charged, the battery icon displays as: A fully discharged battery will t ake you app roximately 4 hours, but you can use the device while it is being charged. Do not use other adapters than the one provided in your packaging, it may cause damage to the Lithium battery inside. Do not attempt to open the tablet to replace the battery inside, this will damage the tablet and void the warranty.
29
16 Important Safety Precautions
Always follow these basic safety precautions when using your Tablet. This reduces the risk of fire, electric shock, and injury.
Do not expose this product to rain or moisture.
Keep the device out of direct sunlight and heat sources.
Do not place other objects on LCD screen, as it may crush and damage
the LCD screen.
Do not use any sharp objects to touch the LCD screen, as this will
scratch the screen.
Only use the AC adapter included with the device. Using any other
power adapters will damage your tablet and void the warranty.
Do not attempt to dism antle the tablet by yourself to do any repair, this
will damage the tablet and void the warranty.
17 Clean Your Device
To clean fingerprints or dust from the screen, we recommend using soft, non-abrasive and non-corrosive c loth for cleaning, such as a camera lens cloth.
30
