CU0515GA Service Parts
This is the list of service parts for the CU515GA ice
machine.
When ordering a part, be sure to confirm that the
part is for the correct model.
Table of Contents
Cabinet ·············································· Page 2
Refrigeration System ······································· Page 3
Water System ··········································· Page 4
Control System ·········································· Page 5
July 2007
Page 1
Page 2
CU0515GA Service Parts
17
18
3
5
6 7
2 14
20
32
8
9
31
32
21 23
22
24
26
27
30
29
33
1
10 11
12
15
16
13
4
19
25 28
Cabinet
Item Part
Number Number Description
1 F702458-00 Unit Base
2 F782101-02R Insulated Storage Bin
3 F660778-00 Curtain Bracket Right
4 F660778-01 Curtain Bracket Left
5 F660775-00 Curtain Bracket Upper
6 F650806-05 Thumb Screw
7 F784457-07R Curtain assy
8 F660741-00 Plastic Plug
9 F460047-00 Spring
10 F732017-00 Bulb Holder
11 F660816-00 Shock Absorber
12 F742033-00 Evaporator Cover
13 F722248-00 Panel, Left Side
14 F722247-00 Panel, Right Side
15 F702457-00 Panel, Rear
16 F702462-00 Bracket
July 2007
Page 2
17 F781467-00 Insulated Top Panel
19 F650806-00 Thumb Screw
20 F660776-00 Front Liner
21 F721970-00 Front Plate
22 F660830-01 Corner Protection Left
23 F660830-00 Corner Protection Right
24 F702402-00 Bracket, Front
25 F722249-00 Panel, Front
26 F650850-00 Logo, Scotsman
27 F660829-00 Front Switch Plastic
28 F660804-00 Air Filter Seat
29 F660817-00 Slide, Air Filter
30 F660805-00 Air Filter
Protection
31 F660814-00 Bin Door
32 F660286-00 Bushing
33 F650670-05 Legs, kit of 4
Page 3
CU0515GA Service Parts

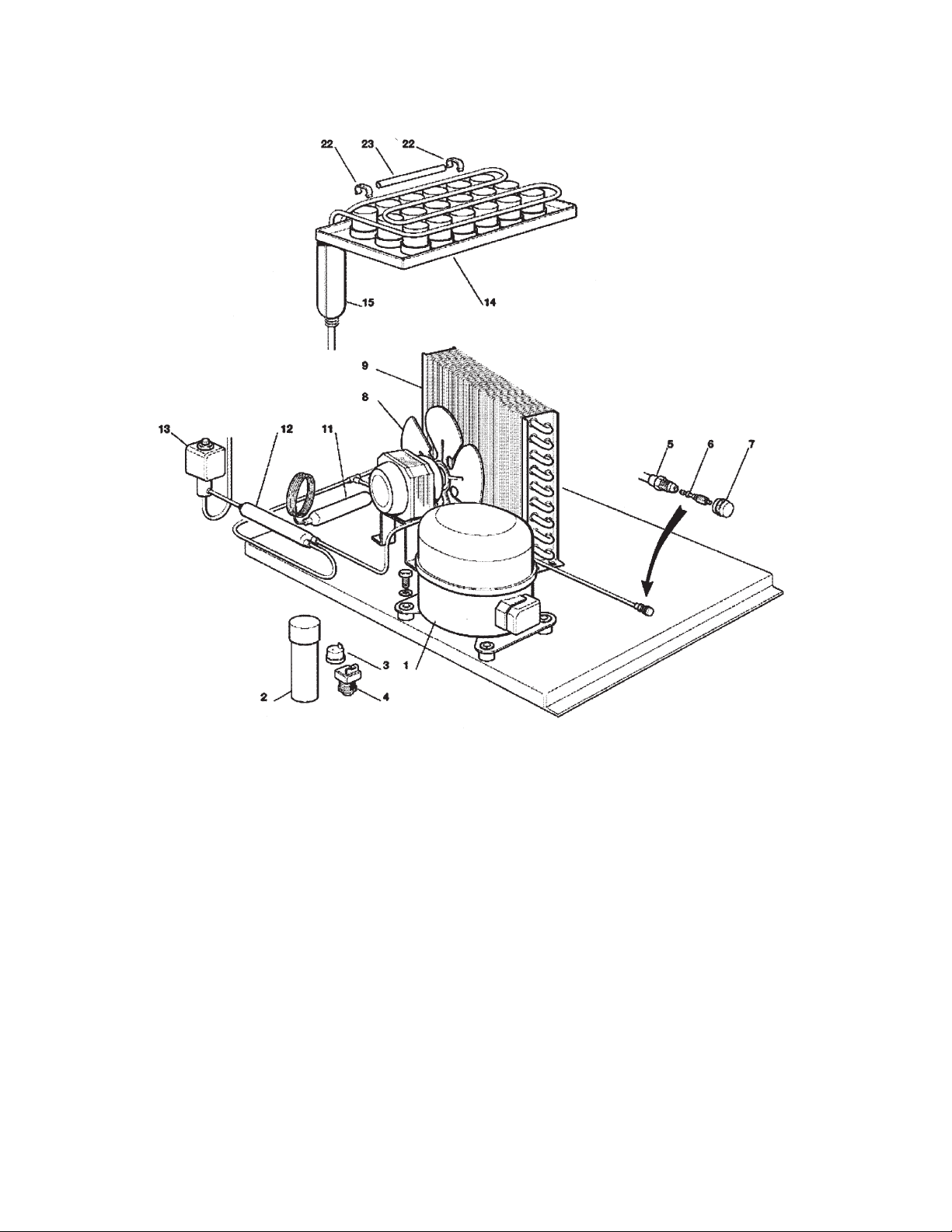

Refrigeration System
Item Part
Number Number Description
1 F670105-01 Compressor, Embraco. Includes
starting components. Embraco use began with SN
11111330010259 and replaces the prior Cubigel compressor.
2 F620167-56 Start Capacitor for Cubigel
12-3070-01 Start capacitor for Embraco
3 F060712-00 Relay and overload kit for Cubigel
12-3071-01 Overload for Embraco
4 12-3069-01 Relay for Embraco
5 F650109-00 Valve Body
6 F670012-00 Valve Core
7 F650106-00 Cap
8 F620419-03 Fan Motor
8a F620419-32 Fan Blade
October 2013
Page 3
9 F620420-00 Condenser
11 F630003-05 Filter
12 F630137-00 Mechanical Filter
13 F620306-27 Hot Gas Valve Body
13a F620306-51 Coil
14 F784615-01 Evaporator assy
15 F784632-01 Suction Line assy ,
includes cap tube and accumulator
22 F650475-02 Metal Clip
23 F741114-00R Bulb Holder
Page 4
CU0515GA Service Parts
11
10
17
7
8
2
18
17
16
14
6
5
16
17
181
12
13
19
20
9
15
3
4

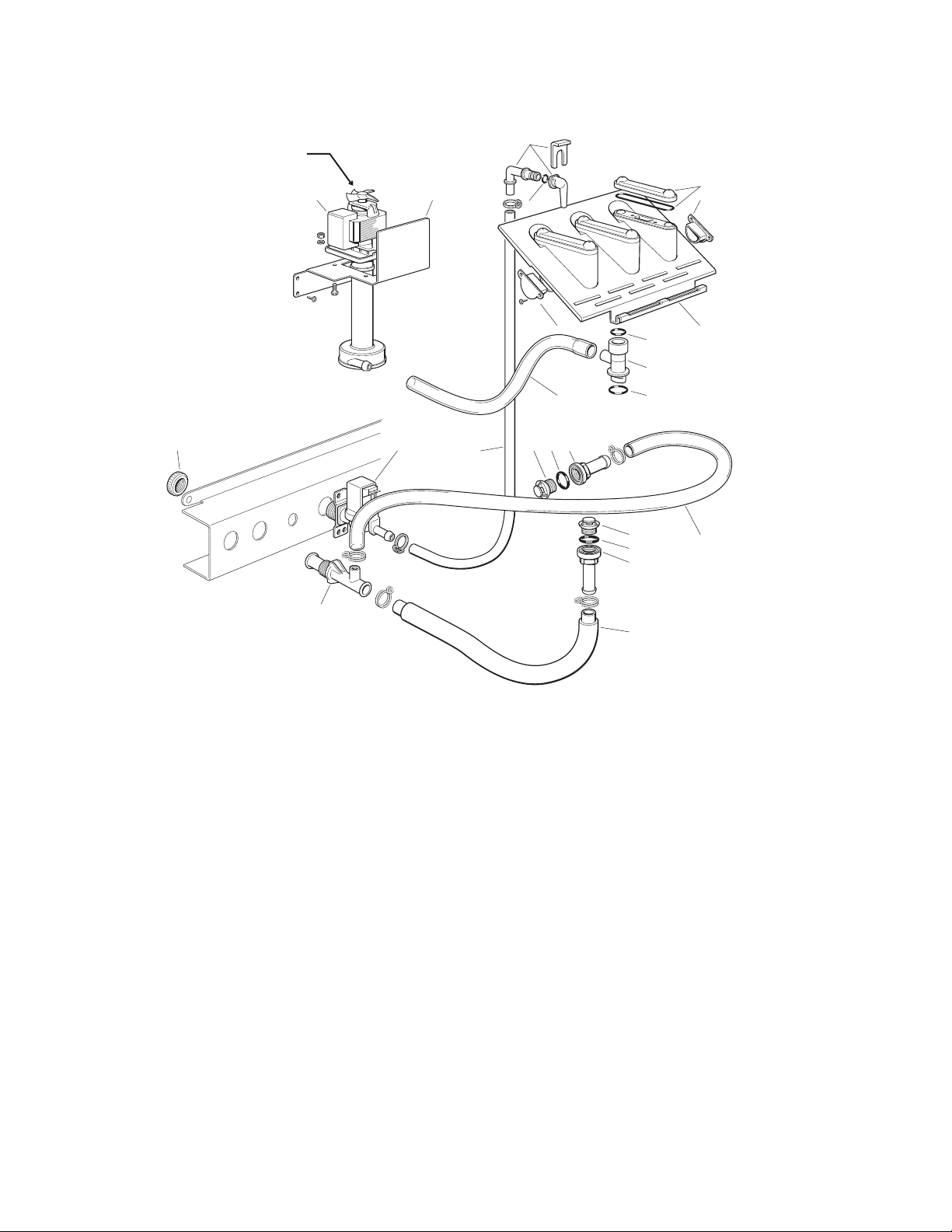

Water System
21
Item Part
Number Number Description
1 A32405-001 Water Inlet Valve
1a F640022-06 Flow Control
2 F281900-04 Tube, per meter
3 F793172-00R Water Inlet Elbow assy
4 F640041-31 O Ring
5 F724417-00 Metal Bracket
6 A32588-020 Water Pump
7 F610150-04 Tube
8 F793129-09 Spray System assy
9 F660520-07 Plastic Plug
10 F660520-06 Plastic Plug
11 F060529-01 Spray Cover Kit
12 F660224-00 Tee Tube
13 F660535-00 Plastic Nut
14 F610148-10 Tube
15 F610204-00 Tube
16 F660219-02 Bin Drain
17 F640134-00 O Ring
18 F660211-01 Drain Filter
19 F660777-00 Spray System Seat
20 F640041-32 O Ring
21 not available Fan for pump - contact
Scotsman Technical Service for assistance
January 2013
Page 4
Page 5
CU0515GA Service Parts

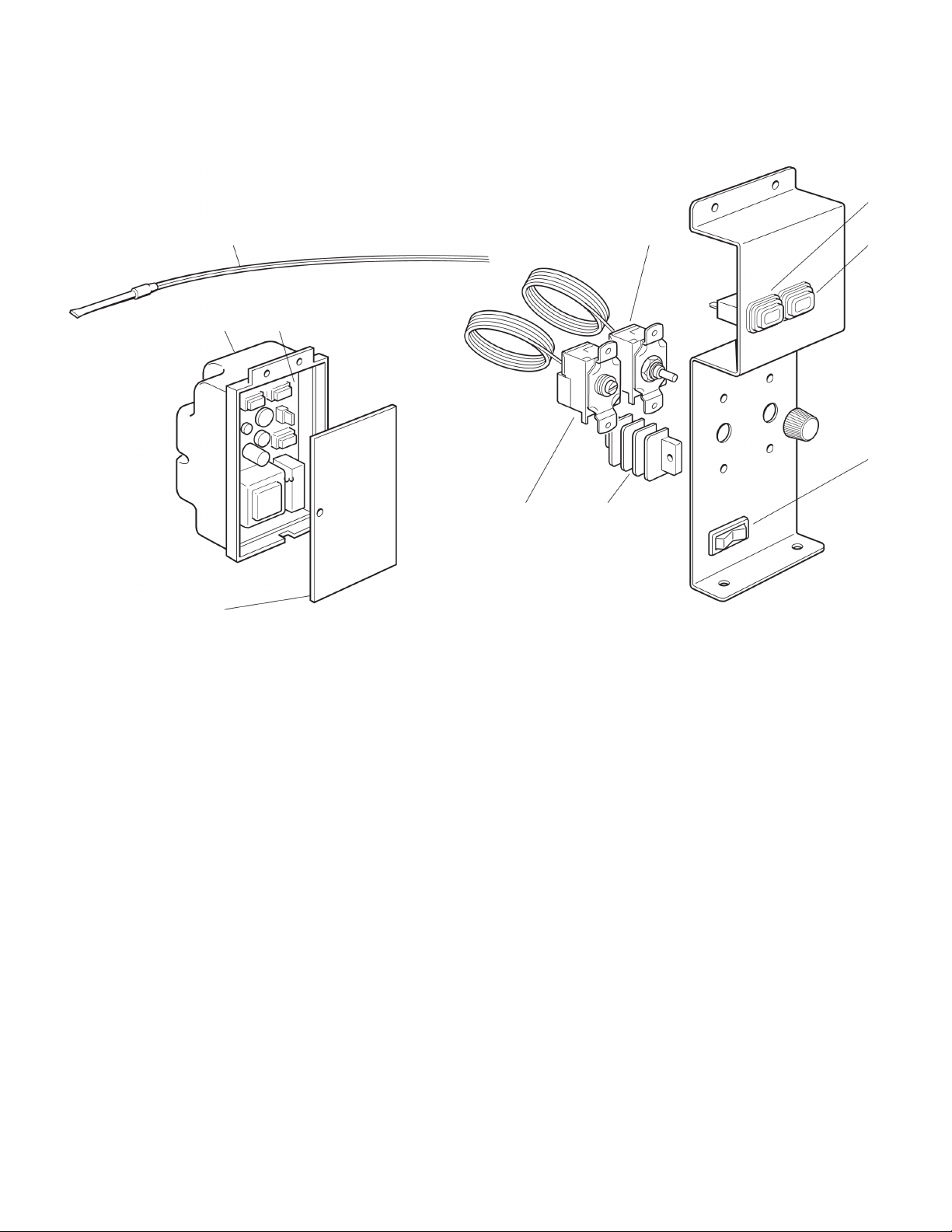

Control System
1
8
7
10
6
2
9
3
5
4
Item Part
Number Number Description
1 F620487-01 Warning Light - Reset Button
2 F620487-00 Master Lighted Switch
3 F620442-01 Switch
4 F630114-01 Terminal Board
5 F630005-00 Bin Thermostat
6 F620264-11 Evap. Thermostat - does not include knob
7 F702464-00 Cover
8 F702463 00 Metal Control box
9 F060711-32 PC Board - Cleaning reminder. Kit includes item 10
10 F620404-11 Condenser Sensor, black plug
F620519-00 Condenser sensor, white plug use began 2012.
August 2012
Page 5
Page 6
CU0515GA Service Parts
Wiring Diagram
August 2007
