CSW1 Service Parts
This is the parts list for the CSW1 ice machine. This list
contains all of the service parts currently available for
any CSW1, either A, B or C series.
Ice machines with a model number of AC50 are the
same as CSW1 "A" series.
When ordering parts, carefully check the description to
be certain of ordering the correct part.
Table of Contents
Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Evaporator & Water System . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
CSW1 Service Parts
B & C Models
Item Part
Number Number Description
1 0596715 Well nut (3)
2 0681534 Thumbscrew, 10-1/2
3 0561814 Well, bin thermostat
4 0680930 Thumbscrew
5 0680982 Molly nut
6 0680902 Washer
7 0487541 Hex nut
8 0680902 Washer
9 0596005 Washer (2)
10 0876827 Stud (2)
11 0596772 Clip, panel
12 0598894 Hose conector
13 0596023 Clamp
14 0756350 Liner
15 0758921 Gasket
16 0965173 Screw, 8-15 x 3/8
17 0681459 Screw
18 0756662 Door pull, A model
0758662 Door pull, B model
0759273 Door pull, C model
0759274 Pocket handle, C model
19 0755364 Door panel, white & black A & B
04210783 Door panel, white & black C model
20 0876926 Grill, A model
21 0098709 Screw
22 0681196 Screw
23 0755677 Trim
24 0758748 Door trim, A-B models (2)
0758748 Door trim C model, (2)
25 02-3070-01 Scoop
26 0593184 Rail, rt. side
0593185 Rail, lt. side
27 0681459 Screw
28 0593104 Tapping strip
29 0819361 Door liner
30 0593192 Hing plug
Cabinet
51
Item Part
Number Number Description
31 0587960 Gasket strip, A model
32 0681149 Screw
33 0756347 Gasket, A model
0758169 Gasket, B & C model
34 0756330 Inner bin door
35 02175619 Front support
36 02175636 Shelf
37 0681036 Ground screw
38 no number Wire retainer
39 0241428 Screw
40 02175604 Panel support
41 0758771 Inner panel
42 02190138 Filter
43 04210783 Lower panel
44 0758769 Grill
0759132 White toe plate
45 0758717 Panel trim, top & bottom
46 090767 Screw
47 0758714 Trim, sides (2)
48 0758608 Door insulation
49 0758752 Insert, door
50 0965173 Screw
51 0758608 Insulation, door
September 2004
Page 2
CSW1 Service Parts

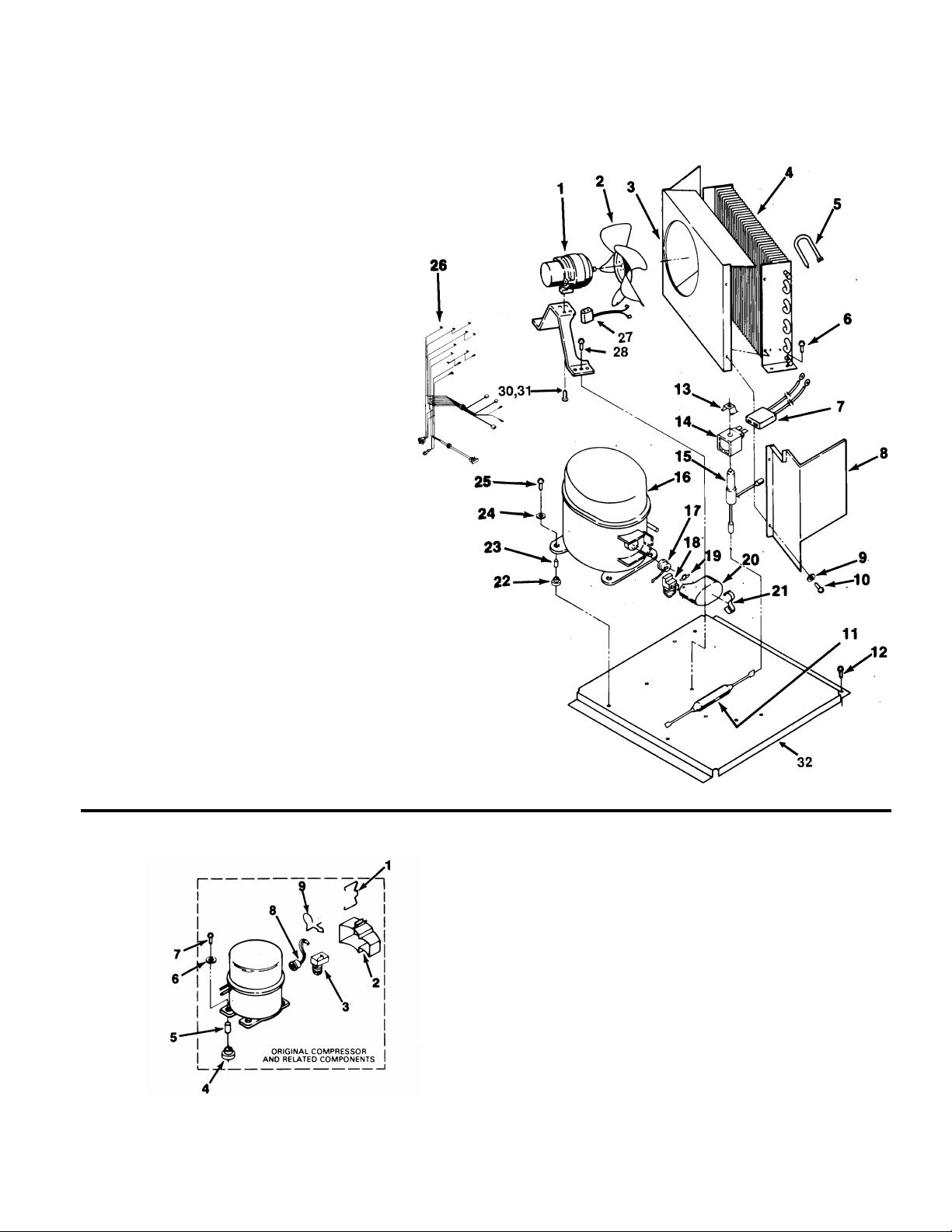

Refrigeration
Item Part
Number Number Description
1 0978483 Fan motor
2 0978655 Fan blade
3 0757955 Shroud
4 0756299 Condenser
5 02180807 Accumulator
6 0681198 Screw
7 0587971 Coil harness
8 0593519 Front deflector, A model
0758811 Air deflector, B & C
9 0487343 Washer
10 090767 Screw
11 04387019 Drier
12 0241428 Screw
13 12-2009-01 Retainer
14 12-2008-01 Solenoid coil
15 0598086 Valve body
16 0485780 Compressor
17 0819098 Overload for service comp.
18 0989646 Relay for service comp.
19 0549086 Spring for service comp.
20 0549336 Case for service comp.
21 0549342 Bale strap
22 0553583 Grommet (4)
23 0482739 Sleeve (4)
24 0486645 Washer (4)
25 0680233 Screw (4)
26 0756657 Cabinet harness
27 0583663 Fan motor plug
28 0680198 Screw
29 0560817 Bracket
30 0488868 Screw, A model
31 0681650 Nut, B & C models
32 02180938 Unit base
ORIGINAL COMPRESSOR AND PARTS
Item Parts
Number Number Description
1 0727045 Clamp
2 0727044 Cover, terminal
3 0758637 Start relay
4 0553583 Grommet
5 0482739 Sleeve
6 0486645 Washer
7 0680233 Screw
8 0819099 Overload
9 0727046 Clip
September 2004
Page 3
CSW1 Service Parts

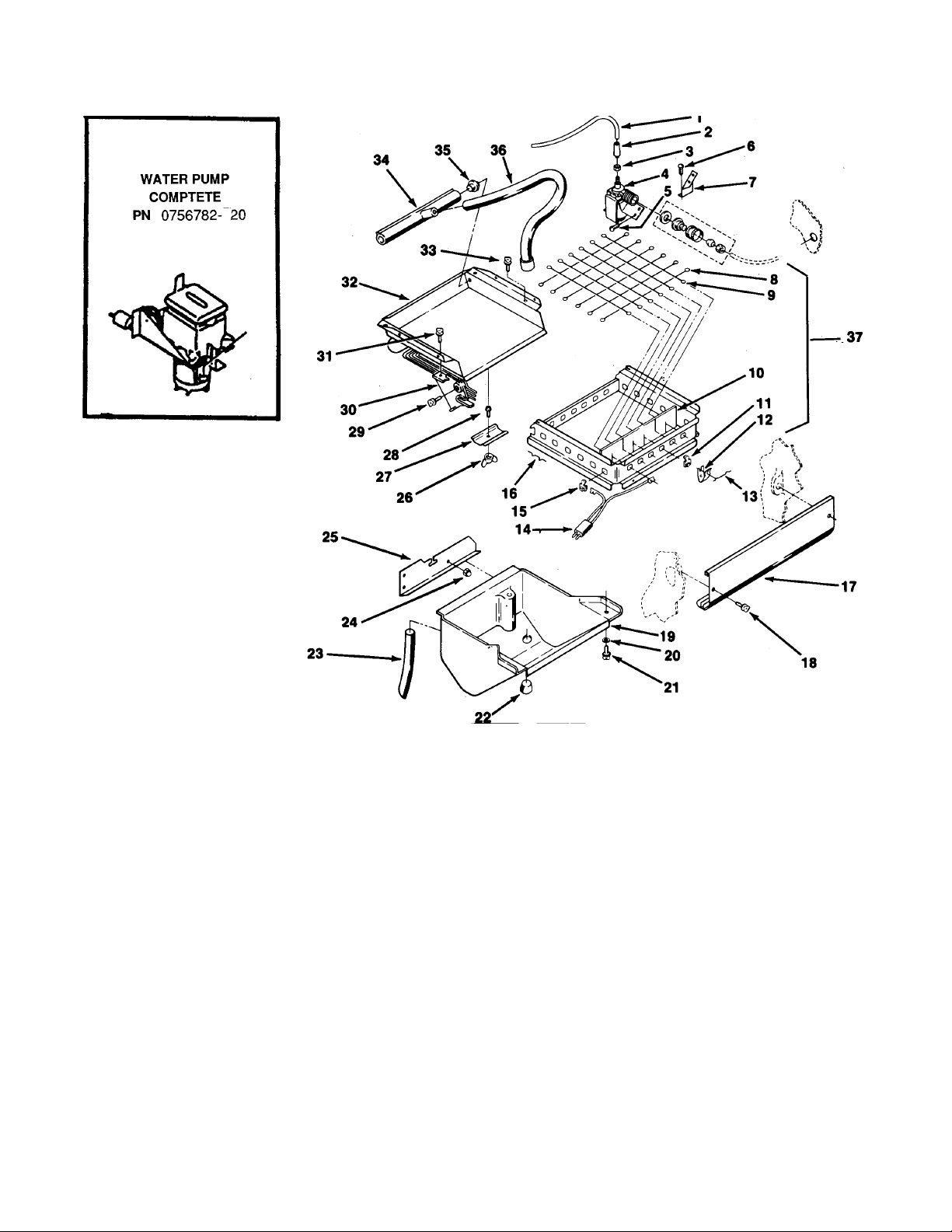

Evaporator, Ice Cutter Grid and Pump
Item Part
Number Number Description
1 04387492 Tube, plastic
2 0841707 Insert
3 0819380 Nut & sleeve assy.
4 0759296 Inlet water valve
5 0681198 Screw
6 090767 Screw
7 0756343 Bracket
8 0588048 Grid cutter wire kit (9 pcs.)
9 0588109 Grid cutter wire kit (10 pcs.)
10 0563890 Shield
11 0598277 Insulator
12 0759197 Clip
13 0278745 Pin
14 0587639 Cord
15 0598277 Insulator
16 0587111 Cutter wire pin
17 0593171 Grid panel
18 0680930 Thumbscrew
19 0756659 Pan
20 0681245 Washer
Item Part
Number Number Description
21 0681534 Thumbscrew
22 0759043 Stopper
23 0759109 Overflow hose
24 0681432 Acorn nut
25 0585853 Water pan shelf
26 0487836 Wing nut
27 0564064 Clamp
28 0596037 Screw
29 0680930 Thumbscrew
30 0756564 Bracket for grid mounting
31 0681534 Thumbscrew
32 02181076 Evaporator
33 0681534 Thumbscrew
34 01129798 Water dispenser
35 0758597 Plug (2)
36 0585856 Tube
37 0758469 Grid, complete
September 2004
Page 4
1
⁄4" x 1 1⁄2" cube
1
02174861 Grid, complete
3
⁄4" x 3⁄4" cube
CSW1 Service Parts

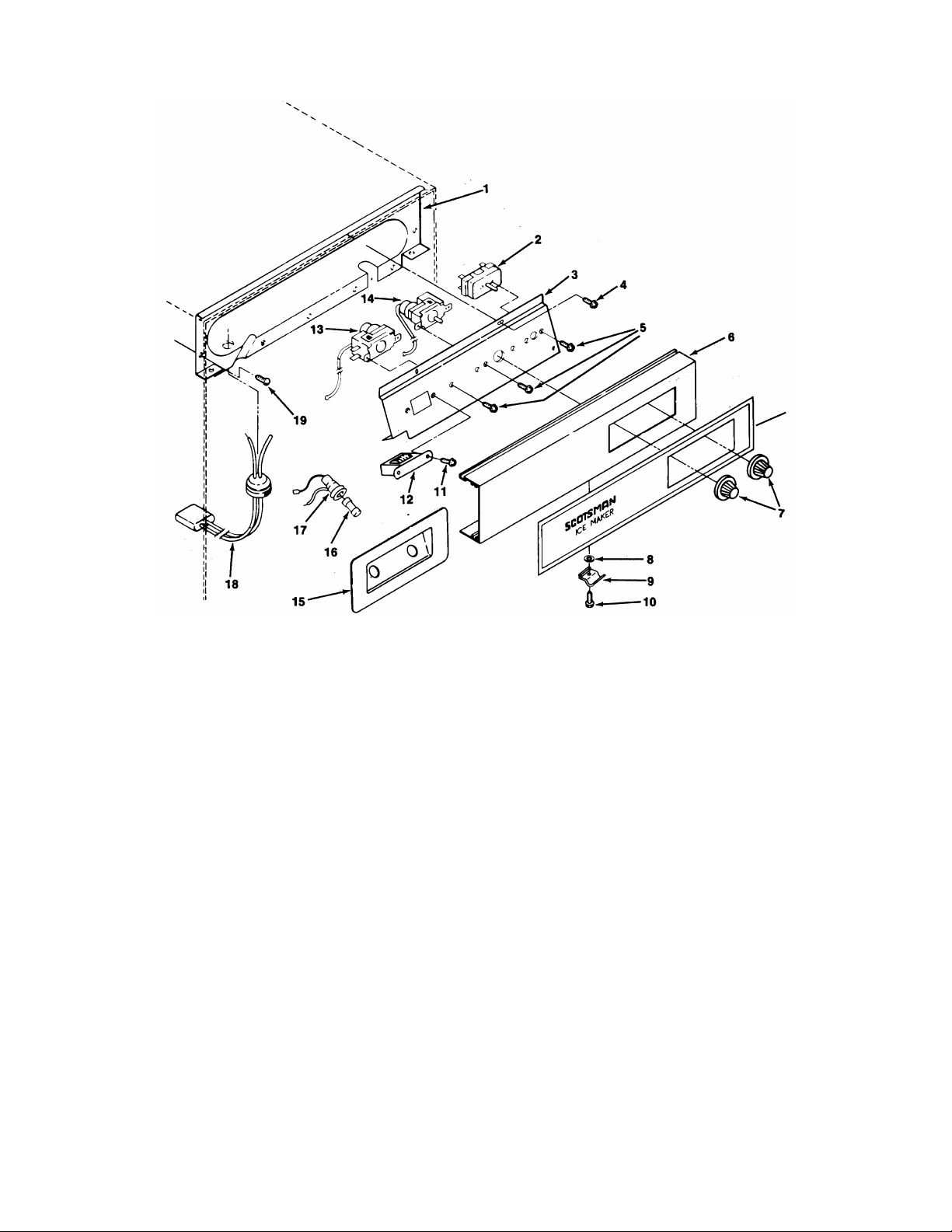

Controls
20
Item Part
Number Number Description
1 0756664 Esuctcheon Panel
2 02181045 Service switch
3 0756341 Control bracket
4 0965173 Screw
5 0486579 Screw
6 0593538 Escutcheon, A model
0758978 Escutcheon, B model
02180940 Escutcheon, C model
7 0756880 Knob, A & C models
0758976 Knob, B model
8 0681245 Washer
9 0759123 Latch
10 0487246 Screw
11 0488787 Screw, A model
0965173 Screw, B & C model
Item Part
Number Number Description
12 0702386 Transformer, A model
02165483 Transformer, B & C model
13 04318268 Bin thermo, A model
04318268 Bin thermo, B & C models
14 0598235 Evaporator thermostat
15 0755361 Cut, Escutcheion, A model
16 0596009 Fuse
17 0596008 Fuse holder
18 0587578 Grid harness
19 0681036 Screw
20 0759266 Decal, Escutcheon C model
21 0759132 Escutcheon Panel Kit, black
Misc Service Parts
0486645 Washer
0680198 Screw.
September 2004
Page 5
CSW1 Service Parts

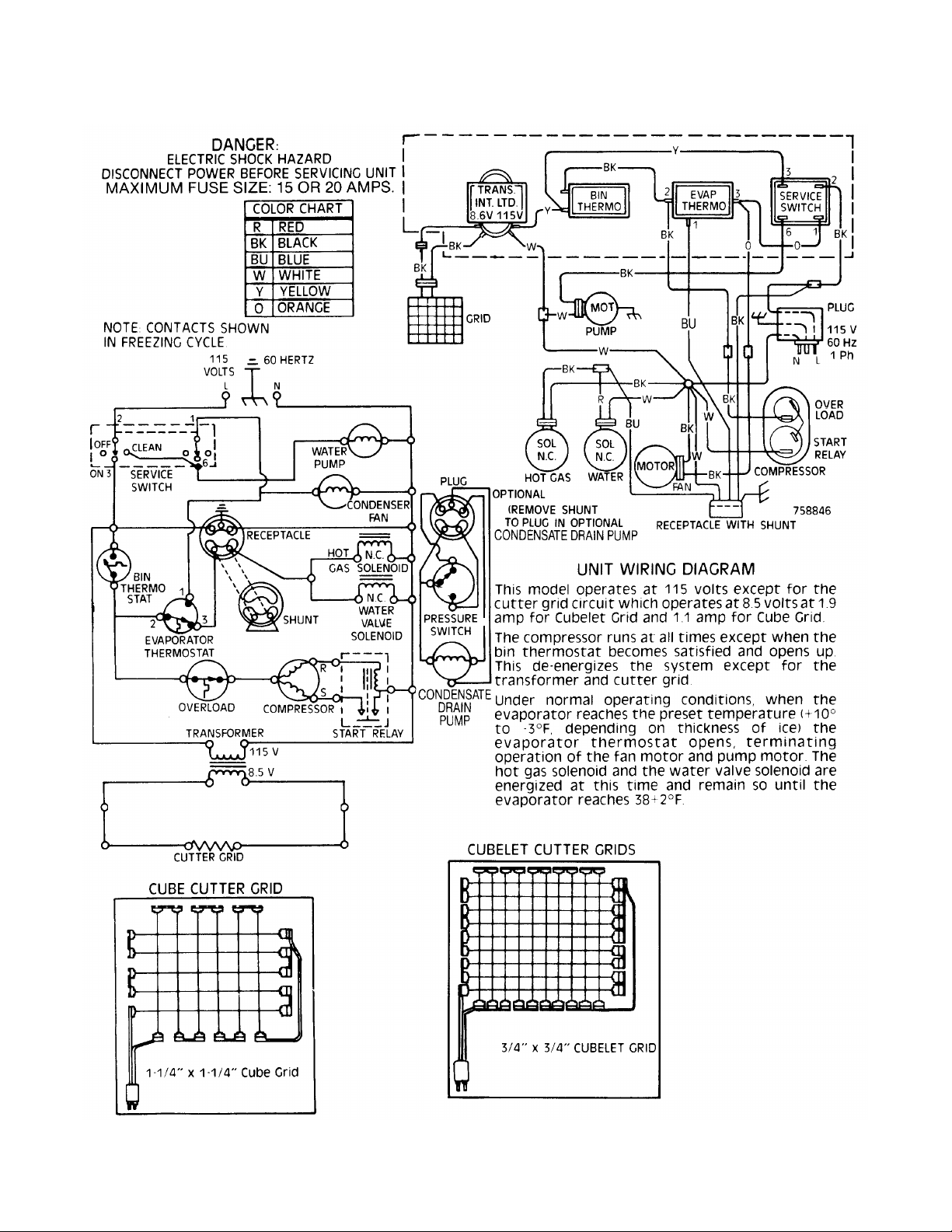

Wiring Diagram
August 1993
Page 6
