Scotsman CME686, CME810 Manuel de service

Introduction:

This manual covers the assembly, installation, start
up, operation and maintenance of the 600, 800 and
1000 remote low side cuber systems.

Table of Contents

Eclipseä 600, 800, 1000

Configuration: ················· Page 2

Technical Specifications ············ Page 3

Model Number Locations ··········· Page 4

Cabinet Drawings, Ice Making System ···· Page 5

Cabinet Drawings, Compressor Package and
Condensers ·················· Page 6

Proper Combinations: ············· Page 7

Create the System··············· Page 8

System Examples ··············· Page 9

System Examples ··············· Page 10

Place Remote System ············· Page 11

System Location ················ Page 12

Route Tubing ················· Page 13

Ice Making Section ·············· Page 14

Compressor Package ············· Page 15

Condensing Section Assembly ········ Page 16

Condensing Section Assembly: ER2C6810 · Page 17

Condensing Section Assembly ········ Page 18

Ice making section: ·············· Page 19

Water and Drain ················ Page 20

Water and Drain ················ Page 21

Water and Drain ················ Page 22

Ice Making Section Set Up ·········· Page 23

Coupling Connections: ············ Page 24

Controller Operation ·············· Page 27

Initial Start Up ················· Page 28

Purge Adjustment ··············· Page 29

System Operation:··············· Page 30

Refrigeration Details: ············· Page 31

Technicians Only: Freeze Cycle Sequence of Operation

························· Page 32

Technicians Only: Harvest Cycle Sequence of Operation

························· Page 33

Power and Water Interruptions ········ Page 34

Sanitation and Cleaning ············ Page 35

Other Maintenance ·············· Page 36

Tight Installation Access············ Page 37

Water Distributors ··············· Page 38

Ice Sensors ·················· Page 39

Water Level Sensor Maintenance ······· Page 40

Service Diagnosis ··············· Page 41

Service Diagnosis ··············· Page 42

Service Diagnosis ··············· Page 43

Controller Features & Last Error Recall ···· Page 44

Operational Characteristics 600 lb system · · Page 45

Operational Characteristics 800 lb system · · Page 46

Operational Characteristics 1000 lb system · · Page 47

Refrigeration System Service ········· Page 48

Condensing Unit Connections ········· Page 25

Final Placement ················ Page 26

April 2002

Page 1

Eclipseä 600, 800, 1000

Configuration:

A remote low side cuber system includes several
sub systems: an ice making section, a remote
compressor package, and a remote air cooled
condenser. Additionally, there are two models of
each sub-system and this manual covers all of
them.

The ice making sections are designed for use
indoors in a controlled environment. The remote
compressor packages and condensers are
designed to operate outdoors. Each sub-system
has limits for power, water and temperature.

Operational Limitations:

Minimum Maximum

o

Air Temp (IMS) 50

Air Temp (CU) -20

Water Temp 40

Water Pressure 20 psi 80 psi

Voltage (IMS) 104 126

Voltage (CU) 198 253

F 100oF.

o

F. 120oF.

o

F. 100oF.

IMS = Ice Making Section, CU= Condensing Unit

Do Not operate the machine in conditions beyond
these limitations. Doing so will void the warranty.

Scotsman ice systems are designed and
manufactured with the highest regard for safety
and performance. They meet or exceed the
standards of UL and NSF.

Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the
use of any part and/or other components not
specifically approved by Scotsman.

Scotsman reserves the right to make design
changes and/or improvements at any time.

Specifications and design are subject to change
without notice.

Warranty

Refer to the warranty coverage in effect when the
equipment was sold. Warranty statements are
included with each product.

Systems:

Each sub-system is a separate entity that carries
its own model and serial number. They must be
combined to create a remote cuber low side
system.

System Information

System Model

Number

Eclipse 600-42 CP686-32A 208-230/60/1

Eclipse 600-43 CP686-3A 208-230/60/3

Eclipse 800-42 CP886-32A 208-230/60/1

Eclipse 800-43 CP886-3A 208-230/60/3

Eclipse 1000-42 CP1086-32A 208-230/60/1

Eclipse 1000-43 CP1086-3A 208-230/60/3

Compressor Package Condenser

Model Electrical Model* Electrical Model Electrical

Condensing Unit (CU) Ice Making Section (IMS)

ERC680-32A 208-230/60/1 CME686RLS-1A 115/60/1

ERC680-32A 208-230/60/1 CME810RLS-1A 115/60/1

ERC1086-32A 208-230/60/1 CME810RLS-1A 115/60/1

Notes: Voltage Codes are at the end of the model number. Codes read Voltage/Hertz/Phase. Those related
to these products include:

-1 = 115/60/1

-3 = 208-230/60/3

-32 = 208-230/60/1

-42 = 115/60/1 and 208-230/60/1 (separate units)

-43 = 115/60/1 and 208-230/60/3 (separate units)

April 2002

*ER2C6810-32 is a two circuit remote condenser
and can be used with any of these systems.

Pre-charged tubing kits are required to
interconnect the IMS to the CP.

Interconnecting 24 volt control wire ships with the
CP unit.

Page 2

Technical Specifications

Ice Making Section (IMS)

Eclipseä 600, 800, 1000

Model Voltage Minimum Circuit

Ampacity

CME686RLS-1A 115/60/1 3 15 22”w x 16.5”d x 28” h* 92

CME810RLS-1A 115/60/1 3 15 same 92

Max Fuse Size Cabinet Size Weight (lb)

* Height does not include bin control. (add 3”)

Compressor Package

Model Voltage Contains

Headmaster?

CP686-32A 208-230/60/1 Yes 9.8 15 232 29 ¾”w x 18”d x 34 ½”h

CP686-3A 208-230/60/3 Yes 6.9 15 232 same

CP886-32A 208-230/60/1 Yes 14.6 15 232 same 180

CP886-3A 208-230/60/3 Yes 10.4 15 232 same 180

CP1086-32A 208-230/60/1 Yes 21.0 25 272 same 180

CP1086-3A 208-230/60/3 Yes 14.0 15 272 same 180

Minimum

Circuit

Ampacity

Max

Refrigerant

Fuse

Charge (R-404A)*

Size

(oz)

Cabinet Size Weight

(lb)

* Includes entire system charge.

Condenser

Model Voltage Contains

Headmaster?

ERC680-32A 208-230/60/1 No 1 1.25 15 29 ¾”w x 28 5/8”d x 38 ½”h 95

ERC1086-32A 208-230/60/1 No 1 1.25 15 same 95

ER2C6810-32 208-230/60/1 No 2 1.9 15 29 ¾”w x 37 3/16”d x 38 ½”h

Number
of
Circuits

Minimum

Circuit

Ampacity**

Max

Fuse

Size**

Cabinet Size, with legs Weight

* * ERC condenser fan motor is powered from CP
unit and the ERC’s ampacity is included in CP unit
numbers.

Note: The ERC680, ERC1086 and ER2C6810 do
NOT contain a headmaster. The headmaster is in
the CP units.

Note: 75 feet of interconnecting control wire (24
volt) is included with the CP units.

(lb)

May 2002

Page 3

Eclipseä 600, 800, 1000

Model Number Locations

Ice Making Section

The dataplate on the back of the ice machine
contains the model number, serial number and
electrical data.

A second plate, located behind the front panel at
the lower right front, also lists the model and serial
numbers.

Compressor Package

The dataplate on the right side of the
compressor package contains the model
number, serial number, electrical data and
system refrigerant charge.

A second plate, located behind the front
panel in front of the compressor, also lists
the model number, serial number and
refrigerant charge.

Condenser

Dataplate
location for
ERC680 and
ERC1086

Dataplate
location for
ER2C6810

The dataplate lists the condenser’s
electrical information plus the model and
serial numbers.

On the ERC680 and ERC1086 it is
located on the side opposite the
refrigeration connections.

On the ER2C6810 it is located on the
inside of one of the leg panels.

Dataplate

location for

CP Unit

Dataplate
location for
Ice Making

Section

April 2002

Page 4

Cabinet Drawings, Ice Making System

Eclipseä 600, 800, 1000

Front

16 1/2"

5 3/8"

1.75

19 1/2"

17 "

1 1/4"

1 5/8"

22 "

Top View

Front View of Base

16.75

2 5/8"

7 3/4"

12 5/8"

1 1/4"

3 3/8"

3"

Protrusion Off Bottom
Of Ice Machine

Front

Ice Making Section Footprint

Outline of unit

Maximum Drop Zone

Minimum Drop Zone

TOP ACCE SS

LINE SET, WATER INLET, 120V AC,

AND INTERFACE CABLE

OPTIONAL REAR ACCESS

LINE SET, WATER INLET, 120V AC,

AND INTERFACE CABLE

OPTIONAL REAR

ACCESS WATER INLET

OPTIONAL REAR

ACCESS DRAIN

6.58

3.46

1.75

3.00

ICE DROP AREA

TOP VIEW

16.75

22.00

REAR VIEW

5.00

8.00

28.00

LEFT AND RI GHT

SIDE ACCES S DRAIN

ICE MAKING SECTION

8.00

15.12

5.00

16.50

April 2002

Page 5

Eclipseä 600, 800, 1000

Cabinet Drawings, Compressor Package and Condensers

1/2" CONDENSER DISCHARGE LINE (IN)

CONDENSER FAN WIRE ROUTING

3/8" CONDENSER LIQUID LINE (OUT)

1/2" COOL VAPOR LINE

0.88 ELECTRICAL INLET

INTERFACE HARNESS

ER2C6810:
Both Sides Attach to
CP680 or CP1086

ACCESS HOLE

3/4" SUCTION LINE

ER2C6810 - 36.52

27.90

28.53

1.5”

RIGHT SIDE VIEW

3/8" LIQUID LINE

15”

2.75

1.5”

ERC680 or ERC1086:
This Side Attaches to
CP680 or CP1086

Discharge
Line

BACK VIEW

FRONT VIEW

29.50

Liquid Line

9/16” Mounting Hole

1.5”

23.5”

1.5”

9/16” Mounting Hole

35.72

April 2002

Page 6

38.47

33.19

6.68

22.51

29.19

Proper Combinations:

Eclipseä 600, 800, 1000

The three sub systems are designed to be
connected together in certain combinations to meet
the user’s needs:

Eclipse 600 System: CME686, CP686, ERC680*

Eclipse 800 System: CME810, CP886, ERC680*

Eclipse 1000 System: CME810, CP1086,
ERC1086*

*ERC680 or ERC1086 may be substituted for by
an approved central condenser coil & fan (coil
must be without headmaster - headmaster is part
of CP680 or CP1086).

Note: The ice making section cannot be stacked
vertically.

Accessories such as bin adapters and tubing kits
are required to complete the installation.

Dispenser Adapter Kits:

Cornelius ABS or ED150: KBT40

·

Scotsman ID150: KBT40

·

Scotsman ID200 or ID250: KBT41

·

·

HD156: KBT35

·

HD356: KBT32

Bin Adapter Kits:

·

BH360: KBT31

·

HTB250/HTB350/HTB555: KBT32

·

BH550: KBT32 and KBAFFLE1

·

BH800: KBT33 and KBAFFLE2

·

BH900: KTB34 and KBAFFLE3

Tubing Kits:

·

20 foot: 3RTE20

·

50 foot: 3RTE50

·

75 foot: 3RTE75

·

Suction Line Trap: KSLT075

·

Interconnecting Tubing to Approved Rack
Condenser Coil: RTE10

·

Line end kit: KTE6

Items required for installation:

Ice making section

·

Compressor Package (includes interconnecting

·

control system wire)

Remote condenser or approved rack coil

·

w/tubing kit

20’, 50’ or 75’ triple line set (liquid, discharge

·

and suction)

Bin or dispenser adapter

·

Special Considerations

The ice making section’s footprint is 22” wide by

16.5” deep. The refrigeration connections can be
made out the top panel or out the back. The
electrical power cord and the water inlet line can
also be routed through either of those areas. The
drain may be routed out the back at any position
left to right; it may also be routed to either side.

The ice sensors, used for determining if the bin is
full or not, are located in housings that extend
below the bottom of the unit. As ice is made, it will
build up in the bin or dispenser until the top of the
ice pile is between the sensors. At that point, about
3” below the bottom of the cabinet, the ice machine
will shut off. This ice level maximizes ice storage
without overfilling the bin or dispenser.

Water

Pure water does not exist. All water supplies
contain some amounts of impurities, although
potable water is, by definition, fit for human
consumption. Because the contents of the water to
an ice machine directly impact its performance,
consideration should be given to improving the
water’s quality.

There are two ways water can contain impurities:
in suspension or in solution. Suspended solids can
be filtered out of the water. In solution or dissolved
solids must be diluted or treated. Water filters are
recommended to remove the suspended solids.
Some filters or filter systems have treatment
chemicals in them for treating the suspended
solids.

This ice machine has an adjustment for the amount
of water rinsed or purged. Water use adjustments
are customer convenience adjustments; they are
not factory defects and are not covered by
warranty.

June 2002

Page 7

Eclipseä 600, 800, 1000

Create the System

Plan the installation. The system consists of four
parts: the ice making section, the compressor
package, the interconnecting tubing and the
remote condenser. Of these, the biggest variable is
the interconnecting tubing.

Tubing: The tubing consists of three pre-charged,
insulated and sealed soft copper tubes. They each
contain a small holding charge of R-404A. One
tube, the liquid line, is 3/8” OD. The discharge tube
is ½” OD and the suction tube is ¾” OD. A site
inspection will determine what length of tubing is
required for the installation.

Excess tubing must be either shortened at the job
site (recovering the holding charge, purging with
nitrogen when brazing and evacuating to 50
microns) or coiled up inside the building.

Installations with greater than 20 feet of vertical lift
between ice machine and the compressor require
a suction line trap. The suction line requires careful
handling and large radius bends to prevent kinking.

Roof mounting: To make installation easier the
compressor and condenser are designed to be
assembled together on the roof. Some
installations will require the use of a hoist to lift the
components to the roof.

Pad mounting: The compressor and condenser
may be located below the ice making section, up to
a limit of 15 feet.

Distance from unit: Limited to the length of the
available pre-charged tubing.

Interconnecting wires: An interconnecting wire
harness is included with the CP unit. One end
plugs into the ice making section and the other into
the compressor package. The system will NOT
operate without this harness.

Exposed tubing: Minimize the amount of tubing
exposed outdoors.

Confirm Component Availability:

CME686 or CME810

·

CP686 or CP886 or CP1086

·

ERC680 or ERC1086 or ER2C6810 unless

·

connecting to an approved condenser coil.

Note: Only these condensers may be used. They
do NOT contain a headmaster valve. That valve is
in the Compressor Package. Do NOT use any
other Scotsman condenser. Do NOT use these
condensers on any other Scotsman remote
product.

Interconnecting tubing kit

·

Note: Check tubing integrity before assembly by
attaching a refrigeration compound gauge onto one
of each tube’s schrader valves. If there is pressure,
the tube is OK, if not it should be checked for
damage and leaks.

·

Bin or dispenser adapter

Elevation: CP unit limited to 35 feet above the ice
making section.

Compressor package: Electrical power must be
supplied to the compressor package. The remote
condenser fan motor takes its power from the
compressor package.

Ice making section location and attachment:

The unique footprint of the CME686 and CME810
require adapter kits to allow placement on
dispensers and bins. The remote tubing
connections must be made from the right side of
the machine, and connections should not be made
until the machine is nearly in its final installed
position. The 115/60 Hz ice making section is cord
connected and requires an outlet within 6 feet of
the installation.

April 2002

Page 8

System Examples

Eclipseä 600, 800, 1000

The Eclipse system can be installed on a bin or
dispenser. The CP unit can be installed on either a
single circuit condenser, a two circuit condenser or
onto a coil in a separate rack condenser.

Separate coils must be:

Scotsman approved

·

The correct size and capacity

·

New or not have been part of a system that

·

used mineral oil.

Single Circuit System

Single Circuit System on ABS Dispenser

April 2002

Page 9

Eclipseä 600, 800, 1000

System Examples

Single circuit systems use a single circuit
condenser and one CP unit. Two circuit systems
use a condenser with two circuits with a CP unit at
each end.

IMS on ABS Dispenser, CP Unit Connected to

Approved Rack System

Two Circuit System

April 2002

Page 10

Place Remote System

Eclipseä 600, 800, 1000

Roof preparation

Most installations of this system will place the
compressor package and condenser on the roof of
a building. The roof must be physically stout
enough to accept the load of the equipment and
the roofing material must be prepared to prevent
water leaks.

Follow local codes for the placement and
attachment of the equipment.

Location

The condensing unit assembly requires
unobstructed air flow to operate efficiently. A four
foot space between each intake side and a wall or
other cabinet is recommended.

Do not place where it will pick up hot discharged
air from an air conditioner or other refrigeration
system condensing unit.

Space must also be reserved for service on the
compressor package. If using the ER2C6810
condenser, save space for the second CP unit to
be attached to the other end of the condenser.

Roof Piercing:

The roof (or wall) must have a passage large
enough for the three pre-charged, pre-bent tubes
and the control wire to pass through. The minimum
recommended size is 4” ID. In most areas the
power supply may also pass through the same
passage. If there isn’t a passage one must be
created. In most cases this must be done by a
licensed and bonded roofer in order to maintain the
roof’s integrity.

Suggestions:

Hoist the compressor package and condenser to
the roof in separate loads.

Note: In most cases a mechanical lift, boom truck
or crane will be required to hoist the condensing
unit components.

Assemble the compressor package to the
condenser and mount both to either roof rails or
pressure treated4x4s.

Orient the assembled unit so that the unit’s mounts
are parallel to the pitch of the roof to allow water to
drain freely.

IMS Shown on Ice Dispenser

Do NOT place the unit directly onto roof rock.

April 2002

Page 11

Eclipseä 600, 800, 1000

System Location

Limitations:

Distance: Limited to the maximum length of a
single pre-charged tubing kit, 75 feet.

Condensing Unit Elevation over Ice Making
Section: 35 feet.

Note: Elevations greater
than 20 feet require
installation of a suction line
trap at the 20 foot mark.

Ice Making Section
Elevation over Condensing
Unit: 15 feet.

S-Trap

Limit of Line Set

Max Length -

40.35"

Condensing
Unit Located
Above Ice
Machine

Line Routing:

Allowed: One rise after a drop.

·

Allowed: One drop after a rise.

·

Not Allowed: More than one rise after a drop

·

Not Allowed: More than one drop after a rise.

·

Max Rise:
35 Feet

22.87"

Max Drop:
15 Feet

17.15"

Condensing
Unit Located
Below Ice
Machine

Condensing Unit Distance Schematic

April 2002

Page 12

Route Tubing

Eclipseä 600, 800, 1000

Scotsman’s pre-charged tubing kits are pre-bent to
fit the connection path at the ice making section.

If the tubing is to be routed out the top, use the

·

double-bend ends.

Liquid

Vapor

Suction

If the tubing is to be routed out the back, use

·

the ends with the single 90 degree bends.

Liquid

Select the correct end to send to the roof.

The method or technique used to route the tube is
left to the installer. However, in many cases it is
easier to position the tubing inside the building first,
then feed the outside portion through the tubing
passage (pitch pot). Installation of tubing will be
easier if the suction line is run first, followed by the
liquid and vapor lines. Use of two persons is
suggested to prevent kinking of the tubing, long
runs may require three people.

Allow enough tubing to make large radius bends

·

from the roof passage to the compressor unit.
Do NOT leave excess tubing on the roof.

If a trap must be installed, the suction line

·

tubing must be cut apart to install it.

Identify the ice machine end of the tubing. Each

·

tube has one end formed to route through the
hole in the unit’s top.

Tape the ends of the vapor and liquid line tubes

·

together along with the interconnecting wire.
Extend the end of the interconnecting wire
about 2 feet beyond the end of the precharged
tubes and then tape it back onto the tubes.

·

Route the three tubes and the wire from the
roof, or other entrance, to the ice making
section’s planned position. Avoid uncoiling and
recoiling the tubing, as that can lead to kinks.

Vapor

Suction

Note: Units mounted flush against the wall require
refrigerant connections out the top, water supply in
from the top, power supply routed through the top
and drain routed to a side.

·

Support long runs of tubing with hangers.

·

Repair any tears in the tubing insulation,
especially those on the suction line that are
inside the building.

Shortening Tubing

The precharged tubing kits are available in a
variety of lengths, they should only be shortened if
absolutely necessary.

To Shorten Tubes:

1. Recover the 3 ounce R-404A holding charge
from each tube.

2. Cut out the required length of tubing, do not cut
the tubing right at the quick connects.

3. Attach nitrogen bottle to one quick connect and
a hose with a depressor to the other end, purge
nitrogen through each tube while brazing.

4. Remove nitrogen, evacuate to 200 microns.

Note: If tubes are connected to the IMS, evacuate
the vapor & suction lines to get the entire system.

April 2002

Page 13

Eclipseä 600, 800, 1000

Ice Making Section

The CME686 and CME810 are similar in layout.
They differ in controller, float stem and vapor inlet
valve. Both have three plates and three
thermostatic expansion valves.

Major Components:

TXVs - one per plate, same for all

Water Pump - same for both models

Water Level Sensor - signals water level to the

controller

Controller - operates both the ice machine section
and the compressor unit.

Drain Valve - opens to allow pump to drain
reservoir

Water Inlet Valve - 1.25 GPM solenoid valve that
opens to fill the reservoir

Low Side Access Valve - allows connection for
diagnosis of ice machine
section refrigeration
operation. Not for recovery.

Controller

Freezing
Compartment
Cover

Liquid, Vapor and Suction
Connections - where the

pre-charged tubing kits
connect to.

Drain Tube - internal vent
eliminates need for
external vent

TXVs

Water
Pump

Water

Level

Sensor

Low Side
Access Valve

Vapor
Connection

Liquid
Connection

Suction
Connection

Drain Tube
with Internal
Vent

Drain Valve

Water Inlet
Solenoid
Valve

April 2002

Page 14

Compressor Package

Eclipseä 600, 800, 1000

Both compressor packages are similar in layout,
they only differ in compressor and charge.

Major Components:

CPR Valve - limits refrigeration pressures

inside the dome of the compressor.

Condenser By Pass Valve - opens during
harvest to allow discharge gas to flow to the
vapor line.

Headmaster - maintains a minimum
discharge pressure during freeze

Liquid Inlet Valve - Normally Open, closes
during harvest.

Receiver - stores liquid refrigerant for
freeze and provides vapor for harvest

Suction Access Valve - provides a place to
attach a refrigeration manifold for diagnostics
and recovery.

Condenser By

Pass Valve

24 volt comm line

Liquid from

Power

Routing Hole

Vapor Line

Connection

Routing Hole

Suction Line

Connection

Liquid Line

Connection

CP Unit Refrigeration Connection ID

Cond.

Discharge to
Cond.

Condenser
Wire Routing
Hole

Headmaster

Suction

Access

Valve

CPR Valve

Pressure

Cut Out

Liquid
Access
Valve

Liquid Inlet
Valve

Receiver

Hi

CP Component Location

April 2002

Page 15

Eclipseä 600, 800, 1000

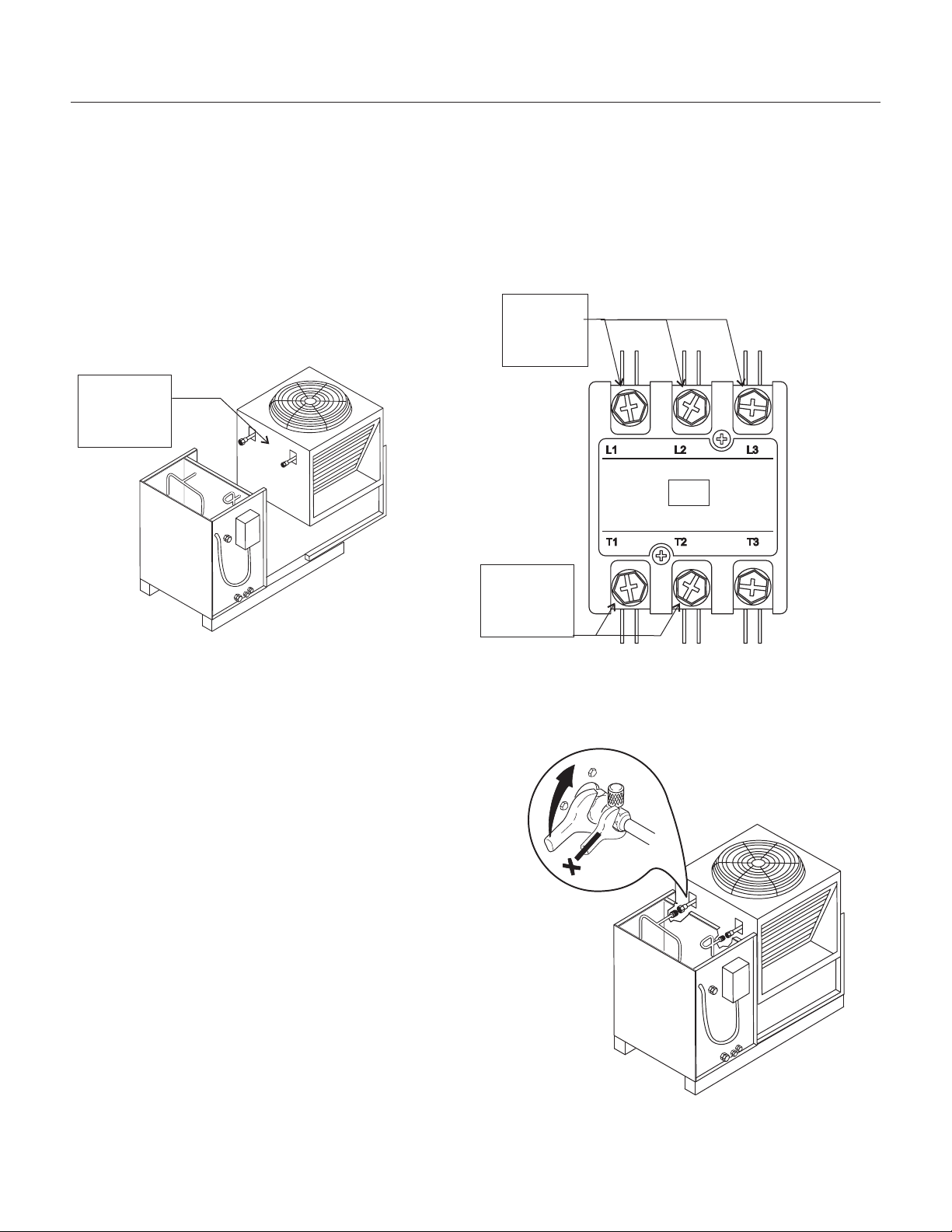

Condensing Section Assembly

(CP680 to ERC680 or CP1086 to ERC1086):

1. Remove cartons from compressor package and
condenser.

2. Remove top from both units.

3. Remove front panel from CP unit.

4. Locate legs, secured to ERC unit.

5. Locate fasteners, inside junction box of ERC
unit.

6. Assemble rear legs to ERC using fasteners from
prior step.

Locate
Fastener
Package

Connect

Power

Here

7. Locate wire package in CP unit. Remove short
wires and two wire nuts.

8. Use wire & wire nuts from step 7 to connect to
the wires inside the junction box of the condenser.
Return junction box cover to its original position.

9. Place front of ERC on back flange of CP unit.

10. Secure CP unit to ERC.

11. Attach leg brace between ERC unit and CP
unit.

12. Route wires from condenser through hole in
back of CP unit to the CP unit control box.

13 Pull ERC female refrigerant connections
forward to engage male connections on CP unit.

14. Rotate swivel nuts to tighten refrigerant
connections. Use a back up wrench to hold female
connection to prevent tearing of the diaphragms.

15. Connect wire to T1 and T2 of the contactor.
Use the two wire nuts to connect the other end to
the two black wires in the condenser junction box.

Connect

Fan Motor

Leads

CP Unit Contactor, Three Phase Shown

Rotate Swivel

Nuts to Connect

Condenser

System to

Compressor

Unit

16. Return tops to their original positions.

April 2002

Page 16

Condensing Section Assembly: ER2C6810

Eclipseä 600, 800, 1000

(CP680 or CP1086 to ER2C6810):

1. Remove cartons from compressor package and
two-circuit condenser.

2. Remove top from both units.

3. Remove front panel from CP unit.

4. If installing one CP unit, locate legs, secured to
ERC unit. If installing two CPs, skip steps 5, 6, 7
and 9.

5. Locate fasteners inside junction box of ERC unit.

6. Assemble rear legs to ERC using fasteners from
prior step.

Locate

Fastener

Package

14. Route wires from ERC junction box to CP
junction box.

15. Attach condenser wires (from wire package) to
L1 and L2 of the contactor.

Connect

Power

Here

Connect

Fan Motor

Leads

7. Locate wire package in CP unit. Remove short
wires and two wire nuts.

8. Use wire & wire nuts from step 7 to connect to
the wires inside the junction box of the condenser.
Return junction box cover to its original position.

9. Place front (with junction box) of ERC on back
flange of CP unit.

10. Secure CP unit to ERC.

11. Attach leg brace between ERC unit and CP
unit.

12. Pull ERC female refrigerant connections
forward to engage male connections on CP unit.

13. Rotate swivel nuts to tighten refrigerant
connections. Use a back up wrench to hold female
connection to prevent tearing of the diaphragms.

Two Circuit Condenser Installation, CP Unit

Contactor, Three Phase Shown

The fan motor of the ER2C6810 will always be
on.

If installing two CP units, connect the fan motor
leads to only ONE of the two contactors.

16. Return tops to their original positions.

Rotate Swivel

Nuts to Connect

Condenser

System to

Compressor

Unit

April 2002

Page 17

Eclipseä 600, 800, 1000

Condensing Section Assembly

Alternate Assembly:

The CP unit may be connected to an approved
condenser coil in a central condenser rack. In
those cases, the CP unit must be connected to the
condenser coil using special kit RTE10.

Position the CP unit in its final spot. It must be
within 6 feet of the condenser coil connections.

Route tubing from kit RTE10 from the CP unit to
the condenser coil.

Approved

Rack Unit

Scotsman
Condensing
Unit

All Assemblies:

Route interconnecting control wire through proper
hole in side of CP unit and plug into the connection
on the bottom of the control box.

Interconnecting
Control Wire Plug

Control Wire Connection in CP Unit

Route power conduit (liquid tight) and wires to the
hole in the side of the CP unit. Secure with the
proper type of connector.

Note: The power supply wires must be the correct
size and type per the National Electric Code.
Locate the nameplate on the CP unit for the
Voltage, Phase, Minimum Circuit Ampacity and
Maximum Fuse Size. Either fuses or HACR type
circuit breakers may be used.

Connect tubing per the Coupling Instructions in this
manual.

No wire connection is required between the CP
unit at the condenser.

Note: Approved condensers must maintain power
to their fan motor at all times.

Follow all Local, State and National Codes.

Connect

Power

Here

Connect

Fan Motor

Leads

CP Unit Contactor, Three Phase Shown

Connect power wires to the contactor, L1 and L2 if
single phase, L1, L2 and L3 if three phase. Note: If
there is a “wild leg” in the three phase power
supply place it on L3.

Connect electrical power to the CP unit.

Return front of CP unit to its original position.

April 2002

Page 18

Ice making section:

Eclipseä 600, 800, 1000

Remove from carton.

Remove all panels.

Utility Connection Route:

Routing the refrigerant lines, power cord, water
supply and interconnecting control wire out the top
and a drain to the left or right allows the ice making
section to be placed with its back tight against a
wall.

If unit will have refrigerant lines routed out the top,
remove and discard cover plate under top panel
access hole.

If unit will have refrigerant lines routed out the
back, remove and discard the back plate.

Attachment:

ABS (Automatic Beverage Dispenser) in drive
up installations: Route refrigerant tubing and
install drain and water supply tubing onto ice
making section before placing unit on the
dispenser.

Place CME686 or CME810 onto adapter, do not
secure at this time. Uncoil power cord and route to
the power supply. Plug interconnecting control wire
to the wire harness in the ice making section.

Do not secure unit to adapter at this time.

Cover
Plate

Access Covers, Top Back View

Place adapter kit onto bin or
dispenser top. If adapter does
NOT have gasket tape install
tape such as Scotsman part
number 19-0503-04.

Back Plate

Plug control
wire here

Ice Making Section Control Wire Connection

April 2002

Page 19

Eclipseä 600, 800, 1000

Water and Drain

The ice making section requires an adequate
potable water supply and a gravity drain.

Determine how the water supply and drain will be
connected to the ice making section.

If access is available behind the unit, route the

·

drain and water supply in from the back.

If the unit is to be flush mounted to the back of

·

the dispenser and tight against the wall, the
water supply must be routed from the top right
corner and the drain out either the left or right
back corners.

In some tight situations it will be necessary to
assemble the ice making section to the dispenser
or bin and install the water and drain connections
before placing the system in its installed position. A
loop of water supply tubing will allow movement of
the system.

In other tight situations the unit should have its
water and drain tubing connected and stubbed out
before placing on the dispenser or bin.

The drain fitting is adaptable to drain connections
to the left, right and back.

The unit is shipped ready to drain left. The drain
hose to drain right is in a bag packed near the
water pump.

Hose to Drain

Right

PVC Adapter

Included Drain Fittings

Hose to Drain
Left

Barbed
Adapter

April 2002

Page 20

Drain
Fitting

Water Inlet

Water and Drain

Left Draining:

1. Connect ¾” PVC to the female PVC fitting. If
copper is required by code, remove the PVC
connector and install a ¾” FPT female copper
fitting onto the ¾” NPT male fitting. Do all soldering
before connecting to the male fitting.

2. In tight locations do the next step after the unit is
placed on the dispenser or bin.

3. Connect rigid drain tubing to the reservoir drain
tube. Route the drain either out the back, under the
unit (through the notch in the base) to the left side
or to the right side. A vent is built into the unit,

so no external vent is required.

Run the drain tubing to the building drain. Do not
“Tee” into any other drain, including the bin or
dispenser drain.

Eclipseä 600, 800, 1000

Ice

machine

drain fitting

Vinyl Tube

for Left

Draining

FPT-to-PVC
Fitting

Barb-to-Pipe Thread
Fitting

April 2002

Page 21

Eclipseä 600, 800, 1000

Water and Drain

Right Draining: Remove vinyl hose from barbed
fitting at drain fitting. Locate alternate vinyl hose.
Attach to barbed fitting and insert barbed fitting
from the original hose into outlet. Connect ¾” PVC
to the PVC fitting.

Back Draining: Either connect a vinyl hose to the
barbed fitting or connect PVC directly into the ¾”
FPT drain fitting.

No external drain vent is required, venting is
internally provided for.

Note: External drain tubing must be supported to
insure that it does not move and kink the internal
rubber tube.

Water Supply: Connect a supply of cold, potable
water to the 3/8” fitting on the right side of the
cabinet. A male flare fitting is on the unit.

Note: This is an NSF listed ice machine and
contains provisions for back-flow prevention in its
design. No external back flow preventer is
required.

Drain: Connect rigid drain tubing to the reservoir
drain fitting on the right side of the cabinet. Route
the drain either out the back, under the unit
(through the notch in the base) to the left side or to
the right side. A vent is built into the unit, so no
external vent is required.

Run the drain tubing to the building drain. Do not
“Tee” into any other drain, including the bin or
dispenser drain.

Back View, Shown Set Up For Back Draining

Drain

Fitting

Vinyl Tube

for Right

Draining

Barb-to-Pipe
Thread Fitting

FPT-to-PVC Fitting

Back View, Drain Tubing Installed for Right Side Drain

April 2002

Page 22

Ice Making Section Set Up

Rotate the ice making section as needed to access
the right side, where the refrigeration connections
will be made. Connect the suction line to the back
fitting. Connect the liquid line to the middle fitting.
Connect the vapor line to the front fitting.

See Coupling Connections on the next page for
detailed instructions.

After couplings are connected, add cork-tape type
insulation to exposed fittings to reduce
condensation potential.

Eclipseä 600, 800, 1000

Liquid

Vapor

Suction

Add
insulation

Refrigerant Lines, Shown Routed Out The Top

April 2002

Refrigerant Lines, Shown Routed Out the Back

Page 23

Eclipseä 600, 800, 1000

Coupling Connections:

The couplings on the ends of the pre-charged line
sets are self-sealing when installed properly.

Follow these instructions carefully. These steps
must be performed by an EPA Certified Type II or
higher technician.

Initial Connections

1. Remove the protector caps and plugs. Wipe the
seats and threaded surfaces with a clean cloth to
remove any possible foreign matter.

4c. Continue tightening the swivel nut until it
bottoms out or a very definite increase in
resistance is felt (no threads should be showing).
Do NOT overtighten.

Tighten Swivel Nut

5. Use a marker or pen to mark a line on the
coupling nut and unit panel. Then tighten the
coupling nut an additional one-quarter turn. The
line will show the amount that the nut turns.

Clean and Lubricate Couplings

2. Thoroughly lubricate the threads, o-rings,
diaphragms and all internal coupling surfaces with
polyolester refrigerant oil.

3. Position the fittings on the correct connections
on the condenser and ice machine.

Final Connections:

4a. Begin to tighten the couplings together by
hand. Continue to turn the swivel nuts by hand until
it is certain that the threads are properly engaged.

4b. Using two wrenches, one to rotate the swivel
nut and one to hold the tubing in place, tighten
each coupling.

It is CRITICAL that ONLY the NUT on the
pre-charged tube be turned, or the diaphragms will
be torn by the piercing knives and become loose in
the refrigeration system causing severe operational
problems.

Note: As the coupling is tightened, the diaphragms
in the quick connect couplings will begin to be
pierced. As that happens, there will be increased
resistance to tightening the swivel nut.

Rotate Swivel Nut ¼ Turn More

6. After all connections have been made check the
couplings for leaks.

7. Add cork tape to the swivel nut of the suction
line to insulate it. Be sure all exposed tubing of

the suction line is insulated.

Note: The system charge is contained in the
receiver tank of the ice machine. Only “holding"
charges are present in the “pre-charged" tubing or
the condenser.

May 2002

Page 24

Condensing Unit Connections

Connect the suction line, the vapor line and the
liquid line to the matching fittings on the CP unit.

See Coupling Connections on the prior page for
detailed instructions.

Eclipseä 600, 800, 1000

Field
Supplied
Service
Disconnect

Assembled Condensing Unit

Power

Supply

Inlet

Control Wire

Vapor Line

Liquid Line

April 2002

Page 25

Suction Line

Eclipseä 600, 800, 1000

Final Placement

After the utilities and refrigeration connections
have been made, secure the unit to the dispenser
or bin top.

Secure ice making section to dispenser or bin
adapter.

Use strap/clips to secure unit:

When used with Cornelius ABS adapter, install

·

clip on the side of the cabinet. Clip under edge
of adapter and secure to ice making section
using the screws provided in the hardware bag.

Install Clips

Here

Left Side View of IMS on Dispenser

Note: If one side will be against a wall, do not use
a clip on that side. One clip is sufficient to secure
the unit.

·

For use on bin adapter, use clip (as a strap) on
back.

Final Check List Before Initial Start Up

1. Confirm that the ice making section is installed
indoors in a controlled environment.

2. Confirm that all packing materials have been
removed from all products.

3. Confirm that the ice making section is level.

4. Confirm that all the refrigerant connections
have been made and checked for leaks.

5. Confirm that the proper power supply has been
turned on to the condensing unit.

6. Confirm that cold, potable water has been
supplied to the ice making section and checked
for leaks.

7. Confirm that the water supply is adequate.

8. Confirm that there is adequate water pressure
and that any water filters have been checked to
confirm that the cartridges do not need
changing.

9. Confirm that the proper size drain tubing has
been installed and properly routed.

10. Confirm that the ice making section has been
connected to the proper power supply.

11. Confirm that the interconnecting wire has been
routed and connected between the ice making
section and the compressor package.

Install Clips

Here

Back View, IMS on a Bin

If the ice maker & bin or dispenser is not yet in its
final position gently move it there.

Note: The refrigerant lines above the machine
must be able to move freely while the machine is
being moved into position.

April 2002

Page 26

Controller Operation

S

Eclipseä 600, 800, 1000

The controller has seven indicator lights and four
push buttons.

Indicator Lights

Bin Full: On when the bin is full, blinks on and off

as ice falls during a harvest cycle.

Freeze: On when the unit is in the Freeze cycle.
Blinks when a freeze cycle is pending.

Harvest: On when the unit is in the Harvest cycle.

Clean: Blinks when the unit is in the first part of a

Clean cycle, on steady when switched to the
second part.

Off: On when the unit has been switched off, blinks
when the unit is preparing to shut off.

Water Diagnostic: On when the controller has
identified a problem with the water system. Flashes
a code to specify what area may be the problem.

Refrigeration Diagnostic: On when the controller
has identified a problem with the refrigeration
system. Flashes a code to specify what area may
be the problem.

Cycle Definitions:

Freeze: The refrigeration system is operating to

remove heat from the evaporators. The
compressor, fan motor, and water pump are on.

Harvest: The refrigeration system and water
system are operating to harvest the ice and rinse
the reservoir. The compressor is on for the full
cycle, the pump is off and then on, the purge valve
is open and then closed, the inlet water valve is
closed, opens and recluses. The vapor and
condenser by-pass valves are open during the
entire harvest cycle.

Clean: The inlet water valve opens to fill the
reservoir. The water pump starts. The Clean
indicator light is switched On. A manually initiated
rinse flushes the system.

89

Push Buttons

Freeze: Push and Release to start the unit

Harvest: Push and Release to start a manual

harvest of ice.

Clean: Push and Release to start the first part of
the cleaning process. Push and release again to
start the second part of the cleaning process.

Off: Push and Release to shut the machine off at
the end of the next harvest cycle. Push and Hold
for three seconds to stop the machine. Push and
Hold again to go into the Purge Adjustment or
Error Recall mode.

7

6

5

CONTROL SWITCHE

INDICATOR LIGHTS:

4

3

2

DIAGNOSTIC LIGHTS:

1

Controller Lights and Push Buttons

PUSH BUTTON

BIN FULL

FREEZE

HARVEST

CLEAN

OFF

WATER

REFRIGERATION

April 2002

Page 27

Eclipseä 600, 800, 1000

Initial Start Up

Pre Start

A soak-out period of four hours is optional for this
system. If desired, powering the compressor unit
for four hours prior to start up allows the crankcase
heater to warm up the oil in the compressor.

Start Up

1. Connect power to the condensing unit and move
its toggle switch to Run or On.

2. Open the water supply valve.

3. Connect or reconnect power to the ice making
section.

4. Observe the lights on the controller:

All flash on as the power supply is reconnected.

·

The two red lights blink for 20 seconds while

·

some green lights are on. CME810: bin full and
harvest. CME686: bin full, harvest and clean.

Note: If the light pattern does NOT match – do not
start the machine. Install a replacement controller
set to the correct program.

The red lights and harvest lights go out.

·

·

The Off light turns on.

·

The Bin Full light will be on for a few seconds.

At this point the machine is ready for start up.

5. Push and Release the Freeze button to start
the machine.

·

The Freeze light will begin to blink.

·

The Purge valve will open for a few seconds
and then close.

·

The Inlet water valve will open and fill the
reservoir with water.

·

The Water pump will begin to circulate water
over the evaporators.

When the reservoir is full, the Freeze light will stop
blinking and the controller will close a circuit to the
compressor contactor to start the first freeze cycle.

After a few minutes ice will begin to form on the
evaporators. When enough ice has formed to
nearly empty the water reservoir, the controller will
refill the reservoir. The next time the water level
drops that far, the ice is ready for release and the
Controller will initiate a Harvest cycle.

The Freeze light goes out and the Harvest light

·

switches on.

The vapor inlet valve in the ice making section

·

opens.

In the CP unit, the condenser by-pass valve

·

opens and the liquid inlet valve closes

The water pump stops.

·

The purge valve opens.

·

Refrigerant vapor flows into the evaporators where
it condenses, discharging its latent heat.

The evaporators warm up and melt the bond
between the ice cube surface and the evaporator
cells.

After about 20 seconds the water pump re-starts to
purge water out of the reservoir.

After a few more seconds the purge valve closes
and the inlet water valve opens for a few seconds
to add some water to the reservoir. The water
pump then circulates this water over the
evaporators, and ice begins to fall.

As the ice falls, it passes through two infrared light
beams. These beams, when interrupted, signal to
the Controller that ice is harvesting. The
interruptions are shown by the blinking of the Bin
Full light.

The first Harvest cycle continues for about 5
minutes. The controller will use the ice release time
measured during this time to compute the next
harvest cycle.

At the end of the Harvest cycle the ice machine will
switch back into a Freeze cycle.

The inlet water valve will open to re-fill the
reservoir with water, and the cycle repeats.

Note: Because the condensing unit is external to
the ice making section, no visible signs of
operation will be noticeable until the water begins
to cool and frost forms on the evaporator tubing.

6. Go to the condensing unit and confirm that the
compressor and fan motor are operating. Warm air
will be discharged from the condenser.

May 2002

Note: Machines are shipped from the factory with
the purge level set to accommodate average water
conditions. To achieve optimal machine
performance, set the purge level to the minimum
setting. See the next page.

7. Attach the front panel to the ice making section.

Page 28

Purge Adjustment

Note: While the amount of water purge is
adjustable, only those installations with a water
supply known to be excellent (very low TDS)
should adjust to the minimum setting. See below
for purge adjustment instructions.

How to Adjust the Amount of Water Purge

Adjustment is done by use of the control buttons
on the AutoIQ Controller. Examine the next section
to become familiar with the AutoIQ Controller
before beginning.

1. If the machine is on, push and hold the OFF
button for more than 3 seconds, then release it.
This switches the machine Off.

Eclipseä 600, 800, 1000

Adjustments

Cube Size: Cube size is fixed and cannot be

adjusted.

Thermostatic Expansion Valve:

The TXVs are not adjustable, do not attempt to
adjust any of them.

If there was a problem during Initial Start Up:

If an error light came on, check the following.

1. Water error.

A water error could have been determined by the
AutoIQ Controller if the inlet water valve does not
fill the reservoir, or if the water pump does not start
and lower the water level.

2. Push and hold the OFF button for more than 3
seconds (just until all lights flash on) then release
it. Do not hold it in it too long.

3. Examine the green lights. They should have all
flashed once, then certain ones will have turned on
to indicate which purge level the machine is set at.

There are 5 levels of purge available:

·1. Maximum Purge is when All 5 lights are ON.

Use for extreme water conditions.

·

2. Heavy Purge is when these 4 lights are ON:
Freeze, Harvest, Clean, Off. Use for severe
water conditions.

·

3. Standard Purge (factory setting) is when
these 3 lights are ON: Harvest, Clean, Off. Use
for moderate to severe water conditions.

·

4. Moderate Purge is when these 2 lights are
ON: Clean, Off. This is for typical water
conditions.

·

5. Minimum Purge is when this light is ON: Off.
For excellent water conditions.

Adjust by pushing and releasing the Freeze button.
Pushing and releasing the Freeze button increases
the purge one level up to the maximum, then it
goes to the minimum.

2. Refrigeration error.

A refrigeration error could have been determined
by the AutoIQ Controller if the water temperature
did not drop during the freeze cycle. The controller
will next check the compressor discharge
temperature, If the discharge temperature is too
low, the refrigerant error light will be switched on,
and the machine will Shut Down.

Note: Reset and restart the machine by
pushing and releasing the Off push button
switch, and then pushing and releasing the
freeze push button switch.

4. The machine will automatically restart after 60
seconds of no switch inputs, or restart the machine
by pushing in and holding the Off button for more
than 3 seconds, then releasing it. The unit will then
be Off. From there the machine may be placed in a
freeze cycle by pushing and releasing the Freeze
button.

April 2002

Page 29

Eclipseä 600, 800, 1000

System Operation:

This section is intended for the technician.
Understanding it is not necessary for the normal
operation and maintenance of this ice making
system.

Major Components:

Ice making section sub-system:

Controller,

·

Ice Sensors,

·

Water Level Sensor,

·

Transformer,

·

Evaporators,

·

Expansion Valves,

·

Check Valves,

·

Vapor Inlet Valve,

·

Water Pump,

·

Inlet Water Valve

·

Purge Valve.

·

Compressor Package sub-system:

Compressor,

·

·

Contactor,

·

Condenser Bypass Valve,

·

Liquid Inlet Valve,

·

Receiver,

·

Accumulator,

·

CPR Valve,

The controller receives input from the water level
sensor, ice sensor and temperature sensor. It then
actuates various loads in the ice making section
and in the condensing unit to control ice making. It
also responds to push button input and displays
cycle and diagnostic indicators.

Freeze: At the ice making sub system, the
controller fills the water reservoir and starts the
pump and compressor to make ice. The vapor inlet
valve is closed. Water circulates over the
evaporators until it begins to freeze to the
evaporators. As ice builds up the water level in the
reservoir falls until it reaches a point where the
water level sensor indicates to the controller that
the water level is low. At that point, about half-way
through the freeze cycle, the controller opens the
water valve to refill the reservoir. The second time
the water level drops in the freeze cycle indicates
to the controller that the freeze cycle is complete.

In the condensing unit sub-system (compressor
package and condenser) the compressor is on, the
condenser by-pass valve is closed, the fan motor is
rotating the fan blade.

Harvest: At the ice making sub system, the
controller shuts off the pump, opens the vapor inlet
valve, opens the purge valve. The controller also
controls items in the condensing unit, where the
condenser by pass valve is opened. After a set
time the water pump restarts and shortly after that
the purge valve closes. The inlet water valve opens
to add water to the reservoir.

Ice releases and falls into the bin or dispenser.

·

Headmaster.

Condenser sub-system:

·

Coils

·

Fan Motor

Ice

Sensors

Normal Bin Full

April 2002

Page 30

Refrigeration Details:

Eclipseä 600, 800, 1000

The compressor provides the force that circulates
refrigerant in the refrigeration system. During
freeze, when the vapor inlet and condenser by
pass valves are closed, discharge gas flows from
the compressor into the condenser, where its heat
is discharged into the air stream. Liquid refrigerant
flows out of the condenser and through the
normally open liquid line outlet valve on its way to
the receiver inlet. Under low ambient/low pressure
conditions, the headmaster valve closes the liquid
outlet of the condenser and opens a bypass route
to direct refrigerant gas to the receiver inlet until
discharge pressure builds back up to the
headmaster’s set point.

From the receiver liquid outlet, liquid
refrigerant flows into the liquid line
and into the ice making section. At
the ice making section, the
refrigerant flows into the expansion
valves where a pressure change
takes place. The liquid refrigerant
moves from the expansion valves
into a low-pressure area (the
evaporators) where it can rapidly
evaporate and absorb heat. Heat is
absorbed from the copper
evaporator tubing, attached copper,
tin, plastic and the water flowing
over the evaporators. Check valves
prevent the evaporating refrigerant
from flowing into the wrong
evaporator. The low-pressure
refrigerant gas then flows into the
suction line, which carries it back to
the condensing unit, where it enters
the accumulator. In the accumulator
most of any liquid carried with the
suction gas is separated and only
vapor flows out of the accumulator
through the CPR valve and to the
compressor where the cycle
continues.

CPR

Valve

Vapor Inlet Valve

then flows through the vapor line to the evaporator
inlets. The gas-vapor combination, when entering
the relatively cold evaporators, condenses,
transferring latent heat to the evaporators, which
warms them. Ice releases and falls into the bin.
The low-pressure refrigerant then flows out of the
evaporators and into the suction line. The suction
line brings the refrigerant, now consisting of a
vapor-liquid combination, to the accumulator. From
the accumulator the vapor-liquid combination (now
more vapor than liquid) goes to the Crankcase
Pressure Regulator valve which limits the amount
of dome pressure in the compressor, where the
cycle continues.

Discharge

Line

Liquid
Line

By-Pass Valve

Headmaster

Liquid Inlet
Valve (N.O.)

Receiver

TXVs

During harvest discharge gas flows
through the open condenser by
pass valve into the vapor line.
Power is also applied to the coil of
the liquid inlet valve, closing it. At
the same time, in the ice making
section, the vapor inlet valve opens.
Discharge gas, combined with some
vapor from the receiver’s outlet,

Check Valves

Evaporator

April 2002

Page 31

Eclipseä 600, 800, 1000

Technicians Only: Freeze Cycle Sequence of Operation

This sequence begins with a restart after the unit
has shut off with the bin full. Ice has been
consumed, causing the ice sensors to become
un-blocked.

1. The controller switches off the bin full light (four
minutes has to have passed since the machine
shut off on bin full for the machine to restart) and
switches on the Freeze light.

2. The purge valve is opened and the pump
started.

3. After the purge valve closes the inlet water valve
opens and fills the reservoir.

Note: If the water reservoir does not fill within the
time period expected the controller will shut off and
blink the water diagnostic light. It will re-try to fill
the reservoir in 20 minutes. If successful the freeze
cycle will continue.

4. The compressor and
fan motor start and the
freezing process begins.

5. The controller
measures the reservoir
water temperature and
compares it to the
temperature it expects to
find at that point in the
cycle. If normal, nothing
happens.

Inlet Water

Valve

6. Assuming that the system is working normally,

the controller will shut the water pump off for a few
seconds when the reservoir’s water temperature
reaches a pre-set point.

7. As the machine makes ice the water level in the

reservoir falls. When it reaches the point where the
float stem blocks the upper infrared beam in the
water level sensor the controller opens the inlet
water valve to refill the reservoir. The water valve
stays on until the float stem rises to block the lower
beam in the water level sensor.

8. The freezing process continues until the float

stem blocks the upper beam for the second time.
That signals to the controller that the freezing
process is complete.

If high, the controller
checks the discharge
temperature. If
that is normal,
nothing happens.
If that is low, the
controller starts a
diagnostic process that
could lead to the unit
shutting off, as
the refrigeration
system may not
be operable.

Purge Valve

Water Pump

Water Schematic

April 2002

Page 32

Eclipseä 600, 800, 1000

Technicians Only: Harvest Cycle Sequence of Operation

At the beginning of harvest, the controller:

Shuts off the Freeze light

·

Turns on the Harvest light

·

Opens the vapor inlet valve

·

Opens the condenser bypass valve

·

Closes the normally open liquid inlet valve

·

Shuts off the water pump

·

Opens the purge valve

·

Begins to time the harvest cycle

·

When the ice falls off the evaporators, it passes
through the two infrared light beams emitted by the
ice sensors in the ice chute. The falling ice breaks
the beams, signaling to the controller that ice is
being released.

During harvest the controller:

Blinks the Bin Full light at every light beam

·

interruption to indicate that ice is being sensed

Changes the time measured from the beginning

·

of harvest to the time the last cube was sensed.

First Harvest Cycle

The first harvest cycle after a restart continues for
a default period of about 5 minutes. The next
cycle’s harvest time will be determined from the
actual time used to release ice in this cycle, and
will likely be much shorter.

Slow Ice Release

If ice releases slowly the controller will extend the
harvest cycle until it ice quits falling within the
normal harvest time or until it reaches the pre-set
maximum time. The controller will then return the
unit to the freeze cycle.

No Ice Released

If no ice is sensed harvest continues until it
reaches its pre-set maximum, when the controller
switches the unit back into freeze.

Shut Down - Maximum Harvest Time

If a maximum harvest time is reached again during
the next harvest cycle, the controller will shut the
system down and blink the refrigeration diagnostic
light. It will automatically attempt a restart in 50
minutes. If the maximum harvest time is reached
again in the next two consecutive cycles, the
controller will repeat the shut down and restart
process. If the system still requires a maximum
length harvest cycle the controller will shut the unit
down and must be manually reset.

Purge Valve

The purge valve is open for a fixed time period. At
the beginning of that time the pump is off, but after
the time determined by the Purge setting in the
controller, the pump starts and forces water out of
the reservoir. The pump stays on after the purge
valve closes. The inlet water valve opens for a few
seconds to add water (but not fill) the reservoir.

End of Cycle

At the end of the harvest cycle the controller
switches the Harvest light off and the Freeze light
on. If the ice sensors had been blocked
continuously for more than 20 seconds the
controller senses this as Bin Full and would then
shut the machine off and turn on the Bin Full light.

At the beginning of the Freeze cycle the inlet water
valve is turned on to fill the reservoir and the cycle
repeats.

April 2002

Page 33

Eclipseä 600, 800, 1000

Power and Water Interruptions

Short (less than one second) power interruptions
cause no change in operation.

Longer interruptions initiate a restart process:

Freeze light blinks on controller

·

Compressor is off

·

Vapor inlet valve opens

·

Liquid inlet valve closes

·

Purge valve opens

·

Pump starts, empties the reservoir

·

Purge valve closes

·

Inlet water valve fills reservoir

·

The Compressor starts

·

Vapor inlet valve closes

·

Liquid inlet valve opens

·

Freeze cycle proceeds for 30 seconds

·

Harvest cycle initiated, continues for 4 minutes

·

Normal freeze cycle starts

·

Water Interruptions

The water level sensor checks for water fill
whenever the water inlet valve is activated. If the
water level sensor does not record a full reservoir
within the pre-set time, the controller

shuts the unit off

·

blinks the water diagnostic light two times and

·

repeats

After 20 minutes the inlet water valve is powered
again and if the water level sensor is satisfied, the
unit is restarted if the controller still doesn’t sense a
full reservoir it keeps the unit off for another 20
minutes and then restarts the water fill process.

The process of retrying water fill will continue until
a full reservoir is sensed. There is no time limit.

April 2002

Page 34

Eclipseä 600, 800, 1000

Sanitation and Cleaning

It is the User’s responsibility to keep the ice machine and ice storage bin in a sanitary condition.
Without human intervention, sanitation will not be maintained. Ice machines also require occasional

cleaning of their water systems with a specifically designed chemical. This chemical dissolves mineral build
up that forms during the ice making process.

Sanitize the ice storage bin as frequently as local health codes require, and every time the ice machine is
cleaned and sanitized.

The ice machine’s water system should be
cleaned and sanitized a minimum of twice per
year.

In Place Cleaning of the Ice Machine Water
System:

1. Remove all ice from the bin or dispenser.

2. Remove the front panel.

3. Push and release the Harvest button (this
releases any ice that may be on the evaporators
and warms them up).

4. Wait for the machine to finish the Harvest cycle
(the machine will stop).

5. Remove the evaporator cover, the splash
shields, the cube deflector, the cascading shield
and the ice sensors. Place the cascading shield
and the cube deflector in a separate container.
Place the ice sensors in the reservoir, but be sure
that the ends of the connecting wires are not in the
water.

6. Push and release the Clean button. The Clean
indicator light will be blinking, and the pump will
restart.

9. After the ice machine cleaner has circulated for

10 minutes, push and release the Clean button.
This starts the rinsing process. The Clean indicator
light will be ON. Note: The rinse process flushes
any residual cleaner out of the ice machine’s water
system.

10. Continue the rinsing process for 20 minutes,

then push the off button to switch the machine off.

11. Go to the next step to sanitize the machine or

go to step 19 to finish the cleaning process.

12. Mix 2 gallons of Sanitizer solution. Follow local

codes for Sanitizer.

Note: A possible sanitizing solution may be made
by mixing 1 ounce of liquid household bleach with
2 gallons of warm (95-115

13. Push and release the Clean button again.

14. Pour 24 ounces of Sanitizer solution into the

reservoir water.

15. After the solution has circulated for 10 minutes

push and release the Clean button. This starts the
rinse process. Sanitize the ice storage bin while
waiting.

o

F.) potable water.

7. Pour 24 ounces of Scotsman Ice Machine
Cleaner into the reservoir water. Return the
evaporator cover to its normal position.

8. Mix a solution of 8 ounces of Scotsman ice
machine cleaner and 1 gallon of warm (95-115
water. Use the solution to scrub the cascading
shield and cube deflector in the separate container.

Scotsman Ice Machine
Cleaner contains acids.

Acids may cause burns. If
concentrated cleaner comes
in contact with skin, flush
with water. If swallowed, do
NOT induce vomiting. Give
large amounts of water or
Milk.

Call Physician immediately.
Keep out of the reach of
children.

o

F. )

April 2002

16. Continue the rinsing process for 20 minutes,

then push the off button to switch the machine off.

17. Remove the evaporator cover and spray or

wash all interior surfaces of the freezing
compartment including the evaporator cover with
sanitizer solution.

18. Thoroughly immerse the cascading shield and

cube deflector in the sanitizing solution.

19. Return the ice sensors, cascading shield and

cube deflector to their original positions.

20. Return the evaporator cover to its original

position. Push and release the Freeze button.

21. Return the front panel to its normal position

and secure it to the machine with the original
screws.

Page 35

Eclipseä 600, 800, 1000

Other Maintenance

The remote condenser coil must be cleaned
occasionally to keep the system operating at high
efficiency.

Remove any large debris from the outside of the

·

coil.

Vacuum accumulated dust.

·

Wash out the coils with water.

·

Caution: Do NOT use excessive water pressure as
that will bend the fins.

Straighten any damaged fins with a fin comb.

·

If the coils have become coated with grease, a

·

coil cleaner will have to be used to wash the
coils.

Moving Parts Hazard
Rotating fan blade can

cause cuts

Disconnect electrical
power before removing
condenser top or fan
guard.

Disconnect power to the condensing unit and
remove the condenser top.

·

Inspect the fan blade to be sure it is not cracked
and is clean.

Return the condenser top to its original position
and reconnect the power supply.

April 2002

Page 36

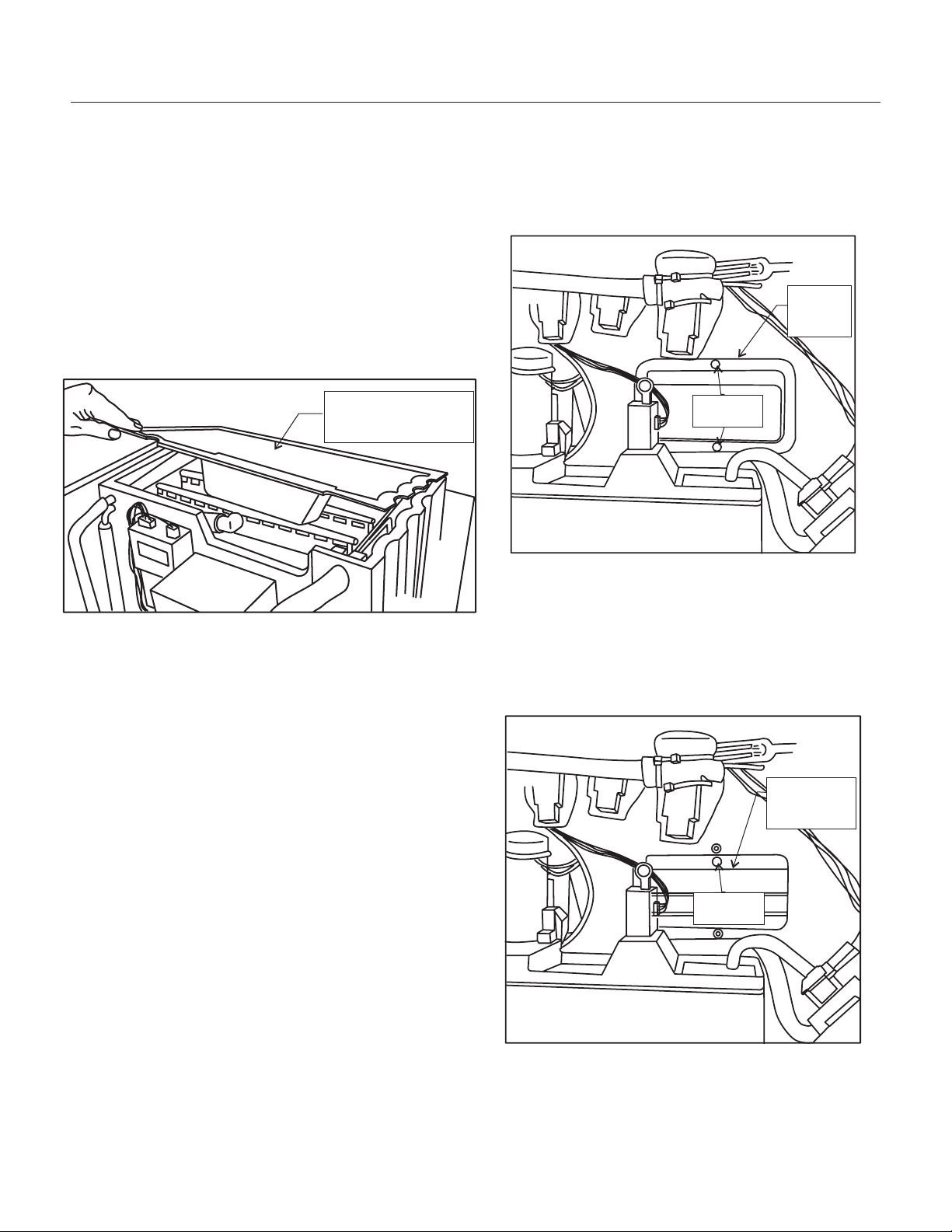

Tight Installation Access

Eclipseä 600, 800, 1000

Some installations will have very small access to
the sides and top of the ice making section. In
those cases, alternative methods are available for
front access to certain components.

Top Panel

Removing the top panel allows access over the top
of the freezing compartment wall through the notch
at the top. The water distributors may be accessed
through this area.

Remove Top Panel
and Lift Cover

Inspection Cover

Removing the inspection cover at the lower end of
the freezing compartment allows access to the
cascading shield, water trough (when used), ice
sensors and cube deflector.

Access
Cover

Remove

To remove:

Remove the front panel.

Remove the two thumb screws and the cover.

Remove the single thumb screw holding the
cascading shield to the cabinet.

Cascading
Shield

Remove

The cascading shield may be moved out of the
way to inspect/adjust/clean the water trough and
ice sensors.

April 2002

Page 37

Eclipseä 600, 800, 1000

Water Distributors

It may become necessary to remove the water
distributors from the top of the evaporator and
clean (de-mineralize) them outside of the ice
machine.

1. Remove front panel.

2. Push and release the off button.

3. Remove the evaporator cover.

4. Remove the upper splash panel.

5. Remove the top panel.

6. Lift the center of the distributor assembly to
release them from the top of the evaporators.
Repeat for each plate.

7. Examine the top of the evaporators. The water
distribution channels must be free of mineral build
up. If build up is present, scrub the channels with
Scotsman Ice Machine Cleaner and a plastic
bristle brush.

8. Examine the water distributors. Although they
are made of a material that is resistant to mineral
build up, some may be present, especially in the
discharge holes. Soak or scrub the distributors in a
solution of Scotsman Ice Machine Cleaner and
warm, potable water.

9. Return the water distributors to their normal
position.

10. Snap the two distributors onto the top of each
evaporator.

11. Repeat for all evaporators.

12. Reconnect the water hose.

13. Push and release the clean button to begin the
cleaning process, after the reservoir refills push
and release the button again to start the rinse
process. After 20 minutes push and release the Off
button.

14. Push and release the Freeze button.

Inlet Water Valve Screen

The inlet water valve has a screen on its inlet side
to keep debris from flowing into the valve. In some
cases, this screen may become clogged or
restricted by debris build up. Check for the proper
water flow.

Flow rate is 1.33 GPM

1. Remove front panel.

2. Obtain a measuring cup and a watch.

3. Push and release the Harvest button.

4. When the water valve opens, it will fill a 16

ounce cup in about 3 seconds. Be prepared to
push the Off button If the water does not flow in
fast enough, the water inlet valve or other water
device is restricted.

To Check the Inlet Water Valve Screen

1. Disconnect the electrical power.

2. Shut off the water supply.

3. Remove the front panel.

4. Unplug the electrical connection from the inlet

water valve.

5. Remove the screws holding the water valve to

the cabinet.

6. Remove the outlet tube from the inlet water

valve.

7. Rotate the inlet water valve from the inlet fitting

and remove valve from machine.

8. Examine the inlet screen. If dirty, brush the dirt

from the screen.

Note: Screen is not replaceable, and may only be
removed by taking off the covering bracket. The
bracket is part of the valve and must be water tight.
Removal is not recommended.

15. Return all covers and panels to their original
positions.

9. Reverse to reassemble.

April 2002

Page 38

Ice Sensors

Eclipseä 600, 800, 1000

The ice sensors, located in holders in the base of
the ice making section, must be clean and free of
mineral scale to provide the controller with
accurate information.

To clean them they must be removed from their
installed positions.

1. Remove front panel.

2. Push and release the Harvest button to release
ice. When ice quits falling, push and hold the Off
button until the machine stops.

3. If side access is available, remove both side
panels.

4. Remove evaporator cover.

5. Remove lower splash panel.

6. Remove inspection cover.

7. Remove cascading shield.

8. Locate sensor mounting holes, located at the
lower left and right corners of the freezing
compartment.

9. Push the sensors in at their mounting holes.

10. Reach in the freezing compartment and pull the
sensors out through the inspection hole until they
are at a comfortable distance from the cabinet.

11. Each sensor contains a removable tray. One
tray contains the infrared emitters, the other the
infrared receiver. Each lens must be clean and free
of scale for proper operation. The trays may be
removed from their holders for better access.

12. Push the tray in with a finger or thumb until the
tray flips out of its socket.

13. Wipe the lens

clean with a soft cloth
dipped in an ice
machine cleaner solution (3
parts water to 1 part ice
machine cleaner). Do NOT
use any abrasives on the
lenses.

14. Return the tray to its

normal position. Be sure it
snaps into place. The gray
wire must be secured under
the black plastic clip.

15. Return each ice sensor

to its normal position. Be
sure no wires are
pinched in the
mounting sockets.

16. Remount the

cascading shield.

17. Return the

inspection cover to its
normal position.

18. Return the lower splash panel to its normal

position.

18. Return the evaporator cover to its normal

position.

19. Return the side panels to their normal

positions.

20. Push and release the Freeze button.

21. Return the front panel to its normal position.

Ice Sensor Diagnostics

Diagnostics assume that the control system is
working but may not be able to sense cubes. Its
purpose is to determine which component may be
at fault - the controller or the ice sensors.

Unplug thermostat (if used) and check bin full light,
if off place an object between the ice sensors, after
5 seconds the Bin Full light will be glowing steadily,
if not check operation of sensors by unplugging #4.
Bin Full light will go on after 5 seconds, If not,
replace controller. If the light does go on, replace
ice sensor set.

April 2002

Page 39

Eclipseä 600, 800, 1000

Water Level Sensor Maintenance

In most cases the water level sensor will not
require maintenance. However, if the area where
the ice making section is located is dusty or there
is a high concentration of minerals in the water, the
infrared emitter and detector lenses inside the
sensor may need to be wiped off.

1. Remove front panel.

2. Push and hold the Off button until the machine
stops.

3. Unplug sensor wire harness from sensor.

4. Remove two screws holding dust cover to
sensor.

5. Wipe the four lenses with a cotton swap soaked
in potable water.

Clean

Lenses

Water Level Sensor, Dust Cover Removed

6. Return the dust cover to its original position,
secure with the original screws.

7. Reconnect wire harness.

8. Push and release the Freeze button.

9. Return the front panel to its normal position.

Water Level Sensor Diagnosis

Clean
Lenses

If it is much less than that, there is something
wrong with either the power supply to the controller
or the controller itself. If the voltage measures
correctly proceed to the next step.

5. Reconnect the harness. Be SURE it is on

properly and has a good connection. To confirm,
unplug the harness from the water sensor and
redo step #4 at the end of the harness. Then plug
the harness back onto the sensor.

Harness Connected Voltage (DC)

6. At the controller, measure the voltage between

the top and bottom pins on connection #2. This
should be between the ranges in the table below. If
it outside this range there is a problem in the
sensor and it should be changed out. If it is within
this range, proceed to the next step.

7. Place negative voltmeter probe on the bottom

terminal (yellow wire). Place the other on the one
just above it (terminate freeze sender - white wire).
Move the float stem/stick up and down and note
the voltage changes. There should be a significant
change between when it is blocked to when it is
not blocked. If there is NO change, the sensor
may be dirty or has failed. Remove the dust cover
from the sensor to clean it.

Note: The sensor must be properly reassembled.
When looking at the terminals of the sensor, they
must be in the lower right corner. If they are in the
upper left remove the sensor’s dust cover and
reverse the board. Later models have an UP arrow
on the right side of the circuit board.

Tools Needed: Digital voltmeter that can read DC

Note: Ambient light can affect this test. Shade the
sensor if needed.

1. Unplug water sensor harness from controller
(connection #2).

2. Confirm that the power to the machine is ON
and that there is at least one light on the board that
is glowing. If not, check the transformer.

3. Set the voltmeter to DC and use a scale low
enough to measure less than 40 Volts.

4. Measure the voltage between the top and the
bottom pins on the controller at connection #2 (the
bottom is ground or negative).

·

Harness unplugged - .5 to 2 VDC

April 2002

Yellow (bottom)

White - Blocked about 5 VDC

White - Unblocked less than when blocked

8. With the voltmeter probe still on the bottom

terminal (connection #2), place the other probe on
the second pin from the top (sump full sender - red
wire). Move the float stick up & down, changes in
voltage should be the same as in step 7.

Yellow (bottom)

Red - Blocked about 5 VDC

Red - Unblocked less than when blocked

9. If all voltages check out, there is nothing wrong

with the sensor or the voltage it receives from the
controller.

Page 40

Eclipseä 600, 800, 1000

Service Diagnosis

Problem or Symptom Possible Cause Probable Correction

No ice No power to ice making section Restore power

No power to condensing unit Restore power

No lights on controller Check transformer

Unit manually switched off Push and release the Freeze button, ask

user why it was shut off

Power to both sections, controller reset,
but condensing unit does not operate

No water to ice making section, controller
blinking water light twice and repeating

Ice making section has exceeded
maximum freeze time and controller has
shut down the system

Interconnecting control wire
disconnected, reconnect it

Low or high pressure cut outs open,
check system pressures

Restore water supply, check water filters,
reset controller

Check inlet water valve operation

Check water level sensor operation,
including harness between sensor and
controller*

Condenser coils may need cleaning

Check condenser fan blade and motor

Check for excessive air intake
temperatures at condenser coil

Check compressor contactor

Check compressor and starting
components

Check water pump

Check purge valve for leak through

Ice making section has exceeded
maximum harvest time and shut down the
system

Bin full light is on but bin is not full Check ice sensors*

* Additional diagnostics for this component are on the following pages

April 2002

Page 41

Check vapor inlet valve for leak though

Check ice making section for lime scale
build up, clean as needed

Check condenser by pass valve

Check vapor inlet valve*

Check headmaster

Check ice sensors for cube sensing*

Check inlet water valve for leak through

Check for obstruction in ice delivery chute

Check optional thermostat*

Eclipseä 600, 800, 1000

Service Diagnosis

Problem or Symptom Possible Cause Probable Correction

No ice No refrigeration, unit shut down and

refrigeration diagnostic light is on without
blinking

No water to ice making section Water level sensor or harness not

working properly

Slow ice release during harvest Cubes are too large Check inlet water valve for leak through

Condenser by-pass valve does not open Check coil of valve

No ice sensed during harvest Ice sensing system failure Check sensing system by pouring about

Check compressor, refrigerant charge,
and liquid inlet valve. Note that if liquid
inlet valve is not open, compressor will
pump down and suction pressure will be
very low.

Replace harness or sensor

Check float for sticking

Check power to valve during harvest

10 ice cubes through the ice outlet port.
The bin full light should blink, indicating
that it has sensed the ice. If not, check
the sensors.

Check the ice sensors. Place an object
between the ice sensors, after 5 seconds
the Bin Full light will be glowing steadily,
if not check operation of sensors by
unplugging #4. Bin Full light will go on
after 5 seconds, If not, replace controller.
If the light does go on, replace ice
sensor set.

No ice released to bin Ice outlet blocked - check for obstruction

No ice released, vapor inlet valve does
not open

Check coil for continuity, if open replace
coil

Check for 24 volts to coil during harvest,
if non, check at controller

Check low side pressure, if pressure
does not rise during harvest, and valve is
electrically OK, replace vapor inlet valve

April 2002

Page 42

Eclipseä 600, 800, 1000

Service Diagnosis

Problem or Symptom Possible Cause Probable Correction

Low capacity Dirty condenser Clean condenser

Air temperature intake to condenser
very high

Water temperature intake to ice making
section very high

False bin full - bin full light is ON and the
bin is not full

Storage bin or dispenser not holding ice
properly

High volume of drinks dispensed, cold
plate melting ice

Vapor inlet valve leaks through slightly
during the freeze cycle

Re-orient condenser to avoid hot air
intake

Check for hot water supply to ice
machine due to mal-functioning or
non-existent hot water check valve at
dishwashing sink

If using optional thermostat, unplug from
terminal 7 and check controller. Bin full
light must go out within 4 minutes or ice
sensors need checking.

Check ice sensors for proper position

Check ice sensors for scale build up

Check drains for water flow from ice
machine (separate to correct) or
restriction

Suggest pre-cooler for water supply to
cold plate

Check valve body for similar
temperatures on inlet and outlet, the
outlet should be colder and frost
develops on the tubes to the
evaporators

Poor ice formation - very cloudy
and misshapen

Whistling noise at CP unit during
harvest

Cascading shield missing/out of position
and water is cascading out of the
reservoir

Exceeding maximum freeze time,
compressor unit trips on high discharge
temp

Dirty water system Clean the water distributors and the tops

Low refrigerant charge. Add several pounds of refrigerant to

By pass and liquid inlet valve coils not
getting power

Install or re-secure cascading shield.
Check water distributors for proper
attachment.

Check condenser bypass valve

of the evaporators to remove built up
mineral scale

check. If low on charge, locate leak.
Recover refrigerant, repair leak, replace
drier, evacuate to 300 microns and
weigh in the nameplate charge.

Check harness

April 2002

Page 43

Eclipseä 600, 800, 1000

Controller Features & Last Error Recall

Last Error/Diagnostic Light Recall

To recall the last error on the blue housing CM

3

controller:

1. Switch the unit OFF by holding the OFF button
for longer than 3 seconds.

2. Hold the Off button down again until the Purge
Setting indicators (Green Lights) are on.

3. Push and release the Harvest button.

The last error code stored in the controller will be
displayed and the purge setting will disappear.

Push the Harvest button again and the
second-to-last error code will be displayed. The bin
full light will also be on to signal that this is the
second-to-last code.

Pushing the Harvest button again will display the
last error code again. Only two error codes are
available for display.

If no error code exists, no code will be displayed
and there will be NO LIGHTS showing.

To return from the display of the last error, do
nothing for 60 seconds or push and hold the Off
button.

After returning from the display of the last error (Off
light glows), the machine may be returned to the
ice making process by pushing and releasing the
Freeze button.

Program ID

The blue housing controller will display a code at
power up that indicates which ice machine model it
has been programmed for.

The code is based on the green lights that are
displayed.

1. At power up all lights flash ON once to indicate

that the controller has passed its internal
self-checks.

2. Immediately after that the program code will be

displayed for 20 seconds or until a button is
pushed.

Note: The proper program code for this machine is
glowing

CME810: Bin Full and Harvest lights.

·

CME686: Bin Full, Harvest and Clean lights

·

Do NOT operate this machine if the wrong code is
displayed.

3. If no button is pushed after 20 seconds the

machine will display the Off light and is ready for
switch inputs (push and release Freeze to start
making ice).

Note: The Red Diagnostic Lights will be
FLASHING while the program ID is displayed.

Controller Diagnostic Codes

If a Diagnostic
Light

Blinks once and
repeats

Blinks twice and
repeats

Blinks three
times and
repeats

Is ON all the time Water valve

Both ON all the
time

Water Light Refrigeration

Water pump will
not start

Lack of water fill No harvest of ice

not used High discharge

leaking thru
rapidly

Check for thermistor set unplugged
or failed

Light

Very long ice
harvest

temperature

Maximum freeze
time

May 2002

Page 44

Eclipseä 600, 800, 1000

Operational Characteristics 600 lb system

Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F

70/70/50 90/90/70 120/110/100

Freeze 16 to 20 minutes 20 to 23 minutes 35 to 37 minutes

Harvest 3 minutes 2 ½ minutes 1 ½ minutes

System Pressures @ Condenser Temp/Cabinet Temp/Water Temp in degrees F.

70/70/50 90/90/70 120/110/100

Suction at Ice Making Section, end of Freeze 34 to 40 PSIG 36 to 42 PSIG 42 to 48 PSIG

Suction at Ice Making Section, Harvest 80 to 90 PSIG 90 to 110 PSIG 130 to 150 PSIG

Discharge at Condensing Unit: Freeze 230 to 250 PSIG 240 to 260 PSIG 340 to 360 PSIG

Headmaster maintains a minimum discharge
pressure during freeze of:

217 PSIG + 25, -15 PSIG

·

CPR Valve Setting: 55 - 60 PSIG.

Note: CPR allows a maximum low side pressure at
the CP unit’s compressor. Maximum only occurs
during harvest.

Refrigerant Charge

·

232 oz

Compressor Amps

·

Single Phase - 5

·

Three Phase - 3.5

Batch Weight

·

8to10lb

Discharge Pressure Cut Out Switch

·

Cuts Out at: 450 PSIG

·

Resets at: 350 PSIG

Compressor: RS70C1E

Expansion Valves: 3

May 2002

Page 45

Eclipseä 600, 800, 1000

Operational Characteristics 800 lb system

Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F.

70/70/50 90/90/70 120/110/100

Freeze 14 to 16 minutes 16 to 19 minutes 19 to 22 minutes

Harvest 2 ½ minutes 2 ½ minutes 1 minute

System Pressures @ Condenser Temp/Cabinet Temp/Water Temp in degrees F

70/70/50 90/90/70 120/110/100

Suction at Ice Making Section, end of Freeze 26 to 32 PSIG 30 to 36 PSIG 36 to 42 PSIG

Suction at Ice Making Section, Harvest - Peak 90 to 110 PSIG 120 to 140 PSIG 130 to 150 PSIG

Discharge at Condensing Unit: Freeze - 5 minutes in 220 to 240 PSIG 240 to 260 PSIG 355 to 375 PSIG

Headmaster maintains a minimum discharge
pressure during freeze of:

217 PSIG + 25, -15 PSIG

·

CPR Valve Setting: 55 - 60 PSIG.

Note: CPR allows a maximum low side pressure at
the CP unit’s compressor. Maximum only occurs
during harvest.

Refrigerant Charge

·

232 oz

Compressor Amps

·

Single Phase - 9

·

Three Phase - 6

Batch Weight: 8 to 10 lb

Discharge Pressure Cut Out Switch

Typical Low Side System Pressure Changes at Ice
Making Section:

Freeze: Pulls down rapidly to 80 PSIG, then

·

slowly to 35 to 38 PSIG

Harvest: Rapid increase to >120, PSIG, drops

·

slightly to 110 - 120 PSIG

·

Cuts Out at: 450 PSIG

·

Resets at: 350 PSIG

Compressor: CS14K68

Expansion Valves: 3

April 2002

Page 46

Eclipseä 600, 800, 1000

Operational Characteristics 1000 lb system

Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F

70/70/50 90/90/70 120/110/100

Freeze 12 to 13 minutes 13 to 14 minutes 18 to 19 minutes

Harvest 3 minutes 2 minutes 1 ½ minutes

System Pressures @ Condenser Temp/Cabinet Temp/Water Temp in degrees F

70/70/50 90/90/70 120/110/100

Suction at Ice Making Section, end of Freeze 24 to 30 PSIG 26 to 32 PSIG 32 to 36PSIG

Suction at Ice Making Section, Harvest 90 to 110 PSIG 120 to 140 PSIG 160 to 190 PSIG

Discharge at Condensing Unit: Freeze - 5 minutes 220 to 240 230 to 250 PSIG 350 to 370 PSIG

Headmaster maintains a minimum discharge
pressure during freeze of:

217 PSIG + 25, -15 PSIG

·

CPR Valve Setting: 55 - 60 PSIG.

Note: CPR allows a maximum low side pressure at
the CP unit’s compressor. Maximum only occurs
during harvest.

Refrigerant Charge

·

272 oz

Compressor Amps

·

Single Phase 11

·

Three Phase 7

Batch Weight: 8 to 10 lb

Discharge Pressure Cut Out Switch

Typical Low Side System Pressure Changes at Ice
Making Section:

Freeze: Pulls down rapidly to 60 PSIG, then

·

slowly to 28 to 30 PSIG

Harvest: Rapid increase to >120, PSIG, drops

·

slightly to 110 - 120 PSIG

·

Cuts Out at: 450 PSIG

·

Resets at: 350 PSIG

Compressor: CS18K68

Expansion Valves: 3

April 2002

Page 47

Eclipseä 600, 800, 1000

Refrigeration System Service

Recovery

Recovery must be done from the condensing unit,
but requires the ice machine to be shut down.

1. At the ice making section, remove the front
panel.

2. Push and release the Harvest button. When the
machine shuts off, recover the refrigerant.

3. Remove compressor package covers.

4. Attach recovery system to low side (compressor
process port valve)

5. If the recovery system can recover liquid, attach
recovery system to high side (receiver liquid line
out valve)

Operate recovery system to remove refrigerant
from the system. No other points of attachment or
solenoid activation are required.

Vapor Inlet Valve - Replacement of the valve
body.

Note: The coil and internal components are
available to repair the valve without replacing the
valve body.

11. Replace liquid line drier in CP unit.

12. Evacuation system to 300 microns.

13. Weigh in the nameplate charge.

14. Start unit and check operation.

15. Return all covers to their normal positions and

secure with the original screws.

1. Recover refrigerant as outlined above.

2. Unplug ice making section from power supply.

3. Disconnect wire harness from valve coil.

4. Disconnect wire harnesses from controller.

5. Disconnect wire harnesses and ground wire
from inlet water valve and purge valve.

6. Cut tie wraps securing wire water valve
harnesses to other wires.

7. Remove four screws holding control box and
controller mounting bracket to ice making section.
Gently re-position assembly away from vapor inlet
valve. Support with wire.

8. Cut tie wraps holding vapor inlet valve to bracket
and move valve away from plastic housing.

Note: When using torch, cover plastic behind valve
with a small piece of sheet metal to protect it while
brazing.

9. Cut out or heat joints with torch to melt the braze
joints and remove valve body.

10. Reverse to reassemble.

April 2002

Page 48

CME810

Symptom: Ice jams up
Likely Cause: End Defl ector Out of Position

End
De ector

The End Defl ector
must be in place as
shown here. The End
Defl ector routes the
ice towards the cube
chute outlet AND holds
the cube defl ector so it
does not move.

If the thumb screw is
missing the End De­fl ector can be out of
place or it can be put
on wrong.

Correct, End Defl ector positioned to route ice to
chute and to hold cube defl ector in place.

Incorrect

Edge of End De ector
caught on sump wall

Bulletin Number: PS - 4 - 2011
Bulletin Date: May 2011

SERVICE BULLETIN

Subject: CME810 Float Stem Color Change

The color of part number 02-3777-04 has been changed from light blue to black.
The infrared light of the water level sensor must be blocked by the plastic of the float stem to

properly signal level of the water to the controller. Light blue has been found to be inconsistent in
blocking that light, causing irregular cube size and water fills.

There is an existing black float stem, used on SCE275. It is part number 02-3383-03. They must not
be mixed up. The part numbers are molded onto the side of the part and they are physically different.

CME810 float stem has a loop top.

·

SCE275 float stem has a flat top.

·
