Introduction:
CME256, 506, 656, 806: AutoIQ™ Cubers
This product manual contains the information
needed for the setup, installation, initial start up,
sanitation and maintenance of this ice machine.
Keep it for future reference.
All series of these 4 models are covered in this
manual:
CME256, a 115 volt, single evaporator
•
machine
CME506, a 115 volt, dual evaporator
•
machine (115 volt if 60 Hz, 230 volt if 50 Hz)
CME656 and CME806, 230 volt, dual
•
evaporator machines
Table of Contents
Specifications: ................ page 2
Pre-Installation ................ page 3
Location & Assembly: ............. page 4
Stacking: ................... page 5
Plumbing: ................... page 6
Electrical: ................... page 7
After Utility Connections: ........... page 8
Component Location and Function: ...... page 9
AutoIQ Controller: ............... page 10
Initial Start Up: ................ page 11
Adjustments: ................. page 12
Adjustments: ................. page 13
How To Operate The AutoIQ Controller . . . page 14
How The Electronic Cuber Works ...... page 15
Technicians Only: Freeze Cycle Operational Sequence
......................... page 16
Be certain that the information applies to the model
in question. If no model is listed, the information
applies to all models, including A through F series.
This manual is organized in the same way as the
expected use of the machine, it begins with
specifications, goes thru unpacking and setup,
shows where everything is; continues with initial
start up, then describes how it works. After that is
the sanitation section, followed by service
diagnosis and repair.
Additional Maintenance: Water Distributors . page 20
Additional Maintenance: Inlet Water Valve Screen
......................... page 21
Additional Maintenance: Bin Controls, Condenser
......................... page 22
Service Diagnosis: Controller Diagnostic Light Analysis
......................... page 23
Service Diagnosis ............... page 24
Service Diagnosis: Components ....... page 25
PTCR Diagnosis ............... page 26
Operational Characteristics: CME256 .... page 27
Operational Characteristics: CME506 .... page 28
Operational Characteristics: CME656 .... page 29
Operational Characteristics: CME806 .... page 30
Removal and Replacement .......... page 31
Removal and Replacement .......... page 32
Removal and Replacement: Sensors ..... page 33
Technicians Only: Harvest Cycle Operational Sequence
......................... page 17
Sanitation and Cleaning ........... page 18
Additional Maintenance ............ page 19
June 2002
Page 1
Removal and Replacement: Fan Blade and/or Fan
Motor ..................... page 34
Access Valves: ................ page 35
Before Calling for Service ........... page 36
Printed on Recycled Paper.Parts lists are in the center section.
CME256, 506, 656, 806: AutoIQ™ Cubers
Specifications:
These ice machines are designed to be installed
indoors, in a controlled environment. They can
operate satisfactorily under a wide variety of
conditions. However, Do NOT operate the
machine where it has not been designed for. Do
NOT operate the machine in temperatures it has
not been designed for. Do NOT operate the
machine above or below the voltage limits for the
particular model. Do NOT operate the machine
with too little or too much water pressure.
CME256 or CME506 Operational Limits
Minimum Maximum
Air Temperature 50oF. 100oF.
Water Temperature 40oF. 100oF.
Water Pressure 20 psi 80 psi
Voltage (115 volt model) 103 126
Voltage (208-230 volt mdl) 198 253
Voltage (230 volt model) 207 253
CME656 or CME806 Operational Limits
Minimum Maximum
Air Temperature 50oF. 100oF.
Water Temperature 40oF. 100oF.
Water Pressure 20 psi 80 psi
Voltage (60 Hz model) 198 253
Voltage (50 Hz model) 207 253
All models will fit a standard, 30" wide Scotsman
Ice Storage Bin. Some examples are:
BH550; HTB555; HTB350; HTB250
•
The CME256 and CME506 are the typical models
used in hotel applications and they fit the
Scotsman HD30 dispenser without an adapter. All
models fit the ID200 or ID250 dispensers which
require a KBT44 adapter. Check Scotsman’s sales
literature for other application information.
Note: These machines fill the bin very full, up to
the base of the ice machine. Bin Model BH800
may need kit KBaffle2 and Bin Model BH550 may
need kit KBaffle1. In some cases the ice level in
the bin may be too high for a customer's needs. A
thermostat kit is available to lower the ice level, its
part number is A37749-001.
A stacking kit, for like models
,isKSCME6-30.
Scotsman reserves the right to make design
changes and/or improvements at any time.
Specifications and designs are subject to change
without notice.
Scotsman assumes no liability or responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the
use of any parts and/or other components not
specifically approved by Scotsman.
BASIC INFORMATION
Current Model
Number
CME256AS-1F 30 x 24 x 27 115/60/1 Air Cooled 16 20
CME256WS-1F same 115/60/1 Water Cooled 16 20
CME256AS-32F same 208-230/60/1 Air Cooled 7.9 15
CME506AS-1F same 115/60/1 Air Cooled 19 20
CME506WS-1F same 115/60/1 Water Cooled 19 20
CME506AS-6F same 230/50/1 Air Cooled 7.9 15
CME506WS-6F same 230/50/1 Water Cooled 7.1 15
CME506AS-32F same 208-230/60/1 Air Cooled 8.9 15
CME656AS-32F same 208-230/60/1 Air Cooled 13.6 20 36 ounces
CME656WS-32F same 208-230/60/1 Water Cooled 12.7 20 26 ounces
CME656AS-3F same 208-230/60/3 Air Cooled 6.6 15 36 ounces
CME656WS-3F same 208-230/60/3 Water Cooled 5.8 15 26 ounces
CME656AS-6F same 230/50/1 Air Cooled 13.4 20 36 ounces
CME656WS-6F same 230/50/1 Water Cooled 12.6 20 26 ounces
CME806AS-32F same 208-230/60/1 Air Cooled 17.5 20 32 ounces
CME806WS-32F same 208-230/60/1 Water Cooled 16.0 20 24 ounces
CME806AS-6F same 230/50/1 Air Cooled 17.6 20 32 ounces
CME806WS-6F same 230/50/1 Water Cooled 16.2 20 24 ounces
Dimensions
W"xD"xH"
(w/o bin)
Basic
Electrical
Condenser
Type
Minimum
Circuit
Ampacity
Maximum
Fuse Size
Refrigerant
Charge
(R-404A)
see page
27
see page
28
February 2005
Page 2
Pre-Installation
CME256, 506, 656, 806: AutoIQ™ Cubers
Other Applications:
Models CME256 or CME506 may be placed on
certain Ice Dispensers, including Scotsman
models: HD30, ID200 and ID250.
Check with other dispenser manufacturers for
recommendations regarding application.
Check the nameplate for electrical requirements.
The nameplate is located on the back of the ice
machine. While the model and serial number are
on the nameplate, a serial number plate is located
at the front of the machine, below the metal control
box.
Water:
There is no such thing as pure water. There are
two ways water can contain impurities: in
suspension or in solution. Suspended solids can
be filtered out. In solution or dissolved solids must
be diluted or treated. Water filters are
recommended to remove suspended solids. Some
filters have treatment in them for suspended
solids. Check with a water treatment service for a
recommendation.
Location of Nameplate
(on the back, plus a serial plate
is behind the front panel)
Nameplate
Cube Ice machines use more water than what
ends up in the bin as ice. While most water is used
during ice making, a portion is designed to “rinse”
out the water system to keep hard water scale
from clogging up the machine. That water rinse,
combined with water filters, prolongs the times
between needed water system cleaning.
Note: All Scotsman CM3models, like those
described in this manual, feature Scotsman’s
AutoIQ™ control system and ReliaClean™ water
system cleaning process.
Service Technicians
factory at a “standard” water rinse, which is
compatible with typical water conditions. The
ReliaClean™ water system provides an
adjustment method so to the amount of water
rinsed per cycle can be changed. If the prior ice
machine worked acceptably well with the local
water conditions, leave the machine at the factory
setting. If severe water conditions are present, and
water filters do not solve the problem acceptably,
adjust the machine to use more water. If water
conditions are excellent, adjust the machine to use
less water. See the Adjustments section.
Note: Water use adjustments are customer
convenience adjustments; they are NOT factory
defects and are NOT covered by warranty.
: All models are set by the
July 2004
Page 3
Back View Diagram (air cooled)
Top View Diagram
Note: Although the machine will function, ice capacity of
air cooled machines will be significantly reduced with
only 6 inches of clearance at the sides, back and top.
CME256, 506, 656, 806: AutoIQ™ Cubers
Location & Assembly:
Air cooled models take room temperature air in
from the left and right sides, and discharge warm
air out the back. If installed in a corner or with
another cabinet next to the right side, an air baffle
could be installed on the back of the cabinet to
minimize air re-circulation.
A 6 inch minimum clearance on the back, left and
right sides is required for operation and service of
this machine.
Air Flows in the Sides
and Out the Back
Cabinet Panel Removal:
Note: The top panel holds the upper edges of the
side panels in place.
1. Front Panel, “A” series: Remove the front
panel by removing the four screws connecting the
front panel to the left and right sides.
Remove
Second
Note: Although the machine will function, ice
capacity of air cooled machines will be
significantly reduced with only 6 inches of
clearance at the sides, back and top.
Unpacking and Assembly:
Begin with unpacking the ice storage bin. Remove
the carton, and using part of the carton as a
cushion, tip the bin on its back to remove the skid
and attach the legs or casters. Note: Stacked
applications may not use casters.
Return the bin to an upright position. Check the bin
top gasket for gaps and tears, fill any in with food
grade sealant prior to placing the ice machine on
the bin.
If the ice machine has not been unpacked, do so
now. Remove the carton from the skid. Lift the ice
machine off the skid directly onto the bin.
Note: The machine is heavy! Use a mechanical
hoist if necessary.
Remove
First
Removal of Panels
Front Panel “C thru F” Series: Remove top two
screws, and pull the bottom of the panel away
from the machine to unsnap it from the machine.
2. Remove 2 screws at the front edge of the top
panel, and pull the top panel forward until it
releases from the tabs connecting it to the back
panel.
3. Remove the screws at the front edge of each
side panel, and pull them forward until they
release from the tabs connecting them to the back
panel.
Secure the ice machine to the bin with the
hardware provided (two metal straps and 4 bolts).
July 2004
Page 4
CME256, 506, 656, 806: AutoIQ™ Cubers
Stacking:
Models CME256, CME506, CME656 and CME806
may be stacked together in any combination. Use
kit number KSCME6-30:
1. Remove the front, left side and top panels from
the bottom machine. Discard the top panel.
2. Remove the front and left side panels from
the top machine.
3. Place the upper machine onto the lower
machine. Check that the tabs on the top of the
freezing compartment in the lower machine
engage the slot in the base of the upper
machine (around the cube port).
4. Fasten the upper cabinet to the lower
cabinet with the hardware (two metal straps
and four bolts) provided with the machine.
5. Knock out 1 hole in the upper left (viewed
from the front) corner of the lower unit’s back
panel. Knock out the hole in the lower left
(viewed from the front) corner of the upper
unit’s back panel.
Mounting Strap,
Machine to
Machine
6. Position the strain reliefs over the wrapped
portion of the stacking kit wire harness.
Route the Stacking Kit Wire Harness from the
back to the top and bottom machines thru the
holes made in step 5. The harness is marked
which end goes to which machine. Push the
strain reliefs into place from the back of the
machines.
Follow local electrical codes for 24 volt wire.
In the lower unit, route the wire behind the
suction line and thru the snap bushing just
below the Controller. Tape any excess wire to
the insulated suction line.
In the upper unit, route the harness thru the
snap bushing just below the System Controller.
Plug one end into each Controller connection
number 7.
7. Place insulation pad from the kit over the
reservoir drain tubing in the upper machine.
Make certain that the insulation is in contact
with the tubing.
Mounting Strap,
Machine to Bin
Wire Harness from
Stacking Kit
8. Return all panels to their normal places.
Stacking Like Models
January 2002
Page 5
CME256, 506, 656, 806: AutoIQ™ Cubers
Plumbing:
All models require an adequate potable water
supply and a gravity drain. The recommendations
for tubing are: Water supply to be
3
“ OD. Drain to
8
be ¾ “ OD.
Supply:
Air cooled models have 1 water supply connection,
3
a
“ male flare at the back of the cabinet. Water
8
cooled models have an additional
condenser inlet connection at the back of the
cabinet.
Potable Water
Inlet
Condenser
Water Inlet
3
” FPT
8
Water Cooled
Plumbing
Connections
Drain:
Air cooled models have 1 gravity drain connection,
a ¾ “ FPT fitting at the back of the cabinet.
It must be vented at the back of the cabinet.
Water cooled models have an additional
condenser drain, it isa½“FPTfitting at the back
of the cabinet. Do not vent this drain.
The ice storage bin will have a drain out the back
or base, depending upon the model. Note:
Scotsman HTB555 (shown in this manual) may be
drained either out the back or the base.
Condenser
Drain
Potable
Water Inlet
Optional
Filter
Reservoir
Drain, Must
Be Vented
Separate
Drains for
Bin and
Machine
Plumbing
Connections
January 2002
HTB555
Drains
Insulation is recommended for the ice machine
reservoir and bin drains.
Follow all applicable codes
Page 6
CME256, 506, 656, 806: AutoIQ™ Cubers
Electrical:
All models must be installed with the correct wire
size and type per the National Electric Code.
Locate the nameplate on the back of the cabinet
and find the numbers for Voltage, Phase, Minimum
Circuit Ampacity and Maximum Fuse Size. Either
fuses or HACR type circuit breakers may be used.
Electrical connections are made in the junction box
in the back of the cabinet.
1. Remove the junction box cover.
2. Knock out 1 hole for a field supplied strain relief.
3. Install wires and strain relief per code.
4. Connect to wires and secure ground wire to
ground screw inside junction box.
Follow all Local, State and National codes.
Junction Box
Electrical Access
Electrical Connection
January 2002
Page 7
CME256, 506, 656, 806: AutoIQ™ Cubers
After Utility Connections:
1. Level the cabinet, use the leg levelers on the
end of the legs to adjust the cabinet height.
2. Wash out the bin. If desired, the interior of the
bin could be sanitized.
3. Locate the ice scoop (if supplied) and have it
available for use when needed.
Final Check List:
1. Is the unit located indoors in a controlled
environment?
2. Is the unit located where it can receive
adequate cooling air?
3. Has the correct electrical power been supplied
to the machine?
4. Have all the water supply connections been
made?
5. Have all the drain connections been made?
6. Has the unit been leveled? The unit must be
leveled at the water reservoir.
7. Have all unpacking materials been removed?
8. Is the water pressure adequate?
9. Have the drain connections been checked for
leaks?
10. Has the bin interior been wiped clean or
sanitized?
11. Have any water filter cartridges been
replaced?
January 2002
Page 8
CME256, 506, 656, 806: AutoIQ™ Cubers
Component Location and Function:
Reservoir: Contains the water charge used for
every batch of ice.
Water Inlet Valve: Opens to allow water into the
reservoir.
Water Level Sensor: Controls the size of the ice
cube by measuring how much water is used in a
cycle. It consists of a float, stem and electric eye.
The stem will move slightly when the pump is on,
this is normal. As the machine makes ice the
reservoir water level will fall and the visible portion
of the stem will slide down thru the slot in the
sensor body.
AutoIQ Controller: Controls the complete
operation of the ice machine. Turns it on and off;
switches it between cycles; shows information via
indicator lights; and shuts the machine down if
there is a problem.
Evaporators/Freezing Compartment: Location of
the evaporators. Ice forms on the evaporators and
is released when warmed up during the harvest
cycle. The freezing compartment is fully insulated
for maximum efficiency.
Cube Deflector: The slots in the inclined deflector
let the water falling from the evaporators back into
the reservoir, but when ice falls during harvest, the
ice slides off into the bin.
Refrigeration Service Access Valves: Only to be
used by a certified technician. Allows access to the
refrigeration system for diagnostic information.
Water Pump: Forces the water from the reservoir
to the top of the evaporator(s). The motor is
separated from the reservoir water to minimize
contact with the water.
Compressor: The refrigerant vapor pump, it
forces the refrigerant to flow thru the refrigeration
system tubing.
Hot Gas Valve: Closed during freeze, it opens
during harvest to divert hot discharge refrigerant
gas into the inlet of the evaporators.
Condenser: Either air or water cooled, discharges
the heat produced in ice making.
Access Valves
AutoIQ
Controller
Compressor
Water Pump
Water Level
Sensor
Reservoir
Evaporators
Cube
Deflector
Inlet Water
Valve
January 2002
Page 9
Component Location
CME256, 506, 656, 806: AutoIQ™ Cubers
AutoIQ Controller:
Indicator Lights:
Bin Full: On when bin is full, goes on and
•
off as ice falls during a harvest cycle.
Freeze: On when the unit is in the Freeze
•
cycle, blinks when a freeze mode is pending.
Harvest: On when the unit is in the Harvest
•
cycle.
Clean: On when the unit is in the Clean
•
cycle, blinks when preparing for a clean
mode.
Off: On when the unit has been switched off,
•
blinks when the machine is preparing to shut
off.
Water Error: On when the controller has
•
identified a problem with the water system.
Refrigeration Error: On when the controller
•
has identified a problem with the
refrigeration system.
Low Voltage In/out
Water Valve
Hot Gas Valve
Contactor Coil
Cycle Definitions:
Freeze: The refrigeration system is
•
operating to remove heat from the
evaporators. The compressor, fan motor (if
air cooled) and water pump are ON.
Harvest: The refrigeration and water
•
systems are operating to harvest the ice
cubes. While the compressor is on for the
full cycle, the water pump will be off at the
beginning and inlet water valve will switch off
before the end.
Clean: The Inlet Water Valve opens to fill the
•
reservoir, The Water Pump starts. The Clean
indicator light is switched ON. A manually
initiated rinse flushes the system.
Air Cooled Fan Motor
89
Hi Voltage In/out
Water Pump
Stacking
Future Use
Reservoir & Discharge
Line Thermistors
Bin Control Sensor
Bin Control Sensor
Reservoir Water
Level Sensor
Factory Use
7
6
5
4
3
2
1
Push Button
Control Switches
Indicator Lights:
BIN FULL
FREEZE
HARVEST
CLEAN
OFF
Diagnostic Lights
WATER
REFRIGERATION

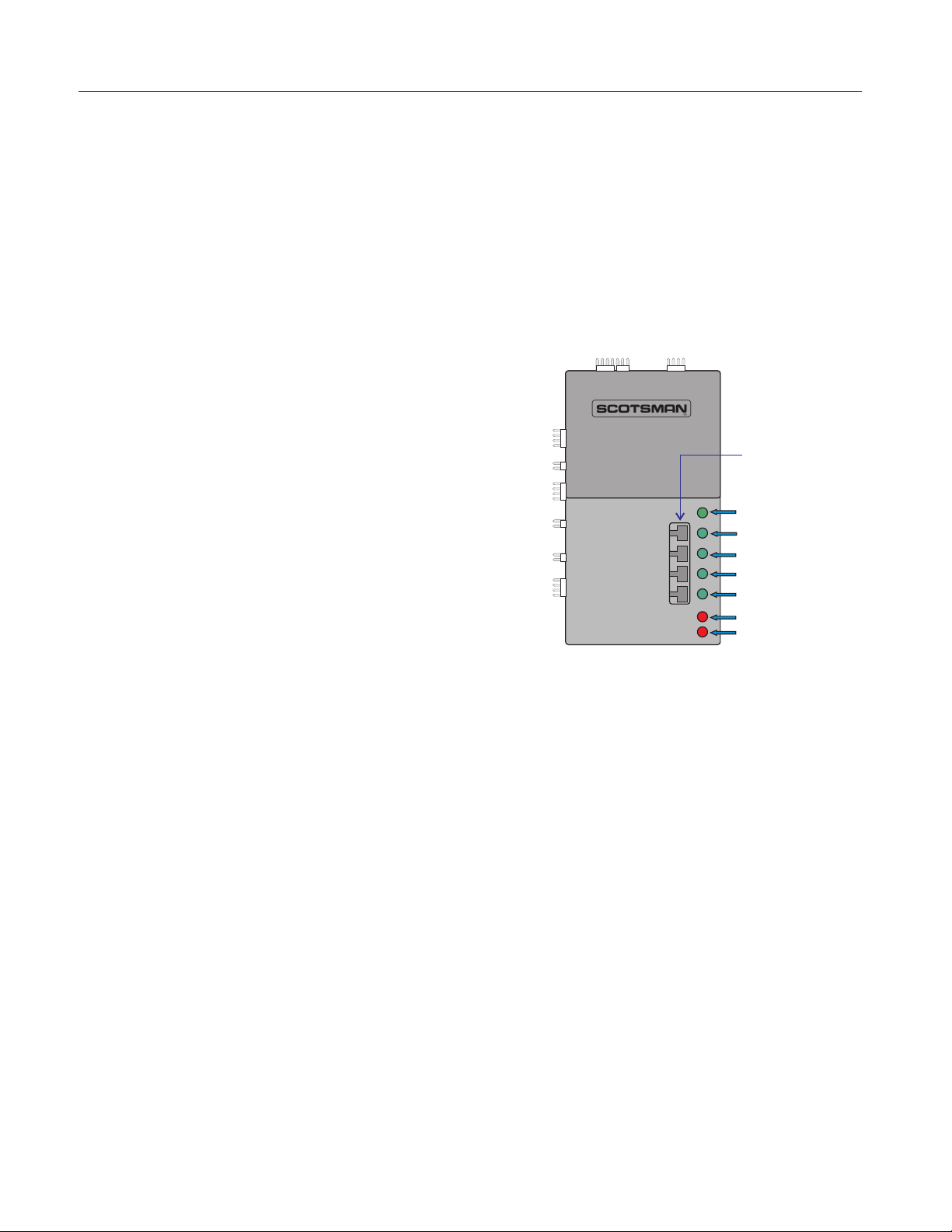

AutoIQ Controller: Wire Connections, Push Buttons, and Indicator Lights
January 2002
Page 10
Initial Start Up:
CME256, 506, 656, 806: AutoIQ™ Cubers
1. Remove the front panel.
2. Locate the AutoIQ Controller.
3. Switch on the electrical power. Note that the
indicator lights all flashed on briefly.
4. Open the water supply valve.
5. Push and release the Freeze cycle push button
(the Freeze indicator light will blink until the
compressor starts). The next several operations
are automatic.
Initial Start Sequence
The Freeze light is blinking.
•
The Hot Gas Solenoid valve is open.
•
The inlet water valve opens to fill the
•
reservoir. The inlet water valve will shut off
when the reservoir is full.
The water pump starts to pump water.
•
The inlet water valve opens again to refill the
•
reservoir.
After 30 seconds the compressor starts.
•
After 5 seconds the hot gas valve closes.
•
Freeze Cycle:
•
The Freeze indicator light will come on. The
machine will stay in a Freeze cycle for many
minutes. Slush may appear in the reservoir,
it is temporary and normal.
•
Under certain conditions, the pump may
stop for a few seconds. After that the inlet
water valve will refill the reservoir.
•
The fan motor (of air cooled models) will
begin to turn and soon warm air will be
forced out the back of the cabinet.
•
The freeze cycle will continue until the water
level in the reservoir drops to its factory set
point, then the Harvest Cycle will begin.
Harvest Cycle:
•
The Harvest indicator light will be ON,
•
The hot gas valve will open.
•
The water pump will stop. It will restart in
less than a minute.
•
The Inlet water valve will open. The machine
will fill the reservoir and overflow it for a
specified number of seconds then shut off.
The harvest cycle may still be in progress.
•
The Bin Full indicator light will go on and off
as ice falls from the evaporators.
6. Machines are shipped from the factory with the
purge level set to accommodate average water
conditions. See page 13 for purge adjustment
instructions.
24 hours of run time may be need to attain full ice
making capacity.
7. The machine’s correct
ice falling from the evaporator in vertical strips of 8
- 10 cubes; the top 2 cubes might fall individually.
8. After a few minutes the machine will return to a
freeze cycle.
9. Fill out the Customer Evaluation and Warranty
Registration. Send it to Scotsman.
10. Replace the front panel.
11. Inform the user of the location and telephone
number of the local service company. Also inform
the user of the required maintenance of the
machine.
cube size should result in
Notes On Operation:
1. The electric eyes signal the ice machine to shut
off whenever the bin becomes full. After the eyes
sense that there is ice between them, the ice
machine will shut off at the end of the next harvest
cycle. This last harvest cycle will be longer than
the rest.
2. After the bin has filled the ice machine will not
be able to restart for 4 minutes. However, if
needed, the Freeze button may be pushed and the
unit will restart.
For example: If ice is removed from the bin
immediately after the machine has filled up and
shut off, the machine will not restart for 4 minutes.
3. If the bin controls sense a bin full signal before
any water is used (float stem up), the machine will
shut off on bin full.
July 2004
Page 11
CME256, 506, 656, 806: AutoIQ™ Cubers
Adjustments:
If there was a problem during Initial Start
Up:
If an error light came on, check the following.
1. Water error.
A water error could have been determined by the
System Controller if the inlet water valve does not
fill the reservoir, or if the water pump does not start
and lower the water level.
2. Refrigeration error.
A refrigeration error could have been determined
by the System Controller if the water temperature
did not drop during the freeze cycle. The controller
will next check the compressor discharge
temperature, If the discharge temperature is too
low, the refrigerant error light will be switched on,
and the machine will Shut Down.
Note: Reset and restart the machine by pushing
and releasing the Off push button switch, and then
pushing and releasing the freeze push button
switch.
How to Adjust Cube Size (Reference Only)
The adjustment is done by moving the long screw
located in the floating stem at the front of the
machine.
Note: Units manufactured beginning 3/97 do not
have a cube size adjustment screw; their cube size
is fixed.
Cube Size
Adjustment
Screw
Adjustment of
Cube Size
1. Remove the front panel.
2. Locate adjustment screw, and
To increase the cube size, turn the screw out
(counter clockwise)
To decrease the cube size, turn the screw in
(clockwise)
Turn the screw 2 turns at a time.
3. Check cube size after the next freeze cycle,
repeat step 2 if needed.
Cube Size Diagram
Side View, Cube
should be 1/2" thick
at the center
January 2002
Page 12
Front View,
Cube is 1.5" x 1.4"
Adjustments:
CME256, 506, 656, 806: AutoIQ™ Cubers
How to adjust the water cooled discharge
pressure
Water cooled models use a water regulating valve
to control how much cooling water flows thru the
water cooled condenser. At the top of that valve,
located in the right rear corner of the ice machine,
is an adjustment stem.
To Adjust:
1. Attach a refrigeration manifold gage to the
discharge access valve.
2. While the unit is in the freeze cycle, determine
the discharge pressure, it should be about 245
PSIG.
3. If needed, rotate the adjustment stem to
increase or decrease the pressure:
Water
Regulating
Valve
Adjustment
Screw
Adjusting Water Cooled
Discharge Pressure
A. To increase discharge pressure (reduce water
flow) rotate the stem counter-clockwise.
B. To decrease the discharge pressure (increase
water flow) rotate the stem clockwise.
Remove the manifold when done. Note: The water
outlet temperature should be between 100-110
when the valve is properly set.
Thermostatic Expansion Valve:
The TXV is not adjustable, do not attempt to adjust
it.
How to Adjust the Amount of Water Purge
Adjustment is done by use of the control buttons
on the AutoIQ Controller. Examine the next section
to become familiar with the Controller before
beginning.
1. If the machine is on, push and hold the OFF
button for more than 3 seconds, then release it.
This switches the machine Off.
2. Push and hold the OFF button for more than 3
seconds (just until all lights flash on) then release
it. Do not hold it in it too long.
3. Examine the green lights. They should have all
flashed once, then certain ones will have turned on
to indicate which purge level the machine is set at.
There are 5 levels of purge available:
1. Maximum Purge is when All 5 lights are
•
ON. Use for extreme water conditions. Note:
This setting may extend the Harvest cycle
and reduce capacity.
2. Heavy Purge is when these 4 lights are
•
ON: Freeze
severe water conditions.
3. Standard Purge (factory setting) is when
•
these 3 lights are ON: Harvest
Use for moderate to severe water
conditions.
•
4. Moderate Purge is when these 2 lights
are ON: Clean
conditions.
•
5. Minimum Purge is when this light is ON:
Off
. For excellent water conditions.
Adjust by pushing and releasing the Freeze button.
Pushing and releasing the Freeze button increases
the purge one level up to the maximum, then it
goes to the minimum.
4. The machine will automatically restart after 60
seconds of no switch inputs, or restart the machine
by pushing in and holding the Off button for more
than 3 seconds, then releasing it. The unit will then
be Off. From there the machine may be placed in a
freeze cycle by pushing and releasing the Freeze
button.
, Harvest, Clean,Off. Use for
, Clean,Off.
,Off. This is for typical water
January 2002
Page 13
CME256, 506, 656, 806: AutoIQ™ Cubers
How To Operate The AutoIQ Controller
The AutoIQ Controller is a
microprocessor based device that
receives input from several sources
and switches various components on
and off.
Its manual control is thru the use of
the Push Button Control Switches
89
1. Freeze Button. Pushing and
releasing this button starts or restarts
the machine. The System Controller
remembers what cycle it was last in
and returns to that cycle.
2. Harvest Button: Pushing and
releasing this button will cause the
machine to go directly to a Harvest
Cycle. Can be done from Freeze or
Off. The machine will switch Off at the
end of the Harvest cycle.
3. Clean Button: Pushing and
releasing this button will cause the
machine to only power the water
pump for circulation of ice machine
cleaner. After the ice machine
cleaner has circulated for about 10
minutes a second push of this button
will switch on the rinsing system to
flush out the dissolved scale and ice
machine cleaner.
4. Off Button: Pushing and releasing
this button will switch the machine
OFF at the end of the next cycle. If the
button is pushed and HELD for more
than 3 seconds, the unit will switch off
immediately.
To Reset Machine (machine off, error
light on): First push and release the
Off button, then push and release the
Freeze button.
7
6
5
4
3
2
1
Controller Indicator Light Description
Push Buttons
Indicator Lights
BIN FULL
FREEZE
HARVEST
CLEAN
OFF
Diagnostic Lights:
WATER
REFRIGERATION
To Recall the last two diagnostic codes: Push
and hold the Off button until the machine shuts off.
Then push and hold the Off button again until the
green lights flash on. Push and release the
Harvest button to recall the most recent diagnostic
code. Push and release the Harvest button again
to recall the second to last diagnostic code (the bin
full light will be on when the second to last code is
displayed). If no code is displayed, there was none
recorded. Push and release the off button again to
return to the normal setting.
July 2004
Page 14
CME256, 506, 656, 806: AutoIQ™ Cubers
How The Electronic Cuber Works
This section is intended for the technician. It is not
necessary for the normal operation and
maintenance of the machine.
The AutoIQ Controller operates the ice machine by
monitoring several input measures and switching
various loads on and off.
Water System:
Water flows into the ice machine during the
harvest cycle thru the inlet water valve. The water
valve will NOT be open the complete length of the
harvest cycle. The water pump forces water to the
top of the evaporators, both in the Freeze and
Harvest cycles. Un-frozen water falls thru the cube
deflector and back into the reservoir. As water is
turned into ice, the water level in the reservoir falls,
and at the point where the cubes are fully formed,
the Water Level Sensor indicates to the Controller
that it is time to begin the Harvest cycle.
During the Harvest cycle, water again enters the
water reservoir, and overfills it to rinse the
reservoir of accumulated minerals. It does
NOT overflow for a fixed
time, but for a time determined by
the Controller.
amount of
Refrigeration System:
The refrigeration system is similar to that of most
commercial cube ice machines. Heat is removed
from the water and discharged out the condenser
during the freeze cycle. As liquid refrigerant
passes thru the Thermostatic Expansion Valve(s),
it enters the bottom of the evaporators, and will
form on the bottom first. Model CME506E has
check valves to help direct the flow of refrigerant to
the correct distributor.
When cubes need to be released (Harvest) the Hot
Gas Bypass Valve is opened and hot discharge
gas flows directly from the compressor to the
evaporator inlets. This warms up the evaporators
and the surface of the ice frozen to the evaporator
surface melts. Ice then falls into the bin.
Hot Gas Valve
Thermostatic
Expansion Valve
Water
Distributors
The water pump will be off
for a short period of
time at the beginning
of harvest.
Compressor
Water Cooled
Condenser
Reservoir
Evaporators
Cube
Deflector
Drain
Water Pump
January 2002
Page 15
Inlet Water Valve
Water and Refrigeration
Schematic - Note: CME506 E Has
Two Expansion Valves
CME256, 506, 656, 806: AutoIQ™ Cubers
Technicians Only: Freeze Cycle Operational Sequence
Assuming the machine has been operational, the
Freeze cycle begins with the end of the Harvest
Cycle:
Reservoir is full
•
Condenser fan is OFF
•
Water Inlet Valve is OFF
•
Water Pump is ON
•
Compressor is ON
•
Hot Gas Valve is ON
•
Controller Operation, Beginning freeze:
1. Switches on the Freeze indicator light and shuts
off the hot gas valve.
2. Measures and stores the discharge
temperature.
3. Starts the fan motor (air cooled only). Some
early units have a fan control switch, it shuts the
fan off if the discharge pressure drops below 190
PSIG. Machines built beginning in August 1996 do
not have a fan control switch, instead the
Controller checks the discharge temperature and
cycles the fan every 30 seconds if the temperature
is low (below 125oF. or more than 3381 ohms).
If the discharge temperature exceeds the design
maximum (250oF. or less than 377 ohms), shuts
the machine down on a Refrigeration Error.
4. Checks for a “bin full" signal throughout the
cycle.
5. Measures the reservoir water temperature. If the
machine is operating correctly, the reservoir water
temperature will fall at a standard rate. The
Controller will be checking to see if the water
temperature fall matches that rate.
6. Once per cycle the machine may
water pump. It only does this when the water
temperature reaches a preset minimum (38oF. or
27835 ohms). The pump will only be off for a few
seconds. After the pump restarts, the inlet water
valve opens to refill the reservoir.
7. As the machine makes ice, the water level in the
reservoir will ultimately fall to the Harvest Level
(when the top electric eye in the water level sensor
is disrupted by the adjustment screw).
Note: If the freeze cycle exceeds the preset
Maximum (50 minutes), the Controller will Shut
Down on a Refrigeration Error.
8. The end of Freeze cycle will see the machine in
this state:
Water level = below harvest position
•
Condenser fan will be off
•
Water inlet valve will be off
•
Water pump will be ON
•
Compressor will be ON
•
Hot gas valve will be off
•
At this point Harvest begins and the Controller
switches the Harvest indicator light ON.
Note: If there is a power interruption, the system
controller will automatically restart the machine
with a process that begins with getting the
machine back to a normal state: water re-fills, the
unit freezes for 30 seconds and then goes into a 4
minute harvest. It will then proceed to a new
Freeze cycle. While in an electrical restart mode,
the controller’s Freeze light will be blinking - even
when the machine is in harvest.
shut off the
If not, it re-checks the discharge line temperature.
If too low, it Shuts Down on a Refrigeration Error. If
the discharge temperature is acceptable, the water
system is checked by shutting off the water pump
and determining if the water level goes up enough.
If it does not, it is assumed that there is a water
pump problem and the machine Shuts Down on a
Water Error.
If the water level does “measure up" the water
pump is restarted and the controller then
measures how long it takes to lower the water
level. If the water level does not fall, the machine
Shuts Down on a Water Error.
January 2002
Page 16
CME256, 506, 656, 806: AutoIQ™ Cubers
Technicians Only: Harvest Cycle Operational Sequence
Harvest
The (air cooled model) fan is off.
The water valve opens and fills the reservoir to the
Full level.
The water pump shuts off, it will restart in less than
a minute.
Note: Machines built after August 1996:
If the machine remains in the harvest cycle
•
for longer than between 6 to 9 minutes
(depending upon the regular harvest cycle’s
length) the water pump will be switched off
until the next freeze cycle.
When the bin is full and the unit is in a
•
harvest cycle, the pump will be switched off.
The Controller checks how long it takes to fill the
reservoir and if it was too much time, the machine
Shuts Down on Water Error.
Note: The machine will automatically attempt to
restart after shutting down because of a lack of
water. The time between restarts is about 20
minutes.
The inlet water valve will stay on and open for a
predetermined fraction of the time it took to fill the
reservoir. This overflows and rinses the reservoir
water.
During the Harvest Cycle, ice will be falling from
the evaporators and between the bin control’s
electric eyes. The Controller monitors the ice
falling and stays in the Harvest Cycle until ice quits
going thru the electric eyes.
The maximum harvest time is 10 minutes. The first
Harvest after a restart will be a long one to
establish a base line, then the actual time it took to
release the ice is used to determine the length of
the next harvest cycle.
Stacked Units:
If the bottom unit is in harvest and receives a
signal from the top unit that it is also in Harvest,
the bottom unit will stay in harvest for its Maximum
Harvest Time.
Diagnostic Lights and Manual Resets
The controller will shut the machine off if a
malfunction is sensed. Controllers up to 17-1 will
shut the machine off after the first malfunction.
Controllers marked 17-1 and up will restart the
machine 2 times, with a 50 minute interval
between restarts.
If a malfunction is still present after the second
restart, the machine will then shut off and must be
manually reset. During the restart interval, the
machine will be off and a diagnostic code
indicated.
An exception to this is lack of water. When
switched off because of lack of water, the machine
will always try to re-fill the reservoir every 20
minutes.
Another exception is a harvest error. As before,
there must be two consecutive harvest errors to
trigger a machine shut-down. With this change, the
controller will still shut down and restart the
machine after two consecutive harvest errors.
However, if the errors repeat two more
consecutive times, the controller will shut down
and restart the machine again. If the machine
registers two more consecutive harvest errors, the
machine will again shut down and must be
manually reset.
Production of units with Controllers 17-1 began
approximately March 1997. Higher numbers may
be expected after that date.
If no cubes fall (or are sensed) by the end of
Maximum Harvest Time, the machine senses a
refrigeration error. If the next cycle also produces a
refrigeration error, the machine Shuts Down.
Note: Machines built up to August 1996: The last
Harvest cycle before shutting off on Bin Full will be
10 minutes long. Machines built beginning
August 1996 have a last harvest cycle that is
4-6 minutes long.
Note: The machine will not restart for 4 minutes
after switching off on Bin Full, unless the freeze
button is pressed.
January 2002
Page 17
CME256, 506, 656, 806: AutoIQ™ Cubers
Sanitation and Cleaning
It is the User’s responsibility to keep the ice machine and ice storage bin in a sanitary condition.
Without human intervention, sanitation will not be maintained. Ice machines also require occasional
cleaning of their water systems with a specifically designed chemical. This chemical dissolves mineral
build up that forms during the ice making process.
Sanitize the ice storage bin as frequently as local health codes require, and every time the ice machine
is cleaned and sanitized.
The ice machine’s water system should be cleaned and sanitized a minimum of twice per year.
In Place Cleaning of the Ice Machine Water
System:
1. Remove all ice from the bin. Either save it in a
sanitary container or discard it. If the cleaning was
planned, the ice machine could be switched off the
night before to minimize waste.
2. Remove the front panel.
3. Push and release the Harvest button (this
releases any ice that may be on the evaporators
and warms them up).
4. Wait for the machine to finish the Harvest cycle
(the machine will stop).
5. Remove the cube deflector, the evaporator
cover, the cascading shield (if used) and the bin
control sensors. Place the cascading shield and
the cube deflector in a separate container. Place
the bin controls in the reservoir.
6. Push and release the Clean button. The Clean
indicator light will be blinking, and the pump will
restart.
7. Pour 12 ounces of Scotsman Ice Machine
Cleaner into the reservoir water. Return the
evaporator cover to its normal position.
Scotsman Ice Machine
Cleaner contains acids.
Acids may cause burns.
If concentrated cleaner
comes in contact with skin,
flush with water.
If swallowed, do NOT
induce vomiting. Give
large amounts of water or
milk. Call Physician
immediately. Keep out of
the reach of children.
8. Mix a solution of 8 ounces of Scotsman ice
machine cleaner and 1 gallon of warm (95-115oF.)
water. Use the solution to scrub the cascading
shield and cube deflector in the separate
container.
9. After the ice machine cleaner has circulated for
10 minutes, push and release the Clean button.
This starts the rinsing process. The Clean indicator
light will be ON. Note: The rinse process flushes
any residual cleaner out of the ice machine’s water
system.
10. Continue the rinsing process for 20 minutes,
then push the off button to switch the machine off.
11. Go to the next step to sanitize the machine or
go to step 19 to finish the cleaning process.
12. Mix 2 gallons of Sanitizer solution. Follow local
codes for Sanitizer.
Note: A possible sanitizing solution may be made
by mixing 1 ounce of liquid household bleach with
2 gallons of warm (95-115oF.) potable water.
13. Push and release the Clean button again.
14. Pour 16 ounces of Sanitizer solution into the
reservoir water.
15. After the solution has circulated for 10 minutes
push and release the Clean button. This starts the
rinse process. Sanitize the ice storage bin while
waiting.
16. Continue the rinsing process for 20 minutes,
then push the off button to switch the machine off.
17. Remove the evaporator cover and spray or
wash all interior surfaces of the freezing
compartment including the evaporator cover with
sanitizer solution.
18. Thoroughly immerse the cascading shield and
cube deflector in the sanitizing solution.
19. Return the bin controls, cascading shield and
cube deflector to their original positions.
20. Return the evaporator cover to its original
position. Push and release the Freeze button.
21. Return the front panel to its normal position
and secure it to the machine with the original
screws.
January 2002
Page 18
Additional Maintenance
CME256, 506, 656, 806: AutoIQ™ Cubers
To drain reservoir completely (if desired):
1. Remove front panel.
2. Push and hold the Off button.
3. Remove screw holding reservoir cover, pull inlet
tube out of reservoir cover, lift cover out of
machine.
4. Unplug water pump connection, remove ground
screw.
5. Remove float from float stem.
6. Unplug water level sensor.
7. Lift pump and sensor out of the machine.
8. Pull up on standpipe to release water.
To Sanitize the Ice Storage Bin
1. Remove all ice.
2. Remove baffle.
3. Switch ice machine OFF or wait for it to be in a
cleaning cycle.
4. Mix a 1 gallon solution of warm (95-115oF.)
water and sanitizer. Follow local codes for
sanitizer.
5. Wash or spray the entire interior of the ice
storage bin with the sanitizer solution. This
includes the bottom of the ice machine and the
inside of the door, the door gaskets (if any) and
door frame.
6. Pour excess sanitizer into the bin to flush the
drain system.
7. If the approved sanitizer requires a rinse, rinse
all interior surfaces with potable water.
Standpipe
9. Reverse steps 2-8 to reassemble.
Note: Be certain that the float is fully re-seated on
the stem and the water pump bracket is positioned
properly on the base.
For a proper reservoir rinse, the standpipe must be
vertical and properly seated. There is a key tab
and slot that positions the standpipe in the drain
socket.
10. Push and release Freeze button.
11. Replace front panel.

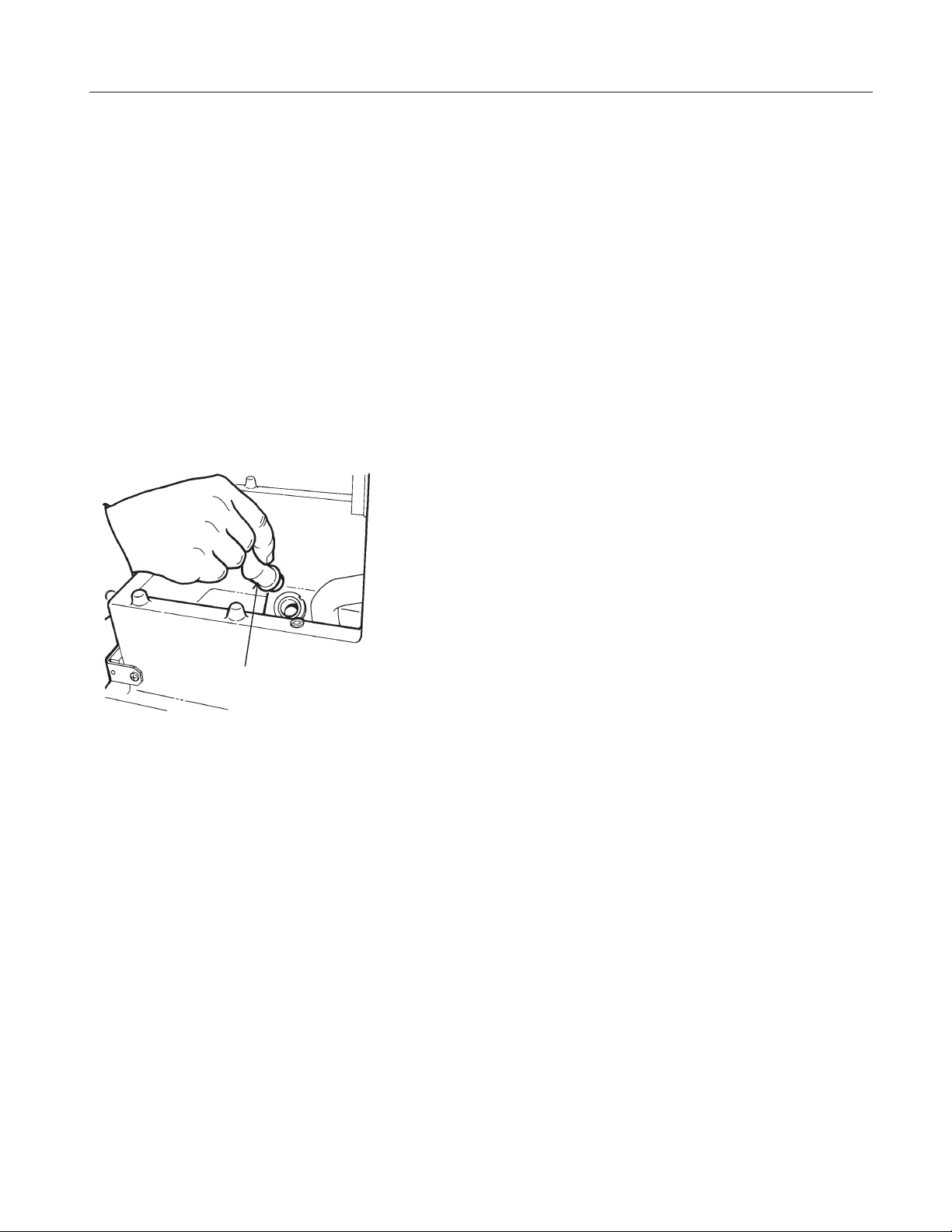

Removal of
Reservoir Drain
Standpipe
January 2002
Page 19
CME256, 506, 656, 806: AutoIQ™ Cubers
Additional Maintenance: Water Distributors
It may become necessary to remove the water
distributors from the top of the evaporator and
clean (de-mineralize) them outside of the ice
machine.
1. Remove front panel.
2. Push and release the OFF button.
9a. Snap the two distributors onto the water
manifold. Place them on the back evaporator, right
end first. Push the distributors far enough to the
right until the left end clears the retaining slot, then
release. Check that the distributors are seated
properly.
Single Unit Installation:
3. Remove the evaporator covers.
4. Reach over the water distributors and pull the
hose off.
5. Push the two water distributors to the right until
the left end clears its retaining slot, then pull the
left end up.
6. If there are two evaporators, repeat for the back
one.
Water Distributor
9b. Place the water hose onto the back water
distributors.
9c. Repeat for the front evaporator, if there is one.
10. Push and release the clean button to flush the
water system.
11. After the machine stops, push and release the
Freeze button.
12. Replace the evaporator cover.
13. Replace the front panel.
Check That Water
Channels are Clear
Removal of Water Distributor
7. Examine the top of the evaporators. The Water
Distribution Channels must be free from mineral
build up. If build up is evident, scrub the channels
with Scotsman Ice Machine Cleaner and a plastic
bristle brush.
8. Examine the water distributors. Although they
are made of a material that is resistant to mineral
build up, some may be present. Soak or scrub the
distributors in or with a solution of Scotsman Ice
Machine Cleaner and warm potable water.
9. Return the water distributors to their normal
installed position.
January 2002
Page 20
CME256, 506, 656, 806: AutoIQ™ Cubers
Additional Maintenance: Inlet Water Valve Screen
The inlet water valve has a screen on its inlet side
to keep debris from flowing into the valve. In some
cases, this screen may become clogged or
restricted by debris build up. Check for the proper
water flow:
Flow rate is 1.25 G.P.M.
1. Remove front panel.
2. Obtain a measuring cup and a watch.
3. Pull the water discharge tube out of the
reservoir and place it in the cup.
4. Push and release the Harvest button.
5. If working properly, the water valve will fill an 8
oz cup in about 3-4 seconds. Be prepared to push
the Off button. If it does not, the water valve inlet
or other water device is restricted.
To Check the Inlet Water Valve Screen.
1. Disconnect the electrical power.
2. Shut off the water supply.
3. Remove the front panel.
4. Unplug the electrical connection of the inlet
water valve.
5. Remove the screws holding the inlet water valve
to the cabinet.
6. Remove outlet tube from inlet water valve.
7. Rotate inlet water valve from inlet fitting and
remove valve from machine.
8. Examine the inlet screen, if dirty, brush off
screen.
Clean Valve
Screen
Note: Screen is not replaceable, and may only be
removed by taking off the covering bracket. The
bracket forms part of the inlet water system, and
must be water tight to the valve body, removal is
not recommended.
9. Reverse to reassemble.
January 2002
Page 21
CME256, 506, 656, 806: AutoIQ™ Cubers
Additional Maintenance: Bin Controls, Condenser
The bin controls use a system of infrared emitting
and receiving components to sense the build up of
ice in the bin. They are located at the bottom of the
ice outlet port. They must be free of mineral build
up to function properly. To check:
1. Remove front panel.
2. Push and release the off button.
3. Remove top and right side panels.
4. Remove the evaporator cover (on models with
one)
5. Remove the cube deflector.
6. Pull up to remove the cascading shield (on
models with one)
Bin Control
Sensor, Electric
Eye Area
Air Filter Replacement
See Page 30 for an illustration of Air Filter
Replacement.
To Clean the Air Cooled Condenser
1. Remove the front panel.
2. Push and release the Off button.
3. Remove the top panel.
4. Remove the right and left side panels.
5. Clean or replace the air filters.
6. Check the fan blade and condenser for grease
or dust build up.
Because air flow is from the inside of the cabinet
out, the inside of the condenser fins will have the
most build up.
A. Place the inlet hose of a vacuum cleaner in the
condenser shroud.
B. While the vacuum cleaner is on, blow
compressed air from the back of the condenser
thru the fins.
Bin Controls
in Reservoir
Cleaning of Bin Controls
7. Push into the freezing compartment the electric
eye brackets.
8. Examine the bottom of the brackets, there are
two sensors in each bracket, check that they are
clear of mineral build up. They may be wiped clean
with ice machine cleaner to assist in removal of the
build up. Be sure to drain the reservoir or go thru a
Clean cycle to remove residual cleaner.
C. If grease is present, use coil cleaner on the
condenser. Be sure to wipe up any excess coil
cleaner.
7. Replace the top, left and right side panels.
8. Push and release the Freeze button.
9. Replace the front panel.
Note: Do NOT use abrasive materials or cleaner
on the bin sensor lenses. A soft toothbrush is an
effective tool for cleaning these sensors.
January 2002
Page 22
CME256, 506, 656, 806: AutoIQ™ Cubers
Service Diagnosis: Controller Diagnostic Light Analysis
Problem or Symptom Possible Cause Probable Correction
Machine is off Bin is full, ice in cube port Use some ice
Unit is off & Water
diagnostic light is ON
or BLINKING
Unit is off &
Refrigeration
diagnostic light is ON
or BLINKING
Power is off, check
controller lights.
Transformer is open If all lights are out and there is power, check
Unit has been switched off
Off lite is glowing
Compressor will not start Not enough water or water not sensed.
Unit has Shut Down Check for Refrigeration or Water Error
Water inlet valve
malfunction
Water pump malfunction Check that pump hose is attached and if
Water level not sensed or
not high enough
Low discharge or long
freeze cycle
Harvest problem If the Refrigeration light blinks once and
If all lights are out, check power supply,
restore power if off
transformer output for 24 vac
Push and release Freeze button to restart
unit.
Check water diagnostic light, if it blinks 2
times and repeats, check the water inlet valve
for proper water flow.**
pump is plugged in and working.
Check harness from sensor. Check
levelness, check standpipe height.
If the Refrigeration light is glowing steadily,
there is a probable refrigeration problem
repeats, look for a harvest problem.** On
controllers 17-1 and higher, this also indicates
that cubes were “sensed” by the bin controls.
Hot Gas Valve failure Check hot gas valve operation.
High Discharge Temp If the refrigeration diagnostic light blinks 3
times and then repeats, check for a reason for
high discharge temperatures.
Harvest problem Controllers 17-1 and higher, if the lite blinks 2
times and repeats, check for a harvest error no cubes sensed.
Unit does not go into
harvest - exceeds
maximum freeze time
Exceeds maxi harvest time Check for cause of long harvest cycle**
Unit runs and both
Diagnostic lites are
ON
Same, but 1 light is on Reservoir temp. wrong Reset and check water temp and sensor.
* Machine may be reset by pushing and releasing the Off button, then pushing and releasing the
Freeze button. ** See following pages
Temperature sensors out
of range
Push and release Off button. Push and
release Freeze button. Check operation.
Push cube size float down and check
operation.
Replace the temperature sensor set (water
and discharge).
January 2002
Page 23
CME256, 506, 656, 806: AutoIQ™ Cubers
Service Diagnosis
Problem or Symptom Possible Cause Probable Correction
Unit is off because of a
“Harvest Problem”
Cubes are too large Cube size float sticking. Check/clean
Cubes are too small Not enough water Check for leak in reservoir
Two plate models
making ice thicker on
one plate than another
Bin controls did not sense
ice falling, unit stayed in
harvest until the maximum
harvest time ran out.
Bin controls or System
Controller may have failed.
Other components may
have failed
A - D series - refrigerant
distributor restricted
CME506 E series expansion valve bulbs on
wrong suction line
CME506 E series - one
TXV not metering
Check bin controls. The bin full light should be
off. If it is on or blinking the bin controls may
be dirty. Clean if dirty. The board and bin
controls may also need to be checked.
Push and release Off button. Push and
release Freeze button. Check machine
operation. Check if ice is made and harvests.
See “Unit does not shut off” below..
Check the next page
Change distributor
Switch bulbs to correct suction lines
Check TXV, replace if there is poor ice
formation on its plate
Low ice capacity Dirty condenser or filter Replace filters, clean condenser
Recirculation of air Block air re-circulation or move condenser
Low refrigerant charge Check system. If there is a low charge, find
the leak, recover the refrigerant, repair the
leak, replace the dryer, evacuate and weigh in
the nameplate charge.
Cube size set wrong Re-adjust cube size
Unit does not shut off Bin control system may
have failed.
Check bin controls. Check bin full light, if off,
place something between the electric eyes.
The bin full light should begin to blink (after 20
seconds of continuous blockage it will glow
steadily). If not, check operation of electric
eyes by unplugging #4 and jumping out the
two pins on the controller (first discharge any
static electricity by touching the cabinet with
the tool). If the bin full light blinks, replace the
bin controls. If it does not blink, replace the
controller. Note: Leaving #4 unplugged and
jumped for 20 seconds will shut the machine
down on a bin full (at the end of the harvest
cycle). It will restart after 4 minutes or may be
reset by pushing the Freeze button.
January 2002
Page 24
CME256, 506, 656, 806: AutoIQ™ Cubers
Service Diagnosis: Components
Problem or Symptom Possible Cause Probable Correction
Fan motor does not
turn. Refrigeration light
may be on steadily or
blinks 3 times and
repeats.
Pump motor does not
turn
Hot Gas Valve does
not open.
Hot Gas Valve leaks
thru (warm tube
temperatures on both
sides of valve during
freeze)
Open motor windings, or
seized bearings
No power to fan motor Fan motor unplugged, check for voltage from
Open motor windings, or
seized bearings
No power to pump Check electrical connections. If the unit is in
Open solenoid coil. Replace hot gas valve
Stuck valve Replace hot gas valve
No power to coil in Harvest Check wire connections, if ok, replace System
Mechanical problem in
valve
Replace fan motor
controller. If none, replace controller.
Some models have a fan control switch,
check it for continuity above 240 PSIG.
Replace pump
Freeze, Clean or Harvest the pump should
have power to it. If not, replace the System
Controller.
Controller
Replace valve
Water Inlet Valve does
not open
Water Inlet Valve does
not flow enough water
Water Inlet Valve
leaks thru
Compressor does not
work
Open solenoid coil Replace valve
Stuck valve Replace valve
No power to valve (early
part of harvest)
Restriction in water supply Check water filters and/or inlet screen.
Mechanical problem in
valve
Unit in Clean cycle Push and release Freeze button.
Contactor coil open Replace contactor
Open starting components Check and replace
Open windings Check and replace compressor
Internal valve failure Replace compressor
Water level too low or not
sensed
Check wire connections, if ok, replace System
Controller
Replace valve
Unit must be full of water before controller will
start compressor. Check water level and
sensor and harness.
January 2002
Page 25
CME256, 506, 656, 806: AutoIQ™ Cubers
PTCR Diagnosis
The CME256, CME506, CME656 and CME806
“D” series cubers use a PTCR (Positive
Temperature Coefficient Resistor) in place of a
conventional start relay and start capacitor.
Power from the contactor connects to the
•
PTCR and to the Run Capacitor.
A wire connects the other terminal of the
•
PTCR to the compressor’s Start winding.
Another wire connects the run capacitor to
•
the start winding.
A parallel circuit connects power from the
•
contactor to the Run winding of the
compressor.
A PTCR changes resistance sharply when its
temperature changes. When the PTCR is cold, it
connects full current to the compressor’s start
winding. After a very short time the PTCR heats up
and shuts off the current flow. Under normal
operation, the PTCR’s case is at about 180
At that temperature the PTCR has very high
resistance and will not allow current flow. It must
cool down to 120
through it again.
o
F. before current will pass
o
F.
Diagnosis:
1. Disconnect electrical power.
2. Check if the PTCR is cool enough to handle
safely. If not, wait 5 minutes for it to cool off.
3. Disconnect both leads to the PTCR and
measure its resistance with an ohmmeter. If the
PTCR reads less than 22 ohms or more than 40
ohms, replace it.
January 2002
Page 26
CME256, 506, 656, 806: AutoIQ™ Cubers
Operational Characteristics: CME256
Cycle Times (minutes):
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 15 - 17 17 - 19
Harvest 1.5 - 2 1:30 - 2
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 13 - 15 17 - 19
Harvest 1:30 - 2 1:45 - 2:15
System Pressures (PSIG):
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 25 - 27 28 - 30
Suction: Peak in Harvest 95 - 105 95 - 110
Discharge: 5 minutes into Freeze 240 - 250 250 - 265
Discharge: Minimum in Harvest 165 - 185 175 - 195
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 24 - 26 26 - 28
Suction: Peak in Harvest 80 - 90 95 - 105
Discharge: 245 PSIG 245 PSIG
Discharge: Minimum in Harvest 125 - 135 145 - 155
A - E Series Refrigerant Charge, R-404A
•
Air cooled: 24 ounces
•
Water cooled: 14 ounces
F Series Refrigerant Charge, R-404A
•
Air Cooled: 24 ounces
•
Water Cooled: 13 ounces
Typical Compressor Amps
•
Freeze:7-9
•
Harvest: 8
Typical Harvest Ice Weight
•
3.25 to 3.5 lb.
Water Cooled:
•
Discharge Pressure: 245 PSIG
•
Hi Pressure Cuts Out at: 450 PSIG
Fan Control Switch - for units so equipped:
•
CutIn:240PSIG+-20PSIG
•
Cut Out: 190 PSIG+-10PSIG
July 2002
Page 27
CME256, 506, 656, 806: AutoIQ™ Cubers
Operational Characteristics: CME506
Cycle Times (minutes):
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 18 - 20 22 - 24
Harvest 2 1:30
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 20 - 22 22 - 24
Harvest 1.5 - 2.5 1.5 - 2
System Pressures (PSIG):
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 35- 37 35 - 37
Suction: Peak in Harvest 115 - 120 120 - 125
Discharge: 5 minutes into Freeze 240 - 260 240 - 260
Discharge: Minimum in Harvest 155- 165 165 - 175
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 30 - 34 30 - 34
Suction: Peak in Harvest 75 - 85 80 - 90
Discharge: 245 PSIG 245 PSIG
Discharge: Minimum in Harvest 150 - 160 175 - 185
A -D Series Refrigerant Charge, R-404A
•
Air cooled: 32 ounces
•
Water cooled: 20 ounces
E Series Refrigerant Charge, R-404A
•
Air cooled: 23 ounces
•
Water cooled: 14 ounces
F Series Refrigerant Charge, R-404A
•
Air Cooled: 23 ounces
•
Water Cooled: 13 ounces
Typical Compressor Amps
•
Freeze: 10 - 11
•
Harvest:11 - 12
Typical Harvest Ice Weight
•
6.5 - 7 lb.
Water Cooled:
•
Discharge Pressure: 245 PSIG
•
Hi Pressure Cuts Out at: 450 PSIG
Fan Control Switch - for units so equipped:
•
CutIn:240PSIG+-20PSIG
•
Cut Out: 190 PSIG+-10PSIG
July 2002
Page 28
CME256, 506, 656, 806: AutoIQ™ Cubers
Operational Characteristics: CME656
Cycle Times (minutes):
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 14 - 15 15 - 16
Harvest 1:30 1:30
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 15 - 16 16 - 17
Harvest 3 2
System Pressures (PSIG):
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 25 - 27 24 - 26
Suction: Peak in Harvest 83 - 87 84 - 88
Discharge: 5 minutes into Freeze 215 - 225 290 - 300
Discharge: Minimum in Harvest 195 - 205 210 - 220
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 24 - 26 24 - 26
Suction: Peak in Harvest 85 - 90 80 - 85
Discharge: 245 PSIG 245 PSIG
Discharge: Minimum in Harvest 180 - 190 190 - 200
Refrigerant Charge, R-404A
•
Air cooled: 36 ounces
•
Water cooled: 26 ounces
Typical Compressor Amps
•
Freeze: single phase = 6.5 - 8;
three phase = 4.5 - 5
•
Harvest: single phase=9-10; three phase
=5.5-6
Typical Harvest Ice Weight
•
6.5 - 7 lb.
Water Cooled:
•
Discharge Pressure: 245 PSIG
•
Hi Pressure Cuts Out at: 450 PSIG
Fan Control Switch - for units so equipped:
•
CutIn:240PSIG+-20PSIG
•
Cut Out: 190 PSIG+-10PSIG
January 2002
Page 29
CME256, 506, 656, 806: AutoIQ™ Cubers
Operational Characteristics: CME806
Cycle Times (minutes)
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 9 - 11 12 - 14
Harvest 1:45 1:15
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Freeze 10 - 12 12 - 13
Harvest 1:45 1:15
System Pressures
Air Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 20 - 21 25 - 27
Suction: Peak in Harvest 89 - 91 115 - 125
Discharge: 5 minutes into Freeze 210 - 220 280 - 290
Discharge: Minimum in Harvest 155 205
Water Cooled 70oF. indoor air, 50oF. water 90oF. indoor air, 70oF. water
Suction: End of Freeze 24 - 26 24 - 26
Suction: Peak in Harvest 85 - 95 90 - 95
Discharge: 240 PSIG 240 PSIG
Discharge: Minimum in Harvest 155 165
A - E Series Refrigerant Charge, R-404A
•
Air cooled: 33 ounces
•
Water cooled: 24 ounces
F Series Refrigerant Charge, R-404A
•
Air cooled: 33 ounces
•
Water cooled: 26 ounces
Typical Compressor Amps
•
Freeze: single phase = 13
•
Harvest: single phase = 14
Typical Harvest Ice Weight
•
6.5 - 7 lb.
Water Cooled:
•
Discharge Pressure: 240 - 245 PSIG
•
Hi Pressure Cuts Out at: 450 PSIG
Fan Control Switch - for units so equipped:
•
CutIn:240PSIG+-20PSIG
•
Cut Out: 190 PSIG+-10PSIG
June 2002
Page 30
Removal and Replacement
CME256, 506, 656, 806: AutoIQ™ Cubers
Inlet Water Valve
1. Remove the front panel.
2. Shut off the water supply.
3. Push and release the OFF button.
4. Pull the wire harness off the inlet water valve.
5. Remove screws holding the inlet water valve to
the cabinet.
6. Pull the valve away from the cabinet and
disconnect the outlet tube.
7. Unscrew the water valve from the water inlet
tubing.
8. Reverse to reassemble.
9. Push and release the Freeze button.
10. Replace the front panel.
Air Filter Replacement
1. Remove the front panel.
2. Push and release the Off button.
3. Remove side panel retaining screws (2 for each
panel).
Inlet Water
Valve
Air Filter Replacment
4. Lift up or remove top panel.
5. Pull left panel to the left and remove filter.
6. Pull right side panel forward and remove the air
filter.
7. Replace the air filters.
Note: Filter size is 20 x 20 x 1. Use a like
replacement, equal to UL class 2, 377A.
8. Check the fan blade and condenser for grease
or dust build up. Clean as required.
9. Return the right side panel, mounting screws
and top panel to their original positions.
10. Push and release the Freeze button.
11. Return the front panel to its original position.
Secure it with the 4 original screws.
January 2002
Page 31
CME256, 506, 656, 806: AutoIQ™ Cubers
Removal and Replacement
Drain Tubing
1. Remove the front panel.
2. Push and release the Off button.
3. Remove bin baffle.
4. Remove 1 plastic bolt and the reservoir cover.
5. Unplug water pump, disconnect ground wire.
6. Unplug water level sensor.
7. Lift pump up slightly and pull discharge hose
from pump.
8. Remove pump and water level sensor from ice
machine.
9. Pull up and forward to remove standpipe.
10. Disconnect back of cabinet drain system.
11. Remove nut on inside of reservoir (where
standpipe was).
12. From inside the bin, pull drain tube out of the
reservoir and down. Remove from machine.
Water Pump
1. Disconnect the electrical power.
2. Remove the front panel.
3. Unplug water pump from its electrical
connection.
4. Remove 1 plastic bolt and the reservoir cover.
5. Lift water pump up and disconnect outlet tube.
Pump Bracket
Water Level Sensor
13. Reverse to reassemble.
Standpipe
Note: The distance between the top edge of the
standpipe and the top edge of the reservoir must
5
be 2
”.
8
If needed, adjust the distance by rotating the top
end of the standpipe (it is threaded).
Observe machine for proper cube size after
replacement/adjustment of the standpipe.
6. Pull float ball from float stem (it is a snap fit).
Pull stem out.
7. Locate water level sensor mounting tabs,
compress together to release sensor from bracket.
8. Remove water pump brackets from pump.
9. Reverse to replace.
10. Replace front panel.
11. Re-connect electrical power.
January 2002
Page 32
CME256, 506, 656, 806: AutoIQ™ Cubers
Removal and Replacement: Sensors
Electric Eyes (Bin Control / Ice Sensors)
These must be replaced as a set.
1. Remove front panel.
2. Push and release the Off button.
3. Remove top panel.
4. Remove left and right side panels.
5. Unplug both from the System Controller (#3 and
#4).
6. Remove evaporator cover (on models so
equipped).
7. Remove cascading shield (on models so
equipped).
8. Remove cube deflector.
9. Push in at the wire inlets the bin controls.
10. Pull both into the freezing compartment. Pull
wires thru the holes.
Note: Replacement float stems are factory set, but
confirm the settings before installing the new stem:
7
CME256: Slot size should be between 1
3
1
”.
16
CME506 or CME656
or CME806: Slot size should
“ and
32
be 2".
Observe machine for proper cube size after
replacement of the float stem.
Water Temperature Sensor
Water Temperature Sensor
11. Remove both bin controls from the freezing
compartment.
12. Reverse to reassemble.
Water Level Sensor
1. Remove front panel.
2. Push and hold the OFF button. Release it when
the machine stops.
3. Trace wire harness from water level sensor to
the Controller (#2). Unplug the harness from the
controller.
4. Lift the pump and mounting plate up enough to
remove the float from the stem.
5. Remove two screws holding the sensor to the
pump bracket and lift the sensor up and out of the
machine.
6. Reverse to reassemble.
Float Stem
1. Remove the front panel.
Note: This sensor is replaced as a set with the
Discharge Temperature Sensor.
1. Remove front panel.
2. Push and release Off button.
3. Remove 1 plastic bolt and the reservoir cover.
4. Locate water temperature sensor (inserted into
pump discharge hose).
5. Pull out to remove.
6. Trace back to controller, unplug from #5.
7. Remove the Discharge Line temperature sensor
(see the next page).
8. Reverse to reassemble.
2. Remove the reservoir cover.
3. Pull up on float stem, reach under pump cover
and pull the float off the stem.
4. Pull stem out and reverse to replace.
January 2002
Page 33
CME256, 506, 656, 806: AutoIQ™ Cubers
Removal and Replacement: Fan Blade and/or Fan Motor
1. Disconnect electrical power.
2. Remove front, top and side panels.
3. Remove the 4 cap screws holding the fan motor
bracket to the condenser shroud.
4. Unplug the fan motor.
5. Carefully remove the fan motor, blade and
brackets from the ice machine cabinet.
6. Replace the motor or blade as needed.
Note: The fan is properly on the motor shaft when
the hub faces the condenser and the shaft is flush
with the end of the hub.
Transformer and Compressor Starting
Components
Single phase compressors use a start relay, start
capacitor and run capacitor. All are located in a
sheet metal box to the right of the system
controller. The compressor contactor is also
located in that box.
Discharge Line Temperature Sensor
1. Remove front panel, push and release the Off
button.
2. Remove top and left side panels.
3. Locate discharge line sensor. It is attached to
the discharge line of the compressor, 6" from the
compressor discharge port.
4. Unwrap the insulation and un-snap the clip
holding the sensor to the discharge line.
5. Trace the sensor wires back to the controller,
they are plugged into #5 with the water
temperature sensor, and must be replaced with it.
Discharge Temperature
Sensor
1. Disconnect electrical power.
2. Remove front panel.
3. Remove 2 screws at the front edge of the metal
box, and pull the cover forward and out.
4. To check components, reconnect electrical
power.
Note: The contactor coil is 24 volt.
Note: If the transformer is not supplying power,
check the system controller for blacking at the top
connections. If the connections appear to have
blacked, replace the system controller before the
transformer is replaced.
6. Reverse to replace, be sure that the discharge
line sensor is 6" up from the compressor discharge
port. Be sure to re-wrap the insulation.
Note: Route wires so they do NOT contact the
discharge line.
The sensor for the Discharge line is marked with a
small piece of yellow tape. Do not reverse the
sensors.
January 2002
Page 34
Access Valves:
CME256, 506, 656, 806: AutoIQ™ Cubers
To use the access valves:
1. Be sure that the valve is closed. Remove the
stem cap and insert a 3/16" allen wrench. Check
that the valve is closed.
2. Remove the port cap and attach refrigerant
manifold hoses.
3. Open the valve and purge the hoses.
4. When service is complete, shut the discharge
access valve first. Then, with the machine running
and the middle hose outlet securely fastened to
the manifold or refrigerant tank (closed) open both
manifold valves. This allows any liquid refrigerant
in the discharge hose to flow thru the manifold and
into the suction side.
5. After the gages have equaled, shut the manifold
valves and the suction access valve.
6. Remove the gages and replace the stem and
port caps. Make certain that they are tightly closed.
Refrigeration System Components
Due to the expected level of training and
experience of a refrigeration mechanic, detailed
instructions regarding the replacement of
refrigeration components will not be presented.
However, critical items will be noted here.
Refrigerant:
This ice machine uses R-404A or HP62 as a
refrigerant. It has several unique characteristics.
A. It must use polyol ester refrigerant oil, and that
oil is very water absorbent. The system must not
be open for more than 15 minutes.
B. An electronic leak detector capable of locating
HFC-134a type refrigerant must be used to locate
refrigerant leaks.
C. A nitrogen sweep is required when brazing.
D. An HFC type liquid line dryer must be used.
E. When evacuating, use of an electronic micron
gage is recommended. Evacuate to 300 microns.
F. It must be liquid charged:
1. Place a drum or cylinder of R-404A on a scale,
in the direction to dispense liquid.
2. Attach the charging hose to the cylinder of
R-404A. Open the cylinder’s valve and purge the
hose to the manifold.
3. Close the low side service access valve.
4. Open the discharge side manifold valve and
weigh in the name plate charge. After the charge is
weighed in, wait a moment and re-check the scale.
5. If all of the refrigerant charge has not been
weighed into the discharge side, it must be
carefully added thru the low side. Close the
discharge service access valve.
6. With a sight glass or charge faster in the hose to
the low side port, start the ice machine.
7. Open the low side service access valve.
8. Crack open the low side manifold valve and
watch the scale and sight glass. Open and close
the low side manifold valve to flow liquid into the
manifold but flash off to vapor before it enters the
suction side of the refrigeration system.
9. After the scale = the correct charge, shut off the
valve on the refrigerant cylinder.
January 2002
Page 35
CME256, 506, 656, 806: AutoIQ™ Cubers
Before Calling for Service
Check the following:
1. Has the water supply to the ice machine or building been shut off? If it has, the ice machine will
automatically restart within 25 minutes after water begins to flow to it.
2. Has power been shut off to the ice machine? If yes, the ice machine will automatically restart when
power is restored.
To Manually Reset the machine:
1. Remove the front panel.
2. Locate the AutoIQ Controller. If a red diagnostic light is glowing, note which one and its blink rate.
Then push and release the off button.
3. Push and release the Freeze button.
4. The machine should begin to operate. If there is a
lack of water it will shut off again soon.
5. Return the front panel to its normal position.
If the machine shuts down again, call for service.
To Shut the Machine Off:
1. Remove the front panel.
2. Locate the controller.
3. Push and hold the Off button for 3 seconds or until
the machine stops.
89
7
6
5
4
3
2
1
Push Buttons
Indicator Lights
BIN FULL
FREEZE
HARVEST
CLEAN
OFF
Diagnostic Lights:
WATER
REFRIGERATION
January 2002
Page 36
Loading...
