Operation Manual
Smart-UPS™ On-Line SRT
Uninterruptible Power Supply
SRT1000XLA
SRT1000RMXLA
SRT1500XLA
SRT1500RMXLA
SRT1000RMXLA-NC
SRT1500RMXLA-NC
120 Vac
Tower/Rack-Mount 2U
General Information
Important Safety Messages
Read the instructions carefully to become familiar with the equipment before attempting to install, operate, service or maintain the UPS. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.
The addition of this symbol to a Danger or Warning product safety label indicates that an electrical hazard exists which will result in personal injury if the instructions are not followed.
The addition of this symbol to a Warning or Caution product safety label indicates that a hazard exists that can result in injury and product damage if the instructions are not followed.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury.
Smart-UPS On-Line SRT1000/SRT1500 Tower/Rack-Mount 2U |
1 |
Safety and General Information
•Adhere to all national and local electrical codes.
•All wiring must be performed by a qualified electrician.
•Changes and modifications to this unit not expressly approved by APC could void the warranty.
•This UPS is intended for indoor use only.
•Do not operate this UPS in direct sunlight, in contact with fluids, or where there is excessive dust or humidity.
•Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.
•For a UPS with a factory installed power cord, connect the UPS power cable directly to a wall outlet. Do not use surge protectors or extension cords.
•The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.
•The batteries are heavy. Remove the batteries before installing the UPS and external battery packs (XLBPs), in a rack.
•Always install XLBPs at the bottom in rack-mount configurations. The UPS must be installed above the XLBPs.
•Always install peripheral equipment above the UPS in rack-mount configurations.
•Additional safety information can be found in the Safety Guide supplied with this unit.
Deenergizing safety
The UPS contains internal batteries and may present a shock hazard even when disconnected from the branch circuit (mains). Before installing or servicing the equipment check that the:
•input circuit breaker is in the OFF position.
•internal UPS batteries are removed.
•XLBP battery modules are disconnected.
Electrical safety
•For models with a hardwired input, the connection to the branch circuit (mains) must be performed by a qualified electrician.
•Have a proper grounding for input socket for the models with pluggable power cords.
Battery safety
•When replacing batteries, replace with the same number and type of batteries as originally installed in the equipment.
•Batteries typically last for two to five years. Environmental factors impact battery life. Elevated ambient temperatures, poor quality utility power, and frequent short duration discharges will shorten battery life. Batteries should be replaced before end of life.
•Replace batteries immediately when the unit indicates battery replacement is necessary.
2 |
Smart-UPS On-Line SRT1000/SRT1500 Tower/Rack-Mount 2U |
•Schneider Electric uses Maintenance-Free sealed Lead Acid batteries. Under normal use and handling, there is no contact with the internal components of the battery. Over charging, over heating or other misuse of batteries can result in a discharge of battery electrolyte. Released electrolyte is toxic and may be harmful to the skin and eyes.
•CAUTION: Before installing or replacing the batteries, remove jewelry such as wristwatches and rings. High short circuit current through conductive materials could cause severe burns.
•CAUTION: Do not dispose of batteries in a fire. The batteries may explode.
•CAUTION: Do not open or mutilate batteries. Released material is harmful to the skin and eyes and may be toxic.
General information
•The UPS will recognize as many as 10 external battery packs connected to the UPS.
Note: For each XLBP added, increased recharge time will be required.
•The model and serial numbers are located on a small, rear panel label. For some models, an additional label is located on the chassis under the front bezel.
•Always recycle used batteries.
•Recycle the package materials or save them for reuse.
FCC Class A radio frequency warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are intended to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Smart-UPS On-Line SRT1000/SRT1500 Tower/Rack-Mount 2U |
3 |
Product Description
The APC by Schneider Electric Smart-UPS™ On-Line SRT is a high performance uninterruptible power supply (UPS). The UPS helps to provide protection for electronic equipment from utility power blackouts, brownouts, sags, surges, small utility power fluctuations and large disturbances. The UPS also provides battery backup power for connected equipment until utility power returns to acceptable levels or the batteries are completely discharged.
This user manual is available on the enclosed Documentation CD and on the APC by Schneider Electric web site, www.apc.com.
Product Overview
Specifications
For additional specifications refer to the APC by Schneider Electric web site, www.apc.com.
Environmental
Temperature |
Operating |
0º to 40º C (32º to 104º F) |
||
|
|
|
||
Storage |
-15º to 45º C (5º to 113º F) |
|||
|
||||
|
|
|
|
|
Elevation |
Operating |
0 |
- 3,000 m (0 - 10,000 ft) |
|
|
|
|
||
Storage |
0 |
- 15,000 m (50,000 ft) |
||
|
||||
|
|
|
||
Humidity |
0% to 95% relative humidity, non-condensing |
|||
|
|
|
|
|
Protection Class |
IP 20 rating |
|
|
|
Note: Charge the battery modules every six months during storage.
Environmental factors impact battery life. Elevated ambient temperatures, high humidity, poor quality mains power, and frequent short duration discharges will shorten battery life.
Physical
SRT1000XLA/SRT1000RMXLA/SRT1000RMXLA-NC
SRT1500XLA/SRT1500RMXLA/SRT1500RMXLA-NC model
The UPS is heavy. Follow all lifting guidelines. |
|
|
Lifting guidelines |
18 - 32 kg (40 - 70 lb) |
32 - 55 kg (70 - 120 lb) |
Unit weight batteries included, without packaging |
22 kg (48.5 lb) |
|
|
Unit weight batteries included, with packaging |
Rack-Mount models: 29.6 kg (65.26 lb) |
|
Tower models: 26.9 kg (59.3 lb) |
|
|
Unit dimensions without packaging |
85 (2U) mm x 432 mm x 505 mm |
Height x Width x Depth |
3.35 (2U) in x 17 in x 20 in |
|
|
Unit dimensions with packaging |
245 mm x 595 mm x 750 mm |
Height x Width x Depth |
9.7 in x 23.4 in x 29.5 in |
The model and serial numbers are on a small label located on the rear panel.
4 |
Smart-UPS On-Line SRT1000/SRT1500 Tower/Rack-Mount 2U |
Battery
NOTICE
RISK OF EQUIPMENT DAMAGE
•Replace the battery at least every 5 years.
•Replace the battery immediately when the UPS indicates battery replacement is necessary.
Failure to follow these instructions can result in equipment damage
|
SRT1000/SRT1500 models |
|
|
|
|
Battery type |
Sealed, maintenance-free, Valve |
|
Regulated Lead-Acid battery |
||
|
||
|
|
|
Replacement battery module |
APCRBC155 |
|
This UPS has swappable battery modules. |
|
|
Refer to the appropriate replacement battery user manual for installation instructions. |
|
|
Contact your dealer or go the APC by Schneider Electric web site, www.apc.com for |
|
|
information on replacement batteries. |
|
|
|
|
|
Number of battery modules |
1 battery module |
|
|
|
|
Voltage for each battery module |
48 VDC |
|
|
|
|
Total battery voltage for the UPS |
48 VDC |
|
|
|
|
Ah rating |
9 Ah per battery module |
|
|
|
|
XLBP cable length |
500 mm (19.7 in) |
|
|
|
Electrical
CAUTION
RISK OF FIRE, RISK OF SHOCK
Connect the UPS models only to a circuit provided with recommended maximum branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1.
Failure to follow these instructions can result in fire, and minor or moderate injury.
Models |
|
Rating |
Branch Circuit Overcurrent |
||
|
|
|
|
|
Rating / Building Circuit |
|
|
|
Online |
Green Mode |
Breaker (CB) Current Rating |
|
|
|
|
|
|
SRT1000XLA |
|
1000 VA / 900 W |
1000 VA |
15 A |
|
|
|
|
|
|
|
SRT1000RMXLA/SRT1000RMXLA NC |
|
|
|
||
|
|
|
|
|
|
SRT1500XLA |
|
1500 VA / 1350 W |
1500 VA |
15 A |
|
|
|
|
|
|
|
SRT1500RMXLA/SRT1500RMXLA NC |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Output |
|
|
|
|
|
Output Frequency |
|
50 Hz / 60 Hz (Selectable) |
|
|
|
|
|
|
|
|
|
Nominal Output Voltage |
|
120 V |
|
|
|
|
|
|
|
|
|
Input |
|
|
|
|
|
Input Frequency |
|
40 Hz - 70 Hz |
|
|
|
|
|
|
|
|
|
Nominal Input Voltage |
|
120 V |
|
|
|
|
|
|
|
|
|
Nominal Input Current |
|
12 A |
|
|
|
|
|
|
|
|
|
Smart-UPS On-Line SRT1000/SRT1500 Tower/Rack-Mount 2U |
5 |
Front Panel Features

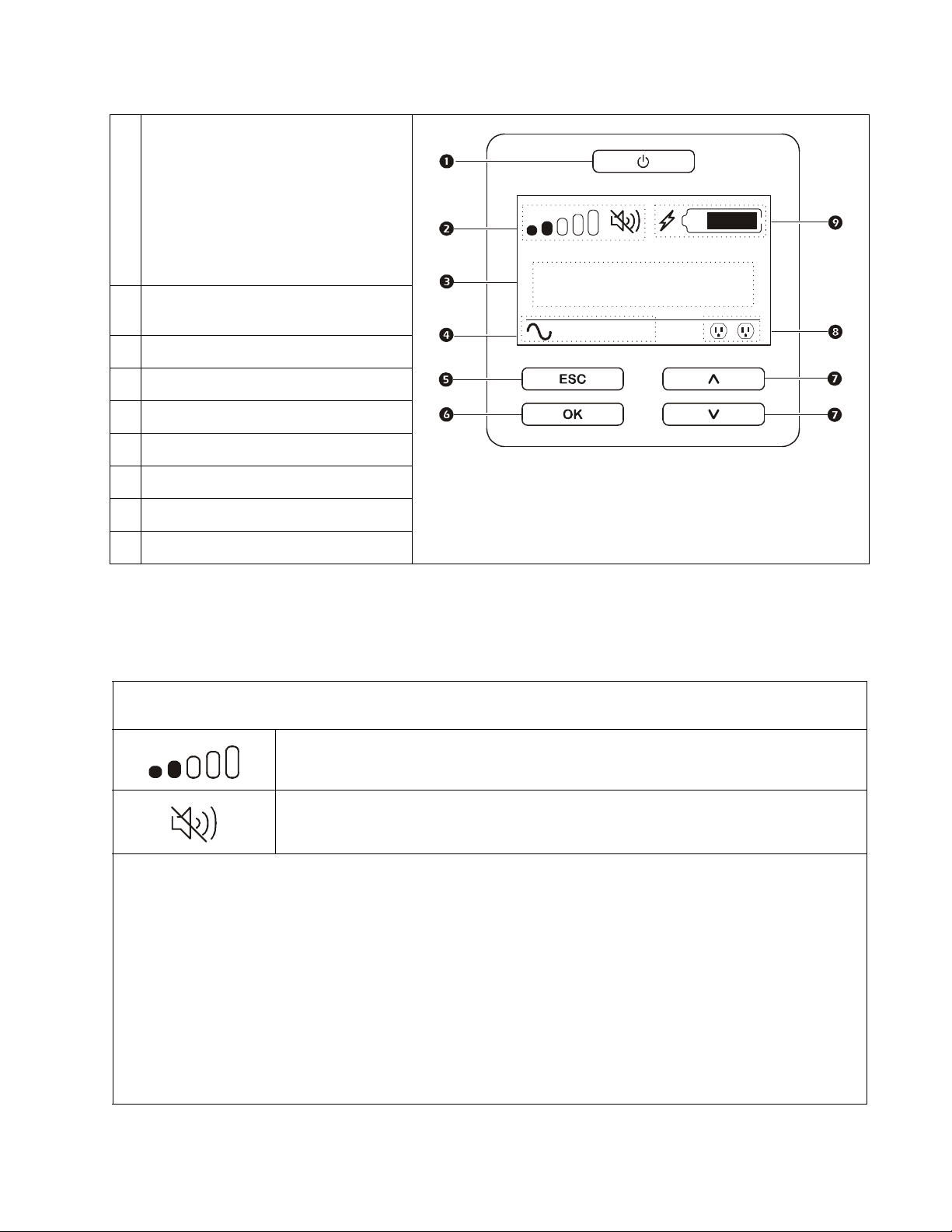

Display interface panel |
UPS battery connectors |
Battery module |
Bezel |
suo0860a |
Rear Panel Features
Note: Refer to the table “Key to identify rear panel features” on page 7, that provides a key to the callout numbers for the rear panel graphics depicted in this manual.
SRT1000XLA/SRT1000RMXLA
SRT1500XLA/SRT1500RMXLA
OUTPUT: 120 VAC 50/60 Hz
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GROUP 1 |
15 AMP Max |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GROUP 2 |
15 AMP Max |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
suo1191b |
SRT1000RMXLA-NC/SRT1500RMXLA-NC
OUTPUT: 120 VAC 50/60 Hz
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GROUP 1 |
15 AMP Max |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GROUP 2 |
15 AMP Max |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
suo1192b |
6 |
Smart-UPS On-Line SRT1000/SRT1500 Tower/Rack-Mount 2U |
Key to identify rear panel features
|
SmartSlot |
The SmartSlot can be used to connect optional management accessories. |
|
|
|
|
AC input power cable |
All models have factory installed input power cables. |
|
or hardwire input box |
Hardwired input box is an optional accessory. |
|
|
|
|
External battery |
Use the external battery cable on the XLBP to connect the UPS and XLBP. |
|
power and |
XLBPs provide extended runtime during power outages. The UPS will automatically |
|
communication |
recognize up to 10 external battery packs. |
|
connector |
|
|
|
|
|
Controllable |
Connect electronic devices to these outlets. |
|
outlet group 1 |
|
|
|
|
|
Chassis ground screw |
The UPS and XLBPs have ground screws for connecting the ground leads. Prior to |
|
|
connecting a ground lead, disconnect the UPS from mains power. |
|
|
|
|
Controllable |
Connect electronic devices to these outlets. |
|
outlet group 2 |
|
|
|
|
|
EPO terminal |
The Emergency Power Off (EPO) terminal allows the user to connect the UPS to a |
|
|
central EPO system. |
|
|
|
|
Serial Com |
The Serial Com port is used to communicate with the UPS. |
|
|
Use only interface kits supplied or approved by APC by Schneider Electric. Any |
|
|
other serial interface cable will be incompatible with the UPS connector. |
|
|
|
|
USB port |
The USB port is used to connect either a server for native operating system |
|
|
communications, or for software to communicate with the UPS. |
|
|
|
Smart-UPS On-Line SRT1000/SRT1500 Tower/Rack-Mount 2U |
7 |
Operation
Connect Equipment
CAUTION
RISK OF ELECTRIC SHOCK
•Disconnect the mains input circuit breaker before installing or servicing the UPS or connected equipment.
•Disconnect internal and external batteries before installing or servicing the UPS or connected equipment.
•The UPS contains internal and external batteries that may present a shock hazard even when disconnected from the mains.
•UPS AC hardwired and pluggable outlets may be energized by remote or automatic control at any time.
•Disconnect equipment from the UPS before servicing any equipment.
•Do not use the UPS as a safety disconnect.
Failure to follow these instructions can result in minor or moderate injury.
Note: The UPS batteries will charge to 90% capacity in the first three hours of normal operation. Do not expect full battery runtime capability during this initial charge period.
1.Connect the internal battery module. See Installation manual for details.
2.Connect equipment to the outlets on the rear panel of the UPS. Refer to “Controllable Outlet Groups” on page 17.
3.Connect Smart Connect port to the nearest network.
4.Connect the UPS to the building utility power.
5.Log onto www.smartconnect.apc.com to launch registration process. The website includes instructions to setup the online account, activating the warranty and begin managing the UPS remotely.
Turn the UPS On/Off
The first time the UPS is turned on the Setup Wizard screen will run. Follow the prompts to configure UPS settings. Refer to “Configuration” on page 12.
To turn on the UPS and all connected equipment, press the POWER ON/OFF button on the display panel. Follow the prompts to either turn the UPS on immediately or after a delay, then press OK.
NOTE: When there is no input power and the UPS is off, the cold start feature can be used to turn on the UPS and connected equipment using battery power.
To perform a cold start press the POWER ON/OFF button.
The display panel will illuminate and the POWER ON/OFF button will illuminate red.
To turn on the output power press the POWER ON/OFF button again. Select the prompt Turn ON with NO AC and press OK.
To turn output power off, press the POWER ON/OFF button. Follow the prompts to either turn the UPS off immediately or after a delay, then press OK.
NOTE: Once the UPS output power has been turned off and the AC input has been removed, the UPS will continue to use the battery for internal power for 10 minutes. To remove power completely press the
OFF button. Follow the prompt to select Internal Power Off, then press OK.
