Sato M8485SE Revised Manual

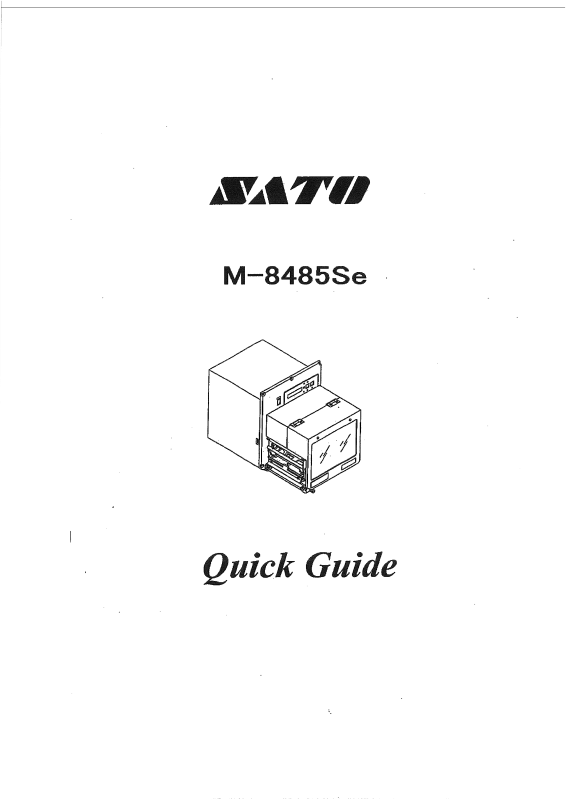

M-8485Se Quick Guide

10350A Nations Ford Road, Charlotte, North Carolina 28273

declare under our sole responsibility that the product

complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

DECLARATION OF CONFORMITY

SA TO America, Inc.

TEL [phone]

M-8485Se

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following
measures:
— Reorient or locate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Reader antennas should be positioned so that personnel in the area for
prolonged periods may safety remain at least 20 cm (7.9 in) in an
uncontrolled environment from the antenna's surface.
See FCC OET Bulletin 56 "Hazards of radio frequency and
electromagnetic fields" and Bulletin 65 "Human exposure to radio
frequency electromagnetic fields."
This device shall not be co-located with any other transmitting antenna.

PN9001086 Rev A Page 1

M-8485Se Quick Guide

Table of Contents

Controls and Indicators ................................................................... 3

Operator Panel ................................................................... 3

LED Indicators .................................................................... 3

Adjustments ........................................................................ 3

Keys ..................................................................................... 4

Rear Panel Connections ..................................................... 4

Initial Setup ..................................................................................... 5

Connecting the Printer ........................................................ 5

Printing a Test Label ........................................................... 6

Configuring the Printer ........................................................ 7

Computer Connections ....................................................... 7

Windows Drivers ................................................................. 10

What to do if the printer won’t f unct ion ......................................... .... 1 0

Media and Supplies ......................................................................... 14

Options ............................................................................................ 14

Safety Considerations ...................................................................... 15

Safety Information ............................................................................ 16

This Quick Guide was prepared to get you up and running quickly. It will
enable you to get your new SATO M-8485Se installed and printing with a
minimum of effort. However, it is recommended that you familiarize
yourself with the contents of the M-8485Se Operator and Technical
Reference Manual for detailed descriptions so you will be able to
properly use the printer to its full potential.

PN9001086 Rev A Page 2
