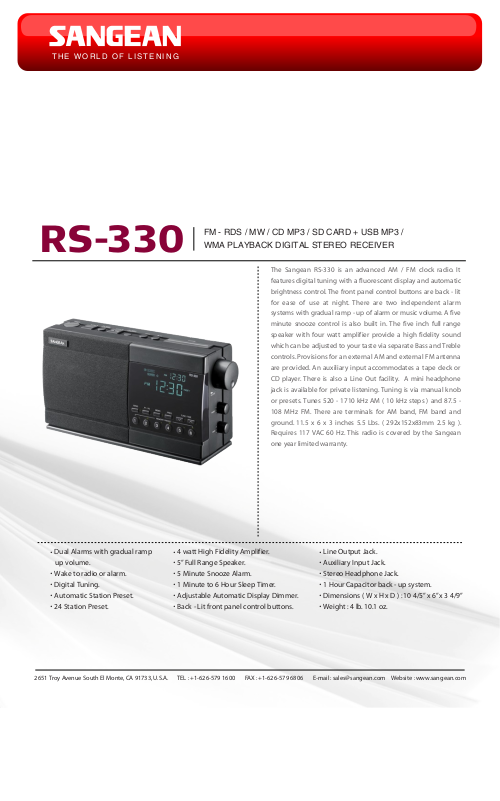

Sangean RS-330 User Manual
T H E W O R L D O F L I S T E N I N G
RS-330
FM - RDS / MW / CD MP3 / SD CARD + USB MP3 /
WMA PLAYBACK DIGITAL STEREO RECEIVER
The Sangean RS-330 is an advanced AM / FM clock radio. It
features digital tuning with a fluorescent display and automatic
brightness control. The front panel control buttons are back - lit
for ease of use at night. There are two independent alarm
systems with gradual ramp - up of alarm or music volume. A five
minute snooze control is also built in. The five inch full range
speaker with four watt amplifier provide a high fidelity sound
which can be adjusted to your taste via separate Bass and Treble
controls. Provisions for an external AM and external FM antenna
are provided. An auxiliary input accommodates a tape deck or
CD player. There is also a Line Out facility. A mini headphone
jack is available for private listening. Tuning is via manual knob
or presets. Tunes 520 - 1710 kHz AM ( 10 kHz steps ) and 87.5 -
108 MHz FM. There are terminals for AM band, FM band and
ground. 11.5 x 6 x 3 inches 5.5 Lbs. ( 292x152x83mm 2.5 kg ).
Requires 117 VAC 60 Hz. This radio is covered by the Sangean
one year limited warranty.
.
Dual Alarms with gradual ramp
up volume.
.
Wake to radio or alarm.
.
Digital Tuning.
.
Automatic Station Preset.
.
24 Station Preset.
2651 Troy Avenue South El Monte, CA 91733, U.S.A. TEL : +1-626-579 1600 FAX : +1-626-579 6806 E-mail : sales@sangean.com Website : www.sangean.com
.
4 watt High Fidelity Amplifier.
.
5” Full Range Speaker.
.
5 Minute Snooze Alarm.
.
1 Minute to 6 Hour Sleep Timer.
.
Adjustable Automatic Display Dimmer.
.
Back - Lit front panel control buttons.
.
Line Output Jack.
.
Auxiliary Input Jack.
.
Stereo Headphone Jack.
.
1 Hour Capacitor back - up system.
.
Dimensions ( W x H x D ) : 10 4/5” x 6” x 3 4/9”
.
Weight : 4 lb. 10.1 oz.
