SAMSUNG VP-L700 Service Manual Product Specification

Samsung Electronics 2-1

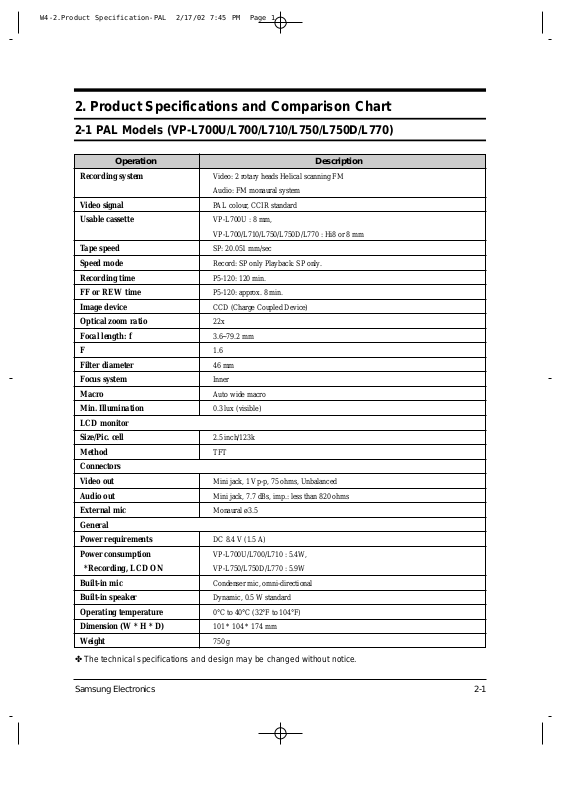

2. Product Specifications and Comparison Chart

2-1 PAL Models (VP-L700U/L700/L710/L750/L750D/L770)

Recording system Video: 2 rotary heads Helical scanning FM

Audio: FM monaural system

Video signal PAL colour, CCIR standard
Usable cassette VP-L700U : 8 mm,

VP-L700/L710/L750/L750D/L770 : Hi8 or 8 mm

Tape speed SP: 20.051 mm/sec
Speed mode Record: SP only Playback: SP only.
Recording time P5-120: 120 min.
FF or REW time P5-120: approx. 8 min.
Image device CCD (Charge Coupled Device)
Optical zoom ratio 22x
Focal length: f 3.6~79.2 mm
F 1.6
Filter diameter 46 mm
Focus system Inner
Macro Auto wide macro
Min. Illumination 0.3 lux (visible)
LCD monitor
Size/Pic. cell 2.5 inch/123k
Method TFT
Connectors
Video out Mini jack, 1 Vp-p, 75 ohms, Unbalanced
Audio out Mini jack, 7.7 dBs, imp.: less than 820 ohms
External mic Monaural ø3.5
General
Power requirements DC 8.4 V (1.5 A)
Power consumption VP-L700U/L700/L710 : 5.4W,

*Recording, LCD ON VP-L750/L750D/L770 : 5.9W
Built-in mic Condenser mic, omni-directional
Built-in speaker Dynamic, 0.5 W standard
Operating temperature 0°C to 40°C (32°F to 104°F)
Dimension (W * H * D) 101 * 104 * 174 mm
Weight 750 g

Operation

Description

✤ The technical specifications and design may be changed without notice.

W4-2.Product Specification-PAL 2/17/02 7:45 PM Page 1

Samsung Electronics2-2

Products Specifications and Comparison Chart

2-2 Comparison Chart

2-2-1. PAL Models

Features

Model

Format

Video Light

Remote Control

Audio

DIS

SNAP/SHOT

EVF
CVF

CCD

Digital Zoom Ratio

PAL

VP-L700 VP-L700U VP-L710 VP-L750 VP-L750D VP-L770

Hi8

X
X

Mono

X
X
O

X
320K
880X

8mm

X
X

Mono

X
X
O

X
320K
880X

Hi8

X
O

Mono

X
X
O

X
320K
880X

Hi8

O
O

Mono

O
O
O

X
320K
880X

Hi8

O
O

Mono

O
O
O

X
320K
990X

Hi8

O
O

Mono

O
O
O

X
320K
880X
