SAMSUNG Vp-l320, Vp-l350, Vp-l330, Vp-l300, VP-l980 Reference
Samsung Electronics 2-1
✤ The Service materials (Lamp, Plier) will be supplied by SEC Korea.
1. Disassemble the screw from the camcorder with a
small screw driver as figure.
2. Pull out the video light cover unit carefully as figure.
❚ Do not apply excessive force because the cover is
easy to be broken.
❚ The right side of the cover is fixed by hitch, and the
left by a screw.
3. Pull out the bulb with flat pliers supplied as a service
tool.
❚ Do not apply excessive force because the cover is
easy to be broken.
4. Insert a new BULB(JC 6V-3W/G2.5) with a pliers as
figure.
❚ Do not apply excessive force because the cover is
easy to be broken.
❚ Make sure that the bulb is in place exactly.
❚ To prevent the smudge of the finger prints reducing
the life of the bulb, do not touch the bulb with fingers.
5. Reassemble the video light cover unit to the camcorder carefully as figure.
❚ Do not apply excessive force because the cover is
easy to be broken.
6. Reassemble the screw with a small screw driver to
the camcorder.

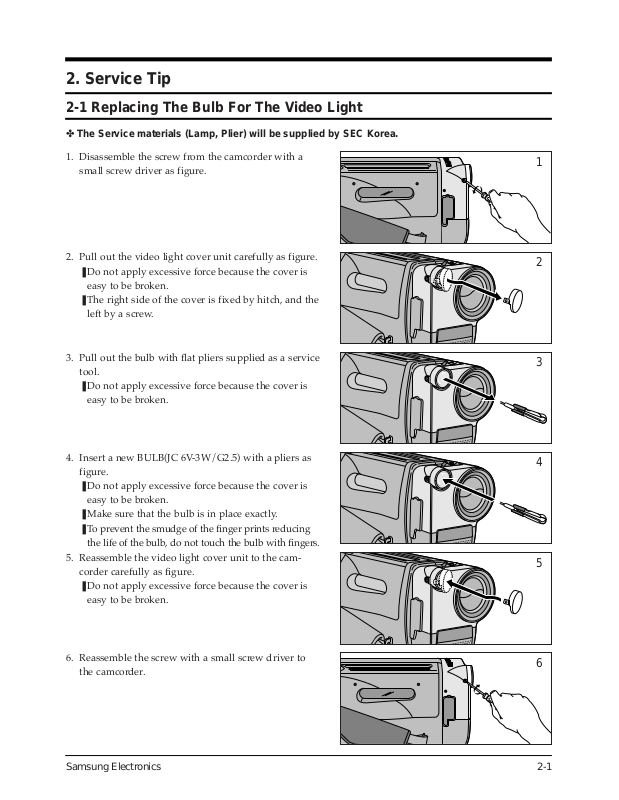

2. Service Tip
2-1 Replacing The Bulb For The Video Light
1
2
3
4
5
6
Samsung Electronics2-2
Service Tips
