Safety Instructions

User’s Manual

Warning / Caution

Notational Conventions

Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.

Prohibited

Do not disassemble

Do not touch

Important to read and understand at all times

Disconnect the plug from the outlet

Grounding to prevent an electric shock

Safety Instructions

User’s Manual

● Do not use a damaged or loose plug.

◆ This may cause an electric shock or fire.

When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode.

If the size of your monitor is small, or if the same image is present for long periods of time, you may see afterimages due to damage to the flourescent substance on the inside of the CDT.

● Do not pull the plug out by the wire nor touch the plug with wet hands.

◆ This may cause an electric shock or fire.

● Use only a properly grounded plug and recepticle.

◆ An improper ground may cause electric shock or equipment damage.

● Do not excessively bend the plug and wire nor place heavy

objects upon them, which could cause damage.

◆ Failure to do so may cause an electric shock or fire.

Power

Safety Instructions

User’s Manual

● Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time.

◆ Failure to do so may cause an electric shock or fire.

● Do not connect too many extension cords or plugs to an outlet.

◆ This may cause a fire.

User’s Manual

Safety Instructions

● Do not cover the vents on the monitor cabinet.

◆ Bad ventilation may cause a breakdown or fire.

● Put your monitor in a location with low humidity and a minimum of dust.

◆ An electric short or fire could result inside the monitor.

● Do not drop the monitor when moving it.

◆ This may cause damage to the product or human body.

● Place the monitor on a flat and stable surface.

◆ The monitor can cause injury by falling.

● Set down the monitor carefully.

◆ It could be damaged or broken.

● Do not place the monitor face down on the screen.

◆ The CRT surface may be damaged.

● Do not use the monitor without the monitor stand.

◆ It could break down or cause a fire due to bad ventilation.

◆ If the monitor must be used without the supplied stand, take steps to insure proper ventilation.

Installation

Safety Instructions

User’s Manual

● Do not spray detergent directly on the monitor.

● Use the recommended detergent with a smooth cloth.

◆ You can prevent the coated CRT from being damaged or the monitor cabinet from

being dissolved, cracked or discolored.

◆ You can buy a recommended detergent at Service Center.

● If the connector between the plug and the pin is dusty or dirty, clean it

properly with a dry cloth.

◆ A dirty connector can cause an electric shock or fire.

● Do not set a glass of water, chemicals or any small metal

objects on the monitor.

◆ This may cause damage, electric shock or a fire.

◆ If a foreign substance gets into the monitor, disconnect the plug

and then contact a service center.

When cleaning the monitor case or the surface of the CRT, wipe with a slightly moistened, soft fabric.

Do not clean Flat monitor with water. Use a water-diluted mild detergent.

(Some detergents contain significant amounts of alcohol-based solvents, which can damage (color change) or crack the monitor case. The antiglare/anti-static surface coating on the CDT may also be affected.)

Dilute the detergent (1:10 ratio) with water before using.

Cleaning

Caution: Use a recommended detergent only,

as other surfactants containing large amounts of alcohol, solvent or other strong substances, can discolor or crack the monitor or damage the coated CDT

Safety Instructions

User’s Manual

● Do not remove cover(or back). No user serviceable parts inside.

◆ This may cause an electric shock or a fire.

◆ Refer servicing to qualified service personnel.

● If your monitor does not operate normally - in particular,if there are any

unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service.

◆ This may cause an electric shock or a fire.

● Do not place any heavy objects on the monitor.

◆ This may cause an electric shock or a fire.

● For each hour of looking at the monitor, you should let

your eyes rest for 5 minutes.

◆ This will reduce eye fatigue.

● Do not use or store inflammable substances near the monitor.

◆ This may cause an explosion or fire.

● Do not try to move the monitor by pulling on the wire

or the signal cable.

◆ This may cause a breakdown, electric shock or a fire due to damage to the cable.

Other

User’s Manual

● Do not move the monitor right or left by pulling only the wire or the signal cable.

◆ This may cause a breakdown, electric shock or a fire due to damage to the cable.

● Never insert anything metallic into the monitor openings.

◆ This may cause an electric shock, fire or injury.

● Keep the monitor away from any magnetic substances..

◆ This may cause discoloring or distortion of the image.

Introduction

User’s Manual

■ Monitor and Stand

■ Power Cord

■ Stand

■ Quick Setup Guide

■ Warranty card (Not available in all locations)

■ User's Guide and Driver Installation CD

Please make sure the following items are included with

your monitor. If any items are missing, contact your dealer.

(Your monitor is shipped with the base detached.)

Unpacking

Introduction

User’s Manual

1. Exit button : Use this button to Exit the active menu or the OSD. 2,3. Adjust buttons : These buttons allow you to highlight and adjust items in the menu.

4. Menu button : Use this button to open the OSD and activate a highlighted menu item.

5. Power indicator : Indicates normal or Power Saving Mode.

6. Power button : Use this button to turn the monitor on and off.

Note: See PowerSaver described in the manual for further information regarding power saving functions.

For energy conversation,turn your monitor OFF when it is not needed,or when leaving it unattended for long periods.

Front

Introduction

User’s Manual

1. Power port : Connect the power cord for your monitor to the power port on the back of the monitor.

2.Signal cable :Connect the end of the signal cable to your computer's video port (video board,video card or graphics card).

1. Signal cable : Connect the end of the signal cable to your computer's video port(video board, video card or graphics card).

2. Power port : Connect the power cord for your monitor to the power port on the back of the monitor.

3. Tilt/Swivel Base : You can separate the base from the monitor.

Note: See Connecting Your Monitor for further information

regarding cable connections.

(The configuration at the back of the moniter

may vary from product to product.)

Rear

Bottom

Setup

User’s Manual

1.Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet.

2.Connect the end of the signal cable to your computer's video port(video board, video card or graphics card).

3.If you are using a Macintosh computer, connect the cable to a Macintosh adapter, and set the pins on your adapter(Adapter not included). A PC-compatible computer does not need an adapter.

4.Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Connecting Your Monitor

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating sys tem to another. Follow the directions as appropriate for the operating system you have.

Installing the Video Driver

User’s Manual

Setup

Windows ME

1. Insert CD into the CD-ROM driver.

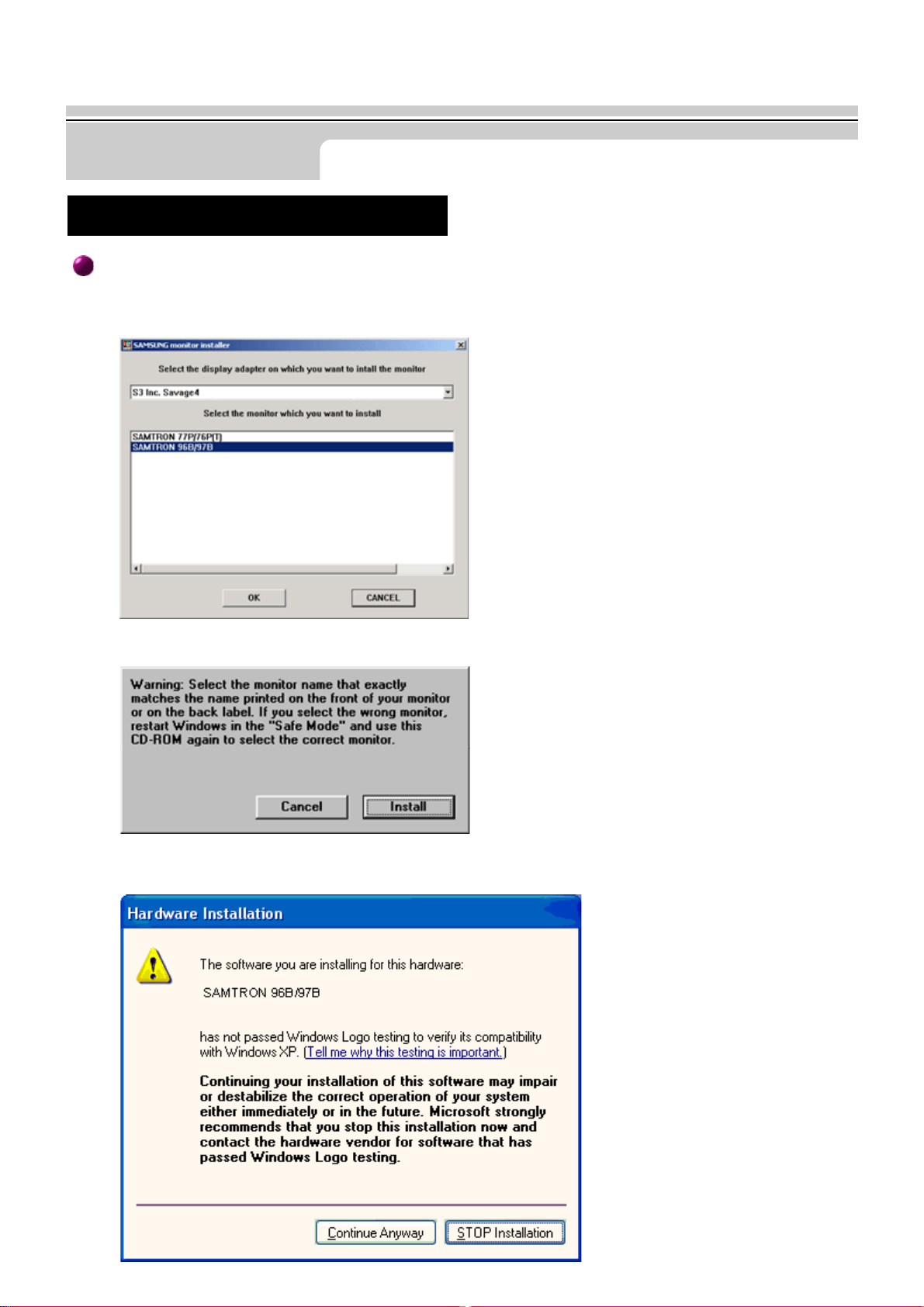

2. Click "Windows ME Driver".

3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.

5. Monitor Driver installation is completed.

User’s Manual

Setup

Installing the Video Driver

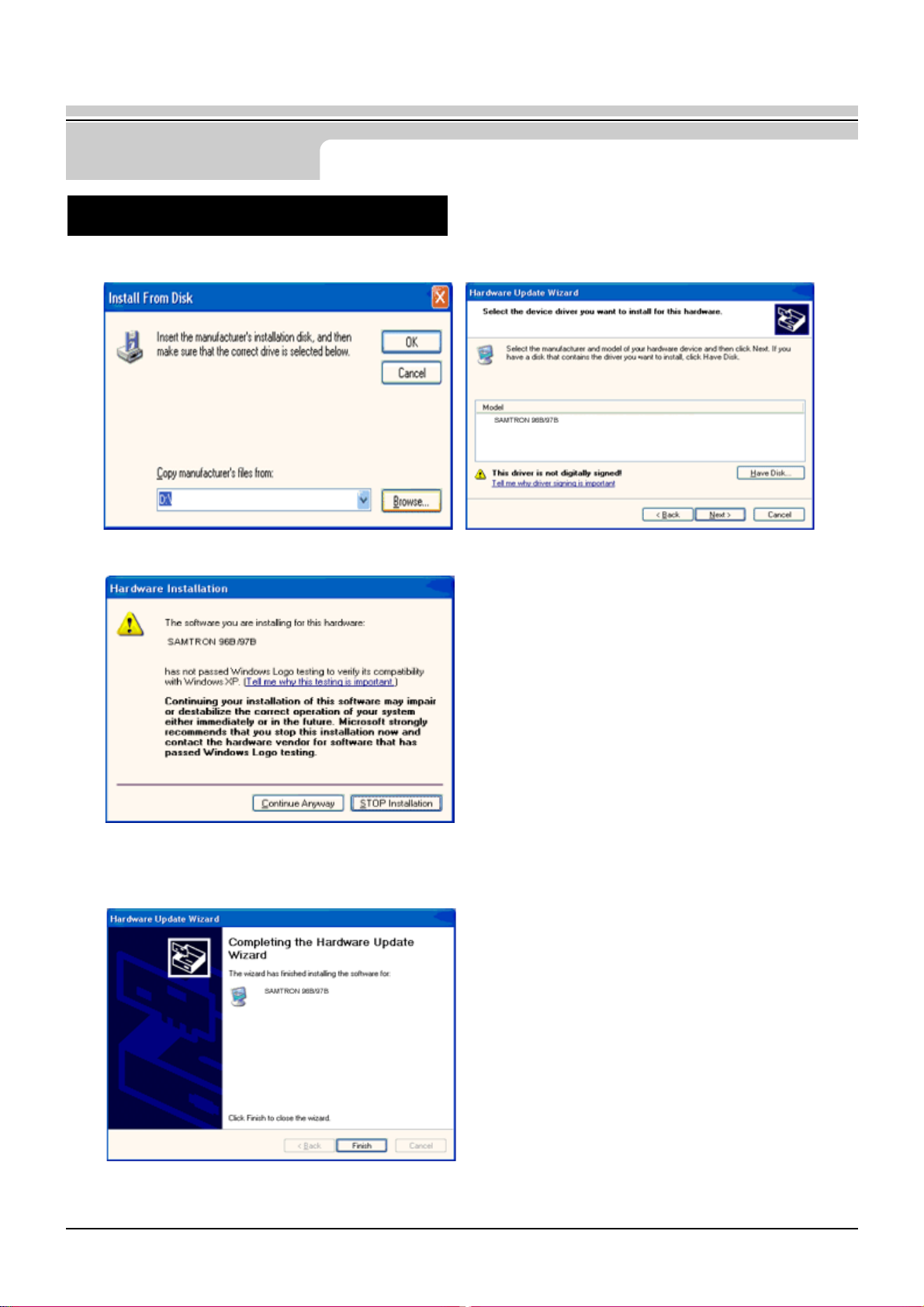

Windows XP/2000

1. Insert CD into the CD-ROM driver.

2. Click "Windows XP/2000 Driver".

3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.

5. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button.

Installing the Video Driver

User’s Manual

Setup

This monitor driver is under certifying MS logo, and this installation don't damage your system. The certifide driver will be posted on Samtron Monitor Homepage.

6. Monitor Driver installation is completed.

Setup

User’s Manual

Installing the Video Driver

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

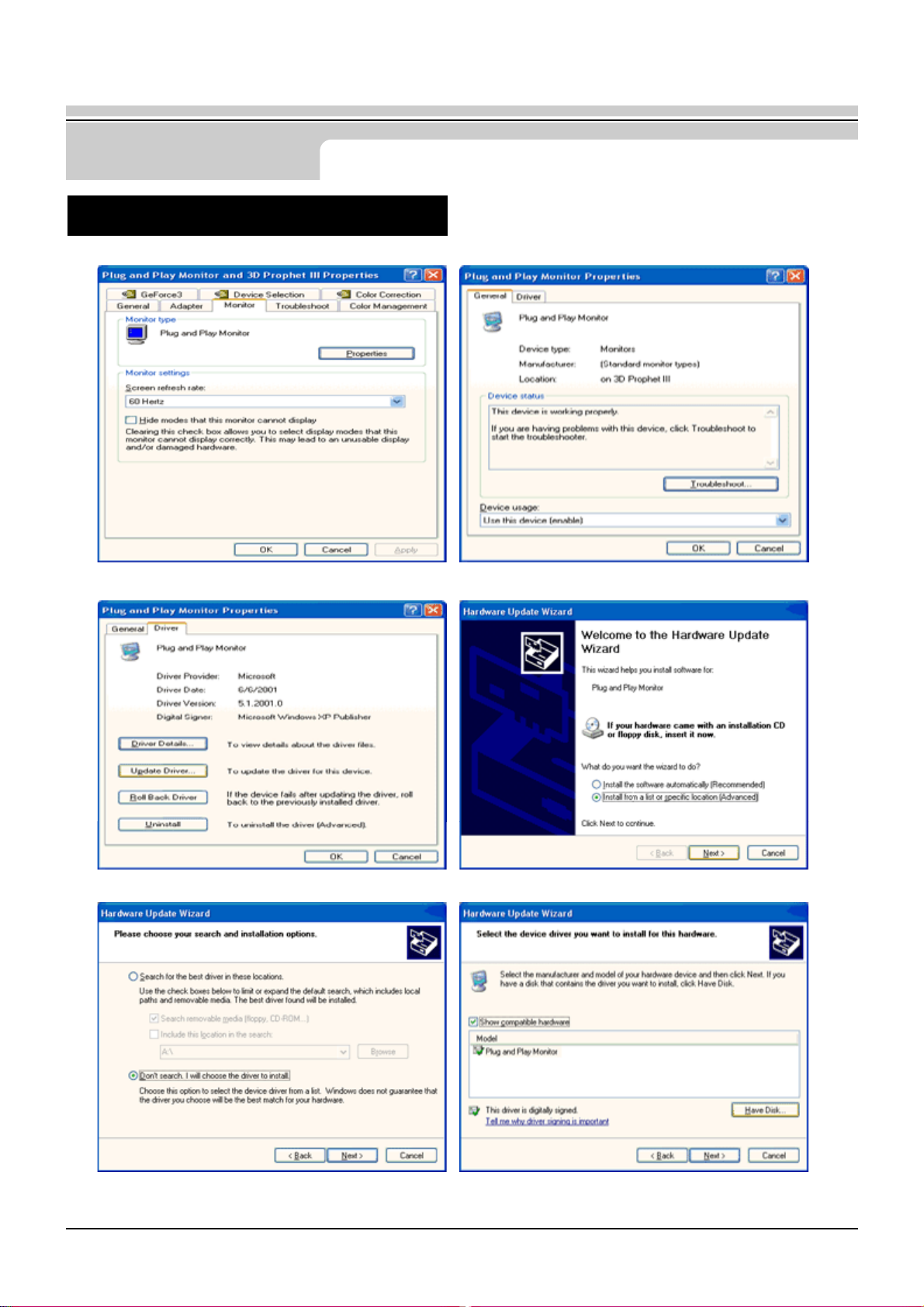

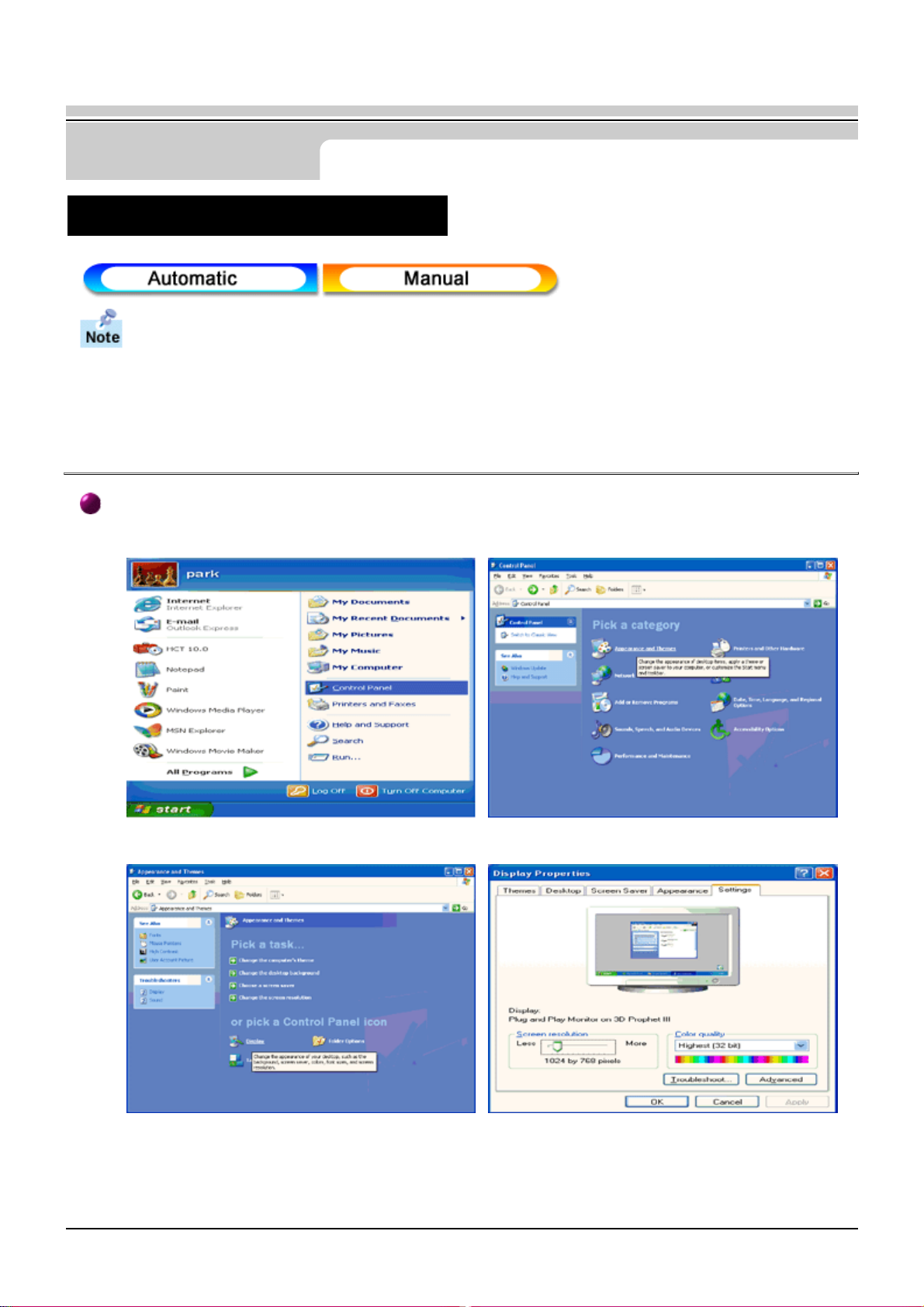

2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.

3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".

Setup

User’s Manual

Installing the Video Driver

4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.

6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".

User’s Manual

Setup

Installing the Video Driver

7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.

8. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK"

button.

This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samtron Monitor Homepage.

9. Click the "Close" button then click "OK" button continually.

Setup

User’s Manual

Installing the Video Driver

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "Insert disk" window.

2. Click the "Browse" button on the "File Needed" window.

3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

1. Click "Start" , "Setting" , "Control Panel".

2. Double click the "Display" Icon.

3. Choose the "Settings" tab and then click "Advanced..".

4. Choose "Monitor".

Case1: If the "Properties" button is inactive, it means your monitor is properly configured. Please stop

installation

Case2: If the "Properties" button is active, click the "Properties" button then follow next steps continually.

5. Click "Driver" and then click on "Update Driver.." then click on the "Next" button.

6. Choose "Display a list of the known drivers for this device so that I can choose a specific driver" then click "Next" and then click "Have disk".

7. Click the "Browse" button then choose A:(D:\Driver).

8. Click the "Open" button, then click "OK" button.

9. Choose your monitor model and click the "Next" button then click "Next" button.

10. Click the "Finish" button then the "Close" button.

If you can see the "Digital Signature Not Found" window then click the "Yes"button. And click the "Finish" button then the "Close" button.

Setup

User’s Manual

Installing the Video Driver

Microsoft® Windows® Millennium Operating System

1. Click "Start" , "Setting" , "Control Panel".

2. Double click "Display" icon.

3. Select the "Settings" tab and click "Advanced Properties" button.

4. Select the "Monitor" tab.

5. Click the "Change" button in the "Monitor Type" area.

6. Choose "Specify the location of the driver".

7. Choose "Display a list of all the driver in a specific location.." then click "Next" button.

8. Click the "Have Disk" button

9. Specify A:\(D:\driver) then click "OK" button.

10. Select "Show all devices" and choose the monitor that corresponds to the one you connected to your

computer and click "OK".

11. Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box.

(You can get some other screen for warning message or others, then click the appreciate option for your monitor.)

Microsoft® Windows® NT Operating System

1. Click Start, Settings, Control Panel, and then double-click Display icon.

2. In Display Registration Information window, click Settings Tab and then click All Display Modes.

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click OK.

4. Click Apply button if you see the screen working normally after clicking Test. If the screen is not normal,

change to a different mode (lower mode of resolution, colors or frequency).

Note: If there is no Mode at All Display Modes, select the level of resolution and vertical frequency by referring to the Preset Display Modes

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for setting your mouse.

3. Set a mouse for your computer.

4. The next screen is for selecting a keyboard.

5. Set a Keyboard for your computer.

6. The next screen is for setting your monitor.

7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)

8. Set a vertical frequency for your monitor. (You can enter the frequency directly.)

9. Enter the model name of your monitor. This information will not affect the actual execution of X-Window.

10. You have finished setting up your monitor. Execute X-Window after setting other requested hardware.

Setup

User’s Manual

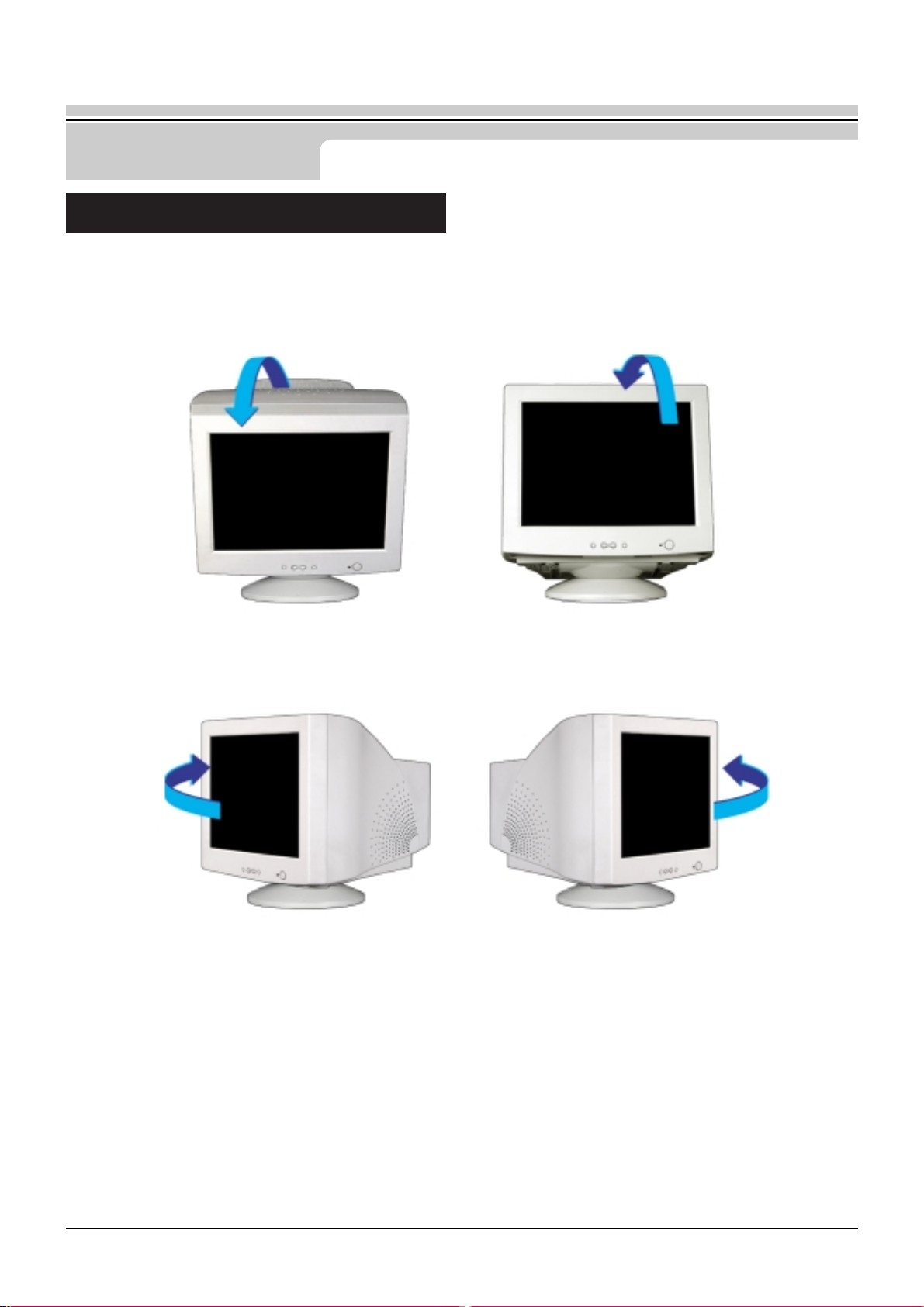

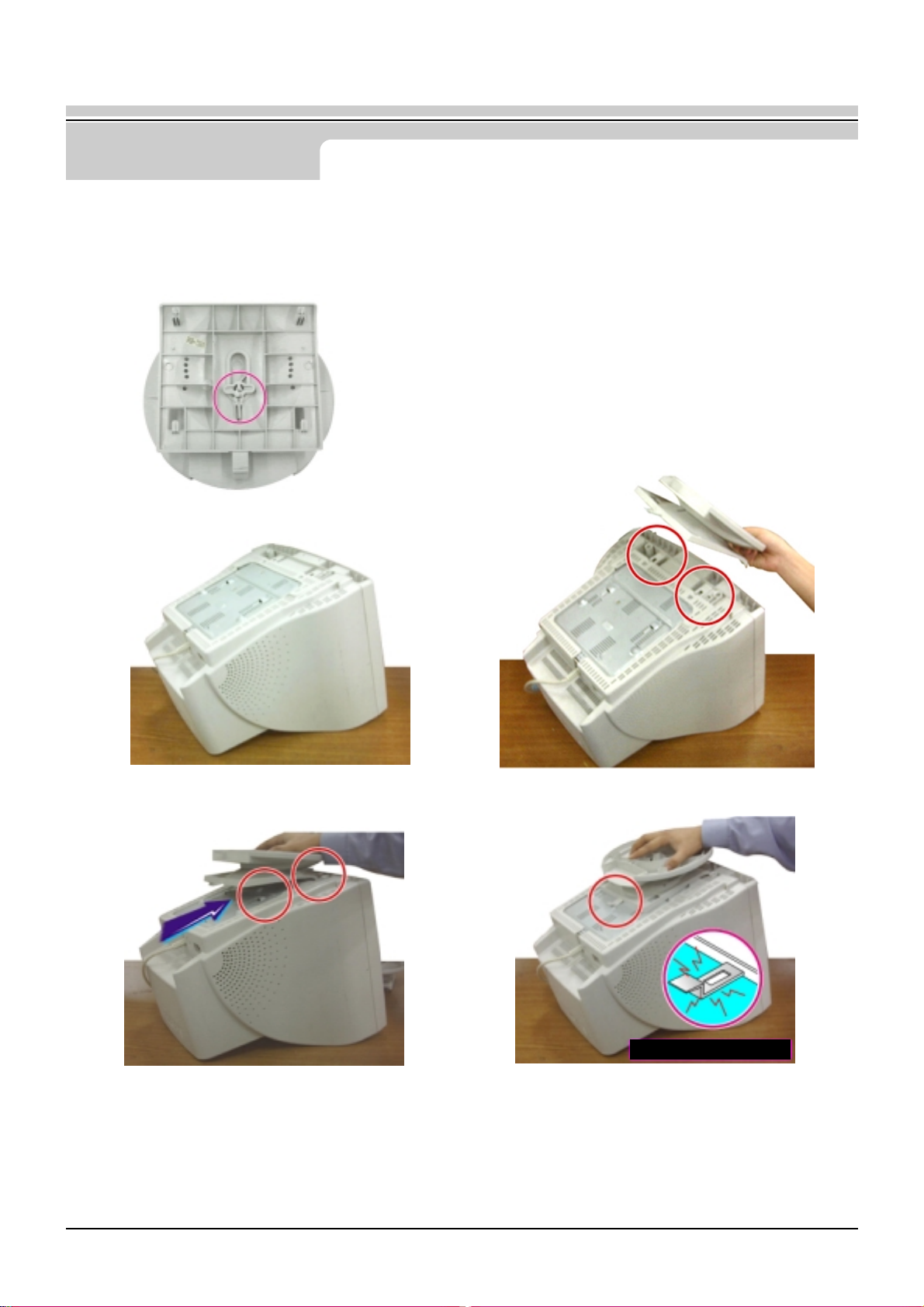

1. Tilt/Swivel Base

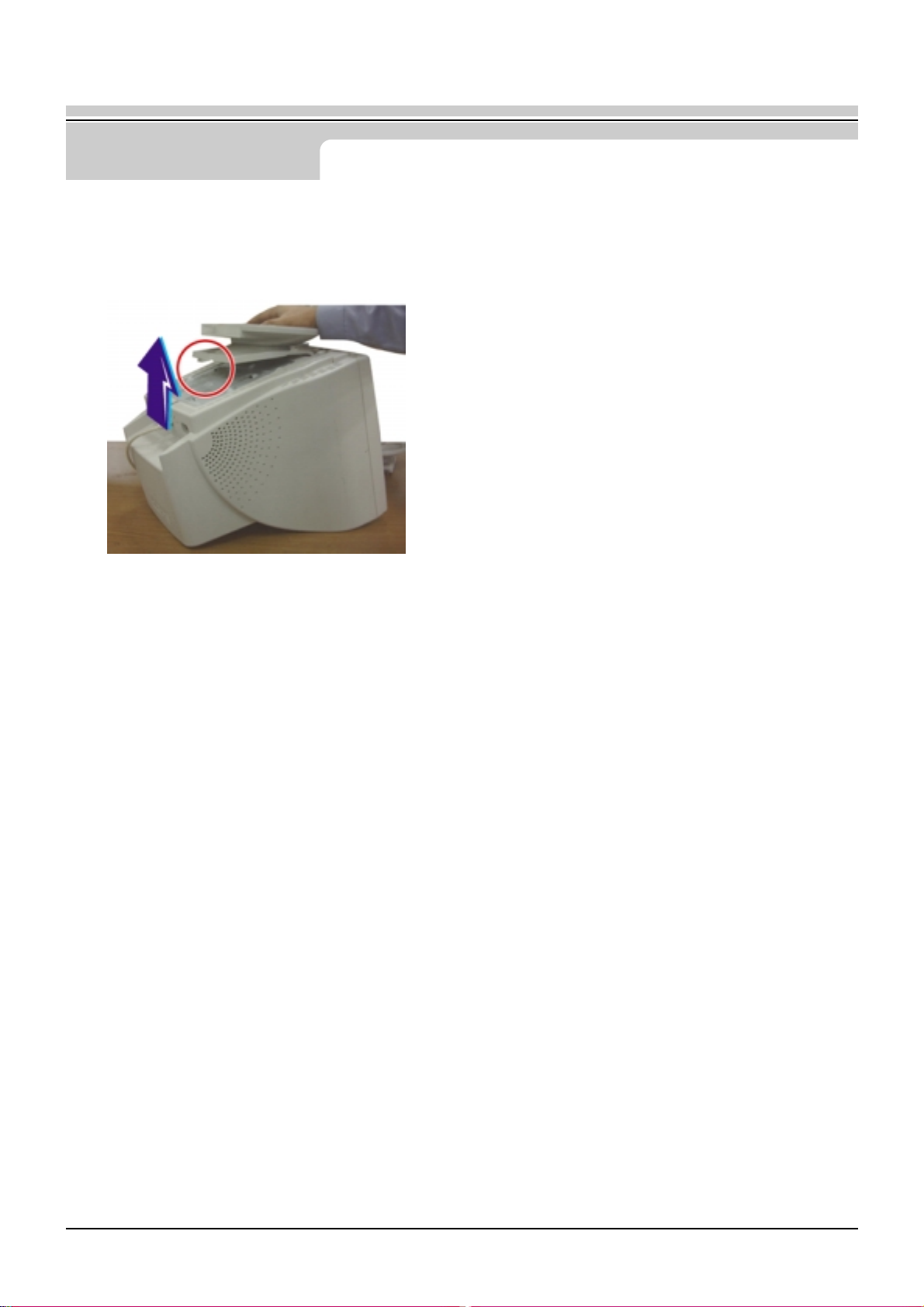

With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle.

Note: The base is detachable. Your monitor is shipped with the base detached.

Tilt/Swivel Base Installation

Setup

User’s Manual

2. Attaching the Base

If your monitor was supplied with the base detached, attach the base as follows.

Remove the twist-tie before attaching the base to the monitor.

Note: The Base will align with the monitor slots in only one position.

1. Place the monitor upside-down on a flat work surface.

2. Align the tabs on the base with the corresponding slots on the bottom of the monitor.

3. Press the base onto the monitor until the tabs are fully engaged in the slots.

4. Push the base toward the front of the monitor until the release latch clicks into the locked position.

Do not bend the snap.

Setup

User’s Manual

3. Removing the Base

1. Turn off the monitor and unplug it from the electrical outlet.

2. Place the monitor upside down on a stable, flat work surface.

3. Squeeze and pull up on the release latch on the base.

4. Push the base toward the back of the monitor and lift up to remove the base.

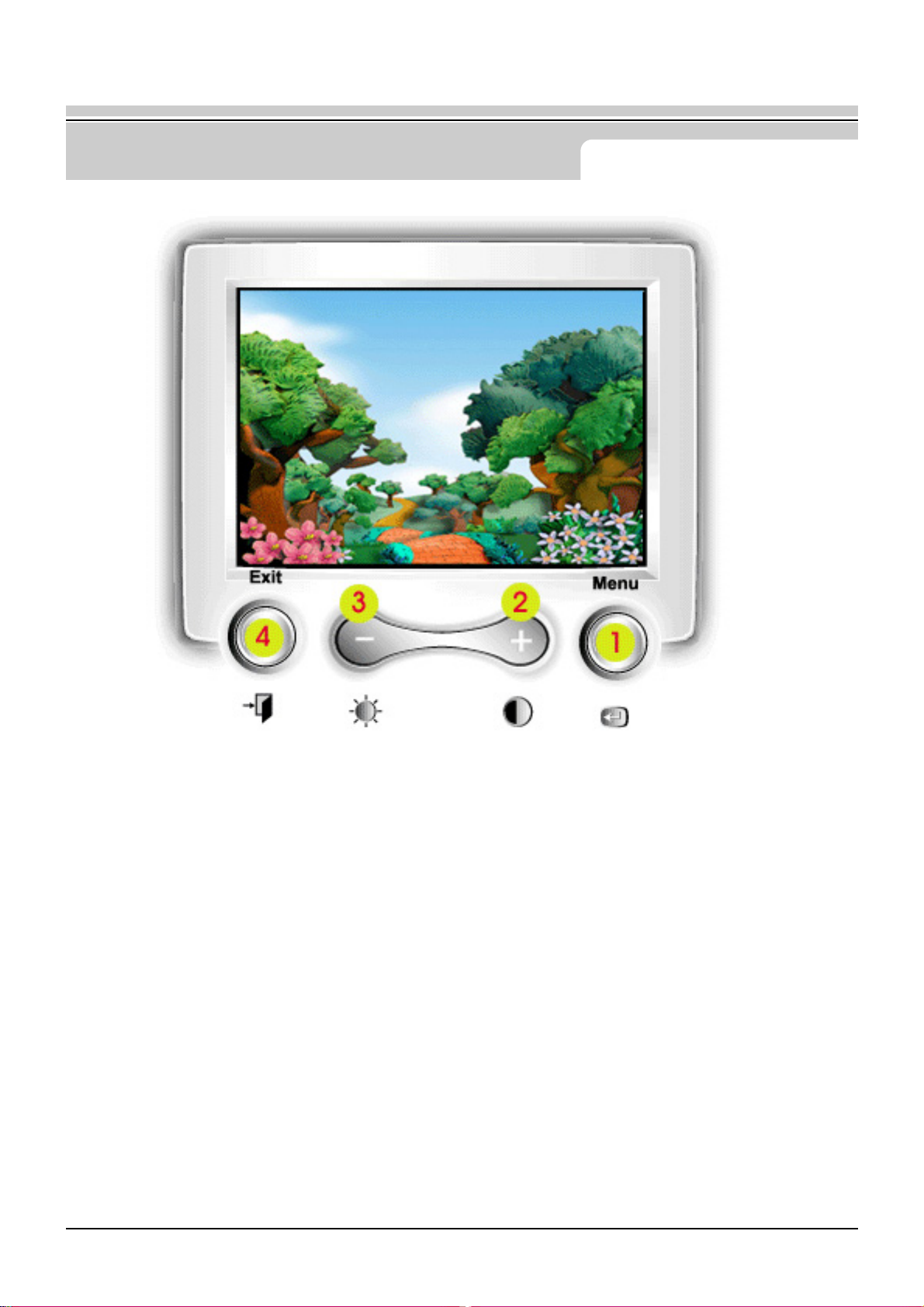

On Screen Display (OSD) Menu System

User’s Manual

1 Use this button to open the OSD and activate

a highlighted menu item.

2.3 Use these buttons to highlight and adjust items using the On-Screen Display. These buttons are also direct access buttons for the contrast and brightness feature.

4 Use this button to Exit the active menu or the OSD.

Troubleshooting

User’s Manual

Symptom Chek List Solution

Is the power cord connected properly?

Check the power cord connection and supply.

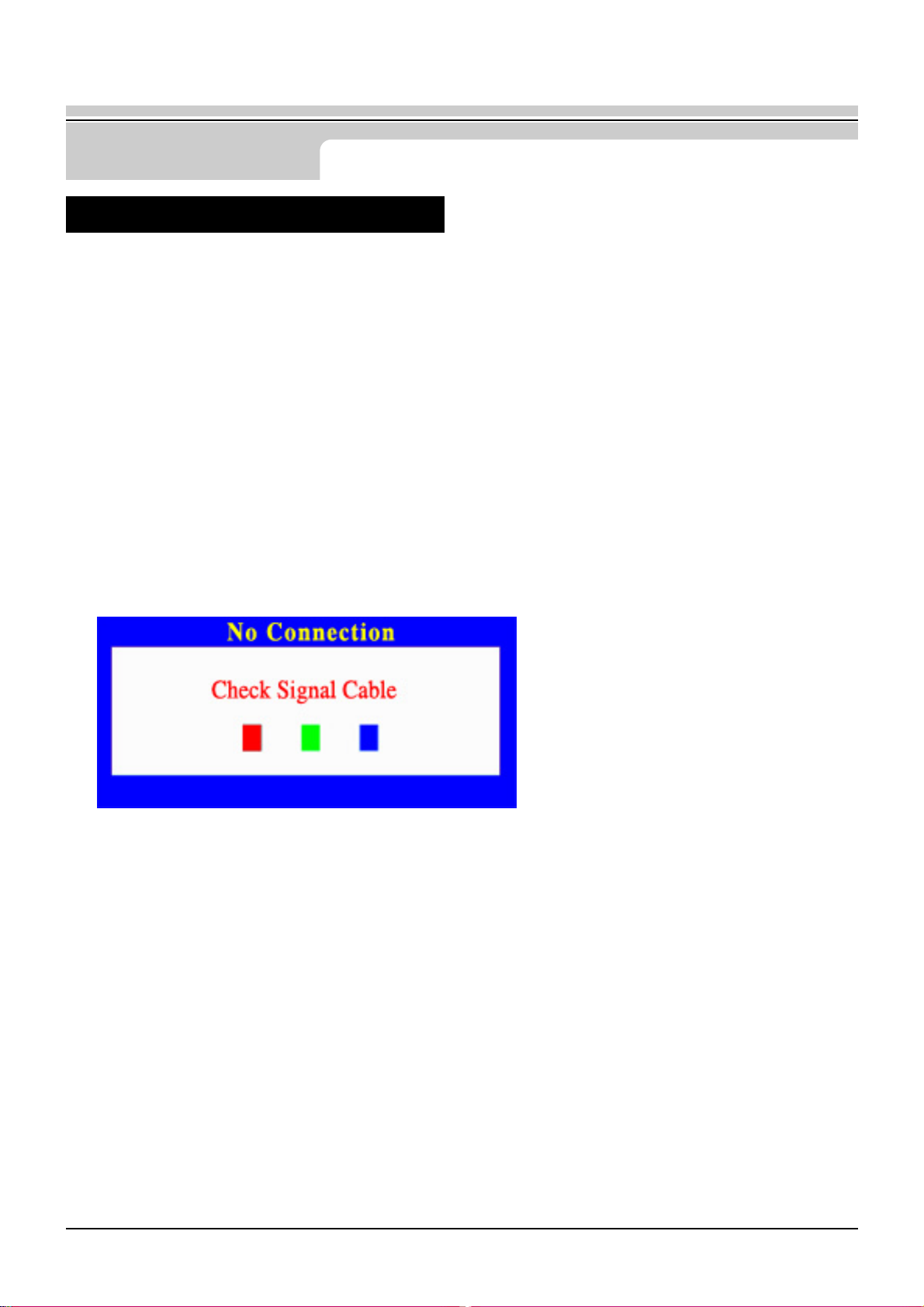

Can you see "No Connection, Check Signal Cable" on the screen?

If the power is on, reboot the computer to see the initial screen(the login screen), which can be seen.

If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for

Windows

ME/XP/2000

)

and then change the frequency of the video card.(Refer to the Preset Timing Modes)

Check the signal cable connection.

No Images on the screen. I cannot trun on the monitor.

I cannot see the On Screen Display(OSD).

Note: If the initial screen (the login

screen) does not appear, contact a service center or

your dealer.

You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can properly handle.

Adjust the maximum resolution and frequency applicable to the monitor.

The monitor is in PowerSave mode.

Press a key on the keyboard or move the mouse to activate the monitor and restore the image on the screen.

Unlock the OSD by pressing the MENU button for at least 10 seconds.

Can you see "Sync. Out of Range" on the screen?

There is no image on the screen.Is the power indicator on the monitor blinking at 1 second intervals?

Have you locked the On Screen Display (OSD) Menu to prevent changes?

Chek List

Before calling for service, check the information in this section to see if you can solve the problem yourself. If you do need assistance, please call the phone number on the warranty card, the phone number on the Information section or contact your dealer.

Note :

Troubleshooting

User’s Manual

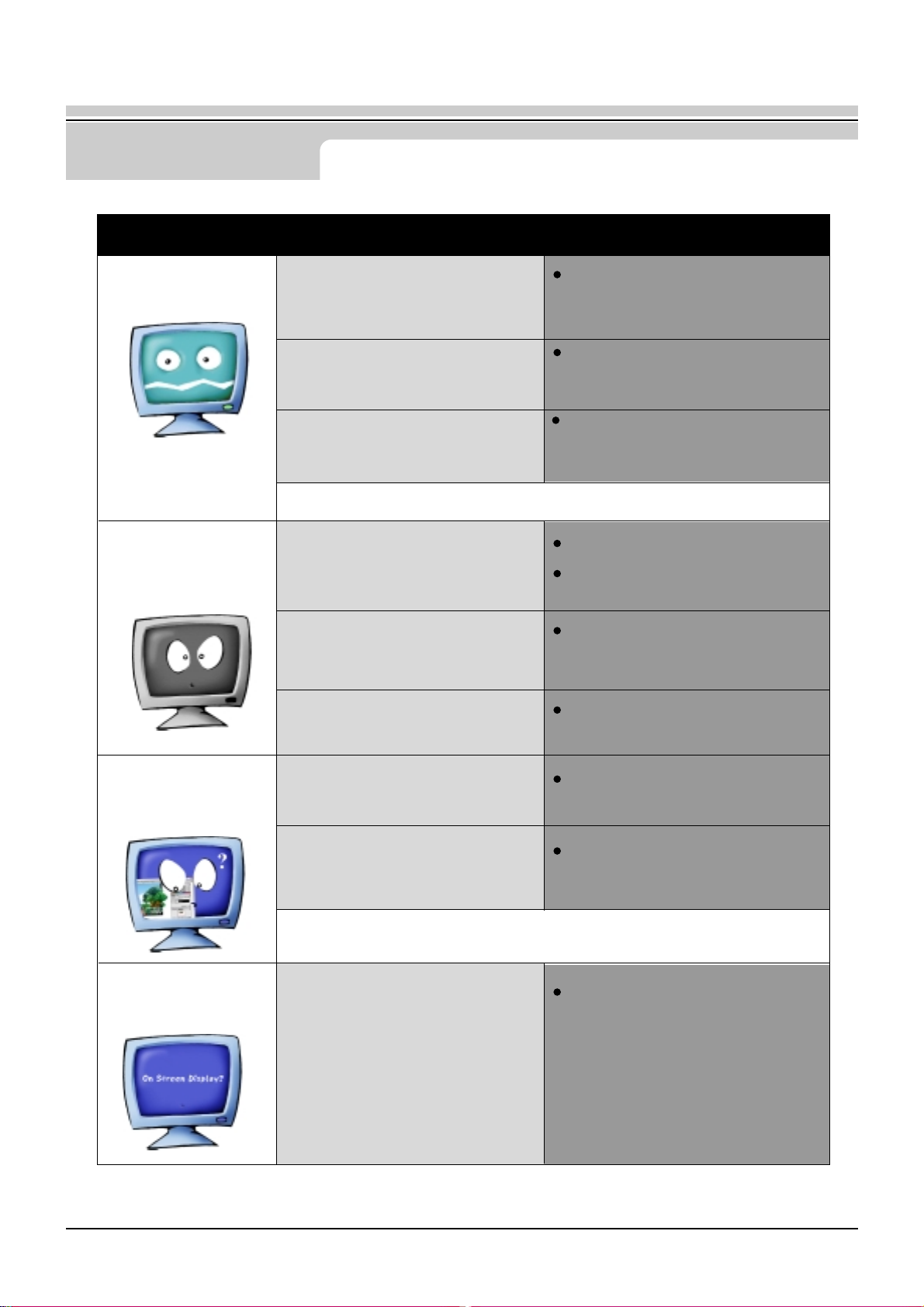

The image on the screen is shaking.

The screen shows strange colors or just black and white.

The screen suddenly has become unbalanced.

The screen is out of focus or OSD cannot be adjusted.

The screen image can also appear to shake or vibrate if there is a problem with the video card or the computer's main board.

The screen can be unbalanced due to the cycle of the video card signals. Readjust Position by referring to the OSD.

Check the monitor configuration to see if it is in Interlace Mode.

(Interlace Mode: Vertical frequency

43Hz, 87Hz(i), etc)

Are there any magnetic products such as a high voltage wire near by?

Is the voltage stable?

Is the screen displaying only one color as if looking at the screen through a cellophane paper?

Have the screen colors become strange after running a program or due to a crash between applications?

Has the video card been set properly?

Have you changed the video card or the driver?

Have you adjusted the resolution or frequency to the monitor?

Have you adjusted the resolution or frequency on the monitor?

Adjust the resolution and frequency of the video card. (Refer to the Preset Timing Modes)

The signal from the video card exceeds the maximum resolution and frequency of the monitor.

Move the monitor away from anything that can create a strong magnetic field.

The screen image can appear to shake or vibrate at a particular time of day due to low supply voltage.

Check the signal cable connection. Make sure the video card is fully

inserted in it's slot. Reboot the computer.

Set the video card by referring to the video card manual.

Adjust screen image position and size using the OSD.

Adjust the resolution and frequency at the video card. (Refer to the Preset Timing Modes)

Symptom Chek List Solution

Troubleshooting

User’s Manual

Are there any magnetic products such as an adapter, speaker or a high voltage wire near the monitor?

The screen is partialy distorted.

LED is blinking but no images on the screen.

There are only 16 colors shown on the screen. The screen colors have changed after changing the video card.

Enter the OSD and perform a 'Degauss'.

Is the frequency properly adjusted when checking the Display Timing on the menu?

Adjust the frequency properly by referring to the video card manual and the Preset Timing Modes.

(The maximum frequency per resolution may differ from product to product.)

Have the Windows colors been set properly?

For Windows ME/XP/2000: Set the colors properly at the Control Panel, Display, Settings.

There is a message that reads “Unrecognized monitor, Plug & Play (VESA DDC) monitor found”.

Have you installed the monitor driver?

Install the monitor driver according to the Driver Installation Instructions.

See the video card manual to see if the Plug & Play (VESA DDC) function can be supported.

Install the monitor driver according to the Driver Installation Instructions.

Has the video card been set properly?

Set the video card by referring to the video card manual.

Keep the monitor away from any magnetic products.

Symptom Chek List Solution

Troubleshooting

User’s Manual

1. Check if the power cord and the cable are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting. (If it does, request an after-service for the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if the installed the adapter (video) driver and the monitor driver.

4. Check if the scanning ratio of the video screen is set at 75Hz or 85Hz. (Do not exceed 60Hz when using the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at "the Control Panel, System, Device Administrator" and then reboot the computer to reinstall the adapter (video) driver.

Check the following items if there is trouble with the monitor.

Note:If problems repeatedly occur, contact an authorized service center.

Troubleshooting

User’s Manual

Question Answer

How can I change the frequency?

How can I adjust the resolution?

How can I set the Power Saving function?

The monitor makes a sound when it is turned on.

Frequency can be changed by reconfiguring the video card. Note that video card support can vary, depending on the version of the

driver used. (Refer to the computer or the video card manual fordetails.)

Windows ME/XP/2000: Set the resolution at the Control Panel, Display, Settings.

* Contact the video card manufacturer for details.

Windows ME/XP/2000: Set the function at BIOS-SETUP of the computer or the screen saver. (Refer to Windows/Computer Manual)

This is normal as some sound may be generated when the metal case and the electromagnet, which are installed to block any electromagnetic waves, interact with each other.

How can I clean the outer case/Picture tube?

Disconnect the power cord and then clean the monitor with a soft cloth, using either a plain water.

Do not leave any remains of the detergent nor scratch the case. Do not allow any water to go inside the monitor.

Q & A

Troubleshooting

User’s Manual

A self-test feature is provided that allows you to check for proper monitor function. If your monitor and computer are properly connected but the monitor screen remains dark and the power indicator is blinking, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

4.Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor is functioning properly, you will see a box with a blue border and red text inside as shown in the following illustration: The three boxes inside the border are red, green and blue.

Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears during normal operation if the video cable becomes disconnected or damaged.

If your monitor screen remains blank after using the previous procedure, check your video controller and computer system; your monitor is functioning properly.

Self-Test Feature Check

User’s Manual

If there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is out of scan range or that you need to check the signal cable.

The location and the position of the monitor may influence the quality and other features of the monitor.

1. If there are any woofer speakers near the monitor, unplug and relocate the woofer to another room.

2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.

3. Degauss the monitor if any devices were removed from the area.

A monitor recreates visual signals received from the PC. Therefore, if there is trouble with the PC or the video card, this can cause the monitor to become blank, have poor coloring, noise, Sync. Out of Range, etc. In this case, first check the source of the problem, and then contact a service center or your dealer.

Judging the monitor's working condition

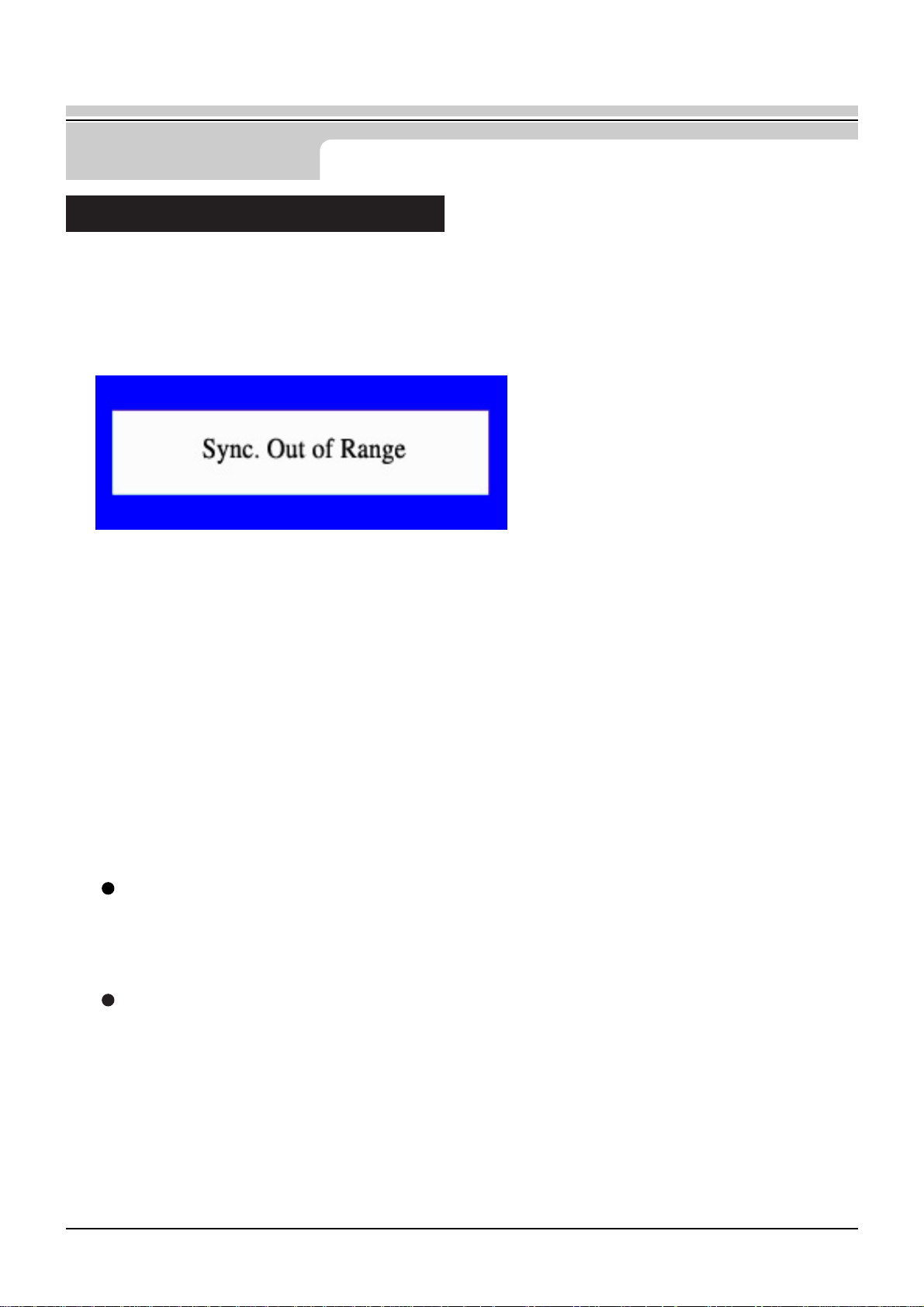

If there is no image on the screen or an "Sync. Out of Range" message comes up, disconnect the cable from the computer while the monitor is still powered on.

◆ If there is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition.

◆ In this case, check the computer for trouble.

Troubleshooting

Self-Test Feature Check

Warning Messages

Environment

Userful Tip

Specifications

User’s Manual

General

Model Name SAMTRON 76BDF

Picture Tube

Type 17" (43cm) DynaFlat (40.6cm viewable) Deflection angle 90° Dot Pitch 0.20mm (Horizontal) Screen type Silica coated with anti-electronic properties (TCO : Multilayer coating)

Medium-short persistence phosphor.

Maximum Resolution

1600 Dots, 1200 Lines

Active Display

Horizontal 12.3 ± 0.16 inch (312 ± 4 mm) Vertical 9.2 ± 0.16 inch (234 ± 4 mm)

Synchronization

Horizontal 30 ~ 85 kHz Vertical 50 ~ 160 Hz

Input Signal, Terminated

Analog 0.7 Vpp positive at 75 ohms Separate Sync TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

135 MHz

Power Supply

AC 100 ~ 240V ± 10%, 60Hz/50 Hz ± 3Hz

Power Consumption

100 W (Maximum),

82W (Nominal)

Dimensions (WxDxH)

398 x 412 x 400 mm (with base)

Weight

16.2 kg

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings.

General Specifications

User s Manual

Specifications

General

Model Name SAMTRON 76DF

Picture Tube

Type 17" (43cm) DynaFlat (40.6cm viewable) Deflection angle 90° Dot Pitch 0.20mm (Horizontal) Screen type Silica coated with anti-electronic properties (TCO : Multilayer coating)

Medium-short persistence phosphor.

Maximum Resolution

1280 Dots, 1024 Lines

Active Display

Horizontal 12.3 ± 0.16 inch (312 ± 4 mm) Vertical 9.2 ± 0.16 inch (234 ± 4 mm)

Synchronization

Horizontal 30 ~ 70 kHz Vertical 50 ~ 160 Hz

Input Signal, Terminated

Analog 0.7 Vpp positive at 75 ohms Separate Sync TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

110 MHz

Power Supply

AC 100 ~ 240V ± 10%, 60Hz/50 Hz ± 3Hz

Power Consumption

90W (Maximum),

75W (Nominal)

Dimensions (WxDxH)

398 x 412 x 400 mm (with base)

Weight

16.2 kg

Plug and Play Capability

General Specifications

User s Manual

Specifications

General

Model Name SAMTRON 78DF

Picture Tube

Type 17" (43cm) DynaFlat (40.6cm viewable) Deflection angle 90° Dot Pitch 0.20mm (Horizontal) Screen type Silica coated with anti-electronic properties (TCO : Multilayer coating)

Medium-short persistence phosphor.

Maximum Resolution

1280 Dots, 1024 Lines

Active Display

Horizontal 12.3 ± 0.16 inch (312 ± 4 mm) Vertical 9.2 ± 0.16 inch (234 ± 4 mm)

Synchronization

Horizontal 30 ~ 70 kHz Vertical 50 ~ 160 Hz

Input Signal, Terminated

Analog 0.7 Vpp positive at 75 ohms Separate Sync TTL level, positive or negative

Display Color

Unlimited

Maximum Pixel Clock

110 MHz

Power Supply

AC 100 ~ 240V ± 10%, 60Hz/50 Hz ± 3Hz

Power Consumption

90W (Maximum),

75W (Nominal)

Dimensions (WxDxH)

398 x 412 x 400 mm (with base)

Weight

16.2 kg

Plug and Play Capability

General Specifications

User’s Manual

If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.

Display Mode

Horizontal Frequency Vertical Frequency Pixel Clock Sync Polarity

(kHz) (Hz) (MHz) (H/V)

IBM, 640 x 480 31.469 59.940 25.175 -/IBM, 720 x 400 31.469 70.087 28.322 -/+ VESA, 640 X 480 43.269 85.008 36.000 -/VESA, 800 X 600 46.875 75.000 49.500 +/+ VESA, 800 X 600 53.674 85.061 56.250 +/+ VESA, 1024 X 768 60.023 75.029 78.750 +/+ VESA, 1024 X 768 68.677 84.997 94.500 +/+ VESA, 1280 X 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle and the inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this repetition is called Vertical Frequency or Refresh Rate. Unit: Hz

Specifications

Display Mode

Horizontal Frequency Vertical Frequency Pixel Clock Sync Polarity

(kHz) (Hz) (MHz) (H/V)

IBM, 640 x 480 31.469 59.940 25.175 -/IBM, 720 x 400 31.469 70.087 28.322 -/+ VESA, 640 X 480 37.500 75.000 31.500 -/VESA, 640 X 480 43.269 85.008 36.000 -/VESA, 800 X 600 46.875 75.000 49.500 +/+ VESA, 800 X 600 53.674 85.061 56.250 +/+ VESA, 1024 X 768 60.023 75.029 78.750 +/+ VESA, 1024 X 768 68.677 84.997 94.500 +/+

Model Name : SAMTRON 76BDF

Model Name : SAMTRON 76DF/ 78DF

Preset Timing Modes

User’s Manual

This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use a software utility installed on your computer to set up this feature.

State Normal Operation

Power Indicator Green Green, Blinking (1 sec. interval)

Power 82W(Nominal)

Less than 3W

Consumption 100W(Maximum)

This monitor is EPA ENERGY STAR compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality. As an ENERGY STAR Partner, SAMSUNG has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Specifications

PowerSaver

Power-off Mode EPA/ENERGY 2000

State Normal Operation

Power Indicator Green Green, Blinking (1 sec. interval)

Power 75W(Nominal)

Less than 3W

Consumption 90W(Maximum)

Power-off Mode EPA/ENERGY 2000

Model Name : SAMTRON 76BDF

Model Name : SAMTRON 76DF/ 78DF

User’s Manual

Information

Service

● SAMTRON SEOUL

15TH FL, JOONGANG DAILY NEWS BLDG. 7, SOONHWA-DONG,CHUNG-KU, SEOUL, KOREA, 100-759 TEL : (82-2) 727-3114

●

SAMTRON U.S.A

SAMTRON COMPUTER PRODUCTS CUSTOMER SERVICE 400 Valley Road Suite 201, Mt. Arlington, NJ 07856 TEL : 973-601-6200, FAX : 973-601-6001

●

SAMTRON CANADA

SAMSUNG ELECTRONICS CANADA INC. 7037 FINANCIAL DRIVE MISSISSAUGA, ONTARIO L5N 6R3 TEL : 1-800-726-7864 FAX : 905-542-1199

●

SAMTRON EUROPE

SAMSUNG ELECTRONICS GMBH SAMSUNG-HAUS, AM KRONBERGER HANG 6 65824 SCHWALBACH/TS., GERMANY TEL : 49 (0180) 5121213* FAX : 49 (0180) 5121214* *EURO 0,12/MIN

●

SAMTRON TOKYO

17TH, HAMACHO CENTER BLDG. 2-31-1, NIHONBASHI-HAMACHO, CHOU-KU, TOKYO 103, JAPAN TEL : (81-3) 5641-9860 FAX : (81-3) 5641-9861

●

SAMTRON SWEDEN

SAMSUNG ELECTRONICS SYENSKA, AB BOX 713, S- 194 27 UPPLANDS VASBY TEL : 468- 590- 966- 00 FAX : 468- 590- 966- 50

●

SAMTRON MEXICO

SAMSUNG ELECTRONICS MEXICO, S.A. DE C. V. Mina No. 200, ESQ. GAVILANCOL. GUADALUPE DEL MORAL IZTAPALAPA, MEXICO, D.F. C.P. 09300 TEL. : (525) 686-0800 FAX : (525) 686-5094

IMPORTADO POR : SAMSUNG ELECTRONICS MEXICO S.A. DE C.V.

SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO DEL. GUSTAVO A. MADERO C.P. 07700 MEXICO D.F. TEL. 5747-5100 RFC: SEM950215S98

EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.

JOONG-ANG DAILY NEWS BLDG. 7 SOON-WHA-DONG CHUNG-KU, C.P.O BOX 2775, 1144 SEOUL, KOREA

1-800-SAMTRON (1-800-726-8766)

Information

User’s Manual

● Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm

●

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image for the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz

Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

In this case, flickering of the screen can be detected. To avoid this problem, there is a Flicker-free Mode using a vertical frequency over 70 Hz.

●

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: KHz

●

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is the same as that used in TVs.

●

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer and the monitor to exchange information automatically. This monitor follows the international standard VESA DDC for the Plug & Play function.

●

Resolution

The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This number shows the accuracy of the display. High resolution is good for performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1024 X 768, this means the screen is composed of

1024 horizontal dots (horizontal resolution) and 768 vertical lines (vertical resolution).

Terms

User’s Manual

Information

Regulatory

FCC Information | IC Compliance Notice | MPR II Compliance(Except SyncMaster 551v) European Notice (Europe only) TCO'95-Ecological requirements for personal computers (TCO applied model only) TCO'99-Ecological requirements for personal computers (TCO applied model only)

FCC Information

User Instructions

The Federal Communications Commission Radio Frequency Interference Statement includes the following warning:

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television receptions, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help.

| PCT Notice | VCCI

User Information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. If necessary, consult your dealer or an experienced radio/television technician for additional suggestions. You may find the booklet called How to Identify and Resolve Radio/TV Interference Problems helpful. This booklet was prepared by the Federal Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4.

The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD America QA Lab of Samsung 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA Tel) 949-975-7310 Fax) 949-922-8301

Warning

User must use shielded signal interface cables to maintain FCC compliance for the product.

Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be suitable for connection to any UL Listed personal computer with similar configuration. Before making the connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage rating. For 120 Volt applications, use only UL Listed detachable power cord with NEMA configuration 5-15P type (parallel blades) plug cap. For 240 Volt applications use only UL Listed Detachable power supply cord with NEMA configuration 6-15P type (tandem blades) plug cap.

User’s Manual

Information

z EN61000

2:1995+A1+A2

Power Line Harmonics

IC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations of ICES-003.

Cet appareil Numérique de classe B respecte toutes les exigences du Règlemont NMB-03 sur les équipements produisant des interférences au Canada.

MPR II Compliance(Except SyncMaster 551v)

This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields.

European Notice (Europe only)

Products with the CE Marking comply with both the EMC Directive (89/336/EEC), (92/31/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms:

z EN55022:1998 - Radio Frequency Interference z EN55024:1998 - Electromagnetic Immunity

-3-

z EN61000-3-3:1995 - Voltage Fluctuations z EN60950 - Product Safety.

PCT Notice

VCCI

This is a Class B product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Information

User’s Manual

TCO'95-Ecological requirements for personal computers (TCO applied model only)

AB general requirements AB2 Written Eco-document acompanying the products

Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and to the further development of environmentally-adapted electronic products.

Why do we have environmentally-labelled monitors?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment.The main problem as far as monitors and other electronic equipment are concerned is that environmentally harmful substances are used both in the products and during their manufacture. Since it has not been possible so far for the majority of electronic equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a monitor, such as energy consumption levels, that are important from both the working and natural environment viewpoints. Since all types of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic equipment in offices consumes an enormous amount of energy, since it is often routinely left running continuously.

What does labelling involve?

This product meets the requirements for the TCO'95 scheme, which provides for international environmental labelling of monitors. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern among other things restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons), and chlorinated solvents. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan, which must be adhered to in each country where the company conducts its operations policy. The energy requirements include a demand that the monitor after a certain period of inactivity shall reduce its power consumption to a lower level, in one or more stages. The length of time to reactivate the monitor shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example in respect of the reduction of electric and magnetic fields, along with physical and visual ergonomics and good usability.

Information

User’s Manual

TCO Development Unit 1996-11-29 On the page this folder you will find a brief summary of the environmental requirements met by this product. The complere environmental criteria document may be ordered from: TCO Development Unit S-11494 Stockholm Sweden Fax: +46 8 782 92 07 E-mail (Internet): development@tco.se

Current information regarding TCO'95-approved and labelled products may also be obtained via the Internet, using the address:

http://www.tco-info.com/

TCO'95 is a co-operative project between(3 logos)

Environmental Requirements

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including reproductive damage in fish eating birds and mammals, due to the bioaccumulative processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

z TCO'95 demand requires that plastic components weighing more than 25 grams must not contain

organically bound chlorine and bromine.

Lead

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

z TCO'95 requirement Permits the inclusion of lead since no replacement has yet been developed.

Cadmium

Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

z TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of

cadmium. The colour-generating layers of display screens must not contain any cadmium.

Mercury

Mercury is sometimes found in batteries, relays and switches. Mercury damages the nervous system and is toxic in high doses.

z TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of

mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

z The relevant TCO'95 requirement: Neither CFCs nor HCFCs may be used during the manufacturing of

the product or its packaging.

Information

User’s Manual

operational policy.

TCO'99-Ecological requirements for personal computers (TCO applied model only)

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

This product meets the requirements for the TCO'99 scheme which provides for an international environmental and quality labelling labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO(The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen(The Swedish Society for Nature Conservation), Statens Energimyndighet(The Swedish National Energy Administration) and SEMKO AB.

The requirements cover a wide range of issuse: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs(freons)and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se

Information

User’s Manual

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as today there is no commercially available alternative. TCO aims on removing this exception when a Mercury free alternative is available.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms. ** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Information

User’s Manual

Authority

Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection

with the furnishing, performance, or use of this material. The Samsung logo and Samtron are registered trademarks of Samsung Electronics Co., Ltd.; Microsoft, Windows and

Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are registered trademarks of Video Electronics Standard Association; the ENERGY STAR name and logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR Partner, Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. All other product names mentioned herein may be the trademarks or registered trademarks of their respective owners.

Samsung SYNCMASTER 96P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
