Samsung SVR-615, SVR-617B, SVR-715, SV-B165F-XEF Specifications
Samsung Electronics 3-1

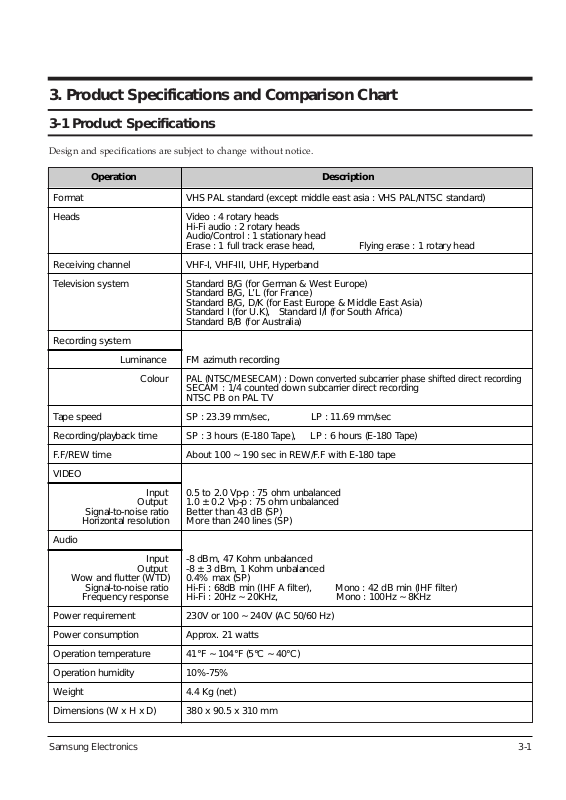

3. Product Specifications and Comparison Chart
3-1 Product Specifications
Operation Description
Format VHS PAL standard (except middle east asia : VHS PAL/NTSC standard)
Heads Video : 4 rotary heads
Hi-Fi audio : 2 rotary heads
Audio/Control : 1 stationary head
Erase : 1 full track erase head, Flying erase : 1 rotary head
Receiving channel VHF-I, VHF-III, UHF, Hyperband
Television system Standard B/G (for German & West Europe)
Standard B/G, L’L (for France)
Standard B/G, D/K (for East Europe & Middle East Asia)
Standard I (for U.K), Standard I/I (for South Africa)
Standard B/B (for Australia)
Recording system
Luminance FM azimuth recording
Colour
PAL (NTSC/MESECAM) : Down converted subcarrier phase shifted direct recording
SECAM : 1/4 counted down subcarrier direct recording
NTSC PB on PAL TV
Tape speed SP : 23.39 mm/sec, LP : 11.69 mm/sec
Recording/playback time SP : 3 hours (E-180 Tape), LP : 6 hours (E-180 Tape)
F.F/REW time About 100 ~ 190 sec in REW/F.F with E-180 tape
VIDEO
Input 0.5 to 2.0 Vp-p : 75 ohm unbalanced
Output 1.0 ± 0.2 Vp-p : 75 ohm unbalanced
Signal-to-noise ratio Better than 43 dB (SP)
Horizontal resolution More than 240 lines (SP)
Audio
Input -8 dBm, 47 Kohm unbalanced
Output -8 ± 3 dBm, 1 Kohm unbalanced
Wow and flutter (WTD) 0.4% max (SP)
Signal-to-noise ratio Hi-Fi : 68dB min (IHF A filter), Mono : 42 dB min (IHF filter)
Frequency response Hi-Fi : 20Hz ~ 20KHz, Mono : 100Hz ~ 8KHz
Power requirement 230V or 100 ~ 240V (AC 50/60 Hz)
Power consumption Approx. 21 watts
Operation temperature 41°F ~ 104°F (5°C ~ 40°C)
Operation humidity 10%-75%
Weight 4.4 Kg (net)
Dimensions (W x H x D) 380 x 90.5 x 310 mm
Design and specifications are subject to change without notice.
Product Specifications
3-2 Samsung Electronics
3-2 Comparison Chart
COUNTRY MODEL HEADS A2 NICAM S/VIEW V/PLUS VPS PDC CANAL+ P/MIERE VCR/TV
GERMANY SV-717X 7 O X S/DLX X O O X O O O
SV-617X 6 O O S/DLX X O O X O O X
SV-615X 6 O X O X O O X O O X
FRANCE SV-717F 7 O O S/DLX X O O O X O O
SV-617F 6 O O S/DLX X O O O X O X
U.K SV-717B 7 X O X V/DLX O O X X X O
SV-617B 6 X O X V/DLX O O X X O X
SV-615B 6 X O X O P P X X O X
SPAIN SV-715X 7 O O X O O O O X O O
SV-615X 6 O O O X O O O X O X
ITALY SV-715X 7 O X O X O O O X O O
SV-615X 6 O X O X O O O X O X
PORTUGAL SV-715X 7 O O O X O O O X O O
SV-615X 6 O O O X O O O X O X
SWEDEDN/NORWAY
SV-700XK 7 O O O X O O X O O O
FINLAND
SV-615X 6 O O O X O O X O O X
SWITZERLAND SV-715X 7 O X O X O O X O O O
SV-615X 6 O X O X O O X O O X
AUSTRIA SV-700XK 7 O X O X O O X O O O
SV-615X 6 O X O X O O X O O X
GREECE SV-715X 7 O X O X O O X O O O
SV-615X 6 O X O X O O X O O X
NETHERLANDS SV-715X 7 O O O X O O O X O O
SV-615X 6 O X O X O O O X O X
BELGIUM SV-715X 7 O O O X O O O X O O
SV-615X 6 O O O X O O O X O X
DENMARK SV-715X 7 O O O X O O X O O O
SV-615X 6 O O O X O O X O O X
CIS SVR-715 7 X X O X X X X X X O
SVR-615 6 X X X X X X X X X O
RUSSIS SVR-715 6 X X O X X X X X X O
SVR-615 6 X X X X X X X X X O
AUSTRALIA SV-B160B 6 O X X G-CODE X X X X X O
CROATIA SV-615X 6 O X O X O O X O O O
SOLOVENIA SV-615X 6 O X O X O O X O O O
CZECH. SV-615G 6 O O O X O O X X X O
HUNGARY SV-615G 6 O O O X O O X X X O
POLAND SV-615G 6 O O O X O O X X X O
BULGARIA SV-615G 6 O O O X O O X X X O
ROMANIA SV-615G 6 O O O X O O X X X O
ISRAEL SV-B140G 6 X X X X X X X X X O
DIAMOND HEAD
(DLC)
