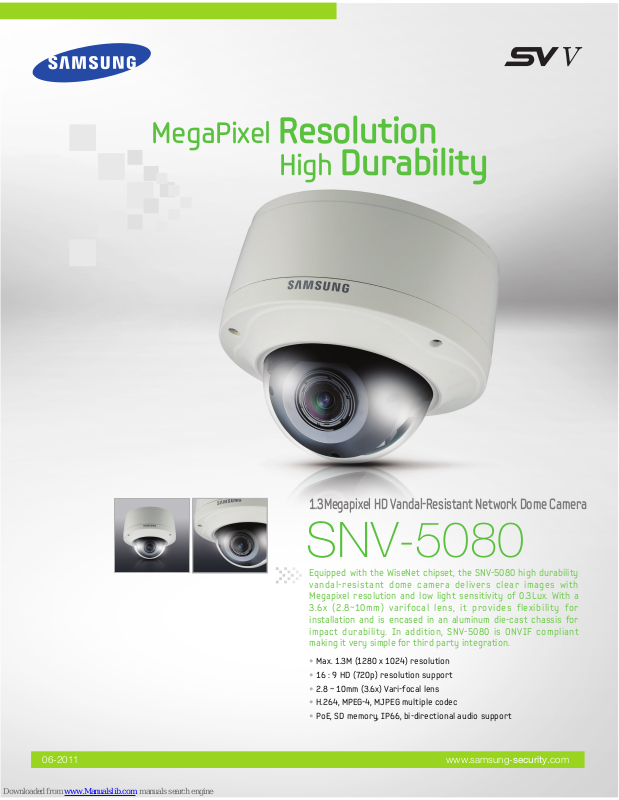

Page 1
SNV-5080
Equipped with the WiseNet chipset, the SNV-5080 high durability
vandal-resistant dome camera delivers clear images with
Megapixel resolution and low light sensitivity of 0.3Lux. With a
3.6x (2.8~10mm) varifocal lens, it provides flexibility for
installation and is encased in an aluminum die-cast chassis for
impact durability. In addition, SNV-5080 is ONVIF compliant
making it very simple for third party integration.
1.3Megapixel HD Vandal-Resistant Network Dome Camera
MegaPixel Resolution
High Durability
www.samsung-security.com
06-2011
• Max. 1.3M (1280 x 1024) resolution
• 16 : 9 HD (720p) resolution support
• 2.8 ~ 10mm (3.6x) Vari-focal lens
• H.264, MPEG-4, MJPEG multiple codec
• PoE, SD memory, IP66, bi-directional audio support
Page 2
SNV-5080N/P
VIDEO
Imaging Device
1/3" 1.3M PS CMOS
Total Pixels
1,384(H) x 1,076(V)
Effective Pixels
1,329(H) x 1,049(V)
Scanning System
Progressive
Min. Illumination
Color : 0.3Lux (F1.2, 50IRE), 0.005Lux (Sens-up 60x)
B/W : 0.01Lux (F1.2, 50IRE), 0.0002Lux (Sens-up 60x)
S / N Ratio
50dB
Video Output
CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
LENS
Focal Length (Zoom Ratio)
2.8 ~ 10mm (3.6x) Vari-focal
Max. Aperture Ratio
F1.2
Angular Field of View
H : 94.6°(Wide) ~ 28.8°(Tele), V : 68.4°(Wide) ~ 21.6°(Tele)
Lens Type
DC auto iris
Mount Type
Board-in type
PAN / TILT / ROTATE
Pan Range
0° ~ 355°
Tilt Range
0° ~ 90°
Rotate Range
0° ~ 355°
OPERATIONAL
Camera Title
Off / On (Displayed up to 15 characters)
Day & Night
Auto (ICR) / Color / B/W
Backlight Compensation
Off / BLC / HLC
Contrast Enhancement
SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction
SSNR
III
(2D+3D noise filter) (Off / On)
Motion Detection
Off / On (4 programmable zones)
Privacy Masking
Off / On (12 programmable zones)
Sens-up (Frame Integration)
Off / Auto (2x ~ 60x)
Gain Control
Off / Low / Medium / High / Manual
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
Auto / A.FLK / Manual (1/30 ~ 30,000sec)
Flip / Mirror
Off / On
Intelligent Video Analytics
Scene change, Virtual line, Enter / Exit, Appear / Disappear
Alarm I/O
Input 1ea / Output 1ea (Relay)
NETWORK
Ethernet
RJ-45 (10/100BASE-T)
Video Compression Format
H.264, MPEG-4, MJPEG
Resolution
1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max. Framerate
22fps (1280 x 1024), 30fps (720P HD)
Video Quality Adjustment
H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
Bitrate Control Method
H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Streaming Capability
Multiple streaming (Up to 10 profiles)
Audio I/O
Mic / Line in, Line out
Audio Compression Format
G.711 u-law
Audio Communication
Bi-directional audio
IP
IPv4, IPv6
Protocol
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF
Security
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log
Streaming Method
Unicast / Multicast
Max. User Access
10 users at unicast mode
Memory Slot
SD/SDHC memory slot
ONVIF Conformance
Yes
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer
Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari
Central Management Software
NET-i viewer
ENVIRONMENTAL
Operating Temperature / Humidity
-40°C ~ +50°C (-40°F ~ +122°F) / Less than 90% RH
Ingress Protection
IP66 Grade (Waterproof)
ELECTRICAL
Input Voltage
12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption
Max. 8W (Heater off), Max. 11W (Heater on) *Heaters work with 24VAC only
MECHANICAL
Color / Material
Light gray / Aluminum
Dimensions (WxH)
Ø160.0 x 134.5mm (Ø6.3" x 5.3")
Weight
1.28Kg (2.82 lb)
1.3Megapixel HD Vandal-Resistant Network Dome Camera
SNV-5080
I.E-1008
DISTRIBUTED BY
Specifications
Design and specifications are subject to change without notice.
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, Suite 700, Ridgefield Park, NJ 07660, UNITED STATES
Tol Free : 1-877-213-1222 Fax : 1-201-373-0124
www.samsungsecurityusa.com
Ø160 (6.3")
134.5 (5.3")
Ø160 (6.3")
134.5 (5.3")
Ø160 (6.3")
125 (4.92")
Flush Type
Dimensions
Unit : mm (inch)
1.3M
3.6x
V/F Lens
D&N ICR
SBP-300LM
SBP-300WM1
SBP-300PM
SBP-300KM
Accessories (Optional)
SBP-300WM
SBP-300CM
SBP-300HM1
PoE
HYBRID
ANALOG
NETWORK
OUTDOOR
