Samsung SM-J700F, SM-J700H User Guide

SM-J700F

SM-J700F/DS SM-J700F/DD SM-J700H/DD

SM-J700H/DS

User Manual

English. 07/2015. Rev.1.0

www.samsung.com

Table of Contents

Basics

4 Read me first

5 Package contents

6 Device layout

8 Battery

13 SIM or USIM card

17 Memory card

18 Turning the device on and off

19 Touchscreen

22 Home screen

27 Lock screen

28 Notification panel

30 Entering text

32 Screen capture

32 Opening apps

32 Device and data management

53 Gallery

54 Smart Manager

56 S Planner

58 Video

59 Voice Recorder

60 My Files

60 Memo

61 Clock

62 Calculator

63 Radio

64 Google apps

Settings

66 Introduction

66 Wi-Fi

68 Bluetooth

Applications

36 Installing or uninstalling apps

37 Phone

41 Contacts

42 Messages

44 Internet

45 Email

46 Camera

69 Flight mode

70 Mobile hotspot and tethering

71 Data usage

71 SIM card manager (dual SIM models)

72 Mobile networks

72 More connection settings

74 Sounds and notifications

74 Display

75 Applications

75 Wallpaper

Table of Contents

75 Themes

75 Lock screen and security

76 Privacy

76 Easy mode

77 Accessibility

78 Accounts

79 Backup and reset

79 Language and input

80 Battery

80 Storage

80 Accessories

81 Date and time

81 User manual

81 About device

Appendix

82 Troubleshooting

Basics

Read me first

Please read this manual before using the device to ensure safe and proper use.

•

Descriptions are based on the device’s default settings.

•

Some content may differ from your device depending on the region, service provider, model specifications, or device’s software.

•

Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.

•

Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung.

•

Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.

•

Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.

•

You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature.

•

Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.

•

Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.

Basics

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Package contents

Check the product box for the following items:

•

Device

•

Battery

•

Quick start guide

•

The items supplied with the device and any available accessories may vary depending on the region or service provider.

•

The supplied items are designed only for this device and may not be compatible with other devices.

•

Appearances and specifications are subject to change without prior notice.

•

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

•

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

•

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Basics

Speaker

Rear camera

Device layout

Flash

Front camera

Proximity sensor

Touchscreen

Home key

Recents key

Microphone

Multipurpose jack

Flash

GPS antenna

Power key

Back key

Headset jack

Loud speaker

Back cover

Volume key

Main antenna

Basics

•

Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.

•

Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.

•

Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water.

Keys

Key Function

•

Press and hold to turn the device on or off.

Power

•

Press to turn on or lock the screen.

Recents

Home

Back

Volume

•

Tap to open the list of recent apps.

•

Press to turn on the screen while the screen is locked.

•

Press to return to the Home screen.

•

Press and hold to launch

•

Tap to return to the previous screen.

•

Press to adjust the device volume.

Google

Basics

Battery

Installing the battery

Remove the back cover.

Be careful not to damage your fingernails when you remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Insert the battery with the battery’s gold-coloured contacts properly aligned with the

device’s contacts.

Basics

Replace the back cover.

Removing the battery

Remove the back cover.

Pull out the battery.

Basics

Charging the battery

Charge the battery before using it for the first time or when it has been unused for extended periods.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable

into the multipurpose jack.

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

Plug the USB power adaptor into an electric socket.

Basics

After fully charging, disconnect the device from the charger. First unplug the charger

from the device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

Viewing the remaining charging time

While charging, open the Home screen and tap

The actual charging time may vary depending on the status of your device and the charging conditions. The remaining charging time may not be displayed when you charge the device in very cold or very hot conditions.

Apps

→

Settings

→

Battery

Reducing the battery consumption

Your device provides various options that help you conserve battery power.

•

Optimise the device using the Smart manager.

•

When you are not using the device, switch to sleep mode by pressing the Power key.

•

Activate power saving mode.

•

Close unnecessary apps.

•

Deactivate the Bluetooth feature when not in use.

•

Deactivate the Wi-Fi feature when not in use.

•

Deactivate auto-syncing of apps.

•

Decrease the backlight time.

•

Decrease the screen brightness.

Basics

Battery charging tips and precautions

•

When the battery power is low, the battery icon appears empty.

•

If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

•

If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid disconnecting from the network or losing power during a data transfer, always use these apps after fully charging the battery.

•

Using a power source other than the USB power adaptor, such as a computer, may result in a slower charging speed due to a lower electric current.

•

The device can be used while it is charging, but it may take longer to fully charge the battery.

•

If the device receives an unstable power supply while charging, the touchscreen may not function. If this happens, unplug the charger from the device.

•

While charging, the device and the charger may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

•

If the device is not charging properly, take the device and the charger to a Samsung Service Centre.

Power saving mode

Save the battery power by limiting the device’s functions.

On the Home screen, tap the switch to activate it.

To automatically activate power saving mode when the remaining battery power reaches the preset level, tap

Start power saving

Apps

→

Settings

and select an option.

→

Battery

→

Power saving mode

, and then tap

Basics

Ultra power saving mode

Use this mode to extend the device’s battery power. In ultra power saving mode, the device performs the following:

•

Restricts the available apps to essential and selected apps only.

•

Deactivates the mobile data connection when the screen turns off.

•

Deactivates the Wi-Fi and Bluetooth features.

On the Home screen, tap then tap the switch to activate it.

To deactivate ultra power saving mode, tap

The usage time left shows the time remaining before the battery power runs out. Usage time left may vary depending on your device settings and operating conditions.

Apps

→

Settings

→

Battery

→

Ultra power saving mode

→

Disable ultra power saving mode

SIM or USIM card

Installing the SIM or USIM card

Insert the SIM or USIM card provided by the mobile telephone service provider.

•

Only microSIM cards work with the device.

•

Some LTE services may not be available depending on the service provider. For

, and

more information about service availability, contact your service provider.

Remove the back cover and battery.

Basics

►

Single SIM models: Insert the SIM or USIM card with the gold-coloured contacts

facing downwards.

►

Dual SIM models: Insert the SIM or USIM card with the gold-coloured contacts facing

downwards.

Insert the primary SIM or USIM card into SIM card slot 1 ( USIM card into SIM card slot 2 (

•

Do not insert a memory card into the SIM card slot. If a memory card happens to be lodged in the SIM card slot, take the device to a Samsung Service Centre to remove the memory card.

2 ).

1 ) and the secondary SIM or

•

Use caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.

Replace the battery and back cover.

Basics

Removing the SIM or USIM card

Remove the back cover and battery.

Pull out the SIM or USIM card.

►

Single SIM models:

►

Dual SIM models:

Basics

Using dual SIM or USIM cards (dual SIM models)

If you insert two SIM or USIM cards, you can have two phone numbers or service providers for a single device.

Activating SIM or USIM cards

On the Home screen, tap and tap the switch to activate it.

Apps

→

Settings

→

SIM card manager

. Select a SIM or USIM card

Changing the display name and icon of SIM or USIM cards

On the Home screen, tap tap

Name

Icon

. Set a display name and icon for each card.

Apps

→

Settings

→

SIM card manager

. Select a SIM or USIM card,

Switching between cards

When two SIM or USIM cards are activated, card selection icons appear on the dashboard of the notification panel. Open the notification panel and then select a card.

Basics

Memory card

Installing a memory card

Your device accepts memory cards with maximum capacities of 128 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

•

Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.

•

Use caution to insert the memory card right-side up.

•

The device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device asks to reformat the memory card.

•

Frequent writing and erasing of data shortens the lifespan of memory cards.

•

When inserting a memory card into the device, the memory card’s file directory appears in the

Remove the back cover and battery.

Insert a memory card with the gold-coloured contacts facing downwards.

My Files

→

SD card

folder.

Replace the battery and back cover.

Basics

Removing the memory card

Before removing the memory card, first unmount it for safe removal.

On the Home screen, tap

Remove the back cover and battery.

Pull out the memory card.

Replace the battery and back cover.

Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. Samsung is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.

Apps

→

Settings

→

Storage

→

Unmount SD card

Formatting the memory card

A memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.

On the Home screen, tap

→

CARD

ERASE EVERYTHING

Before formatting the memory card, remember to make backup copies of all important data stored in the memory card. The manufacturer’s warranty does not cover loss of data resulting from user actions.

Apps

→

Settings

→

Storage

→

Format SD card

→

FORMAT SD

Turning the device on and off

Press and hold the Power key for a few seconds to turn on the device.

When you turn on your device for the first time or after performing a data reset, follow the onscreen instructions to set up your device.

To turn off the device, press and hold the Power key, and then tap

•

If your device is frozen and unresponsive, press and hold the Power key and the Volume key down simultaneously for more than 7 seconds to restart it.

Power off

•

Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Basics

Touchscreen

•

Do not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction.

•

To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.

•

The device may not recognise touch inputs close to the edges of the screen, which are outside of the touch input area.

•

Leaving the touchscreen idle for extended periods may result in afterimages (screen burn-in) or ghosting. Turn off the touchscreen when you do not use the device.

•

It is recommended to use fingers when you use the touchscreen.

Tapping

To open an app, to select a menu item, to press an on-screen button, or to enter a character using the keyboard on the screen, tap it with your finger.

Tapping and holding

Tap and hold an item or the screen for more than 2 seconds to access available options.

Basics

Dragging

To move an item, tap and hold it and drag it to the target position.

Double-tapping

Double-tap on a webpage or image to zoom in. Double-tap again to return.

Basics

Swiping

Swipe to the left or right on the Home screen or the Apps screen to view other panels. Swipe upwards or downwards to scroll through a webpage or a list of items, such as contacts.

Spreading and pinching

Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.

Basics

Home screen

The Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more.

To view other panels, swipe to the left or right, or tap one of the screen indicators at the bottom of the screen.

A widget

An app

Favourite apps

A folder

Screen indicators

Apps screen icon

Basics

Home screen options

On the Home screen, tap and hold an empty area, or pinch your fingers together to access the available options. Customise the Home screen by adding, deleting, or rearranging Home screen panels. You can also set the Home screen wallpaper, add widgets to the Home screen, and more.

•

Wallpapers

•

Widgets

app functions to provide information and convenient access on your Home screen.

•

Themes

and wallpapers, will change depending on the selected theme.

: Change the wallpaper settings for the Home screen and the locked screen.

: Add widgets to the Home screen. Widgets are small apps that launch specific

: Change the device’s theme. Visual elements of interface, such as colours, icons,

Adding items

Tap and hold an app or a folder from the Apps screen, and then drag it to the Home screen.

To add widgets, tap and hold an empty area on the Home screen, tap widget, and then drag it to the Home screen.

Widgets

, tap and hold a

Moving and removing an item

Tap and hold an item on the Home screen, and then drag it to a new location.

To move the item to another panel, drag it to the side of the screen.

You can also move frequently used apps to the shortcuts area at the bottom of the Home screen.

To remove an item, tap and hold the item. Then, drag it to

Remove

at the top of the screen.

Basics

Creating folders

On the Home screen, tap and hold an app, and then drag it over another app.

Drop the app when a folder frame appears around the apps.

A new folder containing the selected apps will be created.

Enter a folder name.

To change the folder colour, tap

To add more apps to the folder, tap and hold another app, and then drag it to the folder.

Managing panels

On the Home screen, tap and hold an empty area to add, move, or remove a panel.

To add a panel, swipe to the left, and then tap

To move a panel, tap and hold a panel preview, and then drag it to a new location.

To remove a panel, tap and hold a panel preview, and then drag it to the screen.

To set a panel as the main Home screen, tap

Remove

at the top of

Basics

Apps screen

The Apps screen displays icons for all apps, including newly installed apps.

On the Home screen, tap left or right, or select a screen indicator at the bottom of the screen.

Apps

to open the Apps screen. To view other panels, swipe to the

Moving items

This feature may not be available depending on the region or service provider.

EDIT

On the Apps screen, tap

To move the item to another panel, drag it to the side of the screen.

. Tap and hold an item and drag it to a new location.

Creating folders

This feature may not be available depending on the region or service provider.

On the Apps screen, tap

EDIT

Tap and hold an app, and then drag it over another app.

Drop the app when a folder frame appears around the apps.

A new folder containing the selected apps will be created.

Basics

Enter a folder name.

To change the folder colour, tap

To add more apps to the folder, tap and hold another app, and then drag it to the folder.

Indicator icons

Indicator icons appear on the status bar at the top of the screen. The icons listed in the table below are most common.

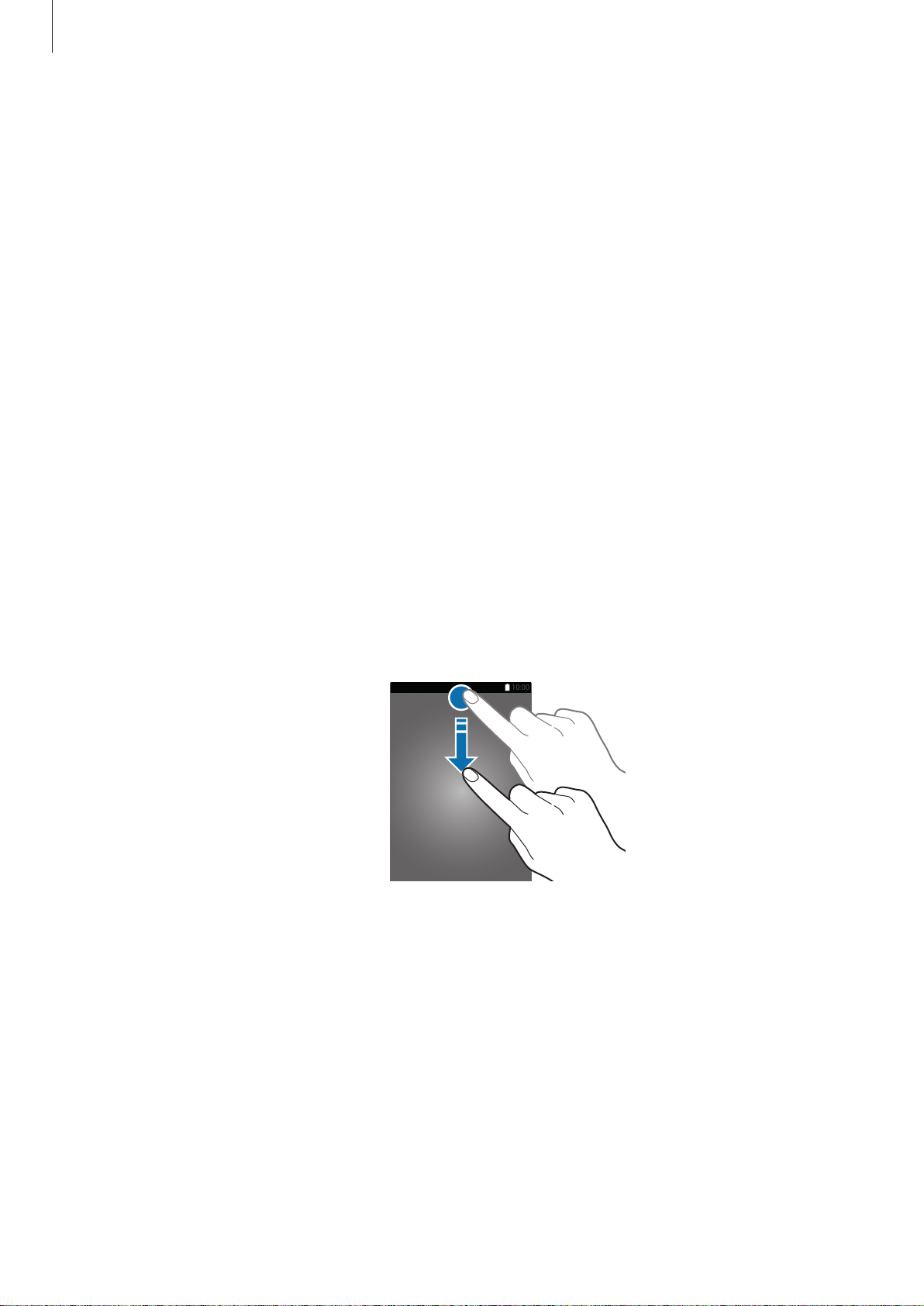

The status bar may not appear at the top of the screen in some apps. To display the status bar, drag down from the top of the screen.

Icon Meaning

No signal

Signal strength

Currently accessing SIM or USIM card (dual SIM models)

Roaming (outside of normal service area)

GPRS network connected

EDGE network connected

UMTS network connected

HSDPA network connected

HSPA+ network connected

LTE network connected (LTE-enabled models)

Wi-Fi connected

Bluetooth feature activated

GPS activated

Call in progress

Missed call

New text or multimedia message

Alarm activated

Mute mode activated

Vibration mode activated

Basics

Icon Meaning

Flight mode activated

Error occurred or caution required

Battery power level

Lock screen

Pressing the Power key turns off the screen and locks it. Also, the screen turns off and automatically locks if the device is not used for a specified period.

To unlock the screen, press the Power key or the Home key and swipe in any direction.

You can change the way that you lock the screen to prevent others from accessing your personal information.

On the Apps screen, tap select a screen lock method. The device requires an unlock code whenever unlocking it.

If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.

Settings

→

Lock screen and security

→

Screen lock type

, and then

Pattern

Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it. Set a backup PIN to unlock the screen when you forget the pattern.

+ 60 hidden pages
