Samsung SC-D5000-XAC User Manual

Download

ENGLISH

THIS CAMCORDER IS MANUFACTURED BY:

ELECTRONICS

SERVICE DIVISION

400 Valley Road, Suite 201, Mt. Arlington N.J. 07856

Tel: 1-800-SAMSUNG

(1-800-726-7864)

*Samsung Electronics’ Internet Home Page

http://www.samsungusa.com

AD68-00655B(01)

Digital Video Camcorder

ELECTRONICS

SCD5000

AF Auto Focus CCD Charge Coupled Device LCD Liquid Crystal Display

Owner’s Instruction Manual

Before operating the unit, please read this instruction manual thoroughly, and retain it for future reference.

ENGLISH

US PATENT 4415844

ENGLISH

Notices and Safety Instructions

Safety Instructions

CAUTION

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent electric shock, match wide blade of plug

This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product.

to wide slot and fully insert.

1. READ INSTRUCTIONS:

All the safety and operating instructions should be read before the CAMCORDER is operated.

2. RETAIN INSTRUCTIONS:

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS:

All warnings on the CAMCORDER and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS:

All operating and maintenance instructions should be followed.

5. CLEANING:

Unplug this CAMCORDER from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth used for dusting cabinets.

6. ATTACHMENTS:

Do not use attachments not recommended by the CAMCORDER product manufacturer as they may be hazardous.

7. WATER AND MOISTURE:

Do not use this CAMCORDER near water; for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or lake.

8. ACCESSORIES:

Do not place this CAMCORDER on an unstable cart, stand, tripod, bracket or table. The CAMCORDER may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the CAMCORDER. Any mounting of the unit should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer.

A. An appliance and cart combination should be moved with care.

Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. PORTABLE CART WARNING (Symbol provided by RETAC)

Notices and Safety Instructions

ENGLISH

9. VENTILATION:

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10. POWER SOURCES:

The CAMCORDER should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION:

This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug.

12. POWER-CORD PROTECTION:

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit.

13. OUTDOOR ANTENNA GROUNDING:

If an outside antenna or cable system is connected to the CAMCORDER, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPANo. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See figure below.

ENGLISH

Notices and Safety Instructions

14. LIGHTNING:

For added protection of this CAMCORDER during a lightning storm o when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the CAMCORDER due to lightning and power-line surges.

15. POWER LINES:

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. OVERLOADING:

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. OBJECTS AND LIQUIDS:

Never push objects of any kind into this CAMCORDER through openings as they may touch dangerous voltage points or short out a part that could result in a fire or electric shock. Never spill liquids of any kind onto the CAMCORDER. Should spillage occur, unplug unit and have it checked by a technician before use.

18. SERVICING:

Do not attempt to service this CAMCORDER yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. DAMAGE REQUIRING SERVICE:

Unplug this CAMCORDER from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If any liquid has been spilled onto, or objects have fallen into

the CAMCORDER. c. If the CAMCORDER has been exposed to rain or water. d. If the CAMCORDER does not operate normally by following the

operating instructions, adjust only those controls that are

covered by the operating instructions. Improper adjustment of

other controls may result in damage and will

often require extensive work by a qualified technician to restore

the CAMCORDER to its normal operation. e. If the CAMCORDER has been dropped or the cabinet has been

damaged. f. When the CAMCORDER exhibits a distinct change in

performance, this indicates a need for service.

20. REPLACEMENT PARTS:

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer and having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK:

Upon completion of any service or repairs to this CAMCORDER, ask the service technician to perform safety checks to determine that the CAMCORDER is in safe operating order.

Notices and Safety Instructions

ENGLISH

22. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.

23. If this power supply is used at 240V ac, a suitable plug adapter should be use.

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

USER INSTALLER CAUTION:

Your authority to operate this FCC certified equipment could be voided if you make changes or modifications not expressly approved by this party responsible for compliance to part 15 FCC rules.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

- Consult the dealer or an experienced radio/TV technician for help

FCC Warning

The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

that to which the receiver is connected. and for additional suggestions.

The user may find the following booklet prepared by the Federal Communications Commission helpful : “How to Identify and Resolve Radio-TV Interference Problems.” This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4.

ENGLISH

Contents

Start 8

Precautions on Camcorder Care ................................................................................................................................................................................. 8

Quick Start .................................................................................................................................................................................................................... 9

Notes and Safety Instructions 10 Getting to Know Your Device 14

Features ..................................................................................................................................................................................................................... 14

Accessories Supplied with the Camcorder ................................................................................................................................................................ 15

Basic Accessories ................................................................................................................................................................................................. 15

Front & Left View ........................................................................................................................................................................................................ 16

Left side View ............................................................................................................................................................................................................. 17

Right & Top View ........................................................................................................................................................................................................ 18

Rear & Bottom View ................................................................................................................................................................................................... 19

Remote Control .......................................................................................................................................................................................................... 20

OSD (On Screen Display in CAMERA and PLAYER Modes) .................................................................................................................................. 21

OSD (On Screen Display in CAMERA / M.PLAY Modes) ........................................................................................................................................ 22

Turning the OSD on/off (On Screen Display) ...................................................................................................................................................... 23

Preparation 24

How to use the Remote Control ................................................................................................................................................................................ 24

Battery Installation for the Remote Control .......................................................................................................................................................... 24

Self Record using the Remote Control ................................................................................................................................................................ 24

Adjusting the Hand Strap .......................................................................................................................................................................................... 25

Hand strap ............................................................................................................................................................................................................ 25

Shoulder strap.........................................................................................................................................................................................................25

Connecting a Power Source ...................................................................................................................................................................................... 26

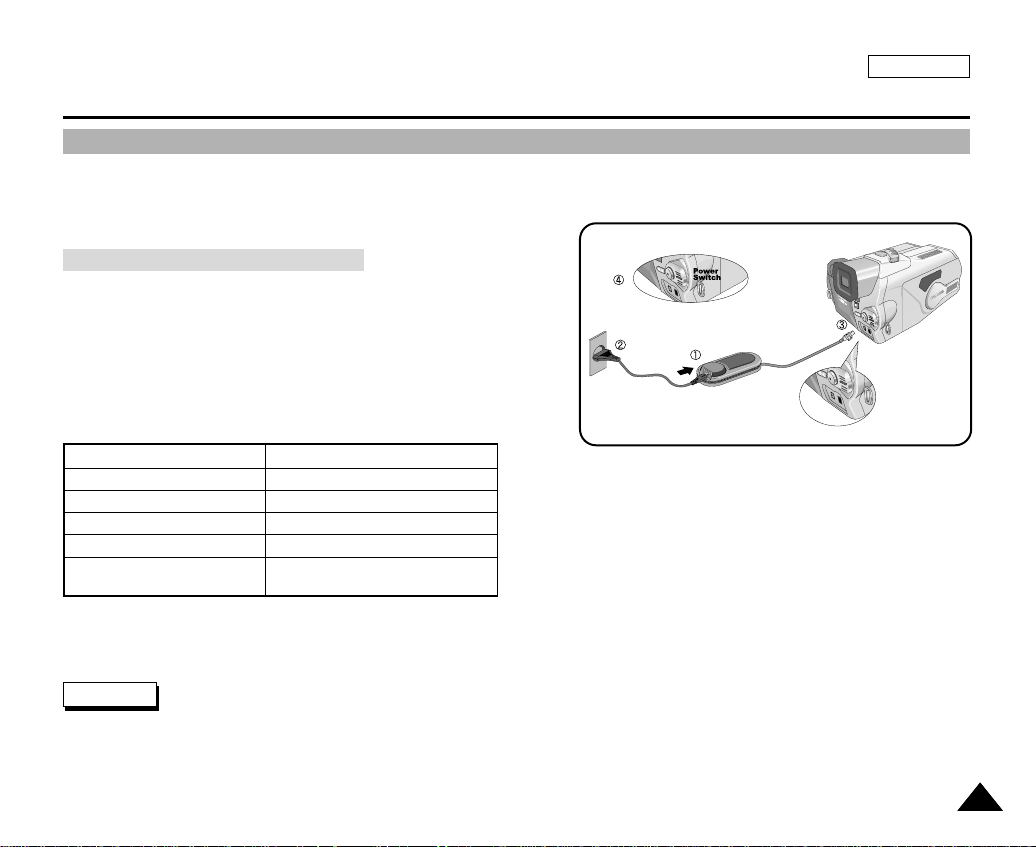

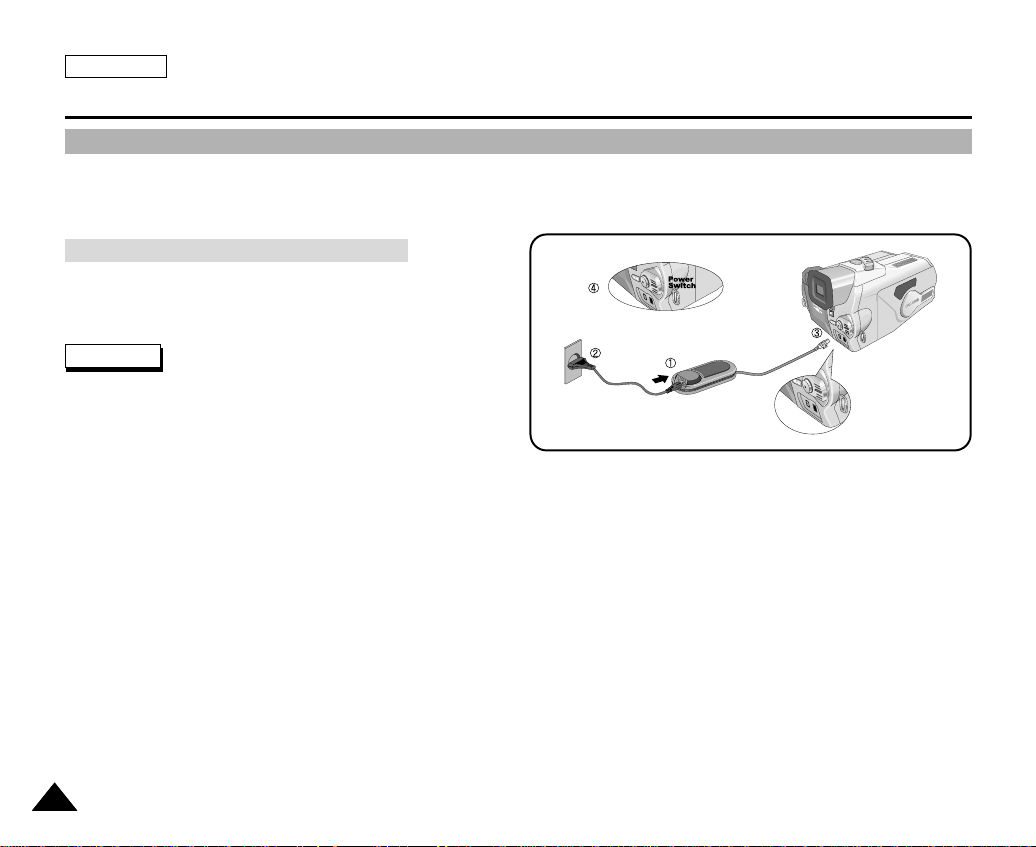

To use the AC Power adapter and DC Cable ..................................................................................................................................................... 26

Using the Lithium Ion Battery Pack .......................................................................................................................................................................... 27

Charging the Lithium Ion Battery Pack ................................................................................................................................................................ 27

Table of Continuous Recording Time Based on Model and Battery Type ......................................................................................................... 28

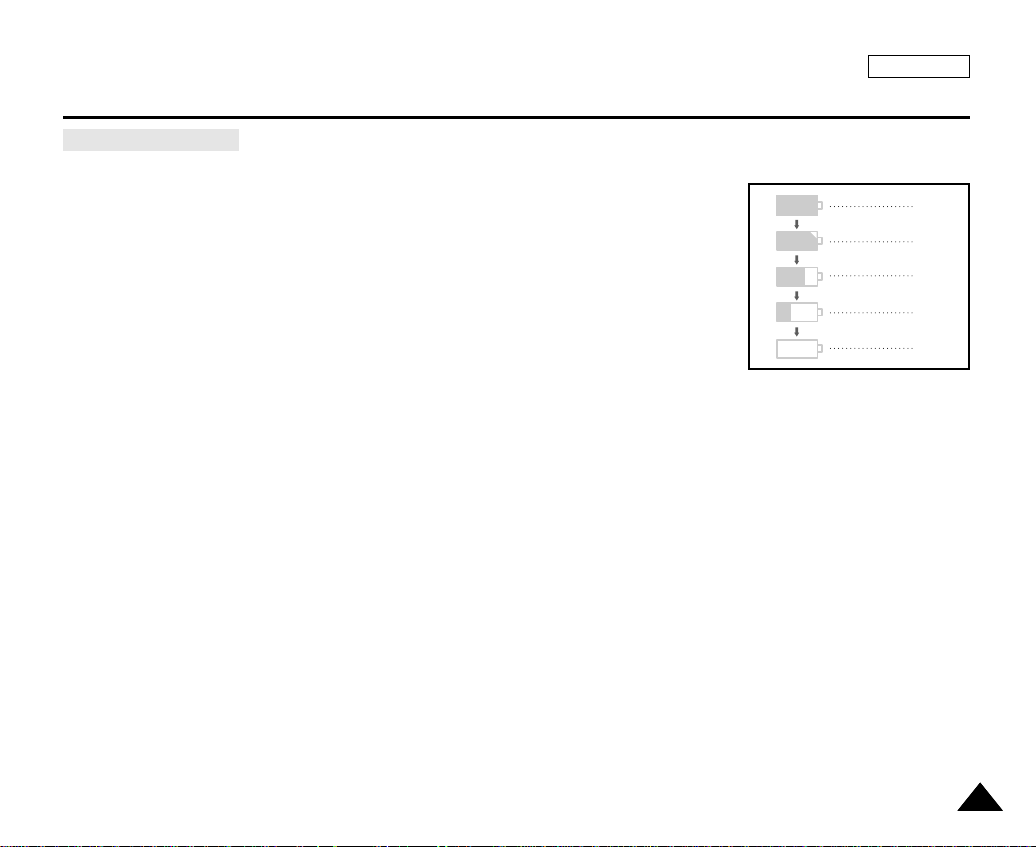

Battery Level Display ............................................................................................................................................................................................ 29

ENGLISH

Contents

Setting to CAMCORDER / CAMERA modes ............................................................................................................................................................ 30

Setting the Power Switch .......................................................................................................................................................................................... 31

Adjusting the LCD ..................................................................................................................................................................................................... 32

Using the VIEWFINDER ........................................................................................................................................................................................... 33

Adjusting the Focus .............................................................................................................................................................................................. 33

Adjusting the LCD during PLAY ........................................................................................................................................................................... 34

Controlling Sound from the Speaker ........................................................................................... ............................................................................. 34

Functions 35

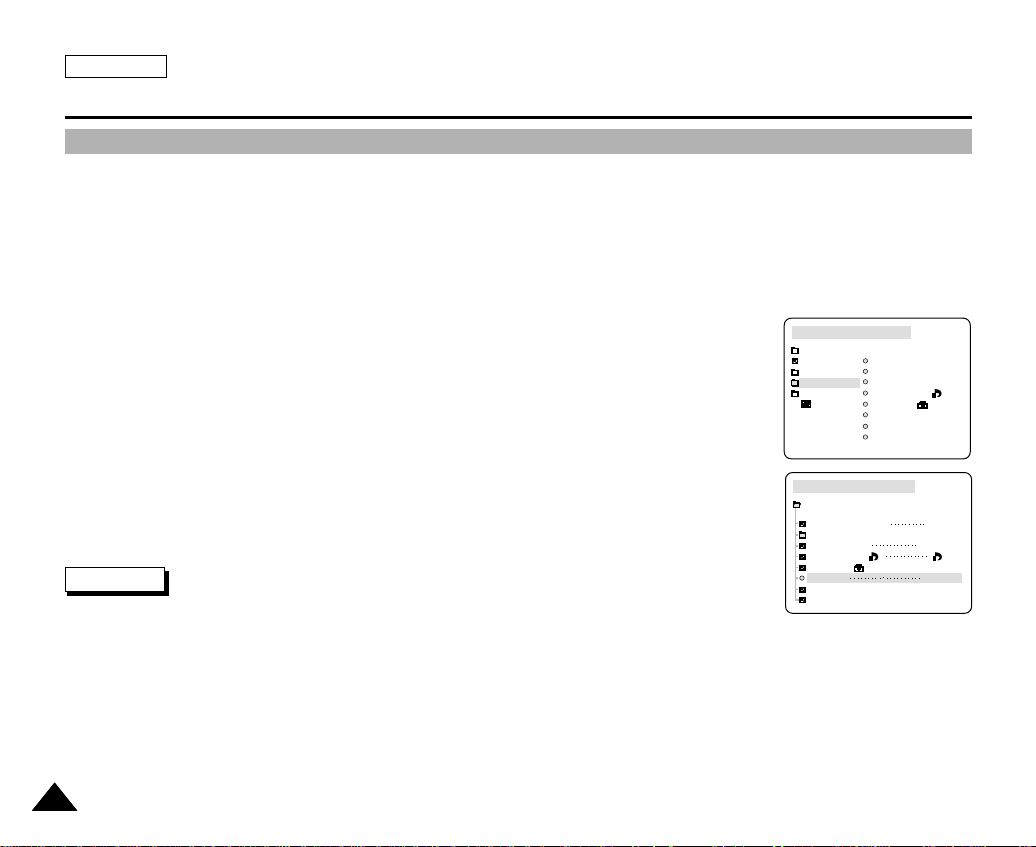

Using MENU ............................................................................................................................................................................................................. 35

Setting menu items ................................................................................................................................................................................................... 37

Setting the Camcorder to REC, TAPE PLAY, MEMORY PLAYmodes .............................................................................................................. 39

Availability of Functions in CAMCORDER Mode. ............................................................................................................................................... 40

CLOCK SET ......................................................................................................................................................................................................... 41

WL.REMOTE ........................................................................................................................................................................................................ 42

DEMONSTRATION .............................................................................................................................................................................................. 43

DATE/TIME ........................................................................................................................................................................................................... 44

TV DISPLAY ......................................................................................................................................................................................................... 45

EASY Mode (for Beginners) ..................................................................................................................................................................................... 46

MF/AF (Manual Focus/Auto Focus) ......................................................................................................................................................................... 47

Auto Focusing ....................................................................................................................................................................................................... 47

Manual Focusing .................................................................................................................................................................................................. 47

Zooming In and Out with DIGITALZOOM ........................................................................................................................................................... 48

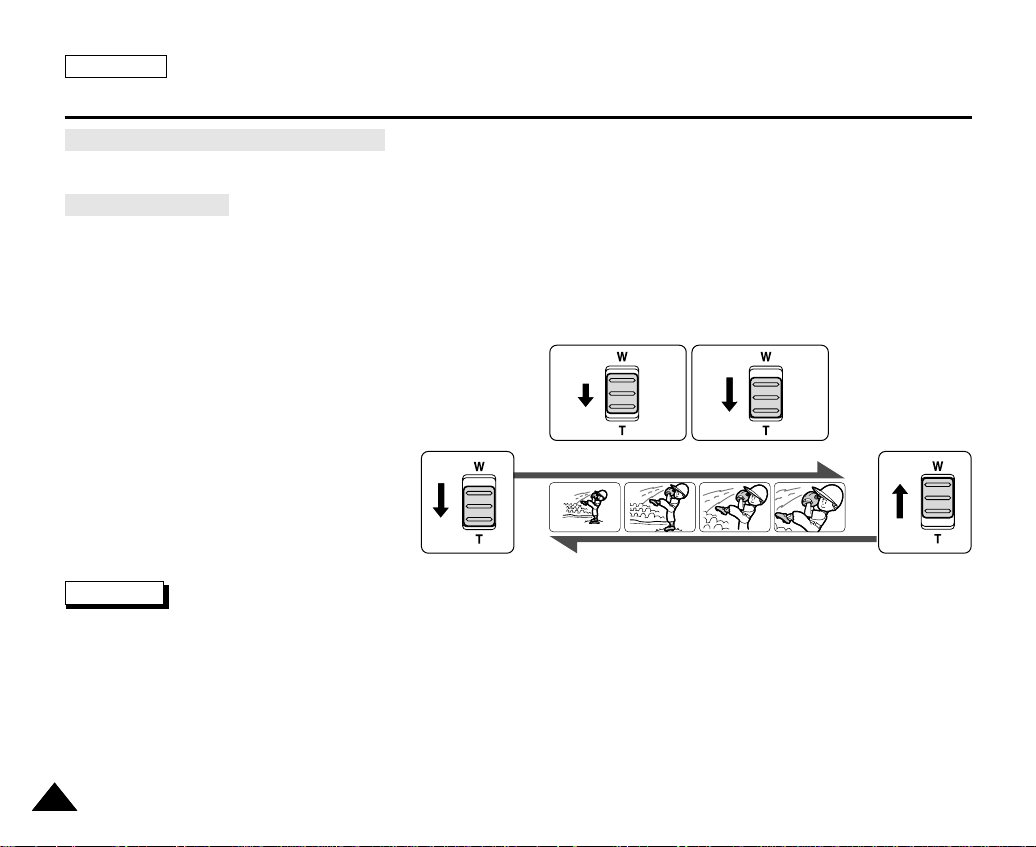

Zooming In and Out .............................................................................................................................................................................................. 48

Using the CAMCORDER - Basic Recording 49

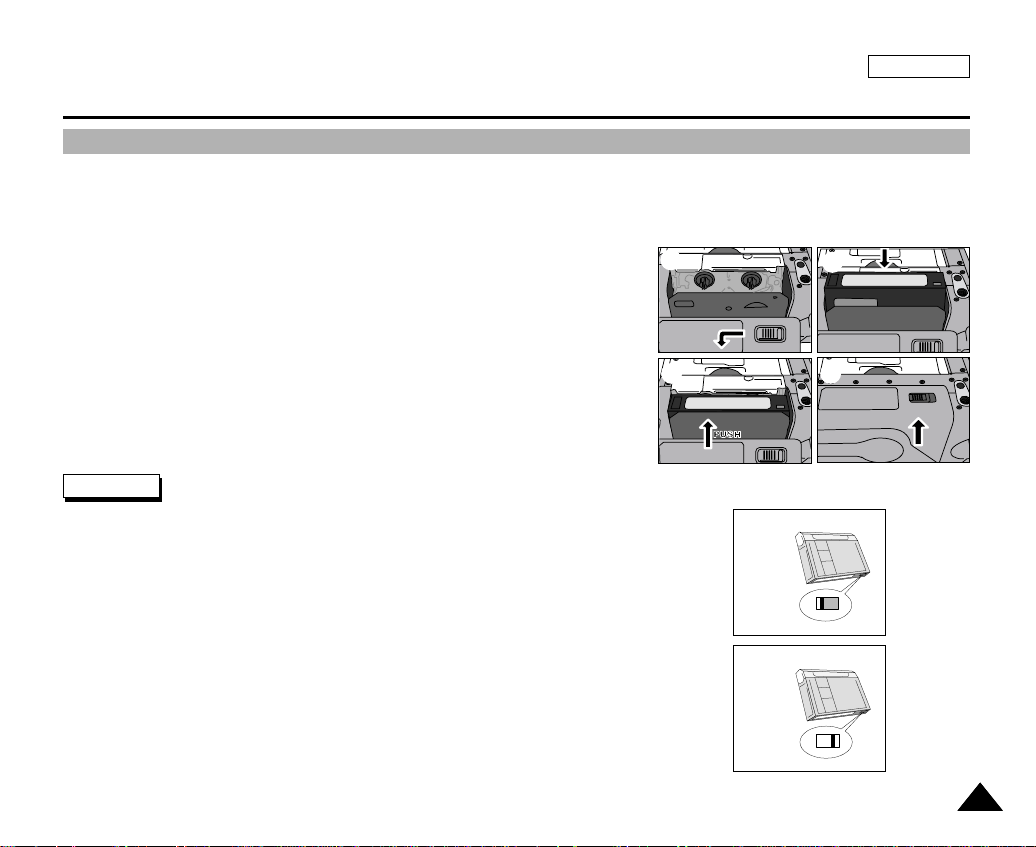

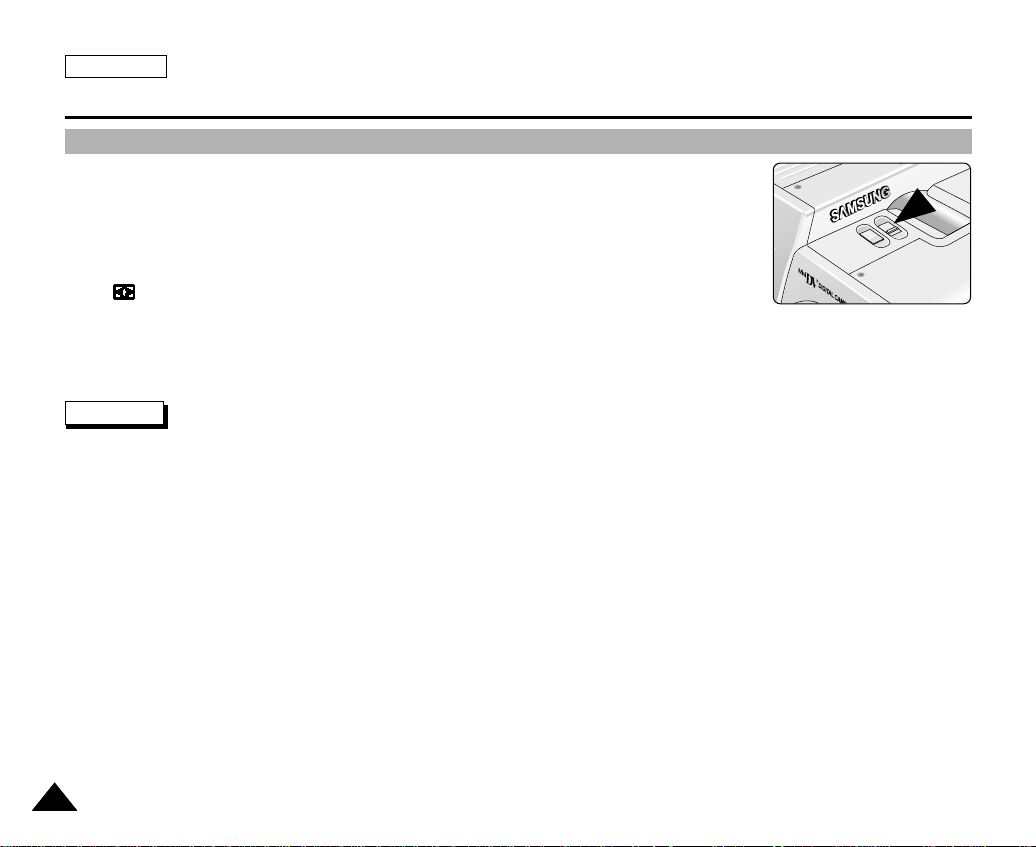

Inserting and Ejecting a Cassette ............................................................................................................................................................................. 49

To select the CAMCORDER mode ......................................................................................................................................................................... 49

Making Your First Recording .................................................................................................. .................................................................................. 51

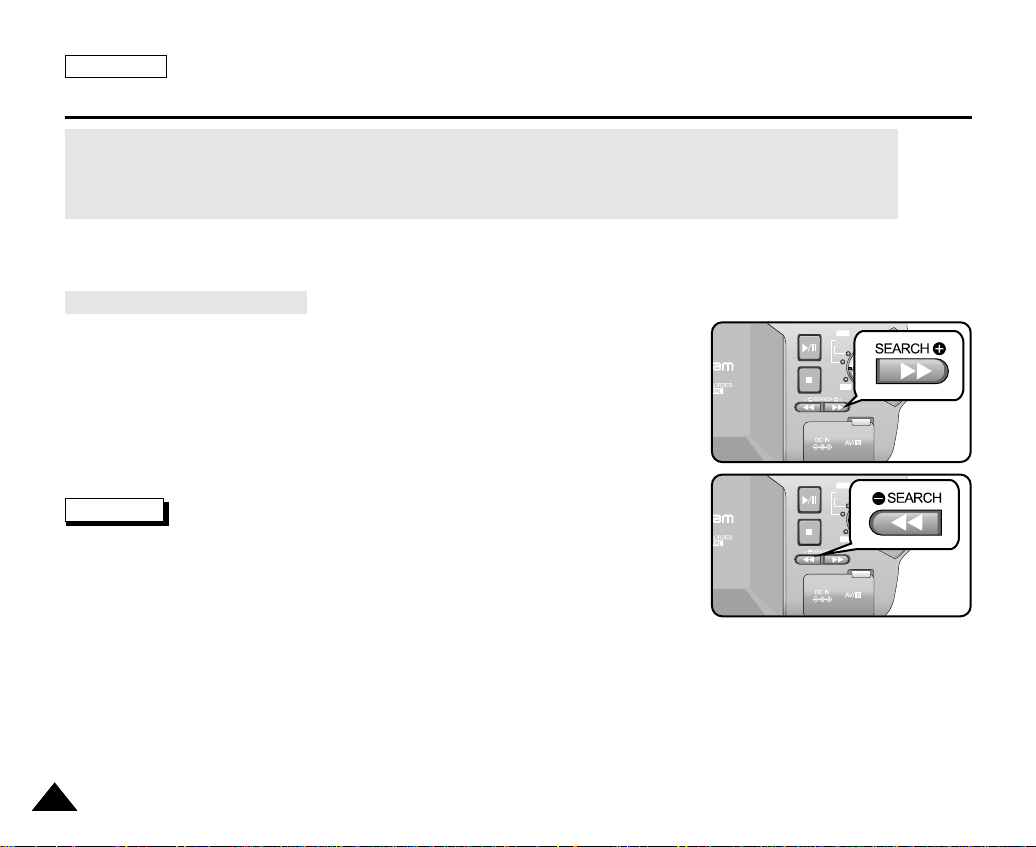

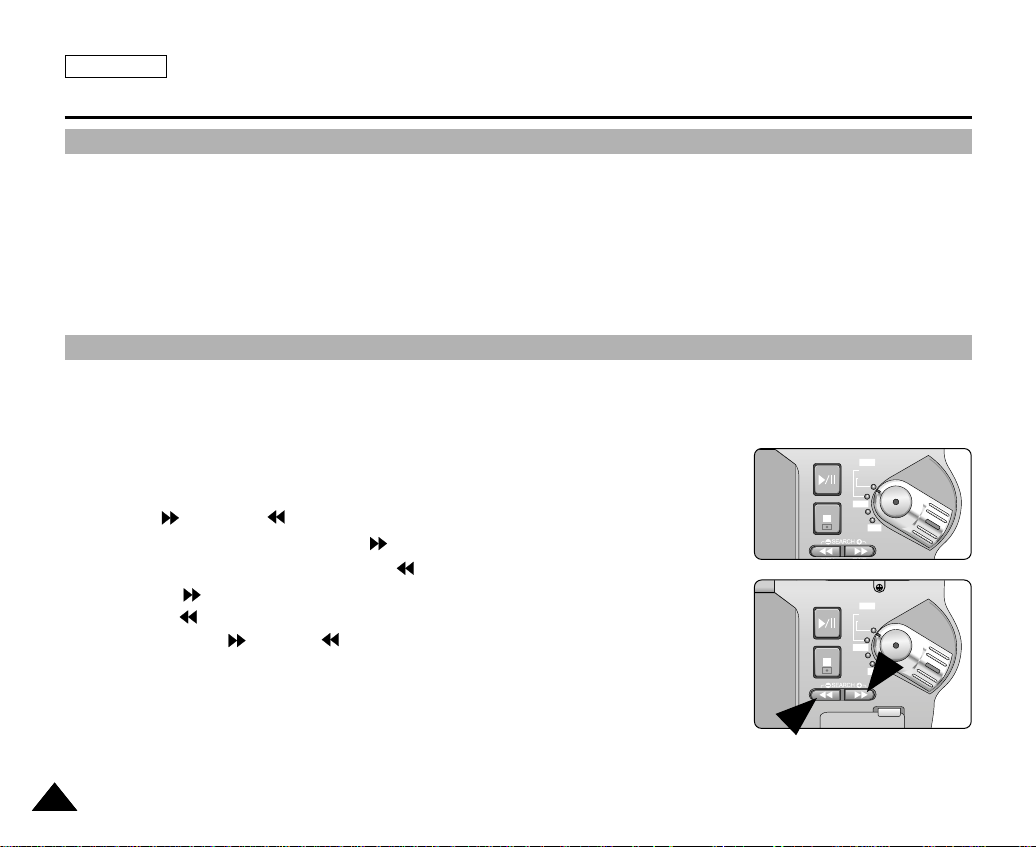

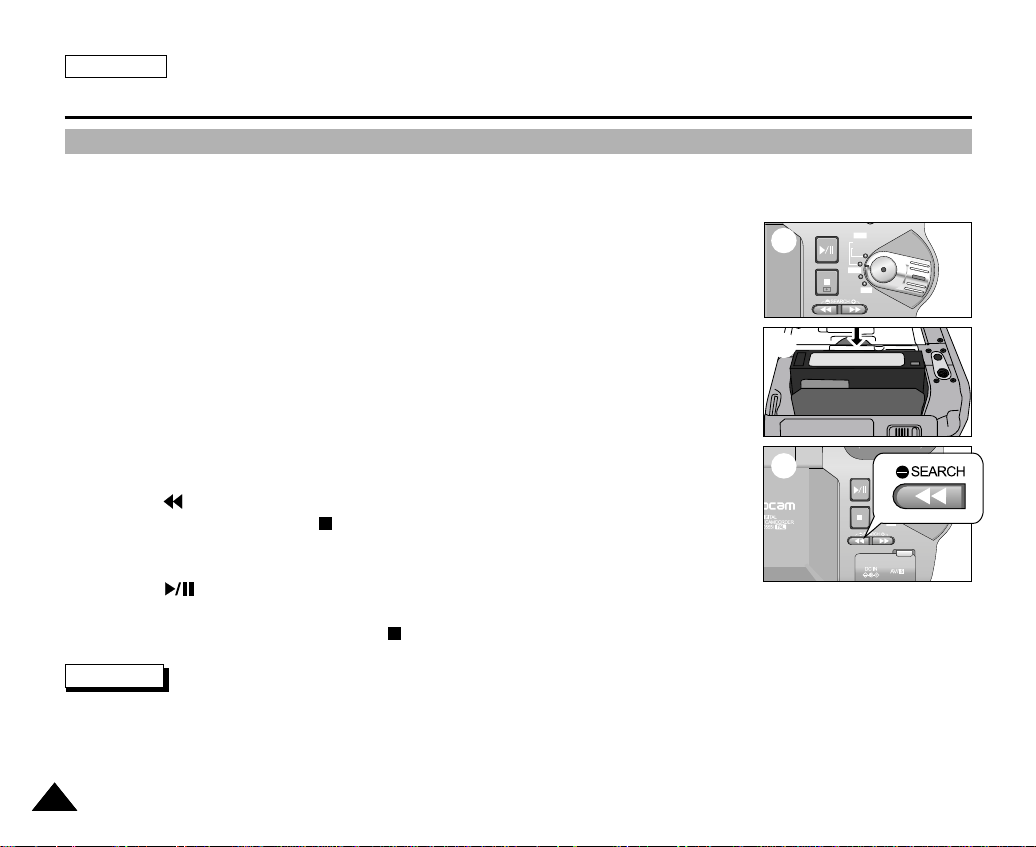

Record Search (REC SEARCH) .......................................................................................................................................................................... 52

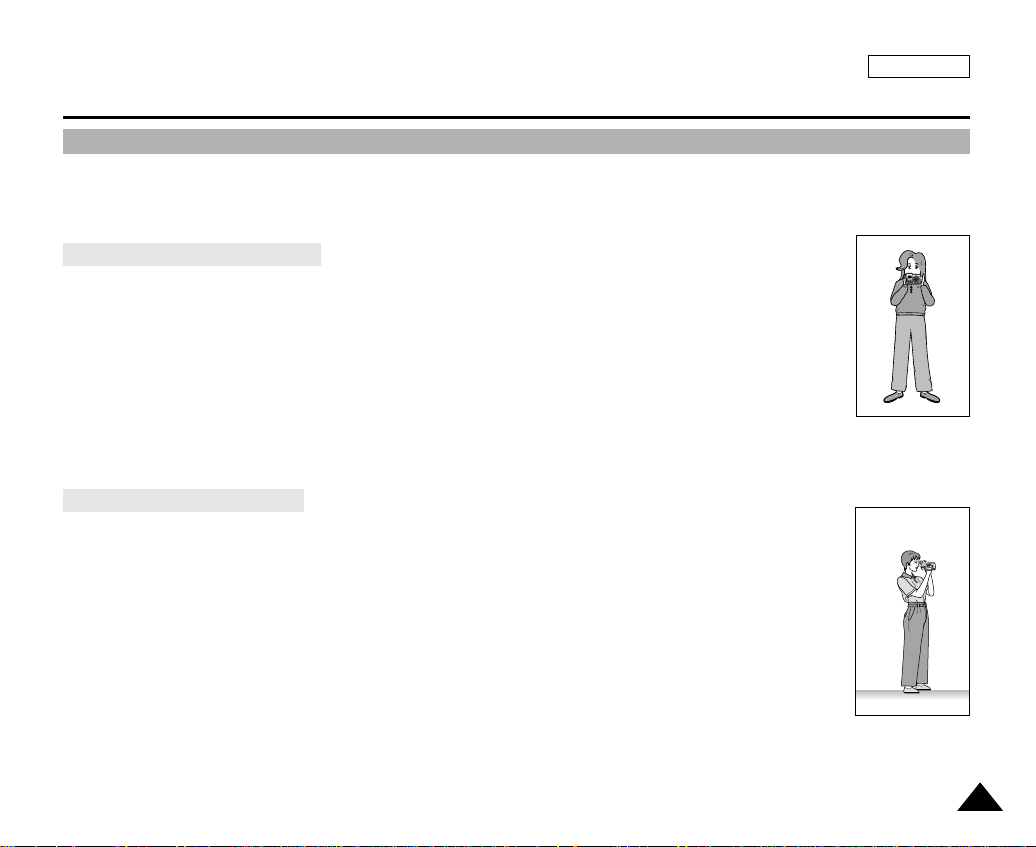

Hints for Stable Image Recording ............................................................................................................................................................................ 53

Recording with the LCD Monitor .......................................................................................................................................................................... 53

Recording with the Viewfinder .............................................................................................................................................................................. 53

Playing Back a Tape You Have Recorded on the LCD ............................................................................................................................................ 54

ENGLISH

Contents

Using the CAMCORDER - Advanced Recording 55

PROGRAM AE .................................................................................................................................................................................................... 55

Setting PROGRAM AE ........................................................................................................................................................................................ 56

WHT. BALANCE (WHITE BALANCE) - CAMCORDER Mode .......................................................................................................................... 57

Digital Zoom in CAMCORDER Mode ................................................................................................................................................................. 58

EIS (Electronic Image Stabilizer) ........................................................................................................................................................................ 59

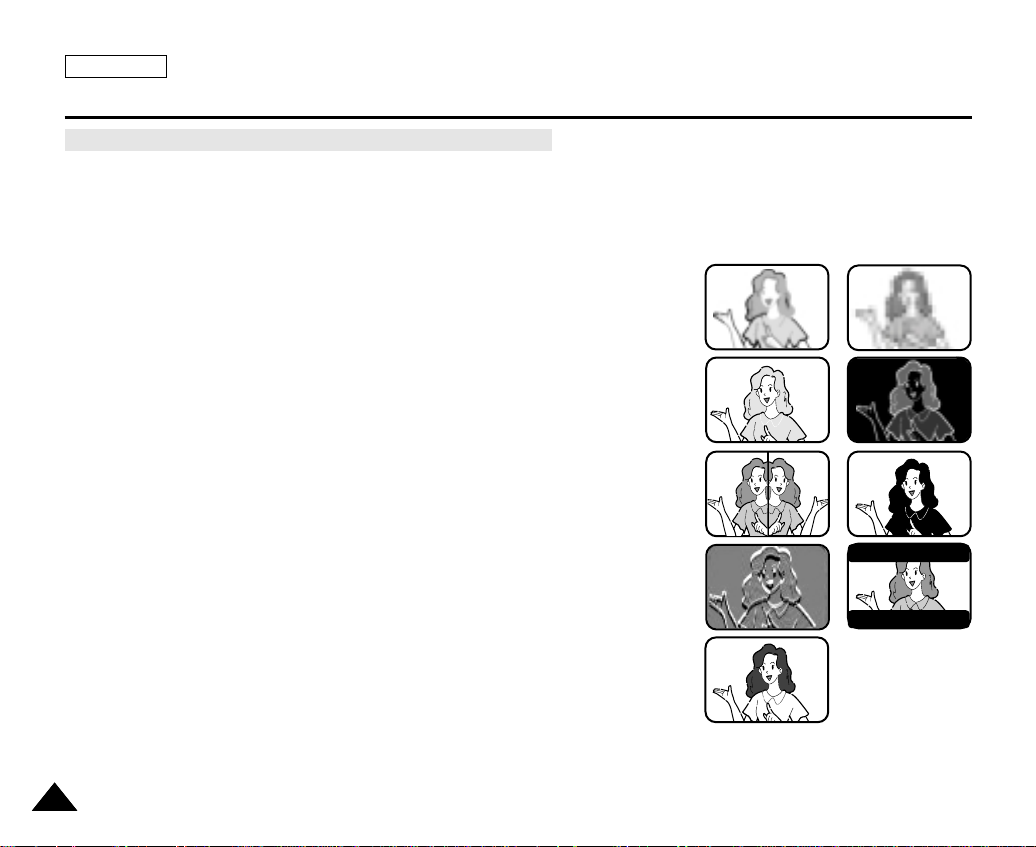

DSE(Digital Special Effects) SELECT in CAMCORDER Mode ......................................................................................................................... 60

Selecting a Digital effect in CAMCORDER Mode .............................................................................................................................................. 61

REC MODE ......................................................................................................................................................................................................... 62

AUDIO MODE ..................................................................................................................................................................................................... 63

WIND CUT ........................................................................................................................................................................................................... 64

Using Quick Menu(Navigation Menu) ....................................................................................................................................................................... 65

Setting the Quick Menu ....................................................................................................................................................................................... 66

SHUTTER SPEED & EXPOSURE ..................................................................................................................................................................... 67

SLOW SHUTTER (Low Shutter Speed) .................................................................................................................................................................. 68

BLC (Back Light Compensation) .............................................................................................................................................................................. 69

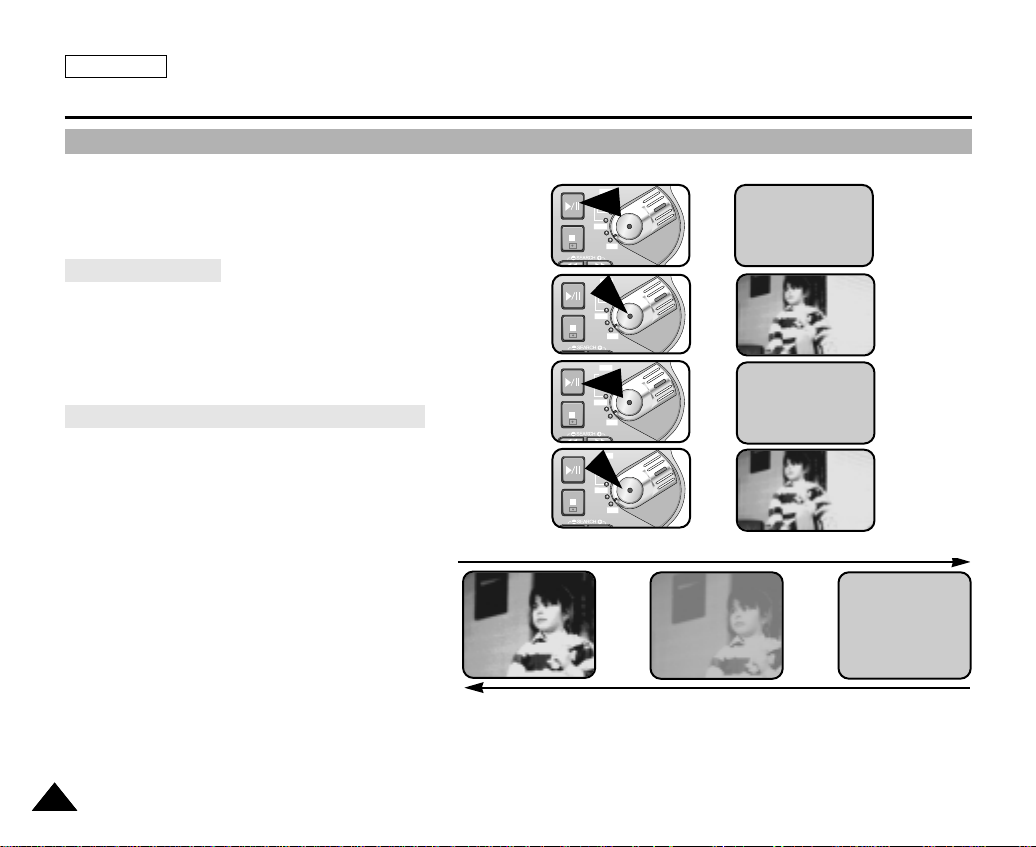

Fade In and Out ........................................................................................................................................................................................................ 70

To Start Recording ............................................................................................................................................................................................... 70

To Stop Recording (use FADE IN / FADE OUT) ................................................................................................................................................ 70

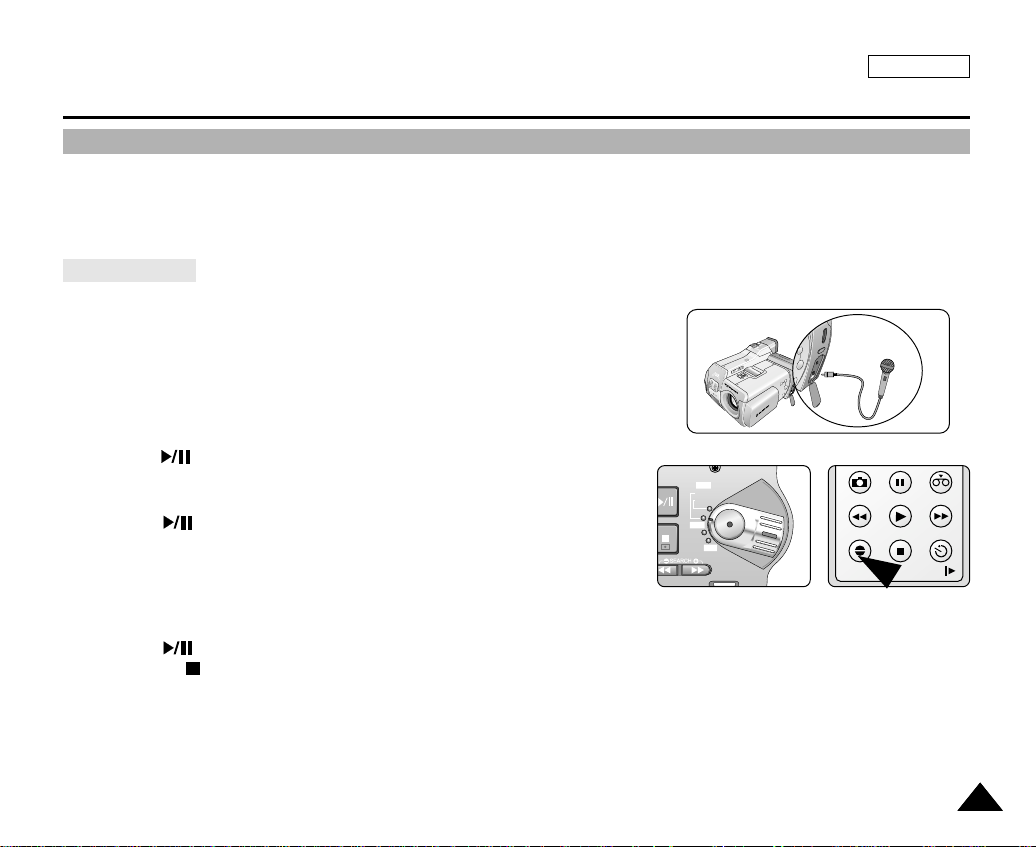

Audio Dubbing ........................................................................................................................................................................................................... 71

Dubbing Sound .................................................................................................................................................................................................... 71

Dubbed Audio Playback ...................................................................................................................................................................................... 72

PHOTO Image Recording ......................................................................................................................................................................................... 73

Searching for a PHOTO Picture ......................................................................................................................................................................... 73

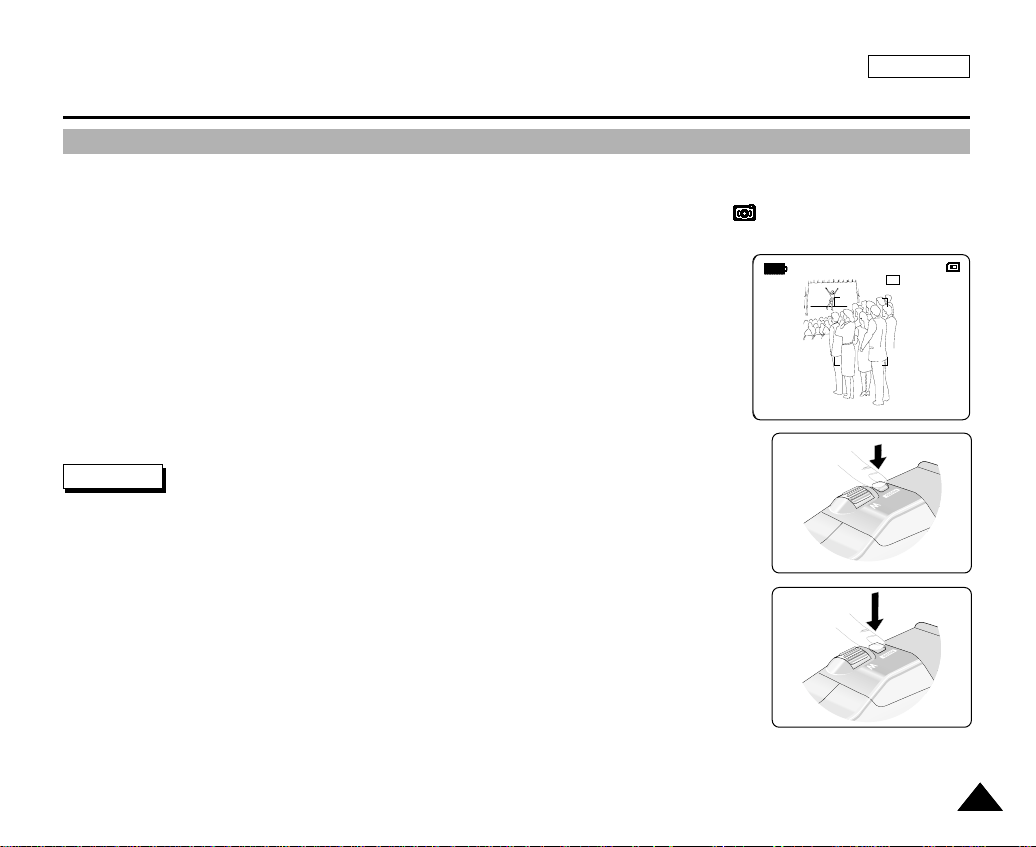

NITE PIX (0 Lux Recording) ..................................................................................................................................................................................... 74

POWER NITE PIX .................................................................................................................................................................................................... 75

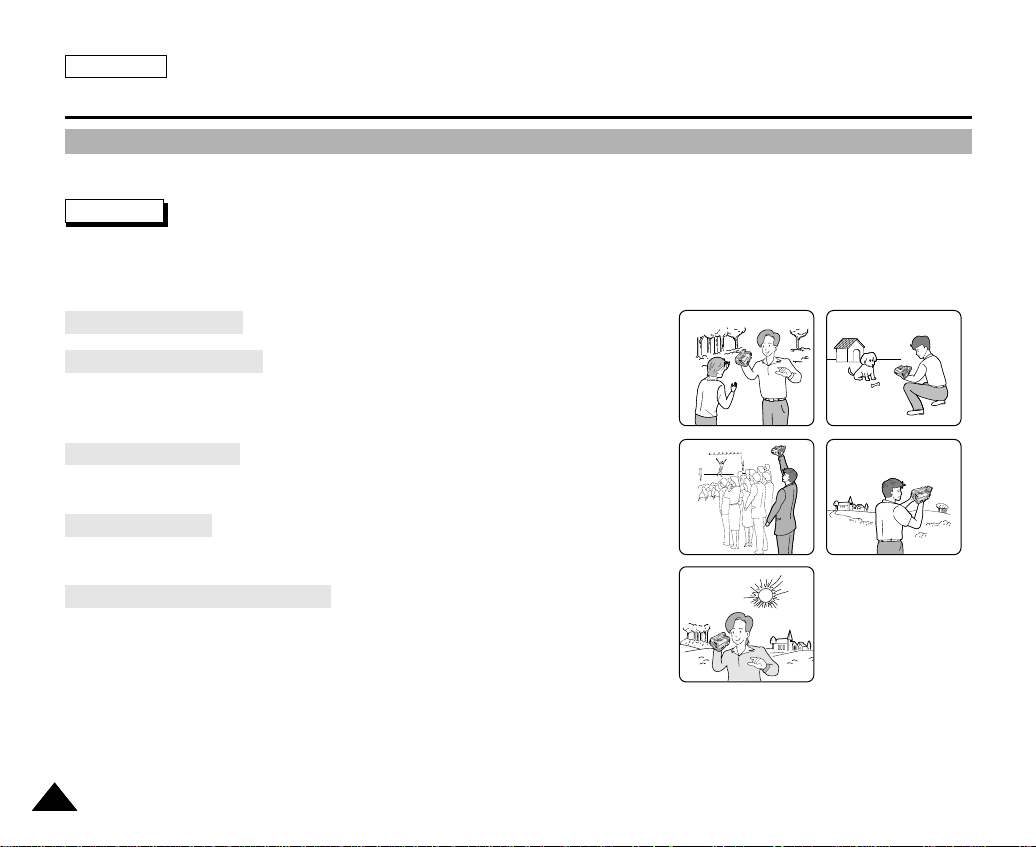

Various Recording Techniques ................................................................................................................................................................................. 76

Playback 77

Tape Playback ............................................................................................................................................................................................................ 77

Playback on the LCD ............................................................................................................................................................................................ 77

Playback on a TV Monitor .................................................................................................................................................................................... 77

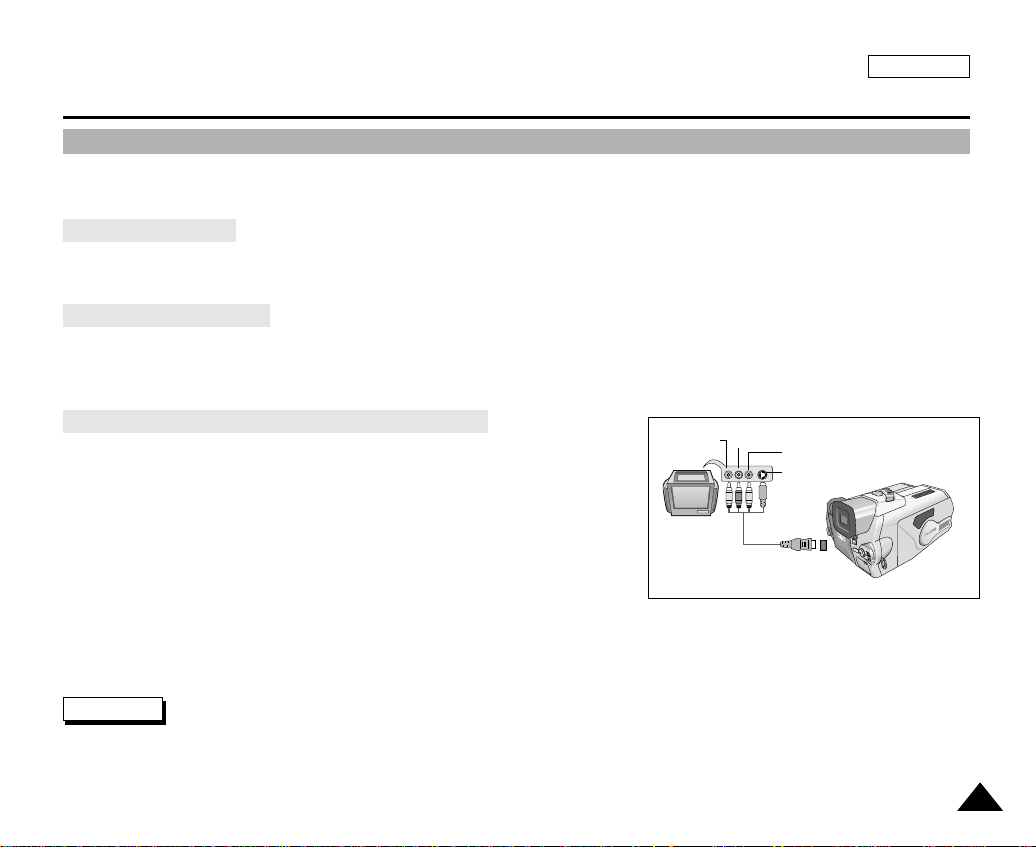

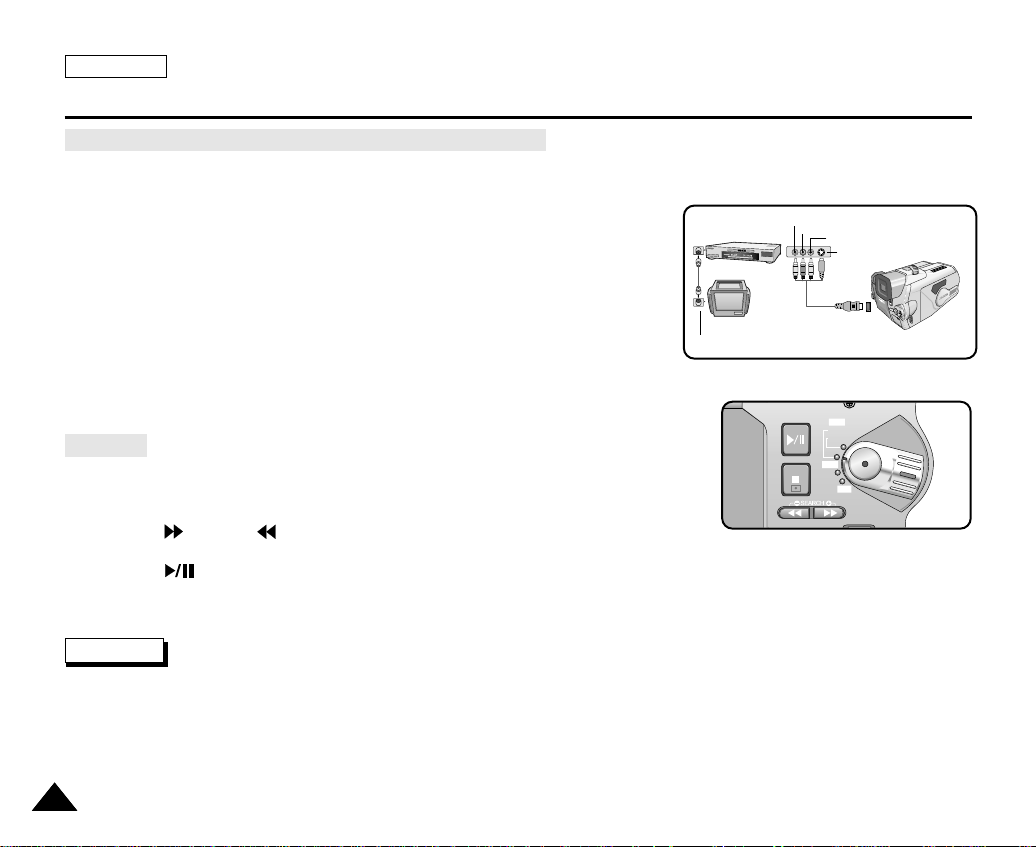

Connecting to a TV which has Audio Video Input Jacks .......................................................................... ........................................................... 77

ENGLISH

Contents

Connecting to a TV which has No Audio and Video Input Jacks ........................................................................................................................ 78

Playback ............................................................................................................................................................................................................... 78

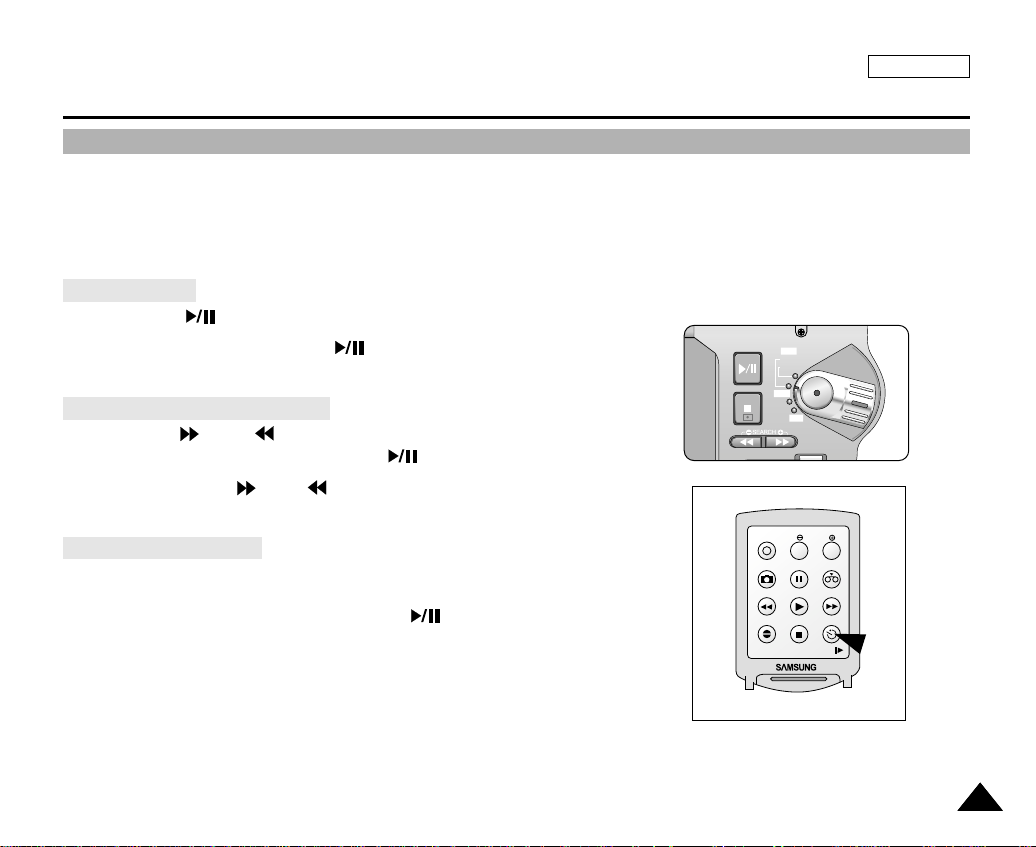

Various Functions while in PLAYER Mode ................................................................................................................................................................ 79

Playback Pause .................................................................................................................................................................................................... 79

Picture Search (Forward/Reverse) ....................................................................................................................................................................... 79

Slow Playback (Forward) ..................................................................................................................................................................................... 79

ZERO MEMORY ........................................................................................................................................................................................................ 80

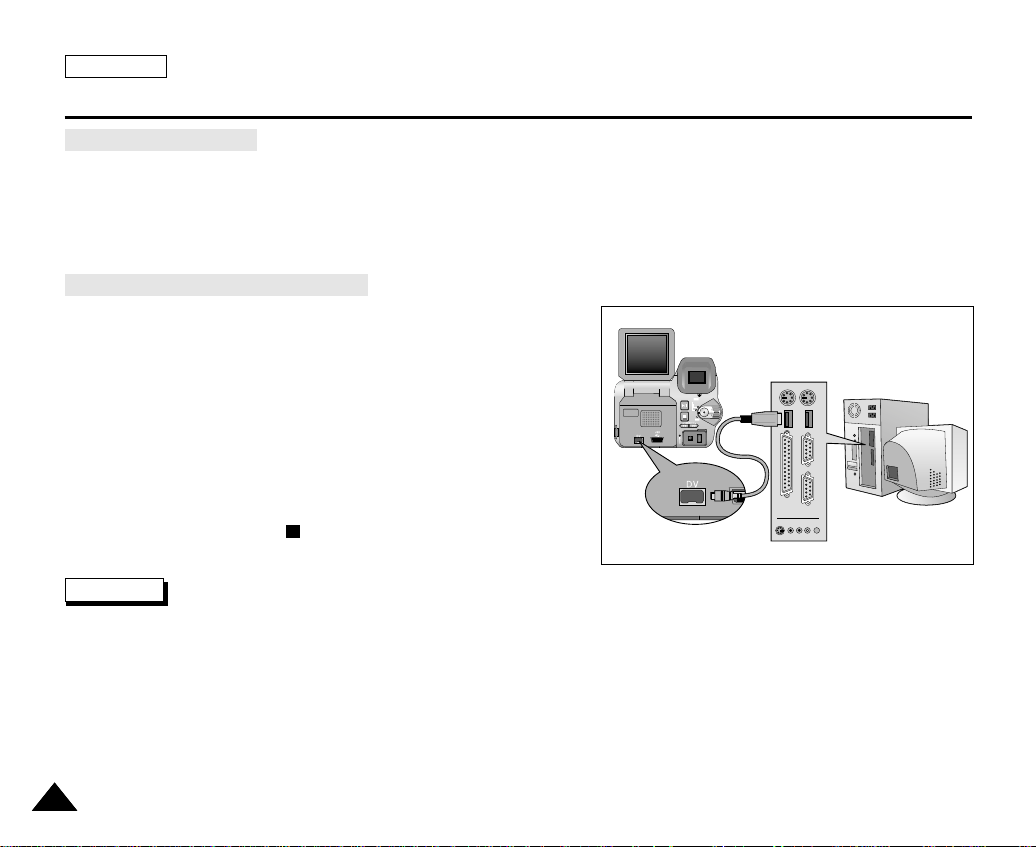

IEEE 1394 Data Transfer 81

Transferring usingIEEE1394 (i.LINK)-DV Standard Data Connections .................................................................................................................... 81

Connecting to a DV Device ..................................................................................................... ............................................................................. 81

Connecting to a PC .............................................................................................................................................................................................. 81

System Requirements .......................................................................................................................................................................................... 82

Recording with a DV Connection Cable ............................................................................................................................................................... 82

Using the CAMERA 83

MEMORY STICK ....................................................................................................................................................................................................... 83

Memory Stick Functions........................................................................................................................................................................................ 83

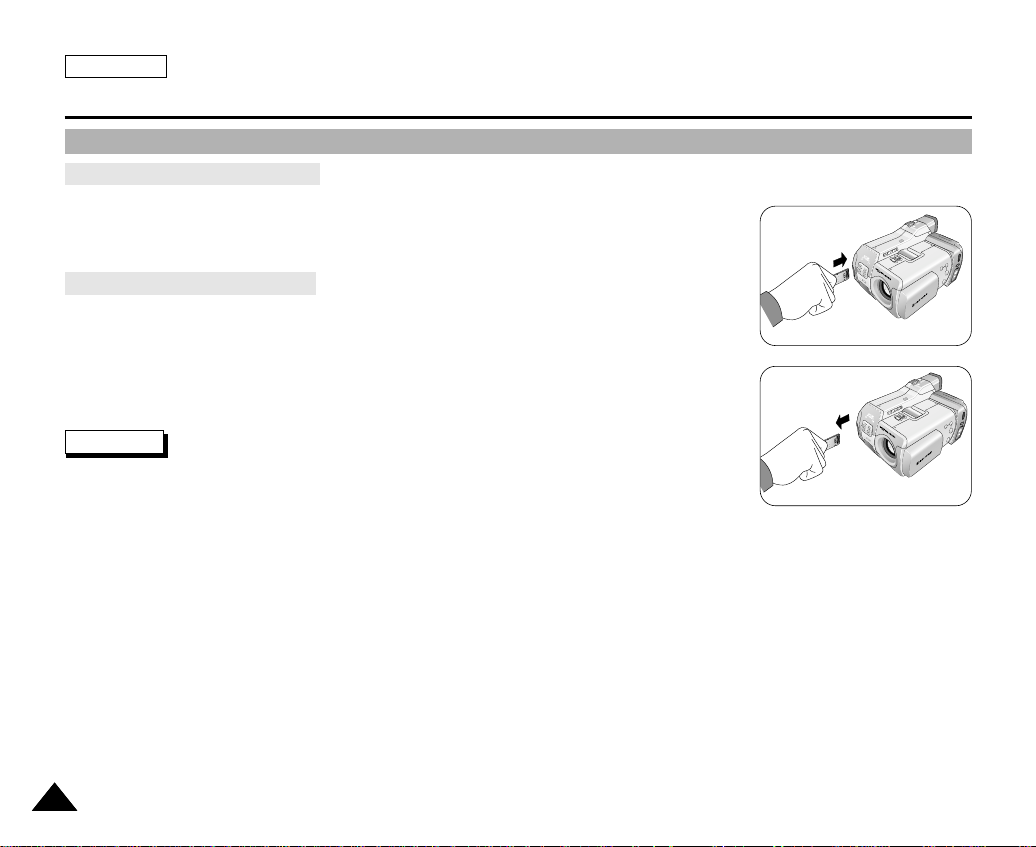

Inserting and Ejecting the Memory Stick .................................................................................................................................................................. 84

Inserting the Memory Stick .................................................................................................................................................................................. 84

Ejecting the Memory Stick ................................................................................................................................................................................... 84

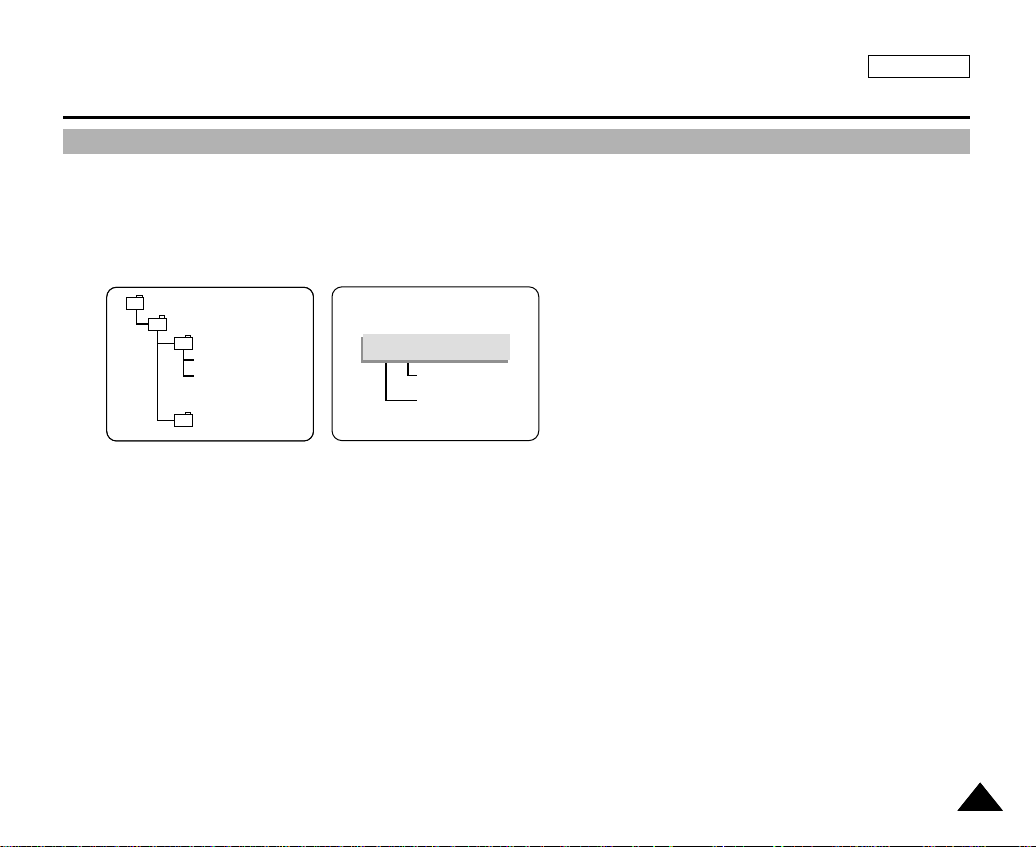

Structure of the Folders and Files on the Memory Stick.............................................................................................................................................85

MEMORY FILE NUMBER ........................................................................................................................................................................................ 86

Basic Picture-Taking 87

Taking Your First Picture ........................................................................................................................................................................................... 87

Viewing Still Images .................................................................................................................................................................................................. 88

To View a Single image ............................................................................................................................................................................................ 88

To View a Slide Show ............................................................................................................................................................................................... 89

Quick Review ............................................................................................................................................................................................................ 90

ENGLISH

Advanced Techniques 92

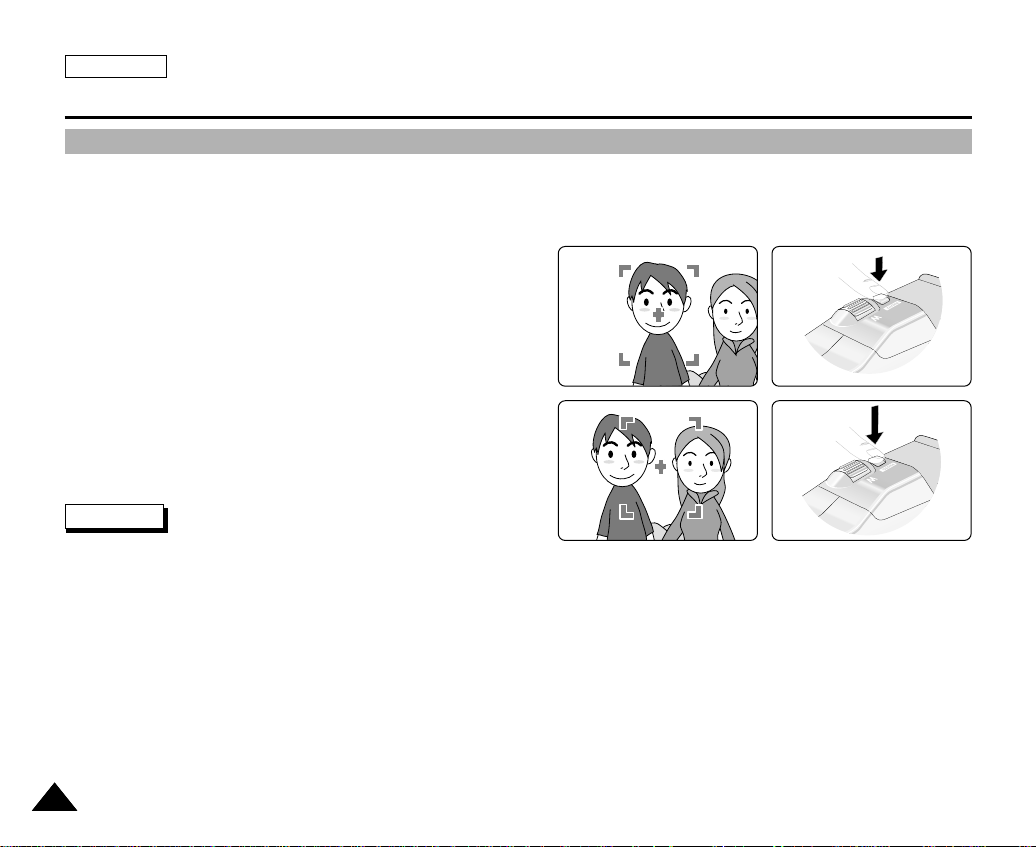

FOCUS LOCK ........................................................................................................................................................................................................... 92

Digital Zoom in CAMERA Mode ............................................................................................................................................................................... 93

MACRO Mode ........................................................................................................................................................................................................... 94

CONT. SHOT (Continuous Shot) .............................................................................................................................................................................. 95

Using the FLASH ...................................................................................................................................................................................................... 96

FLASH SELECT ........................................................................................................................................................................................................ 97

WHT. BALANCE (WHITE BALANCE) - CAMERA Mode ........................................................................................................................................ 98

DSE(Digital Special Effects) SELECT in CAMERA Mode ....................................................................................................................................... 99

Selecting a Digital effect in CAMERA Mode .......................................................................................................................................................... 100

SPOT-AE ................................................................................................................................................................................................................. 101

NIGHT SCENE ........................................................................................................................................................................................................ 102

Selecting the Image Quality .................................................................................................................................................................................... 103

Select the Image Quality ................................................................................................................................................................................... 103

Number of images on the Memory Stick .......................................................................................................................................................... 103

Selecting the Image Size ........................................................................................................................................................................................ 104

Select the Image Size ....................................................................................................................................................................................... 104

Memory Stick and Image Resolutions .............................................................................................................................................................. 105

MPEG REC ............................................................................................................................................................................................................. 106

MPEG PB ................................................................................................................................................................................................................ 107

MPEG SIZE ............................................................................................................................................................................................................. 108

Copying Still Images from a Cassette to the Memory Stick .................................................................................................................................. 109

Marking Images for Printing .................................................................................................................................................................................... 110

Protection from Accidental Erasure ......................................................................................................................................................................... 111

Deleting Still images ................................................................................................................................................................................................ 1 12

Formatting the Memory Stick .................................................................................................................................................................................. 114

Attention ............................................................................................................................................................................................................. 114

Recording an Image from a Cassette as a Still Image. ......................................................................................................................................... 115

ENGLISH

USB Interface 116

Transferring a Digital Image through a USB Connection ........................................................................................................................................ 1 16

Installing the DVC Media 5.0 Program ......................................................................................................................................................................117

Maintenance 119

After Finishing a Recording ...................................................................................................................................................................................... 1 19

Cleaning and Maintaining the Camcorder................................................................................................................................................................ 120

Cleaning the Video Heads ................................................................................................................................................................................. 120

Using Your Camcorder Abroad ................................................................................................................................................................................ 121

Power Sources ................................................................................................................................................................................................... 121

Color System ...................................................................................................................................................................................................... 121

Troubleshooting 122

Troubleshooting ........................................................................................................................................................................................................ 122

Self Diagnosis Display ........................................................................................................................................................................................ 122

Moisture Condensation ...................................................................................................................................................................................... 122

Self Diagnosis Display in M.REC, M.PLAYMode ............................................................................................................................................. 123

Specifications 125 INDEX 126 Warranty 128

ENGLISH

Start

Precautions on Camcorder Care

✤

Please note the following precautions for use:

✤

Please keep your device in a safe place. This device contains a lens that can be damaged by shock. Keep away from the reach of the children.

■

Do not place your device in a wet place. Moisture and water may cause the device to malfunction.

■

Do not aim the device at the sun while looking through the viewfinder; this may cause permanent damage to your eyes.

■

To avoid electric shock, do not touch your device or power cable with wet hands.

■

Do not use the flash close to another's eyes. The flash emits a strong light that may cause damage similar to direct sunlight on one's eyesight.

■

If the device is not working properly, please consult your nearest dealer or authorized Samsung service facility. Disassembling the device yourself may cause irrecoverable damage which will be difficult to repair.

■

Clean the body with a dry, soft cloth. Use a soft cloth moistened with a mild detergent solution for removing stains. Do not use any type of solvent, especially benzenes, as they may seriously damage the finish.

■

Keep your device away from rain and saltwater. After using, clean the device. Saltwater may cause the parts to corrode.

■

For better quality, please use CAMERAmode when taking still images. (CAMERA mode image quality is better than CAMCORDER mode.)

Start

FADE

S.SHOW

BLC

FADE

S.SHOW

BLC

REV FWD

Quick Start

✤

This device provides a variety of functions because it is a Camcorder and Digital Still Camera in one system. Please read this manual thoroughly.

✤

Before using the device, install the accessories in the following order:

ENGLISH

1. Install the battery pack.

2. Insert the Memory Stick into the slot.

3. Charge the battery pack by connecting the power cable to the camcorder.

4. Set your device to CAMCORDER mode or CAMERA mode by flipping the lens body block.

5. Set the Power Switch to proposed position.

6. When finished, set the Power Switch to OFF.

ENGLISH

Notes and Safety Instructions

Notes Regarding the Rotation of the LCD Screen

Please rotate the LCD screen carefully as illustrated. Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder.

1. LCD screen closed.

2. Standard recording using the LCD screen.

3. Recording when looking at the LCD screen from the left.

4. Recording when looking at the LCD screen from the front.

5. Recording with the LCD screen closed.

1010

180¡

ENGLISH

Notes and Safety Instructions

Notices Regarding COPYRIGHT

Television programs, video tapes, DVD titles, films, and other program materials may be copyrighted. Unauthorized copying of copyrighted material may be against the law.

Notes Regarding Moisture Condensation

1. A sudden rise in atmospheric temperature may cause moisture condensation to form inside the camcorder.

For Example:

- When you take the camcorder from a cold place to a warm place (e.g. from outside to inside during winter.)

- When you take the camcorder from a cool place to a hot place (e.g. from inside to outside during the summer.)

2. When the (DEW) protection feature is activated, leave the camcorder in a dry, warm room with the cassette

compartment opened and the battery removed, for at least two hours.

Notes Regarding the CAMCORDER

1. Do not leave the camcorder exposed to high temperatures (above 60°C or 140°F).

For example, in a parked car in the sun or exposed to direct sunlight.

2. Do not let the camcorder get wet.

Keep the camcorder away from rain, saltwater, and any other form of moisture. If the camcorder gets wet, it may be damaged. A malfunction due to exposure to liquids cannot always be repaired.

1111

ENGLISH

Notes and Safety Instructions

Notes Regarding the Battery Pack

- Make sure that the battery pack is fully charged before starting to record.

- To preserve battery power, keep your camcorder turned off when you are not operating it.

- If your device is in CAMCORDER mode with a tape installed, and it is left in STBY mode without being operated for more than 5 minutes it will automatically turn itself off to protect against unnecessary battery discharge.

- Make sure that the battery pack fits firmly into place. Dropping the battery pack may damage it.

- A brand new battery pack will not be charged. Before using the battery pack, you need to charge it completely.

- It is a good idea to use the viewfinder rather than the LCD when recording for long periods, because the LCD uses up more battery power.

* When the battery reaches the end of its life, please contact your local dealer.

The batteries need to be dealt with as chemical waste.

* Be careful not to drop the battery when you release it

Notes Regarding Video Head Cleaning

- To ensure normal recording and a clear picture, clean the video heads regularly. If the picture is distorted, or only a blue screen is displayed, the video heads may be dirty. If this happens, clean the video heads with a dry type cleaning cassette.

- Do not use a wet-type cleaning cassette. It may damage the video heads.

1212

ENGLISH

Notes and Safety Instructions

Note Regarding the LENS

- Do not film with the camera lens pointing directly at the sun. Direct sunlight can damage the CCD(Charge Coupled Device).

- Over-rotating of the LENS body block may damage it.

Notes Regarding Electronic Viewfinder

1. Do not position the camcorder such that the viewfinder is pointing towards the sun. Direct sunlight can damage the inside of the viewfinder. Be careful when placing the camcorder under sunlight or near a window exposed to sunlight.

2. Do not pick up the camcorder by the viewfinder.

Notes Regarding ‘Record’ or ‘Playback’ Using the LCD

1. The LCD display has been manufactured using high-precision technology. However, there may be tiny dots (red, blue or green in color) that appear on the LCD display. These dots are normal and do not affect the recorded picture in any way.

2. When you use the LCD display under direct sunlight or outdoors, it maybe difficult to see the picture clearly. If this occurs, we recommend using the viewfinder.

3. Direct sunlight can damage the LCD monitor.

Notes Regarding the Hand Strap

- To ensure a steady picture during filming, check that the hand strap is properly adjusted.

- Do not force your hand into the hand strap as you could damage it.

1313

ENGLISH

Getting to Know Your Device

Features

• Digital data transfer function with IEEE1394

By incorporating the IEEE 1394 (i.LINK™ : i.LINK is a serial data transfer protocol and interconnectivity system, used to transmit DV data) high speed data transport port, both moving and still images can be transferred to a PC, making it possible to produce or edit various images.

• Unique Style & Free Style Shooting

An integrated digital imaging device that easily converts between a CAMCORDER and a CAMERA by using a revolving Lens Body Block.

• High Resolution Image Quality (Digital Still Camera)

Employing a 4.13 Mega Pixels CCD, a maximum resolution of 2272 X 1704 is possible.

• Digital Zoom

Allows you to magnify an image up to 800X (CAMCORDER mode) or 6X (CAMERA mode) its original size.

• Color TFT LCD

A high-resolution color TFT LCD gives you clean, sharp images as well as the ability to review your recordings immediately.

• Electronic Image Stabilizer (EIS)

The EIS compensates for any shaking that occurs when the camera is handheld, reducing unstable images particularly at high magnification.

• Various Digital Effects

The DSE (Digital Special Effects) function allows you to give your films a special look by adding various special effects.

• Back Light Compensation (BLC)

The BLC function compensates for a bright background behind the subject you're recording.

• Program AE

The Program AE enables you to alter the shutter speed and aperture to suit the type of scene/action to be filmed.

• NITE PIX / NIGHT SCENE

The NITE PIX or NIGHT SCENE function enables you to record a subject in a dark place.

• USB Interface for Digital Image Data Transfer

You can transfer still images to a PC using the USB interface without an add-on card.

1414

Getting to Know Your Device

START/STOP


REW/RPS

A.DUB STOP SELF TIMER

SLOW

PLAY FF/FPS

STILL ZERO MEM.

F.ADV

Accessories Supplied with the Camcorder

Make sure that the following basic accessories are supplied with your digital video camera.

ENGLISH

Basic Accessories

1. Lithium Ion Battery Pack

2. AC Power Adapter

3. AC Cord

4. AUDIO/VIDEO Cable

5. Instruction Manual

6. Lithium Battery for Remote Control. (TYPE: CR2025)

7. Shoulder Strap

8. USB Cable

9. Software CD

10.Remote Control

11.Memory Stick

12. Tripod Adaptor

1. Lithium Ion Battery pack

(AD43-00112A, AD43-001 13A)

4. AUDIO/VIDEO cable (AD39-00099A)

7. Shoulder strap (AD72-00050A)

10. Remote Control

(AD59-00100A)

2. AC Power Adapter (AD44-00065A)

5. Instruction Book

(AD68-000655B)

8. USB cable

(AD39-00073A)

11. Memory Stick

(1109-001222)

3. AC cord (AD39-00076A)

6. Lithium battery

AD43-10130H)

(

9. Software CD (AD46-00063A)

12. Tripod Adapter

AD97-06770A)

(

1515

ENGLISH

Getting to Know Your Device

Front & Left View

1. Internal MIC

2. Memory Stick Slot

3. Remote Sensor

4. Lens

1. Internal MIC

2. Memory Stick Slot

3. Remote Control Sensor

4. Lens

1616

8. Nite Pix

7. Slow Shutter

6. Battery release button

5. Battery

6. Battery release button

7. Slow Shutter

8. Nite Pix

Getting to Know Your Device

Left Side View

ENGLISH

14. Flash

13. NIGHT SCENE Button

12. MACRO Button

1. Display

2. MF/AF

3. PB zoom

4. Easy Button

5. External MIC / Earphone

1. Display

2. MF/AF

3. PB Zoom

4. Easy Button

5. External MIC / Earphone

6. Hook for handstrap

7. MENU Button

11. Rotation Release Button

10. TFT LCD Screen

9.Focus Adjust Knob

8. MENU Dial

7. MENU Button

6. Hook for handstrap

8. MENU Dial

9. Focus Adjust knob

10. TFT LCD Screen

11. Rotation Release Button

12. MACRO Button

13. NIGHT SCENE Button

14. Flash

1717

ENGLISH

Getting to Know Your Device

Right & Top View

1. PHOTO button

2. Viewfinder

3. START/STOP button

4. Power switch

1. Photo Button

2. Viewfinder

3. Start/Stop Button

5. Zoom Lever

6. Memory Stick Slot

4. Power switch

5. Zoom Lever

6. Memory Stick Slot

1818

Getting to Know Your Device

FADE

S.SHOW

BLC

REV FWD

DELETE

FADE

S.SHOW

BLC

DELETE

PLAY

Rear & Bottom View

1. Function Button

14. RESET button

ENGLISH

13. TAPE EJECT

12. Tripod Receptacle

2. Speaker

3. Hook for shoulder strap

4. DV Jack

5. USB Jack

1. Function Button

TAPE PLAY REC MEMORYPLAY

- EASY MULTI

: (REW) REC SEARCH – REV : (FF) REC SEARCH + FWD : (PLAY/STILL) FADE SLIDE SHOW : (STOP) BLC SPOT AE

2. Speaker

3. Hook for the shoulder strap

6. Charging Indicator

11. MACRO Button

8. AV/S-V ideo

7. DC Jack

10. Night Scene Button

4. DV Jack

5. USB Jack

6. Charging Indicator

7. DC Jack

8. AV/S-Video

9. FLASH

10. Night Scene Button

11. MACRO Button

12. Tripod Receptacle

13. TAPE EJECT

14. RESET button

9. FLASH

1919

ENGLISH

Getting to Know Your Device

Remote Control

1. START / STOP

2. (STILL)

3. PHOTO

4. (REW) / RPS

5. A.DUB

START/STOP

F.ADV


STILL ZERO MEM.

REW/RPS

PLAY FF/FPS

A.DUB STOP SELF TIMER

SLOW

12. TELE (F.ADV -)

11. WIDE (F.ADV +)

10. ZERO MEMORY

9. (PLAY)

8. (FF) / FPS

7. SELF TIMER

6. (STOP)

1. START / STOP

2. (STILL)

3. PHOTO

4. (REW) / RPS

5. A.DUB

6. (STOP)

2020

7. SELF TIMER

8. (FF) / FPS

9. (PLAY)

10. ZERO MEMORY

11. WIDE (F.ADV +)

12. TELE (F.ADV -)

Getting to Know Your Device

OSD (On Screen Display in CAMERA and PLAYER Modes)

1. Battery Level (See page 29)

2. Easy Mode (See pages 46)

3. Slow Shutter (See pages 68)

4. DSE (Digital Special Effects) Mode (See page 60)

5. BLC (Back Light Compensation) (See page 69)

6. Program AE (See page 55)

7. White Balance Mode (See page 57)

8. Manual Focus (See page 47)

9. POWER NITE PIX (See page 75)

10. Zoom Position (See page 48)

11. Shutter Speed and EXPOSURE (See page 67)

12. NITE PIX (See page 74)

13. DATE / TIME (See page 44)

14. USB (See page 116)

15. WL.REMOTE (See page 42)

16. WIND CUT (See page 64)

17. Audio recording mode (See page 63)

18. Message Line

19. Zero Memory Indicator (See page 80)

20. Remaining Tape (measured in minutes)

21. Tape Counter

22. Operating Mode

23. Record Speed Mode (See page 62)

24. PHOTO Mode (See page 73)

25. Self Recording and Waiting Timer (See page 24)

26. EIS (See page 59)

27. Audio Playback Channel (See page 72)

28. Volume Control (See page 34)

29. DV IN (DV data transfer mode) (See page 82)

30. DEW (See page 11)

ENGLISH

OSD in CAMCORDER mode

1 2 3

4 5 6 7 8

9 10

26 25 24 23 22

EASY S 1 / 30 MIRROR

BLC

SHUTTER EXPOSURE

TAPE !

NITE PIX

ZOOM

SHUTTER

. . . D

EXPOSURE

REC

M - 0 : 0 0 : 0 0

5 5 min

1 6 bit

1 2 : 0 0 AM

O C T. 1 0 , 2 0 0 3

OSD in TAPE PLAY mode

TAPE !

. . . D

0 : 0 0 : 0 0 : 0 0

5 5 min

1 6 bit

1 2 : 0 0 AM

O C T . 1 0 . 2 0 0 3

SOUND [ 2 ]

VOL. [ 1 1 ]

21 20 19 18 17 16 15 14

13 12

2121

ENGLISH

Getting to Know Your Device

OSD (On Screen Display in CAMERA/M.PLAY Modes)

1. Battery Level (See page 27)

2. DSE (Digital Special Effects) Mode (See page 99)

3. SPOT AE Mode (See page 101)

4. Focus Area

5. White Balance Mode (See page 98)

6. Manual Focus (See page 57)

7. NIGHT SCENE (See page 102)

8. FLASH Mode (See page 97)

9. MACRO Mode (See page 95)

10. Image Size (See page 104)

11. Image Counter

- Current still image/Total number of recordable still images.

12. CARD (MEMORY STICK) Indicator

13. Image Recording and Loading Indicator

14. Image Quality (See page 103)

15. Focus (See page 91)

16. SLIDE SHOW (See page 89)

17. ERASE PROTECTION indicator (See page 111)

18. Print Mark (See page 110)

19. Message Line

20. Folder number-file number (See page 85)

21. Continuous Shot (See page 95)

OSD in CAMERA mode

SUNSET

2 3

4 5

6 7

NIGHT SCENE

OSD in M.PLAY mode

SLIDE

1 0 0 - 0 0 0 1

0 0 1

MEMORY STICK !

131521

1 0 0 0 / 1 0 0 0

L 2 2 7 2

2 2 / 2 4 0

11 10 9

2222

Getting to Know Your Device

Turning the OSD ON/OFF (On Screen Display)

●

Turning OSD ON/OFF

Press the DISPLAY button.

- Each press of the button toggles the OSD function ON and OFF.

- When you turn the OSD OFF, In CAMCORDER / CAMERA mode: The STBY, REC, EASY.Q modes are always displayed on the OSD, even when the OSD is turned OFF. The key input is displayed for 3 seconds then turned off. In PLAYER mode: When you press any Function button, the function is displayed on the OSD for 3 seconds before it disappears.

●

Turning the DATE/TIME ON/OFF

- The DATE/TIME is not affected when the OSD function is switched ON or OFF.

- To turn the DATE/TIME ON or OFF, access the menu and change the DATE/TIME

mode. (See page 50)

- You may also use the Quick Menu to turn the DATE/TIME ON or OFF. (See page 65)

(only in CAMCORDER / CAMERA mode)

ENGLISH

2323

ENGLISH

START/STOP


REW/RPS

A.DUB STOP SELF TIMER

SLOW

PLAY FF/FPS

STILL ZERO MEM.

F.ADV

Preparation

How to use the Remote Control

Battery Installation for the Remote Control

✤ You need to insert or replace the lithium battery when :

- You purchase the camcorder.

- The remote control doesn’t work.

✤ Make sure that you insert the lithium cell correctly, following the + and - markings. ✤ Be careful not to reverse the polarity of the battery.

START/STOP


REW/RPS

A.DUB STOP SELF TIMER

F.ADV

STILL ZERO MEM.

PLAY FF/FPS

SLOW

START/STOP


REW/RPS

A.DUB STOP SELF TIMER

F.ADV

STILL ZERO MEM.

PLAY FF/FPS

SLOW

Self Timer Recording and Photography Using the Remote Control

When you use the Self Timer function on the remote control, recording begins automatically in 10 seconds.

1. Set the device to CAMCORDER or CAMERA mode.

2. Press the SELF-TIMER button until the appropriate indicator is displayed in the LCD or viewfinder.

3. Press the START/STOPbutton or the PHOTO Button to start the timer.

- After 10 seconds, recording or photography begins.

- Press START/STOP again when you want to stop recording.

2424

Self

Timer

Preparation

Adjusting the Hand Strap

It is very important to ensure that the Hand Strap has been correctly adjusted before you begin recording. The hand strap enables you to :

- Hold the camcorder in a stable, comfortable position.

- Press the Zoom START/STOP, and PHOTO button without having to change the position of your hand.

Hand Strap

a. Pull the Hand Strap cover open and release the Hand Strap. b. Adjust its length and stick it back into the Hand Strap cover. c. Close the Hand Strap cover.

Shoulder Strap

The Shoulder Strap enables you to carry your camcorder around in complete safety .

1. Insert the end of strap into the Shoulder Strap hook on the camcorder. Insert the other end of strap into the ring inside the hand strap.

2. Thread each end into the buckle, adjust the length of the strap and then pull it tight in the buckle.

ENGLISH

2525

ENGLISH

Preparation

Connecting a Power Source

There are two types of power sources that can be connected to your camcorder.

- The AC Power Adapter with the AC cord : used for indoor recording.

- The Battery Pack : used for outdoor recording.

To Use the AC Power Adapter and DC Cable

1. Connect the AC Power adapter to the AC cord.

2. Connect the AC cord to a wall socket. Note

The plug and wall socket type may differ according to your country of residence.

3. Connect the DC cable to the DC jack socket on the camcorder.

4. Set the camcorder to different modes by holding down the tab on the power switch and turning it to REC, TAPE PLAY, MEMORY PLAY modes.

2626

Preparation

Using the Lithium Ion Battery Pack

✤

The amount of continuous recording time available depends on :

- The type and capacity of the battery pack you are using.

- How often the Zoom function is used. It is recommended that you have several batteries available.

Charging the Lithium Ion Battery Pack

1. Attach the battery pack to the device.

2. Connect the AC Power adapter to the AC cord and connect the AC cord to a wall socket.

3. Connect the DC cable to the DC jack socket on the camcorder.

4. Turn the Camera power switch to OFF, and the charging indicator will start to flash, showing that the battery is charging.

Blinking time Charging rate

Once per second Less than 50% Twice per second 50% ~ 75%

Three times per second 75% ~ 90% Blinking stops and stays on 90 ~ 100%

On for a second and Error - Reset the battery pack and the off for a second DC cable

5. When the battery is fully charged, disconnect the battery pack and the AC Power adapter from the camcorder.

■

Even with the power switched off, the battery pack will still discharge if it is left connected to the camcorder.

ENGLISH

Notes

■

The battery pack may be charged a little at the time of purchase.

■

To prevent reduction in the life and capacity of the battery pack, always remove it from the camcorder after it is fully charged.

2727

ENGLISH

Preparation

Using the Lithium Ion Battery Pack

Table of Continuous Recording Time Based on Model and Battery Type.

✤ If you close the LCD screen, it switches off and the viewfinder switches on automatically. ✤ The continuous recording times given in the table above are approximations.

Actual recording time depends on usage.

Time

Battery

SB-L70G

SB-L110G

Charging

time

Approx.

1hr 20min

Approx.

1hr 40min

Continuous recording time

LCD ON EVF ON

Approx.

58min

Approx.

1hr 30min

Approx.

1hr 2min

Approx.

1hr 40min

Notes

■

The battery pack should be recharged in an environment between 32°F (0°C) and 104°F (40°C).

■

The battery pack should never be charged in a room temperature that is below 32°F (0°C).

■

The life and capacity of the battery pack will be reduced if it is used in temperatures below 32°F (0°C) or left in temperatures above 104°F (40°C) for a long period, even when it is fully recharged.

■

Do not put the battery pack near any heat source (fire or flames, for example).

■

Do not disassemble, apply pressure to, or heat the Battery Pack.

■

Do not allow the + and - terminals of the battery pack to be short-circuited. It may cause leakage, heat generation, induce fire or overheating.

2828

Preparation

Battery Level Display

•

The battery level display indicates the amount of power remaining in the battery pack.

a. Fully Charged b. 20~40% Used c. 40~80% Used d. 80~95% Used e. Completely Used (flickers)

(The device will turn off soon, change the battery as soon as possible)

✤ Please refer to the table on page 28 for approximate continuous recording times. ✤ The recording time is affected by temperature and environmental conditions.

The recording time becomes very short in a cold environment. The continuous recording times in the operating instructions are measured using a fully charged battery pack at 77°F(25°C). As the temperature and environmental conditions may differ from this when you actually use the camcorder, the remaining battery time may not be the same as the approximate continuous recording times given in these instructions.

ENGLISH

a b

c d

2929

ENGLISH

Preparation

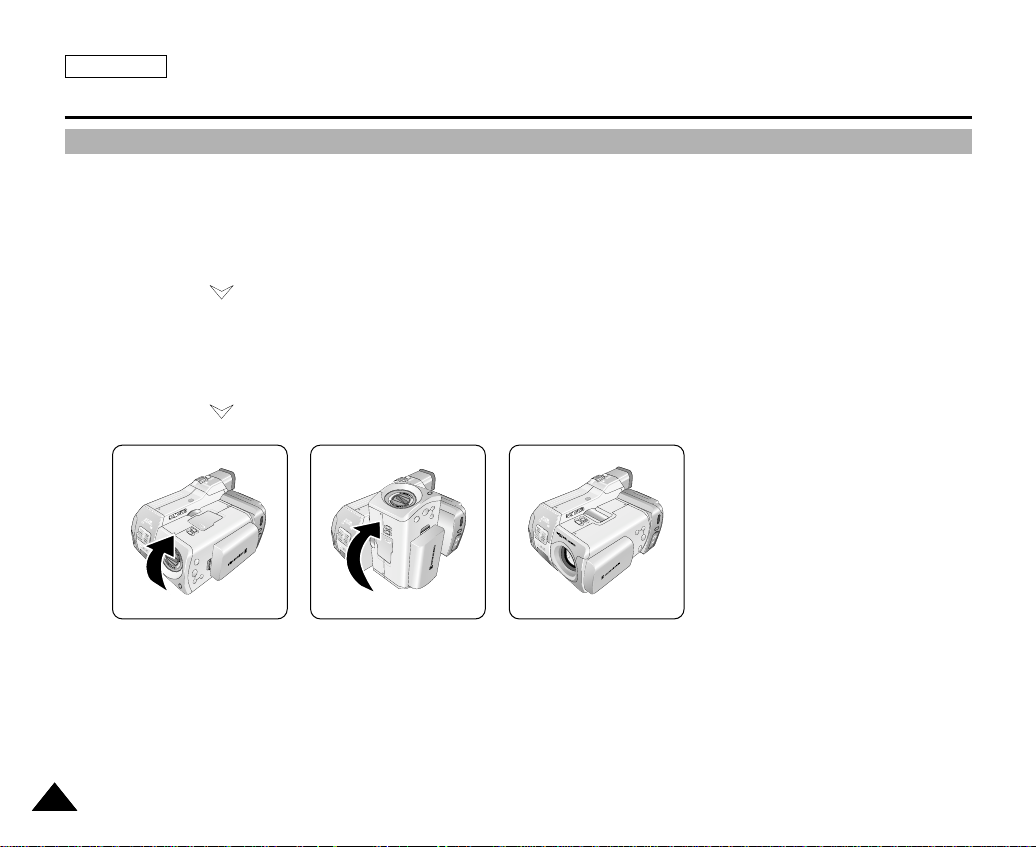

Setting to CAMCORDER / CAMERA modes

✤ This device switches between the DVC (Digital Video Camcorder) mode and the DSC (Digital Still Camera) mode by

revolving the Lens Body Block.

✤ Switching between CAMCORDER/CAMERA Modes

■

To set your device to CAMERA Mode from CAMCORDER Mode: Rotate the Lens Body Block 180° counterclockwise while pressing the Rotation Release Button (Left View).

* Follow the ( ) mark printed on the LENS body block when rotating it.

■

To set your device to CAMCORDER Mode from CAMERA Mode: Rotate the Lens Body Block 180° clockwise while pressing the Rotation Release Button (Left View).

* To rotate the LENS body block safely, please wait for the lens to shut after rotating 90°. After lens is shut, rotate the

LENS body block further.

* Follow the ( ) mark printed on the LENS body block when rotating it.

Warning

3030

■

Do not rotate the lens body block by force, or without pressing the Release button. It may break the device.

■

Rotating the Lens Body Block while power is being supplied may stop recording and cause problems with the device.

Preparation

FADE

S.SHOW

BLC

DELETE

REC

FADE

S.SHOW

BLC

DELETE

REC

FADE

S.SHOW

BLC

DELETE

REC

FADE

S.SHOW

BLC

DELETE

REC

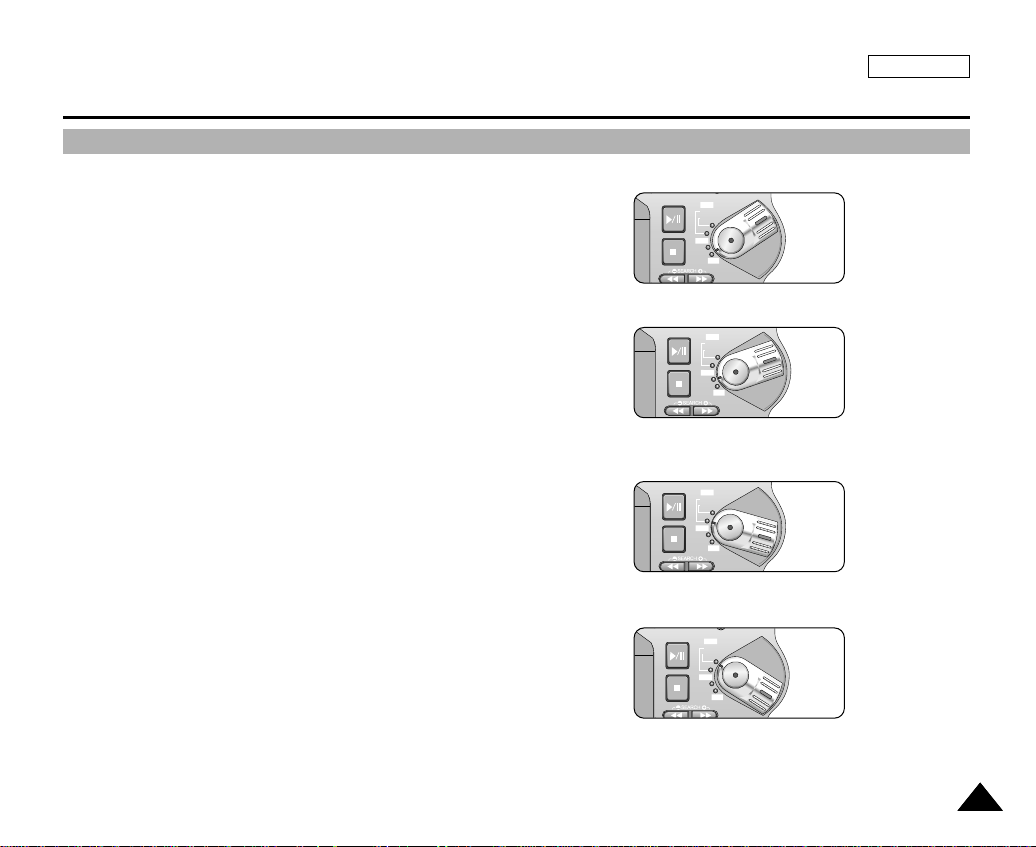

Setting the Power Switch

✤ Use the Power Switch to select the working modes of the device.

■

REC mode: Record onto a tape or store images on the Memory Stick.

■

OFF: Turn the device off. To recharge the battery, connect the power cable while the Power Switch is set to OFF.

■

TAPE PLAY (PLAYER) mode: Play and edit the recorded tape.

■

MEMORY PLAY (M.PLAY) mode: View and edit images and motion clips stored on the Memory Stick.

ENGLISH

3131

ENGLISH

CAMCORDER REC MODE

VIEWER SET

LCD ADJUST DATE / TIME TV DISPLAY

CAMCORDER REC MODE

INITIAL

LCD ADJUST DATE/TIME TV DISPLAY

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

LCD ADJUST

VIEWER SET

BRIGHT ADJUST . . . . . . [ 1 8 ]

COLOR ADJUST . . . . . . [ 1 8 ]

FADE

S.SHOW

BLC

DELETE

REC

Preparation

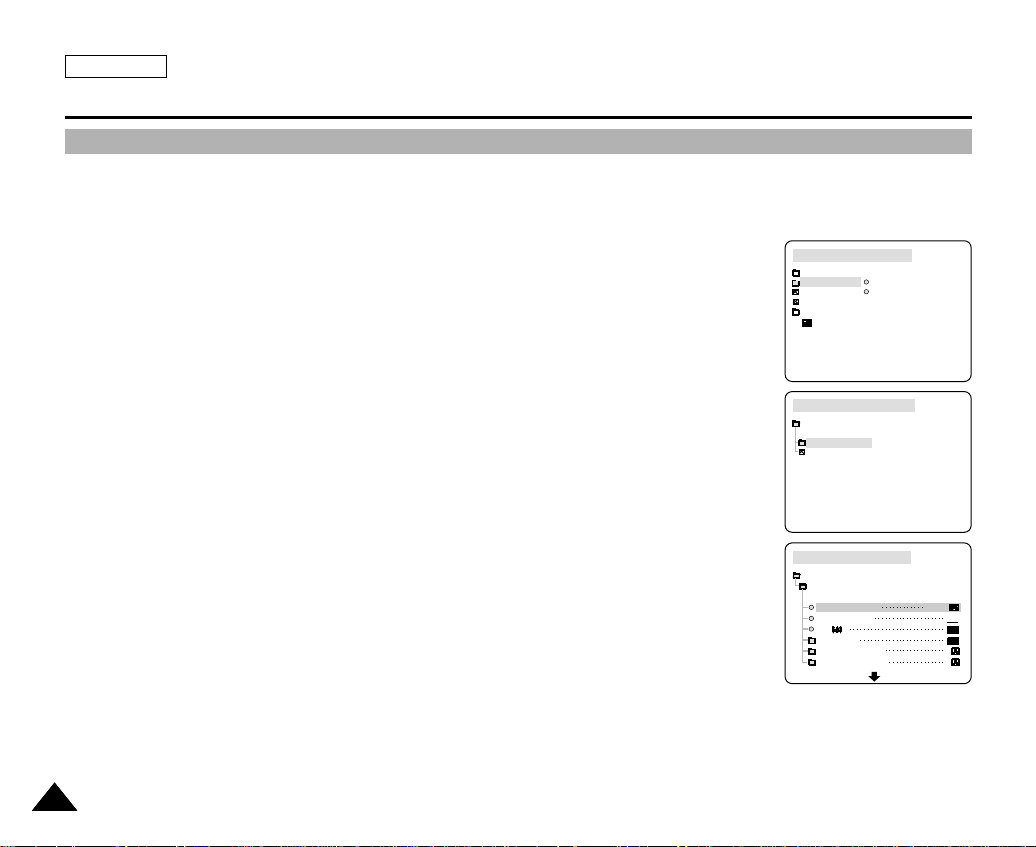

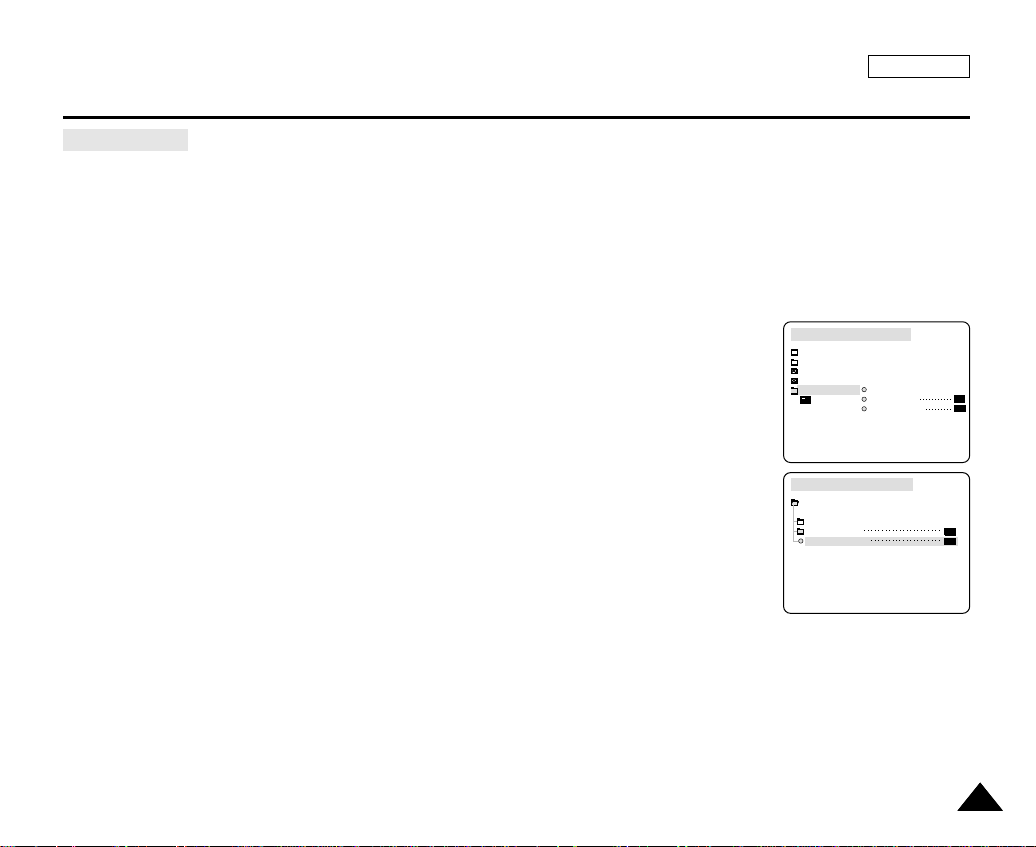

Adjusting the LCD

✤ Your camcorder is equipped with a 2 inch color Liquid Crystal Display(LCD) screen, which enables you to

view what you are recording and play back directly.

✤ Depending on the conditions under which you are using the camcorder (indoors or outdoors), you can

adjust ;

■

BRIGHT ADJUST

■

COLOR ADJUST

1. Set the POWER switch to REC mode.

■

In PLAYER mode, you can only setup the LCD while the tape is playing.

2. Open the LCD screen. The LCD switches on.

3. Press the MENU button.

4. Turn the MENU DIAL so that VIEWER is highlighted and then press the MENU DIAL.

5. Turn the MENU DIAL so that LCD ADJUST is highlighted.

6. Press the ENTER button to enter the sub-menu.

7. Turn the MENU DIAL so that it highlights the menu item you want to adjust (BRIGHT ADJUST, COLOR ADJUST).

3232

Preparation

8. Press the MENU DIAL.

■

Use the MENU DIAL to adjust the value of BRIGHT ADJUST and COLOR ADJUST.

■

You can set the values for BRIGHT ADJUST between 0 ~ 35 and COLOR ADJUST between 0 ~ 35.

9. Press the MENU button to complete the setting.

Using the VIEWFINDER

✤ The VIEWFINDER will not work when the LCD is open.

Adjusting the Focus

Use the focus adjustment knob on the VIEWFINDER to focus the picture. (refer to diagram)

ENGLISH

3333

0 : 2 3 : 4 7

5 5 min

1 2 : 0 0 AM

O C T . 1 0 . 2 0 0 3

VOL. [ 1 1 ]

FADE

S.SHOW

BLC

REV FWD

PLAY

REC

OFF

3434

ENGLISH

Preparation

Adjusting the LCD during PLAY

✤ You can adjust the LCD during playback. ✤ The adjustment method is the same as is used while in CAMERA mode. (See page 32)

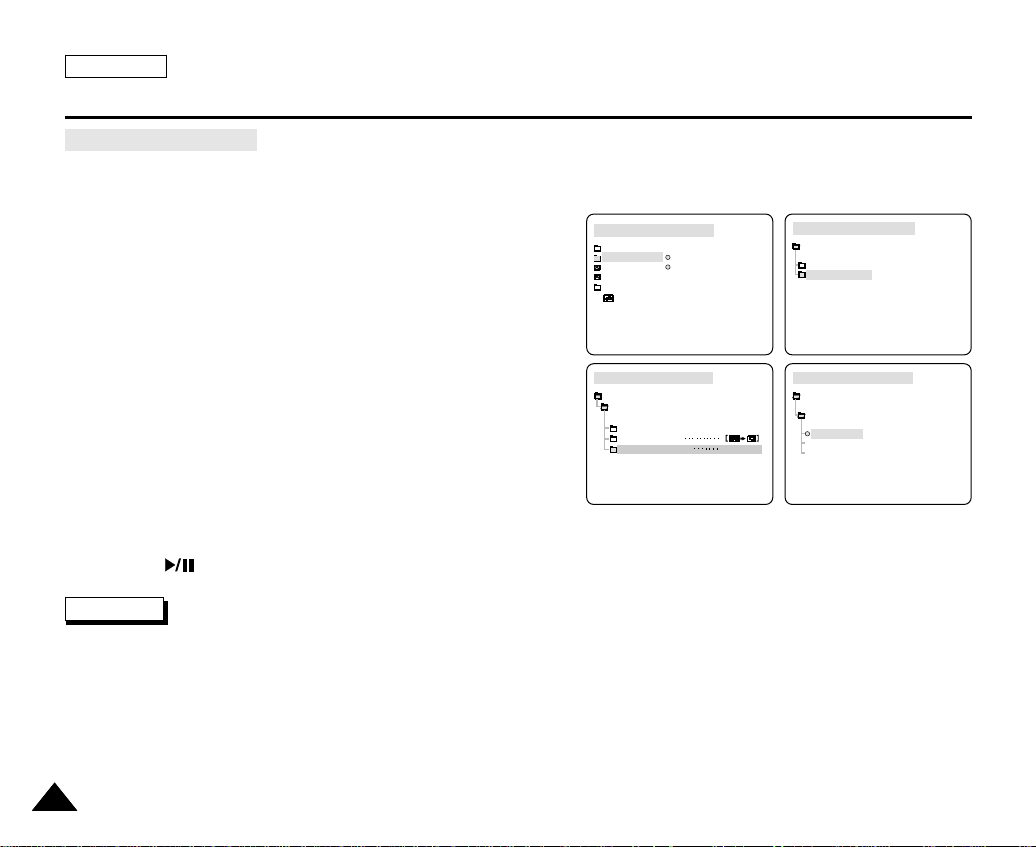

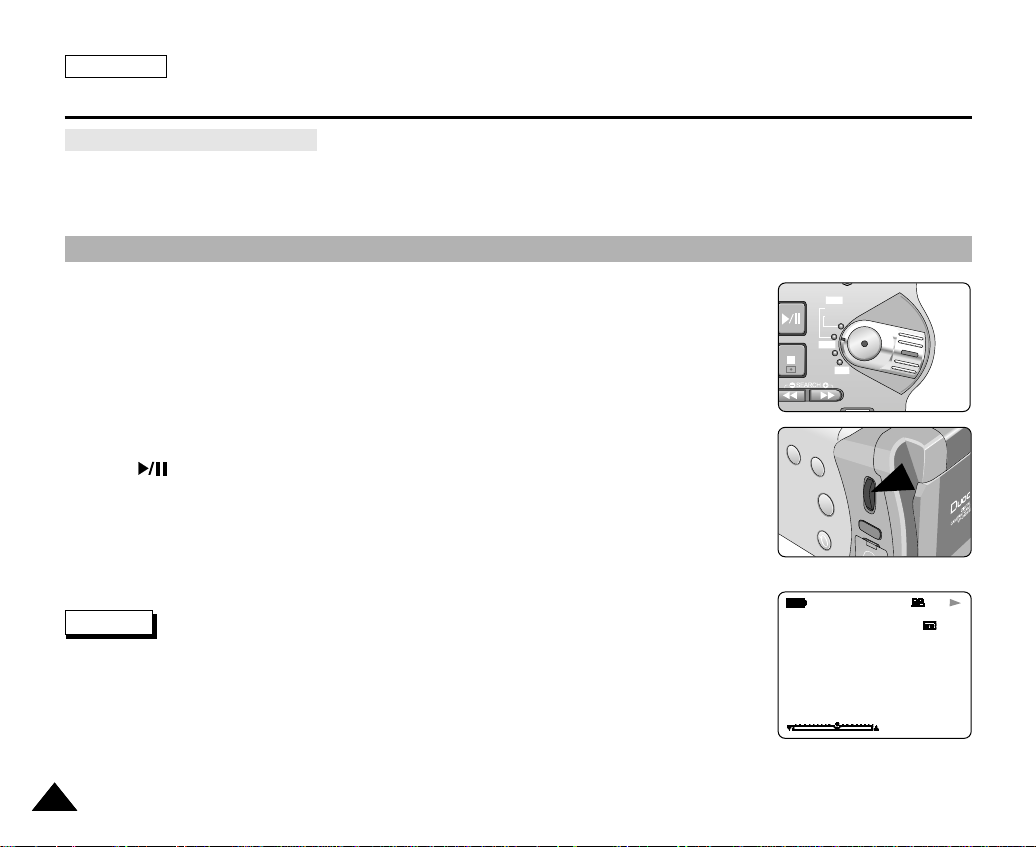

Controlling Sound from the Speaker

The Speaker only works in PLAYER mode.

■

When you use the LCD screen for playback, you can hear the recorded sound from the built-in Speaker.

- Follow the instructions below to decrease or mute speaker volume in PLAYER mode.

- Take the following steps to lower the volume or mute the sound while playing a tape

on the camcorder.

1. Set the device to CAMCORDER and set the Power Switch to PLAYER mode.

2. Press (PLAY/STILL) to play the tape.

3. Once the tape is in play and you hear sound, use the MENU DIAL to adjust the volume.

■

A Volume Level display will appear on the LCD. Levels may be adjusted from anywhere between 0 to 19. You will not hear any sound when the volume is set on 0.

■

If you close the LCD while playing, you will not hear sound from the speaker.

Notes

■

When the cable is connected to the A/V jack, you cannot hear sound from the speaker and cannot adjust the volume.

■

You can hear sound from the speaker by removing the connected cable from the A/V jack

<3-2>

ENGLISH

Functions

Using MENU

✤ Use the MENU button to change or select recording settings and Hardware functions. ✤ MENU instructions are displayed both on the LCD and the viewfinder. It is easier to manipulate your device using the LCD.

MENU SUB MENU Functions Page

CLOCK SET Setting the Time 41 WL.REMOTE Using the Remote Control 42

INITIAL

CAMCORDER

REC.LAMP Record Indicator BEEP SOUND Play Various Sound Effects SHUT. SOUND Sound Effect for the Photo button DEMO Demonstration 43

REC SELECT Selecting the Storage Media for Camcorder mode 50 REC MODE Selecting the Recording Speed 62 EIS Selecting the Image Stabilizing Function 59 D. ZOOM Selecting Digital Zoom in CAMCORDER Mode 58

RECORD SET

PROGRAM AE Selecting the PROGRAM AE Function 55 WHT. BALANCE Setting White Balance of CAMCORDER Mode 57 DSE SELECT Setting special effects in CAMCORDER Mode 60 AUDIO MODE Selecting Sound Quality for Recording 63 WIND CUT Removing Screen Noise 64 AV IN/OUT

Selecting AV in/out -

3535

ENGLISH

Functions

MENU SUB MENU Functions Page

PHOTO SEARCH Searching Pictures recorded in TAPE 73

CAMCORDER

CAMERA

MEMORY

VIEWER

PLAY SET

CONT. SHOT Continuous Shot 95 WHT. BALANCE Selecting White Balance in CAMERA Mode 98 D. ZOOM Selecting Digital Zoom in CAMERA Mode 93 DSE SELECT Setting special effects in CAMERAmode 99 M.PLAYSELECT Selecting Storage Media to MPEG playback 107

PHOTO SET

MPEG4 SIZE Selecting MPEG Resolution 108 PRINT MARK Printing Images 110 PROTECT Preventing Accidental Erasure 1 11 FILE NO File Naming Options 86 DELETE Deleting Files 112 FORMAT Formatting the Memory Stick 114 LCD ADJUST Setting the brightness and Color Tones of the LCD 32 DATE/TIME Setting the Date and Time 44 TV DISPLAY Selecting TV out 45

PHOTO COPY Copying Pictures from TAPE onto the Memory Stick 109 AUDIO SELECT Selecting the Audio playback channel 72

QUALITY SIZE

Selecting Image Quality 103 Selecting Image Resolution 104

3636

Functions

Setting menu items

ENGLISH

MENU SUB MENU

CLOCK SET WL.REMOTE

INITIAL

CAMCORDER

REC.LAMP BEEP SOUND SHUT. SOUND DEMO

RECORD SET

REC SELECT REC MODE EIS D. ZOOM PROGRAM AE WHT. BALANCE DSE SELECT AUDIO MODE WIND CUT AV IN/OUT

Available mode

REC TAPE PLAY MEMORY RECORD MEM.PLAY

✔✔✔✔ ✔✔✔✔ ✔✔ ✔✔✔✔ ✔✔✔ ✔ ✔ ✔✔ ✔ ✔ ✔ ✔ ✔ ✔✔ ✔✔

✔

3737

ENGLISH

Functions

MENU SUB MENU

CAMCORDER

CAMERA

MEMORY

VIEWER

PLAY SET

CONT. SHOT WHT. BALANCE D. ZOOM DSE SELECT M.PLAYSELECT

PHOTO SET

MPEG4 SIZE PRINT MARK PROTECT FILE NO DELETE FORMAT LCD ADJUST DATE/TIME

TV DISPLAY

PHOTO SEARCH PHOTO COPY AUDIO SELECT

QUALITY SIZE

Available mode

REC TAPE PLAY MEMORY RECORD MEM.PLAY

✔ ✔ ✔

✔ ✔ ✔ ✔

✔

✔✔

✔

✔ ✔

✔✔✔

✔

✔ ✔✔✔✔ ✔✔✔✔ ✔✔✔✔

3838

Functions

CAMCORDER REC MODE CAMCORDER SET

RECORD SET PLAY SET

Setting the Camcorder to REC, TAPE PLAY, MEMORY PLAY modes

●

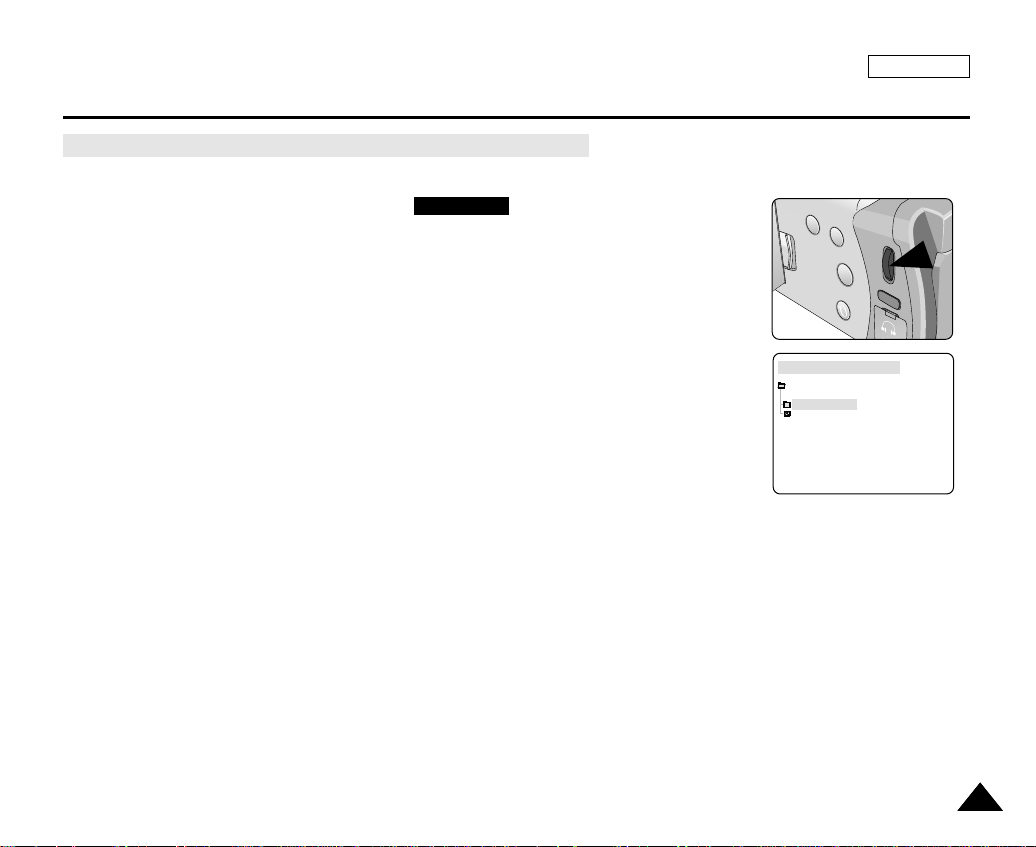

1. Press the MENU button.

2. The MENU OSD is displayed. The cursor ( HIGHLIGHT ) indicates the feature you are currently adjusting.

3. Use the MENU DIAL to move between items and press the MENU DIAL to select and activate an item.

4. You can exit Menu mode by pressing the MENU button.

ENGLISH

3939

ENGLISH

Functions

●

Availability of Functions in CAMCORDER Mode.

Requested

Operating Mode

D.ZOOM

SLOW SHUTTER

Digital Special Effects

NITE PIX

Mode

EIS


EIS

OOO

OOO OO

Digital functions

D.ZOOM


(TAPE)

OO O

SLOW

SHUTTER

O O

O : The requested mode will work in this operating mode. ✕ : You can not change the requested mode.

: The operating mode will be released and the requested mode will work. : The operating mode will be released and the requested mode will work.

(The data input while operating will be backed up)

Notes

■

When a menu item on the LCD is marked with an , that item cannot be activated.

■

When you select an item that cannot be changed, an error message will be displayed.

Digital special effects

NITE PIX

O O

4040

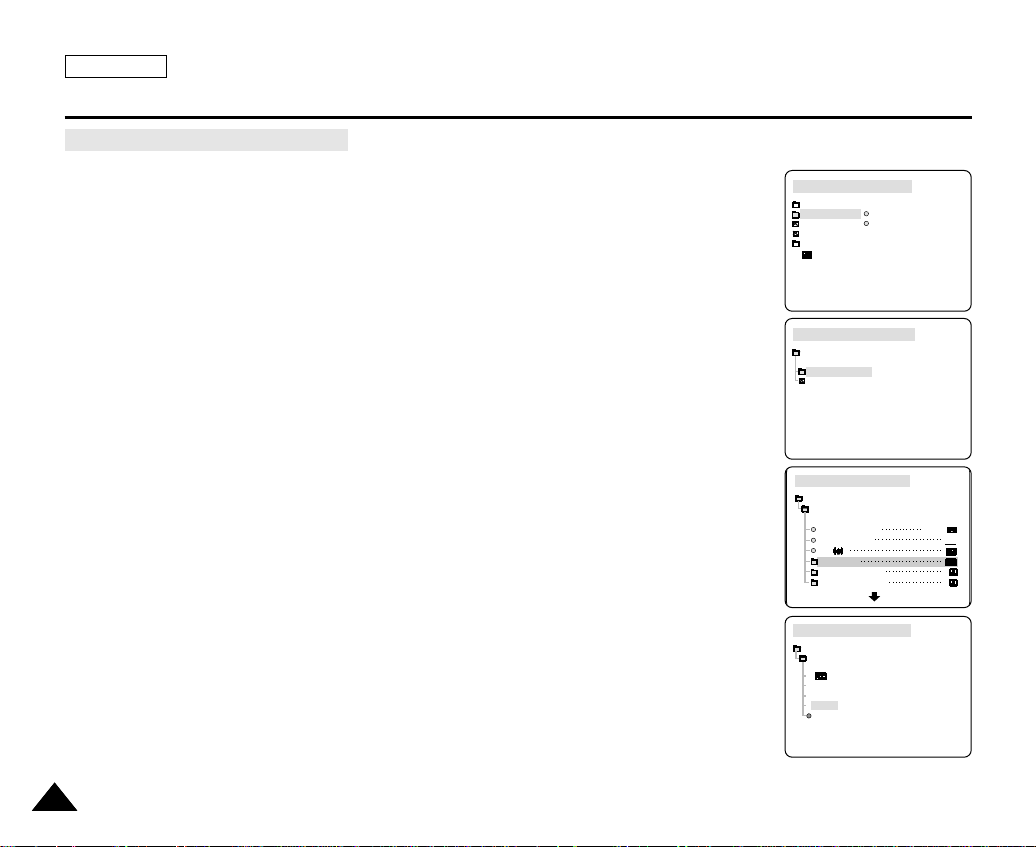

Functions

CAMCORDER REC MODE

INITIAL

CLOCK SET

WL. REMOTE REC LAMP BEEP SOUND SHUT. SOUND DEMO

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

INITIAL SET

CLOCK SET WL.REMOTE RECORD LAMP BEEP SOUND SHUTTER SOUND DEMONSTRATION

SET TIME!

- - - - - -

- - - - - - - - -

CAMCORDER REC MODE

INITIAL SET

CLOCK SET

1 0 : 0 0 AM

O C T. 1 0 , 2 0 0 3

●

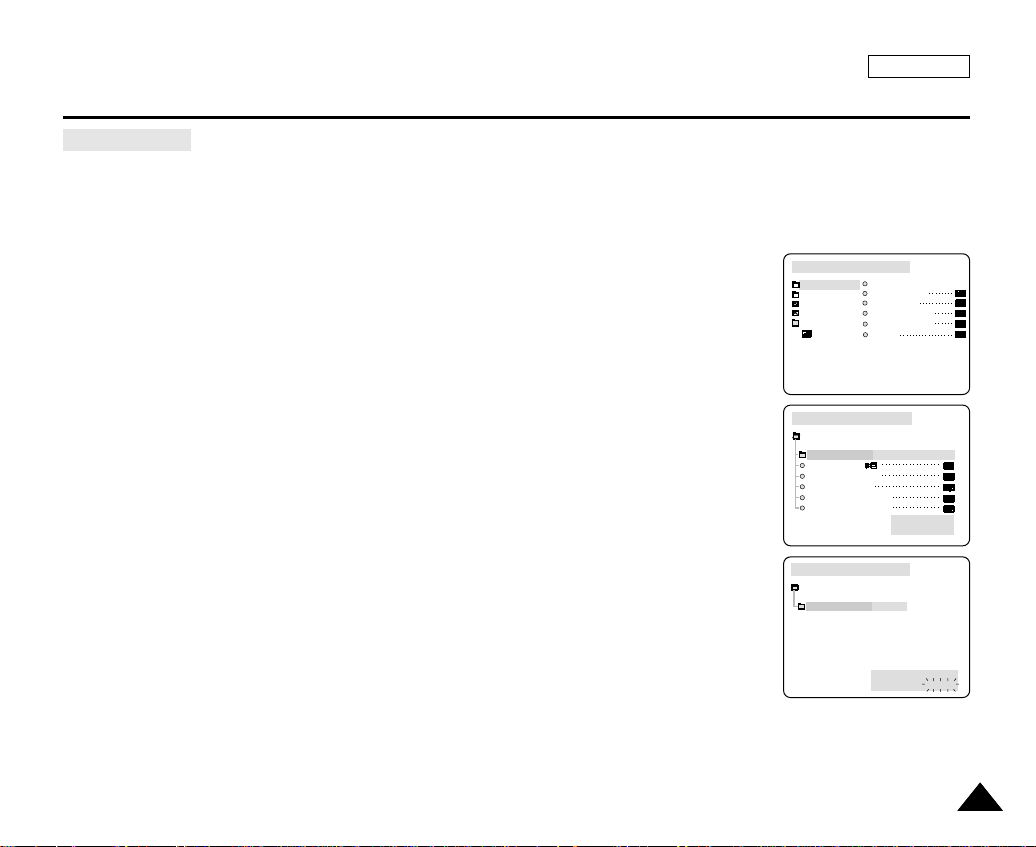

CLOCK SET

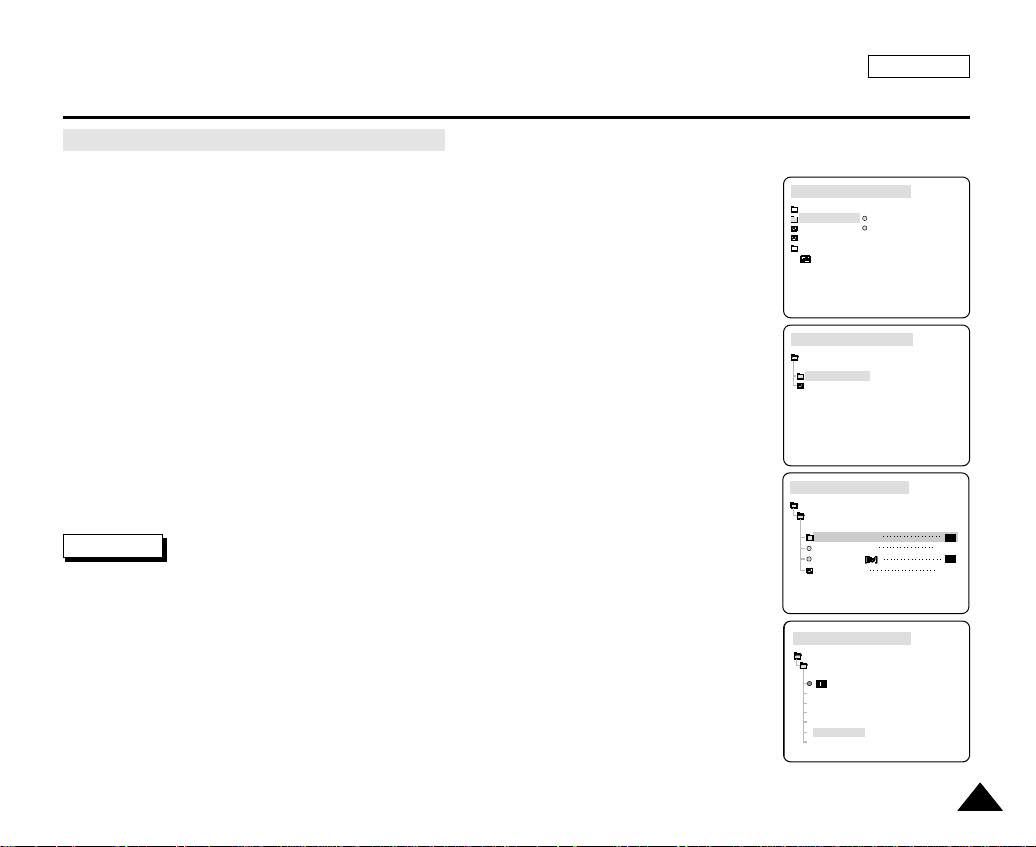

✤ CLOCK setup works in CAMCORDER or CAMERA modes.

✤ The DATE/TIME is automatically recorded onto the tape and Memory Stick.

Before recording or taking photos, please set the DATE/TIME.

1. Press the MENU button.

■

The menu list will appear.

2. Turn the MENU DIAL to highlight INITIAL and press the MENU DIAL.

3. Use the MENU DIAL to select CLOCK SET from the sub-menu.

4. Press the MENU DIAL to enter SETTING mode.

■

A blinking item indicates the item can be changed. The year will blink first.

5. Using the MENU DIAL, change the year setting.

6. Press the MENU DIAL.

■

The month will blink.

7. Using the MENU DIAL, change the month setting.

8. Press the MENU DIAL.

■

The day will blink.

9. You can set the day, hour and minute following the same procedure for setting the year and month.

10.Press the MENU DIAL after setting the minutes.

■

The word COMPLETE! will appear, and a few seconds later, the menu screen will automatically return to the sub menu.

11.To exit, press the MENU button.

ENGLISH

4141

ENGLISH

CAMCORDER REC MODE

INITIAL

CLOCK SET WL. REMOTE REC LAMP BEEP SOUND SHUT. SOUND DEMO

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

INITIAL SET

CLOCK SET WL.REMOTE RECORD LAMP BEEP SOUND SHUTTER SOUND DEMONSTRATION

SET TIME!

Functions

●

WL.REMOTE

✤ The WL.REMOTE function works in CAMCORDER or CAMERA modes. ✤ The WL.REMOTE option allows you to enable or disable the remote control for use in CAMCORDER and CAMERA

modes.

1. Press the MENU button.

■

The menu list will appear.

2. Turn the MENU DIAL to highlight INITIAL and press the MENU DIAL.

3. Use the MENU DIAL to select WL.REMOTE from the sub-menu.

4. Press the MENU DIAL to enable or disable the remote control. The setting switches between ON/OFF each time you press the MENU DIAL.

5. To exit, press the MENU button.

■

If you set the remote to OFF in the menu and try to use it, the remote control icon will blink for 3 seconds and disappear on the LCD.

4242

Functions

CAMCORDER REC MODE

INITIAL

CLOCK SET

WL. REMOTE REC LAMP BEEP SOUND SHUT. SOUND DEMO

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

INITIAL SET

CLOCK SET WL.REMOTE RECORD LAMP BEEP SOUND SHUTTER SOUND DEMONSTRATION

SET TIME!

●

DEMONSTRATION

✤ Demonstration automatically shows you the major functions that are included with your camcorder so that you may use

them more easily.

✤ The DEMONSTRATION function may only be used in the CAMCORDER mode without a tape inserted in the camcorder.

✤ The demonstration operates repeatedly until the DEMONSTRATION mode is switched OFF.

1. Set the device to CAMCORDER and set the power switch to REC mode.

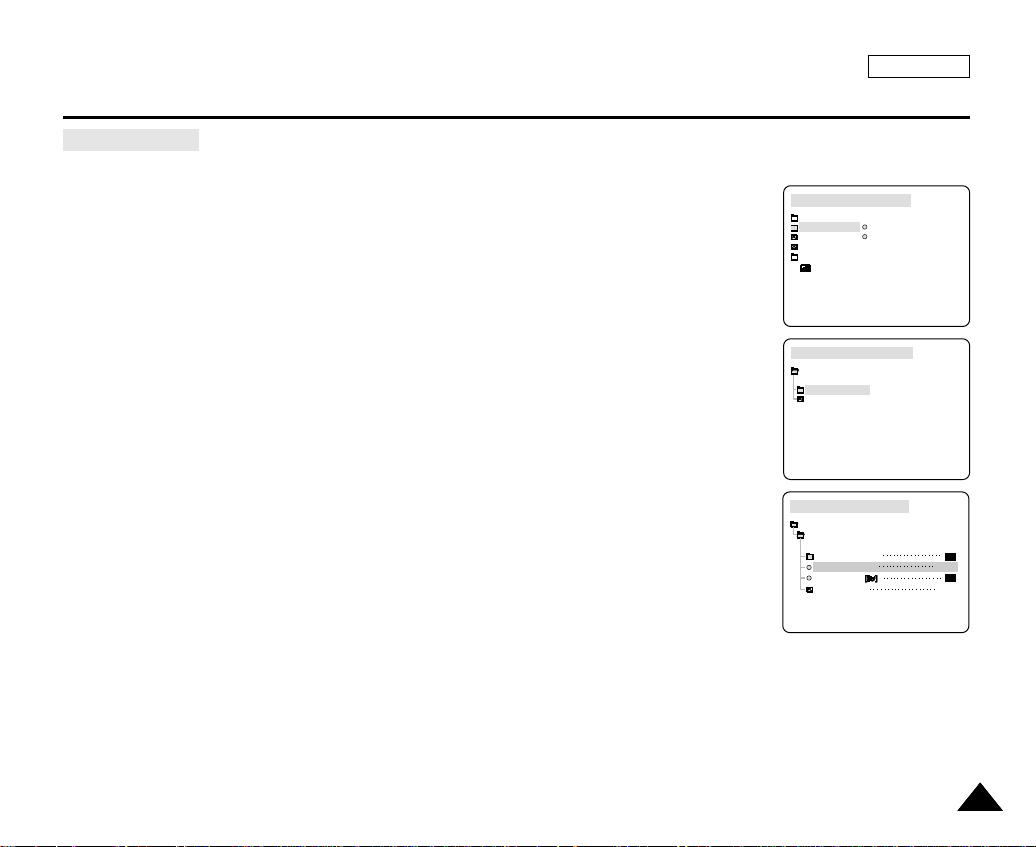

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight INITIAL.

4. Select DEMONSTRATION from the submenu and press the MENU DIAL.

5. To activate the DEMONSTRATION, set DEMONSTRATION to ON.

■

Press the menu button to quit the menu.

■

The demonstration will begin.

6. To end the DEMONSTRATION, set the DEMONSTRATION to OFF.

Notes

■

The DEMONSTRATION function only works when there is no TAPE installed.

■

The DEMONSTRATION mode is automatically activated when the camcorder is left idle for more than 10 minutes after

switching to CAMCORDER mode (when no tape is inserted in the camcorder).

■

If you press other buttons (FADE, BLC, PHOTO, EASY) during the DEMONSTRATION mode,

the DEMONSTRATION stops temporarily and resumes 10 minutes later if you do not operate any other functions.

ENGLISH

4343

ENGLISH

CAMCORDER REC MODE

VIEWER SET

LCD ADJUST DATE / TIME TV DISPLAY

CAMCORDER REC MODE

INITIAL

LCD ADJUST DATE/TIME TV DISPLAY

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

DATE / TIME

VIEWER SET

DATE TIME DATE & TIME

Functions

●

DA TE/TIME

✤ The DATE/TIME function works in CAMCORDER or CAMERA mode and PLAY modes. ✤ The date and time are automatically recorded on a special data area of the tape.

1. Press the MENU button.

■

The menu list will appear.

2. Turn the MENU DIAL to highlight VIEWER and press the MENU DIAL.

3. Turn the MENU DIAL to highlight DATE/TIME.

4. Press the MENU DIAL to select the sub-menu.

5. Using the MENU DIAL, select DATE/TIME mode.

■

You can choose to display - OFF, DATE, TIME, DATE/TIME

- OFF

- DATE only

- TIME only

- DATE & TIME

■

To return to the previous menu, highlight the DATE/TIME in the middle and press the MENU DIAL.

6. To exit, press the MENU button. Notes

■

The DATE/TIME is not affected by the OSD ON/OFF (DISPLAY) button.

■

The DATE/TIME will read “- - -” in the following conditions.

- During playback of a blank section of a tape.

- If the tape was recorded before setting the DATE/TIME in the Camera’s memory.

- When the lithium battery becomes weak or dead.

■

Before you can use the DATE/TIME function, you must set the Clock. See CLOCK SET on page 41.

4444

Functions

CAMCORDER REC MODE

VIEWER SET

LCD ADJUST DATE / TIME TV DISPLAY

CAMCORDER REC MODE

INITIAL

LCD ADJUST DATE/TIME TV DISPLAY

CAMCORDER CAMERA MEMORY VIEWER

●

TV DISPLAY

✤ The TV DISPLAY function works in CAMCORDER or CAMERA modes. ✤ You can select the output path of the OSD (On Screen Display).

■

OFF: The OSD appears on the LCD screen only.

■

ON: The OSD appears on the LCD screen, EVF and TV.

■

Use the DISPLAY button located on the left side of the camcorder to turn ON/OFF all of the OSD displayed on the LCD/EVF/TV.

1. Set the Power switch to REC or PLAY modes.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight VIEWER and press the MENU DIAL.

4. Select TV DISPLAY mode from the list, press the ENTER button.

■

The DISPLAYmode switches between ON/OFF with each push.

5. To exit, press the MENU button.

ENGLISH

4545

ENGLISH

0 : 0 0 : 0 0

1 0 : 0 0 AM

O C T . 1 0 , 2 0 0 3

STBY

EASY

5 5 min

Functions

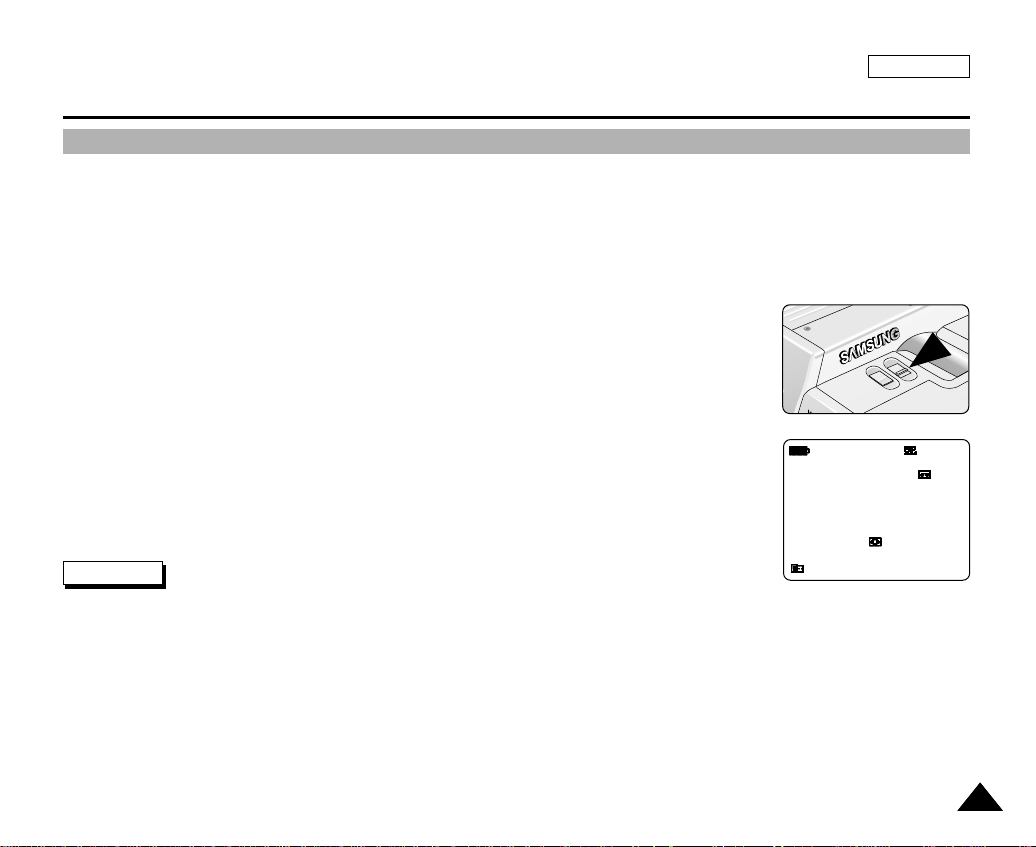

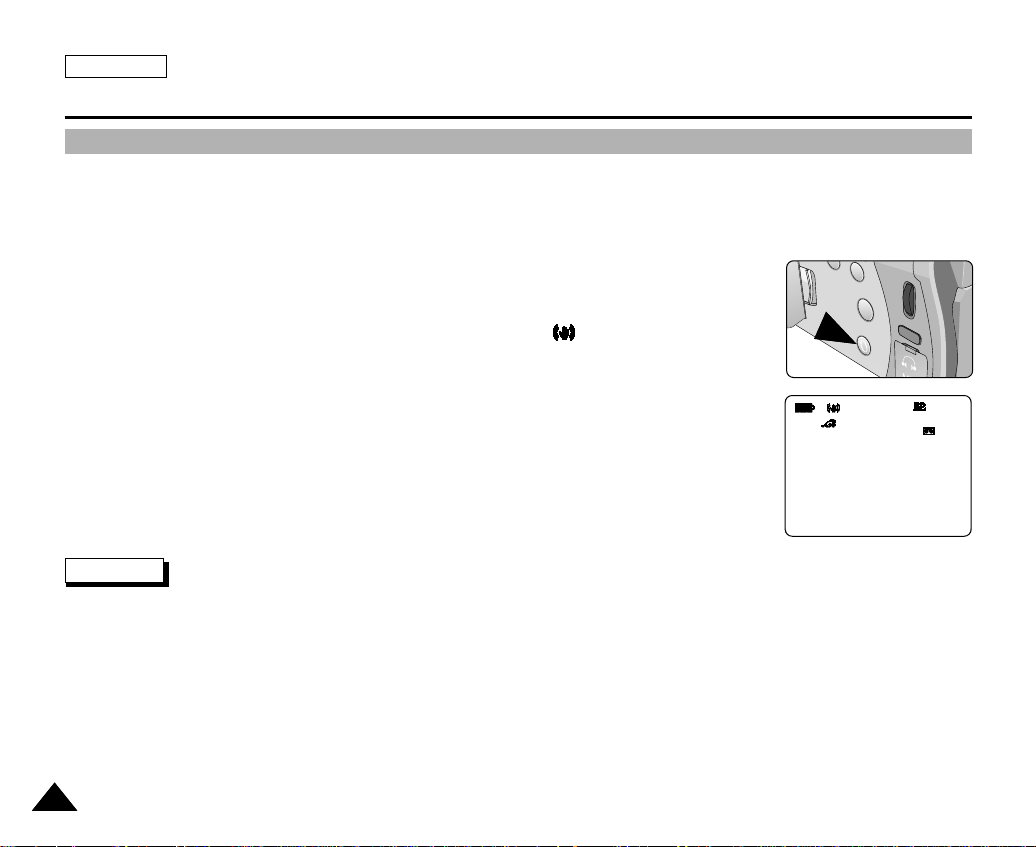

EASY Mode (for Beginners)

✤ The EASY mode allows a beginner to easily make good recordings.

■

The EASY mode only operates in CAMCORDER and CAMERA modes.

1. Set the Power Switch to REC mode.

2. By pressing the EASY button, all functions on the camera will be set to OFF and the recording settings will be set to the following basic modes:

■

Battery level, recording mode, counter, DATE/TIME, and EIS ( ) will be displayed.

■

The word “EASY.Q” will appear on the LCD at the same time. However, the DATE/TIME will only be seen if it has been previously set. (See page 44)

3. Press the START/STOPor PHOTO button to start recording.

■

Recording will begin using the basic automatic settings.

4. Press the EASY button again to turn EASY mode off.

■

The EASY function will not turn off when you are recording.

■

The camera will return to the settings that were set prior to activating EASY mode.

Notes

■

In EASY mode, certain functions are not available, such as MENU, FADE, BLC, MF/AF.

- If you want to use these functions, you must first turn EASY mode off.

■

The EASY mode settings are deleted when the battery pack is uninstalled from the camcorder and therefore, they must be reset when a battery pack has been replaced.

4646

ENGLISH

FADE

S.SHOW

BLC

REC

Functions

MF/AF (Manual Focus/Auto Focus)

✤ The MF/AF function works in CAMCORDER and CAMERA modes. ✤ In most situations, it is better to use the automatic focus

feature, as it enables you to concentrate on the creative side of your recording.

✤ Manual focusing may be necessary under certain conditions that make automatic focusing difficult and/or unreliable.

Auto Focusing

✤ In CAMCORDER Mode, turning on the device will set it to automatic focus . In

CAMERA Mode, pressing the Photo Button halfway down will set the focus.

Manual Focusing

✤ In the following cases you may obtain better results by adjusting the focus manually.

a. A picture containing several objects, some close to the camcorder,

others further away. b. A person enveloped in fog or surrounded by snow. c. Very shiny or glossy surfaces like a car. d. People or objects moving constantly or quickly like an athlete or a crowd.

1. Set the Power Switch to REC mode.

2. Press the MF Button.

■

MF Icon( ) is displayed on the LCD screen.

3. Turn the MENU DIAL up or down until the object is in focus.

■

Zoom out a little if focusing is difficult.

4. To return to AF, press the MF Button again.

4747

ENGLISH

Functions

Zooming In and Out with DIGITAL ZOOM

✤ The Zoom works in CAMCORDER and CAMERA modes.

Zooming In and Out

✤ Zooming is a recording technique that lets you change the size of the subject in a scene.

For more professional looking recordings, do not use the zoom function too often.

✤ You can zoom using variable zoom speeds. ✤ Use these features for different shots. Please note that over-use

of the zoom feature can lead to unprofessional looking results and a reduction of battery usage time.

1. Move the zoom lever slowly for

1-1 1-2

a gradual zoom, move it faster for a high-speed zoom. Your zooming can be monitored on the OSD.

2. T(Telephoto) side: Subject appears closer.

3. W(Wide angle) side: Subject appears

TELE

farther away.

WIDE

Note

You can record a subject that is a minimum of 1 m (about 2.65 feet) away from the lens surface in the TELE position, or about 10 mm (about 0.5 inch) away in the WIDE position.

4848

Using the CAMCORDER - Basic Recording

Inserting and Ejecting a Cassette

✤ When inserting a tape or closing the cassette holder, do not apply excessive force.

This may cause a malfunction. ✤ Do not use any tapes other than Mini DV cassettes.

1. Connect a power source. Slide the TAPE OPEN/EJECT switch and open

the cassette door.

- The cassette holding mechanism rises automatically.

2. Insert a tape into the cassette holder with the tape window facing outward and

the protection tab toward the top.

3. Press the area labelled PUSH on the cassette holding mechanism until

it clicks into place.

- The cassette is loaded automatically.

4. Close the cassette door.

- Close the door completely until you can hear a “click”.

Notes

When you have recorded something that you wish to keep, you can protect it so that it will not be accidentally erased.

a. Protecting a Tape :

Push the safety tab on the cassette so that the hole is uncovered.

b. Removing the protection from a tape :

If you no longer wish to keep the recording on the cassette, push the write-protect tab

back so that it covers the hole.

•

How to Store a Tape

a. Avoid places with magnets or magnetic interference. b. Avoid humidity and dust prone places. c. Keep the tape in an upright position and avoid storing it in direct sunlight. d. Avoid dropping or knocking your tapes.

3 4

ENGLISH

a. SAVE

b. REC

4949

ENGLISH

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

REC SELECT REC MODE EIS D. ZOOM PROGRAM AE WHT. BALANCE

TAPE

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

Using the CAMCORDER - Basic Recording

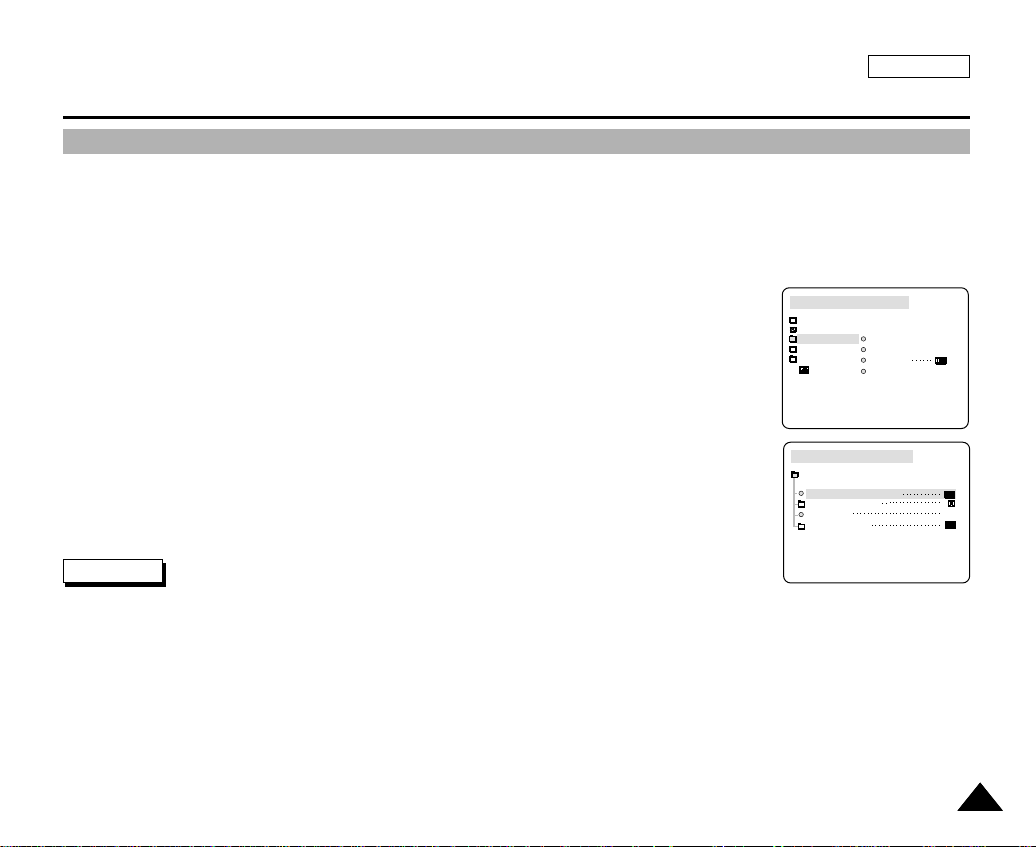

To select the CAMCORDER mode

✤ You can select either a tape or the Memory Stick as the storage media for motion clips. ✤ Use M.Play mode to view the motion clips stored on the Memory Stick.

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL highlight to CAMCORDER and press the MENU DIAL.

■

The sub-menu list will appear.

4. Select RECORD SET from the sub-menu and press the MENU DIAL.

5. Turn the MENU DIAL to activate REC SELECT, press the MENU DIAL.

■

CAMCORDER mode toggles between TAPE and MEMORY with each press.

6. The menu list will disappear.

5050

Using the CAMCORDER - Basic Recording

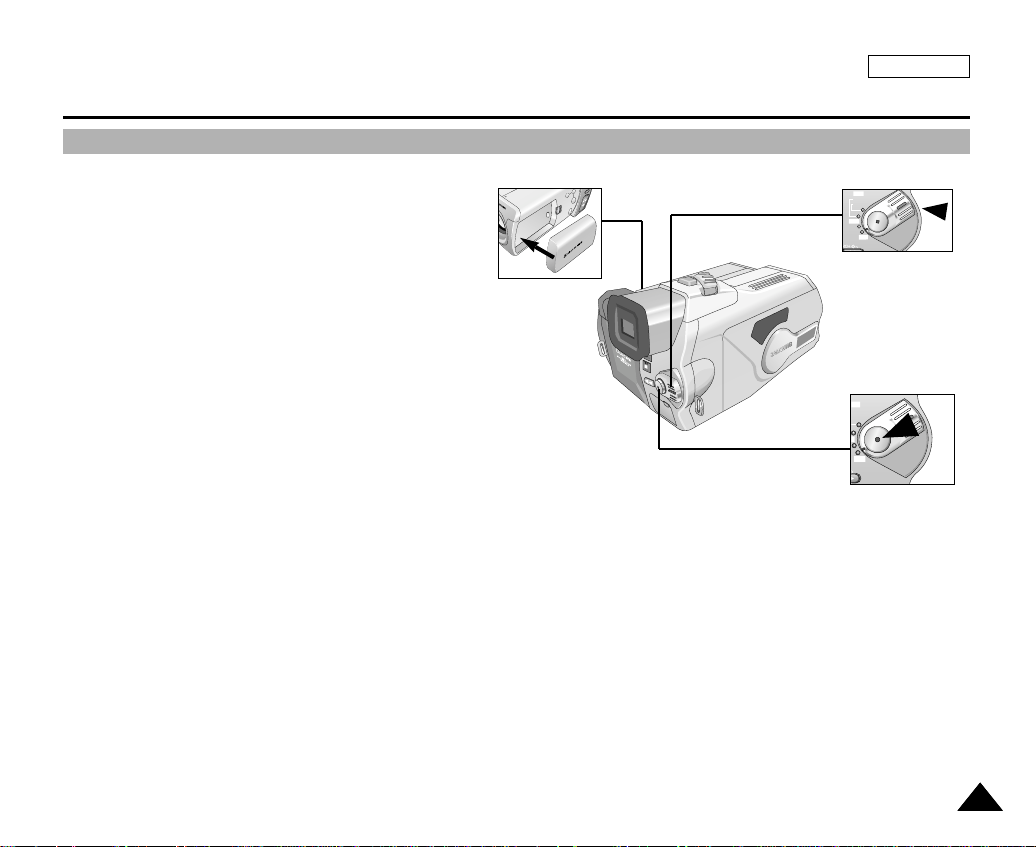

Making Your First Recording

1. Connect a Power source to the camcorder.

(See page 26)

(A battery pack or the AC power adapter)

■

Insert a cassette. (See page 49)

2. Set the device to CAMCORDER and set the power

switch to REC mode.

■

Open the LCD monitor.

■

If the protection tab of the cassette is open, the words STOP and PROTECTION! will be displayed.

■

Make sure the image you want to record appears on the LCD monitor or viewfinder.

■

Make sure the battery level indicates that there is enough remaining power for your expected recording time.

3. To start recording, press the START/STOP button.

■

REC is displayed on the LCD. To stop recording, press the START/STOP button again.

■

STBY is displayed on the LCD.

ENGLISH

TAPE

MEMORY

REC

5151

ENGLISH

FADE

S.SHOW

BLC

REV FWD

DELETE

REC

FADE

S.SHOW

BLC

REV FWD

DELETE

REC

Using the CAMCORDER - Basic Recording

When a cassette is loaded and the camcorder is left in the STBY mode for more than 5 minutes without being used, it will automatically turn off. To use it again, push the START/STOP button or set the Power switch to OFF and then back to CAMERA. This Auto Power Off feature is designed to save battery power.

Record Search (REC SEARCH)

✤ You can view a recording using the REC SEARCH +, -- function in STBY mode.

REC SEARCH -- enables you to play the recording backwards and REC SEARCH + enables you to play it forwards, for as long as you keep each button pressed down.

✤ If you press the REC SEARCH -- button in STBY mode, your camcorder will play

in reverse for 3 seconds and return to the original position automatically.

Note

Mosaic shaped distortion may appear on the screen while in Record Search mode.

5252

Using the CAMCORDER - Basic Recording

Hints for Stable Image Recording

✤ When recording, it is very important to hold the camcorder correctly. ✤ Fix the LENS cap firmly by clipping it to the hand strap. (refer to the diagram)

Recording with the LCD Monitor

1. Hold the camcorder firmly using the hand strap.

2. Place your right elbow against your side.

3. Place your left hand under or beside the LCD to support and adjust it.

Do not touch the built-in microphone.

4. Choose a comfortable, stable position for the shots that you are taking.

You can lean against a wall or on a table for greater stability.

Do not forget to breathe gently.

5. Use the LCD frame as a guide to determine the horizontal plane.

6. Whenever possible, use a tripod.

Recording with the Viewfinder

1. Hold the camcorder firmly using the hand strap.

2. Place your right elbow against your side.

3. Place your left hand under the camcorder to support it.

Be sure not to touch the built-in microphone.

4. Choose a comfortable, stable position for the shots that you are taking.

You can lean against a wall or on a table for greater stability.

Do not forget to breathe gently.

5. To view an object through the viewfinder, pull it out until you hear a ‘click’ sound.

Pulling with excessive force may cause damage to the viewfinder.

6. Place your eye firmly against the viewfinder eyecup.

7. Use the viewfinder frame as a guide to determine the horizontal plane.

8. Whenever possible, use a tripod.

ENGLISH

5353

ENGLISH

FADE

S.SHOW

BLC

REV FWD

DELETE

PLAY

Using the CAMCORDER - Basic Recording

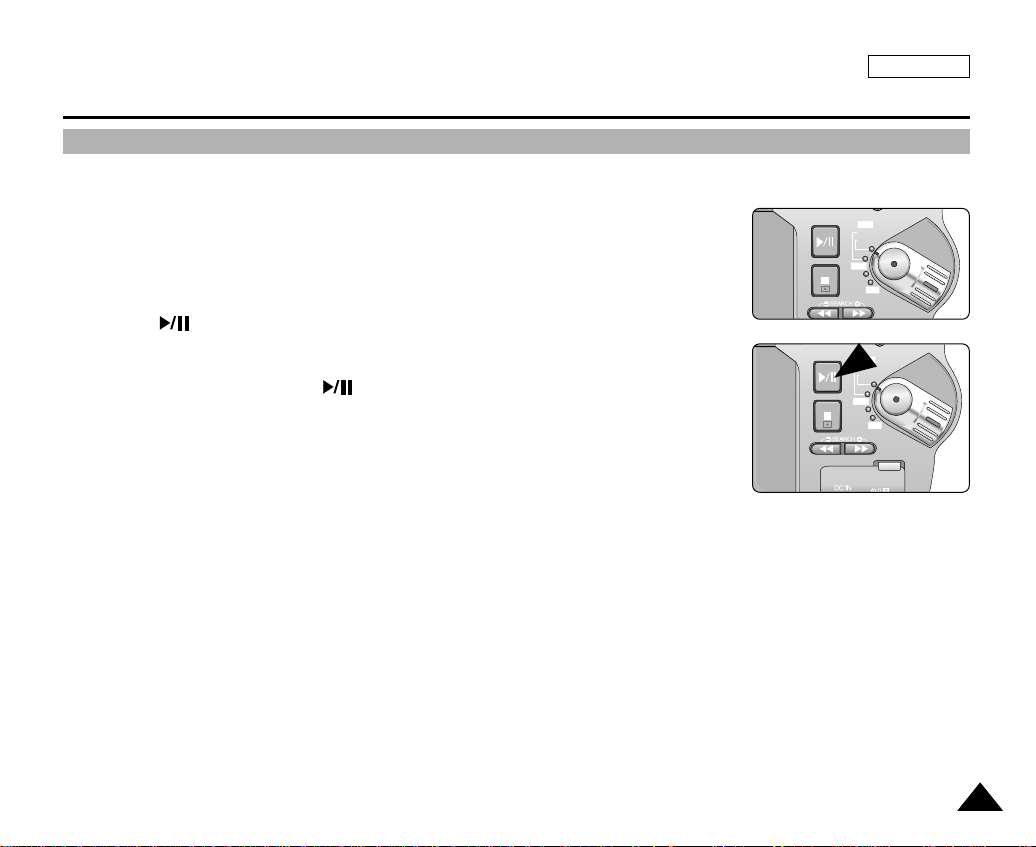

Playing Back a Tape You Have Recorded on the LCD

✤ You can monitor the playback picture on the LCD monitor. ✤ Make sure that the battery pack is in place.

1. Set the device to CAMCORDER and the Power Switch to PLAY mode.

2. Insert the tape you wish to view. (See page 49)

3. Open the LCD screen. Adjust the angle of the LCD screen and set the brightness or color if necessary.

4. Press the (REW) button to rewind the tape to the starting point.

■

To stop rewinding, press the (STOP) button.

■

The camcorder stops automatically after rewinding is complete.

5. Press the (PLAY/STILL) button to start the playback.

■

You can view the pictures you recorded on the LCD.

■

To stop the PLAY operation, press the (STOP) button.

FADE

S.SHOW

BLC

REC

Notes

■

You can also view the picture on a TV screen, after connecting the camcorder to a TV or VCR. (See page 77)

■

Various functions are available in Playback mode. (See page 79)

5454

Using the CAMCORDER - Advanced Recording

●

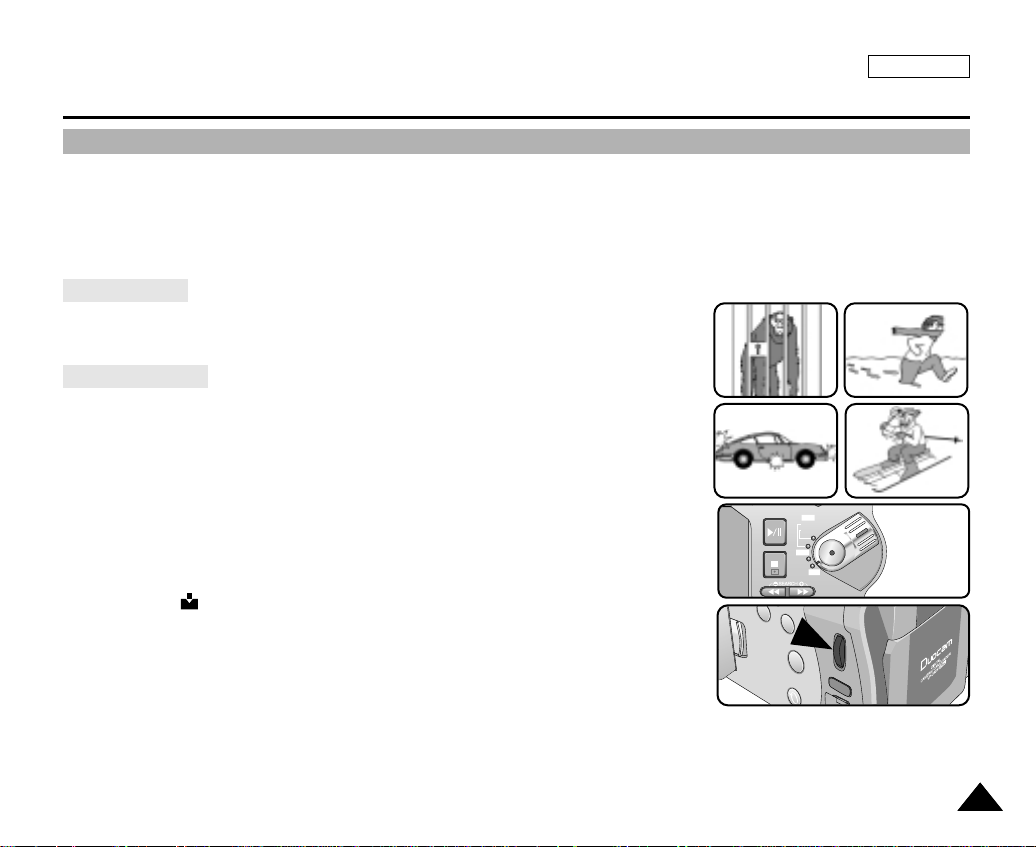

PROGRAM AE

✤ The PROGRAM AE function works in CAMCORDER mode only. ✤ PROGRAM AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions. ✤ It gives you creative control over the depth of field.

■

AUTO Mode

- Auto balance between the subject and the background.

- To be used in normal conditions.

- The shutter speed automatically varies from 1/60 to 1/250 per second, depending on the scene.

■

SPORTS Mode ( )

- For recording people or objects which are moving quickly.

■

PORTRAIT Mode ( )

- For focusing on the background of a subject, when the background is out of focus.

- PORTRAIT mode is most effective when used outdoors.

- The shutter speed automatically varies from 1/60 to 1/1000 per second.

■

SPOTLIGHT Mode ( )

- For proper recording when there is only light on the subject and not the rest of the picture.

■

SAND/SNOW Mode ( )

- For recording when people or objects are darker than the background because of reflected light from sand or snow.

ENGLISH

■

High S. SPEED(High Shutter Speed) Mode ( )

- For recording fast-moving subjects such as players in golf or tennis games.

5555

ENGLISH

CAMCORDER REC MODE

PROGRAM AE

AUTO SPORTS PORTRAIT SPOTLIGHT SAND / SNOW HIGH S. SPEED

RECORD SET

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

REC SELECT REC MODE EIS D. ZOOM PROGRAM AE WHT. BALANCE

TAPE

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

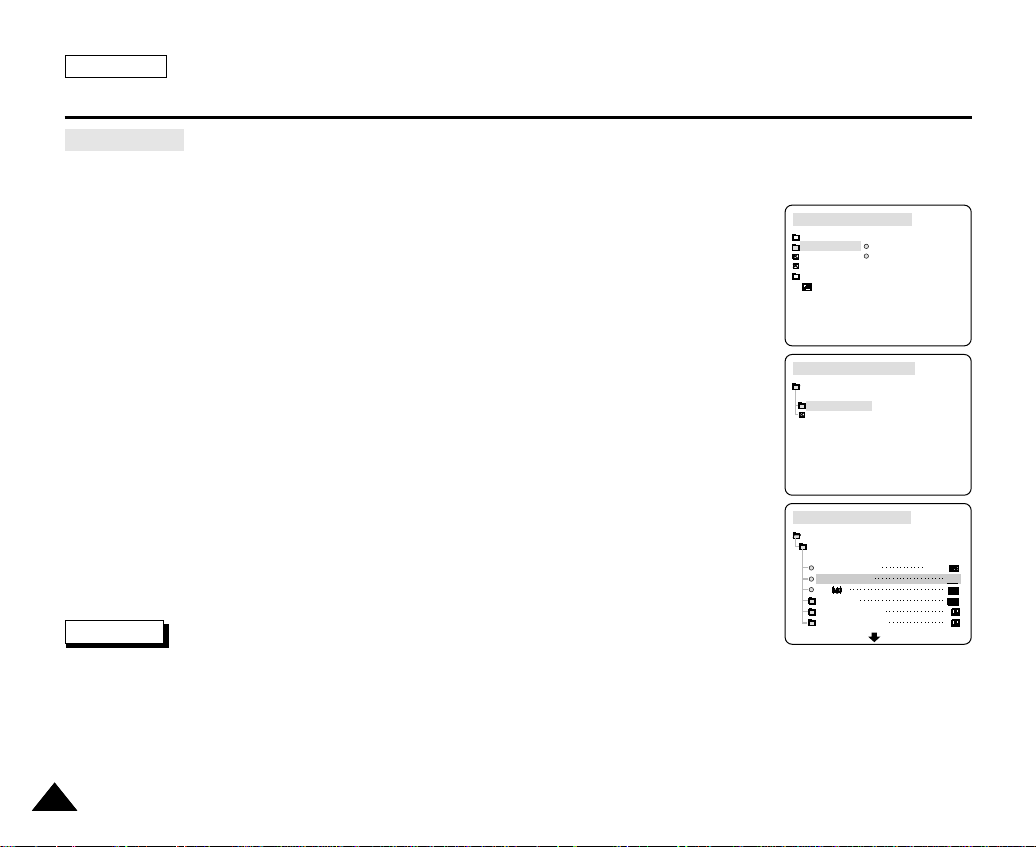

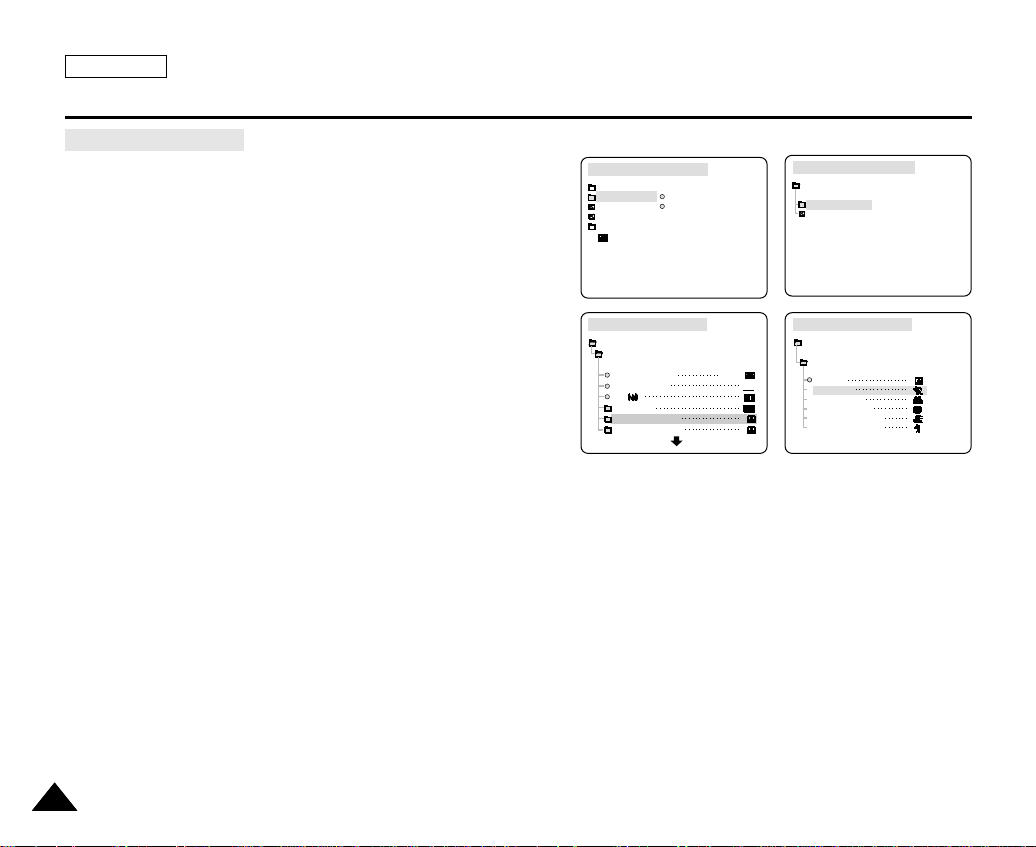

Using the CAMCORDER - Advanced Recording

Setting PROGRAM AE

1. Press the MENU button.

■

The menu list will appear.

2. Turn the MENU DIAL to highlight CAMCORDER and press the MENU DIAL.

3. Select PROGRAM AE from the sub-menu.

4. Press the MENU DIAL to enter the sub-menu.

5. Using the MENU DIAL, select one of the PROGRAM AE modes.

■

Press the MENU DIAL to confirm the Program AE mode you have selected.

6. To exit, press the MENU button.

5656

Using the CAMCORDER - Advanced Recording

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

REC SELECT REC MODE EIS D. ZOOM PROGRAM AE WHT. BALANCE

TAPE

CAMCORDER REC MOD

INITIAL

RECOR PLAY

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

AUTO HOLD

WHT. BALANCE

INDOOR OUTDOOR

RECORD SET

●

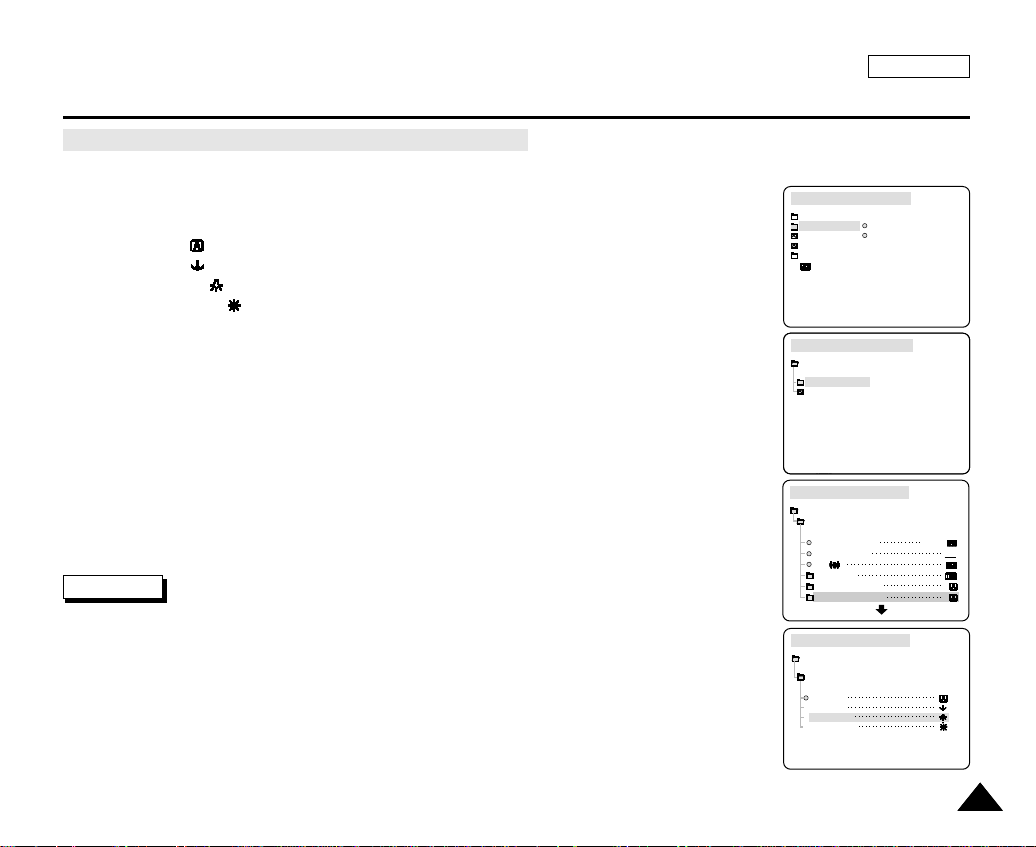

WHT. BALANCE (WHITE BALANCE) - CAMCORDER Mode

✤ The WHITE BALANCE function in CAMCORDER mode is a recording function that

preserves the unique color of the object under any recording condition.

✤ You may select the appropriate WHITE BALANCE mode to obtain high quality color in the

image.

■

AUTO ( ) : This mode is generally used to control the WHITE BALANCE automatically.

■

HOLD ( ) : This fixes the current WHITE BALANCE value.

■

INDOOR ( ) : This controls the WHITE BALANCE according to indoor ambience.

■

OUTDOOR ( ) : This controls the WHITE BALANCE according to outdoor ambience.

1. Set the camcorder to CAMERA mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight CAMCORDER and press the MENU DIAL.

4. Select WHT.BALANCE from the submenu.

5. Press the ENTER button to enter the sub-menu.

6. Using the MENU DIAL, select the WHITE BALANCE function you wish to use.

■

Press the ENTER button to confirm the WHITE BALANCE function you have selected.

7. To exit, press the MENU button.

Notes

■

While setting NITE PIX to ON, the WHT.BALANCE function does not work.

■

The WHT.BALANCE function will not operate in EASY mode.

■

Turn the Digital Zoom off (if necessary) to set a more accurate White Balance.

■

If you have set the White Balance and the lighting conditions change, reset the White Balance.

■

For normal outdoor recording, setting the White Balance to AUTO may provide the best results.

ENGLISH

5757

ENGLISH

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

REC SELECT REC MODE EIS D. ZOOM PROGRAM AE WHT. BALANCE

TAPE

CAMCORDER REC MODE

DIGITAL ZOOM

100X 200X 400X

RECORD SET

800X

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

Using the CAMCORDER - Advanced Recording

Digital Zoom in CAMCORDER Mode

✤ Zooming more than 10x is achieved digitally. ✤ The picture quality may deteriorate depending on how

much you zoom in on the subject.

✤ We recommend that you use the EIS feature with DIGITAL ZOOM for picture stability. (See

page 59)

1. Set the power switch to CAMCODER or CAMERA mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to CAMCORDER and press the MENU DIAL.

4. Select RECORD SET from the sub-menu and press the MENU DIAL.

5. Select D.ZOOM from the sub-menu.

6. Press the MENU DIAL to setup the 100x, 200x, 400x, 800x digital zoom function or to turn the feature OFF.

7. To exit, press the MENU button.

5858

ENGLISH

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

REC SELECT REC MODE EIS D. ZOOM PROGRAM AE WHT. BALANCE

TAPE

Using the CAMCORDER - Advanced Recording

●

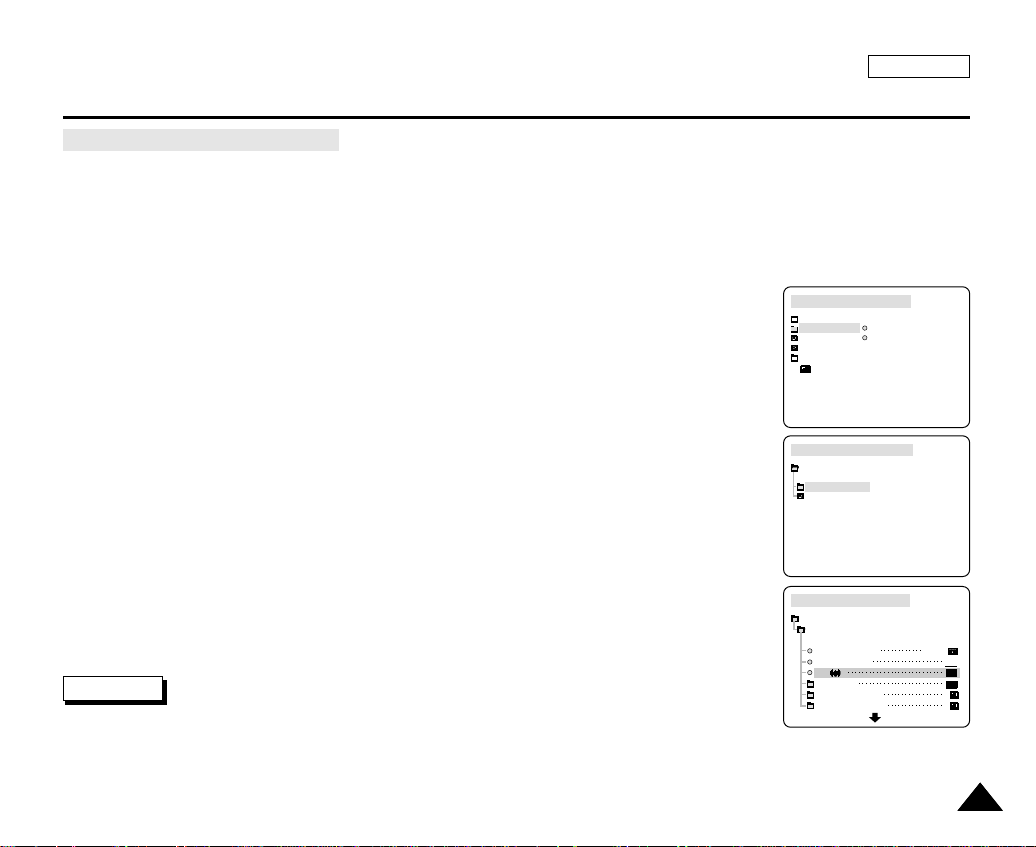

EIS (Electronic Image Stabilizer)

✤ The EIS function works in CAMCORDER mode only. ✤ EIS (Electronic Image Stabilizer) is a function that compensates for any shaking or hand movement while holding the

camcorder (within reasonable limits).

✤ It provides more stable pictures when:

■

Recording with the zoom

■

Recording a small object close-up

■

Recording and walking at the same time

■

Recording through the window of a vehicle

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL highlight to CAMCORDER and press the MENU DIAL.

■

The sub-menu list will appear.

4. Select RECORD SET from the sub-menu and press the MENU DIAL.

5. Turn the MENU DIAL to activate the EIS function, then press the MENU DIAL.

■

The EIS menu is changed to ON.

■

If you do not want to use the EIS function, set the EIS menu to OFF.

6. To exit, press the MENU button. Note

■

It is recommended that you deactivate the shake compensation function when using a tripod.

5959

ENGLISH

Using the CAMCORDER - Advanced Recording

●

DSE(Digital Special Effects) SELECT in CAMCORDER Mode

✤ The DSE function works in CAMCORDER mode only. ✤ The digital effects enable you to give a creative look to your recording by adding various special effects. ✤ Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create. ✤ There are 9 DSE modes.

a. ART Mode

This mode gives the images a coarse effect.

b. MOSAIC Mode

This mode gives the images a mosaic effect.

c. SEPIA Mode

This mode gives the images a reddish-brown pigment.

d. NEGA Mode

This mode reverses the colors of the images, creating a negative image.

e. MIRROR Mode

This mode cuts the picture in half, using a mirror effect.

f. BLK & WHT Mode

This mode changes the images to black and white.

g. EMBOSS Mode

This mode creates a 3D effect (embossing).

h. CINEMA Mode

This mode covers the upper/lower portions of the screen to create a cinematic effect.

i. MAKE - UP Mode

This mode allows the images to be colored red, green, blue or yellow.

6060

e f

Using the CAMCORDER - Advanced Recording

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

DSE SELECT AUDIO MODE WIND CUT AV IN/OUT

12bit

OUT

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

DSE SELECT

ART MOSAIC SEPIA

RECORD SET

NEGA MIRROR BLK&WHT

Selecting a Digital Effect in CAMCORDER Mode

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight CAMCORDER and press the MENU DIAL.

4. Select RECORD SET from the sub-menu and press the MENU DIAL.

5. Select DSE SELECT from the sub-menu.

6. Press the MENU DIAL to enter the sub-menu.

7. Using MENU DIAL, select the DSE mode you wish to use.

■

Press the MENU DIAL to confirm the DSE mode you have selected.

8. To exit, press the MENU button.

Notes

■

While setting NITE PIX to ON, the DSE function does not work.

■

The DSE function will not operate in EASY mode.

ENGLISH

6161

ENGLISH

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

REC SELECT REC MODE EIS D. ZOOM PROGRAM AE WHT. BALANCE

TAPE

Using the CAMCORDER - Advanced Recording

●

REC MODE

✤ The REC MODE function works in both CAMCORDER and PLAY(DV IN) modes. ✤ This camcorder records and plays back in SP (standard play) mode and in LP (long play)

mode.

■

SP (standard play): This mode permits 60 minutes of recording time with a DVM60 tape.

■

LP (long play): This mode permits 90 minutes of recording time with a DVM60 tape.

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight CAMCORDER and press the MENU DIAL.

4. Select RECORD SET from the sub-menu and press the MENU DIAL.

5. Turn the MENU DIAL to highlight REC MODE and press the MENU DIAL.

6. Select REC MODE from the sub-menu and press the MENU DIAL.

■

The REC MODE toggles between SP and LP with each press.

7. To exit, press the MENU button.

Notes

■

We recommend that you use this camcorder to play back any tapes recorded on this camcorder. Playing back a tape recorded in other equipment may produce mosaic shaped distortion.

■

When you record a tape in SP and LP modes, or LP mode only, the playback picture may be distorted or the time code may not be written properly between scenes.

■

Record using SP mode for the best picture and sound quality.

6262

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

DSE SELECT AUDIO MODE WIND CUT AV IN/OUT

16bit

OUT

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

Using the CAMCORDER - Advanced Recording

●

AUDIO MODE

✤ The AUDIO MODE function works in CAMCORDER mode. ✤ This camcorder records sound in two ways. (12bit, 16bit)

■

12bit : You can record two 12bit stereo sound tracks.

The original stereo sound can be recorded onto the MAIN (SOUND1) track.

■

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight CAMCORDER and press the MENU DIAL.

4. Select RECORD SET from the sub-menu and press the MENU DIAL.

5. Turn the MENU DIAL to highlight AUDIO MODE and press the MENU DIAL.

6. Select the AUDIO MODE you wish to use from the menu then press the MENU DIAL.

■

The AUDIO MODE toggles between 12bit-16bit with each press of the dial.

7. To exit, press the MENU button.

Additional stereo sound can be dubbed onto the SUB (SOUND2) track.

16bit : You can record one high quality stereo sound using the 16bit recording mode.

Audio dubbing is not possible when using this mode.

ENGLISH

6363

ENGLISH

CAMCORDER REC MODE

CAMCORDER SET RECORD SET

DSE SELECT AUDIO MODE WIND CUT AV IN/OUT

12bit

OUT

CAMCORDER REC MODE

CAMCORDER SET

RECORD SET PLAY SET

CAMCORDER REC MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

Using the CAMCORDER - Advanced Recording

●

WIND CUT

✤ The WIND CUT function works in CAMCORDER, and PLAY modes. ✤ The WIND CUT function minimizes wind noise or other noise while recording.

- When the wind cut is on, some low sounds are eliminated along with the sound of the wind.

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight CAMCORDER and press the MENU DIAL.

4. Select RECORD SET from the sub-menu and press the MENU DIAL.

5. Turn the MENU DIAL to highlight WIND CUT and press the MENU DIAL.

6. This feature toggles ON/OFF each time you press the MENU DIAL.

7. To exit, press the MENU button.

Notes

■

Make sure WIND CUT is set to OFF when you want the microphone to be as sensitive as possible.

■

Use the WIND CUT when recording in windy places such as the beach or near buildings.

6464

ENGLISH

Using the CAMCORDER - Advanced Recording

Using Quick Menu(Navigation Menu)

✤ Quick Menu is available only in CAMCORDER mode. ✤ Quick Menu is used to adjust camera functions by simply using the MENU SELECTOR dial.

This feature is useful for when you want to make simple adjustments without having to access the menus and sub-menus.

■

DA TE/TIME

- Each time you select DATE/TIME and press the MENU DIAL, it will be displayed in the order of DATE - TIME -

DATE/TIME - OFF(See page 50).

■

WL.REMOTE( )

- Each time you select WL.REMOTE and press the MENU DIAL, the WL.REMOTE is switched to

either enabled ( ) or disabled ( ) .

■

EIS( )

- Each time you select EIS and press the MENU DIAL, the EIS icon is displayed or set to OFF.

■

DSE(Digital Special Effect) (See page 60)

- Each time you select DSE and press the MENU DIAL, the DSE preset values are applied or set to OFF.

DSE values will not switch between ON and OFF if they have not been preset in the menu.

■

PROGRAM AE (See page 55)

- Each time you select PROGRAM AE and press the MENU DIAL, you can choose between the preset PROGRAM AE

value and AUTO. You can’t choose between AUTO and the PROGRAM AE value if the value has not been preset in the regular menu.

6565

ENGLISH

SHUTTER EXPOSURE

0 : 0 0 : 0 0

1 0 : 0 0 AM

O C T . 1 0 , 2 0 0 3

MIRROR

FADE

S.SHOW

BLC

REC

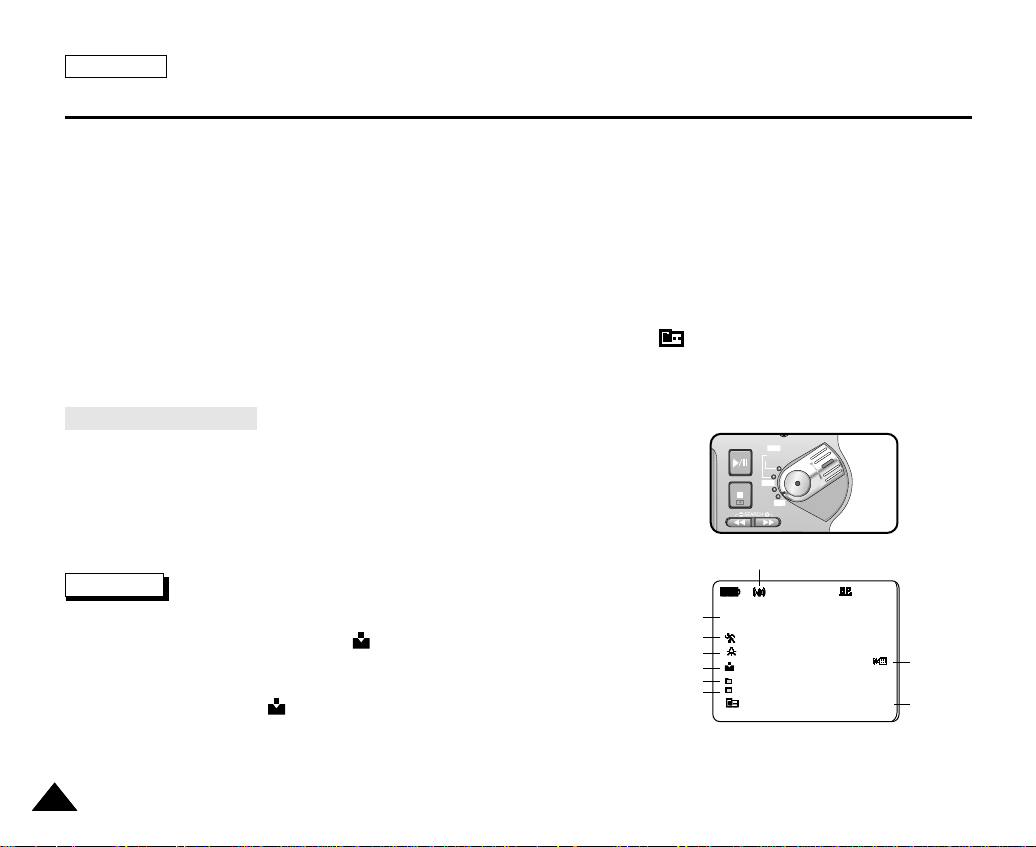

Using the CAMCORDER - Advanced Recording

■ WHT. BALANCE (See page 57)

- Each time you select WHT. BALANCE and press the MENU DIAL, you can choose between the preset WHT.BALANCE value and AUTO. As in PROGRAM AE, you can't choose between AUTO and- WHT.BALANCE value if it has not been preset..

■ FOCUS (Manual Focus/Auto Focus) (See page 47)

- Each time you select FOCUS and press the MENU DIAL, the FOCUS is switched to either Manual Focus (MF) or Auto Focus.

■ SHUTTER SPEED & EXPOSURE

- You can set values for SHUTTER SPEED and EXPOSURE by selecting the ( ) icon and pressing the MENU DIAL. For more information, see the next chapter.

Setting the Quick Menu

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Turn the MENU DIAL to select a function you want and then press the MENU DIAL to change the values.

Notes

■

The Quick Menu function will not operate in EASY mode.

■

If you are using the Manual FOCUS( ) function, you cannot use the Quick Menu. If you want to use the Quick Menu function, exit the Manual FOCUS( ) mode.

6666

DSE

PROGRAM AE

WHT. BALANCE

MANUAL FOCUS

SHUTTTER

EXPOSURE

EIS

WL.REMOTE

DATE/TIME

Using the CAMCORDER - Advanced Recording

SHUTTER SPEED & EXPOSURE

✤ You can set SHUTTER SPEED and EXPOSURE only in CAMCORDER mode. ✤ SHUTTER SPEED and EXPOSURE values can only be set in the Quick Menu. ✤ SHUTTER SPEED and EXPOSURE are automatically switched and/or deactivated.

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Turn the MENU DIAL until you see icon( ) on, and then press the MENU DIAL.

■

You see a screen on which you can select SHUTTER SPEED and EXPOSURE.

■

Turn the MENU DIAL to select the item you want and then press the MENU DIAL.

■

SHUTTER SPEED can be set to 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000 or 1/10000.

■

EXPOSURE can be set between 00 and 29.

3. To exit from the setting screen, select the icon( ) and press the MENU DIAL. Notes

■

If you want to use the selected shutter speed and exposure value, you should begin the recording with the shutter speed and the exposure adjustment screens displayed on the LCD.

■

If you manually change the shutter speed and the exposure value when Auto-exposure option is selected, manual changes are applied first.

ENGLISH

6767

ENGLISH

Using the CAMCORDER - Advanced Recording

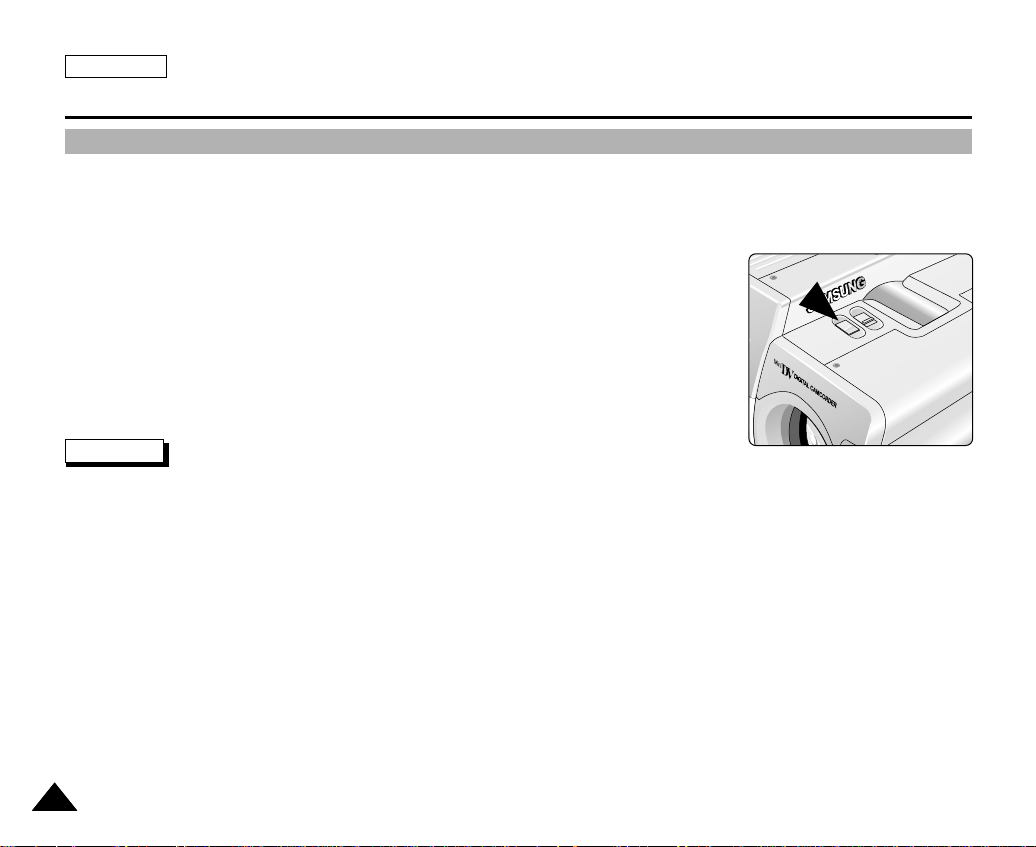

SLOW SHUTTER (Low Shutter Speed)

✤ The SLOW SHUTTER function works in CAMCORDER mode only. ✤ The shutter speed can be controlled, allowing you to record slow moving objects.

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Press the SLOW SHUTTER button.

3. Each time you press the SLOW SHUTTER button, SHUTTER SPEED is changed between s1/30, s1/15, s1/8, and OFF.

4. To exit, press the SLOW SHUTTER button.

Note

■

When using "SLOW SHUTTER" the image takes on a slow motion like effect.

6868

Using the CAMCORDER - Advanced Recording

FADE

S.SHOW

BLC

REV FWD

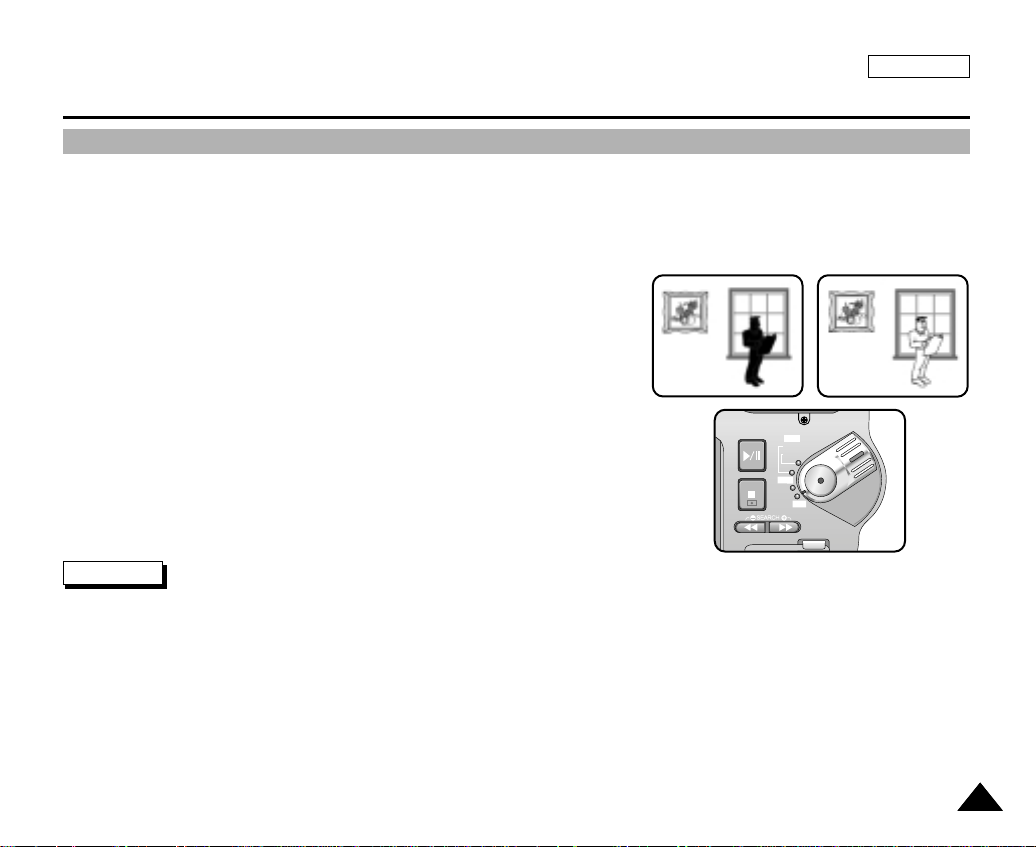

BLC (Back Light Compensation)

✤ BLC works in CAMCORDER mode only. ✤ Back lighting exists when the subject is darker than the background. For example:

■

The subject is in front of a window.

■

The person to be recorded is wearing white or shiny clothes and is placed against a bright background; the person’s face is too dark to distinguish his/her features.

■

The subject is outdoors and the background is overcast.

■

The light sources are too bright.

■

The subject is against a snowy background.

1. Set the device to CAMCORDER.

2. Set the power switch to REC mode.

3. Press the BLC(STOP) button.

■

Normal - BLC - Normal

■

BLC enhances the subject.

Notes

■

While setting NITE PIX to ON, the BLC function does not work.

■

The BLC function will not operate in EASY mode.

ENGLISH

* BLC on* BLC off

6969

ENGLISH

FADE

S.SHOW

BLC

REC

FADE

S.SHOW

BLC

REC

FADE

S.SHOW

BLC

REC

FADE

S.SHOW

BLC

REC

Using the CAMCORDER - Advanced Recording

Fade In and Out

✤ The FADE function works in CAMCORDER and CAMERA modes. ✤ You can give your recordings a professional look by using

special effects such as fading in at the beginning of a sequence or fading out at the end of a sequence.

➔

STBY

0:00:00

To Start Recording

1. Before recording, hold down the FADE button. The picture and sound gradually disappear (Fade Out).

2. Press the START/STOPbutton and at the same time release the FADE button. Recording starts and the picture and sound gradually appear (Fade In).

To Stop Recording (Using FADE IN / FADE OUT)

3. When you wish to stop recording, hold down the FADE button. The picture and sound gradually disappear (fade out).

4. When the picture has disappeared, press the START/STOP button to stop recording.

a. FADE OUT (Approx. 4 seconds)

b. FADE IN (Approx. 4 seconds)

7070

REC

0:00:15

➔

REC

0:00:15

➔

STBY

0:00:20

➔

Press the FADE button a. FADE OUT Gradual disappearance

Gradual appearance b. FADE IN Release the FADE button

Using the CAMCORDER - Advanced Recording


REW/RPS

A.DUB STOP SELF TIMER

SLOW

PLAY FF/FPS

STILL ZERO MEM.

FADE

BLC

REV FWD

Audio Dubbing

✤ The AUDIO DUBBING function only works in PLAYER Mode. ✤ You can add sound to the original sound on a pre-recorded tape, recorded in SP mode with 12bit sound. ✤ Use the internal and external microphones or other audio equipment. ✤ The original sound will not be erased.

Dubbing Sound

1. Set the device to CAMCORDER.

■

If you want to use an external microphone, connect the microphone to the external MIC input jack on the camcorder.

2. Set the power switch to PLAY mode.

■

If you want to use an external microphone, connect the microphone to the external MIC input jack on the camcorder.

3. Press the (PLAY/STILL) button and find the time frame of the scene to be dubbed.

4. Press the (PLAY/STILL) button to pause the scene.

5. Press the A.DUB button on the Remote Control.

■

A.DUB will be displayed on the LCD.

■

The camcorder is in a ready-to-dub state for dubbing.

ENGLISH

6. Press the (PLAY/STILL) button to start dubbing.

■

Press the (STOP) button to stop the dubbing.

7171

ENGLISH

TAPE PLAY MODE

AUDIO SELECT

PLAY SET

SOUND[1] SOUND[2] MIX [1+2]

CAMCORDER SET

RECORD SET PLAY SET

TAPE PLAY MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

TAPE PLAY MODE

CAMCORDER SET PLAY SET

PHOTO SEARCH PHOTO COPY AUDIO SELECT

SOUND1

Using the CAMCORDER - Advanced Recording

Dubbed Audio Playback

1. Insert the dubbed tape and press the MENU button.

2. Turn the MENU DIAL to highlight CAMCORDER.

3. Press the MENU DIAL to enter the sub-menu.

4. Select PLAY SET and press the MENU DIAL.

5. Use the MENU DIAL to select AUDIO SELECT from the sub-menu.

6. Press the MENU DIAL to enter the sub-menu.

7. Using the MENU DIAL, select the AUDIO playback channel.

■

Press the MENU DIAL to confirm the audio playback channel.

- SOUND1 : play the original sound.

- SOUND2 : play the dubbed sound.

- MIX(1+2) : play back with SOUND1 and 2 equally mixed.

8. To exit, press the MENU button.

9. Press the (PLAY/STILL) button to playback the dubbed tape. Note

■

When you playback added sound (SOUND2 or MIX mode), you may experience some loss of sound quality.

7272

Using the CAMCORDER - Advanced Recording

TAPE PLAY MODE

INITIAL

RECORD SET PLAY SET

CAMCORDER CAMERA MEMORY VIEWER

CAMCORDER SET

RECORD SET PLAY SET

TAPE PLAY MODE

CAMCORDER SET PLAY SET

PB DSE SELECT PHOTO SEARCH PHOTO COPY AUDIO SELECT

SOUND1

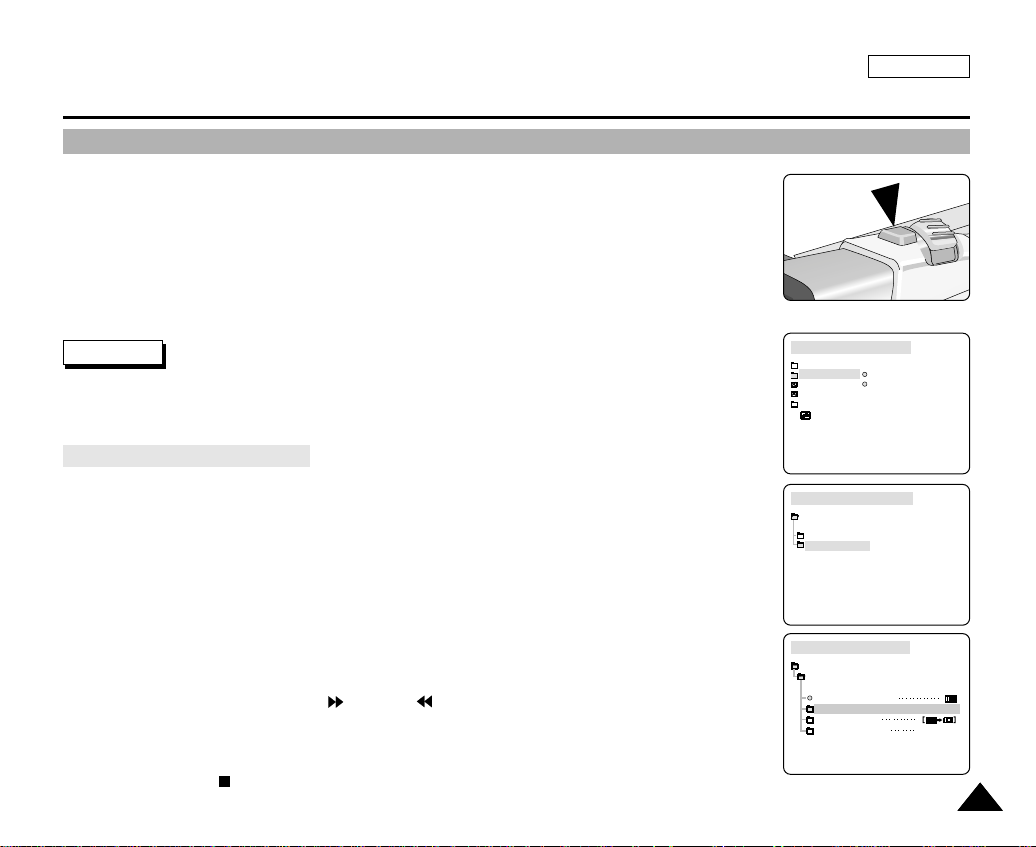

PHOTO Image Recording

1. Press the PHOTO button half way down and hold it.

■

The still picture appears on the LCD monitor.

■

If you do not wish to record, release the button.

2. Release the PHOTO button and press the PHOTO button again.

■

The still picture is recorded for about 6~7 seconds.

3. After the PHOTO has been recorded, the camcorder returns to STBY mode. Note

■

To take a quick photo, press the PHOTO button all the way down. The still picture is recorded for 6-7 seconds.

Searching for a PHOTO Picture

✤ The PHOTO SEARCH works in TAPE PLAY mode.

■

Press the MENU button.

■

The MENU list will appear.

2. Turn the MENU DIAL to highlight CAMCORDER and press the MENU DIAL.

3. Select PLAY SET and press the MENU DIAL to enter the sub-menu.

ENGLISH

4. Select PHOTO SEARCH from the sub-menu and press the MENU DIAL.

5. Search for the PHOTO using the (FF) and (REW) buttons.

■

The PHOTO search process appears on the LCD while you are searching.

■

After completing the search, the camcorder displays the still image.

6. To exit, press the (STOP) button.

7373

ENGLISH

Using the CAMCORDER - Advanced Recording

NITE PIX (0 Lux Recording)

✤ The NITE PIX function works in CAMCORDER mode only. ✤ The NITE PIX function enables you to record a subject in darkness.

1. Set the device to CAMCORDER and set the Power Switch to REC mode.

2. Slide the NITE PIX switch to ON.

■

(NITE PIX indicator) appears on the LCD monitor.

■

The infrared(invisible rays) light is turned on automatically.

3. To cancel the NITE PIX function, slide the NITE PIX switch to OFF.

Notes

■

The maximum recording distance using the infrared light is about 3 m (about 10 feet).

■

If you use the NITE PIX function in normal recording situations (ex. outdoors by day), the recorded picture may be tinted green.

■

While in NITE PIX mode, certain functions are not available, such as White Balance, Program AE, DSE, BLC.

7474

ENGLISH

POWER NITE PIX

0 : 0 0 : 0 0

5 5 min

1 2 : 0 0 AM

O C T. 1 0 , 2 0 0 3

STBY

S1/30

Using the CAMCORDER - Advanced Recording

POWER NITE PIX

✤ The NITE PIX function works in CAMCORDER mode only. ✤ The POWER NITE PIX function can record a subject more brightly in darkness than the NITE PIX function. ✤ POWER NITE PIX is displayed for three seconds on the LCD if you press the SLOW SHUTTER button when the NITE PIX

switch is turned on.

✤ When you work in POWER NITE PIX mode, the POWER NITE PIX icon appears on the LCD continuously.

1. Set the device to CAMCORDER and set the power switch to REC mode.

2. Turn on the NITE PIX switch, and then press the SLOW SHUTTER button.

3. Press the SLOW SHUTTER button to set the shutter speed. The SLOW SHUTTER function

enables you to record a subject more brightly.

4. When using POWER NITE PIX the image takes on a slow motion like effect.

5. To cancel the POWER NITE PIX function, press the SLOW SHUTTER button until it is set to

“ OFF ” and then turn off the NITE PIX switch.

Notes

■

The maximum recording distance using the infrared light is about 3 m (about 10 feet).

■

If you use the POWER NITE PIX function in normal recording situations (ex. outdoors by day), the recorded picture may contain unnatural colors.

■

In POWER NITE PIX mode, certain functions are not available, such as White Balance, Program AE, DSE, BLC.

■

When the subject is too bright, it is better to press the SLOW SHUTTER button (S1/8 ➝ S1/30) so that you can record with better quality.

7575

ENGLISH

Using the CAMCORDER - Advanced Recording

Various Recording Techniques

✤ In some situations different recording techniques may be required for more dramatic results.

Note

Please rotate the LCD screen carefully as excessive rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder.

1. General Recording.

2. Downward recording.

Recording while viewing the LCD screen from above.

3. Upward Recording.

Recording while viewing the LCD screen from below.

4. Self recording.

Recording while viewing the LCD screen from the front.

5. Recording with the Viewfinder.

■

In circumstances where it is difficult to use the LCD monitor, the viewfinder can be used as a convenient alternative.

7676

1 2

Playback

Tape Playback

✤ The playback function works in PLAY mode only.

Playback on the LCD

✤ It is practical to view a tape using the LCD when in a car or outdoors.

Playback on a TV Monitor

✤ To play back a tape, the television must have a compatible color system. ✤ We recommend that you use the AC Power Adapter as the power source for the camcorder.

ENGLISH

Connecting to a TV which has Audio/Video Input Jacks

1. Connect the camcorder to the TV with the Audio/Video cable.

■

The Yellow plug : Video

■

The White plug : Audio(L)

■

The Red plug : Audio(R) - STEREO only

- If you connect to a monaural TV or VCR, connect the Yellow plug

Video input-

Yellow

Audio input (left)-White

Audio input (right)-Red

S-VIDEO input

Multi A/V

cable

Camcorder

(Video) to the video input of the TV or VCR and the White plug (Audio L) to the audio input of the TV or VCR.

2. Set the device to CAMCORDER.

3. Set the power switch to PLAY mode.

4. Turn the TV on and set the TV/VIDEO selector on the TV to VIDEO.

■

Refer to the TV or VCR User's Manual.

5. Play the tape.

Notes

■

You may use a S-VIDEO cable (not supplied) to obtain better quality pictures if you have a S-VIDEO connector on your TV.

■

Even if you use a S-VIDEO cable, you need to connect an audio cable.

■

If you connect the cable to the A/V Jack, you will not hear sound from the speakers.

7777

ENGLISH

FADE

S.SHOW

BLC

REV FWD

TAPE M

PLAY

Playback

Connecting to a TV which has No Audio and Video Input Jacks

✤ You can connect your camcorder to a TV through a VCR.

1. Connect the camcorder to the VCR with the Audio/Video cable.

■

The Yellow plug : Video

■

The White plug : Audio(L)

■

The Red plug : Audio(R) - STEREO only

2. Connect the TV to the VCR.

3. Set the device to CAMCORDER.

4. Set the power switch to PLAY mode.

5. Turn on both the TV and VCR.

■

Set the input selector on the VCR to LINE.

■

Select the channel reserved for your VCR on the TV set.

6. Play the tape.

Playback

✤ You can play the recorded tape in PLAY mode.

1. Connect a power source and set the device to CAMCORDER.

2. Set the power switch to PLAY mode.

3. Using the (FF) and (REW) buttons, find the first position you wish to play back.

4. Press the (PLAY/STILL) button.

■

The images you recorded will appear on the TV after a few seconds.

■

If a tape reaches its end while being played back, the tape will rewind automatically.

Note

■

The playback mode (SP/LP) is selected automatically.

7878

ANTENNA

VCR

VIDEO

AUDIO(L)

AUDIO(R)

S-VIDEO

Multi A/V

cable

CAMCORDER

ENGLISH

FADE

S.SHOW

BLC

REV FWD

TAP

PLA

Playback

Various Functions while in PLAYER Mode

✤ The PLAY/STILL, STOP, FF, REW buttons are located on the camcorder and the Remote Control. ✤ The F.ADV(Frame advance), SLOW buttons are located on the Remote Control only. ✤ To prevent tape and head-drum wear, your camcorder will automatically stop if it is left in STILL or SLOW modes for more

than 5 minutes.

Playback Pause

✤ Press the (PLAY/STILL) button during Playback. ✤ To resume playback, press the (PLAY/STILL) button again.

Picture Search - Forward/Reverse

✤ Press the (FF) or (REW) buttons once during Playback or while in Still mode.

To resume normal playback, press the (PLAY/STILL) button.

✤ Keep pressing the (FF) or (REW) buttons during Playback or while in Still mode.

To resume normal playback, release the button.

START/STOP

Slow Playback - Forward

✤ Forward Slow Playback

■

Press the SLOW button on the remote control during Playback.

■

To resume normal playback, press the (PLAY/STILL) button.

F.ADV


STILL ZERO MEM.

REW/RPS

PLAY FF/FPS

A.DUB STOP SELF TIMER

SLOW

7979

ENGLISH

Playback

ZERO MEMORY

✤ The MEMORY function works in both REC and TAPE PLAY modes. ✤ You can mark a point on a tape that you want to return to following playback.

1. Press the ZERO MEMORY button on the remote control during playback or while recording at the point you wish to return to.

■

The time code is changed to a tape counter that is set to Zero Memory with the 0:00:00(Zero Memory Indicator)

■

If you want to cancel the Zero Memory function, press the ZERO MEMORY button again.

2. Finding the Zero Position.

■

When you have finished playback, fast forward or rewind the tape.

- The tape stops automatically when it reaches the Zero Position.

■

When you have finished recording, press the power switch on the PLAYER and press the (REW) button.

- The tape stops automatically when it reaches the zero position.

3. The tape counter with the (Zero Memory Indicator) disappears from the display and the tape counter is

changed back to time code. Notes

■

In the following situations, ZERO MEMORY mode may be canceled automatically:

- At the end of the section marked with the ZERO MEMORY function.

- When the tape is ejected.

- When you remove the battery pack or power supply.

■

The Zero Memory may not function correctly when there is a break between recordings on the tape.

8080

ENGLISH

IEEE 1394 Data Transfer

Transferring Using IEEE1394 (i.LINK)-DV Standard Data Connections

Connecting to a DV Device

✤ Connecting with Other DV Standard Products.

■

A standard DV connection is quite simple. If a product has a DV port(firewire), you can transfer data by connecting to the DV port using the correct cable.

!!! Please be careful since there are two types of DV ports, (4pin & 6pin). This camcorder has a 4pin terminal.

✤ With a digital connection, video and audio signals are transmitted in digital format, allowing high quality images

to be transferred.

Connecting to a PC

✤ If you want to transmit data to a PC, you must install an IEEE 1394 add-on card onto the PC. (not supplied) ✤ The frame rate recorded for video capturing is dependent on the capacity of the PC.

Notes

■

When you transmit data from the camcorder to another DV device, some functions may not work. If this occurs, please reconnect the DV cable or turn the power OFF and ON again.

■

When you transmit data from the camcorder to the PC, the PC function button is not available in M.PLAY mode.

8181

ENGLISH

FADE

S.SHOW

BLC

REV FWD

DELETE

P E

R Y

IEEE 1394 Data Transfer

●

System Requirements

■

CPU : Intel®(or compatible) Pentium III™ 450Mhz or faster.

■

Operating System : Windows®98SE, ME, XP, Mac OS (9.1~10.2)

■

Main Memory : More than 64 MB RAM

■

IEEE1394 Add-On Card or Built In IEEE1394 Card

Recording with a DV Connection Cable

1. Set the device to CAMCORDER and the power switch to TAPE PLAY mode.

2. Connect the DV cable (not supplied) from the DV IN/OUT port of the camcorder to the DV IN/OUT port of the other DV device.

■

Make sure that DV IN appears on the screen.

3. Press the PLAY button of the CAMCORDER.

■

Picture is displayed on PC screen.

4. Click on the REC button on PC screen with the mouse.

5. To stop recording, click the (STOP) button on the PC screen.

Note

When using this camcorder as a recorder, the pictures that appear on the monitor may seem uneven, however recorded pictures will not be affected.

8282

Using the CAMERA

MEMORY STICK

✤The Memory Stick stores and manages still images recorded by the camera.

Memory Stick Functions

✤ Record Still Images ✤ View Still Images

■

Single(View Frame by Frame)

■

Slide Show

✤ Protect Images Against Accidental Erasure ✤ Delete Images Recorded on the Card ✤ Add text to Still Images ✤ Formatting the Card

Notes

■

You can use most of the camera's functions when recording to the Memory Stick.

■

“” appears on the screen while recording to the Memory Stick.

■

While recording or loading an image, do not eject or insert the Memory Stick.

- Inserting or ejecting a Memory Stick while recording or loading an image can cause data damage.

■

If you want to save all images on the Memory Stick, set the write protect tab on the Memory Stick to LOCK.

ENGLISH

Terminal Protection tab

■

"Memory Stick" and are trademarks of Sony Corporation.

■

All other product names mentioned herein are the trademarks or registered trademarks of their respective companies.

Furthermore, "

■

Memory Sticks of 8MB ~ 128MB are supported.

" and "®" will not be mentioned in each case in this manual.

8383

ENGLISH

Using the CAMERA

Inserting and Ejecting the Memory Stick

●

Inserting the Memory Stick

1. Turn the Power switch to OFF.

2. Insert the Memory Stick into the CARD slot in the direction of the arrow.

●

Ejecting the Memory Stick

1. Turn the Power switch to OFF.

2. Push the Memory Stick, and it will automatically come out of the camcorder.

3. Pull out the Memory Stick.

Notes

■

If you set the camcorder to MEMORY PLAY mode, the last recorded still image appears.

- If there are no recorded images on the Memory Stick, "NO STORED PHOTO!" will appear on the screen.

■

Do not turn the power off while recording, loading, erasing or formatting.

■

Please turn the power off before you insert or eject the Memory Stick, otherwise.

you may lose data on the Memory Stick.

■

Do not allow metal substances to come in contact with the terminals of the Card.

■

Do not bend the Card.

■

After pulling the card out from the camcorder, please keep the Memory Stick in a soft case to prevent electrostatic shock.

■

The content stored on the Memory Stick may be changed or lost as a result of misuse, static electricity, electric noise or repair.

Save important images separately.

■

Samsung is not responsible for data loss due to misuse.

8484

Using the CAMERA

DCIM

100 SSDVC DCAM 0001 DCAM 0002

101SSDVC

File number Folder number

000-0000

*MEM/P

Structure of the Folders and Files on the Memory Stick

✤ The still images that you recorded are saved in JPEG file format on the card. ✤ Each file has a file number and all files are assigned to a folder.

■

A file number from DCAM0001 to DCAM9999 is sequentially assigned to each recorded image.

■

Each folder is numbered from 100SSDVC to 999SSDVC and recorded on the CARD.

ENGLISH

8585

ENGLISH

M. PLAY SELECT PHOTO SET MPEG4 SIZE PRINT MARK PROTECT FILE NO DELETE FORMAT

CAMERA REC MODE

INITIAL CAMCORDER CAMERA MEMORY VIEWER

M. PLAY SELECT PHOTO PHOTO SET MPEG4 SIZE 320X240 PRINT MARK PROTECT FILE NO SERIES DELETE FORMAT

CAMERA REC MODE

MEMORY SET

000

Using the CAMERA

MEMORY FILE NUMBER

✤ File numbers will be given to images in order of recording when still images are stored in the Memory Stick. ✤ MEMORY FILE NUMBERS may be set as follows:

■

SERIES: When there are existing files, the new image will be named as the next number in the sequence.

■

RESET

- When there are no files stored in the Memory Stick: The file numbering starts from 0001

- When there are files stored in the Memory Stick: File numbering will continue after the last file's number

1. Set the device to CAMERA and set the Power Switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight MEMORY and press the MENU DIAL.

4. Turn the MENU DIAL to activate the FILE NO. and press the MENU DIAL.

5. To exit, press the MENU button.

Notes

■

When using a Memory Stick that contains image files from another device, the file numbering will begin after the largest number that is memorized whether in the camera or the the Memory Stick.

■

File numbering starts from 0001 again when 9999 files have been saved.

8686

Basic Picture-Taking

FADE

S.SHOW

BLC

Taking Your First Picture

1. Connect a power source to the CAMERA (See page 26) (A battery pack or an AC power adapter)

2. Set the device to CAMERA mode and the power switch to the REC mode.

■

Open the LCD monitor.

■

Ensure that the Memory Stick has been properly inserted into the device.

■

Make sure the image you want to record appears on the LCD monitor or viewfinder.

■

Make sure the battery level indicates that there is enough remaining power for your expected recording time.

3. Press the Photo Button halfway down to set the focus.

■

A Sound Effect will play when the focus is set.

■

Press the Photo Button halfway down to automatically set the focus, White Balance, and exposure for the best results.

4. Press the Photo Button firmly to take a picture.

■

While the camcorder is recording the still image, " " appears on the screen.

Note

■

This Auto Power off feature is designed to save battery power.

■

Take a photograph in 2m distance from a photographic subject in low illumination.

ENGLISH

8787

ENGLISH

FADE

S.SHOW

BLC

REV FWD

FADE

S.SHOW

BLC

Basic Picture-Taking

Viewing Still Images

✤ You can playback and view still images recorded on the Memory Stick. ✤ Still Images stored on the Memory Stick are displayed in the same size despite their resolution on the LCD or viewfinder. ✤ There are 2 ways to view recorded images.

■

Single : To view an image frame by frame.

■

Slide Show : To view all images automatically and in consecutive order.

To View a Single image

1. Set the device to CAMERA.

2. Set the power switch to MEMORY PLAY mode.

■

The last recorded image appears.

- If there are no recorded images on the Memory Stick, "NO STORED PHOTO!" will appear on the screen.

3. Using the (FWD) and (REV) buttons, search for the desired still image.

■

To View the Next Image : press the (FWD) button.

■

To View the Previous Image : press the (REV) button.

■

Pressing (FWD) when you are on the last image will take you to the first image and pressing (REV) when you are on the first image will take you to the last image.

■

Keep pressing (FWD) or (REV) to search for an image quickly.

8888

Basic Picture-Taking

FADE

S.SHOW

BLC

REV FWD

FADE

S.SHOW

BLC

To View a Slide Show

1. Set the device to CAMERA

2. Set the power switch to MEMORY PLAY mode.

■

The last recorded image appears.

- If there are no recorded images on the Memory Stick, "NO STORED PHOTO!" will appear on the screen.

3. Press the (S.SHOW) button.

■

All images will be played back consecutively for 4~5 seconds each.

4. To stop the slide show, press the (S.SHOW) button again.

ENGLISH

8989

ENGLISH

FADE

S.SHOW

BLC

REV FWD

Basic Picture-Taking

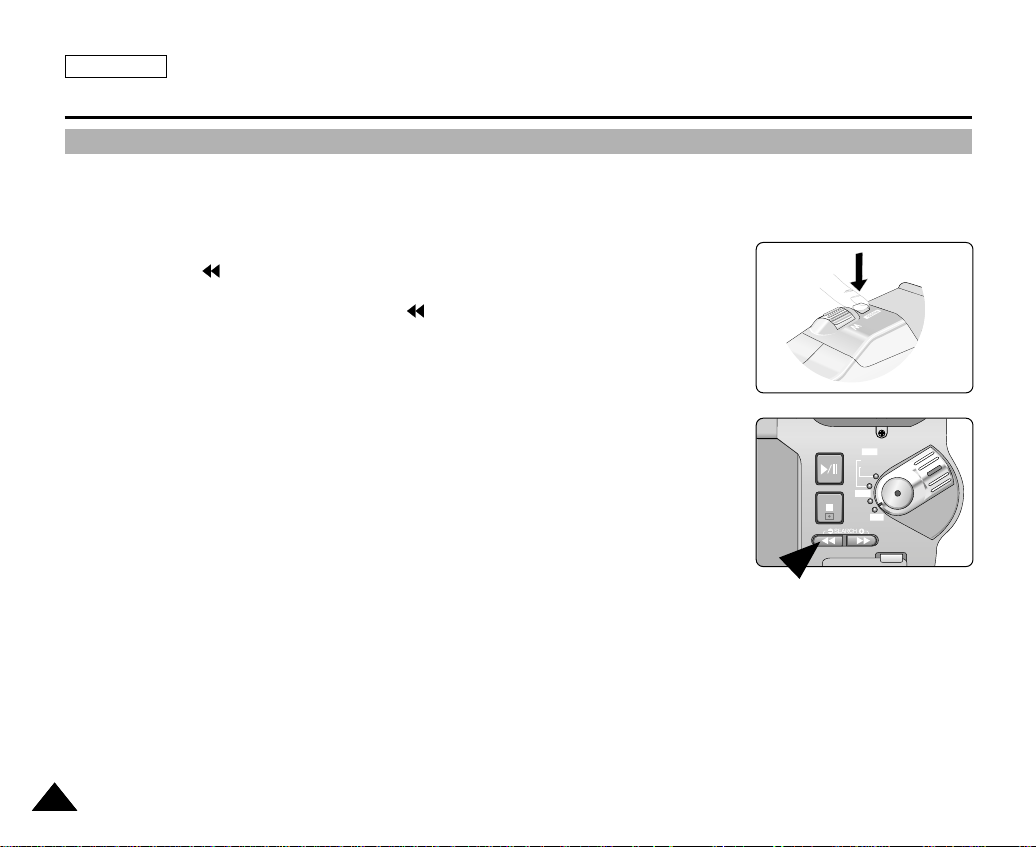

Quick Review

✤ Quick Review is used to view the last recorded image.

1. Record a picture using Photo Button.

2. Press the REV( ) Button to view the picture taken.

3. To return to CAMERAmode, press the REV( ) Button again or press the Photo Button halfway down.

9090

ENGLISH

1 0 0 0 / 1 0 0 0

L 2 2 7 2

Basic Picture-Taking

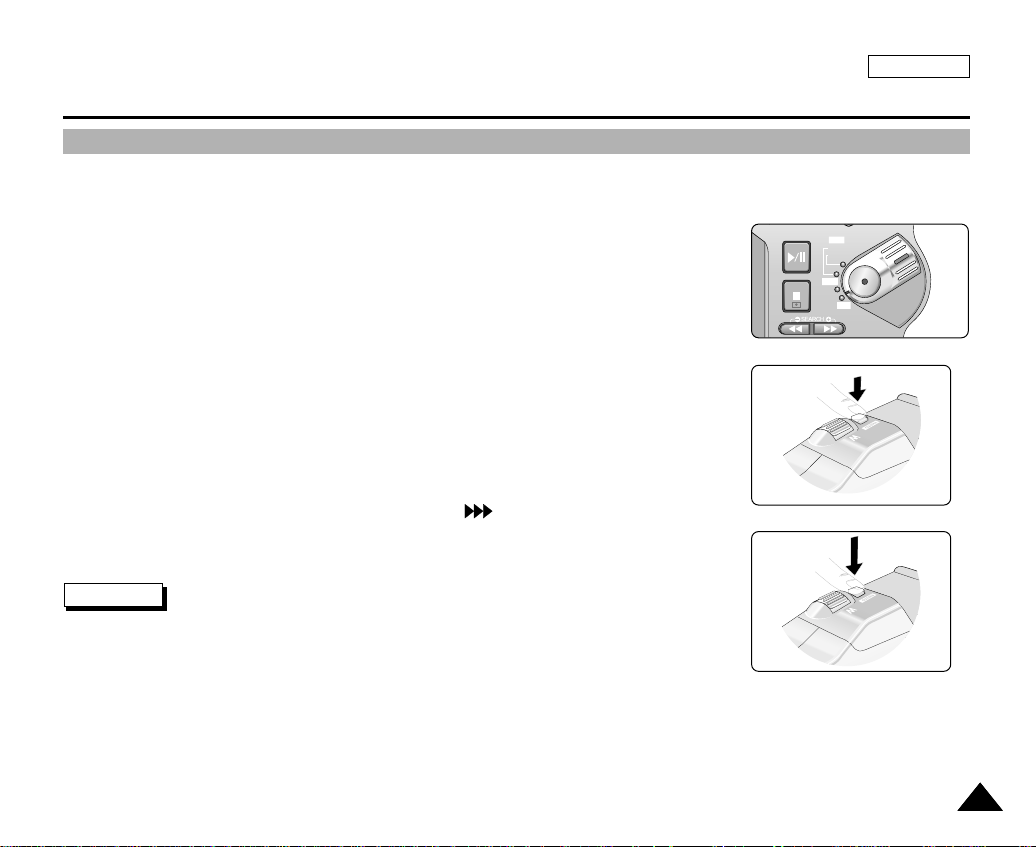

Adjusting the Focus

✤ In CAMERA Mode, the automatic focus will not engage unless the Photo Button is pressed. ✤ To get a good image, please verify the focus is set properly before pressing the Photo Button firmly. ✤ While the camera is focusing (by pressing the Photo Button halfway down), a flashing icon( ) will appear on the OSD (On

Screen Display). Abeep will be heard once the focus is set.

1. Adjust your frame so that the subject is within the AF frame on the LCD screen.

2. Pressing the Photo Button halfway down will set the focus.

■

When the focus is set, a sound effect will play.

3. Press the Photo Button firmly to take the picture.

Note

■

If the focus is not set properly, release the Photo Button and then press the button halfway down again.

■

Use MACRO Mode for recording images at close range (under 30cm), or the proper focus will not occur.

■

If the image still seems blurry, use the MF(Manual Focus) feature.

9191

ENGLISH

Advanced Techniques

FOCUS LOCK

✤ Focus will be set to the AF frame of LCD screen. If the subject leaves the AF frame, the acquired image may blur. ✤ When objects are spread throughout the frame, use FOCUS LOCK to get even focusing.

1. First, adjust your frame so that the subject is within the AF frame on the LCD screen.

2. Press the Photo Button halfway down to set the focus on the subject.

3. Adjust your framing with the Photo Button pressed halfway down to get the desired frame.

4. Press the Photo Button fully down to take a picture.

Notes

■

To get even focusing, for example, while taking a group photo , maintain a distance of 3~6 m( 10~17 ft) when recording.

■

The FOCUS LOCK function will not work under 1 m ((3 ft) focal distance.

9292

ENGLISH

CAMERA REC MODE

INITIAL

CONT. SHOT WHT. BALANCE D. ZOOM DSE SELECT

CAMCORDER CAMERA MEMORY VIEWER

CONTINUOUS SHOT

CAMERA REC MODE

CAMERA SET

WHT. BALANCE D. ZOOM DSE SELECT

Advanced Techniques

Digital Zoom in CAMERA Mode

✤ A 6X Digital Zoom is provided. ✤ The Digital Zoom, which differs from the Optical Zoom, may cause deterioration of image quality. Please use with caution.

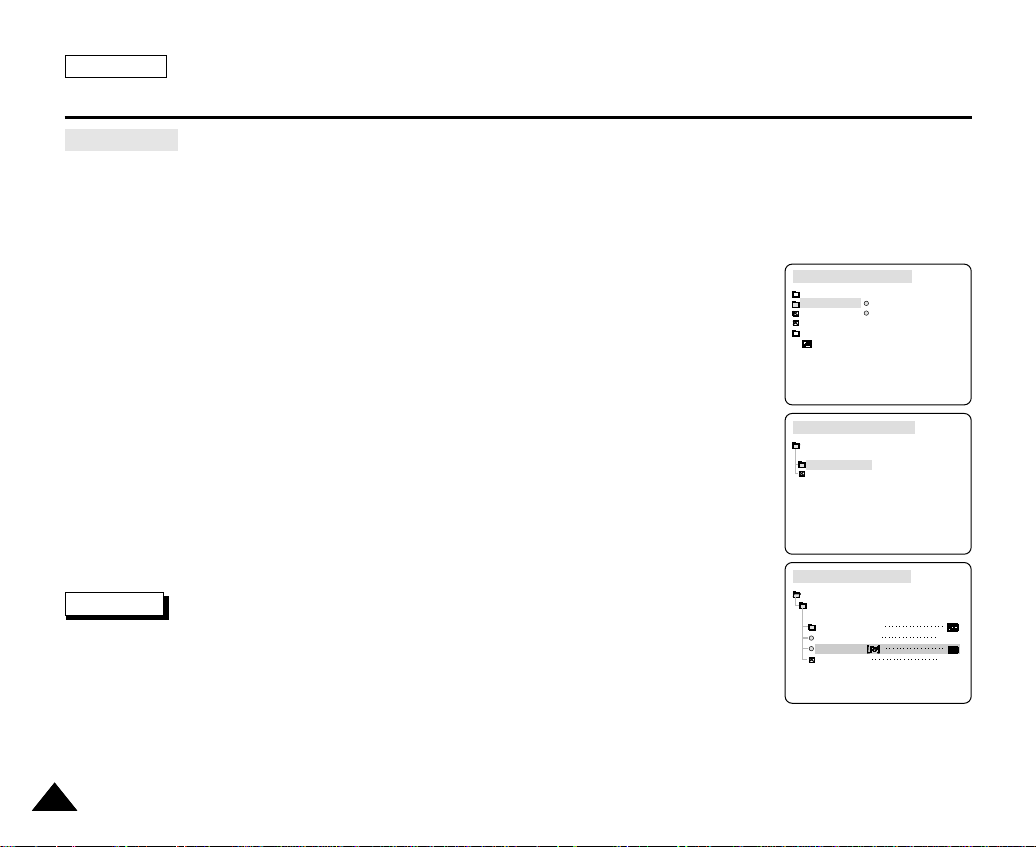

1. Set the device to CAMERA and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight CAMERA and press the MENU DIAL.

4. Turn the MENU DIAL to activate the D. ZOOM and press the MENU DIAL.

■

The D. ZOOM menu is changed to 6X.

■

If you do not want to use the Digital Zoom function, set the D. ZOOM menu to OFF.

5. To exit, press the MENU button.

Note

■

The Digital Zoom magnifies the image. This may cause deterioration of the image when it is recorded using the maximum rate of magnification.

9393

ENGLISH

Advanced Techniques

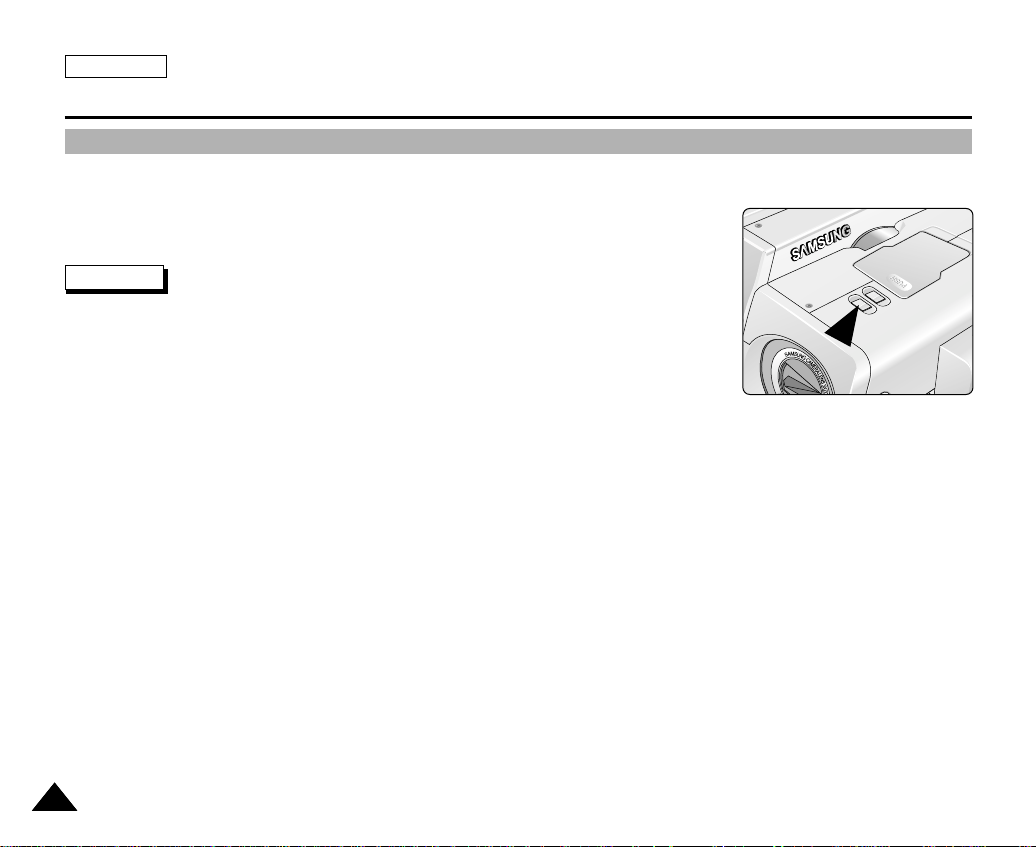

MACRO Mode

✤ The MACRO function works in CAMERA mode only. ✤ Use MACRO Mode for recording images at close range (under 31.5 inches). ✤ Effective focal distance in MACRO Mode is 11.8 inches ~ 31.5 inches.

Notes

■

Pressing the MACRO Button again or turning it off will exit from MACRO Mode.

■

Please be careful not to cause a shadow when recording in MACRO Mode.

■

As the distance to the subject decreases, focusing area will be narrowed.

■

When you can not get proper focus, use the Zoom Lever to achieve focus.

■

The viewfinder may not show the entire recording range. Refer to the LCD Screen for more precise framing.

9494

ENGLISH

CAMERA REC MODE

INITIAL

CONT. SHOT WHT. BALANCE D. ZOOM DSE SELECT

CAMCORDER CAMERA MEMORY VIEWER

CONTINUOUS SHOT

CAMERA REC MODE

CAMERA SET

WHT. BALANCE D. ZOOM DSE SELECT

Advanced Techniques

CONT. SHOT (Continuous Shot)

✤ The CONT. SHOT function works in CAMERA mode only. ✤ Continuous recording will occur while the Photo Button is being pressed.

■

OFF: Records one picture at a time

■

Records pictures continuously up to storage capacity.

- When the image resolution is set to 1600 x 1200 or higher, only 3 continuous pictures can be recorded when using CONTINUOUS SHOT.

1. Set the device to CAMERA and set the power switch to REC mode.

2. Press the MENU button.

■

The menu list will appear.

3. Turn the MENU DIAL to highlight CAMERA and press the MENU DIAL.

4. Turn the MENU DIAL to activate CONTINUOUS SHOT and press the MENU DIAL.

■

The CONTINUOUS SHOT menu is changed to ON.

5. To exit, press the MENU button.

Notes

■

When the CONT. SHOT function is set to "ON", an icon is displayed on the LCD screen.

■

It is recommended to limit your usage of Continuous Shot to under 10 seconds to prevent problems that may be caused by excessive usage of this feature.

■

The flash does not function while using the CONT. SHOT function.

9595
