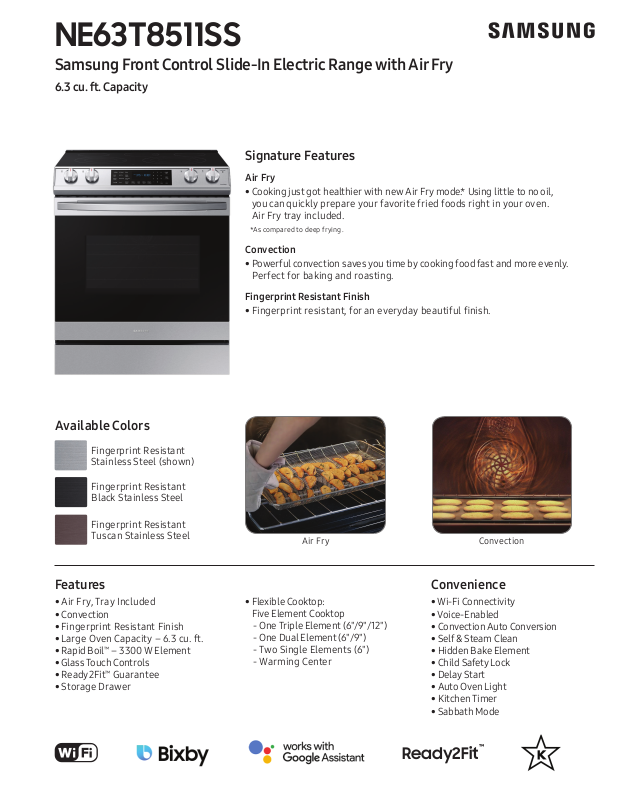

Samsung NE63T8511ST Specifications

NE63T8511SS

Samsung Front Control Slide-In Electric Range with Air Fry

6.3 cu. ft. Capacity

Signature Features

Air Fry

• Cooking just got healthier with new Air Fry mode.* Using little to no oil, you can quickly prepare your favorite fried foods right in your oven. Air Fry tray included.

*As compared to deep frying.

Convection

• Powerful convection saves you time by cooking food fast and more evenly. Perfect for baking and roasting.

Fingerprint Resistant Finish

• Fingerprint resistant, for an everyday beautiful ﬁ nish.

Available Colors

Fingerprint Resistant Stainless Steel (shown)

Fingerprint Resistant Black Stainless Steel

Fingerprint Resistant Tuscan Stainless Steel

Features

• Air Fry, Tray Included

• Convection

• Fingerprint Resistant Finish

• Large Oven Capacity – 6.3 cu. ft.

• Rapid Boil™ – 3300 W Element

• Glass Touch Controls

• Ready2Fit™ Guarantee

• Storage Drawer

Air Fry

• Flexible Cooktop: Five Element Cooktop

- One Triple Element (6"/9"/12")

- One Dual Element (6"/9")

- Two Single Elements (6")

- Warming Center

Convection

Convenience

• Wi-Fi Connectivity

• Voice-Enabled

• Convection Auto Conversion

• Self & Steam Clean

• Hidden Bake Element

• Child Safety Lock

• Delay Start

• Auto Oven Light

• Kitchen Timer

• Sabbath Mode

Ready2Fit

™

NE63T8511SS

24"

357/8"

/4"

24"

25"

Samsung Front Control Slide-In Electric Range with Air Fry

6.3 cu. ft. Capacity

Installation Specifications

25"

24"

357/8"

36"-36

/4"

2915/16"

293/4"

267/16"

491/4"

/16"

A: Cabinet opening min 30" B: Acceptable electrical outlet area

IMPORTANT: If your cabinets are over 36

⁄4" high, you must install this range

on a hard, heat-resistant support that raises the surface of the range so that it is about even with the countertop.

* 30" minimum clearance between the top

of the cooking surface and the bottom of an

30"

* 30"

** 15"

unprotected wood or metal cabinet; or 24" minimum when the bottom of the wood or metal cabinet is protected by not less than

¼" of ﬂame retardant millboard covered with not less than no.28 MSG sheet steel,

0.015" stainless steel, 0.024" aluminum, or 0.020" copper.

** 15" minimum between the countertop

and the adjacent cabinet bottom.

IMPORTANT: Consult with Installation Manual for detailed instructions before installing. All ranges must be installed with the Anti-Tip device that is included.

24"

Power Source

240V/208V/60 Hz/40A

Electric Cooktop

• Right Front: 6"/9"/12" Triple Element, 3000 W

• Left Front: 6"/9" Dual Element, Rapid Boil™ 3300 W

• Right Rear: 6", 1200 W

• Left Rear: 6", 1200 W

• Center: 7", Warming Center

Oven

• Capacity: 6.3 cu. ft.

• Convection Element/Heater

• Convection Bake

• Convection Roast

• Bake

• Air Fry

• Breadproof

• Dehydrate

Warranty

One (1) Year Parts and Labor

Product Dimensions & Weight (WxHxD)

Oven Interior Dimensions: 2413/16" x 227/16" x 193/4"

Outside Net Dimensions: 2915/16" x 36- 363/4" (Adjustable) x 2811/16"

Weight: 174 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 331/16" x 413/4" x 305/16"

Weight: 194 lbs

Color Model # UPC Code

Fingerprint Resistant Stainless Steel NE63T8511SS 887276409054

Fingerprint Resistant Black Stainless Steel NE63T8511SG 887276409047

Fingerprint Resistant Tuscan Stainless Steel NE63T8511ST 887276409061

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
