Samsung ML-4500 User Manual

Page 1

Page 2

This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any damages, direct or indirect, arising from or related to use of this manual.

• ML-4500 and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Centronics is a trademark of Centronics Data Computer Corporation.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• Microsoft, Windows, Windows 9x, Windows 2000 and Windows NT are trademarks of Microsoft Corporation.

• Adobe and Adobe Acrobat Reader are trademarks of Adobe Systems.

• All other brand or product names are trademarks of their respective companies or organizations.

Page 3

Introduction

Special Features Printer Components

Setting Up Your Printer

: Unpack Your Printer –––––––––––––––––––––––––– 2.1

STEP 1

: Install the Toner Cartridge ––––––––––––––––––––– 2.2

STEP 2

Load Paper ––––––––––––––––––––––––––––––––– 2.4

STEP 3

: Connect to the Computer with a Parallel Cable ––––– 2.6

STEP 4

: Turn on the Printer ––––––––––––––––––––––––––– 2.6

STEP 5

Print a Demo Page! ––––––––––––––––––––––––––– 2.7

STEP 6

: Install the Printer Software ––––––––––––––––––––– 2.7

STEP 7

Using Control Panel

Control Panel Buttons –––––––––––––––––––––––––––––– 3.1 Control Panel Lights ––––––––––––––––––––––––––––––– 3.3

–––––––––––––––––––––––––––––––––

––––––––––––––––––––––––––––––

1.1

1.2

Print Media

Choosing Paper and Other Media ––––––––––––––––––––– 4.1 Selecting the Output Location ––––––––––––––––––––––– 4.4 Loading Paper –––––––––––––––––––––––––––––––––––– 4.5 Printing on Envelopes –––––––––––––––––––––––––––––– 4.7 Printing on Heavy Paper –––––––––––––––––––––––––––– 4.9 Printing on Labels –––––––––––––––––––––––––––––––– 4.10 Printing on Transparencies ––––––––––––––––––––––––– 4.11 Printing on Preprinted Paper ––––––––––––––––––––––– 4.12 Printing on Card Stocks –––––––––––––––––––––––––––– 4.13

Page 4

Printing Tasks

Printing a Document ––––––––––––––––––––––––––––––– 5.1 Printing Multiple Pages on One Sheet of Paper Setting Print Resolution –––––––––––––––––––––––––––– 5.7 Using Toner Save Mode –––––––––––––––––––––––––––– 5.8 Using Power Save Mode –––––––––––––––––––––––––––– 5.9 Using Other Graphic Options ––––––––––––––––––––––– 5.10 Reprinting the Last Page –––––––––––––––––––––––––– 5.12 Printing on a Network Environment ––––––––––––––––––– 5.13

Maintaining Your Printer

Maintaining Toner Cartridge ––––––––––––––––––––––––– 6.1 Cleaning the Printer ––––––––––––––––––––––––––––––– 6.4

Problem Solving

––––––––––

5.6

Troubleshooting Checklist ––––––––––––––––––––––––––– 7.1 Solving General Printing Problems –––––––––––––––––––– 7.2 Clearing Paper Jams ––––––––––––––––––––––––––––––– 7.6 Solving Print Quality Problems –––––––––––––––––––––– 7.11 Troubleshooting Error Messages ––––––––––––––––––––– 7.17 Common Windows Problems –––––––––––––––––––––––– 7.19

Appendix

Printer Specifications ––––––––––––––––––––––––––––––– A.1 Paper Specifications –––––––––––––––––––––––––––––––– A.2 Installing Software from Diskette –––––––––––––––––––– A.10 Linux Driver Installation ––––––––––––––––––––––––––– A.13

INDEX

Page 5

Environmental and Safety Consideration

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance, or prescribed service condition.

WARNING

Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes.

CAUTION - INVISIBLE LASER RADIATION WHEN THIS COVER OPEN. DO

NOT OPEN THIS COVER.

VORSICHT - UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET. NICHT

DEM STRAHL AUSSETZEN.

ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS D’OUVERTURE.EXPOSITION DAN

GEREUSE AU FAISCEAU.

ATTENZIONE -RADIAZIONE LASER INVISIBILE IN CASO DI APERTURA.

EVITARE L’ESPOSIZIONE AL FASCIO.

PRECAUCION -RADIACION LASER IVISIBLE CUANDO SE ABRE. EVITAR EXPONERSE AL

RAYO.

ADVARSEL. - USYNLIG LASERSTRÅLNING VED ÅBNING NÅR SIKKERHEDSBRYDERE ER

UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLNING.

ADVARSEL. - USYNLIG LASERSTRÅLNING NÅR DEKSEL ÅPNES. STIRR IKKE INN I

STRÅLEN. UNNGÅ EKSPONERING FOR STRÅLEN.

VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPAND OCH SPÄRREN ÄR

URKOPPLAD. BETRAKTA EJ STRÅLEN. STRÅLEN ÄR FARLIG.

VARO! - AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA

NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ KATSO SÄTEESEEN.

III

Page 6

Ozone Safety

Power Saver

Environmental and Safety Consideration

During normal operation, the Samsung ML-4500 printer produces ozone. the ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.

If you need additional information about ozone, please request your nearest Samsung dealer.

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

The energy star emblem does not represent EPA endorsement of any product or service.

Radio Frequency Emissions

Fcc Regulations

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Page 7

Environmental and Safety Consideration

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you must first stop operation of the equipment.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.

EC Declaration of Conformity

We,

SAMSUNG ELECTRONICS CO., LTD. #259, Gong Dan-Dong, Gumi-City, Kyung Buk, Korea

declares sole responsibility that the

Samsung ML-4500 Laser printer

meets the intent of Directive 89/336/EEC for Electromagnetic Compatibility and Low Voltage Directive 73/23/EEC. Compliance was demonstrated to the following specifications as listed in the official journal of the European Communities:

EN 50081-Emissions:

EN 55022 Radiated, Class B EN 55022 Conducted, Class B EN 61000-3-2 Power Harmonics EN 61000-3-3 Voltage Fluctuations and Flicker

EN 50082-Immunity:

IEC 801-2 Electrostatic Discharge IEC 801-3 RF Radiated IEC 801-4 Fast Transient/Burst

EN 60950-Safety

Page 8

Congratulations on the purchase of Samsung ML-4500 printer! This chapter provides information on the following topics:

◆ Special Features

◆ Printer Components

Page 9

Special Features

Samsung ML-4500 is a versatile, productive printer equipped with special features that improve print quality, giving you a competitive edge. You can:

Print with excellent quality and high speed

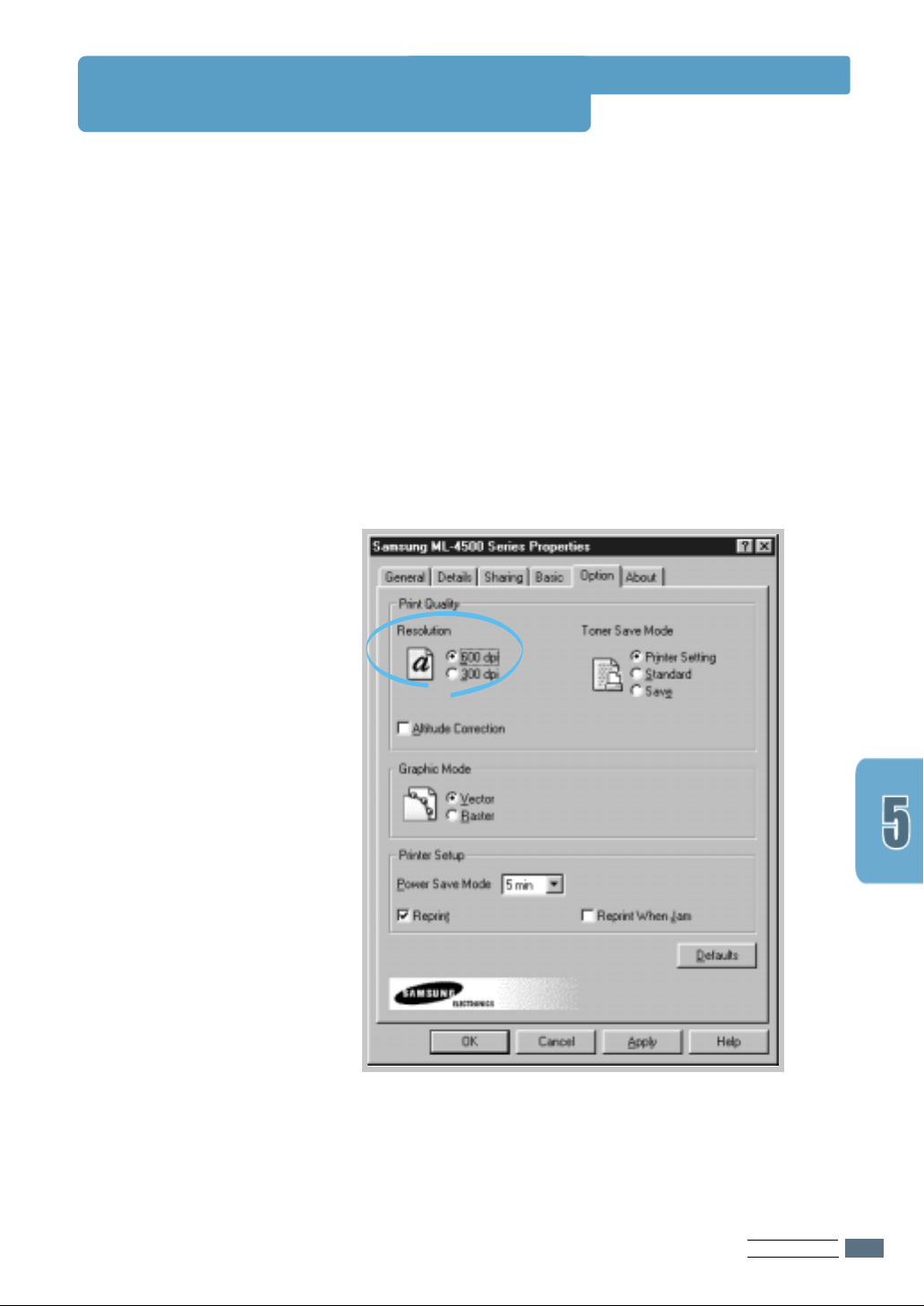

• You can print at 600 dots per inch (dpi). See page 5.7.

• Your printer prints 8 pages-per-minute.

Handle paper flexibly

• Standard 150-sheet automatic input tray and a 1-sheet manual input tray support various sizes and types of paper.

• Two output locations: Select either the face-down output tray or the face-up output slot for the most convenient

access.

Save your time and money

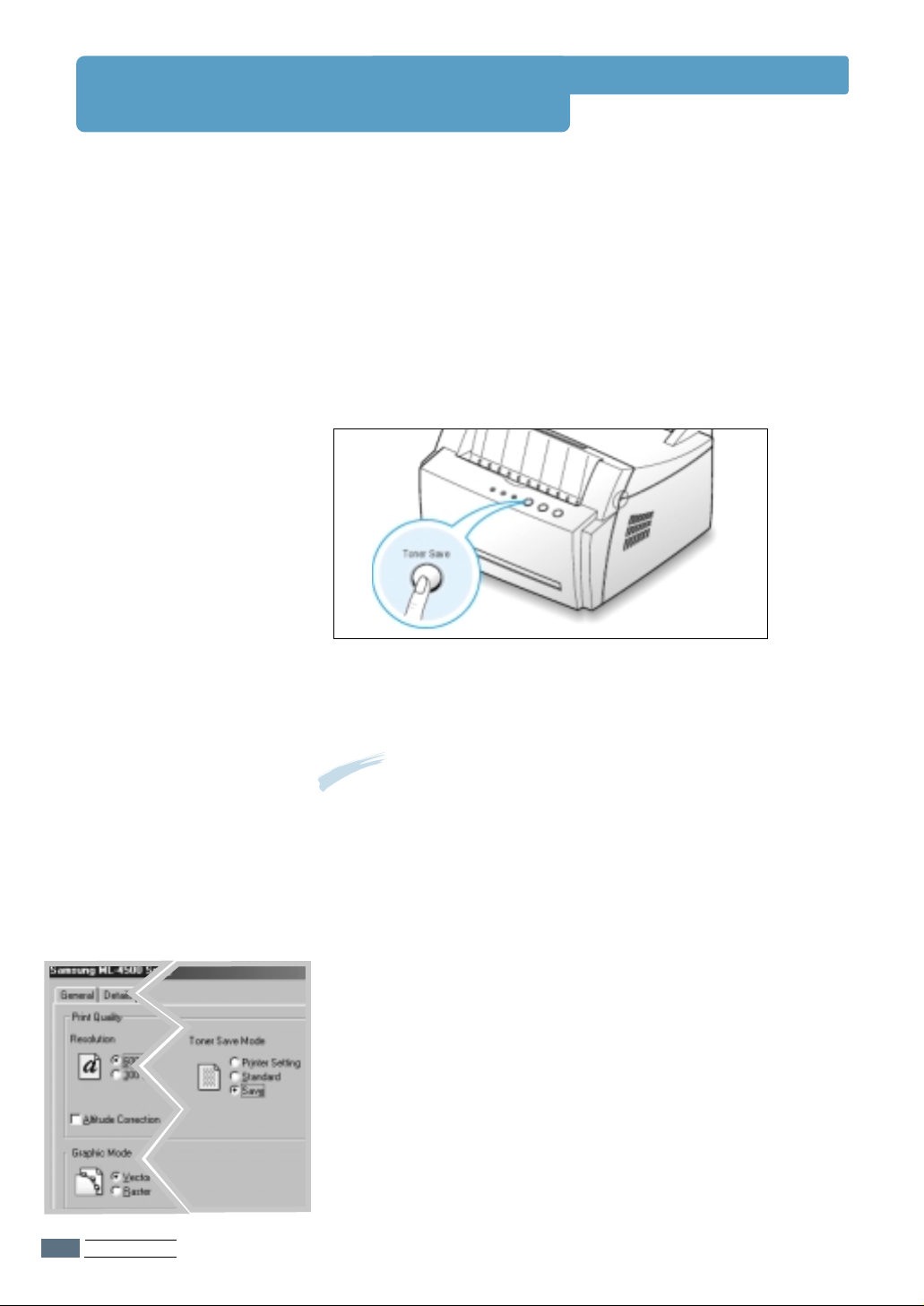

• You can use Toner Save mode to use less toner. See page

5.8.

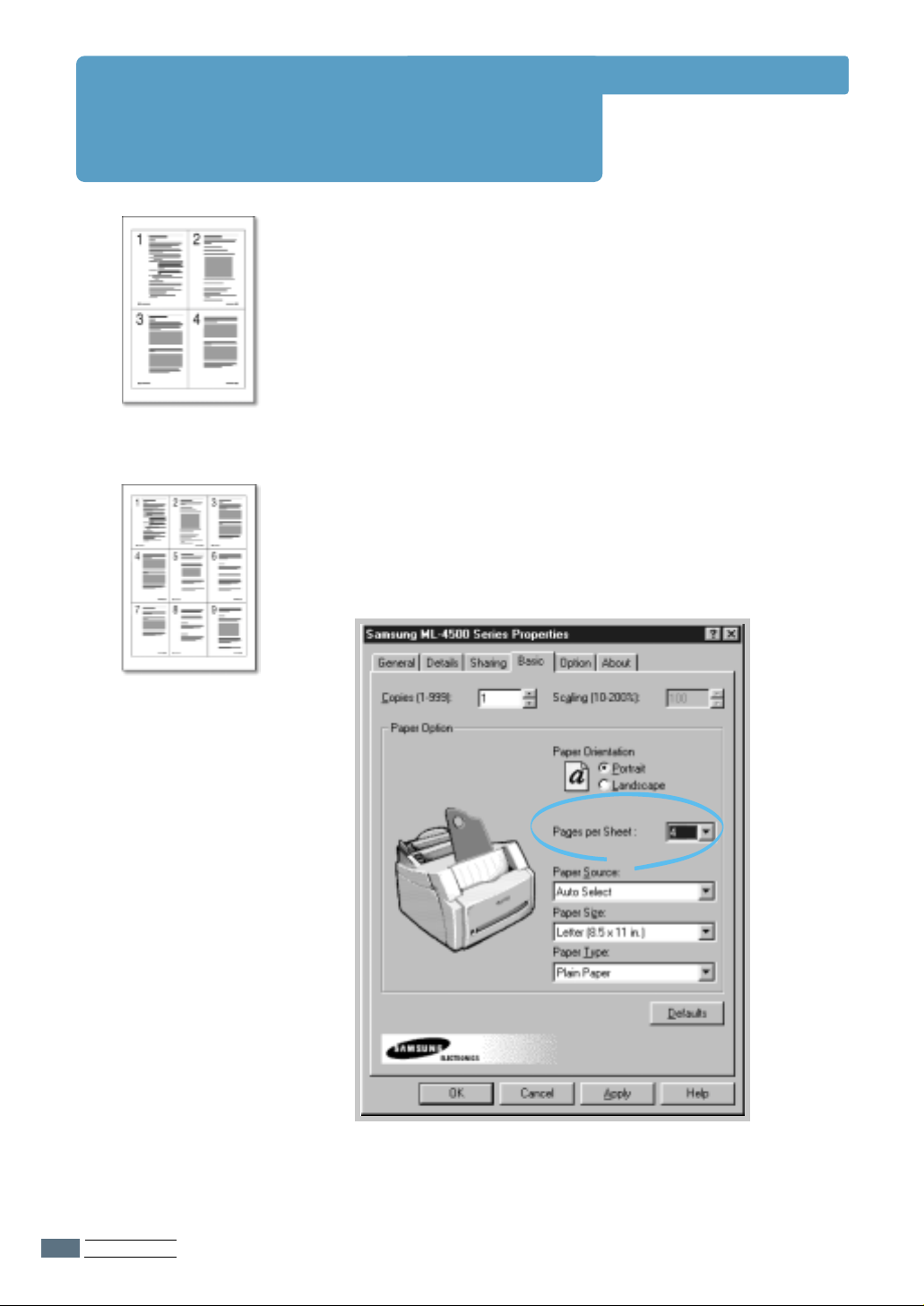

• Print multiple pages on a single sheet of paper to save paper (N-up printing). See page 5.6.

• One-touch last page printing is allowed in the Ready mode. See page 5.12.

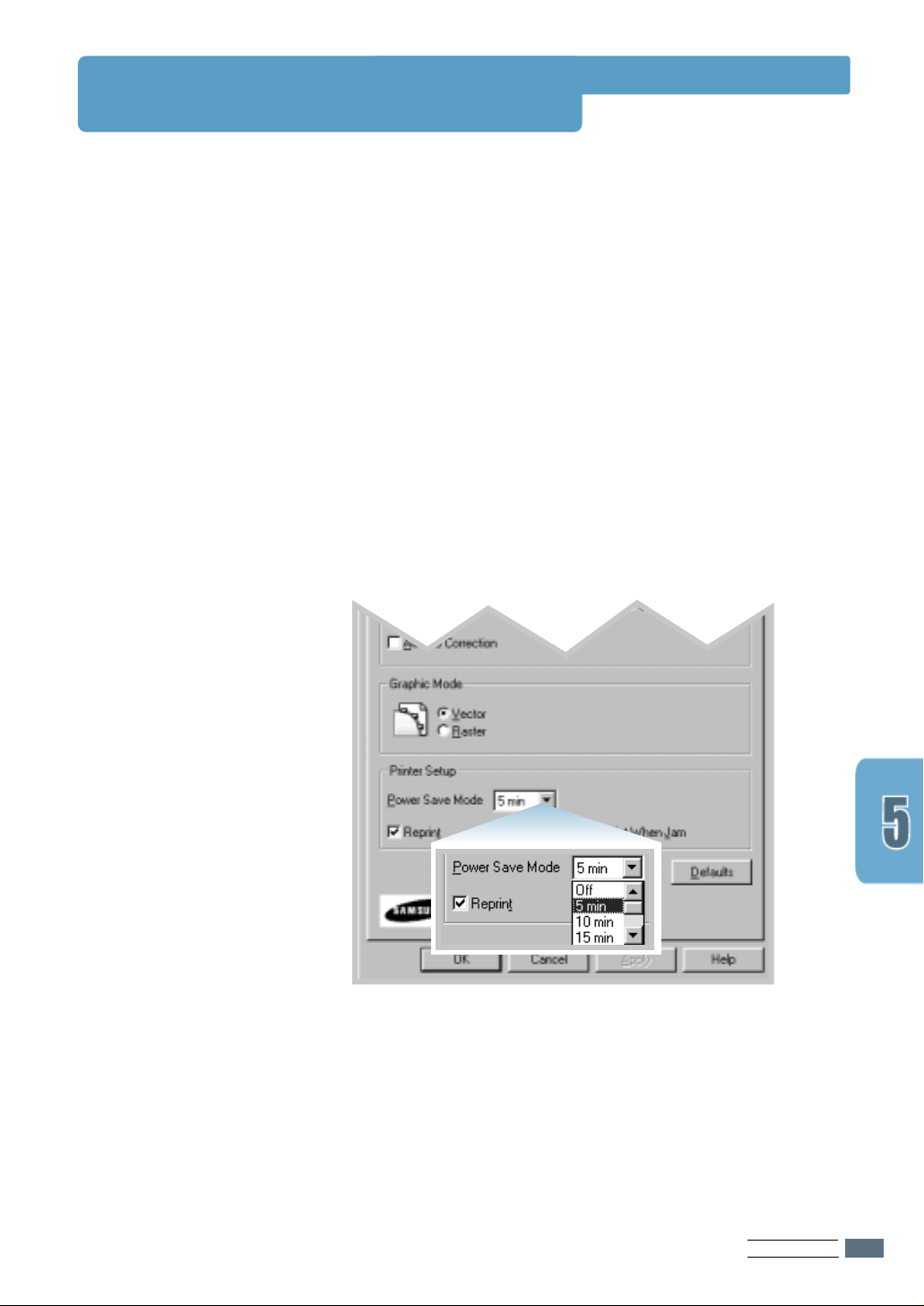

• The printer automatically conserves electricity by substantially reducing power consumption when not printing.

• This product meets Energy Star guidelines for energy efficiency.

Print in various environments

• You can print in Window 95/98/2000/NT 4.0.

• Your printer is compatible with the Linux system.

INTRODUCTION

1.1

Page 10

Printer Components

Front View

Paper output support

Face-down output tray

Paper support

Automatic input tray

Paper guides

Output lever

Face-up output slot

Manual input tray

Front cover

Control panel

1.2

INTRODUCTION

Page 11

Inside View

Toner cartridge

Printer Components

Rear View

Power switch

Power receptacle

Front cover

Parallel port

INTRODUCTION

1.3

Page 12

This chapter provides step by step information on setting up your printer. Topics included in this chapter are:

◆

: Unpack Your Printer

STEP 1

◆

: Install the Toner Cartridge

STEP 2

◆

Load Paper

STEP 3

: Connect to the Computer with a Parallel Cable

STEP 4

: Turn on the Printer

STEP 5

Print a Demo Page!

STEP 6

: Install the Printer Software

STEP 7

Page 13

Unpack Your Printer

Remove the printer and all accessories from the packing carton. Make sure that your printer has been packed with the following items:

Notes:

• If any items are missing or damaged, notify your dealer immediately.

• Components may differ from one

country to another.

• The CD-ROM contains the printer driver, the User’s Guide, the Adobe Acrobat Reader program and the Make Your Own Diskette setup software.

Toner cartridge

CD-ROM*

Setup Guide

Power cord

Paper Output Support

Printer cable

Carefully remove all packing tapes from the printer.

Attach the supplied paper output support as shown.

SETTING UP YOUR PRINTER

2.1

Page 14

Install the Toner Cartridge

Grasp the front cover by both sides of the cover and pull it toward you to open.

Remove the toner cartridge from its bag and remove the paper covering the toner cartridge completely out of the cartridge. Discard the paper.

Gently shake the cartridge from side to side to distribute the toner evenly inside the cartridge.

CAUTION:

To prevent damage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper, if left exposed for more than a few minutes.

If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

SETTING UP YOUR PRINTER

2.2

Page 15

Locate the cartridge slots inside the printer, one on each side.

Grasp the handle and insert the cartridge in the printer until it snaps into place.

Install the Toner Cartridge

Close the front cover. Make sure that the cover is securely closed.

Note: When printing text at 5% coverage, you can expect a toner cartridge life of approximately

2,500 pages (1,000 pages for the toner cartridge that is shipped with the printer).

SETTING UP YOUR PRINTER

2.3

Page 16

Load Paper

Pull the paper support on the automatic input tray up, until it stops.

Before loading the paper, flex the sheets back and forth to loosen them, then fan them.

Tap the edges of the stack on a table top to straighten them to prevent paper jams.

Load a stack of paper into the automatic input tray with the print side facing up.

SETTING UP YOUR PRINTER

2.4

Page 17

Do not load too much. This tray holds up to 150 sheets.

Keep the paper below this height mark.

Adjust the paper guides to the width of the paper stack.

Load Paper

Notes:

• Do not push the width guide far enough to cause the media to warp.

• If you do not adjust the width guide, it may cause paper jam.

SETTING UP YOUR PRINTER

2.5

Page 18

Connect to the Computer with a Parallel Cable

Make sure both the printer and the computer are turned off.

Plug the parallel printer cable into the connector on the back of the printer.

Push the metal clips down to fit inside the notches on the cable plug.

Connect the other end of the cable to the parallel interface port on your computer, and tighten the screws.

See your computer documentation if you need help.

To the parallel

➜

port on PC

Turn on the Printer

Plug the power cord into the power receptacle on the back of the printer.

Plug the other end into a properly grounded AC outlet.

Turn on the power.

SETTING UP YOUR PRINTER

2.6

➜

To AC outlet

Page 19

ML-4500

Excellent Performance, High Quality

Cost Saving, Convenience

Compatibility

Print a Demo Page!

As the printer powers up, all the printer control panel lights turn on briefly. When only the Data light remains on, press and hold the Demo button.

Hold down the button for about 2 seconds until all lights blink slowly, then release, the demo page will print.

The demo page provides a sample of the print quality and helps you verify the printer is printing correctly.

Install the Printer Software

Included with your printer is a CD-ROM containing the printer driver for some of the most popular Windows software applications. To operate your printer, you must install a printer driver, which translates data from your application into data that the printer understands.

Before Installing the Printer Software

Verify the following:

• At least 16 MB or more of RAM is installed on your PC.

• There is at least 50 MB of free disk space on your PC.

• All applications are closed on your PC before beginning installation.

• Windows 95, Windows 98, Windows 2000 or Windows NT 4.0.

SETTING UP YOUR PRINTER

2.7

Page 20

Install the Printer Software

Installing the Printer Software from the CD-ROM

Place the CD-ROM in the CD-ROM drive. Installation will

start automatically.

If the CD-ROM drive does not automatically run:

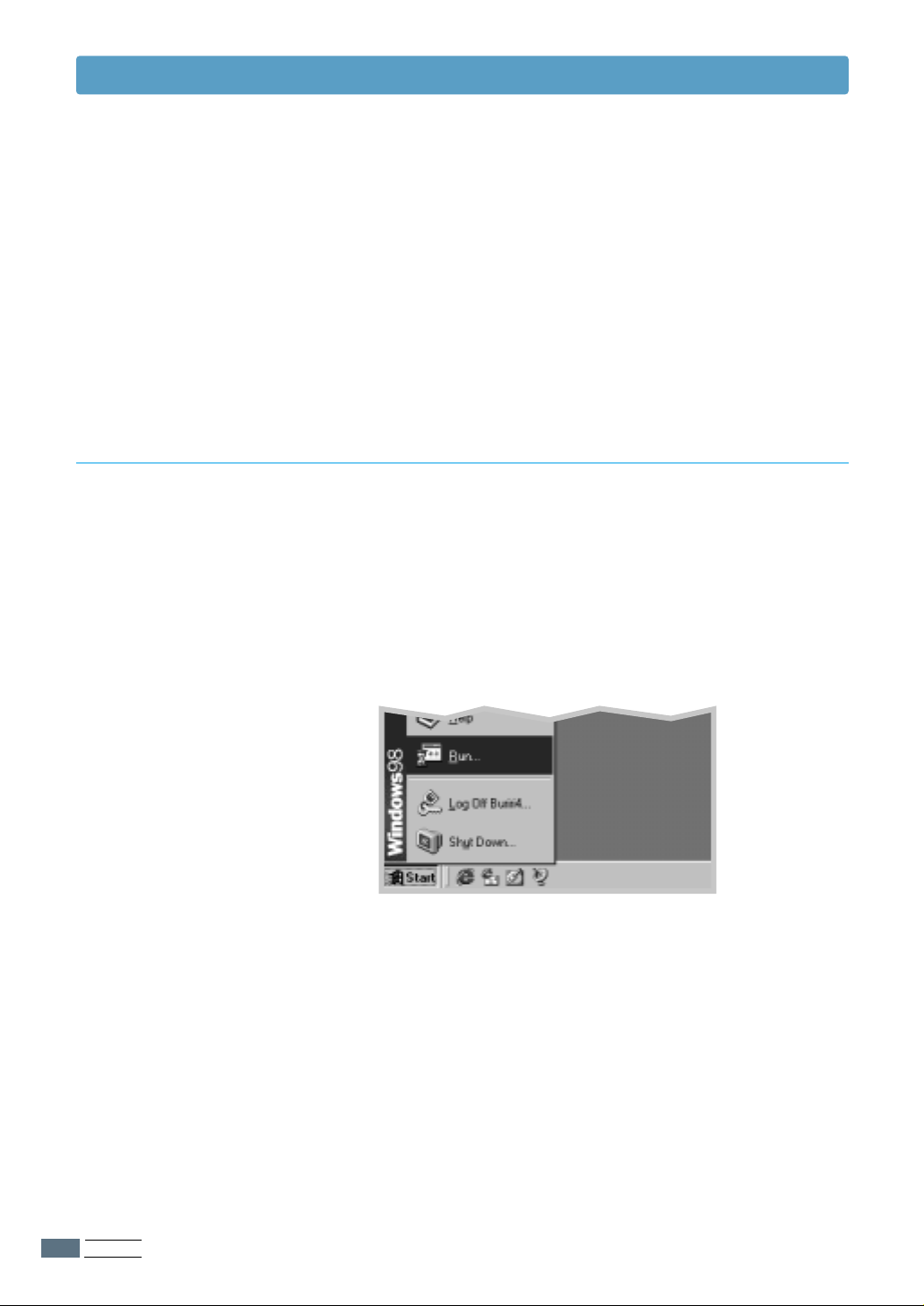

Select Run from the Start menu, and type x:\cdsetup.exe in the Open box (where x is the drive letter for the CD-ROM drive), then click OK.

Note: If the New Hardware Found box appears during the installation procedure, click the x in the upper right corner of the box, or click Cancel.

SETTING UP YOUR PRINTER

2.8

When the opening screen appears, select the appropriate

language.

Click Install the Samsung Software on your PC.

Page 21

Install the Printer Software

The Welcome window opens. Click Next.

The files are copied into the appropriate directory.

Click Finish.

SETTING UP YOUR PRINTER

2.9

Page 22

Install the Printer Software

Software Installation Tips

I do not have a CD-ROM drive

How do I access printer features ?

How do I remove the printing software ?

If you have access to another computer with a CD-ROM drive, you can use Make diskette utility in Windows to create the disks you need for the installation. Go to “Installing Software from Diskette” on page A.10.

Some printer features, such as paper size and page orientation, may be available through your application settings. Use application settings, if available, because they override printer driver settings.

Access advanced printer features through your printer driver. See the chapter 5, “Printing Tasks” for instructions on using your printer driver features.

In Windows, after installation, the Uninstall icon in the Samsung ML-4500 program group allows you to select and remove any or all of the Samsung ML-4500 printing system components. If you are upgrading the printer driver, or if your installation fails, uninstall the driver doing as the following instructions.

SETTING UP YOUR PRINTER

2.10

From the Start menu, select Programs.

Select Samsung ML-4500, and then Samsung ML-4500

Driver Uninstall.

Page 23

Install the Printer Software

When your computer confirms your selection, click Yes.

The Samsung ML-4500 printer driver and all of its

components are removed from your computer.

If you have installing problems

Can I use this printer in the other OS?

Click OK.

• Exit your software programs. Then turn off the computer and the printer. Turn on the printer, then turn on the computer.

• Close any virus protection programs that are running on your computer.

• Uninstall the printer software using the instruction above, then repeat the installation procedure.

The Samsung ML-4500 Printer supports the Linux system. Go to “Linux Driver Installation” on page A.13 for information on installing the Linux driver.

SETTING UP YOUR PRINTER

2.11

Page 24

This chapter describes how to use the printer’s control panel. It provides information on the following topics:

◆ Control Panel Buttons

◆ Control Panel Lights

Page 25

Control Panel Buttons

The printer has three buttons: Toner Save, Cancel/Reprint and Demo.

Demo

Print demo page

Press and hold Demo for about 2 seconds until the control panel lights blink slowly to print a demo page. The printer must be in the Ready mode.

Start manual feeding

When you select Manual for Paper Source from your software application, you should press Demo each time you load a sheet of paper manually. For further information, see “Using the Manual Input tray” on page 4.5.

Clean the inside of the printer

Press and hold Demo for about 10 seconds until the control panel lights remain lit. After cleaning the printer, one cleaning sheet prints. For further information, see page 6.5.

USING CONTROL PANEL

3.1

Page 26

Control Panel Buttons

Cancel/Reprint

Toner Save

Cancel job

Press Cancel/Reprint and hold until the control panel lights blink to cancel a job the printer is currently printing. The Error light will blink while the print job is cleared from both the printer and the computer, and then return to the Ready mode. This may take some time, depending on the size of the print job.

Note: If the Cancel/Reprint button is accidentally

pushed, the job must be reprinted. There is no undo function.

Reprint last page of the job

If you press Cancel/Reprint in the Ready mode, the printer prints the last page of the last print job. See page 5.12.

Turn the Toner Save Mode on/off

USING CONTROL PANEL

3.2

(on)

Toner Save

(off)

Press Toner Save to turn the Toner save mode on or off. The printer must be in the Ready mode.

• If the button backlight is on, toner save mode activates and the printer uses less toner to print a document.

• If the button backlight is off, toner save mode is disabled and you will print in normal quality.

To enable or disable the Toner Save mode using this button, the Toner Save Mode option in the printer driver must be set to Printer Setting.

For further information on the Toner Save mode, see page 5.8.

Page 27

Control Panel Lights

Error

Paper

Data

Error

Paper

Data

Error

Paper

Data

Error

Paper

The control panel lights indicate the status of your printer. If the Error light is on, the printer is experiencing an error. See “Troubleshooting Error Messages” on page 7.17.

Control Panel Light Message

Ready mode

The Data light is on and the printer is ready to print. No action is needed. If you press and hold the Demo button for about 2

seconds, a demo page will print.

Processing

The printer is receiving or processing data. Wait for the job to print. Pressing the Cancel/Reprint button cancels the current job. One or two pages

may print as the printer clears the print job. The printer will return to the Ready mode after the job has been canceled.

Paper out

The printer is out of paper. Load paper into the printer. For the automatic tray, there is no need to press

any button to reset. For the manual tray, press the Demo button after loading.

Waiting the Demo button to be pressed

In the Manual Feed mode, the printer is waiting the Demo button to be pressed. Press the Demo button to start printing. You must press the button to print

each page after loading paper into the manual input tray.

USING CONTROL PANEL

3.3

Page 28

This chapter will help you understand what kind of paper you can use with the Samsung ML-4500 printer and how to properly load paper in the different paper input trays for the best print quality.

Topics included in this chapter are:

◆ Choosing Paper and Other Media

◆ Selecting Output Location

◆ Loading Paper

◆ Printing on Envelopes

◆ Printing on Heavy Paper

◆ Printing on Labels

◆ Printing on Transparencies

◆ Printing on Preprinted Paper

◆ Printing on Card Stocks

Page 29

Choosing Paper and Other Media

You can print on a variety of print media, such as plain paper, envelopes, labels, transparencies, card stocks, and so on. See “Paper Specification” on page A.2. To get the best possible print quality, use only high-quality copier-grade paper.

When you choose print media, consider the followings:

• Desired outcome: The paper you choose should be appropriate for the project.

• Size: You can use any size paper that fits easily within the paper adjusters of the paper tray.

• Weight : Your printer supports paper weight as follows:

• 16~24 lbs bond for the automatic input tray

• 16~43 lbs bond for the manual input tray

• Brightness: Some papers are whiter than others and produce sharper, more vibrant images.

• Surface smoothness: The smoothness of the paper affects how crisp the printing looks on the paper.

Always test a sample of paper before purchasing large quantities.

CAUTION: Using media that does not confirm to the

specification listed in the paper specification can cause problems that may require service. This service is not covered by the warranty or service agreements.

PRINT MEDIA

4.1

Page 30

Choosing Paper and Other Media

Media Sizes and Capacities

Media Size

Plain Paper

Letter (8.5 x 11 in.) Legal (8.5 x 14 in.) Executive (7.25 x 10.5 in.) A4 (210 x 297 mm) A5 (148 x 210 mm) Folio (8.5 x 13 in.) B5 (182 x 257 mm)

Envelopes

No. 10 (4.12 x 9.5 in.) DL (110 x 220 mm) C5 (162 x 229 mm) C6 (114 x 162 mm) B5 (176 x 250 mm) Monarch (3.87 x 7.5 in.)

Input Source/Capacity*

Automatic Input Tray

150 150 150 150 150 150

–

5 5 5 5 5 5

Manual Input Tray

1 1 1 1 1 1 1

1 1 1 1 1 1

Labels

Letter (8.5 x 11 in.) A4 (210 x 297 mm)

Transparency films

Letter (8.5 x 11 in.) A4 (210 x 297 mm)

Card stocks

Bond

Depending on paper thickness, maximum capacity may be reduced.

PRINT MEDIA

4.2

5 5

1 1

Page 31

Paper Guidelines

Choosing Paper and Other Media

When selecting or loading paper, envelopes, or other special media, keep these guidelines in your mind:

• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.

• Use cut-sheet paper only. You cannot use multi-part paper.

• Use only high-quality, copier grade paper.

• Do not use paper that has been already printed on or that has been fed through a photocopier.

• Do not use paper with irregularities, such as tabs or staples.

• Do not attempt to load any tray during printing and never overfill the tray. This could cause a paper jam.

• Avoid paper with embossed lettering, perforations, or texture that is too smooth or too rough.

• Colored paper should be of the same high quality as white photocopy paper. The pigments must withstand the printer’s fusing temperature of 400°F (205°C) for 0.1 second without deterioration. Do not use paper with a colored coating that was added after the paper was produced.

• Preprinted forms must be printed with nonflammable, heatresistant inks that do not melt, vaporize, or release hazardous emissions when subject to the printer’s approximately 400°F (205°C) fusing temperature for 0.1 second.

• Store paper in its ream wrapper until ready to use. Place cartons on pallets or shelves, not on the floor.

• Do not place heavy objects on top of the paper, whether it is packaged or unpackaged.

• Keep paper away from moisture, direct sunlight or other conditions that can cause it to wrinkle or curl.

PRINT MEDIA

4.3

Page 32

Selecting the Output Location

The printer has two output locations: the face-up output slot and the face-down output tray. You can select the output location by changing the position of the output lever on the

front of the printer. To use the face-down output tray, be sure the output lever is in upper (normal) position. To use the face-up output slot, push it down to open the slot.

• If paper coming out of the face-down output tray has problems, such as excessive curl, try printing to the face-up output slot.

• To avoid paper jams, do not change the position of the output lever while the printer is printing.

Printing to the Face-Down Output Tray

The face-down output tray collects paper face-down, in correct order. Make sure that the output lever is in the upper position. (If not, push it up)

The face-down output tray should be used for most print jobs and is recommended for printing over 100 sheets of paper, continuously.

Printing to the Face-Up Output Slot

The printer prints to the face-up output slot if it is open. Push the output lever down to open the slot. Paper comes out of the printer face-up.

Using the face-up output slot might improve output quality with the following:

• envelopes

• labels

• paper heavier than 24 lb (90 g/m

)

4.4

PRINT MEDIA

Page 33

Loading Paper

Proper paper loading helps prevent paper jams and ensure trouble-free printing. Do not remove paper from the tray(s) while a job is printing. Doing so may cause a paper jam.

Using the Automatic Input Tray

The automatic input tray holds 150 sheets of plain paper and 5 sheets of special media. See “Media Sizes and Capacities” on page 4.2 for acceptable paper size and capacities for each input trays.

Load a stack of paper into the automatic input tray and print. For details on loading paper in the automatic input tray, see “Load Paper” on page 2.4.

Note: Before using the automatic input tray, you must remove

paper from the manual input tray.

Using the Manual Input Tray

When you change the print settings, if you select Manual in the Paper Source option, you can manually load paper in the manual when you want to check the print quality after each page is printed.

If you experience a paper jam from the automatic into the manual

Note: To avoid a paper jam, use the manual tray with the automatic input tray loaded with paper.

Load the print media in the manual input tray with the print side up.

Adjust the paper guide against the stack of print media without bending.

input tray

. Manually loading paper can be helpful

input tray,

load a sheet of paper at a time

PRINT MEDIA

4.5

Page 34

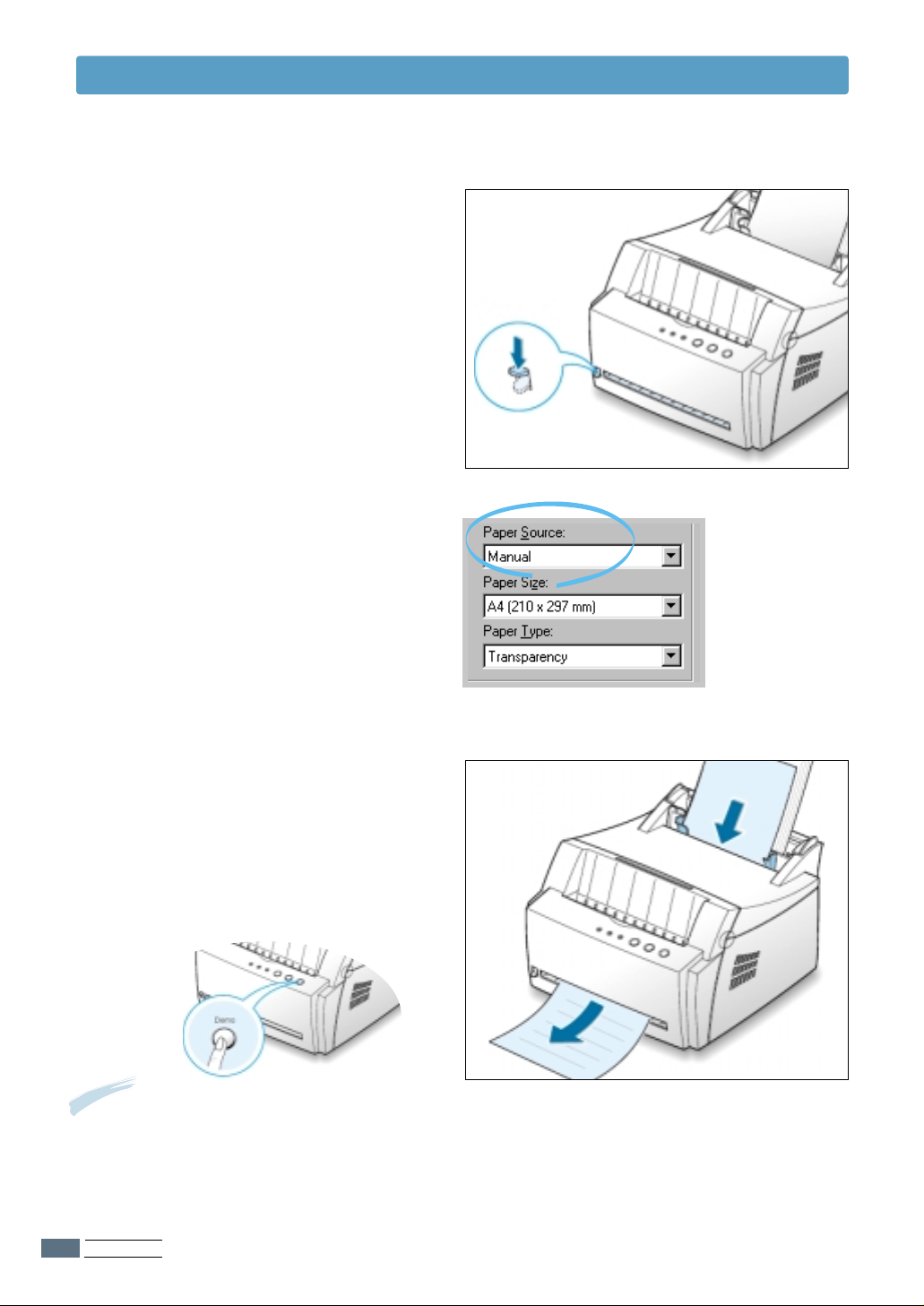

Loading Paper

Push the output lever down to open the face-up output slot.

When you print a document, you must select Manual for Paper Source from the software application, and then select the correct paper size and type. For details, see page 5.3.

Print the document.

If you are printing multiple pages, load next sheet after the first page prints out.

Press Demo to start feeding.

Notes:

• The face-up output slot may not hold the printed pages properly.

• The printed pages will not stack in the face-down output tray unless you change output lever position. After you finish using the face-up output slot, you must change the position of the output lever to the normal position. Push it up.

4.6

PRINT MEDIA

Page 35

Printing on Envelopes

Guidelines

• Only use envelopes recommended for laser printers. Before you load envelopes in the input tray, make sure that they are undamaged and are not stuck together.

• Do not feed stamped envelopes.

• Never use envelopes with clasps, snaps, windows, coated lining, or self-stick adhesives. These envelopes may severely damage the printer.

Flex or fan

through them for loading.

the envelopes to supply air

Load the envelopes into the input tray you want to use with the flap side down.

The stamp area is on the right side and the end of the envelope with the stamp area enters the tray first.

Adjust the guide to the edge of the envelope stack.

PRINT MEDIA

4.7

Page 36

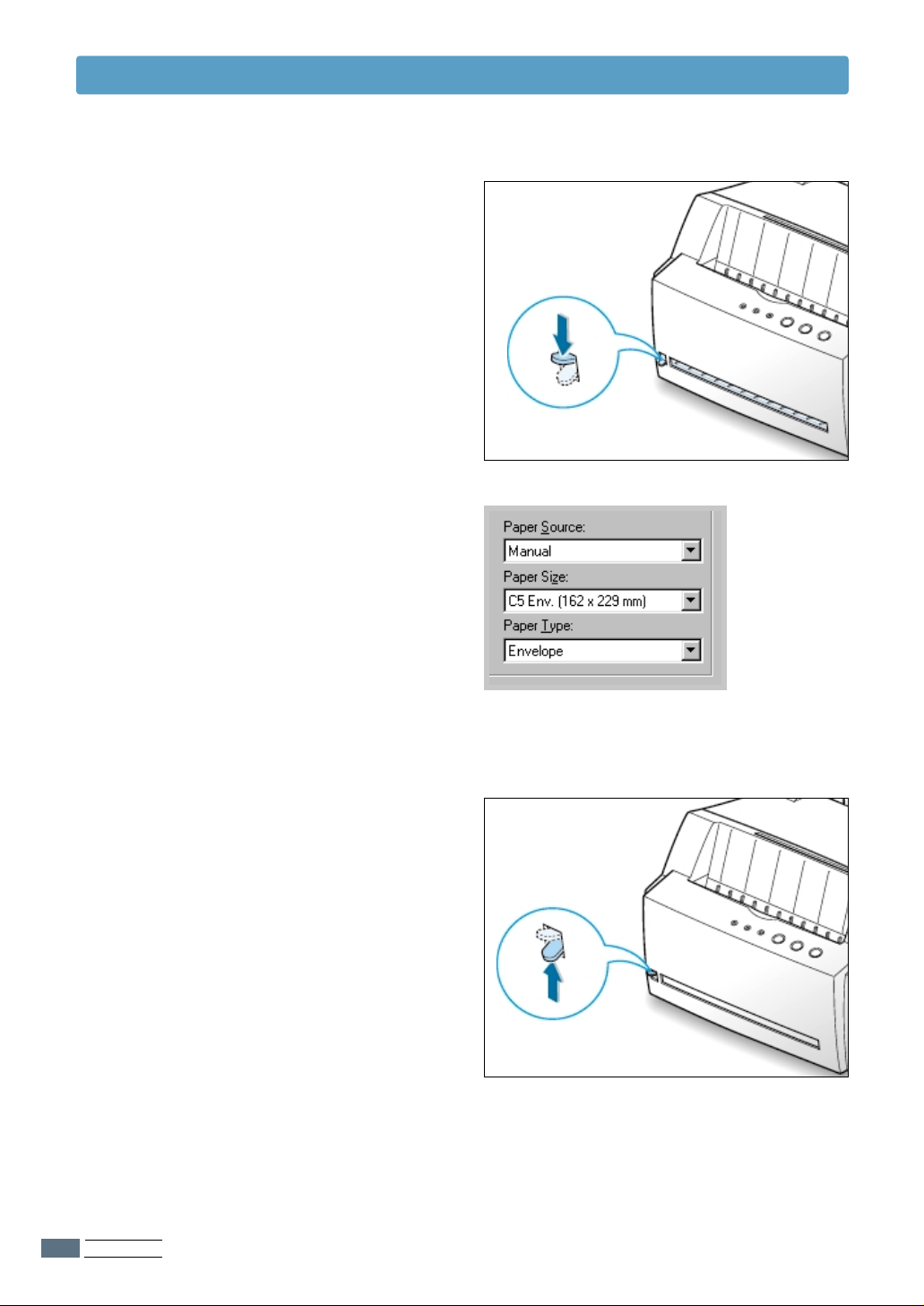

Printing on Envelopes

Push the output lever down.

When you print on envelopes, configure the paper source, type and size properly in the software application. For details, see page 5.3.

Print the document.

After printing, push the output lever up.

4.8

PRINT MEDIA

Page 37

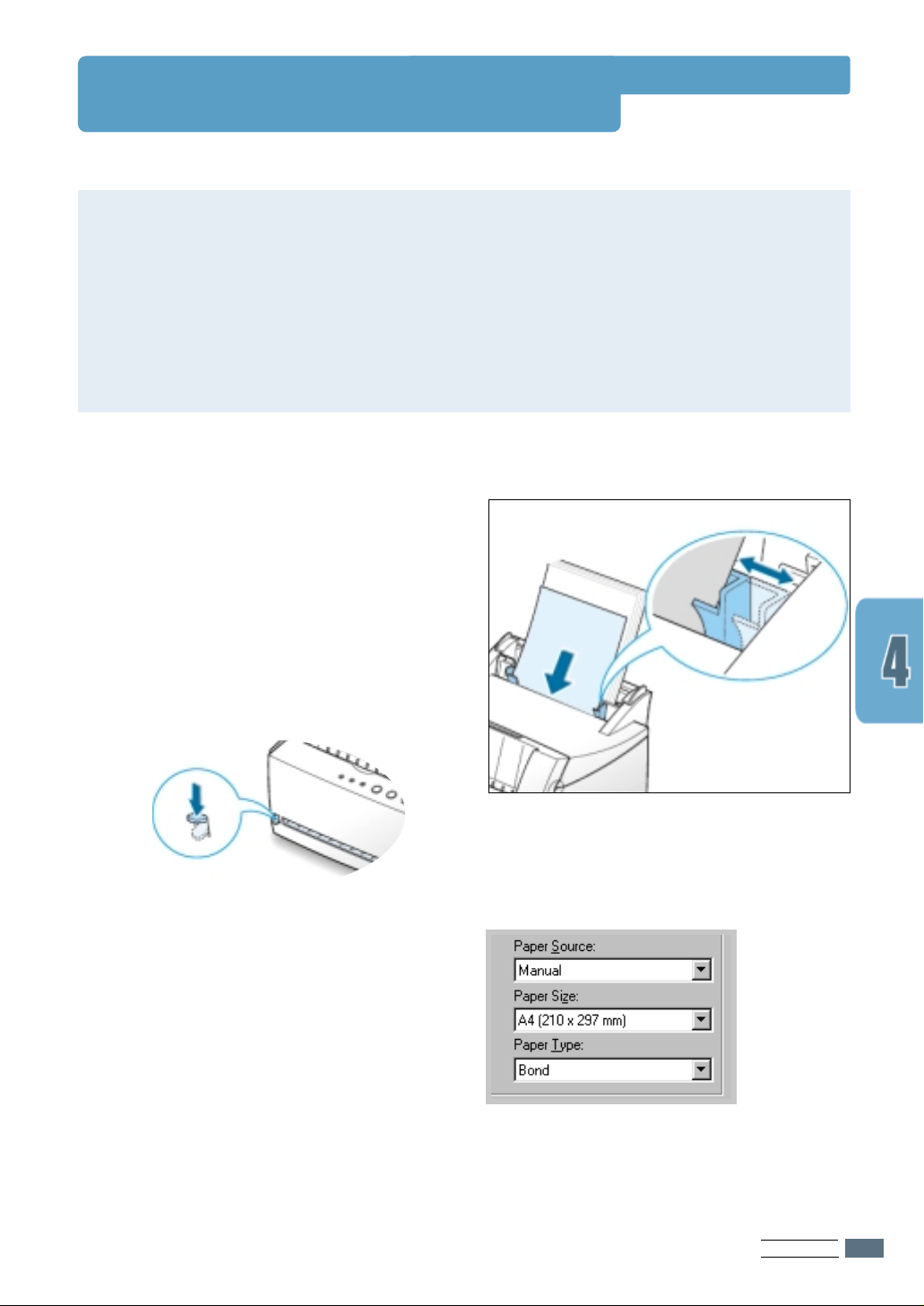

Printing on Heavy Paper

Guidelines

• Heavy paper is any paper heavier than 24 lb (90 g/m2). For cotton papers, you can use 24 lb paper. The maximum paper weight available for your printer is 43 lb (163g/m

• Do not use extremely heavy paper stock (greater than 43 lb, or 163 g/m Misfeeds, mis-stacking, media jams, poor toner fusing, poor print quality, and excessive mechanical wear can result.

Load paper in the input tray you want to use with print side up.

Adjust the guide to fit the width of the labels.

Push the output lever down.

bond).

When you print on heavy paper, select Bond in the Paper Type section, and then configure the paper source, and size in the software application. For details, see page 5.3.

PRINT MEDIA

4.9

Page 38

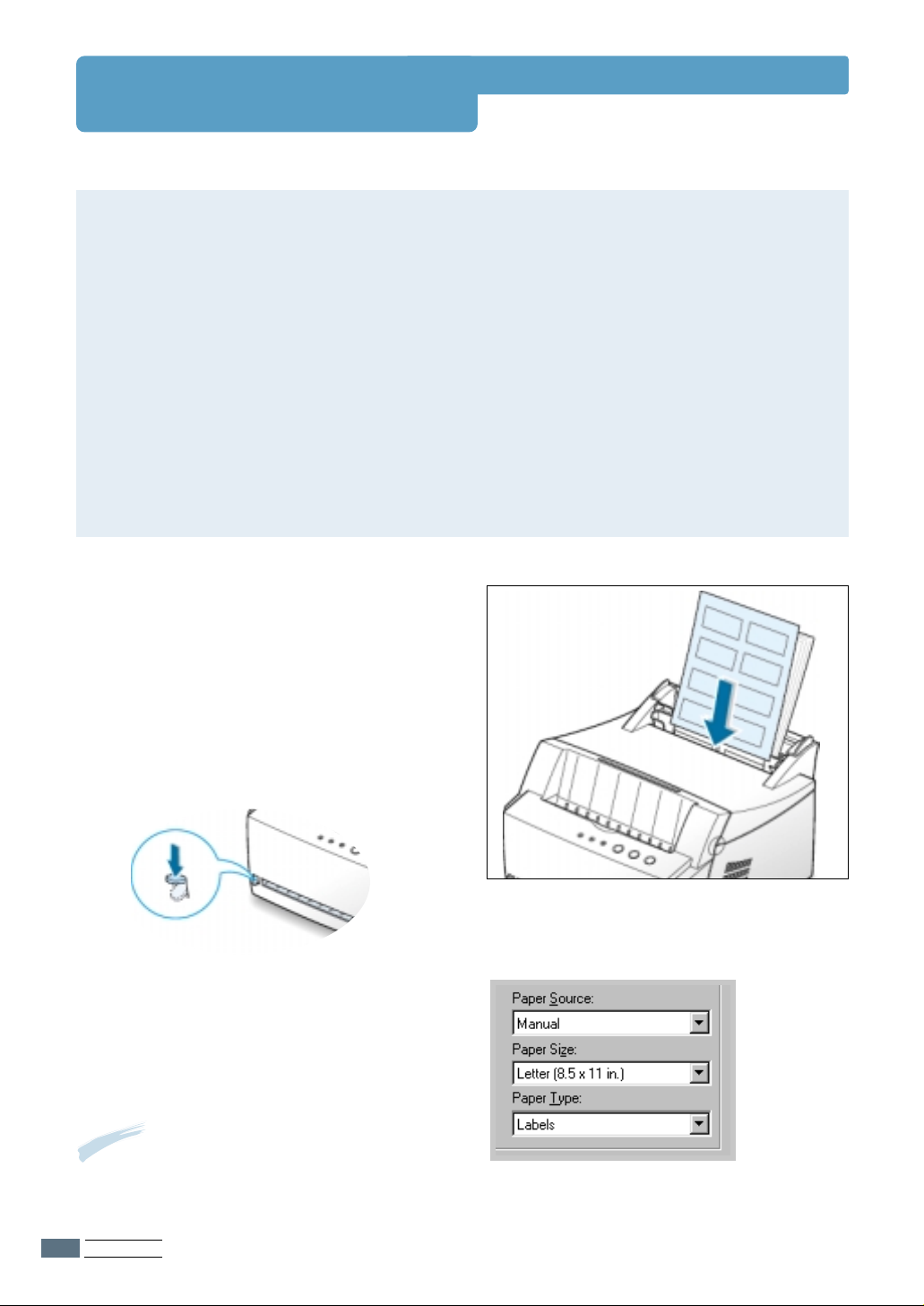

Printing on Labels

Guidelines

• Only use labels recommended for laser printers.

• Verify that the labels’ adhesive material can tolerate fusing temperature of 200°C (392°F) for 0.1 second.

• Make sure that there is no exposed adhesive material between the labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components.

• Do not feed a sheet of labels through the printer more than once. The adhesive backing is designed for one pass through the printer.

• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

Load labels in the input tray you want to use with print side up.

Adjust the guide to fit the width of the labels.

Push the output lever down.

When you print on labels, configure the paper source, type and size in the software application. For details, see page 5.3.

Note: To prevent them from sticking

together, do not let the printed label sheets stack up as they are printed out.

4.10

PRINT MEDIA

Page 39

Printing on Transparencies

Guidelines

• Only use transparencies recommended for use in laser printers.

• Make sure that the transparencies are not wrinkled or curled, and that they do not have any torn edge.

• Hold the transparencies by the edges and avoid touching the print side. Oils from your fingers that are deposited on the transparency can cause print quality problems.

• Be careful not to scratch or leave fingerprints on the print side.

Load transparencies in the input tray you want to use with print side up, and the top with the adhesive strip going first.

Adjust the guide to fit the width of the transparencies.

Push the output lever down.

When you print on transparencies, configure the paper source, type and size in the software application. For details, see page 5.3.

Notes:

• To prevent transparencies from sticking together, do not let the printed sheets stack up as they are printed out.

• Place transparencies on a flat surface after removing them from the printer.

PRINT MEDIA

4.11

Page 40

Printing on Preprinted Paper

Preprinted paper is a form with some type of printing on them before they are sent through the printer, such as a letterhead having preprinted logo or text located at the top of the page.

Guidelines

• Letterheads must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer’s fusing temperature of 400°F (205°C) for 0.1 second.

• Ink on letterhead must be non-flammable and should not adversely affect any printer rollers.

• Forms and letterheads should be sealed in a moisture-proof wrapping to prevent changes during storage.

• Before you load preprinted paper as forms and letterheads, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper.

Load letter-heads into the input tray you want to use with the design face

up, bottom edge toward the printer.

Adjust the guide to fit the width of the paper stack.

When you print on the preprinted paper, configure the paper source, type and size in the software application. For details, see page 5.3.

4.12

PRINT MEDIA

Page 41

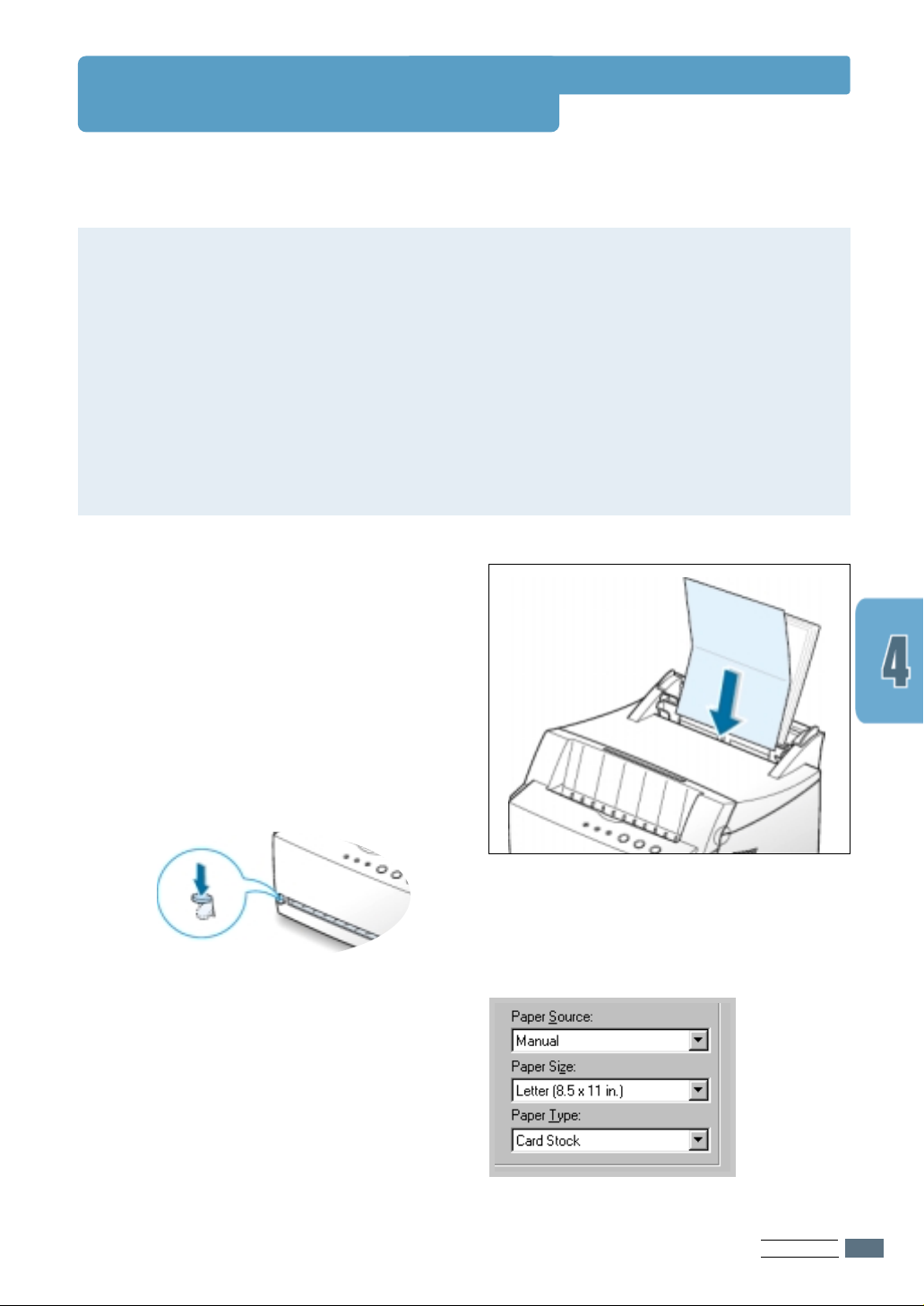

Printing on Card Stocks

Postcards, 3 by 5 in.(index) cards can be printed with the Samsung ML-4500 printer.

Guidelines

• Always insert the short-edge first into the mode, make this selection through your software. Inserting paper long-edge first may cause a paper jam.

• Do not print on the card stocks that is too small or too large. The minimum size is 76 by 127 mm (3 by 5 in.) for the manual input tray and 95 by 127 mm (3.8 by 5 in.) for the automatic input tray, and the maximum size is 216 by 356 mm (8.5 by 14 in.).

• Set margins at least 6.4 mm (0.25 in.) away from the edges of the media in the software application.

Load print media in the input tray you want to use with print side up, short edge first .

Adjust the guide to fit the width of the media.

Push the output lever down.

input tray

. If you want to print in landscape

Configure the paper source, type in the printer driver’s properties (see page

5.3) and print.

PRINT MEDIA

4.13

Page 42

This chapter explains your printing options and give common printing tasks.

Topics included in this chapter are:

◆

Printing a Document

◆

Printing Multiple Pages on One Sheet of Paper (N-Up Printing)

◆

Setting Print Resolution

◆

Using Toner Save Mode

◆

Using Power Save Mode

◆

Using Other Graphic Options

◆

Reprinting the Last Page

◆

Printing on a Network Environment

Page 43

Printing a Document

The following procedure describes the steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program. Refer to your software application’s documentation for the exact printing procedure.

Open the document you want to print.

Select Print from the File menu. The Print dialog box for

your application will be displayed (the Print dialog box for your application may look slightly different).

The basic print settings you required are usually selected within this Print dialog box. These settings include the number of copies, paper size, and page orientation.

If you see a Properties button, click it.If you see Setup, Printer, or Options, click that button instead; then click Properties in the next screen.

Select your printer.

PRINTING TASKS

5.1

Page 44

Printing a Document

To take advantage of the printer features provided by your

ML-4500 printer, click Properties in the application’s Print dialog box and go to step 4.

If you see Setup, Printer, or Options, click that button instead. Then click Properties in the next screen.

The Samsung ML-4500 Properties dialog box allows you to

access all the information necessary when using your printer.

If necessary, click the Basic tab to display the settings shown below. The Basic tab contains the options for setting the basic paper handling.

5.2

PRINTING TASKS

Page 45

Printing a Document

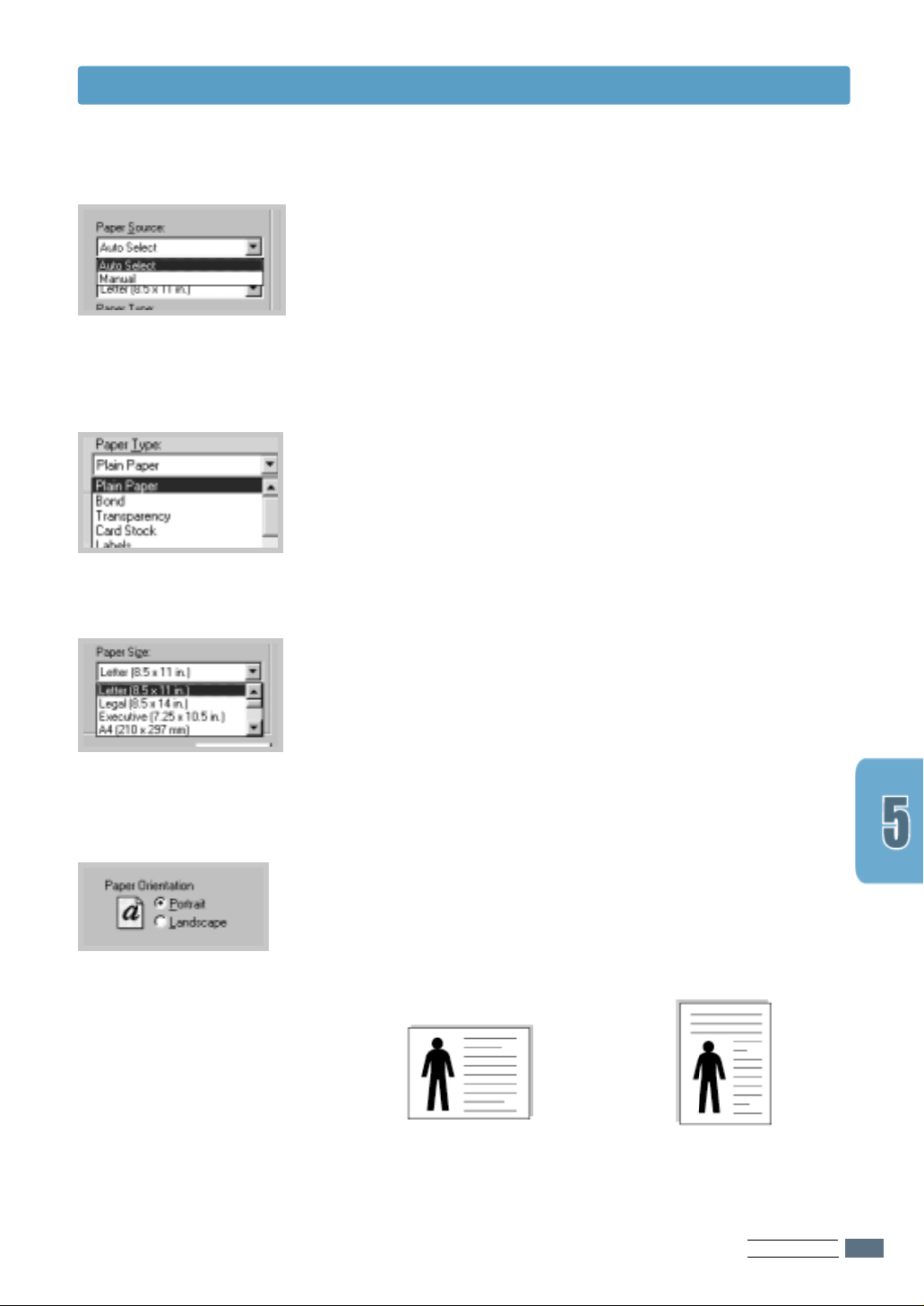

Make sure the Paper Source is set to Auto Select. If the

paper source is set to Auto Select, the printer automatically selects the print media according to the following order: the manual input tray, the automatic input tray. Manual source is used when printing to special media. You have to feed one sheet at a time into the printer. See page 4.5.

Make sure the Paper Type is set to Plain Paper. If you

load a different type of print media, select the corresponding paper type. For further information on print media, refer to the chapter 4 ‘Print Media’.

Select the paper size you have loaded in your printer.

The Paper Orientation option allows you to select the

direction in which information is printed on a page.

Portrait prints across the width of the page, letter style. Landscape prints across the length of the page,

spreadsheet style.

Landscape

Portrait

PRINTING TASKS

5.3

Page 46

Printing a Document

Click the other tabs on the top of the Properties dialog box

to access other features, if needed.

When you complete the print settings, click OK until the

Print dialog box is displayed.

Click OK to start printing.

Notes:

• Most Windows applications will override settings you specify in the printer driver. Change all print settings available in the software application first, and any remaining settings with the printer driver.

• The settings you change remain in effect only while you are using the current program. To make your changes permanent, make them in the Printers folder as follows:

1. Click the Windows Start button.

2. Select Settings, then Printers to open the Printers window.

3. Select the Samsung ML-4500 printer icon.

4. Click the right mouse button and select Properties to open the properties window.

5.4

PRINTING TASKS

Page 47

Canceling a Print Job

There are two ways to cancel print job.

To stop a print job from your printer

Press the Cancel/Reprint button on the control panel.

The printer will finish printing the page that is moving through the printer and delete the rest of the print job with the Error light blinking. Pressing Cancel/Reprint cancels only the current job in the printer. If more than one print job is in printer memory, Cancel/Reprint must be pressed once for each job.

Printing a Document

Using Help

To stop a print job from the Printers folder

1. From the Start menu, select Settings.

2. Select Printers to open the Printers window, then doubleclick the Samsung ML-4500 printer icon.

3. From the Document menu, select Cancel Printing (Windows 9x) or Cancel (Windows NT 4.0/2000).

The Samsung ML-4500 printer has a help screen that can be activated by the Help button in the printer’s properties dialog box. You can also click ? from the upper right hand corner, then click on any setting.

These help screens give a detailed information about the printer features provided by the Samsung ML-4500 printer driver.

To restore the default printer properties setting when you change the print settings, click Defaults in the Samsung ML-4500 Properties dialog box.

PRINTING TASKS

5.5

Page 48

rinting Multiple Pages on

One Sheet of Paper

You can select the number of pages you want to print on a single sheet of paper. If you choose to print more than one page per sheet, the pages will appear decreased in size and arranged on the sheet. You can specify up to 16 pages.

When you change the print settings from your software

application, access the printer properties. See page 5.1 to access the printer properties.

"!4 pages per sheet

From the Basic tab, select the number of pages you want

to print per sheet (1, 2, 4, 9 or 16) in the Pages per Sheet drop-down list.

Select the paper orientation, source, size and type as needed.

(N-Up Printing)

"!9 pages per sheet

Click OK, then start printing.

5.6

PRINTING TASKS

Page 49

Setting Print Resolution

You can select the print resolution between 600 dpi and 300 dpi. The higher the setting, the sharper the clarity of printed

characters and graphics. Higher settings may increase the time it takes to print a document.

When you change the print settings from your software

application, access the printer properties. See page 5.1 to access the printer properties.

Click the Option tab, and select the desired print resolution

from the Resolution section.

Click OK, then start printing.

PRINTING TASKS

5.7

Page 50

Using Toner Save Mode

Toner Save mode allows the printer to use less toner on each page. Selecting this option will extend the life of your toner cartridge and reduce your cost per page, but will reduce print quality.

There are two ways to enable the Toner Save mode.

To enable this feature from your printer

Press the Toner Save button on the control panel. The printer must be in Ready mode (Data light is on).

• If the button backlight is on, toner save mode activates and the printer uses less toner to print a page.

• If the button backlight is off, toner save mode is disabled and the printer prints in a normal mode.

Note: To enable or disable the Toner Save mode from the control

panel, the Toner Save Mode option in the printer driver must be set to Printer Setting. See below.

To enable this feature from the software application

When you change the print settings from your software

application, access the printer properties. See page 5.1 to access the printer properties.

Click the Option tab, select the Toner Save Mode option.

You can select from:

• Printer Setting: If you select this option, this feature is determined by the setting you’ve made on the control panel of the printer.

• Standard: If you don’t need to save toner to print a document, select this option.

• Save: Select this option to allow the printer to use less toner on each page.

5.8

PRINTING TASKS

Click OK.

Page 51

Using Power Save Mode

You can save power consumption when the printer is idle by determining the length of time the printer waits after a job is printed before it goes to a reduced power state.

When you change the print settings from your software

application, access the printer properties. See page 5.1 to access the printer properties.

Click the Option tab, and select the desired length of time

from the drop-down list in the Power Save Mode section.

If your printer is used constantly, select OFF which keeps the printer ready to print with the minimum warm-up time. This uses more energy to keep the printer warm and ready to print.

Click OK.

PRINTING TASKS

5.9

Page 52

Using Other Graphic Options

Use the following options to adjust the print quality for your specific printing needs when you access the printer properties. See page 5.1 to access the printer properties.

If necessary, click the Option tab to display the settings shown below.

5.10

Click here to save the changes when setting is done.

PRINTING TASKS

Page 53

Correcting Print Quality for Altitude

With this option checked, you can optimize the print quality for a low pressure area, such as a high ground.

Setting Graphic Mode

Configure the printer to process graphics as raster or vector images. Setting this option tells Windows how to send graphic image to the printer. All graphics can be printed as raster images, however some geometric shapes or patterns print faster if they are printed as vector graphics.

• Vector – If you select the Vector setting, Windows will send graphics to the printer as a mixture of vector and raster images.

Using Other Graphic Properties

• Raster – When you select the Raster setting, Windows will send all graphics to the printer as bit map raster images.

Notes:

• Not all graphic images can print using the Vector setting. If

you are using the Vector setting, and your graphic images do not print as they appear on your computer screen, select the Raster setting and reprint your graphic.

• This option does not appear in Windows NT.

Reprinting the Jammed Page

With this option checked, the printer keeps the image for a printed page until the printer signals that the page has successfully exited the printer. If a paper jam occurs, the printer will automatically reprint all jammed page after the jam is cleared.

PRINTING TASKS

5.11

Page 54

Reprinting the Last Page

The Samsung ML-4500 printer’s memory keeps always the last page of the last job. If you canceled a print job due to a paper jam or other problems and you want to know which page was printed lastly, reprint the last page.

Press Cancel/Reprint briefly in Ready mode.

Note: If you want to prevent somebody from reprinting your document, you can turn the

Reprinting feature off in the printer’s properties dialog box. When you turn the feature off in the printer’s properties, the Cancel/Reprint button on the control panel does not perform the reprinting operation.

To disable this feature:

1. From the Start menu, select Settings then Printers.

2. Click the right mouse button and select Properties to open the properties window.

3. From the Option tab, click the Reprint to empty the

checkbox.

With the box empty, you cannot reprint the last page from the control panel.

When you want to reprint the last page on the control panel, you must put a check mark on this check box.

4. Click OK.

5.12

PRINTING TASKS

Page 55

Printing on a Network Environment

If you work in a network environment, you can connect your ML-4500 printer directly to a selected computer (called the “host computer”) on the network. The printer can then be shared by other users on the network through a Windows 9x, 2000 or NT 4.0 network printer connection.

Note: You need to install the Samsung ML-4500 printer driver

on each computer that will print documents to the printer.

Setting Up Host Computer

Start Windows.

From the Start menu, select Control Panel, and

double-click on the Network icon.

Check the File and Print Sharing box, then click OK.

Close the window.

Click Start and select Printers from Settings, then

double-click your printer name.

Select Properties in the Printers menu.

Click the Sharing tab, then check the Shared As box.

Fill in the Shared Name field, then click OK.

PRINTING TASKS

5.13

Page 56

Printing on a Network Environment

Setting Up Client PC

Right-click Start, and select Explorer.

Open your network folder in the left column.

Right-click the shared name, and select Capture Printer Port.

Select the port you want, check the Reconnect at log on box, then click OK.

From the Start menu, select Settings, then Printers.

Double-click your printer icon.

From the Printers menu, select Properties.

Press the Details tab, select the printer port, then click

OK.

5.14

PRINTING TASKS

Page 57

This chapter provides suggestions for high-quality and economical printing and information for maintaining the toner cartridge and the printer.

Topics included in this chapter are:

◆ Maintaining Toner Cartridge

◆ Cleaning the Printer

Page 58

Maintaining Toner Cartridge

Toner cartridge storage

Toner cartridge life

expectancy

To get the most from the toner cartridge, keep the following guidelines in your mind.

• Do not remove the toner cartridge from its package until you are ready to use.

• Do not refill toner cartridges. The printer warranty does not

cover damage caused by using a refilled cartridge.

• Store toner cartridges in the same environment as the printer.

• Do not remove a toner cartridge from the printer except to replace it, clean it or clear a paper jam. Replace the cartridge immediately.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minute.

The life of the toner cartridge depends on the amount of the toner that print jobs require. When printing text at 5 % coverage, a new toner cartridge lasts an average of 2,500 pages. (But, the toner cartridge supplied with the printer lasts an average of 1,000 pages.)

Recycling toner

cartridge

Saving toner

After you install a new toner cartridge (see page 2.2), follow the instructions included in the toner cartridge box to recycle the old cartridge.

To save toner, press the Toner Save button on the printer control panel. The button will be lit. You can also enable the Toner Save Mode in your printer properties. Refer to “Using Toner Save Mode” on page 5.8. Selecting this option will expend the life of the toner cartridge and reduce your cost per page, but will reduce print quality.

MAINTAINING YOUR PRINTER

6.1

Page 59

Toner Cartridge

Redistributing Toner

When toner is low, faded or light areas may appear on a printed page. You may be able to temporarily improve print quality by redistributing the toner. The following procedures may allow you to finish the current print job before replacing the toner cartridge.

Grasp the front cover by both sides of the cover and pull it toward you to open.

Remove the toner cartridge from the printer.

CAUTIONS:

• Avoid reaching too far into the printer. The fusing area may be hot.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minute.

Gently shake the toner cartridge from side to side 5 or 6 times to redistribute the toner.

Note: If the toner gets on your

clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

MAINTAINING YOUR PRINTER

6.2

Page 60

Reinsert the toner cartridge into the printer. Be sure that the toner cartridge snaps in its place.

Toner Cartridge

Firmly

If the print remains light

Remove the old cartridge and install a new toner cartridge. See “Install the Toner Cartridge” on page 2.2.

close the cover.

MAINTAINING YOUR PRINTER

6.3

Page 61

Cleaning the Printer

To maintain print quality, follow the cleaning procedures below every time the toner cartridge is replaced or whenever print quality problems occur. As much as possible, keep the printer free from dust and debris.

Notes:

• Do not use ammonia-based cleaners or volatile solvents such as thinner, on or around the printer. These can damage the printer.

• While cleaning the inside of the printer, be careful not to touch the transfer roller (located underneath the toner cartridge ). The oil from your hands on the roller can cause print quality problems.

Cleaning the Outside

Wipe the outside surface of the printer with a soft, clean, lintfree cloth. You can dampen the cloth slightly with water, but be careful not to be let any water drip onto the printer or inside it.

Cleaning the Inside

Cleaning inside the printer

Note: To prevent

damage to the toner cartridge, do not expose it to light for more than a few minute. Cover it with a piece of paper, if necessary. Also, do not touch the black transfer roller inside the printer. By doing so, you can damage the printer.

During the printing process, paper, toner, and dust particles can accumulate inside the printer. Over time, this buildup can cause print quality problems such as toner specks or smearing. Cleaning inside the printer will eliminate or reduce these problems.

Turn the printer off and unplug the power cord, then wait for

the printer to cool.

Open the front cover and remove the toner cartridge.

With a dry, lint-free cloth, wipe away any dust and spilled toner

from the toner cartridge area and the toner cartridge cavity.

MAINTAINING YOUR PRINTER

6.4

Page 62

Cleaning the Printer

Reinsert the toner cartridge and close the cover

Then, plug in the power cord, and turn the printer on.

Printing a cleaning sheet

Note: The cartridge

cleaning process takes some time. To stop the printing, turn the power off.

Printing a cleaning sheet cleans the drum inside the toner cartridge. Use this process if you are experiencing blurred, faded or smeared printouts. This process will produce a page with toner debris, which should be discarded.

Make sure the printer is turned on and in the Ready mode and

there is paper loaded in the automatic input tray.

Press and hold down Demo on the control panel for about 10

seconds until all control panel lights remain lit, then release the button.

Your printer automatically picks up a sheet of paper from the

tray and prints out a cleaning sheet with the dust or toner particles on it.

MAINTAINING YOUR PRINTER

6.5

Page 63

This chapter gives helpful information for what to do if you encounter a printer error. It provides information on the following topics:

◆ Troubleshooting Checklist

◆ Solving General Printing Problems

◆ Clearing Paper Jams

◆ Solving Print Quality Problems

◆ Troubleshooting Error Messages

◆ Common Windows Problems

Page 64

Troubleshooting Checklist

If the printer is not working properly, complete the following checklist in order. If the printer does not pass a step, follow the corresponding troubleshooting suggestions.

Check

Make sure that the Data light on the control panel is on.

Press the Demo button to print a demo page to verify that the printer is feeding paper correctly. See page 2.7.

Check the demo page to see if it is printed correctly.

Print a short document from a software application to verify the computer and printer are connected and are communicating correctly.

Solution

• If no lights are on, check the power cord connection and the power switch. Check the power source by plugging into another outlet.

• If other lights are on, go to “Troubleshooting Error Messages” on page 7.17.

• If a demo page does not print, check the paper supply in the input tray.

• If the paper jams in the printer, go to “ Clearing Paper Jams” on page 7.6.

• If the Error indicator light is illuminated on the control panel, go to “Troubleshooting Error Messages” on page 7.17.

If there is a print quality problem, go to “Solving Print Quality Problems” on page 7.11.

• If the page does not print, check the cable connection between the printer and computer.

• Check the print queue or print spooler to see if the printer has been paused.

• Check the software application to make sure you are using the proper printer driver and communication port. If the page is interrupted during printing, go to “Solving General Printing Problems” on page 7.2.

If completing the checklist did not diagnose the problem with the printer, check the following troubleshooting sections.

• “Solving General Printing Problems” on page 7.2.

• “Troubleshooting Error Messages” on page 7.17.

• “Common Windows Problems” on page 7.19.

PROBLEM SOLVING

7.1

Page 65

Solving General Printing Problems

If you have any problems with the operation of your printer, refer to the table for suggested solutions.

Problem

The printer does not print.

Possible Cause

The printer is not receiving power.

Your printer is not selected as the default printer.

Check the printer for the following:

The printer may be in manual feed mode and out of paper. (The Paper light is on.)

The connection cable between the computer and the printer is not connected properly.

Solution

If no lights are on, check the power cord connections. Check the power switch and the power source.

Select Samsung ML-4500 as your default printer.

• The printer cover is not closed.

• Paper is jammed.

• No paper is loaded.

• Toner cartridge is not installed.

• Printer system error occurs. Contact a service representative.

Add paper to the manual input tray, and press the Demo button on the printer’s control panel to start printing.

Disconnect the printer cable and reconnect it.

PROBLEM SOLVING

7.2

The connection cable between the computer and the printer is defective.

The port setting is incorrect.

If possible, attach the cable to another computer that is working properly and print a job. You may also try using a different printer cable.

Check the Windows printer setting to make sure that the print job is sent to the correct port (for example, LPT1). If the computer has more than one port, make sure the printer is attached to the correct one.

Page 66

Solving General Printing Problems

Problem

The printer does not print. (continued)

Printer selects media from the wrong paper source.

Paper does not feed into the printer.

Possible Cause

The printer may be configured incorrectly.

The printer driver may be incorrectly installed.

The printer is malfunctioning.

The paper source selection in the printer properties may be incorrect.

Paper has not been loaded correctly.

There is too much paper in the input tray.

Solution

Check the printer properties to make sure that all print settings are correct.

Uninstall the printer driver, then reinstall the printer driver. Try printing a demo page.

Check the lights on the control panel to determine if the printer is indicating a system error.

For many software applications the paper source selection is found under the Basic tab within the printer properties. Select the correct paper source.

Remove paper from the input tray and reload it correctly.

Remove excess paper from the input tray.

Print job is extremely slow.

The paper is too thick.

The job may be very complex.

The maximum print speed of the Samsung ML-4500 printer is 8 pages per minute.

If using Windows 95, the Spooling Setting may be set incorrectly.

Use only paper that meets the specifications required by the printer.

Reduce the complexity of the page or try adjusting the print quality settings.

From the Start menu, and then choose Settings and Printers. Right-click the Samsung ML-4500 printer icon, choose Properties, click the Details tab, and then choose the Spool Settings button. Select the desired spool setting from the available choices.

PROBLEM SOLVING

7.3

Page 67

Solving General Printing Problems

Problem

Half of the page is blank.

The paper keeps jamming.

Possible Cause

The page layout is too complex.

The page orientation setting may be incorrect.

The paper size and the paper size settings do not match.

There is too much paper in the paper tray.

An incorrect type of paper is being used.

An incorrect output method is being used.

Solution

Simplify the page layout and remove any unnecessary graphics from the document, if possible.

Change the page orientation in your application.

Make sure that the paper size in the print settings matches the paper in the input tray.

Remove excess paper from the tray. If printing special media, use the manual input tray.

Use only paper that meets the specifications required by the printer.

Media such as thick paper should not be printed using the face-down output tray. Use the face-up output slot instead.

The printer prints, but the text is wrong, garbled, or incomplete.

PROBLEM SOLVING

7.4

There may be debris inside the machine.

The printer cable is loose or defective.

The wrong printer driver was selected.

Open the front cover and remove the debris.

Disconnect the printer cable and reconnect it. Try a print job that you know works. If possible, attach the cable and printer to another computer and try a print job that you know works. Finally, try a new printer cable.

Check the application’s printer selection menu to make sure that your printer is selected.

Page 68

Solving General Printing Problems

Problem

The printer prints, but the text is wrong, garbled, or incomplete. (continued)

Pages print, but are totally blank.

Possible Cause

The software application is malfunctioning.

The operating system is malfunctioning.

The toner cartridge is defective or out of toner.

The file may have blank pages.

Some parts, such as the controller, the board, may be defective.

Solution

Try printing a job from another application.

If printing from Windows (any version), exit to a Dos prompt and verify functionality with the following command: At a C:\ prompt, type dir LPT1, then press Enter. (This assumes you are connected to LPT1.) Exit Windows and reboot the computer. Turn the printer off and then back on again.

Replace the toner cartridge.

Check the file to make sure that it does not contain blank pages.

Contact a service representative.

The illustrations print wrong in Adobe Illustrator.

The setting in the software application is wrong.

Print the document with the Bitmap Printing checkbox in the Print dialog box empty.

PROBLEM SOLVING

7.5

Page 69

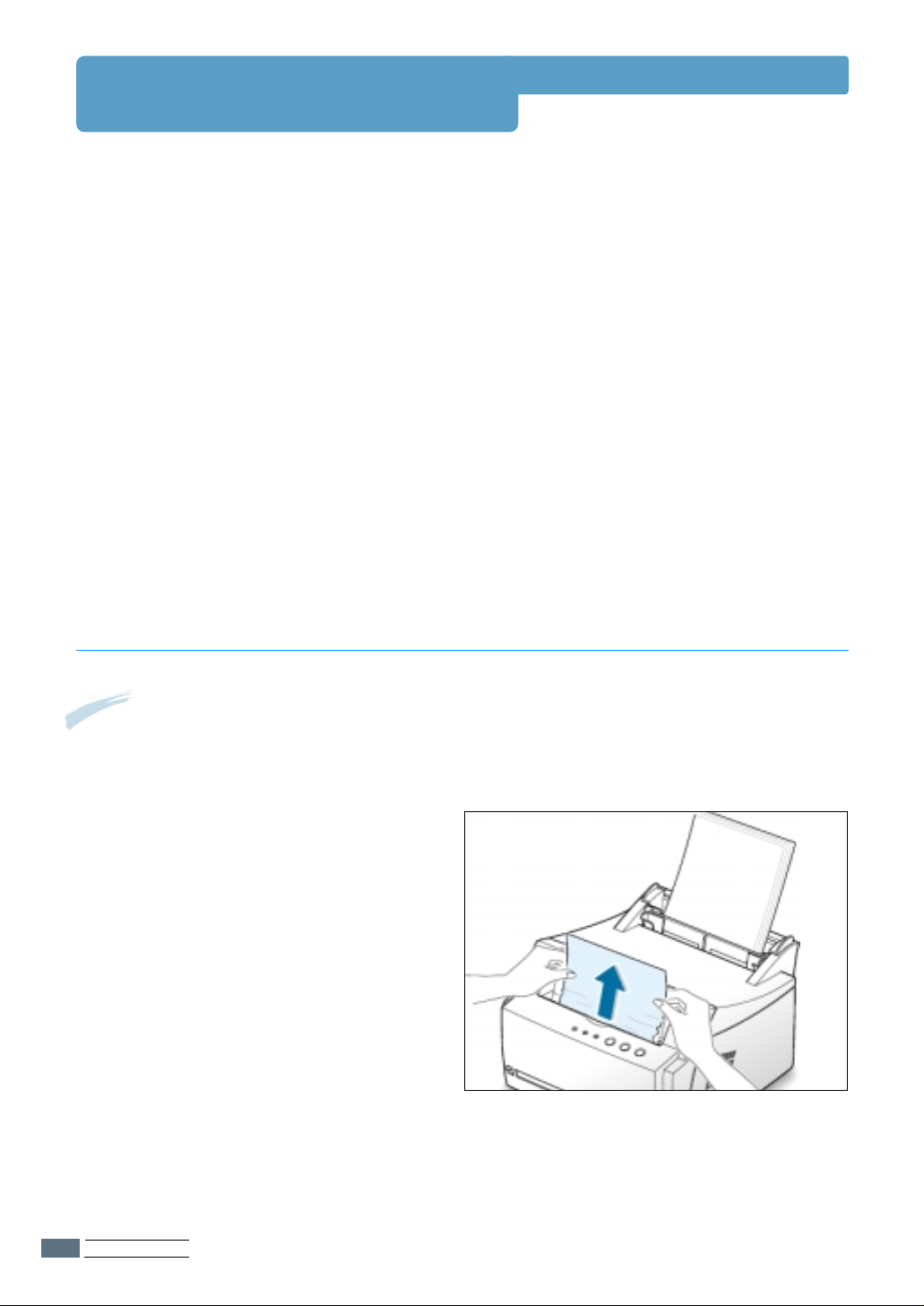

Clearing Paper Jams

Occasionally, paper can become jammed during a print job. Some of the causes include:

• The paper tray is loaded improperly or overfilled.

• The paper tray has been pulled out during a print job.

• The top cover has been opened during a print job.

• Paper that does not meet paper specifications has been used. See “Paper Specifications” on page A.2.

• Paper that is outside of the supported size range has been used. See “Paper Specifications”.

If a paper jam occurs, the Paper and the Error lights remain lit on the control panel. Find and remove the jammed paper. If the location of the paper jam is not obvious, look first inside the printer.

Output Area

Note: Paper jams in this area may result in loose toner on the page. If you get any toner on your

clothes, wash them in cold water because hot water will set the toner into the fabric.

Pull the jammed paper carefully out of the output stacker.

PROBLEM SOLVING

7.6

Page 70

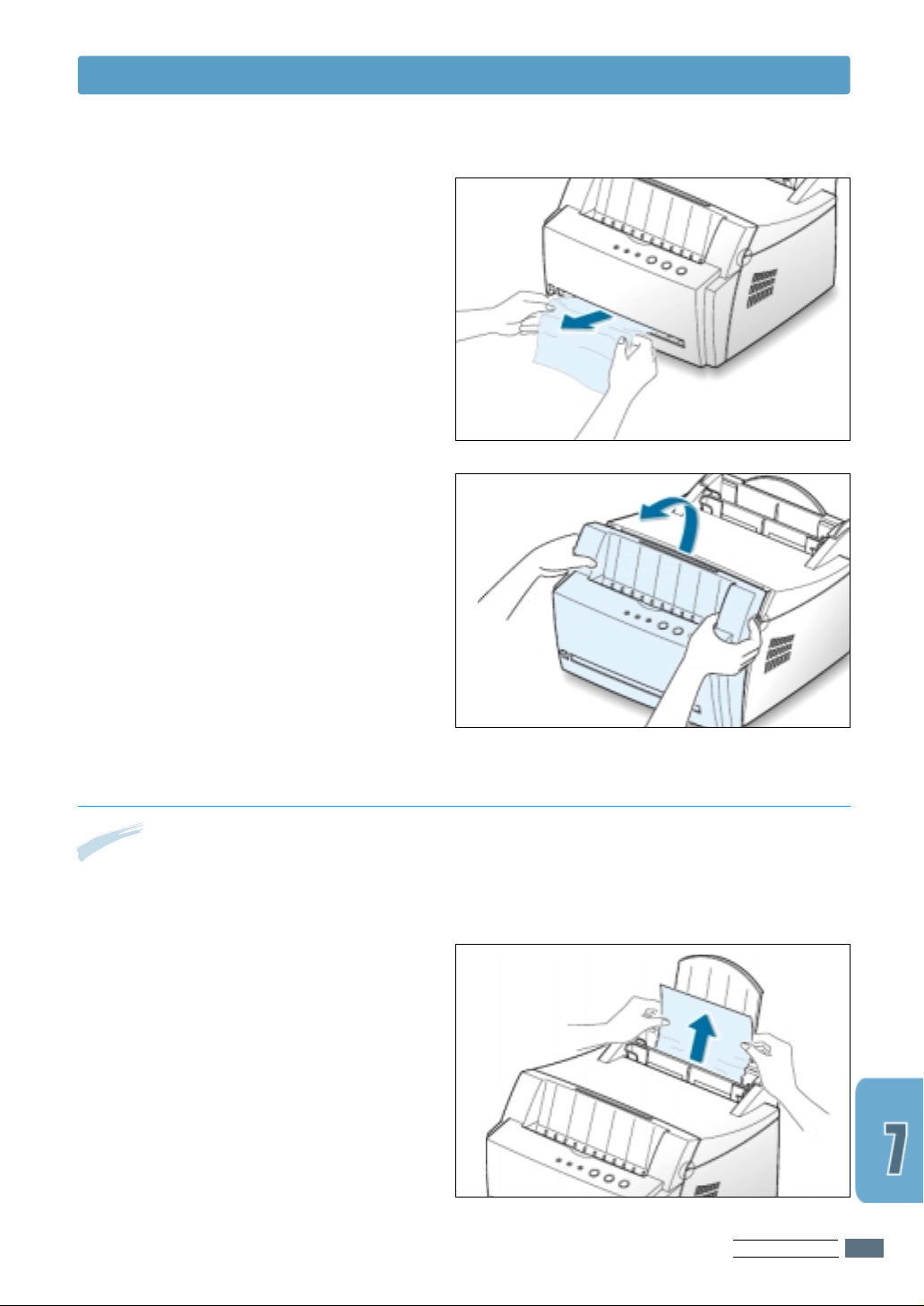

If paper is jammed in the face-up output slot, carefully remove the paper as shown.

Open and close the front cover. Printing can be resumed.

Clearing Paper Jams

Input Area

Note: If paper has entered the toner cartridge area, follow the instructions on page 7.8. It is

easier to remove such jams from the inside of the printer than the paper input area.

Carefully pull the jammed paper out of the input tray.

PROBLEM SOLVING

7.7

Page 71

Clearing Paper Jams

Open and close the front cover to resume printing.

Note: If the Paper and the Error lights

do not turn off, there is still jammed paper inside the printer. Check the inside of the printer.

Inside the Printer

Note: Paper jams in this area may result in loose toner on the page. If you get any toner on

your clothes, wash them in cold water because hot water will set the toner into the fabric.

Grasp the front cover by both sides of the cover and pull it toward you to open.

PROBLEM SOLVING

7.8

Page 72

Remove the toner cartridge.

CAUTION: To prevent damage to the

toner cartridge, do not expose it to light for more than a few minutes. Place a piece of paper over the top of the toner cartridge to shield it while it is out of the printer.

Gently pull the paper toward you to remove it from the printer.

Clearing Paper Jams

Make sure that there is no paper remaining inside the printer.

Reinsert the toner cartridge and close the front cover. Printing can be resumed.

PROBLEM SOLVING

7.9

Page 73

Clearing Paper Jams

Tips for Avoiding Paper Jams

By selecting correct paper types and loading them properly, you should be able to avoid most paper jams. If paper jams occurs, follow the steps outlined in “Clearing Paper Jams” on page 7.6. If jams occur frequently, make sure you are following these tips to avoid jams.

• Follow the procedures in “Load Paper” on page 2.4 to load the paper properly. Make sure the adjustable guides are positioned correctly.

• Do not overload the automatic input tray. Make sure the paper is under the paper capacity mark on the inside of the tray.

• Do not remove the paper from the input tray while print jobs are in process.

• Flex, fan and straighten the paper before loading it.

• Do not load wrinkled, creased, damp or highly curled paper.

• Do not mix paper types in the input tray.

• Use only recommended print media. See “Paper Specifications” on page A.2.

• Make sure that the recommended print side is facing up when loading the paper into both input trays.

• Keep print media stored in an acceptable environment. See “Printer and Paper Storage Environment” on page A.6.

7.10

PROBLEM SOLVING

Page 74

Solving Print Quality Problems

Print Quality Checklist

General print quality problems can be solved by following the checklist below.

• Redistribute the toner in the toner cartridge (see page 6.2).

• Clean the inside of the printer (see page 6.4).

• Adjust the print resolution from the printer properties (see page 5.7).

• Check to make sure that Toner Save Mode is off (see page 5.8).

• Troubleshoot general printing problems (see page 7.2).

• Install a new toner cartridge, then check print quality again (see page 2.2).

Solving Print Quality Problems

Problem

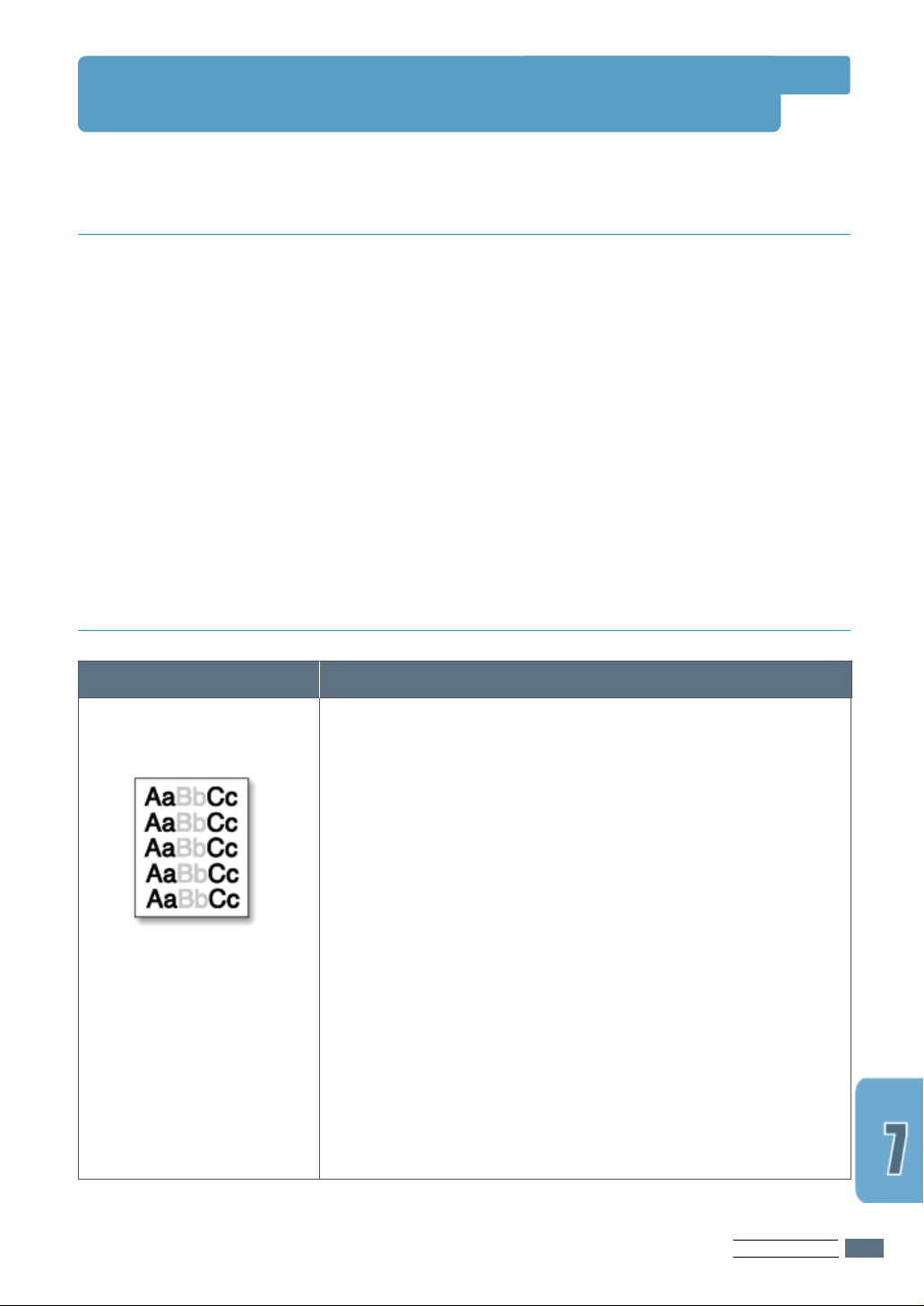

Light or faded print

Solution

If a vertical white streak or faded area appears on the page:

• The toner supply is low. You may be able to temporarily extend the toner cartridge life. See “Redistributing the Toner” on page 6.2. If this does not improve the print quality, install a new toner cartridge.

• The paper may not meet paper specifications (for example, the paper is too moist or too rough). See “Paper Specifications” on page A.2.

• If the whole page is light, the print resolution setting is too light or Toner Save Mode may be on. Adjust the print resolution and Toner Save Mode within the printer properties. See page 5.7 and 5.8 respectively.

• A combination of faded and smeared defects may indicate that the toner cartridge needs cleaning. See “Cleaning the Printer” on page 6.4.

• The surface of LSU part inside the printer may be dirty. Clean the LSU. See “Cleaning the Printer”.

PROBLEM SOLVING

7.11

Page 75

Solving Print Quality Problems

Problem

Toner specks

Dropouts

Solution

• The paper may not meet paper specifications (for example, the paper is too moist or too rough). See “Paper Specifications” on page A.2.

• The transfer roller may be dirty. See “Cleaning the Inside” on page 6.4.

• The paper path may need cleaning. See “Cleaning the Inside”.

If faded areas, generally rounded, occur randomly on the page:

• A single sheet of paper may be defective. Try reprinting the job.

• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different kind or brand of paper. See “Paper Specifications” on page A.2.

• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.

7.12

Vertical lines

PROBLEM SOLVING

• The toner cartridge may be defective. See “Vertical repetitive defects” on the next page.

• If these steps do not correct the problems, contact a service representative.

If black vertical streaks appear on the page:

• The photosensitive drum inside the toner cartridge has probably been scratched. Install a new toner cartridge.

If white vertical streaks appear on the page:

• The surface of LSU part inside the printer may be dirty. Clean the LSU (see page 6.4).

Page 76

Solving Print Quality Problems

Problem

Gray background

Toner smear

Solution

If the amount of background toner shading becomes unacceptable, the procedures below may help to clear the condition:

• Change the paper to a lighter basis weight. See “Paper Specifications” on page A.2.

• Check the printer’s environment; very dry (low humidity) or high humidity (higher than 80 % RH) conditions can increase the amount of background shading.

• Install a new toner cartridge.

• Clean the inside of the printer. See “Cleaning the Inside” on page 6.4.

• Check the paper type and quality. See “Paper Specifications” on page A.2.

• Try installing a new toner cartridge.

Vertical repetitive defects

If marks repeatedly appear on the printed side of the page at even intervals:

• The toner cartridge may be damaged. If a repetitive mark occurs every 95 mm or 38 mm on the page, print a cleaning sheet several times to clean the cartridge (see page 6.5). After the printout, if you still have the same problems, install a new toner cartridge.

• Parts in the printer may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a service representative.

PROBLEM SOLVING

7.13

Page 77

Solving Print Quality Problems

Problem

Background scatter

Misformed characters

Solution

Background scatter results from bits of toner distributed on the printed page.

• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture from the air.

• If background scatter occurs on an envelope, change your printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause this problem.

• If background scatter covers the entire surface of a printed page, adjust the print resolution through your software application or the printer properties.

• If characters are improperly formed, producing hollow images, the paper stock may be too slick. Try a different paper. See “Paper Specifications” on page A.2.

• If characters are improperly formed, producing a wavy effect, the scanner unit may need service. Verify that it also occurs on a demo page by pressing the Demo button on the control panel when printer is ready. If you need service, contact a service representative.

7.14

Page skew

PROBLEM SOLVING

• Check the paper type and quality. See “Paper Specifications” on page A.2.

• Make sure that the paper or other media is loaded correctly and the guides are not too tight or too loose against the paper stack.

Page 78

Solving Print Quality Problems

Problem

Curl or wave

Wrinkles or creases

Solution

• Check the paper type and quality. Both high temperature

and humidity will cause paper curl. See “Paper Specifications” on page A.2.

• Turn over the stack of paper in the input tray. Also try

rotating the paper 180° in the input tray.

• Push the output lever and try printing to the face up output

slot.

• Make sure that paper is loaded properly.

• Check the paper type and quality. See “Paper

Specifications” on page A.2.

• Push the output lever and try printing to the face up output

slot.

• Turn over the stack of paper in the input tray. Also try

rotating the paper 180° in the feeder.

Back of printouts dirty

Black pages

• The transfer roller may be dirty. See “Cleaning the Inside”

on page 6.4.

• Check if the toner is leaking. Clean inside the printer.

• The toner cartridge may not be installed properly. Remove

the cartridge and reinsert it.

• The toner cartridge may be defective and need replacing.

Install a new toner cartridge.

• The printer may require repairs. Contact a service

representative.

PROBLEM SOLVING

7.15

Page 79

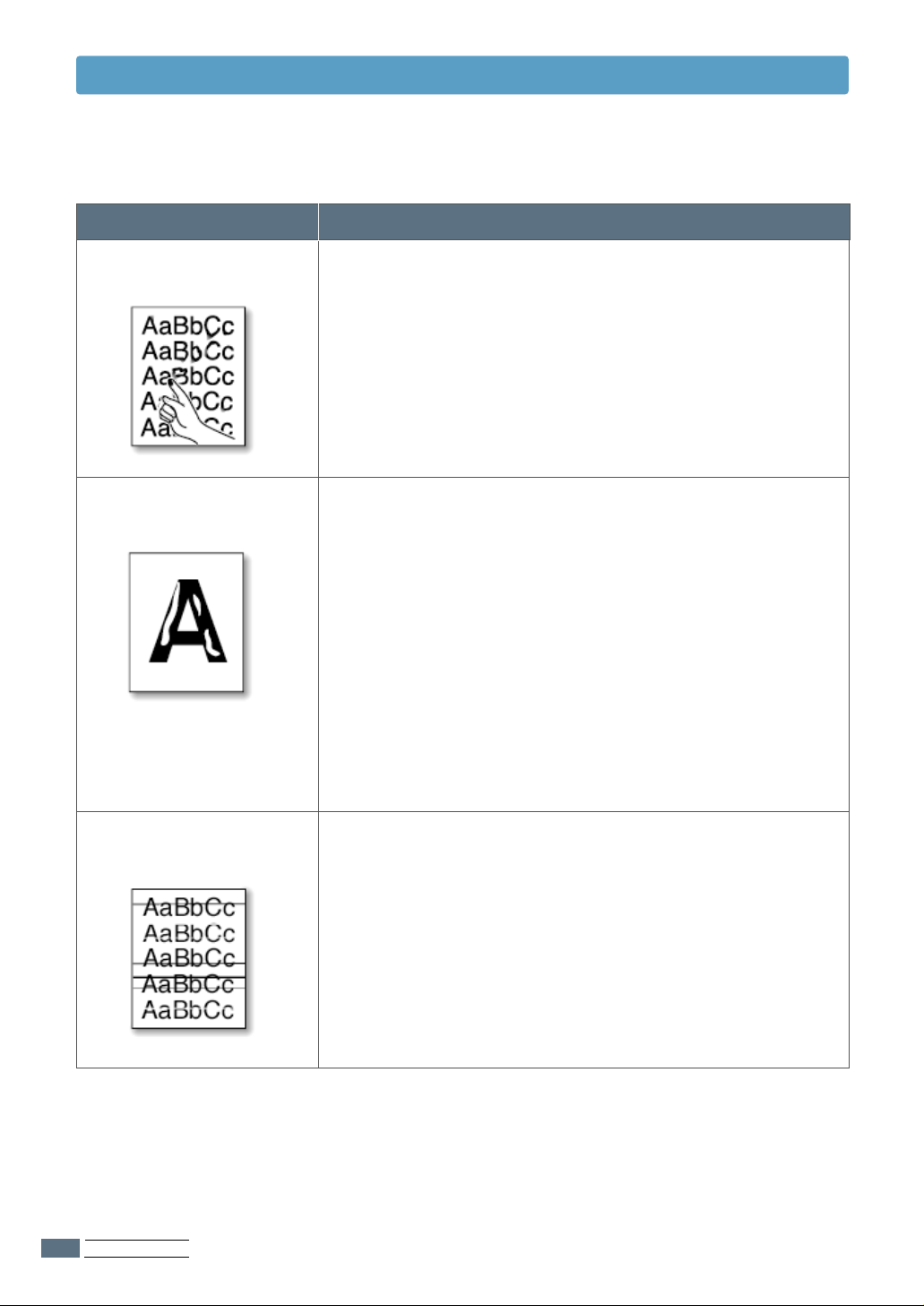

Solving Print Quality Problems

Problem

Loose toner

Character Voids

Solution

• Clean the inside of the printer.

• Check the paper type and quality. See “Paper Specifications” on page A.2.

• Try installing a new toner cartridge.

• If the problem persists, the printer may require repairs. Contact a service representative.

Character voids are white areas within the parts of characters that should be solid black:

• If you are using transparencies when you experience this problem, try another type of transparency. (Because of the composition of transparency media, some character voids are normal.)

• You may be printing on the wrong surface on the paper. Remove the paper and turn it around.

• The paper may not meet paper specifications. See “Paper Specifications” on page A.2.

7.16

Horizontal stripes

PROBLEM SOLVING

If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.

• The toner cartridge may be defective. Install a new toner cartridge.

• If the problem persists, the printer may require repairs. Contact a service representative.

Page 80

Troubleshooting Error Messages

Error

Paper

Data

Error

Paper

Data

Error

Paper

When the printer experiences an error, the control panel will indicate error messages by the indicator lights. Find the light pattern below that matches the printer light pattern and follow the solutions to clear the error.

Printer Light Patterns

Light status legend

symbol for “light off”

symbol for “light on”

symbol for “light blinking”

Power off

• Check the power cord and the power switch if your printer does not generate a response.

• Make sure that the printer is powered with the specified AC voltage.

Paper jam, or no toner cartridge

Paper is jammed inside the printer or the toner cartridge is not installed.

• Clear the paper jam. See “Clearing Paper Jams” on page 7.6.

• Make sure that the toner cartridge is correctly installed in the printer.

Paper out

The printer is out of paper in the input tray.

• Load paper into the tray. For the automatic input tray, loading paper will cancel this message and allow you to continue with the print job. tray, press the Demo button after loading paper.

For the manual input

PROBLEM SOLVING

7.17

Page 81

Troubleshooting Error Messages

Data

Error

Paper

Data

Error

Paper

Data

Paper

Error

Data

Error

Paper

Waiting the Demo button to be pressed

While printing in the manual feed mode, the printer is waiting the Demo button to be pressed.

• Press the Demo button on the control panel to start printing. You must press the button to print each page after loading paper into the manual input tray.

Door open

The printer front cover may be opened.

• Check that the printer front cover door is closed properly.

Canceling a job or memory out

While your printer is canceling a job (see page 5.5), the Error light blinks. When canceling is completed, this message will automatically cleared. Otherwise, the printer memory ran out of memory in the middle of a print job. The page being printed may have been too complex for the memory capacity of the printer. Press the Cancel/Reprint button to cancel the current job.

• Try to free some printer memory by removing any unnecessary fonts, macros, or any data currently in printer memory.

• Simplify the image or print at a lower resolution.

System error - Fuser or LSU error

• Reset the printer by briefly turning the printer off and back on again.

• If the error persists, contact the service representative.

7.18

PROBLEM SOLVING

Page 82

Common Windows Problems

Problem

“File in Use” message appears during installation.

“Error Writing to LPTx” message appears.

“General Protection Fault”, “Exception OE”, “Spool32”, or “Illegal Operation” messages appear.

Quit all software application. Remove all software from the StartUp Group, then restart Windows. Reinstall the printer driver.

• Make sure the cables are connected correctly, the printer

• If bi-directional communication is not turned on in the

• From the Start menu, select Settings, then Printers.

• Close all other applications, reboot Windows, and try

• Delete all temp files from the Temp sub-directory. You

Possible Cause and Solution

is on, and the Data light on the control panel is on.

driver, it will also cause this message.

Right-click on the Samsung ML-4500 printer icon and select Properties. From the Details tab, click on Port

Settings. Remove check from Check Port State before Printing box and click OK. From Spool Settings, select Print Directly to Printer and click OK. Try printing

again.

printing again.

can determine the name of the directory by editing the AUTOEXEC.BAT file and locking for the statement, “Set Temp =”. The name after this statement is the temp directory. It is usually C:\temp by default, but can be redefined.

Note: Refer to Microsoft Windows 9x or NT 4.0 documentation that came with your PC for

further information on Windows error messages.

PROBLEM SOLVING

7.19

Page 83

This appendix provides information on the following topics:

◆

Printer Specifications

◆

Paper Specifications

◆

Installing Software from Diskette

◆

Linux Driver Installation

Page 84

Printer Specifications

Item

Print Speed Resolution

First Printing Time WarmUp Time

Power Rating Power Consumption

Acoustic Noise Toner Supply Toner Cartridge Life

Duty Cycle

Weight Package Weight

Specification and Description

8 PPM 600 dpi

Less than 18 seconds Less than 30 seconds AC 100 ~ 120 V (USA, Canada) / 220 ~ 240 V (Others), 50 / 60 Hz 180 W average during operation / Less than 10 W in sleep mode

Stand by: Less than 35 dB; Operating: Less than 47 dB Single cartridge 2,500 pages (for starter, 1,000 pages), 5% area coverage

Monthly: 5,000 pages maximum

6.5 Kg / 13.4 lb. Paper: 1.83 Kg

Plastic: 0.33 Kg

External Dimensions (W x D x H)

Operating Environment Emulation

Random Access Memory (RAM)

Interface

329 x 343 x 224 mm / 12.9 x 13.5 x 8.8 in.

Temperature:10 ~ 32 °C / 50 ~ 90 °F; Humidity: 20 ~ 80 % RH PrinThru

2 MB (nonexpandable)

•

IEEE 1284 Bidirectional Parallel

- Modes supported: Compatible, Nibble, Byte, ECP

APPENDIX

A.1

Page 85

Paper Specifications

Overview

This printer accepts a variety of media, such as cut-sheet paper (including up to 100 % recycled fiber content paper), envelopes, labels, transparencies and custom-size paper. Properties such as weight, composition, grain and moisture content are important factors affecting printer performance and output quality. Paper that does not meet the guidelines outlined in this manual can cause the following problems:

• Poor print quality

•

Increased paper jams

•

Premature wear on the printer, requiring repairs.

Notes:

• Some paper may meet all of the guidelines in this manual and still not produce satisfactory results. This might be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Samsung has no control.

• Before purchasing large quantities of paper, make sure that the paper meets the requirements specified in this user guide. Always test paper before buying large quantities.

A.2

CAUTION: Using paper that does not meet this

specifications may cause problems for the printer, requiring repairs. This repair is not covered by the Samsung warranty or service agreements.

APPENDIX

Page 86

Supported Sizes of Paper

Paper Specifications

Paper

Letter A4 Executive Legal B5 (JIS) Folio

Minimum Size (custom)

Maximum Size (custom)

Transparency

Labels

Envelopes

Dimensions

8.5 ✕11 in. (

210 ✕297 mm (8.3 X 11.7 in.)

7.3 X 10.5 in. (191 X 267 mm)

8.5 ✕14 in. (

182 ✕257 mm 216 ✕330 mm

Automatic Input Tray

Manual Input Tray

216 ✕356 mm (8.5 X 14 in.)

Same minimum and maximum paper sizes as listed above.

216 ✕279 mm

216 ✕356 mm

(7.2 ✕10 in.) (8.5 ✕13 in.)

95 X 127 mm (3.8 X 5 in.)

76 X 127 mm (3 X 5 in.)

)

16 to 24 lb Bond (60 to 105 g/m

)

60 to 163 g/m Bond (16 to 43 lb )

Thickness: .10 X .14 mm (0.0039 X

0.0055 in.) up to 90 g/m

(16-24 lb)

Weight Capacity

• 150 sheets of 20 lb Bond (75 g/m paper for the automatic input

tray

)

• 1 sheet paper for the manual input tray

• 5 sheets of 20 lb Bond (75 g/m paper for the automatic input tray

• 1 sheet paper for the manual input tray

)

a. Capacity may vary depending on media weight and thickness, and environmental conditions. b. Smoothness - 100 to 250 (Sheffield)

Note: You may experience some paper jams when using any media with a length of less than

127 mm (5 in.). For optimum performance, make sure you are storing and handling the paper correctly. Please refer to “Printer and Paper Storage Environment” on page A.6.

APPENDIX

A.3

Page 87

Paper Specifications

Guidelines for Using Paper

For best results, use conventional 90 g/m2(24 lb) paper. Make sure the paper is of good quality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curled or bent edges.

If you are unsure of what type of paper you are loading (such as bond or recycled), check the label on the package of the paper.

The following problems with paper cause print quality deviations, jamming, or even damage to the printer.

Symptom

Poor print quality or toner adhesion problems with feeding

Dropout, jamming, curl

Increased gray background shading /printer wear

Excessive curl problems with feeding

Jamming, damage to printer

Problems with feeding

Problem with Paper

Too moist, too rough, too smooth, or embossed; faulty paper lot

Stored improperly

Too heavy

Too moist, wrong grain direction or short-grain construction

Cutouts or perforations

Ragged edges

Solution

Try another kind of paper, between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content.

Store paper flat in its moistureproof wrapping.

Use lighter paper, open the rear output tray.

• Open the rear output tray.

• Use long-grain paper.

Do not use paper with cutouts or perforations.

Use good quality paper

Notes:

• Do not use letterhead paper that is printed with low-temperature inks, such as those used in some types of thermography.

• Do not use raised or embossed letterhead.

• The printer uses heat and pressure to fuse toner to the paper. Make sure that any colored paper or preprinted forms use inks that are compatible with this fusing temperature (200 °C or 392 °F for 0.1 second).

APPENDIX

A.4

Page 88

Paper Specifications

Paper Output Capacity

Specifications

5.5 ~ 8.0 pH .094 ~ .18 mm (3.0 ~ 7.0 mils) Flat within 5 mm (.02 in.) Cut with sharp blades with no visible fray.

Must not scorch, melt, offset, or release hazardous emissions when heated to 200 °C (392 °F) for .1 second.

Long Grain 4 % ~ 6 % by weight 100 ~ 250 Sheffield

Output Tray

Face-down output tray

Face-up output slot

Capacity

100 sheets of 20 lb bond (75 g/m

1 sheet of 20 lb bond (75 g/m

) paper

APPENDIX

A.5

Page 89

Paper Specifications

Printer and Paper Storage Environment

Ideally, the printer and paper storage environment should be at or near room temperature, and not too dry or humid. Remember that paper is hygroscopic; it absorbs and loses moisture rapidly.

Heat works with humidity to damage paper. Heat causes the moisture in paper to evaporate, while cold causes it to condense on the sheets. Heating systems and air conditioners remove most of the humidity from a room. As paper is opened and used, it loses moisture, causing streaks and smudging. Humid weather or water coolers can cause the humidity to increase in a room. As paper is opened and used it absorbs any excess moisture, causing light print and dropouts. Also, as paper loses and gains moisture it can distort. This can cause paper jams.

As a result, paper storage and handling are as important as the paper-making process itself. Paper storage environmental conditions directly affect the feed operation.

Care should be taken not to purchase more paper than can be easily used in a short time (about 3 months). Paper stored for long periods may experience heat and moisture extremes, which can cause damage. Planning is important to prevent damage to large supply of paper.

Unopened paper in sealed reams can remain stable for several months before use. Opened packages of paper have more potential for environment damage, especially if they are not wrapped with a moisture-proof barrier.

The paper storage environment should be properly maintained to ensure optimum printer performance. The required condition is 20 ° to 24 °C (68° to 75 °F), with a relative humidity of 45 % to 55 %. The following guidelines should be helpful when evaluating the paper’s storage environment:

• Paper should be stored at or near room temperature.

• The air should not be too dry or too humid (due to the hygroscopic properties of paper).

• The best way to store an opened ream of paper is to rewrap it tightly in its moisture-proof wrapping. If the printer environment is subject to extremes, unwrap only the amount of paper to be used during the day’s operation to prevent unwanted moisture changes.

A.6

APPENDIX

Page 90

Envelopes

Paper Specifications

Envelope construction is critical. Envelope fold lines can vary considerably, not only between manufacturers, but also within a box from the same manufacturer. Successful printing on envelopes depends upon the quality of the envelopes. When selecting envelopes, consider the following components:

• Weight: The weight of the envelope paper should not exceed 90 g/m

• Construction: Prior to printing, envelopes should lie flat with less than 6 mm (0.25 in.) curl, and should not contain air.

• Condition: Envelopes should not be wrinkled, nicked, or otherwise damaged.

• Temperature: You should use envelopes that are compatible with the heat and pressure of the printer.

• Size: You should use only envelopes within the following size ranges.

Manual input tray

(24 lbs), otherwise, jamming may occur.

Automatic input tray

Minimum

95 X 127mm (3.8 X 5 in.)

76 X 127 mm (3 X 5 in.)

Maximum

216 X 356 mm

(8.5 X 14 in.)

Note: You may experience some paper jams when using any

media with a length of less than 127 mm (5 in.). This may be caused by paper that has been affected by environmental conditions. For optimum performance, make sure you are storing and handling the paper correctly. Please refer to “Printer and Paper Storage Environment” on page A.6.

APPENDIX

A.7

Page 91

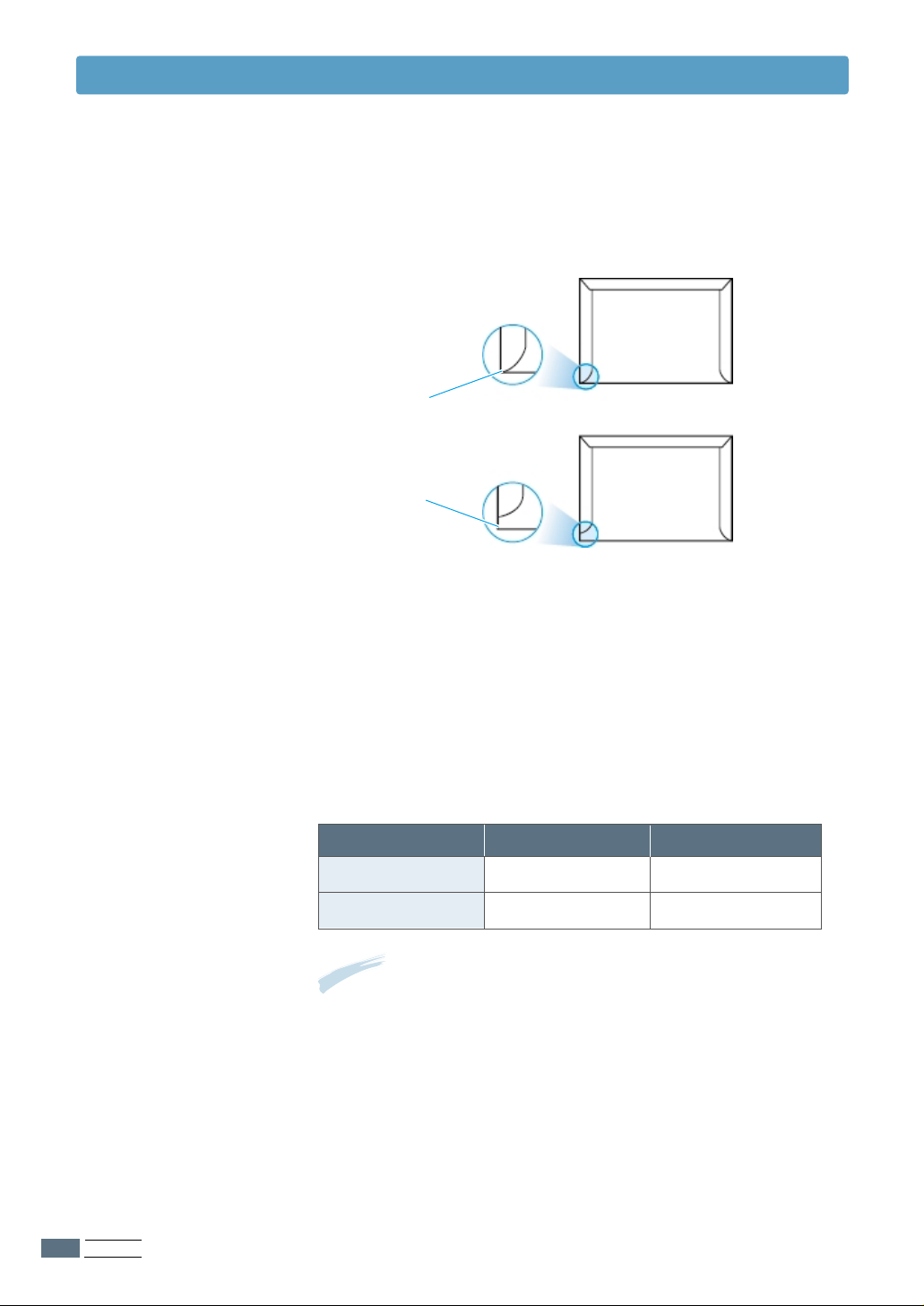

Paper Specifications

Envelopes with Double

Side Seams

Envelopes with

Adhesive Strips or Flaps

Double side-seams construction has vertical seams at both ends of the envelope rather than diagonal seams. This style may be more likely to wrinkle. Be sure the seam extends all the way to the corner of the envelope as illustrated below.

Correct

Incorrect

Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the heat and pressure in the printer. The extra flaps and strips might cause wrinkling, creasing, or even jams and may even damage the fuser.

A.8

Envelope Margins

Envelope Storage

APPENDIX

The following gives typical address margins for a commercial #10 or DL envelope.

Type of Address

Return address Delivery address

Notes:

• For best print quality, position margins no closer than 15 mm

(0.6 in.) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams

meet.

Proper storage of envelopes helps contribute to print quality. Envelopes should be stored flat. If air is trapped in an envelope, creating an air bubble, then the envelope may wrinkle during printing. See “Printing on Envelopes” on page 4.7.

Minimum

15 mm (0.6 in.) 51 mm (2 in.)

Maximum

15 mm (0.6 in.) 89 mm (3.5 in.)

Page 92

Labels

Paper Specifications

CAUTIONS:

• To avoid damaging the printer, use only labels recommended for laser printers.

• To prevent serious jams, always use the face-up output slot.

• Never print on the same sheet of labels more than once or print on a partial sheet of labels.

When selecting labels, consider the quality of each component:

• Adhesives: The adhesive material should be stable at 200 °C (392 °F), the printer’s fusing temperature.

• Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets with spaces between the labels, causing serious jams.

Transparencies

• Curl: Prior to printing, labels must lie flat with no more than 13 mm (.5 in.) of curl in any direction.

• Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.

See “Printing on Labels” on page 4.10.

Transparencies used in the printer must be able to withstand 200 °C (392 °F), the printer’s fusing temperature.

CAUTION: To avoid damaging the printer, use only

transparencies recommended for use in laser printers.

See “Printing on Transparencies” on page 4.11.

APPENDIX

A.9

Page 93

Installing Software from Diskette

If you do not have a CD-ROM drive and if you have access to another computer with a CD-ROM drive, you can copy software installation files from your printer software CD-ROM onto floppy diskettes, then use the diskettes instead of the CD-ROM to install the software.

Making Installation Diskettes

You can make the installation diskettes for Samsung ML-4500 printer driver. Make sure that you have several formatted diskettes ready, then follow these steps:

Insert the CD-ROM shipped with your printer into the

CD-ROM drive. Installation will start automatically.

If the CD-ROM drive does not automatically run:

Select Run from the Start menu, and type x:\cdsetup.exe in the Open box (where x is the drive letter for the CD-ROM drive), then click OK.

When the opening screen appears, select the appropriate

language.

Click Make your own Diskette set of software.

A.10

APPENDIX

Page 94

Shows the number of

disks required to copy

the selected component.

Installing Software from Diskettes

The Copy to Floppy dialog box appears.

Select the floppy disk drive you will use to insert the diskette.

Select the floppy drive you will use.

Shows the path of the selected component.

Click Copy all disk images.

If you want to copy a portion of the selected component, select the disk you want to copy in the Disk Images window, then click Copy selected disk image.

When prompted, insert a blank, formatted diskette into

the floppy drive, and click Yes to copy the first diskette. For multiple diskettes, when the first diskette is finished, you are prompted to insert disk 2.

Make sure you label each diskette in order as you create it: Samsung ML-4500 driver, disk 1 of 2, etc.

APPENDIX

A.11

Page 95

Installing Software from Diskettes

Installing Software

If you have more than one disk, insert the next disk and

click Yes.

When copying to diskettes has been completed, click

Close in the Copy to Floppy dialog box. Then click Exit in the SAMSUNG PRINTER SETUP dialog box.

To install the printer driver from the diskettes, take the following steps:

Insert the first diskette (if the selected software diskettes

are more than one).

From the Start menu, select Run.

Type A:\setup.exe in the Open box and click OK. (if

your floppy drive is not A, substitute the correct letter.)

Follow the on-screen instruction to complete the

installation.

A.12

APPENDIX

Page 96

Linux Driver Installation

This Linux driver is designed for PrinThru compatible Samsung ML-4500 Series printer and supports Linux Red Hat 6.0 or higher and Intel Linux. If your Linux version is not included, this driver might not work properly.

Linux Driver Configuration

• Install Setup Script file

a. /cdrom/linux/install/install.sh b. /cdrom/linux/install/ssprt.db c. /cdrom/linux/install/readme.txt

• Ghostscript Package file

a. /cdrom/linux/gs5.10/ghostscript-5.10-10.i386.rpm b. /cdrom/linux/gs5.10/COPYING c. /cdrom/linux/gs5.50/ghostscript-5.50-2.i386.rpm d. /cdrom/linux/gs5.50/COPYING

Installation

1. Mount the CD-ROM drive.

To install the driver, open the x terminal screen and take the following steps:

Note: To mount the CD-ROM drive, you must be a super user

or must be authorized to mount the CD-ROM by the super user. If you fail to mount the CD-ROM drive, ask the system administrator.

To mount the CD-ROM drive:

Insert the Samsung ML-4500 CD-ROM into the CD-ROM

drive.

Mount the CD-ROM drive under a directory like /mnt in

order to access the files on the CD-ROM:

>mount -t iso9660 /dev/cdrom /mnt/cdrom

APPENDIX

A.13

Page 97

Linux Driver Installation

2. Install the Ghostscript.

Note: Ghostscript may already be installed in your Linux

machine. To support Samsung printer PrinThru, you must update the ghostscript. If you are not sure whether the ghostscript is already installed in your machine, use the command: >rpm -q ghostscript (You can see the version of the ghostscript currently installed in your machine by this command.)

To update the ghostscript:

Change to the directory where the ghostscript is in by

typing in: >cd/mnt/cdrom/linux/gs5.XX (where /mnt/cdrom is the CD-ROM directory you have mounted at step 1 and XX is the version of the ghostscript to be installed, 10 or

50.)

Delete the ghostscript currently installed in your machine

by typing in:

/mnt/cdrom/linux/gs5.XX>rpm -e --nodeps ghostscript

3. Install setup script.

Install the ghostscript which is supplied in the Samsung

ML-4500 CD-ROM by typing in:

/mnt/cdrom/linux/gs5.XX/rpm -ivh ghostscript -

5.XX-xx.i386.rpm

When # appears in the screen and the installation is

completed, the ghostscript is successfully updated. To make sure, type in:

/mnt/cdrom/linux/gs5.XX/rpm -q ghostscript

If ‘ghostscript-5.XX-xx’ message appears, the installation is successfully completed.

For details on installing the setup script, refer to the /cdrom/linux/install/readme.txt file.

Add the driver to the printer list by typing in:

/cdrom/linux/install>install.sh (or) /cdrom/linux/install>./install.sh (if the path of the

current working directly is not determined.)

A.14

APPENDIX

Page 98

Linux Driver Installation

4. Set up the printer filter.

To set up:

Run printtool at x terminal.

To add the printer driver, click the Add button.

In the Add a Printer Entry window, decide the printer

type you will use. Select Local Printer if you have a PC- connected printer.

Click the OK button.

If the Info button appears, ignore it, then click the OK

button. The Edit xxxx Entry window opens (where xxxx is the

printer type you have selected at step 3).

If you are not an advanced user, do not change the

Names/Spool Directory/File Limit in Kb/Printer Device option.

Click the Select button in the Input Filter to access

filter setup. Select Samsung Printer PrinThru Compatible for the

Printer Type item. Then select the default resolution and paper size.

To save the setting, press the OK button.

In the Edit xxxx Entry window, press the OK button to

complete the printer driver installation. You can find that the printer driver is added to the

driver window. Select Quit from the PrintTool menu.

This software is not subject to the End User License Agreement: your rights to this software are given by the GNU License, which is in a file called COPYING in that directory.

GNU Ghostscript should be available on all GNU site, such as ftp://ftp.gnu.org/pub/gnu/.

APPENDIX

A.15

Page 99

INDEX

altitude correction 5.11 automatic input tray

loading paper 4.5 paper source setting 5.3

cancel, print job 5.5 Cancel/Reprint button 3.2 cardstock, print 4.13 clean, printer 6.4 clean sheet, print 6.5 components 1.2 control panel

buttons 3.1 lights 3.3

face-down output tray 4.4 face-up output slot 4.4 features 1.1

graphic mode 5.11 graphic options 5.10

install

printer software 2.7 software from diskette A.10 toner cartridge 2.2 Linux driver A.13

Data light 3.3 Demo button 3.1 demo page, print 2.7 diskette, make, install software A.10 driver

access 5.1 install 2.7 remove 2.10 in Linux A.13

envelopes, print 4.7 Error light 7.17 error messages 7.17

INDEX

jam see paper jam

labels, print 4.10 letterhead, print 4.12 Linux A.13 load, paper

In the automatic input tray 2.4 in the manual input tray 4.5

Page 100

INDEX

manual input tray

loading paper 4.5 paper source setting 5.3

multiple pages on one sheet, print 5.6

network, setup 5.13 n-up printing 5.6

orientation 5.3 output lever 4.4 output location, select 4.4

paper

acceptable size and capacities 4.2, A.3 choose 4.1 guidelines 4.3, A.4 load 2.4, 4.5 specifications A.2 storage environment A.6

paper jam, clear

input area 7.7 inside the printer 7.8 output area 7.6 tips avoiding paper jams 7.10

Paper light 3.3 paper orientation, setting 5.3 paper out, indication 3.3, 7.17 paper size, setting 5.3 paper source, setting 5.3 paper type, setting 5.3 parallel, connection 2.6 power save mode 5.9 print media see paper printer light patterns 3.3, 7.17 print quality problem, solving

back of printouts dirty 7.15 background scatter 7.14 black pages 7.15 character voids 7.16 checklist 7.11 curl or wave 7.15 dropouts 7.12 gray background 7.13 horizontal stripes 7.16 light print or fade 7.11 loose toner 7.16 misformed characters 7.14 page skew 7.14 toner smear 7.13 toner specks 7.12 vertical lines 7.12 vertical repetitive defects 7.13

wrinkles or creases 7.15 printer driver see driver printer software, install 2.7 printing

cancel 5.5

cleaning sheet 6.5

demo page 2.7

general problems, solving 7.2

help 5.5

multi pages on one sheet 5.6

on a network envirionment 5.13

quality problems, solving 7.11

INDEX

Samsung ML-4500 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Environmental and Safety Consideration

Laser Safety Statement

Ozone Safety

Power Saver

Radio Frequency Emissions

Special Features

Printer Components

Front View

Inside View

Rear View

Before Installing the Printer Software

Installing the Printer Software from the CD-ROM

Software Installation Tips

Control Panel Buttons

Control Panel Lights

Choosing Paper and Other Media

Media Sizes and Capacities

Paper Guidelines

Selecting the Output Location

Printing to the Face-Down Output Tray

Printing to the Face-Up Output Slot

Loading Paper

Using the Automatic Input Tray

Using the Manual Input Tray

Printing on Envelopes

Printing on Heavy Paper

Printing on Labels

Printing on Transparencies

Printing on Preprinted Paper

Printing on Card Stocks

Printing a Document

Canceling a Print Job

Using Help

Setting Print Resolution

Using Toner Save Mode

Using Power Save Mode

Using Other Graphic Options

Correcting Print Quality for Altitude

Setting Graphic Mode

Reprinting the Jammed Page

Reprinting the Last Page

Printing on a Network Environment

Setting Up Host Computer

Setting Up Client PC

Maintaining Toner Cartridge

Redistributing Toner

Cleaning the Printer

Cleaning the Outside

Cleaning the Inside

Troubleshooting Checklist

Solving General Printing Problems

Clearing Paper Jams

Output Area

Input Area

Inside the Printer

Tips for Avoiding Paper Jams

Solving Print Quality Problems

Print Quality Checklist

Solving Print Quality Problems

Troubleshooting Error Messages

Printer Light Patterns

Common Windows Problems

Printer Specifications

Paper Specifications

Overview

Supported Sizes of Paper

Guidelines for Using Paper

Paper Output Capacity

Printer and Paper Storage Environment

Envelopes

Labels

Transparencies

Installing Software from Diskette

Making Installation Diskettes

Installing Software
