Samsung DVD-R160-XAA User Manual

Download

Instruction Manual

DVD-R160

www.samsung.com

AK68-01318A

Getting Started

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

Getting Started

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Do not install this equipment in a conﬁ ned space such as a bookcase or similar unit.

WARNING : shock hazard, do not expose this appliance to rain or moisture.

CAUTION : DVD RECORDERS USE AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE RECORDER CORRECTLY AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTIONS

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la ﬁ che dans la borne correspondante de la prise et pousser jusqu au fond. This product satisﬁ es FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. FCC NOTE (for U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

To prevent damage which may result in ﬁ re or electric

English - 2

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

•

Caution: FCC regulations state that any unauthorized changes

or modiﬁ cations to this equipment may void the user's authority to operate it.

This unit can be used only where the power supply

■

is AC 120V, 60Hz. It cannot be used elsewhere.

■

This DVD Recorder is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD Recorder, the DVD Recorder cannot play the disc.

■

This device is protected by U.S. Patent Nos.4,631,60 3;4,577,216;4,819,098;4,907,093; and 6,516,132.This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.Use of this copyright protection technology must be authorized by Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.Reverse engineering or disassembly is prohibited.

■

This product is covered by one or more of the following U.S. patents: 5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,578,163 6,594,208 6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243 6,721,493 6,728,474 6,741,535 6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6,775,465 6,778,755 6,788,629 6,788,630 6,795,637 6,810,201 6,862,256 6,868,054 6,894,963 6,937,552

Precaution

Important Safety Instructions

▌

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories speciﬁ ed by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when

unused for long periods of time.

14) Refer all servicing to qualiﬁ ed service personnel.

Service is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus. Service is also required if the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Handling Cautions

▌

• Before connecting other components to this recorder, be

sure to turn them all off.

• Do not move the recorder while a disc is being played, or

the disc may be scratched or broken, and the recorder’s internal parts may be damaged.

• Do not put a ﬂ ower vase ﬁ lled with water or any small

metal objects on the recorder.

• Be careful not to put your hand into the disc tray.

• Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this recorder. If this occurs, turn the recorder off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The recorder will operate normally.

• Be sure to remove the disc and turn off the recorder after use.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the recorder for long periods of time.

• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

• Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Maintenance of Cabinet

▌

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.

• Wipe the cabinet with a soft cloth.

▌

Disc Handling

• Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this DVD Recorder may be damaged.

Holding discs

• Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD±RW and DVD±R

• Clean with an optional DVD-RAM/PD disc cleaner . Do not use cleaners or cloths for CDs to clean DVD-RAM/ DVD±RW/DVD±R discs.

DVD-Video, Audio CD

• Wipe off dirt or contamination on the disc with a soft cloth.

Cautions on handling discs

• Do not write on the printed side with a ball-point pen or pencil.

• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.

• Do not apply labels or stickers to discs. (Do not use discs ﬁ xed with exposed tape adhesive or leftover peeled-off stickers.)

• Do not use scratch-proof protectors or covers.

• Do not use discs printed with label printers available on the market.

• Do not load warped or cracked discs.

Getting Started

English - 3

Disc Storage

▌

Be careful not to damage the disc because the data on these discs are highly vulnerable to the environment.

• Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

Getting Started

• If you move your DVD Recorder suddenly from a cold place to a warm place, condensation may generate on the operating parts including the lens and cause abnormal disc playback. When this occurs, do not connect the plug to the power outlet. Wait for two hours, then insert the disc and try to playback again. It will work properly when condensation has evaporated.

▌

Disc Speciﬁ cations

DVD-Video

• A digital versatile disc (DVD) can contain up to

135-minutes of images, 8-language audio and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby 3D surround sound, allowing you to enjoy vivid and clear theater quality images in the comfort of your own home.

• When switching from the ﬁ rst layer to the second layer of a double-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.

• Once a DVD±R/DVD-RW(V) recorded is ﬁ nalized, it is playable in a standard DVD player.

Audio CD

• An audio disc on which 44.1kHz PCM Audio is recorded

• Plays CD-DA format audio CD-R and CD-RW discs. The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW

MP3 CD-R/-RW



• Only CD-R discs with MP3 ﬁ les recorded with ISO9660 or JOLIET format can be played back

• Only MP3 ﬁ les with the ".mp3", ".MP3" extension can be used.

• For MP3 ﬁ les recorded with a VBR(Variable Bit Rates), from 32 Kbps to 320 Kbps, the sound may cut in out.

• Playable bitrate range is from 56Kbps to 320Kbps.

• The unit can handle a maximum of 1000 ﬁ les and folders.

• DVD-RAM/DVD±RW/DVD±R disc recorded with MP3 ﬁ les can be played back.

JPEG CD-R/-RW



• Only JPEG ﬁ les with the ".jpg", ".JPG" extension can be used.

• The unit can handle a maximum of 1000 ﬁ les and folders.

• Maximum size of progressive JPEG is 3M pixels.

• MOTION JPEG is not supported.

• DVD-RAM/±RW/±R discs that contain JPEG ﬁ les can be played back.

Using MPEG4 disc



• Disc : CD-R/-RW, DVD-RAM, DVD±R/ DVD±RW,

• MPEG4 File with following extensions can be played. : .avi, .divx, .AVI, .DIVX

• MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x

• Available Audio Format : “MP3”, “MPEG”, “PCM”,“AC3”, “DTS”

• Supported subtitle ﬁ le formats: .smi, .srt, .sub, .psb,.txt

Using CD-R/-RW



• Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.

• If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early playback time, and all recorded ﬁ les may not play.

• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them.

• When recording from CDs for your personal use to CDR/-RW discs, playability may vary depending on the contents and discs.

DVD±R Disc Playback and Recording

• Once a DVD±R recorded is ﬁ nalized, it is playable in a standard DVD player. You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programs and erasing programs before ﬁ nalizing.

• When programming is erased from a DVD±R, that space does not become available. Once an area on a DVD ±R is recorded on, that area is no longer available for recording, whether the recording is erased or not.

• It takes about 30 seconds for the unit to complete recording management information after recording ﬁ nishes.

• This product optimizes the DVD±R for each recording. Optimization occurs when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimization is carried out too many times.

• Playback may be impossible in some cases due to the condition of recording.

• This unit can play back DVD±R discs recorded and ﬁ nalized with a Samsung DVD video recorder. It may not be able to play some DVD±R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback and Recording

• Recording and playback can be performed on DVD-RW discs in both the Video and VR Modes.

• Once a DVD-RW is recorded in VR or Video mode is ﬁ nalized, you cannot perform additional recording.

• Once a DVD-RW is recorded in Video Mode and ﬁ nalized, it becomes a DVD-Video.

• In both modes, playback can be performed before and after ﬁ nalization, but additional recording, deleting and editing can not be performed after ﬁ nalization.

• If you want to record the disc in VR Mode and then record in V Mode, be sure to ﬁ rst reformat the disc. Please be aware that formatting may erase all of the disc's content.

English - 4

• When inserting an unused disc, a message will appear asking whether to initialize the disc or not. If you select "YES", the disc will be formatted in VR mode.

• DVD-RW (VR mode)

- This is a format that is used for recording data on a

DVD-RW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc.

- A disc that is recorded in this mode will not play in

standard DVD players.

• DVD-RW (Video mode)

- This is a format that is used for recording data on a

DVD-RW or DVD-R disc. The disc can be played by an existing DVD player once it has been ﬁ nalized.

- If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been ﬁ nalized, it cannot be played or recorded by this recorder.

DVD+RW Disc Playback and Recording

• With DVD+RW discs, there is no difference between DVD-Video format (Video mode) and DVD-Video Recording format (VR mode).

• You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu.

• Finalizing is generally unnecessary when using a DVD+RW disc.

DVD-RAM Disc Playback and Recording

• For cartridge type DVD-RAM discs, remove the cartridge and use only the disc

• Ensure that the recording mode is set to VR mode. Otherwise, this product will not be able to play the recording.

• You cannot play a DVD-RAM in most DVD players due to compatibility issues.

• Only DVD-RAM standard Version 2.0 discs can be played in this unit.

•

DVD-RAM discs recorded on this unit may not work with other DVD Players. To determine compatibility with these DVD-RAM discs, refer to the user’s manual for the player.

Protection

This DVD Recorder can allow you to protect the contents of your discs, as described below.

• Program-protection: See page 61 “Locking a Title”

• Disc-protection: See page 70 “Disc Protection”

✻

DVD-RAM/DVD±RW/DVD±R discs that are incompatible with the DVD-VIDEO format cannot be played with this product.

✻

For more information on DVD recording compatibility, consult your DVD-RAM/DVD±RW/DVD±R manufacturer.

✻

Use of poor quality DVD-RAM/DVD±RW/DVD±R discs may cause the following unexpected problems including, recording failure, loss of recorded or edited materials or damage to the recorder.

Do not use the following discs!

• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product.

• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No Disc." or "The disc cannot be played. Please check the regional code of the disc." will be displayed.

• If your DVD-RAM/DVD±RW/DVD±R disc is an illegal copy or is not in DVD video format, it may also not be playable.

Disc Compatibility



• A 8X speed DVD+RW or greater disc can be played, but maximum recording speed is 4X.

• Not all brands of discs will be compatible with this unit.

• The latest ﬁ rmware upgrade to improve recording & playback quality can be downloaded from our web site. (Download Center at www.samsung.com)

• If disc compatibility problems continue, or there is an issue upgrading your recorder, contact the Call Center at 1-800-SAMSUNG.

Getting Started

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD Recorder directly to your TV, not to a VCR. Connecting your DVD recorder to a VCR results in a distorted picture from copy-protected DVD discs.

• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

English - 5

Contents

Getting Started

Warning ...................................................................2

■

Precaution ............................................................... 3

■

Getting Started

Important Safety Instructions ..................................3

Handling Cautions ................................................... 3

Maintenance of Cabinet .......................................... 3

Disc Handling ..........................................................3

Disc Storage ............................................................ 4

Disc Speciﬁ cations .................................................. 4

General Features ....................................................8

■

Before Reading the Instruction Manual ...................9

■

How to use the DVD Recorder ................................9

■

Unpacking ............................................................... 10

■

Accessories ............................................................. 10

Preparing the Remote Control ................................10

Tour of the Remote Control .....................................12

Description .............................................................. 13

■

Front Panel .............................................................. 13

Front Panel Display ................................................. 13

Rear Panel .............................................................. 14

Connecting & Setting Up

Step 1: Connecting the Antenna Cable ...................15

■

Antenna + Set Top Box Controller + DVD Recorder + TV : Cable box with a video/audio output or a satellite

receiver ...................................................................15

Step 2 : Connecting HDMI/DVI to a TV ...................16

■

Connecting to a TV with HDMI Jack .......................16

Connecting to a TV with DVI Jack ........................... 17

Step 3 : Connecting the Video Cable ......................18

■

Connecting to Component video input jacks (Y,P

Connecting to an S-Video input jack ......................19

Connecting to a Video input jack ............................. 20

Step 4 : Connecting the Audio Cable ......................21

■

Connecting to an AV ampliﬁ er with a digital input jack Connecting to a stereo ampliﬁ er with analog input

jacks ........................................................................ 22

Connecting to your TV ............................................23

Step 5 : Connecting External Devices ..................... 24

■

Connecting a VCR, Set Top Box(STB) or DVD Player

to the AV 1 IN or S-VIDEO IN jacks ........................24

Connecting a Camcorder ........................................ 25

) ..................................................................18

B,PR

..... 21

System Setup

Initial Setup .............................................................. 26

■

OSD Language Setup .............................................26

Using the Setup Menu ............................................. 26

■

Setting Up the System Options ............................... 27

■

Set Top Box Control ................................................27

CM Skip Time Setting ..............................................28

EP Mode Time Setting ............................................ 29

Automatic Chapter Creation .................................... 29

Quick Recording Setting .........................................30

Anynet+(HDMI-CEC)...............................................30

Clock Set .................................................................31

■

Language Setting .................................................... 31

■

Setting Up the Audio Options ..................................32

■

Video(Display) Setting ............................................. 33

■

TV Aspect ................................................................33

Input Level ............................................................... 33

Black Level .............................................................. 33

3D Noise Reduction ................................................ 33

HDMI/DVI Resolution ..............................................34

DivX(R) Registration ...............................................34

Parental Control ......................................................35

■

Setting the Rating Level ..........................................35

Changing the Password ..........................................35

Recording

■

Recordable discs ..................................................... 36

Compatibility between Samsung and Other

manufacturer's Recorders ....................................... 36

■

Recording Formats .................................................. 37

DVD-RW(Video mode)/-R ....................................... 37

DVD-RAM/-RW(VR mode) ...................................... 37

DVD+RW .................................................................37

Recording Mode ...................................................... 38

■

Unrecordable video ................................................. 38

■

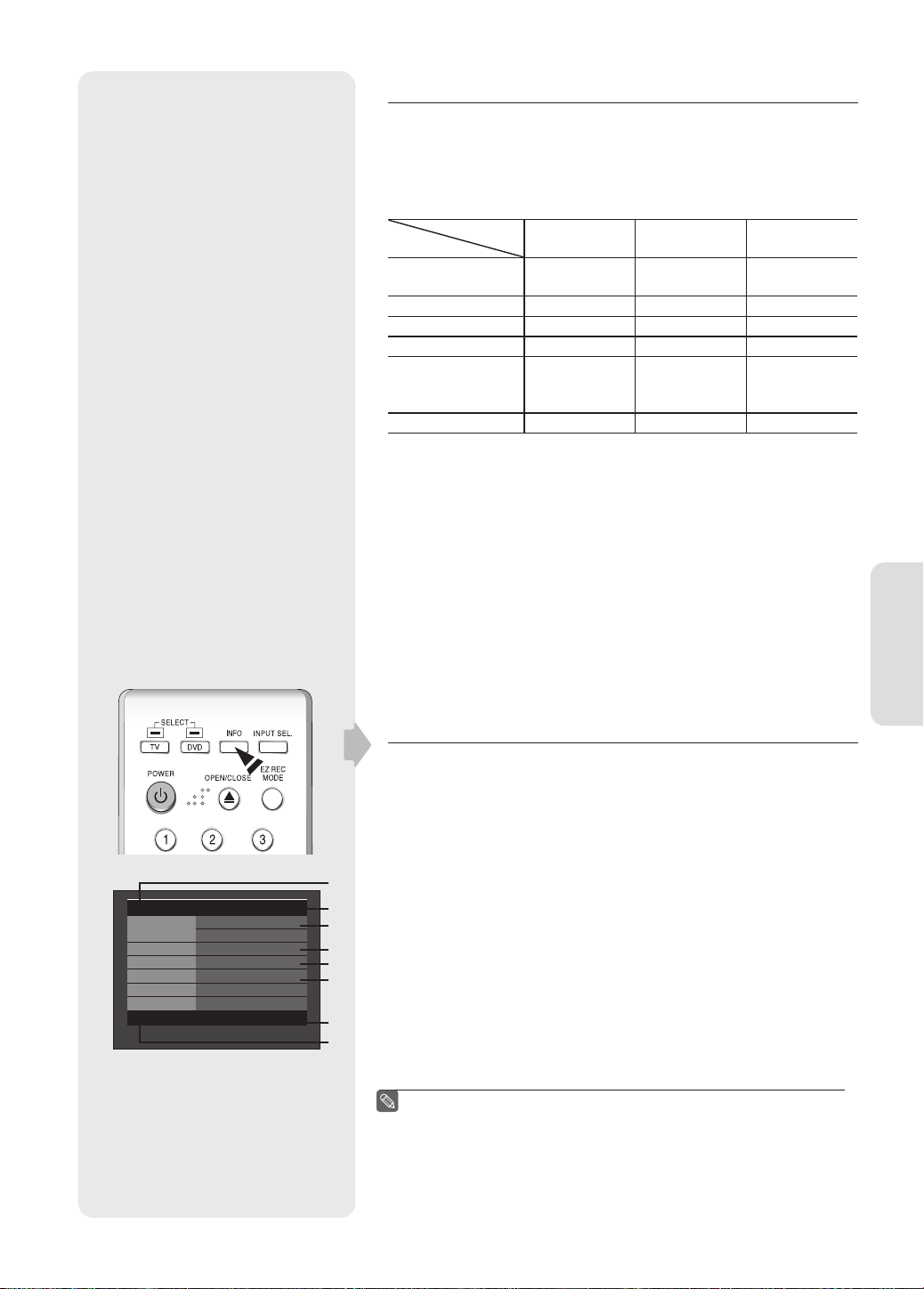

About the INFO Button ............................................ 39

Recording from External Equipment .......................40

■

Copying from a Camcorder ..................................... 41

■

Making a One Touch Recording (OTR) ................... 42

■

Setting a Timer Recording ....................................... 43

■

Flexible Recording (for Timer Recording only) ........ 44

■

Editing the Scheduled Record List .......................... 44

■

Deleting the Scheduled Record List ........................ 45

■

Recording the Scheduled Record List ..................... 45

■

Recording on Free Space ....................................... 45

EZ REC MODE .......................................................46

■

English - 6

Getting Started

Playback

Region code (DVD-Video only) ............................... 47

■

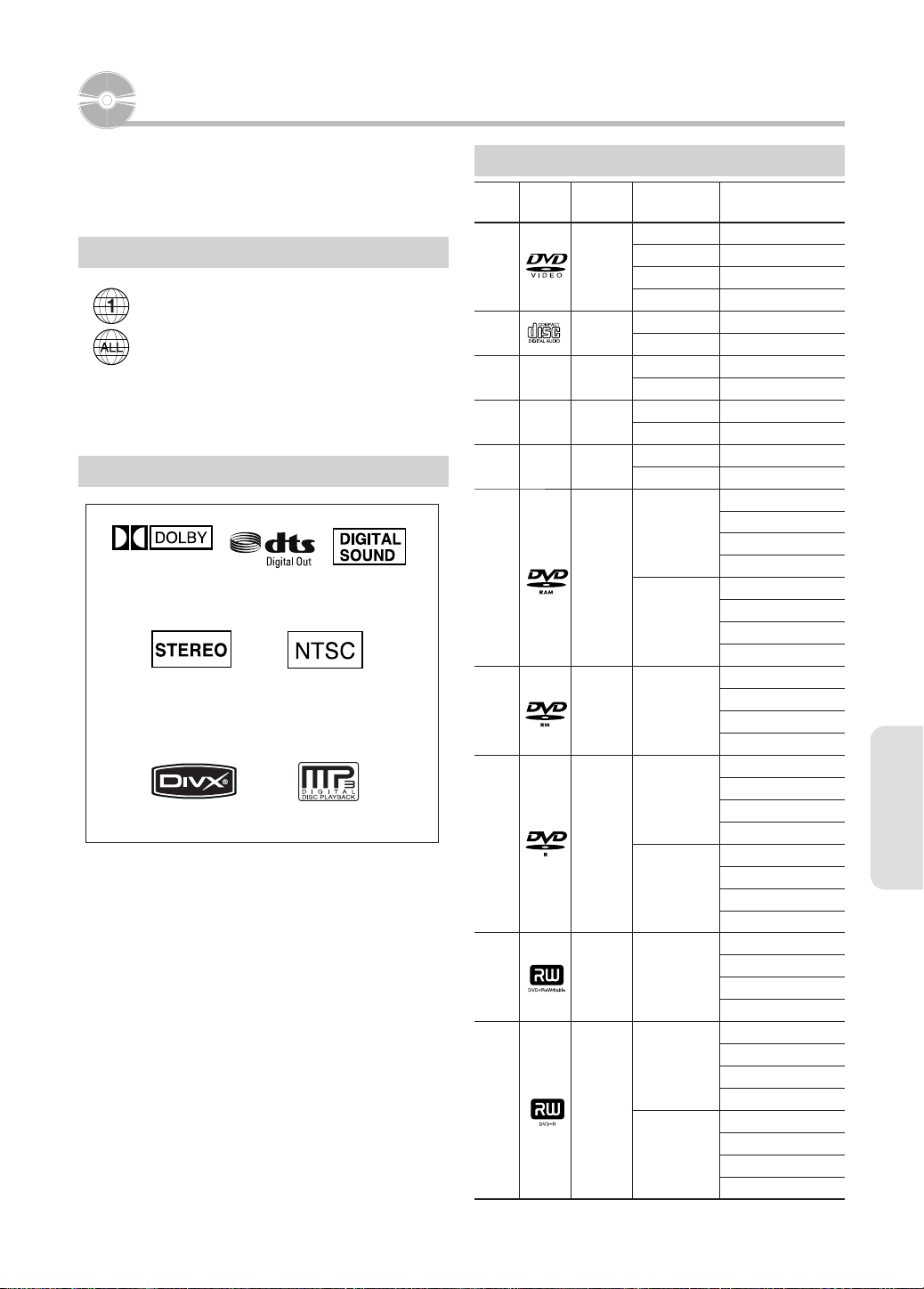

Logos of Discs that can be played ..........................47

■

Disc types that can be played .................................47

■

Discs that cannot be played .................................... 48

Playing a Disc .......................................................... 48

■

Using the Disc Menu & Title Menu .......................... 49

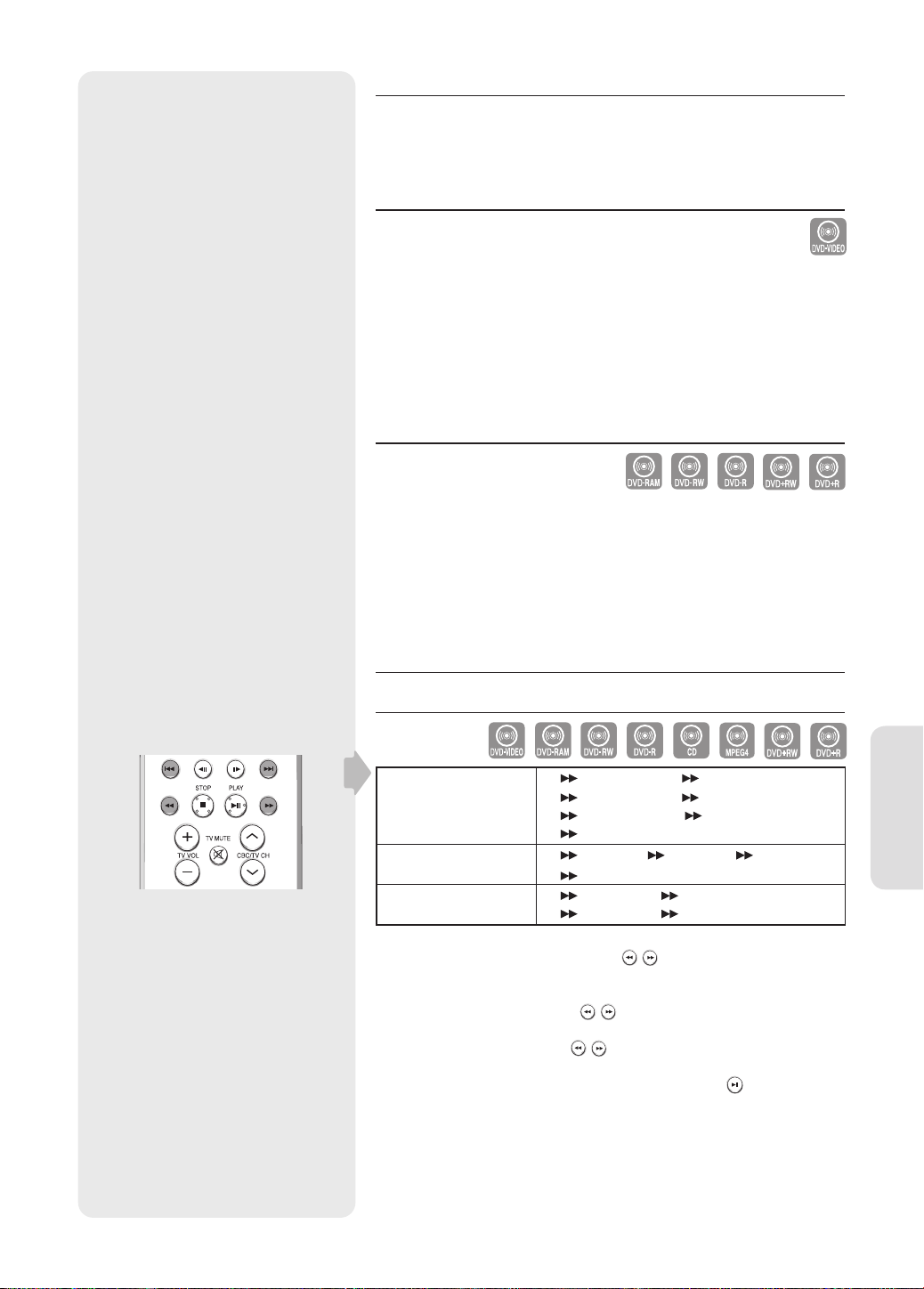

Using the playback related buttons ......................... 49

Slow Motion Play ..................................................... 50

Step Motion Play ..................................................... 50

Using the ANYKEY Button ...................................... 51

Playing an Audio CD/MP3 ....................................... 55

■

Playing an Audio CD(CD-DA) ................................. 55

Playing an MP3 Disc ............................................... 56

Playing Repeatedly ................................................. 56

Playing a Picture CD ............................................... 57

■

Playing an MPEG4 Disc .......................................... 58

■

Playing the Title List ................................................ 59

■

Editing

Basic Editing (Title List) ........................................... 60

■

Renaming (Labeling) a Title .................................... 60

Locking (Protecting) a Title ......................................61

Deleting a Title ........................................................ 61

Deleting a Section of a Title .................................... 62

Editing a Chapter ....................................................63

Dividing a Title ......................................................... 64

Advanced Editing (Playlist) ...................................... 65

■

Creating a Playlist ................................................... 65

Playing Entries in the Playlist .................................. 65

Renaming a Playlist Entry ....................................... 66

Editing a Scene for the Playlist ...............................66

Copying a Playlist Entry to the Playlist .................... 69

Deleting a Playlist Entry from the Playlist ................ 69

Disc Manager .......................................................... 69

■

Editing the Disc Name ............................................. 69

Disc Protection ........................................................ 70

Formatting a Disc .................................................... 70

Finalizing a Disc ...................................................... 71

Unﬁ nalizing a Disc (V/VR mode) ............................. 71

Delete All Title Lists .................................................72

Edit Compatible ....................................................... 72

Additional Information

Troubleshooting ....................................................... 73

■

Cable Box/Satellite Receiver Brand Code Table ..... 75

■

Cable box brand ...................................................... 75

Satellite receiver brand ...........................................77

Error Message Solutions ......................................... 78

■

Speciﬁ cations ..........................................................80

■

Warranty .................................................................. 81

■

English - 7

General Features

The DVD-R160 allows you to record and play high quality digital video on DVD-RAM/DVD±RW/DVD±R discs.

High quality digital audio and video recording and

Getting Started

playback

You can record up to approximately 16-hours of video on a double side 9.4 GB DVD-RAM disc,up to 15-hours on a dual-layer 8.5GB DVD±R disc, and up to 8-hours on a 4.7 GB DVD-RAM/DVD±RW/DVD±R disc, depending on the recording mode.

A variety of functions with an easy-to-use user interface

The integrated menu system and the messaging function allows you to perform desired operations both easily and conveniently. With a DVD-RAM or DVD-RW (VR mode) disc, you can edit recorded images, create a playlist, and edit videos in a speciﬁ c sequence according to your requirements.

MPEG4 playback

This DVD Recorder can play MPEG4 formats within an avi ﬁ le.

1080p Playback

This player upconverts regular DVDs for playback on 1080P TVs.

Selectable Record Mode

You can set your recorder to one of ﬁ ve different recording speeds, each varying in recording quality and length. EP mode yields the most recording time, LP & SP modes provide less recording time with higher quality recording, and XP mode gives you the highest quality recording. There's also the FR (Flexible Recording) mode that lets you record with the best picture quality possible for the recording time and remaining space on the disc in timer recording.

Automated Quality Adjustment for Timer Recording

If FR mode is selected, the video quality is adjusted automatically so that all video for the scheduled time can be recorded onto the free disc space. (See pages 43~44)

Create a DVD video title using a DVD±RW/DVD±R disc

With the DVD-R160, you can create your own DVD video title on 4.7 GB DVD±RW/DVD±R or 8.5GB DVD±R discs.

DivX Certiﬁ cation

DivX, DivX Certiﬁ ed, and associated logos are trademarks of DivXNetworks, Inc and are used under license.

HDMI (High Deﬁ nition Multimedia Interface)

HDMI reduces picture noise by allowing a pure digital video/audio signal path from the DVD Recorder to your TV.

Tunerless DVD Recorder

The DVD-R160 does not have a TV tuner. Recording TV broadcasts is possible via Connection to Cable/Satellite boxes and Multi Channel Video Services.

EZ REC MODE

This function allows you Initialize and Finalize a disc automatically. (See page 46)

Copying data from a digital camcorder using a DV input jack

Record digital camcorder video onto DVD-RAM, DVD±RW or DVD±R discs using the DV input jack (IEEE 1394-4pin). (See page 41)

High quality progressive scan

Progressive scanning provides high resolution and ﬂ icker free video. The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry provides the highest video playback and recording quality. (See page 18.)

English - 8

Before Reading the Instruction Manual

Make sure to check the following before reading the user’s manual.

Icons that will be used in manual

Icon Term Deﬁ nition

This involves a function available

DVD

RAM

-RW

+RW

JPEG

MP3

MPEG4

Caution

NOTE

One-

Touch

button

ANYKEY

button

in DVD or DVD-R/DVD-RW (V)/+R discs that have been recorded and ﬁ nalized.

This involves a function available in DVD-RAM.

This involves a function available in DVD-RW.

This involves a function available in

-R DVD-R.

This involves a function available in DVD+RW.

This involves a function available in

DVD+R.

This involves a function available in

a data CD (CD-R or CD-RW).

This involves a function available JPEG in CD-R/-RW or DVD-RAM/ DVD±RW/DVD±R discs.

This involves a function available MP3 in CD-R/-RW or DVD-RAM/ DVD±RW/DVD±R discs.

This involves a function available MPEG4 in CD-R/-RW or DVD-RAM/ DVD±RW/DVD±R discs.

This involves a case where a function does not operate or settings may be cancelled.

This involves tips or instructions on the page that help each function operate.

A function that can be operated by using only one button.

A function that can be operated by using ANYKEY button.

How to use the DVD Recorder

Step 1 : Select the disc type

▌

This unit can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD±RW or DVD-RAM type disc. If you want to save the recording without making any changes, choose a non-rewritable DVD±R.

▌

Step 2 : Format the disc to start recording

The recorder automatically starts formatting when an unused disc is inserted. This is required for the preparation of disc recording.

Using a DVD-RAM

This type of disc can be formatted in DVD-Video Recording format (VR mode). You can edit recorded video and create a playlist and edit video in a speciﬁ c sequence according to your requirements.

Using a DVD±RW/+R

• When an unused DVD±RW/+R disc is ﬁ rst inserted, the message “Uninitialized Disc. Do you want to initialize this disc?” will be displayed. If you select Yes, initializing will begin. DVD-RW disc can be formatted in either DVD-Video format (Video mode) or DVD-Video Recording format (VR mode)

• There are no differences between DVD-Video format (Video mode) and DVD-Video Recording format (VR mode) with DVD+RW discs.

Using a DVD-R

When using a DVD-R disc, only V mode recording is possible and no initialization is needed to play it on this recorder. However, ﬁ nalization is necessary to play this disc on other DVD players.

You can only use either the VR or Video mode on

■

a DVD-RW, but not both at the same time.

You can format a DVD-RW to V or VR mode using

■

disc manager. It should be noted that the disc's data will be lost when changing formats.

Getting Started

About the use of this Instruction Manual

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See pages 2 ~ 5)

2) If a problem occurs, check the Troubleshooting section. (See pages 73 ~74)

English - 9

Step 3 : Recording

▌

There are two different recording methods. Direct Recording (recording a program you are currently watching) and Timer Recording. Timer recording is determined as a Date : MM/DD, MON-FRI, Every SAT, etc.. There are 5 recording modes : XP(high quality mode), SP(standard quality mode), LP(long recording mode), EP(extended mode) and FR mode. When using FR mode to record, the picture quality is determined by the remaining time on the disc.

Step 4 : Playing

▌

To start playback select the title you want to play from the Title list. A DVD consists of sections called titles, and sub sections called chapters. During recording, a title is created between two points where you start and stop recording. Chapters will be

Getting Started

created automatically when you ﬁ nalize recording on DVD-R/DVD-RW discs in Video mode. You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu. The chapter’s length (interval between chapters) varies according to the recording mode.

▌

Step 5 : Editing a recorded disc

Editing on discs is easier than editing on conventional video tapes. The recorder supports many different edit functions, possible only with DVDs.

With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

With this recorder, you can create playlists using a DVDRAM/DVD-RW in VR mode. Once a playlist is created you can create/edit a new playlist on the same disc without changing the original recording.

▌

Step 6

Finalizing & Playing on other

DVD components

Unpacking

Accessories

▌

Check for the supplied accessories below.

Video/Audio Cable

(AC39-00073A)

Remote Control (AK59-00061C)

Instruction Manual

(AK68-01318A)

IR Blaster cable (AK39-00055A)

Batteries for Remote

Control (AAA Size)

(AC43-12002H)

Quick Guide

(AK68-01321A)

To play your DVD on other DVD components, ﬁ nalizing may be necessary. First, ﬁ nish all editing and recording operations, then ﬁ nalize the disc.

When using a DVD-RW disc in VR Mode

Although ﬁ nalizing is generally unnecessary when playing the disc on a VR Mode compatible component, a ﬁ nalized disc should be used for playback.

When using a DVD-RW disc in Video Mode

The disc should be ﬁ nalized ﬁ rst to enable playback on anything other than this recorder. No more editing or recording can be made on the disc once it has been ﬁ nalized.

When using a DVD±R disc

You should ﬁ nalize the disc to play it on a component other than this recorder. No more editing or recording can be made on the disc once it has been ﬁ nalized.

You can ﬁ nalize automatically using the EZ REC

■

MODE. (See page 46)

▌

Preparing the Remote Control

Install Batteries in the Remote Control

• Open the battery cover on the back of the remote.

• Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.

• Replace the battery cover.

If the remote control does not operate properly:

• Check the polarity + - of the batteries.

• Check if the batteries are drained.

• Check if the remote sensor is blocked by obstacles.

• Check if there is any ﬂ uorescent lighting nearby.

Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

English - 10

To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.

2. Point the remote control towards the television.

3. Press and hold the POWER button and enter the two-figure code simultaneously corresponding to the brand of your television by pressing the appropriate number buttons.

Getting Started

Brand BUTTON

AIWA 82

ANAM 10, 11, 12, 13, 14, 15, 16, 17, 18

BANG & OLUFSEN

BLAUPUNKT 71

BRANDT 73

BRIONVEGA 57

CGE 52

CONTINENTAL EDISON

DAEWOO

EMERSON 64

FERGUSON 73

FINLUX 06, 49, 57

FORMENTI 57

FUJITSU 84

GRADIENTE 70

GRUNDIG 49, 52, 71

HITACHI 60, 72, 73, 75

IMPERIAL 52

JVC 61, 79

LG 06, 19, 20, 21, 22, 78

LOEWE 06, 69

LOEWE OPTA 06, 57

MAGNAVOX 40

METZ 57

MITSUBISHI 06, 48, 62, 65

MIVAR 52, 77

NEC 83

NEWSAN 68

NOBLEX 66

NOKIA 74

NORDMENDE 72, 73, 75

PANASONIC 53, 54, 74, 75

PHILIPS 06, 55, 56, 57

PHONOLA 06, 56, 57

PIONEER 58, 59, 73, 74

RADIOLA 06, 56

RADIOMARELLI

RCA 45, 46

REX 74

19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34

BRAND BUTTON

SABA 57, 72, 73, 74, 75

SALORA 74

SAMSUNG 01,02,03,04,05,06,07,08,09

SANYO 41, 42, 43, 44, 48

SCHNEIDER 06

SELECO 74

SHARP 36, 37, 38, 39, 48

SIEMENS 71

SINGER 57

SINUDYNE 57

SONY 35, 48

TELEAVA 73

TELEFUNKEN 67, 73, 75, 76

THOMSON 72, 73, 75

THOMSON ASIA

TOSHIBA 47, 48, 49, 50, 51, 52

WEGA 57

YOKO 06

ZENITH 63

Result: If your television is compatible with the remote

control, it will switch off. It is now programmed to operate with the remote control.

If several codes are indicated for your television

■

brand, try each one in turn until you ﬁ nd one that works. If you replace the remote control’s batteries, you must set the brand code again.

You can then control the television using the following buttons.

Button Function

POWER Used to switch the television on and off.

INPUT SEL. Used to select an external source.

TV VOL +/-

CBC/TV CH Used to select the desired channel.

TV MUTE Used to toggle the sound on and off.

0~9 Used to input number directly.

TV 100+ Used to select channels over 100.

The various functions may be able to be

■

controlled on all televisions. If you encounter problems, operate the television directly.

80, 81

Used to adjust the volume of the television.

English - 11

Tour of the Remote Control

▌

You can control part of another manufacturer’s TV functions with this remote control.

• Buttons that can be controlled on your TV : POWER, INPUT SEL., TV VOL (+/-), CBC/TV CH(

0~9, TV 100+.

8. REVERSE/FORWARD SEARCH Buttons

Getting Started

1 2

6 7

8 9

Press to search a disc backwards or forwards.

9. STOP Button Press to stop a disc or to stop the recording.

10. TV VOL Buttons Volume adjustment.

11. MENU Button Brings up the DVD recorder’s setup menu.

12. ENTER/DIRECTION Buttons (UP/DOWN and LEFT/RIGHT Buttons)

This button functions as a toggle switch.

13. TITLE LIST/DISC MENU Button Use this to enter the View Recording list/Disc menu.

14. ANYKEY Button Use this to view the status of the disc that is being

played.

15. REC Button Use to make a recording on writable/rewritable discs.

16. REC MODE Button Use this to set the desired Recording time and picture quality. (XP/SP/LP/EP)

13 14 15

26 27

17. INFO Button This will display current setting or disc status.

18. INPUT SEL. Button Selects line input signal in external input mode.

(AV1, AV2 or DV)

19. EZ REC MODE Button

20. OPEN/CLOSE Button To open and close the disc tray.

21. AUDIO Button Use this to access various audio functions on a disc.

1. TV Button

Press this to operate your TV.

2. DVD Button

Press this to operate your DVD Recoder.

3. POWER Button

Press to power the DVD Recorder on and off.

4. NUMBER Buttons

5. TV 100+/CM SKIP/SET Button

Press this to select channel 100 or higher. Press this to skip a portion of the program automatically during playback of a DVD disc. Press this to change the set top box channels. (For some set top box brands)

6. REVERSE/FORWARD SKIP Buttons

Press to skip a disc backwards or forwards.

7. REVERSE/FORWARD STEP Buttons

(DVD mode)

22. PLAY/PAUSE Button Press to play/pause a disc.

23. CBC/TV CH Buttons Use this to select a TV channel.

24. TV MUTE Button This operates as Sound Mute. (TV mode)

25. RETURN Button Returns to the previous menu.

26. PLAY LIST/TITLE MENU Button Use this to return to the Title menu, or to view the

recorded Playlist.

27. EXIT Button

28. TIMER/MARKER Button

29. CANCEL Button

Press to play frame by frame.

/ ), TV MUTE,

This is a special remote control for the visually impaired, and has Braille points on the POWER( ), STOP( ) and

PLAY( ) buttons..

English - 12

Description

Front Panel

▌

10 10

Getting Started

1. POWER Button

Turns the recorder on and off.

2. AV 2 IN

Connect external equipment.

3. DV-IN

Connects external digital equipment with a DV

jack. (such as a camcorder)

4. DISC TRAY

Opens to accept a disc.

5. P.SCAN Button

Selects the progressive scan mode.

6. OPEN/CLOSE Button

Opens and closes the disc tray.

7. DISPLAY

Displays the playing status, time, etc.

Front Panel Display

▌

8. INPUT SEL. Button

Select line input signal in external mode.

(AV1, AV2, or DV)

9. REC MODE Button

Use this to set the desired Recording time and

picture quality. (XP/SP/LP/EP)

10. REC Button

Starts recording.

11. STOP Button

Stops disc playback.

12. PLAY/PAUSE Button

Plays a disc or pauses playback.

13. SKIP Buttons

Go to the next title/chapter/track, or go back to

the previous title/chapter/track.

1. Lights when a disc is loaded.

2. Lights in the record mode.

3. Lights to indicate the timer record mode.

4. Lights when a DVD-RAM/DVD±RW/DVD±R

disc is loaded.

5. Alpha/Numeric display.

6. Lights in the progressive scan mode.

English - 13

Rear Panel

▌

Getting Started

1. DIGITAL AUDIO OUT (OPTICAL) Connects to an ampliﬁ er having a digital optical

audio input jack.

2. DIGITAL AUDIO OUT (COAXIAL) Connects to an ampliﬁ er having a digital coaxial

audio input jack.

3. AV AUDIO OUT Connect to the audio input of external equipment using audio cables.

4. AV VIDEO OUT (normal video quality) Connects the input of external equipment using

a Video cable.

5. AV S-VIDEO OUT (better video quality) Connects the input of external equipment using

an S-Video cable.

COMPONENT VIDEO OUT (excellent video quality)

Connect to equipment having Component video input jacks.

7. AV 1 AUDIO IN Connect the output of external equipment using

audio cables

8. AV 1 VIDEO IN Connects the output of external equipment using a video cable.

9. AV 1 S-VIDEO IN Connects the output of external equipment using an S-Video cable.

10. Cable Box Control OUT Connection of the IR Blaster for a cable box.

11. HDMI OUT (best video quality) Connects the input of external equipment using

a HDMI cable.

English - 14

Connecting & Setting Up

Step 1: Connecting the Antenna Cable

This section involves various methods of connecting the DVD Recorder to other external components.

Antenna + Set Top Box Controller + DVD Recorder + TV : Cable box with a video/

▌

audio output or a satellite receiver

You can record channels by selecting the channel on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

Connecting & Setting Up

Getting Connected

1. Find and Connect the included IR Blaster cable into the Cable Box Control jack of the DVD Recorder.

2. Find the Cable Box IR Sensor To control cable box recording, ﬁ nd the IR sensor. A. Turn the cable box Off. B. Hold the cable box’s remote so that it touches the

front of the device (see Figure 1).

Figure 1

Correct

C. Move the remote across the front while pressing the

power button On and Off (Figure 2).

Incorrect

English - 15

Figure 2

(Press and release the power button each time you move the remote; holding down the button will not work.) D.

When the cable box powers On, you have found the sensor.

E. Remember the location of the sensor.

3. Place the IR Blaster. Place the Set top box controller of the IR Blaster on the top or underneath the cable box approximately 1 inch in front of the sensor you found in 2. Use the double-sided tape to secure the IR Blaster.

You must select a cable box brand from the table

■

on pages 75~77. If you do not know the brand name, please contact your cable provider.

After connecting cable box to the DVD recorder

■

through

the IR Blaster cable, you need to set up the

Set Top Box Control menu. (See pages 27~28) The DVD-R160 does not have a TV Tuner.

■

Step 2 : Connecting HDMI/DVI to a TV

If your TV has a HDMI/DVI input, connect the HDMI/DVI cable to the TV. You will enjoy the best quality image and sound.

Connecting to a TV with HDMI Jack

▌

Using an HDMI-HDMI cable (not included) connect the HDMI OUT jack on the rear of the DVD Recorder to the HDMI IN jack of your TV. Press the input selector on your TV remote control until the HDMI signal from the DVD Recorder appears on your TV screen.

Connecting & Setting Up

To listen to sound output via HDMI, you must set

■

the digital audio output to PCM. (See page 32)

Depending on the HDMI device(TV/HDMI

■

Receiver) you use, audio may not be supported. If your TV does not support Dolby digital/DTS, Audio output is not available when you set the Digital output to Bitstream or select DTS On in the Audio setup menu. In this case, set the digital audio ouput to PCM or DTS Off. (See page 32)

■

If you use an HDMI cable to connect a Samsung TV to the DVD recorder, you can operate the recorder using the TV remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC). (See pages 30~31)

English - 16

Please check for the logo. If your TV has

■

an function.

The DVD-R160 supports 1080P resolution. This is

■

only available when an HDMI cable is connected to a TV that supports 1080P resolution.

This player upconverts regular DVDs for playback

■

on 1080P TVs. It does not play HD DVDs or BluRay discs.

To view all available resolutions when the

■

DVD-R160 is connected to your TV via HDMI, press the P.Scan button repeatedly with the unit in Stop mode.

logo, then it supports the Anynet+

Connecting to a TV with DVI Jack

▌

Using an HDMI-DVI cable (not included), connect the HDMI OUT jack on the rear of the DVD Recorder to the DVI IN jack of your TV. An HDMI to DVI connection requires a separate audio connection, using audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD Recorder to the AUDIO (red and white) IN jacks of your TV. Turn on the DVD Recorder and TV. Press the input selector on your TV remote control until the DVI signal from the DVD Recorder appears on your TV screen.

Connecting & Setting Up

To change the HDMI output resolution, see page

■

34.

HDMI (High Deﬁ nition Multimedia Interface)

■

HDMI enables you to make a digital video and audio connection with a single cable. Using HDMI, the DVD player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

HDMI is completely compatible with DVI. The only

■

difference between HDMI and DVI is that HDMI supports multi-channel audio.

HDMI connection description

■

HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).

- The DVD recorder outputs a pure digital signal to the TV.

- If your TV does not support HDCP (Highbandwidth Digital Content Protection), snow noise appears on the screen.

English - 17

Why does Samsung use HDMI?

■

Analog TVs require an analog video/audio signal.However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Recorder) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the DVD recorder to your TV.

What is the HDCP?

■

HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content output via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

Step 3 : Connecting the Video Cable

There are several ways to connect your DVD Recorder. Select one of the video connections on the following pages. You must use one of the following audio/video connections on this unit.

Connecting to Component video input jacks (Y,PB,PR)

▌

Connecting & Setting Up

1. Connect the Component video cables(not supplied) between the COMPONENT OUT(Y,PB,PR) jacks on the DVD Recorder and COMPONENT IN(Y,P your TV (or AV ampliﬁ er).

2. If the connected TV supports Progressive Scan, press the P.SCAN button on the front of the DVD Recorder to enjoy best quality video. Pressing the P.SCAN button switches Progressive (480P) / Interlace (480i) scan mode on.

• You will enjoy the best quality accurate color

reproduction images. Component video separates the picture element into black and white(Y), blue(P red(PR) signals to present clear and clean images.

• Connect the audio cables(white and red) between the

AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on your TV(or AV ampliﬁ er). (See pages 21~23)

B,PR

) jacks on

) and

English - 18

■

Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a clearer, more stable, and ﬂ icker free image than interlaced video. The component output jack of the DVD player can be used for progressive output mode, which is only available with TVs that support progressive scan.

■

Progressive Scan Output (480P). Not all high deﬁ nition television sets are fully compatible with this product. If the 480p progressive scan picture is not satisfactory, press the P.SCAN button on the unit to switch to the Interlace mode. If there are questions regarding TV set compatibility with this model, please contact our customer service center at 1-800-SAMSUNG.

■

The Component jacks will not output video resolutions above 480P. To view 720P, 1080i and 1080P, connect the DVD-R160 to your TV with an HDMI-HDMI cable. With HDMI connected, press the P.SCAN button with the unit in Stop mode to alternate between all available resolutions. (See page 34)

Connecting to an S-Video input jack

▌

Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder and S-VIDEO IN jack on your TV (or AV ampliﬁ er).

Connecting & Setting Up

• You will enjoy high quality images. S-Video separates

the picture element into black and white (Y) and color (C) signals to present clearer images than regular video input mode.

• Connect the audio cables(white and red) between the

AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on your TV(or AV ampliﬁ er). (See pages 21~23)

English - 19

■

S-Video or Component video outputs are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check your TV connections and the TV input selection settings.

Connecting to a Video input jack

▌

Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder and VIDEO(yellow) IN jack on the TV (or AV ampliﬁ er).

Connecting & Setting Up

• You will enjoy normal quality images.

• Connect the audio cables(white and red) between the

AUDIO OUT jacks on the DVD Recorder and AUDIO IN jacks on your TV(or AV ampliﬁ er). (See pages 21~23)

English - 20

Step 4 : Connecting the Audio Cable

Select one of the Audio connections on the following pages.

Connecting to an AV ampliﬁ er with a digital input jack

▌

If your AV ampliﬁ er has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital or DTS sound, you will need to set up the audio settings. (See page 32)

Connecting & Setting Up

English - 21

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of DTS, Inc.

Connecting to a stereo ampliﬁ er with analog input jacks

▌

If your stereo ampliﬁ er only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.

Connecting & Setting Up

English - 22

Connecting to your TV

▌

This connection will use your TV’s speakers.

Connecting & Setting Up

English - 23

Step 5 : Connecting External Devices

This allows you to connect your DVD Recorder to other external devices and view or record their outputs.

Connecting a VCR, Set Top Box(STB) or DVD Player to the AV 1 IN or S-VIDEO IN jacks

▌

Connecting a VCR or external device to the AV 1 IN jacks of the DVD Recorder. You can record from connected equipment (VCR, STB or DVD Player).

Connecting & Setting Up

English - 24

Connecting a Camcorder

▌

You can record from connected equipment, such as a camcorder by using the AV 2 IN or DV IN jacks on front of the DVD Recorder.

Connecting & Setting Up

(See page 41)

When equipment(camcorder) is inserted into AV2,

■

the DVD recorder's Input will be switched to AV2 automatically. If the Input is not selected automatically, press the

■

INPUT SEL. button on the remote control to select the DV Input. Check your camcorder's owner's manual to see

■

how to use the camcorder in this mode.

English - 25

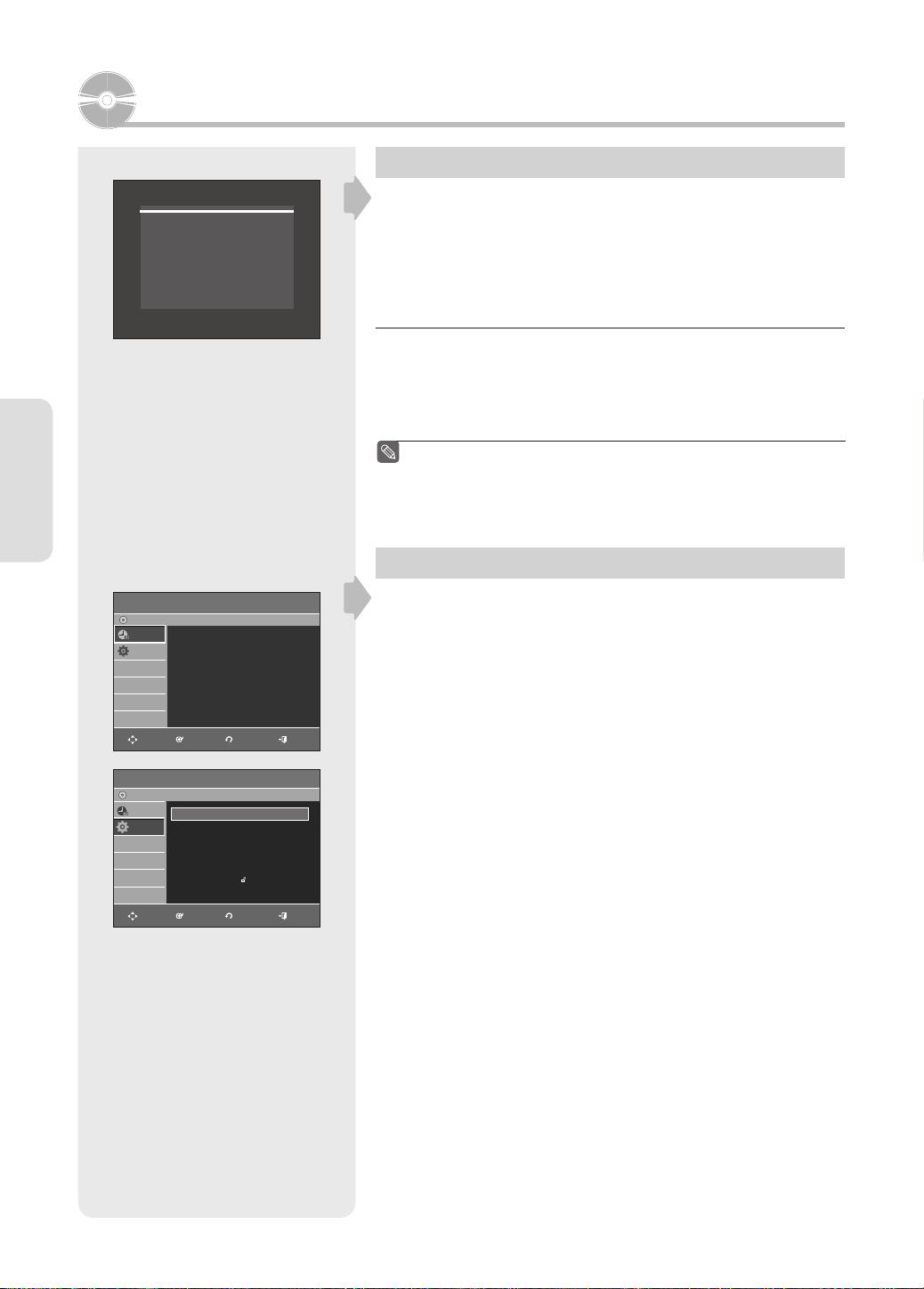

System Setup

Press 1 for English

Touche 2 pour Français

Pulse 3 para Español

MACROVISION ST01

Initial Setup

If you connected an external Audio System, turn on your Audio System and select AUX, CD or DVD. The OSD (On-Screen Display) displayed on the screen may vary depending on conditions such as the disc type and whether the disc has been inserted or not.

OSD Language Setup

▌

After plugging in the recorder, the ﬁ rst time you press the POWER button, the screen shown to the left appears.

1. Press the POWER button.

2. Press a number button to select the language.

If the language for the startup screen is not set, the settings may

■

change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use.

Using the Setup Menu

DVD-Recorder

No Disc

Timer Rec.

Timer Record

Setup

Scheduled Record List

MOVE ENTER RETURN EXIT

DVD-Recorder

No Disc

Timer Rec.

System

Clock Set

Setup

Language

Audio

Video

Parental Control

MOVE ENTER RETURN EXIT

Timer Record

Setup

For ease of use, we recommend that you perform the initial setup

►

before using the product.

1. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control. Menu items differ depending on the disc type.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ► button. Setup menu will be displayed.

• System

Setup of the General Options.

►

- Set Top Box Control, CM Skip Time, EP Mode Time, Chapter Creator, Quick Recording, Anynet+(HDMI-CEC)

• Clock Set

- Manual Clock Set

• Language

Setup of the Language Options.

- Audio, Subtitle, Disc Menu, On-Screen Menu

• Audio

Setup of the Audio Options

- Digital Output , DTS, Dynamic Compression

• Video

Setup of the Display Options.

- TV Aspect, Input Level, Black Level, 3D Noise Reduction, HDMI/DVI Resolution, DivX(R) Registration

• Parental Control Setup of the Parental Level Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

- Password, Rating Level,Change Password

English - 26

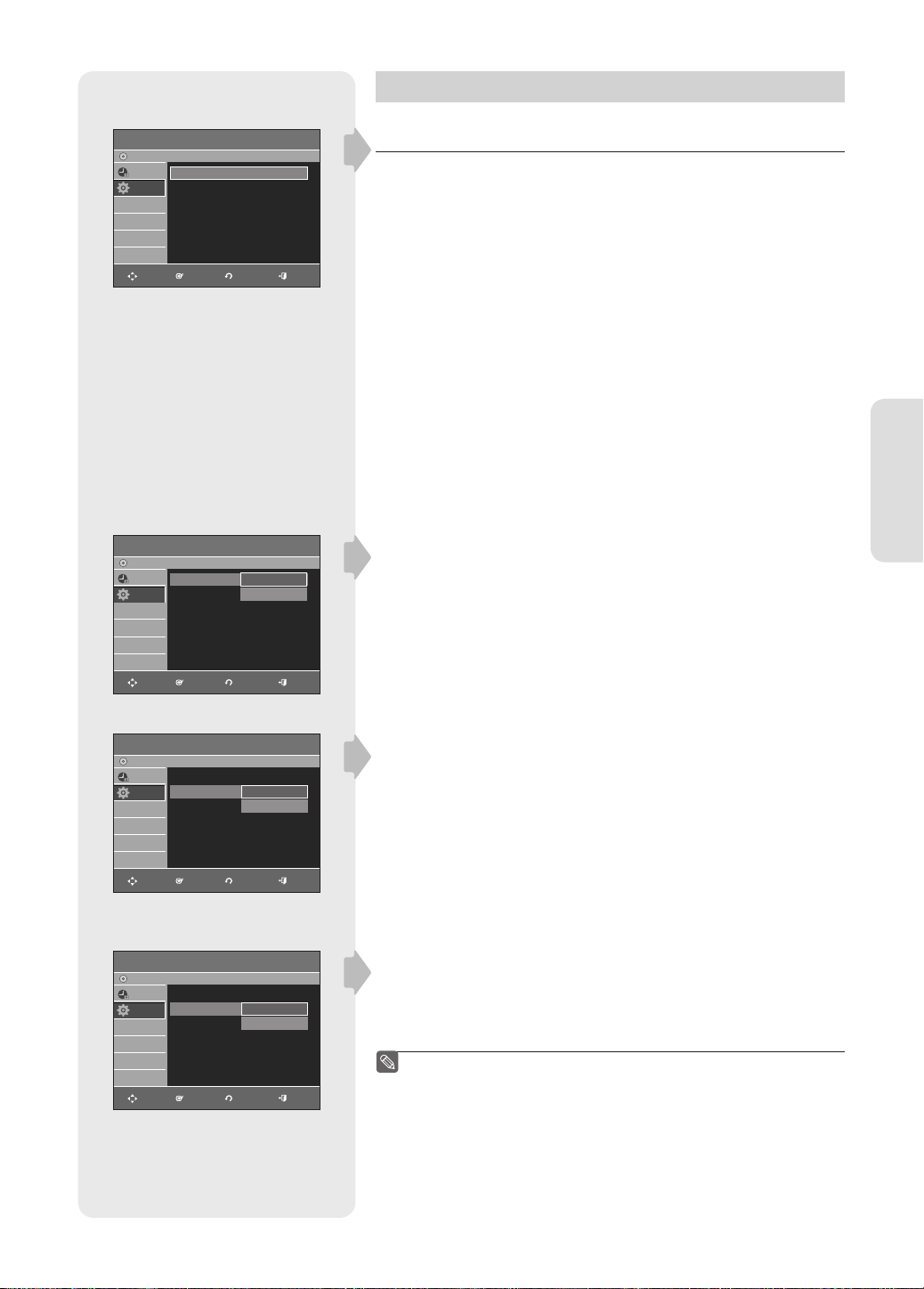

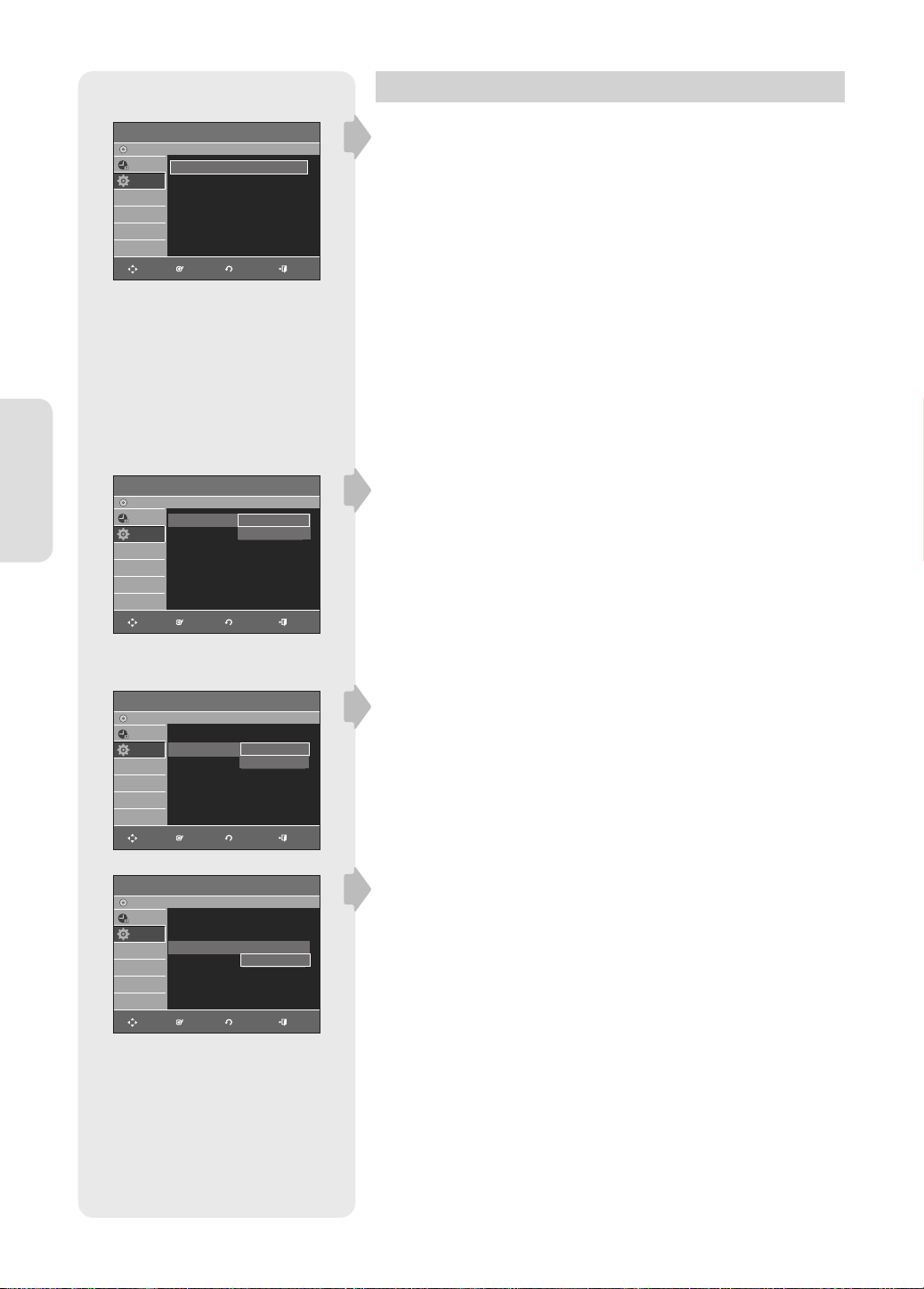

Setting Up the System Options

DVD-Recorder

No Disc

Timer Rec.

Set Top Box Control

CM Skip Time : 15 Sec

Setup

EP Mode Time : 6 Hours

Chapter Creator : Off

Quick Recording : Off

Anynet+(HDMI-CEC) : On

MOVE ENTER RETURN EXIT

DVD-Recorder

No Disc

Timer Rec.

Control : Off

Connection : AV1

Setup

CH Digit Lock : Off

Mode for SET button : Off

Brand Code : 0000

MOVE ENTER RETURN EXIT

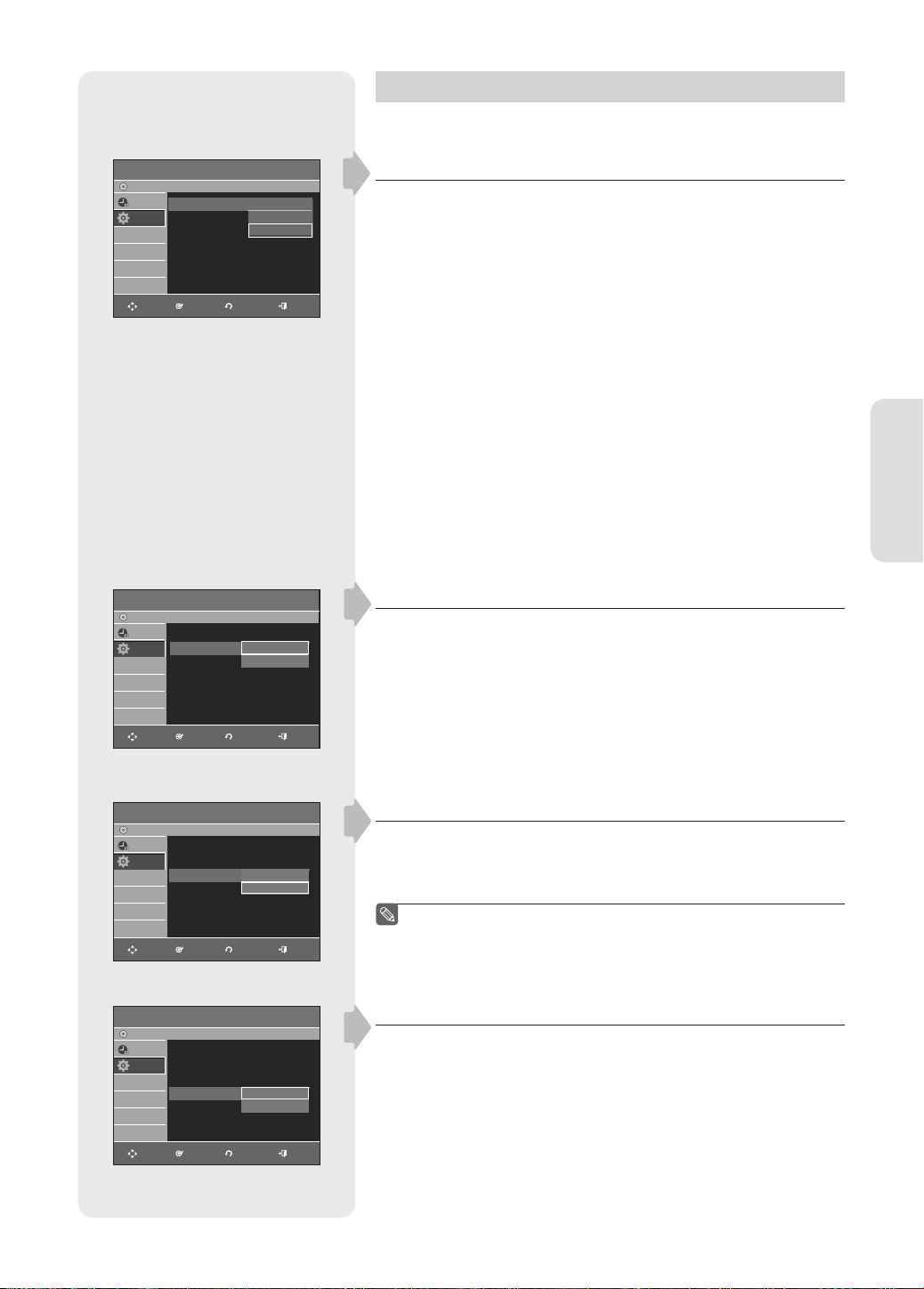

Set Top Box Control

Off

System

►

Set Top Box Control

▌

If you have your cable box/satellite receiver(set top box) connected as shown on page 15, the box can be controlled after setting up this menu.

1. With the unit in Stop mode/No Disc mode, press the MENU button on

the remote control. Menu items differ depending on the disc type.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ►

button.

3. Select System using the ▲▼ buttons, then press the ENTER or ►

button. System menu will be displayed.

4. Select Set Top Box Control using the ▲▼ buttons, then press the

ENTER or ► button.

System Setup

Set Top Box Control menu will be displayed.

5. Select the desired sub menu (Control, Connection, CH Digit Lock,

Mode for SET button, and Brand Code) using the ▲▼ buttons, then press the ENTER or ► button.

Control

►

Select the sub item(Off or On) using the ▲▼ buttons, then press the ENTER button.

• Off : Turns off the cable box or satellite receiver (set top box) control function. Select this if you do not want to use the supplied set top box controller (IR Blaster).

• On : Turns on the cable box or satellite receiver (set top box) control function.

DVD-Recorder

No Disc

Timer Rec.

Control : Off

Connection : AV1

Setup

CH Digit Lock : Off

Mode for SET button : Off

Brand Code : 0000

MOVE ENTER RETURN EXIT

DVD-Recorder

No Disc

Timer Rec.

Control : Off

Connection : AV1

Setup

CH Digit Lock : Off

Mode for SET button : Off

Brand Code : 0000

MOVE ENTER RETURN EXIT

Set Top Box Control

AV1

AV2

Set Top Box Control

S-Video

AV2

Connection

►

Select the sub item (AV1 , AV2 or S-Video) using the ▲▼ buttons, then press the ENTER button. If you connect your cable box or satellite receiver to the recorder's audio/ video input. (page15)

• AV1 : Select this when the cable box or satellite receiver is connected to the DVD recorder's AV 1 IN jacks. You can watch the output of the cable box or satellite receiver connected to AV1 when the Recorder is powered off.

• AV2

: Select this when the cable box or satellite receiver is connected to

the DVD recorder's AV 2 IN jacks.

• S-Video : Select this when the cable box or satellite receiver is connected

►

to the DVD recorder's S-Video IN jack. You can't select AV1 when the cable box or satellite receiver is connected to the S-Video input.

See the instruction supplied with your cable box to conﬁ rm the

■

cable box's antenna output channel.

The DVD-R160 does not have a TV tuner.

■

Recording TV broadcasts is possible via Connection to Cable/ Satellite boxes and Multi Channel Video Services.

English - 27

DVD-Recorder

No Disc

Timer Rec.

Control : Off

Connection : AV1

Setup

CH Digit Lock : Off

Mode for SET button : Off

Brand Code : 0000

MOVE ENTER RETURN EXIT

DVD-Recorder

No Disc

Timer Rec.

Control : Off

Connection : AV1

Setup

CH Digit Lock : Off

Mode for SET button : Off

Brand Code : 0000

MOVE ENTER RETURN EXIT

Set Top Box Control

Off

Lock to two digits

Set Top Box Control

Off

Mode 1

Mode 2

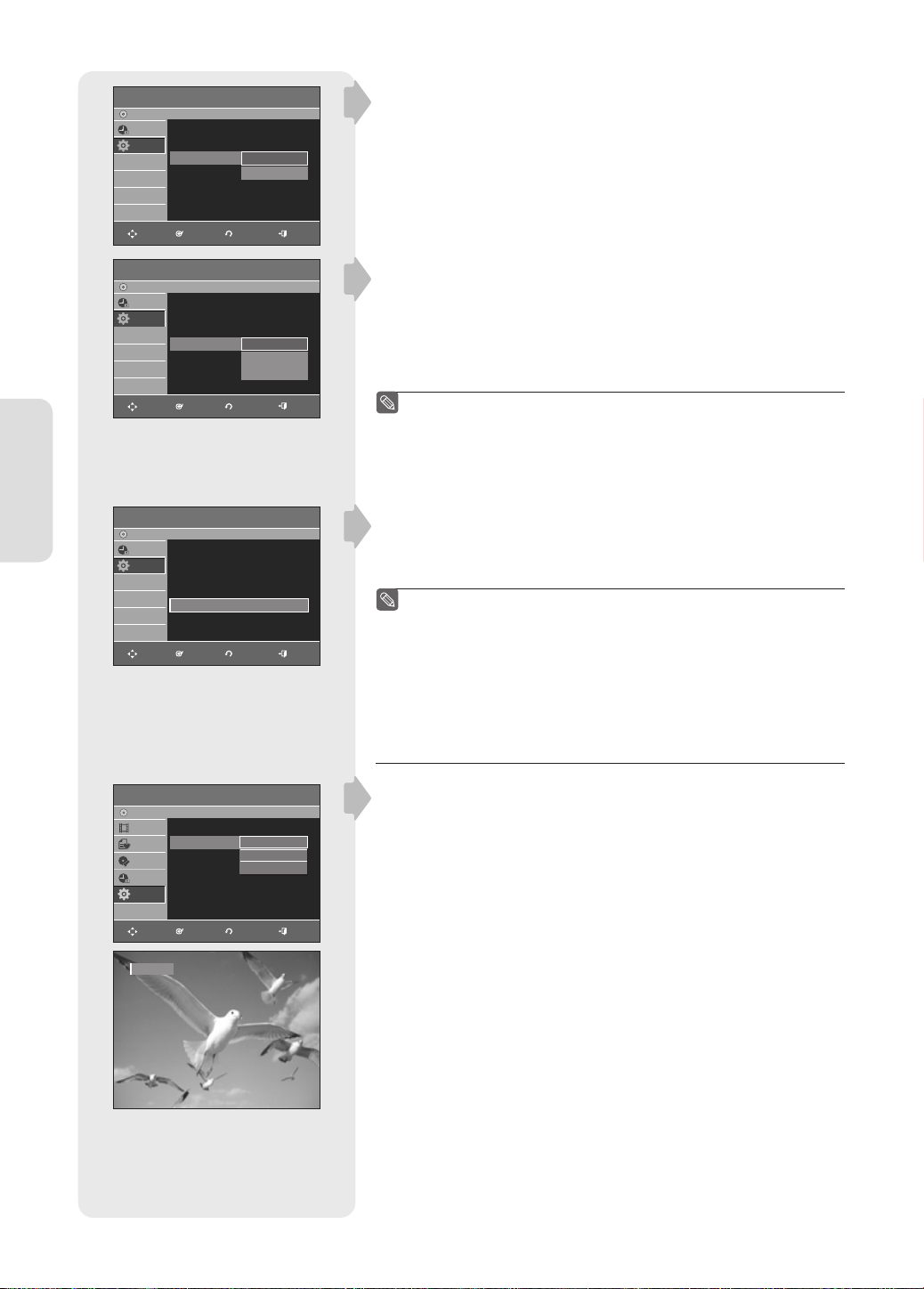

CH Digit Lock Select the sub item(Off or Lock to two digits) using the ▲▼ buttons,

►

then press the ENTER button.

• Off : Select this when your cable box or satellite receiver only accepts a three or more digit channel number. Normally select this.

• Lock to two digits : Select this when your cable box or satellite receiver only accepts a two digit channel number.

Mode for SET button Select the sub item(Off, Mode 1 or Mode 2) using the ▲▼ buttons, then

►

press the ENTER button. Select "Mode 1" or "Mode 2" if your cable box or satellite receiver requires pressing the SET button, after entering the channel number.

No code is sent when the SET button is pressed. Normally select this.

• Off :

• Mode 1 or Mode 2 : Sends the channel number you entered.

■

If "Mode 1" does not work, try "Mode 2."

■

If your cable box or satellite receiver does not respond to either setting, contact the manufacturer of the cable box or satellite receiver.

System Setup

DVD-Recorder

No Disc

Timer Rec.

Control : Off

Connection : AV1

Setup

CH Digit Lock : Off

Mode for SET button : Off

Brand Code : 0000

MOVE ENTER RETURN EXIT

DVD-RW(VR)

Title List

Set Top Box Control

CM Skip Time : 15 Sec

Playlist

EP Mode Time : 6 Hours

Disc Manager

Chapter Creator : Off

Timer Rec.

Quick Recording : Off

Setup

Anynet+(HDMI-CEC) : On

MOVE ENTER RETURN EXIT

CM SKIP

Set Top Box Control

15 Sec

30 Sec

60 Sec

System

Brand Code

Enter the brand code of your cable box or satellite receiver using the

►

number buttons, then press the ENTER button. (See "Cable Box/Satellite Receiver Brand Code Table" on pages 75~77.)

If you cannot get the recorder to control your cable box/satellite

■

receiver. Check the connection and position of the IR Blaster cable. (page15) If your cable box or satellite receiver still does not operate with this recorder, contact your cable company to see if they can provide you with a compatible cable box or satellite receiver.

CM Skip Time Setting

▌

When a program recorded on a DVD-RAM, a DVD-RW, DVD-VIDEO or a DVD-R is played, the unit can be set to automatically skip a portion

►

of the program corresponding to a CM(commercial) Skip Time set by the user.

1. With a disc inserted and the unit in Stop mode, press the MENU button

on the remote control.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ►

button. You can't use the Setup functions while playing a disc.

3. Select System using the ▲▼ buttons, then press the ENTER or ►

button. System menu will be displayed.

4. Select CM Skip Time using the ▲▼ buttons, then press the ENTER or

► button.

CM Skip Time will be displayed.

5. Select the desired time using the ▲▼ buttons, then press the ENTER

or ► button.

6. If you press the CM SKIP button during playback, the section

corresponding to the set time is skipped, and then the next section is played.

English - 28

DVD-Recorder

DVD-RW(VR)

Title List

Set Top Box Control

CM Skip Time : 15 Sec

Playlist

EP Mode Time : 6 Hours

Disc Manager

Chapter Creator : Off

Timer Rec.

Quick Recording : Off

Setup

Anynet+(HDMI-CEC) : On

MOVE ENTER RETURN EXIT

6 Hours

8 Hours

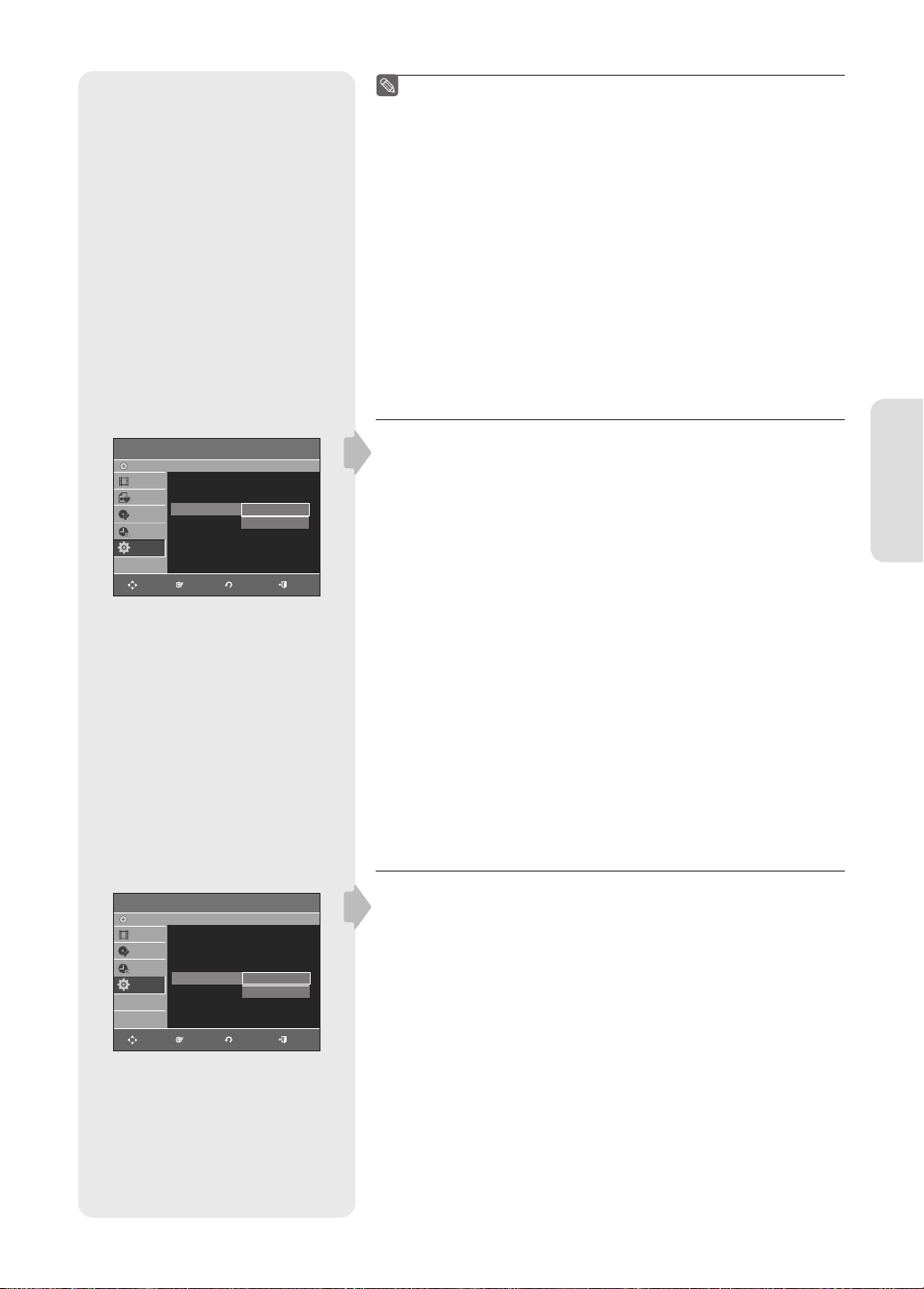

CM Skip can be performed only during normal playback.

■

When the time set is less than the remaining time of a current

■

title: The next title is played from the beginning.

When the time set is less than the remaining time of a playlist, the

■

next scene is played.

CM Skip does not work in a still picture mode.

■

When a set time is less than the remaining time of a scene, last

■

title, or last track that is currently displayed, a prohibition mark appears.

■

CM Skip releases Repeat (including Repeat A-B, Chapter, and Title).

■

CM Skip may not operate with some DVD-Video discs.

■

DVD+R/DVD+RW discs doesn't support this function.

EP Mode Time Setting

▌

System

►

You can set the EP (Extended Play) mode’s time to 6 or 8 hours.

1. With a disc inserted and the unit in Stop mode, press the MENU button

on the remote control.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ►

button. You can't use the Setup functions while playing a disc.

System Setup

3. Select System using the ▲▼ buttons, then press the ENTER or ►

button.

4. Select desired option using the ▲▼ buttons, then press the ENTER

or ► button. EP Mode Time will be displayed.

5. Select the desired menu using the ▲▼ buttons, then press the ENTER

or ► button.

DVD-Recorder

DVD-RW(V)

Title List

Set Top Box Control

CM Skip Time : 15 Sec

Disc Manager

EP Mode Time : 6 Hours

Timer Rec.

Chapter Creator : Off

Setup

Quick Recording : Off

Anynet+(HDMI-CEC) : On

MOVE ENTER RETURN EXIT

Off

Automatic Chapter Creation

▌

System

►

This function works for DVD-RW (Video) and DVD-R discs only.

1. With a disc inserted and the unit in Stop mode, press the MENU button

on the remote control.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ►

button. You can't use the Setup functions while playing a disc.

3. Select System using the ▲▼ buttons, then press the ENTER or ►

button. System menu will be displayed.

4. Select Chapter Creator using the ▲▼ buttons, then press the ENTER

or ► button. Chapter Creator items will be displayed.

5. Select On using the ▲▼ buttons, then press the ENTER button.

• Off : Select this option when you do not want to create chapters.

• On : Select this option when you want to create chapters.

English - 29

DVD-Recorder

System Setup

DVD-RW(VR)

Title List

Set Top Box Control

CM Skip Time : 15 Sec

Playlist

EP Mode Time : 6 Hours

Disc Manager

Chapter Creator : Off

Timer Rec.

Quick Recording : Off

Setup

Anynet+(HDMI-CEC) : On

MOVE ENTER RETURN EXIT

System

Set the chapter creator to on and then start recording. Stopping

■

the recording will automatically create a chapter menu.

■

This function only works for normal recording.

- After the recording has begun, the “Do you want to create the chapter menu after this recording?” message appears for 10 seconds. Select Yes or No.

- Selecting Yes will create a new chapter menu while selecting No will not.

- A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode.

■

To display the created chapters and ﬁ nalize the disc, press the DISC MENU button. The chapters menu appears.

■

The Automatic Chapter Creation function does not work during Timer Recording or when you turn the power off.

Quick Recording Setting

▌

►

It takes about 10 seconds for a disc to load (initialize) every time you turn on the unit. To bypass this initialization process, you can set the Quick Recording feature to On. This enables you to record immediately without having to wait for the disc to load.

1. With a disc inserted and the unit in Stop mode, press the MENU button on the remote control.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ► button. You can't use the Setup functions while playing a disc.

3. Select System using the ▲▼ buttons, then press the ENTER or ► button. System menu will be displayed.

4. Select Quick Recording using the ▲▼ buttons, then press the ENTER or ► button.

Quick Recording menu will be displayed.

5. Select On using the ▲▼ buttons, then press the ENTER or ► button.

DVD-Recorder

No Disc

Timer Rec.

Set Top Box Control

CM Skip Time : 15 Sec

Setup

EP Mode Time : 6 Hours

Chapter Creator : Off

Quick Recording : Off

Anynet+(HDMI-CEC) : On

MOVE ENTER RETURN EXIT

Off

■

The Quick Recording is set to Off as default.

Anynet+(HDMI-CEC)

System

►

▌

Anynet+ is a function that can be used to operate the playback and power functions of the recorder using a Samsung TV remote control, by connecting the DVD Recorder to a SAMSUNG TV using an HDMI Cable. (see page 16) (This is only available with SAMSUNG TVs that support Anynet+.)

1. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ► button.

3. Select System using the ▲▼ buttons, then press the ENTER or ►

button. The system menu will be displayed.

4. Select Anynet+(HDMI-CEC) using the ▲▼ buttons, then press the ENTER or ► button.

Anynet+(HDMI-CEC) items will be displayed.

5. Select On using the ▲▼ buttons, then press the ENTER or ► button.

For using Anynet+(HDMI-CEC)

1. Connect the recorder to a Samsung TV with an HDMI cable.

(See page 16)

2. Set the Anynet+(HDMI-CEC) to “On” on your DVD Recorder. (see above)

3. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

English - 30

DVDR

View TV

Selet Device

Record

Menu on Device

Device Operation

Receiver : Off

Setup

Move

DVD-Recorder

No Disc

Timer Rec.

Setup

MOVE ENTER RETURN EXIT

Exit

Manual Clock Set

Month Day Year Hour Minute AM/PM

▲

01 01 2007 12 00 AM

▼

MON

TV Menu

• You can operate the DVD Recorder by using TV remote control.

(TV buttons that can be used to control the DVD Recorder :

, and

• When you press Anynet+ button on the TV's remote control, the OSD to

buttons, ~ button)

, , ,

the left will appear.

- Select Device : Use this option to select device.

- Record : DVD-R160 doesn't support this function.

Device Operation : Same as ANYKEY button ( ) on the DVD Recorder remote control.

- Menu on Device : Same as MENU button ( ) on the DVD Recorder remote control.

By pressing the PLAY button of the recorder while watching TV, the

■

TV screen will change to the play screen. If you play a DVD when the TV power is off, the TV will power On.

■

If you turn the TV off, the DVD Recorder will power off automatically.

■

(When the DVD recorder is recording, it can't be powered off.)

■

If you change from HDMI to other sources (Composite, Component, RF... etc) on your TV while playing a DVD disc, the DVD Recorder will stop playing. The DVD Recorder may keep playing certain discs based on their content.

■

The DVD-R160's Record function does not work with Anynet+ as the unit does not have a TV tuner.

Clock Set

This menu is used to set the current time. You must set the time ﬁ rst to use timer recording.

1. With the unit in Stop mode/No Disc mode, press the MENU button on

the remote control.

Select Setup using the ▲▼ buttons, then press the ENTER or ► button.

Select Clock set using the ▲▼ buttons, then press the ENTER or ► button. Clock set menu will be displayed.

Select the current date and time (Month, Day, Year, Hour, Minute and AM/ PM) using the ▲▼◄ ► or number buttons and then press the ENTER button.

When the current time is stored in memory and the set is powered off, the current time will appear in the front panel display. ▲▼ : Sets the value

You can set the value using the number (0~9) buttons.

◄ ►: Moves to items

The Menus are slightly different depending on whether a disc is inserted or

■

not. The menus described on the next few pages are with no disc in the unit. The menus are not available during playback or recording.

■

System Setup

DVD-

DVD-Recorder

No Disc

Timer Rec.

TV Aspect

Audio : Original

Timer Rec.

Setup

Input Level : Darker

Subtitle : Automatic

Setup

Black Level : 7.5 IRE

Disc Menu : English

3D Noise Reduction

On-Screen Menu : English

HDMI/DVI Resolution

DivX(R) Registration

ENTER EXIT

MOVE

MOVE ENTER RETURN EXIT

Original

: 16:9 Wide English Français Deutsch

: Off Español

480P

Italiano

: 480P

720P

Nederlands Korean

1080i

Video

Language

Language Setting

If you set the language options in advance, they will come up automatically every time you watch a movie.

With the unit in Stop mode/No Disc mode, press the MENU button on the remote control.

√

►

√

►

√

►

√

►

√

Select Setup using the ▲▼ buttons, then press the ENTER or ► button.

Select Language using the ▲▼ buttons, then press the ENTER or ►button. The language setup menu will be displayed.

4. Select the sub menu(Audio, Subtitle, Disc Menu, On-Screen Menu)

and press the ENTER or ► button using the ▲▼ buttons.

• Audio : For the disc audio language.

• Subtitle : For the disc subtitles.

• Disc Menu : For the disc menu contained on the disc.

• On-Screen Menu : For the unit menu of your DVD recorder.

5. Select the desired language using the ▲▼ buttons, then press the ENTER or ► button.

If the selected language is not recorded on the disc, the original

■

pre-recorded language is selected. The selected language will only appear if it is supported on the disc.

■

English - 31

Setting Up the Audio Options

DVD-Recorder

System Setup

No Disc

Timer Rec.

Digital Output : PCM

DTS : Off

Setup

Dynamic Compression

MOVE ENTER RETURN EXIT

No Disc

Timer Rec.

Digital Output : PCM

DTS : Off

Setup

Dynamic Compression

MOVE ENTER RETURN EXIT

: On

PCM

Bitstream

Audio

You can connect the DVD-R160 to an external audio ampliﬁ er or a Home Theater system.

►

This allows you to setup the audio device and sound status settings depending on the audio system in use.

1. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control.

2. Select Setup using the ▲▼ buttons, then press the ENTER or ► button.

3. Select Audio using the ▲▼ buttons, then press the ENTER or ► button.

4. Select the sub menu(Digital Output, DTS, Dynamic Compression) using the ▲▼ buttons, then press the ENTER or ► button.

Select the item that matches the audio connection you’ve selected on pages 21~23(Method 1, 2 and 3).

Digital Output

►

► ►

• PCM : Converts to PCM(2CH) 48kHz audio.

Select PCM if your ampliﬁ er system is stereo and/or Dolby Prologic.

• Bitstream : Outputs Bitstream.

Select Bitstream if your ampliﬁ er system supports multi channel digital audio surround decoding such as Dolby Digital and/or DTS.

DVD-Recorder

No Disc

Timer Rec.

Digital Output : PCM

DTS : Off

Setup

Dynamic Compression

MOVE ENTER RETURN EXIT

DVD-Recorder

No Disc

Timer Rec.

Digital Output : PCM

DTS : Off

Setup

Dynamic Compression

MOVE ENTER RETURN EXIT

Off

Audio

DTS

►

► ►

►

• On : Outputs DTS bitstream. (via Digital Audio Output)

Select DTS when connecting to a digital amp with DTS decoder.

• Off : Doesn’t output DTS bitstream.

•

When DTS soundtrack is played, sound is not output from Analog Audio Output.

Dynamic Compression

This is only active when a Dolby Digital signal is detected.

• On : When movie soundtracks are played at low volume or from small

speakers, the system can apply appropriate compression to make lowlevel content more intelligible and prevent dramatic passages from getting too loud.

• Off : You can enjoy the movie with standard Dynamic Range.

5. Select the desired item(PCM, Bitstream, DTS-Off, DTS-On, Dynamic Compression-Off or Dynamic Compression-On) using the ▲▼

buttons Then press the ENTER or ► button.

English - 32

DVD-Recorder

No Disc

Timer Rec.

TV Aspect

Setup

Input Level : Darker

Black Level : 7.5 IRE

3D Noise Reduction

HDMI/DVI Resolution

DivX(R) Registration

MOVE ENTER RETURN EXIT

DVD-Recorder

No Disc

Timer Rec

TV Aspect

Setup

Input Level : Darker

Black Level : 7.5 IRE

3D Noise Reduction

HDMI/DVI Resolution

DivX(R) Registration

ENTER RETURN EXIT

MOVE

: 16:9 Wide

: Off

: 480P

: 16:9 Wide

Darker

Lighter

: Off

: 480P

Video

√

►

4:3 Letter Box

4:3 Pan-Scan

16:9 Wide

Video

Video(Display) Setting

This allows you to set up the TV screen settings.

TV Aspect

▌

► ► ► ► ►

►

√

►

1. With the unit in Stop mode/No Disc mode, press the MENU button.

Select Setup using the ▲▼ buttons, then press the ENTER or ► button.

Select Video using the ▲▼ buttons, then press the ENTER or ► button.

Select TV Aspect using the ▲▼ buttons, then press the ENTER or ► button.

5. Select the desired item(4:3 Letter Box, 4:3 Pan-Scan or 16:9 Wide)

using the ▲▼ buttons. Then press the ENTER or ► button.

If you have a 4:3 standard TV

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen

DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

System Setup

• 4:3 Pan-Scan : Select this for a conventional size TV when you want to

see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

If you have a wide screen TV or 4:3 standard TV with a wide-screen mode

• 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.

Input Level

▌

Adjusts the level of the input signal.

• Darker : If you feel the screen is too light and you want to make the

screen darker.

• Lighter : If you feel the screen is too dark and you want to make the

screen lighter.

DVD-Recorder

No Disc

Timer Rec.

Setup

MOVE

DVD-Recorder

No Disc

Timer Rec.

Setup

MOVE

TV Aspect

Input Level : Darker

Black Level : 7.5 IRE

3D Noise Reduction

HDMI/DVI Resolution

DivX(R) Registration

ENTER RETURN EXIT

TV Aspect

Input Level : Darker

Black Level : 7.5 IRE

3D Noise Reduction

HDMI/DVI Resolution

DivX(R) Registration

ENTER RETURN EXIT

: 16:9 Wide

0 IRE

7.5 IRE : Off

: 480P

: 16:9 Wide

Off

: Off

: 480P

Video

Black Level

▌

►

√

►

Adjusts the black level of the screen.

• 0 IRE : Select this when you want a darker screen.

• 7.5 IRE : Select this when you want a lighter screen.

Black level function is not available in the progressive scan mode.

■

3D Noise Reduction

▌

• On : Provides a cleaner picture through noise reduction (for recording).

• Off : Normal

English - 33

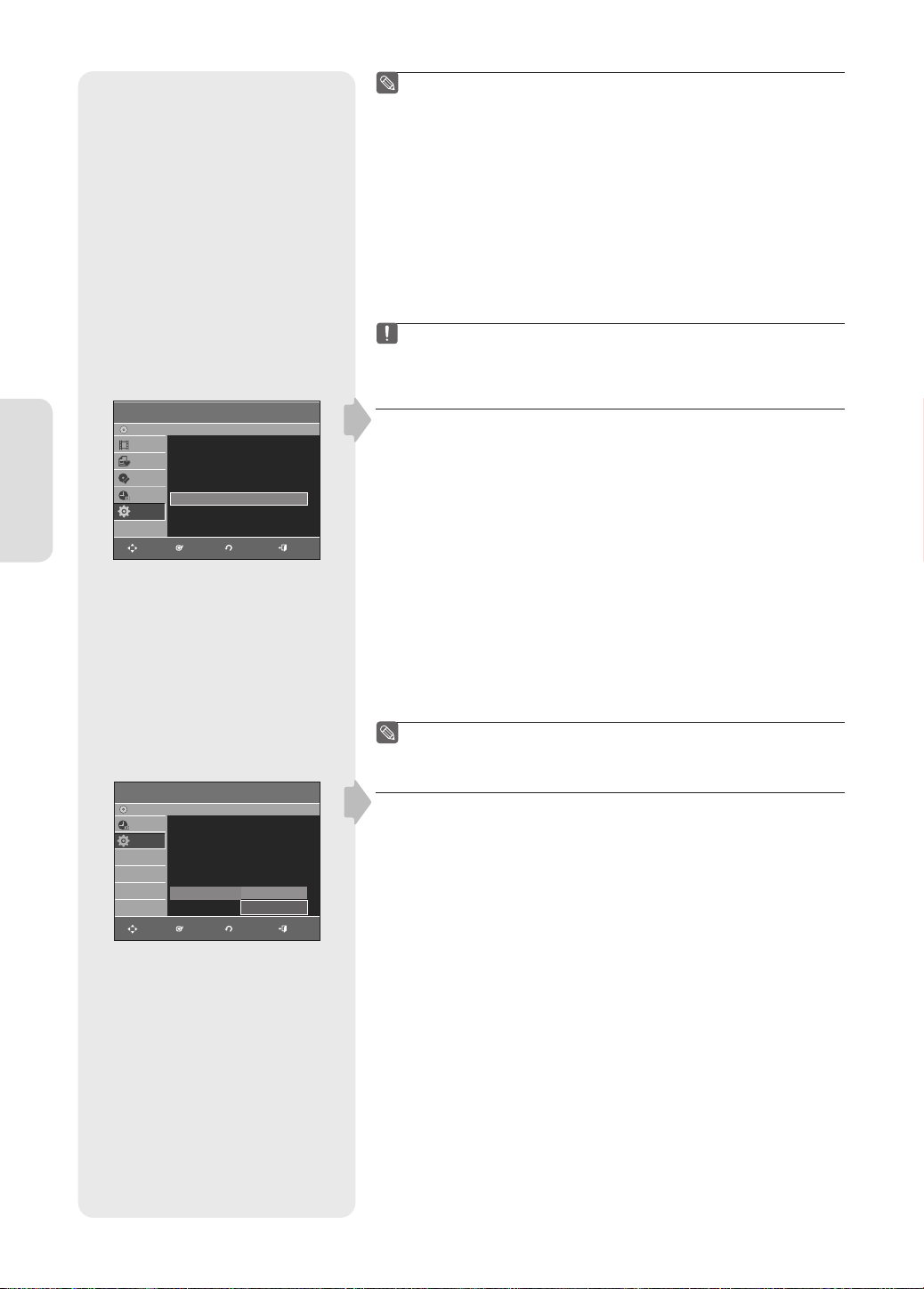

HDMI/DVI Resolution

▌

DVD-

DVD-Recorder

System Setup

No Disc

Timer Rec.

TV Aspect

Timer Rec.

Setup

Input Level : Darker

Setup

Black Level : 7.5 IRE

3D Noise Reduction

HDMI/DVI Resolution

DivX(R) Registration

ENTER EXIT

MOVE

MOVE ENTER RETURN EXIT

: 16:9 Wide

: Off

480P

720P

: 480P

720P

1080i

1080P

Video

This setting is used when the unit is connected by HDMI or DVI to Display devices (TV, projector, etc).

√

►

√

►

√

►

√

►

√

►

• 480P : 720 x 480

• 720P : 1280 x 720

• 1080i : 1920 x 1080

• 1080P : 1920 x 1080

• Connect the DVD-R160 to your TV via HDMI or DVI. Set your TV's input to HDMI or DVI.

• Press the P.SCAN button while the unit is in stop mode to select the output resolution.

- If your TV is connected the HDMI or DVI cable, the output resolution

mode changes in the following sequence each time you press the P.SCAN button:

480P  720P  1080i  1080P



- If your TV is connected via AV or Component cables (without an HDMI/

DVI cable connected), pressing the P.Scan button toggles between 480P/480i.

The DVD-R160 supports 1080P resolution. This is only available

■

when an HDMI cable is connected to a TV that supports 1080P resolution.

This player upconverts regular DVDs for playback on 1080P TVs.

■

It does not play HD DVDs or Blu-Ray discs.

DVD-

DVD-Recorder

No Disc

Timer Rec.

TV Aspect

Timer Rec.

DivX(R) Video On Demand

Setup

Input Level : Darker

Setup

Black Level : 7.5 IRE

Your registration code is :

3D Noise Reduction

To learn more, visit www.divx.com/vod

HDMI/DVI Resolution

DivX(R) Registration

ENTER EXIT

MOVE

MOVE ENTER RETURN EXIT

DTFJXHFA

: 16:9 Wide

: Off

480P

: 480P

: 480P 720P

1080i

Video

DivX(R) Registration

▌

Please use the Registration code to register your DVD Recorder with the DivX(R) Video On Demand format.

√

►

√

►

√

►

√

►

√

►

√

►

To learn more, visit www.divx.com/vod

■

IRE: Short for the Institute of Radio Engineers. An IRE unit is a relative unit of measure equaling 1/140th of the peak-to-peak (p-p) video amplitude.

English - 34

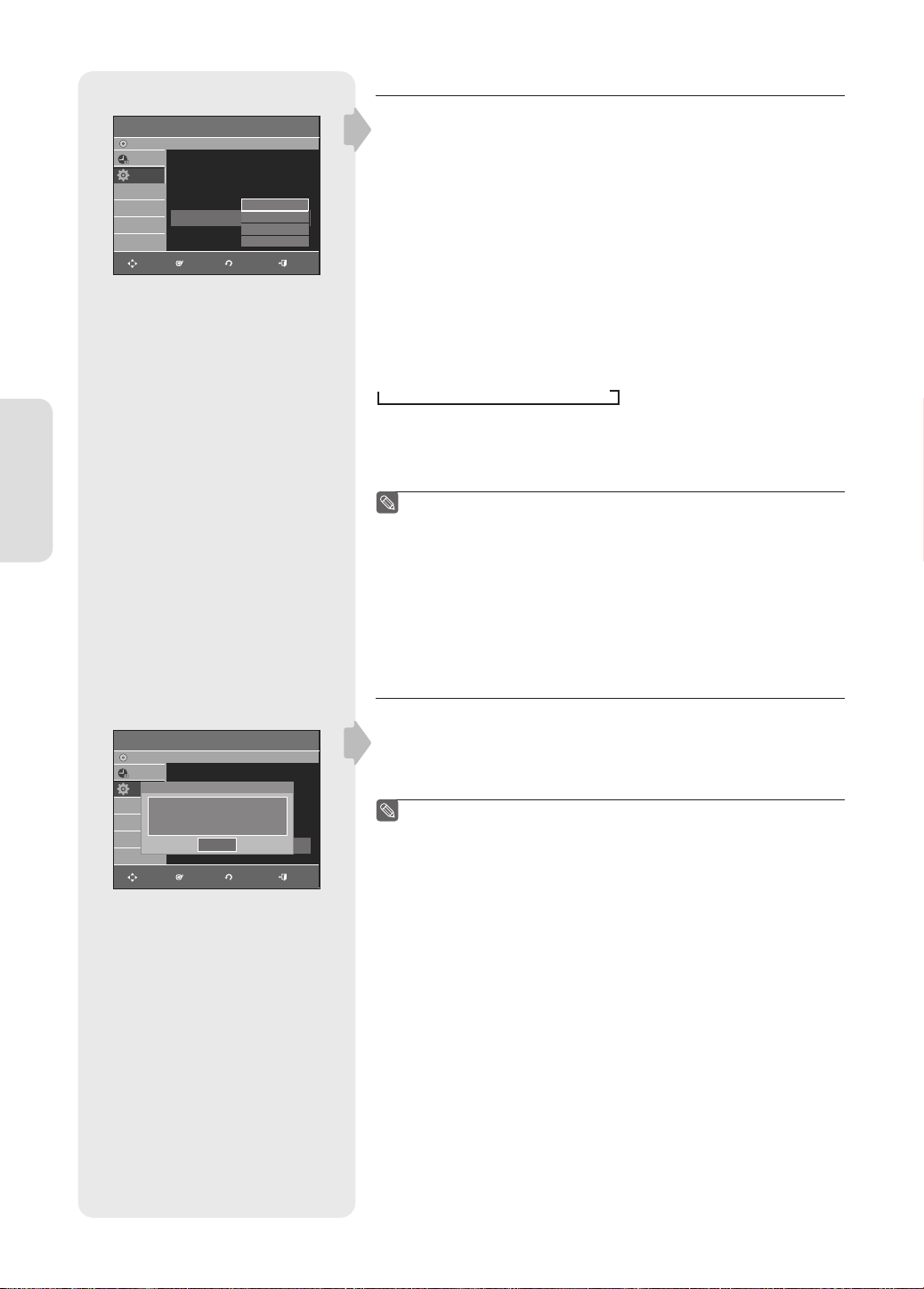

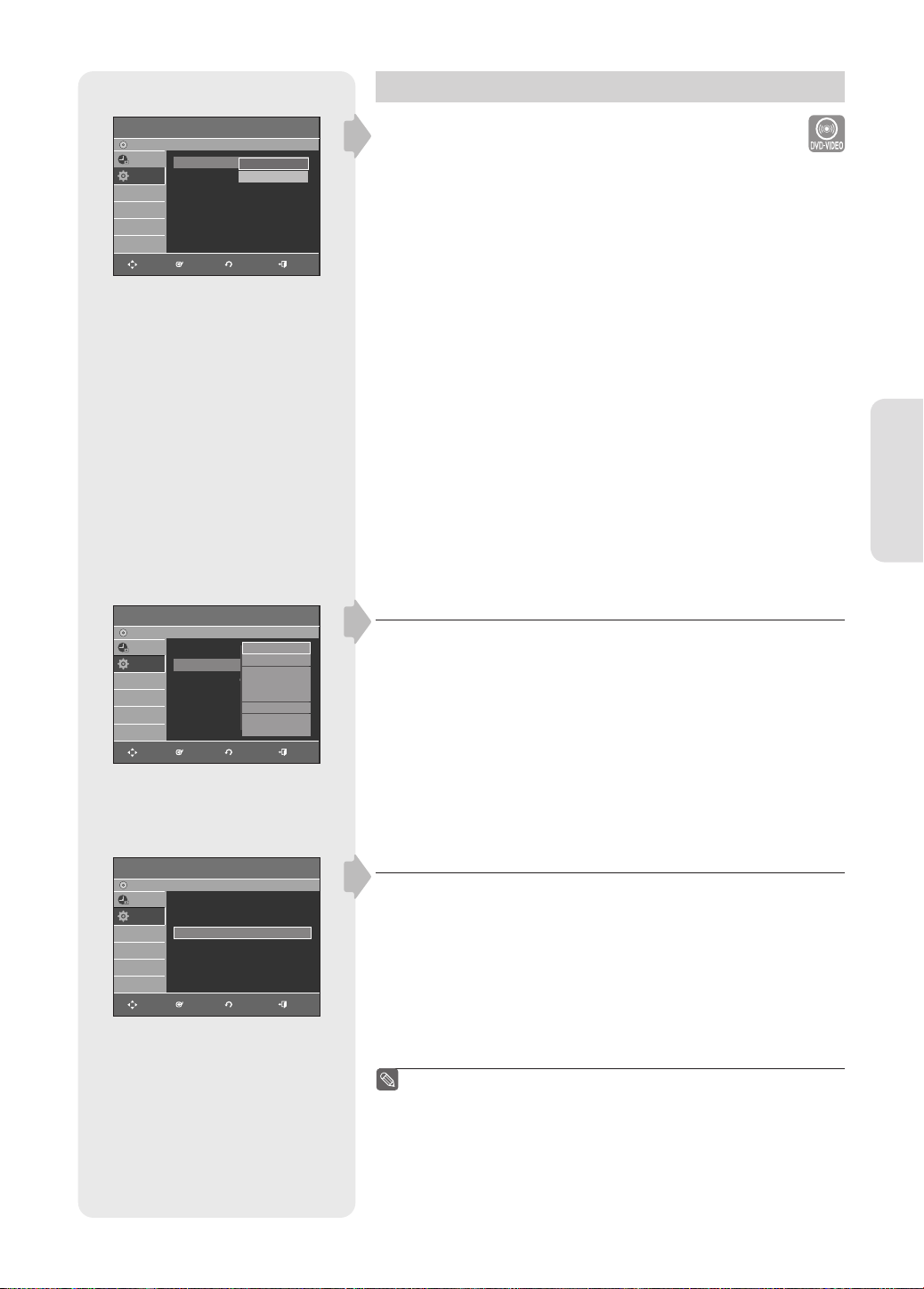

Parental Control

DVD-Recorder

No Disc

Timer Rec.

Password

Setup

MOVE ENTER RETURN EXIT

DVD-Recorder

No Disc

Timer Rec.

Password : On

Setup

Rating Level : Level 1 Kids

Change Password

ENTER RETURN EXIT

MOVE

Parental Control

Off

Parental Control

Level 8 Adults

Level 7

Level 6

Level 5

Level 4

Level 3

Level 2

Level 1 Kids

√

The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control.

2. Select Setup using the

▲▼

buttons, then press the ENTER or ► button.

3. Select Parental Control using the ▲▼ buttons, then press the ENTER or

►

button.

The ﬁ rst time the Parental Control is accessed, the ‘Create the

Password’ message will be displayed. Create a 4-digit password using the 0 to 9 buttons on the remote control.

5. The “Conﬁ rm the password” message will be displayed.

System Setup

Enter your password again using the 0 to 9 buttons on the remote control.

6. Press the ENTER or ► button, and then select On using the ▲▼ buttons. The Parental Control screen appears.

Setting the Rating Level

▌

►

1. Select Rating Level using the ▲▼ buttons.

2. Press the ENTER or ► button.

3. Select the desired Level you want using the ▲▼ buttons, then press

the ENTER or ► button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A higher number indicates that the program is intended for adult use only.

DVD-Recorder

No Disc

Timer Rec.

Password : On

Setup

Rating Level : Level 8 Adults

Change Password

MOVE ENTER RETURN EXIT

Parental Control

Changing the Password

▌

►

1. Select Change Password using the ▲▼ buttons.

2. Press the ENTER or ► button.

The “Enter the password” message will be displayed.

3. Enter the 4-digit password using the 0 to 9 buttons on the remote control.

4. The “Conﬁ rm the password” message will be displayed. Enter your password again using the 0 to 9 buttons on the remote control.

If you forgot your password, remove the disc. Press the INPUT

■

SEL. and REC MODE buttons on the front panel of the DVD Recorder simultaneously for 5 seconds or more when the power is on. All settings including the password will revert to the factory settings.

English - 35

Recording

This section explains various DVD recording methods.

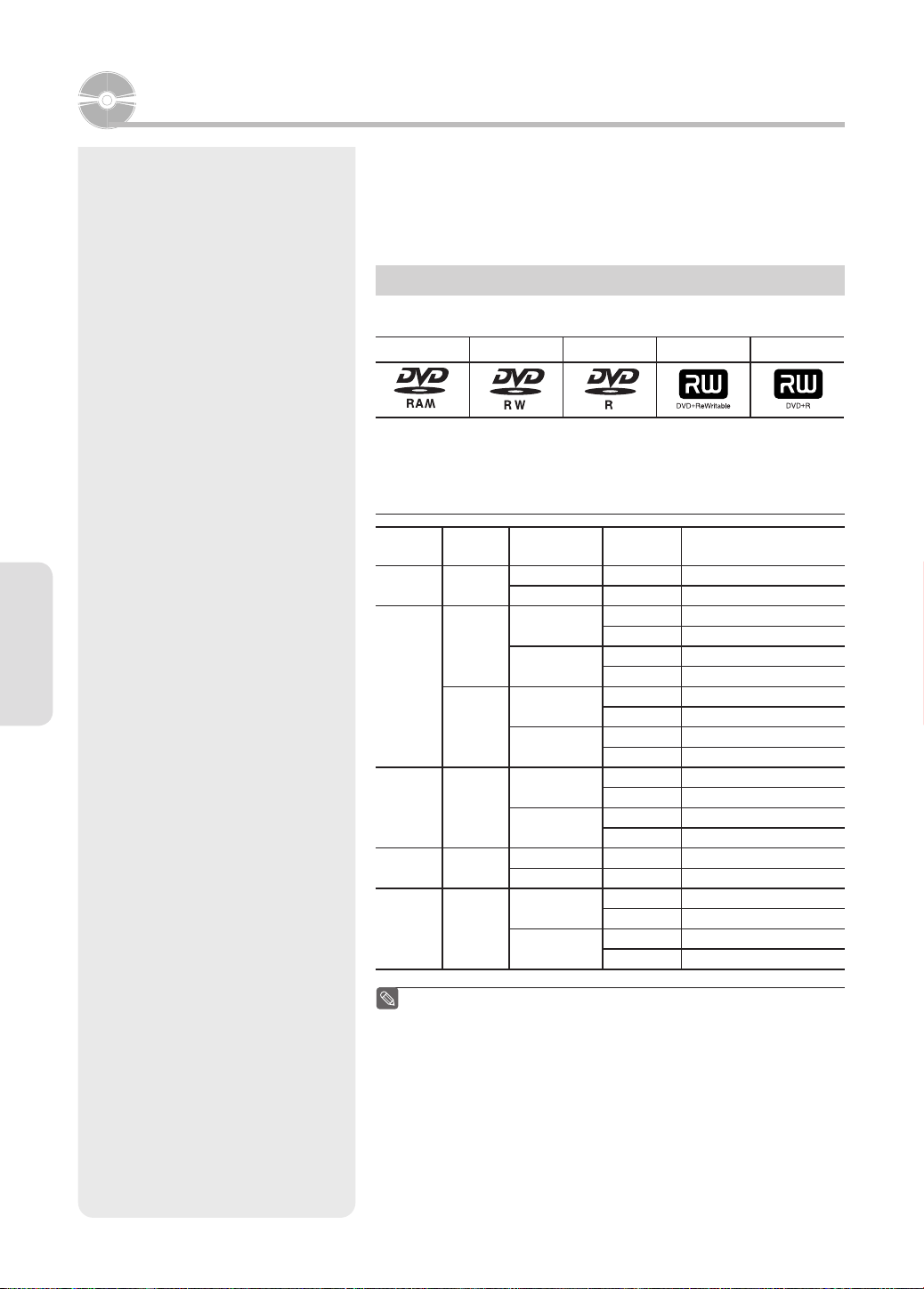

This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable discs

This recorder can record on the following discs.

DVD-RAM DVD-RW DVD-R DVD+RW DVD+R

• DVD±RWs and DVD-RAMs are rewritable.

• DVD±Rs are non-rewritable

Compatibility between Samsung and Other manufacturer's Recorders

▌

Disc

Recording

Types

DVD-

RAM

DVD-RW

DVD-R V Mode

DVD+RW

DVD+R -

format

VR Mode

V Mode

Recording

Device

Samsung X Recordable

Other Company

Samsung

Other Company

Samsung

Other Company

Samsung

Other Company

Samsung X Recordable

Other Company

Samsung

Other Company

Finalizing

X Recordable

ﬁ nalized Not recordable

not ﬁ nalized

ﬁ nalized Not recordable

not ﬁ nalized

ﬁ nalized Not recordable

not ﬁ nalized

ﬁ nalized Not recordable

not ﬁ nalized

ﬁ nalized Not recordable

not ﬁ nalized

ﬁ nalized Not recordable

not ﬁ nalized

ﬁ nalized Not recordable

not ﬁ nalized

ﬁ nalized Not recordable

not ﬁ nalized

Additional Recording in

Samsung Recorder

Recordable

Not recordable

Recordable

Not recordable

Not recordable in some cases

Recordable

Not recordable in some cases

Finalize

■

- This closes the DVD±R/-RW and no additional recording can be done.

Unﬁ nalize

■

- This allows additional recording on a DVD-RW disc originally

recorded on the DVD-R160.

- A DVD-RW disc that has been recorded by DAO(Disc At once) in

a PC cannot be unﬁ nalized.

- A DVD-RW disc that has been recorded in Video Mode of

another manufacturer's recorder cannot be unﬁ nalized.

- A DVD±R disc cannot be unﬁ nalized.

English - 36

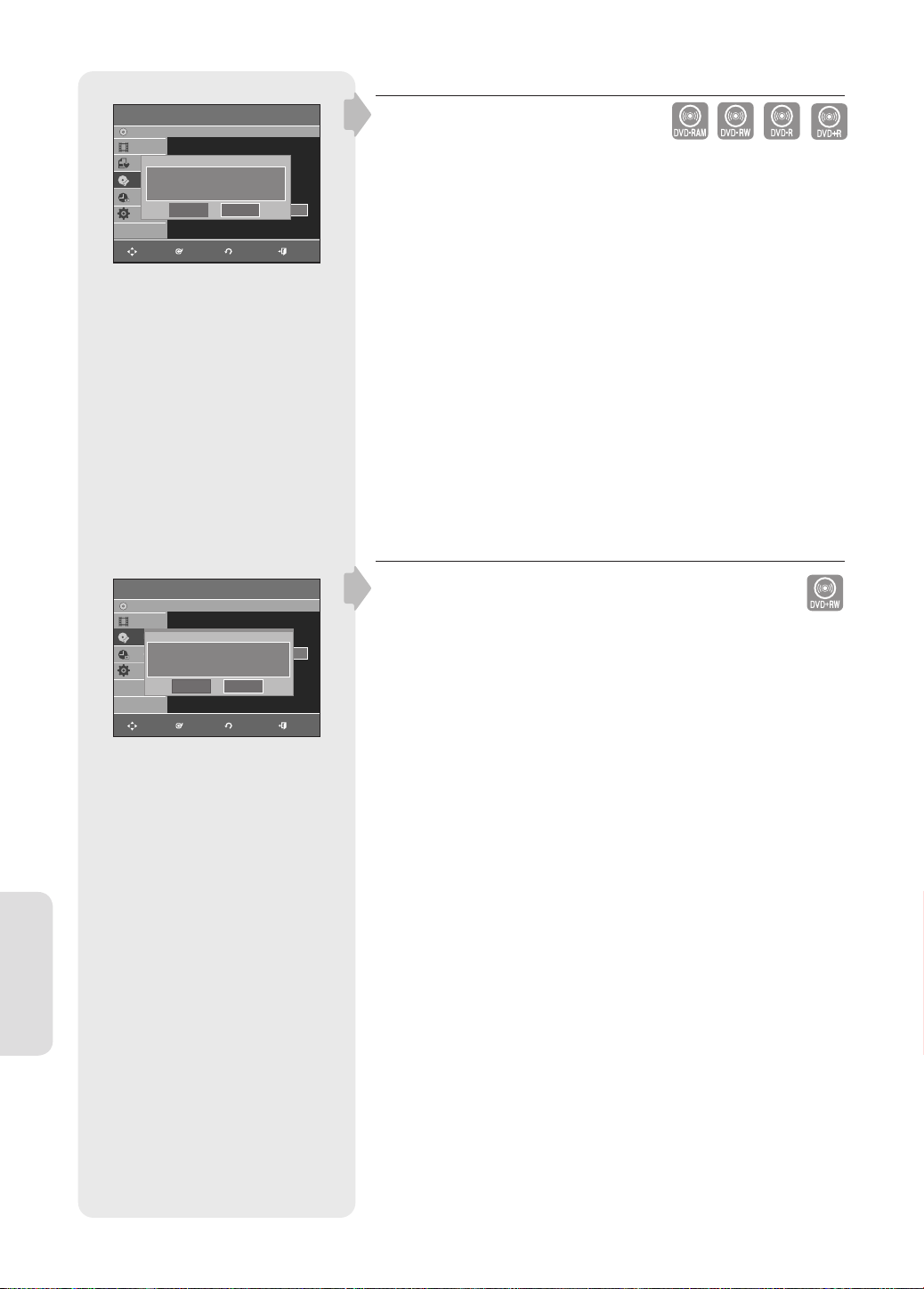

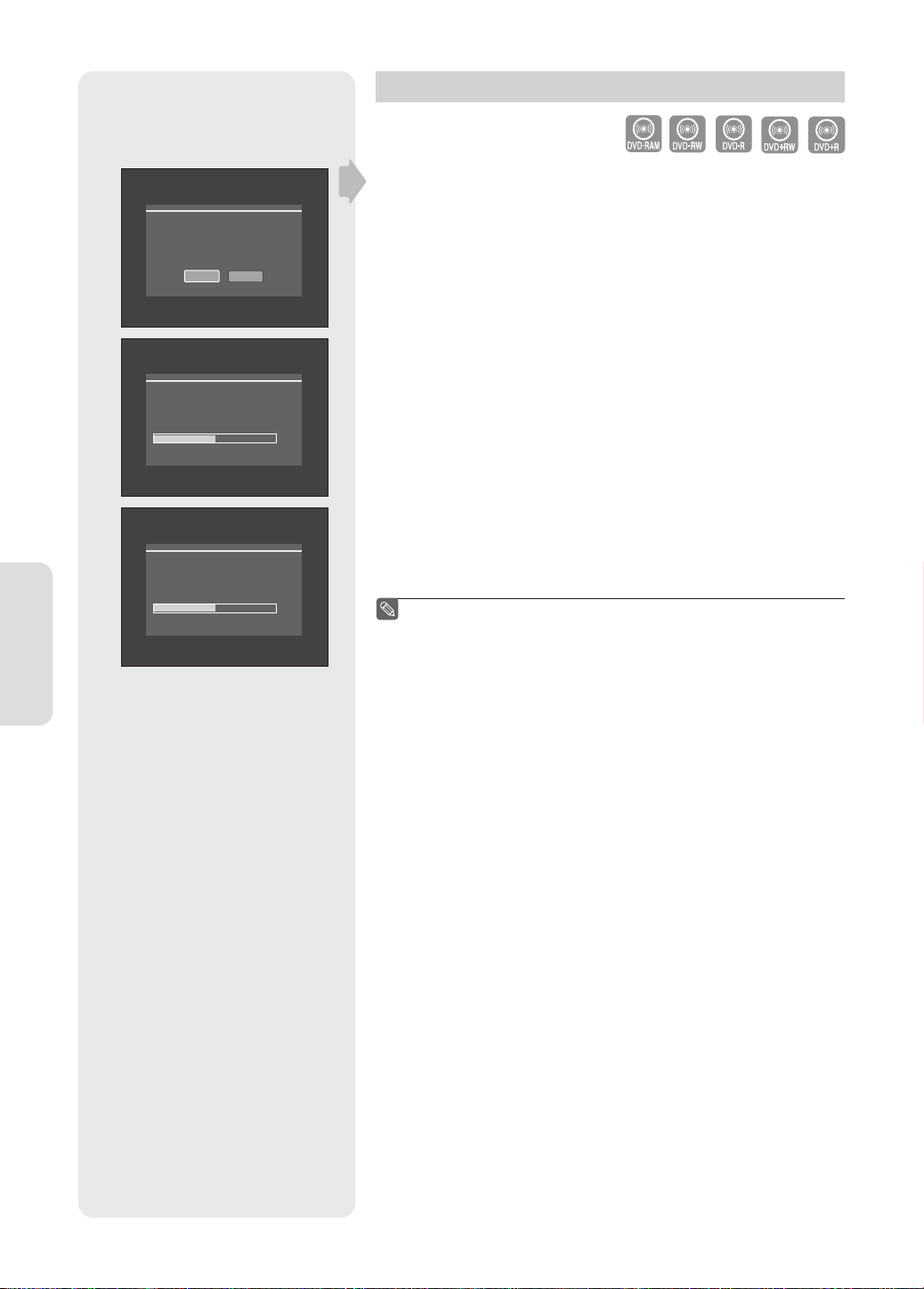

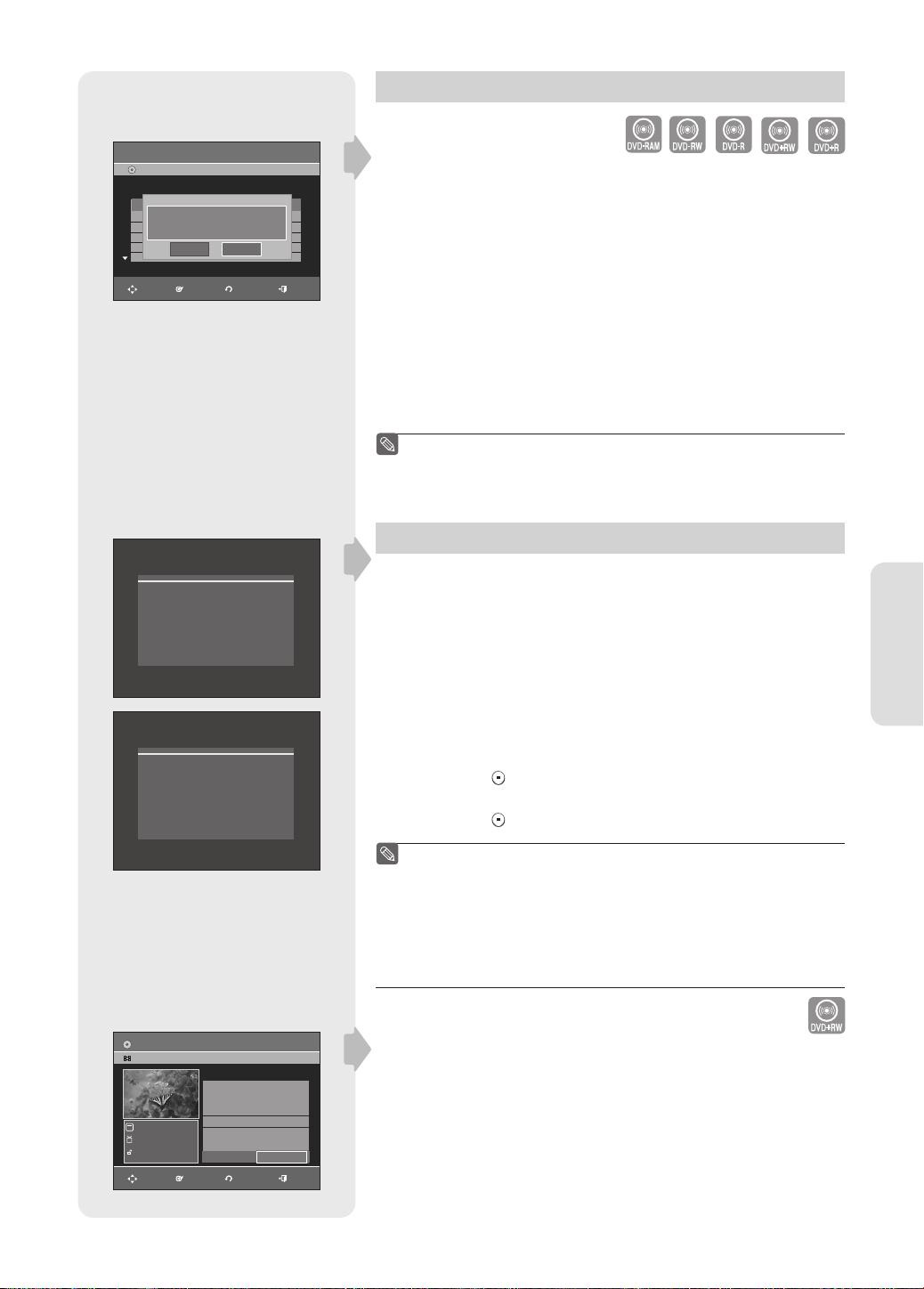

DVD-RAM

Do you want to format this disc?

DVD±RW/+R

Do you want to initialize this disc?

Unformatted Disc

Yes

Uninitalized Disc

Yes

Recording Formats

Since available functions differ depending on the disc type, select a disc that best ﬁ ts your preference. When you insert an unused disc, the following message appears.

• DVD-RAM : Use after formatting the disc.

• DVD±RW/+R : Use after initializing the disc. In case of DVD-RW disc, you can change the mode.Refer to Formatting a Disc on page 70.

• DVD-R : Formatting disc is unnecessary.

DVD-RW(Video mode)/-R

▌

• Chapters will be created automatically when you ﬁ nalize recording on DVD-R/DVD-RW discs in Video mode.

• Simple editing (erasing titles/changing title name).

▌

DVD-RAM/-RW(VR mode)

• This mode involves multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.).

• Various editing options using a created Playlist.

▌

DVD+RW

• You can also make your own chapters on DVD+RWs and edit them using the Chapter Edit menu. (see pages 63~64.)

Recording

You can initialize discs automatically using EZ REC MODE.

■

(See page 46)

When making a recording, the video signal is recorded in the 480i

■

resolution.

English - 37

Recording Mode

Select one of four record modes by pressing the REC MODE button repeatedly for the desired recording time and picture quality while the unit is in Stop mode. In general, picture quality improves as the recording time decreases. In FR mode, the most suitable record mode is selected automatically according to the remaining time on the disc and length of the timer recording set. You can select only one mode from XP, SP, LP and EP for timer recording.

Recording

Mode Characteristic

(high quality mode)

(standard quality mode)

(long recording mode)

(extended mode)

(Flexible Recording)

• The dual layer DVD±Rs have approximately double capacity than single layer DVD±Rs. (See page 47.)

Select when the video quality is important.

Select to record in standard quality.

Select when a long recording time is required.

Select when a longer recording time is required.

For timer recording only see page 44.

Recording Times Data

Rates

Approx. 1 hour about 8 Mbps

Approx. 2 hours about 4 Mbps

Approx. 4 hours about 2 Mbps

Approx. 6 hours/ about 1.2 Mbps Approx. 8 hours/ about 0.8 Mbps

Approx 1 to 8 hours Approx 0.8 to 8Mbps

You cannot record copy protected movie.

Unrecordable video

Video with copy protection cannot be recorded on this DVD Recorder. When the DVD Recorder receives a copy guard signal while recording, recording stops and the following message appears on the screen.

English - 38

Concerning Copy Control Signals

TV broadcasts that contain copy control signals may have one of the following three signal types, COPY-Free, Copy-Once and Copy-Never. If you want to record a copy-once type program, use a DVD-RW disc with CPRM in VR Mode. You can also use DVD-RAM discs.

('O' : Supported, '

Media

DVD-RAM (Ver.2.0)

DVD+RW O - DVD+R O - DVD-RW (Ver.1.1) O - DVD-RW (Ver.1.1)

with CPRM VR mode O O* -

DVD-R O - -

When a “Copy Once” recording has been made, recording cannot be done anymore. *compatible with CPRM.

Content Protection for Recordable Media (CPRM)



CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some DVD recorders, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA(Burst Cutting Area). When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

' : Not Supported)

Signal type

Copy-Free Copy-Once Copy-Never

OO* -

Recording

DVD-RW(VR) Disc Info Disc Name Disc

Total Title 15 Total Playlist 1

Recordable Time 02: 12 SP

Protection Not Protected Screen AV1

JAN 01 2007 MON 12:00 AM

 

 

 

 

About the INFO Button

▌

The INFO function allows you to view the current status and



progress of playback and recording. When recording on a used disc, make sure that there is enough disc space for recording.

Press the INFO button.



The disc information display window appears.

1.Disc Type

2. Current information display status

3. Disc Name

4. Total Title : Total number of titles

5. Total Playlist : Total number of Playlists

6. Recordable Time : The longest continuous recording time in each of the record modes(approximate)

7. Date : Current date

8. Time : Current time

Items in the display differ depending on the disc type or the

■

recording format.

With DVD-RAMs or DVD±RWs, you can free up disc space by

■

erasing titles.

Press the INFO button again with the unit in playback or

■

recording, then you can check the current status.

English - 39

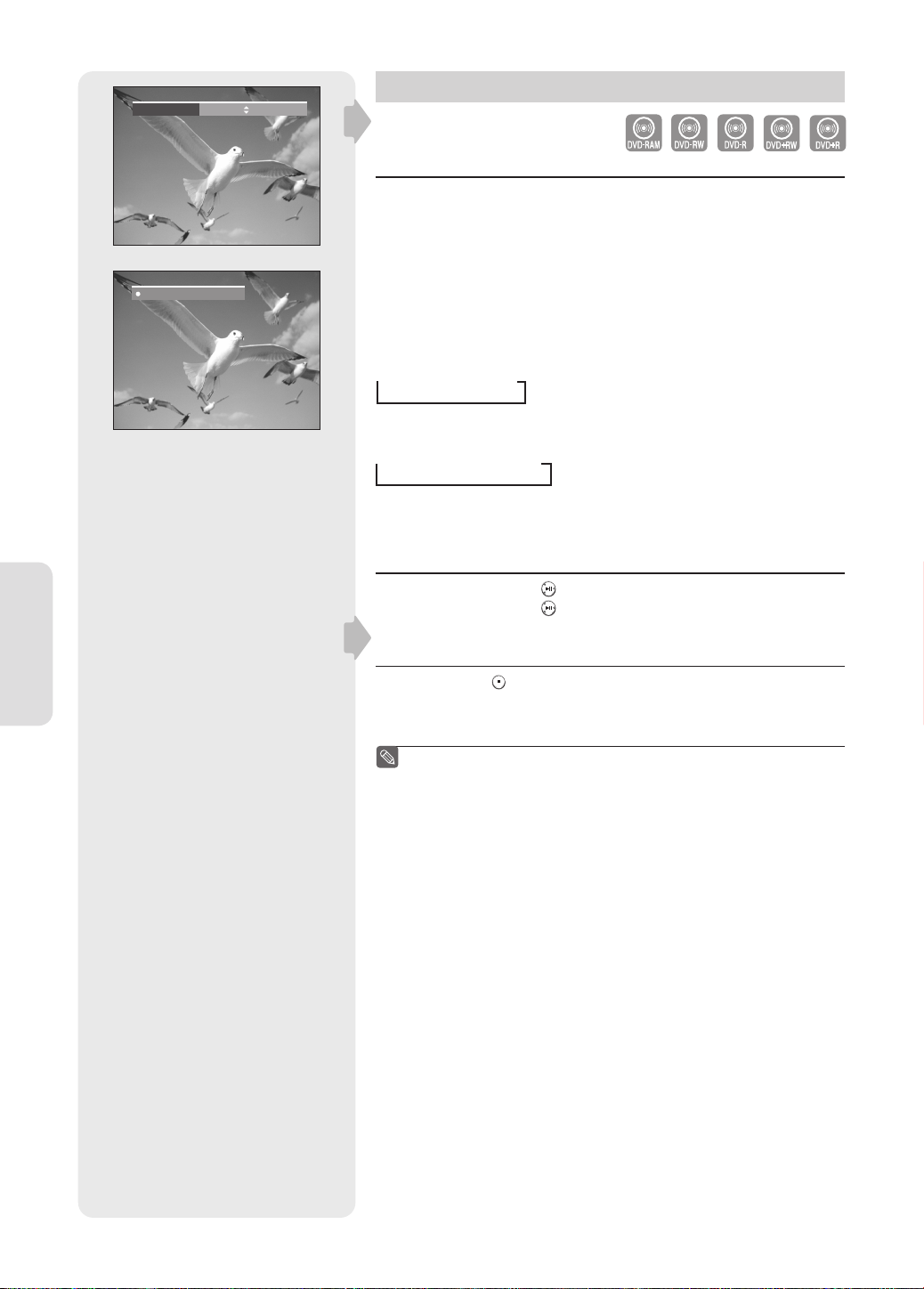

Record Mode XP (01:11)

Recording : AV1

Recording from External Equipment

Before you start

Check that the disc has enough available space for the recording.



Adjust the recording mode.

1. Press the OPEN/CLOSE button and place a recordable disc on the

disc tray.

2. Press the OPEN/CLOSE button to close disc tray. Wait until "LOAD" disappears from the front panel display

3. Press the INPUT SEL. button to select the input source according to the connection you made. The front panel display changes in the following sequence:

AV1  AV2  DV



4. Press the REC MODE button repeatedly, to select the recording speed(quality).

SP  LP  EP  XP



5. Press the REC button.

To pause recording

Press the PLAY/PAUSE ( ) button to pause recording in progress. Press the PLAY/PAUSE ( ) button again to resume recording.

Recording

To stop recording

Press the STOP ( ) button to stop or ﬁ nish recording in progress.

• When using DVD-RAM/DVD±RW/ DVD±R discs, the message ‘Updating

the information of disc. Please wait for a moment.’ is displayed.

You can not change the recording mode and input source during

■

recording.

Recording will stop automatically if there is no free space left for

■

recording.

Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc,

■

and up to 48 titles onto a DVD+RW/+R disc.

Recording will stop automatically if a copy protected image is

■

selected.

If you are using a Cable Box(no antenna), you cannot watch a

■

different cable TV program from the one you're recording.

DVD-RAM/DVD±RW/ DVD+R discs must be formatted before

■

starting to record. Most new discs are sold unformatted.

Do not use DVD-R authoring discs with this unit.

■

English - 40

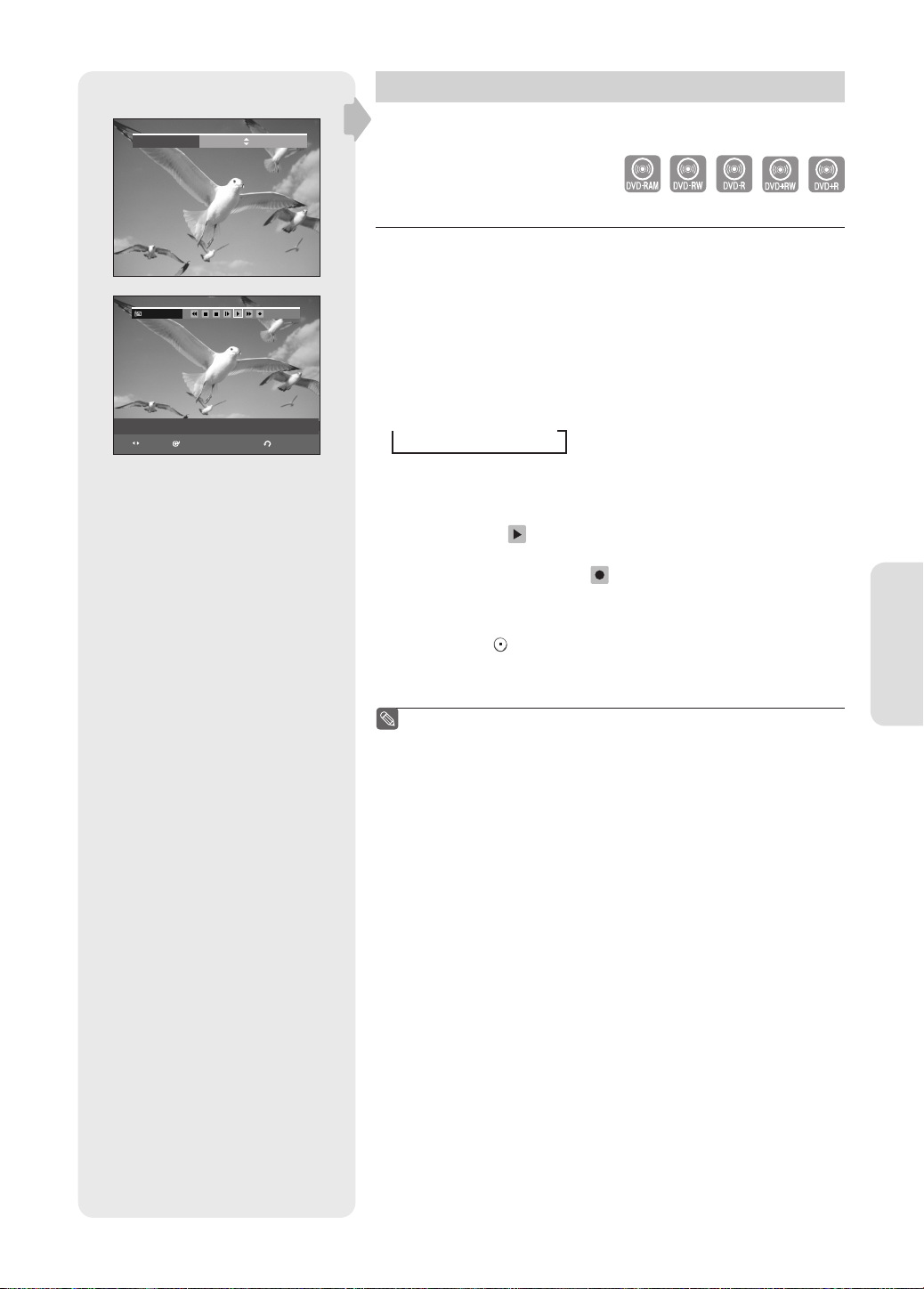

Copying from a Camcorder

Record Mode XP (01:11)

The DV device is connected

MOVE

SELECT RETURN

You may control a Digital Camcorder using the IEEE1394 (DV) interface.

Before you start

Check that the disc has enough available space for the recording. Adjust the record mode. See page 25 to see how to connect the camcorder to your DVD recorder.

1. Press the OPEN/CLOSE button, and place a recordable disc on the disc tray.

2. Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display.

3. Press the REC MODE button repeatedly to select the recording speed(quality).

SP  LP  EP  XP



4. Press the INPUT SEL. button to select DV. If the input is set to DV, a playback/record menu that enables Digital camcorder control appears on the top of the screen.

5. Select the PLAY ( ) icon on the upper part of the screen to playback the camcorder and ﬁ nd the starting position to copy.

6. To start recording, select REC( ) icon in the top side of the screen using the ◄ ► buttons, then press the ENTER button.

To stop recording

Press the STOP ( ) button to stop or ﬁ nish recording in progress.

• When using DVD-RAM/DVD±RW/ DVD±R discs, the message ‘Updating

the information of disc. Please wait for a moment’ is displayed.

Recording

You can not change the record mode and input source while

■

recording.

Recording will stop automatically if there is no free space left for

■

recording.

Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc,

■

and up to 48 titles onto a DVD+RW/+R disc.

DVD-RAM/DVD±RW/ DVD+R discs must be formatted before

■

starting to record. Most new discs are sold unformatted.

Do not use DVD-R authoring discs with this unit.

■ To access on-screen controls during recording, press the ◄ or ►

■

buttons.

When copying from a camcorder and the end of the tape is

■

reached (no Video), the screen may turn blue or purple.

English - 41

Making a One Touch Recording (OTR)

You can set the DVD Recorder to record in preset increments by pressing the REC button repeatedly.

1. If you want to record from a connected external component, press the INPUT SEL. button to select an appropriate external input(AV1, AV 2 or

DV).

2. Press the REC button to start recording.

3. Press the REC button to adjust the recording time.

0:30  1:00  1:30  2:00  3:00  4:00  off



■

The timer counter decreases to 0:00, then the DVD Recorder stops recording. After ﬁ nishing recording, the DVD Recorder will turn off automatically.

To stop recording

Press the STOP( ) button. The message “Press STOP button once more to cancel Timer Record.” is displayed.

Press the STOP( ) button again to stop recording.

Recording

English - 42

DVD-Recorder

DVD-RW(VR)

Title List

Timer Record

Playlist

Scheduled Record List

Disc Manager

Timer Rec.

Setup

MOVE ENTER RETURN EXIT

DVD-Recorder

DVD-RW(VR) Current Time 12:03 AM

No. Source Date Start End Mode Edit

Source Date Start End Mode

AV 1 01/01 12:03 AM 02:03 AM SP

Recordable Time : 01:59 SP

MOVE ENTER RETURN EXIT

Source Date Start End Mode

AV 1 01/01 12:03 AM 02:03 AM SP

Recordable Time : 01:59 SP

Source Date Start End Mode

AV 1 MON-FRI 12:03 AM 02:03 AM SP

Recordable Time : 01:59 SP

Source Date Start End Mode

AV 1 Every SUN 12:03 AM 02:03 AM SP

Recordable Time : 01:59 SP

No. 01

Timer Record

Scheduled Record List

No. 01

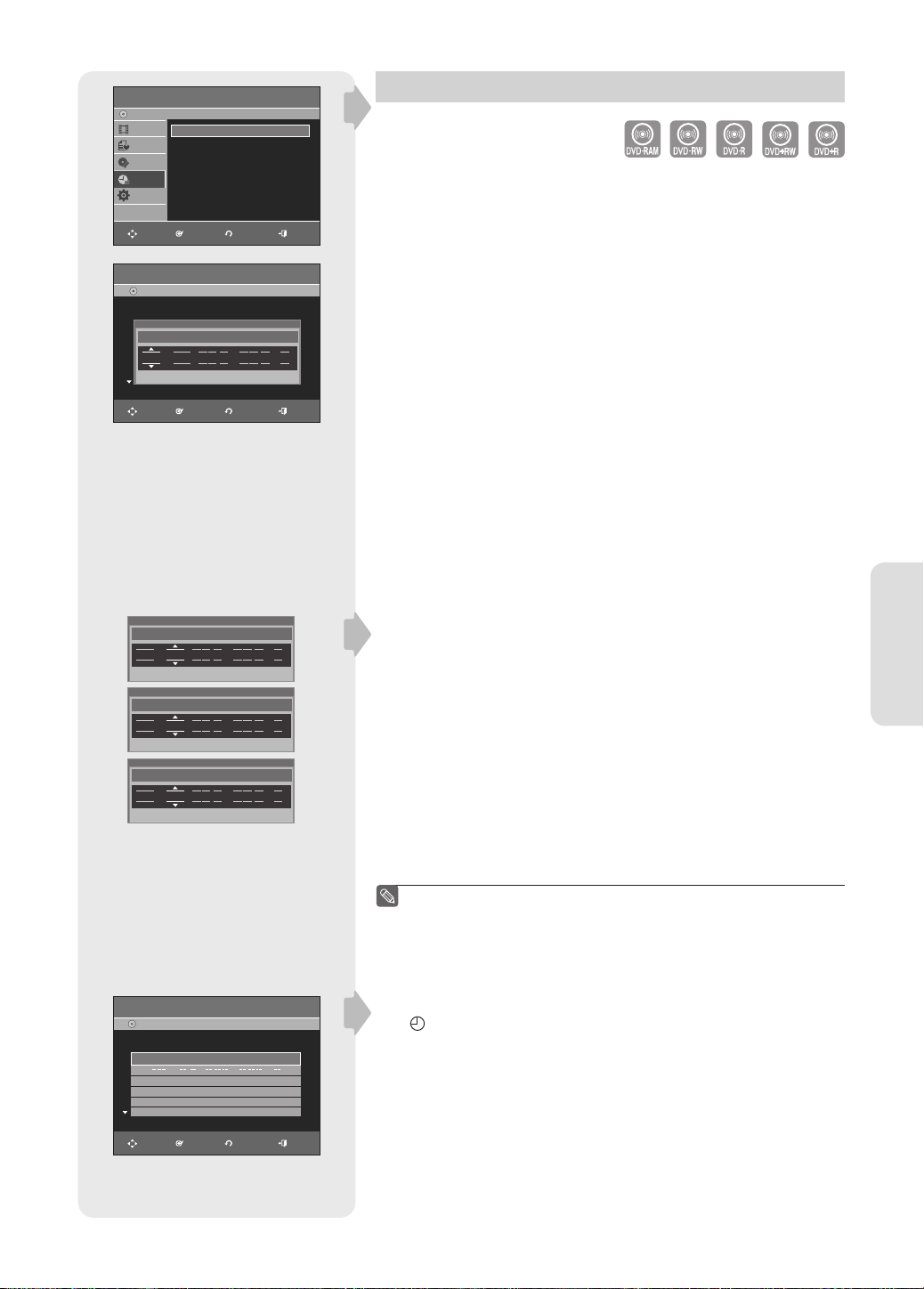

Setting a Timer Recording

►

You need to set the Clock (Setup – Clock Set) before proceeding with a timer recording. (See page 31)

1. Press the OPEN/CLOSE button, and place a recordable disc on the disc tray.

2. Press the OPEN/CLOSE button to close the disc tray. Wait until “LOAD” disappears from the front panel display. If an unused DVD-RW disc is inserted, whether to initialize or not will be asked ﬁ rst. (See page 37)

3. Press the MENU button in Stop mode. You can also set a timer recording via the TIMER button.

4. Press the ▲▼ buttons to select Timer Rec., and then press the ENTER or ► button.

5. Press the ▲▼ buttons to select Timer Record, and then press the ENTER or ► button.

The Timer Record Input items are displayed.

6. Fill in the items using the ▲▼◄ ► buttons. ◄ ► : Moves to the previous/next item, ▲▼or 0~9 :

• Source: Select the video input source (AV 1, AV 2) you want to make

a timer recording of.

• Date: Date that the timer recording starts

- There are three options when setting the date. see below:

 To make a recording on a speciﬁ c date, press the ▲▼ or number

buttons until the date you want appears.

To make a recording at the same time every day (MON-FRI), press



the ▲▼ buttons until MON-FRI appears.

To make a recording on a speciﬁ c day of the week(Every SUN -



Every SAT), press the ▲▼ buttons until Sun’s….Sat’s appears.

• Start/End Time: Start and end time of the timer recording

• Mode (Record mode)

XP : Approx. 1 hour SP : Approx. 2 hours LP : Approx. 4 hours EP : Approx. 6 hours or 8 hours FR : See page 44.

To set or change items in the Scheduled Record List Menu.

Recording

DVD-Recorder

DVD-RW(VR)

No. Source Date Start End Mode Edit

AV 1

01/ 01 05:00 AM 07:00 AM SP

02 / : :

Recordable Time : 01:59 SP

MOVE ENTER RETURN EXIT

Scheduled Record List

Current Time 12:03 AM

When you are recording at EP mode on a DVD-RW(V)/-R disc,

■

it may not record the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system. For example, if you record a Program with a lot of action, it uses a higher bit rate which in turn consumes more disc memory.

7. Press the ENTER button.

• ( ) and Timer Set will appear on the front panel display. This means that a timer recording is set.

► ►

• Recording is automatically performed when the set time is reached.

English - 43

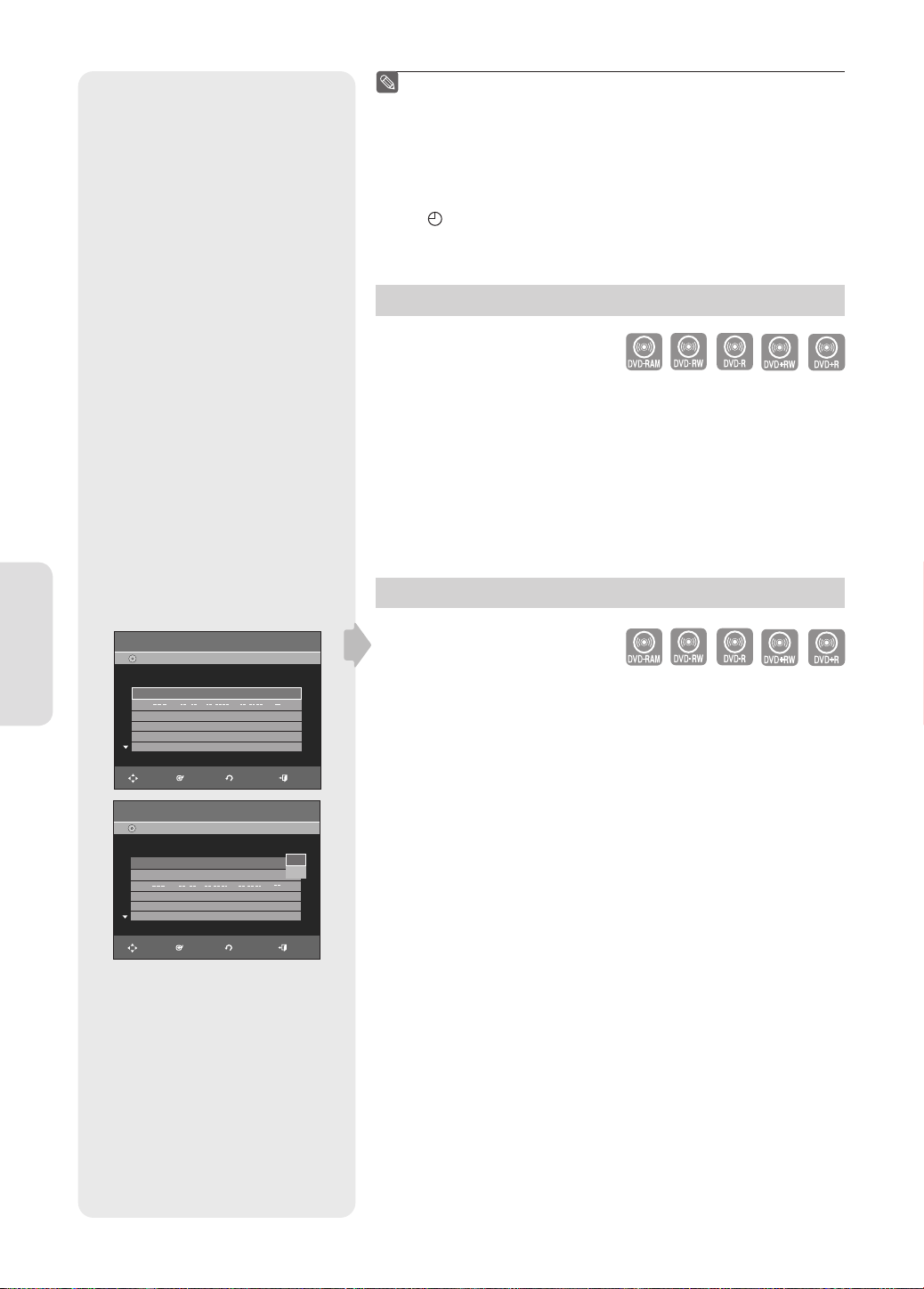

If the timer settings overlap

■

The ﬁ rst program has priority. After recording of the ﬁ rst program is complete, the second program starts being recorded. The timer recording time may differ from the set time depending

■

on the disc and the overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 3 minutes of the start of the next recording.)

will start blinking if Timer Recording is not ready to start.

■

Flexible Recording (for Timer Recording only)

In FR mode, the most suitable recording mode is selected automatically, according to the remaining time on the disc and the length of the timer recording set. The FR mode recording setup is the same as Timer Recording setup. When setting the Rec mode in step 6, select FR Mode. (See page 43)

Editing the Scheduled Record List

Recording

DVD-Recorder

DVD-RW(VR)

No. Source Date Start End Mode Edit

AV 1

01/ 01 05:00 AM 07:00 AM SP

02 / : :

Recordable Time : 01:59 SP

MOVE ENTER RETURN EXIT

DVD-Recorder

DVD-RW (VR)

No. Source Date Start End Mode Edit

AV 1

01/ 01 05:00 AM 07:00 AM SP

AV 1

01/ 03 12:06 AM 02:06 AM SP

03 / : :

Recordable Time : 01:59 SP

MOVE ENTER RETURN EXIT

Scheduled Record List

Current Time 12:03 AM

Scheduled Record List

Current Time 12:03 AM

► ►

Edit

►

Delete

► ►

You can change timer record settings using the scheduled record list menu.

1. Press the MENU button in STOP mode.

2. Press the ▲▼ buttons to select Timer Rec., and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Scheduled Record List, and then press the ENTER or ► button.

4. Press the ▲▼ buttons to select the number of the Scheduled Record

List you want to edit, and then press the ENTER or ► button. The Edit and Delete items are displayed.

5. Press the ▲▼ buttons to select Edit, and then press the ENTER or ► button. The Timer Record Input item is displayed. Edit the items you want to modify. See the Timer Record section for more information on Timer Record Input items. (See page 43)

6. Move through the items with the ◄ ► buttons and change the settings with ▲▼ or number buttons and press the ENTER button.

7. Press the MENU button after the operation is ﬁ nished.

The menu screen will disappear.

English - 44

Deleting the Scheduled Record List

DVD-Recorder

DVD-RW (VR)

No. Source Date Start End Mode Edit

01 CH 11 01/ 01 05:00 AM 07:00 AM SP

02 CH 7 01/03 12:06 AM 02:06 AM SP

Do you want to delete ’No.01’?

03 / : :

Recordable Time : 01:59 SP

MOVE ENTER RETURN EXIT

Press STOP button once more

Scheduled Record List

Current Time 12:03 AM

No. 01

Yes No

to cancel Timer Record.

You can delete timer record list using the scheduled record list menu.

► ► ►

1. Press the MENU button in Stop mode.

2. Press the ▲▼ buttons to select Timer Rec., and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Scheduled Record List, and then press the ENTER or ► button.

4. Press the ▲▼ buttons to select the number of the timer recording you

want to delete, and then press the ENTER or ► button. The Edit and Delete items are displayed.

Press the ▲▼ buttons to select Delete, and then press the ENTER or ► button.

Press the ◄ ► buttons to select Yes, and then press the ENTER button. The selected entry will be deleted from the list.

You can not delete programs that are currently being recorded.

■

Recording the Scheduled Record List

When the start time in the Scheduled Record List is reached while the unit is powered off, the unit will automatically power on and start recording.

1. When the scheduled recording is operating, the program being recorded will not display on TV.

• Power on TV using the TV remote control.

• Power off TV using the TV remote control if you don’t want to see the

program being recorded.

Recording

You cannot record copy protected movie.

DVD+RW

Free Space

AV 1

MOVE ENTER RETURN EXIT

No. Title Length

01 APR/19/2007 12:00 00:00:21 02 APR/19/2007 12:30 00:00:03

03 APR/20/2007 12:00 00:00:15

04 APR/20/2007 12:30 00:00:16

05 APR/21/2007 12:00 00:06:32

06 APR/21/2007 12:30 00:08:16 07 Free Space 03:40:27 √

Recording

Title List

Edit

To stop recording

Press the STOP ( ) button. The message “Press STOP button once more to cancel Timer Record.” is displayed.

Press the STOP ( ) button again to stop recording.

■

If a copy protection signal is received during recording, recording will stop.

If there is no free disc space or the disc is not recordable, recording

■

will not operate. (You can record after replacing the disc.)

Recording on Free Space

▌

7/7

► ►

►

This function is only available with DVD+RW discs. If existing titles are deleted, free space will be created. When you operate the free space function, on-air TV images will appear on the left side of the title list.

1. Press the TITLE LIST button in Stop mode. The Title List screen is displayed.

2. Press the ▲▼ button to select Free Space, then press the ENTER or

► button. On-air TV images will appear on the left side of the title list.

3. Press the ENTER button.

English - 45

Recording

Press “On” to confirm EZ REC mode.

Otherwise press “Off”

Off

Disc Initialize (DVD-V)

Now, initializing..

50%

Disc Finalize

Processing..

50%

EZ REC MODE

This function allows you Initialize and Finalize a disc automatically.

1. With the unit in Stop/No Disc mode, press the EZ REC MODE button on the remote control.

2. Press the ◄ ► buttons to select On, and then press the ENTER button. The EZ REC MODE is set up.

3. Insert a disc. If the disc is new, it will initialize automatically.

4. Press the REC button.

5. EZ REC MODE will Automatically Finalize the disc under the following

conditions.

- When you press the OPEN/CLOSE button on your DVD Recorder after

recording on at least 30% of the disc. The tray will open after the disc has been ﬁ nalized.

- When the disc is full, it will ﬁ nalize automatically and the Recorder will

remain in stop mode.

- When you make a timer recording and it occupies at least 30% of the

disc, the disc will ﬁ nalize automatically and the Recorder will power off. Please note that auto ﬁ nalization will not work if the Recorder has more than one Timer Recording set in the Scheduled Record List.

If you insert a new DVD-RW disc, it will be formatted in V mode

■

after auto initializing. If you select off, you must initialize (see page 37) and ﬁ nalize the

■

disc manually in the Disc Manager menu.(see page 71) The length of Recording is different according to recording mode.

■

(see page 38)

English - 46

Playback

This section introduces basic playback functions and playback by disc type.

Read the following information before playing a disc.

Region code (DVD-Video only)

Both the DVD recorder and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this recorder is described on the rear panel of the recorder.

Logos of Discs that can be played

DIGITAL

Dolby Digital DTS Digital Audio

Stereo

DivX

NTSC broadcast system

in U.S.A, Canada, Korea,

Japan,etc.

MP3

Disc types that can be played

Disc

Types

DVD-

VIDEO

AUDIO-

JPEG

MP3

MPEG4

DVDRAM

DVD-RW

DVD-R

DVD+RW

DVD+R

Logo

Recorded

content

VIDEO AUDIO

AUDIO

JPEG

Images

Audio

MPEG4

Movie

VIDEO AUDIO

Disc Shape Max. Playing Time

Single sided(5”)

Double sided(5”)

Single sided(3.5”)

Double sided(3.5”)

Single sided(5”)

Single sided(3.5”)

Single sided(5”)

Single sided(3.5”)

Single sided(5”)

MP3

Single sided(3.5”)

Single sided(5”)

Single sided(3.5”)

1hr (XP: Excellent Quality)

Single sided(5”)

(4.7GB)

Double

sided(5”)

(9.4GB)

5” (4.7GB)

Single Layer(5”) (4.7GB)

Dual Layer(5”) (8.5GB)

5” (4.7GB)

Single Layer(5”) (4.7GB)

Dual

Layer(5”)

(8.5GB)

2hrs (SP: Standard Qualit

4hrs (LP: Long Playback)

6 or 8hrs (EP:Extended)

2hr (XP: Excellent Quality)

4hrs (SP: Standard Qualit

8hrs (LP: Long Playback)

12 or 16hrs (EP:Extended)

1hr (XP: Excellent Quality)

2hrs (SP: Standard Qualit

4hrs (LP: Long Playback)

6 or 8hrs (EP:Extended)

1hr (XP: Excellent Quality)

2hrs (SP: Standard Qualit

4hrs (LP: Long Playback)

2hr (XP: Excellent Quality)

4hrs (SP: Standard Qualit

8hrs (LP: Long Playback)

11 or 15hrs (EP:Extended)

1hr (XP: Excellent Quality)

2hrs (SP: Standard Qualit

4hrs (LP: Long Playback)

1hr (XP: Excellent Quality)

2hrs (SP: Standard Qualit

4hrs (LP: Long Playback)

2hr (XP: Excellent Quality)

4hrs (SP: Standard Qualit

8hrs (LP: Long Playback)

11 or 15hrs (EP:Extended)

240min

480min

80min

160min

74min

20min

6 or 8hrs (EP:Extended)

Playback

English - 47

▌

Discs that cannot be played

• DVD-Video with a region number other than “1” or “ALL”

• 5” 2.6 GB and 5.2 GB DVD-RAM

• 3.9 GB DVD-R Disc for Authoring.

• A DVD±R/DVD-RW(V) disc which has been recorded and not ﬁ nalized in a different manufacturer's recorder.

• PAL discs

• DVD-ROM/PD/MV-Disc, etc.

• Video CD/CVD/SVCD/CD-ROM/CDV/CD-G/CD-I

• Blu-Ray/HD-DVD discs

This DVD recorder can only operate with discs that are compatible

■

with DVD-RAM Standard Version 2.0. This player upconverts regular DVDs for playback on 1080P TVs.

■

It does not play HD DVD or Blu-Ray discs.

Playback and/or recording may not work for some types of discs,

■

or when speciﬁ c operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary.

Do not allow the disc to become dirty or scratched.

■

Fingerprints, dirt,dust,scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.

■

DVD-RAM/±RW/±R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording.

■

Discs with PAL programs recorded on them can not be recorded on using this product.

Playback

Playing a Disc

1. Press the OPEN/CLOSE button.

The tray opens.

2. Place a disc gently into the tray with the disc’s label facing up.

For DVD-RAM discs, insert the printed side facing up.

3. Press the OPEN/CLOSE button to close the disc tray.

•

Your DVD Recorder closes the disc tray and loads the disc automatically.

• When the recorder is powered on and a disc is in the tray, the unit will

be activated and wait in Stop mode.

• Press the PLAY( ) button to start playback.

• If you want the unit to play automatically when it is powered off with a

disc in the unit, power on with the PLAY( ) button.

4. Press the STOP( ) button to stop playback.

■

When you stop playing the disc, the recorder remembers where you stopped. When you press the PLAY button again, it will pick up where you left off. (unless the disc is removed, the recorder is unplugged, or if you do not press the STOP button twice.) This function is only applicable to DVD-VIDEO, DVD-RAM, DVD±RW, DVD±R or audio CDs (CD-DA).

■

Do not move your DVD recorder while playing, as this may cause damage to the disc.

■

Make sure to press the OPEN/CLOSE button to open or close the disc tray.

■

Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction.

■

Do not place foreign materials on or in the disc tray.

■

Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case.

■

Be especially careful that children's ﬁ ngers are not caught between the disc tray and the tray chassis when it closes.

■

You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player.

English - 48

Using the Disc Menu & Title Menu

▌

Some discs contain a dedicated menu system that allow you to select special functions for the title, such as chapters, audio track, subtitles, ﬁ lm previews, information on characters, etc.

For DVD-VIDEO discs

Disc Menu : Press the DISC MENU button to enter the disc's menu.

• Move to the setup menu related to the playback operation.

•

You can select the audio language and the subtitles provided by the disc.

Title Menu : Press the TITLE MENU button to move to the title menu of the disc.

• Use this button if the disc contains more than one title. Some type of

discs may not support the title menu function.

For DVD-RAM/DVD±RW/±R discs

Title List : Press the TITLE LIST button. The Title List is simply a list of

titles on a disc. If a title is deleted, that title cannot be played again.

PLAY LIST : Press the PLAY LIST button. A playlist is a custom-made list

of titles. When one playlist is played, only the titles within the playlist will play and then stop. Even if that playlist is deleted, the original recording will not be deleted. (only VR mode)

▌

Using the playback related buttons

Searching through a Chapter or Track

DVD-VIDEO/ DVD-RAM/ DVD±RW/DVD±R

MPEG4

AUDIO CD (CDDA)

During playback, press the SEARCH( ) button on the remote control.

• You can scan the program in reverse.

• Press and hold the SEARCH( ) button, playback is done at the

default speed of fast 2.

• If you release the SEARCH( ) button, playback is performed at a

normal speed.(Except CD-DA)

• To return to normal playback speed, press the PLAY( ) button.

Fast 1(X 2) → Fast 2(X 4) → Fast 3(X 8) Fast 5(X 32) → Fast 6(X128) → Fast 1(X 2)

Fast 1 Fast 1

Fast ¯2 → Fast ¯4 Fast ¯8 → Fast ¯2

→

Fast 4(X16)

→

Fast 2 → Fast 3

→

Playback

English - 49

No sound is heard during Scan(Search) mode except fast 1

■

playback (1.7X speed) mode.

For CD(CD-DA), You can hear sound during Scan mode.

■

You cannot hear audio while scanning an MPEG4.

■

The speed marked while scanning may be different from the

■

actual playback speed.

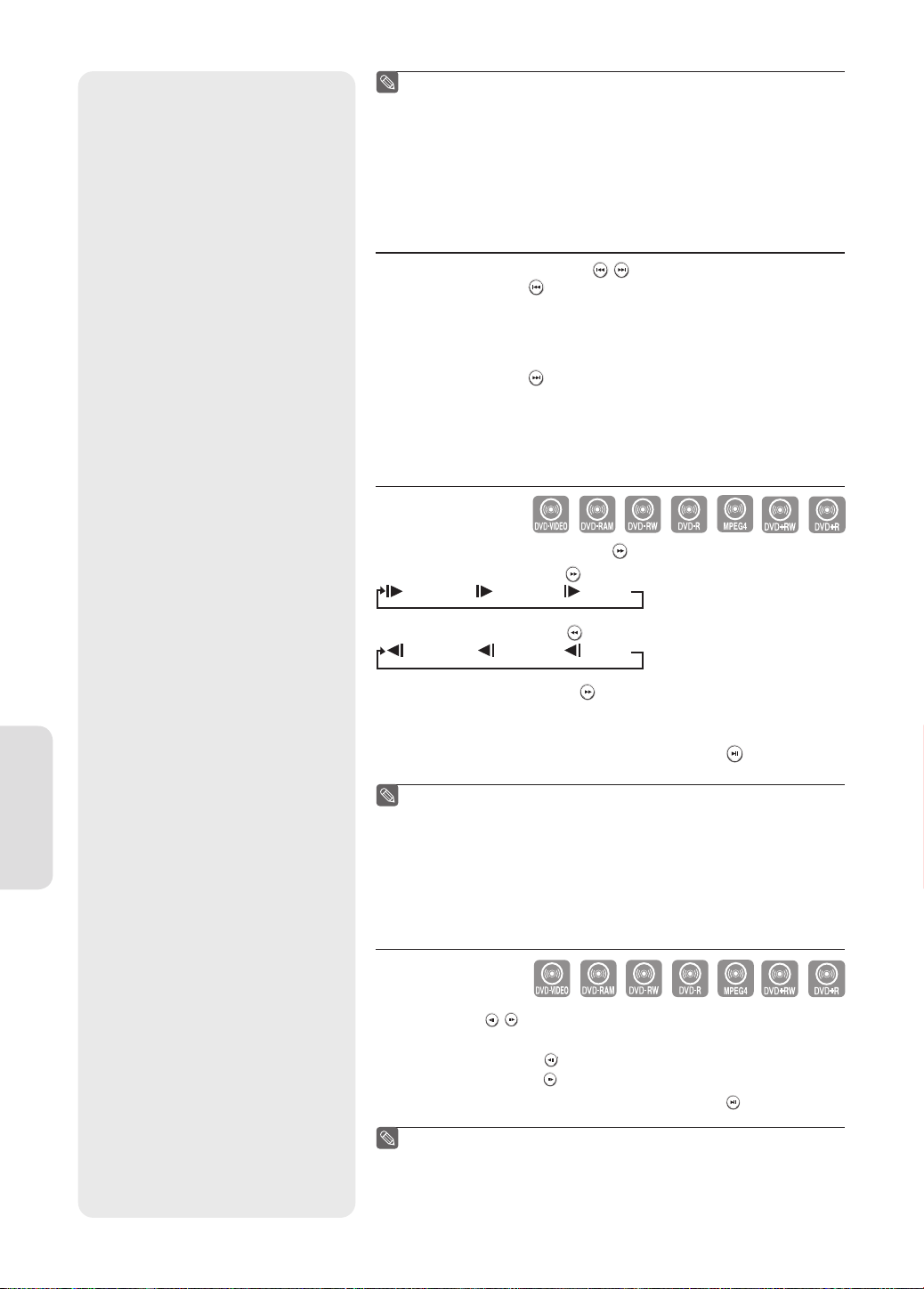

Searching Chapters or Tracks

During playback, press the SKIP( ) button on the remote control.

• If you press the SKIP( ) button, it moves to the beginning of the

chapter or track or marker (DVD-RAM,DVD-RW(VR mode).) Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or track or marker (DVD-RAM, DVD-RW(VR mode).)

• If you press the SKIP( ) button, it moves to the next chapter or title or

marker (DVD-RAM,DVD-RW (VR mode).)

Slow Motion Play

▌

In Pause mode, press the SEARCH( ) button on the remote control.

• If you press the SEARCH( ) button,

Slow 1 → Slow 2 → Slow 3

Playback

• If you press the SEARCH( ) button,

Slow 1 → Slow 2 → Slow 3

• Press and hold the SEARCH( ) button during pause, and the disc

will play slowly at a 1/2 speed. If the button is released, the pause operation will resume.

• To return to normal speed playback, press the PLAY( ) button.

The speed marked in this function may be different from the

■

actual playback speed.

Slow motion operates only in the forward direction on MPEG4

■

discs.

Step Motion Play

▌

Press the STEP( ) button on the remote control in the still mode.

• Each time the button is pressed, a new frame will appear.

If you press the STEP( ) button, the previous frame will be activated. If you press the STEP( ) button, the next frame will be activated.

• To return to normal speed playback, press the PLAY( ) button.

Step motion operates only in the forward direction on MPEG4

■

discs.

English - 50

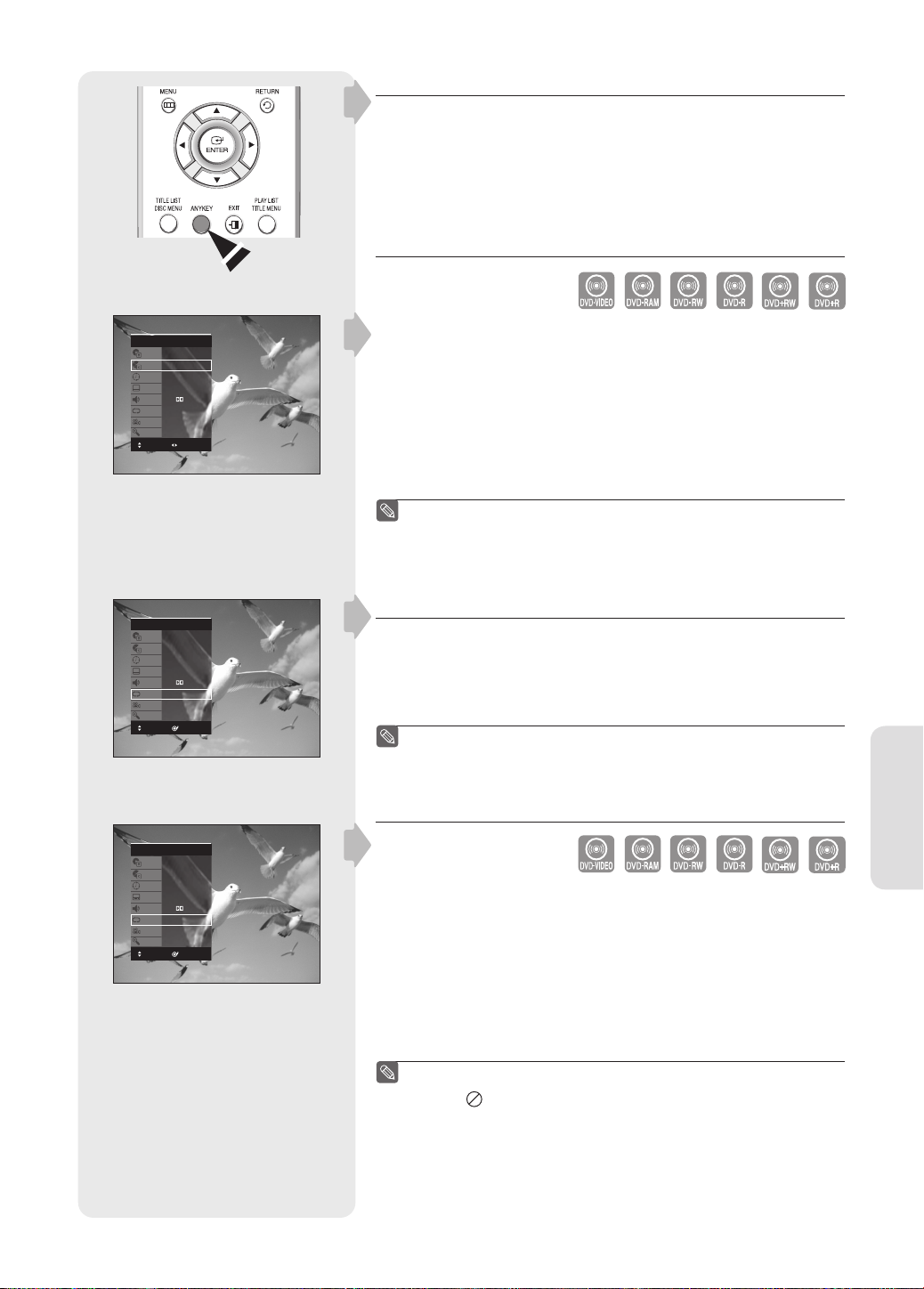

Using the ANYKEY Button

▌

The ANYKEY function allows you to easily search for a desired scene by accessing title, chapter, track, and time. You can also change the subtitle and audio settings and set some features including Repeat, Angle, and Zoom.

Moving to a Desired Scene Directly

DVD-VIDEO

Title

1/2

Chapter

1/20

Time

00:00:00

Subtitle

Off

Audio

ENG D 2CH

Repeat

Off

Angle

1/3

Zoom

Off

MOVE CHANGE

DVD-VIDEO

Title

1/2

Chapter

1/20

Time

00:01:05

Subtitle

Off

Audio

ENG D 2CH

Repeat

Title

Angle

1/3

Zoom

Off

MOVE SELECT

If you want to move to a certain title, chapter or time use this function.

1. Press the ANYKEY button during playback.

2. Press the ▲▼ buttons to select the Title, Chapter or Time.

3. Press the ◄ ► buttons or number (0~9) buttons to select the desired

scene and then press the ENTER button. In case of searching a time, Enter the time in the sequence of hours, minutes, seconds using the number buttons. ◄ ► are not available.

The Time Search function does not operate with some discs.

■

To make the screen disappear, press the ANYKEY again.

■

Playing Repeatedly

1. Press the ANYKEY button during playback.

2. Press the ▲▼ buttons to select Repeat and press the ◄ ► buttons to

select the Title or Chapter you want to play repeatedly.

3. Press the ENTER button.

DVD-RAM, DVD-RW(VR mode), unﬁ nalized DVD±R and

■

unﬁ nalized DVD-RW (Video mode) do not repeat a chapter.

Playing a Certain Section Repeatedly

Playback

DVD-VIDEO

Title

1/2

Chapter

1/20

Time

00:01:05

Subtitle

Off

Audio

ENG D 2CH

Repeat

A-B

Angle

1/3

Zoom

Off

MOVE SELECT

1. Press the ANYKEY button during playback.

2. Press the ▲▼ buttons to select Repeat and press the ► button to

select A-B.

3. Press the ENTER button.

4. Press the ENTER button at the point where you want the repeat play to

start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts.

If you set point (B) before ﬁ ve seconds has lapsed, the prohibition

■

mark ( ) will appear.

You can also activate Normal Playback by pressing the CANCEL

■

button.

Audio CDs(CD-DA) and MP3 discs do not support the Repeat A-B

■

function.

English - 51

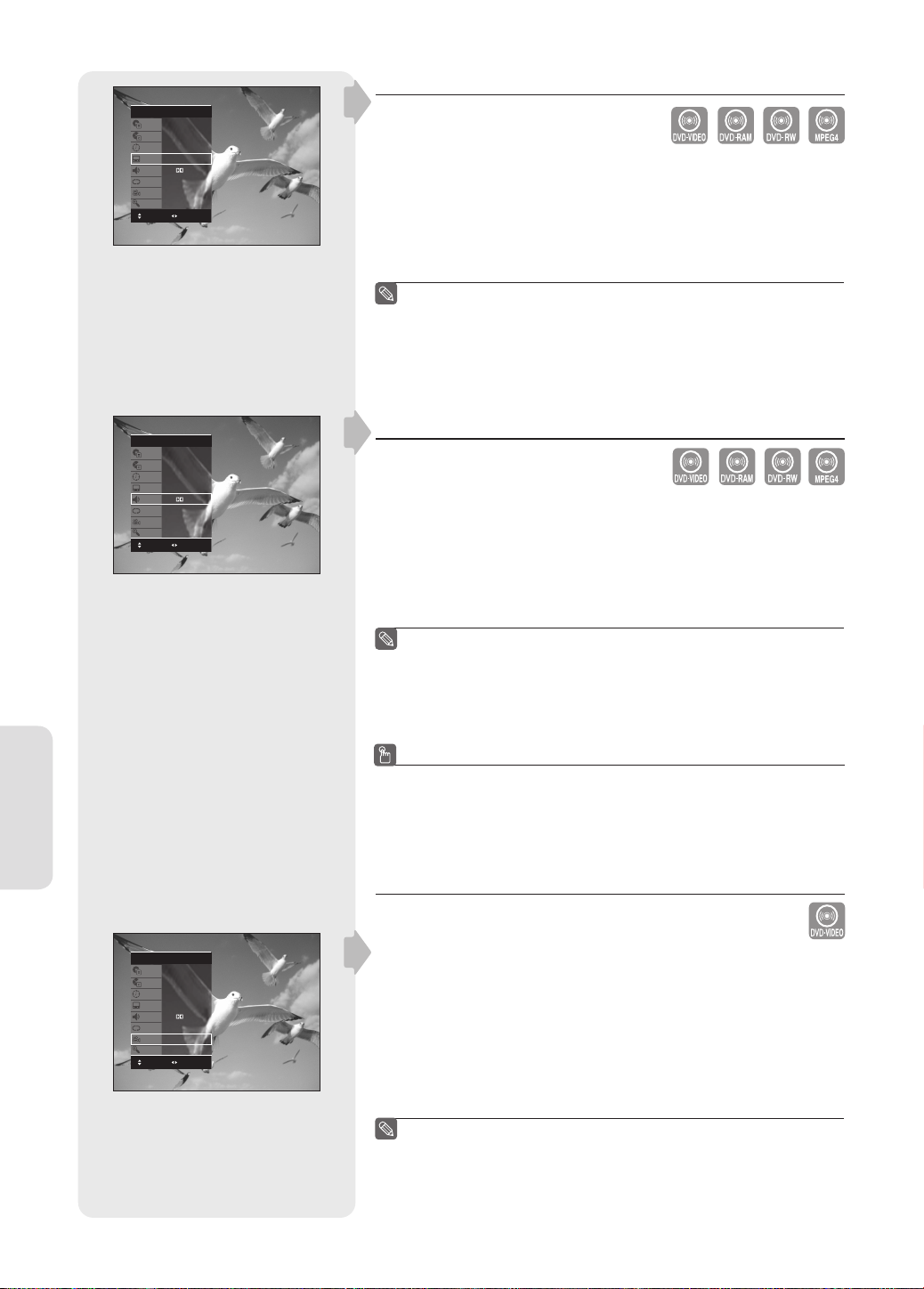

DVD-VIDEO

Title

1/2

Chapter

1/20

Time

00:00:10

Subtitle

Off

Audio

ENG D 2CH

Repeat

Off

Angle

1/3

Zoom

Off

MOVE CHANGE

Selecting the Subtitle

Subtitle languages may not work depending on the disc type. This is only available during playback.

1. Press the ANYKEY button during playback.

2. Press the ▲▼ buttons to select Subtitle and press the ◄ ► buttons to

select the desired subtitle language.

If the subtitles overlap, disable the caption function on your TV.

■

Some discs allow you to select the language for the disc menu only.

■

To make the screen disappear, press the ANYKEY again.

(VR mode)

Playback

DVD-VIDEO

Title

Chapter

Time

Subtitle

Audio

Repeat

Angle

Zoom

MOVE

1/2

1/20

00:00:10

Off

ENG D 2CH

Off

1/3

Off

CHANGE

Selecting the Audio language

(VR mode)

Audio languages may not work depending on the disc type. This is only available during playback.

1. Press the ANYKEY button during playback.

2. Press the ▲▼ buttons to select Audio and press the ◄ ► buttons to

select the desired audio language.

■

Audio languages may be different because they are disc-speciﬁ c.

■

Some discs allow you to select the audio language for the disc menu only.

To make the screen disappear, press the ANYKEY again.

■

Using one Touch button

By pressing the audio button, you can access the Audio function directly.

Changing the Camera Angle

DVD-VIDEO

Title

Chapter

Time

Subtitle

Audio

Repeat

Angle

Zoom

MOVE

1/2

1/20

00:00:11

Off

ENG D 2CH

Off

1/3

Off

CHANGE

When a DVD-VIDEO contains multiple angles of a particular scene, you can select the Angle function. This is only available during playback. If the disc contains multiple angles, the ANGLE mark appears on the screen.

1. Press the ANYKEY button during playback.

2. Press the ▲▼ buttons to select Angle and press the ◄ ► buttons or

number(0~9) buttons to select the desired angle.

■

This function is disc-dependent, and may not work all DVDs.

■

This function does not work when a DVD has not been recorded with a multicamera angle system.

■

To make the screen disappear, press the ANYKEY again.

English - 52

Bookmark

1 2 - - - - - - - --

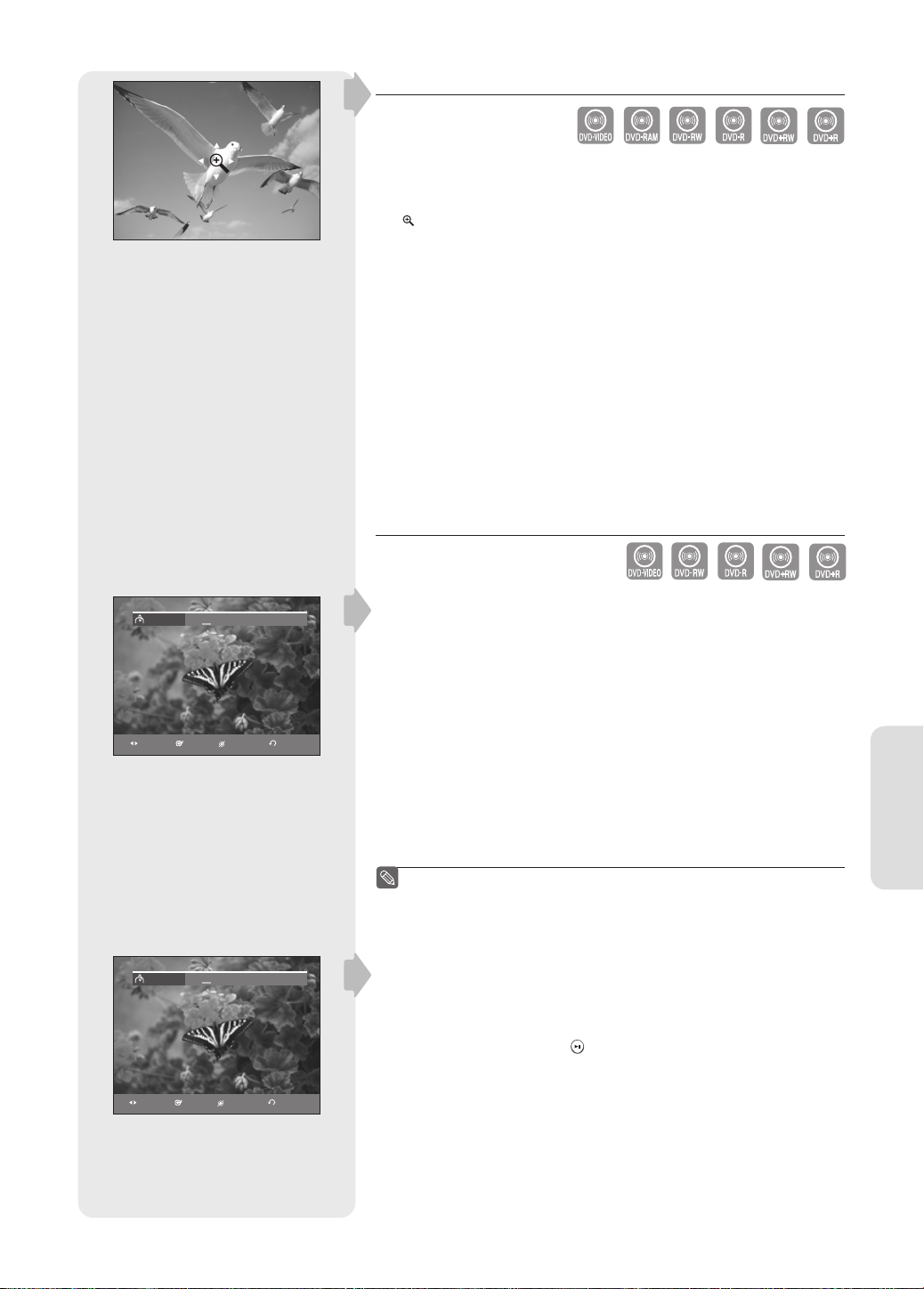

Zooming-In

1. Press the ANYKEY button during playback or pause.

2. Press the ▲▼ buttons to select Zoom, and then press the ENTER

button. ( ) will be displayed.

3. Press the ▲▼◄ ► buttons to move to the area you want to enlarge.

4. Press the ENTER button.

normal size → 2X → 4X → 2X →normal size

Using Bookmarks

(V mode)

This feature lets you bookmark sections of a DVD or DVD-R/-RW (V mode), so you can quickly ﬁ nd them.

MOVE PLAY CANCEL RETURN

1 2 - - - - - - - --

Bookmark

MOVE PLAY CANCEL RETURN

Setting Bookmarks



1. Press the MARKER button during playback.

2. Press the MARKER button during playback. Press the ENTER button

when the desired scene appears. The number 1 is displayed and the scene is memorized.

3. Press the ◄ ► button to move to the next position.

4. Press the ENTER button when the desired scene appears.

The number 2 is displayed and the scene is memorized.

• Repeat above to bookmark other positions.

• You can bookmark up to 10 scenes.

When the disc tray is opened and then closed, bookmarks will

■

disappear.

The button display may differ depending on the disc type.

■

Playing Back a Bookmark



1. Press the MARKER button during playback.

2. Press the ◄ ► buttons to select a bookmarked scene.

3. Press the ENTER or PLAY( ) button to start playing from the

selected scene.

Playback

English - 53

1 2 - 4 5 6 - - - --

Bookmark

MOVE SELECT RETURN

01 02

Marker

-- -- -- -- -- -- -- --

N : 2

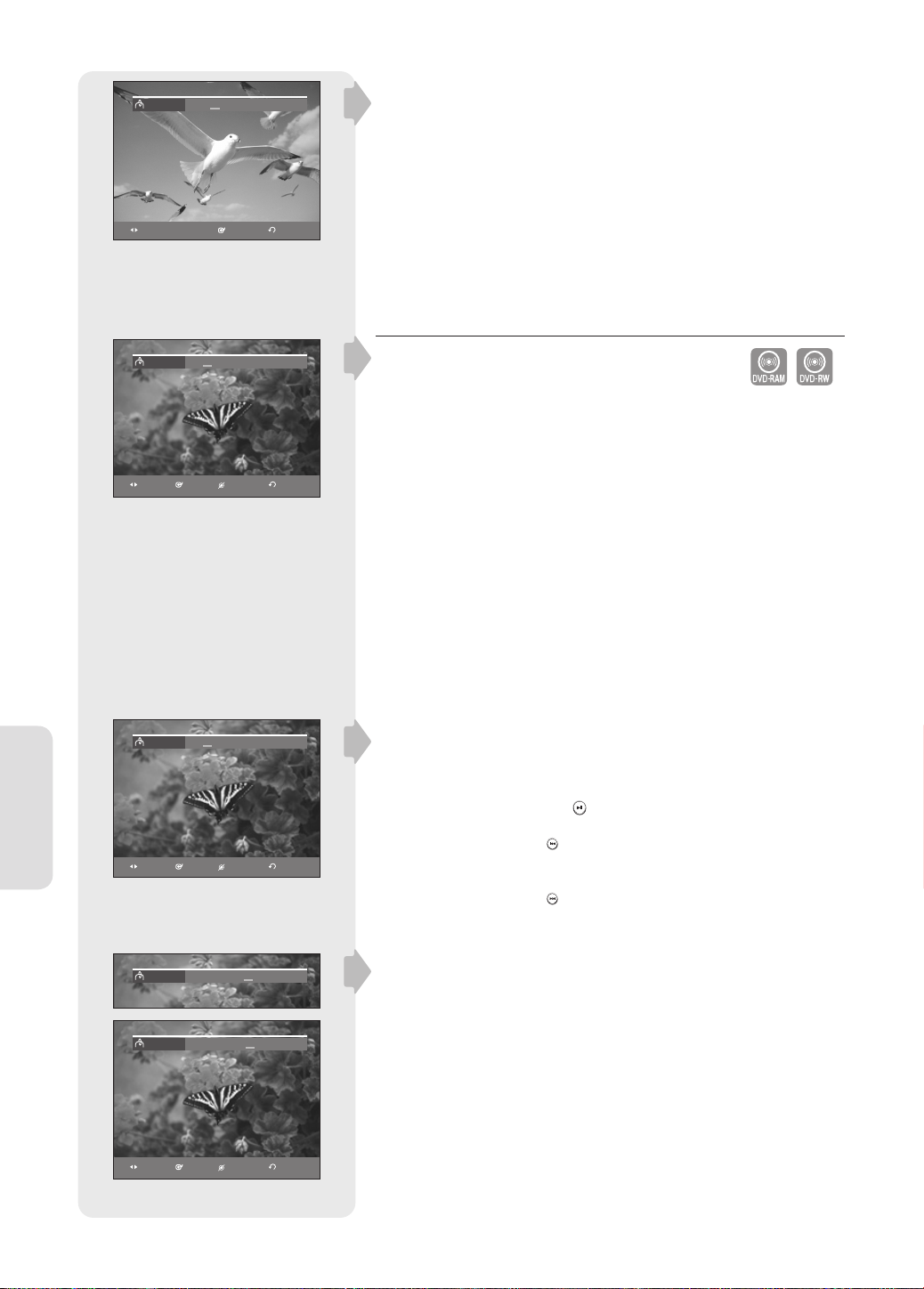

Clearing a bookmark



1. Press the MARKER button during playback

2. Press the ◄ ► buttons to select a bookmarked scene.

3. Press the CANCEL button to delete the selected bookmark.

Using Markers

Playback

MOVE PLAY CANCEL RETURN

01 02

Marker

MOVE PLAY CANCEL RETURN

-- -- -- -- -- -- -- --

N : 2

Setting Markers



(VR mode)

1. Press the MARKER button during playback.

2. Press the ENTER button when the desired scene appears.

The number 01 is displayed and the scene is memorized.

3. Press the ◄ ► button to move to the next position.

4. Press the ENTER button when the desired scene appears.

The number 02 is displayed and the scene is memorized.

• DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. The Marker function allows you to mark up to 99 scenes. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protect, Markers cannot be set or deleted. Only playback is available.

Playing Back a Marker



1. Press the MARKER button during playback.

2. Press the ◄ ► buttons to select a bookmarked scene.

3. Press the ENTER or PLAY( ) button to start playing from the

selected scene.

• If you press the SKIP( ) button, it moves to the beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker.

• If you press the SKIP( ) button, it moves to the next marker.

01 02 03 04 05 06 07 08 09 10

Marker

01 02 03 04 05 06 07 08 09 --

Marker

MOVE PLAY CANCEL RETURN

►

N : 10

N : 9

Clearing a Marker



1. Press the MARKER button during playback.

2. Press the ◄ ► buttons to select a bookmarked scene.

Press the CANCEL button to delete the selected bookmark.

• When a marker is cleared while DVD-RAM/DVD-RW(VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th.

English - 54



 







CDDA

TRACK 1

►

0:00:01

TRACK 1

PLAY MODE



TRACK 1

►

0:00:01

TRACK 1

PLAY MODE

Music List

RETURN

01/15

Music List

01/15

No. Title Length

001 TRACK 1 00:03:50

002 TRACK 2 00:04:00

003 TRACK 3 00:03:49

004 TRACK 4 00:03:47

005 TRACK 5 00:04:29

006 TRACK 6 00:03:44

007 TRACK 7 00:03:44

MOVE ENTER EXIT

No. Title Length

001 TRACK 1 00:03:50

002 TRACK 2 00:04:00

003 TRACK 3 00:03:49

004 TRACK 4 00:03:47

005 TRACK 5 00:04:29

006 TRACK 6 00:03:44

007 TRACK 7 00:03:44

MOVE ENTER

EXIT

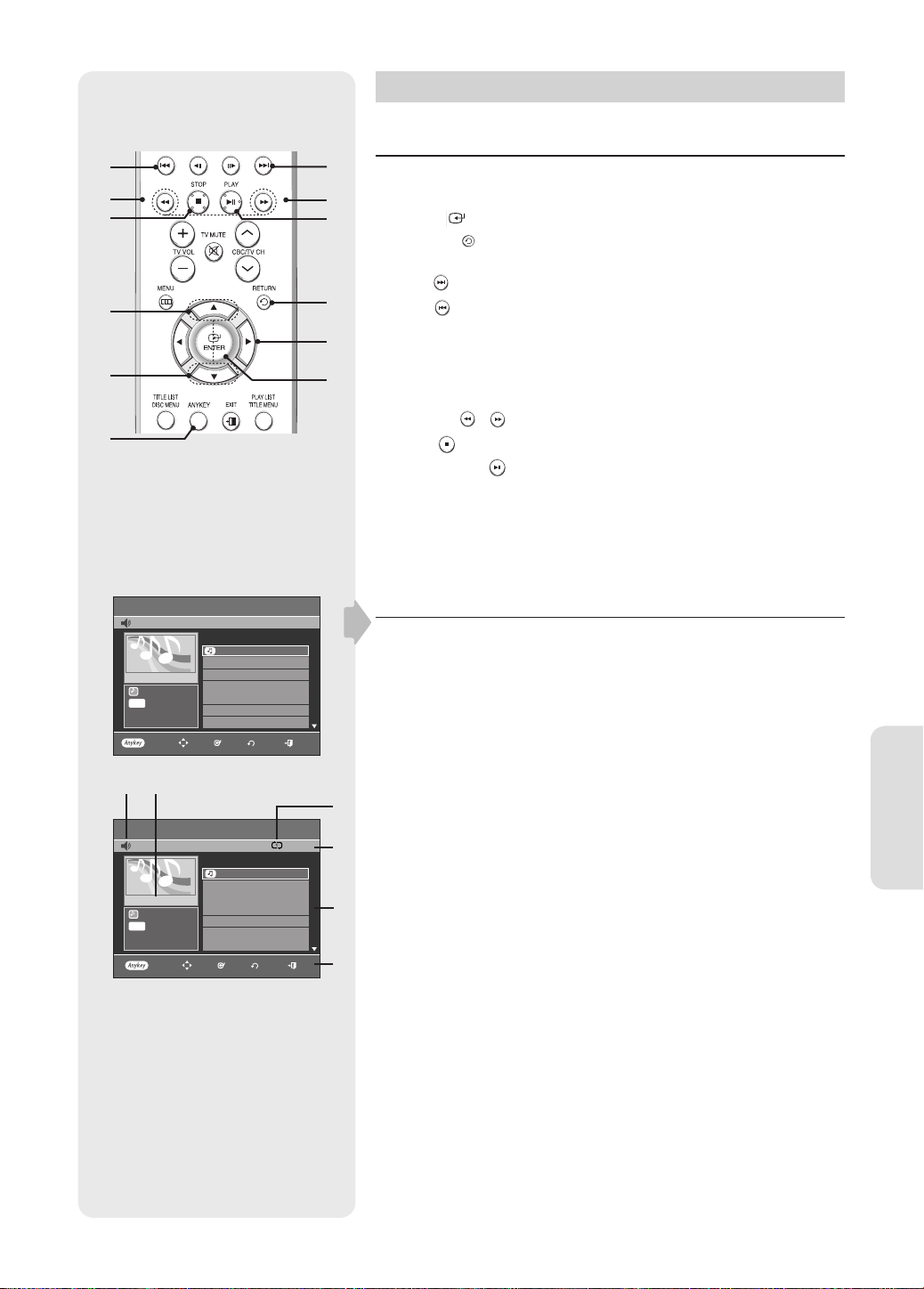

Playing an Audio CD/MP3

Buttons on the Remote Control used for CD playback



1. ▲▼ : Selects a track (song).

2. ► : Plays the selected track (song).



3. ENTER( ) button : Plays the selected track (song).



4. RETURN( ) button: Moves to the folder to which the current song belongs.

5. SKIP( ) button : Plays the next track.



6. SKIP( ) button : Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD recorder moves













to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning.

7. SEARCH( / ) button : Fast Play (X2, X4, X8)

8. STOP( ) : Stops a track(song).

9. PLAY/PAUSE( ) : Plays a track(song) or pauses playback.

10. ANYKEY: To select the sub menu on screen display (Repeat or Play

Option).

Playing an Audio CD(CD-DA)

▌

1. Insert an audio CD (CD-DA) into the disc tray. The audio CD menu appears and the tracks (songs) are played automatically.

2. Press the ▲▼ buttons to select the track you want to hear, and then press the ENTER button or ► button.

Audio CD(CD-DA) Screen Elements



1. PLAY MODE icon

2. Current track (song) : Displays the number of the track currently being played.

3. Displays the current play index and total track number.

4. Shows the operating state of a disc and the current playback time.

5. Displays the track list (song list) and the playing time of each track.

6. Button display.

Playback

English - 55

MP3

SONGO1 01/11

►

0:00:15

SONGO1

3.5MB 2004/08/26

MP3

PLAY MODE

No. Title

ROOT

001 SONGO1

002 SONGO2 003 SONGO3

004 SONGO4

005 SONGO5

SONGO6

006

MOVE ENTER

RETURN



MP3

SONGO1

►

MP3

0:00:11

SONGO1

3.5MB 2004/08/26

PLAY MODE

No. Title

ROOT

001 SONGO1

002 SONGO2 003 SONGO3

004 SONGO4

005 SONGO5

006 SONGO6

MOVE ENTER

RETURN

Music List

EXIT

Music List

01/11

EXIT

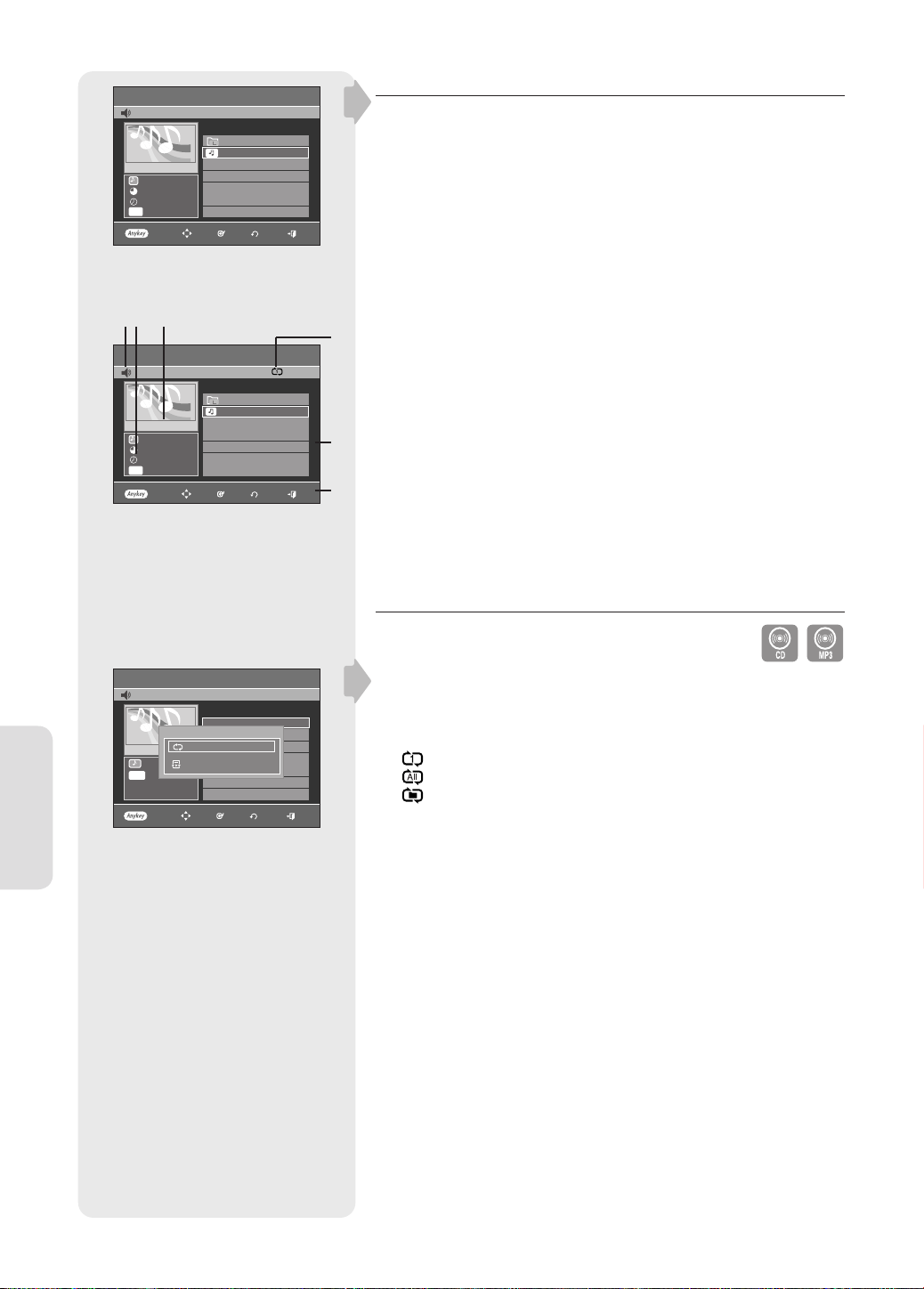

Playing an MP3 Disc

▌

1. Insert an MP3 disc into the disc tray. And press the ▲▼ buttons to select Disc Navigation, and then press the ENTER or ► button.

2. Press the ▲▼ buttons to select Music, and then press the ENTER or ► button.

The MP3 menu appears and the tracks(songs) are played automatically.

3. Press the ▲▼ buttons to select the track (song) you want to hear, and then press the ENTER button or ► button.



MP3 Screen Elements



1. PLAY MODE icon

2. Current track (song) : Displays the name of the track being played.

3. MP3 ﬁ le information.

4. Shows the operating state of a disc and the current playback time.



5. Displays the information for the folder and its tracks.

6. Button display.



Playing Repeatedly

▌

Playback

TRACK 1 01/15

►

0:00:20

TRACK 1

CDDA

PLAY MODE

No. Title Length

001 TRACK 1 00:03:50

PLAY MODE

002 TRACK 2 00:04:00

Repeat : Off

003 TRACK 3 00:03:49 004 TRACK 4 00:03:47

Play option : Normal

005 TRACK 5 00:04:29

006 TRACK 6 00:03:44

007 TRACK 7 00:03:44

MOVE ENTER

Music List



RETURN

EXIT

1. Press the ANYKEY button during playback. The play mode window

appears.

2. Select the desired repeat mode using ◄ ► buttons, and then press the ENTER button.

• Track : Selected track is played repeatedly.

• Disc : Inserted disc is played repeatedly.

• Folder(mp3 only) : Tracks in the current folder are played

repeatedly.

To return to normal playback

3. Select Off in play mode window using ◄ ► buttons, and then press

the ENTER button.

English - 56

CDDA

TRACK 1

►

0:00:01

TRACK 1

PLAY MODE

Music List

No. Title Length

001 TRACK 1 00:03:50

PLAY MODE

002 TRACK 2 00:04:00

Repeat : Off

003 TRACK 3 00:03:49

004 TRACK 4 00:03:47

Play option : Normal

005 TRACK 5 00:04:29

006 TRACK 6 00:03:44

007 TRACK 7 00:03:44

MOVE ENTER

01/15



RETURN

EXIT

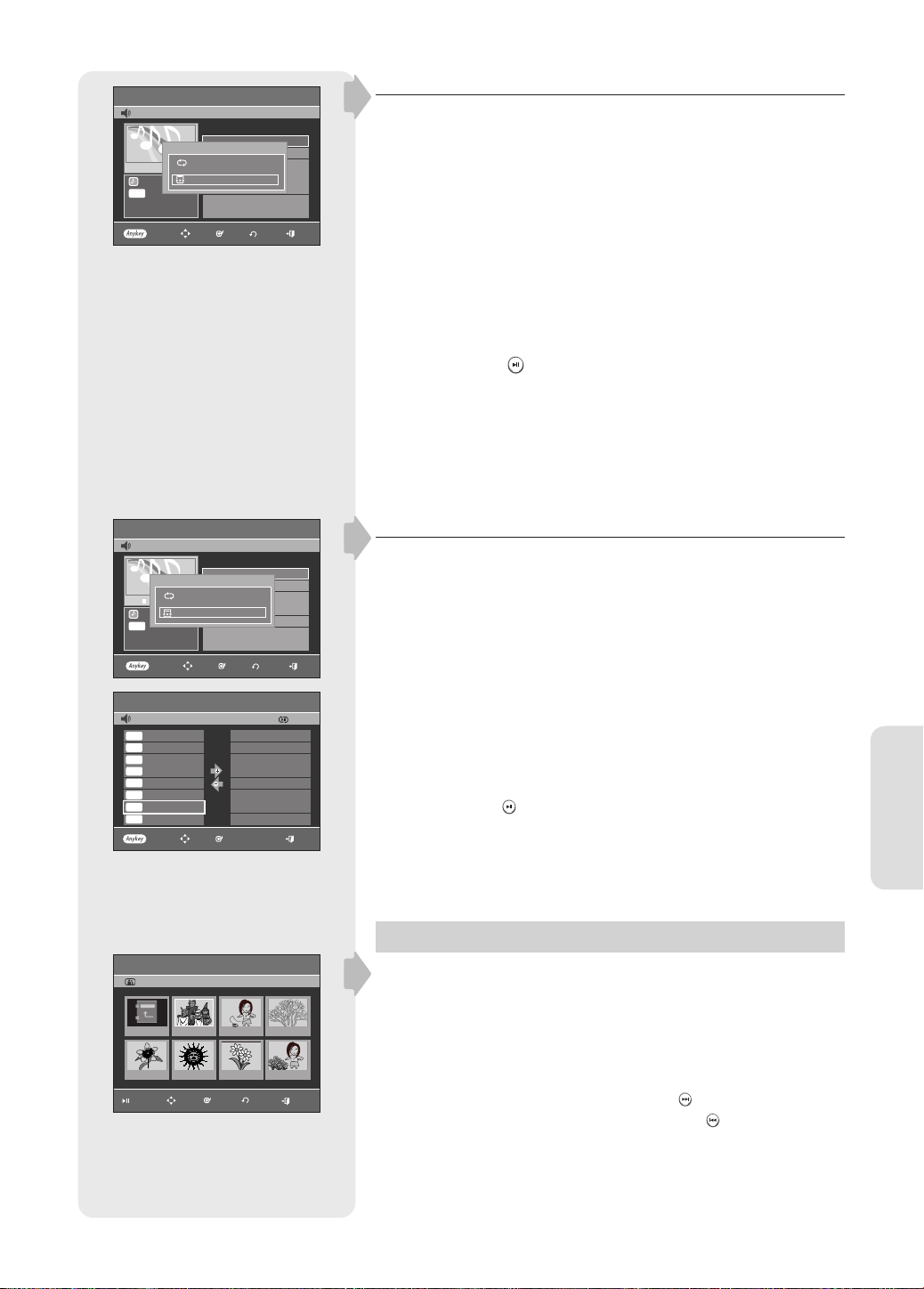

Play Option Mode

1. During Stop, Press the ANYKEY button. The Play option will be

highlighted.

• During Playback, Repeat Mode will be highlighted.

2. Select a desired play option (Normal, Random, Intro or Playlist) using the ◄ ► buttons. Press the ENTER button.

• Normal : Tracks on a disc are played in the order in which they were

recorded on the disc.

• Random[R] : The Random option plays the disc’s tracks in random

order. After a random list is generated and played completely, another random list is generated and played. Random Play is continued until the play option is changed.

• Intro[ I ] : The ﬁ rst 10 seconds of each track will be played. If you

want to listen to the music that you have selected, press the ENTER button or PLAY( ) button. The play option will be changed to Normal Play. When Intro Play is completed, Normal Play is performed.

• Playlist : The Playlist playback option allows you to select the order

in which you want tracks to play.

TRACK 1

0:00:01

TRACK 1

CDDA

PLAY MODE

CDDA

TRACK 1

CDDA

TRACK 2

CDDA

TRACK 3

CDDA

TRACK 4

CDDA

TRACK 5

CDDA

TRACK 6

CDDA

TRACK 7

CDDA

TRACK 8

PLAY MODE

JPEG01

ROOT JPEG01 JPEG02 JPEG03

JPEG04 JPEG05 JPEG06 JPEG07

Slide Show MOVE ENTER RETURN EXIT

No. Title Length

001 TRACK 1 00:03:50

PLAY MODE

002 TRACK 2 00:04:00

Repeat : Off

003 TRACK 3 00:03:49

004 TRACK 4 00:03:47

Play option : Normal

005 TRACK 5 00:04:29

006 TRACK 6 00:03:44

007 TRACK 7 00:03:44

MOVE ENTER EXIT

MOVE ENTER

Music List



RETURN

001 TRACK 1

002 TRACK 3

003 TRACK 4

004 TRACK 7

Photo ListJPEG

01/15

Playlist

07/15

EXIT

1/08

To Program Tracks

You can register a maximum of 30 tracks in the playlist.

1. Press the ANYKEY button during playback, then select Play option using ▲▼ buttons.

2. Select Playlist using the ◄ ► buttons, and then press the ENTER button. The Playlist screen will appear. Select tracks in the order in which you want them to play using the ▲▼ buttons. Press the ENTER button. If there is a track on your playlist you wish to remove. Press the ► button, then press the ▲▼ buttons to select the track you wish to remove, then press the CANCEL button. The selected track will be removed.

3. Press the PLAY(

) button to playback the playlist.

Playing a Picture CD

1. Insert an JPEG disc into the disc tray.

2. Press the ▲▼ buttons to select Disc Navigation, and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Photo, and then press the ENTER or

► button.

4. Press the ▲▼◄ ► buttons to select a picture.

• To see the next 8 pictures, press the SKIP(

• To see the previous 8 pictures, press the SKIP(

) button.

)button.

Playback

English - 57

DVD-RW(VR)

Slide Show Speed

Slow Fast

JPEG01

PHOTO ENTER RETURN

MOVE

DVD-RW(VR)

JPEG01

MOVE

PHOTO ENTER RETURN

Normal

5-1. If you press the PLAY( ) button, the Slide show screen will appear.

The picture interval (Slide show speed) must be set.

5-2. Press the ENTER button with a picture selected in the Album screen

and select a display mode (Album screen ( ), Slide show ( ), Rotation ( ) or Zoom ( )) using the ◄► buttons, then press the ENTER button.

: Returns to the Album screen.

: The unit enters slide show mode.

Before the slide show can begin, the picture interval (Slide show speed) must be set.

: Each time the ENTER button is pressed, the picture rotates 90

degrees clockwise.

Each time the ENTER button is pressed, the picture is enlarged up to 4X. (Normal → 2X → 4X → 2X → Normal)

• Press the ANYKEY button to display or clear menus.

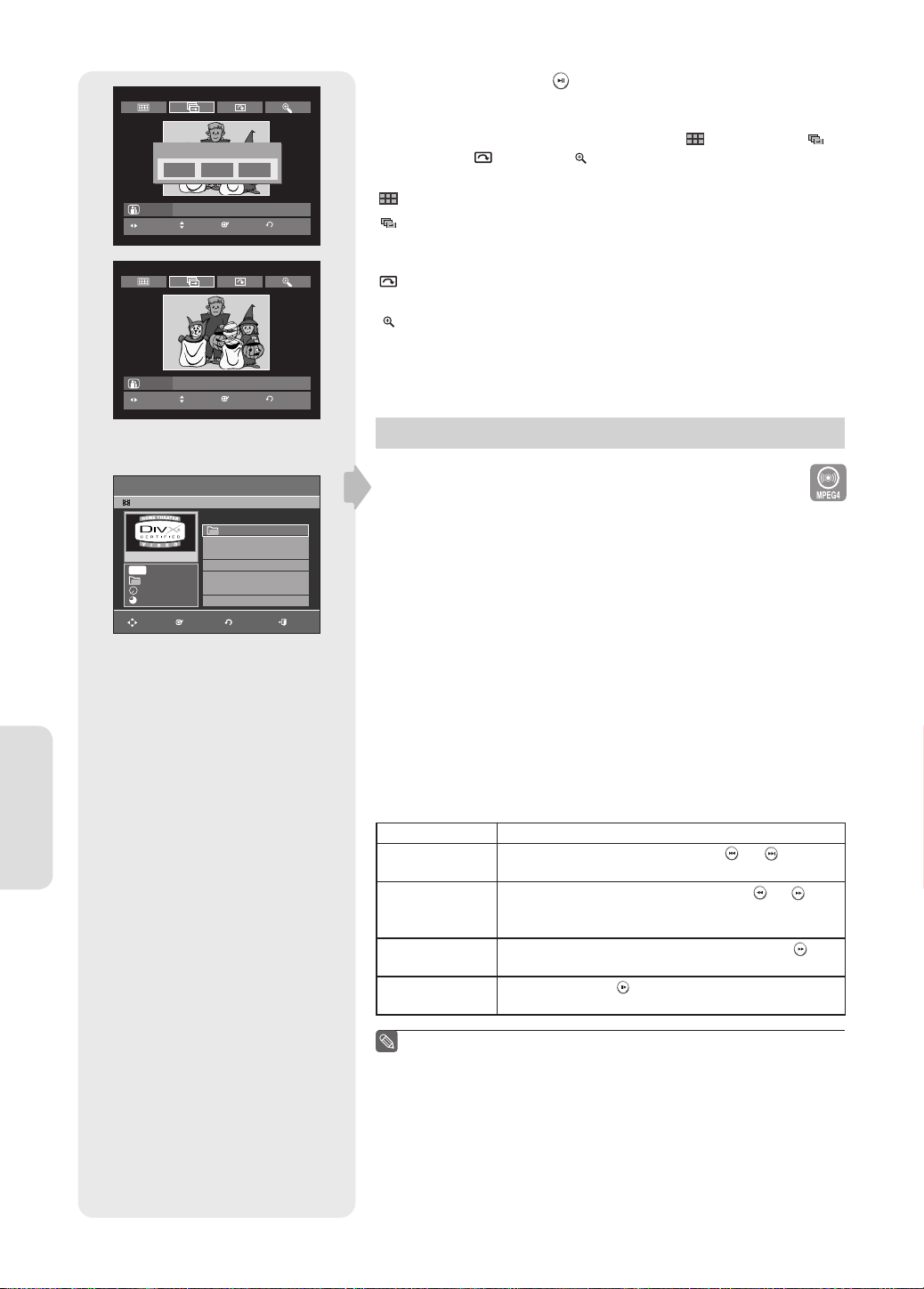

Playing an MPEG4 Disc

Playback

ROOT

MPEG4

ROOT

MOVE ENTER RETURN EXIT

No. Title Size

ROOT 001 DIVX01 70.8MB 002 DIVX02 73.6MB

00/02

DivX

An MPEG4 File is used to contain audio and video data. An MPEG4 File with following extensions can be played.

- .AVI, .DIVX, .avi, .divx

1. Insert a MPEG4 Disc into the disc tray.

2. Press the ▲▼ buttons to select the Disc Navigation, and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select the DivX, and then press the ENTER

or ► button.

4. Press the ▲▼ buttons to select the avi ﬁ le (DivX), then press the ENTER, ► or PLAY button.

5. When an MPEG4 ﬁ le is being played, you can use following functions.

Pressing the STOP button once during playback will display the ﬁ le list, pressing the button again will exit the menu screen.

MPEG4 Function Description



Function Description

Skip Scene

During playback, press the SKIP ( or ) button, it moves forward or backward 5 minutes.

During playback, press the SEARCH ( or )

Search Scene

button and press again to search at a faster speed. (2X, 4X, 8X)

Slow Motion

Step Motion

In pause or step mode, press the SEARCH ( ) button on the remote control. (1/8X, 1/4X, 1/2X)

Press the STEP( ) button on the remote control in still mode.

■

This DVD Recorder can play the following video compression formats,

-MPEG4 Codec format :DivX 3.11 DivX 4.x DivX 5.x

-Audio format :.MP3,.MPEG,.PCM,.AC3,.DTS

■

Supported subtitle ﬁ le formats:.smi,.srt,.sub,.psb, .txt (The subtitle ﬁ le should have exactly the same name to corresponding MPEG4 ﬁ le name)

■

Some MPEG4 ﬁ les created on a personal computer may not be able to be played back. This is why Codec Type,Version and Higher resolution over speciﬁ cation is not supported.

English - 58

Playing the Title List

DVD-RW(VR)

APR/19/2007 1/6

APR/19/2007 12:00 AM AV1

APR/19/2007

MOVE ENTER RETURN EXIT

No. Title

01 APR/19/2007 12:00 00:00:21 02 APR/19/2007 12:30 00:00:03

03 APR/20/2007 12:00 00:00:15

04 APR/20/2007 12:30 00:00:16

05 APR/21/2007 12:00 00:06:32

06 APR/21/2007 12:30 00:08:16



APR/21/2007

APR/21/2007 12:00 AM AV1

APR/21/2007

MOVE ENTER RETURN EXIT

APR/21/2007

No. Title

01 APR/19/2007 12:00 00:00:21 02 APR/19/2007 12:30 00:00:03

03 APR/20/2007 12:00 00:00:15

04 APR/20/2007 12:30 00:00:16

APR/21/2007 12:00 PR12

05 APR/21/2007 12:00 00:06:32

APR/21/2007

06 APR/21/2007 12:30 00:08:16



APR/21/2007

APR/21/2007 12:00 AV1

APR/21/2007

MOVE ENTER RETURN EXIT

No. Title

01 APR/19/2007 12:00 00:00:21 02 APR/19/2007 12:30 00:00:03

03 APR/20/2007 12:00 00:00:15

04 APR/20/2007 12:30 00:00:16

05 APR/21/2007 12:00 00:06:32

06 APR/21/2007 12:30 00:08:16

Play

Rename

Delete

Edit

Protection

Title List

Length Edit

► ►

►

Title ListDVD-RW(VR)

5/6

Length Edit

► ►

►

Title ListDVD-RW(VR)

5/6

Length Edit

► ►

►

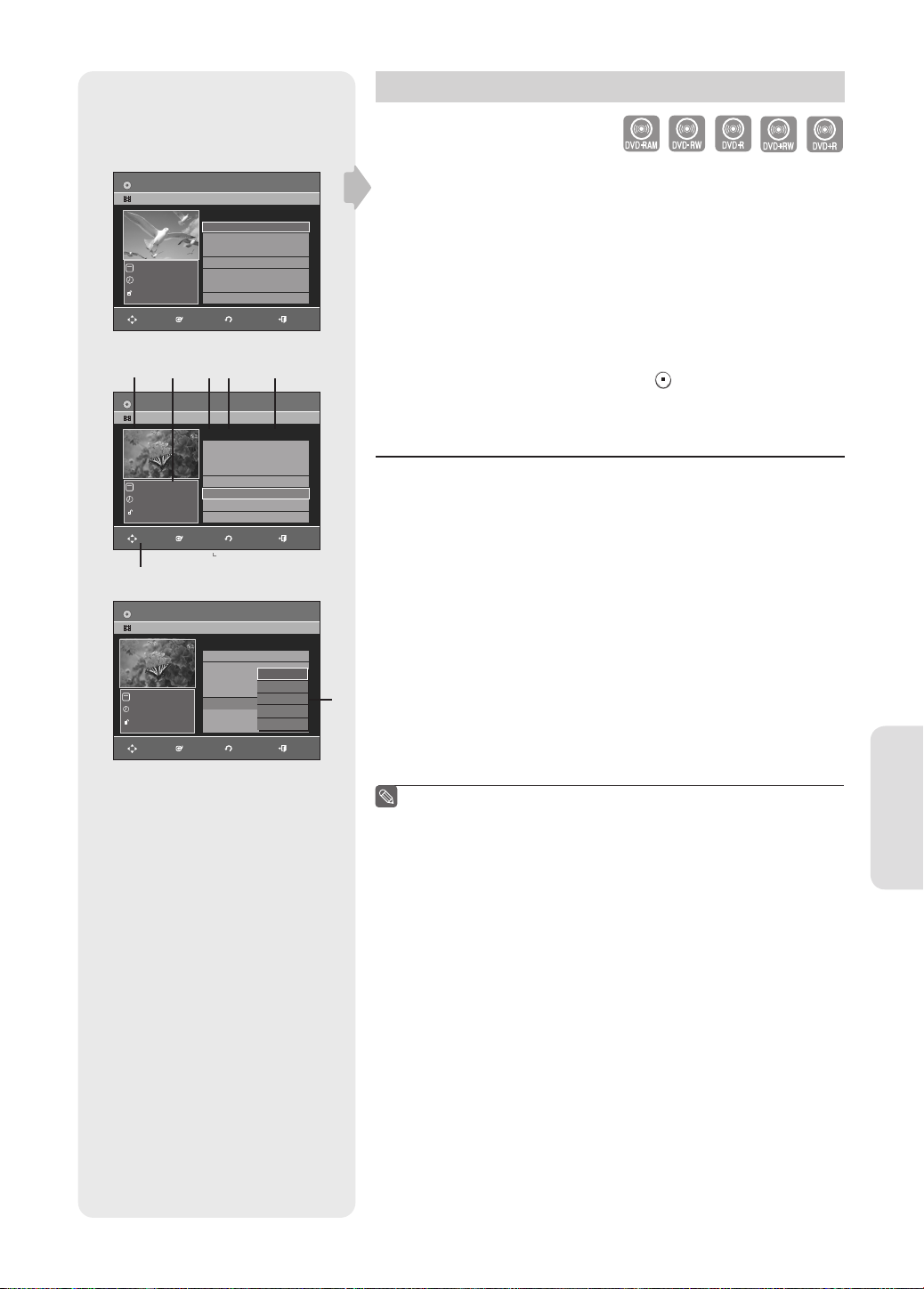

Follow these instructions to play back a scene from the Title List.

1. Press the TITLE LIST button. The Title List screen is displayed. Or use the MENU button.

• Press the MENU button.

• Press the ▲▼ buttons to select Title List, and then press the

ENTER or ► button twice.

2. Press the ▲▼ buttons to select Title.

• Press the PLAY button. The selected entry (title) will be played back.

•

Press the ENTER or ► button. The Edit menu is displayed on the right. (Rename, Delete, Edit, Protection : See pages 60~64)

3. To stop playing the title, press the STOP( ) button. To return to the title list screen, press the TITLE LIST button.

Title List Screen Elements

Playback screen for recorded entries



Information window for the selected entry : Title name, recording date,



lock status, record mode

Recorded entry No.



Recorded entry title



Recording length (i.e., the playing time)



Title list edit items



Play : Plays the selected entry. Rename : Renames the title of a selected entry.



Delete : Deletes the selected entry from the list. Edit : Deletes a section. Protection : Locks or unlocks the selected entry.

Button display



Playback

By pressing the ANYKEY button, you can play the desired title.

■

This may depend on the the disc type.

■

DVD±R/DVD-RW(Video) has limited editing function.(See page 36)

English - 59

DVD-Recorder

DVD-RW(VR)

Sports(A1)

Rename

Editing

This section introduces basic functions of DVD editing.

• Title List

A title is a section of recorded video and audio. The Title List shows a list to help you select a title. If one title is deleted from the title list, that title cannot be played again.

• Playlist

This refers to a unit of playback, which is made by selecting a desired scene in the entire Title List. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recorded title will not be deleted.

Recording or editing might not be completed if an error such as a sudden power failure occurs.

Please be aware that material that has been damaged cannot be retrieved.

Basic Editing (Title List)

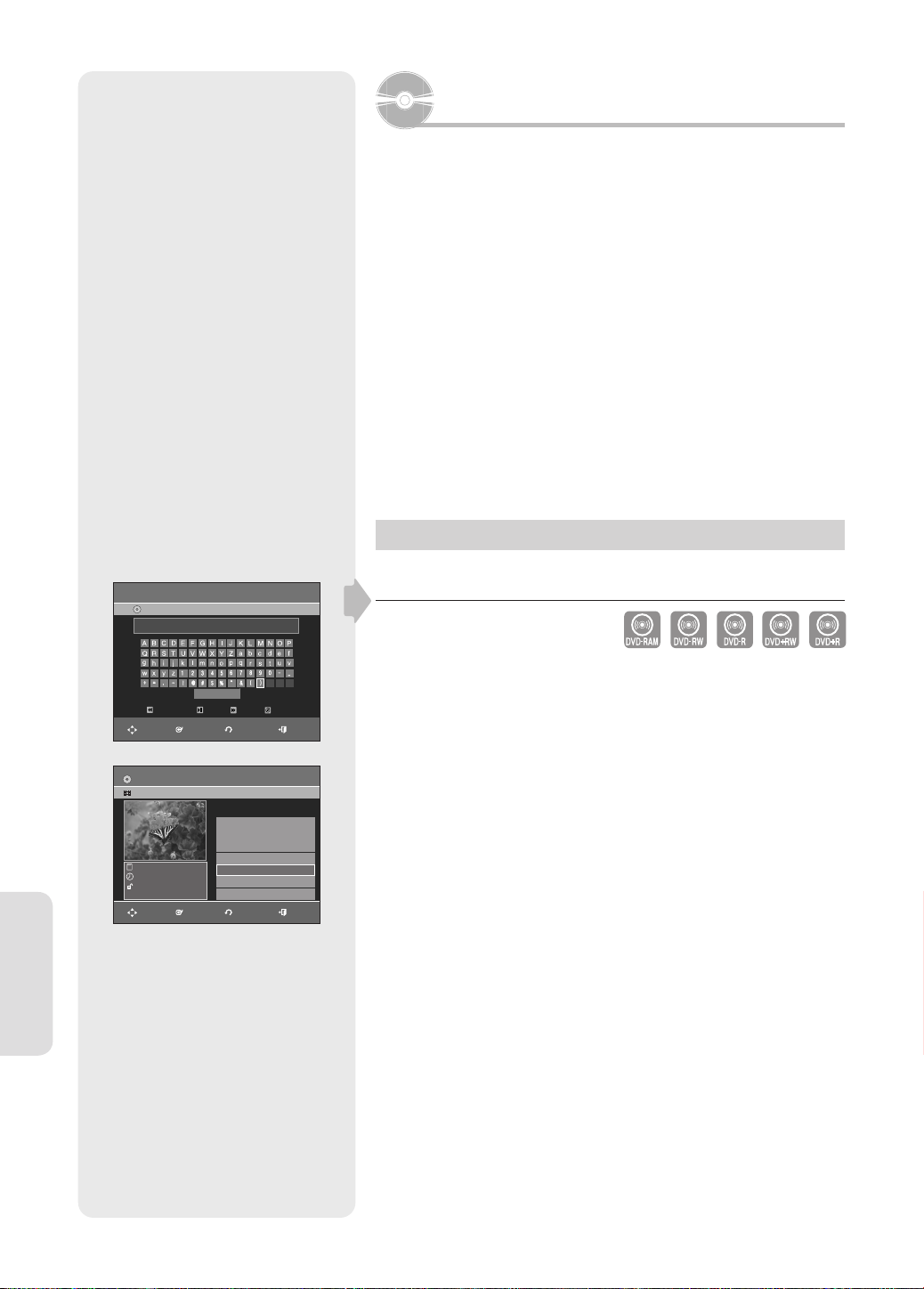

Renaming (Labeling) a Title

▌

Editing

Back Space Space Delete Clear

MOVE ENTER RETURN EXIT

DVD-RW(VR)

Sports(A1)

Sports(A1) APR/03/2007 SP

MOVE ENTER RETURN EXIT

Save

No. Title Length

01 APR/19/2007 12:00 00:00:21 02 APR/19/2007 12:30 00:00:03

03 APR/20/2007 12:00 00:00:15

04 APR/20/2007 12:30 00:00:16

05 Sports(A1) 00:06:32

06 APR/21/2007 12:30 00:08:16

Title List

Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded program.

1. Press the TITLE LIST button. The Title List screen is displayed.

Or use the MENU button.

• Press the MENU button.

• Press the ▲▼ buttons to select Title List, and then press the ENTER

5/6

Edit

► ►

►

or ► button twice.

2. Press the ▲▼ buttons to select an entry you want to rename from the

Title List, and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Rename, and then press the ENTER

or ► button. The Rename screen is displayed.

4. Select the desired characters using the ▲▼◄ ► buttons, press the

ENTER button.

• Back Space : Deletes the character before the cursor.

• Space : Enters a blank and moves the cursor one forward (to the

right).

• Delete : Deletes the character at the cursor position.

• Clear : Deletes all the character inputs.

• Save : Registers the character inputs.

• The maximum number of characters that can be entered is 31. All 31

characters can be displayed by pressing the INFO button twice.

5. Press the ▲▼◄ ► buttons to select Save, and then press the ENTER

button. The changed title name is displayed on the title item of the selected Title list entry.

English - 60

DVD-RW(VR)

Sports(A1)

Title List

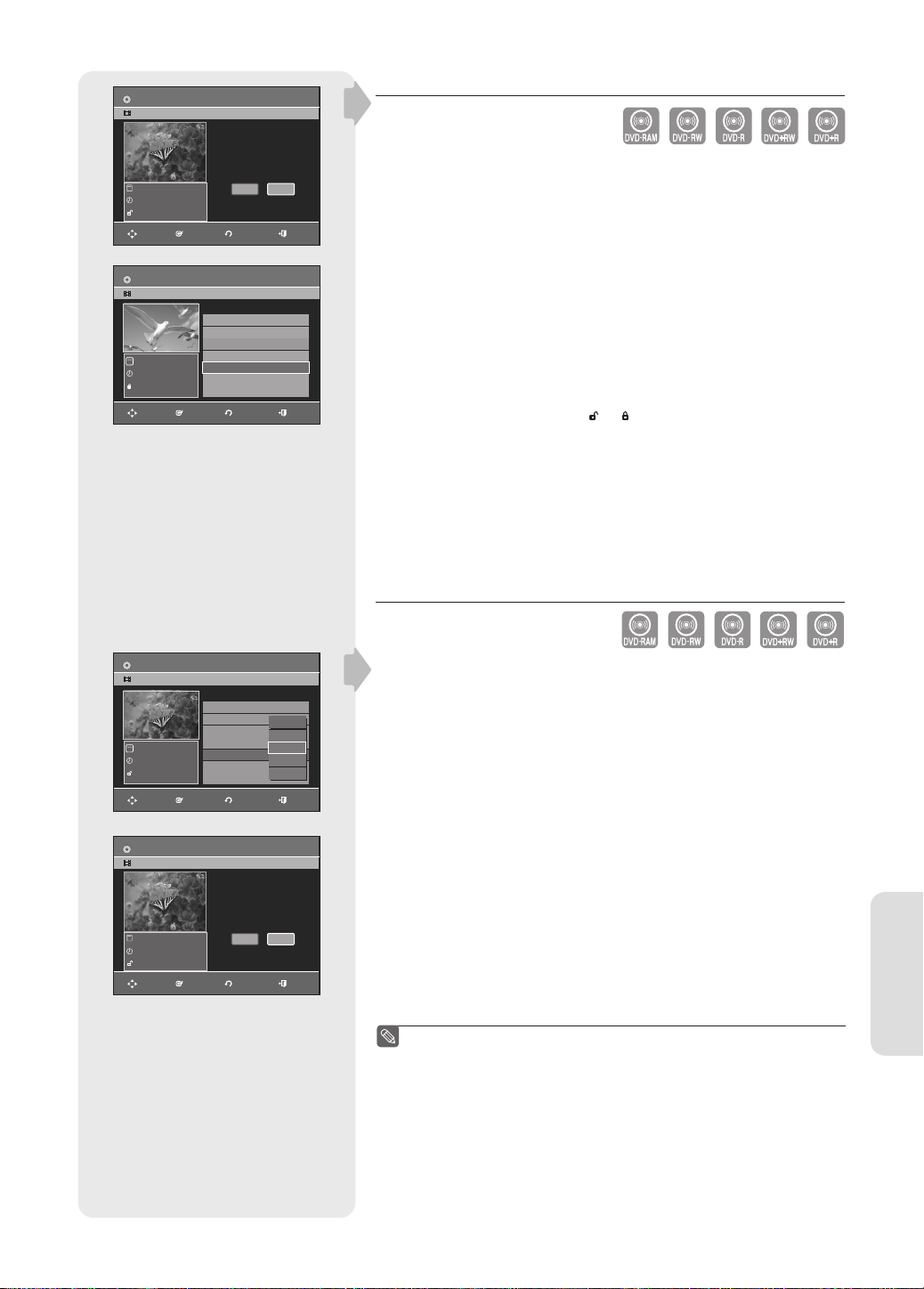

Locking (Protecting) a Title

▌

5/6

Title Protection:

Sports(A1)

APR/21/2007

MOVE ENTER RETURN EXIT

DVD-RW(VR)

Sports(A1) 5/6

Sports(A1)

APR/21/2007

MOVE ENTER RETURN EXIT

DVD-RW(VR)

Sports(A1)

APR/21/2007

MOVE ENTER RETURN EXIT

DVD-RW(VR)

Sports(A1)

APR/21/2007

MOVE ENTER RETURN EXIT

No. Title Length

01 Drama 00:00:21

02 Music 00:00:03

03 Sports 00:00:15 04 Movie 00:00:16

05 Sports(A1) 00:06:32

06 Edu 1 00:08:16

No. Title Length

01 Drama 00:00:21

02 Music 00:00:03

03 Sports 00:00:15 04 Movie 00:00:16

05 Sports(A1) 00:06:32

06 Edu 1 00:08:16

OffOn

Title List

Edit

Title List

Edit

Play

Rename

Delete

Edit

Protection

Title List

Do you want to delete?

(Related playlists

may be deleted.)

NoYes

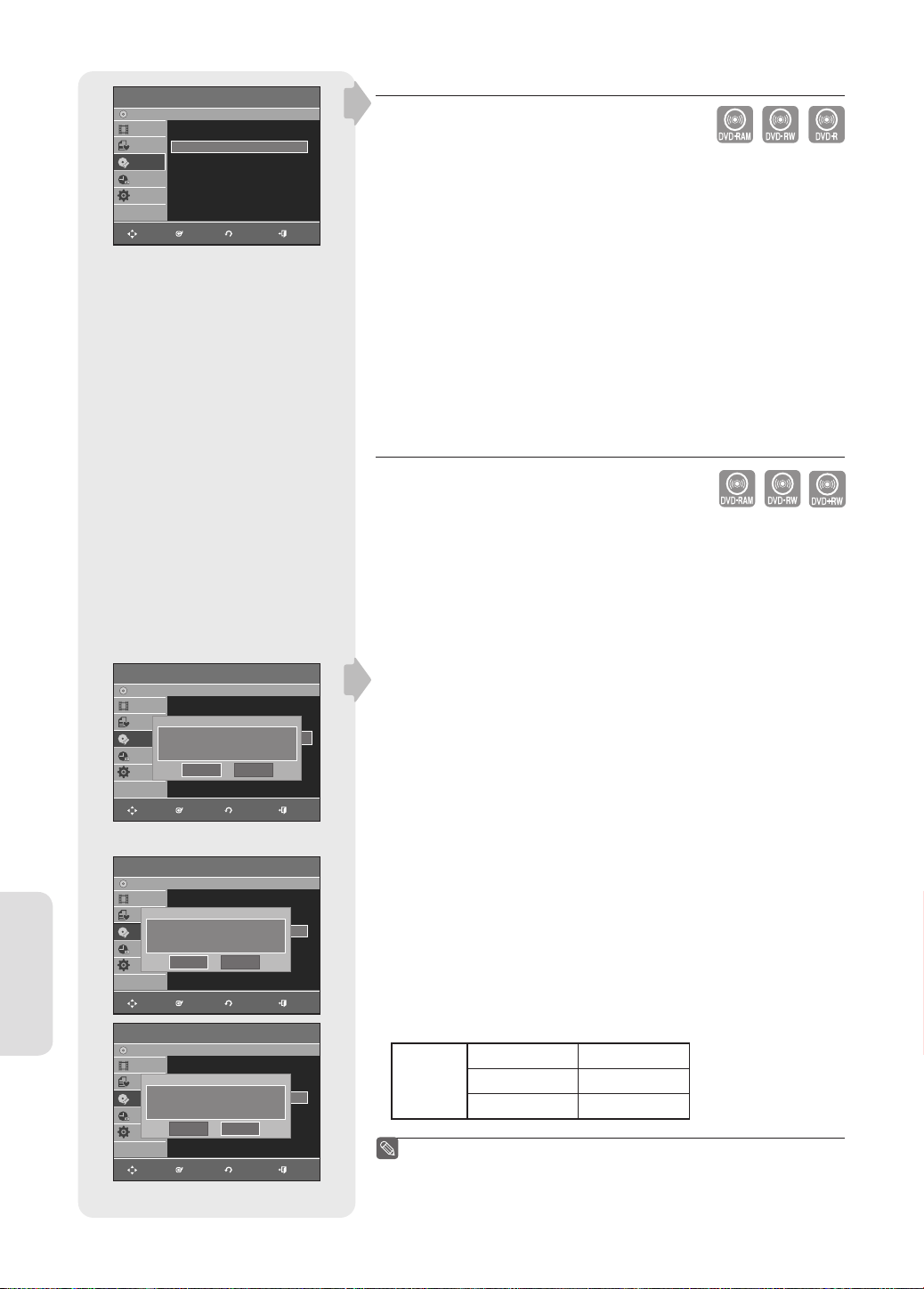

Follow these instructions to lock an entry to protect it from accidental deletion.

1. Press the TITLE LIST button. The Title List screen is displayed.

Or use the MENU button.

• Press the MENU button.

• Press the ▲▼ buttons to select Title List, and then press the ENTER

or ► button twice.

2. Press the ▲▼ buttons to select an entry you want to protect from the

►

► ►

►

Title List, and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Protection, and then press the

ENTER or ► button.

4. Press the ◄ ► buttons to select On, and then press the ENTER

button. The lock icon on the information window for the selected entry changes to the locked status. (  ) If you want to unlock the title entry, select the protected title and set the Protection function to Off.

▌

Deleting a Title

5/6

► ►

►

Follow these instructions to delete an entry from the Title List.

1. Press the TITLE LIST button. The Title List screen is displayed.

Or use the MENU button.

• Press the MENU button.

• Press the ▲▼ buttons to select Title List, and then press the ENTER

or ► button twice.

2. Press the ▲▼ buttons to select an entry you want to delete from the

Title List, and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Delete, and then press the ENTER or

► button.

5/6

You will be prompted with the conﬁ rmation message. DVD-RAM, DVD-RW(VR mode): Since Playlist is present, the message “Do you want to delete?(Related playlists may be deleted.)” is displayed. DVD-RW(Video mode), DVD+RW, DVD±R: Since Playlist is not present, the message “Do you want to delete?” is displayed.

Editing

• The message may be different depending on the type of disc.

Press the ◄ ► buttons to select Yes, and then press the ENTER button.

You cannot delete a protected entry. If you want to delete a

■

protected entry, select “Off” in the Title Protection menu.

Once an entry is deleted from the Title List, it cannot be

■

recovered.

Once a DVD±R or DVD-RW is ﬁ nalized, it cannot be deleted.

■

With DVD±R, titles are only deleted from the menu, however, the

■

Title remains physically on the disc.

English - 61

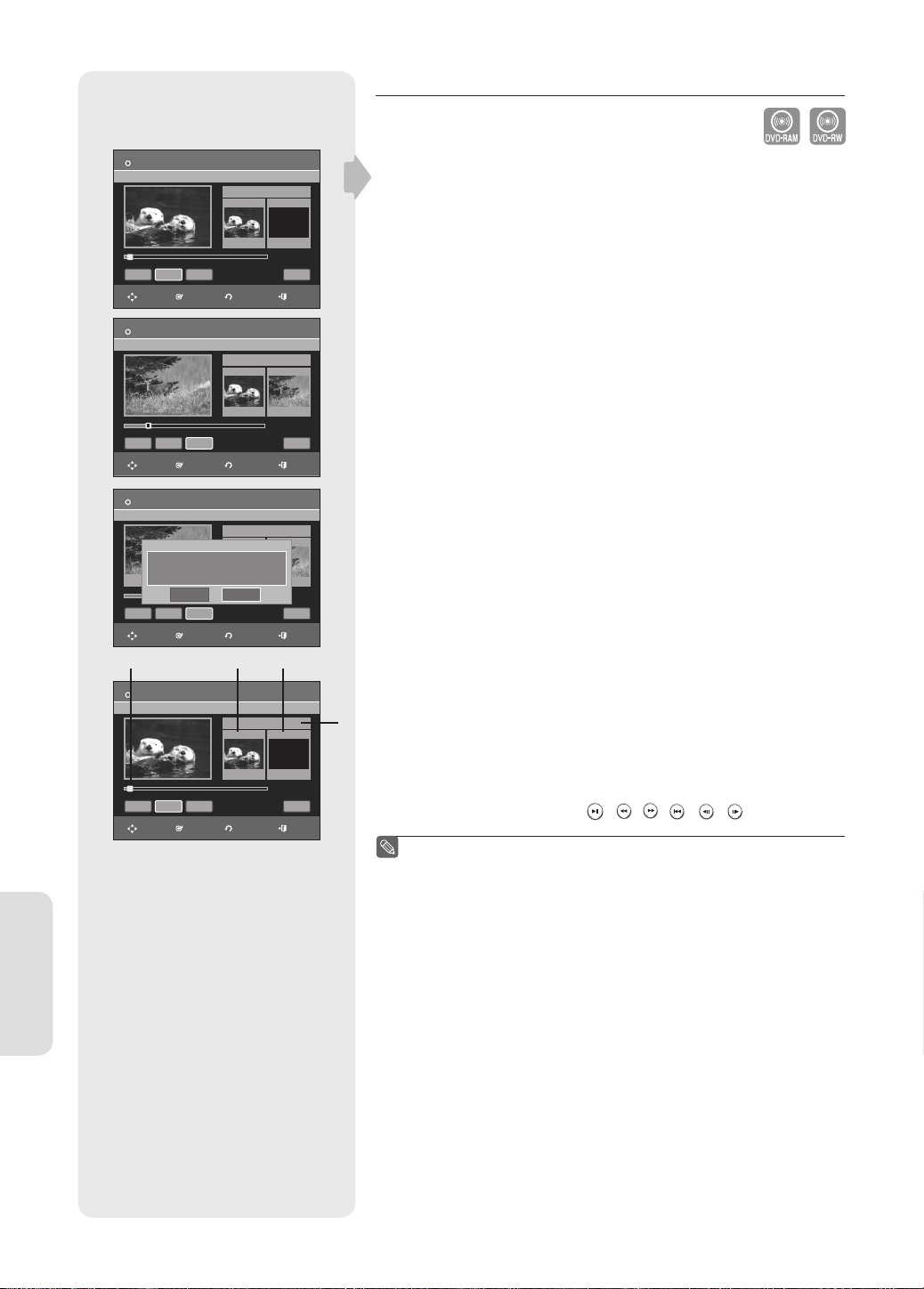

Deleting a Section of a Title

▌

Editing

DVD-RW(VR)

Title List No. 05

Start

►

MOVE ENTER RETURN EXIT

DVD-RW(VR)

EndStart Return

MOVE ENTER RETURN EXIT

DVD-RW(VR)

Do you want to delete?

(Deleted part will not be restored.)

Start DeleteEnd

MOVE ENTER RETURN EXIT



DVD-RW(VR)

►

MOVE ENTER RETURN EXIT

00:00:05

00:00:05 00:10:15

Delete

00:00:05 00:00:20

Yes No



00:00:05

Title List No. 05

Start End

Title List No. 05

Start End

Title List No. 05

Start End

Edit Title List

End

00:00:00

00:00:05

ReturnDeleteEndStart

Edit Title List

00:10:15

Edit Title List

00:00:20

Return

Edit Title List

00:00:00

00:06:35

00:00:05

ReturnDeleteEndStart

Follow these instructions to delete a section of a Title List entry.

1. Press the TITLE LIST button. The Title List screen is displayed.

Or use the MENU button.

• Press the MENU button.

• Press the ▲▼ buttons to select Title List, and then press the ENTER

or ► button twice.

2. Press the ▲▼ buttons to select an entry you want to edit from the Title

List, and then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Edit, and then press the ENTER or ►

button.

4. Press the ENTER button at the starting point.

The image and starting point time are displayed on the section deletion starting point window.

5. Press the ENTER button at the end point.

The image and end point time are displayed in the Section deletion ending point window.

6. Press the ◄ ► buttons to select Delete, and then press the ENTER

button. The message “Do you want to delete?(Deleted part will not be restored)” is displayed.

7. Press ◄ ► buttons to select Yes, and then press the ENTER button.

The selected section is deleted. To return to the Title List screen, press the ◄ ► buttons to select

Return.

Edit Title List Screen Elements



1 Playback bar



2 Title List No. 3 Section deletion starting point window and time 4 Section deletion end point window and time

• Select the start and end points of the section you want to delete using the playback related buttons.

• Playback related buttons ( , , , , , ).

The length of the section to be deleted must be at least 5 seconds

■

long.

If the length of the section to be deleted is less than 5 seconds,

■

you will be prompted with the message "The range is too short."

If the end time precedes the starting point, you will be prompted

■

with the message "End point cannot be marked earlier than start point".

■

The section cannot be deleted when it includes a still picture.

(VR mode)

English - 62

DVD+RW

Chapter : 1/1 Show

►

Delete Hidden

MOVE ENTER RETURN EXIT





DVD+RW

Chapter : 1/1 Show

►

Delete Hidden

MOVE ENTER RETURN EXIT

Delete All

Chapter Edit

00:00:00

ReturnAdd

Chapter Edit

00:00:00

ReturnAdd

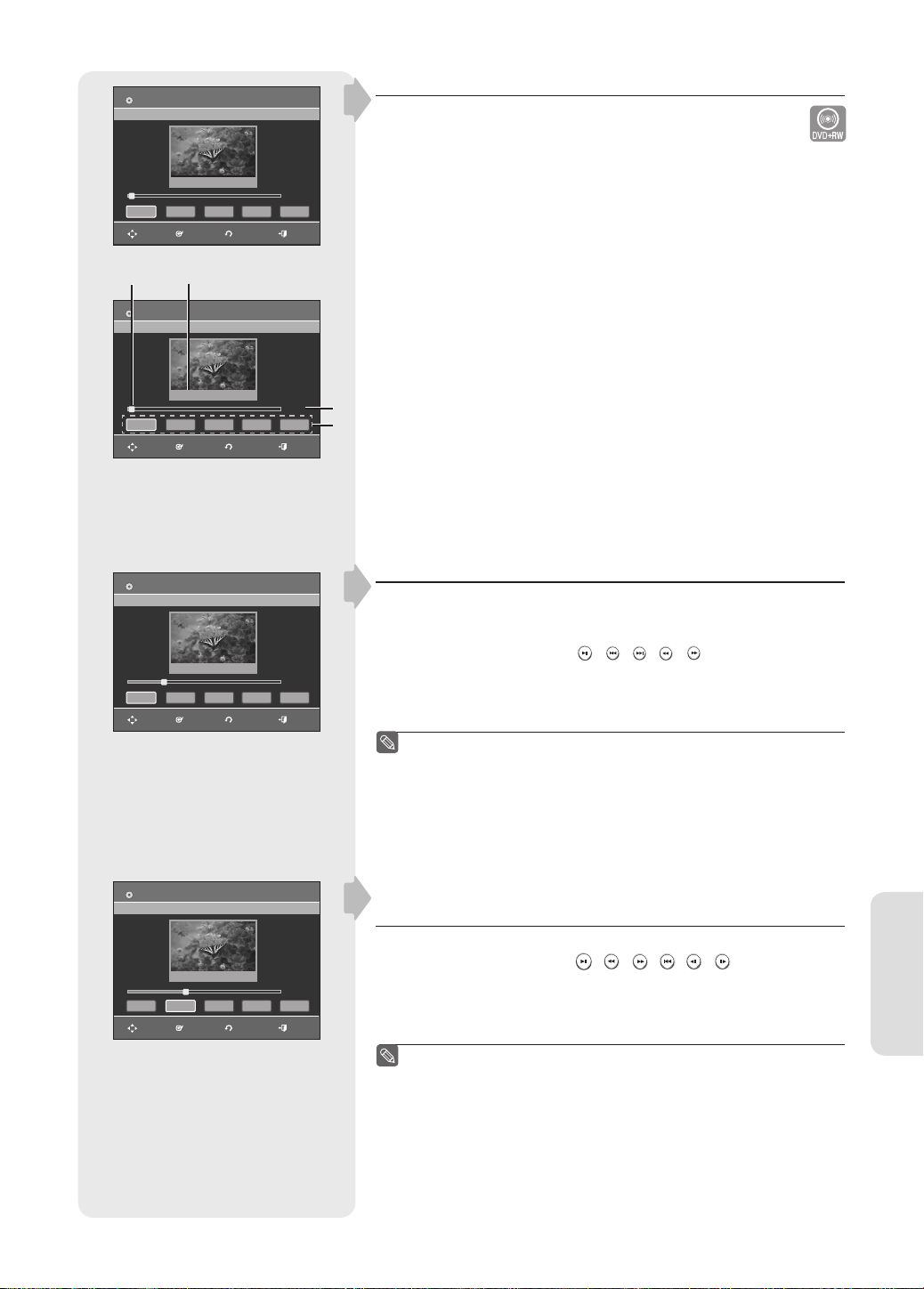

Editing a Chapter

▌

DVD+RWs don't support the Auto Chapter Creator function. You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu.

1. Press the TITLE LIST button. The Title List screen is displayed. Or use the MENU button.

• Press the MENU button.

• Press the ▲▼ buttons to select Title List, and then press the ENTER or ► button twice.

2. Press the ▲▼ buttons to select a title containing a chapter you want to

edit, then press the ENTER or ► button.

3. Press the ▲▼ buttons to select Chapter Edit, then press the ENTER

or ► button. The Chapter Edit screen is displayed.



Chapter Edit Screen Elements





1. Current chapter number and status

2. Playback bar

3. Playtime

4. Chapter Edit menu

DVD+RW

Chapter : 1/2 Show

►

Delete Hidden

MOVE ENTER RETURN EXIT

DVD+RW

Chapter : 2/3 Show

►

Add

MOVE ENTER RETURN EXIT

HiddenDelete

Chapter Edit

00:10:10

Delete All

Chapter Edit

00:15:00

Delete All

ReturnAdd

Return

Adding a chapter

4. Select the point where you want to add a chapter using the playback

related buttons, then press the ENTER button at that point. Each time you press the ENTER button, a new chapter will be added.

• Playback related buttons: ( , , , , ).

5. Press the ◄ ► buttons to select Return, and then press the ENTER

button. The edited title will now have the chapter you added.

■

You can make up to 99 chapters in a title and 254 chapters in a disc.

■

The edited chapters are shown on existing DVD players only after performing the Edit Compatible function. (See page 72)

■

If you add a chapter, the title is divided at that point; If you add a chapter onto a title that has only one chapter, it creates another chapter.

Deleting a chapter

4. Select a chapter you want to delete using the playback related buttons.

• Playback related buttons: ( , , , , , ).

5. Press the ◄ ► buttons to select Delete, and then press the ENTER

button. The edited title has chapters as you deleted.

■

First chapter can't be deleted.

■

Delete menu is not available if there is one chapter in the selected tilte.

■

When deleting a chapter, only the chapter marker is actually deleted, not the recorded video.

■

Deleting a chapter can't be canceled.

Editing

English - 63

DVD+RW

Chapter : 2/4 Hidden

►

Add

MOVE ENTER RETURN EXIT

HiddenDelete

Chapter Edit

00:15:00

Delete All

Return

Hiding a chapter

Follow steps 1 to 3 on page 63

4. Select a chapter you want to hide using the playback related buttons.

• Playback related buttons: ( , , , , , ).

5. Press the ◄ ► buttons to select Hidden, and then press the ENTER

button. The selected chapter is hidden.

• To ﬁ nish the operation, select Return using the ◄ ► buttons then

press the ENTER button.

If there is only one chapter, it can’t be hidden.

■

Hidden/Show menu is not avaiable if there is no chapter in the

■

selected title.

■

The hidden chapters can not be seen on other DVD players.

Hidden menu is changed to Show menu with a chapter playing

■

back. You can make the hidden chapter shown by pressing the

ENTER button at the Show menu.

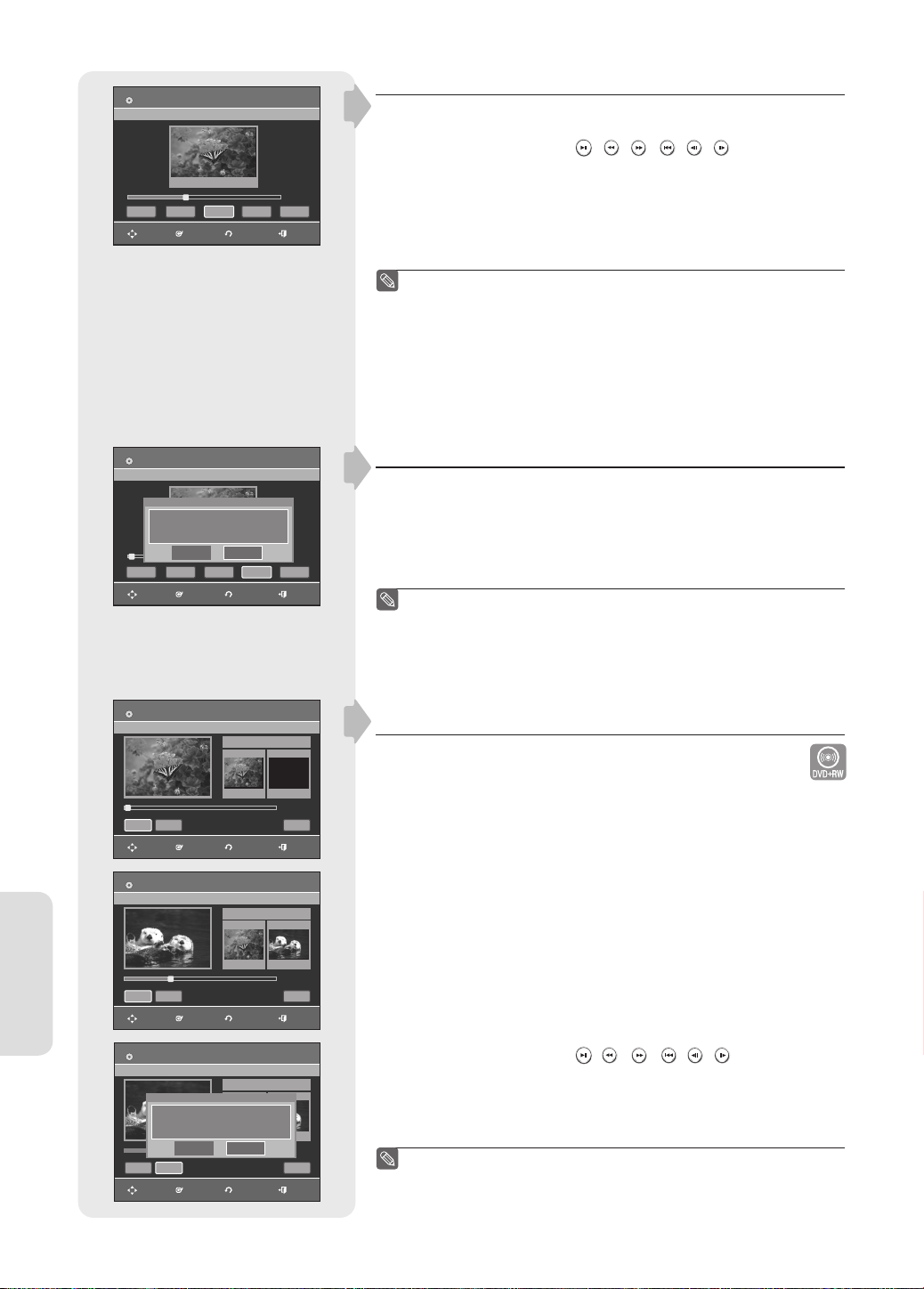

Editing

DVD+RW

Do you want to delete all chapter marks?

Yes

►

Delete Hidden

MOVE ENTER RETURN EXIT

DVD+RW

►

Point

MOVE ENTER RETURN EXIT

DVD+RW

►

Point

MOVE ENTER RETURN EXIT

DVD+RW

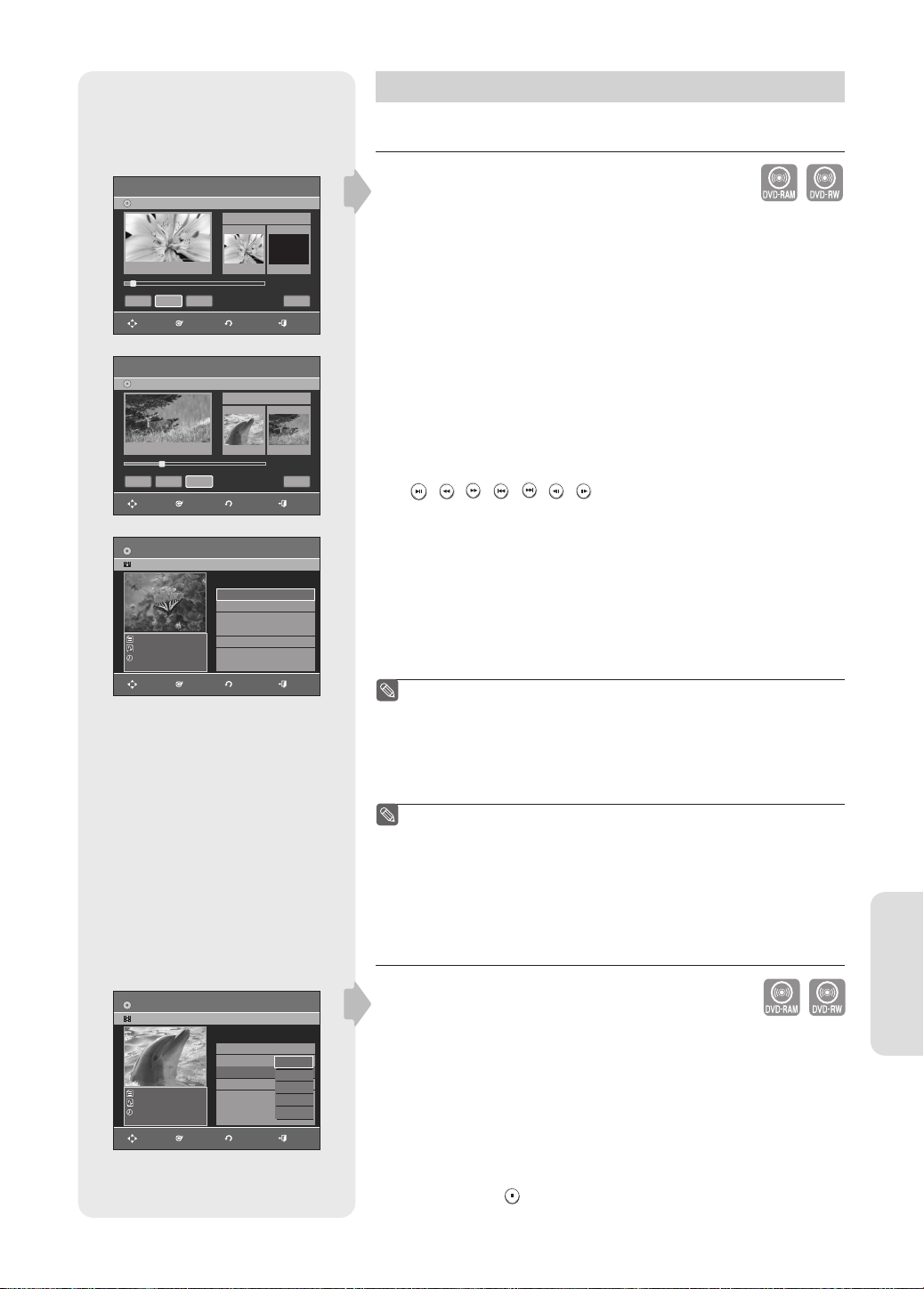

Do you want to divide the title?

(Once divided, titles cannot be merged back.)

MOVE ENTER RETURN EXIT

Delete All

Title List No. 03

Start
