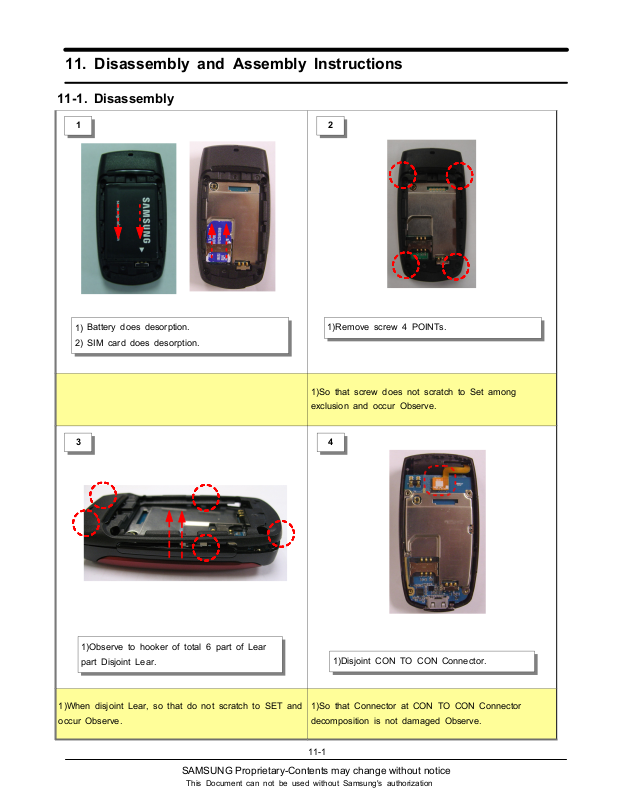

Disassembly and Assembly Instructions
11.
11-1.
Disassembly
1 2
Battery does desorption.
1)
SIM card does desorption.
2)
Remove screw4POINTs.
1)
So that screw does not scratch to Set among
1)
exclusion and occur Observe.
3 4
Observe to hooker of total6part of Lear
1)
part Disjoint Lear.
When disjoint Lear, so that do not scratch to SET and
1)
occur Observe.
Disjoint CON TO CON Connector.
1)
So that Connector at CON TO CON Connector
1)
decomposition is not damaged Observe.
11-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Page 2
Exploded View and Parts List
5 6
Disjoint PBA ASS' Y.
1)
①
Remove screw2POINTs.
1)
Disjoint Sieldken.
2)
②
Observe that take side and disjoints.
1)
7 8
Remove Poron sponge.
1)
Remove dust inflow prevention TAPE.
2)
Disjoint keypad.
3)
So that screw does not scratch to Set among
1)
exclusion and occur Observe.
FOLDER UPPER part separates FRONT
1)
segment.
Take care so that Connector CON TO CON may not
1)
be damaged.
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
When work separation, so that CON TO CON
1)
Connector is not tear Observe.
11-2
Page 3
9 10
1)
Disjoint rubber cover.
1)
2)
Exploded View and Parts List
Disjoint SCREW cover.
Remove SCREW2POINTs.
When work separation, so that CON TO CON
1)
Connector does not tear Observe.
11
Observes to hooker of total4part and disjoints
1)
FOLDER.
When disjoint, so that do not and produce scratch to
1)
LOWER Observe.
Disjoint LCD module.
1)
Disjoint speaker, motor.
2)
Take care so that group may not go to FOLDER.
1)
Take care so that LCD may not be damaged.
2)
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Take care so that camera FPCB may not be
1)
damaged.
11-3
Page 4
Exploded View and Parts List
11-2.
Assembly
1
Insert Intenna rubber.
1)
Intenna contact
rubber side view
2
①
Sildeukenfor baud arrive safe.
1)
Contract screw2POINTs.
2)
②
Take care so that Intenna or Connector may not be
1)
damaged.
3
Conclusion
region
Confirm LCD, MOT, SPK.
1)
Contract LCD module and CON TO CON.
2)
Observe for screw torque and contracts.
1)
Contract screw after Sieldcan arrives safe correctly.
2)
4
Compress windows to FOLDER LOWER.
1)
Take care so that do not become semijoint.
1)
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
11-4
Page 5
Exploded View and Parts List
5
Wire
processing
attention
Insert CON TO CON FPCB through hinge.
1)
Windows arrive safe.
2)
Speaker, motor arrive safe.
3)
Pay attention to wire settlement.
1)
Take care so that fore body may not come on
2)
windows.
Take care so that there may not be that attach CON
3)
TO CON FPCB.
6
Observes to hooker of total4part and assembles
1)
FOLDER.
Take care so that group may not go to FOLDER.
1)
Take care so that LCD may not be damaged.
2)
7
Contract SCREW2POINTs.
1
Insert SCREW cover.
2
When assemble, so that do not and produce scratch
1)
to LOWER Observe.
8
Insert rubber.
1)
Take care to be inserted perfectly.
1)
11-5
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Page 6
Exploded View and Parts List
9
When open FOLDER about
1)
120
opposite
˚
Press protruded segment of hinge to end part
of rod Insert.
When pass to FRONT's groove, pay attention to
1)
damage of LCD connector.
When insert FOLDER F-PCB for FRONT's hinge
2)
segment F-PCB That avoid being chewed.
91210
PBA arrive safe.
1)
Combine CON TO CON.
2)
Take care so that Connector may not be unfamiliar.
1)
11
After infix from lower column department hook part
1)
in order Assemble Lear.
Confirm FOLDER tension.
1)
Confirm GAP.
2)
Contract screw4POINTs.
1)
Take care so that damage may not go to SET.
1)
11-6
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
