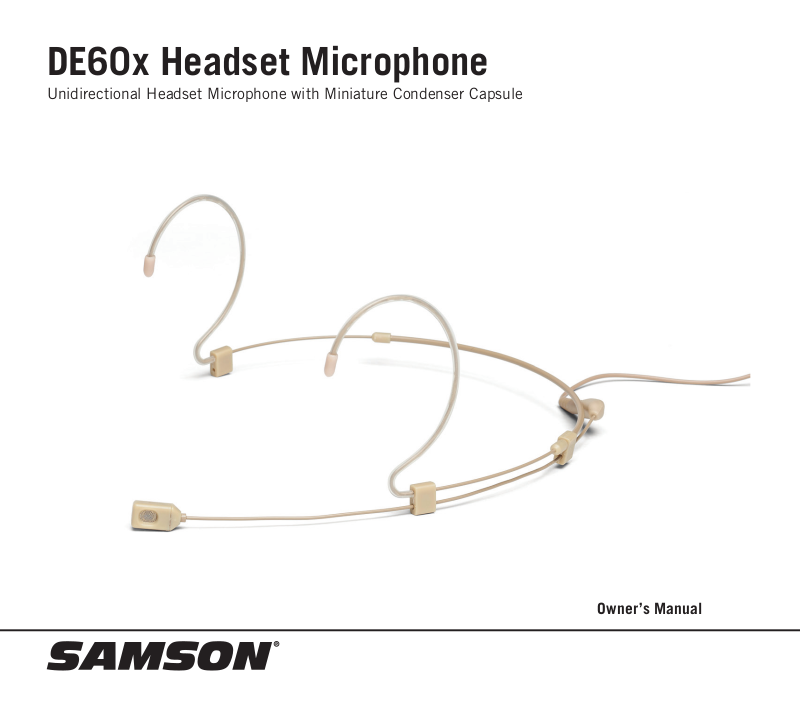

DE60x Headset Microphone
Unidirectional Headset Microphone with Miniature Condenser Capsule
Owner’s Manual
If you want to dispose this product, do not mix it with general household waste. There is a
separate collection system for used electronic products in accordance with legislation that
requires proper treatment, recovery and recycling.
Private household in the 28 member states of the EU, in Switzerland and Norway may return their
used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).
For Countries not mentioned above, please contact your local authorities for a correct method of
disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery
and recycling and thus prevent potential negative effects on the environment and human health.
Copyright 2019, Samson Technologies Corp.
v1.1
278-B Duffy Ave
Hicksville, New York 11801
Phone: 1-800-3-SAMSON (1-800-372-6766)
www.samsontech.com
Other trademarks and trade names are those of their respective owners.
2
Introduction
Congratulations on your purchase of the Samson DE60x Headset Microphone. The DE60x is a low
profile, miniature condenser headset microphone with a 7.35mm flat capsule. With its unidirectional
pickup pattern, the DE60x provides superb isolation, resulting in more gain before feedback with
clear and articulate sound in live sound applications. The microphone has been specially treated
with a water resistant coating providing extra protection from sweat and other moisture. In addition,
there is a moisture guard drip-ring to further protect the capsule and ensure reliable performance.
The DE60x Headset Microphone is well-suited for use with Samson wireless systems, and with four
included adapter cables, the microphone can be used with most popular wireless systems. Other
accessories included in the kit are a clothing collar clip, four windscreens and a carry case that
holds the DE60x and all the accessories.
In the box, you’ll find a registration card enclosed, don’t forget to follow the instructions so that you
can receive online technical support and so we can send you updated information about this and
other Samson products in the future. We recommend you keep the following records for reference,
as well as a copy of your sales receipt.
Serial number: __________________________ Date of purchase: ___________________________
If you have any questions or comments regarding the DE60x Headset Microphone or any other
products from Samson, do no hesitate to contact us at support@samsontech.com.
With proper care and maintenance, your DE60x Headset Microphone will operate trouble-free for many
years. Should your DE60x Headset Microphone ever require servicing, a Return Authorization (RA) number
must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted.
Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the
original packing materials and, if possible, return the unit in its original carton. If your DE60x Headset
Microphone was purchased outside of the United States, contact your local distributor for warranty details
and service information.
3DE60x Headset Microphone
Features
• Headset microphone with 7.35mm miniature condenser mic capsule
• Low-profile, double ear design with adjustable frame
• Ideal for live and broadcast vocal applications
• Unidirectional (cardioid) pickup pattern
• 20Hz–20kHz frequency response
• Gold-plated connector, moisture-resistant coating and stainless steel mesh grille
• Dust and water/sweat-resistant rated at IP65
• Includes four detachable adapter cables: 1/8” [3.5mm], Hirose® 4-Pin, Switchcraft® TA3F,
Switchcraft® TA4F for compatibility with most popular wireless transmitters
• Four windscreens, collar clip and protective carry case included
4
Fitting the DE60x Microphone
The headset can be re-sized by sliding the
ear hooks to fit snug around your head. If the
DE60x is loose and will not stay in place, slide
the ear hook wires back for a tighter fit.
Adjust the microphone position by holding the
left ear hook wire and slide the boom forward or
back. For optimum performance the microphone
should be close to the skin and towards the
corner of the mouth, approximately a half inch
away.
Position the moisture guard ring as close to the
capsule as possible.
For outdoor use and to help reduce p-popping,
install one of the included windscreens.
5DE60x Headset Microphone
Connector Cables
The DE60x includes four cables with adapters for some of the most popular wireless microphone
beltpack transmitters.
3.5mm Connector
Works with Sennheiser® wireless systems
®
4-Pin Connector
Hirose
Works with most Audio-Technica® wireless systems
Switchcraft® TA3F Connector
Works with Samson AirLine ATX Series, Concert Series and most AKG® wireless systems
®
Switchcraft
Works with most Shure® wireless systems
TA4F Connector
6
Connector Cables

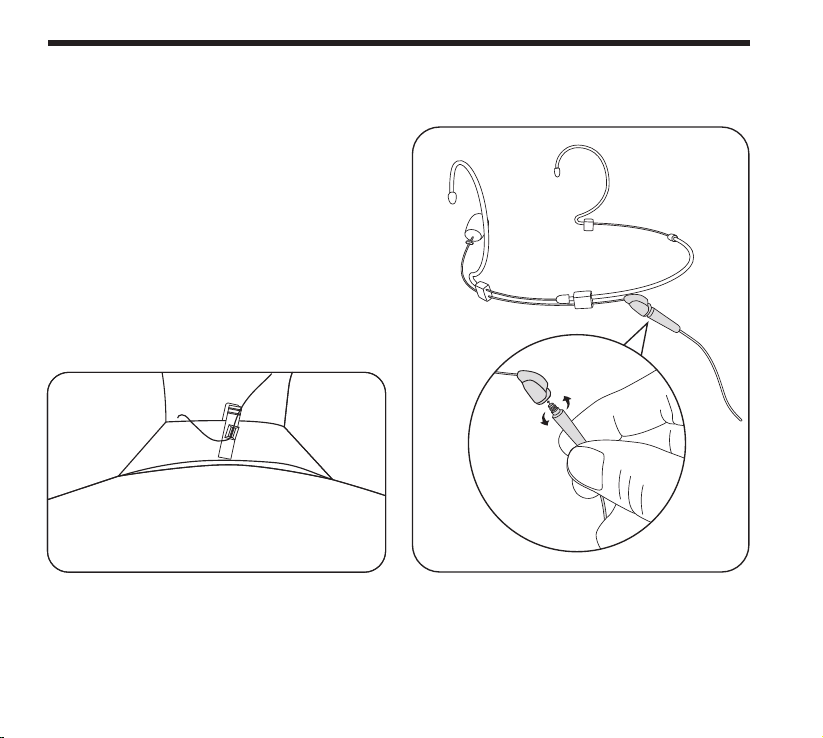

To connect the cable to the headset:
1. Choose the right cable and connector that
works with your wireless system.
2. Line the cable up to the threaded terminal
on the back of the DE60x and screw the
cable into the headset. Do not over tighten
the cable.
3. Attach the included collar clip on the back
of your shirt collar and run the mic wire
from the DE60x headset to the wireless
body pack. Leave enough cable to allow you
to turn your head from side to side.
7DE60x Headset Microphone
Mic Positioning
The DE60x microphone is designed to be worn with the boom arm under the left ear. For optimal
placement please follow the directions below:
Position the DE60x microphone element about
0.25” –1” behind the corner of your mouth.
Since the DE60x is a unidirectional capsule,
the low frequency characteristics will change
depending on the position of the microphone
from the sound source. To avoid breath noise
and p-pops, do not place the microphone
directly in front of your mouth.
8
If the microphone is too far away from your
mouth you will need to increase the gain and
reduce isolation.
To minimize additional noise, do not locate the
microphone tight against your cheek.
Specifications
Element Back electret condenser
Capsule Dimension 7.35mm
Polar pattern Cardioid (Unidirectional)
Frequency Response 50Hz–18KHz
Sensitivity -45dB 1V/Pa ±3dB at1kHz
Output impedance 2kΩ ±30%
SPL max 135 dB
Operating voltage 0.8–5V DC
Cable 4x ø1.4mm*1.2m
Weight 13g
Headset Dimensions (LxDxH) 5.3” x 4” x 2.7” / 135mm x 101.2mm x 68.2mm
Included Adapter Cables 1/8” (3.5mm), Hirose
Switchcraft® TA4F
Accessories (4) Windscreens, Clothing Collar Clip, Carry Case
®
4-Pin, Switchcraft® TA 3F,
At Samson, we are continually improving our products, therefore specifications and images are
subject to change without notice.
9DE60x Headset Microphone

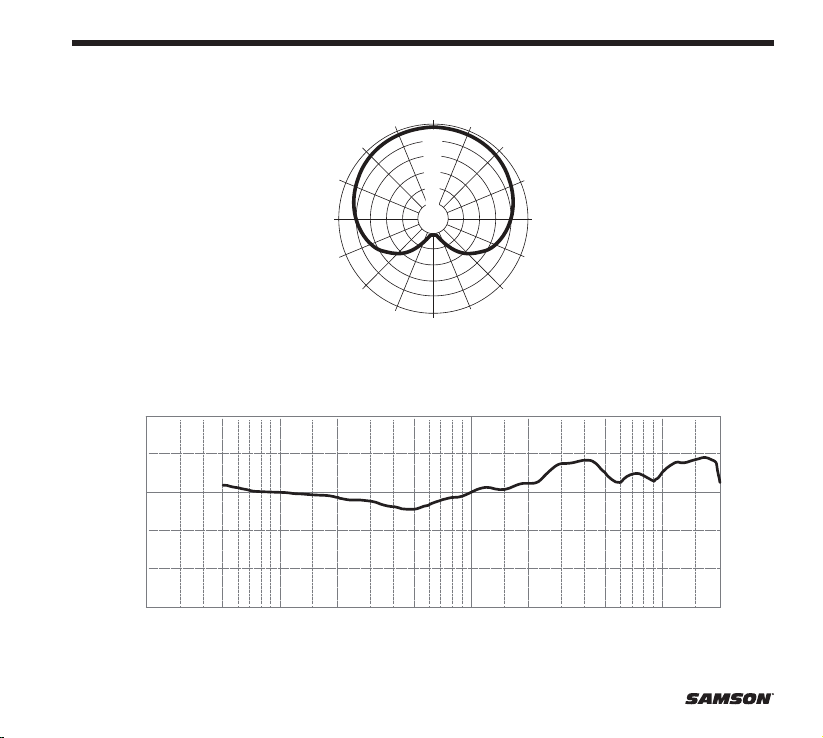

Specifications
45°
0°
-5
-10
-15
-20
-25
dB
45°
90°90°
10
135°
dB
10
0
-10
-20
20 50 100 200 500
Frequency Response
135°
180°
Polar Pattern
1000 2000 5000 10000 20000 Hz
Frequency in Hz
