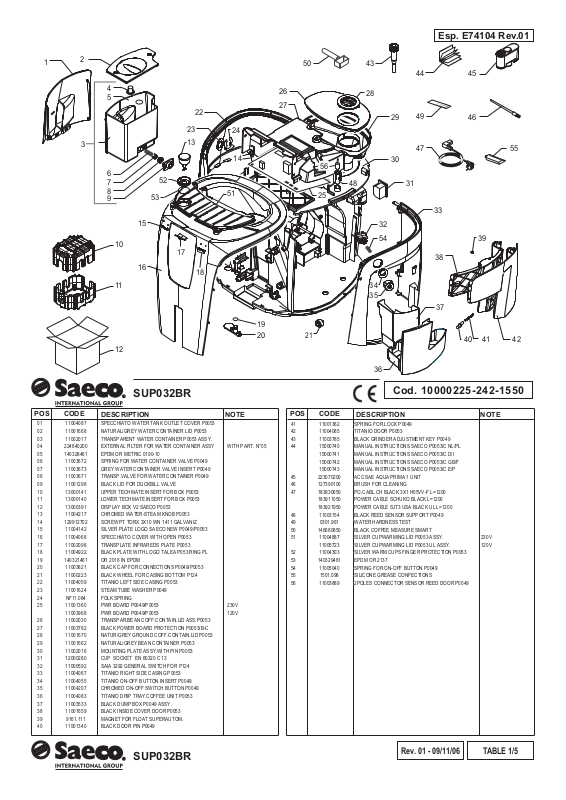

Page 1

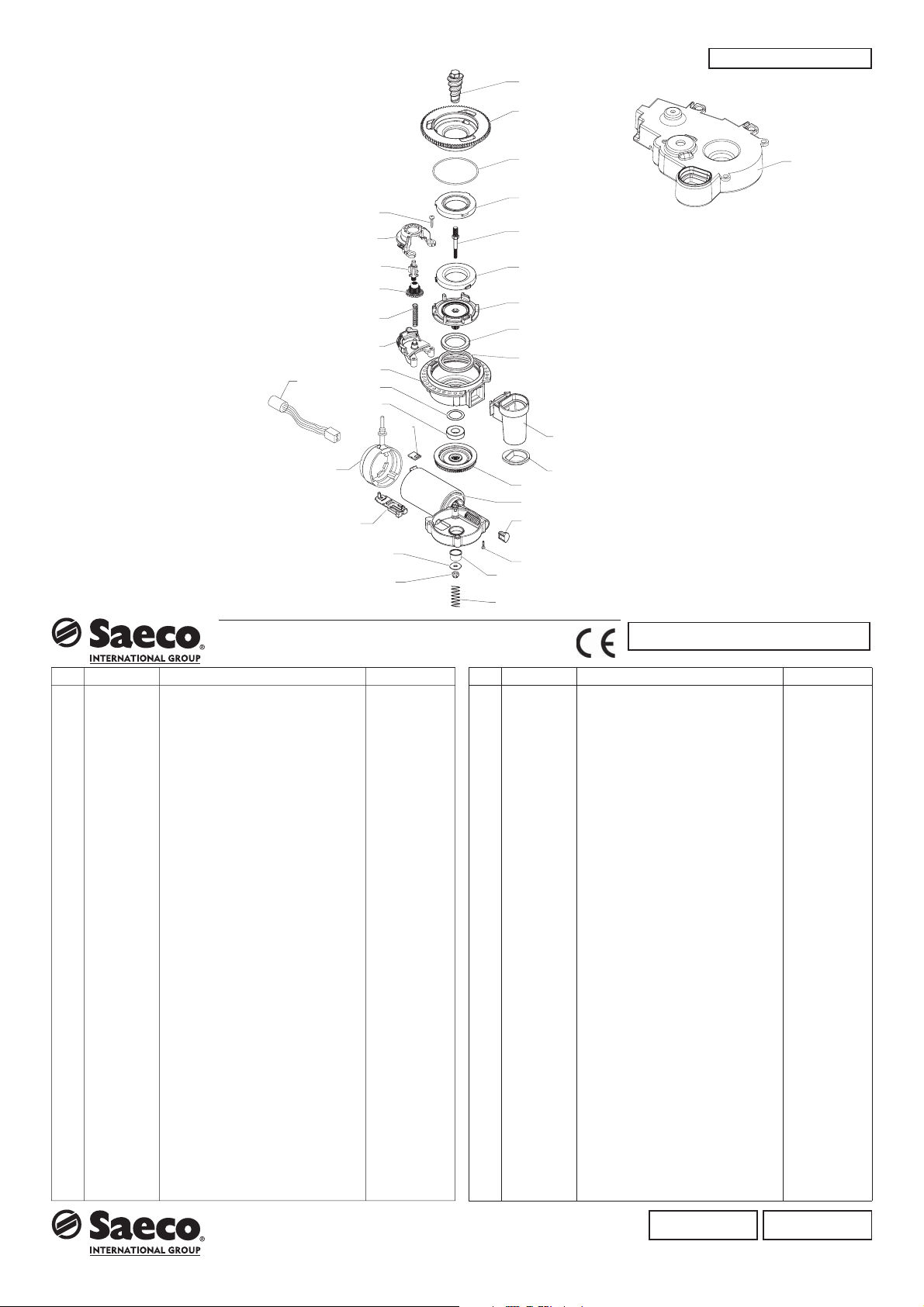

Esp. E74104 Rev.01
1
2
50
43
44 45
4
5
22
23
3
13
24
14
6
7
8
9
53
52
51
26
27
25
56
48
28
49
29
47 55
30
31
46
33
10
11
15
16
17
18
34
32
54
39
38
35
37
19
20
21
40 41
42
12
SUP032BR
POS CODE
01 11004087 SPECCHIATO WATER TANK OUTLET COVER P0053
02 11001668 NATURAL/GREY WATER CONTAINER LID P0053
03 11002017 TRANSPARENT WATER CONTAINER P0053 ASSY.
04 224640200 EXTERNAL FILTER FOR WATER CONTAINER ASSY WITH PART. N°05
05 140328461 EPDM OR METRIC 0190-10
06 11003672 SPRING FOR WATER CONTAINER VALVE P0049
07 11003673 GREY WATER CONTAINER VALVE INSERT P0049
08 11003671 TRANSP.VALVE FOR WATER CONTAINER P0049
09 11001298 BLACK LID FOR DUCKBILL VALVE
10 13000141 UPPER TECHMATE INSERT FOR BOX P0053
11 13000140 LOWER TECHMATE INSERT FOR BOX P0053
12 13000391 DISPLAY BOX V2 SAECO P0053
13 11004217 CHROMED WATER-STEAM KNOB P0053
14 129912702 SCREW PT TORX 3X10 WN 1411 GALVANIZ
15 11004142 SILVER PLATE LOGO SAECO NEW P0049/P0053
16 11004068 SPECCHIATO COVER WITH OPEN P0053
17 11002096 TRANSPLATE INFRAREDS PLATE P0053
18 11004922 BLACK PLATE WITH LOGO TALEA P053 RING PL
19 140321461 OR 2018 IN EPDM
20 11003821 BLACK CAP FOR CONNECTIONS P0049/P0053
21 11000223 BLACK WHEEL FOR CASING BOTTOM P124
22 11004059 TITANIO LEFT SIDE CASING P0053
23 11001624 STEAM TUBE WASHER P0049
24 NF11.084 FOLK SPRING
25 11001360 PWR BOARD P0049/P0053 230V
11003968 PWR BOARD P0049/P0053 120V
26 11002030 TRANSPAR.BEAN COFF.CONTAIN.LID ASS.P0053
27 11003782 BLACK POWER BOARD PROTECTION P0053/B-C
28 11001670 NATUR/GREY GROUND COFF.CONTAIN.LID P0053
29 11001662 NATURAL/GREY BEAN CONTAINER P0053
30 11002016 MOUNTING PLATE ASSY.WITH PIN P0053
31 12000280 CUP SOCKET EN 60320 C 13
32 11000592 SAIA 3292 GENERAL SWITCH FOR P124
33 11004067 TITANIO RIGHT SIDE CASING P0053
34 11004055 TITANIO ON-OFF BUTTON INSERT P0049
35 11004207 CHROMED ON-OFF SWITCH BUTTON P0049
36 11004083 TITANIO DRIP TRAY COFFEE UNIT P0053
37 11003533 BLACK DUMP BOX P0049 ASSY.
38 11001659 BLACK INSIDE COVER DOOR P0053
39 9161.111 MAGNET FOR FLOAT SUPERAUTOM.
40 11001340 BLACK DOOR PIN P0049
DESCRIPTION NOTE
36
Cod. 10000225-242-1550
POS CODE
41 11001362 SPRING FOR LOCK P0049
42 11004085 TITANIO DOOR P0053
43 11003785 BLACK GRINDER ADJUSTMENT KEY P0049
44 15000740 MANUAL INSTRUCTIONS SAECO P0053/C NL/PL
15000741 MANUAL INSTRUCTIONS SAECO P0053/C D/I
15000742 MANUAL INSTRUCTIONS SAECO P0053/C GB/F
15000743 MANUAL INSTRUCTIONS SAECO P0053/C E/P
45 223070200 ACC SAE AQUA PRIMA 1 UNIT
46 127390100 BRUSH FOR CLEANING
47 183930650 PO.CABL.CH BLACK 3X1 H05VV-F L=1200
183911050 POWER CABLE SCHUKO BLACK L=1200
183921950 POWER CABLE SJT3 USA BLACK UL L=1200
48 11003154 BLACK REED SENSOR SUPPORT P0049
49 0301.961 WATER HARDNESS TEST
50 146680850 BLACK COFFEE MEASURE SMART
51 11004887 SILVER CUPWARMING LID P0053 ASSY. 230V
11005723 SILVER CUPWARMING LID P0053 UL ASSY. 120V
52 11004303 SILVER WARM CUPS FINGER PROTECTION P0053
53 140329461 EPDM OR 2137
54 11005040 SPRING FOR ON-OFF BUTTON P0049
55 1501.098 SILICONE GREASE CONFECTIONS
56 11003889 2POLES CONNECTOR SENSOR REED DOOR P0049
DESCRIPTION NOTE
SUP032BR
Rev. 01 - 09/11/06
TABLE 1/5
Page 2

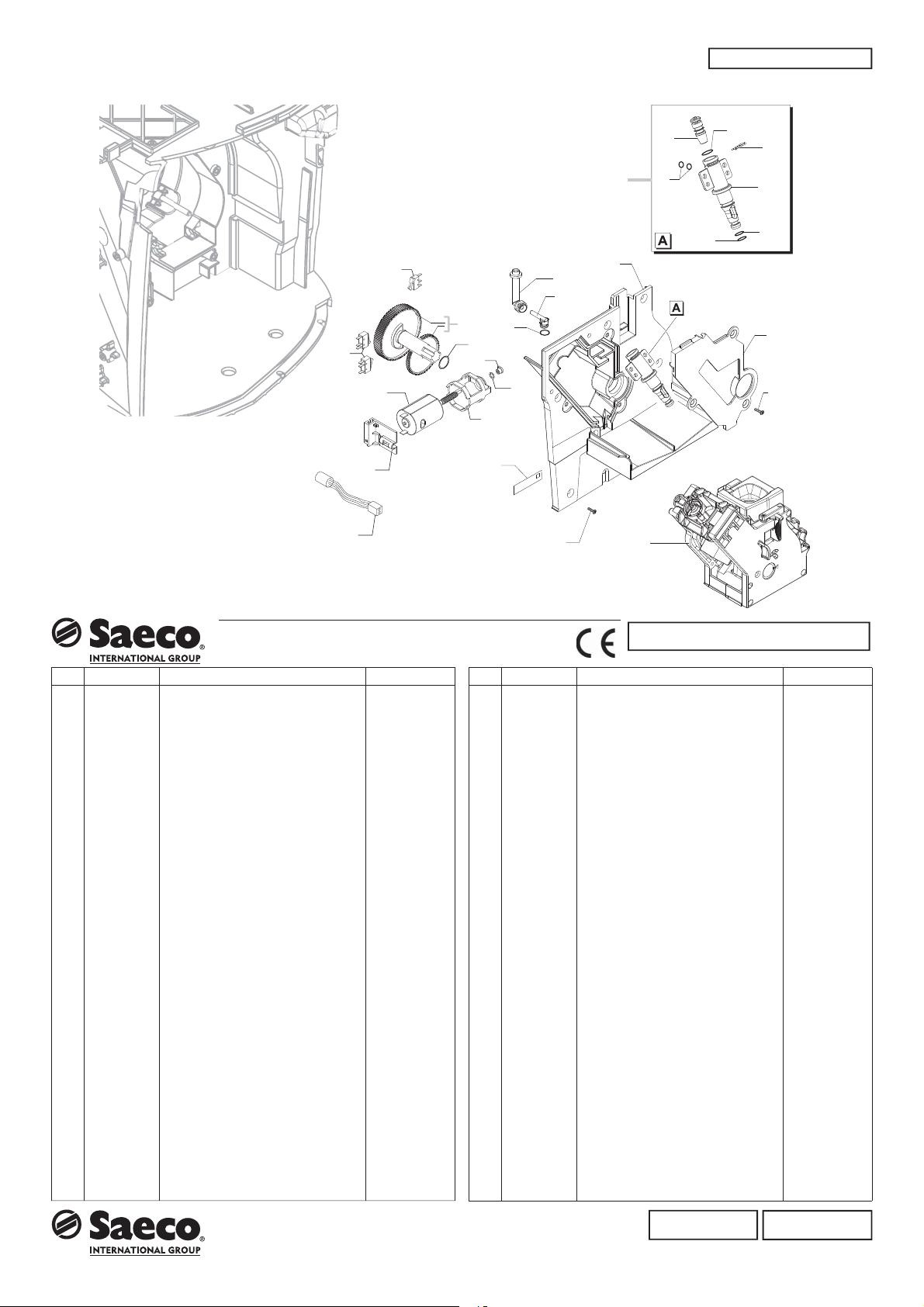

Esp. E74104 Rev.01
14
13
12
11
15
16
19
17
20
21
18
36
22
23
24
25
28
26
44
27
8
7
5
10
3
1
2
4
9
6
40
SUP032BR
POS CODE
01 11003168 CHROM.PLAT.CREAM ADJUSTMENT KNOB P124 AS
02 11000288 INTERNAL CONNECTOR FOR COFFEE DISPENSER
03 11002110 AMBRA COFFEE DISPENSER LENS P0053
04 11004208 CHROMED FRONT COFFEE DISPENSER COVER
05 11002111 BLACK CAP COFFEE DISPEN.HEAD BODY P0053
06 11002049 BLACK COFFEE DISPENSER BODY P0053
07 11004119 CHROMED REAR COFFEE DISPENSER COVER
08 11003223 SPECCH.DISPLAY FRONT PLATE P0053/C ASSY.
09 11004098 SPECCHIATO FRONT PANEL SUPPORT P0053/C
10 12000002 24 X 2 LCD DISPLAY
11 11002102 BLACK DISPLAY SUPPORT P0053/C
12 129912702 SCREW PT TORX 3X10 WN 1411 GALVANIZ
13 20000652 KIT SPARES CPU P0053/C+FAUCET BOARD 3SEN
11004849 AS.CPU+SW V1 P0053/C
14 11002112 BLACK BROW SUPPORT P0053
15 149198700 SUPPORT CREAM ADJUSTMENT SHAFT
16 140326661 OR METRIC 0040-20 IN EPDM
17 126772518 SPRING FOR CREAM ADJUSTMENT SHAFT
18 140640200 CREAM ADJUSTMENT SHAFT
19 11000290 BLACK COFFEE DISPENSER TUBE P124
20 12000070 OR METRIC 0060-15 IN SILICONE
21 9011.144 FORK FOR TUBE D.4
22 11001766 TEFLON TUBE 2X4 L=125 MM ASSY
23 140328059 OR 2015 IN SILICONE PTFE/FDA
24 12000450 SCREW TORX T10 3,5X12 UNI9786 GALVANIZED
25 11002130 FAST LOCK CONNECTOR FOR EROGATOR P0053
26 11001337 BLACK TUBE TEFLON INSERT P0049
27 12000065 SAIA UCB MOTOR FOR P124 MOBILE TRAY
28 11002204 BLACK DRIP TRAY GUIDE P0053
29 11000662 MICROSWITCH DRIP TRAY P124 ASSY. 230V
11004447 MICROSWITCH DRIP TRAY P124 UL ASSY. 120V
30 11000113 BLACK WHELL FOR DRIP TRAY SUPPORT P124
31 11000224 INSERT FOR ADJUSTMENT TRAY WHEEL P124
32 11000115 FIXING PLATE FOR FEEDING SCREW P124
33 11000081 GEAR Z=17 FOR MOBILE TRAY SUPPORT P124
34 11002293 BLACK LOWER DRIP TRAY PROT.SUPPORT P124
35 11000586 MOBILE DRIP TRAY GEARS SHAFT P124
36 11004095 SPECCHIATO GRATE FOR DRIP TRAY P0053
37 11004185 AMBRA FLOAT FOR DRIP TRAY P0049
DESCRIPTION NOTE
WITH
UP TO S/N 9006SA40281741
FROM S/N 9006SA40281742
PART.N°21 TAB.3
37
38
30
33
39
41
42
43
12
Cod. 10000225-242-1550
POS CODE
38 11004094 CARBONA DRIP TRAY P0053
39 11004089 CARBONA DRIP TRAY SUPPORT P0053
40 11003399 SPECCH. DRIP TRAY SUPPORT PROTECT.P0053
41 11002184 BLACK SENSOR BOARD SUPPORT P0053/C-D
42 11000585 MOBILE DRIP TRAY SENSOR BOARD P124
43 11002181 BLACK COVER FOR SENSORS CABLES P0053C-D
44 129911402 SCREW TCB TORX 3,5X8,5 BLAC.CLIPPED
DESCRIPTION NOTE
30
29
32
31
12
12
34
33
35
SUP032BR
Rev. 01 - 09/11/06
TABLE 2/5
Page 3

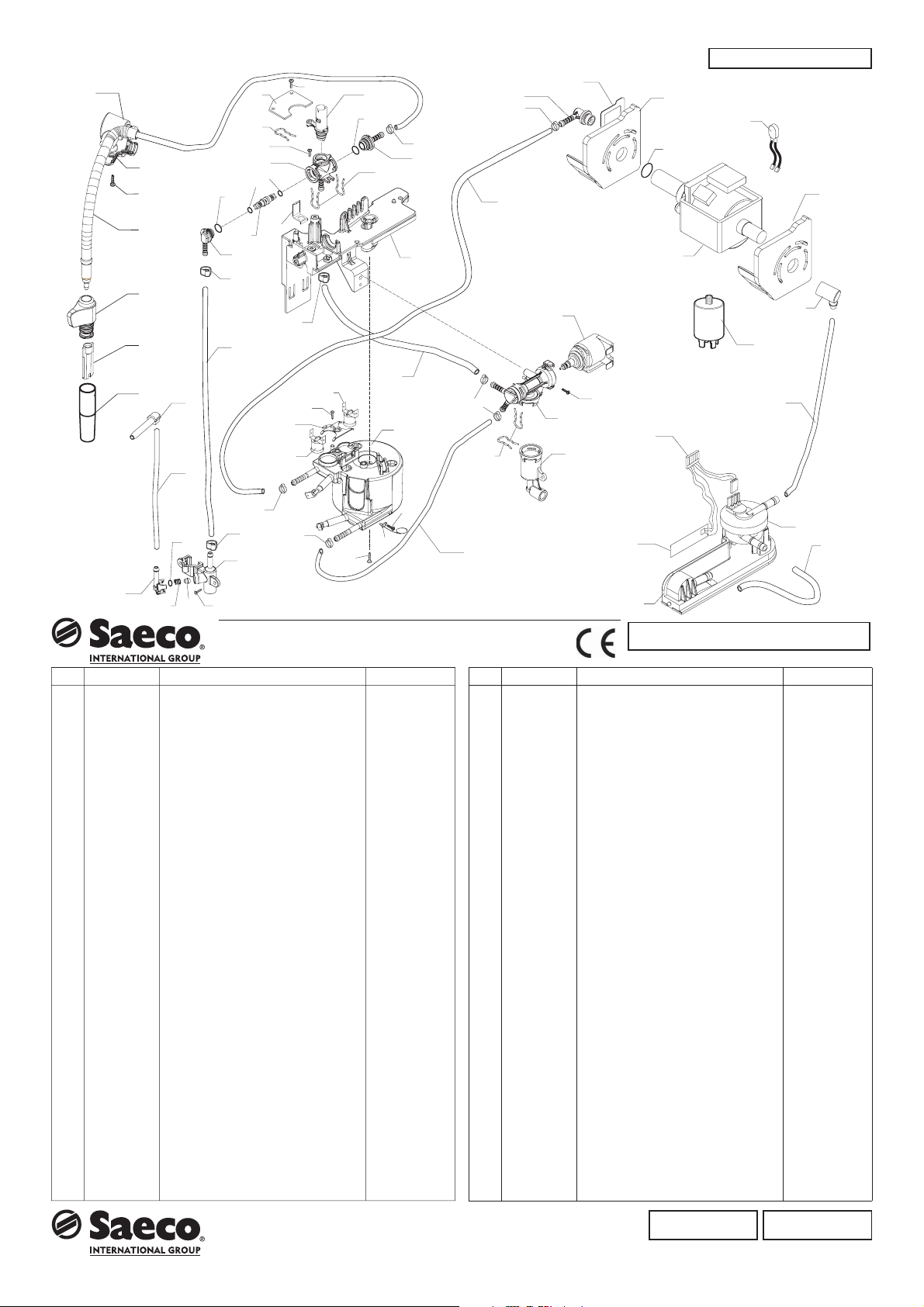

Esp. E74104 Rev.01
34
32
38
33
40
41
42
40
43
37
35
3
9
46
36
53
24
16
39
14
25
26
22
18
27
1
21
22
51
2
23
19
3
4
16
20
17
14
5
14
6
18
18
29
28
49
28
14
30
51
7
8
9
14
14
15
14
31
50
11
12
13
10
52
SUP032BR
POS CODE
01 11004196 CHROMED UPPER STEAM TUBE COVER P0049
02 11004197 CHROMED LOWER STEAM TUBE COVER P0049
03 129912202 SCREW TCB TORX T10 3X12 UNI 9786 ZN
04 11003122 STEAM TUBE P0049 ASSY.
05 11001625 STEAM TUBE HANDGRIP P0049
06 11001620 PANNARELLO INTERNAL TUBE P0049
07 11001621 STAINLESS STEEL COVER PANNARELLO P0049
08 11001630 MILK ISLAND DESCARGING WATER CONNECTION
09 149360200 SILICONE TUBE 5X8 70SR IN ROLL
10 140321462 OR 2018 IN SILICONE
11 11000460 BLACK CONNECTOR FOR VALVE P0054
12 126772618 SPRING FOR CREAM ADJUSTMENT VALVE
13 11000461 INSERT FOR SAFETY VALVE P0054
14 12000361 OETIKER CLAMP D=9 16702491
15 11000459 BLACK CONNECTOR FOR P0054
16 12000042 OR 108 IN VITON FDA 70 SH
17 11001544 FAUCET CONNECTOR P0049
18 16000190 4,2X8,2 SILICON TUBE IN ROLL
19 12000541 OR 2012 IN VITON FDA 70 SH
20 11004134 BRASS FAUCET SHAFT P0049
21 20000652 KIT SPARES CPU P0053/C+FAUCET BOARD 3SEN
11004842 TAP ELECTRONIC CARD P0049/P0053-V1 5V
22 11001499 FORK SPRING FOR FAUCET P0049
23 11001545 FAUCET CASING P0049
24 11004135 PLAST/BRASS FAUCET SHAFT P0049 ASSY.
25 NF11.052 OETIKER CLIP
26 11001546 FAUCET STRAIGHT CONNECTOR P0049
27 11001332 SUPPORT FOR BOILER-FAUCET-VALVE P0049
28 189428600 THERMOSTAT 175° 1NT-08L-5125
29 11001751 THERMOSTATES SPRING FOR BOILER
30 11001750 ALUM.BOILER/V3 1300W ASSY.
11005608 ALUM.BOILER/V3 1300W ASSY.
31 190800100 TEMPERATURE SENSOR NTC UL L=280MM
32 20000591 BLOWDOWN VALVE CASING P0049 ASSY.
33 20000592 BLOWDOWN VALVE CONNECTOR P0049 ASSY.
34 20000590 BLOWDOWN VALVE COIL P0049 230V ASSY. 230V
20000680 BLOWDOWN VALVE COIL P0049 120V ASSY. 120V
35
12000005 ANTIDISTURB FILTER 10A FNC 1005474103P 230V
12000007 ANTIDISTURB FILTER 16A FNC 1610474472P
DESCRIPTION NOTE
UP TO S/N 9006SA40281741
FROM TO 9006SA40281742
WITH
230V
120V
120V
PART.N°13 TAB.
18
47
48
Cod. 10000225-242-1550
POS CODE
36
11002957 FAUCET SPRING P0049
37
147920150 90° CONNECTOR PUMP INLET
38
11004776 STEEL BRACKET PUMP SUPPORT P0049
39
11001054 90°CONNECTOR PUMP OUTLET P0049/B
40 11001365 BLACK PUMP SUPPORT P0049
41 11001778 2POLES CONNECTOR PUMP P0049 230V
11005668 2POLES CONNECTOR PUMP P0049 UL 120V
42 140321961 OR 2031 IN TERMOIL
43 12000140 ULKA PUMP EP5/S GW 230V-50HZ
12000131 ULKA PUMP EP5/S 120V-60HZ
44
45
46
11005648 6 POLES CONNECT.LEVEL+FLOWMETER P0049 UL
47
48
49 129573202 SCREW TCB PH/TT 4X8 UNI 8112 ZNP
50 129932502 GALVANIZDE SELF DRILLING SCREW 5X30
51 11005096 FORK SPRING FOR VALVE P0049
52 U143.016 screw TORX TCB 3,5X9,5 BLACK
2
53 129912702 SCREW PT TORX 3X10 WN 1411 GALVANIZ
11001549 FAUCET P0049/B-P0053 ASSY.
WITH PART. N°16-17-19-20-22-23-24-26
11001543 BLOWDOWN VALVE P0049 230V ASSY.
11005604 BLOWDOWN VALVE P0049 120V ASSY.
WITH PART. N°32-33-34-51
11001806 ALUM.BOILER P0053 230V ASSY.
11005618 ALUM.BOILER P0053 120V ASSY.
JS01.022 SILICONE TUBE 5X10 60 SHORE IN ROLL
NV99.099 DIGMESA TURBINE FHKSC 1,2 ARNITE OC
11001790 6POLES CONNECTOR LEVEL+FLOWMETER P0049 230V
11000651 WATER LEVEL SENSOR BOARD P124
11003670 BLACK TURBINE SUPPORT/V2 P0049
DESCRIPTION NOTE
44
45
120V
SUP032BR
Rev. 01 - 09/11/06
TABLE 3/5
Page 4
Esp. E74104 Rev.01
1
2
32
27
28
17
18
19
20
21
22
23
24
25
29
30
26
15
16
3
4
5
4
6
7
8
11
12
13
14
31
9
10
SUP032BR
POS CODE
01 9141.001
02 149198250 UPPER GRINDER SUPPORT COFFEEGRINDER
03 140328960 NBR FDA OR METRIC 0530-15
04 146520100 BAKED CLAY KLAGER GRINDER 48X28
05 127473603 STEEL PIN M4-M6 FOR INCREMENT SCREW
06 149198350 LOWER GRINDER SUPPORT COFFEEGRINDER
07 123030300 AXIAL BEARING EKKO 342.35252
08 140360500 FELT RING 45,4X39,4X4
09 222870250 GROUND COFFEE OUTLET CONVEYOR ASSY.
10 145854462 GROUND COFFEE CONT.SEAL LOWER SMART1
11 226000300 GEAR SX Z=38 FOR GRINDER MOTION ASSY.
12 11000513 MOTOR COFFEEGRINDER/V3.1 DOMEL ASSY
11000511 MOTOR COFFEEGRINDER/V3.1 DOMEL ASSY
13 149214800 CAP FOR WORM SCREW MC/V3 CENTRING
14 129661702 PANELVIT TCB SCREW 3,5X25 D.7505 ZN
15 11002873 INSULATOR BUSH FOR GRINDER MOTOR P124
16 11000597 COFFEE GRINDER SUPPORT SPRING P124
17 129660102 PANELVIT TCB SCREW 3,5X18 D.7505 Z
18 11002508 UPPER GEAR SUPPORT COFFEEGRINDER P124
19 11003446 BLACK INSERT FOR COFFEE GRINDER P0049
20 11003784 COFFEE GRINDING ADJUSTMENT GEAR P0049
21 11002572 GRINDER REGULATION SPRING P124
22 11002613 LOWER GEAR SUPPORT COFFEEGRINDER P124
23 149205450 SWITCH+SOCKET POWER CABL.SUPP.SMART
24 128381800 CRINKLE WASHER 21,8X15,8X0,2
25 123030200 RADIAL BEARING 61900.2RS1
26 181540900 ELECTRONIC BOARD WITH SENSOR HAL506
27 11001367 BLACK COFFEE GRINDER SUPPORT P0049
28 149199050 SENSOR SUPPORT FOR COFF.GRIND.MOTOR
29 128381902 GALVAN.FLAT WASH.DI=4,3 DE=14 SP=1,5
30 123453102 SELF LOCK NUT M4 DIN 982 HIGH GALV.
31 11001826 SOUNDPROOFING COVER FOR COFGRINDER P0053
32 11003449 5POLES CONNECTOR MC SENSORS P0049 230V
11005658 5POLES CONNECTOR MC SENSORS P0049 UL 120V
11001744 GENERAL MOTOR MC ASSY P0049 230V
11005606 GENERAL MOTOR MC P0049 120V ASSY.
DESCRIPTION NOTE
SCREW OF INCREMENT
230V
120V
POS CODE
Cod. 10000225-242-1550
DESCRIPTION NOTE
SUP032BR
Rev. 01 - 09/11/06
TABLE 4/5
Page 5
Esp. E74104 Rev.01
09
23
15
09
10
11
12
14
22
13
20
2
3
1
4
5
6
8
7
21
24
2524
SUP032BR
POS CODE
01 11001991 PIN FOR BOILER P049/B ASSY.
02 11000692 NIKELED BRASS CAP FOR PIN BOILER P119
03 140328059 OR 2015 IN SILICONE PTFE/FDA
04 140324459 OR METRICO 0060-20 SILICON.PTFE/FDA
05 9011.144 FORK FOR TUBE D.4
06 11003825 PIN FOR BOILER P119
07 NM01.035 OR ORM 0090-20 SILICONE
08 NM01.057 OR ORM 0050-20 SILICONE
09 NE05.038 MICROSWITCH
10 20000455 SPARES KIT GEARS FOR RATIOMOTOR P124
11 9161.132 MYLAR WASHER FOR RATIOMOTOR
12 9121.046 SINTERED BUSH FOR MOTOR
13 148380200 WASHER BAKELIZZATE D=5,5
14 9121.044 ANTIVIBRATION FOR MOTOR
15 11005213 SME MOTOR FOR RATIOMOTOR ASSY.
16 11001331 BLACK MICROSWITCH SUPPORT DUMP BOX P0049
17 11004086 VALVE DESCARGING WATER 90° CONNECTOR
18 11003648 COVER DESCARGING WATER 90° CONNECTOR
19 140325462 OR METRIC 0070-20 IN SILICONE
20 11001079 BLACK COVER FOR MOUNTING PLATE P0049
21 11001312 BLACK COVER FOR VAIN BOILER P0049
22 11000651 WATER LEVEL SENSOR BOARD P124
23 11003899 10POL.CONNEC.W/REED PLATE UNIT P0049 ASS 230V
11003661 REED SENSOR MK3-1A66-BV16451 120V
24 129914102 SCREW K 35X12 WN 1423 GALVANIZED
25 11002145 BLACK BREW UNIT 8GR. P124/SBS
DESCRIPTION NOTE
SEE TAB. COD. EXP. E90042
POS CODE
Cod. 10000225-242-1550
DESCRIPTION NOTE
SUP032BR
Rev. 01 - 09/11/06
TABLE 5/5
Loading...
