Operating Guide Version 1.0 for 2007 Sabine Navigators with:

Navigator Firmware Version 6.0 and up • Navigator Remote Software Version 6.0 and up

NOTES

TABLE OF CONTENTS

Table of Contents

Notes

Summary of Features.......................................................................................................................................................... 3

Section One: Introduction ................................................................................................................................................. 6

Section Two: Front & Back Panel Views ............................................................................................................................ 7

Section Three: Navigator Applications .............................................................................................................................. 8

3.1 INSTALLED AUDIO ...................................................................................................................................................................... 8

3.2 PRODUCTION AUDIO ................................................................................................................................................................. 9

Section Four: Using Navigator Front Panel Controls ...................................................................................................... 10

4.1 QUICK START GUIDE TO THE NAVIGATOR FRONT PANEL ................................................................................................... 11

Section Five: Operating the Navigator ............................................................................................................................ 12

5.1 INPUT MENUS ........................................................................................................................................................................... 12

5.2 OUTPUT MENUS ....................................................................................................................................................................... 15

5.3 GLOBAL PARAMETERS MENUS .............................................................................................................................................. 17

5.4 INPUT/OUTPUT REFERENCE GUIDE ...................................................................................................................................... 20

5.5 FEEDBACK CONTROL AND PARAMETRIC EQUALIZATION .................................................................................................. 21

5.6 FBX OPERATING INSTRUCTIONS............................................................................................................................................ 22

Section Six: Using Navigator Remote Software ............................................................................................................. 24

6.1 SYSTEM REQUIREMENTS AND RECOMMENDATIONS ........................................................................................................ 24

6.2 CONNECTIONS ......................................................................................................................................................................... 24

6.3 INSTALLING AND USING THE SOFTWARE .............................................................................................................................. 25

6.4 UPGRADING NAVIGATOR FIRMWARE AND SOFTWARE ....................................................................................................... 25

6.5 NAVIGATOR REMOTE CONTROL SCREENS .......................................................................................................................... 26

6.6 SAVING YOUR WORK: NAVIGATOR FILES AND PROGRAMS ........................................................................................................ 29

6.7 CREATING A NAVIGATOR NETWORK (NAV4802 AND NAV8802 ONLY)................................................................................ 30

Section Seven: Using Optional Navigator Hardware and Software Features ................................................................ 32

7.1 WALL-MOUNTED REMOTE CONTROL PANEL ........................................................................................................................ 32

7.2 DIGITAL INPUT/OUTPUT OPTION .............................................................................................................................................. 36

Section Eight: Navigator Engineering Specifications .................................................................................................... 38

Section Nine: Cautions & Warranty ................................................................................................................................... 39

Navigator2 Op Guide 071010 KJS.pmd

SECTION ONE: INTRODUCTION

Section One: Introduction

Congratulations on your purchase of the Sabine Navigator. These products are our latest versions of the popular Navigator System Processors.

The new Navigators come in four basic input/output configurations. The NAV240 is a 2 by 4 , the NAV360 is a 3 by 6, the NAV480 and NAV4802 are 4 by 8, and the NAV8802 is an 8 by 8. These System Processors are equally at home in both touring and installation applications, where they provide loudspeaker management, matrix mixing, and signal routing. State-of-the-art hardware and firmware guarantee superior sound quality and reliability.

All firmware and software can be upgraded using Sabine’s Upgrade Wizard software, included on your Navigator CD.

Aside from the powerful array of features packed into a single unit (multiple crossovers, complete signal routing and mixing, FBX filters, parametric filters, high and low shelf filters, delay, compression, and limiting), the Navigator also offers a choice of user interfaces.

Computer control: When you install the included Navigator Remote Control Software you will see a very powerful yet simple user interface. All parameters and system status monitors are available without burying you in cryptic menus. From here you control all audio, security, linking, and file saving functions, and you can manage your entire network of Navigators.

Front Panel Control: The Navigator combines the best of both worlds. The front panel provides access to every audio and system function for each device. Gain control for each input and output is one touch away. LED signal meters for each input and output provide a clear picture of signal status, and editing is fast with the datawheel and cursor keys. Quickly control multiple channels simultaneously by pressing several channel buttons at the same time, which is very handy for those global changes.

NAVRC-100 Wall-Mount Remote Panel: The attractive NAVRC-100 wall-mounted remote control panel allows for control of presets, gain, muting, and other basic functions. One NAVRC-100 can control up to 8 Navigators, and one Navigator can be controlled by up to 8 NAVRD-100 panels.

Serial Remote Control Devices: Navigators are compatible with all the major serial controllers, including Crestron, AMX, and Cue.

How to Use this Operating Guide

Detailed instructions are provided for all front panel controls, but you will probably be able to get going after taking a look at the Quick Start page. The instructions apply to all Navigators except where noted.

Later in this guide is an overview of installing and using the Navigator Remote Control Software. For more detailed information please see the Help section of the software.

If you have any questions you may call Sabine’s Customer Service Department at 386-418-2000 from 9:30 am to 6:00 pm EST.

SECTION T WO: FRONT &BACK PANEL VIEWS

Section Two: Front & Back Panel Views

NAV240 Front Panel

USB Connector

Connect your computer for software control

RS232 Serial Connector

Connect your computer for software control

Channel Select Buttons

Selects each input or output channel for either Muting or Editing

NAV240 Back Panel

Power connector, fuse, power switch, and voltage selector

Input & Output signal indicators

Options Panel

Connectors for Ethernet, Wall Panel Remotes or Digital I/O

EDIT Button

Engages Channel Edit mode

MUTE Button

Engages Channel Mute mode

LCD Display

ENTER Button

Confirms actions when in Global Screens

Data wheel

Edits parameter values

Menu keys

Scroll through available menus

XLR connectors

Cursor keys

Moves cursor through available parameters

HOME Button

Back to Home Screen

GLOBAL Button

Go to Global Parameters Screens

NAV360 Front Panel

NAV480 & 4802 Front Panel

NAV8802 Front Panel

NAV8802 Back Panel

NAV360 Back Panel

NAV480 & 4802 Back Panel

Phoenix 3-pin Connectors

Navigator2 Op Guide 071010 KJS.pmd

SECTION T HREE: NAVIGATOR APPLICATIONS

Section Three: Navigator Applications

3.1 INSTALLED AUDIO

House of Worship

NAV4802

Conference Room - Distributed Audio

NAV8802

Laptop Control

3.2 PRODUCTION AUDIO

Stereo 3-way, with Subs

NAV480

SECTION T HREE: NAVIGATOR APPLICATIONS

Left, Center, Right

Laptop Control

NAV360

Navigator2 Op Guide 071010 KJS.pmd

SECTION FOUR: USING NAVIGATOR CONTROLS

Section Four: Using Navigator Front Panel Controls

BLUE Edit LED for each channel

RED Mute LED

for each channel

1. MUTE Button: Select this to turn the Channel Select Buttons into MUTE buttons. Each press of a Channel Select button toggles that channel’s Mute Status, and the RED Mute LED will light indicating the channel is muted.

2. EDIT Button: Select this to turn the Channel Select Buttons into EDIT buttons. Each press of a Channel Select toggles that channel’s Edit Status, and the BLUE Edit LED will light indicating the channel is in Edit Mode.

3. Channel Select Buttons: Selects the corresponding channel for either Editing or Muting as described above. Press again to toggle off either Edit or Mute modes. When in Edit mode the LCD menu display pertains to the channel(s) that are selected. The last modified menu will be displayed on the LCD.

CHANNEL LINKING: Linking (think of this as applying your edits to multiple channels simultaneously) multiple channels is accomplished by simply selecting multiple input or output channels. Linking is very powerful - it simplifies programming for common parameter values across multiple channels. Multiple inputs can be linked together and multiple outputs can be linked together. You cannot link inputs to outputs.

10. 11.

TECH TIP

For fast scrolling

of frequency or

delay values,

hold the Enter Key

while turning the

datawheel

4. Peak Level LEDs: Indicates the current peak level of the Input of Output Signal. Ranges are Signal

(anything below -12 dB), -12dB, -6dB, -3dB, Clip/Limit. The Input Clip LED references to the device’s maximum headroom. The Output Limit LED references to the threshold of the limiter.

5. LCD: Shows all the necessary information for editing all parameters.

6. Rotary Data Wheel: Changes parameter data values. The wheel has travel velocity sensing which

allow for large or small incremental data changes. For extra coarse modification of delay and frequency (1 Hz resolution) values, pressing the Enter key simultaneously will increment/decrement the data value by 100 X.

7. MENU Buttons: The two Menu buttons move through the menus in a linear format.

<< Menu: Previous menu screen; Menu>>: Next menu screen

8. CURSOR Buttons: After choosing a menu to work with, use these keys to move through each of the

editable parameters within the Menu in a linear format. These also move the cursor in certain screens.

<<Cursor: Previous parameter or cursor position; Cursor>>: Next parameter or cursor position

9. ENTER Button: Press this key to execute changes in the Global Parameters Screens and in the

FBX Setup Screen to initiate Setup Mode. Fast scrolling with the Enter key: Press this key while turning the data wheel to modify delay and frequency (1 Hz resolution mode) data values by 100X.

10. GLOBAL Button: Choose this button to enter the special Global Parameters menu.

11. HOME Button: Choose this button to return to the Navigator’s Home screen, which displays the

model number and the last loaded preset. This also exits both Edit and Mute modes.

SECTION FOUR: USING NAVIGATOR CONTROLS

4.1. QUICK START GUIDE TO THE NAVIGATOR FRONT PANEL

· After powering up the unit, the following initialization screen is displayed on the LCD:

· The initialization process takes about 8 seconds and during that period the unit boots and displays the Navigator firmware version.

· After the initialization process is finished the Navigator displays its main screen:

· The screen shows the current program number and program name assigned to the unit. The program assigned is always the last program the user recalled or stored before powering down the unit.

The Navigator is now ready to go.

4.1.1 Configuring The Navigator

Working with your Navigator is easy. Follow these basic steps to get started. For details on working within each menu, please read Section Five on operating the Navigator.

1. Signal Routing: You first need to get your inputs routed to the appropriate outputs. You can do this in two ways.

A. Press Enter to enter the Global Parameters Menu, press the >>Menu key until you get to the Configuration Menu, and choose one of the preset configurations. This is the fast way to get all your routing done.

B. Or you can press the Select key on one of the outputs, press the >>Menu until you get to the Source Menu, and choose which of the inputs you want to patch to this particular output.

2. Set Input/Output Gain: The first menu you see when pressing the Select key on each input or output is the Signal Menu. The cursor is already in the Level field, and you can immediately turn the datawheel to adjust the input and output gain of each channel. This fast access to gain is very handy for quick adjustments during your program.

3. Mixing: Mixing for each output is done in the Source Menu of each output (see 1.B. above). In this menu each input has a gain control so you can set the levels to create just the right mix in this particular output.

4. Crossover Filters: At this point you may want to set the crossover filters for each of the outputs. You are essentially controlling which band of frequencies you will send to each of your speakers or speaker systems. Press the Select key for the output you want to set, and press the Menu key until you get to the XOVER Menu. You will set filters for the lower and upper rolloff points, the slopes of the filters, and type of each filter.

5. Equalization: You may want to adjust the frequency response of your system. The Navigator gives you a powerful set of EQ tools. For each input and output you can use up to eight filters, and these can be either Parametric, High Shelving, or Low Shelving filters. Press the Select button on any input or output channel to access the EQ Menu.

6. FBX Feedback Exterminator: Each input channel includes 8 patented FBX feedback control filters. Use the FBX Mode menu to begin Setup Mode for maximum gain before feedback. See the results of the process in the FBX Menu, and change the default FBX parameters on the FBX Global Menu.

7. Save your work: You know how important this one is. If you are editing in the input/output menus, press Home to get to the Main Menu. Then press Global to get to the Global Parameters Menus, and scroll to the Store Menu. Save and name your program here. Do it early and often!

Navigator2 Op Guide 071010 KJS.pmd

SECTION FIVE: OPERATING THE NAVIGATOR

Section Five: Operating the Navigator

5.1 INPUT MENUS

Each of the Navigator input channels has a separate Menu key. There are 7 function menus for each input channel, and you cycle through these by pressing the Menu keys. The first line in the LCD indicates which input channel you are editing, and shows the name of that channel if you have added one (for example, IN_1: ____), The menus are arranged in a linear fashion. Scroll to the right to reach the end, then scroll back to the left until you reach the beginning. Use the Cursor keys to select a parameter to edit, and use the Data Wheel to make your edits.

Signal

NAV4802 & NAV8802

· LEVEL: Gain, -40.00 dB to +15.00 dB in 0.25 dB steps.

· POL: Polarity, can be normal (+) or inverted (-).

· DELAY: Delay in 21 microsecond steps. Can be displayed in ms, ft or m. The time unit of the delay can be changed in the

Global Parameters menu. The maximum delay is 80 ms in the

NAV240, 360, 480

NAV240, 360, and 480, and 650 ms in the NAV4802 and 8802.

NAV240, 360, 480

LCD Display has only 2 lines. Use

Cursor key to

access all

parameters in

each window

NAV4802 & NAV8802

· EQ#: Selects one of the 8 available equalizer filters.

· LEVEL: Adjusts EQ level. Ranges from -30.00dB to +15.00dB in 0.25dB steps.

· FREQ: EQ center frequency. Ranges from 20 to 20,000 Hz in either 1 Hz steps or 1/36 octave steps. The frequency steps can be selected in the Global Parameters Menu.

· BW: EQ Bandwidth. Ranges from 0.02 to 2.50 octaves in steps of 0.01 octave steps for PEQ. The Q value is automatically shown beneath the octave value. For Lo-Shf or Hi-Shf, it is either 6 or 12dB/Oct.

· Type: Type of EQ. The types can be PEQ (parametric), LoShf (Low shelving), and Hi-Shf (High shelving).

NAV240, 360, 480

FBX

See Section 5.6 for a complete description of how to operate the FBX Feedback Exterminator

SECTION FIVE: OPERATING THE NAVIGATOR

FBX Feedback Exterminator

NAV4802 & NAV8802 NAV240, 360, 480

· EQ#: Selects one of the 8 available FBX filters.

· TYPE: Choose Fixed for more gain before feedback, Dynamic for control of new feedback during the show. See section 5.5 for a complete guide to using the FBX function.

· LVL: Shows level in dB of the FBX filter (not editable).

· FREQ: Shows center frequency of the FBX filter (not editable).

· BW: Shows the width of the FBX filter (not editable).

FBX-Global Parameters

NAV4802 & NAV8802

· LOCK: This refers to Fixed filters only, which by definition already are fixed in their centerpoint position. Locking prevents the filter from getting deeper. Locked is the recommended setting. Ready Mode automatically locks fixed filters.

· BYPASS: Bypasses all FBX filters on this Input channel. On indicates bypass; Off indicates FBX is active.

· RSTDYN: Reset Dynamic FBX filters. Turning to on toggles the reset function.

· DEPTH: Sets maximum depth of all FBX filters on this input channel. Range is 0 to -84dB.

· WIDTH: Sets default width of all FBX filters on this input channel. Range is 0.01 to 1.00 octave.

· SENS: Sets the Sensitivity of the FBX algorithm to the difference between music and feedback. Range is 1-5.

· PERS: Sets persistence - how long feedback can persist before a filter is set. Range is 1-5.

· Factory Defaults are recommended for Sensitivity, and Persistence settings.

NAV240, 360, 480

Navigator2 Op Guide 071010 KJS.pmd

SECTION FIVE: OPERATING THE NAVIGATOR

FBX-Mode

· SETUP MODE: This screen is used to engage FBX Setup mode. Use this for setup only - not for use during the show. This step provides maximum gain before feedback. Follow on-screen instructions and raise gain slowly. For a step-by-step guide to

using the FBX see section 5.6.

Compressor

NAV4802 & NAV8802 NAV240, 360, 480

NAV240, 360, 480

LCD Display has only 2 lines. Use

Cursor key to

access all

parameters in

each window

· THRESH: Compressor Threshold. Ranges from -20 to +20dBu in 0.5dB steps.

· ATTACK: Attack time. Ranges from 0.3 to 1ms in 0.1ms steps; from 1 to 100ms in 1ms steps.

· RELEASE: Release time. Can be set at 2X, 4X, 8X, 16X or 32X the attack time.

· RATIO: Set compression ratio, 1:1 to 40:1 (Limit).

Bypass

NAV4802 & NAV8802

· DELAY: Select X using the datawheel to bypass the delay

· EQ: Select X to bypass one of 8 EQ filters on this input

Channel Name

NAV4802 & NAV8802

NAV240, 360, 480

· Name: Channel name. The maximum length is 6 characters. Use the datawheel to scroll through all the possible characters, and use the cursor keys to move to the next space. Once the name is created it will appear in the upper field of this window.

5.2 OUTPUT MENUS

Each output channel of the Navigator has a separate menu key. There are 6 menus for each output channel. The menus cycle in a linear fashion, just like the input menus. Use the Cursor keys to select a parameter to edit, and use the Data Wheel to make your edits.

Signal

· LEVEL: Gain, -40.00dB to +15.00dB in 0.25dB steps.

· POL: Polarity, can be normal (+) or inverted (-).

· DELAY: Delay is adjustable in 21 microsecond steps and displayed in ms, ft or m. The time unit of the delay can be changed in the Global Parameters menu. The maximum available delay is 650ms (80 for the NAV240, 260, and 480).

SECTION FIVE: OPERATING THE NAVIGATOR

NAV4802 & NAV8802 NAV240, 360, 480

NAV4802 & NAV8802

· EQ#: Selects one of the 8 available Equalizer filters.

· LEVEL: EQ level. Ranges from -30.00dB to +15.00dB in 0.25dB steps.

· FREQ: EQ center frequency. Ranges from 20 to 20,000 Hz in either 1Hz steps or 1/36 octave steps. The frequency steps can be selected in the Global Parameters menu.

· BW: EQ Bandwidth. Ranges from 0.02 to 2.50 octaves in steps of 0.01 octave steps for PEQ. The Q value is automatically shown beneath the octave value. For Lo-Slf or Hi-Shf, it is either 6 or 12dB/Oct.

· Type: Type of EQ. The types can be parametric (PEQ), Lo-Shf (Low shelving), and Hi-Shf (High shelving).

NAV240, 360, 480

Navigator2 Op Guide 071010 KJS.pmd

SECTION FIVE: OPERATING THE NAVIGATOR

NAV240, 360, 480

LCD Display has only 2 lines. Use

Cursor key to

access all

parameters in

each window

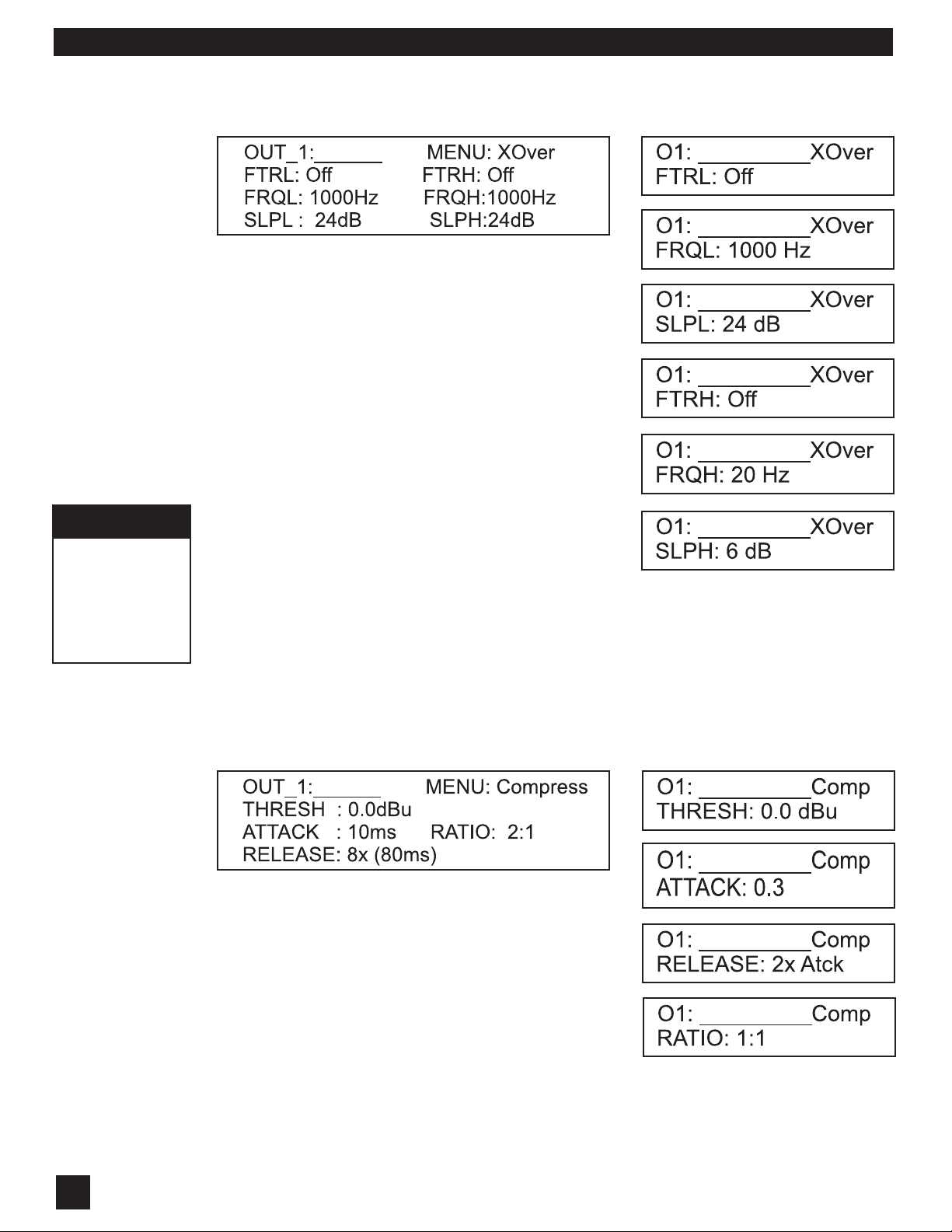

Crossover

NAV4802 & NAV8802 NAV240, 360, 480

· FTRL: Choose the type of low frequency filter (high pass). Types can be Buttwrth (Butterworth), Link-Ri (Linkwitz-Riley) or Bessel.

· FRQL: Filter cut-off frequency of low frequency crossover point (high pass). Ranges from 20 to 20,000Hz in either 1Hz steps or 1/36 octave steps. Select frequency resolution in the Global Parameters menu.

· SLPL: Filter Slope of low frequency crossover point (high pass). Ranges from 6 to 48dB/octave in 6dB/octave steps. If the selected Filter Type is Linkwitz Riley, the available slopes are 12 / 24 / 36 / 48 dB/octave.

· FTRH: Choose the type of high frequency filter (low pass). Types can be Buttwrth (Butterworth), Link-Ri (Linkwitz-Riley) or

Bessel..

· FRQH: Filter cut-off frequency of high frequency crossover point (low pass). Ranges from 20 to 20,000Hz in either 1Hz steps or 1/36 octave steps. Select frequency resolution in the Global Parameters menu.

· SLPH: Filter Slope of high frequency crossover point (low pass). Ranges from 6 to 48dB/octave in 6dB/octave steps. If the selected Filter Type is Linkwitz Riley, the available slopes are 12 / 24 / 36 / 48 dB/octave.

Compressor

NAV4802 & NAV8802

· THRESH: Compressor Threshold. Ranges from -20 to +20dBu in 0.5dB steps.

· ATTACK: Attack time. Ranges from 0.3 to 1ms in 0.1ms steps; from 1 to 100ms in 1ms steps.

· RELEASE: Release time. Can be set at 2X, 4X, 8X, 16X or 32X the attack time.

· RATIO: Set compression ratio, 1:1 to 40:1 (Limit).

NAV240, 360, 480

SECTION FIVE: OPERATING THE NAVIGATOR

Input Source

NAV4802 & NAV8802

· 1, 2, 3, 4 – Input channel source for the current output channel. This is your sub-mixer for each output of the Navigator. Values range from 0.00 (Maximum level) to -40, then OFF, which mutes that input for the output you are editing.

Channel Name

NAV4802 & NAV8802 NAV240, 360, 480

NAV240, 360, 480

· Refer to the Input Menus for details on naming your output channels.

Bypass

NAV4802 & NAV8802 NAV240, 360, 480

· DELAY: Select X using the datawheel to bypass the delay

· EQ: Select X to bypass one of 8 EQ filters on this output

5.3 GLOBAL PARAMETERS MENUS

The Global Parameters Menus allow you to control and change global parameters that are related to the general operation of the Navigator. Press HOME to access the Main Menu, then GLOBAL to enter the Global Parameters Menus. All Global Menus require you to press the ENTER key to confirm the selected edit.

Program Recall

The Navigator has a built in non-volatile memory that can store up to 30 different program setups. A program can be recalled using this menu.

NAV4802 & NAV8802

NAV240, 360, 480

· PROG: Program Number to be recalled..

· NAME: Program Name of the program. This is read only; names can be changed in the Store menu.

Navigator2 Op Guide 071010 KJS.pmd

SECTION FIVE: OPERATING THE NAVIGATOR

Program Store

The Navigator has a built in non-volatile memory that can store up to 30 different program setups. A program can be stored using this menu. The old program with the same program number will be replaced. Once the program is stored in the flash memory, it can be recalled at a later time, even after power down.

· PROG: Program Number for the current data to be stored.

· NAME: Program Name, allows a maximum length of 12 characters.

Configuration

NAV4802 & NAV8802 NAV240, 360, 480

NAV4802 & NAV8802

NAV240, 360, 480

· MODE - configures the mode of operation.

Mode: Out 1 Out 2 Out 3 Out 4 Out 5 Out 6 Out 7 Out 8

None Any Any Any Any Any Any Any Any Stereo 2-Way In1 In1 In2 In2 Any Any Any Any Stereo 3-Way In1 In1 In1 In2 In2 In2 Any Any Stereo 4-Way In1 In1 In1 In1 In2 In2 In2 In2

The unit assigns the Input source for the corresponding outputs when the Mode of Configuration is selected. The crossover point parameters like the filter type, cut-off frequency and slope have to be configured manually in the Xover Menu in each Output menu.

*Note: The configuration mode configures the input sources when selected. The user can change the source afterwards if desired. It does not keep the configuration in memory.

Copy Parameters

NAV4802 & NAV8802

NAV240, 360, 480

Copy channel parameters from the source to the target. When the Source and Targets are both Inputs or Outputs, all audio parameters will be copied. When one of the Source or the Target is an input while the other is an output, only the Level, Polarity, Delay and EQ are copied.

· SOURCE: Channel to be copied from.

· TARGET: Channel to be copied to.

SECTION FIVE: OPERATING THE NAVIGATOR

General System Parameters

NAV4802 & NAV8802

· FREQ MODE: Selects the frequency control mode for EQ and crossover filters. The coarse adjustment is 36 steps/octave; choose All Frequencies (1 Hz resolution) for fine adjustments.

· DELAY UNIT: ms (milliseconds), ft (feet), or m (meters).

Communications

NAV4802 & NAV8802

· PORT: Choose control port. RS232/USB for direct connection to a computer, or CAT-5 for Ethernet.

· BAUD: Choose the baud rate to match your serial port when connecting via RS232 or USB. The values are 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200.

· DEVICE#: Assigns the device ID from 1 to 16. Assigning ID numbers is required when you are creating a network of more than one Navigator.

NAV240, 360, 480

Security

The Navigator enables the user to secure the unit and prevent undesired changes in the setup. In order to make changes to the security levels the user must enter the correct password.

NAV4802 & NAV8802

· MENU - Selects the menu to be locked/unlocked. The options are:

NAV240, 360, 480

•In-Signal: Input Signal Menu (Level, Polarity, Delay).

•In-EQ: Input EQ Menu.

•In-Name: Input Channel Name Menu

•Out-Signal: Output Signal Menu (Level, Polarity, Delay).

•Out-EQ: Output EQ Menu.

•Out-Xover: Output Crossover Menu.

•Out-Limit: Output Limit Menu.

•Out-Source: Output Source Menu.

•Out-Name: Output Channel Name Menu.

•Global Parameters: Global Parameters Menu

Navigator2 Op Guide 071010 KJS.pmd

SECTION FIVE: OPERATING THE NAVIGATOR

Security (continued)

· LOCK: Engages lock (Yes) or unlock (No) for the corresponding menu.

· PASSWORD: Enter your 4-character password here. Initial password creation must be done within Navigator Remote Software. Entering the same password here initiates the lockout function. Press Enter and your Navigator front panel controls will be locked according to the menu selections you made. You can alter those selections via the front panel or through the software. NAV240, 360, and 480 models do not allow for selective menu locking. With these all front panel functions are either locked or unlocked.

5.4 INPUT/OUTPUT REFERENCE GUIDE

This chart shows all the parameters and edit values for each control on each menu. Use this as your reference for ranges of all parameters in each menu.

Parameters Min Max Ste

Level Signal LEVEL -40 15 0.25 dB

Polarity Signal POL

Delay Signal DELAY 0 21,600 1 21us steps

EQ Number EQ EQ# 1 6 1

EQ Level EQ LEVEL -30 15 0.25 dB

EQ Frequency EQ FREQ 20 20,000 1 Hz

EQ Bandwidth EQ BW 0.02 2.5 0.01 Octave

Crossover Low XOver FTRL

Crossover Low XOver FRQL 20 20,000 1 Hz

Crossover Low XOver SLPL 6 48 6 dB/octave

Crossover High XOver FTRH

Crossover High XOver FRQH 20 20,000 1 Hz

Crossover High XOver SLPH 6 48 6 dB/octave

Limiter Threshold Limit THRESH -20 20 0.5 dBu

Limiter Attack Limit ATTACK 0.3 100 0.1/1 ms

Limiter Release Limit RELEASE

Source Select Source 1, 2, 3, 4

Channel Name Ch-Name NAME

<<Menu>> <<Cursor>>

Off / Butterworth / Linkwitz-Riley / Bessel

2 / 4 / 8 / 16 / 32X Attack time

+ / -

Off / On

6 characters

Units

SECTION FIVE: OPERATING THE NAVIGATOR

5.5. FEEDBACK CONTROL AND PARAMETRIC EQUALIZATION

Operation of the FBX Feedback Exterminator section of the front panel of your Navigator is simple, but may require a brief explanation for those of you unfamiliar with Sabine FBX products and/or terminology. Let’s begin by defining a few key terms.

5.4.1. Glossary of Terms

• FEEDBACK describes what happens when a loudspeaker disperses sound back into an amplified microphone, at a level sufficient to allow one or more frequencies to ring out of control. Feedback can occur at any frequency, but is especially painful at mid to high frequencies. The specific frequencies that feedback in a particular situation depend on the acoustics of the environment, the placement of the microphone(s) and speaker(s), the response characteristics of the sound system components, and the volume of amplification. Anyone who has operated a sound system or attended a conference or a concert is familiar with feedback and its unpleasant consequences!

•A PARAMETRIC EQUALIZER allows the user to precisely specify three critical values that determine an equalizer’s characteristics: the center frequency of the EQ band that is boosted or cut (measured in Hertz), the amount of boost or cut imposed at the center point (measured in dB), and the width of the bell-curve shaped frequency band that is affected (typically measured in octaves).

• An FBX FILTER is essentially an automatically placed, narrowly attenuated parametric filter, with the center point of its narrow cut tuned to a precise frequency that feeds back when a sound system amplifies one or more microphones to a sufficient volume. The Navigator will automatically place up to 8 FBX filters in the signal path, corresponding to 8 distinct frequencies of feedback.

•A FIXED FBX FILTER will not move from the original set frequency of the filter. Once it sets itself, it remains at the same frequency. The system’s gain before feedback is limited primarily by the number of fixed filters; i.e., increasing the number of fixed filters increases the system’s gain before feedback. However, unless it is LOCKED, a FIXED FILTER may move its notch deeper without changing frequency. Fixed filters are typically set by turning up system gain to the point of feedback prior to sound check or performance, and they represent the “first layer” of feedback protection.

•A DYNAMIC FBX FILTER acts like a Fixed filter, until all available FBX filters (Fixed or Dynamic) are in use and a new frequency begins to feedback. When this happens, whichever Dynamic filter was set earliest in the performance will drop its original frequency and move to the new one. Dynamic filters are especially useful with mobile or wireless microphones (where feedback frequencies may change due to microphone repositioning) and represent the “second layer” of feedback protection. Note that both Fixed and Dynamic filters can be set while music is playing (except when in Setup Mode). One of the distinguishing properties of the Sabine FBX algorithm is its ability to distinguish music (or speech, or other sounds) from feedback.

•A LOCKED FBX FILTER is a Fixed filter locked in place; i.e., it cannot get any deeper or change its frequency. Locked fixed filters are no longer adaptive. Locking Fixed filters ensures your first layer of feedback protection is always in place -- highly recommended.

• FILTER WIDTH generally refers to the width (measured in octaves, or fractions thereof) of a filter, including graphic EQ filters, parametric filters, and FBX filters. More specifically, width is defined by determining the outer frequencies (surrounding the filter center point) that are altered ± 3 dB when the filter is imposed.

• CONSTANT Q filters are filters whose widths remain constant regardless of the amount of boost or attenuation imposed by the filters. Constant Q feedback control filters are defined several different ways in our industry. Some companies claim their filters are Constant Q because they do not widen when measured at the deepest part of the filter. Under this meaningless definition, every feedback filter ever made is Constant Q. However, the top end of these filters get wider and wider as the filter gets deeper. In other words, they take out more of the program as the filter gets deeper. Sabine Constant Q filters uses the most stringent and meaningful definition. Our filters never get wider than the specified width when measured at the top of the filter (-3 dB point). Our filters never remove more of the program as the filter gets deeper.

• FBX Setup Mode refers to Sabine’s exceptionally fast method of placing FBX filters during sound system setup. Think of Setup mode as your key to achieving one of the main benefits of the FBX: getting more gain before feedback. In Setup the FBX is very sensitive so do not talk into the mics during setup, and try to keep room noise to a minimum. Setup is designed to allow feedback to occur at lower input levels, and it imposes a strong limiter on the feedback output as it occurs. The net result is that you are able to ring out feedback more quickly, and at a much quieter level!

NOTE: MAKE SURE Setup Mode IS OFF and Ready Mode IS ENGAGED WHEN YOU USE THE NAVIGATOR OR YOUR AUDIO SIGNAL QUALITY MAY SUFFER!

Navigator2 Op Guide 071010 KJS.pmd

SECTION FIVE: OPERATING THE NAVIGATOR

5.6. FBX OPERATING INSTRUCTIONS

Follow these steps to obtain the maximum gain before feedback, with minimal or no loss in the tonal quality of your program. You should always setup one channel at a time by turning down the other channels of the mixer or power amplifiers.

STEP ONE: EQUIPMENT SETUP

Set up your sound system and position all the speakers and microphones you anticipate using. When possible, avoid placing microphones directly in front of speakers. Patch the Navigator into the system (refer to section Three for installation configurations). Set your levels for nominal performance but avoid raising the gain enough to induce feedback. If you are using a graphic EQ, adjust only for the desired tonal qualities, but DO NOT NOTCH FOR FEEDBACK. If there is any equipment in the signal path that incorporates a noise gate function, you MUST DISENGAGE these noise gates prior to the setup procedure. You may reengage them upon setup conclusion. For best results setup your FBX on one input channel at a time. You can mute the audio in the other input channels.

STEP TWO: CHOOSE YOUR FILTER TYPES and REMOVE BYPASS

FBX Bypass

Be sure and take

the FBX section

out of Bypass

before setup! Do

this in the FBX

Global Menu.

The default filter setting for your Navigator are 6 FBX Fixed Filters and 2 FBX Dynamic Filters per input channel. You may change that mix of filters, and this should be done before you enter Setup Mode. You can always alter the mix of FBX filters and repeat the Setup procedure. To change filter types, choose the FBX Menu in the Input Channel you are working on.

The factory default for the FBX is BYPASS: On, which means the FBX section is Bypassed. Before you start FBX Setup, select the input channel you are working on, then go to the FBX Global Menu. Set the BYPASS to Off, meaning the FBX section is now active.

STEP THREE: ENGAGE SETUP MODE - RESET FILTERS

Choose an input channel and select the FBX-Mode Menu. Using the datawheel select “Setup” in the SETUP MODE field, then press ENTER. Press ENTER again to confirm Setup Mode.

Setup mode

clears all Fixed & Dynamic filters. Do not use Setup mode during your performance.

Press enter to begin Setup -

NAV4802, 8802 (above), NAV240,360,480 (below)

Raise gain slowly; Setup automatically ends

or got to Ready mode any time by pressing

Exit - NAV4802, 8802 (above),

NAV240,360,480 (below)

STEP FOUR: RAISE MASTER GAIN

Make sure your power amplifier is turned up and your microphones are turned on. Slowly raise the master gain of your mixer (or the submix for this input channel of the Navigator) until the first feedback begins. The FBX will quickly remove the feedback by setting the first filter. Continue to raise the gain slowly. Try to avoid making two or more frequencies feed back at the same time, which sometimes happens if the gain is raised too quickly. As new frequencies feed back, new filters will be placed. (Note: sometimes the same frequency will feed back a second time, and an earlier filter will notch more deeply.)

Continue raising the gain. Setup mode will end and Ready mode will be engaged in one of two ways:

1. All of the Fixed filters and at least the first Dynamic filter are set. This will automatically turn Setup

Mode off and the FBX Menu window will be displayed. At this point STOP RAISING THE GAIN!

SECTION FIVE: OPERATING THE NAVIGATOR

2. You’ve set as many filters as you need or want, even though you haven’t used them all. Press EXIT to prevent any more Fixed filters from setting, or any of the set Fixed filters from notching more deeply. Pressing EXIT exits Setup Mode and the FBX Menu window will be displayed.

You are now ready to begin your program!

NAV4802 & NAV8802

See the results: In the FBX Menu you can view the parameters of all your FBX Filters. Scroll through all the filters in the FBX# field. You may edit the type of filter, but not the level (LVL), width (BW), or frequency (FREQ). You may want to create parametric filters based on the results of your FBX Setup, then repeat the Setup procedure to maximize system gain.

5.6.1. FBX Setup Mode Cautions & Alternate Setup Procedure

Setup Mode is designed to allow fast and quiet feedback elimination during setup. Setup Mode should ONLY be used for pre-performance setup. DO NOT USE Setup Mode DURING A PERFORMANCE! This will produce distorted audio and set filters on music or audio program. Setup Mode also may not work well during setup in a very noisy environment. To speed up feedback elimination, Setup relaxes the FBX criteria for distinguishing “good” audio from feedback and places filters more readily. If the environment is noisy, there is a greater likelihood of placing a filter on audio that is not feedback.

If you are working in a noisy environment you can still get the benefit of the Setup procedure, which is more gain before feedback. Instead of starting in the FBX Mode Menu, begin in the FBX Global Menu. This procedure will still eliminate feedback very quickly, though not as quickly as Setup Mode, and without reducing the volume of the feedback before it is filtered out.

1. Change the LOCK setting to Off. Now the Fixed filters are available to react to feedback.

2. Follow Step Four of the Setup procedure outlined above -- raise the gain for this input channel.

3. Continue raising the gain until you achieve the gain before feedback you require, or you set all the fixed

filters. You can see the results of this procedure in the FBX Menu (shown above).

4. VERY IMPORTANT: Go back to the FBX Global Menu and set LOCK to On. This will lock the fixed

filters and prevent them from going any deeper. If you use the factory default settings you will still have two dynamic filters available for automatic feedback control during the program.

Whether or not Setup Mode is used, the end result of setting up FBX filters should be identical. Your sound system will have clearer, louder, feedback-free sound.

NAV240, 360, 480

5.6.2. FBX Feedback Exterminator - Global Parameters

A unique feature of the FBX Feedback Exterminator is the ability to adjust the way the algorithm reacts to feedback. Unlike other feedback controllers, you can create and save your own customized versions of the FBX.

See section 5.1 Input Menus for instructions on using the Global parameters of the FBX. Sensitivity and Persistence are controls that allow the speed and analysis of the FBX algorithm to match

the type of audio program. Some audio programs, notably certain types of classical music, produce occasional waveforms that are difficult to distinguish from acoustic feedback. The factory default Sensitivity and Persistence values should work in almost all conditions; however, you may change them if necessary to prevent the possibility of triggering a false filter, or to more quickly set the FBX filters. There is a trade-off between speed of filter placement and how carefully the filter is placed. More demanding audio sources (that is, program material with musical content that is similar to feedback, like flutes and organs) may require higher Sensitivity & Persistence settings, which will slightly slow down the speed of filter placement, but decrease any possibility of mistaking program audio for feedback. Lower settings are recommended when you need faster reaction during speech-only programs.

Navigator2 Op Guide 071010 KJS.pmd

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

Section Six: Using Navigator Remote Software

The Navigators are designed with easy-to-use front panel controls. You can experience the full capability of the Navigator by using the Navigator Remote Software, which opens up a whole new level of programmability. With the software you get increased storage capacity -- save an unlimited number of programs as files, transfer files from one unit to another, and download and upload an entire set of programs to your Navigator. You can also view and edit every function very quickly and arrange various functions on screen to suit your needs. These setups or screensets can be saved and recalled.

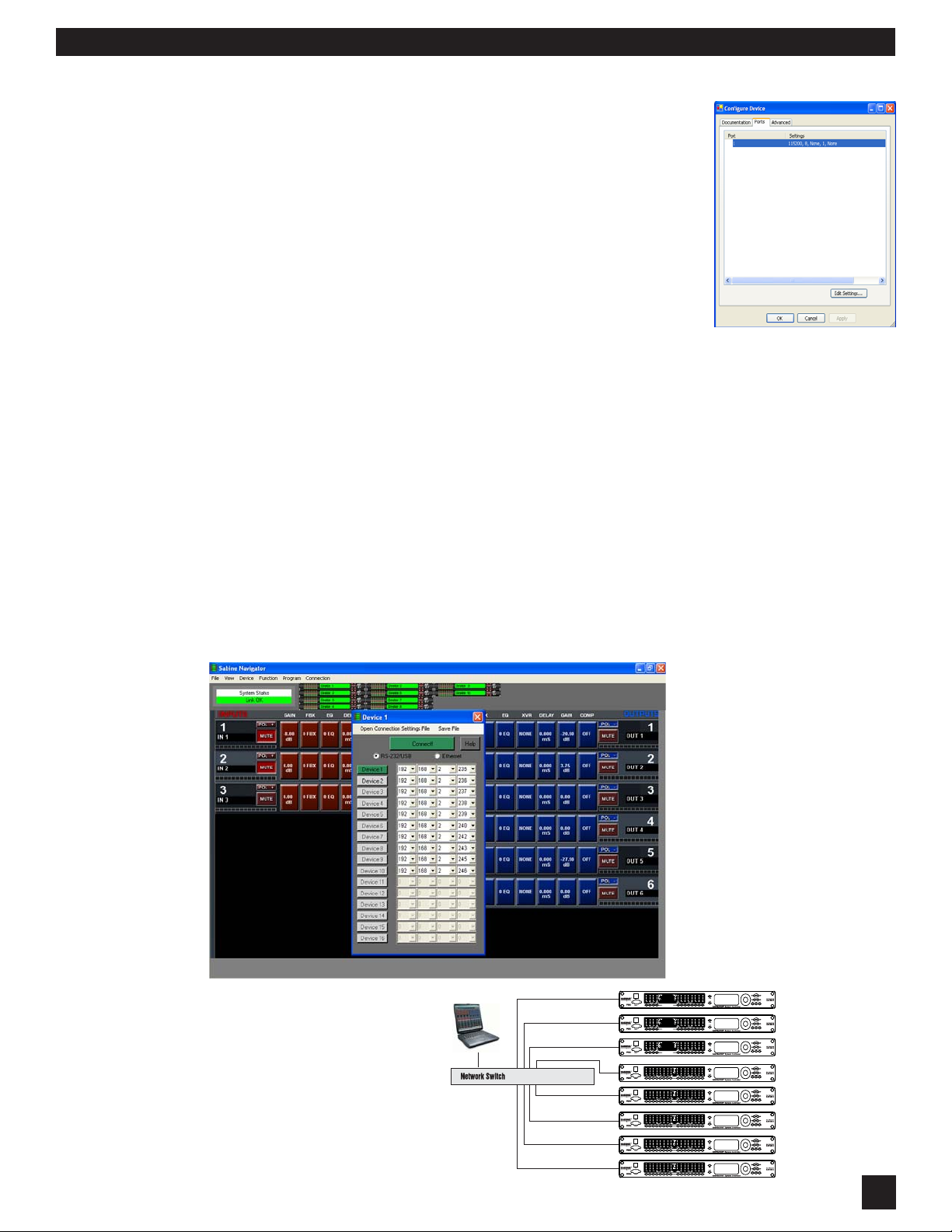

All Navigator models come equipped with the hardware and software necessary to run the units via remote control from a Windows-equipped computer. Your unit should include one CD ROM that includes the Navigator Software and the Navigator Upgrade Wizard for future upgrades of your firmware.

6.1. SYSTEM REQUIREMENTS AND RECOMMENDATIONS

1. PC computer equipped with Pentium processor 400 MHz or faster and hard disc with at least 20 MB of available space for program files.

2. Windows 2000 or higher and SVGA or greater resolution graphic card and monitor.

3. One COM port for RS232 or USB serial connection, with a 16550 or faster UART chip.

6.2. CONNECTIONS

Connection via RS232 serial port if your computer has a 9-pin COM port. Use a standard 9-pin male to standard 9-pin female RS-232 connector, available from most computer stores. For connecting multiple Navigators you will need to have the NAV4802 or 8802 versions which include the built-in Ethernet interface for use with a network switch/hub, or use a separate COM port for each Navigator. Connect the computer’s COM port to the front panel Navigator RS-232 jack.

that are wired for a null modem. Connection via USB port is easy. Using a standard USB cable (Type A to Type B connector as shown

below) connect the Navigator’s front panel USB port to your computer’s USB port. USB drivers are automatically installed when you install the Navigator software.

Do not use any connectors

Your computer (Type A) Navigator front panel (Type B)

TECH TIPS

Try these tips if you are having difficulty connecting your Navigator unit(s)

to a Windows PC.

1. Software Version. Make sure the software version installed in your computer is compatible with the firmware version of your Navigator. Read the release notes at www.Sabine.com.

2. Check cable. For RS232 you need a serial 9-pin, not a null modem.

3. COM Port. Make sure the COM Port selected is correct. If not you may get an “Invalid Port” message

when running the software. Click OK and then correct the port setting. You may have to restart the software. Also make sure no other serial devices are using that COM port.

4. Find the COM when using USB. The driver for the Navigator’s USB port is installed when you install the Navigator software. USB COM ports are assigned dynamically by your computer, so you will need to find out which COM port is being used by your USB-connected Navigator.

a. With the power on connect the Navigator to your compuiter using a USB cable. You will see a message in your System Tray indicating the new USB device has been found.

b. In Windows, click Start and select Settings, Control Panel, then double click System. c. Click on Hardware, Device Manager and open up Ports (COM & LPT). d. You will see the USB driver assigned to one of the COM ports. Use this COM port number when setting

up the connection in the Navigator software (Step 4 on the next page).

5. Refresh your COM Ports. This is a good choice if you are having trouble connecting. In Windows, click Start and select Settings, Control Panel, then double click System. Click on Hardware, Device Manager and open up Ports (COM & LPT). Right click the COM Port for your Navigator and select Remove (or Uninstall). Your computer will verify your intent and then reboot. As it reboots, it will rebuild your COM Port file.

This will clean out previous settings for devices no longer attached to your computer and may allow the Navigator software to locate your unit(s).

NOTE: COM Port Properties & Settings (Bits per second, Data bits, Parity, Stop bits & Flow control) are controlled by the Navigator Software and need not be adjusted.

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

6.3. INSTALLING AND USING THE SOFTWARE

Follow the on screen instructions for installing the Sabine Remote Control Software for the Navigator. If you are using the Navigator in a network see Section 6.7 for details.

After the installation you should have a Navigator software icon on your desktop. We also suggest you install the Navigator Upgrade Wizard software. This will come in handy when you want to upgrade the firmware in your Navigator.

Connecting to your Navigator:

1. First you need to setup the Navigator’s front panel settings. For connecting via RS232 or USB: Press the Global button and then the >Menu key to get

to the Comm Menu. The port should be RS232/USB; the baud rate should be 115200; the device number should be #1.

For connecting via Ethernet: Press the Global button and then the >Menu key to get to the

Comm Menu. The port should be CAT-5; the baud rate should be 115200; the device number should be unique in each Navigator within your Navigator network. Start with #1 and number them sequentially.

2. Patch the serial connection to your computer using a standard 9-pin RS232 serial cable or USB cable

and run the Navigator Software. If you are using an Ethernet connection patch your Ethernet cable from your network switch to the connector on the back of the Navigator. For more information on Ehternet connections, see section 6.7.

3. The opening screen allows you to choose the Live Mode for connecting to the Navigator or Design

Mode for offline editing while not connected to a Navigator. Choose Live Mode to connect.

4. In the Connection Setup screen choose your comm port (RS232/USB) or IP numbers (network) for

the device number you are using (device numbers can be changed in the Navigator unit in the Global Parameters: General menu on the front panel). For connecting to one Navigator select Device 1, and select RS232/USB. For more about connecting to a Navigator Network, see section 6.7.

NOTE: If you are using USB as your connection please read the Tech Tip on the preceding page

for important information on finding the correct COM port for your USB connection.

5. With the proper COM port (or IP numbers) selected to which you patched your Navigator (usually

com 1 or 2) click the “Connect!” button. Your unit is connected when the System Status display on the upper left of the main screen shows “Up Sync OK” or “Link OK.” Refer to the illustrations on the following page for a look at the connection status screens.

6. If you have any trouble connecting, see the Tech Tip on this and the previous page.

Once you are connected you can proceed to use all the powerful features of the Navigator. For a basic explanation of all controls on the main screen, please see the following page.

6.4 UPGRADING NAVIGATOR FIRMWARE AND SOFTWARE

The firmware is the internal operating system of your Navigator unit. Software is the program you install on your computer to control the Navigator. Your Navigator CD includes the Navigator Upgrade Wizard program. You will use this program to upgrade the firmware in your unit. You can do this any time in order to get any recent improvements or added features.

Here is the procedure for upgrading your firmware.

1. Use your browser and visit www.Sabine.com amd choose Professional Audio Products. Click to the Navigator page, choose Firmware Upgrades, and download the latest firmware. You can save the file anywhere on your computer, but make a note of it!

2. Run the Navigator Upgrade Wizard and follow the on-screen instructions. You will be asked to choose the firmware file, and here you will point to the file you downloaded from Sabine.com.

3. Continue with the on-screen instructions and you will complete the firmware upgrade.

Navigator2 Op Guide 071010 KJS.pmd

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

6.5. NAVIGATOR REMOTE CONTROL SCREENS

Connection Screens

These screens are used for making the software connection to your Navigator in Live Mode. See section 6.3 for more information on connecting your Navigator.

Connection Setup Screen Connection Status Displays

1. The green area on this screen says “Connecting,” which indicates your computer and the Navigator establishing the control connection.

2. When the connection is successful you will see the message “Up Sync OK” (shown below) and then “Link OK.”

Main Screens

There are two ways to view the main screen: Mixer or Matrix, as shown on the following page.

Guide to Main Screen Menus:

• File (Open, Save, Open Setup, Save Setup, New Setup, Exit): Open and Save refer to the

.NDAT files which are used to store and recall parameters of the Navigator on your computer. These are equivalent to Programs, which are stored in the Navigator. Setup files are used to save other parameters. Think of Setups as your screen sets and network settings. Custom desktop arrangements can be saved and recalled. Links between units are also saved in Setups (.XST files). See section 6.6 Saving Your Work for a complete explanation.

• View: Displays the values for every parameter in the Navigator. You can print these from

here, too.

• Device: Choose which Navigator to control when connected to a Navigator Network.

• Function: (Link, Copy, Reset All, Security, Device Name, Preferences) Link opens the

screen where you can establish multiple link groups and link any parameter across any number of Navigators. Copy opens a screen that allows for flexible copying of any parameter to any Navigator. The Security screen provides for password creation and selection of which front-panel menus will be locked when using a password. Device Name is just that, and Preferences allows for default units for delay, EQ bandwidth, and temperature.

• Program: From here you can recall or save a Program into the memory of the Navigator (rather than as a file on your computer). All programs stored within your Navigator can be transferred to your PC using Upload All to PC. You can also transfer the files stored on your computer to the Navigator as programs using Download All to Device. See section

6.6 Saving Your Work for a complete explanation.

• Connection: Setup allows you to choose how to connect to one or multiple Navigators.

This window is also displayed when you choose Live Mode from the welcome screen. Connect to the Navigator via RS232or USB as well as Ethernet (NAV4802 or 8802 only).

Main Screen - Mixer View

This view allows you to work with the Navigator processing in a traditional mixer view. Each input and output has its own set of processing. Your inputs and outputs also have select buttons for routing - just like a mixer. Set up your groups using the buttons at upper right each group can be named and can have its own set of linked functions.

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

Main Screen - Matrix View

This view gives you a “processor block” format for working with your Navigator. The features are the same as in Mixer View. With this screen you can get a sense of the routing and signal flow of your Navigators.

Navigator2 Op Guide 071010 KJS.pmd

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

This is one of the most commonly used screens. Controls for all other screens work in a similar way.

Guide to Crossover Screen Controls:

• View: Use these buttons to choose which Output graph you will view. You can view multiple

output response curves. In this example Outputs 1, 2, and 3 are shown.

• Control: Use these buttons to choose which Output you will edit using the controls below the

graph area. You can only control one output at a time. In this example we are controilling Output 2.

• EQ Type: Choose between Parametric, Low Shelf, and High Shelf using the pull-down menu.

You must choose a filter type before any editing.

• EQ Freq.: Set the frequency of the filter center points by typing in a number or using the

Slider tool. Note that the scale for ther Slider tool is dynamic - when you choose Frequency the scale displays Hz.

• EQ Width: Set the bandwidth of each filter by typing a number into the field or using the

Slider tool. Remember to select the field before using the Slider, which shows fractions of an octave in the scale.

• EQ Depth: Set the EQ filter depth (or level) by typing a number into the field or using the

Slider tool, which shows level setting in dB.

• Crossover Type: Sets the type of filter you will use for each of the crossover filters (low or

high) in the selected output. Use the pull-down menu to choose the type -- your first step before any other editing of the crossover.

• Crossover Freq.: Set the frequency at which the filter roll-off begins typing in a value or

using the Slider tool. Choose the Freq field first and you will see the Slider’s scale display the range of vaules at either end of the Slider. You can also edit the filter frequency by grabbing the Filter Handle with your mouse and dragging it along the bottom of the graph display.

• Crossover Slope: Set the slope of the filter by typing in a number or using the Slider tool.

You can also edit the slope dragging the circles that flank the Filter Handle. You will see the slope change as you adjust these handles.

6.6. SAVING YOUR WORK: NAVIGATOR FILES AND PROGRAMS

Your Navigator provides several ways of saving and recalling parameters, and these are useful for preserving your work. We use the terms Program and File to distinguish where the information is stored. Using the Navigator Software gives you access to both the Programs and the Files. If you are operating the Navigator from the front panel you only have access to the programs.

1. Programs: These are saved and recalled from the front-panel of the Navigator. These are stored in the Navigator’s internal memory, and there are 30 possible programs, or presets. Please see section 5.3 for the instructions on how to Save, Name, and Recall these internal programs from the front panel of the Navigator. You may also recall and save these Navigator-based programs from within the Navigator software by choosing the Program menu. Remember, these programs are stored in the Navigator. It is possible to transfer these programs as a group from the Navigator to your computer, or from the computer to the Navigator. See the NLT Files section below.

2. Files: These saved and recalled on your computer, just like any other file stored on your hard drive. Using your computer as a platform gives you unlimited memory storage of Navigator files. There are three types of files associated with the Navigator:

Download All to Device Screen

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

NDAT files: These files are the equivalent of one of the 30 programs that can be stored within

the Navigator, except in this case they are stored on your computer. All parameters for one Navigator are stored in an .NDAT file. You can store as many of these as you need on your PC. These are accessed using Open File or Save File from the File menu in the Navigator software. If you are working in the Navigator software and you would like to save your work directly into the Navigator as a program (you must be connected in Live Mode to do this) choose Recall or

Save from the Program menu in the software. NLT files: These files store a listing of 30 Navigator programs. Store and recall these using the

Download and Upload functions in Program menu of the Navigator software. Think of these files as a way to store all 30 programs of a Navigator in one place. This can be handy if you need to make a backup of everything stored within the Navigator. Or you may want to categorize your programs according to applications. These can be downloaded to the Navigator all at once using NLT files. Use the upload function to transfer the 30 programs from the Navigator to your PC. Think of it this way: uploading copies Programs and saves them as Files on your computer. The default location for these files is the C:\Program Files\Sabine\Sabine Navigator directory on your PC. Here are the step by step procedures for uploading and downloading.

Upload All To PC: Choose this from the Program Menu. This action overwrites previous uploads - you will get a warning asking you to confirm. If you want keep previously uploaded programs you should rename the files in the Sabine Navigator directory. The upload process creates 30 files, with default names Program 1.ndat, Program 2.ndat, etc.

Download All to Device: Choose this from the Program menu. You will see a screen that lists all the programs, from 1 to 30. Next to each Program is a button that allows you to load a Navigator file (NDAT) into that program number. Go ahead and load up to 30 files. This is a good way to get your programs in the order you need them in the Navigator. Once you have loaded these files into as many programs as you need, its time to save this list as an NLT file. Choose Save List. When you want to recall an NLT file you already made, choose Load List. If you want to start a fresh list, choose Clear List.

If you like the current list of files and you want to transfer them to the Navigator, choose To Device. This will take up to 30 minutes, and it will load these NDAT files as programs into the Navigator. This overwrites the Navigator’s programs, so be sure you are ready to do this.

XST files: These Connection Setup files are for storing and recalling computer connection information. This file stores all your IP addresses and comm port selections. You can create and save these files with various connection schemes, for connecting to a single Navigator or a group of networked Navigators. Access these by choosing Setup from the Connection menu.

Navigator2 Op Guide 071010 KJS.pmd

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

6.7. CREATING A NAVIGATOR NETWORK (NAV4802 AND NAV8802 ONLY)

Ethernet connection instructions Navigators

Your NAV4802 and NAV8802 Navigators can be controlled through a standard Ethernet: connection. This option allows for control of up to 16 Navigators in one session of Navigator Remote Software.

There are three main procedures for creating your Navigator network. The first is patching your hardware, the second is assigning IP addresses to the Navigators, and the third is connecting your network using the Navigator software. You only have to do this once. From then on you will simply choose Connect and you will be controlling your network.

Hardware and Connections

1. Network Switch: In order to create your Navigator network you will need a network switch. This device comes in a variety of configurations. Choose one that has enough ports to accommodate all your Navigators plus the computer you will use for control. The maximum number of ports you will need is 17. Many companies offer switches, including NetGear, D-Link, 3Comm, Belkin, and Cisco.

2. Navigators: Press the System key on the front panel and scroll through the menus to the General Menu. Choose the Port parameter and change it to CAT-5.

3. Ethernet cables: Connect your computer’s network card to a port on the switch with a standard Ethernet cable (RJ45 connectors). Connect each Navigator’s network connection to a port on the switch using standard Ethernet cables.

Front panel LCD showing correct port setting

Assign Navigator IP addresses using DeviceInstaller

1. Install the Lantronix DeviceInstaller software. This software requires that your computer has .NET Framework 1.1 or higher. The DeviceInstaller utility comes on your Navigator CD Rom, or you can download it from Sabine.com. It does not make an icon on your desktop, so you must run it from Start - Programs.

2. Make sure your connections are made as described in the Hardware & Connections section above.

3. Run DeviceInstaller.

4. Click on the ‘Search’ button in DeviceInstaller. The connected Navigator(s) will be listed in the window. The Hardware Address shown is also displayed on the back panel of the Navigator.

DeviceInstaller main screen showing 9 Navigators with IP addresses successfully assigned

5. Select the first Navigator and click the ‘Assign IP’ button.

6. Select ‘Assign a Specific IP address’ in the dialog and click ‘Next’

7. Enter the desired IP address, subnet mask (255.255.255.0 in all cases), and default gateway (0.0.0.0 in all cases) and click ‘Next.’

• We recommend you follow this format for your IP addresses: 198.168.2.xxx

• Choose any set of numbers in place of xxx. The network order of your Navigators depends on the sequence of these numbers, so plan accordingly. Device 1 in your Navigator network will be the lowest numbered IP address. Make a note of the complete address of each device - you will need this later.

• If you are incorporating this Navigator network into an existing network, please consult your system administrator before assigning IP addresses. Assigning an already existing address can cause your network to crash!

SECTION SIX: USING NAVIGATOR REMOTE CONTROL SOFTWARE

8. Click the ‘Assign’ button

9. Select the same Navigator in the main window again and click the ‘Configure’ menu button

10. Select the ‘Ports’ tab and click ‘Edit Settings’

11. Change the Baud Rate to 115200, Data bits to 8, Parity to None, Stop bits to 1, and Flow Control to None. Click ‘OK’

12. Repeat both procedures for all connected Navigators, making sure that each has a unique IP address.

13. Close DeviceInstaller. The Navigator(s) should now be ready for Ethernet connection.

Run Navigator Software and Connect to your Network

1. Run the Navigator software and choose ‘Connection.’

2. Select ‘Live Mode,’ then select ‘Network.’

3. Enter the IP addresses for all your Navigators. Make sure you use the same ones you assigned in the previous section. The order of your Navigators follows the numerical order of the IP addresses, so you can set the order in which you would like them to appear at this point. Choose ‘OK.’

4. Navigators in your network will begin to connect, indicated by the bright green window in each device in the device display at the top of the screen. Choose the device you wish to control by clicking on one of the device pictures, or use the Device menu.

5. Save your setup! In the connection window choose ‘Save File’ and create a file (.xlt). This will save all those IP addresses. You can load this file on another computer if you need to control the same Navigator network. See page 29 for more information about xlt files.

6. While in network mode the Link function is very useful. You can link all the main functions across devices and channels.

Configuration screen in DeviceInstaller

Hardware connections for a Navigator Network

Main screeen in Navigator Software, showing Connection window with IP addresses assigned and 10 devices present. Note System Status at upper left shows the units are already connected.

Navigator2 Op Guide 071010 KJS.pmd

SECTION SEVEN: USING NAVIGATOR OPTIONAL HARDWARE AND SOFTWARE FEATURES

Section Seven: Using Navigator Optional Hardware and Software Features

SECTION SIX: USING NAVIGATOR REMOTE CO

7.1. Wall-Mounted Remote Control Panel

Connecting the Navigator

For Navigator Network

Y our Navigator is equipped with two RJ-45 connectors on the back panel. The one on the left (facing the back of the unit) is the Ethernet connector and the one on the right is the wall panel connector . S tandard CA T -5 Ethernet cable with RJ-45 connectors is used to connect the wall panel controller to this jack. The Navigator supplies power to the wall panel controller via the Ethernet cable. Run cable from the Navigator’s location to the wall panel location using industry-standard practices. The maximum cable length from one wall panel to a Navigator is 200 feet. Do not install the wall panel yet - you have to program it first.

Programming the Wall Panel - Software Setup

Using the Wall Panel Setup Software you can build custom menus that will appear on the controller. In this way you can send specific control commands to the connected Navigator. For example, you can set up a menu that allows you to mute or unmute all of the output channels, or allows you to change the gain on one or more channels. A total of 32 menus can be programmed into the wall controller. Before inst alling the NA VRC-100 wall panel controller you will need to program it for use in your application.

1. Install the Navigator Wall Panel Setup Software: There is a program on the CD-ROM that came with your Navigator or with the NA VRC-100 that must be installed on your computer in order to setup the wall panel controller. Find and run the inst allation program here: CD root\Navigator\Wallpanel Setup\Setup.exe. After running the installer , there will be an icon on your desktop labeled “Sabine Wall panel Setup”.

For Wall Panel Control

2. To get started, double-click the “Sabine Wall Panel Setup” icon on your desktop.

3. Begin by clicking the “Add Menu” button. This creates a blank menu which you will edit to contain the commands you need. In the “LCD Line 1” box type in a name (up to 16 characters) for the menu. This is the text that will be displayed on the wall panel LCD when you are scrolling through the menus.

4. In the Command drop-down list select a command function that will be associated with your new menu. Next, click the “Range” button next to the Command drop-down list to select the control range for this command. For example, if the menu is for controlling gain you could limit the range of gain values available for control with the wall panel.

5. Now click on the “Link” button to select which device (Navigator) and which channels on the Navigator will be affected with this new command. This is very important - if you forget to do this the wall panel will not work. One exception to this rule is the command for Program Recall. In this case you only need to choose the device (#1).

6. When you are done setting up your new menu, click Add Menu again to add new menus, setting each one up as required by your application. When you are done, click the OK button to apply the new menus. Then, click the File>Save menu to save your work! You can recall this file later to setup another wall panel.

NTROL

SOFTWA

SECTION SEVEN: USING NAVIGATOR OPTIONAL HARDWARE AND SOFTWARE FEATURES

Programming the Wall Panel - Transferring the settings to the wall panel

The next step is to transfer these new menus into your wall panel controller . This is done using the programming port board and cable that comes with your wall panel. You will also need a standard DB9 serial cable for this step. We suggest you do this close to the Navigator rather than at the wall panel’s remote location. In this way you will be able to easily transfer and test the programming.

1. Using a standard RS232 cable, connect your computer’s RS232 serial port to the DB9 connector on the programming port. Connect the 10 pin ribbon connector coming from the programming port board to the wall panel at the jack labeled “Program Port”, making sure that the red stripe on the ribbon cable is on the end of the connector labeled PIN 1. Next, connect the wall panel to your Navigator using a standard CA T -5 Ethernet cable (either of the RJ-45 jacks on the wall panel will work). You are now ready to program the wall panel.

2. Make sure the Navigator is turned off and then click the Program- >Update menu on the wall panel setup program. Select the COM port on your PC that is connected to the wall panel, and then click the “Program” button. Next, turn on your Navigator. The progress bar on the screen should immediately begin scrolling. It takes about 20 seconds to program the wall panel. After its done (100%), press the Close button. Very important: you must now turn off your Navigator and then turn it back on. The wall panel should now be programmed.

Setup the Navigator

T o set up your Navigator for use with the wall p anel, you will need to confirm the settings in the Global menu. On your Navigator, click the Global button, and then click the right menu arrow until the “Comm” menu appears. Using the cursor button, make sure the Dev # is set to 1, the WP Mode is set to Master and the WP Num is set to 1. The dip switches on the wall panel should all be set to the down or off position, which sets the address to #1.

Follow the steps in the next section to verify that the menus on your wall panel are working correctly - you should be able to control your Navigator using the Menu and Value up/down buttons on the wall panel. Changes made on the wall panel should show on the front panel of the Navigator . If it doesn’t seem to be working, verify that you have assigned the link correctly in the setup program.

Using the Wall Panel

The controls on the wall panel behave just like the controls on the front panel of the Navigator . The one dif ference is the use of the ENTER and EXIT buttons.

1. Press ENTER to begin using the wall panel. This takes you out of the Main Menu, shown at right.

2. Press the MENU up/down buttons to scroll to the menu you would like to use. In the example at right we named the first menu “Presets,” and the current setting is “2.” Pressing the MENU down button takes us to the next menu, which we called “Volume.”

3. Press the V ALUE up/down buttons to edit the values of the menu functions. In this case we can raise or lower the gain on whatever channel we linked to this menu.

4. When you are done editing values press EXIT to return to the main menu.

Navigator2 Op Guide 071010 KJS.pmd

SECTION SEVEN: USING NAVIGATOR OPTIONAL HARDWARE AND SOFTWARE FEATURES

Using Multiple Wall Panels and Multiple Navigators

Y our application may require the ability to control one or more Navigators from one or more W all Panels. Because there is only one Wall Panel connector on each Navigator , you must connect either multiple Navigators or W all Panels by daisy-chaining the Wall Panels. The Wall Panel has two RJ45 jacks, so you can connect up to two Navigators to one Wall Panel. Or you can connect up to 32 W all Panels to one Navigator . You can combine these scenarios, too. For example, you might have two Wall Panels, each with the ability to control two Navigators. Here are the procedures for all the possible scenarios. In each case you still must program both the Wall Panel and the Navigator as described on the preceeding page.

1. One Wall Panel connected to one Navigator. In this situation, set all the dipswitches on the Wall Panel to ‘off’ (down). Set the Navigator WP MODE to Master , and the WP NUM to 1. This is the scenario described in the setup procedure on the previous page of this guide – see that diagram for the location of the Dip Switch controls.

Connecting Wall Panel to Navigator via CAT5 Dip Switchs on back of Wall Panel

Front Panel Navigator LCD

2. One Wall Panel connected to multiple Navigators. Here, set all the dipswitches down as above. Set ONE of the Navigators WP MODE to Master and the rest of them to Slave. All connected Navigators must have unique Device Numbers – the example below shows a Slave set to Device #2. Set WP NUM to 1 – you are still using just one Wall Panel.

cable

3. Multiple Wall Panels connected to a single Navigator. Here, each Wall Panel needs a unique address, set by the dipswitches. For the first Wall Panel , set all dipswitches down as in the above scenarios. For the next, turn dipswitch 1 on. For the next Wall Panel , turn dipswitch 1 off and dipswitch 2 on. Increment these as needed for each additional Wall Panel. The dipswitch settings for each W all Panel are binary. See the chart on page 37 for the dip switch settings to use when you have multiple Wall Panels. On the Navigator , set WP MODE to Master and set WP NUM to the number of Wall Panels connected. For example, if there are three Wall Panels, set WP NUM to 3, as shown below.

4. Multiple Wall Panels connected to multiple Navigators. In this case set the Wall Panel dipswitches as shown above, giving each a unique address. Set ONE of the Navigators WP MODE to Master and the rest to SLA VE. On each Navigator , set WP NUM to the number of wall p anels connected.

SECTION SEVEN: USING NAVIGATOR OPTIONAL HARDWARE AND SOFTWARE FEATURES

Complete the installation

Once you have verified the wall panel is working properly it is time to mount it into the 2-gang wall box. This wall box should be installed in the wall using industry-standard practices, and CA T -5 cable should be running from the Navigator to the box (maximum distance is 200 feet of CA T-5 cable).

1. Remove the ribbon cable from the wall panel and store the cable and the Programing Port board in a safe place. Y ou will need this if you choose to re-program the wall panel.

2. Plug the CAT-5 cable into either one of the RJ-45 connectors on the back of the wall panel.

3. Mount the wall panel on the front of the box using the mounting screws that came with the box.

4. Test the wall panel again and confirm that it is controlling the Navigator. You are ready!

Tips and T roubleshooting Cables

If the wall panel is not functioning properly cables are the most likely cause. V erify that your CA T -5 cables are properly terminated with RJ-45 connectors. Check the cable with another device to be sure.

Version number is flashing

If the seond line of the wall panel LCD flashes on and off with the version number , this indicates a problem in the programming of the Navigator Wall Panel Remote software. The most likely problem is the LINK settings. V erify that each of your menus are linked to a device, inputs or outputs, and a channel number . Follow the steps in the Programming the Wall Panel and Transferring the Settings sections of this operating guide and test the wall panel again. The version number should no longer be flashing.

Controlling multiple channels

If you would like your menus to control multiple channels, you can choose multiple links using the LINK command in the Navigator Wall Panel Remote software. For example, you may want to mute all output channels. The example at right shows the Link Setup for linking all 8 outputs of a NA V4802-RC or NA V8802-RC. In this case we chose “Mute” in the

Command menu.

Error Updating

Y ou may see this message in the Navigator W all Panel Remote software. When you start to program the wall panel the power must be off on your Navigator (remember, the wall panel get s its power from the Navigator). If the power is on you will see the “Error Updating” message. Turn off your Navigator and chose Program->Update again. You should see the screen that asks you to choose your comm port - proceed as shown in the Transferring the Settings section of this operating guide.

Customer Service

If you have any other questions regarding the NA VRC-100 Wall Panel please contact us at sabine@sabine.com or call 800-626-7394.

Navigator Wall Panel OpGuide 070831.pmd rr

Navigator2 Op Guide 071010 KJS.pmd

SECTION SEVEN: USING NAVIGATOR OPTIONAL HARDWARE AND SOFTWARE FEATURES

7.2 Navigator System Processors: Digital Input/Output Option (96 KHz, 24-bit)

For Models NAV4802-DA, NAV8802-DA, NAV4802-RCDA, NAV8802-RCDA

Navigators with the Digital Input/Output option include a DB25 connector on the back panel. You will need a DB25 to XLR male/female snake in order to patch the digital inputs and outputs. Sabine uses the Yamaha standard for wiring the DB25 connector for AES/EBU connections. Your Navigator may come with a DB25 to DB25 adaptor that maintains the Yamaha standard for the pin wiring (see the wiring diagram for this adaptor on the next page). You must use this in order to keep the standard Yamaha wiring scheme.

Instructions for using the Digital I/O

1. Choose analog or digital inputs and outputs. In the Global menu, the inputs and outputs can be selected as digital or analog in pairs. For example, Input 1 and 2 can be set to either analog or digital. as shown in the LCD screen shot below.

Press the Global button on the front panel, then press the Menu>> button several times to get to the I/O Mode Menu. Use the Cursor buttons to move through each selection, and use the data wheel to toggle Analog or Digital for each input or output pair. “I” indicates Input and “O” indicates Output.

NOTE: For the NAV8802-DA and NAV8802-RCDA, the digital option is limited to only inputs 1 through

4. Inputs 5 through 8 are analog only. All outputs can be digital.

2. The sample rate and bit depth are fixed and there is no conversion available, nor is there an external sync option. Your input and output devices will need to be 96 KHz and 24-bit in order to work with the Navigator.

3. You can mix analog and digital inputs and outputs, but each input or output pair can only be either digital or analog - never both. For example, choosing digital for Inputs 1 and 2 disables the analog inputs.

4. Once you have made these settings you are ready to go!

Ethernet Wall-Panel Control

(RC)

Digital I/O (DA)

NAV4802 back panel, with DA option (DB25 Connector)

and RC option (RJ45 connector)

SECTION SEVEN: USING NAVIGATOR OPTIONAL HARDWARE AND SOFTWARE FEATURES

Digital I/O Option: Wiring diagram for Yamaha AES/EBU Adaptor (for reference only)

Output

NAV Side

Signal

MALE GND 1 10 IN1- 2 14 IN2+ 3 2 GND 4 12 NC 5 NC 6 GND 7 13 OUT1- 8 18 OUT2+ 9 6 GND 10 OUT3- 11 20 OUT4+ 12 8 GND 13 22 IN1+ 14 1 GND 15 IN2- 16 15 NC 17 GND 18 23 NC 19 OUT1+ 20 5 GND 21 24 OUT2- 22 19 OUT3+ 23 7 GND 24 25 OUT4- 25 21

(Yamaha) Side

FEMALE

Wall Panel Control Option: Dipswitch Settings for setting the unique address of up to 32 Wall Panels. Below are the sequenced settings for multiple panels, and these must be used and set in this order.

(1))

(8) (9) (10) (11) (12) (13)

(15)

(22)

(29)

(2) (3) (4) (5) (6) (7)

(16)

(23)

(30)

(17)

(24)

(31)

(18)

(25)

(32)

(26)

(20)(19)

(27) (28)

(14)

(21)

Navigator2 Op Guide 071010 KJS.pmd

SECTION EIGHT: SPECIFICATIONS

Section Eight: Navigator Engineering Specifications

Audio Performance

Freq Response:+/-0.1dB (20 to 20kHz) Dynamic Range:115dB typ (unweighted) CMMR:>60dB (50 to 10kHz) Crosstalk:<-80dB Distortion:0.002%(1kHz @+4dBu)

Digital Audio Performance

Processor: 32-bit floating point Sampling Rate: 96kHz (4802, 8802) 48kHz (240, 360, 480) Analog Converters: High Performance 24-bit Propagation Delay: 1.5 ms (4802, 8802); 1.8 ms (240, 360, 480)

Front Panel Controls

Display:4 x 26 Character Backlit LCD (4802, 8802)

2 x 26 Character Backlit LCD (240, 360, 480) Level Meters: 5 Segment LED Buttons: Mute and Edit Function Controls Select Controls, Menu Controls Data-wheel Encoder

Inputs and Outputs

Input Impedance:>10k Ohms Output Impedance:50 Ohms Maximum Level:+18dBu Type: Electronically balanced

Connectors

Audio:3-pin XLR. Multi-pin Phoenix (NAV8800) RS-232:Female DB-9 USB: Type B Power: Standard IEC Socket

Compressor/Limiter

Threshold: +20 dBu to -20 dBu Ratio: 1:1 through infinity Attack: 0.3 to 100ms Release:2 to 32X the attack time

Global Parameters

Number of Programs:30 Preset Configurations: Generic, 2, 3, 4-Way, plus other variations Front Panel & Software Security Locks: Any individual menu, password protected

Upgrades

Operating system firmware stored in Flash RAM. All future upgrades for firmware and software downloadable from Sabine website using Upgrade Wizard.

Notes:

-Below approximately 200 Hz the feedback filters become slightly wider to increase the feedback and rumble capture speed at these low frequencies.

-Tests performed using an Audio Precision System One model 322 or equal.

(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)

One-year limited warranty Patented

General

Power:115 /230 VAC (50 /60Hz); 20 watts Dimensions:19 “x1.75 “x 8 “ (483 x 44 x 203mm) Weight: 6.4 lbs /2.9 kg

Audio Control Parameters

Gain:-40 to +15dB in 0.25dB steps Polarity:+/Delay: Up to 650ms per I/O (4802, 8802)

80 ms per I/0 (240, 360, 480) Equalizers (8 per I/O)

Type: Parametric, Hi-shelf, Lo-shelf EQ Gain: -30 to +15 dB in 0.25 steps Crossover Filters (2 Filters per Output) Filter Types: Butterworth, Bessel, Linkwitz Riley Slopes: 6 to 48dB/oct

FBX Feedback Exterminator®

8 independent digital FBX filters per input channel, controlled automatically from 20 Hz to 20 KHz Filter depth: 3 dB steps from 0 dB to -84 dB Maximum depth adjustable from -4 to -84 dB Filter width: user-controllable from 1.00 to .01 octave Resolution: 1 Hz from 20 Hz to 20 KHz Time required to find and eliminate feedback: typically 0.3

seconds @ 1 KHz

Section NIne: Cautions & Warranty

War ning! This equipment must be earthed.

Caution! Risk of electric shock. Do not open. Caution! Shock hazard. Do not remove covers. No user serviceable parts inside. Refer servicing to qualified service personnel. Warning! To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

Attention! Cet appareil doit être relié à la terre. Attention! Risque de choc électrique; ne pas ouvrir. Attention! Risque de choc; ne pas oter les capots. Aucune pièce accessible à l'intérieur. S'addresser à un technicien qualifié. Attention! Pour réduire le risque d'incendie ou de choc électrique, ne pas laisser l'appareil sous la plouie ou à l'humidité.

Achtung! Dieses Gerät muss schutzgeerdet sein. Achtung! Gefar eines elektrischen Stormschlags. Gehause nicht öffnen. Achtung! Gefar eines elektrischen Stormschlags. Gehäuse nicht öffnen. Keine con Benutzer zu bedienenden Teile im Geräteinneren. Überlassen Sie das Gerät zu Servicezwecken nur geschultem Fachpersonal. Um Brandgefar oder das Risiko eines elektrischen Schlags auszuschließen, das Gerät vor Nässe und Feuchtigkeit schützen.

Advertencia! Este equipo debe estar conectado a tierra. Precaución! Reisgo de descarga eléctrica. No abrir. Precaución! Riesgo de descarga eléctrica. No desmontar las tapas. Piezas interiores no reparables por el usuario. Reparable sólo por personal cualificado. Advertencia! Para reducir el riesgo de incendio o de descarga eléctrica no exponga este producto a la lluvia o humedad.

FCC Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio TV technician for help.

Canadian Compliance Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la class B prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.

Japanese EMI Compliance Statement

Warning:

Changes or modifications to this unit

SECTION NINE: CAUTIONS AND WARRANTIES

Warning!

The Navigator is designed to operate from standard AC power. Please be sure the power in your area is compatible with the power requirements marked on the rear of the unit. Using the wrong input voltage may cause permanent damage to the unit and will void the warranty.

The Navigator is supplied with one of the following AC power cords: Japan 100 VAC U.S./North America 120 VAC Continental Europe 230 VAC United Kingdom 240 VAC Australia 240 VAC

Caution!

Replace the fuse with a fuse of exactly the same rating specified on the rear of the product.

1. Read all safety and operating instructions before using this product.

2. All safety and operating instructions should be retained for future reference.

3. Obey all cautions in the operating instructions and on the unit.

4. All operating instructions should be followed.

5. Use only shielded audio and data cables.

6. This product should not be used in the presence of moisture or rain, or near any water, i.e., a bathtub, sink, swimming pool, wet basement, etc.

7. This product should be located so that its position does not interfere with proper ventilation. Do not use in direct sunlight. Do not

place flat against a wall or in a built-in enclosure that will impede the flow of cooling air.

8. This product should not be placed near a source of heat such as a stove or radiator.

9. Connect only to a power supply of the type marked on the unit adjacent to the power entry module.

10. Never break off the ground pin on the power supply cord.

11. Power supply cords should always be handled carefully. Never walk or place equipment on power supply cords. Periodically check cords for cuts or signs of stress, especially at the plug and the point where the cord exits the unit.

12. The power supply cord should be unplugged when the unit is to be unused for long periods of time.

13. Care should be taken so that objects do not fall and liquids are not spilled into the unit through the ventilation holes or any other openings.

14. This unit should be checked by a qualified service technician if:

A. The power supply cord or plug has been damaged. B. Anything has fallen or been spilled into the unit. C. The unit does not operate correctly. D. The unit has been dropped or the enclosure damaged.

15. The user should not attempt to service this equipment. All service work should be done by a qualified service technician.

OSHA 2201; 1995 revised.

Navigator2 Op Guide 071010 KJS.pmd

SECTION NINE: CAUTIONS AND W ARRANTIES

CAUTION

EXPOSURE TO EXTREMELY HIGH NOISE LEVELS MAY CAUSE A PERMANENT HEARING LOSS. INDIVIDUALS VARY CONSIDERABLY IN SUSCEPTIBILITY TO NOISE INDUCED HEARING LOSS, BUT NEARLY EVERYONE WILL LOSE SOME HEARING IF EXPOSED TO SUFFICIENTLY INTENSE NOISE FOR A SUFFICIENT TIME. THE U.S. GOVERNMENT’S OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA) HAS SPECIFIED THE FOLLOWING PERMISSIBLE NOISE LEVEL EXPOSURES:

DURATION/DAY IN HOURS SOUND LEVEL IN dBA, SLOW RESPONSE

ACCORDING TO OSHA, ANY EXPOSURE IN EXCESS OF THE ABOVE PERMISSIBLE LIMITS COULD RESULT IN HEARING LOSS. EAR PLUGS OR PROTECTORS IN THE EAR CANALS OR OVER THE EARS MUST BE WORN WHEN OPERATING THIS DEVICE IN ORDER TO PREVENT A PERMANENT HEARING LOSS, IF EXPOSURE IS IN EXCESS OF THE LIMITS AS SET FORTH ABOVE. TO ENSURE AGAINST POTENTIALLY DANGEROUS EXPOSURE TO HIGH SOUND PRESSURE LEVELS, IT IS RECOMMENDED THAT ALL PERSONS EXPOSED TO EQUIPMENT CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS SUCH AS THIS DEVICE BE PROTECTED BY HEARING PROTECTORS WHILE THIS UNIT IS IN OPERATION.

8 90 6 92 4 95 3 97 2 100 1-1/2 102 1 105 1/2 110 1/4 or less 115

Limited Warranty

THIS LIMITED WARRANTY VALID ONLY WHEN PURCHASED AND REGISTERED IN THE UNITED STATES OR CANADA. ALL EXPORTED PRODUCTS ARE SUBJECT TO WARRANTY AND SERVICES TO BE SPECIFIED AND PROVIDED BY THE AUTHORIZED DISTRIBUTOR FOR EACH COUNTRY. Ces clauses de garantie ne sont vaiables qu’aux Etats-Unis et au Canada. Dans tous les autres pays, les clauses de garantie et de maintenance sont fixees par le distributeur national et assuree par lui selon la legislation en vigueur. Diese Garantie ist nur in den USA and Kanada gultig. Alle Export-Produkte sind der Garantie und dem Service des Importeurs des jewelligen Landes untervorfen. Esta garantia es valida solamente cuando el producto es comprado en E.U. continentales o en Canada. Todos los productos que sean comprados en el extranjero, estan sujetos a las garantias y servicio que cada distribuidor autorizado determine y otrezca en los diferentes paises.

ONE-YEAR LIMITED WARRANTY/REMEDY SABINE, INC. (“SABINE”) warrants this product to be free from defects in material and workmanship for a period of one (1) year from date of purchase PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is subject to the conditions, exclusions and limitations hereinafter set forth: CONDITIONS, EXCLUSIONS AND LIMITATIONS OF LIMITED WARRANTIES These limited warranties shall be void and of no effect if: a. The first purchase of the product is for the purpose of resale; or b. The original retail purchase is not made from an AUTHORIZED SABINE DEALER; or c. The product has been damaged by accident or unreasonable use, neglect, improper service or maintenance, or other causes not arising out of defects in material or workmanship; or d. The serial number affixed to the product is altered, defaced or removed; or e. The power supply grounding pin is removed or otherwise defeated. In the event of a defect in material and/or workmanship covered by this limited warranty, Sabine will repair the defect in material or workmanship or replace the product, at Sabine’s option; and provided, however, that, in any case, all costs of shipping, if necessary, are paid by you, the purchaser. THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY COMPLETED, MAILED TO AND RECEIVED BY SABINE WITHIN FOURTEEN (14) DAYS FROM THE DATE OF YOUR PURCHASE. In order to obtain service under these warranties, you must: a. Bring the defective item to any Authorized SABINE DEALER and present therewith the ORIGINAL PROOF OF PURCHASE supplied to you by the AUTHORIZED SABINE DEALER in connection with your purchase from him of this product. If the DEALER is unable to provide the necessary warranty service, you will be directed to the nearest other SABINE AUTHORIZED DEALER which can provide such service. OR b. Ship the defective item, prepaid, to:

SABINE, INC. 13301 HIGHWAY 441 ALACHUA, FL 32615-8544

including therewith a complete, detailed description of the problem, together with a legible copy of the

original PROOF OF PURCHASE and a complete return address. Upon Sabine’s receipt of these items: If the defect is remedial under the limited warranties and the other terms and conditions expressed have been complied with, Sabine will provide the necessary warranty service to repair or replace the product and will return it, FREIGHT COLLECT, to you, the purchaser. Sabine’s liability to the purchaser for damages from any cause whatsoever and regardless of the form of action, including negligence, is limited to the actual damages up to the greater of $500.00 or an amount equal to the purchase price of the product that caused the damage or that is the subject of or is directly related to the cause of action. Such purchase price will be that in effect for the specific product when the cause of action arose. This limitation of liability will not apply to claims for personal injury or damage to real property or tangible personal property allegedly caused by Sabine’s

CAUTION

This apparatus contains a lithium battery. Replacement shall be made by qualified service personnel only. Call Sabine at (386) 418-2000 or consult an authorized Sabine agent.

FBX and FBX Feedback Exterminator are registered trademarks of Sabine, Inc., and are the brand names of its line of automatic feedback controllers. Covered by U.S. Patent No. 5,245,665, Australian Patent No. 653,736, Canadian Patent No. 2,066,624-2, German Patent No. 69118486.0, and U.K. Patent No. 0486679. Other patents pending.

negligence. Sabine does not assume liability for personal injury or property damage arising out of or caused by a non-Sabine alteration or attachment, nor does Sabine assume any responsibility for damage to interconnected non-Sabine equipment that may result from the normal functioning and maintenance of the Sabine equipment. UNDER NO CIRCUMSTANCES WILL SABINE BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, ANY INCIDENTAL DAMAGES OR ANY CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF SABINE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE; PROVIDED, HOWEVER, THAT IF THE OTHER TERMS AND CONDITIONS NECESSARY TO THE EXISTENCE OF THE EXPRESS LIMITED WARRANTIES, AS HEREINABOVE STATED, HAVE BEEN COMPLIED WITH, IMPLIED WARRANTIES ARE NOT DISCLAIMED DURING THE APPLICABLE ONE-YEAR PERIOD FROM DATE OF PURCHASE OF THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THESE LIMITED WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. THESE LIMITED WARRANTIES ARE THE ONLY EXPRESS WARRANTIES ON THIS PRODUCT, AND NO OTHER STATEMENT, REPRESENTATION, WARRANTY OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING UPON SABINE. In the event of any modification or disclaimer of express or implied warranties, or any limitation of remedies, contained herein conflicts with applicable law, then such modification, disclaimer or limitation, as the case may be, shall be deemed to be modified to the extent necessary to comply with such law. Your remedies for breach of these warranties are limited to those remedies provided herein, and Sabine gives this limited warranty only with respect to equipment purchased in the United States of America.

INSTRUCTIONS-WARRANTY REGISTRATION CARD

1. Mail the completed WARRANTY REGISTRATION CARD to:

SABINE, INC. 13301 HIGHWAY 441 ALACHUA, FL 32615-8544

a. Keep the PROOF OF PURCHASE. In the event warranty service is required during the warranty period, you will need this document. There will be no identification card issued by Sabine, Inc.

2. IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTIFICATION OF CHANGES OF ADDRESS: a. Completion and mailing of WARRANTY REGISTRATION CARDS - Should notification become necessary for any condition that may require correction, the REGISTRATION CARD will help ensure that you are contacted and properly notified. b. Notice of address changes - If you move from the address shown on the WARRANTY REGISTRATION CARD, you should notify Sabine of the change of address so as to facilitate your receipt of any bulletins or other forms of notification which may become necessary in connection with any condition that may require dissemination of information or correction.

3. You may contact Sabine directly by telephoning (386) 418-2000.

4. Please have the Sabine product name and serial number available when communicating with Sabine Customer Service.

Sabine, Inc. 13301 NW US Highway 441 Alachua, Florida 32615-8544 USA Phone: (386) 418-2000 • Fax: (386) 418-2001 www.Sabine.com • sabine@sabine.com

Sabine NAV4802-DC-U, 2007 NAVIGATOR, NAV4802-DA-U, NAV8802-U, NAVRC-100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
