RuggedCom RS900G User Manual

RuggedSwitch™ RS900G

Hardware Installation Guide

Revision 107 - April 10, 2013

www.RuggedCom.com

RuggedSwitch™ RS900G

RuggedSwitch™ RS900G: Hardware Installation Guide

Copyright © 2013 RuggedCom Inc.

All Rights Reserved

Dissemination or reproduction of this document, or evaluation and communication of its contents, is not authorized except where expressly
permitted. Violations are liable for damages. All rights are reserved, particularly for the purposes of patent application or trademark registration.

This document contains proprietary information, which is protected by copyright. All rights are reserved. No part of this document may be
photocopied, reproduced or translated to another language without the prior written consent of RuggedCom Inc.

Disclaimer Of Liability

We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot
be completely ruled out.

RuggedCom shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing,
performance, or use of this material.

The information given in this document is reviewed regularly and any necessary corrections will be included in subsequent editions. We appreciate
any suggested improvements. We reserve the right to make technical improvements without notice.

Registered Trademarks

ROX™, RuggedBackbone™, RuggedRated™ and eRSTP™ are trademarks of RuggedCom Inc. ROS®, RuggedRouter® and RuggedSwitch®
are registered trademarks of RuggedCom Inc. Other designations in this manual might be trademarks whose use by third parties for their own
purposes would infringe the rights of the owner.

Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on

a world-wide basis.

Third Party Copyrights

RuggedCom recognizes the following third party copyrights:

• Copyright © 2004 GoAhead Software, Inc. All Rights Reserved.

Warranty

Five (5) years from date of purchase, return to factory. For warranty details, visit www.RuggedCom.com or contact your customer service
representative.

Contacting RuggedCom

Corporate Headquarters US Headquarters Europe Headquarters
RuggedCom Inc.

300 Applewood Crescent,
Concord, Ontario
Canada, L4K 5C7
Tel: [phone]
Fax: [phone]
Toll-free: 1 888 264 0006

Technical Support
Toll Free (North America): 1 866 922 7975

International: [phone]
Email: [e-mail]

Web: www.RuggedCom.com

RuggedCom
1930 Harrison Street, Suite 209
Hollywood, Florida
USA, 33020
Tel: [phone] ext.103
Fax: [phone]
Toll-free: 1 888 264 0006

Email: [e-mail]

RuggedCom
Unit 41, Aztec Centre,
Aztec West, Almondsbury, Bristol
United Kingdom BS32 4TD
Tel: [phone]
Fax: [phone]

RuggedSwitch™ RS900G

Table of Contents

FCC Statement And Cautions ................................................................................................... 6

1. Product Overview ................................................................................................................... 7

1.1. RS900G Front Panel ................................................................................................... 9

1.2. RS900G Bottom Panel ................................................................................................ 9

2. Installation ............................................................................................................................ 10

2.1. DIN Rail Mounting ..................................................................................................... 10

2.2. Power Supply Wiring and Grounding ........................................................................ 11

2.2.1. HI Power Supply Wiring and Grounding ........................................................ 11

2.2.2. DC Power Supply Wiring and Grounding ....................................................... 12

2.3. HIPOT (Dielectric Strength) Testing .......................................................................... 13

2.4. Failsafe Output Wiring and Specifications ................................................................ 13

2.5. RS232 Port Wiring .................................................................................................... 13

2.6. RJ45 Ports: Signal Description ................................................................................. 15

3. Specifications ....................................................................................................................... 16

3.1. Operating Environment ............................................................................................. 16

3.2. Power Supply Specifications ..................................................................................... 16

3.3. Failsafe Relay Specifications .................................................................................... 16

3.4. Twisted Pair Data Port Specifications ....................................................................... 16

3.5. Fiber Optic Port Specifications .................................................................................. 17

3.6. Physical Dimensions ................................................................................................. 18

3.7. Type Test Specifications ........................................................................................... 19

3.7.1. IEC 61850-3 Type Tests ................................................................................ 19

3.7.2. IEEE 1613 Type Tests ................................................................................... 20

3.7.3. IEC Environmental Type Tests ...................................................................... 20

3.8. Agency Approvals ..................................................................................................... 22

A. Warranty .............................................................................................................................. 23

RuggedCom® RuggedSwitch™ 3 RS900G Installation Guide Rev 107

RuggedSwitch™ RS900G

List of Figures

1.1. RS900G Front Panel .......................................................................................................... 9

1.2. RS900G Bottom Panel ....................................................................................................... 9

2.1. DIN Rail Mounting ............................................................................................................ 10

2.2. Power Supply Inputs ......................................................................................................... 11

2.3. DC Power Supply Wiring and Grounding ......................................................................... 12

2.4. HIPOT (Dielectric Strength) Testing ................................................................................. 13

2.5. Failsafe Output Relay ....................................................................................................... 13

2.6. RS232 Female Connector ................................................................................................ 14

2.7. RJ45 Port Connector ........................................................................................................ 15

3.1. RS900G Physical Dimensions .......................................................................................... 18

RuggedCom® RuggedSwitch™ 4 RS900G Installation Guide Rev 107

RuggedSwitch™ RS900G

List of Tables

1.1. RS900G Front Panel LED Definitions ................................................................................ 9

2.1. RS232 Female DCE Pinout .............................................................................................. 14

2.2. RJ45 Ethernet Pin Assignment ......................................................................................... 15

3.1. Operating Environment ..................................................................................................... 16

3.2. RS900G Power Supply Specifications .............................................................................. 16

3.3. Failsafe Relay Specifications ............................................................................................ 16

3.4. Twisted Pair Data Port Specifications ............................................................................... 16

3.5. Fiber Optic Port Specifications ......................................................................................... 17

3.6. Physical Specifications ...................................................................................................... 18

3.7. RS900G IEC 61850-3 Type Tests .................................................................................... 19

3.8. RS900G IEEE 1613 Type Tests ....................................................................................... 20

3.9. IEC Environmental Type Tests ......................................................................................... 20

3.10. Agency Approvals ........................................................................................................... 22

RuggedCom® RuggedSwitch™ 5 RS900G Installation Guide Rev 107

FCC Statement And Cautions

FCC Statement And Cautions

Federal Communications Commission Radio Frequency Interference
Statement

This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.

Caution: Service

This product contains no user-serviceable parts. Attempted service by unauthorized
personnel shall render all warranties null and void.

Changes or modifications not expressly approved by RuggedCom Inc. could invalidate
specifications, test results, and agency approvals, and void the user’s authority to
operate the equipment.

Should this device require service, refer to Appendix A, Warranty in this guide.

Caution: Physical Access

This product should be installed in a restricted access location where access can only
be gained by service personnel or users who have been instructed about the reasons
for the restrictions applied to the location and about any precautions that shall be taken;
and access is through the use of a tool or lock and key, or other means of security,
and is controlled by the authority responsible for the location.

RuggedCom® RuggedSwitch™ 6 RS900G Installation Guide Rev 107

1. Product Overview

1. Product Overview

The RuggedSwitch™ RS900G is an industrially hardened, fully managed Ethernet switch
providing dual fiber optical Gigabit Ethernet ports and eight Fast Ethernet copper ports. Designed
to operate reliably in harsh industrial environments, the RS900G provides a high level of immunity
to electromagnetic interference and heavy electrical surges typical of environments found in
electric utility substations, factory floors or in curb side traffic control cabinets. An operating
temperature range of -40°C to +85°C coupled with hazardous location certification, a powder
coated aluminum enclosure and optional conformal coating allows the RS900G to be placed in
almost any location.

The embedded Rugged Operating System (ROS™) provides advanced networking features such
as Enhanced Rapid Spanning Tree (eRSTP™), Port Rate Limiting and a full array of intelligent
functionality for high network availability and manageability.

Ethernet Ports

• 2 - Fiber Optic Gigabit-Ethernet Ports(1000BaseX)

• 8 - Fast Ethernet Ports (10/100BaseTX)

• Full compliance with IEEE: 802.3, 802.3u and 802.3z

• Non-blocking, store and forward switching

• Full duplex operation and flow control (IEEE 802.3x)

• Industry standard fiber optical connectors: LC, SC, SFP

• Bi-Directional simplex fiber support

• Long haul optics allow Gigabit distances up to 70km

RuggedRated™ for Reliability in Harsh Environments

• Meets IEEE 1613 (electric utility substations)

• Exceeds IEC 61850-3 (electric utility substations)

• Exceeds IEEE 61800-3 (variable speed drive systems)

• Exceeds IEC 61000-6-2 (generic industrial environment)

• Exceeds NEMA TS-2 (traffic control equipment)

• Hazardous Location Certification: Class 1 Division 2

• -40 to +85°C operating temperature (no fans)

• Conformal coated circuit boards (optional)

• Rugged powder coated aluminum enclosure

Universal Power Supply Options

• Fully integrated power supply

• Universal high-voltage range: 88-300VDC or 85-264VAC

• Dual low-voltage DC inputs (12, 24 or 48 VDC)

• CSA/UL 60950 safety approved to +85°C

RuggedCom® RuggedSwitch™ 7 RS900G Installation Guide Rev 107

1. Product Overview

Simple Plug and Play Operation

• Automatic learning of up to 8192 MAC addresses

• Auto-negotiation on all 10/100BaseTX ports

• Auto-MDI/MDIX (crossover) on all 10/100BaseTX ports

• LED indicators for link, activity and speed

ROS™ Advanced Network Management

• Enhanced Rapid Spanning Tree (eRSTPTM)

• Quality of Service (802.1p) for real-time traffic

• Port rate limiting: 128kbps to 8Mbps

• VLAN (802.1q) with double tagging

• IGMP Snooping for multicast filtering

• Port configuration, status, statistics, mirroring, security

• Loss of link management on fiber ports

• Web-based, Telnet, CLI management interfaces

• SNMP v2 and RMON

• Rich set of diagnostics with logging and alarms

RuggedCom® RuggedSwitch™ 8 RS900G Installation Guide Rev 107

1. Product Overview

1.1. RS900G Front Panel

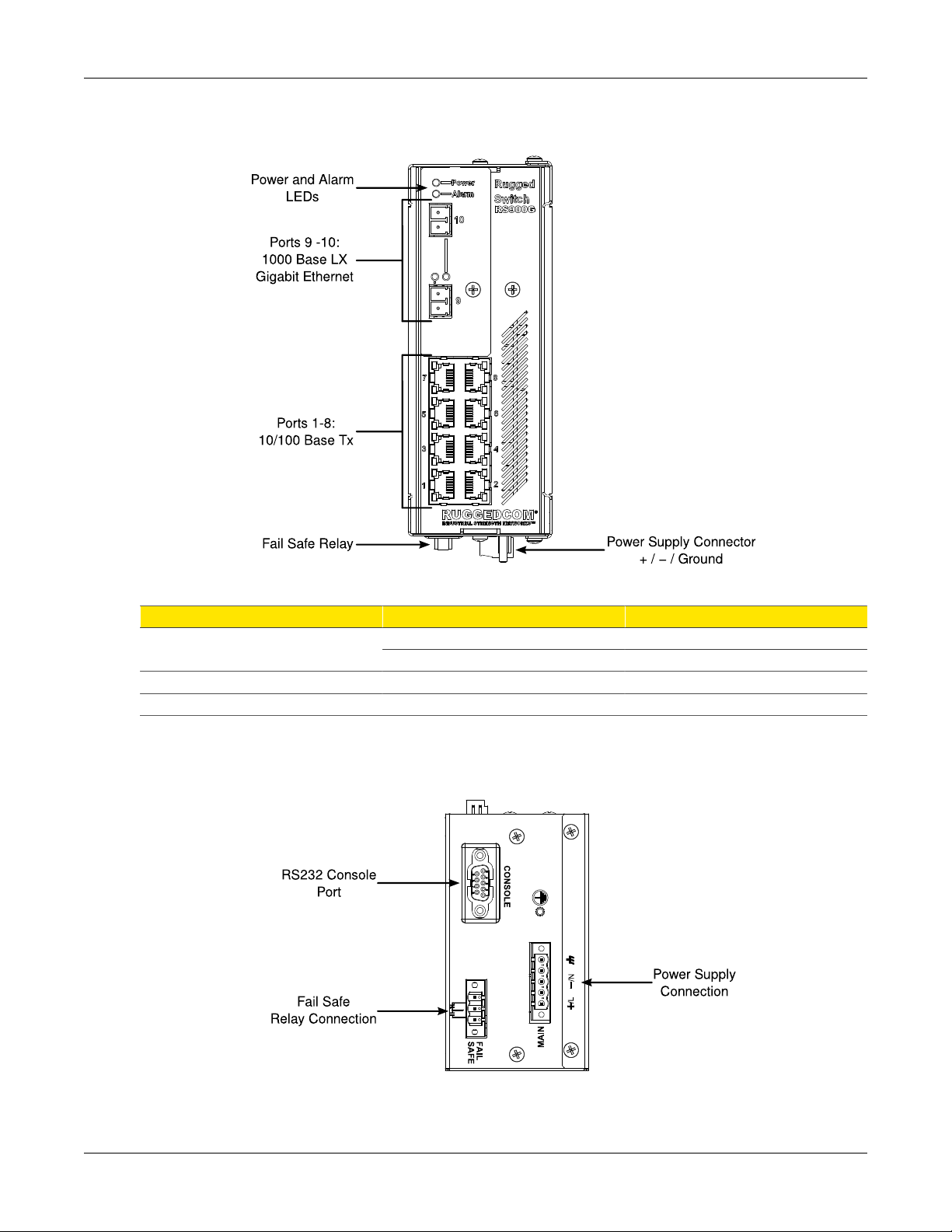

Figure 1.1. RS900G Front Panel

LED Activity Description

LINK LED (Yellow)

Power LED Solid Power On

Alarm LED Solid Alarm condition exists

Table 1.1. RS900G Front Panel LED Definitions

1.2. RS900G Bottom Panel

Solid Link Established

Blinking Tx/Rx Activity

Figure 1.2. RS900G Bottom Panel

RuggedCom® RuggedSwitch™ 9 RS900G Installation Guide Rev 107

2. Installation

2. Installation

2.1. DIN Rail Mounting

An optional DIN rail mounting bracket is available for the RS900G.

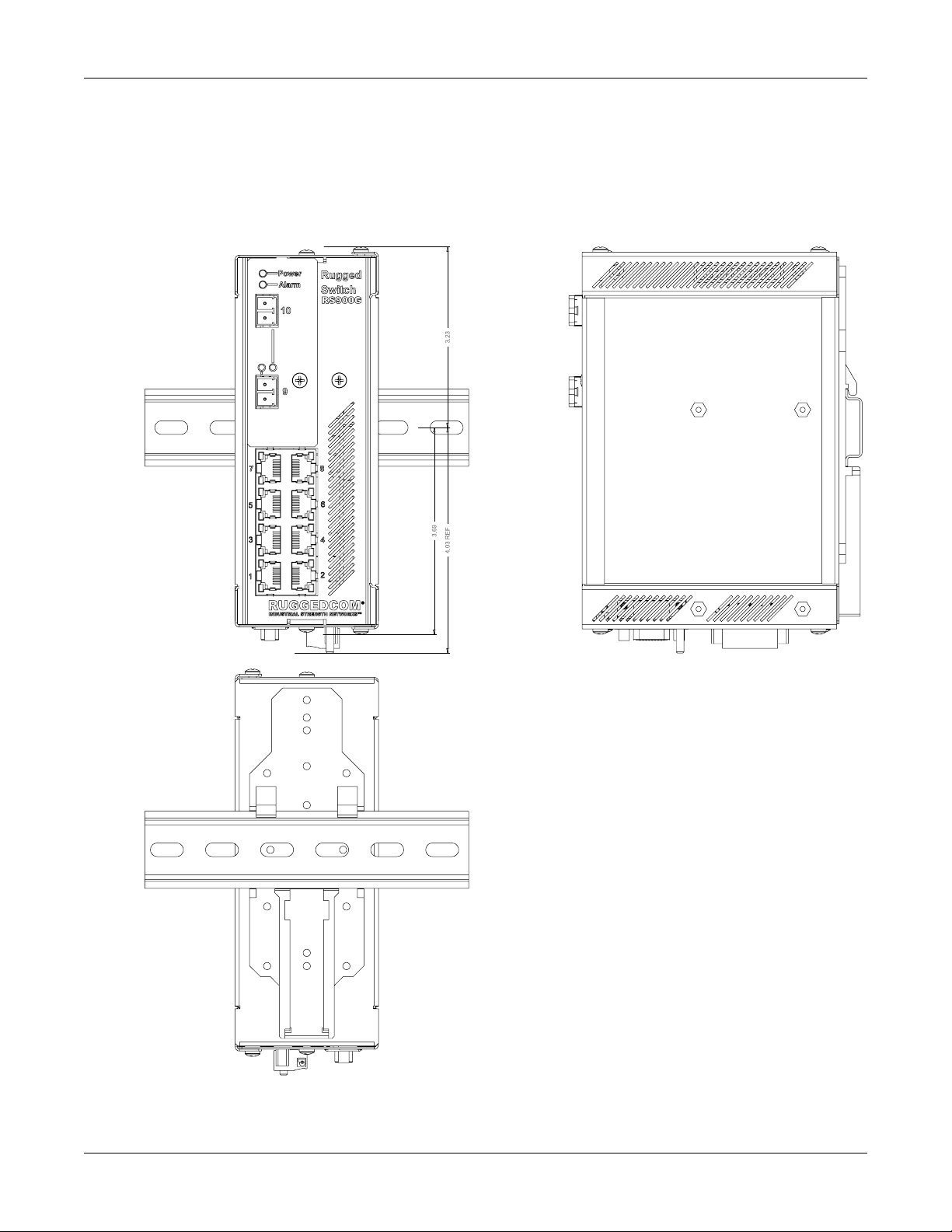

Figure 2.1. DIN Rail Mounting

RuggedCom® RuggedSwitch™ 10 RS900G Installation Guide Rev 107

2. Installation

2.2. Power Supply Wiring and Grounding

2.2.1. HI Power Supply Wiring and Grounding

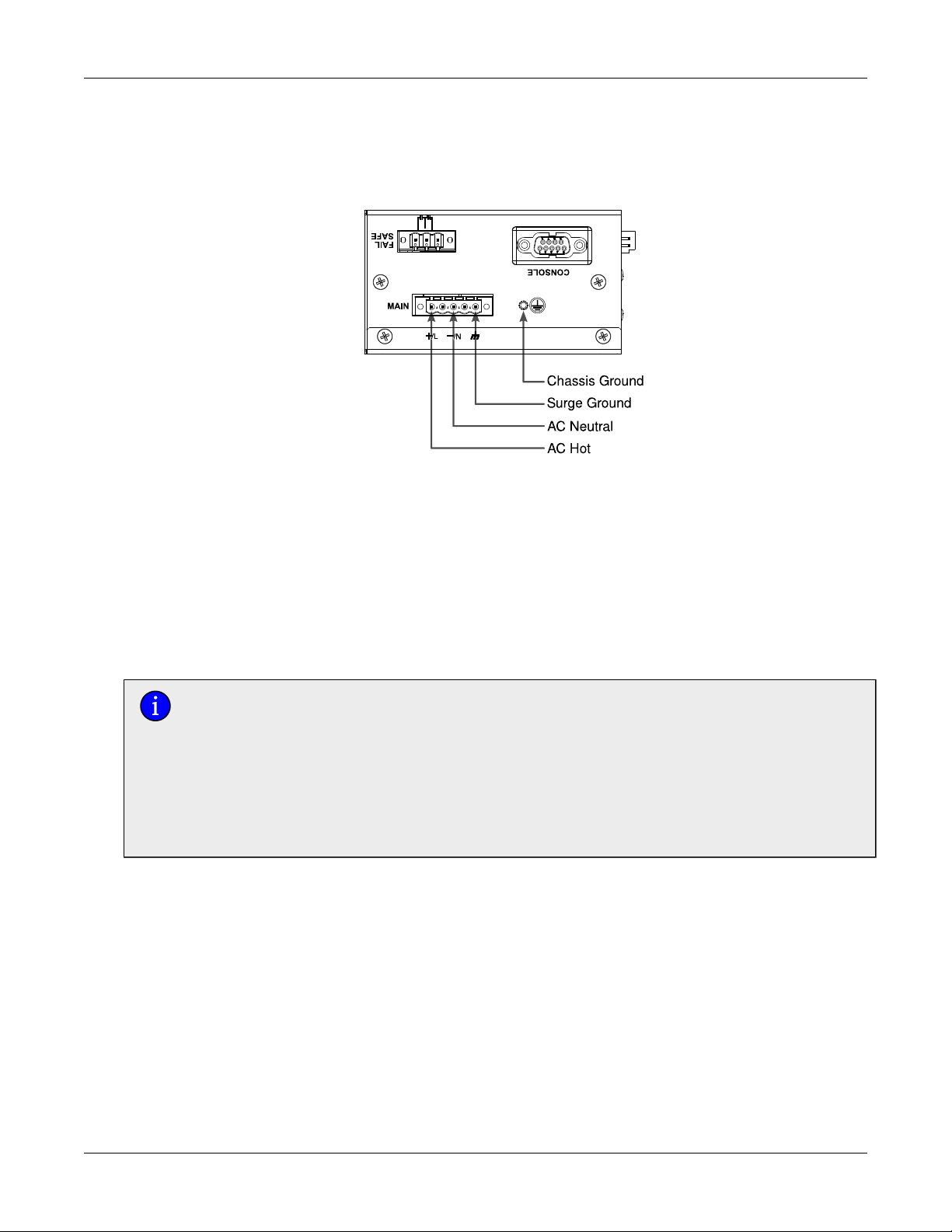

Figure 2.2. Power Supply Inputs

The RS900G HI power supply inputs are connected as follows:

1. +/L should be connected to AC (Hot)

2. -/N should be connected to AC (Neutral)

3. Surge Ground is connected to the Chassis Ground via a braided cable or other appropriate
grounding wire. Surge Ground is used as the ground conductor for all surge and transient
suppression circuitry internal to the RS900G unit.

4. Chassis Ground should be connected to the AC Ground terminal

1. Equipment must be installed according to the applicable country wiring codes.

2. Surge Ground MUST be disconnected from the Chassis Ground during HIPOT
(dielectric strength) testing.

3. All line-to-ground transient energy is shunted to the Surge Ground terminal. In
cases where users require the inputs to be isolated from ground, remove the
ground braid between Surge and Chassis Ground. Note that all line-to-ground
transient protection circuitry will be disabled.

RuggedCom® RuggedSwitch™ 11 RS900G Installation Guide Rev 107

2. Installation

2.2.2. DC Power Supply Wiring and Grounding

Figure 2.3. DC Power Supply Wiring and Grounding

The RS900G low voltage DC power supply features reverse polarity protection and dual
independent inputs. This feature allows the connection of two DC sources with the same nominal
voltage to provide redundant power supply inputs. The DC source must be connected to the DC
inputs according to the polarity markings on the unit.

1. Equipment must be installed according to the applicable country wiring codes.

2. Surge Ground should be connected to Chassis Ground via a braided cable or
other appropriate ground wire.

3. Chassis Ground must be connected to the protective earth.

4. All line-to-ground transient energy is shunted to the Surge Ground terminal. In
cases where users require the DC inputs to be isolated from ground, remove the
ground braid between Surge and Chassis Ground. Note that all line-to-ground
transient protection circuitry will be disabled.

RuggedCom® RuggedSwitch™ 12 RS900G Installation Guide Rev 107

2. Installation

2.3. HIPOT (Dielectric Strength) Testing

Units which are to be “HIPOT” tested in the field must have the braided ground cable disconnected
(see Figure 2.4, “HIPOT (Dielectric Strength) Testing”) during the HIPOT test. This is required in
order to prevent the transient/surge suppression circuitry, which is connected to Surge Ground,
from being activated during the HIPOT test.

Figure 2.4. HIPOT (Dielectric Strength) Testing

2.4. Failsafe Output Wiring and Specifications

The “Failsafe” output relay is provided to signal critical error conditions that may occur on the
RS900G. The contacts are energized upon power up of the unit and remain energized until an
alarm condition or power loss occurs.

Figure 2.5. Failsafe Output Relay

2.5. RS232 Port Wiring

The RS232 port is used for configuring the unit. A straight-through serial cable with a DB-9
connector is required. There is no need to crossover the Transmit and Receive signals from the
PC side since this has been done internally as shown in the figure below.

RuggedCom® RuggedSwitch™ 13 RS900G Installation Guide Rev 107

2. Installation

Figure 2.6. RS232 Female Connector

Table 2.1. RS232 Female DCE Pinout

Pin Signal

1 No Connection
2 Transmit Data
3 Receive Data
4 No Connection
5 Ground
6 No Connection
7 No Connection
8 No Connection
9 No Connection

This port is not intended to be a permanent connection and the cable shall be less
than 2m (6.5 ft) in length.

RuggedCom® RuggedSwitch™ 14 RS900G Installation Guide Rev 107

2. Installation

2.6. RJ45 Ports: Signal Description

The RS900G has several 10/100BaseTX ports that allow connection to standard CAT-5 UTP cable
with RJ45 male connectors. The RJ45 receptacles are directly connected to the chassis ground
on the unit and can accept shielded CAT-5 cables. If shielded cables are used, care must be
taken to ensure the shielded cables do not form a ground loop via the shield wire and the RJ45
receptacles at either end.

Figure 2.7. RJ45 Port Connector

RJ45 Pin 10/100Base-Tx 10/100/1000Base-Tx

1 RX+ A+
2 RX- A­3 TX+ B+
4 NC C+
5 NC C­6 TX- B­7 NC D+
8 NC D-

Table 2.2. RJ45 Ethernet Pin Assignment

RuggedCom does not recommend the use of CAT-5 cabling of any length for critical
real-time substation automation applications. However, transient suppression circuitry
is present on all copper ports to protect against damage from electrical transients and
to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance. This means that during
the transient event communications errors or interruptions may occur but recovery is
automatic.

RuggedCom also does not recommended to use these ports to interface to field
devices across distances which could produce high levels of ground potential rise, (i.e.
greater than 2500V) during line to ground fault conditions.

RuggedCom® RuggedSwitch™ 15 RS900G Installation Guide Rev 107

3. Specifications

3. Specifications

3.1. Operating Environment

Parameter Range Comments

Ambient Operating Temperature -40 to 85°C

Ambient Relative Humidity 5% to 95% Non-condensing

Ambient Storage Temperature -40 to 85°C

Operating Altitude 0 to 15240m (0 to 50000 ft) Over temperature range of -40 to 85°C

Table 3.1. Operating Environment

3.2. Power Supply Specifications

Ambient Temperature as measured
from a 30cm radius surrounding the

center of the RS900G enclosure.

Power

Supply Type

12 – 24 VDC 10 VDC 36 VDC 3.15A (T)

24 VDC 18 VDC 36 VDC 3.15A (T)
48 VDC 36 VDC 72VDC 3.15A (T)

HI (125/250 VDC)
HI (110/230 VAC)

a

(T) denotes time-delay fuse

b

This is the same power supply for both AC and DC.

Minimum Input Maximum Input Fuse Rating Isolation

b
b

88 VDC
85 VAC

300 VDC
265 VAC

Table 3.2. RS900G Power Supply Specifications

3.3. Failsafe Relay Specifications

Parameter Value

Max Switching Voltage 30VAC, 80VDC

Rated Switching Current

Table 3.3. Failsafe Relay Specifications

• Resistive Load.

• For Class-2 circuits only.

3.15A (T)

a
a
a

a

1A @ 30VDC, 0.3A @ 80VDC

1.5 kV DC

1.5 kV DC

1.5 kV DC

4 kV AC 5.5 kV DC

0.3A @ 30VAC

Maximum Power

Consumption

10W

3.4. Twisted Pair Data Port Specifications

Data Port Media Distance Connector Type

10/100 Mbps Cat 5 UTP or STP 100m RJ45

Table 3.4. Twisted Pair Data Port Specifications

RuggedCom® RuggedSwitch™ 16 RS900G Installation Guide Rev 107

3. Specifications

3.5. Fiber Optic Port Specifications

For maximum flexibility, RuggedCom Inc. offers a number of different transceiver choices for
Gigabit fiber optic communications. The following table details fiber optic specifications based on
the order code/transceiver selected at time of ordering.

Order Code

2LCMM MM / LC 850

2LC10 SM / LC 1310
2LC25 SM / LC 1310
2SC10 SM / SC 1310
2SC25 SM / SC 1310

SFP MM / LC 850
SFP SM / LC 1310
SFP SM / LC 1310

d

SFP

d

SFP

SFP

d

SFP

a

All cabling is duplex type unless otherwise specified.

b

All optical power numbers are listed as dBm averages.

c

Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices.

Please consult RuggedCom sales associates when determining maximum segment distances.

d

These transceivers utilize a distributed feedback (DFB) type laser and are rated for -20#C to +85#C operation only.

Mode /

Connector

SM / LC 1550
SM / LC 1550

SM / SC

Simplex

SM / SC

Simplex

Tx λ (nm)

1310

1490

Cable

Type 1.

50µ/125

9µ/125
9µ/125
9µ/125
9µ/125

50µ/125

9µ/125
9µ/125
9µ/125
9µ/125

9µ/125

9µ/125

Tx Pwr (dBm)

a

(Min/Max)

Rx Sensitivity

b

(dBm)

-9.5 / -4 -20 0 0.5

-9.5 / -3 -22 -3 10

-5 / 0 -22 -3 25

-10 / -3 -22 -3 10

-7 / -3 -24 -3 25

-8.5 / -4 -22 -3 0.5

-9 / -3 -24 0 10

-7 / -3 -26 -3 25

-5 / 0 -26 0 50
0 / 5 -26 0 80

-9 / -3 -22 -3 10

-9 / -3 -22 -3 10

Rx Saturation

b

(dBm)

b

Typical

Distance

c

(km)

Table 3.5. Fiber Optic Port Specifications

RuggedCom® RuggedSwitch™ 17 RS900G Installation Guide Rev 107

3. Specifications

3.6. Physical Dimensions

Figure 3.1. RS900G Physical Dimensions

Parameter Value Comments

Dimensions

Weight 2.7 lbs (1.2 kg)

Enclosure 20 AWG Galvanized Steel

Table 3.6. Physical Specifications

7.4 × 2.6 × 5.0 inches

(187.96 × 66.04 × 127.0 mm)

(Length × Width × Depth

RuggedCom® RuggedSwitch™ 18 RS900G Installation Guide Rev 107

3. Specifications

3.7. Type Test Specifications

3.7.1. IEC 61850-3 Type Tests

Test Description Test Levels

IEC 61000-4-2 ESD

IEC 61000-4-3 Radiated RFI Enclosure ports 20 V/m x

IEC 61000-4-4 Burst (Fast Transient)

IEC 61000-4-5 Surge

IEC 61000-4-6 Induced (Conducted) RFI

IEC 61000-4-8 Magnetic Field Enclosure ports

IEC 61000-4-29 Voltage Dips & Interrupts

IEC 61000-4-11 Voltage Dips & Interrupts A.C. Power ports

IEC 61000-4-12 Damped Oscillatory

IEC 61000-4-16 Mains Frequency Voltage

IEC 61000-4-17 Ripple on D.C. Power Supply D.C. Power ports 10% 3

IEC 60255-5 Dielectric Strength

Enclosure Contact +/- 8kV 4

Enclosure Air +/- 15kV 4

Signal ports +/- 4kV @ 2.5kHz x
D.C. Power ports +/- 4kV 4
A.C. Power ports +/- 4kV 4

Earth ground ports +/- 4kV 4

Signal ports

D.C. Power ports

A.C. Power ports

Signal ports 10V 3

D.C Power ports 10V 3

A.C. Power ports 10V 3

Earth ground ports 10V 3

D.C. Power ports

A.C. Power ports

Signal ports

D.C. Power ports

A.C. Power ports

Signal ports 30V Continuous, 300V for 1s 4
D.C. Power ports 30V Continuous, 300V for 1s 4

Signal ports
D.C. Power ports 1.5kV DC N/A

A.C. Power ports 2kV AC N/A

Signal ports 5kV (Fail-Safe Relay output) N/A
D.C. Power ports 5kV N/AIEC 60255-5 H.V. Impulse
A.C. Power ports 5kV N/A

+/- 4kV line-to-earth,

+/- 2kV line-to-line

+/- 2kV line-to-earth,

+/- 1kV line-to-line

+/- 4kV line-to-earth,

+/- 2kV line-to-line

40 A/m continuous,

1000 A/m for 1 s

30% for 0.1s, 60% for

0.1s, 100% for 0.05s
30% for 1 period,

60% for 50 periods

100% for 5 periods,

100% for 50 periods

2.5kV common, 1kV

differential mode @ 1MHz

2.5kV common, 1kV

differential mode @ 1MHz

2.5kV common, 1kV

differential mode @ 1MHz

2kV AC (Fail-

Safe Relay output)

Table 3.7. RS900G IEC 61850-3 Type Tests

Severity

Levels

4

3

4

N/A

N/A

N/A

N/A

3

3

3

N/A

RuggedCom® RuggedSwitch™ 19 RS900G Installation Guide Rev 107

3. Specifications

3.7.2. IEEE 1613 Type Tests

IEEE Test IEEE 1613 Clause Description Test Levels

C37.90.3 9 ESD

C37.90.2 8 Radiated RFI Enclosure ports 35 V/m

C37.90.1 7 Fast Transient

C37.90.1 7 Oscillatory

C37.90 6 H.V. Impulse

C37.90 6 Dielectric Strength

Table 3.8. RS900G IEEE 1613 Type Tests

Enclosure Contact +/- 8kV

Enclosure Air +/- 15kV

Signal ports

D.C. Power ports +/- 4kV
A.C. Power ports +/- 4kV

Earth ground ports +/- 4kV

Signal ports

D.C. Power ports

A.C. Power ports

Signal ports

D.C. Power ports 5 kV
A.C. Power ports 5 kV

Signal ports

D.C. Power ports 1.5kV DC
A.C. Power ports 2kV AC

+/- 4kV

@ 2.5kHz

2.5kV
common
mode @

1MHz

2.5kV

common &
differential

mode @

1MHz

2.5kV

common &
differential

mode @

1MHz

5 kV (Failsafe

Relay)

2kV

AC(Failsafe

Relay)

• If the unit contains copper ports the IEEE 1613 conformance is Class 1 (During
disturbance errors may occur but recovery is automatic).

• If the unit contains all fiber ports the IEEE 1613 conformance is Class 2 (During
disturbance no errors will occur).

3.7.3. IEC Environmental Type Tests

Test Description Test Levels Severity Levels

IEC 60068-2-1 Cold Temperature Test Ad -40°C, 16 Hours N/A

IEC 60068-2-2 Dry Heat Test Bd +85°C, 16 Hours N/A
IEC 60068-2-30
IEC 60255-21-1 Vibration 2g @ (10-150) Hz Class 2

IEC 60255-21-2 Shock 30g @ 11 ms Class 2

Humidity (Damp

Heat, Cyclic)

Test Db

Table 3.9. IEC Environmental Type Tests

RuggedCom® RuggedSwitch™ 20 RS900G Installation Guide Rev 107

95% (non-condensing),

55°C, 6 cycles

N/A

3. Specifications

RuggedCom® RuggedSwitch™ 21 RS900G Installation Guide Rev 107

3. Specifications

3.8. Agency Approvals

Agency Standards Comments

CSA CSA C22.2 No. 60950, UL 60950 Approved

CE EN 60950, EN 61000-6-2

FCC FCC Part 15, Class A Approved

CISPR EN55022, Class A Approved

FDA/CDRH 21 CFR Chapter 1, Subchapter J Approved

IEC/EN EN60825-1:1994 + A11:1996 + A2:2001 Approved

CSA

Table 3.10. Agency Approvals

Class 1, Division 2, Groups A, B, C,& D.

Hazardous Locations

T6 rating at 40°C, T4A rating at 85°C

CE Compliance is claimed via

Declaration of Self Conformity Route

Approved

RuggedCom® RuggedSwitch™ 22 RS900G Installation Guide Rev 107

Appendix A. Warranty

Appendix A. Warranty

RuggedCom warrants this product for a period of five (5) years from the date of purchase. This
product contains no user-serviceable parts. Attempted service by unauthorized personnel shall
render all warranties null and void. For warranty details, visit www.RuggedCom.com or contact
your customer service representative.

Should this product require service, contact the factory at:

RuggedCom Inc.

300 Applewood Crescent
Concord, Ontario
Canada L4K 5C7
Phone: [phone]
Fax: [phone]

RuggedCom® RuggedSwitch™ 23 RS900G Installation Guide Rev 107
