ruger p85, P85 MKII User Guide

WARNING—PARTS PURCHASERS
PARTS MUST FIT CORRECTLY
NOTE: This model out of production.
— For reference use only.
All parts orders for the P85 and P85 MKII Model pistols should be sent to: Sturm, Ruger & Co., Inc., Parts Department, 200 Ruger Road, Prescott, AZ 86301, 520-778-6555. Payment in the form of a check or money order must accompany your order. We cannot comply with open account, credit cards or C.O.D. requests. Minimum parts order is $1.00 plus $3.50 shipping and handling charge. Order parts by part name and part number and include the entire serial number of the firearm for which the parts are being ordered. The price shown for parts does not include the minimum net labor charge of $15.00 plus $5.00 shipping and handling if parts are factory fitted. All factory fitted parts are fitted on an exchange basis only. We will not return the replaced parts. Work performed will bear a net minimum labor charge of $15.00 plus a $5.00 shipping and handling charge. The charge for metal refinishing (except for the aluminum frame, which we cannot refinish) is $35.00 plus a $5.00 shipping and handling charge.
Because it is a serial-numbered component, the frame is defined as a “firearm” by Federal Law and is not sold as a separate component. If no price appears in the “Stainless” column, the part is available in blued steel only and is used on all models. Likewise, if no price appears in the
“Blued” column, the part is available in stainless steel only and is used on all models. A few components (for example, grip panels) are the same for blued and stainless models.
SAFETY WARNING: IMPORTANT SAFETY WARNING TO OWNERS OF RUGER P85 PISTOLS MADE BETWEEN 1987-1990: If the firing
pin is broken, these pistols may fire when the safety or decock lever is depressed. Please contact us at Sturm, Ruger and Company, Dept. S, Ruger Road, Prescott, AZ 86301 (phone: 1-800-424-1886), and we will schedule your pistol for a FREE factory safety modification to prevent such firing. This offer does not
apply to P85 Mark II pistols, pistols with an “R” on the manual safety, or any other P-Series pistol. These firing pins are very
durable and breakage has occurred only in a handful of cases. In the interest of complete safety, users should al
ways point the pistol in a safe direc-
tion when decocking. However, the new design components eliminate the possibility of this kind of accidental discharge.
BLUED &
STAINLESS
CALIBER
9mm
RUGER
P85& P85MKII
Autoloading Pistols
STURM, RUGER & Company, Inc.
Southport, Connecticut 06490 U.S.A.
BOOKLET C3
VII/4/95
R7
BOOKLET C3
Design, specifications and prices are subject to change without notice. The Sturm, Ruger & Company “LOGO”, “RUGER” and “P85” are registered U.S. trademarks.
It is the purchaser’s responsibility to be absolutely certain that any parts ordered from the factory are correctly fitted and installed. Firearms are complicated mechanisms and IMPROPER FITTING OF PARTS MAY RESULT IN A DANGEROUS MALFUNCTIONING, DAMAGE TO THE FIREARM AND INJURY TO THE SHOOTER AND OTHER PERSONS. The purchaser and installer of parts must accept full responsibility for the correct adjustment and functioning of the firearm after such installation.
P85& P85MKII
SAFETY WARNING: IMPORTANT SAFETY WARNING TO OWNERS OF RUGER P85 PISTOLS MADE BETWEEN 1987-1990: If the firing pin is broken,
these pistols may fire when the safety or decock lever is depressed. Please contact us at Sturm, Ruger and Company, Dept. S, Ruger Road, Prescott, AZ 86301 (phone: 1-800-424-1886), and we will schedule your pistol for a FREE factory safety modification to prevent such firing. This offer does not apply to P85 Mark II pistols, pistols with an “R” on the manual safety, or any other P-Series pistol. These firing pins are very durable and breakage has occurred only in a handful of cases. In the interest of complete safety, users should always
point the pistol in a safe direction when decocking.
However, the new design components eliminate the possibility of this kind of accidental discharge.
*Parts designated by an asterisk must be factory fitted. These parts are fitted on an exchange basis only. We will not return the replaced parts. We will not return any part that is broken, malfunctioning, badly worn or has been modified. See “Warning — Parts Purchasers” front cover.
A Ruger Accessories should be ordered through a Ruger Distributor. Refer to booklet B1 for a list of Distributors. Refer to booklet B2 for a list of Parts
Source. For a complete list of Ruger Accessories refer to booklet A1.
BOOKLET C3
NOTE: This model out of production.
— For reference use only.

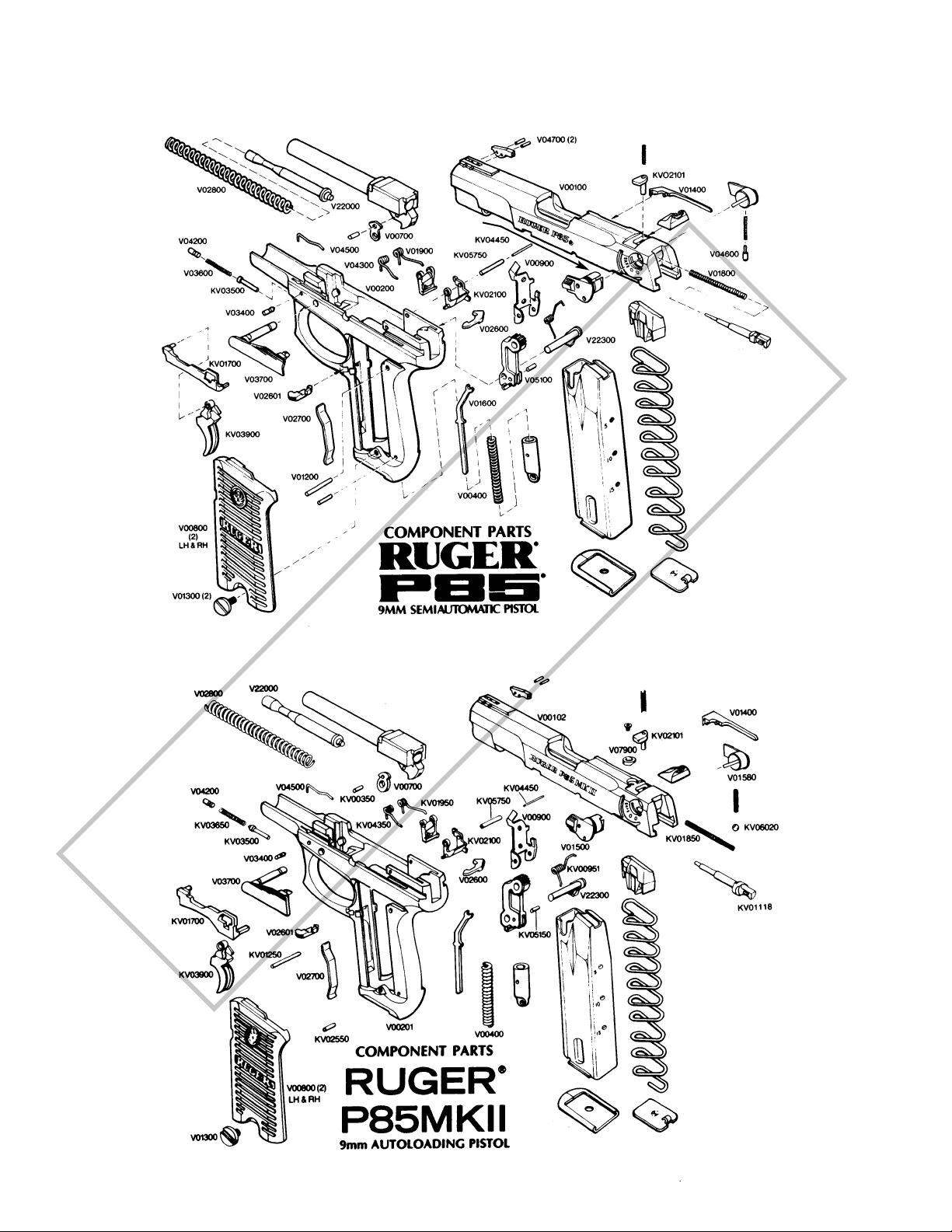

COMPONENT PARTS AND SUGGESTED RETAIL PRICES
ORDER THESE PARTS FROM PRESCOTT PLANT
Caliber
Part Name Part No. Model 9mm Blued Stainless
* Barrel, Assembly KV00612-100 P85, P85 MKII $74.00
Barrel Link V00700 P85, P85 MKII $ .75 – Barrel Link Pin KV00350 P85, P85 MKII .50
* Blocker Lever KV02100 P85, P85 MKII 6.75
Blocker Lever Spring V01900 P85 1.00 – Blocker Lever Spring KV01950 P85 MKII 1.00
A Case Combo, 9mm, Not Illustrated, PGCC-9mm P85, P85 MKII 42.30 42.30
Specify Serial Number
A Case Only, Centerfire, Not Illustrated PGC-CF P85, P85 MKII 15.00 15.00
Ejector V00900 P85, P85 MKII 5.00 – Ejector Pin V01200 P85 .50 – Ejector Pin KV01250 P85 MKII .50 Ejector Spring KV00951 P85, P85 MKII 3.00
* Extractor V01400 P85, P85 MKII 8.50 10.00
Firing Pin Serial Number P85 12.75
Required
Firing Pin KV01118 P85 MKII 12.75
* Firing Pin Block KV02101 P85, P85 MKII 5.00
Firing Pin Block Spring KQ05600 P85, P85 MKII .50 Firing Pin Plunger, Not Illustrated KH05100 P85, P85 MKII 1.50 Firing Pin Spring V01800 P85 .50 – Firing Pin Spring KV01850 P85 MKII .50 Frame V00200 P85 Not Offered For Sale Frame V00201 P85 MKII Not Offered For Sale Front Sight, Must Be V03203 P85, P85 MKII 2.50
Drilled For Cross Pin Front Sight Cross Pin, 2 Req’d. V04700 P85, P85 MKII ea. .50 – Grip Panel Screw, 2 Req’d. V01300 P85, P85 MKII ea. .50 – Grip Panels, Sold in Pairs Only V00800 P85, P85 MKII 6.00 – Guide Rod V22000 P85, P85 MKII 3.00 – Guide Rod/Recoil Spring Assembly V22000-100 P85, P85 MKII 3.50
* Hammer KV04003 P85, P85 MKII 17.75 * Hammer, Assembly KV04003-100 P85, P85 MKII 18.25
Hammer Pivot, Assembly V22300 P85, P85 MKII 1.50 1.75 Hammer Spring V00400 P85, P85 MKII .50 – Hammer Spring Seat, Without Lanyard V02400 P85, P85 MKII 3.25
Loop, Not Illustrated Hammer Spring Seat, With Lanyard Loop V02402 P85, P85 MKII 3.25 – Hammer Spring Seat Pin KV02550 P85, P85 MKII .50 Hammer Strut V01600 P85 1.25 – Hammer Strut V01601 P85 MKII 1.25 – Hammer Strut Pin V05100 P85 .50 – Hammer Strut Pin KV05150 P85 MKII .50 Lock & Keys PGLK P85, P85 MKII 2.50 2.50
A Magazine Complete, 10-Shot Capacity P-15/10 P85, P85 MKII 21.00
