What is MIDI?
MIDI is an internationally recognized standard for exchanging performance information between
electronic musical instruments and computers.
For example, in the illustration below, a MIDI signal meaning “the ‘C’ key on the MIDI keyboard was
pressed” passes through the UM-ONE and is received by the computer’s software sound module,
and then the software sound module plays the note “C.”
Software sound module
MIDI signal
“C” is played
Information meaning “the ‘C’ key was pressed”
“C” key is pressed
In this way, MIDI is used to send performance information to other instruments; for example “the
‘C’ key was pressed with a certain amount of force,” “the instrument was changed to a violin sound,”
“the volume was raised/lowered,” “the pitch was raised/lowered,” etc. In other words, MIDI is the
“language of musical instruments.”
MIDI signals are merely performance instructions, therefore a MIDI sound module, such as a software
sound module, is required to produce sound.
All software sound modules and DAW (Digital Audio Workstation) software support MIDI.
* DAW software is a term that refers to music production software, such as SONAR.
Note
Do not connect the UM-ONE to the computer until the driver has been installed (p. 9).
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and
“IMPORTANT NOTES” (p. 3; p. 5). These sections provide important information concerning the
proper operation of the unit. Additionally, in order to feel assured that you have gained a good
grasp of every feature provided by your new unit, this Owner’s Manual should be read in its
entirety. The manual should be saved and kept on hand as a convenient reference.
Copyright © 2011 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written
permission of ROLAND CORPORATION.
Roland is a registered trademark of Roland Corporation in the United States and/or other countries.
USING THE UNIT SAFETY
About WARNING and CAUTION Notices
Used for instructions intended to alert the
user to the risk of death or severe injury
should the unit be used improperly.
Used for instructions intended to alert the
user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic animals
or pets.
ALWAYS OBSERVE THE FOLLOWING
• Do not open or perform any internal
modications on the unit.
• Do not attempt to repair the unit, or replace
parts within it (except when this manual
provides specic instructions directing you
to do so). Refer all servicing to your retailer,
the nearest Roland Service Center, or an
authorized Roland distributor, as listed on
the “Information” page.
• Never install the unit in any of the following
locations.
• Subject to temperature extremes
(e.g., direct sunlight in an enclosed
vehicle, near a heating duct, on top of
heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet
oors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Humid; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of vibration and
shakiness.
About the Symbols
The symbol alerts the user to important instructions or
warnings.The specific meaning of the symbol is
determined by the design contained within the triangle. In
the case of the symbol at left, it is used for general
cautions, warnings, or aler ts to danger.
The symbol alerts the user to items that must never be
carried out (are forbidden). The specific thing that must
not be done is indicated by the design contained within
the circle. In the case of the symbol at left, it means that
the unit must never be disassembled.
The symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In the
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
• Do not place containers containing liquid
on this product. Never allow foreign objects
(e.g., ammable objects, coins, wires) or
liquids (e.g., water or juice) to enter this
product. Doing so may cause short circuits,
faulty operation, or other malfunctions.
• Immediately disconnect the USB cable,
and request servicing by your retailer,
the nearest Roland Service Center, or an
authorized Roland distributor, as listed on
the “Information” page when:
• Objects have fallen into, or liquid has
been spilled onto the unit; or
• If smoke or unusual odor occurs
• The unit has been exposed to rain (or
otherwise has become wet); or
• The unit does not appear to operate
normally or exhibits a marked change in
performance.
• In households with small children, an adult
should provide supervision until the child is
capable of following all the rules essential
for the safe operation of the unit.
• Protect the unit from strong impact.
(Do not drop it!)
3
USING THE UNIT SAFETY
• DO NOT play a CD-ROM disc on a
conventional audio CD player. The resulting
sound may be of a level that could cause
permanent hearing loss. Damage to
speakers or other system components may
result.
• Try to prevent cords and cables from
becoming entangled. Also, all cords and
cables should be placed so they are out of
the reach of children.
• Never climb on top of, nor place heavy
objects on the unit.
• Disconnect all cords coming from external
devices before moving the unit.
4
IMPORTANT NOTES
Placement
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Excessive heat can deform or discolor the unit.
• When moved from one location to another where the
temperature and/or humidity is very dierent, water
droplets (condensation) may form inside the unit.
Damage or malfunction may result if you attempt to use
the unit in this condition. Therefore, before using the
unit, you must allow it to stand for several hours, until
the condensation has completely evaporated.
• Do not put anything that contains water (e.g., ower
vases) on this unit. Also, avoid the use of insecticides,
perfumes, alcohol, nail polish, spray cans, etc., near the
unit. Swiftly wipe away any liquid that spills on the unit
using a dry, soft cloth.
Maintenance
• For everyday cleaning wipe the unit with a soft, dry
cloth or one that has been slightly dampened with
water. To remove stubborn dirt, use a cloth impregnated
with a mild, non-abrasive detergent. Afterwards, be sure
to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or
deformation.
Additional Precautions
• Use a reasonable amount of care when using its
jacks and connectors. Rough handling can lead to
malfunctions.
• When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way
you will avoid causing shorts, or damage to the cable’s
internal elements.
• When you need to transport the unit, package it in the
box (including padding) that it came in, if possible.
Otherwise, you will need to use equivalent packaging
materials.
• Microsoft, Windows and Windows Vista are either
registered trademarks or trademarks of Microsoft
Corporation.
• The screen shots in this document are used in
compliance with the guidelines of the Microsoft
Corporation.
• Windows® is known ocially as: “Microsoft® Windows®
operating system.”
• Apple, Macintosh and Mac OS are either registered
trademarks or trademarks of Apple Inc.
• Company names and product names appearing in this
document are registered trademarks or trademarks of
their respective owners.
• MMP (Moore Microprocessor Portfolio) refers to a patent
portfolio concerned with microprocessor architecture,
which was developed by Technology Properties Limited
(TPL). Roland has licensed this technology from the TPL
Group.
Handling CDs
• Avoid touching or scratching the shiny underside
(encoded surface) of the disc. Damaged or dirty CD discs
may not be read properly. Keep your discs clean using a
commercially available CD cleaner.
5
MEMO
6
Contents
USING THE UNIT SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Panel Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Basic Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Recording MIDI Data, Playing a Software Sound Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Playing Back MIDI Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the External Equipment to UM-ONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the UM-ONE with a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the UM-ONE with an iPad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the UM-ONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing Computer Settings to Avoid Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Driver Signing Options Setting (Windows XP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Power Management Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Reinstalling the Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Deleting the Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lightening the MIDI Load (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Main Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
7
Panel Descriptions
Note
Do not connect the UM-ONE to the computer until the driver has been installed (p. 9).
1
2 3 4
6
7
No. Name Description
1 USB Cable Connects the UM-ONE to a computer.
2 USB Indicator
3 MIDI IN Indicator
4 MIDI OUT Indicator Lights when MIDI messages are sent from the computer.
MIDI IN Cable
5
(CONNECT TO MIDI OUT)
MIDI OUT Cable
6
(CONNECT TO MIDI IN)
7 [COMP/TAB] Switch
Lights when the UM-ONE is connected to a computer and the
computer has detected the UM-ONE.
Lights when MIDI messages are received from the device
connected to the MIDI IN cable.
Connects to the MIDI OUT connector of the MIDI device (such as a
MIDI keyboard) that will be used for MIDI recording or for playing
a software sound module.
Connects to the MIDI IN connector of a hardware sound module
when DAW software is used to play the hardware sound module.
COMP: For connecting a computer. Refer to “Using the UM-ONE
with a Computer” (p. 16).
In order to use the COMP setting, you must install the
driver in your computer.
TAB: For connecting an iPad. Refer to “Using the UM-ONE with
an iPad” (p. 16). Driver installation is not necessary.
5
8
Driver Installation
Windows
Note
Do not connect the UM-ONE to the computer until you are directed to do so.
A “driver” is software that transfers data between the UM-ONE and application software
running on your computer, when your computer and the UM-ONE are connected.
1. Start up the computer without the UM-ONE connected.
Disconnect all USB cables other than those for a USB keyboard and/or USB mouse (if
used).
Windows
Log on to the computer with a user account that has administrator privileges.
Windows 8
Switch to the “Desktop.”
2. Exit all applications that are running.
3. Insert the included CD-ROM into the CD-ROM drive.
4. Double-click the following le on the included CD-ROM and start the
installer.
Operating System File
Windows [Setup] in the [Driver] folder
Mac OS X [UMOne_USBDriver] in the [Driver] folder
Refer to the Roland website for the latest USB drivers and information about
compatibility with the latest operating system versions.
http://www.roland.com/
Mac OS X
Windows
Mac OS X
users: continue from p. 10
users: continue from p. 12
9
Driver Installation
Windows
5. When a conrmation screen regarding user account control appears, click [Yes]
or [Continue].
6. When “The UM-ONE Driver will be installed on your computer” appears, click
[Next].
7. Click [Next] again.
Windows 8/Windows 7/Windows Vista
If a dialog box regarding Windows security appears, click [Install].
Windows XP
If the “Software Install” dialog box appears, click [Continue] to proceed with the
installation.
If you cannot proceed, click [OK] to cancel the installation. Change the settings as
described in “Driver Signing Options Setting (Windows XP)” (p. 22) and try installing again.
8. When “Ready to install the driver.” appears,
connect the USB cable of the UM-ONE to the
computer.
It may take several minutes for the driver to be
installed.
Windows 8/Windows 7/Windows Vista
If other messages appear, follow the instructions on the
screen. The driver will be installed automatically.
Windows XP
“Found new hardware” will appear in the lower-right
corner of the screen.
10
Windows 8/Windows 7/Windows Vista
Windows XP
Windows 8/Windows 7/Windows Vista
9. When “Installation has been completed.” appears, click [Close].
Close the “UM-ONE Driver Setup” dialog box.
If the “Change System Settings” dialog box appears, click [Yes] to restart Windows.
Installation complete.
Windows XP
9. If a dialog box that asks whether you want
to connect to Windows Update appears,
select [No, not this time] and click [Next].
Driver Installation
10. Select [Install the software automatically (Recommended)] and click [Next].
11. If the “Hardware Installation” dialog box appears,
click [Continue Anyway] to proceed with
installation.
12. When “Completing the Found New Hardware Wizard” appears, click [Finish].
13. When “Installation has been completed.” appears, click [Close] to close the
“UM-ONE Driver Setup” dialog box.
If the “System Settings Change” dialog box appears, click [Yes] to restart Windows.
Installation complete.
11
Driver Installation
Mac OS X
If a dialog box requesting a password appears during installation, enter a computer
administrator’s user name and password and click the [Install Software] button or [OK] button.
5. When “Welcome to the UM-ONE Driver installer” appears, click [Continue].
6. If the screen for selecting the installation destination appears, select the startup
disk and click [Continue].
7. When the installation type appears, click [Install] or [Upgrade].
8. Click [Continue Installation] in the next screen.
9. When installation has nished, click [Restart] to restart the computer.
It may take some time for the computer to restart.
10. After the computer restarts, connect the USB
cable of the UM-ONE to the computer.
11. Open the [Applications] folder and then the
[Utilities] folder, and then double-click [Audio
MIDI Setup].
The “Audio MIDI Setup” dialog box will appear.
12. Open the MIDI device settings dialog box.
Operating System Operation
Mac OS X 10.6 or later
Mac OS X 10.5 or earlier Click the [MIDI Devices] tab.
Select [Show MIDI Window] in the [Window] menu.
(The “MIDI Studio” window will appear.)
13. Conrm that “UM-ONE” appears in the “MIDI Studio” window or the “Audio MIDI
Settings” dialog box.
If “UM-ONE” does not appear or if it is grayed out, it means that the UM-ONE is not being
detected properly. Click [Rescan MIDI]. Also try disconnecting and reconnecting the UM-ONE’s
USB cable.
12
Driver Installation
14. Click [Add Device] one time.
One [new external device] will appear.
15. Click the added [new external device], and then click [Show Info].
16. In the [Device Name] eld, enter “UM-ONE” and
click [Apply].
17. Using your mouse, drag and connect the up/down arrows (which represent the
input/output ports of each device) of the [UM-ONE] and the [UM-ONE] that you
added so that they are connected as shown in the gure.
14 18, 2015
13
19
17
18. Click [Test Setup].
19. Click the UM-ONE’s down arrow.
If the settings are correct, the UM-ONE’s MIDI OUT indicator will blink.
20. Click [Test Setup] again and complete the conrmation.
21. Close the “MIDI Studio” window or the “Audio MIDI Setup” dialog box.
Installation complete.
13
Basic Use
Precautions Concerning the Use of Software
Before using the UM-ONE with your software, please note the following points.
• Connect the UM-ONE to the computer before starting the software.
• Do not disconnect the UM-ONE from the computer while the software is running. After
exiting the software, disconnect the UM-ONE.
• Select the UM-ONE for the software’s MIDI device setting.
• The UM-ONE will not operate in the Mac OS X Classic environment. Use the UM-ONE when
the Classic environment is not running.

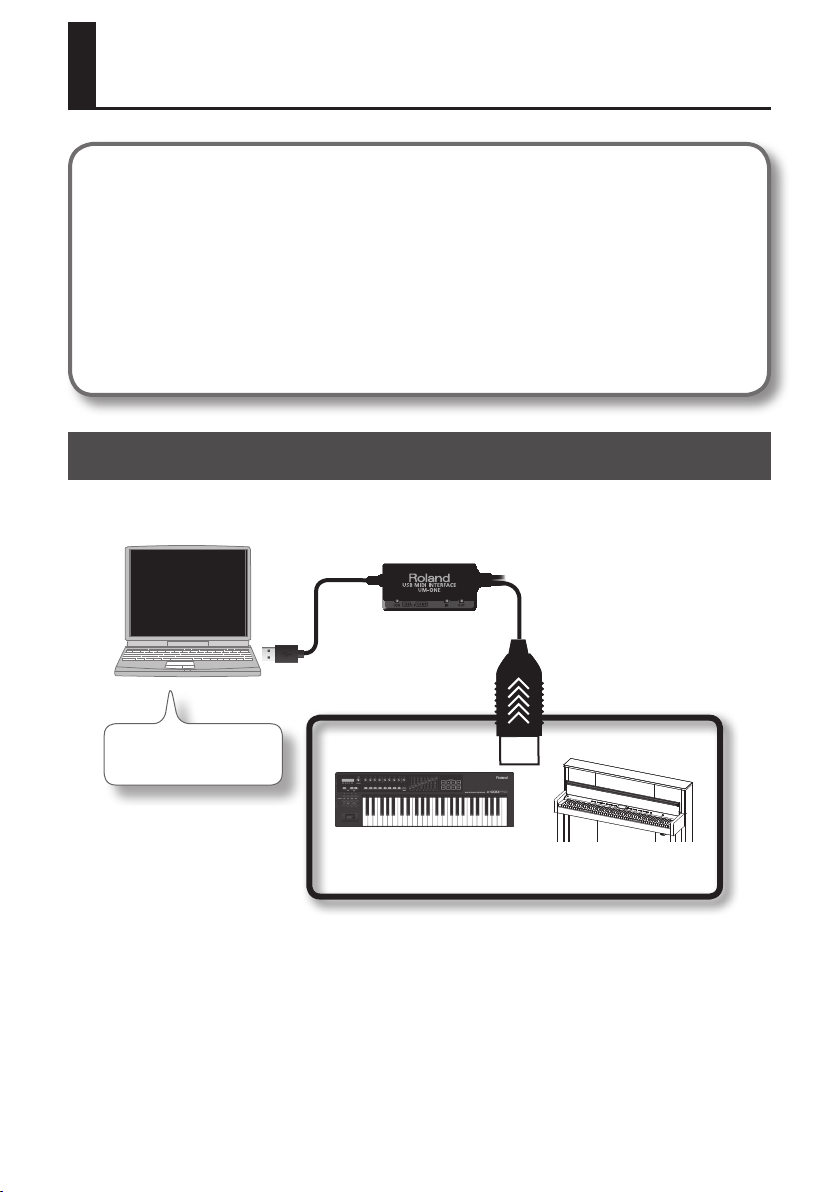

Recording MIDI Data, Playing a Software Sound Module
To transmit MIDI messages from a MIDI keyboard or digital piano in order to record MIDI data using
DAW software or play a software sound module, make the following connections and settings.
MIDI IN Cable
(CONNECT TO MIDI OUT)
To MIDI OUT Connector
Software’s MIDI Input
Device: UM-ONE
MIDI Keyboard Digital Piano
* When connecting other devices, always be sure to turn the volume down before connecting or
disconnecting cables to prevent damage to speakers.
14
Basic Use

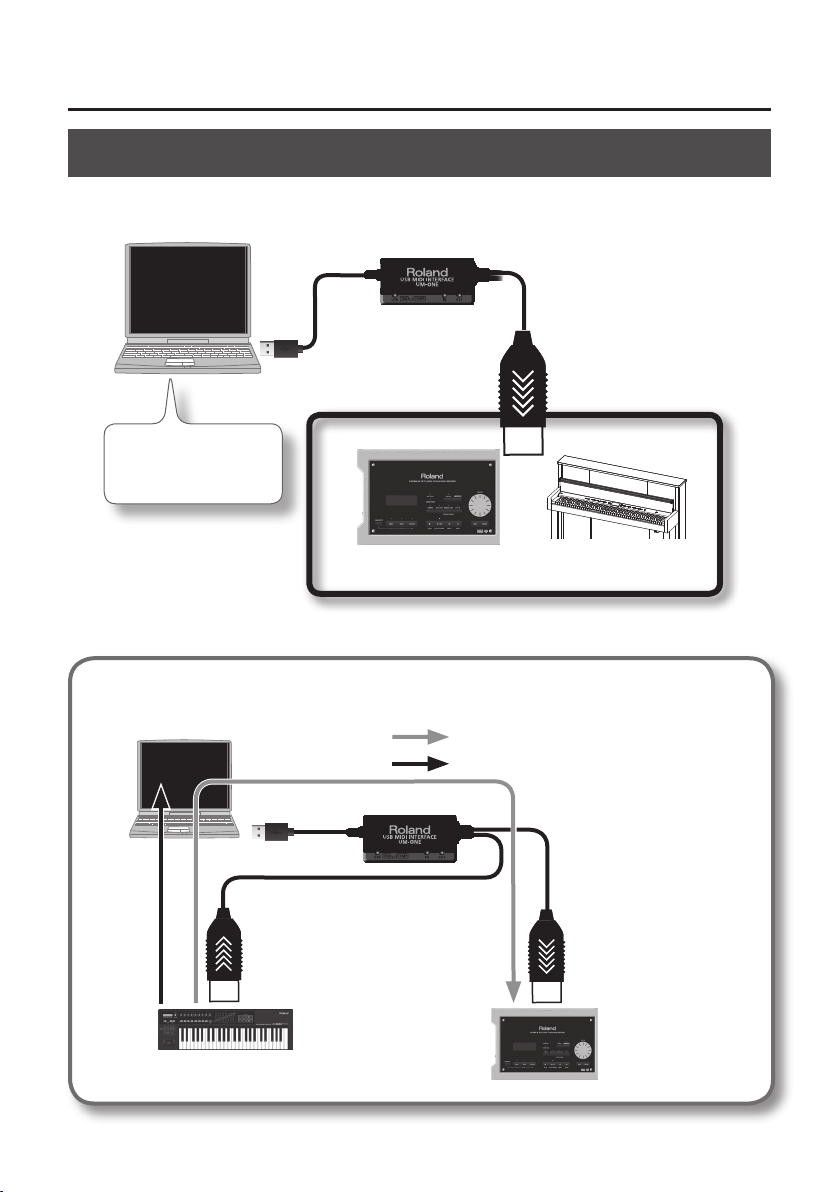

Playing Back MIDI Data
To send MIDI messages that were recorded using DAW software to a MIDI sound module or software
sound module, make the following connections and settings.
MIDI OUT Cable
(CONNECT TO MIDI IN)
To MIDI IN Connector
Software’s MIDI
Output Device:
UM-ONE
MIDI Sound Module
* When connecting other devices, always be sure to turn the volume down before connecting or
disconnecting cables to prevent damage to speakers.
To play a MIDI keyboard and use a MIDI sound module as the instrument, turn on the
software’s MIDI THRU feature.
MIDI Signal Flow (THRU: On)
MIDI Signal Flow (THRU: O )
MIDI IN Cable
(CONNECT TO MIDI OUT)
To MIDI OUT Connector
MIDI Keyboard
Digital Piano
MIDI OUT Cable
(CONNECT TO MIDI IN)
To MIDI IN Connector
MIDI Sound Module
15
Basic Use
Connecting the External Equipment to UM-ONE
The [COMP/TAB] switch needs to be placed at the setting that’s appropriate for the device to which
you’re connecting the UM-ONE.
Switch position Connected device
COMP For connecting a computer. Refer to “Using the UM-ONE with a Computer” (p. 16).
In order to use the COMP setting, you must install the driver in your computer.
TAB For connecting an iPad. Refer to “Using the UM-ONE with an iPad” (p. 16). Driver installation is
Using the UM-ONE with a Computer
If using the UM-ONE while connected to a computer, set the UM-ONE’s [COMP/TAB] switch to the
“COMP” position.
not necessary.
2
1
1. Set the UM-ONE’s [COMP/TAB] switch to the “COMP” position.
2. Connect the UM-ONE to the computer.
MEMO
If you want to connect the UM-ONE to a computer in which the USB driver has not been installed,
disconnect the UM-ONE’s USB cable from the computer, and install the USB driver in the
computer as described in the section “Driver Installation” in the UM-ONE owner’s manual.
Using the UM-ONE with an iPad
If using the UM-ONE with an iPad, set the UM-ONE’s [COMP/TAB] switch to the “TAB” position.
Before you continue, please make sure to access the following URL and check the operating
requirements and other relevant information.
http://www.roland.com/support/
16
NOTE
• The rst-generation iPad cannot be used.
• The iPad app you’re using must support CoreMIDI.
You’ll need to provide the following items
• iPad (made by the Apple Inc.)
• Apple iPad Camera Connection Kit (Camera Connector; made by the Apple Inc.)
• USB hub (commercially available; a type to which an AC adaptor or other power supply is
connected)
• USB cable (commercially available)
1 2
Basic Use
AC adaptor
included with the
USB hub
USB hub that works with a
connected power supply
(commercially available)
Apple iPad Camera
Connection Kit
(Camera Connector)
4
3
1. Power up your USB hub (connect the AC adaptor to the USB hub).
2. Connect the USB hub to the iPad using the Camera Connector of the Apple iPad
Camera Connection Kit.
3. Set the UM-ONE’s [COMP/TAB] switch to the “TAB” position.
4. Connect the UM-ONE to the USB hub.
MEMO
Operation may be unstable if you use a USB hub of a type that does not have a connected power
supply, or if you connect the UM-ONE directly to the iPad.
17
Troubleshooting
If you experience problems, read this chapter rst. It contains tips for solving most problems. If this
chapter cannot help you solve a problem, please refer to the support section of our website. If the
problem is not resolved, refer to the contact information listed at the end of this document.
Roland support website: http://www.roland.com/
Driver Installation
Problem Conrmation Resolution
Installer does not
start
Cannot install
Warning or
error appears
during installation
(Windows)
Installer does not
exit
“Found New
Hardware Wizard”
appears again after
driver was installed
(Windows XP)
Are you attempting to install from a
networked CD-ROM drive?
Are you logged on with a user account
that does not have administrator
privileges?
Is the “Driver Signing Options” setting set
to [Block]? (Windows XP)
Are other programs or resident
programs (such as antivirus programs)
running?
In the “Device Manager,” do you see
“Other device,” “Unknown device,” or a
device for which “?,” “!,” or “x” is displayed?
Is your computer running on battery
power?
Other than a mouse and keyboard, are
any USB devices connected?
Is the UM-ONE connected to a USB hub
that is connected to a power supply?
Did you connect the UM-ONE to a
dierent USB connector than the one
you used when installing the driver?
You cannot install from a networked CD-ROM drive.
Log on to the computer with a user account that
has administrator privileges.
For details, consult the administrator for your
computer system.
Change the “Driver Signing Options” setting (p. 22).
Be sure to exit all other programs before
installation.
Reinstall the UM-ONE driver (p. 23).
Connect the power cord to the computer.
Make sure that there are no USB devices
connected to the computer (other than a mouse
and keyboard) during installation.
Use a USB hub that connects to a power supply.
If you change the USB connector to which the
UM-ONE is connected, the “Found New Hardware
Wizard” may appear again even if the driver has
already been installed on the computer.
Follow step 9 of the driver installation procedure (p.
11) and install the driver.
18
Problem Conrmation Resolution
If you connect the UM-ONE to a dierent USB
Numeral such
as “2-” appears
at beginning
of device name
(Windows)
Did you connect the UM-ONE to a
dierent USB connector than the one
you used when installing the driver?
connector than the one you used when installing
the driver, a numeral may appear with the device
name.
To have the device name appear without the
numeral, connect the UM-ONE to the same USB
connector used during installation, or reinstall the
driver (p. 23).
Using the UM-ONE
Problem Conrmation Resolution
Is the driver installed? Install the driver (p. 9).
Make sure that the UM-ONE is connected to the
computer correctly.
If the problem is not resolved, reinstall the driver
(p. 23).
Exit all programs that are using the UM-ONE,
disconnect the UM-ONE’s USB cable, and then
reconnect it.
If the problem is not resolved, reinstall the driver
(p. 23).
Exit all programs that are using the UM-ONE,
disconnect the UM-ONE’s USB cable, and then
reconnect it.
If the problem is not resolved, restart the computer.
Exit all programs that are using the UM-ONE,
disconnect the UM-ONE’s USB cable, and then
reconnect it.
If the problem is not resolved, restart the computer.
Connect the UM-ONE after the computer has
started up.
(With some computers, the UM-ONE cannot be
used if it is connected to the computer while the
computer is starting up.)
Use dierent software.
MIDI devices cannot be selected in Media Player.
Cannot select
or use UM-ONE
device
Is the UM-ONE’s USB indicator o?
Is the UM-ONE’s device name displayed?
Did the computer enter standby
(suspend) mode, hibernate mode, or
sleep mode while the UM-ONE was
connected?
Did you disconnect and reconnect the
USB cable while using the UM-ONE?
Was the UM-ONE connected to the
computer while the computer was
starting up?
Are you using the Media Player included
with Windows? (Windows 8/Windows 7/
Windows Vista)
Troubleshooting
19
Troubleshooting
Problem Conrmation Resolution
Cannot select
or use UM-ONE
device
Cannot play back
or record
Have you congured “Audio MIDI
Setup”? (Mac OS X)
Is the driver installed? Install the driver (p. 9).
Is the software’s input device and output
device congured?
Is the UM-ONE’s USB indicator o?
Did you make a mistake when connecting the MIDI IN cable (CONNECT TO MIDI
OUT) and MIDI OUT cable (CONNECT TO
MIDI IN)?
Is the sound module connected to the
MIDI OUT cable receiving MIDI signals?
Did the computer enter standby
(suspend) mode, hibernate mode, or
sleep mode while the UM-ONE was
connected?
Did you disconnect and reconnect the
USB cable while using the UM-ONE?
Was the UM-ONE connected to the
computer while the computer was
starting up?
Did the computer handle a processorintensive task while you were using the
UM-ONE?
Are you using the Media Player included
with Windows? (Windows 8/Windows 7/
Windows Vista)
Congure Audio MIDI Setup (p. 12).
Select the UM-ONE as the input and output device
(p. 14, p. 15).
Make sure that the UM-ONE is connected to the
computer correctly.
If the problem is not resolved, reinstall the driver
(p. 23).
Connect the MIDI IN cable (CONNECT TO MIDI
OUT) to a MIDI OUT connector, and connect the
MIDI OUT cable (CONNECT TO MIDI IN) to a MIDI IN
connector.
Conrm the settings of the sound module.
Exit all programs that are using the UM-ONE,
disconnect the UM-ONE’s USB cable, and then
reconnect it.
If the problem is not resolved, restart the computer.
Exit all programs that are using the UM-ONE,
disconnect the UM-ONE’s USB cable, and then
reconnect it.
If the problem is not resolved, restart the computer.
Connect the UM-ONE after the computer has
started up.
(For some computers, the UM-ONE cannot be
used if it is connected to the computer while the
computer is starting up.)
Stop playback or recording, and then try playing
back or recording again.
If the problem is not resolved, exit all programs that
are using the UM-ONE, disconnect the UM-ONE’s
USB cable, and then reconnect it.
Use dierent software.
MIDI devices cannot be selected in Media Player.
20
Problem Conrmation Resolution
Congure as follows.
Sound module: Local O
Software’s THRU function: O
For details, refer to the owner’s manual for the
equipment you are using.
Duplicate notes
sound
Is the sound module set to Local On?
Is the software’s THRU function turned
on?
Are multiple programs running? Exit programs that are not in use.
Troubleshooting
Is the system software up to date?
Are you using Mac OS X Software
Update?
Are the drivers for the computer’s
internal chipset and graphics card up
Sound is
interrupted during
playback, sounds
are missing
to date?
Are the drivers for the computer’s LAN
hardware (wired and wireless) up to
date?
Is the computer’s power management
function set to energy saving mode?
Is the UM-ONE connected to a USB hub?
Is the driver’s [Lighten Load] setting
turned o? (Windows)
Did you try to play back or record
immediately after the computer started
up or after waking up from sleep mode?
To open the Control Panel
Windows 8
Run Windows Update or Microsoft Update and
make sure the system software is up to date.
Run Software Update and make sure the system
software is up to date.
Update to the latest drivers.
Install the latest LAN hardware drivers.
If the problem is not resolved, disable the LAN.
Congure power management settings (p. 22).
Connect the UM-ONE directly to one of the
computer’s USB connectors.
Place a check in the [Lighten Load] check box (p. 24).
Wait and try playing back or recording later.
1. On the Start screen, click the Desktop.
2. Move the mouse pointer to the upper right or lower right corner of the screen to
display the charms.
* On touch-enabled PCs, swipe from the right side of the screen to display the charms.
3. Click [Settings] and display the “Settings charms.”
4. In “Settings charms,” click [Control Panel] to open the “Control Panel.”
21
Troubleshooting
Changing Computer Settings to Avoid Problems
Changing these computer settings can help you avoid the problems described in “Driver Installation”
(p. 18) and “Using the UM-ONE” (p. 19).
Driver Signing Options Setting (Windows XP)
If the “Driver Signing Options” setting is set to [Block], you cannot install the driver. Congure as
follows.
1. Open the “Control Panel,” click [Performance and Maintenance], and then click the
[System] icon.
If you have selected Classic view, double-click [System].
2. Click the [Hardware] tab, and then click [Driver Signing].
The “Driver Signing Options” dialog box will open.
3. In the “Driver Signing Options” dialog box, select [Warn] or [Ignore], and then click
[OK].
4. Click [OK] to close the “System Properties” dialog box.
5. Install the driver as described in “Driver Installation” (p. 9).
When you have completed the installation, return the “Driver Signing Options” setting to its original
setting.
Power Management Settings
If the sound is interrupted during a performance or if sounds are missing, you may be able to resolve
the problem by changing the computer’s power management settings.
Windows 8/Windows 7/Windows Vista
1. Open the “Control Panel,” click [System and Security] or [System and Maintenance],
and then click [Power Options].
• If you have selected icon view in Windows 8/Windows 7, double-click the [Power Options] icon.
• If you have selected Classic view in Windows Vista, double-click the [Power Options] icon.
2. When “Select a power plan” appears, select [High performance].
3. Click [Change plan settings] next to [High performance].
If “High performance” is not displayed in Windows 8/Windows 7, click [Show additional plans].
4. Click [Change settings that are currently unavailable].
5. In the [Advanced settings] tab of the “Power Options” control panel, click the [+] mark
next to “Hard disk,” and then click the [+] mark next to “Turn o hard disk after.”
6. Click [Setting], click the down arrow, and then select [Never].
22
Troubleshooting
7. Click [OK] to close the “Power Options” window.
8. Close the “Edit plan settings” screen.
Windows XP
1. Open the “Control Panel,” click [Performance and Maintenance], and then click [Power
Options].
If you have selected Classic view, double-click [Power Options].
2. Click the [Power Schemes] tab, and set the “Power schemes” to [Always On].
3. Click [OK] to close the “Power Options Properties” window.
Mac OS X
This setting is not available on certain versions of Mac OS X.
1. Open “System Preferences” and click [Energy Saver].
2. Click [Options].
3. Set “Processor Performance” to [Highest].
Reinstalling the Driver
If you experience problems installing the driver, use the following procedure and reinstall the driver.
1. Delete the UM-ONE’s driver.
2. Install the driver again as described in “Driver Installation” (p. 9).
Deleting the Driver
If the computer does not detect the UM-ONE correctly, use the following procedure to delete the
driver, and then install the driver again as described in “Driver Installation” (p. 9).
Windows
1. Start up the computer without the UM-ONE connected.
Disconnect all USB cables other than those for a USB keyboard and/or USB mouse (if used).
2. Log on to the computer with a user account that has administrator privileges.
3. Insert the included CD-ROM into the computer’s CD-ROM drive.
4. Double-click the [Uninstal] icon in [Driver] folder on the included CD-ROM.
5. When a conrmation screen regarding user account control appears, click [Yes] or
[Continue].
6. When “The installed UM-ONE driver will be uninstalled.” appears, click [OK].
23
Troubleshooting
If other messages appear, follow the instructions on the screen.
7. When “Uninstallation was completed.” appears, click [OK] and restart the computer.
Mac OS X
1. Start up the computer without the UM-ONE connected.
Disconnect all USB cables other than those for a USB keyboard and/or USB mouse (if used).
2. Insert the included CD-ROM into the computer’s CD-ROM drive.
3. Double-click the [Uninstaller] in [Driver] folder on the included CD-ROM.
4. When “This uninstalls UM-ONE driver from this Macintosh.” appears, click [Uninstall].
If other messages appear, follow the instructions on the screen.
5. When “Are you sure you want to uninstall the driver?” appears, click [OK].
6. The authentication dialog box or the message “Uninstaller requires that you type your
password” will appear.
Enter the password and click [OK].
7. When “Uninstallation is completed.” appears, click [Restart] and restart the computer.
It may take some time for the computer to restart.
Lightening the MIDI Load (Windows)
The MIDI load can be lightened in the UM-ONE driver setting dialog box.
1. Exit all programs that are using the UM-ONE.
2. Open the “Control Panel” and set the display mode as follows.
• Windows 8/Windows 7: Icon view
• Windows Vista/Windows XP: Classic view
3. Double-click the UM-ONE icon.
The “UM-ONE Driver Settings” dialog box will appear.
4. Place a check in the [Lighten Load] check box.
5. Click [OK].
24
Main Specications
UM-ONE: USB MIDI Interface
MIDI IN Cable (CONNECT TO MIDI OUT) x 1 (16 MIDI Channels)
Connectors
Indicators
Power Supply Supplied from the computer
Current Draw 70 mA
Dimensions
Weight 100 g/4 oz (main unit only)
Accessories
* In the interest of product improvement, the specications, appearance, and/or contents of this
unit are subject to change without prior notice.
MIDI OUT Cable (CONNECT TO MIDI IN) x 1 (16 MIDI Channels)
USB Cable
USB Indicator
MIDI IN Indicator
MIDI OUT Indicator
60.2 (W) x 30 (D) x 14 (H) mm
2-3/8 x 1-3/16 x 9/16 inches (main unit only)
Owner’s Manual
CD-ROM
(If any accessories are missing, please contact the place of purchase.)
25
For EU Countries
For China
26
For the USA
DECLARATION OF CONFORMITY
Compliance Information Statement
Model Name :
Type of Equipment :
Responsible Party :
Telephone :
UM-ONE
USB MIDI Interface
Address :
This product complies with the requirements of EMC Directive 2004/108/EC.
For EU Countries
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limi ts are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
For Canada
NOTICE
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
AVIS
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
For C.A. US (Proposition 65
WARNING
This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.
)
27
* 5 1 0 0 0 1 7 8 5 8 - 0 3 *
Loading...
