Thank you, and congratulations on your choice of the RD-300GX. To ensure that you
obtain the maximum enjoyment and take full advantage of the RD-300GX’s functionality,
please read this owner’s manual carefully.
About the Manual
You should first read the “Getting Ready” (p. 15) section of the owner’s manual (this
document). This explains how to connect the AC adaptor and turn on the power.
Conventions in this Manual
In order to explain the operations as clearly as possible, this manual uses the following
conventions.
• Text enclosed in square brackets [ ] indicates the name of a button or a knob, such as the
[EDIT] button.
• Lines that begin with or an asterisk * are cautionary statements that you must be sure
to read.
• The numbers of pages that you can turn to for additional, related information are given like
this: (p. **).
• The explanations in this manual include illustrations that depict what should typically be
shown by the display. Note, however, that your unit may incorporate a newer, enhanced
version of the system (e.g., includes newer sounds), so what you actually see in the display
may not always match what appears in the manual.
IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
BLUE:
BROWN:
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.
NEUTRAL
LIVE
NOTE
For the U.K.
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” (p. 4), and
“IMPORTANT NOTES” (p. 6). These sections provide important information concerning the proper
operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every
feature provided by your new unit, Owner’s manual should be read in its entirety. The manual should
be saved and kept on hand as a convenient reference.
Never attempt to repair this device or replace
parts. If repair or part replacement should become
necessary, you must contact your dealer or a
Roland service center.
When using the unit with a stand recommended by
Roland, the stand must be carefully placed so it is
level and sure to remain stable. If not using a
stand, you still need to make sure that any location
you choose for placing the unit provides a level
surface that will properly support the unit, and
keep it from wobbling.
The symbol alerts the user to important instructions or
warnings.The specific meaning of the symbol is
determined by the design contained within the triangle.
In the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
The ● symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.
Connect the AC adaptor to an outlet of the correct
voltage
008c
Be sure to use only the AC adaptor supplied with
the unit. Also, make sure the line voltage at the
installation matches the input voltage specified on
the AC adaptor’s body. Other AC adaptors may
use a different polarity, or be designed for a
different voltage, so their use could result in
damage, malfunction, or electric shock
Do not bend the power cord or place heavy
objects on it
009
Do not bend the power cord excessively, or place
heavy objects on the power cord. Doing so will
damage the power cord, and may cause short
circuits or faulty connections, possibly resulting in
fire or electrical shock.
This device, either by itself or used in conjunction
with headphones, amps, and/or speakers, is
capable of producing volume levels that can cause
permanent hearing damage. If you experience
impaired hearing or ringing in your ears, immediately stop using the device and consult a medical
specialist.
In households with children, take particular care
against tampering. If children are to use this device,
they must be supervised or guided by an adult.
Do not share an outlet with an unreasonable
number of other devices
015
Do not connect excessive numbers of electrical
devices to a single power outlet. In particular, when
using a power strip, exceeding the rated capacity
(watts/amps) of the power strip may cause heat to
be generated, possibly melting the cable.
Do not use a CD-ROM in an audio CD player or
DVD player
023
If you attempt to play back a CD-ROM in a conventional
audio CD player or DVD player, the resulting high
volume may damage your hearing or your speakers.
Do not place containers of water (such as a flower
vase) or drinks on the device. Nor should you
place containers of insecticide, perfume, alcoholic
liquids, nail polish, or spray cans on the device.
Liquids that spill into the device may cause it to
malfunction, and may cause short circuits or faulty
operation.
Place in a well ventilated location
101b
When using this device and the AC adaptor,
ensure that it is placed in a well ventilated location.
Periodically wipe the dust off the AC adaptor plug
103b
At regular intervals, you should unplug the AC
adaptor and clean it by using a dry cloth to wipe
all dust and other accumulations away from its
prongs. Also, disconnect the power plug from the
power outlet whenever the unit is to remain unused
for an extended period of time. Any accumulation
of dust between the power plug and the power
outlet can result in poor insulation and lead to fire.
When moving this device, please check the
following cautions. Then, make sure that at least
two persons work together in lifting and carrying
the device, all the while making sure to keep it
level. When doing so, be careful not to pinch your
hands or drop the device on your feet.
Should you remove the screw of ground terminal,
keep it in a safe place out of children’s reach, so
there is no chance of it being swallowed accidentally.
• Do not connect this device to the same electrical outlet as an
inverter-controlled device such as a refrigerator, microwave
oven, or air conditioner, or a device that contains an electric
motor. Depending on how the other device is used, power
supply noise could cause this device to malfunction or produce
noise. If it is not practical to use a separate electrical outlet,
please connect this device via a power supply noise filter.
302
• The AC adaptor will begin to generate heat after long
hours of consecutive use. This is normal, and is not a cause
for concern.
307
• Before you make connections, you must switch off the power
on all devices to prevent malfunction and/or speaker damage.
Location
351
• If this device is placed near devices that contain large
transformers, such as power amps, hum may be induced in
this device. If this occurs, move this device farther away or
change its orientation.
352a
• If this device is operated near a television or radio, color
distortion may be seen in the television screen or noise may
be heard from the radio. If this occurs, move this device
farther away.
352b
• Keep your cell phone powered off or at a sufficient distance
from this device. If a cell phone is nearby, noise may be
heard when a call is received or initiated, or during
conversation.
354a
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Excessive heat can deform or discolor the unit.
355b
• If you move this device between locations of radically different
temperature or humidity, water droplets (condensation) may
form inside the device. Using the device in this condition will
cause malfunctions, so please allow several hours for the
condensation to disappear before you use the device.
358
• Do not leave objects on top of the keyboard. This can
cause malfunctions such as failure to sound.
360
• Depending on the material and temperature of the surface
on which you place the unit, its rubber feet may discolor or
mar the surface.
You can place a piece of felt or cloth under the rubber feet
to prevent this from happening. If you do so, please make
sure that the unit will not slip or move accidentally.
Care
401a
• For everyday cleaning wipe the unit with a soft, dry cloth or
one that has been slightly dampened with water. To remove
stubborn dirt, use a cloth impregnated with a mild, nonabrasive detergent. Afterwards, be sure to wipe the unit
thoroughly with a soft, dry cloth.
Addition
• If water droplets should adhere to this device, immediately
wipe them off using a soft dry cloth.
402
• Do not use solvents such as benzene, thinner, or alcohol,
since these can cause deformation or color change.
Servicing
452
• If you return this device for servicing, the contents of
memory may be lost. Please store important contents on a
USB memory, or make a note of the contents. We take
utmost care to preserve the contents of memory when
performing service, but there may be cases when the stored
content cannot be recovered because the memory section
has malfunctioned. Please be aware that we cannot accept
responsibility for the recovery of lost memory content or for
any consequences of such loss.
Other Cautions
551
• Stored content may be lost due to a malfunction of the
device or because of inadvertent operation. You should
back up important content on a USB memory as a
safeguard against such loss.
552
• We cannot accept responsibility for the recovery of any
content lost from internal memory or USB memory, or for
the consequences of such loss.
553
• Do not apply excessive force to the buttons, knobs, or
input/output jacks, since this may cause malfunctions.
554
• Never strike or apply strong pressure to the display.
556
• When connecting or disconnecting cables, grasp the plug
(not the cable) to prevent short circuits or broken
connections.
558a
• Please enjoy your music in ways that do not inconvenience
other people nearby, and pay particular attention to the
volume at nighttime. Using headphones will allow you to
enjoy music without having to be concerned about others.
559a
• When you need to transport the unit, package it in the box
(including padding) that it came in, if possible. Otherwise,
you will need to use equivalent packaging materials.
561
• Use only the specified expression pedal (EV-5/7; available
separately). Connecting a pedal made by a different
manufacturer may cause this device to malfunction.
6
Important Notes
USB Memory Handling
(Using USB Memory)
704
• When connecting USB memory, firmly insert it all the way
in.
705
• Do not touch the pins of the USB memory connector, or
allow them to become dirty.
708
• USB memory is made using high-precision electronic
components, so please observe the following points when
handling it.
• To prevent damage from static electrical charges,
discharge any static electricity that might be present in
your body before handling USB memory.
• Do not touch the terminals with your fingers or any metal
object.
• Do not bend or drop USB memory, or subject it to strong
impact.
• Do not leave USB memory in direct sunlight or in
locations such as a closed-up automobile. (Storage
temperature: 0–50 degrees C)
• Do not allow USB memory to become wet.
• Do not disassemble or modify USB memory.
Addition
• When connecting USB memory, position it horizontally with
the USB memory connector and insert it without using
excessive force. The USB memory connector may be
damaged if you use excessive force when inserting USB
memory.
Addition
• Do not insert anything other than USB memory (e.g., wire,
coins, other types of device) into the USB memory
connector. Doing so will damage the USB memory
connector.
Addition
• Do not apply excessive force to the connected USB
memory.
Addition
• If you will not be using USB memory for an extended period
of time, close the USB memory cover.
CD Handling
Add
• When handling the discs, please observe the following.
• Do not touch the encoded surface of the disc.
• Do not use in dusty areas.
• Do not leave the disc in direct sunlight or an enclosed
vehicle.
801
• Do not touch or scratch the recording surface of a CD.
Doing so may render the data unreadable. If a CD
becomes soiled, clean it using a commercially available CD
cleaner.
Add
• Keep the disc in the case.
Add
• Do not keep the disc in the CD drive for a long time.
Add
• Do not put a sticker on the label of the disc.
Add
• Wipe the disc with a soft and dry cloth radially from inside
to outside. Do not wipe along circumference.
Add
• Do not use benzine, record cleaner spray or solvents of any
kind.
Add
• Do not bend the disc. Bending discs may prevent proper
reading and writing of data, and may further result in
malfunction.
Floppy Disk Handling
(Using Optional Floppy Disk Drive)
651
• Floppy disks contain a plastic disk with a thin coating of
magnetic storage medium. Microscopic precision is
required to enable storage of large amounts of data on
such a small surface area. To preserve their integrity,
please observe the following when handling floppy disks:
• Never touch the magnetic medium inside the disk.
• Do not use or store floppy disks in dirty or dusty areas.
• Do not subject floppy disks to temperature extremes
(e.g., direct sunlight in an enclosed vehicle).
Recommended temperature range: 10–50 degrees C
(50–122 degrees F).
• Do not expose floppy disks to strong magnetic fields,
such as those generated by loudspeakers.
652
• Floppy disks have a “write protect” tab which can protect
the disk from accidental erasure. It is recommended that the
tab be kept in the PROTECT position, and moved to the
WRITE position only when you wish to write new data onto
the disk.
fig.DiskProtect.e.eps
Rear side of the disk
Write
(can write new data onto disk)
Write Protect Tab
653
• The identification label should be firmly affixed to the disk.
Should the label come loose while the disk is in the drive, it
may be difficult to remove the disk.
654
• Store all disks in a safe place to avoid damaging them, and
to protect them from dust, dirt, and other hazards. By using
a dirty or dust-ridden disk, you risk damaging the disk, as
well as causing the disk drive to malfunction.
203
* GS () is a registered trademark of Roland
Corporation.
220
* All product names mentioned in this document are
trademarks or registered trademarks of their
respective owners.
238
* MPEG Layer-3 audio compression technology is
licensed from Fraunhofer IIS Corporation and
THOMSON Multimedia Corporation.
Main Specifications .......................................................................................................................100
Index ...........................................................................................................................................101
11
Panel Descriptions
l
Front Pane
1
1.
[S1] Button, [S2] Button
You can assign various functions to these buttons (p. 68).
While performing, you can press these buttons to use the
assigned functions.
Pitch Bend/Modulation Lever
This allows you to control pitch bend or apply vibrato (p. 34).
VOLUME Slider
2.
Adjusts the overall volume that is output from the rear panel
OUTPUT jacks, and PHONES jack (p. 20).
EQUALIZER/EFFECTS
3.
[LOW] Knob
Adjusts the sound’s low-frequency range (p. 36).
[HIGH] Knob
Adjusts the sound’s high-frequency range (p. 36).
[SOUND CONTROL]
Switching this on will reduce inconsistencies in the volume,
and produce a more stable, consistent sound (p. 35).
Switching this on lets you control external V-LINK
compatible video equipment connected to the RD-300GX
(p. 82).
[REVERB] Button
Switches the reverb on/off (p. 33).
Button
2
3
4.

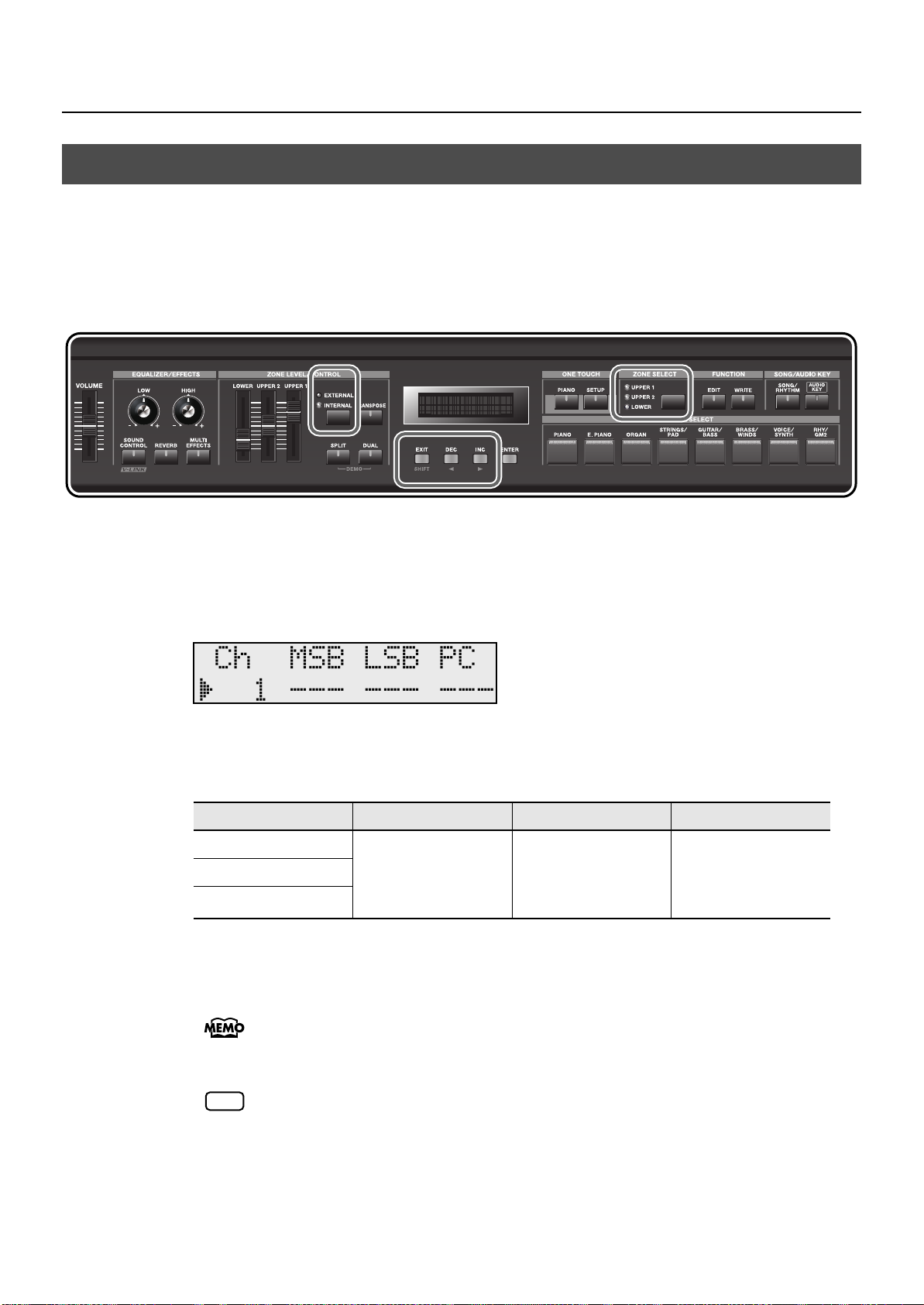

ZONE LEVEL/CONTROL
ZONE LEVEL Sliders
Adjust the volume level for each Zone (p. 31).
If the “EXTERNAL” indicator is lit, these sliders control the
volume of an external MIDI sound module (p. 57).
[EXTERNAL/INTERNAL] Button
Puts the RD-300GX in control of the external MIDI sound
generator (p. 55).
[TRANSPOSE] Button
Sets the range of the keyboard to transposed (p. 32).
[SPLIT] Button
This button selects “Split mode,” whereby the keyboard is
divided into two regions, allowing you to play separate
sounds with the right and left hands (p. 29).
In addition, you can listen to the demo songs by
simultaneously pressing this button and the [DUAL] button
(p. 25).
[DUAL] Button
Switches the RD-300GX to “Dual mode,” which enables
performances with two separate Tones layered together (p.
28).
In addition, you can listen to the demo songs by
simultaneously pressing this button and the [SPLIT] button (p.
25).
4

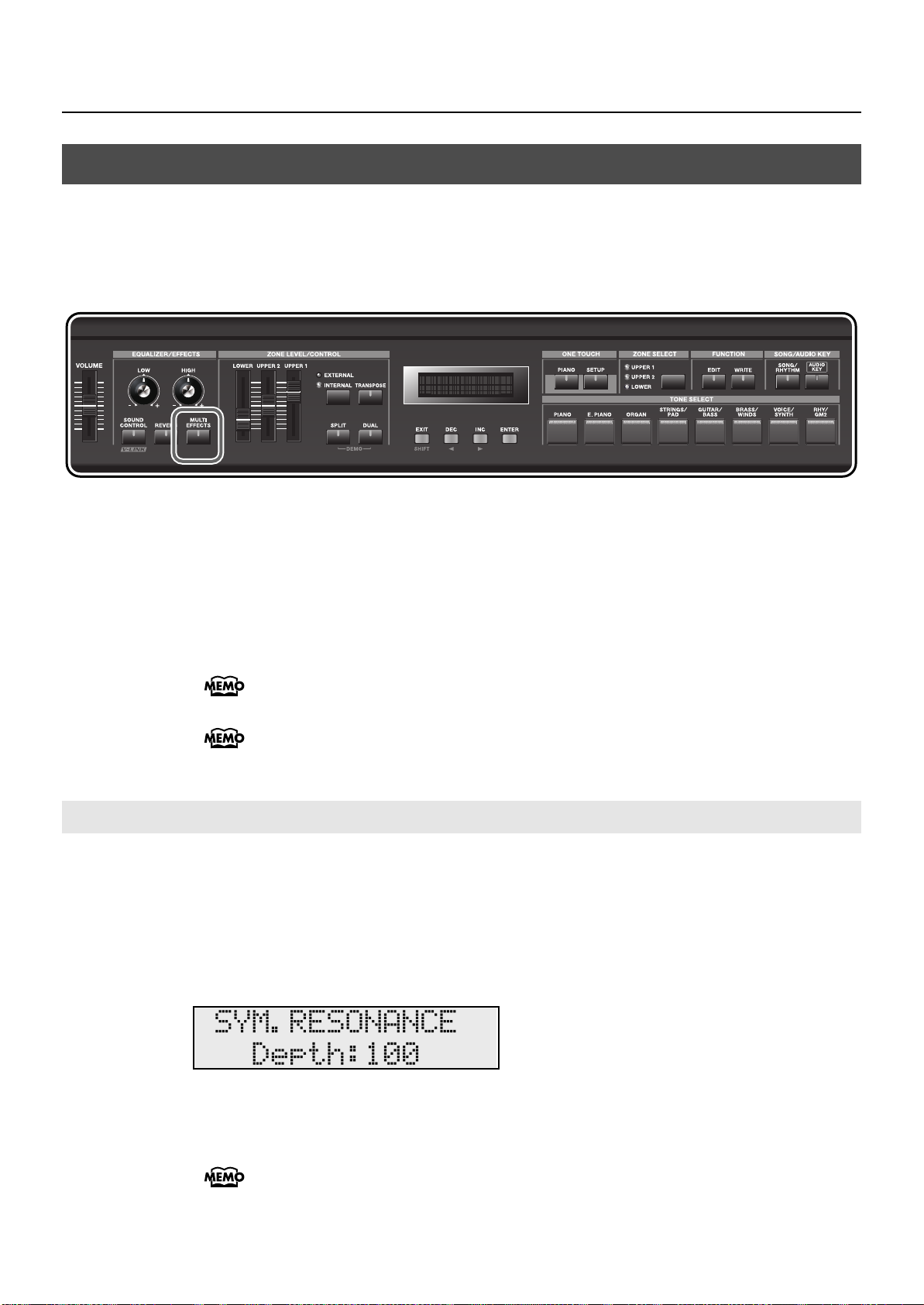

[MULTI EFFECTS] Button
Switches the multi-effects on/off (p. 47).
12
Panel Descriptions
5
5.
DISPLAY
This shows the Tone names and the values of various
settings, etc.
[EXIT/SHIFT] Button
Pressed to return to a previous screen or to cancel a
procedure that is in progress.
Additionally, this is pressed simultaneously with other
buttons to execute various functions.
[DEC] Button, [INC] Button
These are used to modify values.
If you keep on holding down one button while pressing the
other, the value change accelerates.
[ENTER] Button
This is used to finalize a value or execute an operation.
ONE TOUCH
6.
6789
10
8.
FUNCTION
[EDIT] Button
Press this button when you wish to adjust various settings (p.
63).
[WRITE] Button
Stores the current settings to Setup (p. 51).
This also stores the System settings (p. 64) and Piano
Designer settings (p. 60).
SONG/AUDIO KEY
9.
[SONG/RHYTHM] Button
Switches Song on/off (p. 40).
Switches Rhythm on/off (p. 37).
[AUDIO KEY] Button
Switches Audio Key on/off (p. 42).
[PIANO] Button
Selects the optimum settings for piano performances (p. 26).
[SETUP] Button
Calls up the stored settings (Setup) (p. 50).
ZONE SELECT Button
7.
Selects the Zone for which the Tone is to be selected (p.
31).
ZONE SELECT Indicators
10.
TONE SELECT Buttons
Pressed to select Tones (p. 27).
13
Panel Descriptions
Rear Panel
fig.rear
213467
1.
USB MEMORY Connector
Separately sold USB memory or a commercially available
CD-ROM drive can be connected here (p. 21).

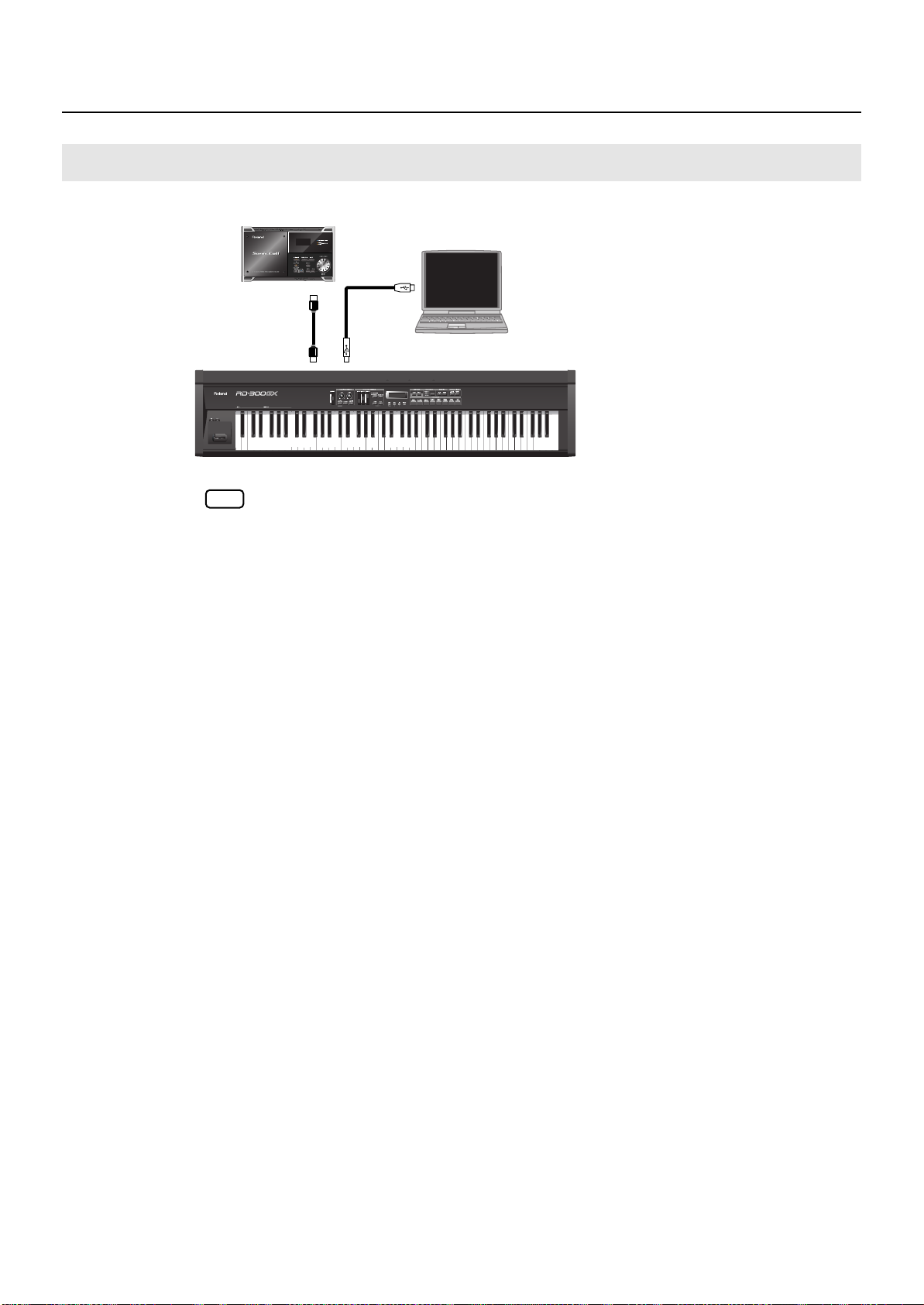

USB MIDI Connector
2.
You can connect this to your computer so that it can
exchange performance data with the RD-300GX (p. 81).
3.
[DISPLAY CONTRAST] Knob
Adjusts the display’s contrast (p. 20).
PEDAL Jacks (DAMPER, CONTROL)
4.
Connecting the pedal switch (DP series) provided with the
RD-300GX to the DAMPER jack allows you to use the switch
as a damper pedal. (p. 18)
With a pedal connected to the CONTROL jack, you can
then assign a variety of functions to the pedal
(p. 68).
95
8
11.
Cord Hook
Use this to fix in place the cord from the supplied AC
adaptor (p. 16).
1011
5.
MIDI Connectors (IN, OUT)
Used for connecting external MIDI devices and for
transmission of MIDI messages (p. 53, p. 78).
OUTPUT L (MONO)/R Jacks
6.
Provide output of the audio signals. These are connected to
an amp or other device. For monaural output use the L/
MONO jack. (p. 17)
7.
PHONES Jack
A set of headphones can be connected to this jack (p. 17).
Even when headphones are connected, sound will still be
output from the OUTPUT jacks.
Ground Terminal (p. 16)
8.
[POWER] Switch
9.
Switch turns the power on/off (p. 19).
10.
DC IN Jack
Connect the included AC adaptor here (p. 16).
14
Getting Ready
Seen from the side
Place the RD-300GX
so that its front edge
is aligned with the tip
of the stand’s arm.
Position the four rubber
feet located on the
bottom of the RD-300GX
so that they are inside
the arms of the stand.
Seen from the rear
Rubber Feet
Arm
Placing the RD-300GX on a Stand
If you place the RD-300GX on a stand, you must use the KS-12 or KS-18Z (sold separately).
When placing the RD-300GX on the KS-12 or KS-18Z, place it in the position shown below.
NOTE
NOTE
Using the RD-300GX with any other stand may produce an unstable situation, possibly causing
the instrument to fall or overturn, and resulting in injury or damage.
For details on how to assemble the stand, refer to the owner’s manual that accompanied the
stand.
If using the KS-18Z stand
• Adjust the stand to a level no higher than the fourth level from the bottom.
• Adjust the width of the stand to the maximum width.
If using the KS-12 stand
• Position the stand so that its arms extend toward the performer.
• Adjust the stand to the sixth (842 mm) of the seven steps of width.
Seen from the rear
When placing the RD-300GX on the stand, be careful not to pinch your fingers between the
NOTE
instrument and the stand.
842 mm
Rubber Feet
Arm
Hole
Performer
Position the four rubber
feet located on the bottom
of the RD-300GX so that
they go into the holes in
the arms of the stand.
15
Getting Ready
Indicator
AC Outlet
AC adaptor
Power Cord
NOTE
Connecting the AC Adaptor
1.
Make sure that the [POWER] switch located at
the left side of the keyboard is off (in the
upward position).
fig.PowerOn.eps
Loop the AC adaptor cord around the cord
5.
hook to fasten it in place.
Upper Position
Off
Move the VOLUME slider all the way down to
2.
minimize the volume.
Connect the supplied Power Cord to the
3.
supplied AC adaptor.
Place the AC adaptor so the side with the indicator
NOTE
4.
(see illustration) faces upwards and the side with
textual information faces downwards.
The indicator will light when you plug the AC
adaptor into an AC outlet.
Connect the AC adaptor to the RD-300GX’s DC
IN jack, and plug the power cord into an AC
outlet.
Ground Terminal
To prevent the inadvertent disruption of power to
your unit (should the plug be pulled out
accidentally), and to avoid applying undue stress
to the AC adaptor jack, anchor the power cord
using the cord hook, as shown in the illustration.
Even if the cord is fastened, strong tension applied
to the cord may cause it to be damaged or
broken. Be careful not to pull the cord
accidentally, or to apply strong pressure to it.
Depending on the circumstances of a particular
NOTE
setup, you may experience a discomforting
sensation, or perceive that the surface feels gritty
to the touch when you touch this device. This is
due to an infinitesimal electrical charge, which is
absolutely harmless. However, if you are
concerned about this, connect the ground terminal
(see figure) with an external ground. When the
unit is grounded, a slight hum may occur,
depending on the particulars of your installation. If
you are unsure of the connection method, contact
the nearest Roland Service Center, or an
authorized Roland distributor, as listed on the
“Information” page.
Cord Hook
(AC Adaptor)
Power Cord
16
Unsuitable places for connection
•Water pipes (may result in shock or electrocution)
•Gas pipes (may result in fire or explosion)
•Telephone-line ground or lightning rod (may be
dangerous in the event of lightning)
Connecting the External Equipment to RD-300GX
MIDI IN
MIDI sound module etc.
MIDI OUT
MIDI sequencer etc.
Stereo
headphones
to Power outlet
Monitor speakers
(powered)
Expression pedal (EV-5/7)
or Pedal switch (DP Series)
Pedal switch
(DP Series)
Computer
The RD-300GX is not equipped with an amplifier or speakers. In order to produce sound, you
need to hook up audio equipment such as a monitor speaker or a stereo set, or use headphones.
Audio cables, USB cables, MIDI cables, headphones, expression pedals, and USB
memory are not included. Consult your Roland dealer if you need to purchase
accessories such as these.
Getting Ready
NOTE
To prevent malfunction and/or damage to speakers or other devices, always turn down the
volume, and turn off the power on all devices before making any connections.
fig.00-08e
17
Getting Ready
1.
2.
3.
Before you begin making connections, confirm the following.
Is the volume level of the RD-300GX or connected amp turned all the way down?
Is the power to the RD-300GX or connected amp turned off?
Connect supplied AC adaptor to the DC IN of the RD-300GX, and plug the other end into
an AC outlet.
Connect the RD-300GX and external devices.
Use audio cables to connect audio equipment, such as an amp or speakers.
Use MIDI cables to connect MIDI devices. Use USB cables to connect computer.
If you are using headphones, plug them into the PHONES jack.
Connect pedal switches or expression pedals as necessary.
NOTE
NOTE
NOTE
Connecting Pedals
Connect the pedal included with the RD-300GX to one of the PEDAL jacks.
When connected to the DAMPER jack, the pedal can be used as a damper pedal.
Connecting the pedal to the CONTROL jack allows you to assign a variety of functions to the
pedal (p. 68).
NOTE
Use Stereo headphones.
Use only the specified expression pedal (EV-5/7; sold separately). By connecting any other
expression pedal, you risk causing malfunction and/or damage to the unit.
You can connect a floppy disk drive (sold separately) or a commercially available CD drive to
the USB MEMORY connector (p. 14). You can use a floppy disk drive or CD drive to play back
songs from a floppy disk or CD.
Set the switch on the included pedal to “Continuous” when the pedal is connected.
18
Turning the Power On and Off
941
Once the connections have been completed, turn on power to your various devices in the order
NOTE
Turning On the Power
Before you turn on the power, use the VOLUME slider to minimize the volume.
1.
Also completely turn down the volume of any connected audio device and other equipment.
fig.00-09
specified. By turning on devices in the wrong order, you risk causing malfunction and/or
damage to speakers and other devices.
Getting Ready
fig.00-10
Press the [POWER] switch on the back of the RD-300GX to turn on the power.
2.
The unit is powered up, and the display’s backlighting comes on.
Lower
Position
On
NOTE
NOTE
NOTE
Turn on the power to connected external devices.
3.
To prevent incorrect functioning of the Pitch Bend/Modulation Lever (p. 34), refrain from
touching the lever while the power to the RD-300GX is turned on.
This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is
required before the unit will operate normally.
In the unlikely event the power is turned off or cut off while Factory Reset (p. 77) is in progress,
the data may become corrupted, and it may require additional time for the unit to start up the
next time.
Adjust the volume of the connected external devices.
4.
Adjust the RD-300GX’s volume to obtain the proper volume level.
5.
19
Getting Ready
Turning Off the Power
Before you turn off the power, move the volume down all the way by moving the
1.
VOLUME slider.
Also completely turn down the volume of any connected audio device and other equipment.
Turn off the power to connected external devices.
2.
Press the [POWER] switch on the back of the RD-300GX.
3.
The power is switched off.
NOTE
If you need to turn off the power completely, first turn off the [POWER] switch, then unplug the
power cord from the power outlet. Refer to “Power Supply” (p. 6).
Adjusting the Volume
fig.00-11
Adjust the volume using the VOLUME slider.
1.
Move the slider up to increase the volume, or down to lower it.
Also adjust the volume of the connected devices to an appropriate level.
Adjusting the Display Contrast ([DISPLAY CONTRAST] Knob)
The characters in the display may be difficult to view immediately after turning on the power or
after extended use; this may also be because of where and how the display is situated.
In such instances, adjust the display contrast by turning the [DISPLAY CONTRAST] knob on the
rear panel.
fig.00-17p
20
Using a USB Memory
USB memory
(sold separately)
You can copy Setup files and song files to separately sold USB memory for safekeeping.
You can also play back SMF music files that’s saved on USB memory (p. 40), or play audio files
from USB memory (p. 42).
You can also use a separately sold floppy disk drive to copy data to a floppy disk. For details,
refer to the owner’s manual of your floppy disk drive.
Getting Ready
NOTE
Use USB memory and floppy disk drive available from Roland. Proper operation cannot be
guaranteed if other USB device is used.
Connecting a USB Memory
Connect your USB memory to the USB MEMORY connector located on the RD-300GX’s
1.
rear panel.
Carefully insert the USB memory all the way in—until it is firmly in place.
If you’re using new USB memory, you must first initialize (format) it on the RD-300GX.
For details, refer to “Formatting Memory (Format)” (p. 76).
You can also connect a commercially available CD drive or floppy disk drive (sold separately)
to the USB MEMORY connector.
21
Overview of the RD-300GX
Basic Organization of the
RD-300GX
The RD-300GX can be divided into two sections: a controller
section and a sound generator section.
fig.00-G01e
Sound
Generator
Section
Play
Controller Section
(controllers such as keyboard, pitch bend lever, etc.)
Controller Section
This section includes the keyboard, the Pitch Bend/Modulation
lever, the panel knobs, the sliders, and any pedal connected
to the rear panel. Actions such as pressing and releasing of
keys on the keyboard, depressing a pedal, and so forth, are
converted to MIDI messages and sent to the sound generator
section, or to an external MIDI device.
Sound Generator Section
Units of Sound
When using the RD-300GX, you will notice that a variety of
different categories come into play when working with sounds.
What follows is a simple explanation of each sound category.
Tone
The individual sounds used when playing the RD-300GX are
referred to as “Tones.” Tones are assigned to each part.
The Tones also include various groups of percussion instrument
assembled into “Rhythm Sets.” Each key (note number) of a
Rhythm Set will produce a different percussion instrument.
Part
A sound generator of this type which can control multiple
sounds using one device is referred to as a multitimbral sound
generator. The RD-300GX contains a multitimbral sound
generator capable of playing sixteen Tones simultaneously.
“Parts” are where Tones that are created when the RD-300GX
is used as a sound generator are assigned. Since different
Tones can be assigned to each of the Parts and controlled
individually, you can have multiple Tones play simultaneously,
divide the keyboard into separate ranges and have different
Tones sound in the different parts (Split), and enjoy playing
ensemble performances.
The sixteen Parts played by the RD-300GX’s internal sound
generator are referred to as “Internal Parts.”
The sound generator section produces the sound. Here, MIDI
messages received from the controller section or external MIDI
device are converted to musical signals, which are then output
as analog signals from the OUTPUT and PHONES jacks.
Zone
The RD-300GX features three Parts (UPPER 1, UPPER 2, and
LOWER) that you can use for freely controlling the Internal
Parts with the RD-300GX’s buttons and keyboard. These three
Parts that are used for controlling the Internal Parts are
collectively known as the “Internal Zone.”
Furthermore, you can freely control external MIDI sound
generators with the RD-300GX in the same manner as with the
Internal Zone. You can likewise control the external MIDI
sound generator with the three Parts (UPPER 1, UPPER 2, and
LOWER), with this group of three Parts being referred to as the
“External Zone.” The external MIDI sound generator is
assigned to these three Parts for control.
22
Basic Operation
Overview of the RD-300GX
Song Screen
Rhythm Screen
Main Screens
ONE TOUCH Screen
When the ONE TOUCH [PIANO] button is pressed, setting the
RD-300GX to the optimal status for Piano performances, this
screen is displayed.
fig.gisp
Tone Screen (Basic Screen)
The names of the Tones currently selected for the Internal Zone
are displayed. This is the screen that is ordinarily displayed.
You can change the Internal Zone (UPPER 1, UPPER 2, and
LOWER) Tones.
fig.gisp
Setup Screen
The currently selected Setup is displayed (p. 50).
You can have this screen displayed by pressing the ONE
TOUCH [SETUP] button. You can change the Setups.
fig.gisp
When you press the [SONG/RHYTHM] button, the Song
screen or Rhythm screen will appear.
In the Song screen, you can select and play songs (p. 40).
You can also connect USB memory (sold separately) to the
USB MEMORY connector and play SMF music files or audio
files that you’ve saved in the USB memory.
fig.gisp
If SMF music file is selected, the measure number is shown in
the upper right of the screen. If an audio file is selected, the
playing time is shown in the upper right of the screen.
In the Rhythm screen, you can change Rhythm patterns, and
the tempo (p. 37).
fig.gisp
Switching between the Rhythm screen and
Song screen
1.
While continuing to hold down the [EXIT/SHIFT] button,
use the [DEC] [INC] buttons to move the cursor to the upper
left of the screen.
2.
The Rhythm screen will appear if you use the [DEC] [INC]
buttons to select “RHY,” and the Song screen will appear if
you select “INT” or “USB.”
Audio Key Screen
Pressing the [AUDIO KEY] button switches the RD-300GX to
this screen.
You can perform while playing back audio files you’ve saved
on USB memory (sold separately) (p. 42).
fig.gisp
23
Overview of the RD-300GX
External Screen
When the [EXTERNAL/INTERNAL] button is pressed, the
EXTERNAL indicator lights up, and the RD-300GX switches to
the mode enabling it to control an external MIDI sound
generator. The status of this button determines whether the RD300GX’s buttons are used to control the Internal Zone
(INTERNAL indicator lights up), or to control the External Zone
(EXTERNAL indicator lights up). In addition, you can make
detailed settings for the MIDI messages to be transmitted to the
external sound generator (p. 58).
fig.gisp
About the Function Buttons
fig.00-G07p
[EDIT] Button
By pressing the [EDIT] button to make the indicator light, you
can enter “Edit mode.” In Edit mode you can make detailed
settings for various functions.
You can exit Edit mode by pressing the [EDIT] button,
extinguishing its indicator.
[WRITE] Button
Stores the current settings to “Setup” (p. 51).
Editing a Value
If more than one item is shown in a single screen, the “ ”
icon will appear at the left of the item name or value you’re
editing. This icon is called the “cursor.” You can move the
cursor by holding down the [EXIT/SHIFT] button and using the
[DEC] [INC] buttons.
fig.gisp
Cursor
Use the [DEC] [INC] buttons to edit the value of an item for
which the cursor ( ) is displayed.
fig.00-G12p
[DEC] [INC] Buttons
Pressing the [INC] button increases the value, and the [DEC]
button decreases it.
If you want the value to continue changing, simply hold down
the [DEC] button or [INC] button. For faster value increases,
keep the [INC] button pressed down and press the [DEC]
button. For decreasing value faster, keep the [DEC] button
pressed down and press [INC] button.
Simultaneously pressing the [DEC] and [INC] buttons sets that
parameter to the standard default value or switches it off.
24
Listening to the Demo (DEMO PLAY)
Here’s how to listen to these songs.
The RD-300GX features the internal demo songs that exhibit the special capabilities of
All rights reserved. Unauthorized use of this material for purposes other than private,
personal enjoyment is a violation of applicable laws.
No data for the music that is played will be output from the MIDI OUT connector.
When you enter Demo mode, the various settings will be in the same state as they are
immediately after the RD-300GX is powered up. Store any arrangements of settings
that you want to keep in Setup (p. 51).
Hold down the [SPLIT] button and press the [DUAL] button.
1.
The Demo screen appears.
Use the [DEC] [INC] buttons to select the song you want to hear.
2.
Press the [ENTER] button to start the playback of the song.
3.
When the last song finishes playing, playback will return to the first song and continue.
Press the [EXIT/SHIFT] button or the [ENTER] button to stop a song during playback.
4.
Press the [EXIT/SHIFT] button while the song is stopped to finish with the Demo screen.
5.
Regardless of whether the song is playing or stopped, pressing the ONE TOUCH
[PIANO] button ends the demo and returns the original screen to the display.
25
Performance
Piano Performances (ONE TOUCH [PIANO] Button)
Now, try performing with the piano.
The RD-300GX lets you call up the ideal settings for piano performance at any time
simply by pressing a button.
fig.Q1-03p
Press the ONE TOUCH [PIANO] button.
1.
fig.disp
The ONE TOUCH PIANO screen appears.
Pressing the ONE TOUCH [PIANO] button sets the entire keyboard to play with the piano tone.
Pressing the ONE TOUCH [PIANO] button restores all of the settings except for the
NOTE
Piano Designer (p. 60) settings to their status at the time the power was turned on.
If you want to preserve these settings, record them to a Setup (p. 50).
You can use the [DEC] [INC] buttons in the ONE TOUCH PIANO screen to adjust the
amount the grand piano lid is opened.
You can specify whether song playback will stop if you press the ONE TOUCH
[PIANO] button while a song is playing. For details, refer to “Having Song Playback
Stop when You Press a ONE TOUCH Button (Song Stop Mode)” (p. 67).
With the RD-300GX, you can also make more detailed settings to make the sound even better
match your favorite piano performances. You can store the settings configurations to the ONE
TOUCH [PIANO] button.
Please refer to the following as needed.
• Fine Adjustment of Piano Tones (Piano Designer) → p. 60
26
Performing with a Variety of Tones (TONE SELECT Buttons)
The RD-300GX comes with a many built-in Tones.
Each one of these individual sounds is called a “Tone.”
Tones are assigned to the TONE SELECT buttons according to the Tone category
selected.
Try selecting and performing with a number of different Tones.
fig.Q1-06p
Performance
fig.disp
fig.disp
Press the ONE TOUCH [PIANO] button.
1.
This selects a single tone to be played over the entire keyboard.
If multiple tones are playing, do not press the ONE TOUCH [PIANO] button, but
instead select the Zone containing the Tone to be changed using the ZONE SELECT
button. Refer to “Changing the Tone for a Zone (ZONE SELECT Button)” (p. 31).
Press any of the TONE SELECT buttons to select the Tone category.
2.
The indicator of the TONE SELECT button for the selected category will light.
Use the [DEC] [INC] buttons to select the Tone.
3.
Play the keyboard, and you will hear the selected Tone.
The next time you choose this TONE SELECT button, the Tone you’re selected here is played.
NOTE
Tones selected with the [RHY/GM2] button are registered in the following order:
“Rhythm Sets,” “GM2 Rhythm Sets,” and “GM2 Tones.” Refer to the “Tone List” (p.
91).
27
Performance
Playing Multiple Tones with the Keyboard
The RD-300GX features three Internal Zones (UPPER 1, UPPER 2, and LOWER), and one
Tone can be assigned to each of these Zones.
You can perform using combinations of Tones by turning each Zone on or off. You can
have multiple Tones layered together at the same time, and even have different Tones
played in the left and right parts of the keyboard.
Performing with Layered Tones ([DUAL] Button)
The RD-300GX lets you layer two Tones so that they will sound together.
fig.Q1-12p
1.
fig.disp
fig.Q1-11layer
2.
Press the [DUAL] button, getting the indicator to light.
Try fingering the keyboard.
The Tones for UPPER 1 and UPPER 2 are layered and played.
UPPER 1
UPPER 2
Press the [DUAL] button once more, and the indicator light goes out.
The Tones for UPPER 1 played.
NOTE
The [DUAL] button has no effect while the EXTERNAL indicator is lit. In order to turn on
the External Zone UPPER 2, you must set the MIDI channel for UPPER 2 (p. 55).
28
fig.disp
Performance
Pressing Two TONE SELECT buttons Simultaneously
You can layer two Tones by pressing two TONE SELECT buttons simultaneously.
For example, if you want to layer a piano sound with strings, together press both the
[PIANO] button and the [STRINGS] button.
The [DUAL] button’s indicator starts to flash, and when you begin playing the keyboard,
the piano and strings sounds are layered together.
In this case, the Tone of the button you press first is assigned to UPPER 1, and the other
is assigned to UPPER 2; the indicators of the two TONE SELECT buttons will light.
Once you have selected two TONE SELECT buttons, pressing either TONE SELECT button
then selects that Tone to UPPER 1. The UPPER 2 indicator goes out, and that Tone stops
playing. Also, the [DUAL] button’s indicator will go out.
* The steps described above can be performed if the ZONE SELECT indicator UPPER 1
or UPPER 2 is lit.
Playing Different Tones in Two Different Sections of the Keyboard ([SPLIT] Button)
Such a division of the keyboard into right- and left-hand sections is called a “Split,” and
the key where the division takes place is called the “Split Point.”
While in Split mode, a sound played in the right side is called an “Upper Tone,” and the
sound played in the left side is called a “Lower Tone.” The split-point key is included in
the LOWER section.
The Split Point has been set at the factory to “B3.”
You can change the split point. Please refer to “Changing the Keyboard’s Split Point”
(p. 30).
fig.Q1-15p
29
Performance
Press the [SPLIT] button, getting the indicator to light.
1.
The ZONE SELECT “LOWER” indicator lights.
fig.disp
fig.Q1-17sp
Try fingering the keyboard.
The UPPER Tone plays in the right-hand section of the keyboard, and the LOWER Tone plays in
the left-hand section.
Split Point (B3)
UPPERLOWER
To exit Split mode, press the [SPLIT] button once more, and the indicator light goes out.
2.
Changing the Keyboard’s Split Point
fig.disp
You can change the point at which the keyboard is divided (the Split Point) in Split mode.
Hold down the [SPLIT] button for several seconds.
1.
A screen such as the following appears, and the current value of the setting is displayed.
Hold down the [SPLIT] button and press a key.
2.
When you release the [SPLIT] button, the previous display will reappear.
The split-point key is included in the LOWER section.
You can change the split point, adjusting it in semitone increments, by holding down
the [SPLIT] button and using the [DEC] [INC] buttons.
You can divide the keyboard into left and right Zones,
and play the LOWER Tone in the left Zone while playing
the UPPER 1 and UPPER 2 Tones layered in the right
Zone.
LOWER
UPPER1
UPPER2
30
