Rohde&Schwarz TS-PSM5 User Manual

R&S®TS-PSM5
High-Power Switch Module

User Manual

(;ÜL92)

1178.2809.02 ─ 01

User Manual

Test & Measurement

This manual describes the following R&S®TSVP modules:

●

R&S®TS-PSM5

●

R&S®TS-PRIO5

© 2016 Rohde & Schwarz GmbH & Co. KG

Mühldorfstr. 15, 81671 München, Germany

Phone: [phone] - 0

Fax: [phone]

Email: [e-mail]

Internet: www.rohde-schwarz.com

Subject to change – Data without tolerance limits is not binding.

R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.

Trade names are trademarks of the owners.

The following abbreviations are used throughout this manual: R&S®TS-PSM5 is abbreviated as R&S TS-PSM5 and R&S®TS-PRIO5

is abbreviated as R&S TS-PRIO5.

Basic Safety Instructions

Symbol

Meaning

Symbol

Meaning

Notice, general danger location
Observe product documentation

ON/OFF Power

Caution when handling heavy equipment

Standby indication

Danger of electric shock

Direct current (DC)

Always read through and comply with the following safety instructions!

All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety
standards of our products up to date and to offer our customers the highest possible degree of safety. Our
products and the auxiliary equipment they require are designed, built and tested in accordance with the
safety standards that apply in each case. Compliance with these standards is continuously monitored by
our quality assurance system. The product described here has been designed, built and tested in

accordance with the EC Certificate of Conformity and has left the manufacturer’s plant in a condition fully

complying with safety standards. To maintain this condition and to ensure safe operation, you must
observe all instructions and warnings provided in this manual. If you have any questions regarding these
safety instructions, the Rohde & Schwarz group of companies will be happy to answer them.

Furthermore, it is your responsibility to use the product in an appropriate manner. This product is designed
for use solely in industrial and laboratory environments or, if expressly permitted, also in the field and must
not be used in any way that may cause personal injury or property damage. You are responsible if the
product is used for any purpose other than its designated purpose or in disregard of the manufacturer's
instructions. The manufacturer shall assume no responsibility for such use of the product.

The product is used for its designated purpose if it is used in accordance with its product documentation
and within its performance limits (see data sheet, documentation, the following safety instructions). Using
the product requires technical skills and, in some cases, a basic knowledge of English. It is therefore
essential that only skilled and specialized staff or thoroughly trained personnel with the required skills be
allowed to use the product. If personal safety gear is required for using Rohde & Schwarz products, this
will be indicated at the appropriate place in the product documentation. Keep the basic safety instructions
and the product documentation in a safe place and pass them on to the subsequent users.

Observing the safety instructions will help prevent personal injury or damage of any kind caused by
dangerous situations. Therefore, carefully read through and adhere to the following safety instructions
before and when using the product. It is also absolutely essential to observe the additional safety
instructions on personal safety, for example, that appear in relevant parts of the product documentation. In
these safety instructions, the word "product" refers to all merchandise sold and distributed by the Rohde &
Schwarz group of companies, including instruments, systems and all accessories. For product-specific
information, see the data sheet and the product documentation.

Safety labels on products

The following safety labels are used on products to warn against risks and dangers.

1171.0000.42 - 08 Page 1

Basic Safety Instructions

Symbol

Meaning

Symbol

Meaning

Caution ! Hot surface

Alternating current (AC)

Protective conductor terminal
To identify any terminal which is intended for
connection to an external conductor for
protection against electric shock in case of a
fault, or the terminal of a protective earth

Direct/alternating current (DC/AC)

Earth (Ground)

Class II Equipment
to identify equipment meeting the safety
requirements specified for Class II equipment
(device protected by double or reinforced
insulation)

Frame or chassis Ground terminal

EU labeling for batteries and accumulators
For additional information, see section "Waste

disposal/Environmental protection", item 1.

Be careful when handling electrostatic sensitive
devices

EU labeling for separate collection of electrical
and electronic devices

For additional information, see section "Waste
disposal/Environmental protection", item 2.

Warning! Laser radiation
For additional information, see section

"Operation", item 7.

Indicates a hazardous situation which, if not avoided, will result in death or
serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.

Indicates information considered important, but not hazard-related, e.g.
messages relating to property damage.
In the product documentation, the word ATTENTION is used synonymously.

Signal words and their meaning

The following signal words are used in the product documentation in order to warn the reader about risks
and dangers.

These signal words are in accordance with the standard definition for civil applications in the European
Economic Area. Definitions that deviate from the standard definition may also exist in other economic
areas or military applications. It is therefore essential to make sure that the signal words described here
are always used only in connection with the related product documentation and the related product. The
use of signal words in connection with unrelated products or documentation can result in misinterpretation
and in personal injury or material damage.

1171.0000.42 - 08 Page 2

Basic Safety Instructions

Operating states and operating positions

The product may be operated only under the operating conditions and in the positions specified by the
manufacturer, without the product's ventilation being obstructed. If the manufacturer's specifications are
not observed, this can result in electric shock, fire and/or serious personal injury or death. Applicable local
or national safety regulations and rules for the prevention of accidents must be observed in all work
performed.

1. Unless otherwise specified, the following requirements apply to Rohde & Schwarz products:
predefined operating position is always with the housing floor facing down, IP protection 2X, use only
indoors, max. operating altitude 2000 m above sea level, max. transport altitude 4500 m above sea
level. A tolerance of ±10 % shall apply to the nominal voltage and ±5 % to the nominal frequency,
overvoltage category 2, pollution degree 2.

2. Do not place the product on surfaces, vehicles, cabinets or tables that for reasons of weight or stability
are unsuitable for this purpose. Always follow the manufacturer's installation instructions when
installing the product and fastening it to objects or structures (e.g. walls and shelves). An installation
that is not carried out as described in the product documentation could result in personal injury or
even death.

3. Do not place the product on heat-generating devices such as radiators or fan heaters. The ambient
temperature must not exceed the maximum temperature specified in the product documentation or in
the data sheet. Product overheating can cause electric shock, fire and/or serious personal injury or
even death.

Electrical safety

If the information on electrical safety is not observed either at all or to the extent necessary, electric shock,
fire and/or serious personal injury or death may occur.

1. Prior to switching on the product, always ensure that the nominal voltage setting on the product
matches the nominal voltage of the mains-supply network. If a different voltage is to be set, the power
fuse of the product may have to be changed accordingly.

2. In the case of products of safety class I with movable power cord and connector, operation is
permitted only on sockets with a protective conductor contact and protective conductor.

3. Intentionally breaking the protective conductor either in the feed line or in the product itself is not
permitted. Doing so can result in the danger of an electric shock from the product. If extension cords
or connector strips are implemented, they must be checked on a regular basis to ensure that they are
safe to use.

4. If there is no power switch for disconnecting the product from the mains, or if the power switch is not
suitable for this purpose, use the plug of the connecting cable to disconnect the product from the
mains. In such cases, always ensure that the power plug is easily reachable and accessible at all
times. For example, if the power plug is the disconnecting device, the length of the connecting cable
must not exceed 3 m. Functional or electronic switches are not suitable for providing disconnection
from the AC supply network. If products without power switches are integrated into racks or systems,
the disconnecting device must be provided at the system level.

5. Never use the product if the power cable is damaged. Check the power cables on a regular basis to
ensure that they are in proper operating condition. By taking appropriate safety measures and
carefully laying the power cable, ensure that the cable cannot be damaged and that no one can be
hurt by, for example, tripping over the cable or suffering an electric shock.

1171.0000.42 - 08 Page 3

Basic Safety Instructions

6. The product may be operated only from TN/TT supply networks fuse-protected with max. 16 A (higher
fuse only after consulting with the Rohde & Schwarz group of companies).

7. Do not insert the plug into sockets that are dusty or dirty. Insert the plug firmly and all the way into the
socket provided for this purpose. Otherwise, sparks that result in fire and/or injuries may occur.

8. Do not overload any sockets, extension cords or connector strips; doing so can cause fire or electric
shocks.

9. For measurements in circuits with voltages V

> 30 V, suitable measures (e.g. appropriate

rms

measuring equipment, fuse protection, current limiting, electrical separation, insulation) should be
taken to avoid any hazards.

10. Ensure that the connections with information technology equipment, e.g. PCs or other industrial
computers, comply with the IEC 60950-1 / EN 60950-1 or IEC 61010-1 / EN 61010-1 standards that
apply in each case.

11. Unless expressly permitted, never remove the cover or any part of the housing while the product is in
operation. Doing so will expose circuits and components and can lead to injuries, fire or damage to the
product.

12. If a product is to be permanently installed, the connection between the protective conductor terminal
on site and the product's protective conductor must be made first before any other connection is
made. The product may be installed and connected only by a licensed electrician.

13. For permanently installed equipment without built-in fuses, circuit breakers or similar protective
devices, the supply circuit must be fuse-protected in such a way that anyone who has access to the
product, as well as the product itself, is adequately protected from injury or damage.

14. Use suitable overvoltage protection to ensure that no overvoltage (such as that caused by a bolt of
lightning) can reach the product. Otherwise, the person operating the product will be exposed to the
danger of an electric shock.

15. Any object that is not designed to be placed in the openings of the housing must not be used for this
purpose. Doing so can cause short circuits inside the product and/or electric shocks, fire or injuries.

16. Unless specified otherwise, products are not liquid-proof (see also section "Operating states and
operating positions", item 1). Therefore, the equipment must be protected against penetration by
liquids. If the necessary precautions are not taken, the user may suffer electric shock or the product
itself may be damaged, which can also lead to personal injury.

17. Never use the product under conditions in which condensation has formed or can form in or on the
product, e.g. if the product has been moved from a cold to a warm environment. Penetration by water
increases the risk of electric shock.

18. Prior to cleaning the product, disconnect it completely from the power supply (e.g. AC supply network
or battery). Use a soft, non-linting cloth to clean the product. Never use chemical cleaning agents such
as alcohol, acetone or diluents for cellulose lacquers.

Operation

1. Operating the products requires special training and intense concentration. Make sure that persons
who use the products are physically, mentally and emotionally fit enough to do so; otherwise, injuries
or material damage may occur. It is the responsibility of the employer/operator to select suitable
personnel for operating the products.

1171.0000.42 - 08 Page 4

Basic Safety Instructions

2. Before you move or transport the product, read and observe the section titled "Transport".

3. As with all industrially manufactured goods, the use of substances that induce an allergic reaction
(allergens) such as nickel cannot be generally excluded. If you develop an allergic reaction (such as a
skin rash, frequent sneezing, red eyes or respiratory difficulties) when using a Rohde & Schwarz
product, consult a physician immediately to determine the cause and to prevent health problems or
stress.

4. Before you start processing the product mechanically and/or thermally, or before you take it apart, be
sure to read and pay special attention to the section titled "Waste disposal/Environmental protection",
item 1.

5. Depending on the function, certain products such as RF radio equipment can produce an elevated
level of electromagnetic radiation. Considering that unborn babies require increased protection,
pregnant women must be protected by appropriate measures. Persons with pacemakers may also be
exposed to risks from electromagnetic radiation. The employer/operator must evaluate workplaces
where there is a special risk of exposure to radiation and, if necessary, take measures to avert the
potential danger.

6. Should a fire occur, the product may release hazardous substances (gases, fluids, etc.) that can
cause health problems. Therefore, suitable measures must be taken, e.g. protective masks and
protective clothing must be worn.

7. Laser products are given warning labels that are standardized according to their laser class. Lasers
can cause biological harm due to the properties of their radiation and due to their extremely
concentrated electromagnetic power. If a laser product (e.g. a CD/DVD drive) is integrated into a
Rohde & Schwarz product, absolutely no other settings or functions may be used as described in the
product documentation. The objective is to prevent personal injury (e.g. due to laser beams).

8. EMC classes (in line with EN 55011/CISPR 11, and analogously with EN 55022/CISPR 22,
EN 55032/CISPR 32)
 Class A equipment:

Equipment suitable for use in all environments except residential environments and environments
that are directly connected to a low-voltage supply network that supplies residential buildings
Note: Class A equipment is intended for use in an industrial environment. This equipment may
cause radio disturbances in residential environments, due to possible conducted as well as
radiated disturbances. In this case, the operator may be required to take appropriate measures to
eliminate these disturbances.

 Class B equipment:

Equipment suitable for use in residential environments and environments that are directly
connected to a low-voltage supply network that supplies residential buildings

Repair and service

1. The product may be opened only by authorized, specially trained personnel. Before any work is
performed on the product or before the product is opened, it must be disconnected from the AC supply
network. Otherwise, personnel will be exposed to the risk of an electric shock.

1171.0000.42 - 08 Page 5

Basic Safety Instructions

2. Adjustments, replacement of parts, maintenance and repair may be performed only by electrical
experts authorized by Rohde & Schwarz. Only original parts may be used for replacing parts relevant
to safety (e.g. power switches, power transformers, fuses). A safety test must always be performed
after parts relevant to safety have been replaced (visual inspection, protective conductor test,
insulation resistance measurement, leakage current measurement, functional test). This helps ensure
the continued safety of the product.

Batteries and rechargeable batteries/cells

If the information regarding batteries and rechargeable batteries/cells is not observed either at all or to the
extent necessary, product users may be exposed to the risk of explosions, fire and/or serious personal
injury, and, in some cases, death. Batteries and rechargeable batteries with alkaline electrolytes (e.g.
lithium cells) must be handled in accordance with the EN 62133 standard.

1. Cells must not be taken apart or crushed.

2. Cells or batteries must not be exposed to heat or fire. Storage in direct sunlight must be avoided.
Keep cells and batteries clean and dry. Clean soiled connectors using a dry, clean cloth.

3. Cells or batteries must not be short-circuited. Cells or batteries must not be stored in a box or in a
drawer where they can short-circuit each other, or where they can be short-circuited by other
conductive materials. Cells and batteries must not be removed from their original packaging until they
are ready to be used.

4. Cells and batteries must not be exposed to any mechanical shocks that are stronger than permitted.

5. If a cell develops a leak, the fluid must not be allowed to come into contact with the skin or eyes. If
contact occurs, wash the affected area with plenty of water and seek medical aid.

6. Improperly replacing or charging cells or batteries that contain alkaline electrolytes (e.g. lithium cells)
can cause explosions. Replace cells or batteries only with the matching Rohde & Schwarz type (see
parts list) in order to ensure the safety of the product.

7. Cells and batteries must be recycled and kept separate from residual waste. Rechargeable batteries
and normal batteries that contain lead, mercury or cadmium are hazardous waste. Observe the
national regulations regarding waste disposal and recycling.

Transport

1. The product may be very heavy. Therefore, the product must be handled with care. In some cases,
the user may require a suitable means of lifting or moving the product (e.g. with a lift-truck) to avoid
back or other physical injuries.

2. Handles on the products are designed exclusively to enable personnel to transport the product. It is
therefore not permissible to use handles to fasten the product to or on transport equipment such as
cranes, fork lifts, wagons, etc. The user is responsible for securely fastening the products to or on the
means of transport or lifting. Observe the safety regulations of the manufacturer of the means of
transport or lifting. Noncompliance can result in personal injury or material damage.

3. If you use the product in a vehicle, it is the sole responsibility of the driver to drive the vehicle safely
and properly. The manufacturer assumes no responsibility for accidents or collisions. Never use the
product in a moving vehicle if doing so could distract the driver of the vehicle. Adequately secure the
product in the vehicle to prevent injuries or other damage in the event of an accident.

1171.0000.42 - 08 Page 6

Instrucciones de seguridad elementales

Waste disposal/Environmental protection

1. Specially marked equipment has a battery or accumulator that must not be disposed of with unsorted
municipal waste, but must be collected separately. It may only be disposed of at a suitable collection
point or via a Rohde & Schwarz customer service center.

2. Waste electrical and electronic equipment must not be disposed of with unsorted municipal waste, but
must be collected separately.
Rohde & Schwarz GmbH & Co. KG has developed a disposal concept and takes full responsibility for
take-back obligations and disposal obligations for manufacturers within the EU. Contact your
Rohde & Schwarz customer service center for environmentally responsible disposal of the product.

3. If products or their components are mechanically and/or thermally processed in a manner that goes
beyond their intended use, hazardous substances (heavy-metal dust such as lead, beryllium, nickel)
may be released. For this reason, the product may only be disassembled by specially trained
personnel. Improper disassembly may be hazardous to your health. National waste disposal
regulations must be observed.

4. If handling the product releases hazardous substances or fuels that must be disposed of in a special
way, e.g. coolants or engine oils that must be replenished regularly, the safety instructions of the
manufacturer of the hazardous substances or fuels and the applicable regional waste disposal
regulations must be observed. Also observe the relevant safety instructions in the product
documentation. The improper disposal of hazardous substances or fuels can cause health problems
and lead to environmental damage.

For additional information about environmental protection, visit the Rohde & Schwarz website.

Instrucciones de seguridad elementales

¡Es imprescindible leer y cumplir las siguientes instrucciones e informaciones de seguridad!

El principio del grupo de empresas Rohde & Schwarz consiste en tener nuestros productos siempre al día
con los estándares de seguridad y de ofrecer a nuestros clientes el máximo grado de seguridad. Nuestros
productos y todos los equipos adicionales son siempre fabricados y examinados según las normas de
seguridad vigentes. Nuestro sistema de garantía de calidad controla constantemente que sean cumplidas
estas normas. El presente producto ha sido fabricado y examinado según el certificado de conformidad
de la UE y ha salido de nuestra planta en estado impecable según los estándares técnicos de seguridad.
Para poder preservar este estado y garantizar un funcionamiento libre de peligros, el usuario deberá
atenerse a todas las indicaciones, informaciones de seguridad y notas de alerta. El grupo de empresas
Rohde & Schwarz está siempre a su disposición en caso de que tengan preguntas referentes a estas
informaciones de seguridad.

Además queda en la responsabilidad del usuario utilizar el producto en la forma debida. Este producto
está destinado exclusivamente al uso en la industria y el laboratorio o, si ha sido expresamente
autorizado, para aplicaciones de campo y de ninguna manera deberá ser utilizado de modo que alguna
persona/cosa pueda sufrir daño. El uso del producto fuera de sus fines definidos o sin tener en cuenta las
instrucciones del fabricante queda en la responsabilidad del usuario. El fabricante no se hace en ninguna
forma responsable de consecuencias a causa del mal uso del producto.

1171.0000.42 - 08 Page 7

Instrucciones de seguridad elementales

Símbolo

Significado

Símbolo

Significado

Aviso: punto de peligro general
Observar la documentación del producto

Tensión de alimentación de PUESTA EN
MARCHA / PARADA

Atención en el manejo de dispositivos de peso
elevado

Indicación de estado de espera (standby)

Peligro de choque eléctrico

Corriente continua (DC)

Advertencia: superficie caliente

Corriente alterna (AC)

Conexión a conductor de protección

Corriente continua / Corriente alterna (DC/AC)

Conexión a tierra

El aparato está protegido en su totalidad por un
aislamiento doble (reforzado)

Conexión a masa

Distintivo de la UE para baterías y
acumuladores

Más información en la sección
"Eliminación/protección del medio ambiente",
punto 1.

Se parte del uso correcto del producto para los fines definidos si el producto es utilizado conforme a las
indicaciones de la correspondiente documentación del producto y dentro del margen de rendimiento
definido (ver hoja de datos, documentación, informaciones de seguridad que siguen). El uso del producto
hace necesarios conocimientos técnicos y ciertos conocimientos del idioma inglés. Por eso se debe tener
en cuenta que el producto solo pueda ser operado por personal especializado o personas instruidas en
profundidad con las capacidades correspondientes. Si fuera necesaria indumentaria de seguridad para el
uso de productos de Rohde & Schwarz, encontraría la información debida en la documentación del
producto en el capítulo correspondiente. Guarde bien las informaciones de seguridad elementales, así
como la documentación del producto, y entréguelas a usuarios posteriores.

Tener en cuenta las informaciones de seguridad sirve para evitar en lo posible lesiones o daños por
peligros de toda clase. Por eso es imprescindible leer detalladamente y comprender por completo las
siguientes informaciones de seguridad antes de usar el producto, y respetarlas durante el uso del
producto. Deberán tenerse en cuenta todas las demás informaciones de seguridad, como p. ej. las
referentes a la protección de personas, que encontrarán en el capítulo correspondiente de la
documentación del producto y que también son de obligado cumplimiento. En las presentes
informaciones de seguridad se recogen todos los objetos que distribuye el grupo de empresas
Rohde & Schwarz bajo la denominación de "producto", entre ellos también aparatos, instalaciones así
como toda clase de accesorios. Los datos específicos del producto figuran en la hoja de datos y en la
documentación del producto.

Señalización de seguridad de los productos

Las siguientes señales de seguridad se utilizan en los productos para advertir sobre riesgos y peligros.

1171.0000.42 - 08 Page 8

Instrucciones de seguridad elementales

Símbolo

Significado

Símbolo

Significado

Aviso: Cuidado en el manejo de dispositivos
sensibles a la electrostática (ESD)

Distintivo de la UE para la eliminación por
separado de dispositivos eléctricos y
electrónicos

Más información en la sección
"Eliminación/protección del medio ambiente",
punto 2.

Advertencia: rayo láser
Más información en la sección

"Funcionamiento", punto 7.

Indica una situación de peligro que, si no se evita, causa lesiones
graves o incluso la muerte.

Indica una situación de peligro que, si no se evita, puede causar
lesiones graves o incluso la muerte.

Indica una situación de peligro que, si no se evita, puede causar
lesiones leves o moderadas.

Indica información que se considera importante, pero no en relación
con situaciones de peligro; p. ej., avisos sobre posibles daños
materiales.
En la documentación del producto se emplea de forma sinónima el
término CUIDADO.

Palabras de señal y su significado

En la documentación del producto se utilizan las siguientes palabras de señal con el fin de advertir contra
riesgos y peligros.

Las palabras de señal corresponden a la definición habitual para aplicaciones civiles en el área
económica europea. Pueden existir definiciones diferentes a esta definición en otras áreas económicas o
en aplicaciones militares. Por eso se deberá tener en cuenta que las palabras de señal aquí descritas
sean utilizadas siempre solamente en combinación con la correspondiente documentación del producto y
solamente en combinación con el producto correspondiente. La utilización de las palabras de señal en
combinación con productos o documentaciones que no les correspondan puede llevar a interpretaciones
equivocadas y tener por consecuencia daños en personas u objetos.

Estados operativos y posiciones de funcionamiento

El producto solamente debe ser utilizado según lo indicado por el fabricante respecto a los estados
operativos y posiciones de funcionamiento sin que se obstruya la ventilación. Si no se siguen las
indicaciones del fabricante, pueden producirse choques eléctricos, incendios y/o lesiones graves con
posible consecuencia de muerte. En todos los trabajos deberán ser tenidas en cuenta las normas
nacionales y locales de seguridad del trabajo y de prevención de accidentes.

1171.0000.42 - 08 Page 9

Instrucciones de seguridad elementales

1. Si no se convino de otra manera, es para los productos Rohde & Schwarz válido lo que sigue:
como posición de funcionamiento se define por principio la posición con el suelo de la caja para
abajo, modo de protección IP 2X, uso solamente en estancias interiores, utilización hasta 2000 m
sobre el nivel del mar, transporte hasta 4500 m sobre el nivel del mar. Se aplicará una tolerancia de
±10 % sobre el voltaje nominal y de ±5 % sobre la frecuencia nominal. Categoría de sobrecarga
eléctrica 2, índice de suciedad 2.

2. No sitúe el producto encima de superficies, vehículos, estantes o mesas, que por sus características
de peso o de estabilidad no sean aptos para él. Siga siempre las instrucciones de instalación del
fabricante cuando instale y asegure el producto en objetos o estructuras (p. ej. paredes y estantes). Si
se realiza la instalación de modo distinto al indicado en la documentación del producto, se pueden
causar lesiones o, en determinadas circunstancias, incluso la muerte.

3. No ponga el producto sobre aparatos que generen calor (p. ej. radiadores o calefactores). La
temperatura ambiente no debe superar la temperatura máxima especificada en la documentación del
producto o en la hoja de datos. En caso de sobrecalentamiento del producto, pueden producirse
choques eléctricos, incendios y/o lesiones graves con posible consecuencia de muerte.

Seguridad eléctrica

Si no se siguen (o se siguen de modo insuficiente) las indicaciones del fabricante en cuanto a seguridad
eléctrica, pueden producirse choques eléctricos, incendios y/o lesiones graves con posible consecuencia
de muerte.

1. Antes de la puesta en marcha del producto se deberá comprobar siempre que la tensión
preseleccionada en el producto coincida con la de la red de alimentación eléctrica. Si es necesario
modificar el ajuste de tensión, también se deberán cambiar en caso dado los fusibles
correspondientes del producto.

2. Los productos de la clase de protección I con alimentación móvil y enchufe individual solamente
podrán enchufarse a tomas de corriente con contacto de seguridad y con conductor de protección
conectado.

3. Queda prohibida la interrupción intencionada del conductor de protección, tanto en la toma de
corriente como en el mismo producto. La interrupción puede tener como consecuencia el riesgo de
que el producto sea fuente de choques eléctricos. Si se utilizan cables alargadores o regletas de
enchufe, deberá garantizarse la realización de un examen regular de los mismos en cuanto a su
estado técnico de seguridad.

4. Si el producto no está equipado con un interruptor para desconectarlo de la red, o bien si el
interruptor existente no resulta apropiado para la desconexión de la red, el enchufe del cable de
conexión se deberá considerar como un dispositivo de desconexión.
El dispositivo de desconexión se debe poder alcanzar fácilmente y debe estar siempre bien accesible.
Si, p. ej., el enchufe de conexión a la red es el dispositivo de desconexión, la longitud del cable de
conexión no debe superar 3 m).
Los interruptores selectores o electrónicos no son aptos para el corte de la red eléctrica. Si se
integran productos sin interruptor en bastidores o instalaciones, se deberá colocar el interruptor en el
nivel de la instalación.

5. No utilice nunca el producto si está dañado el cable de conexión a red. Compruebe regularmente el
correcto estado de los cables de conexión a red. Asegúrese, mediante las medidas de protección y
de instalación adecuadas, de que el cable de conexión a red no pueda ser dañado o de que nadie
pueda ser dañado por él, p. ej. al tropezar o por un choque eléctrico.

1171.0000.42 - 08 Page 10

Instrucciones de seguridad elementales

6. Solamente está permitido el funcionamiento en redes de alimentación TN/TT aseguradas con fusibles
de 16 A como máximo (utilización de fusibles de mayor amperaje solo previa consulta con el grupo de
empresas Rohde & Schwarz).

7. Nunca conecte el enchufe en tomas de corriente sucias o llenas de polvo. Introduzca el enchufe por
completo y fuertemente en la toma de corriente. La no observación de estas medidas puede provocar
chispas, fuego y/o lesiones.

8. No sobrecargue las tomas de corriente, los cables alargadores o las regletas de enchufe ya que esto
podría causar fuego o choques eléctricos.

9. En las mediciones en circuitos de corriente con una tensión U

> 30 V se deberán tomar las medidas

eff

apropiadas para impedir cualquier peligro (p. ej. medios de medición adecuados, seguros, limitación
de tensión, corte protector, aislamiento etc.).

10. Para la conexión con dispositivos informáticos como un PC o un ordenador industrial, debe
comprobarse que éstos cumplan los estándares IEC60950-1/EN60950-1 o IEC61010-1/EN 61010-1
válidos en cada caso.

11. A menos que esté permitido expresamente, no retire nunca la tapa ni componentes de la carcasa
mientras el producto esté en servicio. Esto pone a descubierto los cables y componentes eléctricos y
puede causar lesiones, fuego o daños en el producto.

12. Si un producto se instala en un lugar fijo, se deberá primero conectar el conductor de protección fijo
con el conductor de protección del producto antes de hacer cualquier otra conexión. La instalación y
la conexión deberán ser efectuadas por un electricista especializado.

13. En el caso de dispositivos fijos que no estén provistos de fusibles, interruptor automático ni otros
mecanismos de seguridad similares, el circuito de alimentación debe estar protegido de modo que
todas las personas que puedan acceder al producto, así como el producto mismo, estén a salvo de
posibles daños.

14. Todo producto debe estar protegido contra sobretensión (debida p. ej. a una caída del rayo) mediante
los correspondientes sistemas de protección. Si no, el personal que lo utilice quedará expuesto al
peligro de choque eléctrico.

15. No debe introducirse en los orificios de la caja del aparato ningún objeto que no esté destinado a ello.
Esto puede producir cortocircuitos en el producto y/o puede causar choques eléctricos, fuego o
lesiones.

16. Salvo indicación contraria, los productos no están impermeabilizados (ver también el capítulo
"Estados operativos y posiciones de funcionamiento", punto 1). Por eso es necesario tomar las
medidas necesarias para evitar la entrada de líquidos. En caso contrario, existe peligro de choque
eléctrico para el usuario o de daños en el producto, que también pueden redundar en peligro para las
personas.

17. No utilice el producto en condiciones en las que pueda producirse o ya se hayan producido
condensaciones sobre el producto o en el interior de éste, como p. ej. al desplazarlo de un lugar frío a
otro caliente. La entrada de agua aumenta el riesgo de choque eléctrico.

18. Antes de la limpieza, desconecte por completo el producto de la alimentación de tensión (p. ej. red de
alimentación o batería). Realice la limpieza de los aparatos con un paño suave, que no se deshilache.
No utilice bajo ningún concepto productos de limpieza químicos como alcohol, acetona o diluyentes
para lacas nitrocelulósicas.

1171.0000.42 - 08 Page 11

Instrucciones de seguridad elementales

Funcionamiento

1. El uso del producto requiere instrucciones especiales y una alta concentración durante el manejo.
Debe asegurarse que las personas que manejen el producto estén a la altura de los requerimientos
necesarios en cuanto a aptitudes físicas, psíquicas y emocionales, ya que de otra manera no se
pueden excluir lesiones o daños de objetos. El empresario u operador es responsable de seleccionar
el personal usuario apto para el manejo del producto.

2. Antes de desplazar o transportar el producto, lea y tenga en cuenta el capítulo "Transporte".

3. Como con todo producto de fabricación industrial no puede quedar excluida en general la posibilidad
de que se produzcan alergias provocadas por algunos materiales empleados ―los llamados
alérgenos (p. ej. el níquel)―. Si durante el manejo de productos Rohde & Schwarz se producen
reacciones alérgicas, como p. ej. irritaciones cutáneas, estornudos continuos, enrojecimiento de la
conjuntiva o dificultades respiratorias, debe avisarse inmediatamente a un médico para investigar las
causas y evitar cualquier molestia o daño a la salud.

4. Antes de la manipulación mecánica y/o térmica o el desmontaje del producto, debe tenerse en cuenta
imprescindiblemente el capítulo "Eliminación/protección del medio ambiente", punto 1.

5. Ciertos productos, como p. ej. las instalaciones de radiocomunicación RF, pueden a causa de su
función natural, emitir una radiación electromagnética aumentada. Deben tomarse todas las medidas
necesarias para la protección de las mujeres embarazadas. También las personas con marcapasos
pueden correr peligro a causa de la radiación electromagnética. El empresario/operador tiene la
obligación de evaluar y señalizar las áreas de trabajo en las que exista un riesgo elevado de
exposición a radiaciones.

6. Tenga en cuenta que en caso de incendio pueden desprenderse del producto sustancias tóxicas
(gases, líquidos etc.) que pueden generar daños a la salud. Por eso, en caso de incendio deben
usarse medidas adecuadas, como p. ej. máscaras antigás e indumentaria de protección.

7. Los productos con láser están provistos de indicaciones de advertencia normalizadas en función de la
clase de láser del que se trate. Los rayos láser pueden provocar daños de tipo biológico a causa de
las propiedades de su radiación y debido a su concentración extrema de potencia electromagnética.
En caso de que un producto Rohde & Schwarz contenga un producto láser (p. ej. un lector de
CD/DVD), no debe usarse ninguna otra configuración o función aparte de las descritas en la
documentación del producto, a fin de evitar lesiones (p. ej. debidas a irradiación láser).

8. Clases de compatibilidad electromagnética (conforme a EN 55011 / CISPR 11; y en analogía con EN
55022 / CISPR 22, EN 55032 / CISPR 32)
 Aparato de clase A:

Aparato adecuado para su uso en todos los entornos excepto en los residenciales y en aquellos
conectados directamente a una red de distribución de baja tensión que suministra corriente a
edificios residenciales.
Nota: Los aparatos de clase A están destinados al uso en entornos industriales. Estos aparatos
pueden causar perturbaciones radioeléctricas en entornos residenciales debido a posibles
perturbaciones guiadas o radiadas. En este caso, se le podrá solicitar al operador que tome las
medidas adecuadas para eliminar estas perturbaciones.

 Aparato de clase B:

Aparato adecuado para su uso en entornos residenciales, así como en aquellos conectados
directamente a una red de distribución de baja tensión que suministra corriente a edificios
residenciales.

1171.0000.42 - 08 Page 12

Instrucciones de seguridad elementales

Reparación y mantenimiento

1. El producto solamente debe ser abierto por personal especializado con autorización para ello. Antes
de manipular el producto o abrirlo, es obligatorio desconectarlo de la tensión de alimentación, para
evitar toda posibilidad de choque eléctrico.

2. El ajuste, el cambio de partes, el mantenimiento y la reparación deberán ser efectuadas solamente
por electricistas autorizados por Rohde & Schwarz. Si se reponen partes con importancia para los
aspectos de seguridad (p. ej. el enchufe, los transformadores o los fusibles), solamente podrán ser
sustituidos por partes originales. Después de cada cambio de partes relevantes para la seguridad
deberá realizarse un control de seguridad (control a primera vista, control del conductor de
protección, medición de resistencia de aislamiento, medición de la corriente de fuga, control de
funcionamiento). Con esto queda garantizada la seguridad del producto.

Baterías y acumuladores o celdas

Si no se siguen (o se siguen de modo insuficiente) las indicaciones en cuanto a las baterías y
acumuladores o celdas, pueden producirse explosiones, incendios y/o lesiones graves con posible
consecuencia de muerte. El manejo de baterías y acumuladores con electrolitos alcalinos (p. ej. celdas de
litio) debe seguir el estándar EN 62133.

1. No deben desmontarse, abrirse ni triturarse las celdas.

2. Las celdas o baterías no deben someterse a calor ni fuego. Debe evitarse el almacenamiento a la luz
directa del sol. Las celdas y baterías deben mantenerse limpias y secas. Limpiar las conexiones
sucias con un paño seco y limpio.

3. Las celdas o baterías no deben cortocircuitarse. Es peligroso almacenar las celdas o baterías en
estuches o cajones en cuyo interior puedan cortocircuitarse por contacto recíproco o por contacto con
otros materiales conductores. No deben extraerse las celdas o baterías de sus embalajes originales
hasta el momento en que vayan a utilizarse.

4. Las celdas o baterías no deben someterse a impactos mecánicos fuertes indebidos.

5. En caso de falta de estanqueidad de una celda, el líquido vertido no debe entrar en contacto con la
piel ni los ojos. Si se produce contacto, lavar con agua abundante la zona afectada y avisar a un
médico.

6. En caso de cambio o recarga inadecuados, las celdas o baterías que contienen electrolitos alcalinos
(p. ej. las celdas de litio) pueden explotar. Para garantizar la seguridad del producto, las celdas o
baterías solo deben ser sustituidas por el tipo Rohde & Schwarz correspondiente (ver lista de
recambios).

7. Las baterías y celdas deben reciclarse y no deben tirarse a la basura doméstica. Las baterías o
acumuladores que contienen plomo, mercurio o cadmio deben tratarse como residuos especiales.
Respete en esta relación las normas nacionales de eliminación y reciclaje.

Transporte

1. El producto puede tener un peso elevado. Por eso es necesario desplazarlo o transportarlo con
precaución y, si es necesario, usando un sistema de elevación adecuado (p. ej. una carretilla
elevadora), a fin de evitar lesiones en la espalda u otros daños personales.

1171.0000.42 - 08 Page 13

Instrucciones de seguridad elementales

2. Las asas instaladas en los productos sirven solamente de ayuda para el transporte del producto por
personas. Por eso no está permitido utilizar las asas para la sujeción en o sobre medios de transporte
como p. ej. grúas, carretillas elevadoras de horquilla, carros etc. Es responsabilidad suya fijar los
productos de manera segura a los medios de transporte o elevación. Para evitar daños personales o
daños en el producto, siga las instrucciones de seguridad del fabricante del medio de transporte o
elevación utilizado.

3. Si se utiliza el producto dentro de un vehículo, recae de manera exclusiva en el conductor la
responsabilidad de conducir el vehículo de manera segura y adecuada. El fabricante no asumirá
ninguna responsabilidad por accidentes o colisiones. No utilice nunca el producto dentro de un
vehículo en movimiento si esto pudiera distraer al conductor. Asegure el producto dentro del vehículo
debidamente para evitar, en caso de un accidente, lesiones u otra clase de daños.

Eliminación/protección del medio ambiente

1. Los dispositivos marcados contienen una batería o un acumulador que no se debe desechar con los
residuos domésticos sin clasificar, sino que debe ser recogido por separado. La eliminación se debe
efectuar exclusivamente a través de un punto de recogida apropiado o del servicio de atención al
cliente de Rohde & Schwarz.

2. Los dispositivos eléctricos usados no se deben desechar con los residuos domésticos sin clasificar,
sino que deben ser recogidos por separado.
Rohde & Schwarz GmbH & Co.KG ha elaborado un concepto de eliminación de residuos y asume
plenamente los deberes de recogida y eliminación para los fabricantes dentro de la UE. Para
desechar el producto de manera respetuosa con el medio ambiente, diríjase a su servicio de atención
al cliente de Rohde & Schwarz.

3. Si se trabaja de manera mecánica y/o térmica cualquier producto o componente más allá del
funcionamiento previsto, pueden liberarse sustancias peligrosas (polvos con contenido de metales
pesados como p. ej. plomo, berilio o níquel). Por eso el producto solo debe ser desmontado por
personal especializado con formación adecuada. Un desmontaje inadecuado puede ocasionar daños
para la salud. Se deben tener en cuenta las directivas nacionales referentes a la eliminación de
residuos.

4. En caso de que durante el trato del producto se formen sustancias peligrosas o combustibles que
deban tratarse como residuos especiales (p. ej. refrigerantes o aceites de motor con intervalos de
cambio definidos), deben tenerse en cuenta las indicaciones de seguridad del fabricante de dichas
sustancias y las normas regionales de eliminación de residuos. Tenga en cuenta también en caso
necesario las indicaciones de seguridad especiales contenidas en la documentación del producto. La
eliminación incorrecta de sustancias peligrosas o combustibles puede causar daños a la salud o
daños al medio ambiente.

Se puede encontrar más información sobre la protección del medio ambiente en la página web de
Rohde & Schwarz.

1171.0000.42 - 08 Page 14

Quality management

Certied Quality System

ISO 9001

and environmental
management

Sehr geehrter Kunde,

Sie haben sich für den Kauf
eines Rohde & Schwarz Produk­tes entschieden. Sie erhalten
damit ein nach modernsten Fer­tigungsmethoden hergestelltes
Produkt. Es wurde nach den
Regeln unserer Qualitäts- und
Umweltmanagementsysteme
entwickelt, gefertigt und geprüft.
Rohde & Schwarz ist unter ande­rem nach den Managementsys­temen ISO 9001 und ISO 14001
zertifiziert.

Der Umwelt verpflichtet

❙ Energie-efziente,

RoHS-konforme Produkte

❙ Kontinuierliche

Weiterentwicklung nachhaltiger
Umweltkonzepte

❙ ISO 14001-zertiziertes

Umweltmanagementsystem

Dear customer,

You have decided to buy a
Rohde & Schwarz product. This
product has been manufactured
using the most advanced meth­ods. It was developed, manufac­tured and tested in compliance
with our quality management
and environmental manage­ment systems. Rohde & Schwarz
has been certified, for exam­ple, according to the ISO 9001
and ISO 14001 management
systems.

Environmental commitment

❙ Energy-efcient products
❙ Continuous improvement in

environmental sustainability

❙ ISO 14001-certied

environmental management
system

Certied Environmental System

ISO 14001

Cher client,

Vous avez choisi d’acheter un
produit Rohde & Schwarz. Vous
disposez donc d’un produit
fabriqué d’après les méthodes
les plus avancées. Le dévelop­pement, la fabrication et les
tests de ce produit ont été effec­tués selon nos systèmes de
management de qualité et de
management environnemental.
La société Rohde & Schwarz a
été homologuée, entre autres,
conformément aux systèmes
de management ISO 9001 et
ISO 14001.

Engagement écologique

❙ Produits à efcience

énergétique

❙ Amélioration continue de la

durabilité environnementale

❙ Système de management

environnemental certié selon

ISO 14001

1171.0200.11 V 05.01

1171020011

Customer Support

Technical support – where and when you need it

For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support
Centers. A team of highly qualified engineers provides telephone support and will work with you to find a
solution to your query on any aspect of the operation, programming or applications of Rohde & Schwarz
equipment.

Up-to-date information and upgrades

To keep your instrument up-to-date and to be informed about new application notes related to your
instrument, please send an e-mail to the Customer Support Center stating your instrument and your wish.
We will take care that you will get the right information.

Europe, Africa, Middle East

North America

Latin America

Asia/Pacific

China

Phone [phone]

[e-mail]

Phone 1-888-TEST-RSA (1-888-837-8772)

[e-mail]

Phone [phone]

[e-mail]

Phone [phone]

[e-mail]

Phone [phone] /
[phone]

[e-mail]

1171.0200.22-06.00

R&S®TS-PSM5

1 Application

Application

Characteristics

1.1 General

The ROHDE & SCHWARZ High-power Switch Module R&S TS-PSM5 is intended for
the test platform R&S CompactTSVP and R&S PowerTSVP. The module occupies two
slots. Control of the module is via the CAN bus.

The module is available in two versions:

●

It can be ordered with a connector of the Virginia Panel Corp. (VPC) on the front of
the module as R&S TS-PSM5 (variant 03), order no. 1519.2768.03. The connector
is connected to the individual channels of the module via terminals on the base
board using a pre-assembled cable set.

●

The R&S TS-PSM5B (variant 02), order no. 1519.2768.02, is delivered without
VPC, the user can connect his loads or power supply units with his own cables via
apertures on the front plate of the module to the terminals of the channels.

A soft panel is available for operating the R&S TS-PSM5. Control is via an IVI switch
driver.

1.2 Safety advice

The R&S CompactTSVP and R&S PowerTSVP test platforms are principally designed
for operating voltages up to 125 V. The R&S TS-PSM5 is suitable for voltages of up to
+24 VDC and must only be used correspondingly. When higher currents are run
through, relays and circuit board can become very hot.

1.3 Characteristics

Table 1-1: Characteristics R&S TS-PSM5

Characteristics R&S TS-PSM5

Deployable in the R&S TS-PCA3 (R&S CompactTSVP) and R&S TS-PWA3 (R&S PowerTSVP) chassis

Control via CAN bus

Four channels for currents up to 50 A

Four channels for currents up to 2 A

Switching of voltages up to 24 V

3User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Application

Characteristics

Characteristics R&S TS-PSM5

Current measurement capabilities using shunt resistors or current-voltage-converters

Feed-through of all channels to the rear of the R&S TS-PWA3 chassis is possible by means of the R&S
TS-PRIO5 Rear-I/O-Module

Feed-through of all 2 A channels and the 50 A channels 5 and 8 to the rear of the R&S TS-PCA3 chassis is
possible by means of the optional R&S TS-PK04 cable set

Support via R&S Signal Routing Library TS-LSRL

Self-test capability

Soft panel for interactive operation

IVI switch driver available

The lifetime of the 50 A relays is dependent on the power to be switched. It is therefore
recommended for large currents to increase the voltage after the close of the contact, if
it is to be above 14 V. At a maximum operating frequency of 1 Hz it is in addition to
observe a ratio of 1:10 between the on and the off state. In permanent operation of the
50 A relays with low switching voltages and low switching currents there is a risk of an
increase in the contact resistance due to a forming film on the contact surfaces. It is
therefore recommended to regularly switch the contacts under load (eg. 10 A / 12 V).

Table 1-2: R&S TS-PRIO5 characteristics

R&S TS-PRIO5 characteristics

Feed-through of all 2 A channels to the rear panel of the chassis R&S TS-PWA3.

Feed-through of all 50 A channels to the rear panel of the chassis R&S TS-PWA3.

4User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

2 View

View

Figure 2-1 shows the view of the High-power Switch Module R&S TS-PSM5 (variant

03).

Figure 2-1: View of the R&S TS-PSM5 (variant 03)

Figure 2-2shows the view of the High-power Switch Module R&S TS-PSM5B (variant

02).

Figure 2-2: View of the R&S TS-PSM5B (variant 02)

5User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

3 Block diagram

Block diagram

Figure 3-1 shows the block diagram of the High-power Switch Module R&S TS-PSM5.

Figure 3-1: Block diagram R&S TS-PSM5

6User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

4 Construction

Construction

R&S TS-PSM5

4.1 R&S TS-PSM5

4.1.1 Mechanical construction

The R&S TS-PSM5 module consists of a base board to which all relays and terminal
blocks are attached, a digital board mounted on it where the processor and the FRAM
are attached and a sheet metal plate which mechanically stabilizes the module.

The connector X10 (only R&S TS-PSM5 (variant 03)) and the display elements (LEDs)
"ERR", "COM" and "PWR" are located on the front side of the module.

7User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PSM5

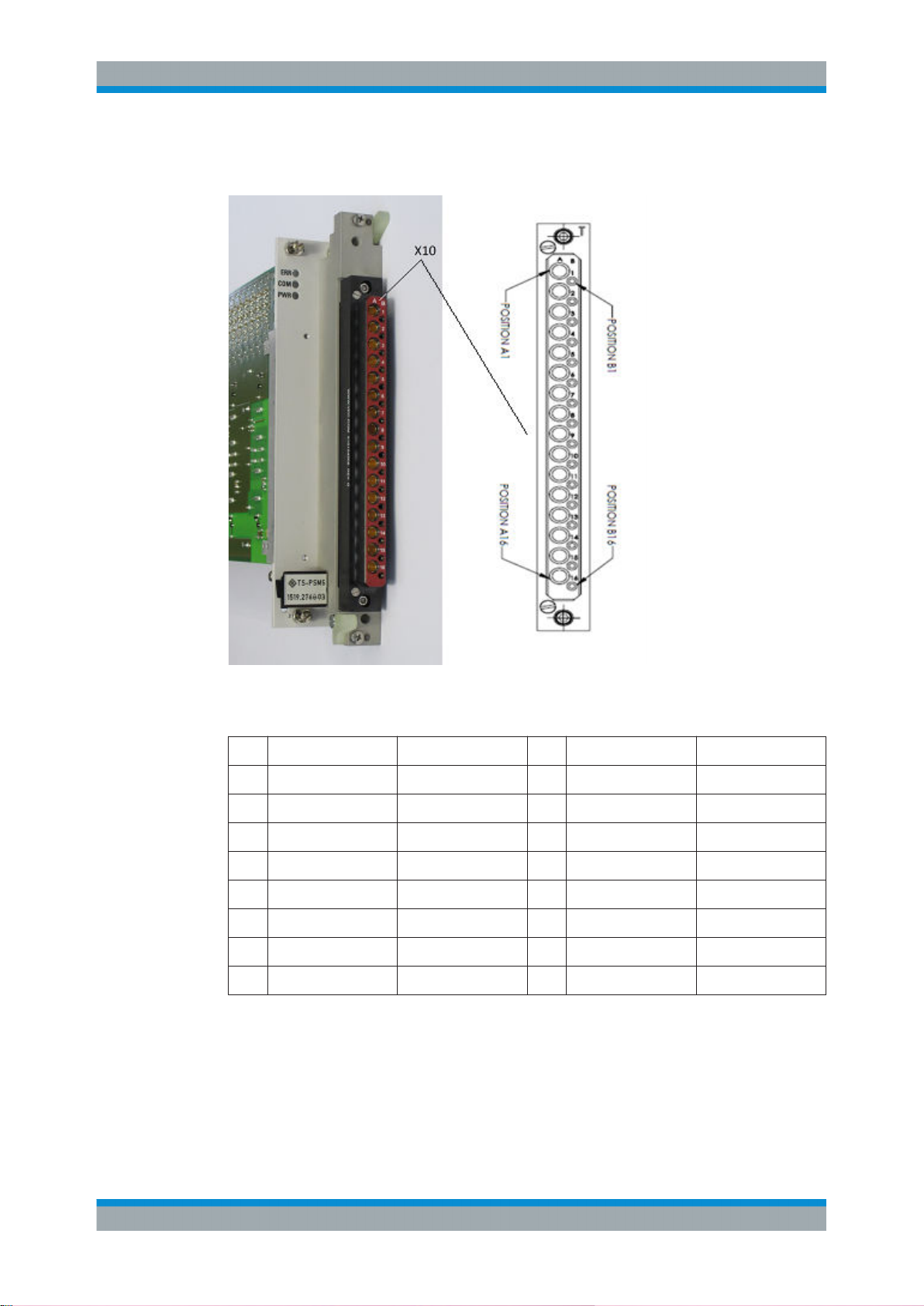

Figure 4-1: R&S TS-PSM5 (variant 03) Front with VPC

8User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PSM5

The connectors X20, X1 and X2 are located on the rear of the module. The connector
X30 is located on the upper edge of the base board in the middle of the module.

Figure 4-2: R&S TS-PSM5 Rear ( to backplane of the chassis)

The cabling of the connector (VPC) mounted on the front of the R&S TS-PSM5 (variant

03) with the appropriate terminals on the base board has already been done.

9User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PSM5

Figure 4-3: R&S TS-PSM5 (variant 03) Base board

Figure 4-4: R&S TS-PSM5B (variant 02) Base board

10User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PRIO5

4.1.2 Connectors

4.1.3 Display Elements

Table 4-1: Connectors on the R&S TS-PSM5 / R&S TS-PSM5B

Abbreviation Use

X1 Interface of channels 5 and 8 to the optional R&S

X2 Interface of channels 6 and 7 to the optional R&S

X10 Interface to the DUT (only R&S TS-PSM5 (variant

X20 Expansion (PXI, rear I/O). Interface of channels 1 to

X30 TSVP analogue bus access for self-test and current

TS-PRIO5 Rear-I/O-Module for use in the R&S TS­PWA3, or to the optional R&S TS-PK04 cable set for
use in the R&S TS-PCA3.

TS-PRIO5 Rear-I/O-Module for use in the R&S TS­PWA3.

03))

4 to the optional R&S TS-PRIO5 Rear-I/O-Module
for use in the R&S TS-PWA3.

measurement.

The front panel of the R&S TS-PSM5 contains three light-emitting diodes (LED's) with
the following functions:

Table 4-2: Display elements on the R&S TS-PSM5

LED Beschreibung

ERR

(red)

COM

(yellow)

PWR

(green)

4.2 R&S TS-PRIO5

Fault condition:

Lights up when a fault is detected on the R&S TS-PSM5 in the power-on test after the
supply voltage is switched on.

Communication:

Lights up briefly when the R&S TS-PSM5 is accessed via the interface.

Power:

Lights up when all supply voltages are present.

In the R&S TS-PWA3 chassis the optional R&S TS-PRIO5 Rear-I/O-Module can be
connected behind the R&S TS-PSM5 module. This way a feed-through of all channels
of the R&S TS-PSM5 module to the rear of the R&S TS-PWA3 chassis can be ach­ieved.

11User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PRIO5

4.2.1 Mechanical construction

The R&S TS-PRIO5 Rear-I/O-Module consists of two boards which holds the connec­tors X20, X1 and X2 on the backplane side (to the R&S TS-PSM5).

Each six pins of the connectors X1 and X2 form a channel.

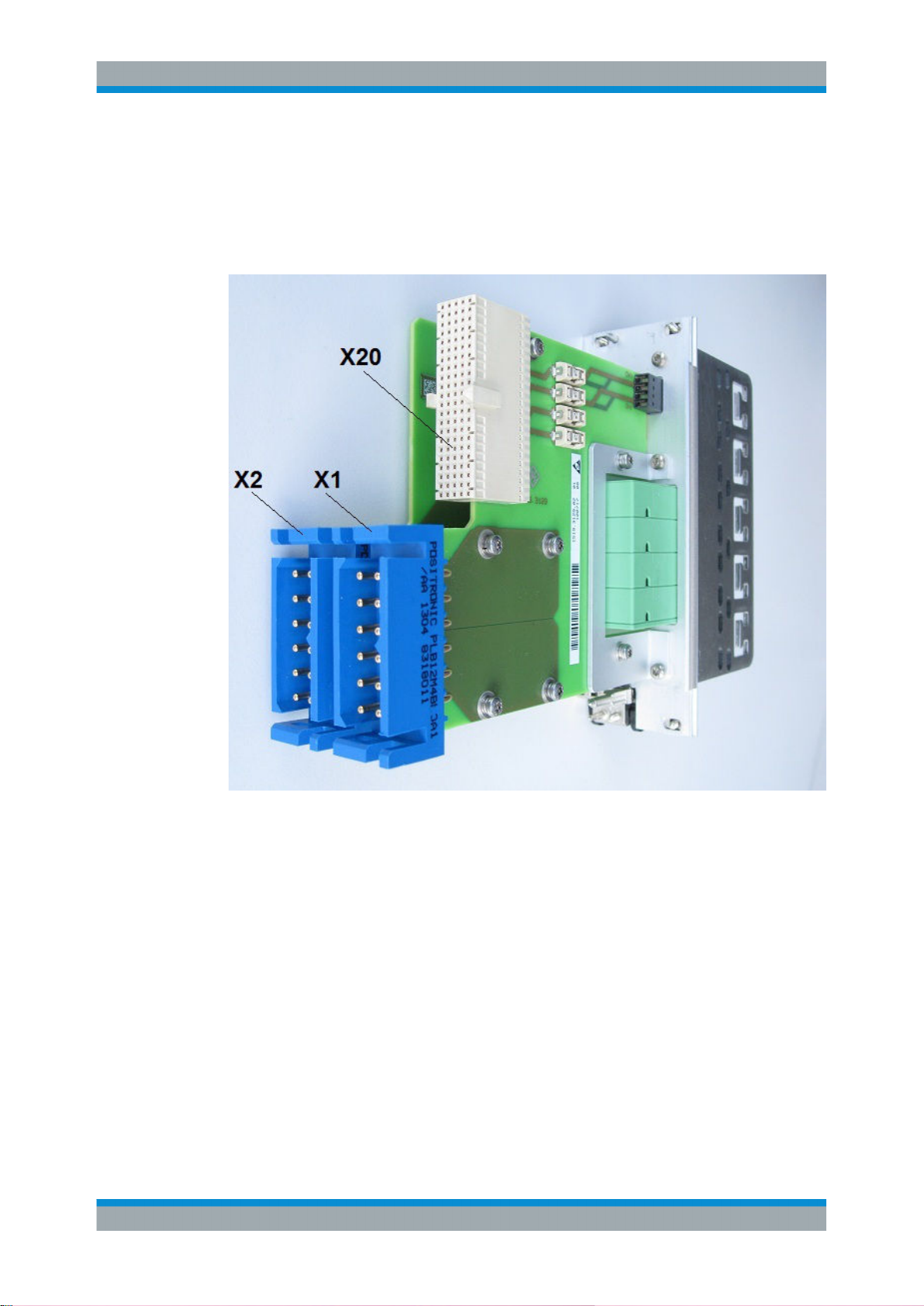

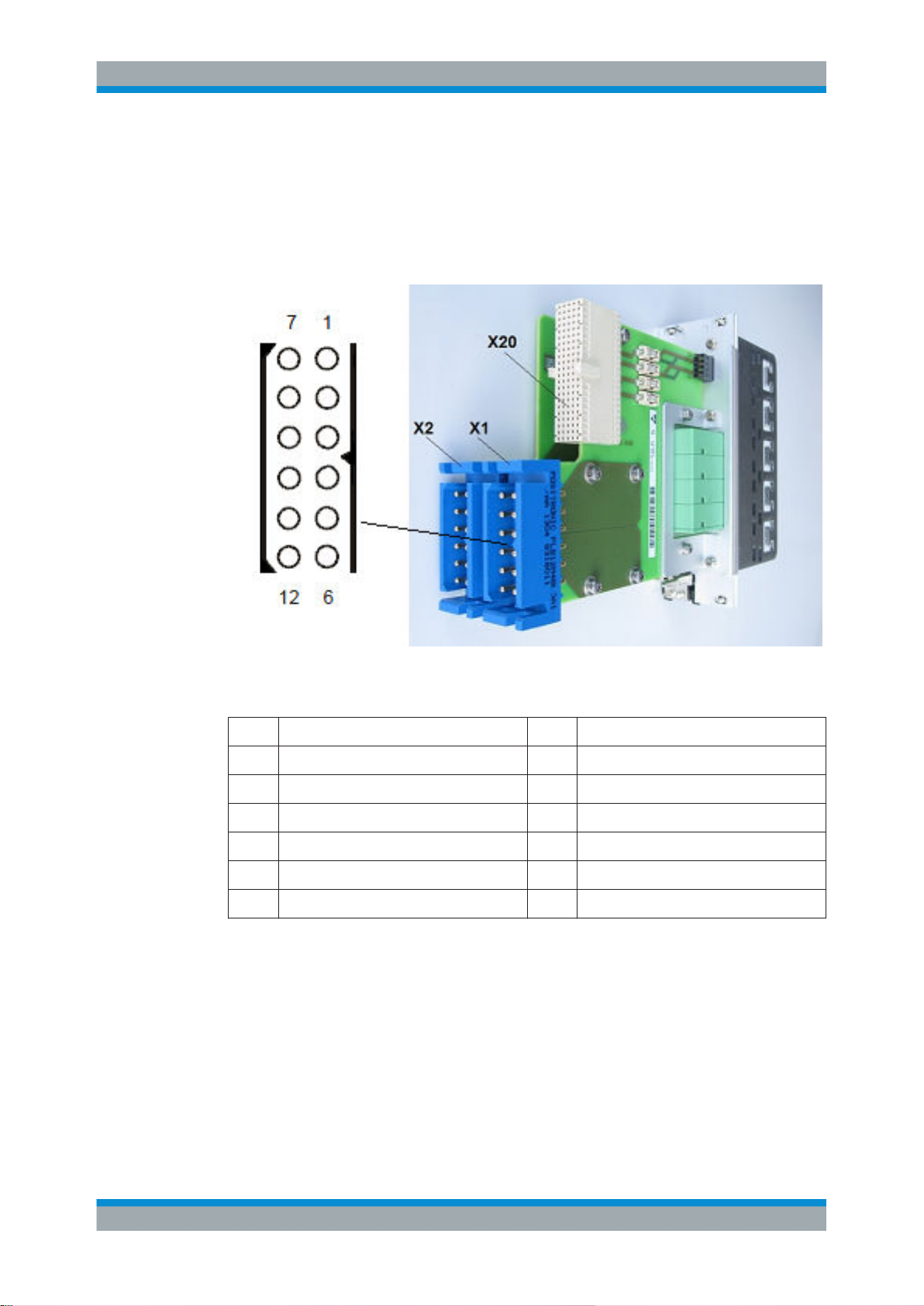

Figure 4-5: R&S TS-PRIO5 Backplane-Seite (zum R&S TS-PSM5)

The terminals X12 and X14 are located on the side accessible to the user (rear of the
R&S TS-PWA3). Here loads or supply units can be connected to the 2 A channels and
50 A channels of the R&S TS-PSM5 module.

12User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PRIO5

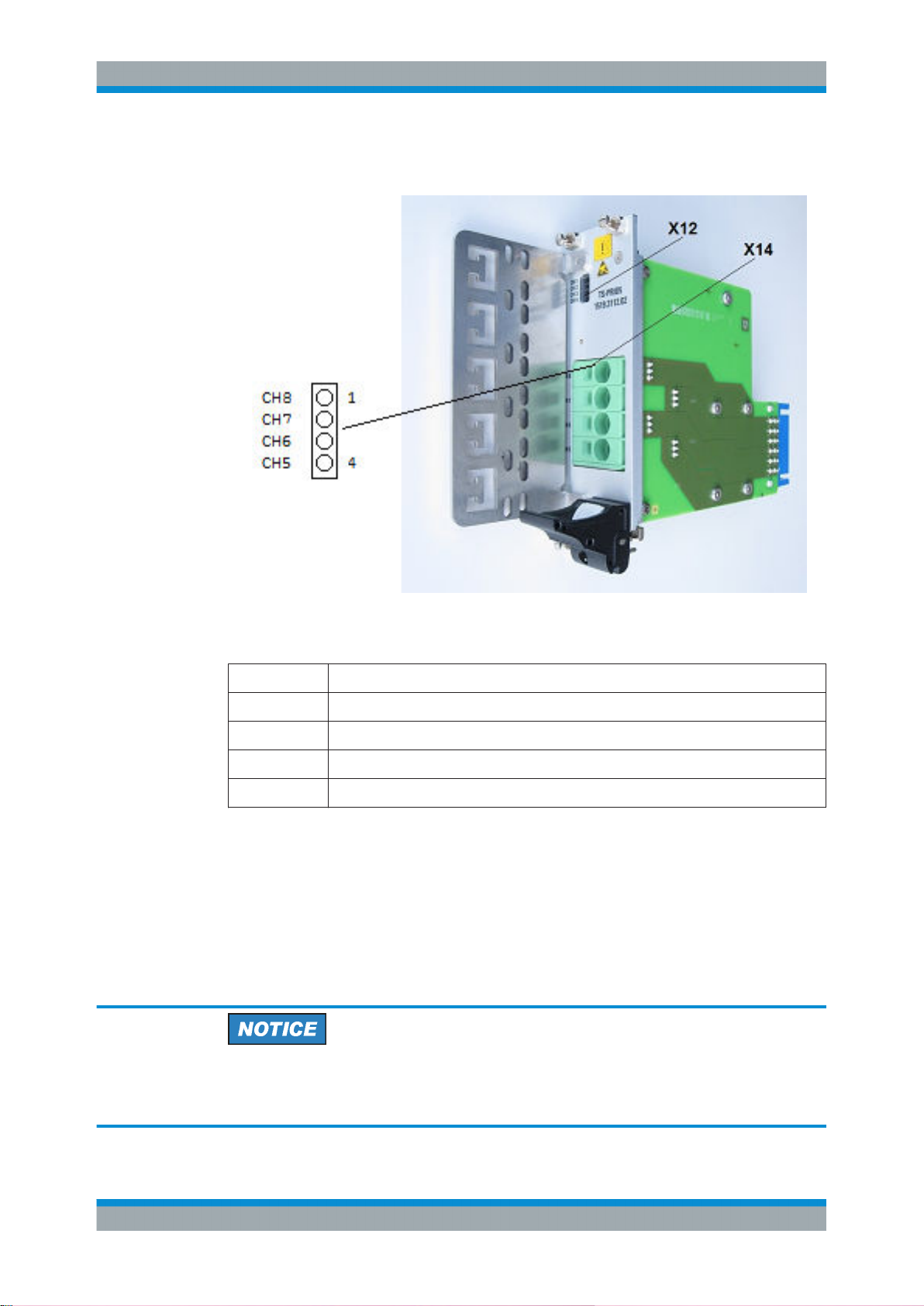

Figure 4-6: R&S TS-PRIO5 contact side (rear of R&S TS-PWA3 chassis)

For more information about the connectors X12 and X14 may be obtained from the
manufacturer PHOENIX CONTACT.

The name of the connector X12 is:

PTSM 0.5/ 4-2.5-H THR R32 - 1770908

The name of the connector X14 is:

SPT 16/ 4-H-10.0-ZB - 1735804

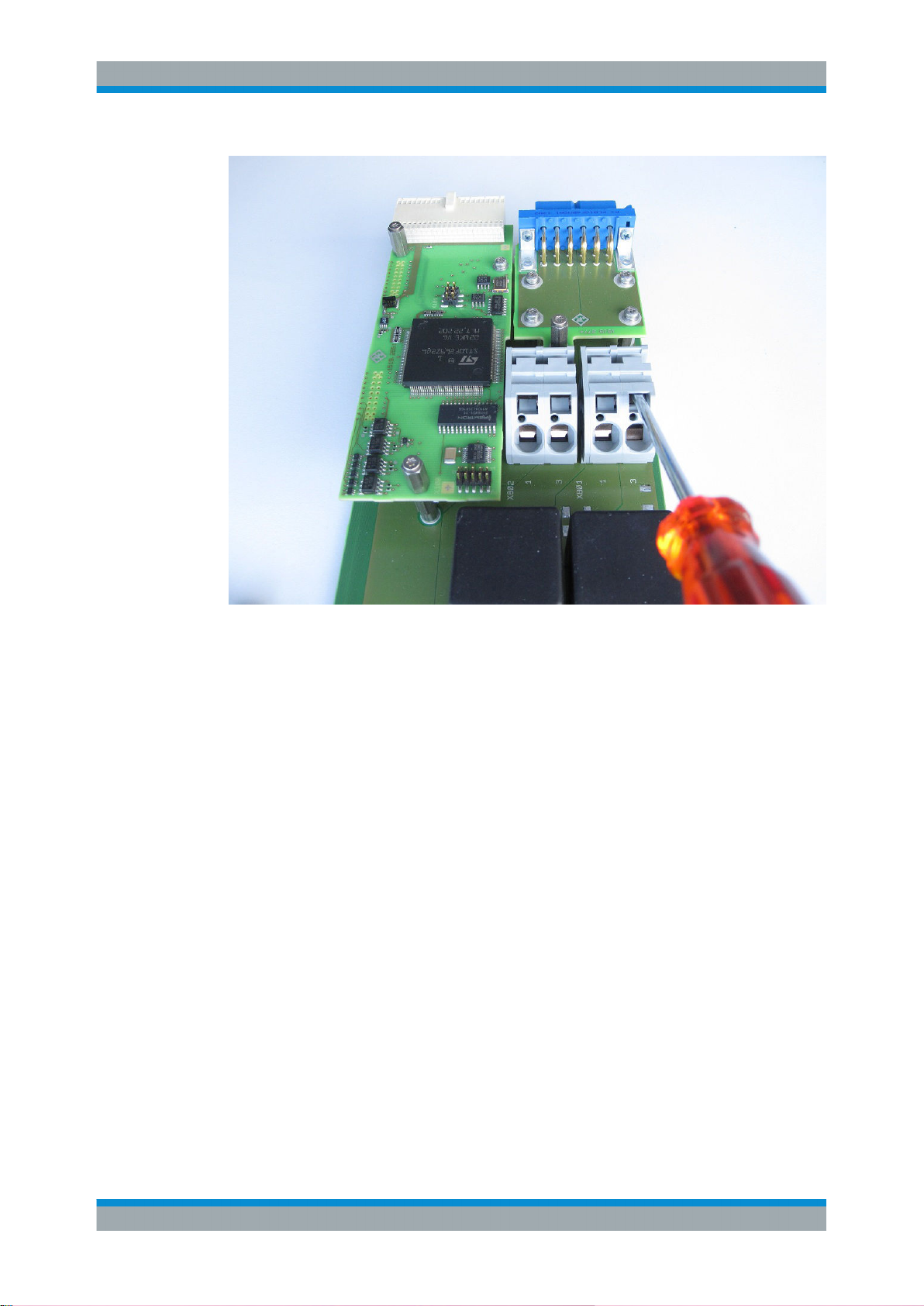

In order to be able to connect a wire to the terminals the terminal’s metal spring must
first be pushed far enough, using a flat-head screwdriver to clear the opening that will
take the wire. To do so a suitable screwdriver must be placed in the left-hand square
opening of the terminal. The metal spring can be pushed to the right by a light lever
action from left to right.

The terminal X12 can take wires with a maximum of 0.5 mm2 cross-section surface,
while the terminal X14 is suitable for wires with a maximum of 16 mm2 cross-section
surface.

13User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PRIO5

The metal plate mounted on the front panel of the module allows to fix the wires con­nected to the terminals X12 and X14 using cable ties and thus to provide strain relief
for the connections.

The low 2 A channels are provided with interchangeable 3 A fuses on the R&S TS­PRIO5 Rear-I/O-Module. Figure 4-7 shows the position of the fuses on the module.

The 50 A channels are not protected on the R&S TS-PRIO5 by fuses. It is strongly rec­ommended to provide external assurance measures when adapting the module.

Figure 4-7: R&S TS-PRIO5 position of 3 A fuses

4.2.2 Connectors

Table 4-3: Connectors on the R&S TS-PRIO5

Abbreviation Use

X1 Interface of channels 5 and 8 to the R&S TS-PSM5.

X2 Interface of channels 6 and 7 to the R&S TS-PSM5.

X12 Interface of the 2 A channels 1 to 4 to the load or

voltage source.

14User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PK04

Abbreviation Use

X14 Interface of the 50 A channels 5 to 8 to the load or

voltage source.

X20 Interface of channels 1 to 4 to the R&S TS-PSM5.

4.3 R&S TS-PK04

If the optional R&S TS-PK04 cable set has been installed in the R&S TS-PCA3 or R&S
TS-PWA3 chassis, the 50 A channels 5 and 8 and all 2 A channels of the R&S TS­PSM5 will be made accessible via the connectors X3 and X4 on the rear of the chas­sis. For this purpose the R&S TS-PSM5 module must be installed in slots 15 and 16 in
the chassis.

Figure 4-8: Installation of R&S TS-PSM5 with R&S TS-PK04 in the CompactTSVP R&S TS-PCA3

4.3.1 Mechanical construction

In Figure 4-9 the installation of the R&S TS-PK04 cable set in the CompactTSVP R&S
TS-PCA3 (cTSVP) and its connections to the R&S TS-PSM5 (here shown in simplified
form) is shown.

15User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Construction

R&S TS-PK04

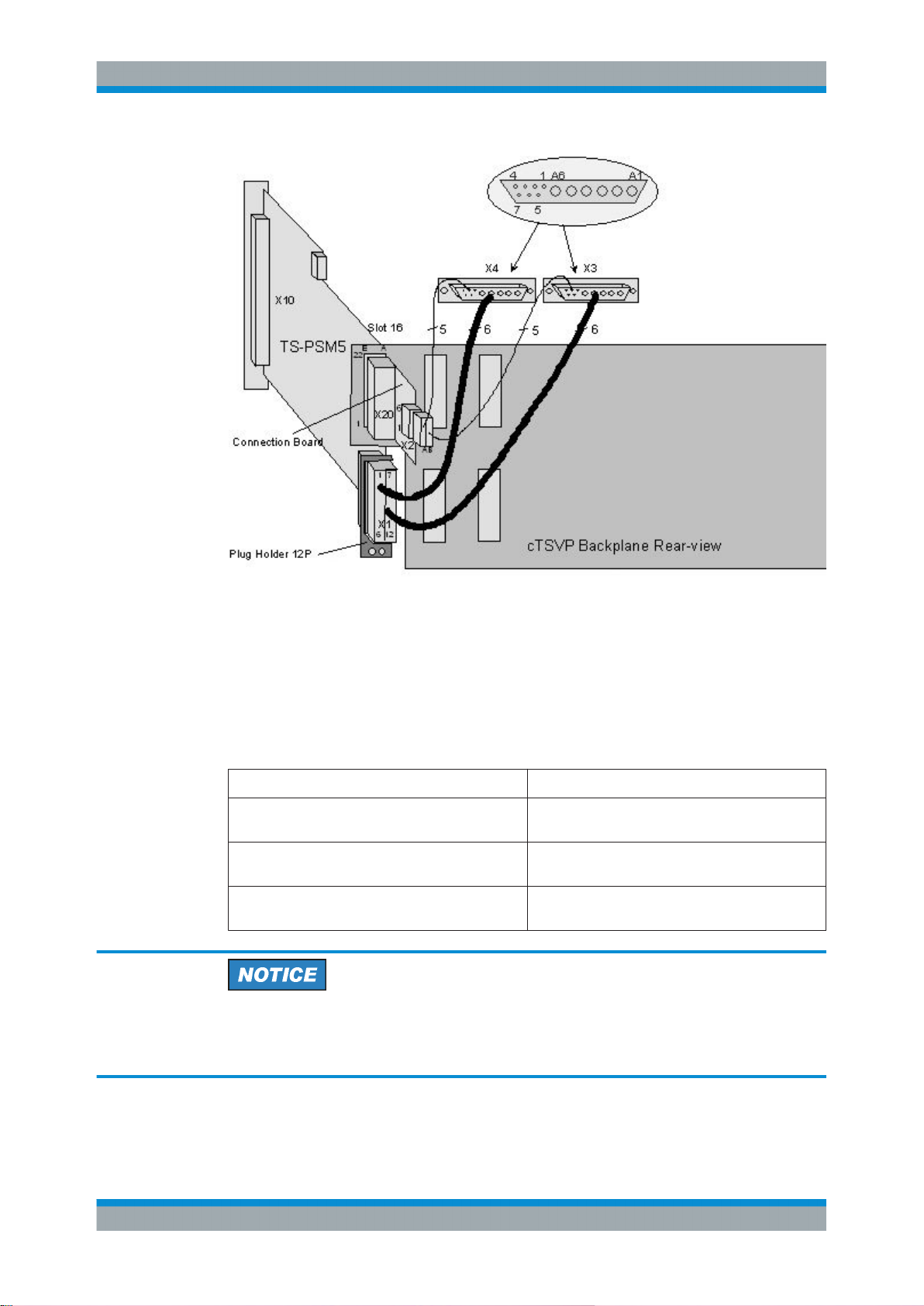

Figure 4-9: R&S TS-PK04 Installation in R&S TS-PCA3 (cTSVP)

4.3.2 Connectors

(see Figure 4-9)

Table 4-4: Connectors on R&S TS-PK04 cable set

Abbreviation Use

X1 Interface of the 50 A channels 5 and 8 to the R&S

X3 und X4 Interface of the 50 A channels 5 and 8 and the 2 A

X20 Interface of 2 A channels 1 to 4 to the R&S TS-

Thereby the maximum current can be passed via the connector X1, X3 and X4, at least
four high-current contacts always have to be connected in parallel!

One contact is only designed to a maximum of 16 A.

TS-PSM5.

channels 1 to 4 to the load or voltage source.

PSM5.

16User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

5 Functional description

Functional description

R&S TS-PSM5

5.1 R&S TS-PSM5

(see Chapter 3, "Block diagram", on page 6)

5.1.1 Signal concept

The power relays of all channels of the R&S TS-PSM5 can be wired up with power
supplies or loads via the front of the module. In addition all channels can be routed to
the rear of the R&S TS-PWA3 PowerTSVP chassis via the optional R&S TS-PRIO5
Rear-I/O-Module. In the R&S TS-PCA3 CompactTSVP chassis there is the option to
route all 2 A channels and 50 A channels 5 and 8 to the rear via the R&S TS-PK04
cable set.

Each channel can be used as a sense line or power line in order to create a connection
between load and power supply unit.

The voltage drop corresponding to the current flow through each channel of the R&S
TS-PSM5 can be measured via shunt resistors on the 2 A channels and current-volt­age-converter on the 50 A channels via the chassis’s analogue bus. The exact value of
the shunt resistors is determined when calibrating the module. Similarly, for each 50 A
channel the current-voltage characteristics exists.These values are used for calculating
the actual current through the channel. The amount of current through a channel can
be retrieved from the module via the IVI switch driver when the measured voltage level
is specified.

The R&S TS-PSM5 (variant 03) can be ordered with a Virginia Panel Corp. (VPC) con­nector on the front of the module. The connector is connected to the individual chan­nels of the module via terminals on the base board using a pre-assembled cable set. In
the R&S TS-PSM5B (variant 02 ) without VPC the user can connect his loads or power
supply units with his own cables via apertures on the front plate of the module to the
terminals of the channels.

The short-circuit relays between adjacent 50 A channels can be loaded only up to 30
A. They are intended for system- and self-test purposes.

5.1.2 System Functions

The system functions are implemented by a local processor with internal Flash. There
is also an external FRAM. The cycle counters of all relays on the R&S TS-PSM5 are
located in the FRAM. The readings can be retrieved from the module via the IVI switch
driver.

Communication with the system controller in the CompactTSVP or an external control
computer is via the CAN bus.

17User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Functional description

The functions of the R&S TS-PSM5 can be summarized as follows:

●

Analog function test

●

Connection of voltage/current sources

●

Connection of test component loads
(original loads, simulated/electronic load)

●

Switch simulation

R&S TS-PSM5

5.1.3 Application examples

5.1.3.1 Measuring current during active load

A typical application example for the use of a R&S TS-PSM5 module is connection of a
load to a voltage supply. In the example shown below (Figure 5-1) the voltage supply is
connected to the COM lines on the rear of the R&S TS-PSM5 . This can be done via
the R&S TS-PRIO5 optionally installed in the R&S TS-PWA3 or the R&S TS-PK04
cable set in the TS-PCA3 chassis. The load is connected to the NO lines located on
the front of the R&S TS-PSM5 . The voltage supply’s force lines are lead along to the
load via two 50 A channels , whereas the sense lines are lead along 2 A channels.

18User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Functional description

R&S TS-PSM5

Figure 5-1: Application example - measuring current with active load

The relatively high current , which in the load’s switched on active state flows through
the 50 A channels, can be determined via a current-voltage-converter (I-V). The output
voltage of the converter is conducted via the R&S TS-PSM5’s matrix- or coupling
relays to the analogue bus of the R&S TS-PWA3 chassis and from there to, for exam­ple, the R&S TS-PSAM measurement module. The measurement module’s voltmeter
ascertains the voltage. Via the rspsm5_GetCalculatedCurrent function of the IVI soft­ware driver that is part of the R&S TS-PSM5 , the current belonging to this voltage
level can be retrieved. It is calculated via correction values stored on the module. See
also the programming example later on in this document.

When current flows from the NO- to the COM- Connection of a 50 A channel gives a
positive voltage value at the current-voltage-converter. If the current flows in the
reverse direction, a negative voltage value is measured.

The current paths are coloured red in the diagram above, the lines with sense voltage
are blue and the paths over which the current-voltage-converter´s voltage is measured
are coloured green.

19User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Functional description

R&S TS-PSM5

5.1.3.2 Current measurement with load in standby mode

If now the small amount of residual current is to be determined by the load, if the latter
is in standby mode, another version of switching is chosen. The current-voltage con­verter in the 50 A channels work in the range of 350 mA (typ.) to 50 A. At current
strengths below 350 mA (typ.) a return value of 0 A would be received from the IVI
software driver function using the method described above.

Small currents up to one ampere can be measured directly from the R&S TS-PSAM
module’s ammeter. If the current measurement gives a value via the high power chan­nel’s current-voltage converter that is less than or equal to 1 A, then the switching as
shown in Figure 5-2 can be used for the current measurement. With the channel 5 high
power relay opened, the entire current is conducted via matrix- and coupling relays on
the R&S TS-PWA3’s analogue bus and from there to the ampere meter of the R&S TS­PSAM’s measurement module. These lines are coloured red.

The analogue bus lines of the R&S CompactTSVP and R&S PowerTSVP are designed
for a maximum current strength of 1 A.

20User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Functional description

R&S TS-PSM5

Figure 5-2: Application example - current measurement with load in standby mode

21User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

6 Setting up

Setting up

Channel wiring of the R&S TS-PSM5B (variant 02)

6.1 Channel wiring of the R&S TS-PSM5B (variant 02)

In contrast to the completely cabled R&S TS-PSM5 (variant 03) with mounted VPC
connector, the R&S TS-PSM5B (variant 02) is supplied without channel wiring and with
simple front plate. In this version the user can himself carry out the wiring of the chan­nels that he needs. For this purpose suitable wires are run from the terminals of the
individual channels on the module’s base board via the module’s front plate openings
outward to a load or power source.

To be able to reach all the terminals on the base board, the plate used for reinforcing
the module and the digital circuit board underneath it must be removed.

For this purpose the module must be placed on a non-slip surface. Care must be taken
that in doing so the components on the underneath of the module are not damaged.
The plate is unscrewed via three screws on the top of the module and two screws on
the front plate of the module. The digital circuit board is fixed to the module’s base
board by three screws. If these screws are undone the connection between digital cir­cuit board and base board can be carefully disconnected.

When subsequently putting the module back together again it must be ensured that the
stabilising plate is also properly mounted again. Although this does not affect the func­tioning of the module, it is mandatory in order to prevent the module from bending
when mounting it into the R&S TS-PCA3 or R&S TS-PWA3 chassis. This could lead to
the X1 and X2 high current connectors not sitting perfectly and an increased contact
resistance occurring to the rear-mounted R&S TS-PRIO5 or the R&S TS-PK04 cable
set.

6.1.1 Position of the connecting terminals

Figure 6-1shows the position of the connecting terminals on the base board.

22User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Channel wiring of the R&S TS-PSM5B (variant 02)

Figure 6-1: Position of the connecting terminals on the base board

6.1.2 Mounting the terminal wires of 50 A channels

(see Figure 6-2 to Figure 6-4)

In order to be able to connect a wire to a terminal of 50 A channels 5 to 8, the termi­nal’s metal spring must first be pushed far enough, using a flat-head screwdriver, to
clear the opening that will take the wire. To do so the screwdriver must be placed in the
upper square opening of the terminal. The metal spring can be pressed down by a light
lever action and the screwdriver pushed into the terminal as far as it will go.

Figure 6-2: Opening the terminal contact CH5_COM

23User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Channel wiring of the R&S TS-PSM5B (variant 02)

Figure 6-3: The wire can be mounted in the lower round opening

The wire to be mounted is now inserted into the exposed lower opening. To establish a
good connection the wire must be free of its insulation by a length of about 13 mm.
After removing the screwdriver from the upper opening the metal spring will spring
back and clamp the inserted wire firmly and form a good connection with low contract
resistance.

24User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Channel wiring of the R&S TS-PSM5B (variant 02)

Figure 6-4: Mounted wire in clamp

In the 50 A terminals of the R&S TS-PSM5 (variant 03) wires labelled AWG 10 are
finely stranded. The wires are each mounted without ferrules in the terminals.

More information on this terminal can be obtained from the manufacturer WAGO.

The terminal is labelled as follows:

Series 745, 10 mm

Order number: 745-502/006-000

6.1.3 Mounting the terminal wires of 2 A channels

(see Figure 6-5)

For the terminals of 2 A channels 1 to 4 the plastic fish plate on the upper side of the
terminal must be pressed down with a sharp object, e.g. a small Phillips screwdriver in
order to displace the metal spring inside the terminal. The wire to be mounted is now
inserted into the side opening which is now exposed. To establish a good connection
the wire must be free of its insulation by a length of about 7 mm.

25User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Channel wiring of the R&S TS-PSM5B (variant 02)

Figure 6-5: Opening the terminal contact CH4_NO

In the 2 A terminals of the R&S TS-PSM5 (variant 03) wires labelled AWG 24 are finely
stranded. The wires are each mounted without ferrules in the terminals.

More information on this terminal can be obtained from the manufacturer WAGO.

The terminal is labelled as follows:

Series 2060 SMD, 4 mm

Order number: 2060-402/998-404

As an example of a complete wiring here the wiring of the R&S TS-PSM5 (variant 03)
is shown:

26User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Installation of the R&S TS-PSM5

Figure 6-6: Base board R&S TS-PSM5 (variant 03)

6.2 Installation of the R&S TS-PSM5

6.2.1 Installation of the R&S TS-PSM5 in the CompactTSVP R&S TS­PCA3

For installation in the R&S TS-PCA3 CompactTSVP slots 4\5 to 15\16 are allowed,
although in most cases it only makes sense to operate in slots 15\16. In slots 4\5 to
13\14 the R&S TS-PSM5 can only be operated if a R&S TS-PRIO or R&S TS-PRIO4
module is present on the corresponding rear slot of the TSVP with version 4.0 of the
backplane. This is the only way that the R&S TS-PSM5 can be connected to the nec­essary power supply in these slots. In the CompactTSVP it is not possible to use the
R&S TS-PRIO5 in a rear slot.

In slots 15\16 of the R&S TS-PCA3 CompactTSVP the voltage supply of the R&S TS­PSM5 is guaranteed even without R&S TS-PRIO(4) module via the X20 connector. In
these slots all 2 A and the 50 A channels 5 und 8 can be run via the optional R&S TS­PK04 cable set even to the rear of the R&S TS-PCA3 CompactTSVP to connectors X3
and X4.

To install plug-in module High-Power Switch Module R&S TS-PSM5 , proceed as fol­lows:

●

Shut down and switch off the R&S TS-PCA3 CompactTSVP.

●

Select an appropriate front slot. The R&S TS-PSM5 requires two slots.
See also 'CompactTSVP operating manual', 'Permissible module configurations'
section.

27User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Installation of the R&S TS-PSM5

●

Removing the corresponding front plate section on the CompactTSVP housing by
undoing the screws.

●

Inserting the R&S TS-PSM5 with moderate pressure.

●

The top pilot pin of the R&S TS-PSM5 must be guided into the right-hand hole, the
bottom one into the left-hand hole on the CompactTSVP housing.

●

The R&S TS-PSM5 is correctly inserted if a definite stop can be felt.

●

Tighten the screws on the top and bottom of the front plate of theR&S TS-PSM5.

Damaged backplane due to bent pins

Bent pins may result in permanent damage to the backplane.

Check the backplane connector for bent pins!

Any pins that are bent must be straightened!

When module is connected, it must be guided with both hands and carefully pressed
into the backplane connector.

6.2.2 Installation of the R&S TS-PSM5 in the PowerTSVP R&S TS-PWA3

Slots 1\2 to 15\16 are permitted for installation in the R&S TS-PWA3 PowerTSVP . The
voltage supply for the R&S TS-PSM5 is guaranteed on all slots in the R&S TS-PWA3
PowerTSVP even without a R&S TS-PRIO module attached to the rear. Optionally the
R&S TS-PRIO5 module can be placed in rear slots 1\2 to 13\14. With this module all 2
A and all 50 A channels can be made accessible on the rear of the R&S TS-PWA3
PowerTSVP. If the R&S TS-PSM5 is operated in slots 15\16, there is the capability for
both R&S TS-PWA3 PowerTSVP and R&S TS-PCA3 CompactTSVP to run all 2 A
channels and the 50 A channels 5 and 8 to the X3 and X4 connectors on the rear of
the chassis via the optional R&S TS-PK04 cable set.

Installation in slots 1\2 must be carried out with the utmost care, as components on the
underneath of the R&S TS-PSM5 can be damaged via contact with the adjacent power
supply unit. It must be ensured that after the installation there are no points of contact
between the HF seal of the power supply unit, which may be warped, and the R&S TS­PSM5 . For safety reasons it is recommended that slots 1\2 in the R&S TS-PWA3
PowerTSVP may not be used for the R&S TS-PSM5.

To install plug-in module High-Power Switch Module R&S TS-PSM5, proceed as fol­lows:

●

Shut down and switch off the R&S TS-PWA3 PowerTSVP.

●

Select an appropriate front slot. The R&S TS-PSM5 requires two slots.
See also 'PowerTSVP operating manual', 'Permissible module configurations' sec­tion.

28User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Installation of the R&S TS-PRIO5

●

Removing the corresponding front plate section on the PowerTSVP housing by
undoing the screws.

●

Inserting theR&S TS-PSM5 with moderate pressure.

●

The top pilot pin of the R&S TS-PSM5must be guided into the right-hand hole, the
bottom one into the left-hand hole on the PowerTSVP housing.

●

The R&S TS-PSM5 is inserted correctly if a definite stop can be felt.

●

Tighten the screws on the top and bottom of the front plate of theR&S TS-PSM5.

Damaged backplane due to bent pins

Bent pins may result in permanent damage to the backplane.

Check the backplane connector for bent pins!

Any pins that are bent must be straightened!

When module is connected, it must be guided with both hands and carefully pressed
into the backplane connector.

6.3 Installation of the R&S TS-PRIO5

The R&S TS-PRIO5 can only be mounted in the PowerTSVP R&S TS-PWA3 . Installa­tion in the CompactTSVP R&S TS-PCA3 is not possible.

Proceed as follows to install the R&S TS-PRIO5:

●

Shut down and switch off the R&S TS-PWA3 PowerTSVP

●

Installation of the R&S TS-PSM5 is a prerequisite.

●

Select the appropriate Rear-I/O slot corresponding to R&S TS-PSM5.

●

Loosen the screws and remove the appropriate front plate section from the Pow­erTSVP chassis.

●

Push in the R&S TS-PRIO3 using moderate force.

●

The R&S TS-PRIO5 must be pushed in especially carefully so that the connector is
properly inserted into the guide of the socket opening in the Backplane. The con­nector must not be misaligned when inserted. The short circuit board guides alone
do not ensure absolutely reliable guiding.

●

The R&S TS-PRIO5 is inserted correctly when a definite stop can be felt.

●

Tighten the two fastening screws on the front plate of the R&S TS-PRIO5.

29User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Setting up

Instructions for operation with voltages dangerous to the touch

6.4 Instructions for operation with voltages dangerous to the touch

In conformity with EN 61010-1, the following voltage limit values are considered "dan­gerous active".

●

70 V DC

●

33 V AC rms

●

46.7 V peak

When operating the High-Power Switch Module R&S TS-PSM5 above these voltage
levels the provisions of EN 61010-1 must be adhered to.

The Test Platforms R&S CompactTSVP PCA3 and R&S PowerTSVP PWA3 are
designed for a maximum voltage of 125 V.

The R&S TS-PSM5 module is suitable for voltages of up to +24 V DC and must only be
used accordingly.

For reasons of fire prevention in compliance with EN 61010-1, we recommend to limit
the the current or power to 150 VA.

30User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

7 Software

Software

Soft panel

7.1 Driver Software

A LabWindows IVI driver that supports the class IVI SWTCH is available to control the
High-Power Switch Module R&S TS-PSM5 All additional functions of the hardware are
supported by specific extensions of the driver. The driver is a component of the
ROHDE & SCHWARZ GTSL software. All functions of the driver are documented
extensively in online Help and in the LabWindows/CVI Function Panels.

During driver installation, the following software modules are installed:

Table 7-1: Driver Installation R&S TS-PSM5

Module Path Comment

rspsm5.dll <GTSL directory>\Bin

/
rspsm5.chm

rspsm5.fp <GTSL directory>\Bin

rspsm5.sub <GTSL directory>\Bin

rspsm5.lib <GTSL directory>\Bin

rspsm5.h <GTSL directory>\

<GTSL directory>\Bin

Include

Driver

Help files

LabWindows CVI Function Panel file, function panels for
CVI development interface

LabWindows CVI attribute file. This file is required by
some „function panels“.

Import Library

Header file for the driver

To use the driver, the IVI and VISA libraries from National Instruments are necessary.

7.2 Soft panel

The software package of the R&S TS-PSM5 includes a so-called softpanel. The soft­panel enables interactive operation of the module.

31User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Software

Programming with GTSL libraries

Figure 7-1: Softpanel R&S TS-PSM5

7.3 Programming with GTSL libraries

/*

This example connects an external power supply to a load via TS-PSM5

channels 5 and 6. The power supply is connected to CH5_COM and

CH6_COM at the rear of the module TS-PSM5 and the load is connected

to CH5_NO and CH6_NO at the front of the module. The sense-lines of

the power supply are routed to the load via TS-PSM5 channels 1 and 2.

The current through channel 6 is determined indirectly by measuring

the voltage at the current-voltage-converter of channel 6.

32User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Software

Programming with GTSL libraries

Later on, the load is set to standby mode and the low standby current

is measured directly via the ampere meter of TS-PSAM. Therefore

the power relay of channel 5 is opened and the standby current is

bypassed via matrix relays to the analog bus and TS-PSAM module.

Error handling is not considered in this sample in order to keep it

easy to read. The return status should be checked for "errorOccurred"

after each library call.

The following configuration files are used in this example:

physical.ini

------------

[device->PSM5]

Description = "TS-PSM5 Module in Frame 1 Slot 16"

Type = PSM5

ResourceDesc = CAN0::0::1::16

Frame = 1

Slot = 16

DriverDll = rspsm5.dll

DriverPrefix = rspsm5

DriverOption = "Simulate=0,RangeCheck=1"

SFTDll = sftmpsm5.dll

SFTPrefix = SFTMPSM5

[device->PSAM]

Description = "TS-PSAM Module in Frame 1 Slot 6"

Type = PSAM

ResourceDesc = PXI3::10::INSTR

Frame = 1

Slot = 6

DriverDll = rspsam.dll

DriverPrefix = rspsam

DriverOption = "Simulate=0,RangeCheck=1"

RioType = PDC

; Note: the self test DLL and prefix keywords must be removed for the

; first TS-PSAM module, because it is already tested in the

; basic self test.

; SFTDll = sftmpsam.dll

; SFTPrefix = SFTMPSAM

; Analog bus pseudo-device, used by ROUTE, SWMGR and EGTSL

[device->ABUS]

Type = AB

33User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Software

Programming with GTSL libraries

application.ini

---------------

[bench->psm5SampleApp]

Simulation = 0

Trace = 1

DigitalMultimeter = device->PSAM

SwitchDevice1 = device->PSAM

SwitchDevice2 = device->PSM5

AnalogBus = device->ABUS

; Channel tables

AppChannelTable = io_channel->psm5SampleApp

;-------------------------------------------------------------------

; The application channel table lists all logical channel names for the

; in-circuit-test, switch manager and the routing library.

;-------------------------------------------------------------------

[io_channel->psm5SampleApp]

DMM_HI = PSAM!DMM_HI

DMM_LO = PSAM!DMM_LO

PSM5_CH1_NO = PSM5!CH1_NO

PSM5_CH1_COM = PSM5!CH1_COM

PSM5_CH2_NO = PSM5!CH2_NO

PSM5_CH2_COM = PSM5!CH2_COM

PSM5_CH5_NO = PSM5!CH5_NO

PSM5_CH5_COM = PSM5!CH5_COM

PSM5_CH6_NO = PSM5!CH6_NO

PSM5_CH6_COM = PSM5!CH6_COM

PSM5_CH6_IV = PSM5!CH6_IV

PSM5_LABD1 = PSM5!LABD1

*/

#include <ansi_c.h>

#include <userint.h>

#include "resmgr.h"

#include "route.h"

#include "dmm.h"

#include "rspsm5.h"

int main (int argc, char *argv[])

34User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Software

Programming with GTSL libraries

{

long residRoute; /* resource ID for signal routing library */

long residDmm; /* resource ID for dmm library */

short errorOccurred = 0;

long errorCode = 0;

char errorMessage [GTSL_ERROR_BUFFER_SIZE] = "";

double voltageResult = 0.0;

double currentResultLoadActive = 0.0;

double currentResultLoadStandby = 0.0;

int resultsCount = 0;

ViSession psm5SessionHandle = -1;

/* load the physical and application configuration files */

RESMGR_Setup ( 0, "physical.ini", "application.ini",

&errorOccurred, &errorCode, errorMessage);

/* initialize the signal routing library */

ROUTE_Setup ( 0, "bench->psm5SampleApp", &residRoute,

&errorOccurred, &errorCode, errorMessage);

/* initialize the dmm library */

DMM_Setup ( 0, "bench->psm5SampleApp", &residDmm,

&errorOccurred, &errorCode, errorMessage);

/* close coupling relays to TS-PCA3 Analog Bus */

DMM_Conf_Coupling_Relays ( 0, residDmm, 1,

&errorOccurred, &errorCode, errorMessage);

/* set dmm function, resolution and auto ranging */

DMM_Conf_Measurement ( 0, residDmm, "DC_VOLTS", 0.0, "AUTO_RANGE_ON",

1.0e-4,

&errorOccurred, &errorCode, errorMessage);

/* connect DMM_HI and DMM_LO to local analog bus lines b1 and d1 */

ROUTE_Execute ( 0, residRoute, "DMM_HI > $LABb1, DMM_LO > $LABd1",

&errorOccurred, &errorCode, errorMessage);

/* connect the current-voltage-converter of TS-PSM5 channel 6 to analog

bus line b1;

connect local analog bus line d1 (GND) to analog bus line d1; */

ROUTE_Execute ( 0, residRoute, "PSM5_CH6_IV > $LABb1 > $ABb1,

PSM5_LABD1 > $ABd1",

&errorOccurred, &errorCode, errorMessage);

35User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Software

Programming with GTSL libraries

/* close low-power-relays of TS-PSM5 channel 1 and channel 2 to route

the sense-lines of the power supply to the load */

ROUTE_Execute ( 0, residRoute, "PSM5_CH1_NO > PSM5_CH1_COM, PSM5_CH2_NO

> PSM5_CH2_COM",

&errorOccurred, &errorCode, errorMessage);

/* close high-power-relays of TS-PSM5 channel 5 and channel 6;

wait for debounce for all switch modules */

ROUTE_Execute ( 0, residRoute, "PSM5_CH5_NO > PSM5_CH5_COM,

PSM5_CH6_NO > PSM5_CH6_COM, ?#",

&errorOccurred, &errorCode, errorMessage);

/* measure voltage at current-voltage-converter of TS-PSM5 channel 6 */

DMM_Read ( 0, residDmm, 1.0, 1, &voltageResult, &resultsCount,

&errorOccurred, &errorCode, errorMessage);

/* Get the TS-PSM5 ivi-switch-driver session handle which is needed to

call driver functions */

RESMGR_Get_Session_Handle (0, residRoute, "SwitchDevice2",

&psm5SessionHandle,

&errorOccurred, &errorCode, errorMessage);

/* get the current value which corresponds to the measured voltage

value at TS-PSM5 channel 6 */

rspsm5_GetCalculatedCurrent ( psm5SessionHandle, "CH6",

voltageResult,

¤tResultLoadActive );

MessagePopup( "User Activity", "Please switch off the load.\n---\n"

"The load is now in standby mode." );

/* measure voltage at current-voltage-converter of TS-PSM5 channel 6;

make sure it is below 1 A */

DMM_Read ( 0, residDmm, 1.0, 1, &voltageResult, &resultsCount,

&errorOccurred, &errorCode, errorMessage);

/* get the current value which corresponds to the measured voltage

value at TS-PSM5 channel 6 */

rspsm5_GetCalculatedCurrent ( psm5SessionHandle, "CH6",

voltageResult,

¤tResultLoadStandby );

if( currentResultLoadStandby < 1.0 )

{

/*

the current through the load is lower than 1 ampere - we can switch

36User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Software

Programming with GTSL libraries

the current directly to the ampere meter of the TS-PSAM module

to perform a more sensitive measurement of the standby current

*/

/* disconnect DMM_HI and DMM_LO from local analog bus lines b1 and

d1 */

ROUTE_Execute ( 0, residRoute, "DMM_HI | $LABb1, DMM_LO | $LABd1",

&errorOccurred, &errorCode, errorMessage);

/* disconnect the current-voltage-converter of TS-PSM5 channel 6

from analog bus line b1;

ROUTE_Execute ( 0, residRoute, "PSM5_CH6_IV | $LABb1 | $ABb1,

PSM5_LABD1 | $ABd1",

&errorOccurred, &errorCode, errorMessage);

/* set dmm function, resolution and auto ranging */

DMM_Conf_Measurement ( 0, residDmm, "DC_CURRENT", 0.0,

"AUTO_RANGE_ON", 1.0e-4,

&errorOccurred, &errorCode, errorMessage);

/* connect DMM_LO to local analog bus line a2 and DMM_HI to analog

bus line c1 */

ROUTE_Execute ( 0, residRoute, "DMM_LO > $LABa2, DMM_HI > $LABc1",

&errorOccurred, &errorCode, errorMessage);

/* bypass the high-power-relay and current-voltage-converter of

TS-PSM5 channel 5 with the ampere meter of TS-PSAM */

ROUTE_Execute ( 0, residRoute,

"PSM5_CH5_COM > $LABc1 > $ABc1,

PSM5_CH5_NO > $LABa2 > $ABa2",

&errorOccurred, &errorCode, errorMessage);

/* open the high-power relay on TS-PSM5 channel 5;

wait for debounce for all switch modules */

ROUTE_Execute ( 0, residRoute, "PSM5_CH5_NO | PSM5_CH5_COM, ?#",

&errorOccurred, &errorCode, errorMessage);

/* measure the current throught the ampere meter of TS-PSAM */

DMM_Read ( 0, residDmm, 1.0, 1, ¤tResultLoadStandby,

&resultsCount,

&errorOccurred, &errorCode, errorMessage);

}

/* disconnect all existing connections */

ROUTE_Execute ( 0, residRoute, "||",

&errorOccurred, &errorCode, errorMessage);

/* close the libraries */

DMM_Cleanup (0, residDmm, &errorOccurred, &errorCode, errorMessage);

37User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Software

Programming with GTSL libraries

ROUTE_Cleanup (0, residRoute, &errorOccurred, &errorCode,

errorMessage);

RESMGR_Cleanup (0, &errorOccurred, &errorCode, errorMessage);

{

char buffer[100];

sprintf( buffer, "Load Active Current: %.3f A\n"

"Load Standby Current: %.3f A",

currentResultLoadActive, currentResultLoadStandby);

MessagePopup( "User Information", buffer );

}

return(0);

}

38User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

8 Self-test

Self-test

TSVP self-test

The R&S TS-PSM5 has a built-in self-test capability. The following tests are implemen­ted:

●

LED-Test

●

Power-on test

●

TSVP Self-Test

8.1 LED Test

After power-on, all three LED's light up for around three seconds to indicate that the
5 V supply is present and all LED's are working. The following statements can be made
about the different LED states:

Table 8-1: Statements about the LED Test

LED Description

One LED does not
light up

No LED's light up No +5 V supply

8.2 Startup test

The startup test runs in parallel with the LED test. The following information can be
drawn from the different LED display states.

Table 8-2: Startup test observations

LED Description

PWR LED (green) on all power supplies present

Hardware problem on the module

LED faulty

PWR LED (green) off at least one power supply voltage is missing

ERR LED (red) off If the green LED is switched on at the same time,

ERR LED (red) on or flashing Hardware error

8.3 TSVP self-test

As part of the TSVP self-test a comprehensive test of the module R&S TS-PSM5 is
carried out and a detailed report generated. This is done via the "Self-Test Support
Library".

there is no identifiable error

39User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Self-test

TSVP self-test

The R&S TS-PSAM analogue source and measurement module is used as a measure­ment unit in the TSVP self-test. The functionality of the modules in the system is
ensured by measurements via the analogue measurement bus.

For information on starting the self-test and the order of required work steps, please
consult the GTSL Software Description or the GTSL online Help. A detailed description
of the parameters and sequences tested may be found in the R&S Compact TSVP /
R&S Power TSVP Service Manual.

40User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

9 Interface description

Interface description

R&S TS-PSM5

9.1 R&S TS-PSM5

9.1.1 Connector X1

Thereby the maximum current can be passed via the connector, at least four high-cur­rent contacts always have to be connected in parallel! One contact is only designed to
a maximum of 16 A.

Figure 9-1: R&S TS-PSM5 connector X1 (view: plug side)

Table 9-1: R&S TS-PSM5 connector X1 assignment

Pin Channel Pin Channel

1 CH8_COM 7 CH8_COM

2 CH8_COM 8 CH8_COM

3 CH8_COM 9 CH8_COM

4 CH5_COM 10 CH5_COM

41User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PSM5

Pin Channel Pin Channel

5 CH5_COM 11 CH5_COM

6 CH5_COM 12 CH5_COM

9.1.2 Connector X2

Thereby the maximum current can be passed via the connector, at least four high-cur­rent contacts always have to be connected in parallel! One contact is only designed to
a maximum of 16 A.

Figure 9-2: R&S TS-PSM5 connector X2 (view: plug side)

Table 9-2: R&S TS-PSM5 connector X2 assignment

Pin Channel Pin Channel

1 CH7_COM 7 CH7_COM

2 CH7_COM 8 CH7_COM

3 CH7_COM 9 CH7_COM

4 CH6_COM 10 CH6_COM

5 CH6_COM 11 CH6_COM

6 CH6_COM 12 CH6_COM

42User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PSM5

9.1.3 Connector X10 (only R&S TS-PSM5 (variant 03))

Figure 9-3: R&S TS-PSM5 (variant 03) connector X10

Table 9-3: R&S TS-PSM5 (variant 03) connector X10 assignment

Pin A B Pin A B

1 -- CH2_NO 9 CH8_NO --

2 -- CH1_NO 10 CH7_NO --

3 -- CH4_NO 11 CH8_COM --

4 -- CH3_NO 12 CH7_COM --

5 -- CH2_COM 13 CH6_COM --

6 -- CH1_COM 14 CH5_COM --

7 -- CH4_COM 15 CH6_NO --

8 -- CH3_COM 16 CH5_NO --

43User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Pin E D C B A

22 GA0 GA1 GA2 GA3 GA4

21 GA5

20

+5V GND +5V

19

+5V GND

18

CAN_EN

17

GND

16

GND

15

+5V GND

14

13

12

CH4_COM CH2_COM

11

10

CH3_COM CH1_COM

9

8

7

6

5

4

3

RSA0 RRST# GND RSDO

2

RSDI RSA1 RSCLK

1

+5V CAN_L CAN_H GND RCS#

Interface description

R&S TS-PSM5

9.1.4 Connector X20

Figure 9-4: R&S TS-PSM5 connector X20 (view: plug side)

Figure 9-5: R&S TS-PSM5 Belegung Steckverbinder X20

44User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Pin E D C B A

7

6

GND

5

ABc1 ABa1

4

ABb1

3

ABc2

2 ABa2

1

ABd2 ABd1

Interface description

R&S TS-PSM5

9.1.5 Connector X30

Figure 9-6: R&S TS-PSM5 connector X30 (view: plug side)

Figure 9-7: R&S TS-PSM5 Belegung Steckverbinder X30

45User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PRIO5

9.2 R&S TS-PRIO5

9.2.1 Connector X1

Figure 9-8: R&S TS-PRIO5 connector X1 (view: plug side)

Table 9-4: R&S TS-PRIO5 connector X1 assignment

Pin Channel Pin Channel

7 CH8_COM 1 CH8_COM

8 CH8_COM 2 CH8_COM

9 CH8_COM 3 CH8_COM

10 CH5_COM 4 CH5_COM

11 CH5_COM 5 CH5_COM

12 CH5_COM 6 CH5_COM

46User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PRIO5

9.2.2 Connector X2

Figure 9-9: R&S TS-PRIO5 connector X2 (view: plug side)

Table 9-5: R&S TS-PRIO5 connector X2 assignment

Pin Channel Pin Channel

7 CH7_COM 1 CH7_COM

8 CH7_COM 2 CH7_COM

9 CH7_COM 3 CH7_COM

10 CH6_COM 4 CH6_COM

11 CH6_COM 5 CH6_COM

12 CH6_COM 6 CH6_COM

47User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Pin A B C D E

22

21

20

19

18

17

16

15

14

13

12

CH2_COM CH4_COM

11

10 CH1_COM CH3_COM

9

8

7

6

5

4

3

2

1

Interface description

R&S TS-PRIO5

9.2.3 Connector X20

Figure 9-10: R&S TS-PRIO5 connector X20 (view: plug side)

Figure 9-11: R&S TS-PRIO5 Belegung Steckverbinder X20

48User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PRIO5

9.2.4 Terminal X12

Figure 9-12: R&S TS-PRIO5 terminal X12

Table 9-6: R&S TS-PRIO5 terminal X12 assignment

Pin Channel

1 CH1_COM

2 CH2_COM

3 CH3_COM

4 CH4_COM

49User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PK04

9.2.5 Klemme X14

Figure 9-13: R&S TS-PRIO5 terminal X14

Table 9-7: R&S TS-PRIO5 terminal X14 assignment

Pin Channel

1 CH8_COM

2 CH7_COM

3 CH6_COM

4 CH5_COM

9.3 R&S TS-PK04

9.3.1 Connector X3

Thereby the maximum current can be passed via the connector, at least four high-cur­rent contacts always have to be connected in parallel! One contact is only designed to
a maximum of 16 A.

50User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PK04

Figure 9-14: Connector X3 - rear of R&S TS-PCA3 or R&S TS-PWA3

Table 9-8: Connector X3 assignment

Pin Channel Pin Channel

A1 CH8_COM 1 CH4_COM

A2 CH8_COM 2 CH3_COM

A3 CH8_COM 3 --

A4 CH8_COM 4 --

A5 CH8_COM 5 --

A6 CH5_COM 6 --

9.3.2 Connector X4

Thereby the maximum current can be passed via the connector, at least four high-cur­rent contacts always have to be connected in parallel! One contact is only designed to
a maximum of 16 A.

7 --

51User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Interface description

R&S TS-PK04

Figure 9-15: Connector X4 - rear of R&S TS-PCA3 or R&S TS-PWA3

Table 9-9: Connector X4 assignment

Pin Channel Pin Channel

A1 CH5_COM 1 CH2_COM

A2 CH8_COM 2 CH1_COM

A3 CH5_COM 3 --

A4 CH5_COM 4 --

A5 CH5_COM 5 --

A6 CH5_COM 6 --

7 --

52User Manual 1178.2809.02 ─ 01

R&S®TS-PSM5

Specifications

10 Specifications

The technical data of the High-Power Switch Module R&S TS-PSM5 are shown in the
corresponding data sheets.

In the event of any discrepancies between date in this user manual and technical data
in the data sheet, the data sheet takes precedence.

53User Manual 1178.2809.02 ─ 01
