Page 1
Getting Started
GPS Module
R&S®TSMX-PPS2
1515.7120.02
Test & Measurement
1515.7236.02 - 02 1
Page 2
Dear Customer,
throughout this manual, the GPS Module R&S® TSMX-PPS2 is abbreviated as R&S TSMX-PPS2.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
Page 3
Basic Safety Instructions
Always read through and comply with the following safety instructions!
All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety
standards of our products up to date and to offer our customers the highest possible degree of safety. Our
products and the auxiliary equipment they require are designed, built and tested in accordance with the
safety standards that apply in each case. Compliance with these standards is continuously monitored by
our quality assurance system. The product described here has been designed, built and tested in
accordance with the EC Certificate of Conformity and has left the manufacturer’s plant in a condition fully
complying with safety standards. To maintain this condition and to ensure safe operation, you must
observe all instructions and warnings provided in this manual. If you have any questions regarding these
safety instructions, the Rohde & Schwarz group of companies will be happy to answer them.
Furthermore, it is your responsibility to use the product in an appropriate manner. This product is designed
for use solely in industrial and laboratory environments or, if expressly permitted, also in the field and must
not be used in any way that may cause personal injury or property damage. You are responsible if the
product is used for any purpose other than its designated purpose or in disregard of the manufacturer's
instructions. The manufacturer shall assume no responsibility for such use of the product.
The product is used for its designated purpose if it is used in accordance with its product documentation
and within its performance limits (see data sheet, documentation, the following safety instructions). Using
the product requires technical skills and, in some cases, a basic knowledge of English. It is therefore
essential that only skilled and specialized staff or thoroughly trained personnel with the required skills be
allowed to use the product. If personal safety gear is required for using Rohde & Schwarz products, this
will be indicated at the appropriate place in the product documentation. Keep the basic safety instructions
and the product documentation in a safe place and pass them on to the subsequent users.
Observing the safety instructions will help prevent personal injury or damage of any kind caused by
dangerous situations. Therefore, carefully read through and adhere to the following safety instructions
before and when using the product. It is also absolutely essential to observe the additional safety
instructions on personal safety, for example, that appear in relevant parts of the product documentation. In
these safety instructions, the word "product" refers to all merchandise sold and distributed by the Rohde &
Schwarz group of companies, including instruments, systems and all accessories. For product-specific
information, see the data sheet and the product documentation.
Safety labels on products
The following safety labels are used on products to warn against risks and dangers.
Symbol Meaning Symbol Meaning
Notice, general danger location
Observe product documentation
Caution when handling heavy equipment Standby indication
Danger of electric shock Direct current (DC)
ON/OFF supply voltage
1171.0000.42 - 07 Page 1
Page 4
asic Safety Instructions
B
Symbol Meaning Symbol Meaning
Warning! Hot surface Alternating current (AC)
Protective conductor terminal Direct/alternating current (DC/AC)
Ground Device fully protected by double (reinforced)
insulation
Ground terminal EU labeling for batteries and accumulators
For additional information, see section "Waste
disposal/Environmental protection", item 1.
Be careful when handling electrostatic sensitive
devices
Warning! Laser radiation
For additional information, see section
"Operation", item 7.
EU labeling for separate collection of electrical
and electronic devices
For additonal information, see section "Waste
disposal/Environmental protection", item 2.
Signal words and their meaning
The following signal words are used in the product documentation in order to warn the reader about risks
and dangers.
Indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
Indicates information considered important, but not hazard-related, e.g.
messages relating to property damage.
In the product documentation, the word ATTENTION is used synonymously.
These signal words are in accordance with the standard definition for civil applications in the European
Economic Area. Definitions that deviate from the standard definition may also exist in other economic
areas or military applications. It is therefore essential to make sure that the signal words described here
are always used only in connection with the related product documentation and the related product. The
use of signal words in connection with unrelated products or documentation can result in misinterpretation
and in personal injury or material damage.
1171.0000.42 - 07 Page 2
Page 5
asic Safety Instructions
B
Operating states and operating positions
The product may be operated only under the operating conditions and in the positions specified by the
manufacturer, without the product's ventilation being obstructed. If the manufacturer's specifications are
not observed, this can result in electric shock, fire and/or serious personal injury or death. Applicable local
or national safety regulations and rules for the prevention of accidents must be observed in all work
performed.
1. Unless otherwise specified, the following requirements apply to Rohde & Schwarz products:
predefined operating position is always with the housing floor facing down, IP protection 2X, use only
indoors, max. operating altitude 2000 m above sea level, max. transport altitude 4500 m above sea
level. A tolerance of ±10 % shall apply to the nominal voltage and ±5 % to the nominal frequency,
overvoltage category 2, pollution severity 2.
2. Do not place the product on surfaces, vehicles, cabinets or tables that for reasons of weight or stability
are unsuitable for this purpose. Always follow the manufacturer's installation instructions when
installing the product and fastening it to objects or structures (e.g. walls and shelves). An installation
that is not carried out as described in the product documentation could result in personal injury or
even death.
3. Do not place the product on heat-generating devices such as radiators or fan heaters. The ambient
temperature must not exceed the maximum temperature specified in the product documentation or in
the data sheet. Product overheating can cause electric shock, fire and/or serious personal injury or
even death.
Electrical safety
If the information on electrical safety is not observed either at all or to the extent necessary, electric shock,
fire and/or serious personal injury or death may occur.
1. Prior to switching on the product, always ensure that the nominal voltage setting on the product
matches the nominal voltage of the AC supply network. If a different voltage is to be set, the power
fuse of the product may have to be changed accordingly.
2. In the case of products of safety class I with movable power cord and connector, operation is
permitted only on sockets with a protective conductor contact and protective conductor.
3. Intentionally breaking the protective conductor either in the feed line or in the product itself is not
permitted. Doing so can result in the danger of an electric shock from the product. If extension cords
or connector strips are implemented, they must be checked on a regular basis to ensure that they are
safe to use.
4. If there is no power switch for disconnecting the product from the AC supply network, or if the power
switch is not suitable for this purpose, use the plug of the connecting cable to disconnect the product
from the AC supply network. In such cases, always ensure that the power plug is easily reachable and
accessible at all times. For example, if the power plug is the disconnecting device, the length of the
connecting cable must not exceed 3 m. Functional or electronic switches are not suitable for providing
disconnection from the AC supply network. If products without power switches are integrated into
racks or systems, the disconnecting device must be provided at the system level.
5. Never use the product if the power cable is damaged. Check the power cables on a regular basis to
ensure that they are in proper operating condition. By taking appropriate safety measures and
carefully laying the power cable, ensure that the cable cannot be damaged and that no one can be
hurt by, for example, tripping over the cable or suffering an electric shock.
1171.0000.42 - 07 Page 3
Page 6
asic Safety Instructions
B
6. The product may be operated only from TN/TT supply networks fuse-protected with max. 16 A (higher
fuse only after consulting with the Rohde & Schwarz group of companies).
7. Do not insert the plug into sockets that are dusty or dirty. Insert the plug firmly and all the way into the
socket provided for this purpose. Otherwise, sparks that result in fire and/or injuries may occur.
8. Do not overload any sockets, extension cords or connector strips; doing so can cause fire or electric
hocks.
s
9. For measurements in circuits with voltages V
> 30 V, suitable measures (e.g. appropriate
rms
measuring equipment, fuse protection, current limiting, electrical separation, insulation) should be
taken to avoid any hazards.
10. Ensure that the connections with information technology equipment, e.g. PCs or other industrial
computers, comply with the IEC60950-1/EN60950-1 or IEC61010-1/EN 61010-1 standards that apply
in each case.
11. Unless expressly permitted, never remove the cover or any part of the housing while the product is in
operation. Doing so will expose circuits and components and can lead to injuries, fire or damage to the
product.
12. If a product is to be permanently installed, the connection between the protective conductor terminal
on site and the product's protective conductor must be made first before any other connection is
made. The product may be installed and connected only by a licensed electrician.
13. For permanently installed equipment without built-in fuses, circuit breakers or similar protective
devices, the supply circuit must be fuse-protected in such a way that anyone who has access to the
product, as well as the product itself, is adequately protected from injury or damage.
14. Use suitable overvoltage protection to ensure that no overvoltage (such as that caused by a bolt of
lightning) can reach the product. Otherwise, the person operating the product will be exposed to the
danger of an electric shock.
15. Any object that is not designed to be placed in the openings of the housing must not be used for this
purpose. Doing so can cause short circuits inside the product and/or electric shocks, fire or injuries.
16. Unless specified otherwise, products are not liquid-proof (see also section "Operating states and
operating positions", item 1). Therefore, the equipment must be protected against penetration by
liquids. If the necessary precautions are not taken, the user may suffer electric shock or the product
itself may be damaged, which can also lead to personal injury.
17. Never use the product under conditions in which condensation has formed or can form in or on the
product, e.g. if the product has been moved from a cold to a warm environment. Penetration by water
increases the risk of electric shock.
18. Prior to cleaning the product, disconnect it completely from the power supply (e.g. AC supply network
or battery). Use a soft, non-linting cloth to clean the product. Never use chemical cleaning agents such
as alcohol, acetone or diluents for cellulose lacquers.
Operation
1. Operating the products requires special training and intense concentration. Make sure that persons
who use the products are physically, mentally and emotionally fit enough to do so; otherwise, injuries
or material damage may occur. It is the responsibility of the employer/operator to select suitable
personnel for operating the products.
1171.0000.42 - 07 Page 4
Page 7
Basic Safety Instructions
2. Before you move or transport the product, read and observe the section titled "Transport".
3. As with all industrially manufactured goods, the use of substances that induce an allergic reaction
(allergens) such as nickel cannot be generally excluded. If you develop an allergic reaction (such as a
skin rash, frequent sneezing, red eyes or respiratory difficulties) when using a Rohde & Schwarz
product, consult a physician immediately to determine the cause and to prevent health problems or
stress.
4. Before you start processing the product mechanically and/or thermally, or before you take it apart, be
sure to read and pay special attention to the section titled "Waste disposal/Environmental protection",
item 1.
5. Depending on the function, certain products such as RF radio equipment can produce an elevated
level of electromagnetic radiation. Considering that unborn babies require increased protection,
pregnant women must be protected by appropriate measures. Persons with pacemakers may also be
exposed to risks from electromagnetic radiation. The employer/operator must evaluate workplaces
where there is a special risk of exposure to radiation and, if necessary, take measures to avert the
potential danger.
6. Should a fire occur, the product may release hazardous substances (gases, fluids, etc.) that can
cause health problems. Therefore, suitable measures must be taken, e.g. protective masks and
protective clothing must be worn.
7. Laser products are given warning labels that are standardized according to their laser class. Lasers
can cause biological harm due to the properties of their radiation and due to their extremely
concentrated electromagnetic power. If a laser product (e.g. a CD/DVD drive) is integrated into a
Rohde & Schwarz product, absolutely no other settings or functions may be used as described in the
product documentation. The objective is to prevent personal injury (e.g. due to laser beams).
8. EMC classes (in line with EN 55011/CISPR 11,
EN 55032/CISPR 32)
Class A equipment:
Equipment suitable for use in all environments except residential environments and environments
that are directly connected to a low-voltage supply network that supplies residential buildings
Note: Class A equipment is intended for use in an industrial environment. This equipment may
cause radio disturbances in residential environments, due to possible conducted as well as
radiated disturbances. In this case, the operator may be required to take appropriate measures to
eliminate these disturbances.
Class B equipment:
Equipment suitable for use in residential environments and environments that are directly
connected to a low-voltage supply network that supplies residential buildings
Repair and service
1. The product may be opened only by authorized, specially trained personnel. Before any work is
performed on the product or before the product is opened, it must be disconnected from the AC supply
network. Otherwise, personnel will be exposed to the risk of an electric shock.
and analogously with EN 55022/CISPR 22,
1171.0000.42 - 07 Page 5
Page 8
asic Safety Instructions
B
2. Adjustments, replacement of parts, maintenance and repair may be performed only by electrical
experts authorized by Rohde & Schwarz. Only original parts may be used for replacing parts relevant
to safety (e.g. power switches, power transformers, fuses). A safety test must always be performed
after parts relevant to safety have been replaced (visual inspection, protective conductor test,
insulation resistance measurement, leakage current measurement, functional test). This helps ensure
the continued safety of the product.
Batteries and rechargeable batteries/cells
If the information regarding batteries and rechargeable batteries/cells is not observed either at all or to the
extent necessary, product users may be exposed to the risk of explosions, fire and/or serious personal
injury, and, in some cases, death. Batteries and rechargeable batteries with alkaline electrolytes (e.g.
lithium cells) must be handled in accordance with the EN 62133 standard.
1. Cells must not be taken apart or crushed.
2. Cells or batteries must not be exposed to heat or fire. Storage in direct sunlight must be avoided.
Keep cells and batteries clean and dry. Clean soiled connectors using a dry, clean cloth.
3. Cells or batteries must not be short-circuited. Cells or batteries must not be stored in a box or in a
drawer where they can short-circuit each other, or where they can be short-circuited by other
conductive materials. Cells and batteries must not be removed from their original packaging until they
are ready to be used.
4. Cells and batteries must not be exposed to any mechanical shocks that are stronger than permitted.
5. If a cell develops a leak, the fluid must not be allowed to come into contact with the skin or eyes. If
contact occurs, wash the affected area with plenty of water and seek medical aid.
6. Improperly replacing or charging cells or batteries that contain alkaline electrolytes (e.g. lithium cells)
can cause explosions. Replace cells or batteries only with the matching Rohde & Schwarz type (see
parts list) in order to ensure the safety of the product.
7. Cells and batteries must be recycled and kept separate from residual waste. Rechargeable batteries
and normal batteries that contain lead, mercury or cadmium are hazardous waste. Observe the
national regulations regarding waste disposal and recycling.
Transport
1. The product may be very heavy. Therefore, the product must be handled with care. In some cases,
the user may require a suitable means of lifting or moving the product (e.g. with a lift-truck) to avoid
back or other physical injuries.
2. Handles on the products are designed exclusively to enable personnel to transport the product. It is
therefore not permissible to use handles to fasten the product to or on transport equipment such as
cranes, fork lifts, wagons, etc. The user is responsible for securely fastening the products to or on the
means of transport or lifting. Observe the safety regulations of the manufacturer of the means of
transport or lifting. Noncompliance can result in personal injury or material damage.
3. If you use the product in a vehicle, it is the sole responsibility of the driver to drive the vehicle safely
and properly. The manufacturer assumes no responsibility for accidents or collisions. Never use the
product in a moving vehicle if doing so could distract the driver of the vehicle. Adequately secure the
product in the vehicle to prevent injuries or other damage in the event of an accident.
1171.0000.42 - 07 Page 6
Page 9
nstrucciones de seguridad elementales
I
Waste disposal/Environmental protection
1. Specially marked equipment has a battery or accumulator that must not be disposed of with unsorted
municipal waste, but must be collected separately. It may only be disposed of at a suitable collection
point or via a Rohde & Schwarz customer service center.
2. Waste electrical and electronic equipment must not be disposed of with unsorted municipal waste, but
ust be collected separately.
m
Rohde & Schwarz GmbH & Co. KG has developed a disposal concept and takes full responsibility for
take-back obligations and disposal obligations for manufacturers within the EU. Contact your
Rohde & Schwarz customer service center for environmentally responsible disposal of the product.
3. If products or their components are mechanically and/or thermally processed in a manner that goes
beyond their intended use, hazardous substances (heavy-metal dust such as lead, beryllium, nickel)
may be released. For this reason, the product may only be disassembled by specially trained
personnel. Improper disassembly may be hazardous to your health. National waste disposal
regulations must be observed.
4. If handling the product releases hazardous substances or fuels that must be disposed of in a special
way, e.g. coolants or engine oils that must be replenished regularly, the safety instructions of the
manufacturer of the hazardous substances or fuels and the applicable regional waste disposal
regulations must be observed. Also observe the relevant safety instructions in the product
documentation. The improper disposal of hazardous substances or fuels can cause health problems
and lead to environmental damage.
For additional information about environmental protection, visit the Rohde & Schwarz website.
Instrucciones de seguridad elementales
¡Es imprescindible leer y cumplir las siguientes instrucciones e informaciones de seguridad!
El principio del grupo de empresas Rohde & Schwarz consiste en tener nuestros productos siempre al día
con los estándares de seguridad y de ofrecer a nuestros clientes el máximo grado de seguridad. Nuestros
productos y todos los equipos adicionales son siempre fabricados y examinados según las normas de
seguridad vigentes. Nuestro sistema de garantía de calidad controla constantemente que sean cumplidas
estas normas. El presente producto ha sido fabricado y examinado según el certificado de conformidad
de la UE y ha salido de nuestra planta en estado impecable según los estándares técnicos de seguridad.
Para poder preservar este estado y garantizar un funcionamiento libre de peligros, el usuario deberá
atenerse a todas las indicaciones, informaciones de seguridad y notas de alerta. El grupo de empresas
Rohde & Schwarz está siempre a su disposición en caso de que tengan preguntas referentes a estas
informaciones de seguridad.
Además queda en la responsabilidad del usuario utilizar el producto en la forma debida. Este producto
está destinado exclusivamente al uso en la industria y el laboratorio o, si ha sido expresamente
autorizado, para aplicaciones de campo y de ninguna manera deberá ser utilizado de modo que alguna
persona/cosa pueda sufrir daño. El uso del producto fuera de sus fines definidos o sin tener en cuenta las
instrucciones del fabricante queda en la responsabilidad del usuario. El fabricante no se hace en ninguna
forma responsable de consecuencias a causa del mal uso del producto.
1171.0000.42 - 07 Page 7
Page 10
nstrucciones de seguridad elementales
I
Se parte del uso correcto del producto para los fines definidos si el producto es utilizado conforme a las
indicaciones de la correspondiente documentación del producto y dentro del margen de rendimiento
definido (ver hoja de datos, documentación, informaciones de seguridad que siguen). El uso del producto
hace necesarios conocimientos técnicos y ciertos conocimientos del idioma inglés. Por eso se debe tener
en cuenta que el producto solo pueda ser operado por personal especializado o personas instruidas en
profundidad con las capacidades correspondientes. Si fuera necesaria indumentaria de seguridad para el
so de productos de Rohde & Schwarz, encontraría la información debida en la documentación del
u
producto en el capítulo correspondiente. Guarde bien las informaciones de seguridad elementales, así
como la documentación del producto, y entréguelas a usuarios posteriores.
Tener en cuenta las informaciones de seguridad sirve para evitar en lo posible lesiones o daños por
peligros de toda clase. Por eso es imprescindible leer detalladamente y comprender por completo las
siguientes informaciones de seguridad antes de usar el producto, y respetarlas durante el uso del
producto. Deberán tenerse en cuenta todas las demás informaciones de seguridad, como p. ej. las
referentes a la protección de personas, que encontrarán en el capítulo correspondiente de la
documentación del producto y que también son de obligado cumplimiento. En las presentes
informaciones de seguridad se recogen todos los objetos que distribuye el grupo de empresas
Rohde & Schwarz bajo la denominación de "producto", entre ellos también aparatos, instalaciones así
como toda clase de accesorios. Los datos específicos del producto figuran en la hoja de datos y en la
documentación del producto.
Señalización de seguridad de los productos
Las siguientes señales de seguridad se utilizan en los productos para advertir sobre riesgos y peligros.
Símbolo Significado Símbolo Significado
Aviso: punto de peligro general
Observar la documentación del producto
Atención en el manejo de dispositivos de peso
elevado
Peligro de choque eléctrico Corriente continua (DC)
Advertencia: superficie caliente Corriente alterna (AC)
Conexión a conductor de protección Corriente continua / Corriente alterna (DC/AC)
Conexión a tierra El aparato está protegido en su totalidad por un
Tensión de alimentación de PUESTA EN
MARCHA / PARADA
Indicación de estado de espera (standby)
aislamiento doble (reforzado)
Conexión a masa Distintivo de la UE para baterías y
acumuladores
Más información en la sección
"Eliminación/protección del medio ambiente",
punto 1.
1171.0000.42 - 07 Page 8
Page 11
nstrucciones de seguridad elementales
I
Símbolo Significado Símbolo Significado
Aviso: Cuidado en el manejo de dispositivos
sensibles a la electrostática (ESD)
Advertencia: rayo láser
Más información en la sección
"Funcionamiento", punto 7.
Distintivo de la UE para la eliminación por
separado de dispositivos eléctricos y
electrónicos
Más información en la sección
"Eliminación/protección del medio ambiente",
punto 2.
Palabras de señal y su significado
En la documentación del producto se utilizan las siguientes palabras de señal con el fin de advertir contra
riesgos y peligros.
Indica una situación de peligro que, si no se evita, causa lesiones
graves o incluso la muerte.
Indica una situación de peligro que, si no se evita, puede causar
lesiones graves o incluso la muerte.
Indica una situación de peligro que, si no se evita, puede causar
lesiones leves o moderadas.
Indica información que se considera importante, pero no en relación
con situaciones de peligro; p. ej., avisos sobre posibles daños
materiales.
En la documentación del producto se emplea de forma sinónima el
término CUIDADO.
Las palabras de señal corresponden a la definición habitual para aplicaciones civiles en el área
económica europea. Pueden existir definiciones diferentes a esta definición en otras áreas económicas o
en aplicaciones militares. Por eso se deberá tener en cuenta que las palabras de señal aquí descritas
sean utilizadas siempre solamente en combinación con la correspondiente documentación del producto y
solamente en combinación con el producto correspondiente. La utilización de las palabras de señal en
combinación con productos o documentaciones que no les correspondan puede llevar a interpretaciones
equivocadas y tener por consecuencia daños en personas u objetos.
Estados operativos y posiciones de funcionamiento
El producto solamente debe ser utilizado según lo indicado por el fabricante respecto a los estados
operativos y posiciones de funcionamiento sin que se obstruya la ventilación. Si no se siguen las
indicaciones del fabricante, pueden producirse choques eléctricos, incendios y/o lesiones graves con
posible consecuencia de muerte. En todos los trabajos deberán ser tenidas en cuenta las normas
nacionales y locales de seguridad del trabajo y de prevención de accidentes.
1171.0000.42 - 07 Page 9
Page 12
nstrucciones de seguridad elementales
I
1. Si no se convino de otra manera, es para los productos Rohde & Schwarz válido lo que sigue:
como posición de funcionamiento se define por principio la posición con el suelo de la caja para
abajo, modo de protección IP 2X, uso solamente en estancias interiores, utilización hasta 2000 m
sobre el nivel del mar, transporte hasta 4500 m sobre el nivel del mar. Se aplicará una tolerancia de
±10 % sobre el voltaje nominal y de ±5 % sobre la frecuencia nominal. Categoría de sobrecarga
eléctrica 2, índice de suciedad 2.
2. No sitúe el producto encima de superficies, vehículos, estantes o mesas, que por sus características
de peso o de estabilidad no sean aptos para él. Siga siempre las instrucciones de instalación del
fabricante cuando instale y asegure el producto en objetos o estructuras (p. ej. paredes y estantes). Si
se realiza la instalación de modo distinto al indicado en la documentación del producto, se pueden
causar lesiones o, en determinadas circunstancias, incluso la muerte.
3. No ponga el producto sobre aparatos que generen calor (p. ej. radiadores o calefactores). La
temperatura ambiente no debe superar la temperatura máxima especificada en la documentación del
producto o en la hoja de datos. En caso de sobrecalentamiento del producto, pueden producirse
choques eléctricos, incendios y/o lesiones graves con posible consecuencia de muerte.
Seguridad eléctrica
Si no se siguen (o se siguen de modo insuficiente) las indicaciones del fabricante en cuanto a seguridad
eléctrica, pueden producirse choques eléctricos, incendios y/o lesiones graves con posible consecuencia
de muerte.
1. Antes de la puesta en marcha del producto se deberá comprobar siempre que la tensión
preseleccionada en el producto coincida con la de la red de alimentación eléctrica. Si es necesario
modificar el ajuste de tensión, también se deberán cambiar en caso dado los fusibles
correspondientes del producto.
2. Los productos de la clase de protección I con alimentación móvil y enchufe individual solamente
podrán enchufarse a tomas de corriente con contacto de seguridad y con conductor de protección
conectado.
3. Queda prohibida la interrupción intencionada del conductor de protección, tanto en la toma de
corriente como en el mismo producto. La interrupción puede tener como consecuencia el riesgo de
que el producto sea fuente de choques eléctricos. Si se utilizan cables alargadores o regletas de
enchufe, deberá garantizarse la realización de un examen regular de los mismos en cuanto a su
estado técnico de seguridad.
4. Si el producto no está equipado con un interruptor para desconectarlo de la red, o bien si el
interruptor existente no resulta apropiado para la desconexión de la red, el enchufe del cable de
conexión se deberá considerar como un dispositivo de desconexión.
El dispositivo de desconexión se debe poder alcanzar fácilmente y debe estar siempre bien accesible.
Si, p. ej., el enchufe de conexión a la red es el dispositivo de desconexión, la longitud del cable de
conexión no debe superar 3 m).
Los interruptores selectores o electrónicos no son aptos para el corte de la red eléctrica. Si se
integran productos sin interruptor en bastidores o instalaciones, se deberá colocar el interruptor en el
nivel de la instalación.
5. No utilice nunca el producto si está dañado el cable de conexión a red. Compruebe regularmente el
correcto estado de los cables de conexión a red. Asegúrese, mediante las medidas de protección y
de instalación adecuadas, de que el cable de conexión a red no pueda ser dañado o de que nadie
pueda ser dañado por él, p. ej. al tropezar o por un choque eléctrico.
1171.0000.42 - 07 Page 10
Page 13
nstrucciones de seguridad elementales
I
6. Solamente está permitido el funcionamiento en redes de alimentación TN/TT aseguradas con fusibles
de 16 A como máximo (utilización de fusibles de mayor amperaje solo previa consulta con el grupo de
empresas Rohde & Schwarz).
7. Nunca conecte el enchufe en tomas de corriente sucias o llenas de polvo. Introduzca el enchufe por
completo y fuertemente en la toma de corriente. La no observación de estas medidas puede provocar
chispas, fuego y/o lesiones.
8. No sobrecargue las tomas de corriente, los cables alargadores o las regletas de enchufe ya que esto
podría causar fuego o choques eléctricos.
9. En las mediciones en circuitos de corriente con una tensión U
> 30 V se deberán tomar las medidas
eff
apropiadas para impedir cualquier peligro (p. ej. medios de medición adecuados, seguros, limitación
de tensión, corte protector, aislamiento etc.).
10. Para la conexión con dispositivos informáticos como un PC o un ordenador industrial, debe
comprobarse que éstos cumplan los estándares IEC60950-1/EN60950-1 o IEC61010-1/EN 61010-1
válidos en cada caso.
11. A menos que esté permitido expresamente, no retire nunca la tapa ni componentes de la carcasa
mientras el producto esté en servicio. Esto pone a descubierto los cables y componentes eléctricos y
puede causar lesiones, fuego o daños en el producto.
12. Si un producto se instala en un lugar fijo, se deberá primero conectar el conductor de protección fijo
con el conductor de protección del producto antes de hacer cualquier otra conexión. La instalación y
la conexión deberán ser efectuadas por un electricista especializado.
13. En el caso de dispositivos fijos que no estén provistos de fusibles, interruptor automático ni otros
mecanismos de seguridad similares, el circuito de alimentación debe estar protegido de modo que
todas las personas que puedan acceder al producto, así como el producto mismo, estén a salvo de
posibles daños.
14. Todo producto debe estar protegido contra sobretensión (debida p. ej. a una caída del rayo) mediante
los correspondientes sistemas de protección. Si no, el personal que lo utilice quedará expuesto al
peligro de choque eléctrico.
15. No debe introducirse en los orificios de la caja del aparato ningún objeto que no esté destinado a ello.
Esto puede producir cortocircuitos en el producto y/o puede causar choques eléctricos, fuego o
lesiones.
16. Salvo indicación contraria, los productos no están impermeabilizados (ver también el capítulo
"Estados operativos y posiciones de funcionamiento", punto 1). Por eso es necesario tomar las
medidas necesarias para evitar la entrada de líquidos. En caso contrario, existe peligro de choque
eléctrico para el usuario o de daños en el producto, que también pueden redundar en peligro para las
personas.
17. No utilice el producto en condiciones en las que pueda producirse o ya se hayan producido
condensaciones sobre el producto o en el interior de éste, como p. ej. al desplazarlo de un lugar frío a
otro caliente. La entrada de agua aumenta el riesgo de choque eléctrico.
18. Antes de la limpieza, desconecte por completo el producto de la alimentación de tensión (p. ej. red de
alimentación o batería). Realice la limpieza de los aparatos con un paño suave, que no se deshilache.
No utilice bajo ningún concepto productos de limpieza químicos como alcohol, acetona o diluyentes
para lacas nitrocelulósicas.
1171.0000.42 - 07 Page 11
Page 14
nstrucciones de seguridad elementales
I
Funcionamiento
1. El uso del producto requiere instrucciones especiales y una alta concentración durante el manejo.
Debe asegurarse que las personas que manejen el producto estén a la altura de los requerimientos
necesarios en cuanto a aptitudes físicas, psíquicas y emocionales, ya que de otra manera no se
pueden excluir lesiones o daños de objetos. El empresario u operador es responsable de seleccionar
el personal usuario apto para el manejo del producto.
2. Antes de desplazar o transportar el producto, lea y tenga en cuenta el capítulo "Transporte".
3. Como con todo producto de fabricación industrial no puede quedar excluida en general la posibilidad
de que se produzcan alergias provocadas por algunos materiales empleados Slos llamados
alérgenos (p. ej. el níquel)S. Si durante el manejo de productos Rohde & Schwarz se producen
reacciones alérgicas, como p. ej. irritaciones cutáneas, estornudos continuos, enrojecimiento de la
conjuntiva o dificultades respiratorias, debe avisarse inmediatamente a un médico para investigar las
causas y evitar cualquier molestia o daño a la salud.
4. Antes de la manipulación mecánica y/o térmica o el desmontaje del producto, debe tenerse en cuenta
imprescindiblemente el capítulo "Eliminación/protección del medio ambiente", punto 1.
5. Ciertos productos, como p. ej. las instalaciones de radiocomunicación RF, pueden a causa de su
función natural, emitir una radiación electromagnética aumentada. Deben tomarse todas las medidas
necesarias para la protección de las mujeres embarazadas. También las personas con marcapasos
pueden correr peligro a causa de la radiación electromagnética. El empresario/operador tiene la
obligación de evaluar y señalizar las áreas de trabajo en las que exista un riesgo elevado de
exposición a radiaciones.
6. Tenga en cuenta que en caso de incendio pueden desprenderse del producto sustancias tóxicas
(gases, líquidos etc.) que pueden generar daños a la salud. Por eso, en caso de incendio deben
usarse medidas adecuadas, como p. ej. máscaras antigás e indumentaria de protección.
7. Los productos con láser están provistos de indicaciones de advertencia normalizadas en función de la
clase de láser del que se trate. Los rayos láser pueden provocar daños de tipo biológico a causa de
las propiedades de su radiación y debido a su concentración extrema de potencia electromagnética.
En caso de que un producto Rohde & Schwarz contenga un producto láser (p. ej. un lector de
CD/DVD), no debe usarse ninguna otra configuración o función aparte de las descritas en la
documentación del producto, a fin de evitar lesiones (p. ej. debidas a irradiación láser).
8. Clases de compatibilidad electromagnética (conforme a EN 55011 / CISPR 11; y en analogía con EN
55022 / CISPR 22, EN 55032 / CISPR 32)
Aparato de clase A:
Aparato adecuado para su uso en todos los entornos excepto en los residenciales y en aquellos
conectados directamente a una red de distribución de baja tensión que suministra corriente a
edificios residenciales.
Nota: Los aparatos de clase A están destinados al uso en entornos industriales. Estos aparatos
pueden causar perturbaciones radioeléctricas en entornos residenciales debido a posibles
perturbaciones guiadas o radiadas. En este caso, se le podrá solicitar al operador que tome las
medidas adecuadas para eliminar estas perturbaciones.
Aparato de clase B:
Aparato adecuado para su uso en entornos residenciales, así como en aquellos conectados
directamente a una red de distribución de baja tensión que suministra corriente a edificios
residenciales.
1171.0000.42 - 07 Page 12
Page 15
nstrucciones de seguridad elementales
I
Reparación y mantenimiento
1. El producto solamente debe ser abierto por personal especializado con autorización para ello. Antes
de manipular el producto o abrirlo, es obligatorio desconectarlo de la tensión de alimentación, para
evitar toda posibilidad de choque eléctrico.
2. El ajuste, el cambio de partes, el mantenimiento y la reparación deberán ser efectuadas solamente
or electricistas autorizados por Rohde & Schwarz. Si se reponen partes con importancia para los
p
aspectos de seguridad (p. ej. el enchufe, los transformadores o los fusibles), solamente podrán ser
sustituidos por partes originales. Después de cada cambio de partes relevantes para la seguridad
deberá realizarse un control de seguridad (control a primera vista, control del conductor de
protección, medición de resistencia de aislamiento, medición de la corriente de fuga, control de
funcionamiento). Con esto queda garantizada la seguridad del producto.
Baterías y acumuladores o celdas
Si no se siguen (o se siguen de modo insuficiente) las indicaciones en cuanto a las baterías y
acumuladores o celdas, pueden producirse explosiones, incendios y/o lesiones graves con posible
consecuencia de muerte. El manejo de baterías y acumuladores con electrolitos alcalinos (p. ej. celdas de
litio) debe seguir el estándar EN 62133.
1. No deben desmontarse, abrirse ni triturarse las celdas.
2. Las celdas o baterías no deben someterse a calor ni fuego. Debe evitarse el almacenamiento a la luz
directa del sol. Las celdas y baterías deben mantenerse limpias y secas. Limpiar las conexiones
sucias con un paño seco y limpio.
3. Las celdas o baterías no deben cortocircuitarse. Es peligroso almacenar las celdas o baterías en
estuches o cajones en cuyo interior puedan cortocircuitarse por contacto recíproco o por contacto con
otros materiales conductores. No deben extraerse las celdas o baterías de sus embalajes originales
hasta el momento en que vayan a utilizarse.
4. Las celdas o baterías no deben someterse a impactos mecánicos fuertes indebidos.
5. En caso de falta de estanqueidad de una celda, el líquido vertido no debe entrar en contacto con la
piel ni los ojos. Si se produce contacto, lavar con agua abundante la zona afectada y avisar a un
médico.
6. En caso de cambio o recarga inadecuados, las celdas o baterías que contienen electrolitos alcalinos
(p. ej. las celdas de litio) pueden explotar. Para garantizar la seguridad del producto, las celdas o
baterías solo deben ser sustituidas por el tipo Rohde & Schwarz correspondiente (ver lista de
recambios).
7. Las baterías y celdas deben reciclarse y no deben tirarse a la basura doméstica. Las baterías o
acumuladores que contienen plomo, mercurio o cadmio deben tratarse como residuos especiales.
Respete en esta relación las normas nacionales de eliminación y reciclaje.
Transporte
1. El producto puede tener un peso elevado. Por eso es necesario desplazarlo o transportarlo con
precaución y, si es necesario, usando un sistema de elevación adecuado (p. ej. una carretilla
elevadora), a fin de evitar lesiones en la espalda u otros daños personales.
1171.0000.42 - 07 Page 13
Page 16
nstrucciones de seguridad elementales
I
2. Las asas instaladas en los productos sirven solamente de ayuda para el transporte del producto por
personas. Por eso no está permitido utilizar las asas para la sujeción en o sobre medios de transporte
como p. ej. grúas, carretillas elevadoras de horquilla, carros etc. Es responsabilidad suya fijar los
productos de manera segura a los medios de transporte o elevación. Para evitar daños personales o
daños en el producto, siga las instrucciones de seguridad del fabricante del medio de transporte o
elevación utilizado.
3. Si se utiliza el producto dentro de un vehículo, recae de manera exclusiva en el conductor la
responsabilidad de conducir el vehículo de manera segura y adecuada. El fabricante no asumirá
ninguna responsabilidad por accidentes o colisiones. No utilice nunca el producto dentro de un
vehículo en movimiento si esto pudiera distraer al conductor. Asegure el producto dentro del vehículo
debidamente para evitar, en caso de un accidente, lesiones u otra clase de daños.
Eliminación/protección del medio ambiente
1. Los dispositivos marcados contienen una batería o un acumulador que no se debe desechar con los
residuos domésticos sin clasificar, sino que debe ser recogido por separado. La eliminación se debe
efectuar exclusivamente a través de un punto de recogida apropiado o del servicio de atención al
cliente de Rohde & Schwarz.
2. Los dispositivos eléctricos usados no se deben desechar con los residuos domésticos sin clasificar,
sino que deben ser recogidos por separado.
Rohde & Schwarz GmbH & Co.KG ha elaborado un concepto de eliminación de residuos y asume
plenamente los deberes de recogida y eliminación para los fabricantes dentro de la UE. Para
desechar el producto de manera respetuosa con el medio ambiente, diríjase a su servicio de atención
al cliente de Rohde & Schwarz.
3. Si se trabaja de manera mecánica y/o térmica cualquier producto o componente más allá del
funcionamiento previsto, pueden liberarse sustancias peligrosas (polvos con contenido de metales
pesados como p. ej. plomo, berilio o níquel). Por eso el producto solo debe ser desmontado por
personal especializado con formación adecuada. Un desmontaje inadecuado puede ocasionar daños
para la salud. Se deben tener en cuenta las directivas nacionales referentes a la eliminación de
residuos.
4. En caso de que durante el trato del producto se formen sustancias peligrosas o combustibles que
deban tratarse como residuos especiales (p. ej. refrigerantes o aceites de motor con intervalos de
cambio definidos), deben tenerse en cuenta las indicaciones de seguridad del fabricante de dichas
sustancias y las normas regionales de eliminación de residuos. Tenga en cuenta también en caso
necesario las indicaciones de seguridad especiales contenidas en la documentación del producto. La
eliminación incorrecta de sustancias peligrosas o combustibles puede causar daños a la salud o
daños al medio ambiente.
Se puede encontrar más información sobre la protección del medio ambiente en la página web de
Rohde & Schwarz.
1171.0000.42 - 07 Page 14
Page 17
Quality management
Certied Qualit y System
ISO 9001
and environmental
management
Sehr geehrter Kunde,
Sie haben sich für den Kauf
eines Rohde & Schwarz Produktes entschieden. Sie erhalten
damit ein nach modernsten Fertigungsmethoden hergestelltes
Produkt. Es wurde nach den
Regeln unserer Qualitäts- und
Umweltmanagementsysteme
entwickelt, gefertigt und geprüft.
Rohde & Schwarz ist unter anderem nach den Managementsystemen ISO 9001 und ISO 14001
zertifiziert.
Der Umwelt verpflichtet
❙ Energie-efziente,
RoHS-konforme Produkte
❙ Kontinuierliche
Weiterentwicklung nachhaltiger
Umweltkonzepte
❙ ISO 14001-zertiziertes
Umweltmanagementsystem
Dear customer,
You have decided to buy a
Rohde & Schwarz product. This
product has been manufactured
using the most advanced methods. It was developed, manufactured and tested in compliance
with our quality management
and environmental management systems. Rohde & Schwarz
has been certified, for example, according to the ISO 9001
and ISO 14001 management
systems.
Environmental commitment
❙ Energy-efcient products
❙ Continuous improvement in
environmental sustainability
❙ ISO 14001-certied
environmental management
system
Certied Environmental System
ISO 14001
Cher client,
Vous avez choisi d’acheter un
produit Rohde & Schwarz. Vous
disposez donc d’un produit
fabriqué d’après les méthodes
les plus avancées. Le développement, la fabrication et les
tests de ce produit ont été effectués selon nos systèmes de
management de qualité et de
management environnemental.
La société Rohde & Schwarz a
été homologuée, entre autres,
conformément aux systèmes
de management ISO 9001 et
ISO 14001.
Engagement écologique
❙ Produits à efcience
énergétique
❙ Amélioration continue de la
durabilité environnementale
❙ Système de management
environnemental certié selon
ISO 14001
1171.0200.11 V 05.01
1171020011
Page 18
Customer Support
Technical support – where and when you need it
For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support
Centers. A team of highly qualified engineers provides telephone support and will work with you to find a
solution to your query on any aspect of the operation, programming or applications of Rohde & Schwarz
equipment.
Up-to-date information and upgrades
To keep your instrument up-to-date and to be informed about new application notes related to your
instrument, please send an e-mail to the Customer Support Center stating your instrument and your wish.
We will take care that you will get the right information.
Europe, Africa, Middle East
North America
Latin America
Asia/Pacific
China
Phone +49 89 4129 12345
Phone 1-888-TEST-RSA (1-888-837-8772)
Phone +1-410-910-7988
Phone +65 65 13 04 88
Phone +86-800-810-8228 /
+86-400-650-5896
1171.0200.22-06.00
Page 19
&S TSMX-PPS2 Table of Contents
R
Table of Contents
List of abbreviations.................................................................................................... 4
1 Welcome to the R&S TSMX-PPS2 ................................................................... 5
1.1 System Requirements..................................................................................................................5
2 Device Tour....................................................................................................... 6
2.1 Top View - Status LEDs ...............................................................................................................6
2.2 Connectors - 1 ..............................................................................................................................7
2.3 Connectors - 2 ..............................................................................................................................8

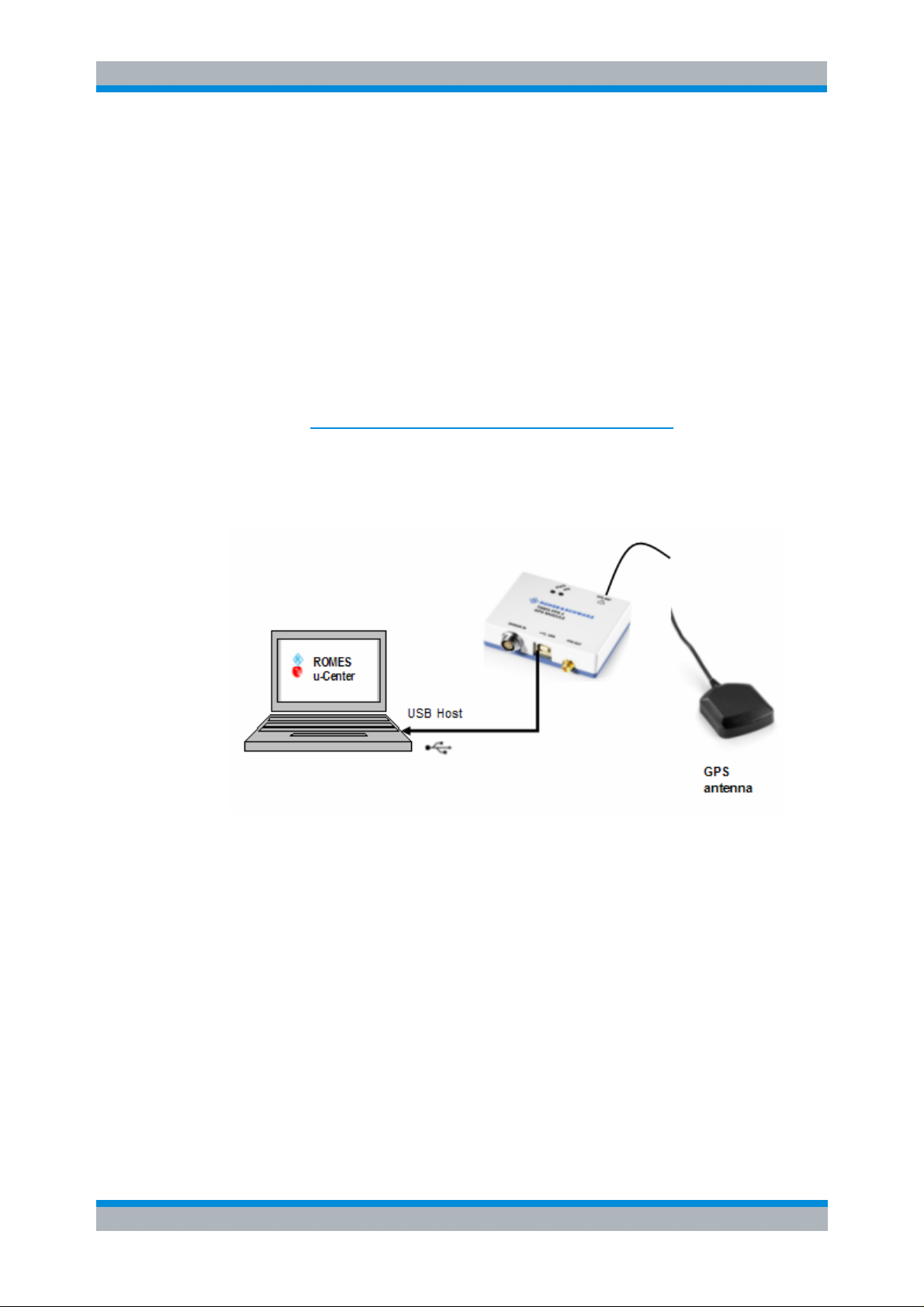

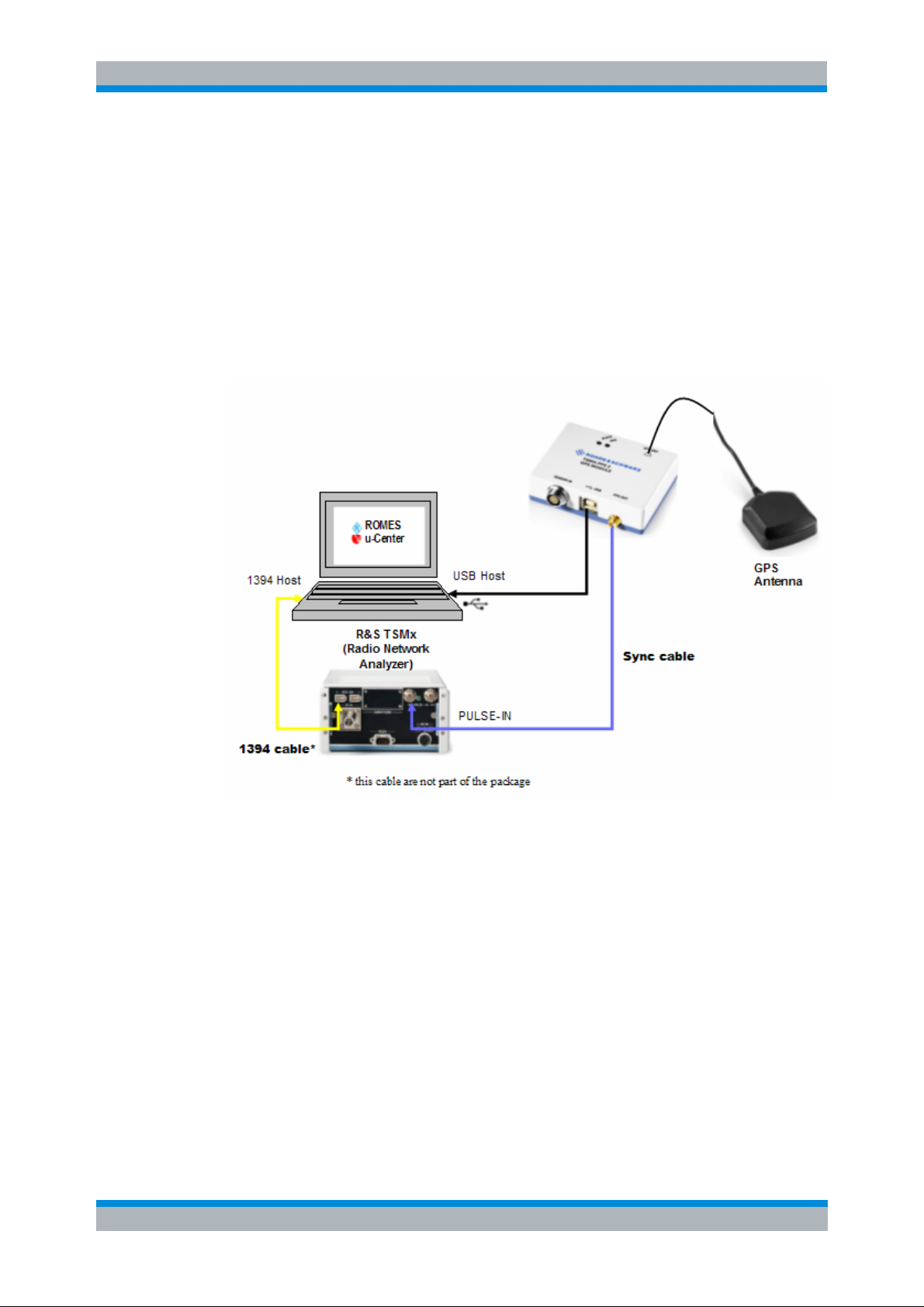

3 System Configurations.................................................................................... 9
3.1 Standard Navigation ....................................................................................................................9

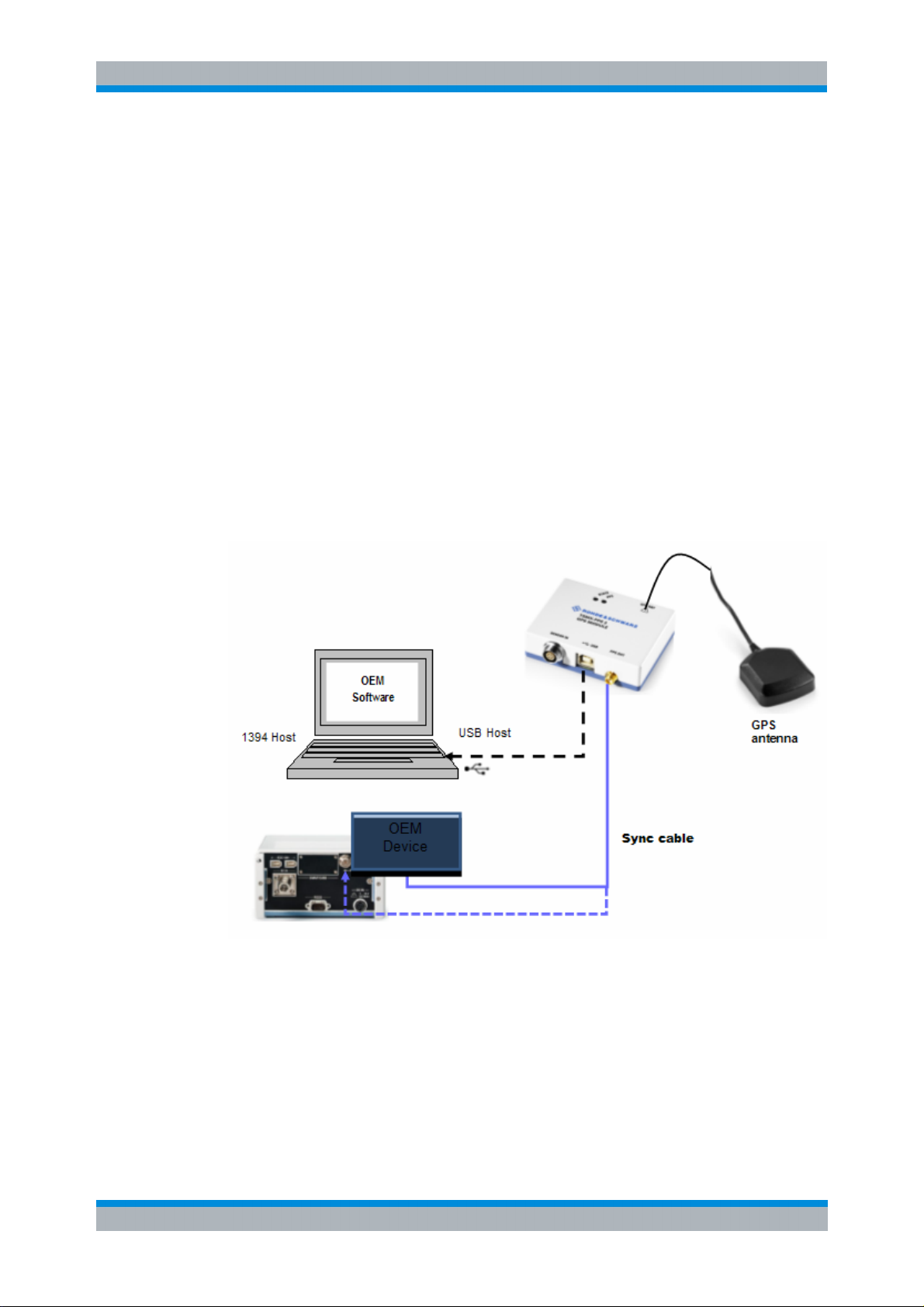

3.2 Time Synchronization ................................................................................................................10
3.3 Navigation & Time Synchronization.........................................................................................11

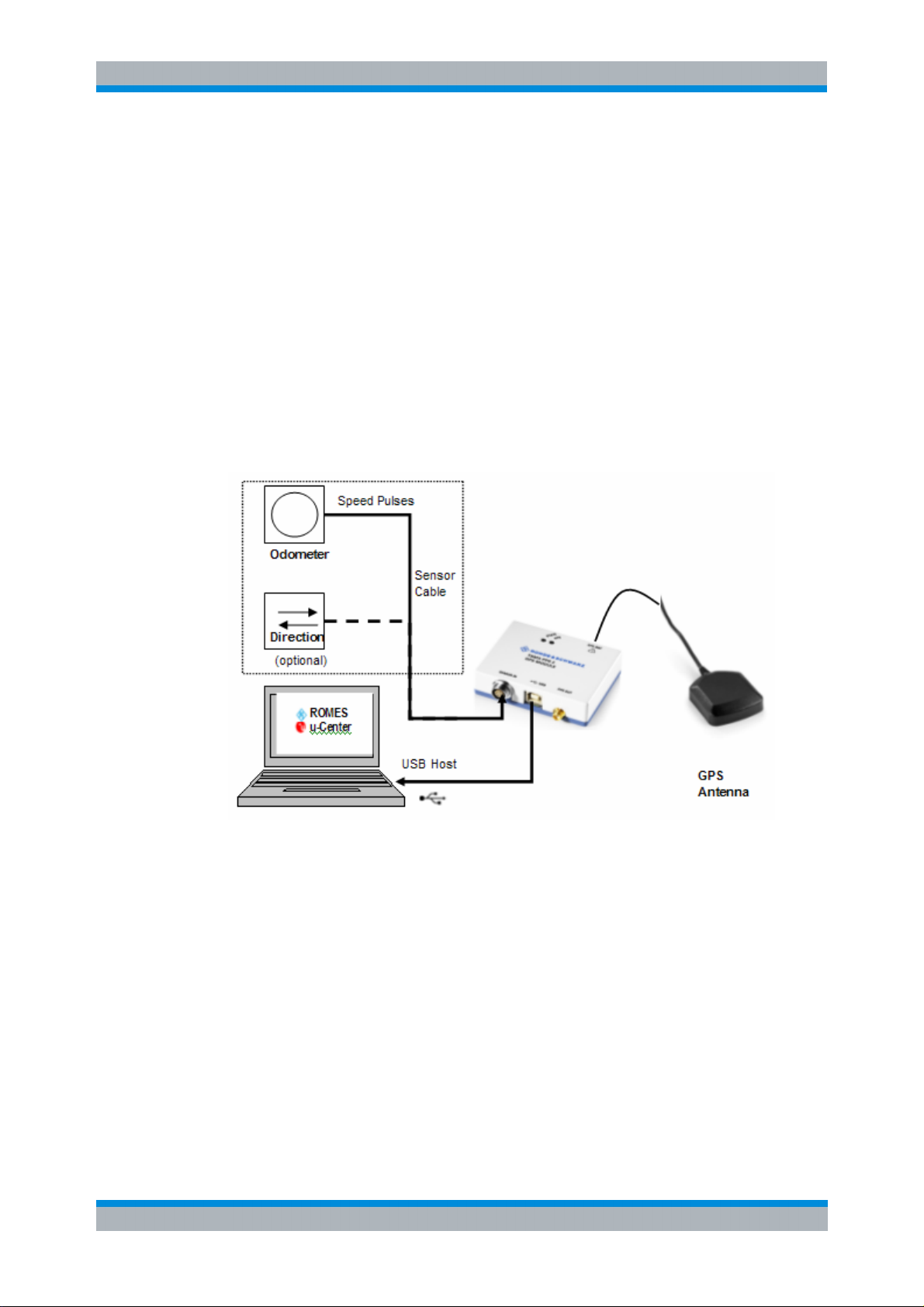

3.4 ADR Navigation ..........................................................................................................................12
4 Getting Started ............................................................................................... 13
4.1 Unpacking and Checking ..........................................................................................................13
4.2 Preparations ...............................................................................................................................14
4.3 Placing Hardware .......................................................................................................................15

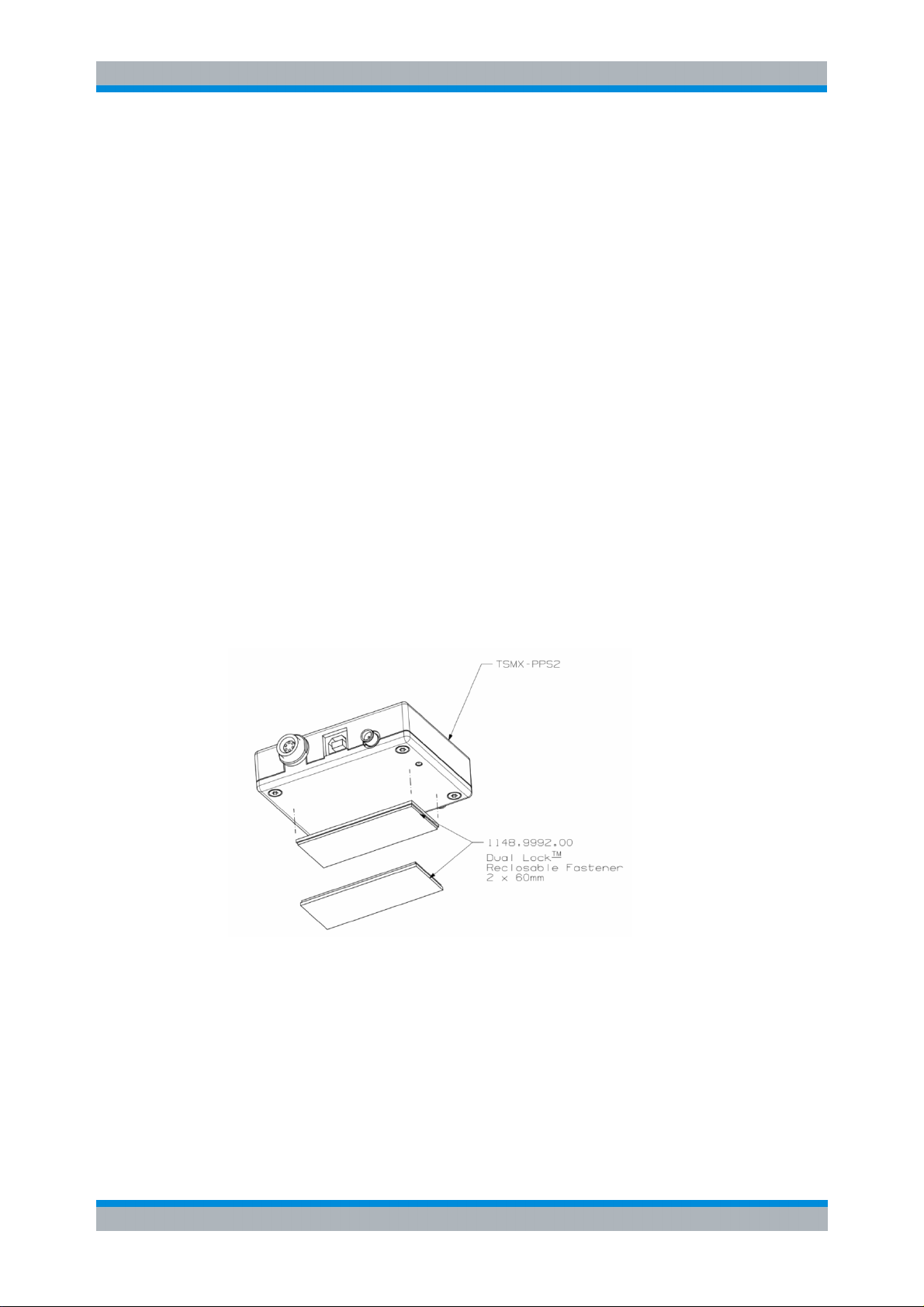

4.3.1 Placing the R&S TSMX-PPS2......................................................................................................15
4.3.2 Positioning the Antenna ...............................................................................................................15
4.4 Installing Software / Device Driver ...........................................................................................17
4.4.1 R&S ROMES................................................................................................................................17
4.4.2 u-center Evaluation ......................................................................................................................18

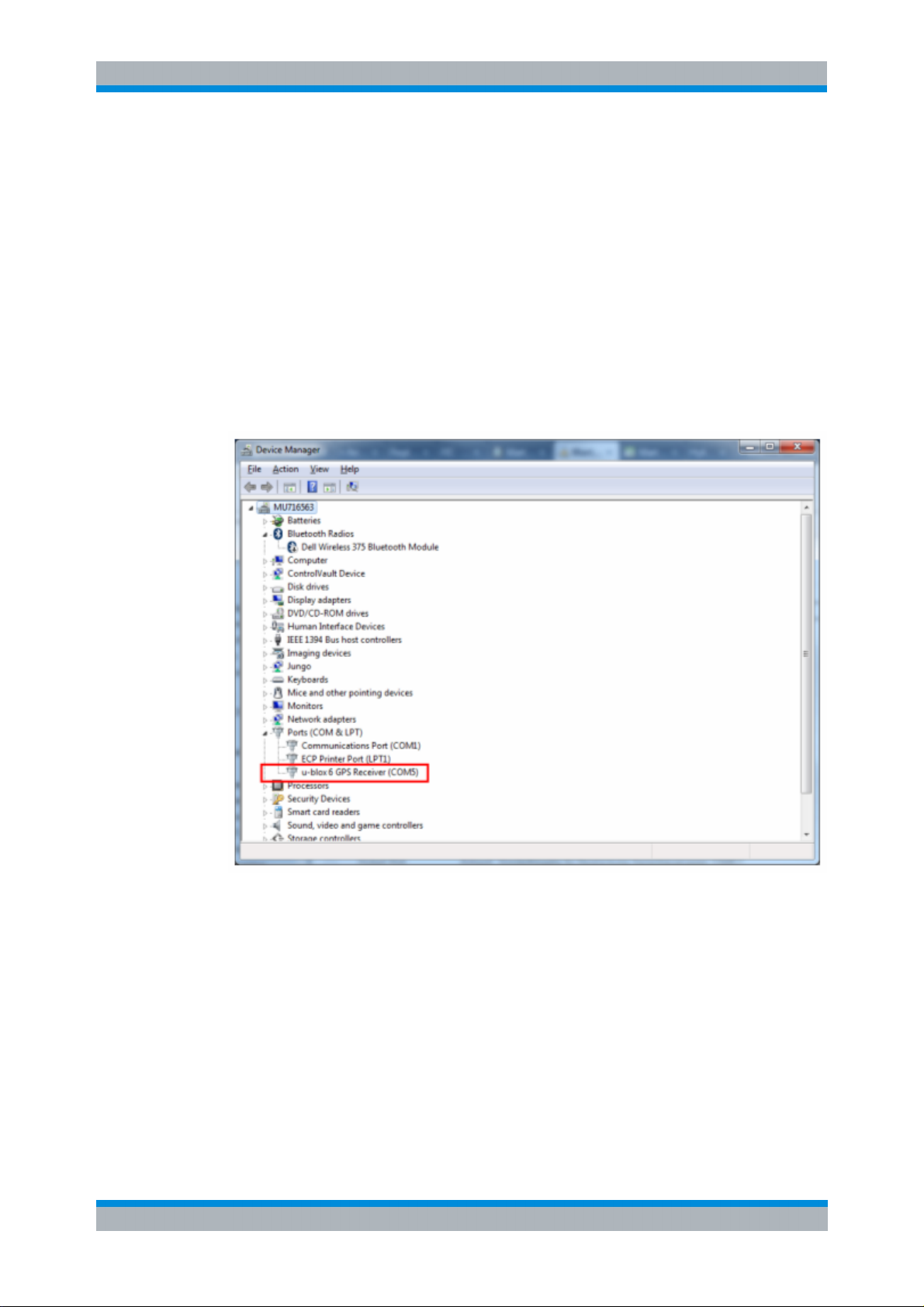

4.4.3 Microsoft Windows 7 USB Sensor/VCP Driver ............................................................................18
4.5 Connecting Cables.....................................................................................................................19
4.5.1 GPS antenna / GPS ANT .............................................................................................................19

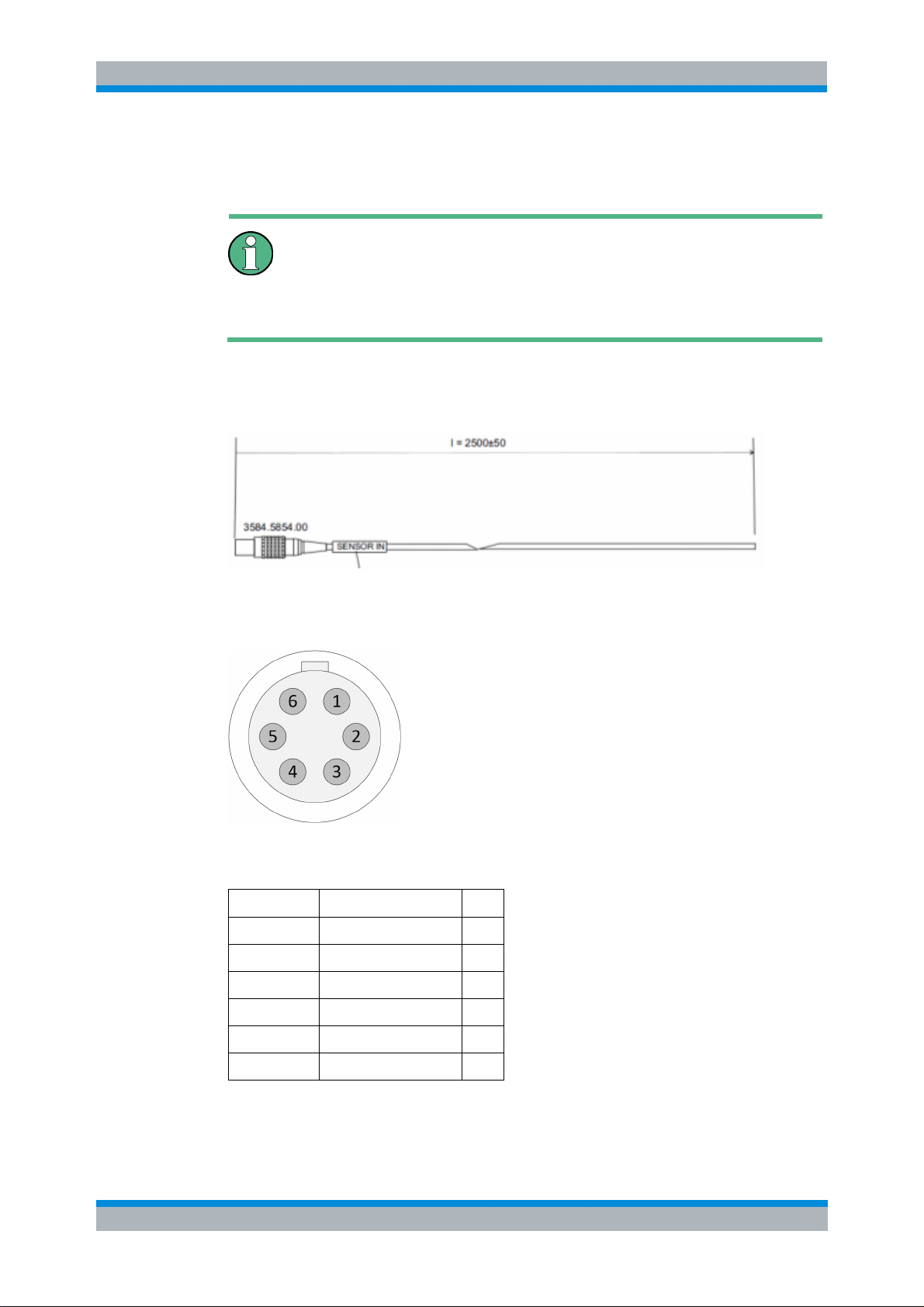

4.5.2 Sensor cable / SENSOR IN .........................................................................................................20
4.5.2.1 Speed Pulse Signal......................................................................................................................21
4.5.2.2 Direction Signal ............................................................................................................................21
4.5.3 Sync Cable ...................................................................................................................................21
4.6 Powering On / Loading USB Driver ..........................................................................................22
Getting Started 1515.7236.02 - 02 1
Page 20
&S TSMX-PPS2 Table of Contents
R
5 Starting Operation.......................................................................................... 23
5.1 Connecting Device .....................................................................................................................23

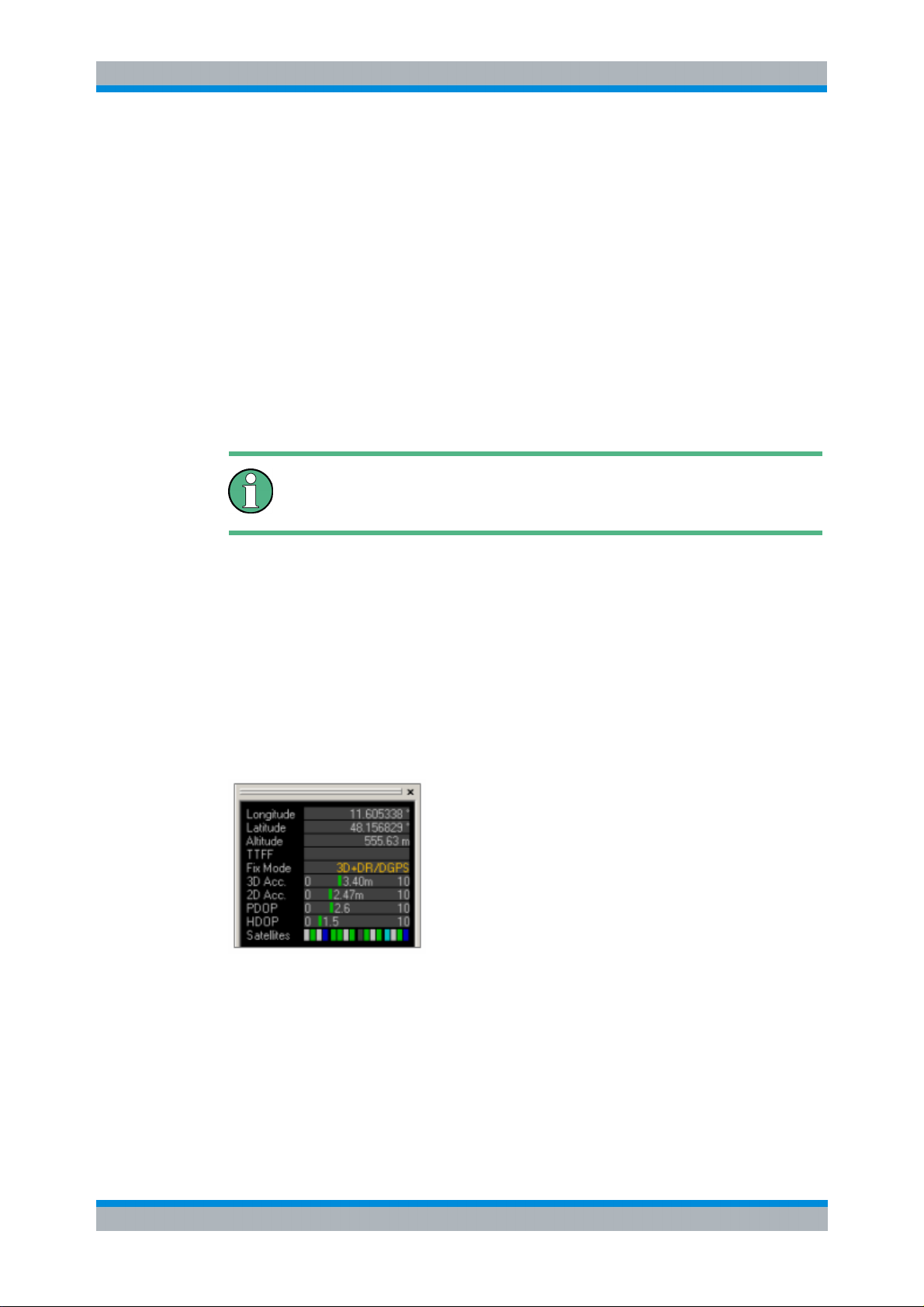

5.2 Initial Position Fix.......................................................................................................................24
5.3 ADR Calibration ..........................................................................................................................25
.3.1
5
5.3.2 Providing Vehicle Sensors Data...................................................................................................26
5.3.3 Monitoring Calibration Status .......................................................................................................27
5.3.4 Deleting Calibration Data .............................................................................................................28
5.4 Navigation Mode.........................................................................................................................29
5.5 Powering Off ...............................................................................................................................29
eneral .....................................................................................................................................25
G
6 Using u-center Software................................................................................ 30

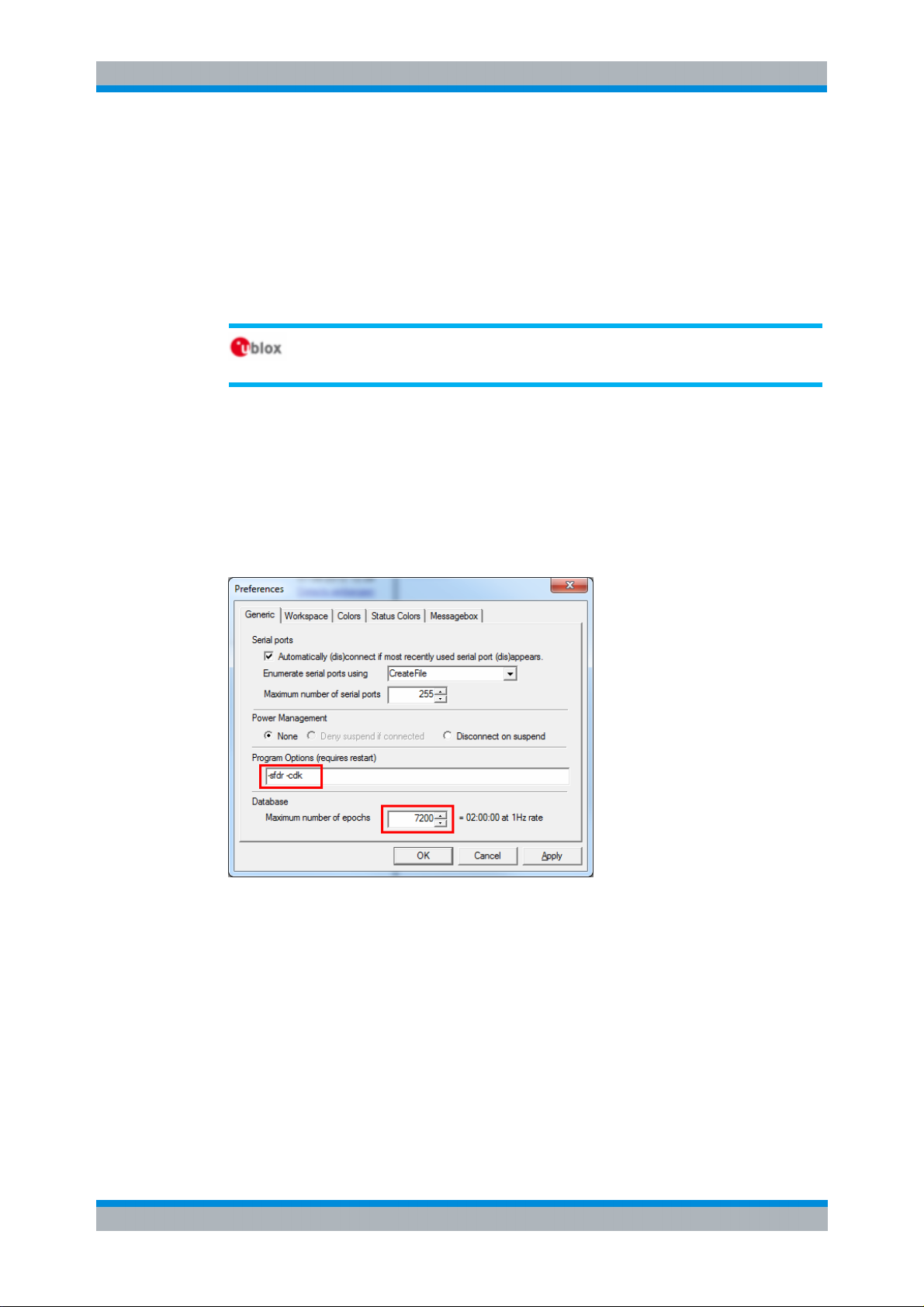

6.1 Setting Preferences....................................................................................................................31
6.1.1 Program Options ..........................................................................................................................31
6.1.2 Database .....................................................................................................................................31
6.2 Connecting R&S TSMX-PPS2 ...................................................................................................32
6.3 Configuration View.....................................................................................................................32

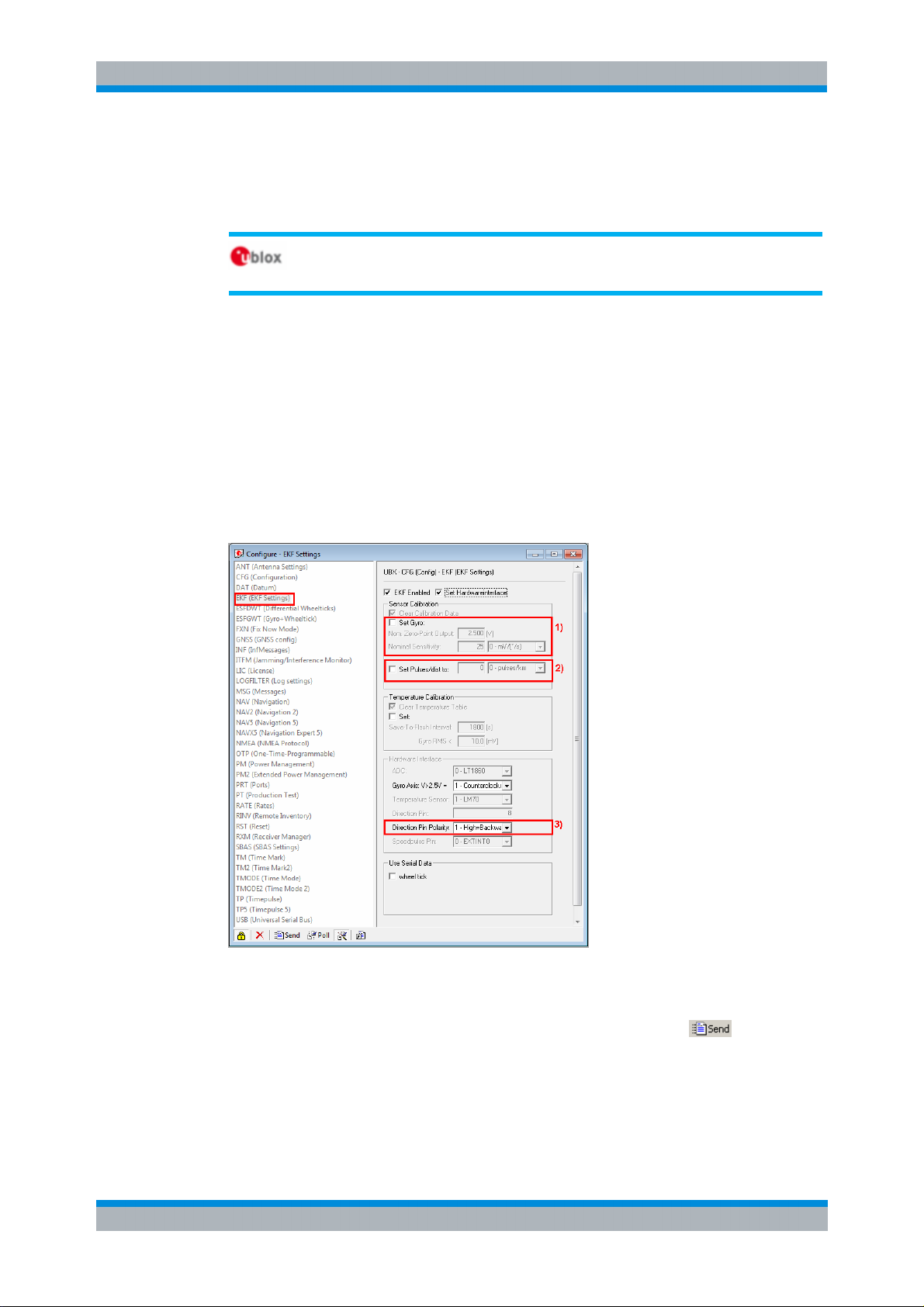

6.3.1 Verifying ADR Settings.................................................................................................................33

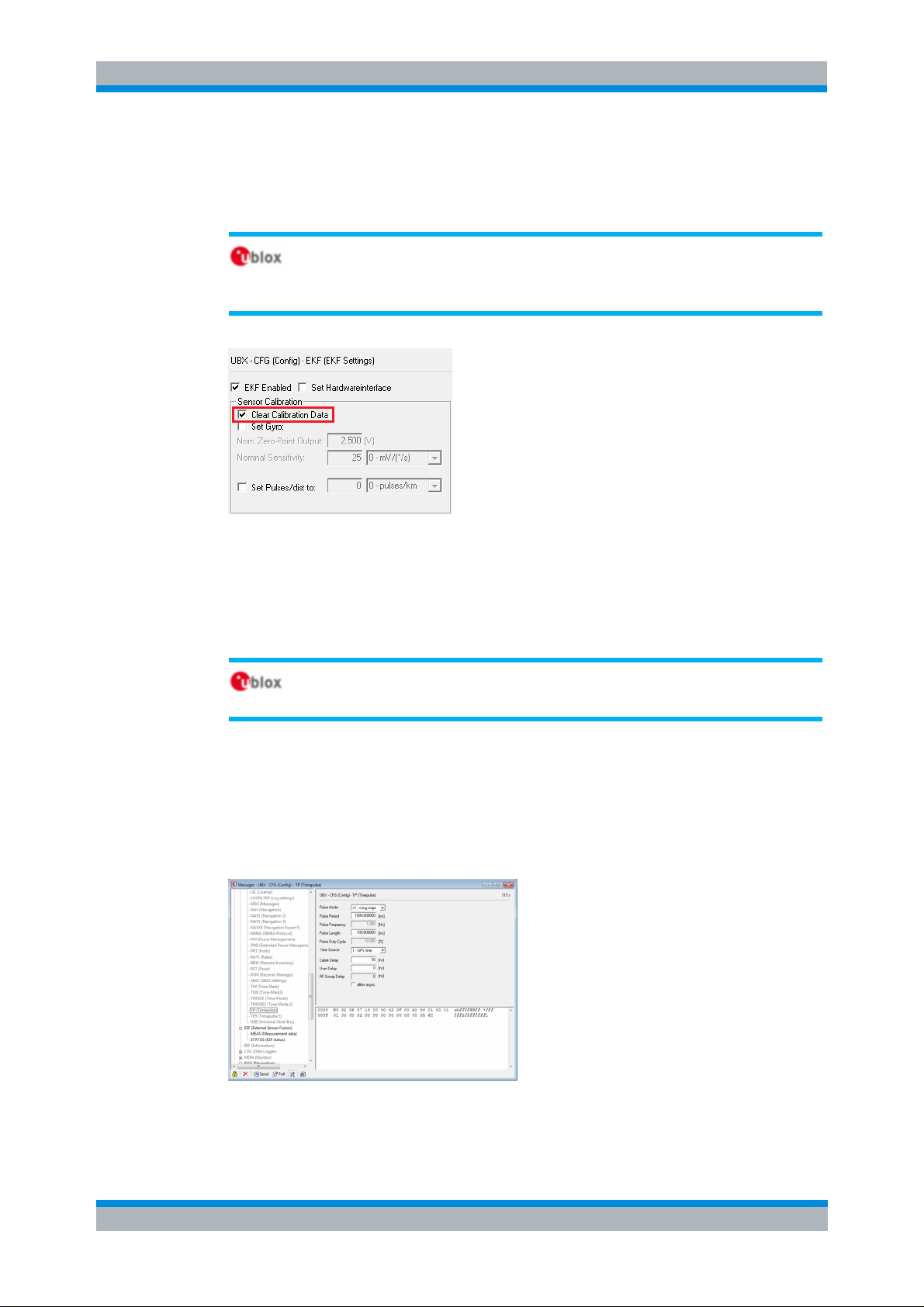

6.3.2 Resetting Sensor Calibration .......................................................................................................34
6.3.3 Time Pulse Settings .....................................................................................................................34
6.4 Message View .............................................................................................................................35

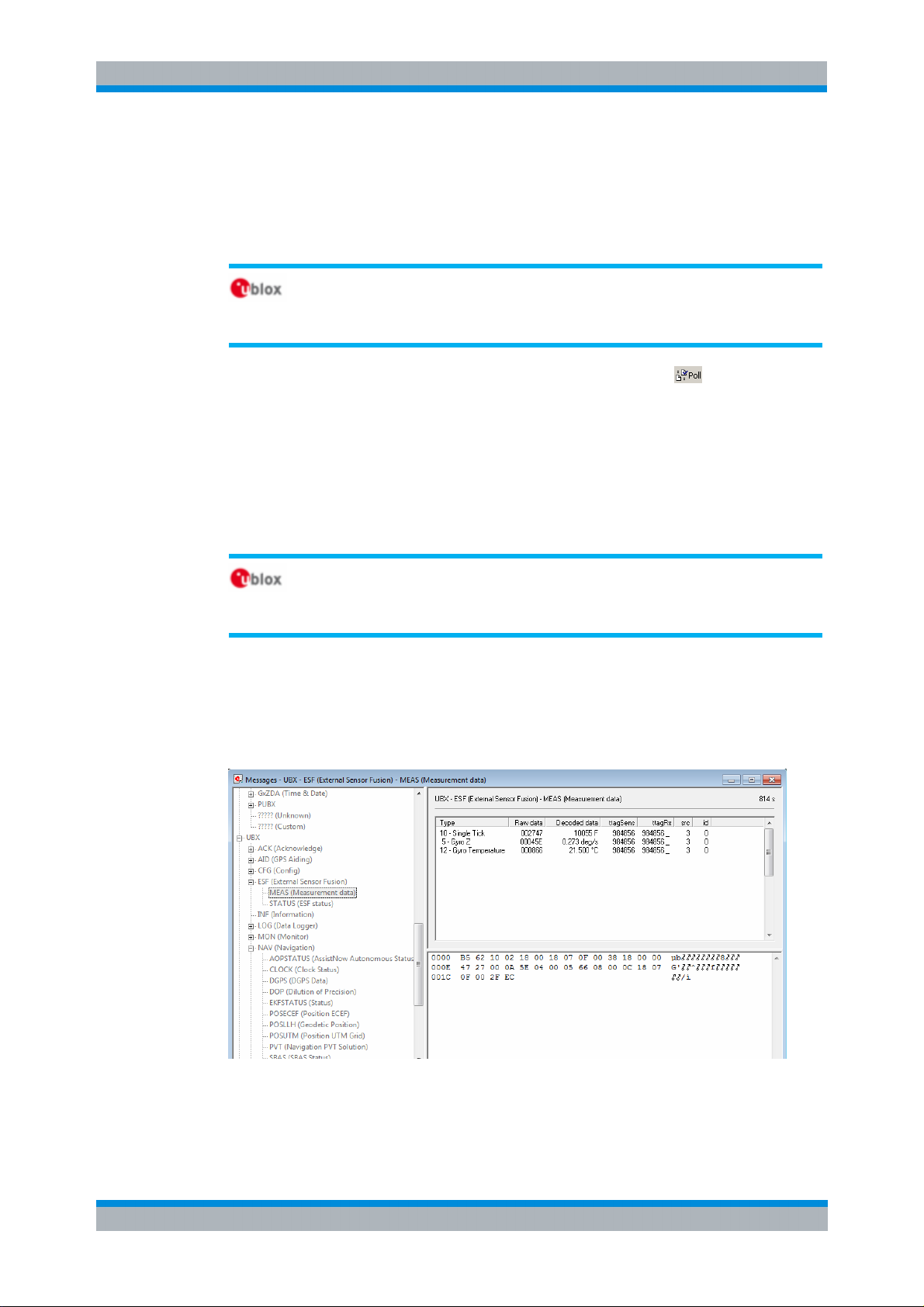

6.4.1 Sensor Measurement Data ..........................................................................................................35
6.4.2 ADR Calibration Status ................................................................................................................36
6.5 Saving User Configurations......................................................................................................36
6.6 Recover GPS Factory Settings .................................................................................................37
7 Default Settings.............................................................................................. 38
7.1 USB Port Settings ......................................................................................................................38
7.2 Time Pulse Settings ...................................................................................................................38
7.3 Protocol Settings........................................................................................................................39
7.4 ADR Sensor Settings .................................................................................................................39
Getting Started 1515.7236.02 - 02 2
Page 21
&S TSMX-PPS2 Table of Contents
R
8 Troubleshooting ............................................................................................. 40
8.1 Device does not power on.........................................................................................................40
8.2 Device not selectable in software.............................................................................................40
8.3 No GPS position fix ....................................................................................................................40
.4
8
N
8.5 ADR Calibration fails..................................................................................................................41
8.6 Checking extern sensor signals...............................................................................................42
o Time Pulse (PPS) ..................................................................................................................41
9 Accessory List................................................................................................ 43
10 References & Links ........................................................................................ 44
10.1 Rohde & Schwarz Internet Pages .............................................................................................44
10.2 u-blox Internet Pages.................................................................................................................44
Index ............................................................................................................45
Getting Started 1515.7236.02 - 02 3
Page 22
&S TSMX-PPS2 Table of Contents
R
List of abbreviations
ADR Automotive Dead Reckoning
DR Dead Reckoning
PPS Pulses per Second
Getting Started 1515.7236.02 - 02 4
Page 23
&S
SMX-PPS2 Welcome to the R&S TSMX-PPS2
R
T
1 Welcome to the R&S TSMX-PPS2

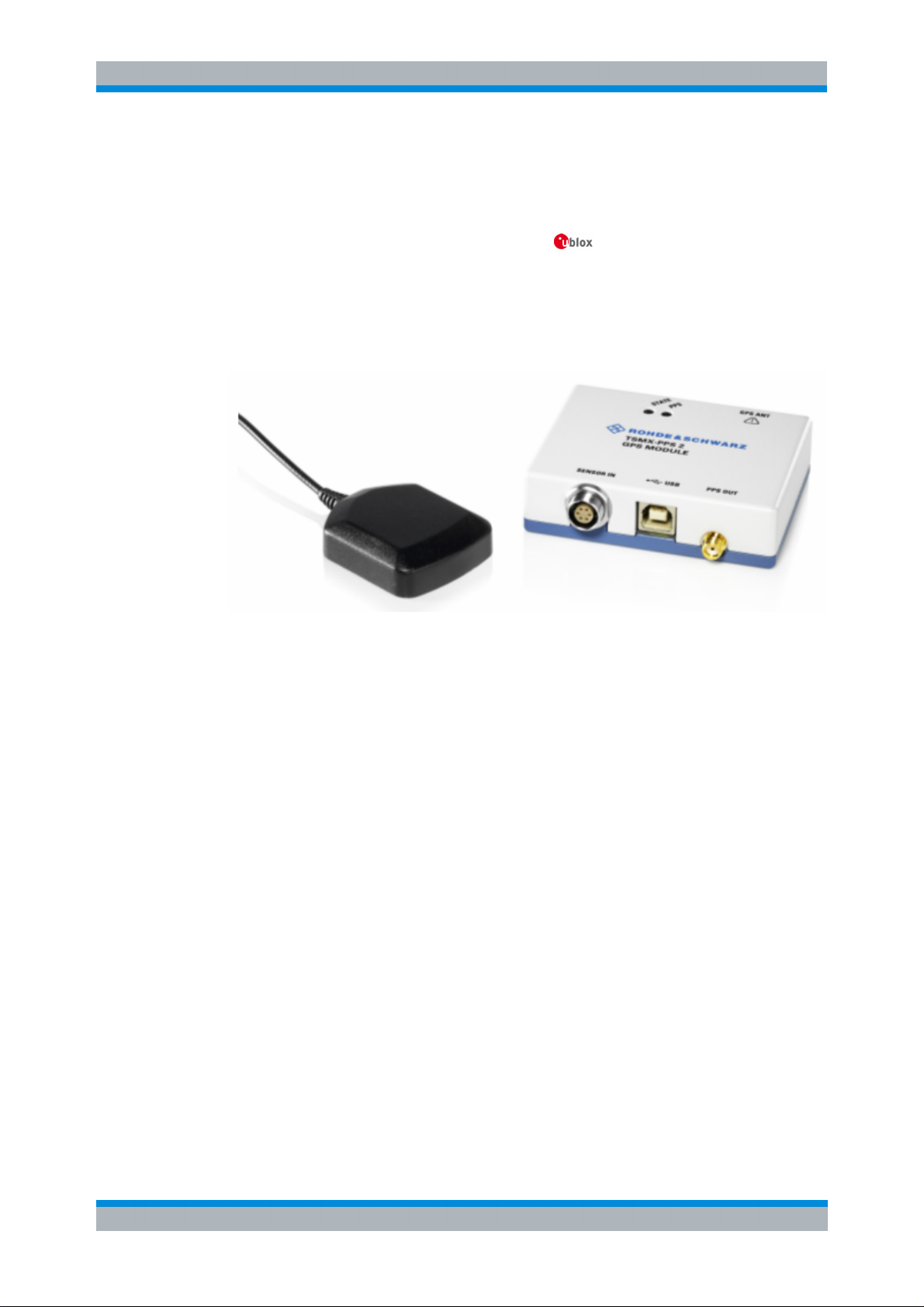

The R&S TSMX-PPS2 is a small, compact GPS receiver with high sensitivity and
precision time pulse output. It is based on a
“Automotive Dead Reckoning” (ADR) feature provides 100
tunnels.
It is especially designed for drive test systems based on R&S ROMES software in
combination with R&S radio network analyzers where continuous position tracking and
exact time synchronization of the utilized radio network analyzers is a requirement.
LEA 6 GPS chipset. The u-blox
% positioning even in
1.1 System Requirements
• PC with USB interface
• Operating System: Microsoft Windows 7, Windows XP
• USB driver / provided in the accessory CD-ROM
Getting Started 1515.7236.02 - 02 5
Page 24
&S
SMX-PPS2 Device Tour
R
T
2 Device Tour
This section gives an overview of the control elements and the connectors of the
R&S TSMX-PPS2. Each element/connector is briefly described and a reference is
given to the chapters containing detailed information.

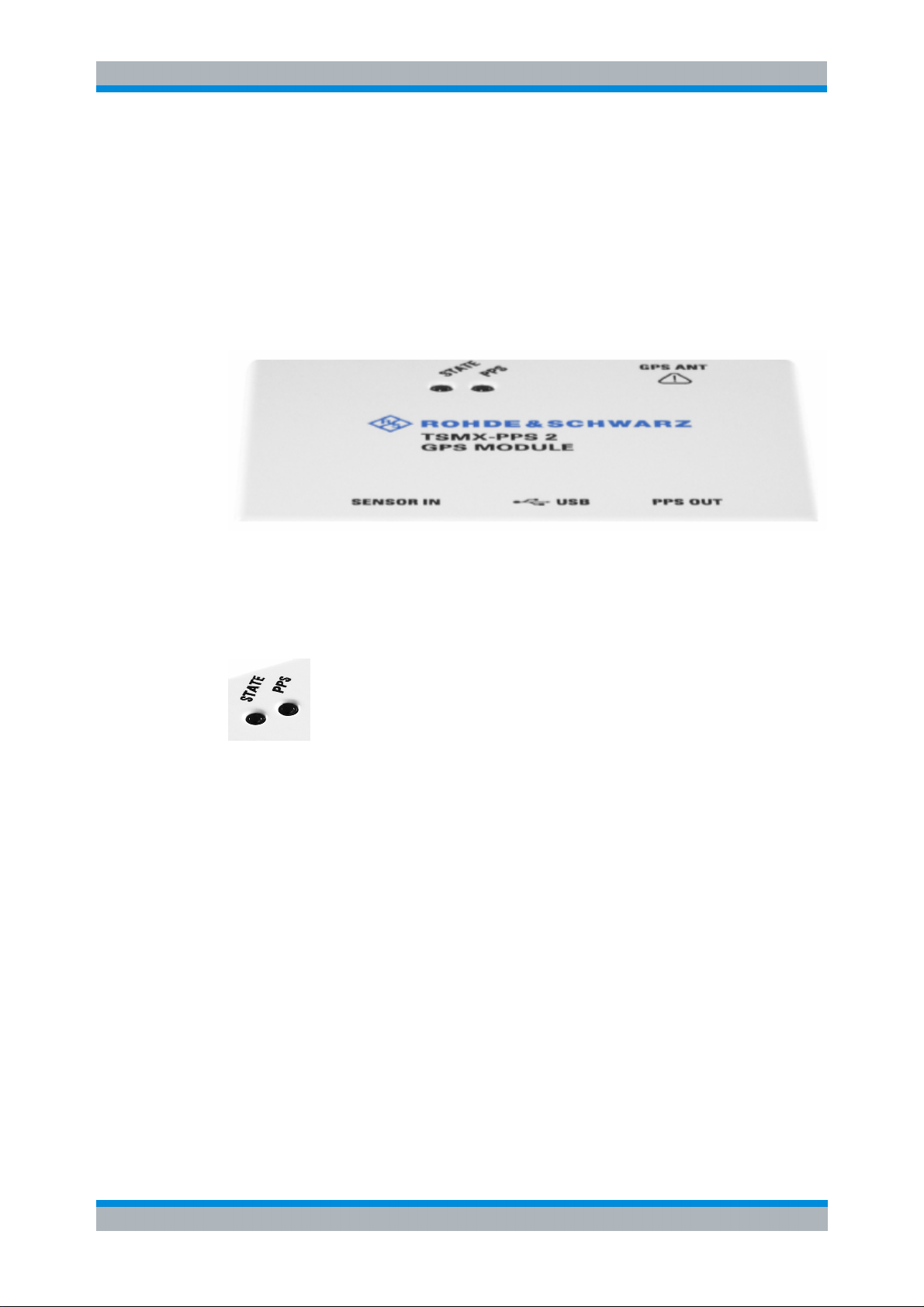

2.1 Top View - Status LEDs
Figure 2-1: Top panel view
1 "STATUS“ – LEDs
1 STATE
The STATE LED shows the power state of the
device.
C Green: device is powered from the USB port
C Yellow: device is in STB state
C Off: the device is un-powered
2 PPS
The PPS LED indicates the availability of the
precision time pulse signal on the PPS OUT
connector. It is also a quality indicator of the GPS
position fix.
C Green (blinking, 1 Hz): the GPS module is in
tracking mode and PPS pulse is output on the
PPS OUT connector
C Off: GPS module is not in Tracking Mode
resp. bad GPS health condition – no time
pulse signal on the PPS OUT connector is
available
Getting Started 1515.7236.02 - 02 6
Page 25
&S
SMX-PPS2 Device Tour
R
T

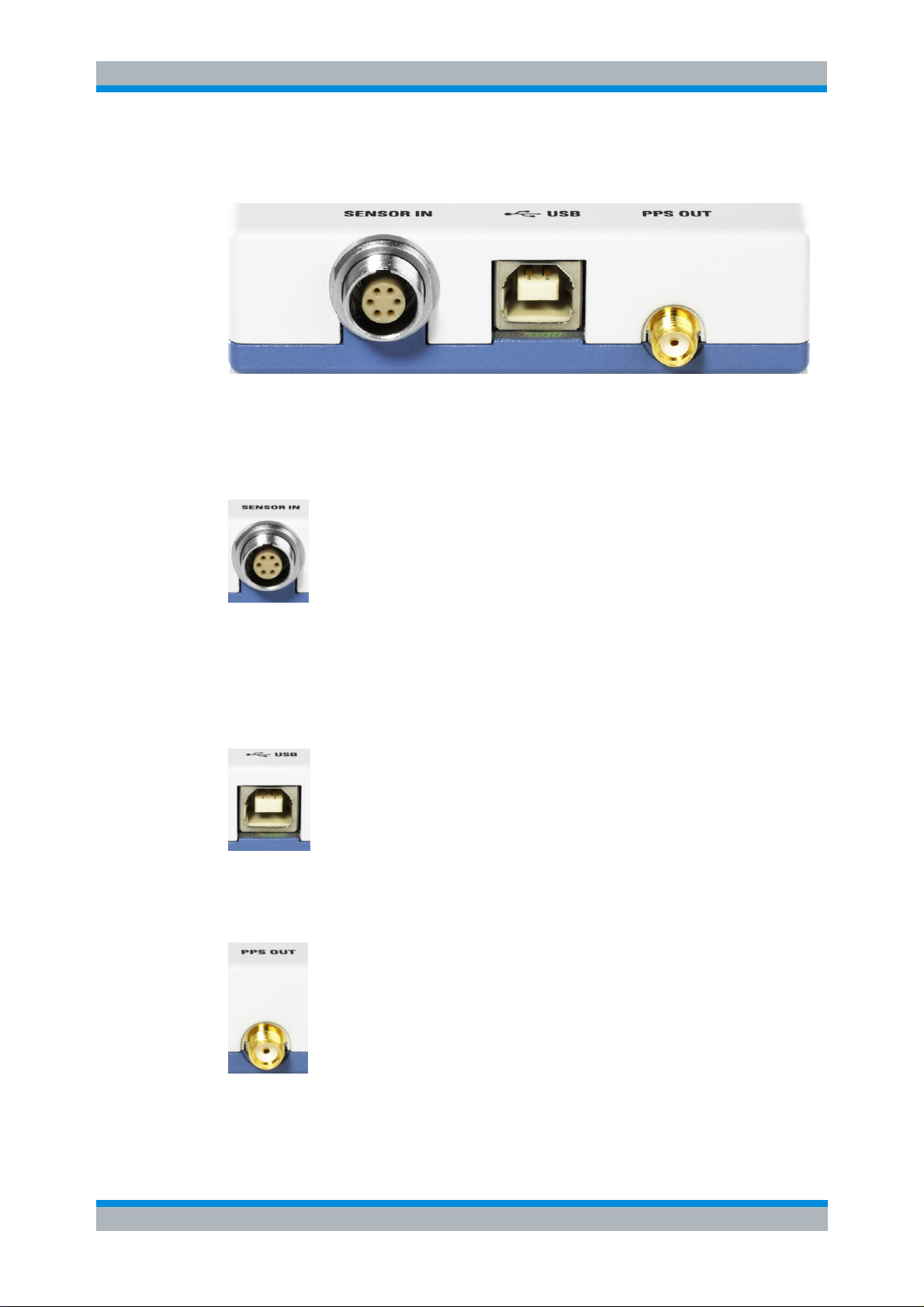

2.2 Connectors - 1
Figure 2-2: Front panel view
1 SENSOR IN
ODU MINI-SNAP connector, 6 pins
Sensor interface for vehicle speed and direction
signal (odometer). The supplied accessory sensor
cable is used to bring these signals into the
device. Sensor signals are only necessary if ADR
should be supported.
2 USB
USB connector Type B
The USB port serves as power supply and as bidirectional data interface. Position data and
device control data will be transferred via this
interface.
3 PPS OUT
SMA connector (female)
Output port for the precision time pulse signal.
Source Impedance: 100 R
Level: TTL / 3,3 V
Getting Started 1515.7236.02 - 02 7
Page 26
&S
SMX-PPS2 Device Tour
R
T
2.3 Connectors - 2

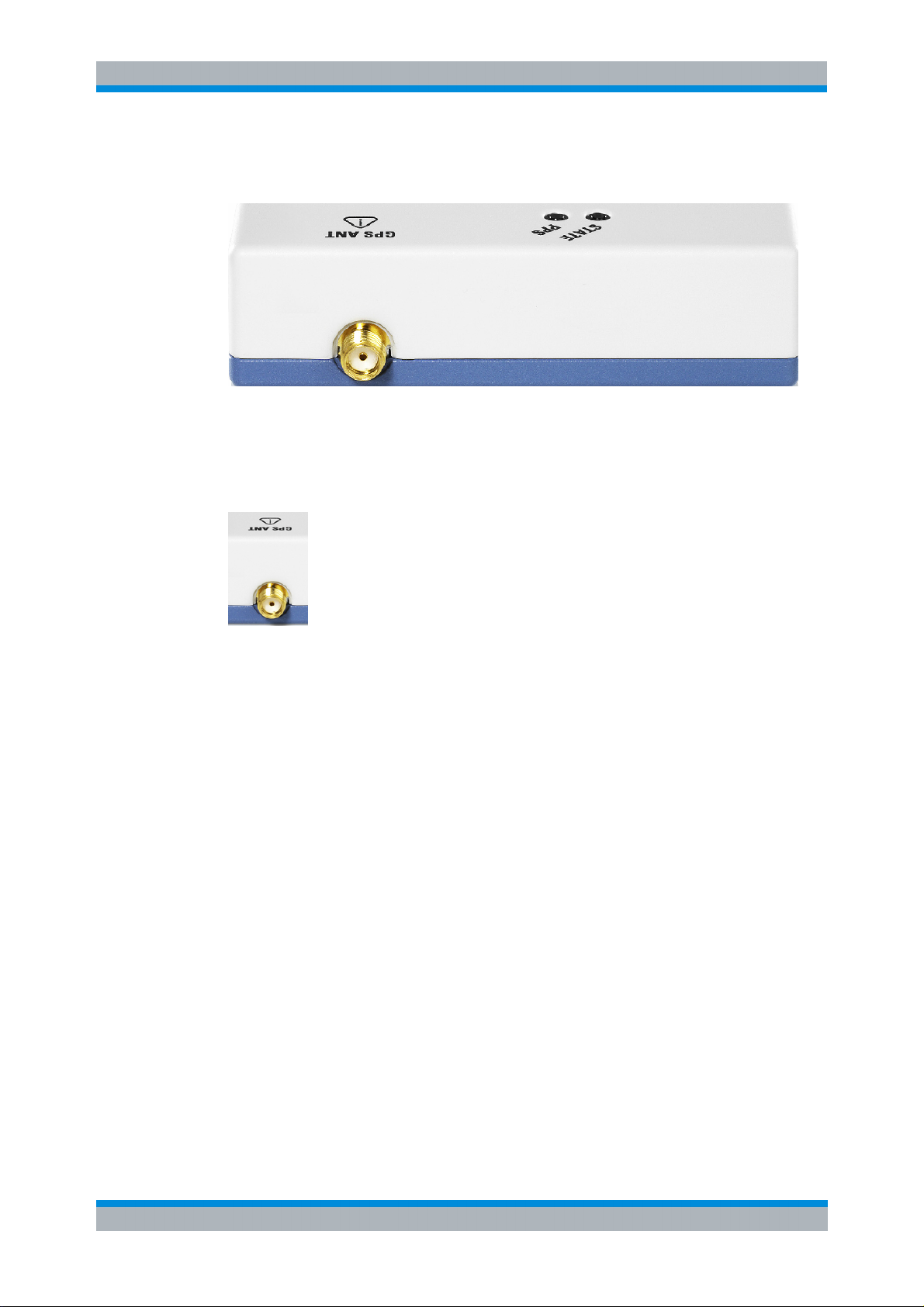

Figure 2-3: Rear panel view
1 GPS ANT
SMA connector (female)
Bi-directional GPS antenna port.
• Input: GPS antenna signal (GPS
antenna is part of the accessory
package) see section "Accessory List"
on page 42.
Impedance 50 F
Recommended GPS antenna characteristics
Noise figure: < 3 dB
Max antenna gain: 50 dB (minus cable
and interconnect losses)
Output: antenna bias voltage for active antennas.
The antenna bias voltage is fed through the inner
conductor.
Output voltage: 3.3 V
Max. Output Current: 50 mA
Getting Started 1515.7236.02 - 02 8
Page 27
&S
SMX-PPS2 System Configurations
R
T
3 System Configurations
3.1 Standard Navigation
The R&S TSMX-PPS2 is used for GPS navigation in this configuration. The time
synchronization output and the ADR feature are not used for this setup.
The active GPS antenna is connected to the antenna port. Data connection and power
supply are provided from the host PC via USB.
The preferred host PC application is R&S ROMES. This software is not part of this
package. For details about R&S ROMES software, please follow this link to the product
homepage: http://www.rohde-schwarz.com/product/ROMES.html.
For test, evaluation and backup is the evaluation software “u-center” from u-blox
included on the accompanying CD-ROM. But any other customer software capable of
handling NMEA and/or the proprietary UBX protocol could be used to control the
device and evaluate the GPS data.
Figure 3-1: System Configuration - Standard Navigation
Getting Started 1515.7236.02 - 02 9
Page 28
&S
SMX-PPS2 System Configurations
R
T
3.2 Time Synchronization
The R&S TSMX-PPS2 is used as a precision time reference in this configuration. The
precision time pulse signal (PPS OUT) from the device is used to synchronize the
R&S TSMU Radio Network Scanner family (see section "Navigation & Time
Synchronization" on page 11) but can also be used as a reference in customer specific
device setups.
In such a configuration the R&S TSMX-PPS2 is connected to the GPS antenna and
calculates continuously the GPS position. The accessory sync cable is used to bring
the trigger pulse from the PPS OUT port to the PULSE-IN connector of the R&S TSMU
respectively to the trigger in signal of the OEM device. The device is powered and
optionally controlled via USB.
Running PC software for R&S TSMX-PPS2 control is not mandatory in this mode as
far as the default settings are convenient for the application. As long as the
R&S TSMX-PPS2 can determine a GPS fix the precise PPS signal will be available.
Frequency, precision edge, pulse width and frequency could be altered and stored in
the device using u-center software (see section "Time Pulse Settings" on page 34).
Figure 3-2: System Configuration – Time Synchronization
Getting Started 1515.7236.02 - 02 10
Page 29
&S
SMX-PPS2 System Configurations
R
T
3.3 Navigation & Time Synchronization
The R&S TSMX-PPS2 is used for navigation and time synchronization in this
configuration.
The connections for this setup are shown in Figure 3-3.
This setup represents the basic mode of operation for the R&S TSMX-PPS2.
The active GPS antenna is connected to the antenna input. The USB port is used for
navigation data and device configuration. This port is controlled by R&S ROMES
software.
Figure 3-3: System Configuration – GPS Navigation & Time Synchronization
Getting Started 1515.7236.02 - 02 11
Page 30
&S
SMX-PPS2 System Configurations
R
T
3.4 ADR Navigation
The Automotive Dead Reckoning feature (ADR) of the R&S TSMX-PPS2 provides
100 % navigation coverage even in tunnels or building canyons with bad or missing
GPS coverage. ADR combines the calculated GPS position data with heading and
distance data from additional sensors. When GPS satellites are out of sight, the last
valid position is extrapolated using distance and angle information from a gyroscope
and a speed/direction pulse input.
It is also possible to use the time synchronization output in this mode.
The gyroscope for heading information is already embedded in the R&S TSMX-PPS2.
The distance signal and the direction information need to be derived from the vehicle
tachometer pulses and direction indication and fed via the accessory sensor cable into
the SENSOR IN port. Power supply and data connection are provided via the USB
cable.
Figure 3-4: TSMX-PPS2 Operating Mode – Automotive Dead Reckoning
Getting Started 1515.7236.02 - 02 12
Page 31
&S
SMX-PPS2 Getting Started
R
T
4 Getting Started
This section explains how to bring the R&S TSMX-PPS2 device into operation and
shows the different mode of operations. It encloses connecting the device with the host
PC.
It does not contain installation of application software, e.g. R&S ROMES software.
Please refer to the related software manuals.
4.1 Unpacking and Checking
To remove the device from its packaging and check the equipment for completeness,
proceed as follows:
• Remove the device and the various components from their packaging.
• Check the equipment for completeness using the delivery note and the "Accessory
List" for the various items.
• Check the device for any damage. If there is damage, immediately contact the
carrier who delivered the device. Make sure not to discard the box and packing
material.
Packing material
Retain the original packing material. If the device needs to be transported or
shipped at a later date, you can use the material to prevent control elements
and connectors from being damaged.
Getting Started 1515.7236.02 - 02 13
Page 32
&S
SMX-PPS2 Getting Started
R
T
4.2 Preparations
The accessory re-closable Dual Lock Fastener®3M strip should be used for attaching
the device. This strip has to be cut to fit along the bottom side of the housing as shown
in Figure 4-1. The counterpart of the Dual Lock Fastener®3M should be cut to have
similar length.
TM
Prior to applying 3M
with warm water and dishwashing liquid. A 50:50 mixture of isopropyl alcohol (IPA) and
water may also be used.
• To obtain optimum adhesion the bonding surface must be well unified, clean and
dry.
• Remove the backing plastic from the Dual Lock Fastener®3M without touching the
adhesive strip. Align the tape to the desired position at the bottom side of the
device and apply pressure to the tape. Firm application pressure develops better
bond strength.
Dual Lock TM the bottom cover of the device should be cleaned
• Turn the R&S TSMX-PPS with the Dual Lock Fastener®3M facing upwards.
• Align the remaining strip and press both sides together unit you hear an audible
snap but don’t remove the backing plastic. The unit is now ready to be placed in
the vehicle according to the recommendations in the following section.
Figure 4-1: Dual Lock Re-closable Fastener
Getting Started 1515.7236.02 - 02 14
Page 33
&S
SMX-PPS2 Getting Started
R
T
4.3 Placing Hardware
4.3.1 Placing the R&S TSMX-PPS2
Standard Navigation (without ADR): No strict mounting recommendations. The
device could be positioned anywhere and in any direction (horizontally or vertically)
inside the vehicle or the trunk.
ADR Navigation: Calculations for ADR are based on quite sensitive and three
dimensional acceleration values. For that reason a strict horizontal mounting position
(with printed, brighter chassis side up) which is fastened tightly with the vehicle chassis
is absolutely important
Consider Mounting Requirements for ADR Navigation
Proper mounting position and tight connection with the vehicle chassis is
absolutely necessary when operating the R&S TSMX-PPS2 in “Automotive
Dead Reckoning” mode.
• Clean and dry the surface of the mounting position inside the vehicle in a similar
way as done for bonding the Dual Lock Fastener®3M on the device.
• Remove the protection plastics and press the R&S TSMX-PPS firmly against to
proper mounting position.
• Allow Dual Lock adhesive to cure for ten hours.
4.3.2 Positioning the Antenna
A magnetic mount antenna is part of the delivery. The antenna should be placed on a
metallic part of the vehicle chassis with free line of sight to the sky.
Without ADR: For optimum performance, the antenna should be placed in the middle
of the vehicle roof or trunk.
ADR Support: For an optimum ADR performance the placement of the antenna is
important and depends on the type of vehicle. Please follow these recommendations:
• Road Vehicle
Antenna: should be placed above the middle of the
TSMx-PSS2: should be placed in the front or middle part of
the vehicle
rear (not steered) wheels.
Getting Started 1515.7236.02 - 02 15
Page 34
&S
SMX-PPS2 Getting Started
R
T
• Articulated Road Vehicle
Antenna: should be placed above the middle of the
rear (not steered) wheels of the anterior part
of the vehicle.
TSMx-PPS2: should be placed in the front or middle part of
the anterior part of the vehicle.
• Rail Vehicle
Antenna: should be placed in the middle of a wagon.
TSMx-PPS2: should be placed in the front or middle part of
the same wagon.
Getting Started 1515.7236.02 - 02 16
Page 35
&S
SMX-PPS2 Getting Started
R
T
4.4 Installing Software / Device Driver
Next step after having positioned the R&S TSMX-PPS2 inside the vehicle is to install
the control software on the host PC side.
This has to be done prior to first connecting the R&S TSMX-PPS2 with a PC.
epending on the target software used (ROMES, u-Center etc.) the Windows device
D
driver for the u-blox LEA-6R chipset has to be installed in addition.
Hint
R&S TSMX-PPS2 requires u-blox device driver to be installed prior to first
connection via USB cable.
Please follow the guidelines in this section.
4.4.1 R&S ROMES
The R&S ROMES software is not part of the R&S TSMX-PPS2 delivery.
Please refer to section "Rohde & Schwarz Internet Pages" on page 44 for a link to the
related product homepage or contact your local R&S representative.
Hint
The ROMES setup is not part of this package and needs to be installed
separately.
For users with an existing ROMES installation:
The u-blox device driver installation is not part of the integral ROMES setup and need
to be executed separately from the R&S ROMES DVD.
To get sure having installed the necessary Windows driver Rohde & Schwarz
recommend to install the driver from the accompanying R&S TSMX-PPS2 CD-ROM
(see next paragraph for instructions).
For all other users:
The device driver for Windows XP, Vista, 7, 8 can be found on the accompanying CDROM in the folder: \Software\Drivers\
For installation run the executable file: ublox_A4_U5_USB_drvxxyy_install_UI.exe
For release notes and to download of the latest device driver version also visit the ucenter website. Please refer to section "u-blox Internet Pages" on page 44 for the link.
Getting Started 1515.7236.02 - 02 17
Page 36
&S
SMX-PPS2 Getting Started
R
T
4.4.2 u-center Evaluation
The u-Center setup is part of the accessory CD-ROM:
..\software\Applications\
The Windows device driver installation is part of the u-Center setup. So no dedicated
evice driver installation is necessary when using u-Center software.
d
For a link to the u-center website for release notes and news refer to section "u-blox
Internet Pages" on page 44.
For instructions how to control the R&S TSMX-PPS2 via u-Center software, please
refer to section "u-blox Internet Pages" on page 44.
4.4.3 Microsoft Windows 7 USB Sensor/VCP Driver
The windows 7 operating system provides built-in support for sensor devices including
location sensors, such as the R&S TSMX-PPS2 devices. This driver model is currently
not supported by R&S ROMES software but may be used for an OEM integration of
this GPS receiver.
For installation run the executable file: please refer to section "u-blox Internet Pages"
on page 44.
For a link to the u-blox senor driver please refer to section "u-blox Internet Pages" on
page 44.
Getting Started 1515.7236.02 - 02 18
Page 37
&S
SMX-PPS2 Getting Started
R
T
4.5 Connecting Cables
Consider order of connection
When connecting the external cables it is strongly recommended to proceed
in the same order as listed in the following section.
Interchanging the order could end in unexpected system behavior and in
longer start times for a valid GPS position fix.
4.5.1 GPS antenna / GPS ANT
Connect the accessory active GPS antenna to the GPS ANT port.
Antenna connection only in un-powered mode
Connect the GPS antenna before powering the device via USB.
As the R&S TSMX-PPS2 calibrates the noise floor of the RF antenna at
power on delayed connection may result in a prolonged GPS acquisition time.
The R&S TSMX-PPS2 is designed for both active and passive antennas. This port
provides an open circuit and short cut protection.
Due to better navigation performance, R&S generally recommends to use active
antennas, especially the antenna shipped with the product.
For details on the accessory antenna characteristics, please refer to the u-blox
datasheet for the ANN-MS antenna. Link to website in section "u-blox Internet Pages".
R&S recommends the following antenna characteristics for customers using their own
antenna:
• Frequency: 1575 ±3 MHz
• Bandwidth: min. 10 MHz
• Polarization: RHCP
• Min Supply Voltage: O 3.0 V
• Max current: 50 mA
• Impedance: 50 F
• Min Noise figure: 1.5 dB
• min VSWR: 2
• Min. Gain: 15 dB
• Max. gain: 50 dB (minus cable and interconnect losses)
Getting Started 1515.7236.02 - 02 19
Page 38
&S
SMX-PPS2 Getting Started
R
T
4.5.2 Sensor cable / SENSOR IN
Sensor Signals for ADR (Automotive Dead Reckoning)
onnecting the sensor cable and providing the vehicle signals is mandatory
C
for the ADR feature.
Operating the R&S TSMX-PPS2 in standard navigation mode should leave
this port unconnected.
The sensor cable is part of the delivery. The plug has to be connected with the
SENSOR IN port of the R&S TSMX-PPS2. The opposite side needs to be wired with
the speed pulse and direction signal of the vehicle.
The sensor input at the R&S TSMX-PPS2 is electrically isolated via optical coupler.
Figure 4-2 Sensor Cable
Figure 4-3 Frontal view on the pins of the Sensor
Cable connector
Lead Color Signal Description Pin
Black SPEED+ 1
Brown SPEED- 2
Red DIR+ 3
Orange DIR- 4
- Device Detection / GND 5
- GND 6
Figure 4-4 Pin out Sensor Cable
Getting Started 1515.7236.02 - 02 20
Page 39
&S
SMX-PPS2 Getting Started
R
T
4.5.2.1 Speed Pulse Signal
This signal is mandatory for using the ADR function. The signal should fulfill the
following recommendations:
• signal level range for high level: 3.5 V < Level < 15 V
• input frequency range: 0 Hz < Frequency < 2 kHz
• 0 Hz of the speed signal must be equal to a speed of 0 km/h
• speed signal should origin from the rear (not steered) wheel
The speed signal is normally available in the radio slot of the vehicle.
4.5.2.2 Direction Signal
The direction signal is optional and only improves the results of the DR algorithm. As
the forward/backward direction signal is not available in all vehicles, try to make use of
the reverse gear light signal.
• Valid Signal Level Range for high level: 3.5 V < Level < 15 V
• Level > 3,5 V -> backward direction
4.5.3 Sync Cable
• The Sync Cable (SMA -> BNC) is part of the delivery (see "Accessory
List").
The precision time pulse is available on the PPS port and used for synchronizing
external measurement equipment with the GPS time.
This port is normally connected to the trigger input of the R&S TSMU scanner (see
Figure 3-2). If not used this port may be left open.
The time delay for the time pulse strongly depends on the connected load capacity on
the PPS port and this is application specific. For synchronizing R&S TSMU radio
network scanners this does not harm as only the relative relationship of the pulses is
important.
Users with an absolute requirement for the pulse signal are able to configure a
dedicated time shift using u-center software (see section "Time Pulse Settings").
Load capacity Typical delay (approximately)
15 pF 0.6 – 3.7 ns
30 pF or 50 pF 1 – 4.5 ns
Table 4-1: Typical delay of the PPS OUT pulse
Getting Started 1515.7236.02 - 02 21
Page 40
&S
SMX-PPS2 Getting Started
R
T
4.6 Powering On / Loading USB Driver
The R&S TSMX-PPS2 has no dedicated On/Off Switch and automatically changes into
“Power On” state when connected to the USB port. The green “STATE” LED is on
when powered (see section "Top View - Status LEDs").
indows will identify the R&S TSMX-PPS2 as a new device and load the pre-installed
W
device driver. Please refer to section "Installing Software / Device Drive" how to install
the USB driver.
After enumeration “u-blox 6 GPS Receiver” device is listed in the Windows device
manager (see Figure 4-5). Please notice the assigned COM port number. This
information will be needed in the next step when connecting software to the
R&S TSMX-PPS2 (see section "Connecting Device" on page 23).
Figure 4-5: Device Entry in the Windows Device Manager
Getting Started 1515.7236.02 - 02 22
Page 41
&S
SMX-PPS2 Starting Operation
R
T
5 Starting Operation
5.1 Connecting Device
The R&S TSMX-PPS2 device is ready to be addressed via software as soon as the
device driver is listed in the Windows device driver (see section "Installing Software /
Device Driver" on page 17).

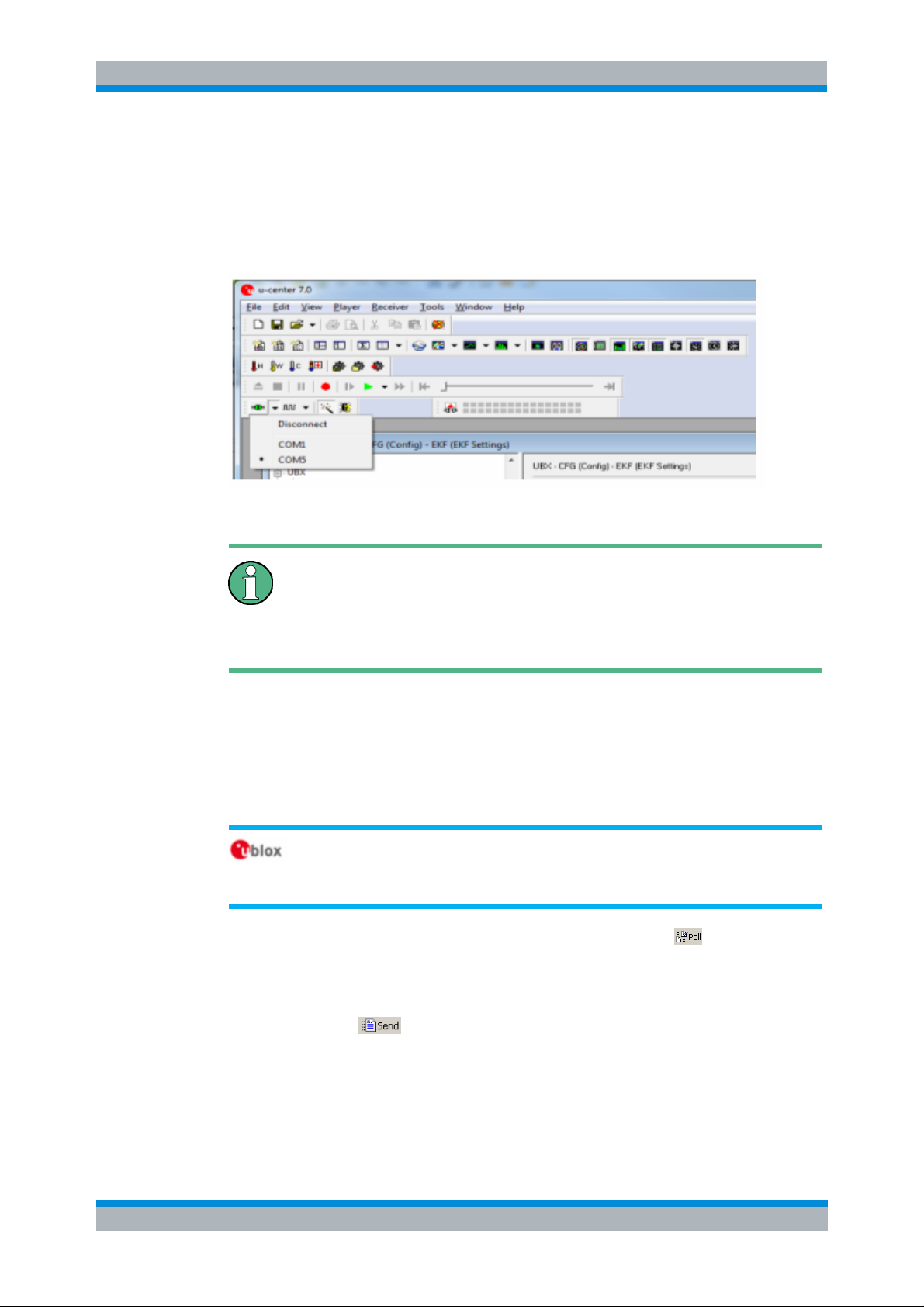

The device could be connected to software using its assigned virtual COM port. For
default protocols and settings of the emulated COM port refer to section "USB Port
Settings" on page 38. Please refer to the related software documentation how to setup
and perform measurements with the R&S TSMX-PPS2 device.
R&S ROMES Software: see section "Rohde & Schwarz Internet Pages"
for a product link
u-center software: see section "Connecting R&S TSMX-PPS2"
Getting Started 1515.7236.02 - 02 23
Page 42
&S
SMX-PPS2 Starting Operation
R
T
5.2 Initial Position Fix
The device automatically starts calculating for an initial GPS position fix. In GPS
receivers one generally distinguishes between different start up modes. This depends
on the available GPS information in the receiver at start up.
he following table gives an overview:
T
Start Up Mode Pre-Condition Remarks
Cold Start Un-powered for
more than ~ 3
hours
Hot Start Disconnected
from USB power
< 3 hours
Table 5-1: Modes of Position Fix in R&S TSMX-PPS2
)
1
TTFF: Time to First Fix (good GPS signal)
- No information of satellite
position (almanac/ephemeredes)
- No sensor calibration data
- satellite ephemeredes available
- sensor calibration data available
ADR
Calibration
yes < 32
no < 3
TTFF
[sec]
1)
A valid GPS position fix with the transition into “Navigation State” is indicated by the
amber PPS LED starting blinking (see section "Top View - Status LEDs" on page 6).
ADR Navigation
R&S strongly recommends not moving the vehicle until a valid 2D/3D position
fix had been reported from the R&S TSMX-PPS2 when using ADR.
Moving the vehicle earlier could last in inadequate sensor calibration and
position localization errors.
The blinking frequency of the PPS LED is equivalent to the configured time pulse
frequency setting (see section "Time Pulse Settings" on page 38). The precision time
pulse is being output as soon as PPS LED starts blinking.
Proper Antenna Position
The GPS antenna must have a good line of sight to the sky to enter
“Navigation State” immediately.
Getting Started 1515.7236.02 - 02 24
Page 43
&S
SMX-PPS2 Starting Operation
R
T
5.3 ADR Calibration
Attention
his section is important for operating the R&S TSMX-PPS2 in ADR mode
T
with connected vehicle sensor signals (see section "ADR Navigation" on
page 12).
Users running the R&S TSMX-PPS2 in standard navigation mode or time
sync mode could skip this section and proceed to section "Navigation Mode"
on page 29.
5.3.1 General
For optimum ADR performance the system needs to learn from the internal sensors
(gyro & temperature) as well as from the provided vehicle signals (speed & direction).
The calibration process is initiated at the beginning of each drive as long as no
calibration data set is available from a previous drive (see Cold Start in section "Initial
Position Fix"). The calibration data set is kept in the volatile part of the memory and this
is provided with a battery backup that lasts for roughly about for three hours. So any
time the R&S TSMX-PPS is disconnected from power and this time period is expired
the device will re-calibrate.
For the time the R&S TSMX-PPS2 executes sensor calibration it is in GPS-only mode
and already provides navigation data. When calibration is finished to a certain degree it
switches into combined mode and combines Dead Reckoning (DR) calculations and
GPS and changes into “GPS + DR”.
As the calibrations are based on real position data a good GPS reception is necessary.
Requirements for ADR calibration phase
• ADR calibration process requires good GPS position fix
• The calibration should only be executed when driving forwards
Getting Started 1515.7236.02 - 02 25
Page 44
&S
SMX-PPS2 Starting Operation
R
T
The following parameters are being measured when calibrating:
• Sensitivity and zero point output of the internal Gyro
• Temperature drift of the Gyro
• Pulse ratio of the vehicle wheel ticks
The course calibration of the gyro and the resolution of the vehicle wheel ticks need to
be executed when doing sensor calibration.
The fine calibration of the sensor signals is an ongoing process for the whole drive.
For details please refer to the following sections and to the corresponding u-blox
documentation for the LEA-6R chipset. To get a link, please refer to section "u-blox
Internet Pages".
Validity of Calibration Data
As the R&S TSMX-PPS2 is only equipped with a short time back-up buffer for this
memory (backup time ~ 3 hours).
For that reason the device will run a new calibration every time the USB power was
disconnected for longer than this period. Calibration of the senor data will be kept.
5.3.2 Providing Vehicle Sensors Data
Even better the device knows to interpret the measurement data of the used sensors,
the more precise and quicker is the calibration process. The sensitivity and offset of the
embedded gyro is already programmed at factory for that purpose.
To speed up ADR calibration and to achieve proper function the system needs to know
the parameters of the external vehicle sensors.
a) Polarity of the direction signal
This setting is mandatory and important when the sensor cable is connected.
Default setting: “1 – High=Backward”
Direction Signal Polarity
ADR positioning will not work or is incorrect if the polarity setting is erroneous.
b) Resolution of the speed pulses
Setting optional but could speed up calibration process. System is able to calculate
resolution based on the driven GPS distance.
How to enter senor data:
ROMES: The sensor data is normally needed to be provided when loading
R&S TSMX-PPS2 driver. Please refer to the related ROMES documentation.
u-center: Please refer to section "Verifying ADR Settings" on page 33 how the enter.
Getting Started 1515.7236.02 - 02 26
Page 45
&S
SMX-PPS2 Starting Operation
R
T
5.3.3 Monitoring Calibration Status
The current state of the ADR calibration will be continuously reported from
R&S ROMES software. Please refer to the R&S ROMES manual for details.
For requesting the status of the ADR calibration, please refer to section "ADR
Calibration Status" on page 36.
There are different steps for calibration
• No calibration
• not yet calibrated (Calibrating)
• coarsely calibrated (Coarse Calib)
• finely calibrated (Fine Calib)
Minimal calibration state for ADR
A sufficient ADR performance can be expected when at least coarse
calibration has been achieved.
Fine calibration isn’t mandatory for ADR assistance.
If the calibration status reaches “Fine Calibration” the user can expect very good
ADR functionality and the device will use this feature to improve the accuracy
respectively to bridge short times with poor or missing GPS reception.
How to see if ADR works properly?
ROMES: the ADR state will be reported in the GPS status view (see R&S ROMES
documentation for details).
u-Center: whether ADR is used is displayed in the “Data View” of the u-center
software
Figure 5-1: GPS status overview
If calibration does not start measurement see troubleshooting section "ADR Calibration
fails" on page 41.
Getting Started 1515.7236.02 - 02 27
Page 46
&S
SMX-PPS2 Starting Operation
R
T
5.3.4 Deleting Calibration Data
A delete of the sensor calibration data is necessary under the following circumstances:
• when changing the measurement vehicle
• when exchanging vehicle sensors
• when the GPS provides insufficient localization data especially after tunnels or
in situations with bad GPS coverage
R&S ROMES software will offer a dedicated action menu in the R&S TSMX-PPS2
software driver for deleting this data. Please refer to the R&S ROMES documentation
how to initiate this.
For u-center software please refer to section "Resetting Sensor Calibration" on
page 34.
Getting Started 1515.7236.02 - 02 28
Page 47
&S
SMX-PPS2 Starting Operation
R
T
5.4 Navigation Mode
The GPS module automatically enters navigation mode as soon as it determined the
GPS position fix. Depending of the mode of operation (ADR or Standard Navigation)
the GPS will be assisted from dead reckoning data when calibration is finished (see
section "Monitoring Calibration Status" on page 27).
Following a list of the different navigation modes:
Navigation Mode Remarks
No Fix No position fix
2D Fix Two-dimensional fix / at least 3 satellites
3D Fix Three-dimensional fix / at least 4 satellites
DR Dead Reckoning
DGPS Differential GNSS
Figure 5-2: Modes of navigation
5.5 Powering Off
There is no dedicated switch to power off the R&S TSMX-PPS2. The device is turned
off by removing the USB cable. The GPS almanac data and sensor calibration data is
kept for a certain amount of time when disconnected from USB.
Caution:
Make sure that you have disconnected from any software application
interfacing the R&S TSMX-PPS2 device before removing the USB cable.
There is no “Stand-By” or “Power Safe” mode implemented for the R&S TSMX-PPS2.
Getting Started 1515.7236.02 - 02 29
Page 48
&S
SMX-PPS2 Using u-center Software
R
T
6 Using u-center Software
The u-center software is part of the delivery. Please refer to section
“..\software\Applications\” on the accompanying CD-ROM for the setup und the user
guide or visit the u-blox website (see section "u-blox Internet Pages" on page 44).
This software can be used for test, evaluation and maintenance of the R&S TSMXPPS2.
Using R&S ROMES Software
Generally, there is no requirement to use u-center software for device
configuration when using R&S ROMES software. The R&S TSMX-PPS2 will
be fully supported and configured via R&S ROMES software.
This free of charge demo software from u-blox gives the user the possibility to evaluate
the various features of this GPS receiver. Additionally, it gives the user the possibility
to change and store receiver settings permanently.
Attention
Using u-Center software enables the user to change receiver settings
permanently.
This may lead to un-predictable behavior and incompatibilities with
R&S ROMES software. Under such conditions the R&S TSMX-PPS2 may be
brought back to factory settings unless it may be used with R&S software
again
For this software is used to bring the R&S TSMX-PPS2 back into factory default
configuration. For a detailed description how to restore factory setting (see section
"Recover GPS Factory Settings" on page 37).
Getting Started 1515.7236.02 - 02 30
Page 49
&S
SMX-PPS2 Using u-center Software
R
T
6.1 Setting Preferences
Some preferences of u-center software need to be adapted in order to get full access
und functionality of the ADR configuration and replay control of exported R&S TSMXPPS2 data. For this reason, please open the preferences in the tools menu and enter
the settings in the following subsections.
u-center:
Tools Preferences Program Options: -sfdr –cdk
6.1.1 Program Options
In order to get full ADR access:
Program Options: -sfdr –cdk
Figure 6-1: u-center preferences
6.1.2 Database
If u-center software is used to export stored data to Google Earth the maximum
number of epochs should be set to a sufficient time value (see Figure 6-1).
If this time value is too small, the export of position data to Google Earth is limited in
time and may not display all data.
This value could be changed when data recording is stopped but before export of data.
Getting Started 1515.7236.02 - 02 31
Page 50
&S
SMX-PPS2 Using u-center Software
R
T
6.2 Connecting R&S TSMX-PPS2
If the R&S TSMX-PPS2 is powered and the device driver loaded in Windows (see
section "Powering On / Loading USB Driver" on page 22) it could be connected in u-
center software by selecting the emulated COM port.
Figure 6-2: Connect to the R&S TSMX-PPS2 in u-center
Close other software applications when using u-center
The R&S TSMX-PPS2 software interface does not allows any other software
application to interface the device at the same time.
So, be sure having closed possible connections in R&S ROMES software or
any other software application when connecting to u-center.
6.3 Configuration View
The “Configuration Message View” could be used to change the configuration for the
R&S TSMX-PPS2.
u-center:
Select menu “View” Configuration View Displays the list of
configuration messages…
Select the UBX message of interest in this view and press the button to retrieve
the current configuration.
For changing any setting select the corresponding UBX message and adapt the
parameters in the message window. The new parameters will be sent to the receiver
when pressing the
button.
The following sections list some of the important configuration commands for
R&S TSMX-PPS2.
Getting Started 1515.7236.02 - 02 32
Page 51
&S
SMX-PPS2 Using u-center Software
R
T
6.3.1 Verifying ADR Settings
Select “EKF” message in “Configuration View”
u-center:
Select menu “View” Configuration View EKF Settings
1) Gyro
Keep the default setting (see section "ADR Sensor Settings" on page 39).
2) Temperature
Keep the default setting (see section "ADR Sensor Settings" on page 39).
3) Pulses
The pulse ratio of the connected wheel sensor could be entered here. But this
value will be calculated during calibration.
4) Direction Pulse
Change the polarity of direction signal if necessary.
Figure 6-3: UBX Configuration Message “EKF”- Sensor Settings
For changing any parameter select the corresponding “Set” tick to enter the new value.
The new parameters will be sent to the receiver when pressing the
button.
To keep settings after re-powering the device, it is necessary to safe the configuration
in the flash (see section "Saving User Configurations" on page 36).
Getting Started 1515.7236.02 - 02 33
Page 52
&S
SMX-PPS2 Using u-center Software
R
T
6.3.2 Resetting Sensor Calibration
Select “EKF” message in the “Configuration View”
u-center:
Select menu “View” Configuration View EFK Tick at “Clear
Calibration Data” Click on “Send” in the left lower corner
Figure 6-4: UBX Configuration Message “EKF”- Reset Sensor Settings
6.3.3 Time Pulse Settings
Select “TP” message in the “Configuration View”
u-center:
Select menu “View” Configuration View TP (Timepulse)
Configurable parameters:
Pulse Mode: defining edge for precision (rising or falling)
Pulse Period: output frequency of time pulse
Pulse Length: pulse length of the time pulse
Time Source: reference for the time pulse (GPS time, UTC, etc.)
For default settings please refer to section "Time Pulse Settings".
Figure 6-5: UBX Configuration Message “TP”- Time Pulse Settings
To keep settings after re-powering the device, it is necessary to safe the configuration
in the flash (see section "Saving User Configurations" on page 36).
Getting Started 1515.7236.02 - 02 34
Page 53
&S
SMX-PPS2 Using u-center Software
R
T
6.4 Message View
The “Message View” could be used to request certain status messages of the
R&S TSMX-PPS2.
u-center:
Select menu “View” Message View Open “UBX” on the left tree
viewDisplays the list of available messages…
Select the UBX message of interest in this view and press the button to request
the specific information.
The following sections list some of the important messages for the R&S TSMX-PPS2.
6.4.1 Sensor Measurement Data
Select “ESF-MEAS” message in the “Configuration View”
u-center:
Select menu “View” Configuration View ESF (External Sensor
Fusion) MEAS (Measurement data)
This message visualizes the measurement data for the various sensors and gives an
impression of sensor signals are being detected.
Single Tick: Accumulated pulses of the wheel trigger
Gyro Z: Acceleration in z-axis
Gyro Temperature: Measurement of the internal temperature sensor
Figure 6-6: UBX Message "NAV EKFSTATUS"- Status
Getting Started 1515.7236.02 - 02 35
Page 54
&S
SMX-PPS2 Using u-center Software
R
T
6.4.2 ADR Calibration Status
Select “ESF-STATUS” message in the “Configuration View”
u-center:
Select menu “View” Configuration View ESF (External Sensor
Fusion) STATUS (ESF status)
This message gives a quick overview of the calibration state for the different sensors
(temperature, wheel tick and gyro) and the usage of the different sensors for ADR.

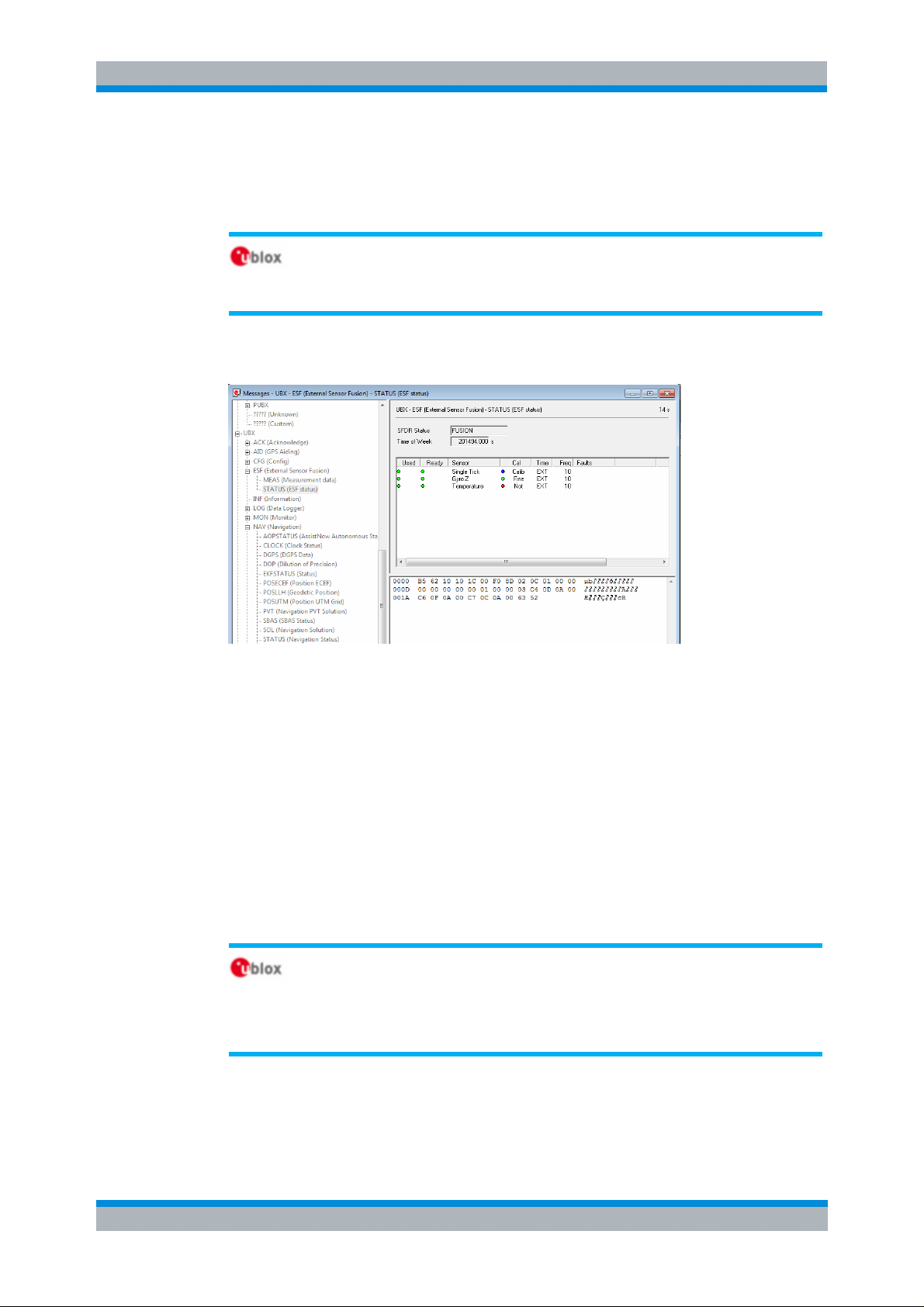

Figure 6-7 UBX Message “ESF-STATUS"- External Sensor Fusion
For details about the various parameters of the please refer to the UBX Protocol
Receiver Description U ESF-STATUS (see section "u-blox Internet Pages" on page 44
for a link).
This documentation is also included on the accessory CD-ROM
(..\documents\Manuals\ u-blox6_ReceiverDescriptionProtocolSpec.pdf)
6.5 Saving User Configurations
The u-center software can be used to store user defined device settings in a file. This
file can be used later to configure other devices.
u-center:
Tools GPS Configuration…
click on GPS >> FILE
select file and destination to store configuration and press Save
Getting Started 1515.7236.02 - 02 36
Page 55
&S
SMX-PPS2 Using u-center Software
R
T
6.6 Recover GPS Factory Settings
Under certain circumstances it is necessary to bring the R&S TSMX-PPS2 device back
to factory setting. This could be done using the “GPS configuration” tool from u-center
software.
he factory configuration of the R&S TSMX-PPS2 is part of the CD-ROM.
T
..\software\Default Configuration\TSMX-PPS2_DefaultConfig.txt
For restoring the original device configuration, proceed as follows:
u-center:
Tools GPS Configuration…
select configuration file
set tick to store configuration file into BBR/Flash
click on File >> GPS

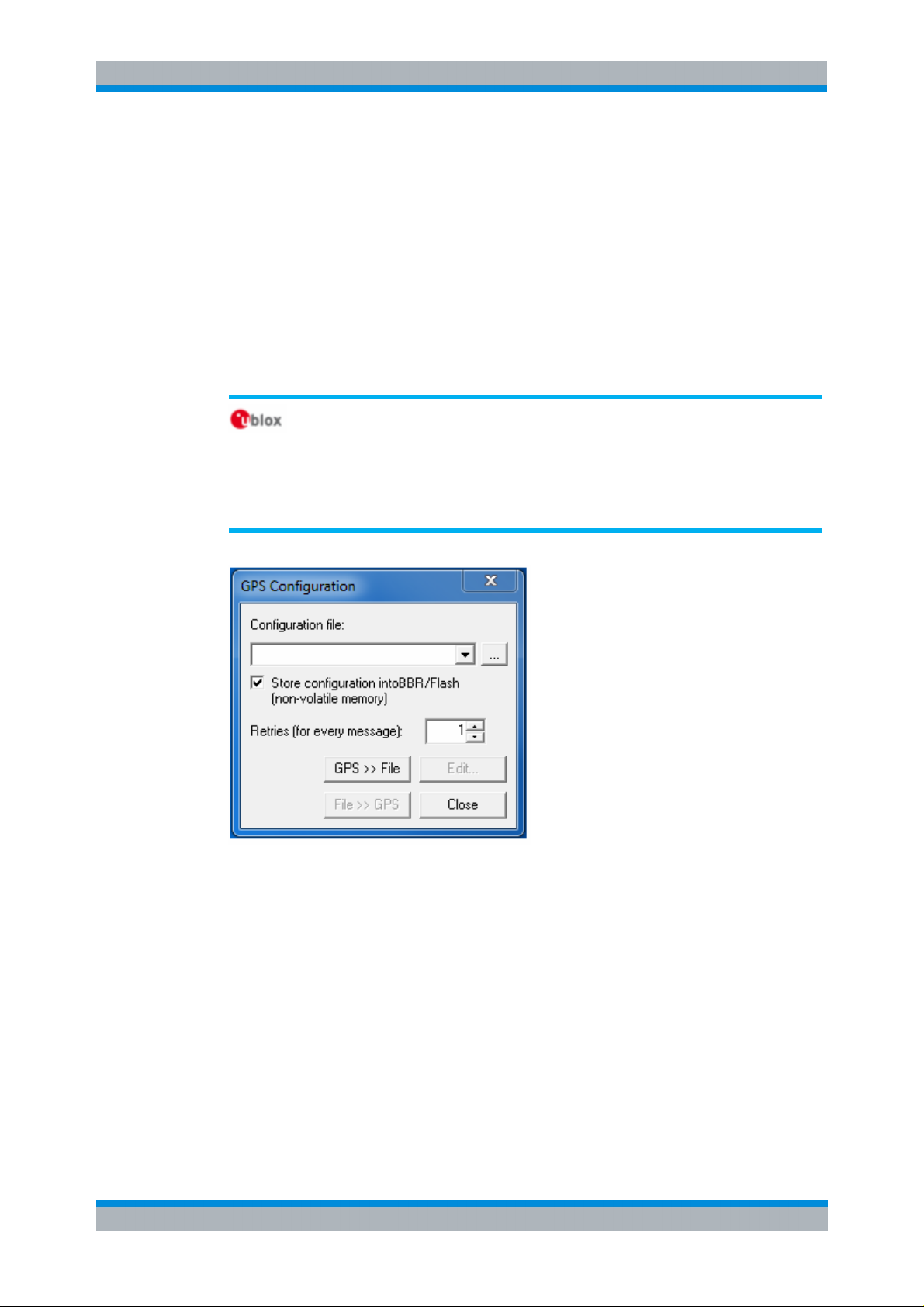

Figure 6-8: GPS configuration window to reload and store GPS settings
Getting Started 1515.7236.02 - 02 37
Page 56
&S
SMX-PPS2 Default Settings
R
T
7 Default Settings
The R&S TSMX-PPS2 is being shipped with a factory configuration and is ready to
use. By means of the u-center demo application or by any customer application, it is
possible that these default settings are being re-configured in a way that the GPS
receiver won’t work properly anymore.
In order to overcome this, the device factory settings are part of the accessory CDROM. This could be reloaded into the device by means of the u-center application (see
section "Recover GPS Factory Settings" on page 37).
7.1 USB Port Settings
Regarding the USB interface specifications the receiver default settings are:
• Interface: USB
• Protocols in: UBX + NMEA + RTCM
• Protocols out: UBX + NMEA
• Baud rate COM Port: 9600
7.2 Time Pulse Settings
• Precision of Signal: at 99 % of time < 60 ns; RMS = 30 ns
(Under good GPS signal conditions)
• Precision Edge (Mode): rising / falling / disabled (default: Rising Edge)
• Pulse Period/Freq.: adjustable 0.25 Hz to 1 kHz (default: 1 Hz)
• Pulse Length: adjustable; > 100 ns (default 100 ms)
• Time Source: UTC time / GPS time / Local time (default GPS time)
• Cable Delay: adjustable; default: 50 ns
• User Delay: adjustable; default: 0 ns
(Positive delay results in earlier pulse)
For details about possible configurations of the time pulse please refer to the UBX
Protocol Receiver Description U Time pulse (see section "u-blox Internet Pages" on
page 44 for a link).
This documentation is also included on the accessory CD-ROM
(..\documents\Manuals\ u-blox6_ReceiverDescriptionProtocolSpec.pdf)
Getting Started 1515.7236.02 - 02 38
Page 57
&S
SMX-PPS2 Default Settings
R
T
7.3 Protocol Settings
The listed protocols are per default updated and transmitted:
NMEA
• GPGGA (Global Positioning System Fix Data)
• GPGLL (Geographic Position – Latitude/Longitude)
• GPGSA (GNSS DOP and Active Satellites)
• GPGSV (GNSS Satellites in View)
• GPRMC (Recommended Minimum Specific GNSS Data)
• GPVTG (Course Over Ground and Ground Speed)
UBX
• ESF\MEAS (Sensor Measurement Data)
• ESF\STATUS (Sensor Status)
• NAV\EKFSTATUS (Dead Reckoning Overview)
7.4 ADR Sensor Settings
The following parameters are programmed from R&S ROMES software any time the
R&S TSMX-PPS2 device is loaded as hardware device. R&S ROMES uses the EKF
message of the UBX protocol.
Sensor Calibration
• Nom. Zero-Point Output: 2.500 [V]
• Nominal Sensitivity: 25 [mV/(deg/s)]
Temperature Calibration
• Save-To-Flash Interval: 180 [s]
• Gyro RMS: 1.0 [mV]
Hardware Interface
• Gyro Axis: V > 2.5 V = 1 – counter clock
• Direction Pin Polarity: 1 – High = Backwards
Direction Pin Polarity Interpretation of input level in the device
0 High = Forward, Low = Backward
1 (default) High = Backward, Low = Forward
Table 7-1: Interpretation of direction signal
Getting Started 1515.7236.02 - 02 39
Page 58
&S
SMX-PPS2 Troubleshooting
R
T
8 Troubleshooting
8.1 Device does not power on
The device has not changed into “Power On” state (STATE LED doesn’t lit green) after
being connected to the host PC:
1. Check USB cable connection
2. Check if USB port is working well on the PC/Laptop/Tablet
3. Nothing helps U contact your local R&S service
8.2 Device not selectable in software
The virtual COM for the R&S TSMX-PPS2 (u-blox 6 GPS Receiver) might not being
listed in the Windows Device Manager.
1. Check if the USB device driver had been installed correctly. Depending on the
type of software application this has to be executed as a separate step:
a. u-center: no special measures are necessary for device driver
installation. This is integral part of the u-center setup.
b. R&S ROMES: device driver for u-blox LEA-6R module need to be
installed separately previous to starting software application. The
device driver is included in the CD-ROM (..\software\Drivers\
ublox_USB_driver.exe).
c. OEM application: the software originator is responsible for adding this
into the dedicated setup
2. Check the device driver version.
If necessary, install the latest driver version for LEA-6 chipsets from the u-blox
homepage. Please refer to section "u-blox Internet Pages" on page 44 for a link).
8.3 No GPS position fix
1. Check if GPS antenna is connected correctly.
2. Check if GPS antenna has free line of sight to the sky.
3. Signal is too poor or no signal U change to location with brighter sky view.
4. Check the GPS receiver configuration. If necessary reset to factory settings.
(see section "Recover GPS Factory Settings" on page 37).
5. For ADR users: Reset sensor calibration and restart calibration (see section
"Deleting Calibration Data" on page 28).
Getting Started 1515.7236.02 - 02 40
Page 59
&S
SMX-PPS2 Troubleshooting
R
T
8.4 No Time Pulse (PPS)
1. Check your PPS cable connections
2. Check the position fix mode of your device. It has to be at least “2D” or “3D”
position. In this case the PPS LED has to blink.
a) If displayed “No Fix”, change your location to a place with brighter and
better sky view.
b) If Fix Mode is “2D” or even “3D” and PPS LED is blinking and no PPS
signal can be detected on the output, please send the device to your
local R&S service.
8.5 ADR Calibration fails
1. Check with u-center software whether the external sensor signals (speed and
direction) and the embedded gyroscope are being detected (see section
"Sensor Measurement Data" on page 35).
• If speed signal is missing check whether the Sensor Cable is plugged in
and connected correctly to the vehicle signals (speed & direction). Maybe
check the outputted signal with an oscilloscope.
• If the gyroscope signal is missing please send the device to our support,
because greater damage could be happened to the device
• If all signals are displayed go on with next step
2. Try to restart the calibration by clearing the latest calibration data to get sure
not to have any corrupted calibration data set (see section "Resetting Sensor
Calibration" on page 34).
3. Execute sensor calibration and monitor calibration status (see section "ADR
Calibration Status" on page 36). If it still fails, please proceed with next step.
4. Restore factory settings and repeat with step 3. If nothing helps please contact
the local R&S service.
Getting Started 1515.7236.02 - 02 41
Page 60
&S
SMX-PPS2 Troubleshooting
R
T
8.6 Checking extern sensor signals
1. Check with u-center software whether the external sensor signals (speed and
direction) and the embedded gyroscope are being detected (see section
"Sensor Measurement Data" on page 35).
• If speed signal is missing check whether the Sensor Cable is plugged in
and connected correctly to the vehicle signals (speed & direction). Maybe
check the outputted signal with an oscilloscope. If the Sensor Cable is
firmly fixed to the car and measuring of the signals is only possible on the
Sensor Cable connector (the pin out could be find in section “Sensor cable
/ SENSOR IN” on page 20).
Measuring direction: Changing from forward to reverse gear has to be
combined with a change of the signal level (for example as a rule from 0 V
to 12 V, sometimes also reverse) between the DIRECTION+ and the
DIRECTION- pins.
Measuring speed: When moving the vehicle, there should be a
continuous square-wave, sinus- or a triangle-shaped signal (differs from
car to car) with a frequency proportional to the driven speed between the
SPEED+ and the SPEED- pins.
• If the gyroscope signal is missing please send the device to our support,
because greater damage could be happened to the device.
• If all signals are displayed go on with next step.
2. Check position of installation.
• The device has to be firmly fixed horizontal with the printed, brighter
chassis side up to the car chassis in a way that the device could not move
or turn (see section “Placing the R&S TSMX-PPS2” on page 15).
• If the placement of the device is correct proceed with the next step.
3. Restore factory settings to exclude faulty settings (see section “Recover GPS
Factory Settings” on page 37). In this regard consider that the configuration is
stored into BBR/Flash (U set corresponding tick in the u-blox GPS
Configuration window!).
4. Check with u-center software whether the external sensor signals could now
be detected.
• If the signals are available proceed with sensor calibration (see section
"ADR Calibration Status" on page 36)
• If the signals are still not present please contact the local R&S service.
Getting Started 1515.7236.02 - 02 42
Page 61
&S
SMX-PPS2 Accessory List
R
T
9 Accessory List
• Cable USB/A-USB/B 1.3 m 0041.9177.00
• Active GPS Antenna 5 m 1503.3624.00
• Cable Sensor 1.5 m 1515.7213.00
• CD with manual, software and drivers 1515.7165.08
• Printed Getting Started Documentation 1515.7236.02
• Cable Sync (SMA/BNC) 3522.0565.00
Getting Started 1515.7236.02 - 02 43
Page 62
&S
SMX-PPS2 References & Links
R
T
10 References & Links
All links listed in this document represent the state of release date and may be
changed from u-blox without notice!
10.1 Rohde & Schwarz Internet Pages
Rohde & Schwarz Homepage
http://www.rohde-schwarz.com
R&S TSMX-PPS2 Product Page
http://www.rohde-schwarz.com/product/TSMXPPS2.html
R&S ROMES Software Product Page
http://www.rohde-schwarz.com/product/ROMES.html
10.2 u-blox Internet Pages
u-blox Homepage
http://www.u-blox.com/index.php
LEA-6R Product Page
http://www.u-blox.com/en/gps-modules/u-blox-6-dead-reckoning-module/lea-6r.html
u-blox Gen 6 Resources Overview
http://www.u-blox.com/en/download/documents-a-resources/u-blox-6-gps-modulesresources.html
UBX Protocol Description
http://www.u-blox.com/images/downloads/Product_Docs/ublox6_ReceiverDescriptionProtocolSpec_%28GPS.G6-SW-10018%29.pdf
LEA-6R chipset
http://www.ublox.com/en/gps-modules/u-blox-6-dead-reckoning-module/lea-6r.html
u-center Online Manual
http://www.u-blox.com/images/downloads/Product_Docs/uCenter_User_Guide%28GPS-SW-08007%29.pdf
u-center Program Download
http://www.u-blox.com/en/evaluation-tools-a-software/u-center/u-center.html
Standard UBS driver
http://www.u-blox.com/en/drivers-a-middleware/usb-drivers/windows-vistaxp2000driver.html
Windows sensor API driver
http://www.u-blox.com/en/drivers-a-middleware/usb-drivers/windows-7-driver.html
Getting Started 1515.7236.02 - 02 44
Page 63
&S
SMX-PPS2 References & Links
R
T
Index
Accessory List .................................................43
ADR
Calibration Status.........................................36
Calibrations .................................................. 25
General ........................................................25
Providing Vehicle Sensor Data .....................26
Re-Calibration ..............................................28
Sensor Measurement Data...........................35
Cables
GPS antenna................................................19
Sensor cable .......................................... 20, 42
Sync Cable...................................................21
Cold Start ........................................................24
Configuration
ADR Settings................................................33
Time Pulse Settings......................................34
Connecting the Device..................................... 19
Connectors
GPS ANT .......................................................8
PPS OUT .......................................................7
SENSOR IN ...................................................7
USB................................................................7
Default Settings ...............................................38
ADR Sensor Settings....................................39
Protocol Settings ..........................................39
Time Pulse Settings......................................38
USB Port Settings.........................................38
Device Tour....................................................... 6
Connector View 1...........................................7
