R&S
RT-ZF4
10BASE-Te Fixture
Manual
(=QG12)
1333230102
Version 03
This manual describes the R&S RT-ZF4 10BASE-Te fixture (1333.0880.02) for
10BASE-Te compliance tests.
© 2021 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: +49 89 41 29 - 0
Email: info@rohde-schwarz.com
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1333.2301.02 | Version 03 | R&S®RT-ZF4
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g.
R&S®RT-ZF4 is indicated as R&S RT-ZF4.
R&S®RT-ZF4
Safety information
1 Safety information
The product documentation helps you to use the product safely and efficiently.
Keep the product documentation nearby and offer it to other users.
Safety information warns you about the potential dangers and gives instructions
how to prevent personal injuries or damage caused by dangerous situations.
Throughout the documentation, safety instructions are provided when you need to
take care during setup or operation.
Intended use
The equipment under test (EUT) is a signal quality test and development board,
indented to be used at laboratory or test and measurement areas. These areas
are used for analysis, testing and servicing and where equipment is operated by
trained personnel.
Operating site
Only use the product indoors, and keep it dry. The product has no casing and is
sensitive to moisture and humidity.
The product is suitable for pollution degree 2 environments where nonconductive
contamination can occur. For more information on environmental conditions such
as ambient temperature, see the specifications.
Installation
Connect only Ethernet devices with RJ-45 interface that are designed according
to IEEE802.3 10BASE-Te.
Disposal
In line with EN 50419, the product cannot be disposed of in the normal
household waste. Even disposal via the municipal collection points for
waste electrical and electronic equipment is not permitted.
Rohde & Schwarz has developed a disposal concept for the ecofriendly disposal
or recycling of waste material. Rohde & Schwarz fully assumes its obligation as a
producer to take back and dispose of electrical and electronic waste. Contact
your local service representative to dispose of the product.
3Manual 1333.2301.02 ─ 03
R&S®RT-ZF4
Product description
Board description
2 Product description
The R&S RT-ZF4 test fixture is a product designed for compliance testing of the
10BASE-Te energy-efficient Ethernet (EEE) protocol variant.
It is used in combination with:
●
R&S RTO/R&S RTP oscilloscope
●
EEE: R&S RTO-K86 (1333.1992.02), R&S RTP-K86 (1337.8833.02): requires
R&S RTO/R&S RTP-K22
●
R&S ScopeSuite software
For data, see the "R&S RT-ZFxx Oscilloscope Test Fixtures - Specifications" at
www.rohde-schwarz.com/brochure-datasheet/rto.
2.1 Deliveries
The R&S RT-ZF4 delivery package contains the following items:
●
R&S RT-ZF4 test board
●
Manual
2.2 Board description
The R&S RT-ZF4 10Base-Te fixture replaces the "Twisted Pair Model" section of
the R&S RT-ZF2 Ethernet test fixture when performing 10Base-Te compliance
tests because the twisted-pair models of 10BASE-T and 10BASE-Te are different.
S201
Switches between resistive and inductive load.
S202
Switches between two different inductive loads. Set S201 to inductive load to use
the effect of S202.
4Manual 1333.2301.02 ─ 03
R&S®RT-ZF4
S200 and S204
Switch the "Twisted Pair Model" (TPM) circuit on and off.
Twisted Pair Model
S202
Load1Load2
Product description
Board description
Loads 100R
S201 S204
RT-ZF4
10BASE-Te Fixture
S
R
w/o
TPM TPM
S200
X200
DUT
X206
Link
Partner
X203

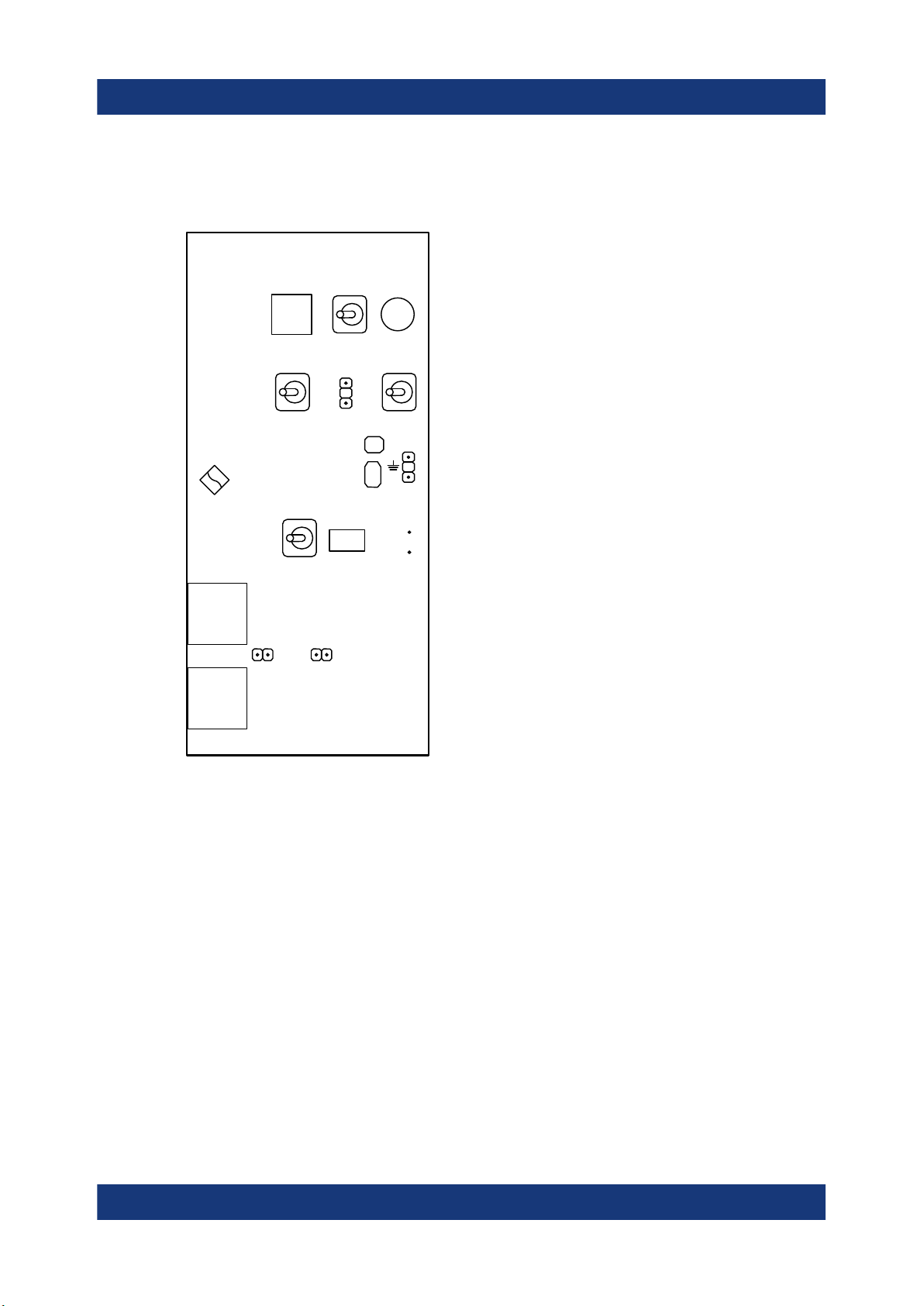

Figure 2-1: R&S RT-ZF4 10Base-Te fixture
w/o
TPM TPM
X202
X208
X201
X202
Connector for the differential probe.
X203, X206
X203 is the connector for the link partner. The X206 jumper switches the link partner on or off.
●
Left position: Link partner is connected.
●
Right position: Link partner is disconnected.
X208
Pins for ground connection.
5Manual 1333.2301.02 ─ 03
R&S®RT-ZF4
Connecting the board
3 Connecting the board
The appropriate DUT and probe connection depends on the test case. The
R&S ScopeSuite software provides a step-by-step guide that shows the required
setup for each test case.
The test preparation and measurements of the test cases are described in the
"R&S®RTO, R&S®RTP Ethernet Compliance Tests, Test Procedures Manual".
4 Contacting customer support
Technical support – where and when you need it
For quick, expert help with any Rohde & Schwarz product, contact our customer
support center. A team of highly qualified engineers provides support and works
with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde & Schwarz products.
Contact information
Contact our customer support center at www.rohde-schwarz.com/support, or fol-
low this QR code:
Figure 4-1: QR code to the Rohde & Schwarz support page
6Manual 1333.2301.02 ─ 03
