Solid-State Pressure Sensors

USER MANUAL

836E

Important User Information

WARNING

IMPORTANT

ATTENTION

SHOCK HAZARD

BURN HAZARD

Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid-State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or on-line at http://www.ab.com/manuals/gi) describes some important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc. is prohibited. Throughout this manual, when necessary we use notes to make you aware of safety considerations.

Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

Identifies information that is critical for successful application and understanding of the product.

Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you:

• identify a hazard

•avoid a hazard

• recognize the consequence

Labels may be located on or inside the equipment (e.g., drive or motor) to alert people that dangerous voltage may be present.

Labels may be located on or inside the equipment (e.g., drive or motor) to alert people that surfaces may be dangerous temperatures.

Table of Contents

1 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.1 Designated Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Installation, Commissioning, and Operation . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Operational Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Product Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.2 Process Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.3 Installation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.5 Mating Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

4.1 On-Site Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2 Programming with Personal Computer and ReadWin 2000 . . . . . . . . . . . . 19

5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

5.1 Process Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2 Welding Bosses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.3 Configuration Kit with ReadWin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

6.1 Error and Warning Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.2 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.3 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6.4 Change Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

7 Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

7.1 Display Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7.2 Nondisplay Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7.3 Pressure Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Safety Instructions

1 Safety Instructions

1. 1 Designated Use

The Bulletin 836E is a pressure switch for measuring and monitoring absolute and gauge pressures. The device has been safely built with state-of-the-art technology and meets the applicable requirements and EC Directives. It can, however, be a source of danger if used incorrectly or for anything other than the designated use.

1. 2 Installation, Commissioning, and Operation

Only personnel familiar with these types of products and associated machinery should plan or implement the installation, start-up, configuration, and subsequent maintenance of the Bulletin836E pressure switch. Failure to comply may result in personal injury and/or equipment damage.

1. 3 Operational Safety

• Functional safety The Bulletin 836E pressure switches were developed according to the standards IEC61508 and IEC 61511-1 (FDIS).

• Hazardous areas The Bulletin 836E is not approved for use in intrinsic safety (hazardous area) applications.

1. 4 Return

Before returning a device to Rockwell Automation, be sure to remove all fluid residue. This is particularly important if the fluid is a health hazard, e.g. flammable, toxic, caustic, carcinogenic, etc.

ATTENTION: Do not return a measuring device if you are not absolutely certain that all traces of hazardous substances have been removed, e.g. substances which have penetrated crevices or diffused through plastic.

2 Product Identification

Product Identification

836E-DC1CC1D4

36E-DC1CC1D4

Fig. 1: Explanation of the nameplate - see table below

1 Catalog number 6 Max. working

pressure

2 Series letter 7 Wetted part materials 12 Approvals

3 Serial number 8 Output

4 Enclosure rating /

Ingress protection

5 Operating pressure 10 Operating voltage

Notes:

• Specifications and ratings may differ from those shown in Figure 1, depending on particular

model. Refer to product nameplate or catalog for actual ratings and specifications.

9 Current consumption

PNP / 4…20mA

11 Wiring diagram

• The series number indicates the version of the switch. A change in the series letter does not

have any effect on the compatibility (see also Section 6 — Troubleshooting).

• The MWP (maximum working pressure) is specified on the nameplate. This value refers to

a reference temperature of +20 °C (68 °F) and may be applied to the device for an unlimited time.

• The test pressure (Over Pressure Limit [OPL]) corresponds to 1.5 times the MWP and may

be applied only for a limited time before causing damage to the switch.

Installation

(2.72)

15 (0.59)

(0.98)

1/2 in.

NPT

(0.79)

4 (0.16) Dia.

hole

3.5 (0.14) Dia. hole

(0.67)

G1/2

(0.55)

(0.47)

G1/4

(0.2)

3 (0.12)

(0.79)

G1/2

(0.24)

3(0.12)

27.5

(1.08)

(0.98)

1/2 in.

NPT

1/4 in. NPT

12 (0.47) deep

1/4 in.

NPT

(1.02) Dia.

Flush Mount DIN 3852

3 Installation

3. 1 Dimensions

3.1.1 Display Version

Fig. 2: Dimensions

3.1.2 Nondisplay Version

38.7

M12x1.0

ø 42.3

ø 38.5

105

Installation

3. 2 Process Connection

The following table outlines the characteristics of the Bulletin 836E, its process, and sanitary connections.

836E Pressure Switch 836E Nondisplay

Measuring cell

Application Measurement and monitor-

Process connection

Measuring

➁

range

Process temperature

Piezoresistive measuring cell and metallic measuring diaphragm

ing of absolute and gauge pressures

Thread

➀

− 1/4 NPT female

− 1/4 NPT male

− G 1/4 BSPP female

− G 1/4 BSPP male

− SAE 7/16…20 UNF

female

− SAE 7/16…20 UNF

male

-14.5…+14.5 psi (-1…1 bar) 0…58psi (0…4 bar) 0…145 psi (0…10 bar) 0…580 psi (0…40 bar) 0…1450 psi (0…100 bar) 0…6000 psi (0…400 bar)

−40...+100 °C (−40...+212 °F)

With piezoresistive measuring cell and metallic measuring diaphragm for sanitary applications

Measurement and monitoring of absolute and gauge pressures in sanitary applications

Sanitary

− Clamp 1…1½ in.

− Clamp 2 in.

0…1 bar/15 psi to 0…40 bar/600 psi

−40...+100 °C (135 °C max. 1 hour)

Piezoresistive measuring cell and metallic measuring diaphragm

Measurement and monitoring of absolute and gauge pressures

Thread – 1/2 NPT male – 1/4 NPT male – 1/2 NPT male 1/4 NPTfemale – G 1/2 male – G 1/4 male

0…15 psi (0…1 bar) 0…50 psi (0…3 bar) 0…150 psi (0…10 bar) 0…500 psi (0…34 bar) 0…1500 psi (0…103 bar) 0…6000 psi (0…413 bar)

–25…+70 °C (–13…158 °F)

Notes:

➀ Male adapters cannot be used with the 0…1450 psi or the 0…6000 psi display models ➁ For conversion of psi to other units (bar, kPa, etc.), refer to inside back cover of this document

Installation

➀

➁

➂➂

➀

➁

➀

➁

Gas

Steam

Liquid

3. 3 Installation Instructions

Fig. 3: Typical applications of the Bulletin 836E to measure pressure in gases, steam and liquids.

➀ Bulletin 836E pressure switch ➁ Shut-off assembly ➂ U-pipe

For typical applications of the Bulletin 836E, see Figure 3 above:

• The image on the left illustrates how the 836E should be applied for pressure measurement in gases. The switch should be mounted with a shut-off assembly above the sampling nozzle so that any condensate can drain off into the process.

• The center image shows the correct installation for pressure measurement in steam. Note how the Bulletin 836E is mounted with a U-pipe below the sampling nozzle. Fill the U-pipe with fill fluid before commissioning.

• For pressure measurement in liquids, see the drawing on the right of Figure 3 above. The Bulletin 836E should be mounted below or at the same level as the sampling nozzle.

Additional considerations:

• Do not mount the device in the product flow or at a point where it could be affected by pressure pulses.

• Calibration and testing are easier if the device is mounted downstream of a shut-off assembly.

• The orientation of the Bulletin 836E can result in zero point shift, i.e. the measured value does not display zero in a non-pressurized state. This zero point shift can be corrected (see Section4 – Operation).

• The digital display can be electronically rotated 180° (see Section 4 – Operation).

• The housing can be rotated up to 310° for optimal readability and ease of wiring.

Installation

–

Load 2Load 1

12…30V dc

4... 20 mA

Load 2

12-30V dc

3. 4 Wiring

3.4.1 Display Version

The 836E is a DC voltage switch with two PNP outputs or a single PNP output with a 4…20mA analog output. Both options feature an M12 (micro) connector.

Fig. 4: Bulletin 836E with two PNP switch outputs or one PNP output with 4…20 mA analog output.

3.4.2 Nondisplay Version

The nondisplay version is offered with 4…20 mA analog output.

12 … 30V

4...20 mA

Installation

889D-R4AC-2

889D-F4AC-2

3. 5 Mating Cables

2m (6.5ft) PVC Cable with 4-pin micro (M12x1) connector and ratcheted epoxy-coated zinc coupling nut. Catalog number: 889D-F4AC-2

2m (6.5ft) PVC Cable (M12x1) right-angle connector and ratcheted epoxy-coated zinc coupling nut. Catalog number: 889D-R4AC-2

Note: Other cable lengths are available and shielded cables may be required for some analog output applications – refer to the On-Machine Connectivity catalog (publication #M115-CA001A-EN-P) for additional information.

with 4-pin micro

Operation

Operating key

Communications jack

for personal computer

Digital display

Yellow LEDs for switching states LED on = switch closed LED off = switch open

LED for status

Green = ok

Red = error

Red/green blinking = warning

22.07

bar

4 Operation

4. 1 On-Site Programming

The Bulletin 836E is programmed via three push buttons. The digital display and the light emitting diodes (LEDs) assist in the navigation through the operating menu.

Fig. 5: Location of operating keys and display elements

Operation

4.1.1 Navigating Through the Programming Menu

Refer to the menu structure in Figure 4.1.2 on the following page. The section labeled A refers to Function groups The section labeled B refers to the individual Functions within each Function group The section labeled C identifies the possible values for each function

➀ To enter the operating menu:

• Press and hold the E key for longer than 3 sec.

➁ Once in programming mode (BASE will be displayed), toggle between the Function groups

with the + and − keys

➂ To enter the Function group, press the E key ➃ To toggle between functions, repeatedly press the E key (Note that repeatedly pressing the E

key will return you to the Function group.

• Then press the E key to return to the “Function” option

➄ Once on the desired function, use the + or − key to change the function value ➅ Press E to accept the function value ➆ To save changes, press and hold the E key for longer than 3 sec.

• Once in SAVE, choose YES or NO with the + or − key

• Confirm with the E key (sensor will go through a start-up routine before entering operating mode)

• Warning code 210 (W210) will appear on the display to indicate a change in configuration (see Chapter6, ‘Troubleshooting’ for further explanations of Error and Warning codes).

ATTENTION: Changes take effect only when you choose YES when asked to save the data.

4.1.2 Structure of the Programming Menu

The chart below illustrates the structure of the programming menu.

Operation

Fig. 6: Programming menu: A=function groups, B=functions, C=settings

•

Operation

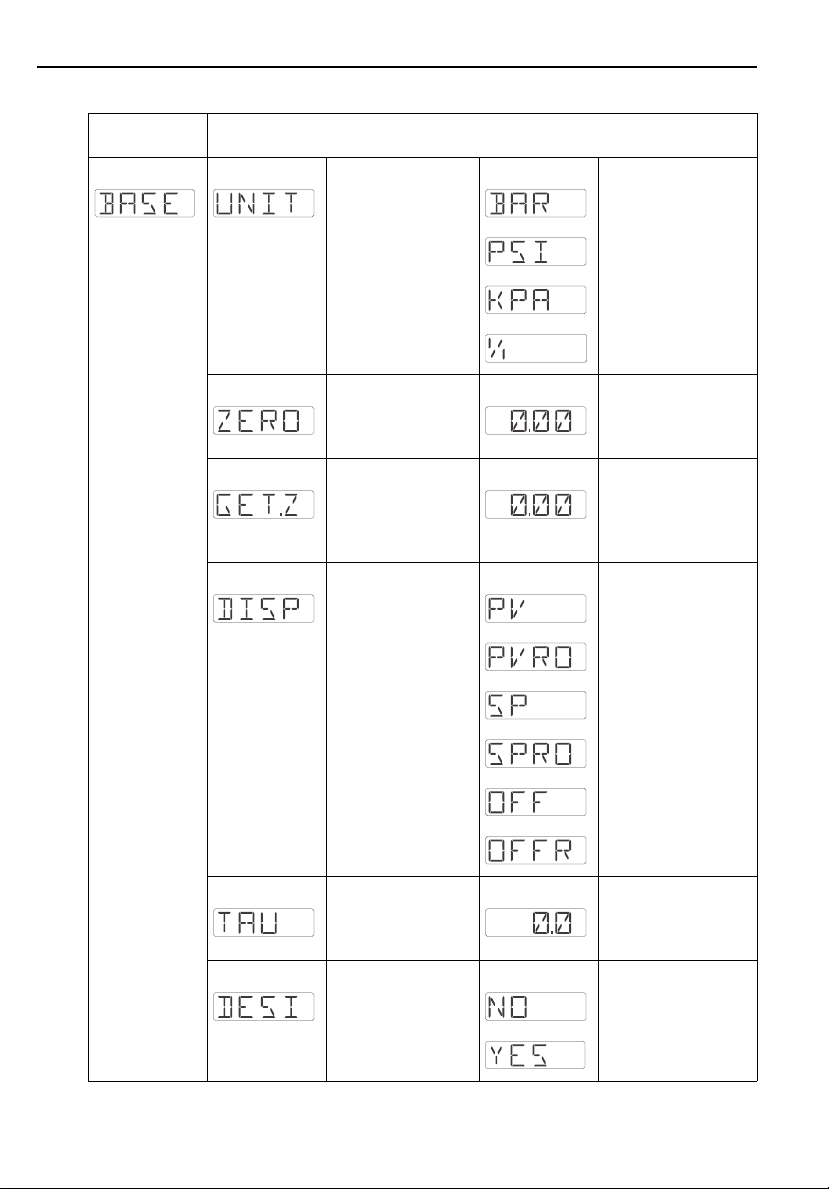

4.1.3 Basic Settings

Base Basic settings

Unit of measure Select technical unit:

bar psi kPa %

Configure zero point

Accept zero point Current value as zero

Display PV: measured value

Damping: display value, output signal

Position adjustment: within ±20% of the upper range limit

point (max. ±20% of the upper range limit)

display PVRO: measured value display rotated 180° SP: set set point display SPRO: set point display rotated 180° OFF: display off OFFR: display off rotated 180°

0...40 sec.

DESINA Connection in

accordance with DESINA guidelines

Operation

RSP

4.1.4 Output Setting

• Hysteresis mode

The hysteresis mode allows for two-point control. Depending on the pressure p, the hysteresis can be set via the set point SP and the reset point RSP.

• Window mode

The window mode enables process pressure range monitoring.

•Analog output mode

The analog output mode returns a 4…20 mA signal proportional to the measured value. The upper and lower range values can be set by the user.

• Factory default settings

Set point SP 1: 45%; Reset point RSP 1: 44.5% Set point SP 2: 55%; Reset point RSP 2: 54.5% Analog output: Lower Range Value (LRV) 0%; Upper Range Value (URV) 100%

• Each set point can be selected as Normally Open (N.O.) or Normally Closed (N.C.)

•P01-PTx3xxxx-05-xx-xx-xx-001

Fig. 7: ➀ Hysteresis mode, ➁ Window mode, ➂ Switch status of NO contact, ➃ Switch status of NC

contact

Note: SP = set point; RSP = reset point

Operation

OUT/OUT2 Output/Output 2

Switching mode HYNO:

Set point value Set point

Reset point value Reset point

Set point delay Delay time

Hysteresis/NO contact HYNC: Hysteresis/NC contact WINO: Window/NO contact WINC: Window/NC contact

4...20 mA: Analog mode (analog output versions only)

0.5...100% URL in increments of 0.1% (min. 0.001 bar)

0...99.5% URL in increments of 0.1% (min. 0.001 bar)

0...99 sec. in increments of

0.1 sec.

Reset point delay Delay time

0...99 sec. in increments of

0.1 sec.

Min. distance between SP and RSP: 0.5% URL

4 - 20 Analog output

Operation

Value for 4 mA (LRV)

Value for 20 mA (URV)

Pressure applied for 4 mA (LRV)

Pressure applied for 20 mA (URV)

Error current Current value in

Range of adjustment: LRL = Lower Range Limit; URL = Upper Range Limit; LRV = Lower Range Value; URV = Upper Range Value

Turndown up to 4:1, LRV must be lower than URV

Enter lower range value in increments of 0.1%

Enter upper range value in increments of 0.1%

Use measured pressure as lower range value

Use measured pressure as upper range value

event of error: MIN = ≤ 3.6 mA MAX = ≥ 21.0 mA HOLD = last value

Operation

4.1.5 Service Function Setting

•Locking Code A locking code already assigned can only be changed by first entering the old code for enabling

the device.

SERV Service functions

Security locking/password protection

Password/code entry

Reset Reset all entries to

Revision counter Increases by 1 with

Last device status Displays the last

Simulation output 1 or 2

Enable password protection

Select code 1...9999 0 = no locking

the factory setting

each configuration

device status to occur ≠0

OFF: No simulation OPEN: Switch output open CLOS: Switch output closed

3.5: Simulation values for analog output in mA (3.5/4.0/8.0/12.0/1

6.0/20.0/21.7)

Max. indicator Display of max.

measured process value

Min. indicator Display of min.

measured process value

Operation

USB

4. 2 Programming with Personal Computer and ReadWin 2000

The 836E can also be configured via personal computer and ReadWin software. An additional configuration kit with a cable (Cat. No. 836E-NSR) is required to interface the USB port of the PC to the programming port of the pressure sensor, as shown below.

Fig. 8: Programming with PC

➀ Personal computer with ReadWin configuration software ➁ Configuration kit (836E-NSR) ➂ Bulletin 836E with programming port

Fig. 9: Sensor configuration with ReadWin

Operation

4.2.1 Additional Operating Options

In addition to the operating options listed in the “On-site programming” section, the ReadWin configuration software provides an additional function group with further information on the Bulletin 836E:

Function group Description

SERV Number of switch changes for output 1

Number of switch changes for output 2

Device status

Last error to occur

INFO Tag number

Switch serial number

Sensing element serial number

Electronics serial number

Series number

Hardware version

Software version

Accessories

M24x1.5

5 Accessories

5. 1 Process Connection

• 836E

The process connection is an adapter and the sensor module has an adapter thread. As a result, the process connection can be easily changed at a later stage.

Fig. 10: Process connection

➀ Sensor module 836E ➁ Adapter with threaded connection ➂ Adapter with clamp connection (sanitary)

Accessories

Process Adapter

Sanitary Adapter





5.1.1 Adapter Change

The adapter can be changed on 836E.

Fig. 11: Changing the adapter

➀ Sensor module with adapter thread ➁ Standard O-ring ➂ Adapter

Please note the following when changing the adapter:

• Use a new O-ring. Diameter 15.54 x 2.62 mm (0.61 x 0.10 in.) with either EPDM 70 Shore FDA or FKM 70 Shore FDA material

• The sensor can be mounted with a 27 mm open-ended wrench.

• The adapter can be threaded on and tightened with a 28 or 32 mm (1.1 or 1.26 in.) open-ended wrench (depending on the process connection). The maximum torque is 80 N•m. The adapter can become loose if exposed to severe strain through pressure and temperature. For this reason, the adapter connection must be checked

regularly and the tightened if necessary. We recommend using Teflon

tape as an

additional thread seal.

• When changing the adapter, take care to not damage the diaphragm of the pressure sensing element.

5.1.2 Adapter Versions

Ø17.3

1/4"NPT

Ø11.4

25.15

836E-NP71

836E-NP75

Ø23

15.5

1/4NPT

Ø11.4

Ø23

15.5

7/16-20UNF

836E-NP72

836E-NP74

Ø23

15.5

M12x1.5

Ø23

G1/4

G1/4A

Ø3

836E-NP73 836E-NP76

15.5

Process Adapters

G1/4 female: 836E-NP73 G1/4 male: 836E-NP76 7/16 - 20UNF female: 836E-NP72 7/16 - 20UNF male: 836E-NP75 1/4-in. NPT female: 836E-NP71 1/4-in. NPT male: 836E-NP74

836E-NH7B

8.5

SW28

Ø43.5

Ø50.5

(1 to 1-1/2-in. clamp)

Ø56.5

Ø64

SW32

836E-NH7C

(2-in. clamp)

Sanitary Adapters

1 to 1-1/2-in. clamp: 836E-NH7B 2-in. clamp: 836E-NH7C

Catalog numbers for thread adapter versions (see diagram for dimensions):

Accessories

27.5

n







'

)3/

%.73

5. 2 Welding Bosses

5.2.1 Welding Boss with Sealing Taper

Welding boss for flush mounting process connection with metallic sealing taper. Material: AISI 316L

Fig. 12: 836E-NWT

5.2.2 Welding Boss with Sealing Surface

Welding boss for flush mounting process connection with sealing surface. Material: AISI 316L Seal (enclosed): silicone O-ring

Fig. 13: 836E-NWS

5. 3 Configuration Kit with ReadWin

USB

The configuration kit (Cat.No.836E-NSR) consists of a software CD and a conversion cable which interfaces the USB port of the PC to the 4-pin programming port on the sensor face.

ReadWin® 2000 software is also available free of charge via download from www.ab.com/sensors/ products/condsensingswitches

Accessories

Troubleshooting

6 Troubleshooting

6. 1 Error and Warning Codes

If an error occurs in the electronics, the color of the status LED changes from green to red and the display shows an error or warning code, as outlined below:

• E-code for errors In the event of an error message, the measured value is unreliable.

•W-code for warnings In the event of a warning, the measured value is still reliable.

Error Codes

Code Explanation

E011 Device configuration faulty

E012 Error in measurement

E015 Device error (internal)

E019 Power supply has under voltage/over voltage

E020 Device error (internal)

E021 Device error (internal)

E022 USB supply voltage

E025 Switching contact 1 is not open, although it should be open

E026 Switching contact 2 is not open, although it should be open

E040 Device error (internal)

E042 Output current cannot be generated.

Possible cause: analog output not connected

E044 Excessive output current drift (±0.5 mA)

Warning Codes

Code Explanation

W107 Simulation active

W202 Pressure outside the sensor range

W209 Device start-up

W210 Configuration modified

W212 Sensor signal outside the permitted range

W250 Number of switch cycles exceeded

W270 Short-circuit at output 1

W280 Short-circuit at output 2

6. 2 Spare Parts

O-ring for adapter change

• O-ring 15.54 x 2.62 mm (0.61 x 0.10 in.), EPDM 70 Shore FDA, Catalog no. 836E-NV1

• O-ring 15.54 x 2.62 mm (0.61 x 0.10 in.), FKM 70 Shore FDA, Catalog no. 836E-NV2

Troubleshooting

6. 3 Repair

Bulletin 836E pressure switches are not repairable.

6. 4 Change Status

The release number on the nameplate and in the Operating Instructions indicates the change status of the device: XX.YY.ZZ (example 01.02.01).

XX Change in the main version.

Compatibility no longer provided. Device and Operating Instructions change.

YY Change in functionality and operation.

Compatibility provided. Operating Instructions change.

ZZ Troubleshooting and internal modifications.

Operating Instructions do not change.

Technical Data

7 Technical Data

7. 1 Display Version

7.1.1 Power Supply

Supply voltage

• DC voltage version

12...30V DC

Current consumption

• Without load < 60 mA, with reverse polarity protection Power supply failure

• Behavior in case of over voltage The device works continuously without any damage up to 34V DC. If the supply voltage is exceeded, the properties specified are no longer guaranteed.

• Behavior in case of under voltage If the supply voltage drops below the minimum value, the device switches off (status as if not supplied with power = switch open).

7.1.2 Output

Switching capacity

•Switch status ON: I

•Switch status OFF: Ia ≤ 1 mA

• Switching cycles: > 10 000 000

• Voltage drop PNP: ≤ 2V

• Overload protection Automatic load check of switching current; output is switched off in case of over current, the switching current is tested again every 0.4 sec.; max. capacitance load: 14 μF at max. supply voltage (without resistive load) max. period length: 0.5 sec.; min. t

Load (analog output)

•Max. (V

Input PLC

• Input resistance Ri ≤ 2 kΩ

Signal on alarm

•Analog output

• Signal outputs

supply

Input current I

≤ 3.6 mA / last current value / ≥ 21.0 mA adjustable (if setting ≥ 21.0 mA the output is ≥ 21.5 mA)

In safe state (switch normally open)

≤ 250 mA

− 6.5V)/0.022 A

≥ 10 mA

: 40 μs

7.1.3 Operating Conditions

Any orientation Any position-dependent zero shift can be corrected Position adjustment (offset): ±20% of the upper range limit Operating conditions: Environment

• Ambient temperature range

–40...+85 °C (briefly up to +100 °C [212 °F]), (–40...+185 °F)

• Storage temperature

–40...+85 °C (–40...+185 °F)

Operating conditions: Process

• Medium temperature ranges

−40...+100 °C (–40...+212 °F)

Limiting medium pressure range

• For overload resistance, see nameplate (Section 2)

• Vacuum resistance: 10 mbar

Material: AISI 316L

abs

7. 2 Nondisplay Version

7.2.1 Power Supply

Supply voltage

• DC voltage version

12...30V DC

Current consumption

•20 mA

7.2.2 Output

Output signal

•4…20 mA Maximum load

•Max. (V

7.2.3 Operating Conditions

Ambient temperature range

• –25…+70 °C (–13…+158 °F) Medium temperature range

• –25…+70 °C (–13…+158 °F) Storage temperature range

• –40…+85 °C (–40…+185 °F)

− 12V)/0.02 A

supply

Technical Data

7. 3 Pressure Conversion Chart

Fig. 14: Pressure conversion chart

Back Cover

Part No. 75054-003 Ver 04

Rockwell Automation 836E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
