RF-TVMLPT03V2

TV Wall Mount

For wood-stud and concrete wall installations

Before using your new product, please read these instructions to prevent any damage.

Safety information and specifications .................................2

Tools needed.................................................................................3

Package contents: parts ............................................................3

Installation instructions.............................................................5

Assembly Guide

RF-TVMLPT03V2 TV Wall Mount

Maximum TV weight: 130 lbs. (58.9 kg) Screen size: 32" to 70" diagonal Overall dimensions (H × W × D):

17.4 x 28.5 x 2 in. (44.2 x 72.3 x 5 cm)

Wall-mount weight: 6 lbs. (2.7 kg) We’re here for you

www.rocketfishproducts.com For customer service, call: 1-800-620-2790 (U.S. and Canada) or

01-800-926-3010 (Mexico)

17.4" (44.2 cm)

28.5" (72.3 cm)

Safety information and specifications

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for

any purpose not explicitly specified by Rocketfish.

Improper installation may cause

property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer Service or call a qualified contractor. Rocketfish is not responsible for damage or injury caused by incorrect installation or use.

The weight of your TV must not exceed 130 lbs. (58.9 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined.

This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010

RF-TVMLPT03V2 TV Wall Mount

Edge-to-edge stud finder

Pencil

Level

Phillips screwdriver

Socket wrench with 1/2" (13 mm) socket or adjustable wrench

Measuring tape

Drill

7/32" (5.5 mm) wood drill bit for wood stud wall

3/8" (10 mm) masonry drill bit (concrete only)

Tap e

Hammer

C Right vertical TV bracket (1)

B Left vertical TV bracket (1)

A Wall plate (1)

D Templat e ( 1 )

Tools needed

You will need the following tools to assemble your new TV wall mount:

Package contents: parts

Make sure that you have all the parts necessary to assemble your new TV wall mount:

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

RF-TVMLPT03V2 TV Wall Mount

Label Hardware Qty.

M4 × 12 mm screw

M4 × 35 mm screw

M4/M5 washers

M6/M8 washers

Universal spacers

M5 × 12 mm screw

M5 × 35 mm screw

M6 × 12 mm screw

M6 × 35 mm screw

Label Hardware Qty.

M8 × 16 mm screw

M8 × 20 mm screw

M8 × 35 mm screw

Lag bolt washer

5/16" × 2 3/4" lag bolt

Concrete anchor

Package contents: hardware

Make sure that you have all the hardware necessary to assemble your new TV wall mount:

TV Hardware Bag

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010

RF-TVMLPT03V2 TV Wall Mount

Measuring tape

Pencil

Installation instructions

STEP 1 - Determine wall-mount location

Note:

• For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder

• Your TV should be high enough so your eyes are level with the middle of the screen. Normally, 40 to 60 inches from the ground.

The center of your TV will match the center of the wall plate (A). Before you drill holes in the wall: 1 Measure the distance from the bottom of your TV to the middle (half of the height of the TV). This is

measurement a.

2 Measure the distance from the floor to where you want the bottom of the TV to be placed on the wall. Keep

in mind that the bottom of the TV should be placed above any furniture (such as entertainment centers or TV stands). The TV should also be above items placed on top of the furniture (like a Blu-ray player or cable box). This measurement is b.

3 Add a + b. The total measurement is the height where you want the center of the wall plate to be on the wall. 4 Use a pencil to mark this spot on the wall.

You’ l l n ee d

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

RF-TVMLPT03V2 TV Wall Mount

Center pencil mark made in Step 1.

3 in.

(75 mm)

Note: Minimum wood stud size: Common 2 x 4 in. (51 x 102 mm). Nominal 1.5 x 3.5 in. (38 x 89 mm)

Note: The minumum distance between fastiners cannot be less than 16 in. (406 mm).

Q (4)

Edge-to edge stud finder

R (4)

Pencil

Drill

7/32" wood drill bit

1/2" socket wrench

Level

Tap e

(D) Template

(A) Wall plate

STEP 2 - Option 1: Installing on a wood stud wall

Note: Drywall covering the wall must not exceed 5/8" (16 mm).

1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder. 2 Align the wall plate template (D) at the height you determined in the previous step and make sure that it is

level. Tape the wall plate template to the wall, then use a pencil to mark the lag bolt hole locations (4) on the stud centers. Remove the wall plate template.

3 Drill pilot holes to a depth of 3 in. (75 mm) using a 7/32 in. (5.5 mm) diameter drill bit. 4 Align the wall plate (A) with the pilot holes, insert the lag bolts (R) through the lag washers (Q) and the holes

in the wall plate, then tighten the lag bolts only until they are firm against the wall plate.

CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag bolts (R).

You’l l ne e d

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010

Top Dessus

Parte superior

Tools Needed

Outils nécessaires

Herramientas requeridas

Note: For wood frame installations, use a stud nder to

locate wood studs rst. Remarque : Pour une construction à ossature de bois, localiser d'abord les montants en bois, à l'aide d'un détecteur de montants. Nota: para la instalación en construcciones de armazón de madera, primero debe localizar las vigas de madera con un localizador de vigas.

RF-TVMLPT03V2 Template • Gabarit • Plantilla

Need help deciding how high to mount your TV? Scan this QR code.

Besoin d'aide pour déterminer la hauteur de montage du téléviseur? Numériser ce code QR.

¿Necesita ayuda para determinar la altura de montaje de su televisor? Escanee este código QR.

Top Dessus

Parte superior

V2 13-0197

RF-TVMLPT03V2 TV Wall Mount

Center pencil mark made in Step 1.

3 in.

(75 mm)

Note: Minumum solid concrete thickness: 8 in (203 mm). Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm).

Note: The minumum distance between the top two fastiners cannot be less than 16 in. (406 mm).

Q (4)

R (4)

Pencil

Drill

3/8" masonry drill bit

1/2" socket wrench

Level

Tap e

S (4)

(D) Template

(A) Wall plate

Hammer

STEP 2 - Option 2: Installing on a solid concrete or concrete block wall

CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount

wall plate directly onto the concrete surface.

1 Align the wall plate template (D) at the height you determined in the previous step and make sure that it is

level. Tape the wall plate template to the wall, then use a pencil to mark the lag bolt hole locations (4). Remove the wall plate template.

2 Drill pilot holes to a depth of 3 in. (75 mm) using a 3/8 in. (10 mm) diameter masonry drill bit. 3 Insert the concrete wall anchors (R) into the pilot holes and use a hammer to make sure the anchors are flush

with the concrete surface.

4 Align the wall plate (A) with the anchors, insert the lag bolts (R) through the lag washers (Q) and the holes in

the wall plate, then tighten the lag bolts only until they are firm against the wall plate.

CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag bolts (R).

You’ll need

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

Top

Dessus

Parte superior

Herramientas requeridas

Tools Needed

Outils nécessaires

Note: For wood frame installations, use a stud nder to

RF-TVMLPT03V2 Template • Gabarit • Plantilla

Need help deciding how high to mount your TV? Scan this QR code.

Besoin d'aide pour déterminer la hauteur de montage du téléviseur? Numériser ce code QR.

¿Necesita ayuda para determinar la altura de montaje de su televisor? Escanee este código QR.

Top Dessus

Parte superior

V2 13-0197

RF-TVMLPT03V2 TV Wall Mount

STEP 3 - Determine whether your TV has a flat back or an irregular or obstructed back

1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages

and scratches.

2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV

for instructions.

3 Temporarily lay the TV brackets (B and C) on the back of your TV. 4 Align the screw holes in the TV brackets with the mounting screw holes on your TV. 5 Identify which type of back your TV may have:

• Flat back: The brackets lay flush against the back of your TV and do not block any jacks. You do not need spacers when assembling the wall mount.

• Obstructed back: A bracket blocks any of the jacks on the back of your TV. You will need spacers when assembling the wall mount.

• Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV. You will need spacers when assembling the wall mount.

6 Remove the brackets.

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010

RF-TVMLPT03V2 TV Wall Mount

Screw is too long

Screw fits correctly

Screw is too short

STEP 4 - Select screws, washers, and spacers

1 Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with

mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length and diameter of the mounting screws your TV requires, test various sizes by hand threading the screws.

Select one of the following types of screws:

M4 × 12 mm screws (E)M6×12mm screws (L)

M4 × 35 mm screws (F)M6×35mm screws (M)

M5 × 12 mm screws (J)M8×16mm screws (N)

M5 × 35 mm screws (K)M8×20mm screws (O)

M8 × 35 mm screws (P)

Select one of the following types of washers:

M4/M5 washers (G) M6/M8 washers (H)

For an irregular or obstructed TV back, use the following spacers:

Universal spacers (I)

CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV. Using hardware that is too long may damage your TV. However, using a screw that is too short may cause your TV to fall from the mount.

2 Remove the screws. 3 For a flat back TV, go to “STEP 5 - Option 1: Attaching the mounting hardware to TVs with a flat back” on

page 10.

-ORFor an irregular or obstructed back, go to “STEP 5 - Option 2: Attaching the mounting hardware to TVs with

irregular or obstructed backs” on page 11.

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

RF-TVMLPT03V2 TV Wall Mount

G (4) H (4)

E (4) J (4) L (4)

Phillips screwdriver

OROR

Screws

N (4)

Washers

Level

(B and C) TV Brackets

O (4)

STEP 5 - Option 1: Attaching the mounting hardware to TVs with a flat back

1 Align the holes you noted on the TV brackets (B and C) with the screw holes on the back of your TV. The

brackets are marked “R” for the right bracket and “L” for the left bracket. Make sure the brackets are level.

2 Place the washers (G or H) over the holes in the TV brackets that align with the screw holes on the back of

your TV, then insert the screws (E, J, L, N, or O) through the washers.

3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.

You’ll need

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010

RF-TVMLPT03V2 TV Wall Mount

G (4)

H (4)

F (4)

K (4)

M (4)

Phillips screwdriver

Screws

Washers

Spacers

I (4)

Level

(B and C) TV Brackets

P (4)

STEP 5 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs

1 Align the TV brackets (B and C) with the screw holes on the back of the TV. 2 Place spacers (I) behind the TV brackets and the washers (G or H) over the holes in the TV bracket, then insert

the screws (F, K, M, or P) through the washers, TV bracket, and spacers. Make sure the brackets are level.

3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.

You’ l l n ee d

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

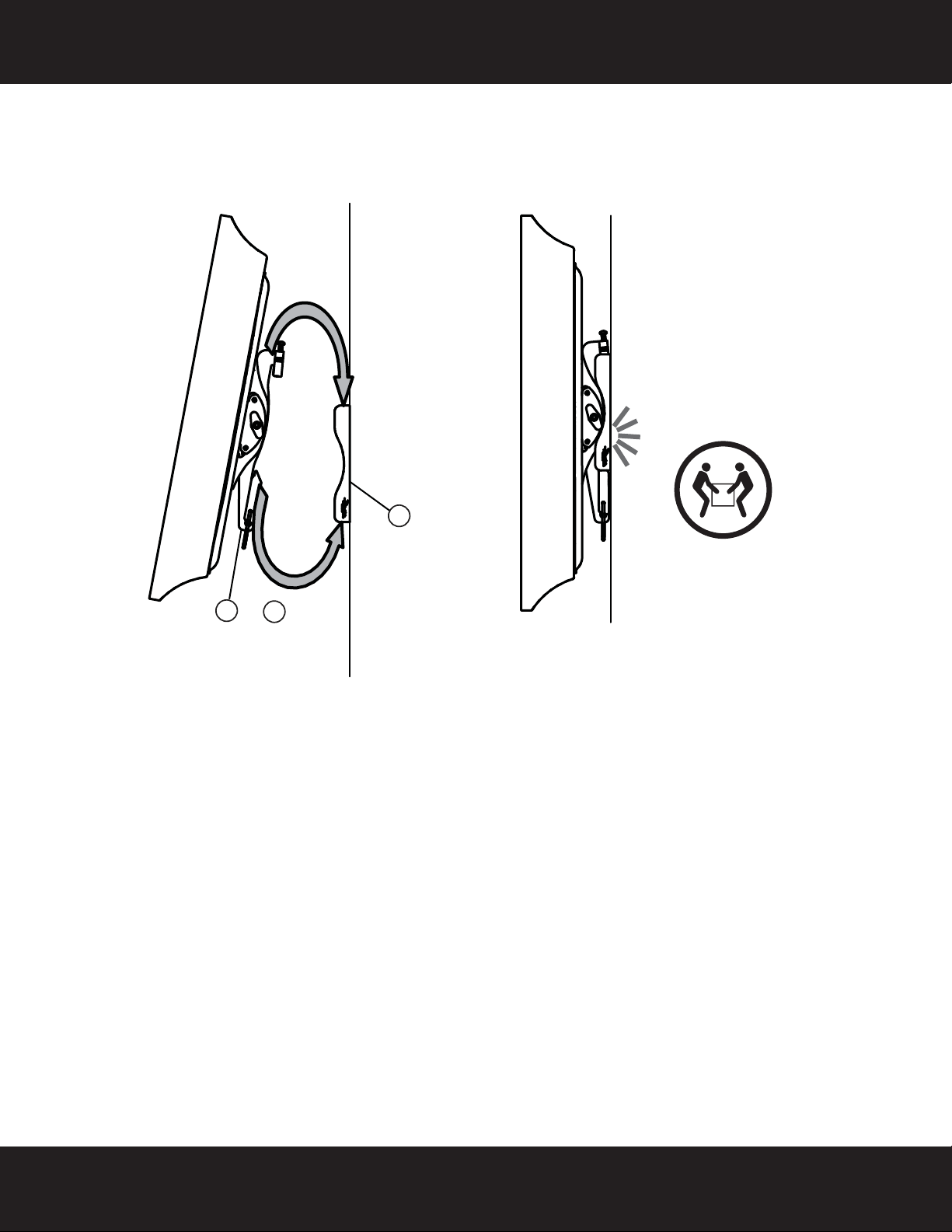

STEP 6 - Attach your TV to the wall mount

HEAVY! You will need assistance with this step.

• Holding the TV with the top of the screen tilted toward the wall, slide the upper notches of the right and left TV brackets (B and C) over the upper lip of the wall plate (A). Then, gently lower the TV until the lock engages the lower lip of the wall plate (A). You will hear a click when the TV locks into place.

RF-TVMLPT03V2 TV Wall Mount

and

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010

RF-TVMLPT03V2 TV Wall Mount

Phillips screwdriver

Level

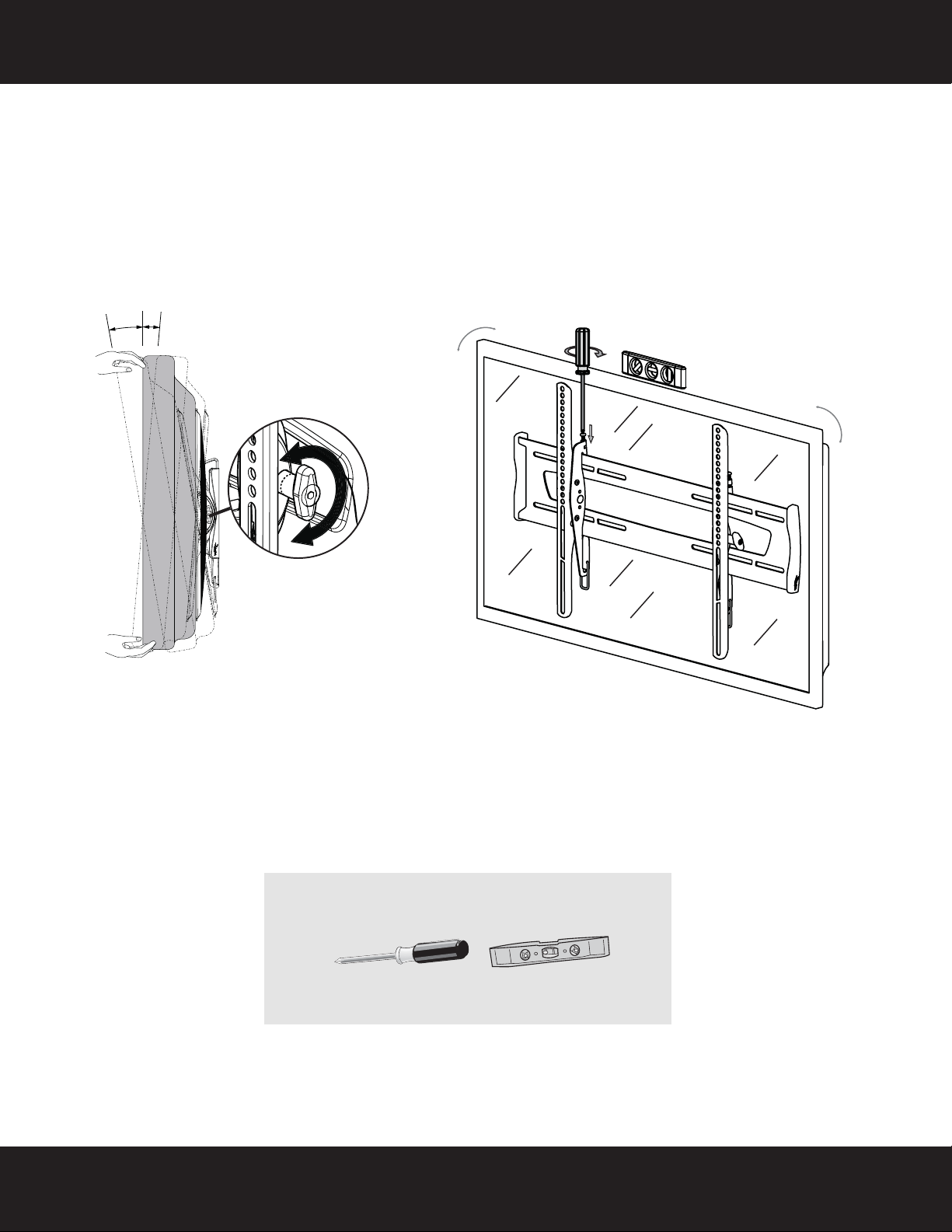

STEP 7 - Adjusting the tilt angle

1 Adjust the swivel tension by hand or by using a 3/16" hex key (not included), then adjust the tilt angle by

gripping the top and bottom of the TV and manually moving the TV to the angle you want. When you are done adjusting the tilt tension, retighten the knob, but don not over-tighten. Tighten the swivel tension after the adjustments have been made.

2 Adjust the level by loosening and tightening the screws on the tops of the vertical brackets.

10° 5°

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

You’ l l n ee d

Removing the TV from the wall mount

• Pull the latches down to unlock the TV from the wall mount, then pull the bottom of the TV out from the wall and lift the it up and off the wall plate.

RF-TVMLPT03V2 TV Wall Mount

For customer service, call: 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010

www.rocketfishproducts.com 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)

Distributed by Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, MN 55423-3645 USA

All other products and brand names are trademarks of their respective owners.

Part number: 6907-002047 01

V3 ENGLISH 13-0604
