X-CITER LAMP

Bulb and Lens
Changing Instructions

NOTE: Make sure all parts are cool before

attempting to change the lens or bulb.

1. Remove lens retainer by turning counterclockwise.
The lens cap will spring up.

2. To change the bulb, remove bulb from lamp head
by pulling bulb straight out from housing and
unplugging it from socket.

3. Insert new bulb, making sure to align the two pins
on the bulb base with the two holes in the bulb
socket; press firmly together.

4. To change the lens, remove O-ring and lens from
lens retainer.

5. Insert new lens, and replace O-ring into lens retainer.

6. Place lens cap and spring on lamp head. Align grooves
located inside lens cap with retaining pins on lamp head.
Push lens cap down, and turn clockwise to lock lens cap
onto lamp head.

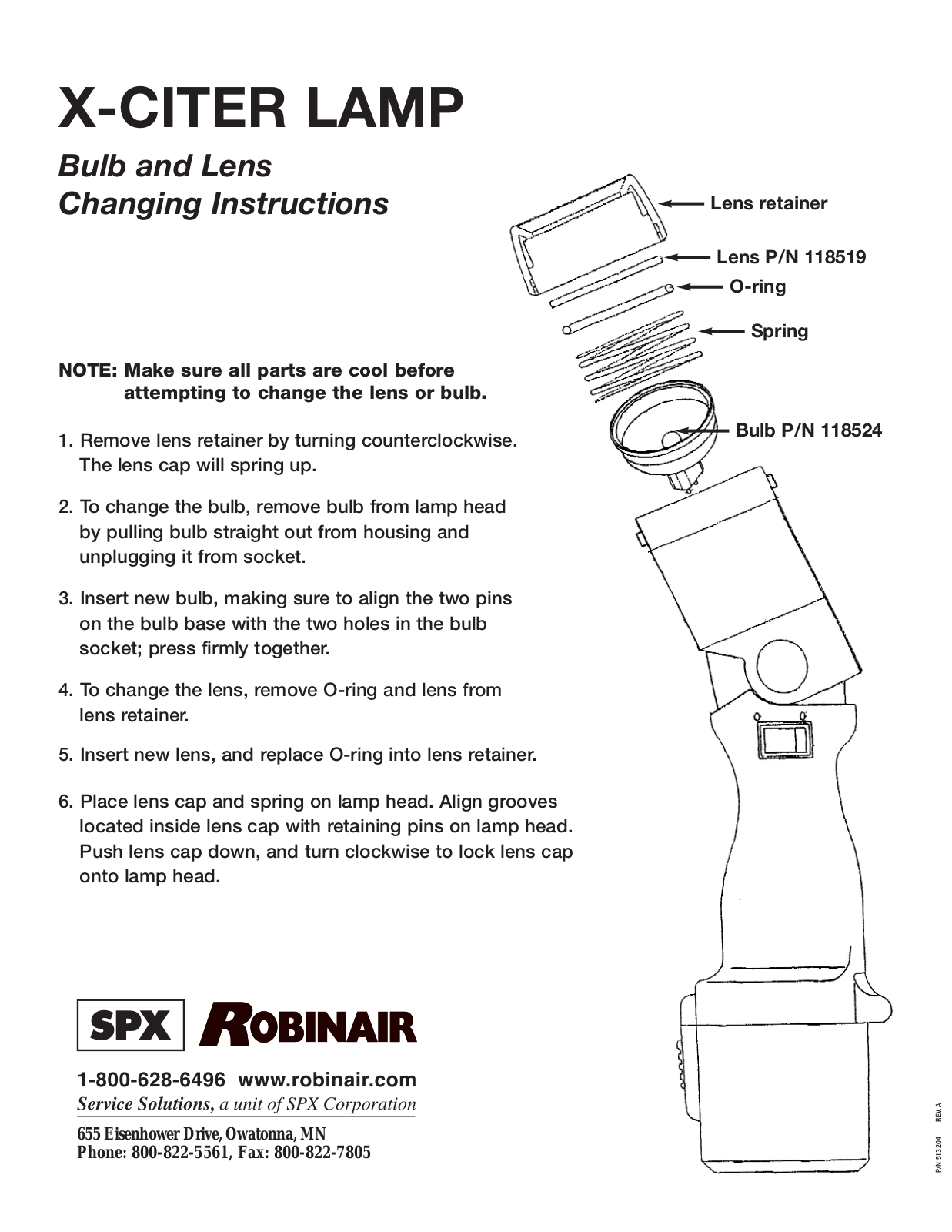

Lens retainer

Lens P/N 118519

O-ring

Spring

Bulb P/N 118524

P/N 513204 REV. A
