SDM-2009 Docking Station

Standalone Configuration

Operator’s Manual

Part Number: 71-0261RK

Revision: 0

Released: 8/12/13

www.rkiinstruments.com

Warranty

RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in materia ls and workmans hip, and perform ance for a perio d of one year from date of shipment from RKI Instruments, Inc. Any parts found defective within that period will be repair e d or repl ace d, at our optio n, fre e of char ge . This w arra nty do es not apply to those items which by their nature are subject to deterioration or consumption in normal service, and which must be cle aned, repaired, or replac ed o n a routine basis. Examples of such items are:

Absorbent cartridges Batteries Pump diaphragms and valves Filter elements Fuses

Warranty is voided by abuse including mechanical damage, alteration, rough handling, or repairs procedures not in accordance with the instruction manual. This warranty indicates the full extent of our liability, and we are not responsible for removal or replacement costs, local repair costs, transportation costs, or contingent expenses incurred without our prior approval.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER

WARRANTIES AND REPRESENTATIONS, EXPRESSED OR IMPLIED, AND ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF RKI

NSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO THE WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL RKI INSTRUMENTS, INC. BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL LOSS OR DAMAGE OF ANY KIND CONNECTED WITH THE USE OF ITS PRODUCTS OR FAILURE OF ITS PRODUCTS TO FUNCTION OR OPERATE PROPERLY.

This warranty covers instruments and parts sold to users only by authorized distributors, dealers, and representatives as appointed by RKI Instruments, Inc.

We do not assume indemnification for any accident or damage caused by th e operation of th is gas mo nitor an d our war ranty is li mited to r eplacement of par ts or our complete goods.

Warranty

Table of Contents

Chapter 1: Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About the SDM-2009. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cautions & Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 2: Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Single-Port AC Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4-Port AC Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

USB Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Air Filter and Sample Tubing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Instrument Cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Sample Fittings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PC Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Chapter 3: Preparing to Use the SDM-2009. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Hardware Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting the Operational Parameters in Edit Mode. . . . . . . . . . . . . . . . . . . . . . . . 14

Bump Test & Calibration Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Turning on the SDM-2009 with an Instrument. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting the Bump Test Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting the Calibration Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Connecting Calibration Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table of Contents

Installing the Single Module Data Viewer Software. . . . . . . . . . . . . . . . . . . . . . . 22

Chapter 4: Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Bump Testing a GX-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Calibrating a GX-2009. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Charging an Instrument in a Docking Station . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Recharging the Batteries After Performing a Bump Test

or Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Recharging the Batteries Without Performing Any Operations. . . . . . . . . . . . . . . . . . . . . 37

Batteries Too Drained for Standalone Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Calibration and Bump Test Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Available Memory in the SDM-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Copying Calibration and Bump Test Records. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Clearing the SDM-2009’s Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Bump Test and Calibration Record Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Bump Testing or Calibrating and Saving Files to a Flash Drive

Multiple Times in One Day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Chapter 5: Single Module Data Viewer Program. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Launching the Single Module Data Viewer Program . . . . . . . . . . . . . . . . . . . . . 41

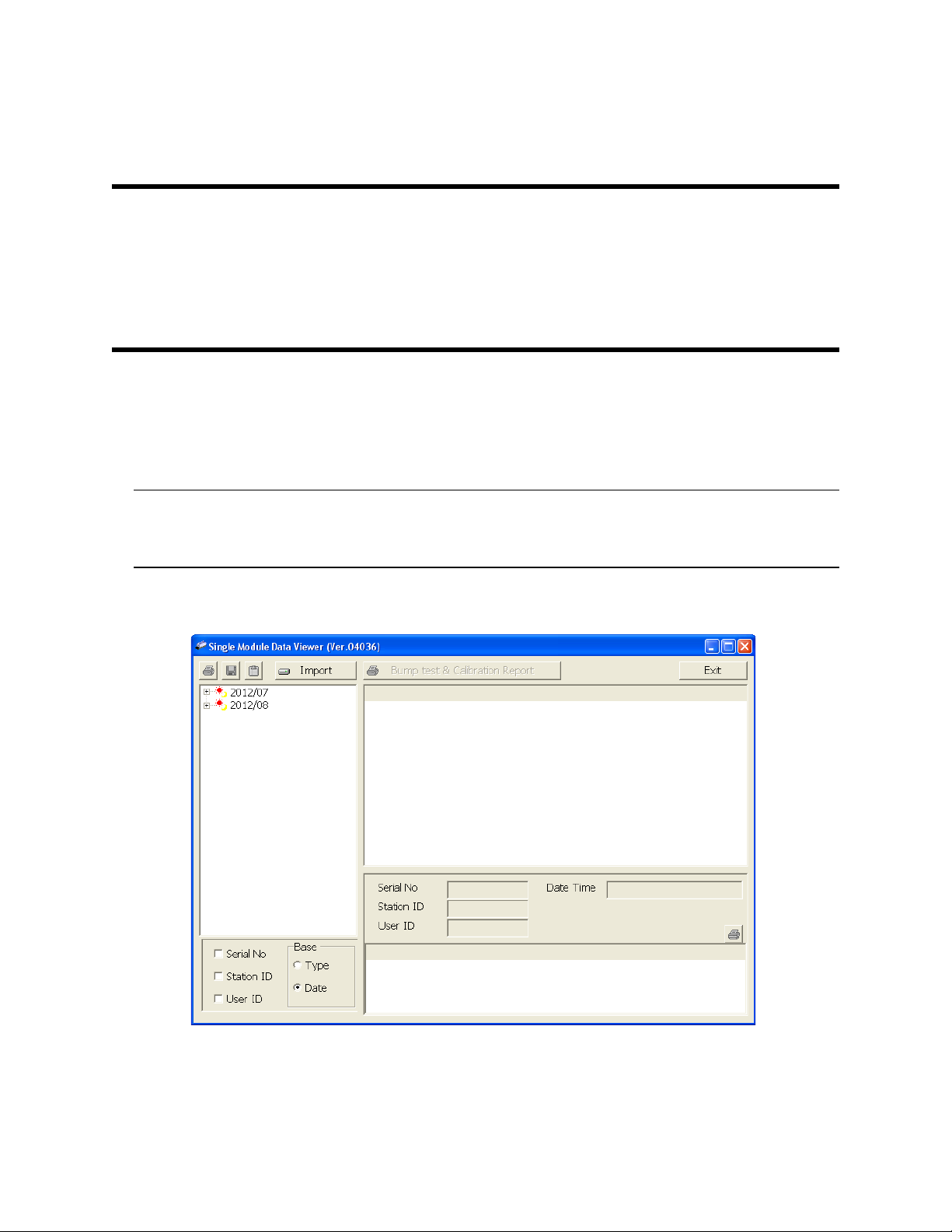

Data Viewing Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Using the Single Module Data Viewer Program . . . . . . . . . . . . . . . . . . . . . . . . . 42

Importing Files Into the Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Organizing the Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Viewing the Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Deleting Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Changing the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Exiting the Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Spare Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

CAUTION: Read and understand this manual before using the SDM-2009. Also

read and understand the GX-2009 Operator’s Manual.

Table of Contents

Chapter 1: Introduction

Overview

This chapter briefly describes the SDM-2009 Docking Station and the Single Module Data Viewer Program. This chapter also describes the SDM-2009 Docking Station Standalone Operation Operator’s Manual (this document). Table 1 at the end of this chapter lists the SDM-2009’s specifications.

About the SDM-2009

The SDM-2009 Docking Station is an advanced, reliable system that provides charging, calibration, bump testing, and calibration and bump test records for the GX-2009 portable gas monitor. It is designed to save the calibration and bump test records to a USB flash drive (standal one functional ity) or to be conn ected directly to a computer (PC contr olled f unctiona lity). If calibra tion an d bump test recor ds are stor ed to a USB flash drive while operating in the standalone configuration, the Single Module Data Viewer Program can then be used with a Windows-based personal computer to retrieve calibration and bump test data files from the USB flash drive or from the comput er’s hard drive if the fi les have b een transferre d to the hard driv e from the flash drive. If you are using the PC Controller Program while operating in the PC controlled configuration, you may retrieve instrument data, bump test, and calibrate up to 10 instruments at once. Instrument in formation and data for each i nstrument can be viewed directly using the PC Controller Program and can be printed from the PC Controller Program. For instructions to use the SDM-2009 with the PC Controller Program, see the SDM-2009 Docking S ta tion PC Co ntrolled Co nfiguration Op erator’s Manual.

The purpose of this manual is to explain how to set up and use the SDM-2009 in Standalone configuration. It also explains how to use the Single Module Data Viewer Program. You will learn how to:

• install and launch the Single Module Data Viewer Program

• prepare the SDM-2009 for use

• perform a bump test

• perform a calibration

• save calibration and bump test records to a USB flash drive

• view, print, and export calibr ation and bump test records

• use the SDM-2009 to charge an instrument

Overview • 1

CAUTION: The GX-2009 detect s oxygen defi ciency and elevated levels of oxygen ,

combustible gases, carbon monoxide, and hydrogen sulfide, all of which can be dange r ous or life threatening. Wh en using the GX-2009, you must follow the instructions and warnings in the GX-2009 Operator’s Manual to assure proper and safe operation of the instrument and to minimize the risk of personal injury.

CAUTION: The operator of this instr umen t is advised that if the equi pment is u sed

in a manner not specifie d in this manual, the protection pr ovided by the equipment may be impaired.

System Requirements

To use the Single Module Data Viewer Software, your personal computer must meet the following requirements:

• Operating System s: Windows® XP, Windows® Vista, Windows® 7.

• Processor: IBM

compatible PC running Pentium® 2 processor or equivalent

minimum

• Memory: 3 2 MB RAM minimum

• Hard Disk Space: 32 MB minimum

• CD-RO M Drive

• Available USB port

2 • System Requirements

Specifications

Table 1: SDM-2009 Specifications

Input Power 12 VDC

NOTE: AC Adapter with 100 - 240 VAC, 50/60 Hz,

0.6A input and 1 2 VDC, 1.2A output provided as standard.

Environmental Conditions • For Indoor Use Only

• -10° C to 40° C, below 80% Relative Humidity, NonCondensing

Applicable Instruments GX-2009 Memory Capacity 64 KB Maximum Record Size 256 bytes Maximum Number of

Records Saved Number of Calibration Gas

Cylinders Standard Accessories • AC Adapter

200

One calibration gas cylinder per bump test or calibration

• USB Flash Drive

• Single Module Data Viewer Program

• SDM-GX Docking Station PC Controller Program

• Inlet Air Filter

• Instruction Manual

• 10 Foot Long Exhaust Tube

• One 3 Foot Long Tube for GAS Fitting

• 10 Foot Long 3/16 Inch Tube for GAS manifolding (used for PC Controlled Configuration only )

• 2 T-Fittings (used for PC Controlled Configuration only )

• Check Valve (used for PC Controlled Configuration only )

• USB Cable, Type A to Type B

Specifications • 3

About this Manual

The SDM-2009 Docking Station Standalone Configuration Operator’s Manual uses the following conventions for notes, cautions, and warnings.

NOTE: Describes additional or critical information.

CAUTION: Describes potentia l damage to equipm en t.

WARNING: Describes potential danger that can result in injury or death.

Cautions & Safety Information

• Use only polyurethane sample tubing with the SDM-2009. Consult RKI Instruments, Inc. for other materials.

• Do not subject the SDM-2009 to infrared or intense light. This may cause communication errors.

• Do not expose the SD M-2009 to water.

• Do not subject the SDM-2009 to any hard impact.

4 • About this Manual

Chapter 2: Description

To Power Jack

on SDM-2009

Back Panel

Figure 1: Single-Port AC Adapter

To Power Jack

on SDM-2009

Back Panels

Figure 2: 4-Port AC Adapter

Overview

This section describes the SDM-2009 docking station. It is designed to be used on a table top and cons ists of the AC ad aptor , T ype A to T y pe B USB cable, air filte r , check valve, 2 plastic T-fittings, sample tubing, instru ment crad le, back pa nel, cont rol p anel, status LEDs, and 2 USB ports.

AC Adapter

Single-Port AC Adapter

The single-port AC ada pt er is a w all plug style ada pter w ith a 5 f oot cable. The en d of the cable has a plug that connects to the power jack on the SDM-2009’s back panel. The AC adapter is rated 100 - 240 VAC input, 12 VDC 1.2 A output.

4-Port AC Adapter

The 4-port AC adapt er is a wa l l p lug style adapter with four 5-foot cables . The end of each cable has a plug that connects to t he power jack on the SDM-2009’s back panel. The AC adapter is rated 100 - 240 VAC input, 12 VDC 2.0 A output.

Overview • 5

USB Cable

Exhaust Tubing, 5/16 Inch

ID,10 feet

Particle Filter for Air Inlet

Calibration Gas Sample Tubing, 3/16

Inch ID, 3 fe et

Manifold Tubing, 3/16 Inch

ID,10 feet

Figure 4: Air Filter & Sample Tubing

A Type A to Type B USB cable is provided with the docking station. It is only for use with the PC Controlled configuration. It is not used in the Standalone configuration.

Figure 3: USB Cable

Air Filter and Sample Tubing

A cylindrical particle filter with a short length of tubing is supplied with the SDM-2009 for installation to the AIR fitting on the back panel. The filter keeps particulate contamination out of the docking station.

Three types of sample tubes are included with the docking station. One 3 foot length of 3/16 inch ID polyurethane tubing is provided to connect the regulator on a calibration cylinder to the GAS fitting on the back panel. One 10 foot length of 3/16 inch ID polyurethane tubing is provided for manifolding the GAS fitti ng . Th i s t ubing is only needed in the PC Controlled configuration of the SDM-2009. In addition, a 10 foot length of 5/16 inch ID polyurethane tubing is provided for connection to the exhaust fitting on the back panel to allow routing of the exhaust to a location such as an open window where the exhaust can disperse.

6 • USB Cable

WARNING: Do not use an exhaust tube that is longer than 10 feet. The increased flow

Figure 5: Check Valve

For Exhaust Tubing

For GAS Tubing

Figure 6: T- Fittings

restriction caused by a longer tube may affect gas response and cause inaccurate calibration and bump test results.

A check valve is included with the SDM-2009 but is not needed for the Standalone configuration. It is used for the PC Controlled configuration.

Two T-fittings are included with the SDM-2009. The larger fitting is for the exhaust tubing. The smaller fitting is for the GAS tubing. Neither T-fitting is needed for the Standalone configuration. They are used in the PC Controlled configuration.

Air Filter and Sample Tubing • 7

Instrument Cradle

EDIT

ENTER

CAL.

POWER

CHARGE

SDM-2009

1SEC ON 3SEC OFF

COPY

GX-200 9 OFF

BUMP

SDM-2009 Without GX-2009

H2SCO%LELO

RKI GX-2009

POWER

MODE

AIR

BUMP

GX-200 9 OFF

COPY

1SEC ON 3SEC OFF

SDM-2009

CHARGE

POWER

CAL.

EDIT

ENTER

Charging Contacts

SDM-2009 With GX-2009

IR Port

Inst rum ent Cradle

Instrument Retaining Tab

Figure 7: Instrument Cradle

The instrument cradle is a recessed area on the top of the SM-2009 that is designed to accept the GX-2009. Insert the GX-2009 in the instrument cradle when you perform a bump test or calibration. The cradle has charging contacts on the bottom that mate with the contacts on the back of the GX-2009. There are sample ports in the front of the cradle that match up with the GX-2009’s sensors and route air and calibration gas to the sensors during a bump test or calibration. An infrared (IR) port at the back of the cra dle l i ne s up wi th th e GX -2009’s IR port when it is inserted i n th e cradle and is used to communicate with the GX-2009. A retaining tab that holds the GX-2009 in the cradle is located to the right of the IR port.

8 • Instrument Cradle

Back Panel

Gas Fittin g

Exhaust Fitting

Back Panel USB Port (Type B), For Computer Connection

Air Fitting

Power Jack

Figure 8: Fittings and Connections

The back panel includes the power jack, sample fittings, and a USB PC connector.

Power Jack

The power jack is located in the bottom left corner of the back panel. The plug on the end of the AC adapter cable mates to it.

Sample Fittings

Three sample fittings are located on the back of the SDM-2009. The AIR fitting is in the upper left corner and draws air into the SDM-2009. The GAS fitting is to the right of the AIR fitting and is used to connect the SDM-2009 to a calibration gas cylinder. Both fittings accept 3/16 inch ID tubing.

An exhaust fitting is located in the upper right corner. It allows routing of the exhausted calibration gas to a convenient location. This fitting accepts 5/16 inch ID tubing. Even though the exhau st gas can be r outed to an area to b e safely disp ersed, the docking station should still be installed in a well ventilated a rea.

PC Connection

A type B USB connection is located beneath the exhaust fitting on the SDM-2009’s back panel. It is only used for the PC Controlled conf iguration and is not used in the Standalone configuratio n.

Back Panel • 9

Control Panel

CHARGE

1SEC ON 3SEC OFF

COPY

GX-2009 OFF

POWER

SDM-200 9

BUMP CAL.

Control Buttons

EDIT

ENTER

BUMP LED

CHARGE LED

COPY LED

CAL LED

Figure 9: Control Panel

The control panel is us ed to setup and operate the docking station in the Standalone configuration. It is located at the front of the docking station. It includes the control buttons, the control button LEDs, and the CHARGE status LED.

Five control butto ns are located on the control p anel. From lef t to right the y are BUMP T , CAL S , EDIT ENTER, COPY, and POW ER. The BUMP T , CAL S , and COPY control buttons each have an LE D above them that indi cates the status of th e function controlled by that button. The CHARGE LED is located above the POWER button and functions as a pilot LED, a system failure LED, and a charge indication LED.

Table 2: Control Butto n Functions

Control

Button

Control Button Function(s)

BUMP T • Initiates a bump test

• Cancels a bump test

• Moves down a list of para m ete rs

• Decreases an ad justable parameter

Control Button LED

Function(s)

Indicates status of a bump test in progress

10 • Control Panel

Table 2: Control Butto n Functions

Control

Button

Control Button Function(s)

CAL S • Initiates a calibration

• Cancels a calibration

• Clears data from docking station memory (when used with COPY button)

• Moves up a list of parameters

• Increases an adjustable parameter

EDIT ENTER

• Puts docking station into various edit modes

• Makes a displayed parameter editable

• Escapes or cancels an operation

• Turns off connected instrument (when used with POWER button)

COPY • Copies data to a USB flash drive.

• Clears data from docking station memory (when used with CAL S button)

Control Button LED

Function(s)

Indicates status of a ca l ibr ation in progress

n/a

• Indicates amount of docking station memory used

• Indicates status of copying function

• Indicates the result of a copy operation

POWER • Turns on the docking station

• Turns off the docking station

• Turns off connected instrument (when used with EDIT ENTER button)

n/a

Control Pa nel • 1 1

Front Panel

Figure 10: Front Panel

A type A USB port is located on the front of the docking station. This port can be used to save calibration and bump test data to a USB flash drive. This USB port is for use only in the Standalone configuration of the SDM-2009.

NOTE: The SDM-2009 does not support connection of a computer to the front

USB port, only a USB flash drive.

12 • Front Panel

Chapter 3: Preparing to Use the SDM-2009

Overview

There are four tasks that must be completed before you can begin to use the SDM-2009: hardware assembly, setting or confirming the bump test and calibration parameters, connecting calibration gas, and installing the Single Module Data Viewer Software on your computer. This chapter describes how to assemble the parts that are shipped with the SDM-2009, how to set or view the bump test and calibration parameters, and how to install the Single Module Data Viewer Software on a Windows based personal computer.

Hardware Assembly

The hardware assembly co nsist s of connecti ng the AC ad apter, installing the a ir filter, and connecting the sample tubing. Perform the following to complete the hardware assembly:

1. Place the SDM-2009 on a convenient table top near an AC wall socket in a well ventilated area. A location near a window that can be opened is best so that the exhaust can be routed to the windo w.

2. Connect the AC adapter’s wall plug into a wall AC socket.

3. Insert the round plug on the end of the AC adapter’s cable into the power jack on the back of the SDM-2009.

NOTE: If you have multiple SDM-2009s and are using a 4-port AC adapter,

plug each of the round plugs on the end of the AC adapter into the power jack on th e back of 4 separate SDM-2009s.

4. Install the air filter so that the arrow on the filter that indicates direction of flow is pointing towards th e AIR fitting. P ush the open en d of the flexib le tube that is on one end of the filter onto the AIR fitting on the back of the SDM-2009.

5. Install the 10 foot long 5/16 inch ID flexible tube that is included with the SDM2009 onto the exhaust fitti ng locate d in the upper lef t corner of th e back p anel . Route the tube to an are a wh ere t he exha ust can be saf ely d ispersed , su ch as an open window.

CAUTION: The maximum recomme nded le ngth for th e exha ust tube is 10 feet. Do

not use more than 10 feet of tubing or tubing with an ID of less than 5/16 inch for the exhaust tube or the bump test and calibration accuracy may be adversely affected. The tube that is shipped with the SDM-2009 has an ID of 5/16 inch and is 10 feet long.

6. Install the 3 foot long 3/16 inch ID tube that is included with the SDM-2009 on the GAS fitting.

Overview • 1 3

Setting the Operational Parameters in Edit Mode

Once the hardware has been assembled, use Edit Mode to confirm or adjust the bump test and calibration parameters before using the SDM-2009.

The bump test paramete rs define how long fresh air and calibra tion gas are applied to an instrument during a bump test. They also define the tolerance used in determining whether an instrument fails or passes a bump test and whether or not a calibration automatically takes place if a bump test fails. The calibration parameters define how long fresh air and calibration gas are applied to an instrument during a calibration.

The bump test and calibration parameters are saved in the SDM-2009’s memory. If a parameter is changed with one particular instrument installed in the SDM-2009, the change will be in effect for the bump test or calibration of any subsequent instruments until the parameter is changed again.

Bump Test & Calibration Parameters

There are four bump test parameters and two calibration parameters. The two calibration parameters, air sample time and calib ration gas sample time, are also bump test paramet ers. The parameters are descr ibed below. Table 3 below shows the factory settings for the bump test and calibration parameters. If you wish to use the factory settings, then you do not n eed to make an y p arame ter adj ustme nt s. If you wish to confirm or change the parameter settings, follow the instructions below in “Setting the Bump Test Parameters” on page 17 or “Setting the Calibration Parameters” on page 19.

Table 3: Bump Test & Calibration Pa rameter

Parameter

Air Sample Time AIr • 30 seconds

Calibration Gas Sample Time

Bump Test Check Tolerance

Display

Tag

GAS • 30 seconds

CHE • ± 10%

Available

Choices

• 45 seconds

• 60 seconds

• 90 seconds

• 45 seconds

• 60 seconds

• 90 seconds

• 120 seconds

•± 20%

•± 30%

•± 40%

•± 50%

Bump Factory

Setting

30 seconds 4 5 seconds

30 seconds 9 0 seconds

50% n/a

Cal Factory

Setting

14 • Setting the Operational Parameters in Edit Mode

Table 3: Bump Test & Calibration Pa rameter

Parameter

Automatic Calibration

Display

Tag

CAL • On

Available

Choices

•Off

Bump Factory

Setting

Off n/a

Cal Factory

Setting

Air Sample Time (AIr)

The air sample time can be set separately for bump testing and calibration. It is the length of time that the SDM-2009 will draw air through the AIR fitting on the back of the docking stati on. Ai r is dra wn duri ng a bu mp tes t or cali bratio n before an air ad just operation and to purge calibration gas from the system aft er calibration gas has been drawn through the GAS fitting on the back of the docking station.

NOTE: For the following parameters, the GX-2009’s setting takes precedence

over the SDM-2009’s setting as long as the bump test function in the GX-2009 is turned on. For example, if the SDM-2009’s CAL setting is set to OFF but the GX-2009’s Calibration After Bump Test Failed setting is set to ON, a calibration will still automatically be started after a failed bump test. If the GX-2 009’s bump test function is set to off, the GX-2009’s bump test settings have no effect and the SDM-2009’s settings are used.

Calibration Gas Sample Time (GAS)

The calibration gas sample time can be set separately for bump testing and calibration. It is the length of time that the SDM-2009 will draw calibration gas through the GAS fitting on the back of the docking station during a bump test or calibration.

Bump Test Check Tolerance (CHE)

The bump test check t oler an ce on ly applies to bump testing. It determ ines how close the instrument ga s reading must be to the calibration gas concentration for each channel during a bump test in order to pass the bump test. It is defined as a percentage of the calibration gas concentration.The amount that the instrument gas reading differs from the calibration gas concentration must be equal to o r less than this percentage of the calibration gas concentration. For example, if the tolerance is set to 50%, and the %LEL calibration gas concentration is 50% LEL, then the bump test gas reading f or th e LEL channel on the instrument m ust b e 5 0 %LEL ± 25 %LEL.

Automatic Calibration (CAL)

Automatic calibration onl y appli es to bump testi ng. It can be set to on or off. If it is set to on, then the docking station will automatically perform a cali bration if a bump test fails.

Setting the Operational Parameters in Edit Mode • 15

Turning on the SDM-2009 with an Instrument

50 12.0

TRANSMIT

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

FAIL

C-LIMIT

Do the following to turn on the SDM-2009 and establish a connection with an instrument:

1. Confirm that the AC adapter is connected to the SDM-2009 and to an AC wall socket.

2. Press and hold the SDM-2009’s POWER button. The LEDs will turn amber.

3. When the BUMP T and CAL S LEDs turn off, release the POWER button.

4. The COPY LED will be steadily on or off and the CHARGE LED will be blinking green if the SDM-2009 is operating properly or solid red if there is a system failure. The amount of free memory in the SDM-2009 will dictate the condition of the COPY LED (see “Available Memory in the SDM-2009” on page 38).

5. Install an instrument into the instrument cradle.

6. Press and hold the POWER MODE button on the instrument until you hear a beep, then release it. The instrument will begin its power up sequence (see exceptions below in step 7). If a successful connection be tween the inst rument and the SDM-2009 occurs, the home screen will appear on the instrument display at the end of the startup sequence. The auto calibration values for all installed sensors will be displayed.

NOTE: The screen shown above applies to a 4-channel GX-2009. If your

7. Ther e ar e tw o exce ption s to the seq ue nce de scri b ed in step 6 above. See the

16 • Setting the Operational Parameters in Edit Mode

GX-2009 has less than 4 channels, the inactive channels will not appear in the above screen or in any screens where channels are displayed. All screens in this manual assume a 4-channel GX-2009.

GX-2009 User Setup Program Operator’s Manual for a description of the Cal Limit Display and Cal Limit Check instrument parameters.

• When Cal Limit Display is set to On and Cal. Limit Check is set to Can’t

Use, if the GX-2009 is due for calibration the instrument will show a calibration expired failure screen and the buzzer and LED arrays will pulse

for a few seconds.

The instrument will then connect to the SDM-2009 and display the home

screen shown above in step 6. The CHARGE LED will begin to blink green.

CAL

C--LIMIT

50 12.0

TRANSMIT

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

BUMP/CAL

AIr GAS

BUMP

CHE CAL

30 30

BUMP

50 O n

• When Cal Limit Display is set to On and Cal. Limit Check is set to

Confirm to use, if the GX-2009 is due for calibration the unit will show the

following scree n and beep and flash the LE D arrays for a few seconds indicating that calibration is due.

When the beepi ng and flashing stops, press and release the POWER MODE button on the GX-2009 to continue. The unit will now connect to the SDM-2009, the home screen shown in step 6 above will be displayed, and the CHARGE LED will begin to blink green.

Setting the Bump Test Parameters

Do the following to set the bump test parameters.

1. Turn on the SDM-2009 with an instrument and establish a connection between them as described above in "Turning on the SDM-2009 with an Instrument". The instrument will display the home screen.

2. Press and hold the EDIT ENTER button for 2 seconds. The instrument will display the Edit Mode screen.

3. Press and release the BUMP T button. The instrument will alternate between the following screens that display the four bump test parameters and their settings. The BUMP T LED will turn green.

Setting the Operational Parameters in Edit Mode • 17

4. If you wish to cancel setting th e bum p te st p aram eters or we re ju st vie wing the

AIR--IN

GAS--IN

CHECK

AUTO--C

30 30

DECISION

50 O n

50 12.0

TRANSMIT

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

E AIR--IN

parameters to confirm their values, press and release the BUMP T button to return to the home screen.

To continue and change parameters, press and release the EDIT ENTER button. The Air Sample Time parameter will be displayed. For a description of the Air Sample Time bump test parameter, see “Bump Test & Calibration Parameters” on page 14.

5. Use the BUMP T and CAL S buttons to scrol l th r oug h the different bump test parameters. Do n ot scr ol l past the AUTO--C para mete r until you have finished making any desired changes.

6. To edit a parameter, press and release the EDIT ENTER button when that

7. Use the BUMP T and CAL S buttons to set the parameter to the desired

8. Repeat step 6 - step 7 to set any other parameters.

18 • Setting the Operational Parameters in Edit Mode

parameter is displayed. An “E” will appear to the left of the parameter name indicating that the p a rameter val ue can be changed. In the examp le belo w, the AIR--IN parameter has been selected for updating.

value, then press and release the EDIT ENTER button. The “E” to the right of parameter name will disappear.

9. When you are done setting the parameters, use the BUMP T button to scroll

30 30

DECISION

50 O n

50 12.0

TRANSMIT

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

BUMP/CAL

30 90

CAL

Air GAS

CAL

past the AUTO--C parameter screen. The screen will indicate that the parameter changes have bee n saved .

The instrument will return to the home screen.

Setting the Calibration Parameters

Do the following to set the calibration parameters.

1. Turn on the SDM-2009 with an instrument and establish a connection between them as described above in "Turning on the SDM-2009 with an Instrument". The instrument will display the home screen.

2. Press and hold the EDIT ENTER button for 2 seconds. The instrument will display the Edit Mode screen.

3. Press and release the CAL S button. The instrument will alternate bet w een the following screens that display the two calibration parameters and their settings.

4. If you wish to cancel setting the calibration parameters or were just viewing the parameters to confirm their values, press and release the CAL S button to return to the home screen.

Setting the Operational Parameters in Edit Mode • 19

Parameters” on page 14.

AIR--IN

GAS--IN

45 90

DECISION

50 12.0

TRANSMIT

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

E AIR--IN

30 90

DECISION

5. Use the BUMP T and CAL S buttons to scroll through the dif ferent calibrat ion parameters. Do not scroll past the GAS--IN parameter until you have finished making any desired changes.

6. To edit a parameter, press and release the EDIT ENTER button when that parameter is displayed. An “E” will appear to the right of the parameter name indicating that the p a rameter val ue can be changed. In the examp le belo w, the AIR--IN parameter has been selected for updating.

7. Use the BUMP T and CAL S buttons to set the parameter to the desired value, then press and release the EDIT ENTER button. The “E” to the right of parameter name will disappear.

8. Repeat step 6 - step 7 to set any other parameters.

9. When you are done setting the parameters, use the BUMP T button to scroll past the GAS--IN parameter screen. The screen will indicate that the parameter changes have bee n saved .

20 • Setting the Operational Parameters in Edit Mode

The instrument will return to the home screen.

Connecting Calibration Gas

The GAS fitting on the back of the docking station is designed to be used with a calibration gas cylinder that is fitted with a demand flow regulator. The AIR fitting may be used with a demand flow regulator and a cylinder of zero emissions air, but this is not normally necessary since the docking station will generally be in a fresh air area.

The type of calibratio n g as cyli nd er u s ed de pen ds on the gas sensors installed in the instrument bein g used with th e calibration station . A 4-gas mix, LEL/Oxygen/CO/H2S,

is used if the instrument being used with the calibration station is a 4-gas unit. If the instrument does not have an H2S channel, then a 3-gas mix, LEL/Oxygen/CO, is

used. Although a 4-ga s cylinder will work for an instrume nt of any gas combina tion, if you have multiple instruments with various gas combinations, you may want to keep a 4-gas cylinder a nd a 3-gas cylinder to help preserve the charcoal filter on the CO sensor in instruments without an H2S channel. Use Table 4 below as a guide in

determining which calibration gas cylinder is appropriate for your system. See “S pa re Parts List” on page 51 for a list of available cylinder part numbers.

Table 4: Recommended Gas Cylinders

Typical Instrument Types

LEL/Oxy/H2S/CO 4-gas mix with CH4/Oxy/H2S/CO LEL/Oxy/CO 3-gas mix with CH4/Oxy/CO LEL/Oxy/H2S 4-gas mix with CH4/Oxy/H2S/CO LEL/Oxy 3-gas mix with LEL/Oxy/CO

Oxy/CO 3-gas mix with LEL/Oxy/CO Oxy/H2S 4-gas mix with LEL/Oxy/H2S/CO

To connect calibration gas to the SDM-2009, do the following:

1. If the area around the docking station is not considered a fresh air area (an area free of combustible and toxic gases and of normal oxygen content,

20.9%) install a tube not longer than 10 feet on the filter attached to the AIR fitting on the back of the docking station and route it to a fresh air area or connect a cylinder of zero air with a demand flow regulator to the AIR fitting.

2. Install the de mand flow regulator on the calibration gas cylinder(s).

Recommended Calibration Gas

Cylinder(s)

3. Connect the demand flow regulator to the GA S fitting using the 3 foo t length of 3/16 inch ID s ample tubing provided with the docking station.

Connecting Calibrat ion Gas • 2 1

Installing the Single Module Data Viewer Software

1. Launch Windows®.

2. Exit from all applications and open windows.

3. There are two ways to install the Single Module Data Viewer Software: by using the SDM-2009 Product CD or by using the Single Module Data Viewer Software Installation CD.

• If you are using the SDM-2009 Product CD, inse rt the Produc t CD into your

computer’s CD-ROM drive. The CD will automatically open revealing several folders. Open the Single Module Data Viewer Software folder, double click on setup.exe and continue with step 4.

• If you are using the Single Module Data Viewer Software Installation CD, it

will automatically begin the installation process. Insert it in your computer’s CD-ROM drive, then continue with step 4.

4. The Single Module Data Viewer InstallShield Wizard comes up to guide you through installation. Click Next to proceed to the License Agreement window.

5. Read the license agreement and click the agreement acceptance selection box, then click Next to proceed to the Customer Information window.

6. Enter a user name and organization and select if you want to install the program for all users on the computer or just for your user account, then click Next to proceed to the Destination Folder window.

7. The defaul t installation fo lder (C:\Program Fil es\Single Module Data View er\) is displayed. If you want to install the software in the default folder continue with step 8. If you want to install the software in a different location, click Change and choose a new installation folder now and then continue with step 8.

8. Click Next to proceed to the Ready to Install the Program window.

9. Review the installation settings. If they are OK, click Install and the installation process will begin. If you want to change installation settings, click Back and change them to the desired settings.

10. During software installation, the installation program may find newer versions of Windows files on your computer than those in the Installation CD. If this happens, the installation software will ask you if you want to keep these newer files. Click Yes to do so.

11. Follow the on-screen instructions to complete software installation.

22 • Installing the Single Module Data Viewer Software

Chapter 4: Operation

Overview

When you have completed the tasks in "Chapter 3: Prep aring to Use the SDM-2009", you are ready to use the SDM-2009 docking station. The SDM-2009 is capable of performing bump tests and calibrations on the GX-2009. It can also charge the rechargeable bat teries in the instrume nt. This chapter describes procedur es for using the docking station to bump test, calibrate, and recharge instruments in the standalone configuration of the docking station. It also describes the information that is saved in the docking station’s memory and how to save that information to a USB flash drive for use with the Single Module Data Viewer Program.

Bump Testing a GX-2009

The following instructions apply to GX-2009s with one or more of the standard four sensors (catalytic LEL, O2, CO, and H2S).

When a bump test is perfor m ed , the SD M - 200 9 pe rf or m s a fresh ai r ad j ustm en t on a GX-2009 and then applies ca libr ation g as to the i nstrum ent. The d ocking station then analyzes the response results based on criteria defined by the bump test check tolerance parameter and determines if the instrument passed the bump test. The bump test check tolerance is defined in “Bump Test Check Tolerance (CHE)” on page 15. If the automatic calibration parameter is set to ON, then the SDM-2009 will automatically perform a calibration if the bump test fails.

Do the following to perform a bump test on a GX-2009:

1. Confirm that the AC Ada pte r is connected to the SDM-2009 and to an AC w al l socket.

2. Press and hold the SDM-2009’s POWER button. The LEDs will turn amber.

3. When th e BUMP T and CAL S LEDs turn off, release the POWER button.

4. The COPY LED will be off or on steadily and the CHARGE LED will be blinking green if the SDM-2009 is operating properly or solid red if there is a system failure. The amount of free memory in the SDM-2009 will dictate the condition of the COPY LED (see “Available Memory in the SDM-2009” on page 38).

5. Install a GX-2009 in the instrument cradle.

NOTE: If the GX-2009 is left in the SDM-2009 after bump testing or calibration,

the pump will run for 12 seconds every 2 minutes in order to keep hydrogen gener ated from cha rging of t he NiMH ba tteries from aff ecting the CO sensor.

Overview • 2 3

and the SDM-2009 occurs, the home screen will appear on the instrument

50 12.0

TRANSMIT

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

FAIL

C-LIMIT

CAL

C--LIMIT

display at the end of the startup sequence. The auto calibration values for all installed sensors will be displayed. If the charge LED was amber, it will begin to blink green.

NOTE: The screen shown above applies to a 4-channel GX-2009. If your

GX-2009 has less than 4 channels, the inactive channels will not appear in the above screen or in any screens where channels are displayed. All screens in this manual assume a 4-channel GX-2009.

7. There are two exceptions to the seque nce de scrib ed in step 6 above. See the GX-2009 User Setup Program Operator’s Manual for a description of the Cal Limit Display and Cal Limit Check instrument parameters.

• When Cal Limit Display is set to On and Cal. Limit Check is set to Can’t

Use, if the GX-2009 is due for calibration the instrument will show a calibration expired failure screen and the buzzer and LED arrays will pulse

for a few seconds.

The instrument will then connect to the SDM-2009 and display the home screen shown above in step 6. The CHARGE LED will begin to blink green.

• When Cal Limit Display is set to On and Cal. Limit Check is set to

Confirm to use, if the GX-2009 is due for calibration the unit will show the following scree n and beep and flash the LE D arrays for a few seconds indicating that calibration is due.

24 • Bump Testing a GX-2009

8. If necessary, confirm that the bump test check tolerance is set to the desired value. See “Setting the Bump Test Parameters” on page 17.

9. Verify that the approp r iate calibration gas cylin der is connected to the GAS

0 20.9

BUMP AIR

CO ppm H2S ppm

CH4 %LEL OXY vol%

0 0.0

- - - - - -

FLOW NG

CO ppm H2S ppm

CH4 %LEL OXY vol%

- - - - - -

fitting on the back of the SDM-2009. See “Connecting Calibration Gas” on page 21 for calibration gas cylinder options and calibration gas connection procedures.

10. Press and hold the BUMP T button until the BUMP T LED turns on (about one second) then rel ease i t. Du ring th e bum p test, the BU MP T LED will flash amber indicating that a bump test is in progress.

If you wish to cancel the bump test, press and hold the BUMP T button for at least one second until CANCEL appears on the screen.

11 . If at any point during the bump test the g as flow to the instrument become s too

low, the bump test will be aborted and the screen will indicate a flow failure.

If a flow failure occurs, confirm all tubing connections are correct and that all lines are cl ear.

• To return to the home screen, press and hold the EDIT ENTER button for

about 3 seconds.

• To start another bump test, press and release the BUMP T button.

• To perform a calibration, press and release the CAL S button.

12. The SDM-2009 will begin the bump test by applying fresh air to the instrument for the time defined by the Air bump test parameter.

13. The SDM-2009 will pe rform a fresh air adjustment on the instrument.

• If the air adjustment is successful, the SDM-2009 will continue as

described in step 14 below.

Bump Testing a GX-2009 • 25

• If one or more of the sensors fails the fresh air adjustment, the SDM-2009

P P

ZERO NG

CO ppm H2S ppm

CH4 %LEL OXY vol%

F P

0 12.0

ZERO NG

CO ppm H2S ppm

CH4 %LEL OXY vol%

45 0.0

47 1 1.0

BUMP G 1

CO ppm H2S ppm

CH4 %LEL OXY vol%

49 23.0

47 1 1.0

B/CAL G 1

CO ppm H2S ppm

CH4 %LEL OXY vol%

49 23.0

will abort the bump test and will not apply calibration gas. If this happens, the BUMP T LED will flash red indicating a failure and the following screens will alternate indicating the fresh air readings and which channels passed and failed the fresh air adjustment with a P (pass) or an F (fail). In the following examples, the CO channel failed.

Figure 11: Failed Fresh Air Adjustment

In this case, continue with step 18.

14. The SDM-2009 will apply calibration gas to the instrument for the time defined by the GAS bump test parameter.

15. The SDM-2009 will analyze the results.

• If the bump test passes, continue with step 16.

• If the bump tes t fails, and CAL is set to OFF, continue with step 16.

• If the bump test fails, and CAL is set to ON, a calibration will automatically

begin and calibration gas will continue to flow. The CAL S LED will begin to flash amber.

NOTE: Calibration gas will continue to be applied so that the total gas

application time is the time defined by the GAS calibration parameter. This time includes the time that the instrument was being bump tested. If the GAS calibration parameter is set to 90 seconds and the GAS bump test parameter is set to 30 seconds, the instrument will sample gas for an additional 60 seconds if the bump test fails to bring the total exposure time to 90 seconds.

26 • Bump Testing a GX-2009

At the end of the calibration gas application, the SDM-2009 will analyze the results. See “Using the Single Module Data Viewer Program” on page 42

for a description of calibration results.

BUMP AIR

P P

BUMP

CO ppm H2S ppm

CH4 %LEL OXY vol%

P P

50 11.0

BUMP

CO ppm H2S ppm

CH4 %LEL OXY vol%

47 24.0

F F

BUMP

CO ppm H2S ppm

CH4 %LEL OXY vol%

F F

0 20.9

BUMP

CO ppm H2S ppm

CH4 %LEL OXY vol%

0 0.0

F P F P

BUMP/CAL

CO ppm H2S ppm

CH4 %LEL OXY vol%

F P F P

50 12.0

BUMP/CAL

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

16. The SDM-2009 will then purge the system with fresh air for the time defined by the Air bump test parameter.

17. After the fresh air purge is complet e, the GX-2009 screen will alternate between the gas readings and the bump test or bump test and calibration results. For a successful bump test, the gas readings at the end of the gas application will be displayed. For a successful automatic calibration, the auto calibration values will be displayed. For a failed bump test or automatic calibration, the gas readings at the end of the gas application will be displayed. If all channels passed th e bu mp te st, th e B U MP T LED will turn solid green. If any channels failed the bump test, the BUMP T LED will turn solid red. If all channels passed the calibration, the CAL S LED will turn solid green. If any channels failed the calibration, the CAL S LED will turn solid red.

Figure 12: Screen Indication for Passed Bump Test

Figure 13: Screen Indication for Failed Bump Test, CAL OFF

Figure 14: Screen Indication for Failed Bump Test and Passed

Automatic Calibration

Bump Testing a GX-2009 • 27

Figure 15: Screen Indication for Failed Bump Test and Failed Calibration

F F F F

BUMP/CAL

CO ppm H2S ppm

CH4 %LEL OXY vol%

F F F F

0 15.0

BUMP/CAL

CO ppm H2S ppm

CH4 %LEL OXY vol%

24 13.0

18. After a successful or failed bump test,

• To perform any ot her operations:

To perform an other bum p test, pr ess and ho ld the BU MP T but ton unti l the pump starts. To perform a calibration, press and hold the CAL S button until the pump star ts. To return to the home screen, press and hold the EDIT ENTER button until the home screen appears.

• To turn the GX-2009 off:

If the bump test was successful, the instrument will shut off after 15 seconds. If the bump test failed, the instrument will shut off after 10 minutes. If buttons are pressed before the SDM-2009 turns off the instrument, it will automatically turn it off 10 minutes after the last button push.

To turn off the instrument before it is automatically turned off, press and hold the EDIT ENTER and POWER buttons simultaneously for about one second and then release them when the instrument turns off. To avoid accidentally entering Edit Mode, press and hold the POWER button first, then press and hold the EDIT ENTER button.

CAUTION: When using the GX-2009 with the SDM-2009, do not turn off the

instrument using the instrument power button. Use the EDIT ENTER and POWER buttons on the SDM-2009 to turn off the instrument.

The BUMP T or BUMP T and CAL S LEDs will remain on indicating the test results. If the same GX-2009 is turned on a gain, the test results will still be indicated by the BUMP T or BU MP T and CAL S LEDs and on the GX-2009 screen. To clear the BUMP T or BUMP T and CAL S LEDs, with the GX-2009 on, press and hold the EDIT ENTER button for about 3 seconds until the display returns to the home screen. If a new GX-2009 is turned on and connected, the results displayed by the BUMP T or BUMP T and CAL S LEDs will automatically be cleared.

19. The results of the bump test or bump test and calibration will be stored in the SDM-2009’s memory and will be available to copy to a USB flash drive. See “Copying Calibrati on and Bump Test Records to a USB Fla sh Drive” on page 38 for instructions to copy the saved bump test and ca libration records to

28 • Bump Testing a GX-2009

a USB flash drive.

50 12.0

TRANSMIT

CO ppm H2S ppm

CH4 %LEL OXY vol%

50 25.0

20. Remove the GX-2009 from th e SDM-2009.

21. If you wish to bump test additional instruments, repeat step 5 - step 20 above for each additional instrument.

Calibrating a GX-2009

The following instructions apply to GX-2009s with one or more of the standard four sensors (catalytic LEL, O2, CO, and H2S).

When a calibration is performed, the docking station performs a fresh air adjustment on an instrument and then applies calibra tion gas to the instrument. The docking station analyzes the calibration results and determines if the instrument passed the calibration.

To perform a calibration on a GX-2009:

1. Confirm that the AC adapter is connected to the SDM- 2009 and to an AC wall socket.

2. Press and hold the SDM-2009’s POWER button. The LEDs will turn amber.

3. When th e BUMP T and CAL S LEDs turn off, release the POWER button.

5. Install a GX-2009 in the instrument cradle.

NOTE: If the GX-2009 is left in the SDM-2009 after bump testing or calibration,

the pump will run for 12 seconds every 2 minutes in order to keep hydrogen gener ated from cha rging of t he NiMH ba tteries from aff ecting the CO sensor.

6. Press and hold the POWER MODE button on the GX-2009 until you hear a beep, then release it. The GX-2009 will begin its power up sequence (see exceptions below in step 7). If a successful connection be tween the inst rument and the SDM-2009 occurs, the home screen will appear on the instrument display at the end of the startup sequence. The auto calibration values for all installed sensors will be displayed. If the charge LED was amber, it will begin to blink green.

Calibrating a GX-2009 • 29

NOTE: The screen shown above applies to a 4-channel GX-2009. If your

FAIL

C-LIMIT

CAL

C--LIMIT

GX-2009 has less than 4 channels, the inactive channels will not appear in the above screen or in any screens where channels are displayed. All screens in this manual assume a 4-channel GX-2009.

• When Cal Limit Display is set to On and Cal. Limit Check is set to Can’t

Use, if the GX-2009 is due for calibration the instrument will show a calibration expired failure screen and the buzzer and LED arrays will pulse

for a few seconds.

The instrument will then connect to the SDM-2009 and display the home screen shown above in step 6. The CHARGE LED will begin to blink green.

• When Cal Limit Display is set to On and Cal. Limit Check is set to

Confirm to use, if the GX-2009 is due for calibration the unit will show the following scree n and beep and flash the LE D arrays for a few seconds indicating that calibration is due.

8. Verify that the approp r iate calibration gas cylin der is connected to the GAS fitting on the back of the SDM-2009. See “Connecting Calibration Gas” on page 21 for calibration gas cylinder options and calibration gas connection procedures.

30 • Calibrating a GX-2009

9. Press and hold the CAL S button until the CAL S LED turns on (about one

0 20.9

CAL AIR

CO ppm H2S ppm

CH4 %LEL OXY vol%

0 0.0

- - - - - -

FLOW NG

CO ppm H2S ppm

CH4 %LEL OXY vol%

- - - - - -

P P

ZERO NG

CO ppm H2S ppm

CH4 %LEL OXY vol%

F P

0 12.0

ZERO NG

CO ppm H2S ppm

CH4 %LEL OXY vol%

45 0.0

second) then release it. During the calibration, the CAL S LED will flash amber indicating that a calibration is in progress.

If you wish to cancel the calibration, press and hold the CAL S button for at least one second until CANCEL appears on the screen.

10. If at any point during the cal ibration the gas flow to the instrume nt becomes too low, the calibration will be aborted and the screen will indicate a flow failure.

If a flow failure occurs, confirm all tubing connections are correct and that all lines are cl ear.

• To return to the home screen, press and hold the EDIT ENTER button for

about 3 seconds.

• To start another calibration, press and release the CAL S button.

• To perform a bump test, press and release the BUMP T button.

11. The SDM-2009 begins the calibration by applying fresh air to the instrument for the time defined by the Air calibration parameter.

12. The SDM-2009 will pe rform a fresh air adjustment on the instrument.

• If the air adjustment is successful, the SDM-2009 will continue as

described in step 13 below.

• If one or more of the sensors fails the fresh air adjustment, the SDM-2009

will abort the calibration and will not apply calibration gas. If this happens, the CAL S LED will flash red indicating a failure and the following screens will alternate indicating the fresh air readings and which channels passed and failed the fresh air adjustment with a P (pass) or an F (fail). In the following examples, the CO channel failed the fresh air adjustment.

Figure 16: Failed Fresh Air Adjustment

In this case continue with step 16.

Calibrating a GX-2009 • 31

13. The SDM-2009 will apply calibration gas to the instrument for the time defined

47 1 1.0

CAL G 1

CO ppm H2S ppm

CH4 %LEL OXY vol%

49 23.0

CAL AIR

P P

CAL

CO ppm H2S ppm

CH4 %LEL OXY vol%

F P

50 12.0

CAL

CO ppm H2S ppm

CH4 %LEL OXY vol%

12 25.0

by the GAS calibration parameter.

14. The SDM-2009 will then purge the system with fresh air for the time defined by the Air calibration parameter.

15. After the fresh air purge is complete, the screen will alternate between the gas readings and the calibration results. If the calibration passed, the auto calibration values will be displayed. If the calibration failed, the gas readings at the end of the gas application will be displayed. The calibration results are indicated with a P (pass) or an F (fail) below the channel units. The CAL S LED will stop blinking and be steadily green if all channels passed the calibration or steadily re d i f an y chan ne l fai led th e ca li b ra ti on . In th e exa m pl es below, the CO sensor failed calibration.

16. After a successful or failed calibration,

32 • Calibrating a GX-2009

Figure 17: Calibration Results

• To perform any ot her operations:

To perform a bump test, press and hold the BUMP T button until the pump starts. To perform another calibration, press and hold the CAL S button until the pump star ts. To return to the home screen, press and hold the EDIT ENTER button until the home screen appears.

• To turn the GX-2009 off:

If the calibration was successful, the instrument will shut off after 15 seconds. If the calibration failed, the instrument will shut off after 10 minutes. If buttons are pressed before the SDM-2009 turns off the instrument, it will automatically turn it off 10 minutes after the last button push.

To turn off the instrument before it is automatically turned off, press and

hold the EDIT ENTER and POWER buttons simultaneously for about one second and then release them. To avoid accidentally entering Edit Mode, press and hold the POWER button first, then press and hold the EDIT ENTER button.

CAUTION: When using the GX-2009 with the SDM-2009, do not turn off the

instrument using the instrument power button. Use the EDIT ENTER and POWER buttons on the SDM-2009 to turn off the instrument.

The CAL S LED will remain on indicating the test results. If the same GX-2009 is turned on again, the test results wil l still be indicated by the CAL S LED and on th e GX-2009 screen. To clear the CAL S LED, with the GX-2009 on, press and hold the EDIT ENTER button for about 3 seconds until the display return s to the ho me scre en. I f a new GX-2 009 is tur ned on and connected, the results displayed by the CAL S LED will automatically be cleared.

17. The results of the calibration will be stored in the SDM-2009’s memory and will be available to copy to a USB flash drive. See “C opyin g Calibr atio n and Bump Test Records to a USB Flash Drive” on page 38 for instructions to copy the saved bump test and calibration records to a USB flash drive.

18. Remove the GX-2009 from th e SDM-2009.

19. If you wish to calibrate additional instruments, repeat step 5 - step 18 above for each additional instrument.

Calibrating a GX-2009 • 33

Troubleshooting

NOTE: This troubleshooting guide describes SDM-2009 problems only. See

the GX-2009 Operator’s Manual for problems you may encounter with the instrument.

Table 5: Troubleshooting the SDM-2009

Symptoms Probable Causes Recommended Action

• Fresh air adjustment fails

• Calibration fails • The auto calibration

• The SDM-2009 is not in a fresh air environment or the cylinder being used is not a zero air cylinder.

• If a zero air cylinder is used, the calibration cylinder is out of gas.

• If a zero air cylinder is used, the tubing from the regulator to the AIR fitting is not connected.

values do not match the cylinder gas concentrations.

• The calibration cylinder is out of gas or is outdated.

• The calibration cylinder is not connected to the GAS fitting.

• The instrument is not properly inserted in the instrument cradle.

• The tubing from the regulator to the GAS fitting is not connected.

1. Confirm that the SDM-2009 is in a fresh air environment or that a zero air cylinder is attached to the AIR fitting.

2. If a zero air cylinder is used, verify that it contai ns an adequate supply of test sample.

3. If a zero air cylinder is used, check all calibration tubing for leaks or for any bad connections.

4. If the fail condition continues, replace the sensor(s) in the instrument.

5. If the difficulti es continue, conta ct RKI Instruments, Inc. for further instruction.

1. Confirm that the auto calibration values match the concentrations listed on the gas cylinder.

2. Ver ify that t he calibra tion cylinder contains an adequate supply of fresh test sample.

3. Ver ify that t he calibra tion cylinder is connected to the GAS fitting.

4. Check to make sure the instrument is properly insert ed in the instrument cradle.

5. Check all calibration tubing for leaks or for any bad connections.

6. If the fail condition continues, replace the sensor(s) in the instrument.

7. If the difficulti es continue, conta ct RKI Instruments, Inc. for further instruction.

34 • Troubleshooting

• No IR connection between instrument and SDM-2009

• Control buttons do not function correctly for standalone operation

• The COPY function does not copy files to the USB drive

• SDM-2009 is not turned on.

• The instrument is not correctly ins e rte d in to th e instrument cradle.

• The IR window is dirty.

• The SDM-2009 is connected to a computer and the PC Controller program is running.

• The USB drive is defective.

• The USB drive is not inserted properly.

• The SDM-2009 is connected to a computer, the PC Controller program is running, and an instrument is turned on.

1. Turn on the SDM-2009. If it does not turn on, check that the AC adapter is plugged into an AC socket and to the jack on the back of the SDM-2009.

2. Check to make sure the instrument is inserted properly.

3. Clean the IR window on the SDM-2009 and the GX-2009.

4. If the difficulti es continue, conta ct RKI Instruments, Inc. for further instruction.

Disconnect the USB cable from the back of the SDM-2009 if it is connected. See the SDM-2009 PC Controlled Configuration Operat or’s Manual for instructions to use the SDM-2009 in PC Controlled configuration.

1. Perform a COPY operation with a different USB drive.

2. Be sure that the USB drive is inserted correctly.

3. Disconnect the SDM-2009 from the computer.

4. If the difficulti es continue, conta ct RKI Instruments, Inc. for further instruction.

• The rechargeable batteries in the instrument are not charging

• The instrument is not properly inserted in the instrument cradle.

• The charger is malfunctioning.

• The batteries are faulty.

1. Be sure that th e in s tru ment is fully inserted in the instrument cradle.

2. Try to charge the batteries in a BC-2009 charger if one is available to determine if the SDM-2009 is at fault.

3. Try to charge the batteries using a different SDM-2009 if one is available to determine if the SDM-2009 is at fault.

4. Replace the batteries and attempt to charge them. See the GX-2009 Operator’s Manual for instructions to change the batteries.

5. If the difficulti es continue, conta ct RKI Instruments, Inc. for further instruction.

Troubleshooting • 35

Charging an Instrument in a Docking Station

The SDM-2009 can be used to charge the rechargeable batteries in a GX-2009. To maximize the instrument’s run time and the battery life, make sure the batteries’ charge is as low as possible before recharging them. You can use the GX-2009’s REFRESH function to discharge the batteries. See the GX-2009 Operator’s Manual for a complete description of the REFRESH button.

Recharging the Batteries After Perf orming a Bump Test or Calibration

1. Perform a bump test or calibration on an instrument as described in “Bump Testing a GX-2009” on page 23, “Calibrating a GX-2009” on page 29.

2. After the bump test or calibration has been completed, turn off the instrument by pressing and holding the EDIT ENTER and POWER buttons simultaneously until the instrument turns off, about one second, and then releasing them. The docking station will automatically turn off the instrument 15 seconds after a successful bump test or calibration or if no buttons are pressed for 10 minutes.

3. While the instrument is on, the CHARG E LED will be blinking green. Wh en the instrument is turned off, the CHARGE LED will blink amber. The BUMP T and/ or CAL S LED will continue to be either green or red depending on the result of the previous bump test or calibration.

NOTE: The SDM-2009 does not start charging the batteries until the

instrument is off. While the instrument is on, the CHARGE LED will blink green. Once the instrument is shut off, the CHARGE LED will begin to blink amber.

4. If the batteries are fully charged, then the CHARGE LED will turn solid green in a few minutes.

If the batteries are drained enough for the docking station to charge them, the CHARGE LED will continue to blink amber while charging is taking place. The SDM-2009 will take approximately 3 hours to charge a fully discharged GX-2009.

If the charging process encounters a fail condition, the CHARGE LED will turn steadily red.

NOTE: If the GX-2009 is left in the SDM-2009 after bump testing or calibration,

the pump will run for 12 seconds every 2 minutes in order to keep hydrogen gener ated from cha rging of t he NiMH ba tteries from aff ecting the CO sensor.

5. When the charge is complete, the CHARGE status LED will turn solid green.

36 • Charging an Instrument in a Docking Station

Recharging the Batteries Without Performing Any Operations

04.59

CHARGING

1. Confirm that the AC adapter is connected to the back panel of the SDM-2009 and to an AC wall socket.

2. Insert the instrument into the instrument cradle.

3. Press and hold the SDM-2009’s POWER button. The LEDs will turn amber.

4. When th e BUMP T and CAL S LEDs turn off, release the POWER button.

5. The CHARGE LED will be blinking amber.

6. If the batteries are full y charged, then the blinking amber LED will turn solid green in a few minutes.

If the batteries are drained enough for the SDM-2009 to charge them, the CHARGE LED will continue to blink amber while charging is taking place. The SDM-2009 will take approximately 3 hours to charge a fully discharged GX-2009.

If the charging process encounters a fail condition, the CHARGE LED will turn steadily red.

7. When the charge is complete, the CHARGE status LED will turn solid green.

Batteries Too Drained for Standalone Operation

If the NiMH batteries do not have enough powe r to keep the instrument on, it will go into a 5 minute charge cycle and the following screen will be displayed on the instrument screen.

It will not connec t to the docking station. The instrument cannot be bump tested or calibrated in the charge cycl e. Once the 5 minute charge cycle has ended, the unit will automatically turn back on and connect to the docking station. The unit can now be bump tested or calibrated.

Charging an Instrument in a Docking Station • 37

Calibration and Bump Test Records

The SDM-2009 saves a record of each bump test and calibration performed. It is capable of saving up to 200 such records. When an SDM-2009’s memory becomes full, the oldest record is overwritten when a new record is saved. The records saved in the SDM-2009’ s me mory can be save d to a USB f lash dri ve us ing th e USB por t on the front.

Avail able Memory in the SDM-2009

The COPY LED indicates how much of the SDM-2009’s memory has been used. The table below describes t he various indications.

Table 6: COPY LED Indications

COPY LED Indication Memory Used

Off None. No records are saved Solid Green Less than 80% of the SDM-2009’s memory

has been used.

Solid Amber More than 80% of the SDM-2009’s memory

has been used.

Solid Red The docking station’s memory is full. A

newly saved record will overwrite the oldest one.

Copying Calibration and Bump Test Records to a USB Flash Drive

The SDM-2009 will only perform a copy operation if there is at least one record saved in its memory. If there are no records saved in the docking station’s memory, the COPY LED will be off and the COPY button will not function. Do the following to copy calibration and bump test records in the SDM- 2009’s memory to a USB flash drive.

NOTE: The USB port on the front of the docking station cannot be used to

connect the SDM-2009 to a computer, only to save calibration and bump test records to a USB flash drive.

1. Confirm that the AC Ada pte r is connected to the SDM-2009 and to an AC w al l socket.

2. Press and hold the SDM-2009’s POWER button. The LEDs will turn amber.

3. When th e BUMP T and CAL S LEDs turn off, release the POWER button.

4. The COPY LED will be off or on steadily and the CHARGE LED will be blinking green. The amount of free memory in the SDM-2009 will dictate the condition of the COPY LED (see "Available Memory in the SDM-2009" above).

5. Install a USB flash drive into the USB port on the front of the SDM-2009. The

38 • Calibration and Bump Test Records

SDM-2009 will take a few seconds to determine how much memory is available in the flash drive.

• If the flash drive’s available memory is not enough for the contents of the

SDM-2009’s m emory, the COPY LED will alte rnate betwee n green and red. Enough memory will have to be cleared in the flash drive to make room for the records in the SDM-2009’s memory.

• If there is enough available m emory in the flash drive f or the content s of the

SDM-2009’s memory, the COPY LED will begin flashing in the same color that it was before installing the flash drive.

6. Press and hold the COPY button until the COPY LED turns red, then release it. The COPY LED will become solid red while the records in the docking station’s mem ory are co pied to t he flash dr ive. In ad dition, if t he flash dr ive has an LED, it will begin to blink.

7. When the COPY LED returns to its orig inal color and begi ns blinking again and the flash drive’s LED (if it has one) stops blinking, t he copy operation is complete. Remove the flash drive from the USB port.

NOTE: If you pull out the flash drive while its LED is still blinking or the COPY

LED is still solid red, the file saved in the fl ash dri ve wi th t he calibr ati on and bump test records may be incomplete.

8. If the flash drive has not already been used with a docking station, a folder named DAT will be created on the flash drive and a file with all the saved calibration and bump test records will be saved to this folder.

If the flash dr ive has been used before with a docking station, the file will be saved to the existing DAT folder.

9. The files on the flash drive can now be either transferred to a computer or kept on the flash drive for use with the Single Module Data Viewer Software. See "Bump Test and Calibration Record Files" below for a discussi on of th ese fi les and how to use them.

Clearing the SDM-2009’s Memory

Make sure that you save the bump test and calibration records in the SDM-2009’s memory to a flash drive before clea ring its memory. The docking station’s memory can be cleared by simultaneously pressing and holding the CAL S and COPY buttons for five seconds . A fte r the SDM -2009’s memory has been cleared, the COPY LED will turn off indicating there are no records to be copied.

Bump Test and Calibration Record Files

Each time a copy function is performed, a file is saved to the flash drive in the DAT folder. The file name will begin with “SDM-2009” and the remainder of the file name will depend on the serial number of the SDM-2009 used and the date of the most recent bump test or calibration performed on the SDM-2009. So it is possible to have multiple files in the DAT fold er from the SDM-2009.

Calibration and Bump Test Records • 3 9

The files that an SDM-2009 saves to a USB flash drive are structured so that they can be imported into a database controlled by the Single Module Data Viewer Software. See “Importing File s In to the Database” on page 43 for instructions t o a dd fi les to th e database.

Bump Testing or Calibrating and Saving Files To a Flash Drive Multiple Times In One Day

The SDM-2009 assigns file names to calibration and bump test record files based on the day of the most recent calibration or bump test record saved in the docking station’s memory. If bump tests or calibrations are performed, a copy operation is performed, then additional bump tests or calibrations are performed, and another copy operation is performed with the same flash drive all on the same day, the existing file on the flash drive from the first copy operation will be overwritten by the file from the second copy operation beca use its name will be the same as the new file. In this case, no information is lost since the second file saved to the flash drive includes all the records that were in the first file.

However, if bump tests or calibrations are performed, a copy operation is performed, and the SDM-2009’s memory is cleared, then addition al bump tests or calibrations are performed, a nd an oth er co py operation is performed with the sam e flash drive all on the same day, this will result in the information in the file from the first copy operation being lost. This is because the file saved to the flash drive in the second copy operation only includes records since the memory was cleared and when it overwrites the file from the first copy operation, all the information in the first file is lost.

CAUTION: If performing bump tests or calibrations and copying an SDM-2009’s

memory to a flash drive multiple times during the same day and the SDM-2009’s memor y is cleared, transfer the calibration/bump test record files from t he fl ash dri ve to a com puter hard d rive or som e oth er memory device before performing ano ther copy oper ation to avoid loss of data.

40 • Calibration and Bump Test Records

Chapter 5: Single Module Data Viewer Program

Figure 18: Single Module Data Viewer Window

Overview

The Single Module Data Viewer Program is used to view, organize, and print bump test and calibration records that were cre ate d by the SDM- 2 009 whil e used in the standalone conf iguration. It can also be used to export thes e records from its database for use in other programs. This chapt er describes how to use the Sin gle Module Data Viewer Program.

Launching the Single Module Data Viewer Program

1. Click Start on the Windows® Icon Tray, then select Programs/Single Module Data Viewer.

NOTE: If you are starting the software for the first time, a message window

appears informing you that a database h as been created. If this occurs, click OK.

2. The Sin gle Module Data Viewer program is launched and the data viewing window appears.

Overview • 4 1

NOTE: When you start the Single Module Data Viewer Program for the first

Figure 19: Data Vi ewing Window

Control Buttons

Data Folders

Viewed in Thi s

Area

Data Folders and Files

Viewed in This Area

File Content Details

Viewed in This Area

time, there will be no data in the left part of the data viewing window since no data has been imported into the database yet.

Using the Single Module Data Viewer Program

Data Vi ewing Window

All of the operations that can be performed in the Single Module Data Viewer Program can be executed from the data viewing window. There are function buttons along the top of the window and one in the lower right that initiate the various operations. The upper left side of the window displays the contents of the database. The lower left corn er of the wind ow has selection b oxes that allow yo u to organize th e data. The upper right side of the window shows the contents of the item selected in the upper left side, and the lower right side indicates the contents of the item selected in the area above it. In the example above, the data is organized by date.

You can do the following in the data viewing window:

• Import files into the database that were created by an SDM-2009

42 • Using the Single Module Data Viewer Program

• View the bump test and calibration data saved in the database.

Figure 20: Import Window

• Delete data.

• Print bump test or calibration results (pass or fail indication only).

• Copy bump test or calibration records to the clipboard or to a particular location

on your computer or network.

• Print a bump test or calibration report that includes the results and all gas

readings.

Importing Files Into the Database

The files generated by the SDM-2009 are structured to be imported into the Single Module Dat a Vie wer Prog ram da taba se. To import data fil es into the dat abase, do the following:

1. While in the Data Viewing Window, click the Import button. The Import Window will appear.

2. Navigate to the location of the files that you want to import into the database.

3. Select the files that you want to import or use the Check All box to select all of the files.

4. Click the Apply button. A win do w w ill a ppe ar fo r a fe w seco nd s indi ca ti ng tha t the file or files are being imported.

5. The files are now added to the database.

Using the Single Module Data Viewer Program • 43

Organizing the Data

Figure 21: Data in Base Viewing Format, Type

When viewing the data, it can be organized in two ways:

1. Base View Format In base view format, neither of the Serial No, Station ID, or User ID selection

boxes in the lower left of the window are selected and the Base box appears next to these selection boxes with two radio buttons. The data can be organized by either the data Type (bump test and calibration data) or by Date (year and month). The example below shows the data organized by Type.

44 • Using the Single Module Data Viewer Program

2. ID View Format

Figure 22: Data in ID Viewing Format

In ID view format, the data can be organized by one or more of the following items depending on which select ion box or bo xes in the low er lef t corn er of the data viewing win do w are sel ecte d:

• Serial Number

• Station ID

• User ID If any of thes e boxes is selected, the Base box disappears. The example

below shows the data organized by serial number.

Viewing the Data

Once you have s elected how you want to organize the data:

1. Click the expanded view symbol (+) next to an item, folder or icon, in the left side of the data viewing window or double click the item to view the contents below it. Single click on an item to view the contents in the right side of the window. If an item is expanded and you want to close it, click the (-) symbol next to the item or double click it.

Using the Single Module Data Viewer Program • 45

2. When an item no longer has a (+) or (-) symbol next to it, single click it and the

Figure 23: Calibration/Bump Test Files in Base View Format by Type

contents of the item will be shown on the right side of the window.

3. If you are viewing data in base view format with the data organized by type, expand the item, bum p test or calibration, yo u wish to view. Icons organized by year/month will appear below the bump test or calibration icon. Click on the item whose content s you wish to see . The bu mp test or cali brat io n fil es will be shown in the upper right side of the data view window.

46 • Using the Single Module Data Viewer Program

If you organize the data by date, the n folder s organized by yea r/m onth ap pear

Figure 24: Calibration/Bump Test Files in Base View Format by Date

in the left side of the window. Expand the folder you want to see and click on the calibration or bump test folder . The calibration or bump test files will appear in the upper right side of the window.

Using the Single Module Data Viewer Program • 47

If you are viewing data in ID view format, expand the folders in the left side of

Figure 25: Calibration/Bump Test Files in ID View Format

the window until t he bump test or calibration folder you wish to view is vi sible. Expand the folder by clicking the (+) symbol next to it. Folders organized by year/month will be listed below the calibration or bump test folder. Click the folder whose contents yo u want to view and the calibration or bump te st files in it will be shown in the upper right side of the data view window. The example below is organized by serial number.

4. Files th at record a failed calibr ation or bump test on all chan nels are highlighted in red. Files that record a calibration or bump test where not all channels passed are highlighted in orange .

5. T o view the file con tents , click on th e file in the up per righ t part of the dat a view window that you wish to view. The contents in the file will appear in the lower right part of the window. The contents include the instrument’s serial number, station ID, user ID, bump test or calibration time, test gas, and gas readings during the operation.

6. T o p rint the fil es as they a ppear in the upper r ight p art of th e dat a view win dow, click the print button in the upper left corner of th e window. A dialog box will appear confirming if you want to print. Click OK.

7. To print only the pass or fail result of all files in the upper right window, click the

Bump test & Calibration Report button above the files. A dialog box will

48 • Using the Single Module Data Viewer Program

appear showing the selecte d pr in te r and confi r mi n g if you wa nt to pr in t. Verify that the selected printer is correct and click OK.

8. To print the complete results, pass/fail and gas readings, of one of the files in the upper right part of the data view window, click on one of the files to select it and then click the print button that appears above the file details in the lower right. A dialog box will appear showing the selected pr inter and confirming if you want to print. Verify that the selected printer is correct and click OK.

9. To save files as they appear in the upper right part of the data view window, click the Save To File button to the right of the print button in the upper left corner of the window. The Save To File button has a floppy disk icon in it. A “Save As” dialog box will appear for you to specify the filename, file location, and file type. Select the Text files (*.csv) choice to save the information as a comma separated value file that may be ope ned with a spreadsheet program such as Microsoft Excel.

10. To save files to the clipboard as they appear in the upper right part of the data view window, click the Copy To Clipboard button. The Copy To Clipboard button has a clipboard icon in it. The file will be saved to the clip board. It can then be pasted in to a document by using the Paste command in an application.

Deleting Data

You can delete an instrument, bump test data, or calibration data in the data view window. The delete function is passwor d protected to avoid accidental deletion of instruments or data. To delete an instrument or data, perform the following:

1. Find the item you wish to de lete and right click it. A window will appear that says “Delete(D) Change Password(C)”.

2. Click on “Delete(D)”. A password entry window will appear.

Using the Single Module Data Viewer Program • 49

3. Enter the password and click OK. The factory set p assword is “AB CDE” and i s case sensiti ve. A confirmation window will appear.

4. Click OK to complete the deletion of the selected item.

Changing the Password

The factory password is “ABCDE” and is case sensitive. You can change the password in the data view window. To change the password perform the following:

1. Right click in the upper right or upper left part of the data view window. A window will appear that says “Delete(D) Chang e Password(C)”.

2. Click on “Change Pa ssword(C)”. A window will appear prompting you for the current password.

3. Enter the current password and click the Current Password button. A window will appear prompting you for the new password.

50 • Using the Single Module Data Viewer Program

4. Enter the new passwor d and click the New Password button. A confirmation window will appear prompting you for the new password again.

5. Enter the new passwor d again and click the Confirm New Password button. A window will appear indicating that the password has been changed.

6. Click OK to complete the password update.

Exiting the Program

To exit the Single Module Data Viewer Program, do the following:

1. Click the Exit button in the upper right corner of the data view window. A confirmation window will app ea r.

2. Click the OK button to exit the program or the Cancel button to return to the program.

Spare Parts List

Table 7: Spare Parts List

Part Number Description

06-1248RK Polyurethane tubing, 5/16-inch OD x 3/16-inch ID, for connecting

to inlet fittings

06-1248RK-03 3 foot length of 5/16-inch OD x 3/16-inch ID, for connecting

calibration cylinder to inlet fittings

06-1254RK Polyurethane tubing, 7/16-inc h OD x 5/16-inch ID, for exhaust

tube, 10 feet maximum 33-0167RK Particle air filter replacement, CF-8369 49-0115RK Single-port AC adapter

Spare Parts List • 51

Table 7: Spare Parts List

Part Number Description

49-2058RK-04 4-port AC adapter 71-0261RK Operator’s Manual, SDM-2009 Docking Station Standalone

Configuration (this document) 71-0262RK Operator’s Manual, SDM-2009 Docking Station PC Controller

Configuration 71-8007RK Product CD for SDM-GX Series, includes Single Module Data

Viewer Program 81-0012RK-01 Calibration cylinder, 50 %LEL CH4 in air, 34 liter steel

81-0012RK-03 Calibration cylinder, 50 %LEL CH4 in air, 103 liter steel 81-0018RK-01 Calibration cylinder, 50 %LEL isobutane in air, 34 liter steel

81-0018RK-03 Calibration cylinder, 50 %LEL isobutane in air, 103 liter steel 81-0076RK Zero air cylinder,17 liter steel 81-0076RK-01 Zero air cyl inder, 34 lit er steel 81-0076RK-03 Zero air cylinder,103 liter steel 81-0090RK-01 Three-gas calibration cylinder, 50% LEL CH4/12% O2/50 ppm

CO, 34 liter steel 81-0090RK-03 Three-gas calibration cylinder, 50% LEL CH4/12% O2/50 ppm

CO, 103 liter steel 81-0154RK-02 Four-gas calibration cylinder, 50% LEL CH4/12% O2/50 ppm CO/

25 ppm H

S, 58 liter aluminum

81-0154RK-04 Four-gas calibration cylinder, 50% LEL CH4/12% O2/50 ppm CO/

25 ppm H2S, 34 liter aluminum 81-0158RK-02 Four-gas calibration cylinder, 50% LEL Isobutane/12% O2/50

ppm CO/25 ppm H2S, 58 liter aluminum 81-0158RK-04 Four-gas calibration cylinder, 50% LEL Isobutane/12% O2/50

ppm CO/25 ppm H2S, 34 liter aluminum 81-1054RK Demand flow regulator, 58/103 liter cylinders

81-1055RK Demand flow regulator, for 17/34 liter steel cylinders 81-SDM2009 Docking Station for GX-2009

Spare Parts List • 52

RKI Instruments SDM-2009 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
