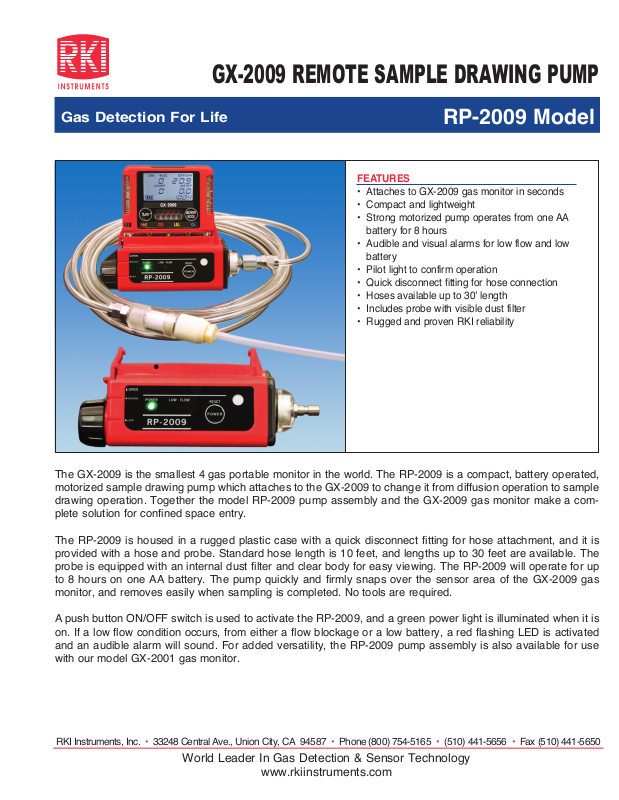

RKI Instruments RP-2009 Specifications

GX-2009 REMOTE SAMPLE DRAWING PUMP

Gas Detection For Life

RP-2009 Model

FEATURES

• Attaches to GX-2009 gas monitor in seconds

• Compact and lightweight

• Strong motorized pump operates from one AA

battery for 8 hours

• Audible and visual alarms for low flow and low

battery

• Pilot light to confirm operation

• Quick disconnect fitting for hose connection

• Hoses available up to 30’ length

• Includes probe with visible dust filter

• Rugged and proven RKI reliability

The GX-2009 is the smallest 4 gas portable monitor in the world. The RP-2009 is a compact, battery operated,
motorized sample drawing pump which attaches to the GX-2009 to change it from diffusion operation to sample
drawing operation. Together the model RP-2009 pump assembly and the GX-2009 gas monitor make a com­plete solution for confined space entry.

The RP-2009 is housed in a rugged plastic case with a quick disconnect fitting for hose attachment, and it is
provided with a hose and probe. Standard hose length is 10 feet, and lengths up to 30 feet are available. The
probe is equipped with an internal dust filter and clear body for easy viewing. The RP-2009 will operate for up
to 8 hours on one AA battery. The pump quickly and firmly snaps over the sensor area of the GX-2009 gas
monitor, and removes easily when sampling is completed. No tools are required.

A push button ON/OFF switch is used to activate the RP-2009, and a green power light is illuminated when it is
on. If a low flow condition occurs, from either a flow blockage or a low battery, a red flashing LED is activated
and an audible alarm will sound. For added versatility, the RP-2009 pump assembly is also available for use
with our model GX-2001 gas monitor.

RKI Instruments, Inc. • 33248 Central Ave., Union City, CA 94587 • Phone [phone] • [phone] • Fax [phone]

World Leader In Gas Detection & Sensor Technology

www.rkiinstruments.com

RP-2009 Model

Pump Specifications:

Power Supply AA size alkaline battery (1 each)

Continuous Operation More than 8 hours at 20° C

Operating Temperature & Humidity -10° C ~ +40° C, 0 - 95% RH

Outer Dimensions & Weight 1.3” (D) x 1.3” (W) x 5.3” (H), (hose and probe not included)

approximately 105g (including alkaline battery)

Sampling Flow Rate 0.5 liters per minute

Low Flow Alarm Blinking red LED and audible alarm

Low Battery Alarm Blinking red LED and audible alarm

Filters Includes built in dust & hydrophobic filters. Probe also has a

dust filter.

Sample Range 30 feet maximum

Locking mechanism for attaching
RP-2009 to the GX-2009
prevents accidental detachment

Twist battery cap to lock
or unlock the sample pump
from the gas monitor

Battery

Cap

Lock

indicator

Low flow
indicator

Quick connect fitting

Filters

Power/Reset
Button
