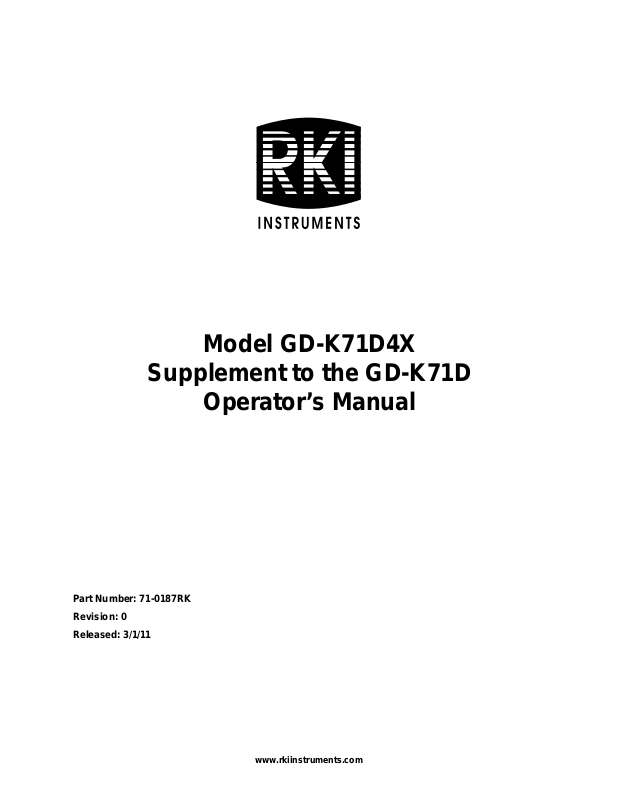

Supplement to the GD-K71D
Part Number: 71-0187RK
Revision: 0
Released: 3/1/11
Model GD-K71D4X
Operator’s Manual
www.rkiinstruments.com
WARNING
Read and understand this instruction manual before operating
detector . Improper use of the dete ctor could result in bodily harm
or death.
Periodic calibration and maintenance of the detector is essential
for proper operation and correct readings. Please calibrate and
maintain this detector regularly! Frequency of calibration
depends upon the type of use you have and the sensor types.
T ypical calibration frequencies for most applications a re between
3 and 6 months, but can be required more often or less often
based on your usage.
Model GD-K71D4X Sample Draw Transmit ter
Product Warranty
RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in
materials, workmanship, and performance for a period of one year from the date of
shipment from RKI Instruments, Inc. Any parts found defective within that period will be
repaired or replaced, at our option, free of charge. Parts must be returned to RKI
Instruments, Inc. for repair or replacement. This warranty does not apply to those items
which by their nature are subject to deterioration or consumption in normal service, and
which must be cleaned, repaired or replaced on a routine basis. Examples of such items
are:
a) Pump diaphragms and valves c) Batteries
b) Fuses d) Filter elements
Warranty is voided by abuse including mechanical damage, alteration, rough handling, or
repair procedures not in accordance with instruction manual. This warranty indicates the
full extent of our liability, and we are not responsible for removal or replacement costs,
local repair costs, transportation costs, or contingent expenses incurred without our prior
approval.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL OTHER
WARRANTIES AND REPRESENTATIONS, EXPRESSED OR IMPLIED, AND
ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF RKI
INSTRUMENTS, INC. INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL RKI INSTRUMENTS, INC. BE LIABLE FOR INDIRECT,
INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGE OF ANY KIND
CONNECTED WITH THE USE OF ITS PRODUCTS OR FAILURE OF ITS
PRODUCTS TO FUNCTION OR OPERATE PROPERLY.
This warranty covers instruments and parts sold to users only by authorized distributors,
dealers and representatives as appointed by RKI Instruments, Inc.
We do not assume indemnification for any accident or damage caused by the operation of
this gas monitor and our warranty is limited to the replacement of parts or our complete
goods. Warranty covers parts and labor performed at RKI Instruments, Inc. only, and does
not cover field labor or shipment of parts back to RKI.
Model GD-K71D4X Sample Draw Transmi tter
Overview
This supplement describes the differences and additional features of the Model GDK71D4X compared t o the GD- K71D. It also descri bes how to install , startup, ma intain , and
calibrate the GD-K71D4X.
Specifications
Table 1 lists specifications for the GD-K71D4X.
Table 1: Specifications
Target Gas & Detector Range Refer to the RKI Instruments Inc. List of Detectable Gases
Enclosure Type NEMA 4X
Sampling Method Sample-draw
Input Power 24 VDC
Signal Output 4 to 20 mA
Response Time 90% in 60 seconds
Accuracy See GD-K71D manual
Flow Rate Approximately 0.5 liters/minute
Recommended Sample Tubing 1/4” O.D. x 1/8” I.D. Teflon PTFE
WARNING: When using the GD-K71D4X, you must follow the instr ucti ons and
warnings in this manual to assure proper and safe opera tion of the
GD-K71D4X and to minimize the risk of personal injury. Be sure to
maintain and periodically calibrate the GD-K71D4X as described in this
manual.
1 • Model GD-K71D4X Sample D raw Transmitter
Description
This section describes the components of the GD-K71D4X. It consists of the enclosure and
a GD-K71D mounted inside.
A hydrophobic sample filter is also provided with the GD-K71D4X fo r installation near
the inlet fitting. The filter scrubs particulates out of the sample stream and keeps water
and many other liquid s from entering the GD-K71D4X flow system.
Enclosure
The enclosure is a type NEMA 4X plastic enclosure designed for use in areas that are
subject to rain or hosing down. A mounting foot is installed in each corner. Two sample
fittings are mounted on the bottom right of the enclosure and two 3/4” conduit hubs are
mounted to the left of the sample fittings.
Sample Fittings
The inlet fitting is on the bottom right of the enclosure and the exhaust fitting is to the left
of the inlet fitting. The fittings accept 1/4”O.D. x 1/8” I.D. Teflon tubing.
Conduit Hubs
Two 3/4” conduit hubs are located to the left of the sample fittings. They are used for
routing wiring into the enclosure by using conduit or an appropriate cable bushing.
GD-K71D
The GD-K71D sample draw detector head is mounted to a plate inside the enclosure. The
GD-K71D sample fittings are factory connected to the sample fittings on the N EMA 4X
enclosure. See the GD-K71D operator’s manual for a complete description of the
GD-K71D.
GD-K71D Detector
Figure 1: Component Location
Model GD-K71D4X Sample Draw Transmitter • 2
SampleInletExhaust3/4" Conduit, 2X
Installation
This section describes how to install the GD-K 71D4X at the monitoring site.
Mounting the GD-K71D4X
1. Select a mounting site that is representative of the monitoring environment. Consider
the following when you select the mounting site.
• Select a site that is easily accessible for servicing.
• Select a site where the GD-K71D4X is not likely to be bumped or disturbed. Make
sure there is sufficient room to make wiring and sample line connections at the
bottom of the GD-K71D4X. Also make sure there is sufficient room to perform
start-up, maintenance, and calibration procedures.
• Select a site near the sampling area. The GD-K71D4X is designed to detect a
variety of toxic gases many of wh ich are easily absorbed in sample tubing. Keep
the sample line length to a minimum. Teflon PTFE tubing is recommended.
• Use four 1/4” screws through the mounting feet to mount the GD-K71D4X to a
vertical surface. See Figure 2 for the mounting dimensions.
Ø .34, 4X
11.75
11.23
1.43
3/4" C onduit Hub, 2X
Connecting Sample Lines to the GD-K71D4X
1. Install a short piece, up to 8” long, of 1/4” O.D. x 1/8” I.D. Teflon PTFE sample tubing
to the inlet fitting.
2. Connect the sample filter to the tube. The sample filter has flexible tube stubs on each
end. Push one end onto the sample tube.
2.51
7.01
9.88
Inlet Fitting
Exhaust Fitting
Figure 2: Outline & Mounting Dimensions
8.22
3 • Model GD-K71D4X Sample D raw Transmitter
3. Connect another length of sample tubing to the other side of the sample filter and
route it to the sampling area. Be sure to keep the length to a minimum. Consult RKI
Instruments, Inc. for lengths of more than 20 feet.
CAUTION: Avoid loops or slumps in the incoming sample line. T o r educe response time, keep the
incoming sample line as short as possibl e.
4. Attach 1/4” O.D. x 1/8” I.D. Teflon PTFE sampl e tubing to the gas out fitting. Route
the opposite end of the tubing to an open area where the sample can safely disperse or
to an exhaust duct.
Wiring the GD-K71D to a Controller
WARNING: Always verify that power to the GD-K71D4X and to the controller are off
and that the controller’s and GD-K71D4X’s power switches are in the off
position before making wiring connections or adjustments.
1. Turn off power to the controller and the GD-K71D4X.
2. Place the controller’s and GD-K71D4X’s power switches in the OFF position .
3. Use the conduit hubs at the bottom of the GD-K71D4X for routing power and signal
cables into the enclosure. Route any relay wiring through one conduit hub, and
3-conductor shielded cable, or 3 wires in conduit through the other conduit hub to
minimize crosstalk .
Cable Shield
+ 24 VDC
- (DC Ground)
4 - 20 mA In (S)
Controller
GD-K71D Terminal Strip
Not Used
1345672
External Power
Source
Figure 3: Customer Wiring
(+) H
(-) N
Device
Alarm
NO
ALM2ALM1
NO NO
910118
TR
12
(+) H
External Power
Source
External Power
Source
Alarm
Device
Alarm
Device
(-) N
(+) H
(-) N
4. If shielded cable is used for controller wiring, connect the cable shield’s drain wire to
a chassis ground at the controller, but do not connected it at the GD-K71D4X.
Model GD-K71D4X Sample Draw Transmitter • 4
Start Up
Operation
CAUTION: Leave the cable shield’s drain wire insulated and disconnected at the
GD-K71D4X. Y ou will connect the opposite end of the cable shield’s drain wire at the
controller.
CAUTION: At the controller, do not route power and GD-K71D4X wiring through the same
conduit hub. The power cable may disrupt the transmission of the GD-K71D’s
signal to the controller.
See the GD-K71D Operator’s Manual for GD-K71D startup instructions.
See the GD-K71D Operator’s Manual for an operational description of the GD-K71D that
is mounted inside the enclosure.
Maintenance/Calibration
See the GD-K71D Operator’s Manual for main tenance and calibration instructions. Use
the inlet fitting on the NEMA 4X enclosure to apply gas instead of the fittings inside the
enclosure on the GD-K71D.
Parts List
Table 4 lists replacement parts and accessories for the GD-K71D.
Part Number Description
06-1273RK 1/4” O.D. x 1/8” I.D. Teflon PTFE tubing
17-4820RK Sample fitting, 1/4” tube bulkhead union
18-0107RK 3/4” conduit hub
33-0165RK-01 Hydrophobic filter w/ flexible tubing stubs
Table 2: Parts List
5 • Model GD-K71D4X Sample D raw Transmitter
