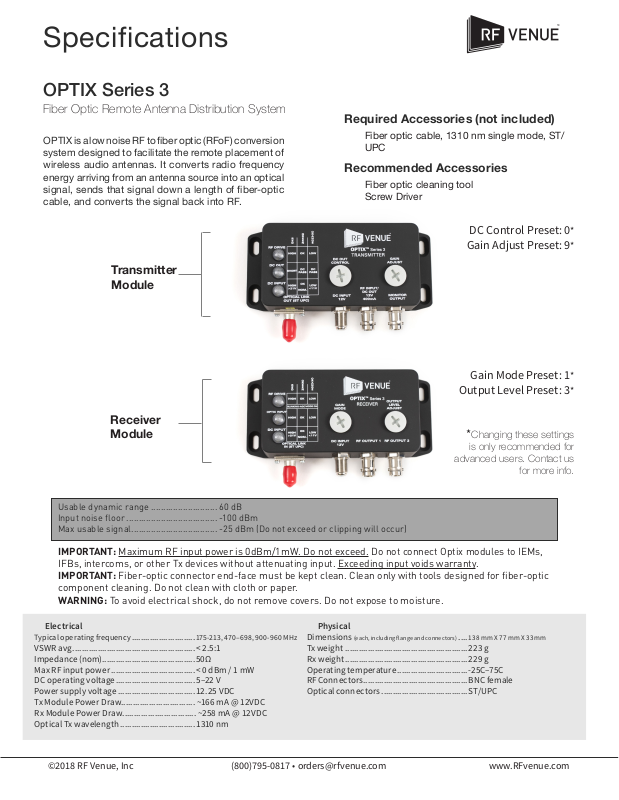

Specifications
OPTIX Series 3
Fiber Optic Remote Antenna Distribution System
OPTIX is a low noise RF to ber optic (RFoF) conversion
system designed to facilitate the remote placement of
wireless audio antennas. It converts radio frequency
energy arriving from an antenna source into an optical
signal, sends that signal down a length of ber-optic
cable, and converts the signal back into RF.
Transmitter
Module
Required Accessories (not included)
Fiber optic cable, 1310 nm single mode, ST/
UPC
Recommended Accessories
Fiber optic cleaning tool
Screw Driver
DC Control Preset: 0*
Gain Adjust Preset: 9*
Gain Mode Preset: 1*
Output Level Preset: 3*
Receiver
Module
Usable dynamic range ........................... 60 dB
Input noise floor ..................................... -100 dB m
Max usable signal ................................... -25 dBm (Do not exceed or clipping will occur)
IMPORTANT: Maximum RF input power is 0dBm/1mW. Do not exceed. Do not connect Optix modules to IEMs,
IFBs, intercoms, or other Tx devices without attenuating input. Exceeding input voids warranty.
IMPORTANT: Fiber-optic connector end-face must be kept clean. Clean only with tools designed for fiber-optic
component cleaning. Do not clean with cloth or paper.
WARNING: To avoid electrical shock, do not remove covers. Do not expose to moisture.
Electrical
Typical operating frequency ............................175-213, 470–698, 900-960 MHz
VSWR avg. ..................................................... < 2.5:1
Impedance (nom) ......................................... 50Ω
Max RF input power ..................................... < 0 dBm / 1 mW
DC operating voltage ................................... 5–22 V
Power supply voltage .................................. 12.25 VDC
Tx Module Power Draw................................ ~166 mA @ 12VDC
Rx Module Power Draw................................ ~258 mA @ 12VDC
Optical Tx wavelength ................................. 1310 nm
Physical
Dimensions (each, inc luding flang e and connect ors) ....138 mm X 77 mm X 33 mm
Tx weight ......................................................223 g
Rx weight ...................................................... 229 g
Operating temperature ............................... -25C–75C
RF Connectors .............................................. BNC female
Optical connectors ...................................... ST/U PC
*Changing these settings
is only recommended for
advanced users. Contact us
for more info.
