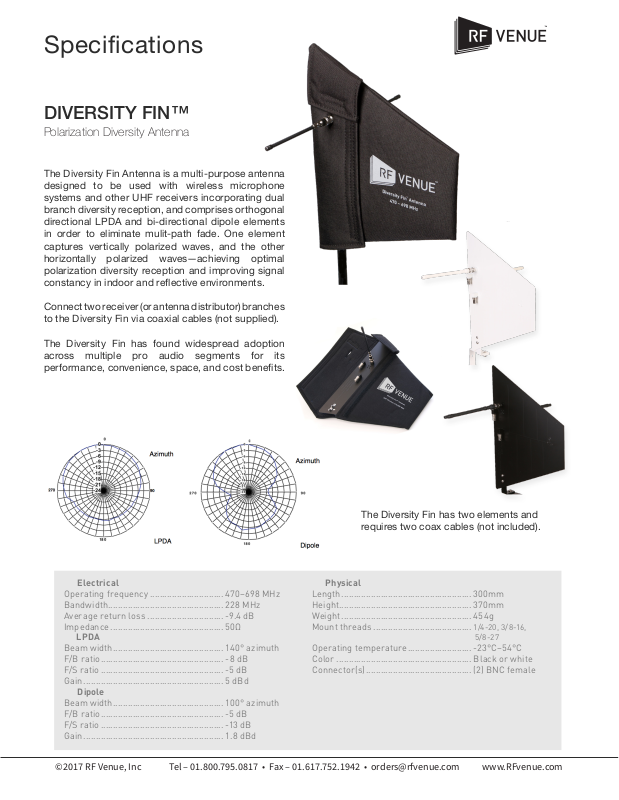

Specifications

DIVERSITY FIN™

Polarization Diversity Antenna

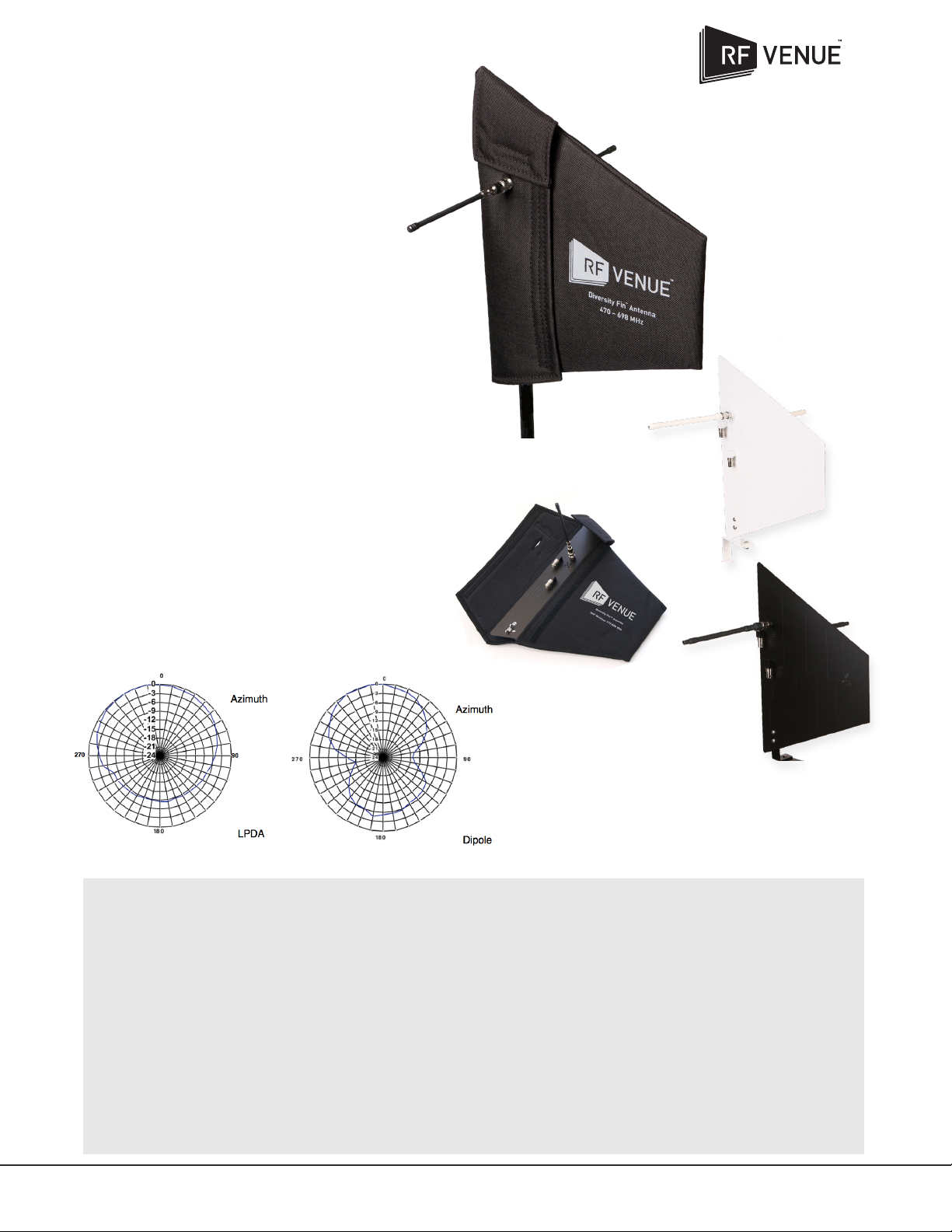

The Diversity Fin Antenna is a multi-purpose antenna designed to be used with wireless microphone systems and other UHF receivers incorporating dual branch diversity reception, and comprises orthogonal directional LPDA and bi-directional dipole elements in order to eliminate mulit-path fade. One element captures vertically polarized waves, and the other horizontally polarized waves—achieving optimal polarization diversity reception and improving signal

constancy in indoor and reective environments.

Connect two receiver (or antenna distributor) branches to the Diversity Fin via coaxial cables (not supplied).

The Diversity Fin has found widespread adoption across multiple pro audio segments for its

performance, convenience, space, and cost benets.

Electrical

Operating frequency .............................. 470–698 MHz

Bandwidth ............................................... 228 MHz

Average return loss ............................... -9.4 dB

Impedance .............................................. 50Ω

LPDA

Beam width ............................................. 140° azimuth

F/B ratio .................................................. -8 dB

F/S ratio .................................................. -5 dB

Gain ......................................................... 5 dBd

Dipole

Beam width ............................................. 100° azimuth

F/B ratio .................................................. -5 dB

F/S ratio .................................................. -13 dB

Gain ......................................................... 1.8 dBd

The Diversity Fin has two elements and requires two coax cables (not included).

Physical

Length ..................................................... 300mm

Height ...................................................... 370mm

Weight ..................................................... 454g

Mount threads ........................................ 1/4-20, 3/8-16,

5/8-27

Operating temperature .......................... -23°C–54°C

Color ....................................................... Black or white

Connector(s) ........................................... (2) BNC female
