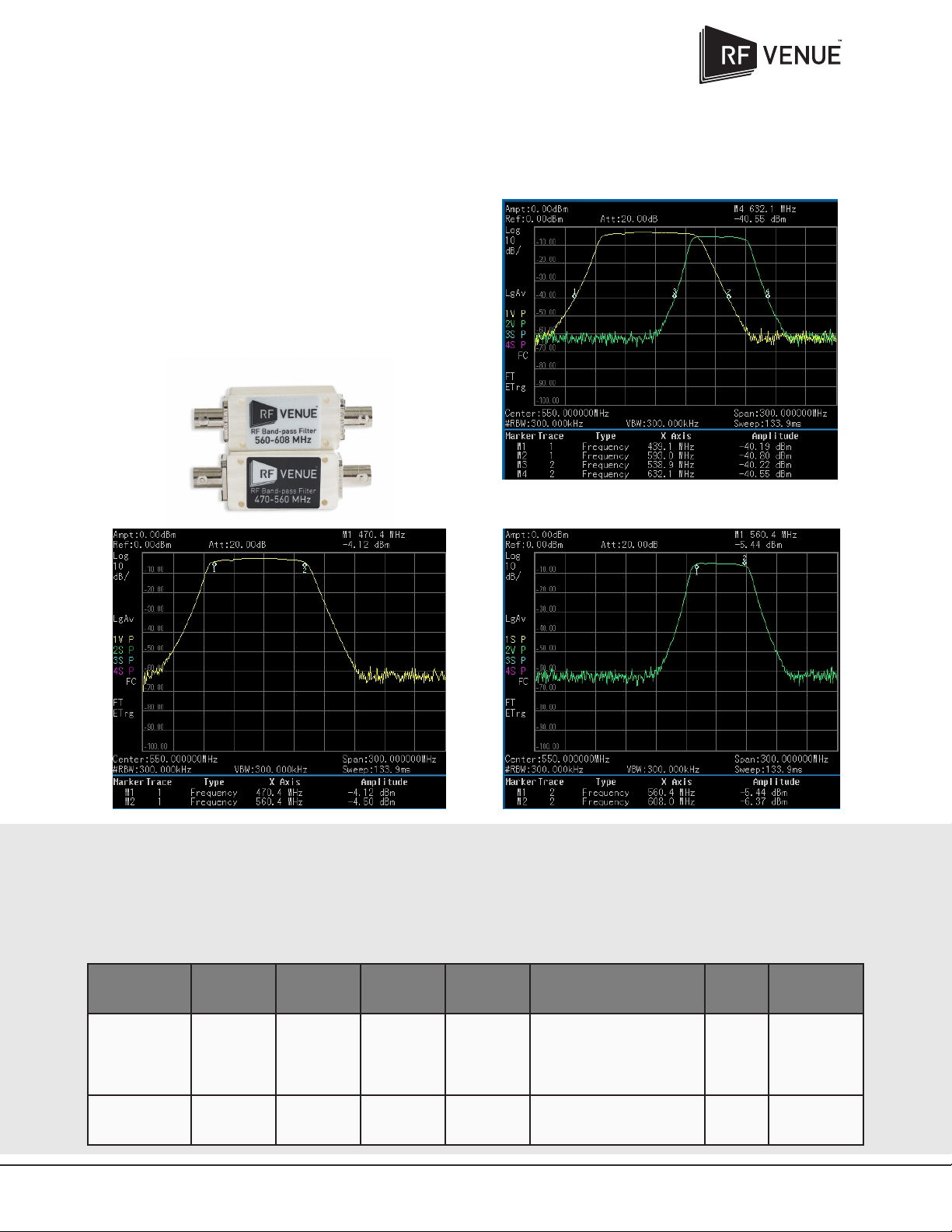

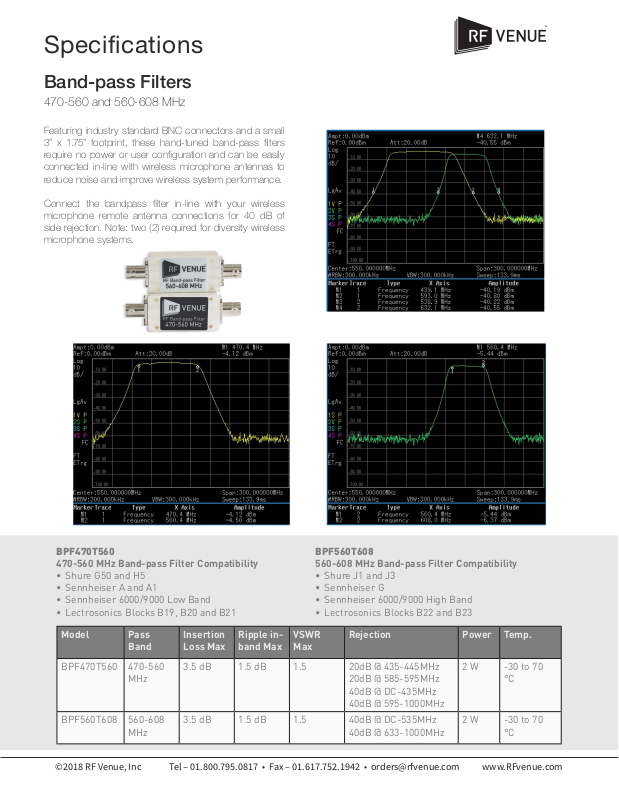

Specifications
Band-pass Filters
470-560 and 560-608 MHz
Featuring industry standard BNC connectors and a small
3” x 1.75” footprint, these hand-tuned band-pass lters
require no power or user conguration and can be easily
connected in-line with wireless microphone antennas to
reduce noise and improve wireless system performance.
Connect the bandpass lter in-line with your wireless
microphone remote antenna connections for 40 dB of
side rejection. Note: two (2) required for diversity wireless
microphone systems.
BPF470T560
470-560 MHz Band-pass Filter Compatibility
• Shure G50 and H5
• Sennheiser A and A1
• Sennheiser 6000/9000 Low Band
• Lectrosonics Blocks B19, B20 and B21
Model Pass
Band
BPF470T560 470-560
MHz
BPF560T608 560-608
MHz
©2018 RF Venue, Inc Tel – 01.800.795.0817 • Fax – 01.617.752.1942 • [email protected] www.RFvenue.com
Insertion
Loss Max
3.5 dB 1.5 dB 1.5 20dB @ 435-445MHz
3.5 dB 1.5 dB 1.5 40dB @ DC-535MHz
Ripple inband Max
BPF560T608
560-608 MHz Band-pass Filter Compatibility
• Shure J1 and J3
• Sennheiser G
• Sennheiser 6000/9000 High Band
• Lectrosonics Blocks B22 and B23
VSWR
Max
Rejection Power Temp.
2 W -30 to 70
20dB @ 585-595MHz
40dB @ DC-435MHz
40dB @ 595-1000MHz
2 W -30 to 70
40dB @ 633-1000MHz
°C
°C
