RF Venue DISTRO4 Data Sheet

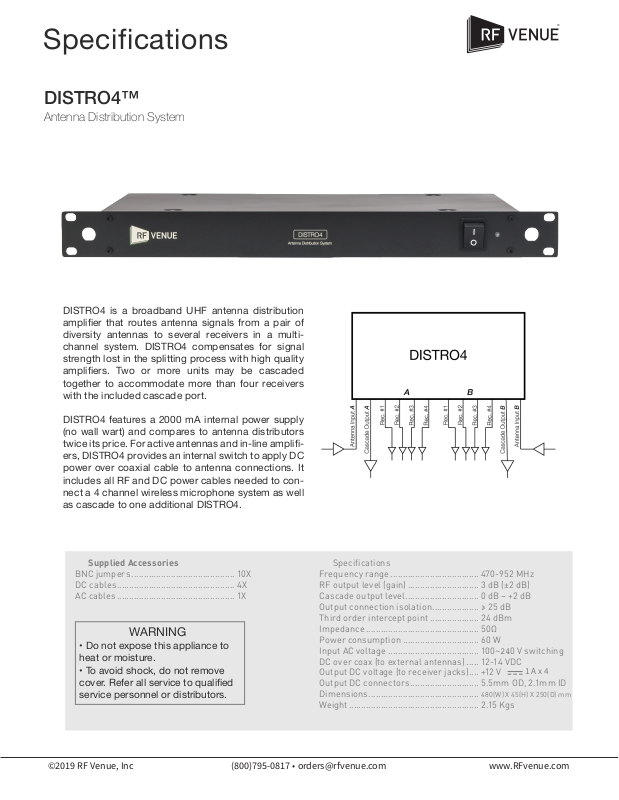

Specifications

DISTRO4™

Antenna Distribution System

DISTRO4 is a broadband UHF antenna distribution

amplier that routes antenna signals from a pair of

diversity antennas to several receivers in a multi-

channel system. DISTRO4 compensates for signal
strength lost in the splitting process with high quality
ampliers. Two or more units may be cascaded
together to accommodate more than four receivers
with the included cascade port.

DISTRO4 features a 2000 mA internal power supply
(no wall wart) and compares to antenna distributors
twi ce its price. For acti ve antennas and in- line ampli­ers, DISTRO4 provides an internal switch to apply DC
power over coaxial cable to antenna connections. It
includes all RF and DC power cables needed to con­nect a 4 channel wireless microphone system as well
as cascade to one additional DISTRO4.

Supplied Accessories

BNC jumpers .......................................... 10X

DC cables ................................................ 4X

AC cables ................................................ 1X

WARNING

• Do not expose this appliance to
heat or moisture.

• To avoid shock, do not remove
cover. Refer all service to qualied
service personnel or distributors.

Specifications

Frequency range .................................... 470-952 MHz

RF output level (gain) ............................. 3 dB (±2 dB)

Cascade output level .............................. 0 dB ~ +2 dB

Output connection isolation ................... ≥ 25 dB

Third order intercept point .................... 24 dBm

Impedance .............................................. 50Ω

Power consumption ............................... 60 W

Input AC voltage ..................................... 100~240 V switching

DC over coax (to external antennas) ..... 12-14 VDC

Output DC voltage (to receiver jacks) .... +12 V

Output DC connectors ............................ 5.5mm OD, 2.1mm ID

Dimensions ............................................. 480(W ) X 45(H) X 250(D) mm

Weight ..................................................... 2.15 Kgs

1 A x 4
