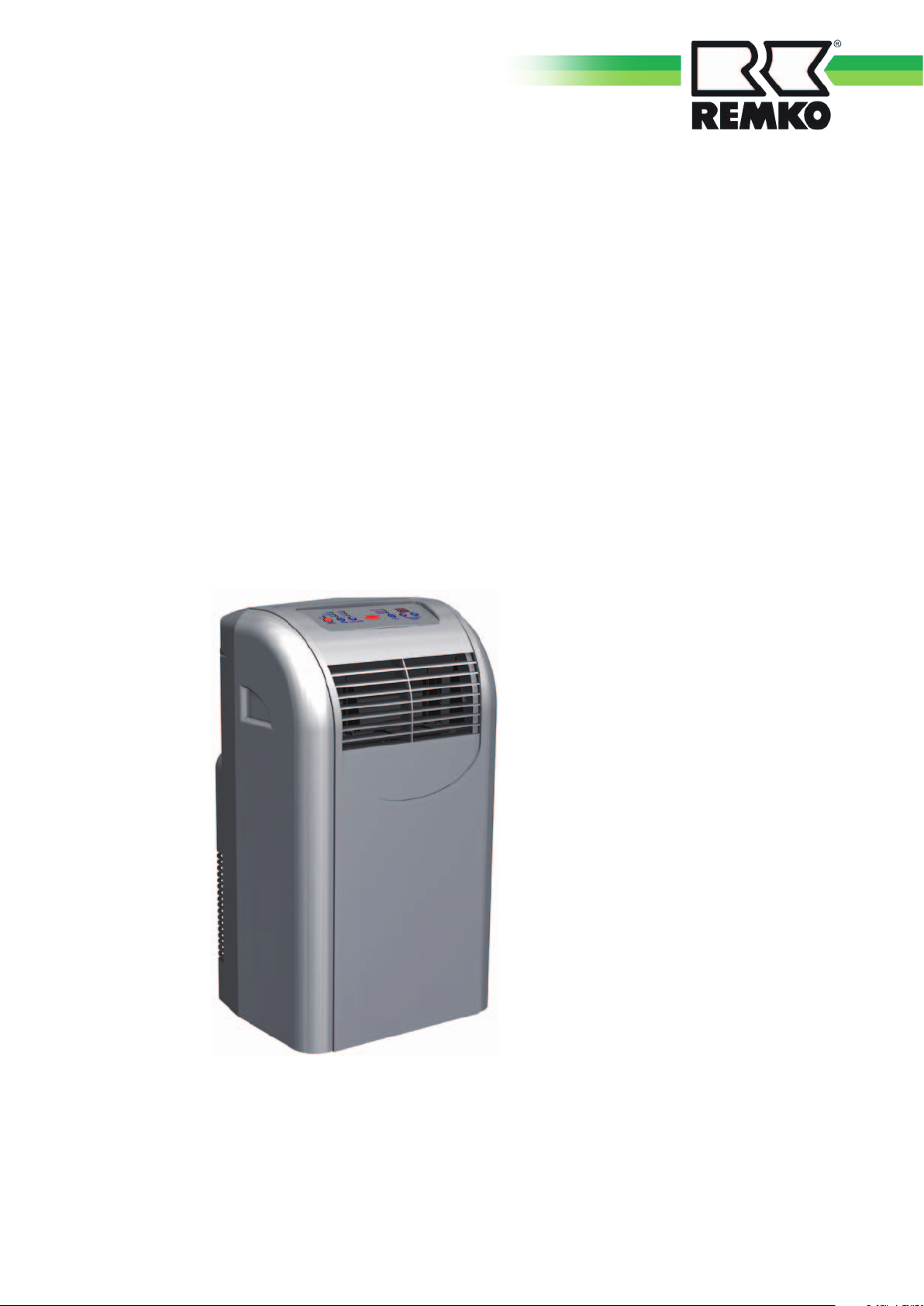

REMKO MKT 290 User Manual

REMKO MKT

MKT 290, MKT 290 S-Line

Mobile Air Conditioner

Operation · Technology · Spare Parts

Ausgabe GB – W12

Contents

Safety notes

Environmental protection and recycling

Warranty

Intended use

Transport and packaging

Equipment description

Operation

Bevore Commissioning

Commissioning

Shut-down

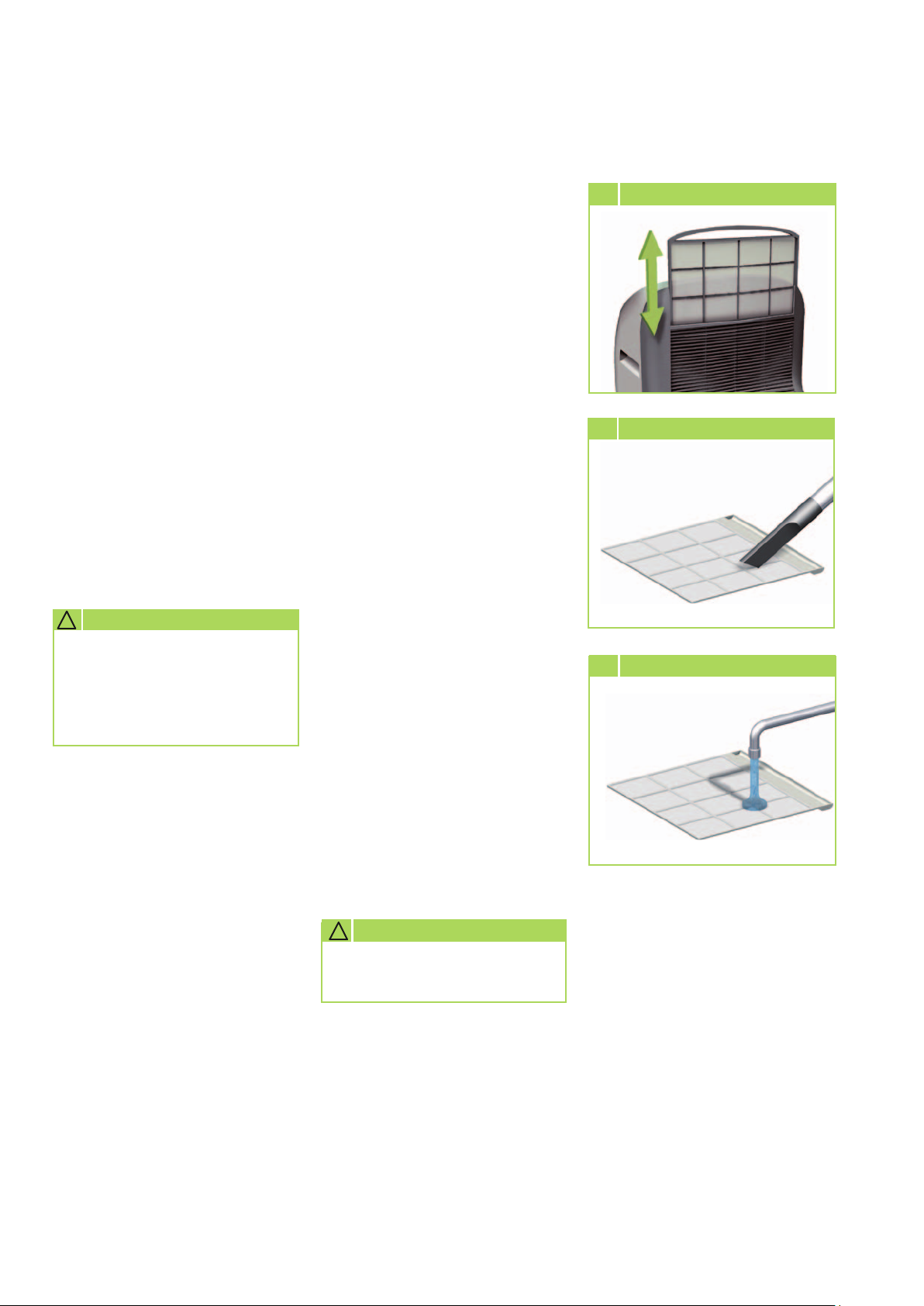

Care and maintenance

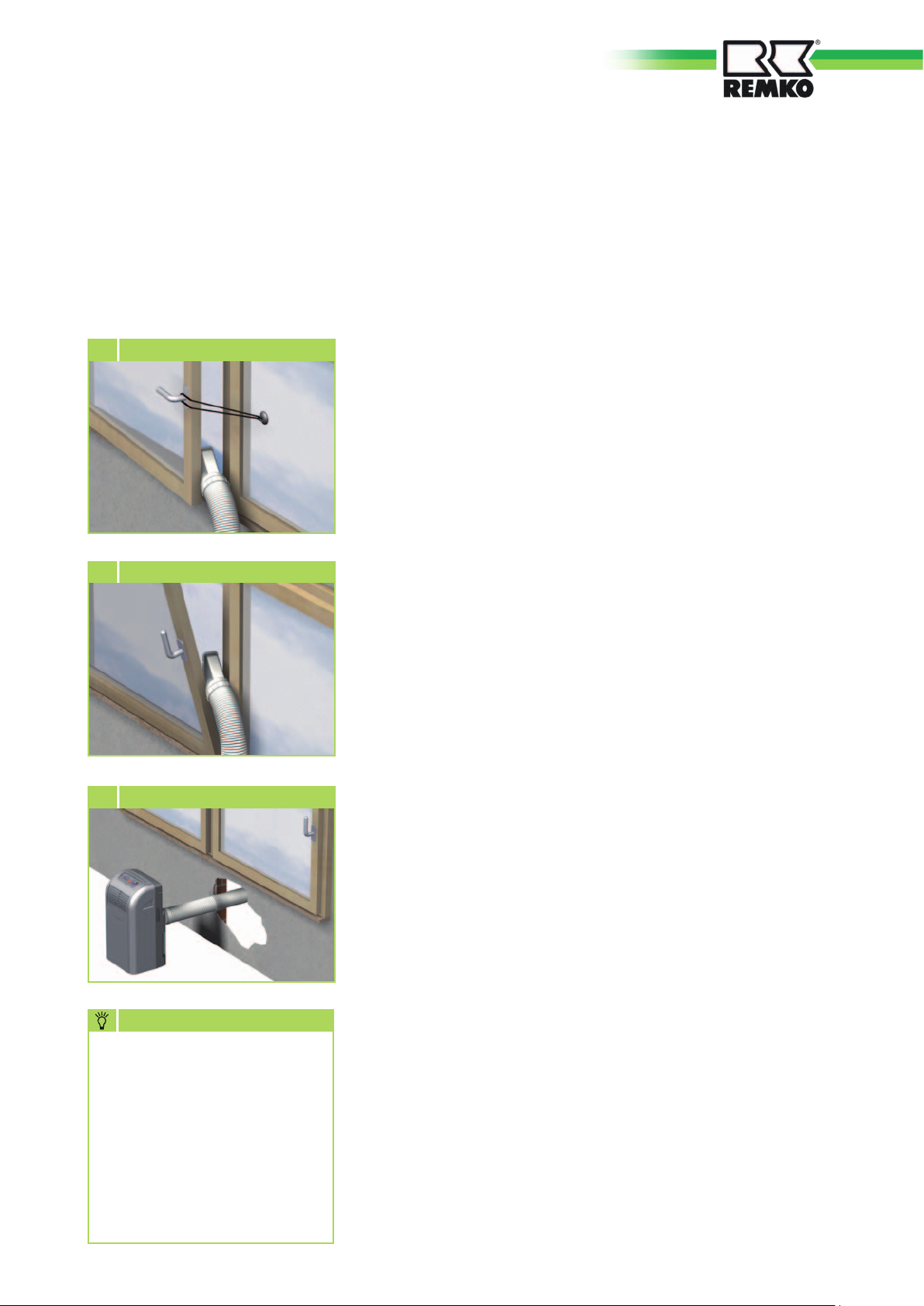

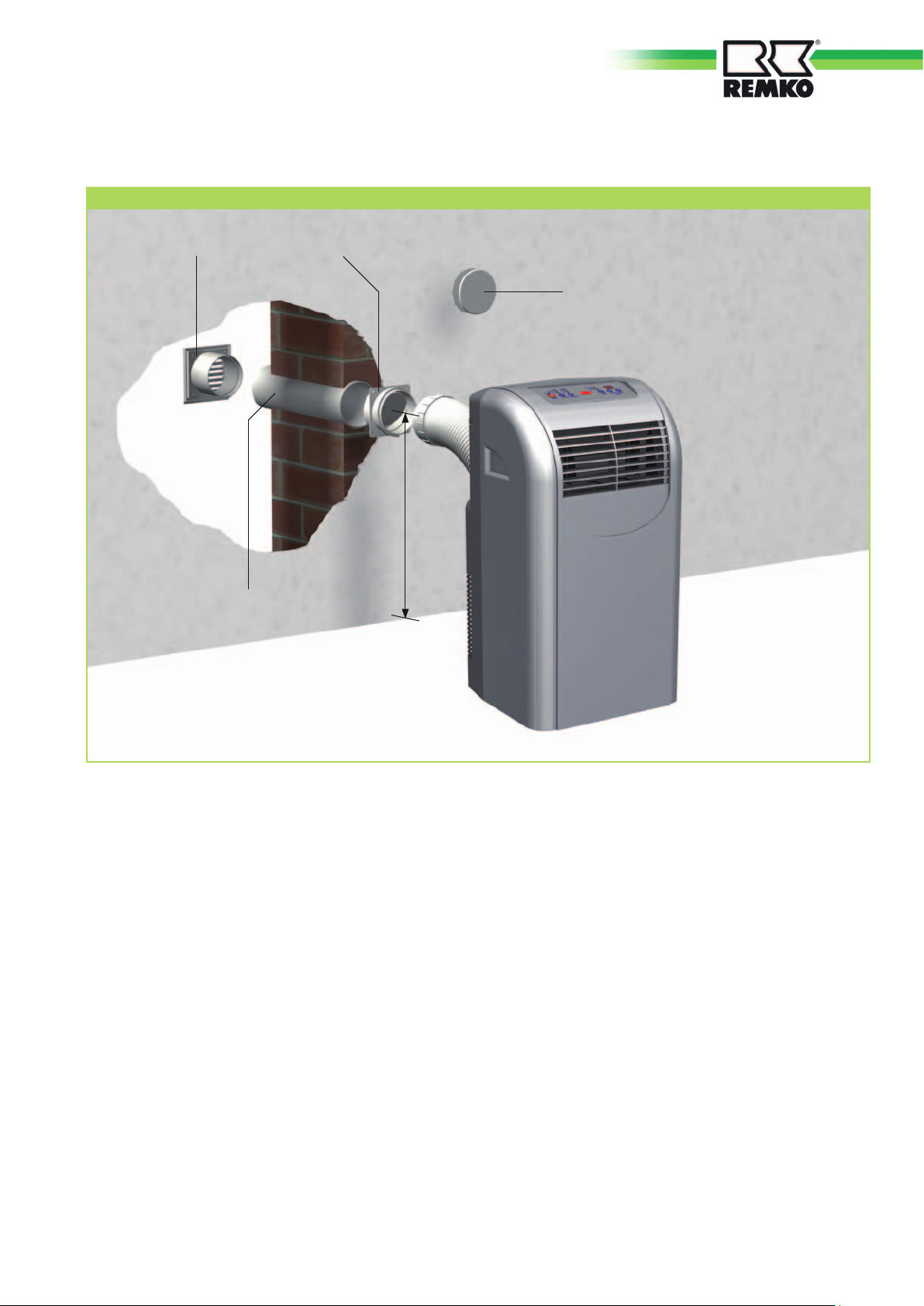

Installation scheme of the wall through (optional)

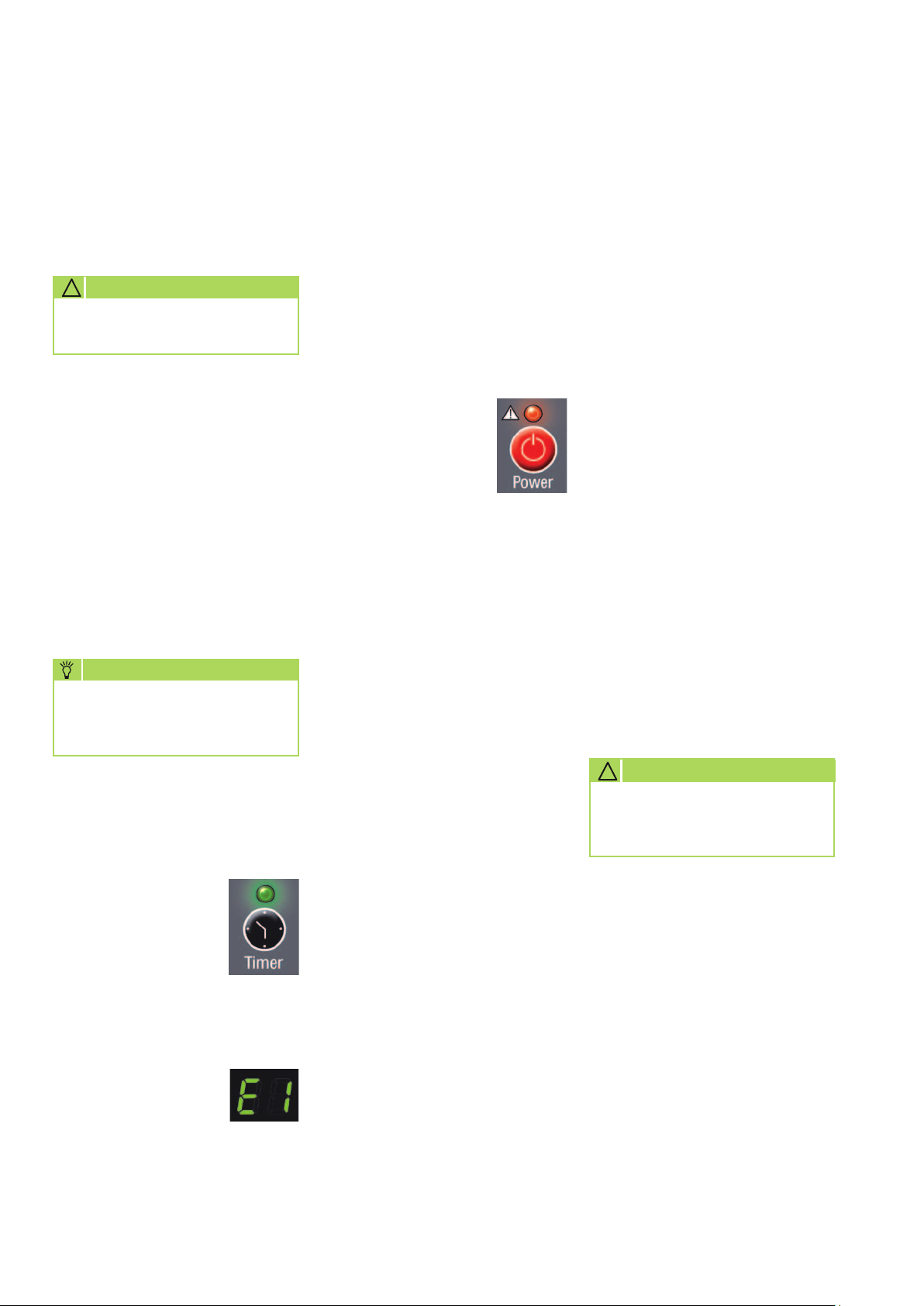

Troubleshooting and customer service

4

4

4

4

5

5

6-7

8-9

9

9-10

10

11

12

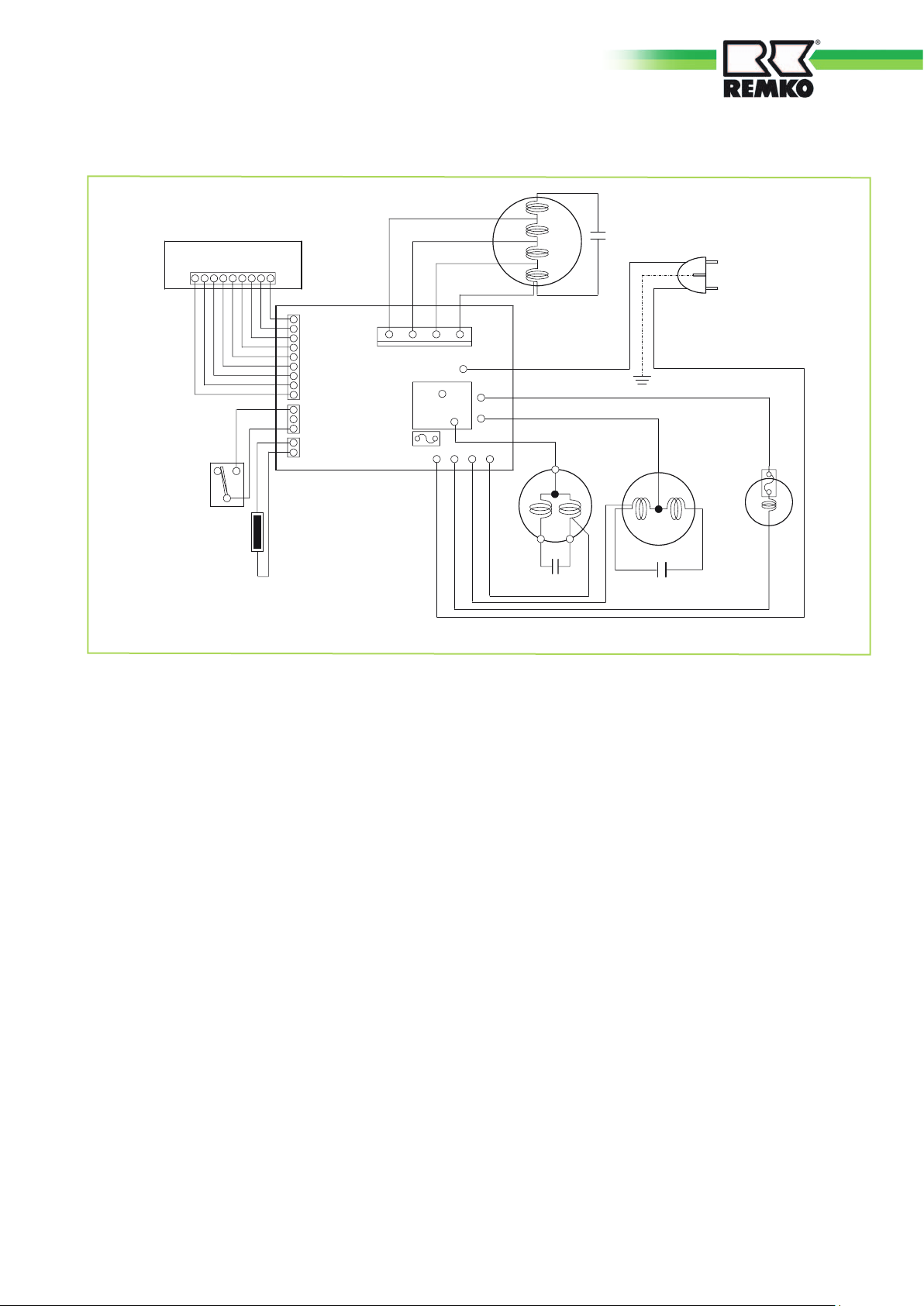

Electrical connection diagram

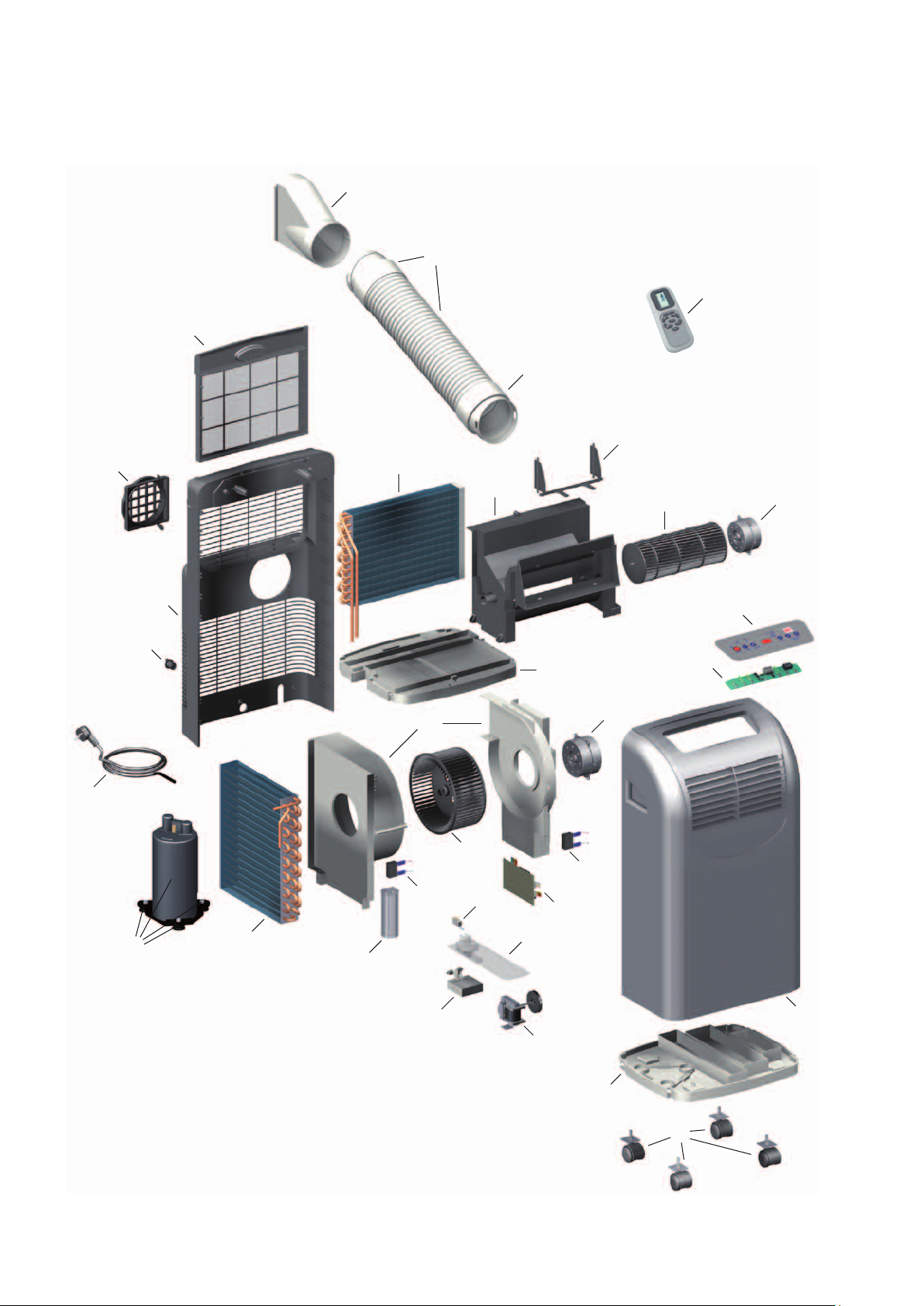

Exploded view

Spare parts lists

Technical data

EC-Declaration of conformity

Read these operating instructions carefully before
commissioning / using the device!

13

14

15

16

17

These instructions are an integral part of the system and must always
be kept near or on the device.
This operating manual is a translation of the German original.

Subject to modifications; no liability accepted for errors or misprints!

3

REMKO MKT

Safety notes

Carefully read the operating in­structions before commissioning the
equipment for service. It provides

useful tips and information as
well as hazard warnings to prevent

injury or material damage . Fail­ure to follow the directions in this
manual can result in endangerment
to persons, the environment and
the equipment itself and will void
any claims for liability.

■ Keep this manual and the refrig-

erant data sheet near the unit.

■ The unit should be set up and

installed only by qualified per­sonnel.

■ The set-up, connection, and

operation of the unit and its
components must be in accord­ance with the operating condi­tions stipulated in this manual
and comply with all applicable
local regulations.

■ Mobile units must be set up

securely on suitable surfaces and
in an upright position. Station­ary units must be permanently
installed for operation.

■ Modification of equipment and

components supplied by REM­KO is not permitted and can
cause malfunctions.

■ Do not operate equipment or

components with obvious de­fects or signs of damage.

■ All housing parts and openings

in the device, e.g. air inlets and
outlets, must be free of foreign
objects, fluids, or gases.

■ The equipment and components

must be kept an adequate dis­tance from flammable, explo­sive, combustible, abrasive and
dirty areas or atmospheres.

■ Touching some parts of the

equipment can result in burns or
other injury.

■ Installation, repair and mainte-

nance work may be carried out
only by authorised specialists.
Visual inspections and cleaning
can be performed by the opera­tor as long as power is discon­nected from the equipment.

■ To preclude any danger from

the equipment, take appropri­ate hazard-prevention measures
when performing installation,
repair or maintenance work or
cleaning the equipment.

■ The equipment or components

are not to be exposed to any
mechanical stresses, extreme
levels of humidity or direct
sunlight.

Disposal of equipment and
components

Only recyclable materials are used
in the manufacture of the devices
and components.
Help protect the environment by
ensuring that the devices or com­ponents (for example batteries) are
not disposed in household waste,
but only in accordance with local
regulations and in an environmen­tally safe manner, e.g. using certi-

fied firms and recycling
specialists or at collection
points.

Warranty

Prerequisites for possible warranty
claims are customer or his accept­ing representative has completely
filled out the "warranty registration
card" supplied with the unit and
was completely filled out and re­turned to REMKO GmbH & Co. KG
and placing the unit in service.
The warranty conditions are listed
in the "General terms and condi­tions". Furthermore, only the par­ties to a contract can strike special
agreements beyond these condi­tions. For this reason please contact
your contractual partner in the first
instance.

■ Equipment and components

may not be operated in areas
where there is an increased risk
of damage. Observe the mini­mum clearances.

■ The electrical supply is to be

adapted to the requirements of
the equipment.

■ The operational safety of equip-

ment and components is only
assured if they are fully as­sembled and used as intended.
Safety devices may not be modi­fied or bypassed.

4

Environmental
protection
and recycling

Disposal of packaging

All products are packed for trans­port in environmentally friendly
materials. Make a valuable con­tribution to reducing waste and
sustaining raw materials. Only
dispose of packaging at approved
collection points.

Intended use

Depending on the model, the
equipment and the additional
fittings with which it is equipped
is only intended to be used as an
air-conditioner for the purpose of
cooling or heating the air in an
enclosed room.
Different or additional use shall
not be classed as intended use.
The manufacturer/supplier assumes
no liability for damages arising from
an unintended use of the equip­ment. The user bears the sole risk in
such cases.
Using the equipment as intended
also includes working in accord­ance with the operating manual
and installation instructions and
complying with the maintenance
requirements.

Transport and
Packaging

The equipment is shipped in sturdy
transport packaging. Immediately
check the equipment on delivery
and make note of any damage or
missing parts on the delivery note
and inform the forwarding agent
and your contractual partner.
No warranty can be assumed for
later claims.

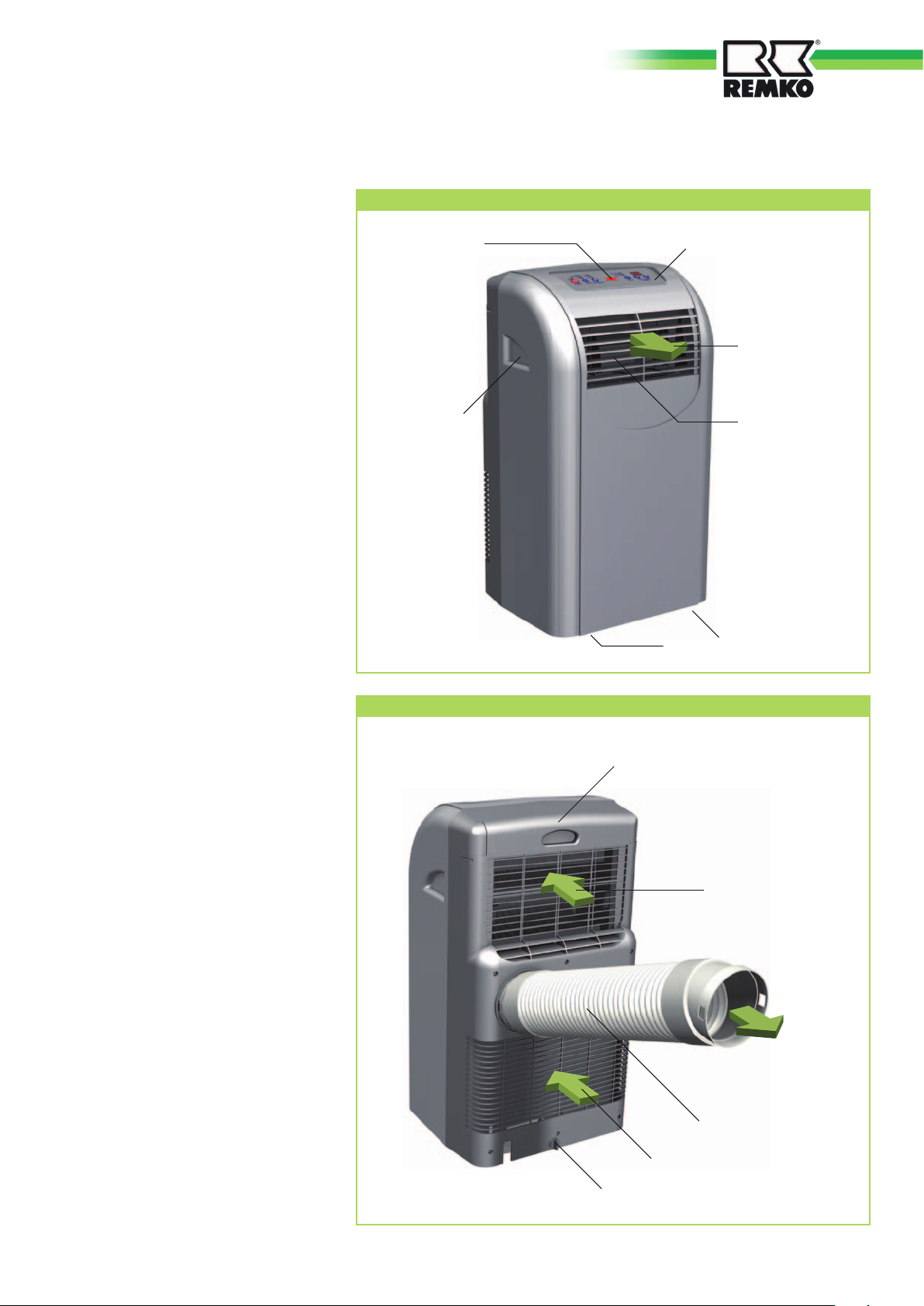

Front view

Invrared receiver

Control panel

Air outlet

Equipment description

The device is particularly suited for
flexible operation.
The mobile air conditioning unit
is comprised for setting up on the
floor indoors. and has an exhaust
tube to dissipate the heat..

The indoor unit will located in
the room to be cooled heat in the
evaporator (heat exchanger) and
transfers it to the internal cooling
circuit. This is the heat of a further
heat exchanger (condenser) via the
flexible exhaust hose into the open
again.

The condensate collected during
cooling operation is transported
to the outdoor unit by means of a
condensate pump integrated into
the indoor unit and evaporates via
the heat exchanger.
The device filters and dehumidi­fies the air and thereby creates
a comfortable room climate.
It works fully automatically and
offers numerous additional op­tions thanks to its microprocessor
control system. The device can be
conveniently operated by means
of the infrared remote control unit
included.

Recessd grip

Rear view

Air directing
plate fins

Transport rollers

Air filter

Air inlet

Exhaust air
outlet

Air outlet hose

Air inlet exhaust air

Condensate drain spout with plug

5

REMKO MKT

Operation

The system can be operated by means of the control panel on the device or via the standard infrared remote
control unit. The functional operation of the buttons among themselves is identical, however, the designation
can vary. The batteries must be correctly inserted before the infrared remote control is used.

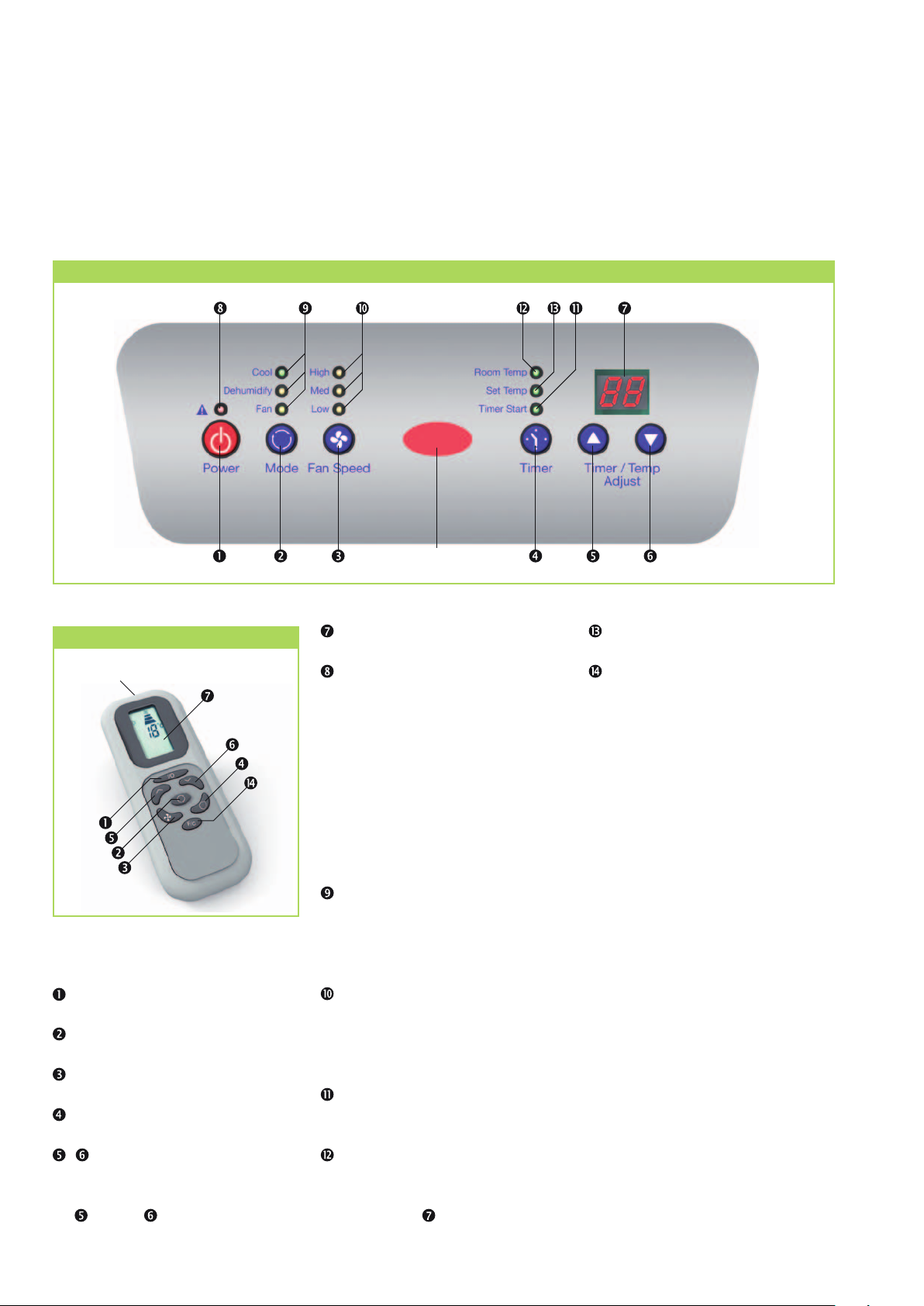

Control panel

Infrared remote control

Infrared transmitter

Legend

ON / OFF „Power“ button

„Mode“ button

„Fan Speed“ button

„Timer“ button

+

Temperature/time setting

buttons
„Timer/Temp Adjust“:

higher, lower

Infrared receiver

Display

Red fault LED:

Reservoir full

An acoustic and an optical

signal indicate that the float
switch of the internal reservoir
has shut down the operation of
the device.
The acoustic signal dies down
after a short period of time, but
the LED remains active.

Mode LED display

Green: “Cool“
Orange: “Dehumidify“
Yellow: “Fan“

Orange LED display

for the fan speed, with
high/medium/low speed
“High“/“Med“/“Low“

Green LED display

for the time delay, “Timer“

Green “Room Temp“ LED

(If this LED lights up the current

room temperature is shown in
the display )

Green “Set Temp“ LED

“°C/°F“ toggle button

(only on the remote control)

„Mode“ selection

■ „Cool“

The device is used to cool the
room. It filters and dehumidifies
the air and thus creates a pleas­ant room climate.

■ „Dehumidify“

In the “Dehumidify“ mode, hu­midity is removed from the air.

■ „Fan“

The device circulates the air,
filters it, and creates an even air
flow..

6

„Cool“ mode

„Dehumidify“ mode

„Timer“ time delay

1. Attach the air outlet hose to
the wall bushing or the win­dow.

2. Activate the device using the
“Power“ button

3. Press the “Mode“ button
until the “Cool“ LED lights
up.

4. Select the fan setting using
the “Fan Speed“ button :

“High“ highest speed
“Med“ medium speed
“Low“ lowest speed

5. If the “Room Temp.“ LED
lights up, the current room
temperature is shown in the
display

6. As soon as the / / button
is pressed, the display switch­es from the room tempera­ture to the set temperature
(LED lights up) and shows
the desired temperature for
15 seconds.

7. Set the desired room tem-Set the desired room tem­perature using the “Timer/
Temp. Adjust“ button /
The up arrow increases the
set value shown in the display

while the down arrow

decreases it.

1. Attach the air outlet hose to the
wall bushing or the window.

2. Activate the device using the
“Power“ button .

3. Press the “Mode“ button
until the “Dehumidify“ LED
lights up; the fan is automati­cally switched to the “Med“ or
medium fan speed stage.

„Fan“ mode

1. Activate the device using the
“Power“ button .

2. Press the “Mode“ button
until the “Fan“ LED lights
up.

3. Select the fan setting using the
“Fan Speed“ button :

“High“ highest speed
“Med“ medium speed
“Low“ lowest speed

4. The room temperature is not in-The room temperature is not in­fluenced and remains constant.
For this reason, the tempera­ture and time setting “Timer/
Temp. Adjust“ buttons /
cannot be used.

You can turn the device on and off
automatically using the timer. To
do so, an activation/deactivation
delay is programmed.

Automatic activation

1. Activate the device using the
“Power“ button .

2. Select the mode and make all
settings for the desired mode.

3. Deactivate the device using the
“Power“ button .

4. Press the “Timer“ button .

5. Set the time using the “Timer/
Temp. Adjust“ button /
Only whole hours can be en­tered.

6. The LED flashes.

7. The device activates automati-The device activates automati­cally at the set time.

Automatic deactivation

1. The device is running in the
previously set mode.

2. Press the “Timer“ button .

3. Set the remaining run time us-Set the remaining run time us­ing the “Timer/Temp. Adjust“
button / . Only whole hours
can be entered.

TIP

You can achieve a pleasant
room climate by selecting a set
temperature that is a maxi­mum of 4 to 7°C below the
outdoor temperature.

4. The LED fleshes.

5. The device deactivates auto-The device deactivates auto­matically at the set time.

7

REMKO MKT

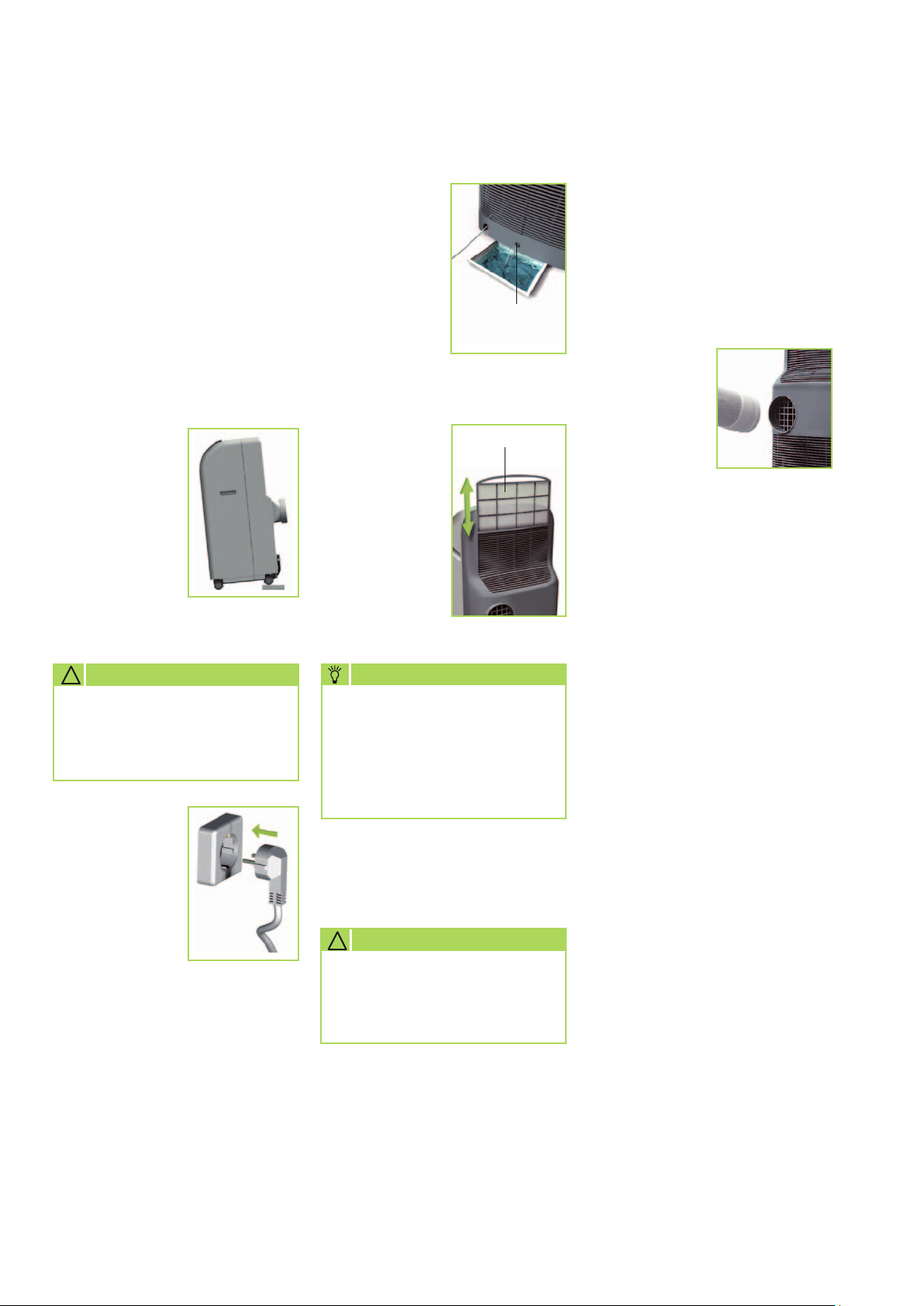

Bevore Commissioning

The device is placed at the desired
location, with the outlet side to the
room. Note the list the following
information.

■ Allow the device to the box

at least 5 minutes stand on its
transport wheels before opera­ting it.

■

Place the unit stable on a flat,
stable surface. Uneven floors
can cause
vibration and
unwanted
noise.

■

All extensions
of the power
line must have
a correct cross
section and may be used only
fully rolled out.

■

Never operate
the unit with­out the intake
filter. Without
an air intake
filter, the plate
fins of the eva­porators be­come dirty and
the unit’s performance is adver­sely affected.

■

Make sure that
people and
objects, such
as plants in the
room, are not
directly in the
path of the
expelled air.

Condensa­tions drain
with plug

Circulation filter

■

Make sure that the deflector
piece from the top slides down
into the notches on the side
until it clicks into places .
To ensure that the unit operates
effectively, do not place the
flexible exhaust hose supplied
at sharp angles and make sure
there are no
kinks.

■

The air
expelled
from the unit
contains a
certain amount of moisture. We
therefore recommend expelling
the air to the surroundings or
the outside.

CAUTION

!

From the back of the device to
the back of the wall must be
a minimum distance of about
20 cm.

■

Check that
the plug-in of
condensation
drain placed
available and
that is correct.
There is a
risk of un­controlled condensate outlet is
after commissioning.

TIP

In case of direct sunlight, make
sure to close all curtains and
blinds.
Keep doors and windows clo­sed during operation.

Expelling the warm air

CAUTION

!

The exhaust hose is always
embarrassed with a pitch in air
direction and should not be
extended!

During cooling mode, the unit ge­nerates warm air. This air must be
expelled from the room to retain
the cooling effect.
It is therefore necessary to insert
the supplied exhaust hose into the
air outlet opening at the back of
the unit.

Different ways of expelling air

You can expel air from the building
as follows:

With a flat nozzle.

The flat nozzle supplied can be
used in different ways. It is possible
to guide the flat nozzle through
the open window and se cure it
firmly using straps and suction
devices. (Fig. 1, page 9).

The flat nozzle can also be hung
through the partially opened win­dow (Fig. 2, page 9).

8

Commissioning

Shut-down

Wall lead-through

The hose supplied is firmly con­nected to a wall lead-through.
Lead-through kits can be
purchased as accessories. (Fig. 3).

1

Exhaust by opened Win

2

Exhaust by part. opened Win

dow

dow

3 Wall lead-through

Prior to initial operation, the air
intake and outlet openings must
be inspected for foreign bodies
and the air in take filter for dirt.
Blocked or dirty grilles and filters
must be cleaned immediately. See
the chapter “Maintenance and
Service“.

Cooling mode

1. Switch the unit on with the
“I/O” button. .

2. Select cooling mode with the
“Mode” button.
The “AUTO” LED must be lit
up.

3. Set the target temperature you
want with the „TIMER/TEMP/
ADJUST“ buttons.
The selected target temperature
appears on the display.
If the set fan speed is too high
or too low, the desired fan
speed can be set by pressing
the “FAN SPEED“ button.

Fan mode (circulation)

1. Switch the unit on with the
“I/O” button

Temporary Shut-down

If the unit is to be taken out of
operation for a longer period of
time, for example, over the winter,
proceed as follows:

1. Let the device run for appro­ximately 2 hours in circulation
mode (FAN) to dry the surface
of the evaporator plate fins.
This removes the remaining
moisture from the unit and
prevents unpleasant odours
when the device is put back
into operation.

2. Switch off the unit by pressing
the “I/O” button, unplug the
unit from the power supply and
roll up the power cord.
Make sure that the cable is not
bent and there are no kinks.

3. Place a suitable container under
the condensation drain of the
internal tank. The condensation
drain is located at the bottom
at the back of the unit.

4. Pull the plug from the con­densation drain and collect the
water that drains out.

NOTE

In some circumstances, low
pressure can occur in the
setup room when air is being
expelled via a permanently
attached exhaust hose, e.g. as
a result of closed windows or
doors. If the performance of
the unit is adversely affected
as a result, make sure that the
pressure is corrected

2. Select fan mode with the “FAN
SPEED” button.
The LED „HIGH/MED/LOW“
must be lit up.

5. Then replace the plug.
Keep in mind that if there is no
plug or it is inserted incorrectly,
water may leak out after the
unit has resumed operation.

6. Store the unit in an upright
position in a dry location.
that is protected from direct
sunlight and dust.
To prevent dust from getting
inside the unit, protect it with,
for example, a plastic cover.

9

REMKO MKT

Permanent shut-down

The entire system should only be
dismantled by a specialist firm
familiar with all environmental
aspects involved.

REMKO GmbH & Co. KG or your
sales partner will be be pleased to
provide details of refrigerant spe­cialists in your area.

Care and maintenance

Regular care and observation
of some basic points will ensure
trouble-free operation and a long
service life of the unit.

! CAUTION

Prior to performing any work,
ensure the equipment is dis­connected from the voltage
supply and secured to prevent
accidental switch-on!

Cleaning the filter

The unit is equipped with two air
intake filters. These can be remo­ved from the back of the unit. The
filters must be cleaned at regular
intervals. Clean the air filters after
no more than 100 hours of ope­ration. If the air is heavily conta­minated, reduce this time period
accordingly.

1. Switch the unit off with the
On/Off button on the control
panel.

2. Remove the filter from the unit.
(Fig. 4).

3. Clean the dust that has accu­mulated from the filter.
You can use a vacuum cleaner.
(Fig. 5).

4. If the dust filter is very dirty,
wash it with a lukewarm soap
solution (Fig. 6).

4 Filter change

5 Cleaning with a vacuum cleaner

6 Cleaning with lukewarm

water

■

Clean the equipment using a
damp cloth.
Do not use a jet of water.

■

Do not use any caustic, abra­sive or solvent-based cleaning
products.

■

Only use suitable cleaning
agents, even in the event of
severe soiling.

■

Make sure that no moisture
gets into the device. Clean
regularly and thoroughly, the
exhaust air inlet and outlet
openings.There is usually col­lected first on dirt.

■ It is recommended that you take

out a maintenance contract with
an appropriate specialist firm.

5. Let the filter air dry.

6. Replace the filter in the unit.
(Fig. 4).

7. Make sure that the filter is dry
and undamaged.

CAUTION

!

Never operate the unit without
the air filter.

10

Installation scheme of the wall through (optional)

Installation example

TrapProtection grill

Sealing cap

min. 400 mm

Telescopic pipe

Installation Instructions

1. Create a core hole in the out­side wall (max.- wall thickness
of 480 mm) with a diameter of
at least 135 mm.
Note possible supply lines in
this area!

2. Insert the telescopic pipe in the
created wall opening so that is
the outer pipe (large diameter)
on the inside wall.
To prevent cold bridges, insu­late the telescopic pipe with
suitable insulating material.

3. Wall the telescopic pipe into the
core hole in such a way that it is
flush to both sides of the wall.

4. Mount the protection grill on
the outside of the wall with 4
screws (make sure it is protect­ed from rain).

5. Fix the trap to the inside and
mount it with 4 screws..
The “top“ label on the trap
must be legible from the inside!

6. When taking the device out
of service, for example, at the
beginning of winter, close the
opening of the trap using the
sealing cap to prevent air circu­lation.

11

REMKO MKT

Troubleshooting and customer service

The unit has been manufactured using state-of-the-art production methods and tested several times to ensure
its correct function. If malfunctions should occur, please check the unit as detailed in the list below. If all func­tional checks have been carried out and the device still fails to operate properly, then please notify your nearest
specialist dealer.

CAUTION

!

Never open the device
housing.

The device is not functioning
and the control panel remains
dark.

■

Make sure that

- the mains plug is properly
inserted;

- there is no power failure;

- the mains voltage is present
(fuse)

■

Check the mains supply line for
damage.

NOTE

Contact your dealer or con­tractual partner if the device
cannot be commissioned.

The device deactivates auto­matically.
The fault LED flashes and a
signal sounds (reservoir full).

To drain the reservoir, proceed as
follows:

1. Switch off the device
and pull the mains plug.

2. Place a flat tray under
the condensate drain spout and
remove the plug.

3. After the condensate has
drained, reinsert the plug firmly.

The device is not cooling
properly.

■ Check the mode: the “Cool“

LED must be lit.

The device does not react
to the remote control.

■

Make sure that

· the batteries are functioning;
change them if necessary;

· the batteries are inserted with
the correct polarity
(cf. the marking);

· there are no objects between
the remote control and the
device (reach of approx. 5 m).

Condensate is emerging.

■

Make sure that

· the device is on a horizontal
foundation;

· the air outlet hose is properly

attached;

· the plug is firmly inserted in
the condensate drain spout.

The device is not functioning
and the “Timer“ time delay
LED is flashing.

■

“Timer“ time delay
is programmed.
Delete the timer set­ting.

The device is not functioning
and “E1“ is being shown in
the display

■

The room tempera­ture lies outside the
operating range of
16 to 35°C. Wait until the room
temperature lies in the working
range (reduce the incident of
sunlight and close windows and
doors, if necessary).

■

For an optimum cooling capaci­ty, close the curtains and blinds.
In addition, make sure the
windows and doors are closed.

■

Make sure that

· the air outlet hose has been
properly attached. It may not
be bent, declining, or laid in a
tight curve;

· no foreign bodies impair the
exhaust or intake air supply
(observe the minimum
clearances);

· the air directing plate fins are
free of soiling or foreign
objects

· the set temperature is not too
high (operating limits of the
device: 16 to 35°C).

CAUTION

!

Never perform work on the
cooling circuit or the electrical
equipment..

12

Electrical connection diagram

Micro switch

(Reservoir)

Temperature

sensor

Control panel

J003 J002 J001

Evaporator fan

Rot

Orange

Gelb

Hi

Med

Lo

J01
RL101

COMP

Blue

L

Blue

L

Blue

Blue

Compressor Reservoir condenser

White

Brown

Red

Red

Red

White

Condenser

Condenser

L N

Blue

White

Evaporator fan

Mains plug

E

Blue

Condenser

motor

13

REMKO MKT

Exploded view

28

31

29

33

30

25

22

15

32

24

17

11

16

12

18

14

13

4

7

21

19

26

20

27

8

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

14

10

9

5

6

3

1

2

23

Spare parts list

No.

Designation

From series number 77285001 77285001

1 Unit bottom 1106850 1106850

2 Transport roller 1106851 1106851

3 Condensate pump 1106852 1106852

4

Condenser 2.5 µF (evaporator fan)

5 Float regulator (reservoir) 1106854 1106854

6 Cover (reservoir) 1106855 1106855

Microswitch (reservoir)

7

8 Compressor, cpl 1106898 1106898

9 Condenser 40 µF (compressor) 1106892 1106892

10 Evaporator 1106895 1106893

11 Fan housing (exhaust air) 1106860 1106860

12 Fan wheel (exhaust air) 1106861 1106861

13 Fan motor (exhaust air) 1106863 1106863

14 Condensate tray 1106824 1106824

15 Exhaust air pipe adapter 1106865 1106865

16 Condenser 1,5 µF 1106866 1106866

17 Evaporator 1106896 1106896

18

Fan housing (circulation air)
Fan wheel (circulation air)

19

20 Fan motor (circulation air) 1106843 1106843

21 Circuit board 1106873 1106873

22 Mains supply line with plug 1106874 1106874

23 Front wall 1106820 1106827

24 Back wall 1106829 1106829

25 Air outlet segment 1106844 1106844

26 PCB with control 1106825 1106825

27 Control panel 1106826 1106831

28 Air filter 1106830 1106830

29

Entry circuit
Connection pipe adapter

30

MKT 290

1106853 1106853

1106856 1106856

1106822 1106822

1106823 1106823

1106886 1106833

1106887 1106834

MKT 290

31

Window jet

32 Condensate drain spout with plug 1106882 1106882

33 Remote control 1106884 1106884

Air outlet hose, cpl. (nr. 29; 30; 31) 1106885 1106832

Spare parts without Abbildung

Sensor (circulation air) 1106889 1106889

1106888 1106835

Accessories

No.

Designation

Wall bushing 1613115 1613115

When ordering spare parts, please state the computerised part no., unit number and type (see identification plate)!

MKT 290

MKT 290

15

REMKO MKT

Technical Data

Device type

Operating mode Mobile Air Conditioning Unit for cooling
Nominal cooling capacity
Energy efficiency class, cooling A
Energy efficiency factor EER
Application range (room air volume), approx. m³ 80
Temperature setting range °C +16 up to +32
Temperature operating limits °C /%r.F. +16 bis +35 / +35 bis +85
Refrigerant R 410A
Operating pressure max., cooling circle kPa 1800 / 3600
Refrigerant quantity kg 0,65
Circulation air volume flow rate m³/h 240 / 270 / 320
Sound pressure level
Voltage supply V/Hz 230 / 1~ / 50
Type of protection IP 20
Power consumption
Current consumption
Electrical starting current
Air outlet hose, diameter
Diemsions Height mm 700
Width mm 435
Depth mm 430
Weight kg 32,0
Color white silver
Serial no. 772... 773...
Ref.no. 1612290 1612291

1) Room temperature TK 35°C / FK 24°C

2) Distance 1 m

1)

1)

2)

1)

1)

kW 2,94

dB(A) 45 / 50 / 53

kW 1,09

A 4,93
A

mm/mm

MKT 290

MKT 290

2,69

21

1200 / 125

16

EC – Declaration of Conformity

(in accordance with Machinery Directive appendix II 1A -

Original declaration of conformity)

We do hereby declare that the devices named below, produced and sold by us, satisfy the relevant basic re­quirements of the EC guidelines, the EC safety standards and other product-specific EC standards.

Name of Manufacturer: REMKO GmbH & Co. KG
Air conditioning and heating technology
Im Seelenkamp 12
D - 32791 Lage

Name of CE representative: REMKO GmbH & Co. KG
Air conditioning and heating technology
Im Seelenkamp 12
D - 32791 Lage

Equipment (machinery) - Implementation:

Mobile Air Conditioning Unit for cooling

Series / Model: REMKO MKT 290, MKT 290 S-Line

Series / Class Number: 772.......... and 773..........

Applicable regulations : MA - RL 2006/42/EC Machinery Directive
(EC-Directive) NS - RL 2006/95/EC Low-Voltage Directive
EMC – RL 2004/108 EEC EMC Directive
EnVKV - RL 92/75/EEC Energy consumption labelling
directive
EC 97/23/EC Pressure Equipment Directive

Applicable Standards: DIN EN ISO 12100-1-2 : 2004-04; DIN EN ISO 13857,
EN 14511 T1-4;
DIN 45635 - 1;
EN 378 – 1-4;
EN 55014 - 1; EN 55014 - 2; EN 55104
EN 60204 - 1; EN 60335 - 1; EN 60335 - 2 - 40;
EN 61000 - 3 - 2; EN 61000 - 3 - 3;

Lage, 25.02.10 REMKO GmbH & Co. KG

........................................

Signature Product Manager

Notes

REMKO INTERNATIONAL

… und einmal ganz in Ihrer Nähe!
Nutzen Sie unsere Erfahrung und Beratung

REMKO GmbH & Co. KG
Air conditioning and heating technology

Im Seelenkamp 12 D-32791 Lage
Postfach 1827 D-32777 Lage
Telephone [phone]
Telefax [phone]
E-mail [e-mail]
Website www.remko.de

Hotline

Air conditioning and
heating technology

[phone]

Export

[phone]

Die Beratung

Durch intensive Schulungen brin­gen wir das Fachwissen unserer
Berater immer auf den neuesten
Stand. Das hat uns den Ruf ein­getragen, mehr zu sein als nur
ein guter, zuverlässiger Lieferant:
REMKO, ein Partner,
der Probleme lösen hilft.

Der Vertrieb

REMKO leistet sich nicht nur ein
gut ausgebautes Vertriebsnetz im
In- und Ausland, sondern auch
ungewöhnlich hochqualifizierte
Fachleute für den Vertrieb.
REMKO-Mitarbeiter im
Außen dienst sind mehr als nur
Verkäufer: vor allem müssen sie
für unsere Kunden Berater in der
Klima- und Wärmetechnik sein.

Der Kundendienst

Unsere Geräte arbeiten präzise
und zuverlässig. Sollte dennoch
einmal eine Störung auftreten,
so ist der REMKO Kundendienst
schnell zur Stelle. Unser umfang­reiches Netz erfahrener Fach­händler garantiert Ihnen stets
einen kurzfristigen und zuver­lässigen Service.

Technische Änderungen vorbehalten, Angaben ohne Gewähr!
