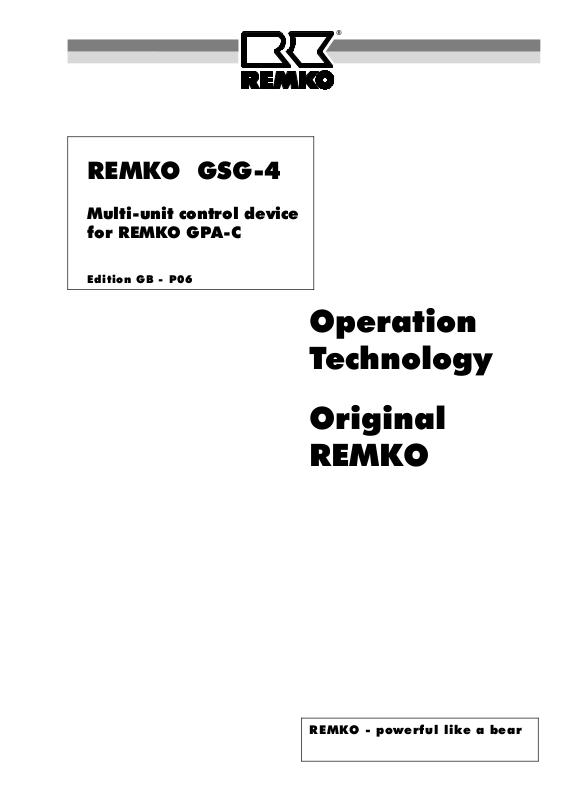

REMKO GSG-4 User Manual

REMKO GSG-4
Multi-unit control device
for REMKO GPA-C
Edition GB - P06
Operation Technology
Original REMKO
REMKO - powerful like a bear
Description of Device
Read these instructions carefully before putting the control unit into operation and then using it.
G
The REMKO GSG-4 control unit is used in combination with an addi­tional external temperature control (e.g. REMKO ATR-1 or ATR-3) to connect and control a max. of 4 heaters.
The modes heating, ventilating and resetting the electronic control sys­tem, can be controlled separately for the individual GPA-C with this unit.
The modes unit operation and burner malfunction are displayed sepa­rately for each unit by the respective control light.
The control unit is supplied with all accessories to connect a maximum of 4 units. However, the required thermostat control is not included.
Unit 1 Unit 2
Our guarantee becomes null and void if the unit is used improperly or if modifications are made to the supplied unit.
G
Unit 3 Unit 4
Operating switch
Operating light
Malfunction light
Reset button
3
Functionality
Mode selector
The mode selector sets the function of the individual units.
0 = OFF
I = Heat
II = Fan
Thermostat control is not possible for the mode setting II = Fan!
G
Operating light
The green operating light is illuminated when the operating switch of the unit is switched to Position I (heating).
Malfunction light
The red malfunction light is illuminated when the unit was switched off due to a problem with the burner.
Reset button
The reset button releases the safety mechanism of the heater and re­starts the unit.
Before pressing the Reset button, you should first identify the cause of the malfunction and fix the problem!
G
If the safety temperature limiter (STB) has switched off the burner, the STB-RESET button in the inspection room of the heater must also be pressed (see the operating instructions for the heater).
The REMKO GSG-4 control unit may only be connected to a 7-pole plug of the GPA-C heating units intended for this purpose.
G
4
Safety Hints
Þ Before working with the control unit, all current-carrying lines must be
free of current!
Þ Connection and service of the control unit may only be performed by
authorised personnel!
Þ The control unit must be protected from damage and unauthorised
use!
Þ Compliance to VDE 0100 must be assured as well as any additional
requirements of the local EVU!
Installation and Initial Operation
Only have the control unit connected and put into operation by authorised electrical personnel.
1. Assemble the heater following the instructions in the operating manual.
2. The control unit must be set up in such a way that all heaters are visible during operation.
3. Establish the electrical connection between the control unit and the heater in accordance with the wiring diagram (page 6). The necessary installation material (electrical cables, etc.) must be supplied by the customer.
Note: The electrical connection between the heater and the control unit may only be established using the supplied 7-pole plug.
4. Make sure that the control current for the contactor is activated from the optional external control unit (see the wiring diagram on page 6).
Note: The integrated contactor (K1) is controlled by the separately installed external control unit and isolates the respective heater.
Operation that complies with regulations is only assured when a thermostat (REMKO ATR-1, ATR-3 or ) is installed and connected
G
for temperature control.
5
Wiring Diagram GSG-4
External therm ostat 230 V
Plug for heater
H1 = Control light red (burner malfunction) H2 = Control light green (operation) K1 = Contactor R1 = Resistance S = Operating switch T1 = Reset button WS = Plug, 7-pole
Only have the REMKO GSG-4 control unit installed and put into operation by authorised personnel in accordance with the rele-
G
vant regulations.
6
We reserve the right to make changes to dimensions and design in the interest of technical progress.
Optional accessories
REMKO GmbH & Co. KG
Klima- und Wärmetechnik
D-32791 Lage Im Seelenkamp 12 D-32777 Lage PO Box 1827 Phone +49 (5232) 606 - 0 Fax +49 (5232) 606260 E-Mail: info@remko.de Internet: www.remko.de
