REMKO GPM User Manual

Download

REMKO GPM

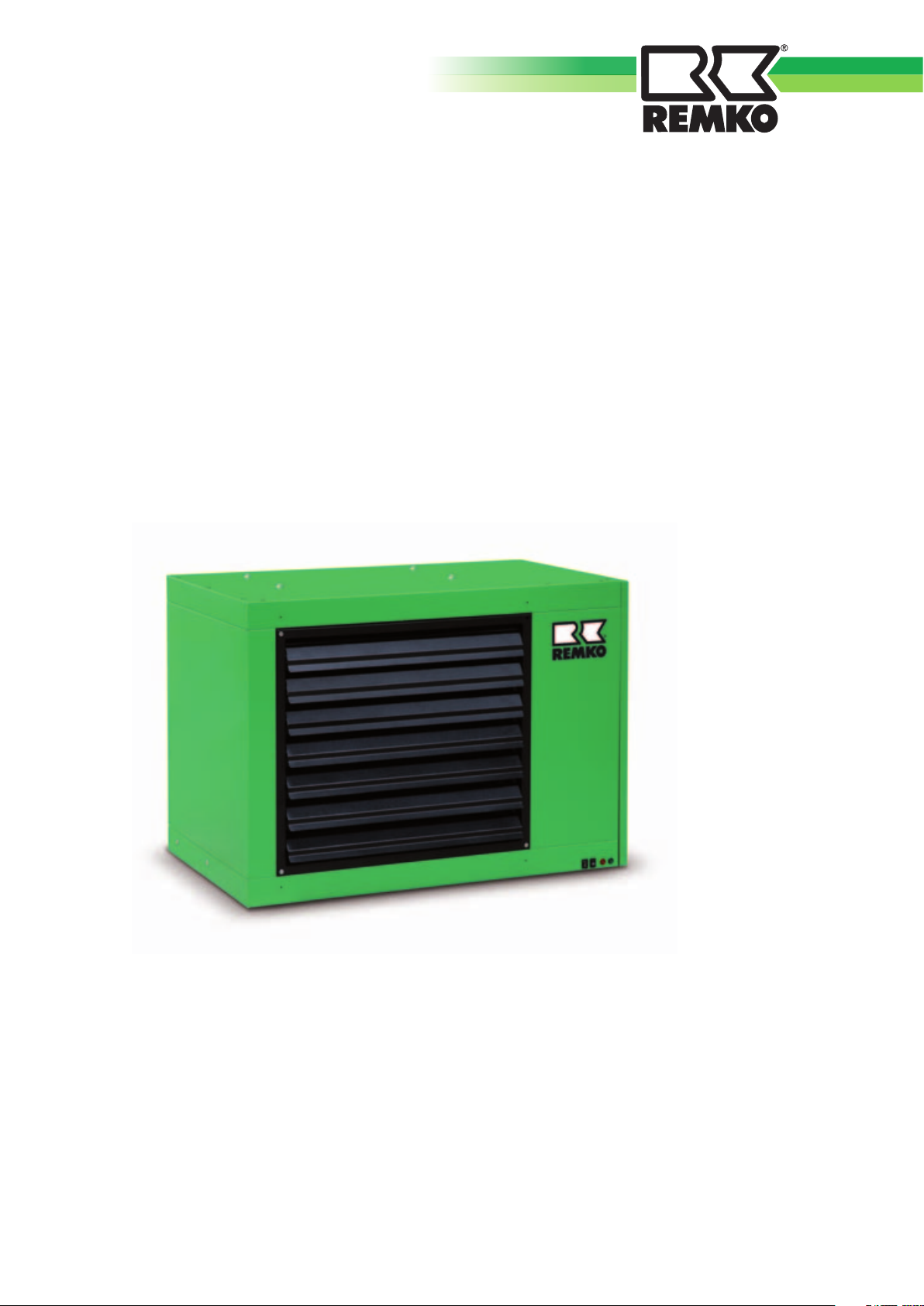

Gas Wall Heater

Operation · Technology · Spare parts

Issue D – U10

Contents

Safety notes

Unit layout

Description of the unit

Instructions for the user

Intended use

Customer service and warranty

Environmental protection and recycling

Instructions for the installer

Flue gas connection

Electrical connection

Gas connection

Commissioning

Country table of gas types

Maintenance

Control PCB parameter table

Troubleshooting

Electrical connection diagram

Exploded view

Spare parts list

Unit dimensions

Technical data

These operating instructions should be read carefully prior to commissioning / operation of the equipment!

Made by REMKO

These instructions are part of the equipment and must always be kept in the vicinity of the installation or on the equipment.

Subject to modiﬁcations. No liability accepted for errors or misprints!

REMKO GPM

Safety notes

Always observe the respective local building code and ﬁre prevention guidelines as well as the guidelines of the accident prevention and insurance associations as a basic rule when using the equipment.

The units were subjected to extensive material, functional and quality inspections prior to delivery. However, dangers can emanate from the units if they are used improperly or not as intended by untrained personnel! Please observe the following notes:

■

The units may only be operated

by persons that have been instructed in the operation of the equipment

■

In case of defects that endanger

the operational safety of the unit, operation must be discontinued

■

The units must be installed and

operated so that the emerging ﬂow of warm air does not have harmful effects on either the units or the surroundings

■

Do not expose the units to

atmospheric inﬂuences (rain, sun, etc.)

■

The units may only be mounted

on stable structures or ceilings made of non-flammable construction materials and with sufficient bearing capacity.

■

The mounting of the units may only be executed at the points provided for this purpose at the factory

■ The units may not be installed

or operated in potentially flammable or explosive environments.

■ The units must be installed away

from traffic zones - by crane, for example. A safety zone with a a clearance of 1 m must be ensured

■

The protective grid of the intake

must always be kept free of dirt and loose objects

■

The units may not be exposed

to direct jets of water

Preventative measures with odour of gas

1. Immediately switch off the unit.

2. Close the gas shut-off devices

3. Warn all immediately endangered persons.

4. Open windows and doors.

5. Do not activate any electrical devices such as light switches, bells or electrical plug connections.

6. If the room in which the gas odour has emerged cannot be entered, immediately contact the ﬁre brigade, police and the local responsible municipal gas supplier.

HINWEIS

Einstell- und Wartungsarbeiten dürfen nur durch autorisiertes Fachpersonal ausgeführt werden.

■

Do no touch the units with

damp or wet body parts and/or bare feet

■

Protect the units from spray

water or other liquids

■

Do not use gas lines for the

grounding of electrical devices

■

Do not touch hot parts of the

units, such as the exhaust pipe

■

Do not touch moving parts of

the units

■

Never stick foreign objects into

the units

■

The units must be inspected by

a service technician at least once annually

■

Safety devices may be neither

bypassed nor disabled!

■

Prior to maintenance or repair work, the gas supply must be sealed off and the equipment must be disconnected from the mains at all poles. (Remove fuse and switch off customerprovided main/emergency shutoff switch)

ATTENTION

Safety devices may not be bypassed or disabled during operation.

NOTE

The units are used exclusively for industrial and commercial applications. They are not intended for the heating of living spaces or the like.

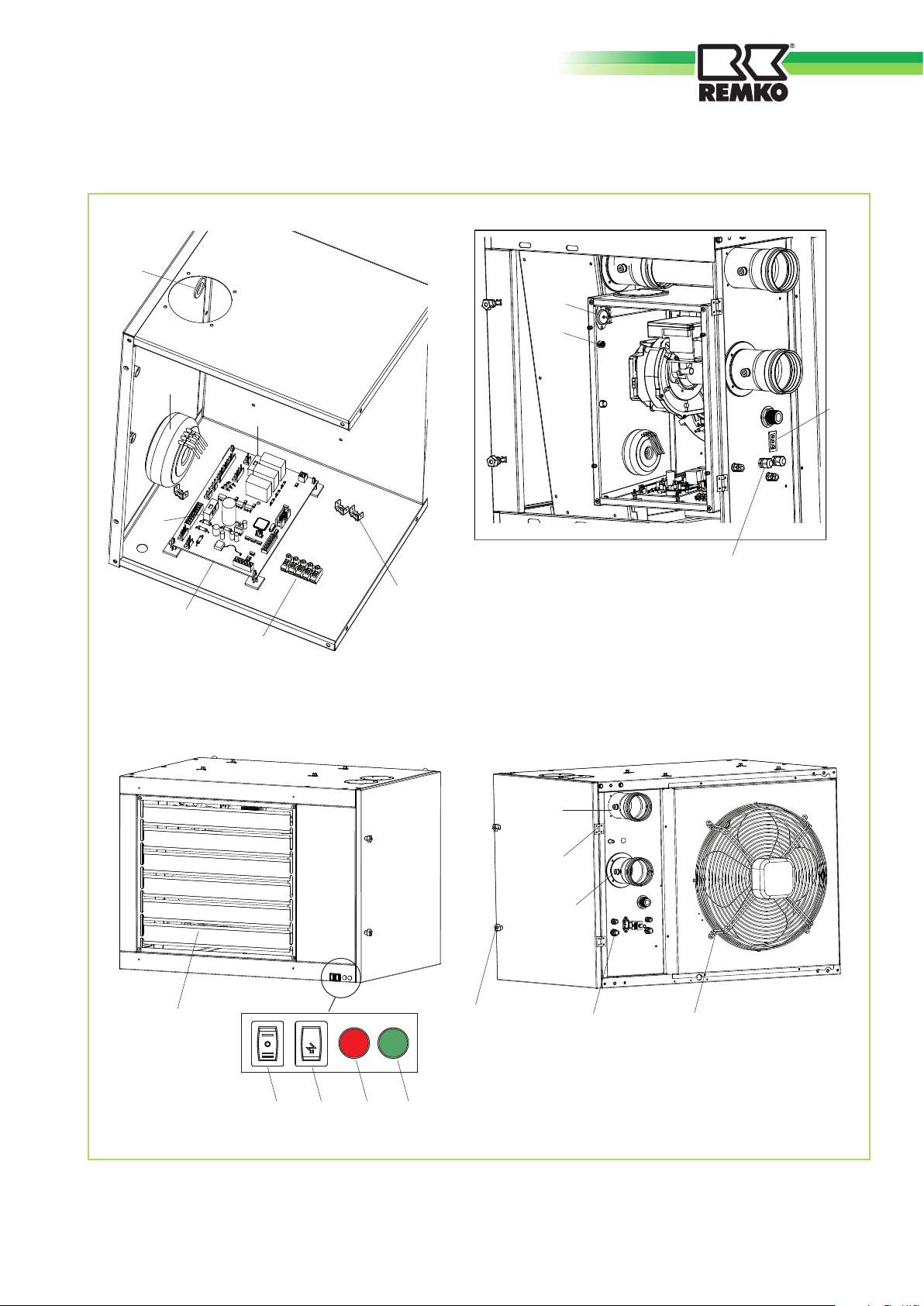

Unit layout

Operating range

Modular systems can be created with the GPM-series gas wall heaters. Modular systems consist of one or multiple fan-assisted air heaters in order to heat small spaces like workshops to larger spaces like industrial halls, churches, sports facilities, etc.. Therefore it is necessary to determine the necessary heat output by calculating the heat requirement.

ATTENTION

The equipment may not be set up or installed in areas with explosive or corrosive atmospheres!

General requirements

With the installation of the units, the local and country-speciﬁc provisions and guidelines must be observed in the respective valid version as a basic rule. Work such as:

■

gas and electrical installation

■

conversion of the gas type

■

commissioning

■

adjustments or maintenance

may only be carried out by qualiﬁed technicians

In addition to a faultless electrical and gas installation, it is also ensured through this measure that all necessary measurements and test are conducted.

■

The units must be inspected by an authorised service technician at least once annually. For this purpose, concluding a service contract with a service company is recommended

■

During planning and installation

of the exhaust gas routeing, the structural possibilities as well as the applicable local and countryspeciﬁc regulations must be consistently adhered to.

■

In dusty environments, as well

as in places with ammoniacal atmospheres, service and maintenance measures must be carried out in accordance with the respective conditions. The combustion air must be fed from outside as a basic rule

Selection of the installation location

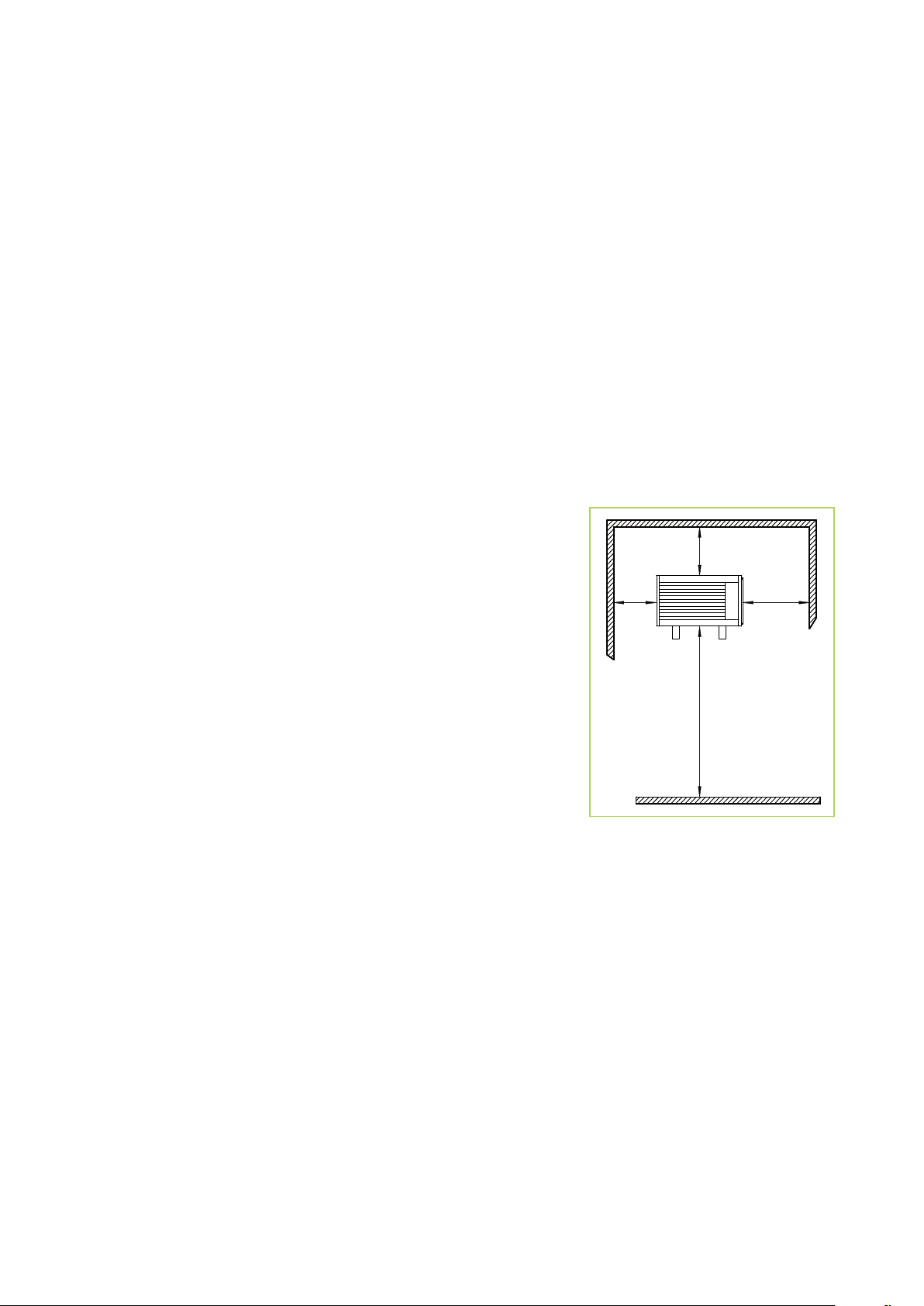

With determination of the installation location, the requirements must be coordinated in regard to:

■

Fire protection and operational

hazard

■

Function:

space heating, underpressure and/or overpressure in the installation space, etc.

■

operational concerns, heat

requirement, nominal air ﬂow rate, circulating air requirement, humidity, room temperature, air distribution, spatial requirements

■

installation, repair and

maintenance possibilities. The units must be installed in such a way that they are always easily accessible for maintenance and repair work.

With improper installation and operation, hazards may arise from the equipment. Prior to the planning and during the installation of the unit, the following points must absolutely be observed.

■

The units must be installed and

operated in such a way that personnel are not endangered by exhaust and radiant heat and no ﬁres may occur

■

During installation of the units

it must be ensured that the ﬂow of warm air does not have damaging effects on the surroundings

■

Fire hazards must be eliminated

through the selection of materials for the installation and position surfaces. For this purpose, see TRGI, Section

5.1.3.3

■

The wall or ceiling intended for

installation must also consist of non-ﬂammable materials. Its load capacity must be checked; reinforcements must be installed when necessary

■

Brackets must be securely

anchored to the wall or ceiling and the units must be attached to the brackets at the points provided for this purpose at the factory

■

Appropriate maintenance

possibilities for heat exchangers, burners, ventilators and ﬂue gas evacuation must be planned for

■

It must be possible to actuate

control elements for the units and fuel supply from the

ground. Maintenance and repair possibilities must be ensured by the operator

REMKO GPM

Description of the unit

Deﬁnition of the equipment

Pursuant to EU Directives, the equipment is deﬁned as:

"Gas fan-assisted air heater without ﬂow-operated safety device, equipped with a fan in front of the heat exchanger".

The equipment is a fullyautomatic, directly-lit, fan-assisted air heater for wall and ceiling installation. It can be fuelled with natural gas or liquid gas.

The equipment is used for continuous and temporary heating of open and closed spaces, e.g. in:

halls, workshops greenhouses, storage rooms, etc.

Classiﬁcation of the equipment

The equipment was classiﬁed by the European standardised regulations EN 437 and EN 1020 according to:

The gas category:

determination according to the type of gases with which they may be operated.

For Germany DE II2ELL3B/P

The gas type:

the burner can be operated with gases of the second family (natural gas - group H and L) and with gases of the third family (butane and propane).

The type of gas ﬁreplace:

differentiation according to the possibilities of the discharge of the combustion products or the supply of the combustion air.

(ambient-air-dependent/ independent)

Additional notes can be found in the chapter "Installation of the ﬂue gas evacuation and the combustion air supply".

Design of the equipment

The exterior cladding of the equipment is made from coated steel sheet, which guarantees durability. The outlet grid is found in the front section. In order to ensure an optimal distribution of warm air in the installation location, the horizontal ﬁns of the outlet grid can be manually adjusted. On the rear side of the equipment you will ﬁnd the fan(s) with protective grid, the connection nozzles for the removal of the exhaust and supply of the combustion air, the gas connection nozzles, the cable passages for the electrical lines as well as the plug connection for the mains connection. In the right-hand side section the necessary components for the control and safety are found behind the inspection door, including:

- the electrical circuitry with the cabling

- the control electronics

- the gas valve

- the modulating gas burner

In the interior of the equipment, directly in the circulation air ﬂow is the combustion chamber with heat exchanger. The combustion chamber is manufactured entirely from Inox stainless steel, grade AISI 430. For the purpose of higher resistance to corrosion from damp vapours, Inox stainless steel, grade AISI 441 is used for the heat exchanger. The special form and the large surface area of the combustion chamber and heat exchanger guarantee a high level of efﬁciency and long service life. The gas burner is likewise manufactured entirely from special, mechanically-processed stainless steel.

Function of the equipment

The modulating, gas fan-assisted air heater of the GPM series has been developed for the heating of industrial and commercial spaces. The electronic control of the equipment continuously regulates the heat output between minimum and high-output according to the actual heat requirement. With the pre-mix and modulation technology, efﬁciency of up to 94% can be achieved.

The nominal heat output of the REMKO GPM series lies between

11.8 and 71.5 kW.

The equipment consists primarily of the combustion chamber with heat exchanger and the fan(s). The ambient air is suctioned in by the fan(s) and efﬁciently channelled through the combustion chamber with heat exchanger. The combustion chamber is heated by the gas burner operation and releases its heat to the air ﬂowing past. The air heated in this manner is blown out of the front side of the equipment through an adjustable outlet grid. The operation of the equipment as intended is only possible with a connected control unit, e.g. ATR-6 (accessory).

NOTE

The units are not suitable for the heating of living spaces or the like.

Efﬁciency Cycle of operation

The advantages of the units lie in the modular mode of operation, meaning the heat output created and thus the gas ﬂow (consumption of fuel) are changed corresponding to the heat requirement. With a reduced heat requirement of the room, the fan-assisted heater consumes less fuel, whereby its efﬁciency is increased by up to 94%.

Intrinsic safety

The increase in efﬁciency with minimum output is achieved through the use of a modern air/ gas mixture technology and the simultaneous ﬂow rate regulation of combustion air and gas. This technology increases the safety of the equipment, because the gas valve feeds the fuel depending on the amount of air in accordance with its factory settings. Unlike atmospheric burners, the CO2 content remains the same through the entire operating range and allows an increase in efﬁciency with reduction of the heat output. With no combustion air, the valve does not release gas. With reduction of the combustion air, the gas valve automatically reduces the amount of gas and keeps the combustion parameters at an optimal level.

Burner operation

The heat requirement for starting the burner can be adjusted with the room temperature sensor NTC2 in the electronic temperature regulation ATR-6. In the cases of equipment both with and without electronic temperature regulation, the burner is only started if the contact 7-9 of the terminal block M1 is closed. At the beginning, while igniting, the control PCB starts the fan of the burners so that the combustion chamber is pre-ventilated for a pre-adjusted length of time. After the pre-ventilation, the control PCB releases the ﬂame monitoring unit ACF for ignition of the burner. Then the gas-solenoid valve EV1 and solenoid valve EVP, which supply the ignition gas burner, are then opened. In this way the ignition burner's ignition phase, which takes place through the ignition electrode, is started. The monitoring electrode, on the other hand, checks the successful ignition of the gas ﬂame.

If this operational condition is recognised, the control device opens the main gas valve EV2 for the supply of the actual burner. After a certain length of time, during which both burners (ignition burner and main burner) are simultaneously in operation, the control PCB switches off the electromagnetic valve EVP, whereupon the ignition burner extinguishes. The ﬂame monitoring for the control of the main burner likewise takes place through the monitoring electrode. The startup program switches on the burner with an average heat ﬂow rate, which is set to about 70%of the highest ﬂow rate. Approximately thirty seconds after the ignition, the burner starts with the modulation of the gas ﬂow rate and then achieves the gas ﬂow rate determined by the settings. During operation, the control PCB regulates the gas ﬂow rate of the burner proportional to the circulating air temperature, which is measured by the NTC1 sensor on the rear side of the unit.

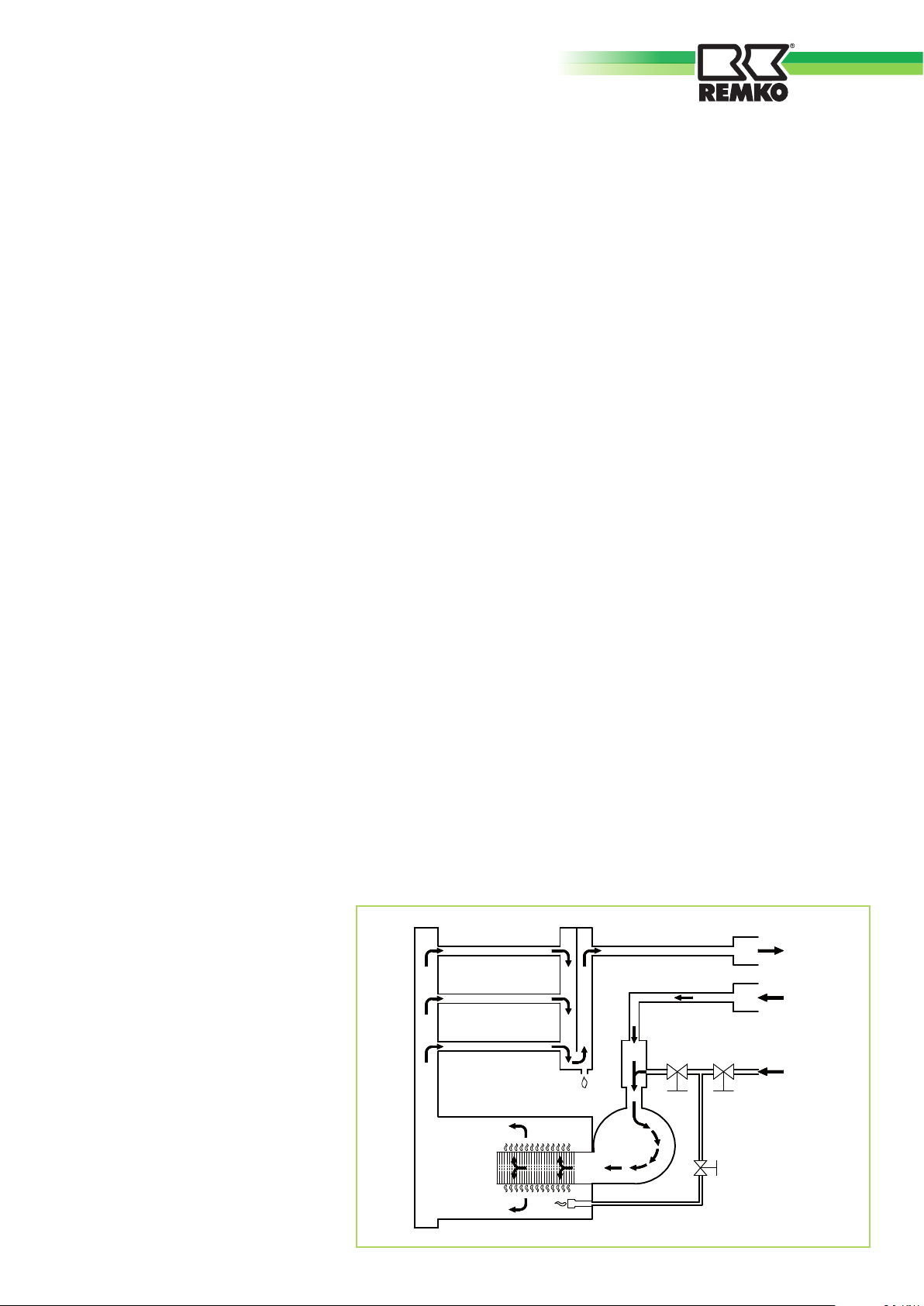

Abgase

Luft

Minimal pollutant emissions

The premix burner provides for "clean" burning with low pollutant emissions with the air/gas valve.

Gas

EV1EV2

EVP

HW080909

REMKO GPM

Fans

The switching on of the fans is time-controlled by the control PCB, whereby the timing begins with the switching-on of the main burner. The delayed switching prevents cold air from being blown into the room. The pre-adjusted time delay may range from 0 to 255 seconds [Parameter C3]. If the value is set to zero, the startup of the fans takes place at the same time as the burner.

Switching off the unit

If there is not longer a heat requirement (room temperature above the adjusted target value), the control PCB switches off the burner. The burner fan runs for the secondary ventilation of the combustion chamber for a ﬁxed, pre-set time. This adjustment cannot be changed.

The fan(s) likewise run afterwards until the heat exchanger is cooled. The time delay may range from 0 to 255 seconds [Parameter C4].

ATTENTION

Do not adjust parameter C4 to values below a minimum running time of 90 seconds for the cooling of the combustion chamber.

The interruption of the current supply during burning operation is not permitted for the same reasons, because lack of a secondary ventilation of the heat exchanger can lead to the following problems:

■

Overheating of the unit with

the resulting expiration of the warranty

■

Tripping of the safety

thermostat and the manual reset associated with it

■

Damage to the fan of the

burner

If a new heat requirement should take place during the follow-up phase, the control PCB will wait for the fans to switch off and then proceed with a reset and begin a new cycle.

Safety thermostat(s)

For each fan on the units there is a safety thermostat (STB) with automatic deactivation and positive security; a release of the sensitive element triggers a safety shutdown. The thermostat is installed in the area of the heat exchanger in order to monitor the temperature at its output. The triggering of the thermostats causes the shutdown of the burner by means of the ﬂame monitoring unit until the disabling of the monitoring device. The disabling of the device caused by the triggering of the safety thermostat is displayed by fault F2.

Display of the LED

A green and red LED are installed on the front side of the unit. The illumination of the green LED means that the unit is connected to the mains. The illumination of the red LED indicates a malfunction of the unit.

When operating the unit with electronic temperature regulation ATR-6, the LED is continuously illuminated in the event of a malfunction. The error code is shown in the display.

Without electronic temperature

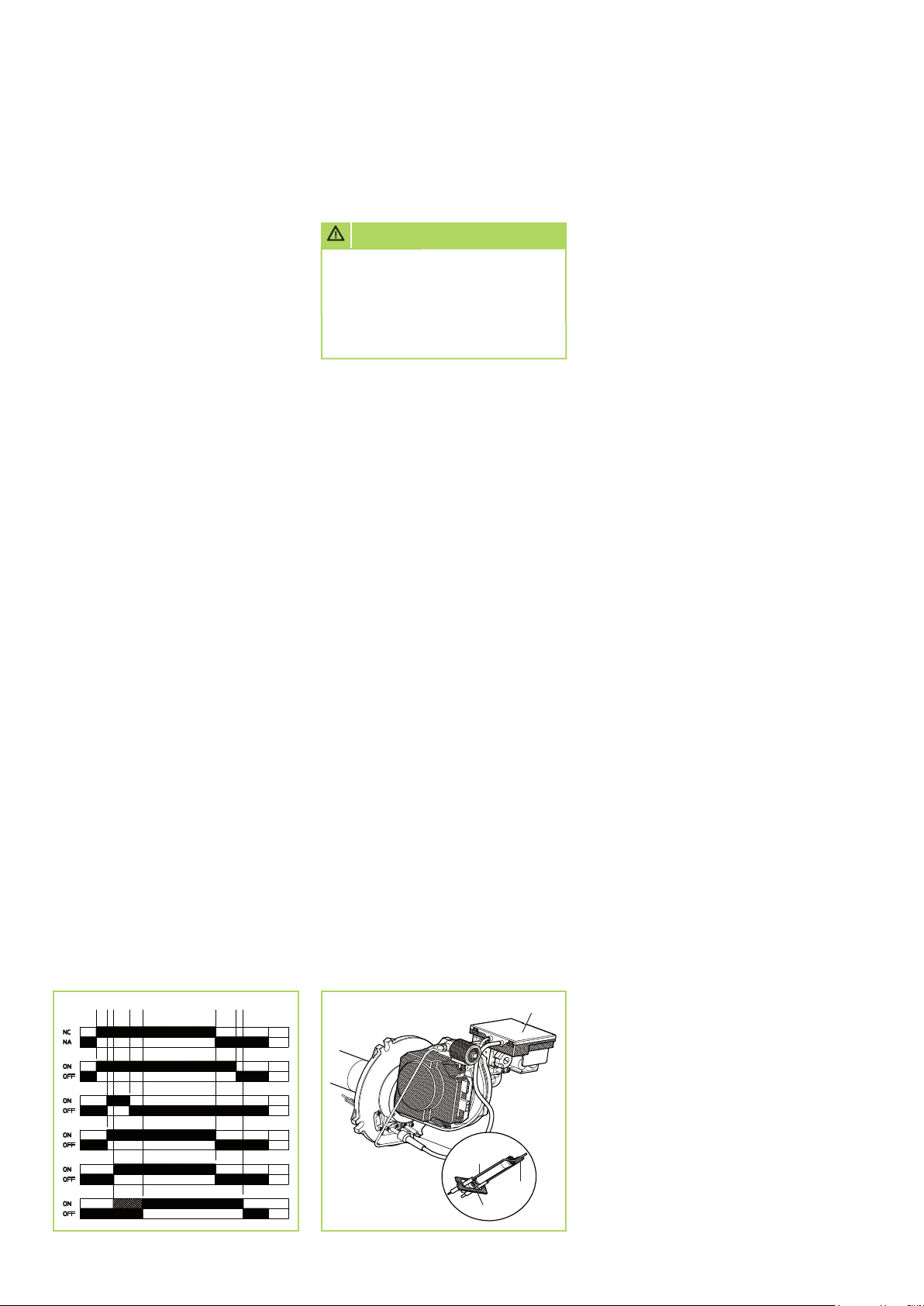

BC D E F GH

Heat requirement

Gas burner unit

Control unit

regulation, the cause of the fault can be immediately identiﬁed by the different types of ﬂashing / illumination of the red LED:

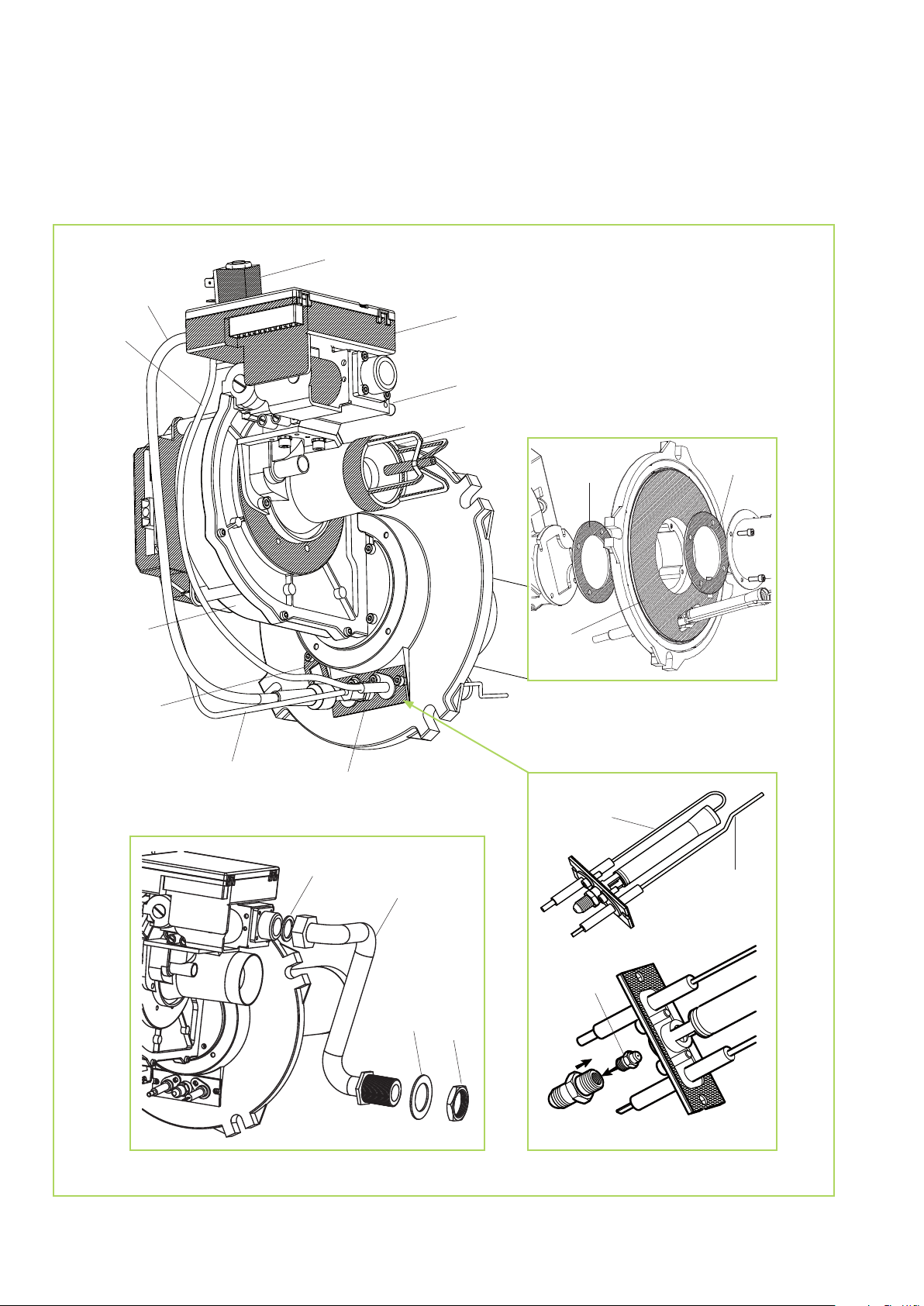

Fan-burner

EVP - ignition ﬂame

EV1 - 1nd gas valve

EV2 - 2nd gas valve

Ignition gas burner

Monitoring electrode

Gas nozzle

Ignition electrode

F1 - LED continuously lit

F2 - LED ﬂashes twice quickly

F3 - LED ﬂashes three times

quickly

F4 - LED ﬂashes four times quickly

F8 - LED ﬂashes continuously

F6 - red and green LED blink

alternately

Air/gas premix

Faults Fx

The control PCB mounted in the units differentiates between 6 different faults:

F1 - Fault at the ﬂame monitoring

unit from loss of the ﬂame.

F2 - Tripping of the safety

thermostat.

F3 - Malfunction by the burner

motor.

F4 - Malfunction by one of the

NTC sensors.

F6 - Malfunction of the control

PCB.

F8 - Flame monitoring sensor

defect.

The faults F1 and F2 are caused by safety devices and therefore are permanent: The fault persists when switching off and restarting the mains connection and can only be unlocked manually.

The faults F3, F6 and F8 must be unlocked manually by switching off and restarting the mains connection.

The fault F4, on the other hand, resets itself: after remedy of the cause of fault, the fault report ceases.

NOTE

Reset button

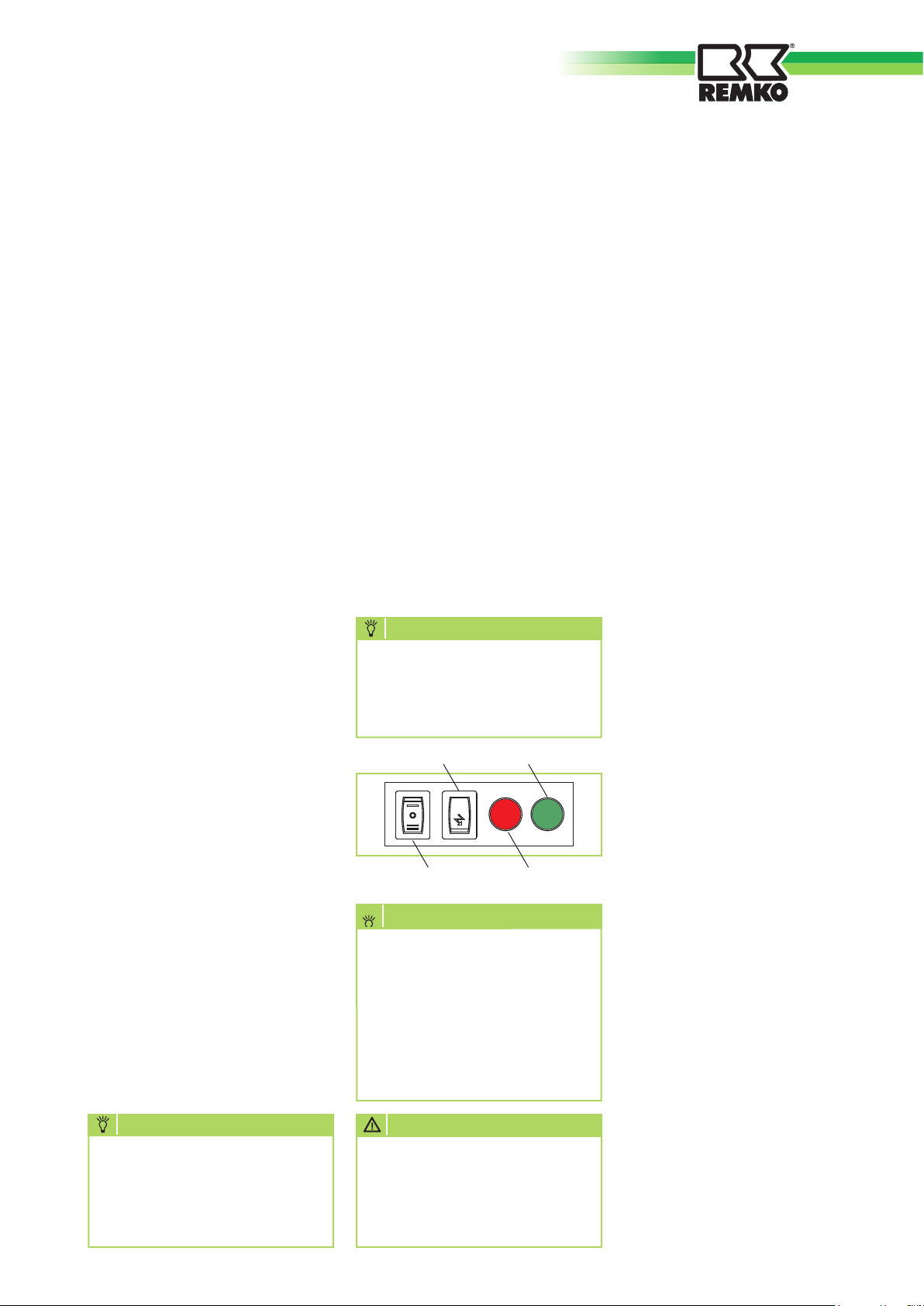

On the front of the unit a manually-actuated reset button is installed, which enables the unlocking of the unit after the faults F1, F2, F3 or F8 in the case of the lack of electronic temperature regulation.

Summer/Winter toggle

Also on the front of the unit, a manually-operated toggle switch I / 0 / II is installed, which enables switching the unit from winter operation [I] to summer operation [II] with only ventilation, in case the electronic temperature regulation is not present.

NOTE

With electronic temperature regulation the toggle switch must always be switched to position [I] winter operation.

Reset button GREEN LED

[II]Summer/ 0 / [I] winter

toggle switch

RED LED

NOTE

Without electronic temperature regulation, swapping both the reset button and the toggle switch through the terminal block M1 inside the burner cabinet in the installation location is recommended.

ATTENTION

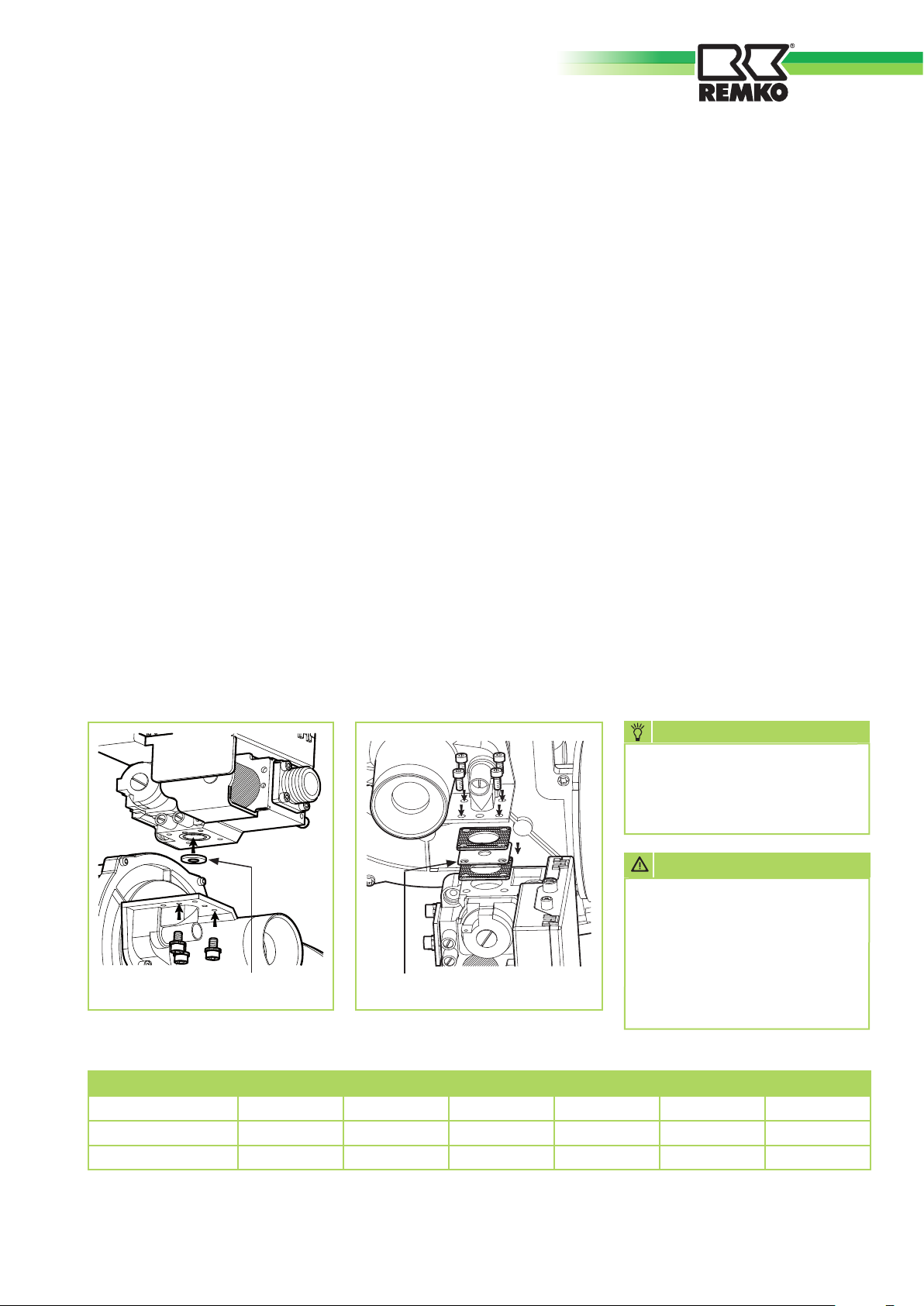

The units are equipped with a burner with complete air/gas premix. This mixing process takes place in the fan of the burner motor. The air suctioned in by the fan ﬂows through the Ventura tube, where an underpressure is created, which draws in the gas. In the process, a constant air/gas mixture is created. The ratio of air and gas pressure is 01:01. This value can be changed through the offset regulating screw found on the gas valve. The amount of gas is already adjusted upon delivery of the units and the screw is sealed. With the adjusting screw located at the Venturi tube, a ﬁne adjustment can take place, which regulates the maximum gas ﬂow rate and thus determines the carbon dioxide (CO2) content of the exhaust

The screw is not sealed in order to enable conversion of the fanassisted air heater to another type of gas.

PLEASE NOTE: For the offset and CO2 adjustment.

The control PCB of the units enables the speed regulation of the burner motor with DC depending on the heat output required in the space.

By changing the speed the air ﬂow rate and thus the gas ﬂow rate are changed. Minimum and maximum speeds of the fan are two values that cannot be changed.

The procedure for unlocking the permanent faults F1 and F2 is described in the chapter for the user.

All unit parameters can only be changed in combination with the electronic temperature regulation ATR-6.

REMKO GPM

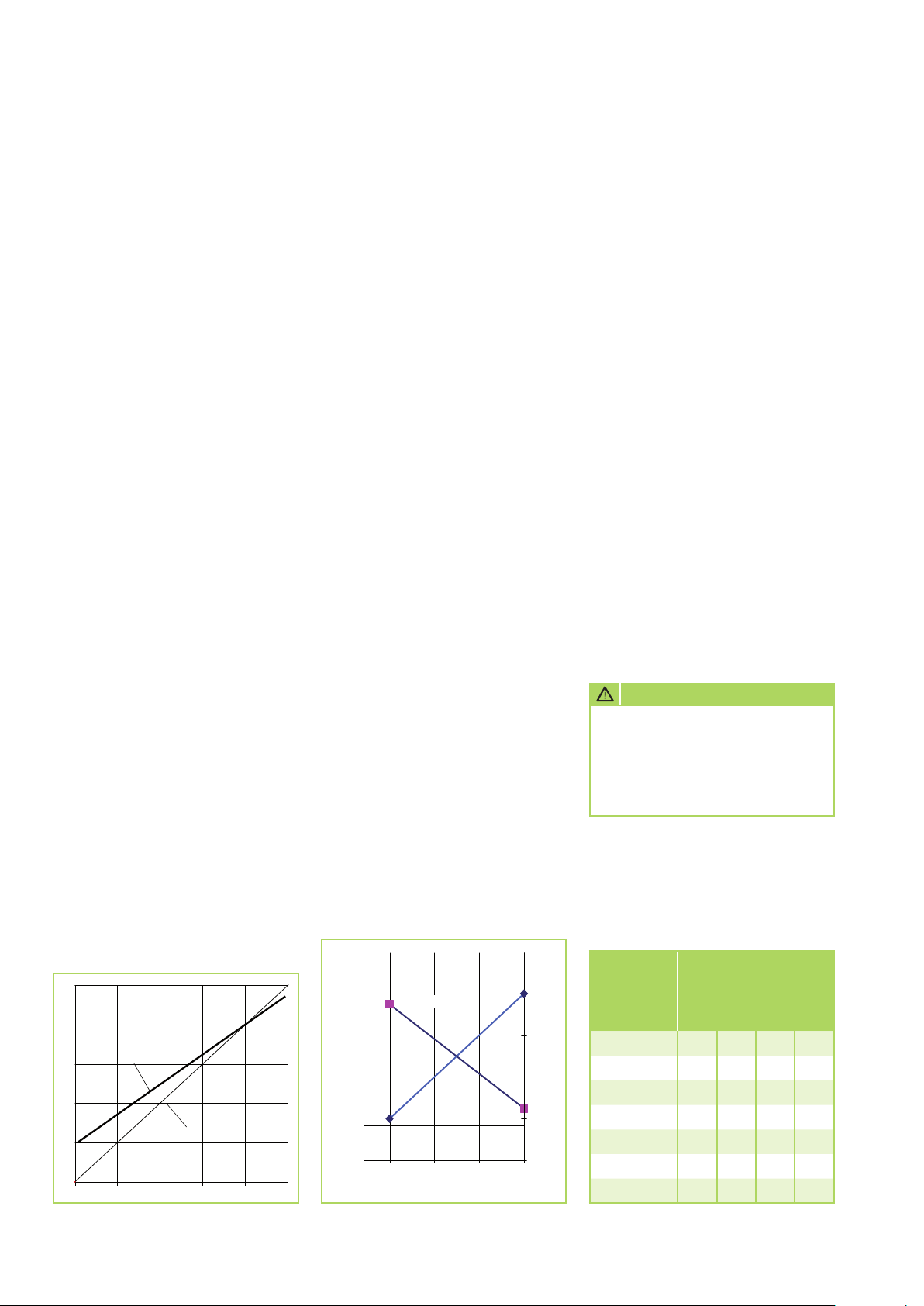

Modulation

The gas wall heaters are units with ﬂame modulation, whereby the widest range of outputs between the minimum and maximum settings is possible during operation. The highest output serves for raising the room temperature quickly when switching on the units. With the modulation of the ﬂame, on the other hand, the desired room temperature can be maintained at a constant by continuously changing the heat output corresponding to the actual requirement. Thanks to the reduction of the supply air temperature, the physical emergence of layer formation (tendency of the heat to rise) can be limited with this automatic adjustment of the heat output to the requirements of the room. The temperature differences per meter lie under 0.5 °C. If the units work with a reduced heat ﬂow rate, efﬁciency of over 94% is achieved. These results can only be achieved through a precise monitoring of the climactic spatial conditions and an optimal control of the unit. With the dimensioning of heating systems with fan-assisted air

heaters, it is important to observe the number of hourly air renewals. In this regard, we would like to point out the following: Fan-assisted air heaters should, in general, be arranged so that the air ﬂow rate ensures an air renewal of at least twice hourly, even if this would not be necessary for the heat output. The units are serially equipped with a room temperature sensor on the rear side of the unit so that the intake temperature of the fans is monitored. The modulation takes place according to the value measured by this sensor in relationship to the pre-adjusted value on the microprocessor of the control PCB. The optimisation of the modulation temperature value must take place during operation of the system and depends on the distance of the fan-assisted air heater to the ﬂoor and the required temperature conditions.

The fan-assisted air heater is normally installed at a distance of

2.5 - 4 m from the ﬂoor. Thus the desired comfort temperature should be reached and maintained, whereby it should

be ensured that the units are operated at the lowest possible modulation temperature that is necessary to maintain these conditions. The modulation temperature value is set to 21°C at the factory. This value enables a mid-level installation range between 3 and 5 metres with room temperatures between 17 and 18°C (see graph below). To change the modulation value "REG SAN" on the electronic temperature regulation ATR-6 and to read the modulation temperature "TMP MANDATA" with the electronic temperature regulation, see the chapter on instructions for the user.

ATTENTION

Unit parameters can only be changed in combination with the electronic temperature control ATR-6.

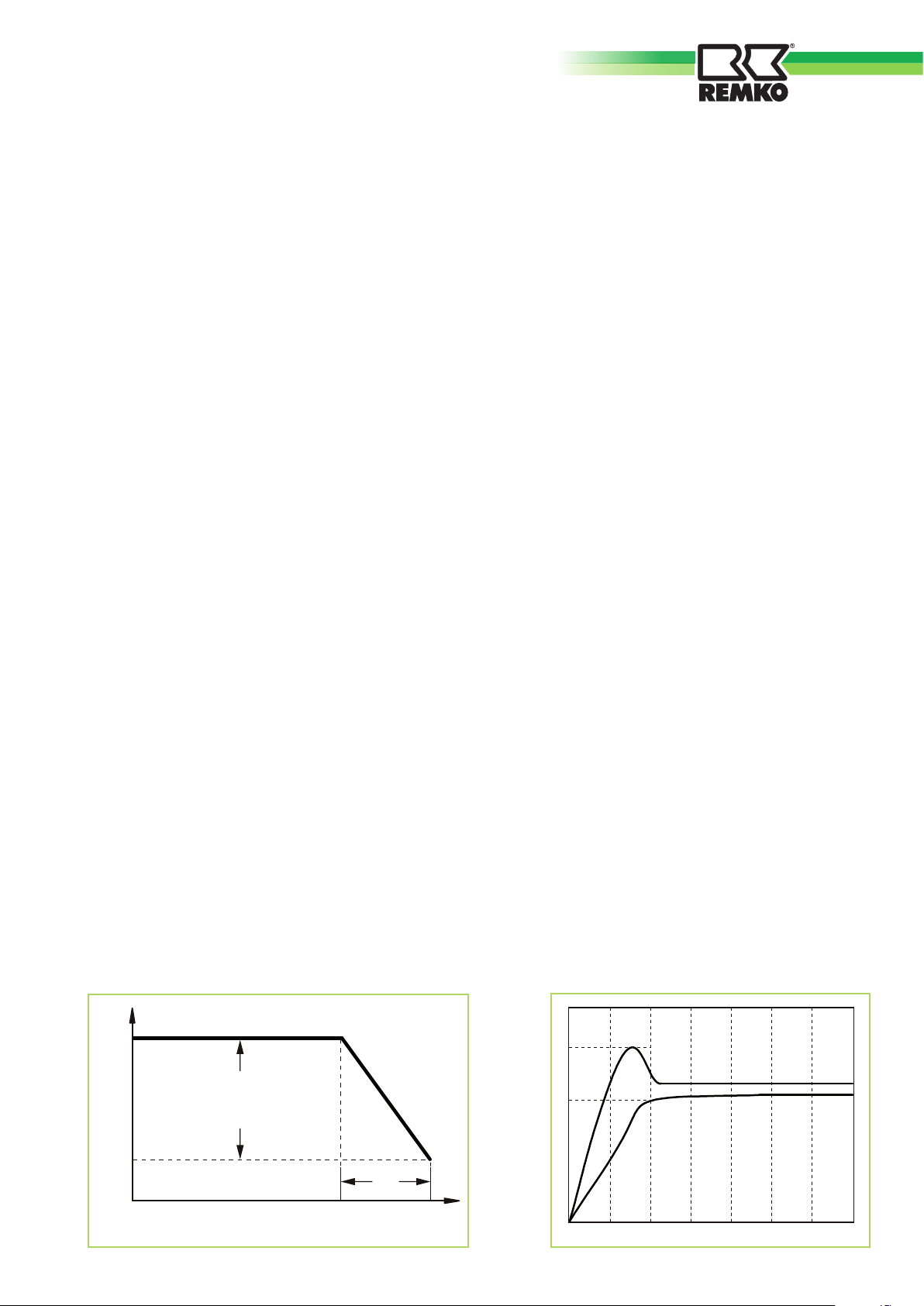

Gasdruck (-durchsatz)

korrigierte Kurve

Luftdruck (-durchsatz)

Kurve 1:1

Wirkungsgrad %

Wirkungsgrad

65 70 75 80 85 90 95 100

Wärmedurchsatz [%]

D Luft

Target

value at

height of

Installation height

in meters

1.5m

D Zuluft

15° 16° 17° 18° 19°

2.5 3 4 5

16° 17° 18° 19° 20°

17° 18° 19° 20° 21° 18° 19° 20° 21° 22°

19° 20° 21° 22° 23° 20° 21° 22° 23° 24°

Room correction

The use of the electronic temperature regulation ATR-6 is required for this function.

In the following, a type of function is described where the highest possible energy efﬁciency is enabled by the fan-assisted air heater with the help of the control PCB and electronic temperature regulation. In order to start the process of environmental correction, the parameter C1 = 1 must be set. The goal of the room correction function is to begin heating up the area quickly and then to maintain a constant room temperature. In doing so, the formation of layers in the room's air can be reduced in addition to the reduction of the fuel requirement, in particular. The two reference values for the correction are the temperature measured by sensor NTC2 (in the electronic temperature regulation) and the temperature detected by the sensor NTC1 (on the unit). In order to activate the sensor NTC2, change parameter A12 and set to 1. If the room temperature approaches the set value for the set-point, the modulation temperature is changed linearly on the basis of the two parameters A16 and A24.

This enables the operation of the unit at the beginning of the heat requirement and the quick realisation of the pre-adjusted value for the target value of the room. Then the heat output is reduced, whereby the efﬁciency of the unit is increased and the room is heated with less hot air. In this way it is possible to reduce the formation of layers and at the same time reduce heat loss in the room's air. The units are delivered with the following factory settings.

Modulation temperature: „REG SAN“ 24°C Neutral correction range: A24 2°C Correction coefﬁcient: A16 2.5

The parameter A24 determines the range within which the room temperature is corrected. The parameter A16 offers the possibility to increase the efﬁciency of the temperature reduction to the set-point "REG SAN", as shown in the graph. With the standard settings, the modulation temperature, when reaching the room temperature, corresponds to:

„REG SAN“ = 24°C-(2°Cx2.5) = 19°C The correction is independent of the adjusted room temperature. The progression of the room temperatures [ST2] in relationship to the installation height of the units "REG SAN" during the initial heating phase is represented on the graph. Set parameter C1= 0 for deactivation of the correction. With deactivation of the correction, the value "REG SAN" must be correctly regulated in order to avoid the following conditions:

- "REG SAN" set too high:

Strong formation of layers with high heat loss in the ceiling area and subsequently increased energy requirement.

"REG SAN" set too low:

Time to reach the desired room temperature is too long.

With deactivated correction, set "REG SAN" so that the value of the difference in meters between room and modulation sensors multiplied by 0.4/0.5 °C is greater than ST2. To change the modulation value "REG SAN" on the electronic temperature regulation and to change all described values, continue reading the manual.

ST1

ST1 Korrektur

ST2

A24 x A16

Modulationstemperatur

Raumtemperatur

A24

ST2

0,5h 1h 1,5h 2h 2,5h 3h

REMKO GPM

Instructions for the user

The safety notes on the preceding pages must be observed without fail. The activities of the user are limited solely to the actuation of the switches for operation of the unit. A brief description of the modes of operation of the units with and without accessories follows.

Operation without accessories

This mode of operation is available with every unit. It is a mode of operation that enables immediate operation.

NOTE

For correct operation it is necessary to connect at least one room thermostat in order to be able to switch the burner on and off.

Switching on and off

The procedures for switching on and off take place by closing and opening the contacts 7-9 of the terminal block M1, which is found in the switch cabinet.

ATTENTION

The units may never be disconnected from the mains prior to the completion of the follow-up cooling phase (except in emergencies).

Summer/winter conversion

The units are equipped with a single-pole toggle switch on the front side, which enables it to be switched from winter operation (with active heating) to summer operation (only ventilation).

By switching on one of the two operating modes the units can be used for both heating or air circulation on warmer days.

To switch on the winter phase, the toggle switch only needs to be set to the winter symbol.

To switch on the summer phase, the toggle switch only needs to be set to the summer symbol. The contacts 7-8-9 of the terminal block M1 in the burner cabinet are responsible for these modes of operation.

These contacts can also be repositioned in the room by the installer.

See the instructions for the installer for the electrical connections.

ATTENTION

For the correct mode of the summer/winter operation of the unit with a swapping of the contacts in the room, the single-pole toggle switch on the unit must be set to winter operation.

Fault displays

A green and red LED are installed on the front of the unit. The illumination of the green LED means that the unit is connected to the mains. The illumination of the red LED indicates a malfunction of the unit. The cause of the malfunction can be immediately identiﬁed by the different types of ﬂashing / illumination of the red LED:

F1 - LED continuously lit F2 - LED ﬂashes twice quickly F3 - LED ﬂashes three times

quickly F4 - LED ﬂashes four times quickly F8 - LED ﬂashes continuously F6 - red and green LED blink

alternately

The faults (lock-outs) displayed and saved by the control PCB have the following causes:

F1 - malfunction of the ﬂame

monitoring unit because

of unsuccessful ignition

of the burner; the control

PCB arranges for a series

of automatic deactivation

attempts prior to reporting the

malfunction.

F2 - malfunction of the safety

thermostat. If the temperature

detected by the thermostat

is set too high, it disconnects

and disables the operation of

the unit.

F3 - Burner fan defect;

combustion air fan is defective

or the signal to the control

PCB lies beyond the tolerance

range of the desired speed.

Unlocking

Operation with electronic temperature regulation ATR-6

F4 - Sensor defective or not

connected - the value of the sensor lies beyond the range of measurement; both at NTC1 (supply air) as well as NTC2 (room air).

F6 - Malfunction of the control

PCB because of continuous and repeated unsuccessful ignition attempts of the unit for a predetermined length of time. In the event of this malfunction, the LED also illuminates to signalise a fault that is present directly at the control PCB. For the resetting procedure, see comments in the section on resetting.

F8- The control PCB has

transmitted the start signal to the ﬂame monitoring unit, but the signal of the successful start has not been received; possible ﬂame monitoring unit defect.

The faults F1 and F2 are caused by safety devices and therefore are permanent: The fault persists when switching off and restarting the mains voltage and can only be unlocked manually.

The faults F3, F6 and F8 must be manually unlocked or by switching the mains voltage on and off again for the supply of the unit.

With malfunction of the fanassisted air heater, it can be manually unlocked directly on the unit. There is a reset button for this purpose on the rear side of the unit.

Press and release the reset button to unlock the unit. The red LED extinguishes and the unit resumes its normal operation.

The installer can, if necessary, reposition the reset button in the room and connect it to the contacts 6-9 of the terminal block M1 in the burner cabinet.

See the instructions for the installer for the electrical connections.

ATTENTION

If the unit remains disabled after two or three renewed ignition attempts, customer service should be notiﬁed.

NOTE

If a fault type F6 is present on the unit, the red LED is continuously lit and the unit is switched off. If the unit does not restart when pressing the reset button (unlock), the sensor remains disabled.

The units operates fully automatically through a selfmonitoring electronic control PCB, which is responsible for all monitoring and control functions of the unit. The electronic temperature regulation ATR-6, which is also microprocessor-controlled, is intended for the regulation of the room temperature.

The electronic temperature regulation and the control PCB monitor all control and regulation functions, whereas the ﬂame monitoring unit and the safety thermostat assume the safety functions.

Features:

■

Week programme

■

4 different temperature

settings [T1, T2 , T3 and frost protection] possible per day

■

Basic programme stored

■

Temporary override of the

adjusted temperature

■

Automatic and manual

operation, timer programme

■

Frost protection

■

Automatic output regulation of

the unit corresponding to the heat requirement

■

Operation display

The fault F4, on the other hand, resets itself: After remedy of the cause of fault, the reset takes place automatically.

To reset the fault F6, the power supply of the unit must be switched off and on again.

■

Display of faults and

malfunctions

■

Reset button

■

Operation without batteries

■

Two-wire connection without

polarity

REMKO GPM

NOTE

When switching on the burner, a small ﬂame appears on the display of the electronic temperature regulation.

ATTENTION

Never interrupt the mains connection prior to the completion of the follow-up cooling phase. There is no warranty claim for damage to the unit from overheating.

Fault displays

The electronic temperature regulation ATR-6 is capable of displaying possible malfunctions of the system and displaying diagnosis notes:

Display: The display goes out completely.

Meaning: The electronic temperature regulation is discharged because it was not provided with electricity for more than 5 hours.

Re-connect voltage supply, wait until the display lights up again.

Time, day and desired room temperatures must be reprogrammed.

The recharge of the buffer capacitor lasts one hour. All parameters required for the operation of the unit are saved in the control PCB without time limitation. Therefore, only day and time as well as the desired switching on/off programme must be reprogrammed.

Resetting the units

The malfunction (lock-out) of the unit is displayed by the appearance of a ﬂashing triangle on the display of the electronic temperature regulation and the "Heating reset" error code. Proceed as follows to unlock:

ATTENTION

A reset may only be executed 20 seconds after the unit is switched off.

■■ If the malfunction requires a

restore by the user, the symbol appears on the display with the key K1 (RESET)

■

If the cause of malfunction is

remedied, the normal operating conditions can be restored by pressing the key K1 and operation can be resumed

■

By pressing the key K4, direct

access to the menu with the possible error function display of the burner and/ or the electronic temperature regulation takes place

The electronic temperature regulation does not require any special maintenance.

The use of cleansers and detergents as well as sharp objects should be avoided.

ATTENTION

With interruption of voltage supply for more than 5 hours, the stored values in the operating unit are lost.

■

"N° (error number)" and the

corresponding number of the fault appears on the display.

The faults (lock-outs) displayed and stored by the system (control PCB/electronic temperature regulation) are the same as those described in the section on fault displays.

By pressing the key KM on the electronic temperature regulation, you arrive again at the Resetmenu.

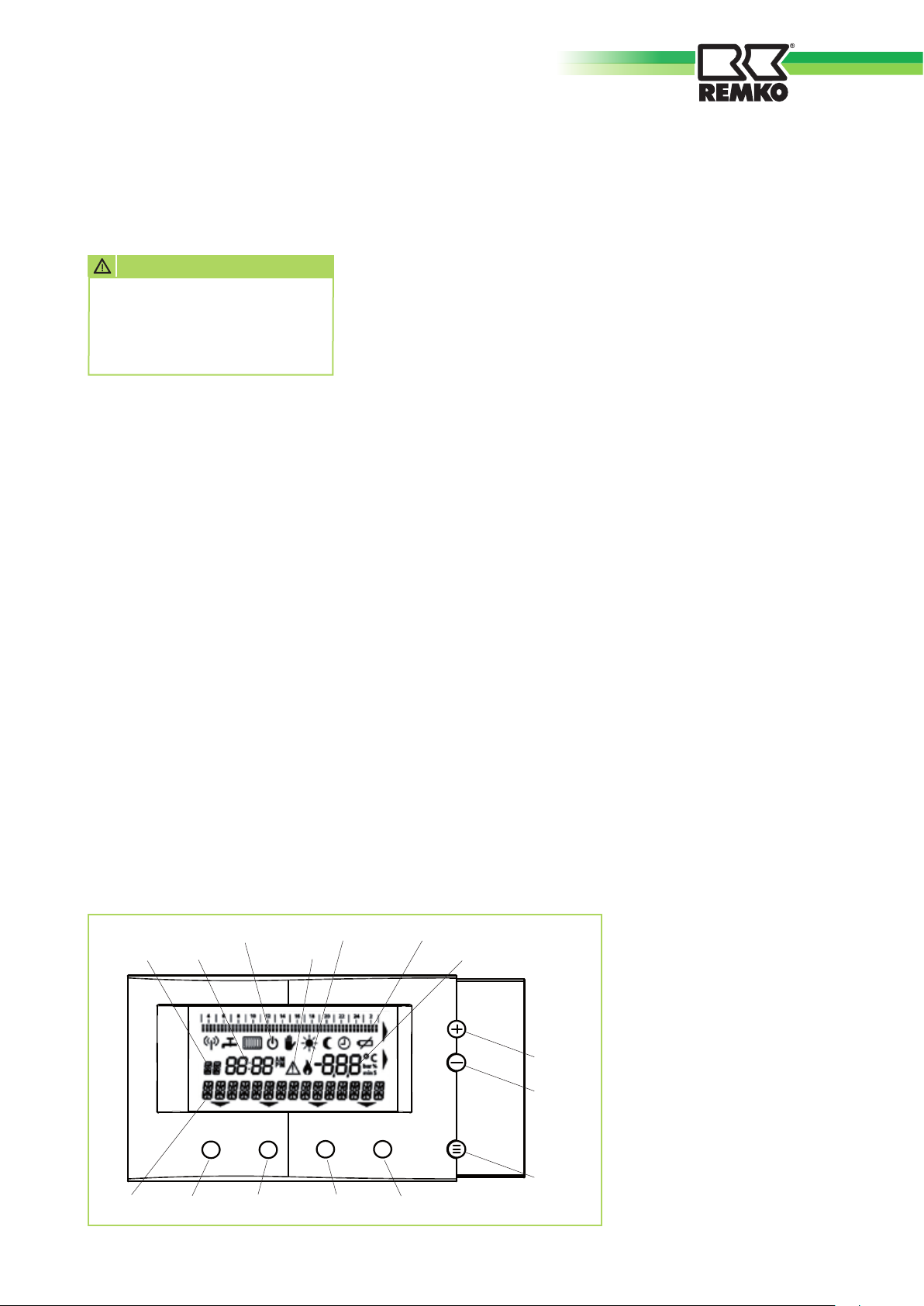

Operation and programming of the electronic temperature regulation ATR-6

ATTENTION

Do not use sharp objects like pens or pencils for actuation of the keys; they could be damaged.

Operating mode

With normal operating conditions the following information appears on the display of the electronic temperature regulation:

· Date, hour and minutes

· Room temperature

· The heater symbol (HTG mode)

· The output with the programming timer (for the HTG

- AUT mode, if programmed)

· The symbol  with the keys K+ and K-

Selection of the menu pages

If the electronic temperature regulation is set to operation, you arrive at the pages of the menu by pressing the key KM. On page 1 the following options are possible:

HTG SAN INFO >> K1 K2 K3 K4

Operation-OFFHeating Burner-ON Histogram clock

Day Hour Error

With key K4 (>>) you arrive at page 2 of the menu, where the the following options are possible:

PROG REG TIME >> K1 K2 K3 K4

With key K4 (>>) you go from page 1 to page 2 and vice versa.

Setting the language

When the electronic temperature regulation is switched on for the ﬁrst time you arrive at the menu for selection of the user language. The display shows:· DEUTSCH OK If the displayed language is the desired language, press key K4 (OK) for conﬁrmation. For selection of another language, actuate the keys K+ or K- and then conﬁrm the selection with the key K4 (OK).

Changing the user language

To change the user language, press and hold KM for approx. 8-10 seconds until the following appears on the display:

INFO REG ERR >> K1 K2 K3 K4 Press K4 (>>) and then K1 (LANG).

Temperature

Select the desired language with the keys K+ and K-. Press K4 (OK) for conﬁrmation. Return to operation mode. Operation takes place automatically after a few seconds or by pressing the key KM.

Setting the time and day

Programming of day and time (TIME)

With the key KM and then button K4 (>>) you arrive at page 2 of the menu. With key K3 (TIME) the menu for programming day and time (TIME) is selected. After selection of the menu, choose one of the following options: DAY HR MIN K1 K2 K3 K4

Programming of the day - DAY

Press K1 (DAY); with the keys K+ or K- the current day of the week is set. The days of the week ﬂash consecutively on the display: from

- SU Sunday to SA Saturday

Programming the hours - HR

By pressing the key K2 (HR), you arrive at the programming for the hour. The current hour is adjusted by the keys K+ or K-.

Text display

Programming the minutes - MIN

By pressing the key K3 (MIN), you arrive at the programming for the

K+ key

minutes. The current minute is adjusted by

K– key

the keys K+ or K-.

The return to operation automatically takes place after a

KM-key

K3-keyK1-key

K4-keyK2-key

few seconds or by pressing the key KM.

REMKO GPM

Setting the weekly timer Heating mode (HTG)

HTG - ON heating mode

HTG - TIME (timer) heating mode

With the key KM you arrive at page 1 of the menu. Now press key K1 (HTG) in order to select the heating mode (HTG). After selection of the menu is completed, the following decisions can be made:

AUTO ON OFF TIME K1 K2 K3 K4

PLEASE NOTE: In the present menu TIME is based on the timer function. Thus it is a different TIME function than described in the preceding section.

HTG - AUTO heating mode

With key K1 (AUTO) the automatic operation of the room thermostat takes place; the operation of the unit in heating mode depends on the programming of the HTG programming timer (read further below in the handbook for this). The activation of the AUTO heating mode is shown on the display by illumination of the programming timer display. In this state the value of the desired room temperature can always be changed with the keys K+ or K-, whereby the adjusted room temperature is shown on the display and the information TEMPERATURE MAN appears. The value can be selected within the range provided for the room temperatures. This status is shown on the display with the hand symbol. With the initial programme change, the electronic temperature regulation automatically functions again in the HTG heating mode.

With key K2 (ON) the continuous and manual operation of the room thermostat takes place. The operation of the unit in the heating mode depends on the selected room temperature. The value of the desired room temperature is shown on the display (TEMPERATURE MAN); the ﬂashing signalises the possibility of changing this value with the keys K+ and K-. The value can be selected within the designated range for the temperature. After the end of the pre-adjusted time for the temperature selection, the display from the menu mode heating ON returns to the display of the operating menu. The value of the desired room temperature can be changed with the keys K+ or K- in this status, whereby it can be selected within the pre-determined range for room temperatures. The activation of the mode heating ON is shown on the display by the disappearance of the programming timer display.

HTG - OFF heating mode

With key K3 (OFF) the heating mode is deactivated. The activation of the heating OFF mode is shown on the display through the disappearance of the heater symbol and the appearance of the programming timer display.

With the heating OFF mode, the frost protection function (+ 5°C) remains switched on.

With key K4 (TIME) the heating TIME mode is switched on; in doing so the operation of the room thermostat is set to a speciﬁc temperature fur a speciﬁc length of time. The operation of the unit in the heating mode depends on the selected room temperature and on the time set on the timer. With key K1 (DURATION) the adjustment of the time within the range provided for the timer is selected; with key K4 (TEMP), on the other hand, the adjustment of the desired room temperature within the room temperature range provided for the timer is selected. Both values can be changed after completion of the selection with the keys K+ and K-. With selection of the respective menu, the default parameters for the timer function and the room temperature levels (T1, T2 or T3) that are shown on the display are available at that point in time corresponding to the programming of the HTG programming timer. The return to operation takes place automatically at the end of the time provided for the selection of parameters or by pressing the key KM. The activation of the TIME heating mode is shown on the display by the designation TIMER. At the end of the adjusted timing for the timer function, the unit returns to the heating mode that was present before the adjustment of the heating TIME mode.

Programming of the HTG programming timer.

With the key KM and then button K4 (>>) you arrive at page 2 of the menu. With the key K1 (PROG) the programming menu (PROG) is selected. After selection of this menu, one of the following options can be selected: DAY REG COP PRE K1 K2 K3 K4

The creation of a programme is possible through two different procedures:

- by creation of a new programme

with the keys DAY, REG and COP

- with key PRE and selection of a

pre-set programme.

With a power failure of more than 5 hours the set programmes are not lost. Upon reconnection of the power supply the current day, time and operation mode AUTO must be adjusted. nicians.

New programme

With key K1 (DAY) the sequential day for which the programming should be done is selected; with the keys K+ and K- the time that the fan-assisted heater should be switched on is adjusted. With key K2 (REG), access to the menu for adjustment of the temperature takes place, which should be programmed for a speciﬁc length of time. After selection of this menu, one of the following options can be selected:

— T1 T2 T3 K1 K2 K3 K4

— the adjusted temperature

remains unchanged

T1 adjusts the respective room

temperature value

T2 adjusts the respective room

temperature value

T3 adjusts the respective room

temperature value

With key K1 (—), K2 (T1), K3 (T2) or K4 (T3) the temperature that should be programmed is selected; after completed selection, the menu of the HTG programming mode appears on the display again. With the keys K+ and K- the times for switching on and off with the respective temperatures are now adjusted for the selected day. The four different parameters (-, T1, T2 and T3) are shown during the programming as follows:

- Dash below ﬂashes T1 two balls ﬂash alternately T2 one ball below ﬂashes T3 two balls ﬂash

simultaneously

The ﬂashing area, which is based on the selected temperature, shows the position in regard to the time that the programming was carried out; hours and minutes are shown on the display. You normally only use two temperatures with fanassisted heaters: one switch-on temperature (T2, T3) and one switch-off temperature (T1 and T2).

After completion of the programming of the day, the unit either automatically returns to the previous menu at the end of the time available for the selection of parameters or returns manually by actuation of one of the keys enabled for this (K1, K2, K3 or K4).

With key K3 (COP) the programming of the currently adjusted day is copied for the following day. Select the day to be copied with the menu (e.g. MO - Monday), press the key COP and then the key DAY in order to copy the programme for the following day, with our example TU (Tuesday). In order to also copy TU (Tuesday) for WE (Wednesday), press COP and then DAY. Of course the copied day can be changed with the procedure described above.

Pre-set programmes

With key K4 (PRE), you access the menu for the selection of the operating programme pre-set by the HTG programming timer. The electronic temperature regulation provides the opportunity to select between 5 different programmes.

After selection of this menu, one of the following options can be selected:

- OK or - CANCEL

With the keys K+ or K-, a pre-set operating programme of the HTG programming timer is selected. The programmes are numbered from 1 to 5.

REMKO GPM

With key K1 (OK) the choice you have made is conﬁrmed; then the display shows the menu of the HTG programming mode again. With the key K2 (CANCEL) you can leave the HTG - PRE programming mode menu, without making any selections; the display then shows the HTG programming mode menu again.

Programming the values T1, T2 and T3

With the keys KM, K4, >> and K2 (REG), you access the menu for programming the desired room temperature.

After successful selection of the menu, the following information appears on the display:

<< ■Room temperature T1 >> K1 K2 K3 K4

The value of T1 appears on the display; with the keys K+ and Kthis value can be changed. Press K4 to access T2 and T3. When you continue pressing K4, other messages appear that have no inﬂuence on the operation of the fan-assisted heater. When programming the temperatures, ensure that T1 is lower than T2 and T2 is lower than T3. For the values T1, T2 and T3 the programming range lies between +7°C and +35°C.

Frost protection

This function always remains active when switching off through the operating unit. The fan-assisted heater switches on if the room temperature falls below the pre-adjusted frost protection temperature of + 5 °C, which cannot be changed. If the frost protection function should be removed, you must contact the customer service location.

Power reserve

The electronic temperature regulation is supplied with power directly from the fan-assisted heater. It has a power reserve that prevents the loss of programming with power failures lasting longer than ﬁve hours. If the reserve is consumed, the display no longer functions. With renewed power supply it resumes operation.

Temperature display

During normal operation the temperature shown on the display corresponds to the room temperature measured by the electronic temperature regulation. For display of the set room temperature, press key K+ or K-.

NOTE

After approx. 20 seconds the electronic temperature regulation automatically returns to the starting display and normal operation.

Room correction

This function is described in the chapter for the user; it can be switched on through the electronic temperature regulation by adjusting the TSP values, which regulate this function. For activation or deactivation of the room correction, press and hold key KM for approximately 8-10 seconds until the following appears on the display:

INFO REG ERR >> K1 K2 K3 K4

Press K4 (>>) and change to the following page, where the following appears:

LANG PAR PARK >> K1 K2 K3 K4

Press K3 (PARK) in order to arrive at the TSP parameters. The display shows:

<< PARAM K 1 >> K1 K2 K3 K4

The TSP values are shown on the display by PARAM K. Enter values according to the following table:

PARAM KTSP Standard Range

11 C1 1 0-1

17 A12 1 0-1

18 A16 20 1-99

19 A24 1 1-10

Automatic operation

All 21 TSP parameters can be called up with the keys K1 and K4; use the keys K+ and K- of the electronic temperature regulation to change the values.

After successfully changing the values, you can leave the settings by pressing KM for 8-10 seconds.

Ventilation (summer)

The ventilation mode can be adjusted in both AUTOMATIC and MANUAL operation. In both cases the TSP value A35 (PARAM K 10) of the electronic temperature regulation must ﬁrst be set to 1.

NOTE

To change the TSP value,

proceed as described with the room correction mode.

For adjustment of the ventilation function, the SAN value must then be set to the respective operation mode. In doing so, proceed as follows: Press KM and page 1 is shown on the display, where the following options are possible:

HTG SAN INFO >> K1 K2 K3 K4

Press key K2 (REG) and then K4 (>>) and call up the values successively until the following display appears:

<< PROG SAN >>

With the keys K+ and K-, enter the SAN value according to the desired operation mode: 1 = Manual operation 2 = Automatic operation

After changing the value, wait a few seconds until the numerical value ﬂashes. In this way the successful entry of the value is conﬁrmed. Finally, press KM in order to leave the menu.

Manual operation

To switch on the ventilation manually, carry out the following steps: Press KM and page 1 is shown on the display, where the following options are possible:

HTG SAN INFO >> K1 K2 K3 K4

Press K2 (SAN) in order to arrive at the following menu:

ON OFF TIME K2 K3 K4

The ventilation phase can also be operated automatically, where a weekly time programming is set, as described for heating. For use of the automatic operation, the SAN value must be set to mode 2 instead of 1. See the previous page for the procedure.

Then, to switch on the ventilation automatically, carry out the following steps: Press KM and page 1 is shown on the display, where the following options are possible:

HTG SAN INFO >> K1 K2 K3 K4

Press key K1 (HTG) and the following display appears:

AUTO ON OFF TIME K1 K2 K3 K4

Switch off the heating phase by pressing K3 (OFF). After pressing the button, the main display appears again with the initial settings on the display. Press KM again and page 1 is shown on the display, where the following options are possible:

HTG SAN INFO >> K1 K2 K3 K4

With key K4 (>>) you arrive at page 2 of the menu, where the following options are possible:

PROG REG TIME >> K1 K2 K3 K4

K2 (ON) or K3 (OFF) can be pressed in order to either switch the ventilators on or off, in which the manual ventilation operation is activated.

NOTE

In the SAN operating phase the unit can be used in both automatic and manual ON OFF operation.

REMKO GPM

With key K4 (>>) you arrive at page 2 of the menu, where the the following options are possible:

PROG REG TIME >> K1 K2 K3 K4

Press key K1 (PROG). Then the display shows:

HTG SAN K1 K2

By pressing key K2 (SAN) you can display the menu for selection of the operating conditions for SAN:

DAY REG COP PRE K1 K2 K3 K4

Here, the daily times and the week calendar (DAY) can be adjusted.

NOTE

The timer can only be adjusted by half hour intervals. No minute values can be entered (e.g. 8:00-10:30, but not 7:43-20:15).

The programming settings (button K2 - (REG)), where the following can be selected, are:

1) - Programming is not changed

2) - T1 SAN mode is excluded

3) - T2 SAN mode is released

By pressing K1 (-), K2 (T1) or K3 (T2) the desired parameter that should be adjusted to the required time period is selected; the menu automatically returns to the display of the SAN programming mode.

Use the keys K+ and K- in order to call up the times successively, as described with the heating phase.

The times set for one day can also be copied for all other days with the button K3 (COP).

Press KM in order to leave the menu and return to the initial settings.

After setting the calendar, proceed as follow for activation of the automatic heating:

Press KM and page 1 is shown on the display, where the following options are possible:

HTG SAN INFO >> K1 K2 K3 K4

Press key K2 (SAN) until the following display appears:

AUTO ON OFF TIME K1 K2 K3 K4

Press key K1 (AUTO). The display returns to the initial display and the operation mode is set to automatic operation.

For deactivation of the automatic operation, proceed as follows:

Press KM and page 1 is shown on the display, where the following options are possible:

HTG SAN INFO >> K1 K2 K3 K4

Press key K2 (SAN) until the following display appears:

AUTO ON OFF TIME K1 K2 K3 K4

Switch off automatic ventilation by pressing K3 (OFF).

NOTE

With automatic settings with heating switched on, the times set for this operation cannot be displayed during the ventilation phase.

NOTE

In both automatic and manual operation the symbol of a water tap appears on the main display when only the ventilation phase is activated.

ATTENTION

The unit does not conduct secondary ventilation; it switches off at the adjusted time.

Intended use

The units are designed exclusively for heating and ventilation purposes in industrial or commercial use (no living space heating in private use) on the basis of their structural design and equipment.

The unit design allows for the use of the unit accessories approved by the manufacturer.

The units may only be operated by appropriately instructed personnel.

With non-observance of the manufacturer's speciﬁcations, the respective local legal requirements or after arbitrary alterations of the units, the manufacturer is not liable for damages resulting thereof.

Customer service and warranty

A pre-condition for possible warranty claims is that the purchaser or their customer has completely ﬁlled out the attached "Warranty card" around the time of the sale and commissioning of the equipment, and returned it to REMKO GmbH & Co. KG.

The units were inspected multiple times to verify their correct function. However, if malfunctions should arise that cannot be remedied by the operator with the assistance of the troubleshooting, please contact your specialty dealer or contractual partner.

Environmental protection and recycling

Disposal of packaging

With the disposal of the packaging material, please consider our environment. Our units were carefully packed for the transport and delivered in stable cartons for transport and, if applicable, on a wooden palette. The packaging materials are environmentally-friendly and can be recycled. With the recycling of packaging materials, you make a valuable contribution to the reduction of waste and conservation of raw materials.

Therefore, only dispose of the packaging material at appropriate collection points.

Any improper use of the equipment is prohibited. The units must be installed by a qualiﬁed technician, who is responsible for the observance of the existing regulations, rules and guidelines.

NOTE

Operation other than the types listed in this operating manual is prohibited. With non-observance, any liability and claim to warranty expire.

NOTE

Adjustment and maintenance work may only be conducted by authorised service technicians.

ATTENTION

Copyright The redistribution, even in parts, or the use of this documentation for purposes other than intended is strictly prohibited without the written authorisation of REMKO GmbH & Co. KG.

Disposal of the old unit

Equipment manufacture is subject to continuous quality control.

Only high-grade materials are processed, the majority of which are recyclable.

You also contribute to environmental protection by ensuring that your old equipment is only disposed of in an environmentally-friendly manner.

Therefore, only bring the old unit to an authorised recycling business or to an appropriate collection point.

REMKO GPM

Instructions for the installer

The following instructions for installation and set-up of the units are intended exclusively for authorised technicians. All safety notes must be observed without fail.

General information

Normally the units can be installed directly in the room to be heated. With set-up of the units, the guidelines of the regional building regulations (LBO) and combustion plant order (FeuVO) of the respective state must be observed. The ﬁrst enactment of the (German) Federal Emission Control Act (1st BlmSchG) and the statutory provisions of the ordinance over small combustion plants (1st BlmSchV) must also be applied. The installation of fan-assisted heaters operated with gas burners is prohibited in the following spaces:

■

In public function rooms or in

rooms with a concentration of people greater than 0.4 per square metre.

■

In rooms where gas or dust

can accumulate through the processing that takes place there or through the materials stored there, which could lead to ﬁre or explosion

So that no dangerously high temperatures are reached, the distance between the exterior surface of the equipment and ﬂue gas pipe and potentiallyaccumulated ﬂammable material may be no less than 1.5 m, with a ground clearance of 2.5 m or greater.

Units with gas burners for gas with a thickness greater than 0.8 (liquid gas, propane, butane) may only be installed in rooms where the ﬂoor does not lie below ground level.

Ventilation openings

The rooms where gas-powered units are operated must have one or more permanent openings (windows or doors).

These openings must be arranged in the following places:

- directly below the ceiling with gases with a thickness less than

0.8:

- directly above the ﬂoor with gases with a thickness greater than or equal to 0.8..

The openings must be arranged on exterior walls in open air. For the size of the cross-section, the installed heat output is authoritative.

Installation instructions

The minimum height and clearance of the fan-assisted heater from the walls and ﬂoor can be gathered from the drawing below.

The minimum clearances are the necessary distances for maintenance. All measurements are given in mm. The height [2500 mm] corresponds to the minimum height indicated for "Hanging equipment" by the guidelines.

4002500

200 1000

Two different types of brackets are available for the installation as accessories:

Fixed and pivoting.

The order numbers for the wall installation brackets (pivoting design) are:

■

In garages or in large stores

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

Computerised part no.: 228761; GPM 15/35

Computerised part no.: 228762; GPM 55

Computerised part no.: 228762; GPM 75

Standard wall installation

Pivoting wall installation

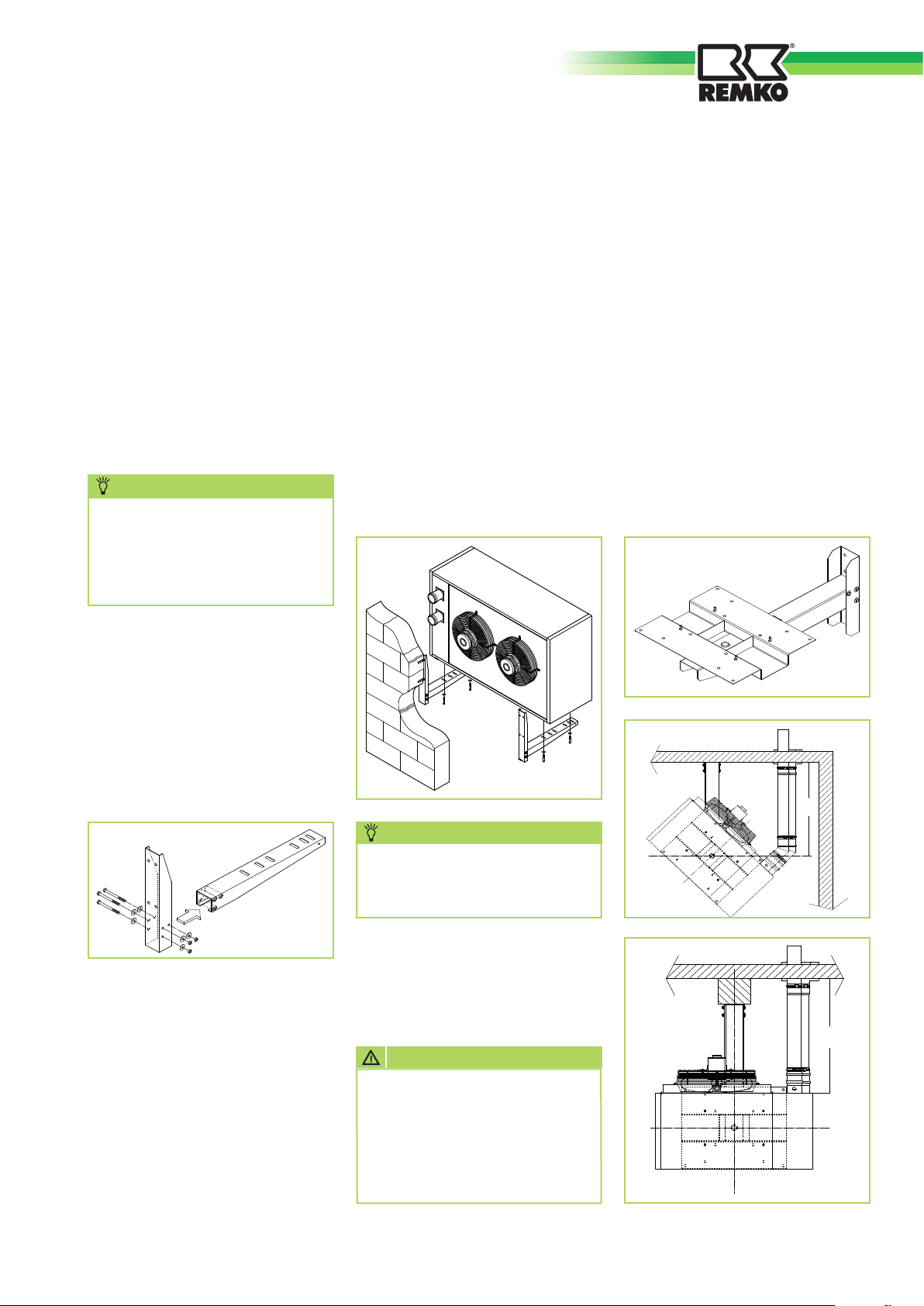

Align the wall brackets in a suitable place on the wall (spirit level) and securely fasten. Mark the boreholes to be made with a pencil.

- Securely attach the wall brackets with suitable anchors and screws

- M10 or greater.

NOTE

Make sure that the type of anchor and size of the screws are appropriate for the type of masonry in order to bear the weight of the unit.

- Install the two bracket pairs with the supplied material as shown in the ﬁgure

- Position the unit on the brackets so that the holes of the unit line up with those of the brackets, whereby the corners of the brackets must be ﬂush with the front edge of the unit (except for GPM 75).

- Fasten the equipment with the M8 screws provided; in the process, insert a locking ring between the screw and bracket.

The instructions for installation of the pivoting brackets are included with the packaging. The use of pivoting brackets is appropriate for the following cases:

a) Installation of the unit in a

corner

b) Installation of the unit at a right

angle to the wall it is mounted on

c) Installation of the unit on a

column

- When installing the brackets, lock the nuts with a locking ring between the bracket and nut.

Computerised part no.: 228760 Brackets for wall installation (standard design) GPM 15 - 75

NOTE

The brackets must be connected to the unit and the wall in a de-energised state.

ATTENTION

The units may only be mounted on stable walls, ceilings or structures made of non-ﬂammable construction materials with sufﬁcient bearing capacity.

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

REMKO GPM

Hanging from the ceiling

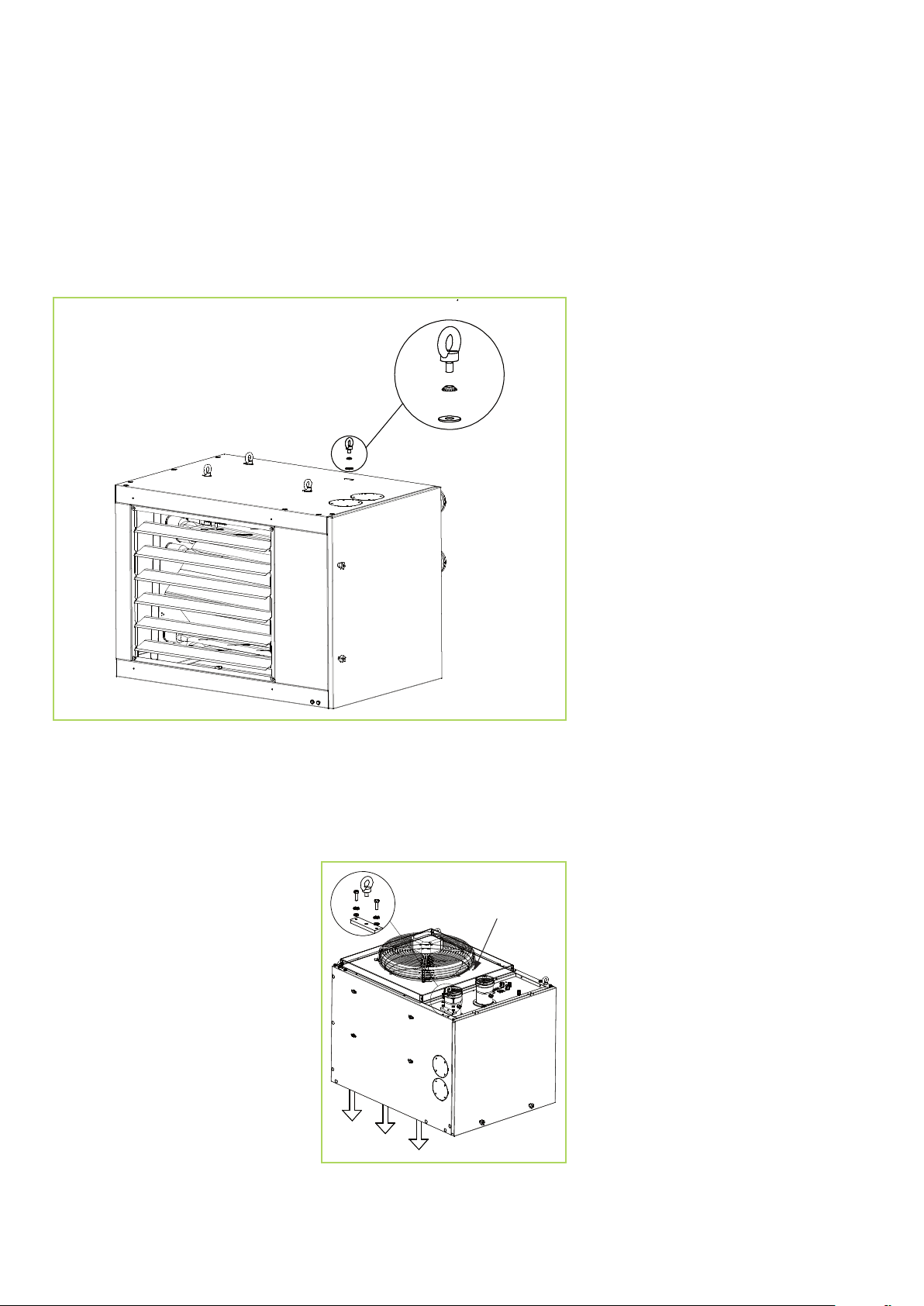

For hanging the units by means of eyebolts, the Mounting set for ceiling installation with horizontal air outlet is available as an accessory item.

Computerised part no.: 228765 .

Flue gas connection

The units work with a closed combustion cycle. The air outlets are located in front of the heat exchanger.

The ﬂue gas evacuation and/ or combustion air supply must be planned and executed in observance of the respective local guidelines. In addition, installation on outside walls must be coordinated with the responsible district master sweep. The classiﬁcation of the different installation versions takes place pursuant to the European Standard EN 1020 and/or DVGW-TRGI Directive 2008 and is a component of the EC authorisation in the factory-supplied design.

Individually, the units are classiﬁed for the following versions:

Vertical air ﬂow

Hanging the units by means of eyebolts with downward air ﬂow (installation with vertical air ﬂow).

For this purpose, the Mounting

set for ceiling installation with vertical air outlet is available as

an accessory item. It consists of eyebolts with special fastening and an additional fan thermostat.

Computerised part no.: 228766 to GPM 35 Computerised part no.: 228767 starting from GPM 55

Additional thermostat for

fan monitoring

B23/C13/C33/C43 / C 5 3 / C 6 3

The installation of the ﬂue gas and supply air duct can take place in different ways.

e.g. Gas ﬁreplace type B:

The combustion cycle is not compact compared to the environment in which it has been installed. The combustion air is taken directly from the installation space.

This version may only be installed in rooms that have at least one door or window that can be opened to the outside and have a volume of at least 4 m³ per kW total nominal heat output of the unit; or a combustion air opening of at least 150 cm² leading outside or two openings that have a clear cross-section of at least 75 cm² each.

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

e.g. Gas ﬁreplace type C:

The combustion cycle is compact compared to the environment in which it is installed. The combustion air is fed from outside.

The units may only be operated with appropriate ﬂue gas pipe. The factory components available as serial accessories correspond to all requirements.

ATTENTION

The use of plastic ﬂue gas pipe is not permitted.

Condensate

If necessary, the ﬂue gas pipe must be insulated in order to prevent the accumulation of condensate.

The temperature of the ﬂue gas with minimum heat ﬂow rate corresponds approximately to the condensation temperature. With pipe lengths of greater than 5 m (indoors) or 3 m (outdoors), condensate should be eliminated by the following means:

■

Through heat insulation of the

ﬂue gas pipes

■

Through the use of condensate

traps, where the collected condensate is drained from the ﬂue gas pipe.

Note:

Appropriate condensate traps are available as accessories. They can be used with both horizontal and vertical pipework.

Guide to selection

If an endpiece is not connected directly to the unit, whereas a certain length must be overcome, it must be ensured - according to the length and geometry of the segment - that the end and extension pieces, as well as the elbows, exhibit the proper diameter.

After fastening the segment, the pressure loss for the individual parts should be determined depending on the respective unit in use.

The pressure loss is different with each part because the ﬂue gas ﬂow rate is different.

Add up the determined pressure losses of the individual parts and make sure that the total does not exceed the value available for the unit type to be used.

If there is a combustion air supply duct, the pressure losses must be added to those of the ﬂue gas pipe.

If the total of the losses should exceed the available pressure, pipe with a greater diameter must be used, whereby the calculation must be re-computed.

NOTE

Exceeding the permissible pressure decreases in the pipework reduces the heat output and safe operation of the equipment.

The maximum possible duct lengths between the unit and endpiece are shown in the table.

With use of elbows it is necessary to remove the corresponding length from the available duct length for the planned elbow.

Examples:

Elbow Ø 80 90° corresponding length 1.7 m

Elbow Ø 80 45° corresponding length 0.8 m

Elbow Ø 100 90° corresponding length 1.9 m

Elbow Ø 100 45° corresponding length 0.9 m

Examples for the design of ﬂue gas ductwork and combustion air ductwork are represented on the following pages.

Individually, the units are classiﬁed for the installation versions:

B23/C13/C33/C43 / C 5 3 / C 6 3

ATTENTION

Installation work may only be carried out by authorised qualiﬁed technicians.

REMKO GPM

Installation examples

Gas ﬁreplace type B23

Room-air-dependent combustion system.

The combustion cycle is not compact compared to the environment in which it has been installed. The combustion air is taken directly from the installation space. The guidance of the ﬂue gas can take place in two variants:

a) with the aid of horizontal

ductwork (outside wall installation) straight through the outside wall, or

b) with a vertical duct through the

roof, if the ceiling is the roof.

With these installation variants, sufﬁcient ventilation of the installation space must be ensured in order to guarantee the correct supply of combustion air. This takes place through openings in the walls of the room. The dimensions and characteristics determined in the standards must be adhered to. In particular, DVGW-TRGI 2008 Sec. 5.2.2 and TRF Sec. 7.2.2. should also be observed.

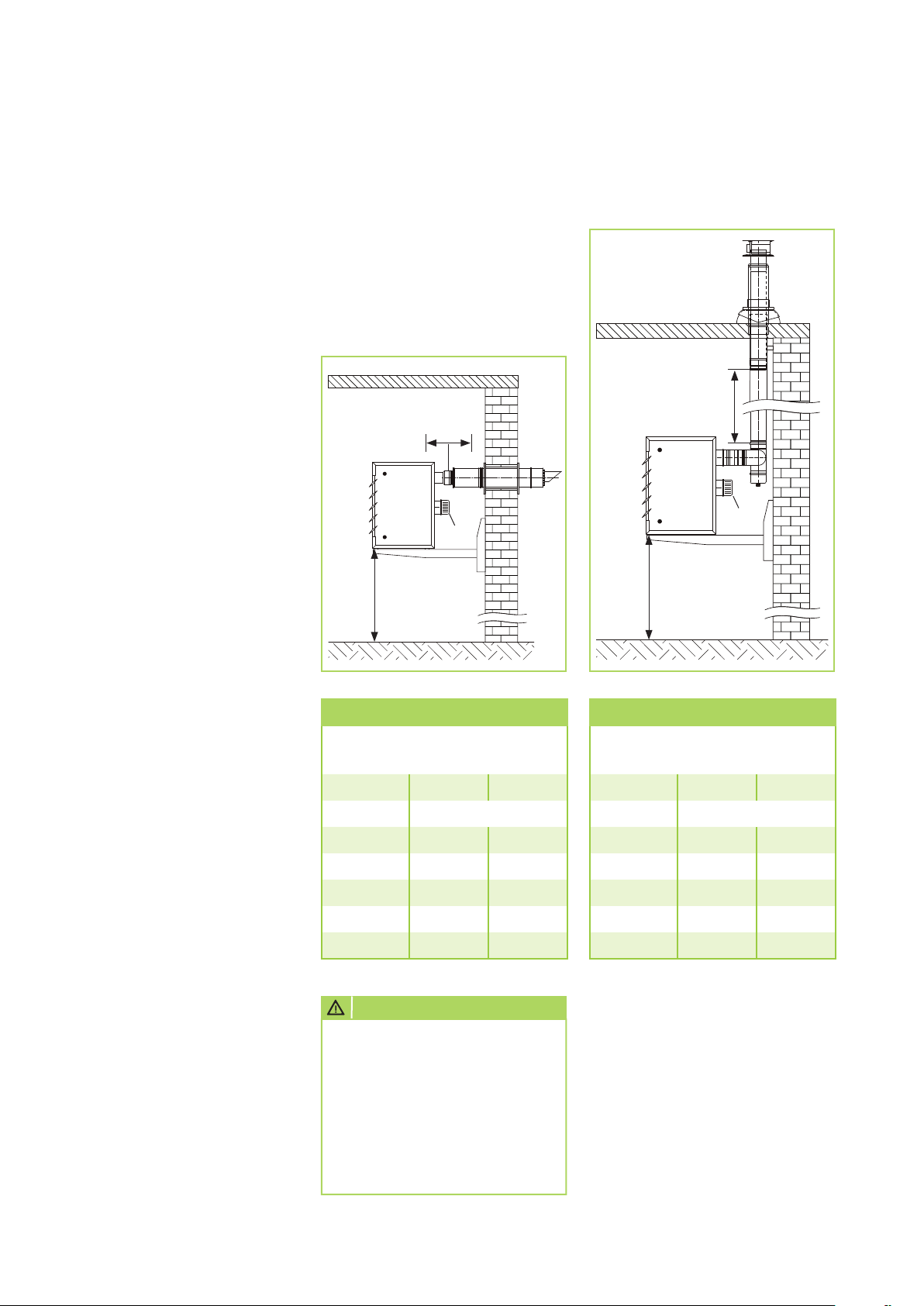

Type B23 horizontal through the outside wall.

Schematic side view

2.5 - 3.5 m

Installation height

Type B23 horizontal

L1 maximum duct length

without endpieces

Ø 80 Ø 100

Model Metres

GPM15 29

GPM25 29

Type B23 vertical through the ceiling.

Schematic side view

2.5 - 3.5 m

Installation height

Type B23 vertical

L1 maximum duct length

without endpieces

Ø 80 Ø 100

Model Metres

GPM15 30

GPM25 30

The combustion air supply must be made from the outside as a basic rule:

■

With mechanical suction plants

GPM35 26

GPM55 15

GPM 75 18

GPM35 29

GPM55 17

GPM 75 20

in the installation space

■

If over or underpressure can

occur in the installation space

■

If the unit is installed in

environments with large amounts of dust

■

In operations working with

motor vehicles

ATTENTION

In this version a protective grid should be afﬁxed on the combustion air supply duct so that the penetration of solid objects with a diameter greater than 12 mm is prevented.

Protective grate [S] for combustion air intake

GPM 15 - 55; Computerised part no.: 228960

GPM 75 Computerised part no.: 229060

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

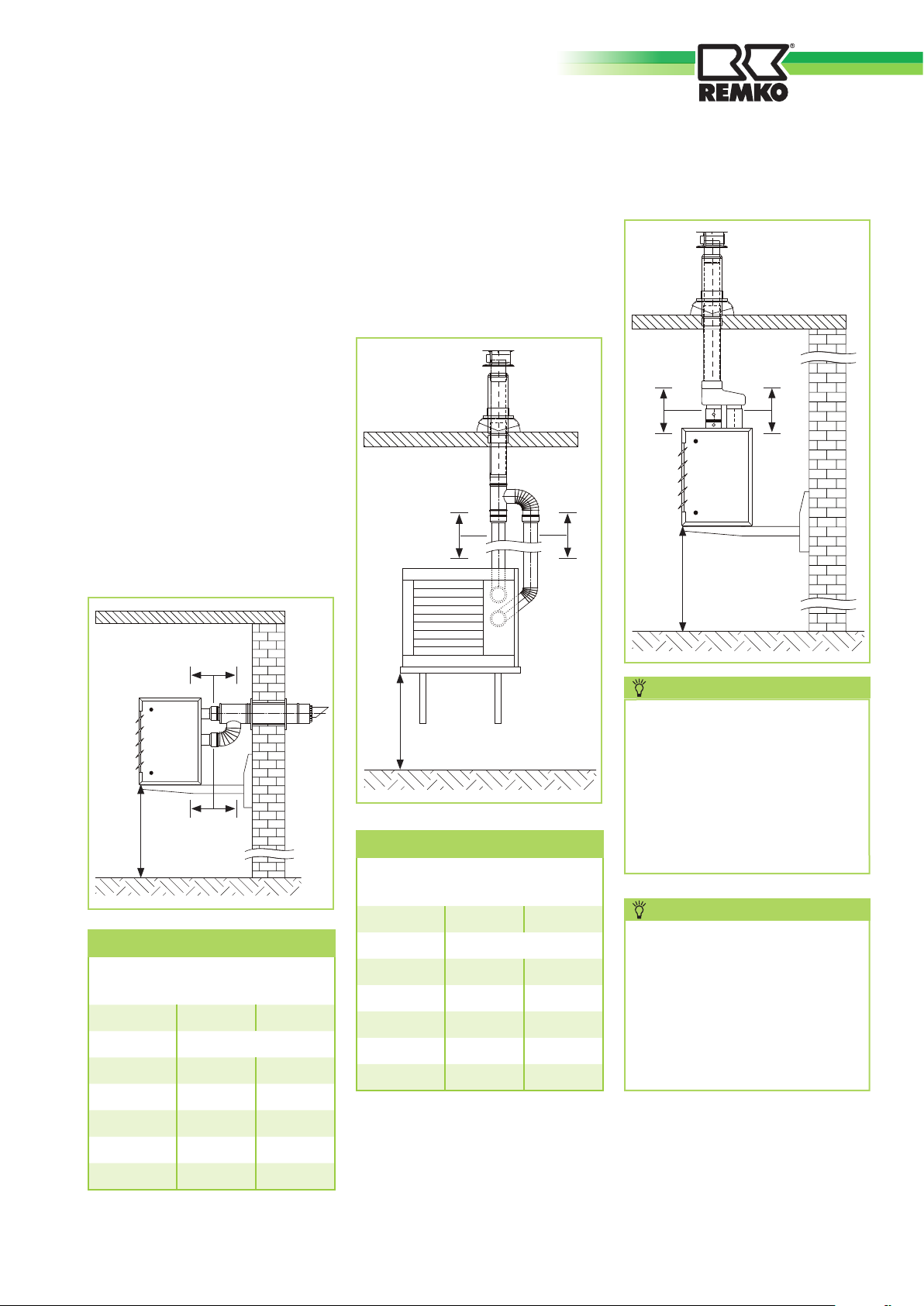

Gas ﬁreplace type C

TYPE C33

Room-air-independent combustion system. The combustion cycle is compact compared to the environment in which it is installed. The combustion air is fed from outside. The ductwork runs horizontally through the outside wall or vertically through the roof.

TYPE C13

Room-air-independent combustion system. Exhaust/ and combustion air are led through an LAS endpiece through the outside wall.

Schematic side view

Room-air-independent combustion system. Exhaust/ and combustion air are led through an LAS endpiece through the roof.

Schematic front view

L1 L2

Schematic

side view

L1 L2

2.5 - 3.5 m

Installation height

NOTE

2.5 - 3.5 m

Installation height

Type C13 horizontal / coaxial

L1 + L2 maximum duct length

without endpieces

Ø 80 Ø 100

Model Metres

GPM15 10 + 10

GPM25 10 + 10

GPM35 10 + 10

GPM55 4.5 + 4.5

2.5 - 3.5 m

Installation height

Type C33 vertical / coaxial

L1 + L2 maximum duct length

without endpieces

Ø 80 Ø 100

Model Metres

GPM15 11 + 11

GPM25 11 + 11

GPM35 11 + 11

GPM55 4.5 + 4.5

GPM 75 4 + 4

In this version the position of the connections to the unit must be changed, meaning they must be repositioned from behind to above.

This variant is executed at the factory and must be indicated when ordering.

NOTE

The installation of the exhaust gas routeing through the outside wall must correspond to the regulations of DVGW TRGI and TRF as a basic rule and must be approved by the responsible district master sweep.

GPM 75 4 + 4

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

REMKO GPM

Electrical connection

The electrical connection of the unit may only be carried out by authorised technicians (electrical power company-approved) in accordance with the applicable regulations. A main/emergency shutoff switch should be installed in an easily accessible position on the visible side of the unit and protected against unintended actuation. The switch must disconnect all poles from the unit with a minimum contact opening of 3 mm from the mains.

ATTENTION

A multipolar isolator with appropriate electrical protection must be connected upstream to the units. The wire cross-section must be at least 1.5 mm².

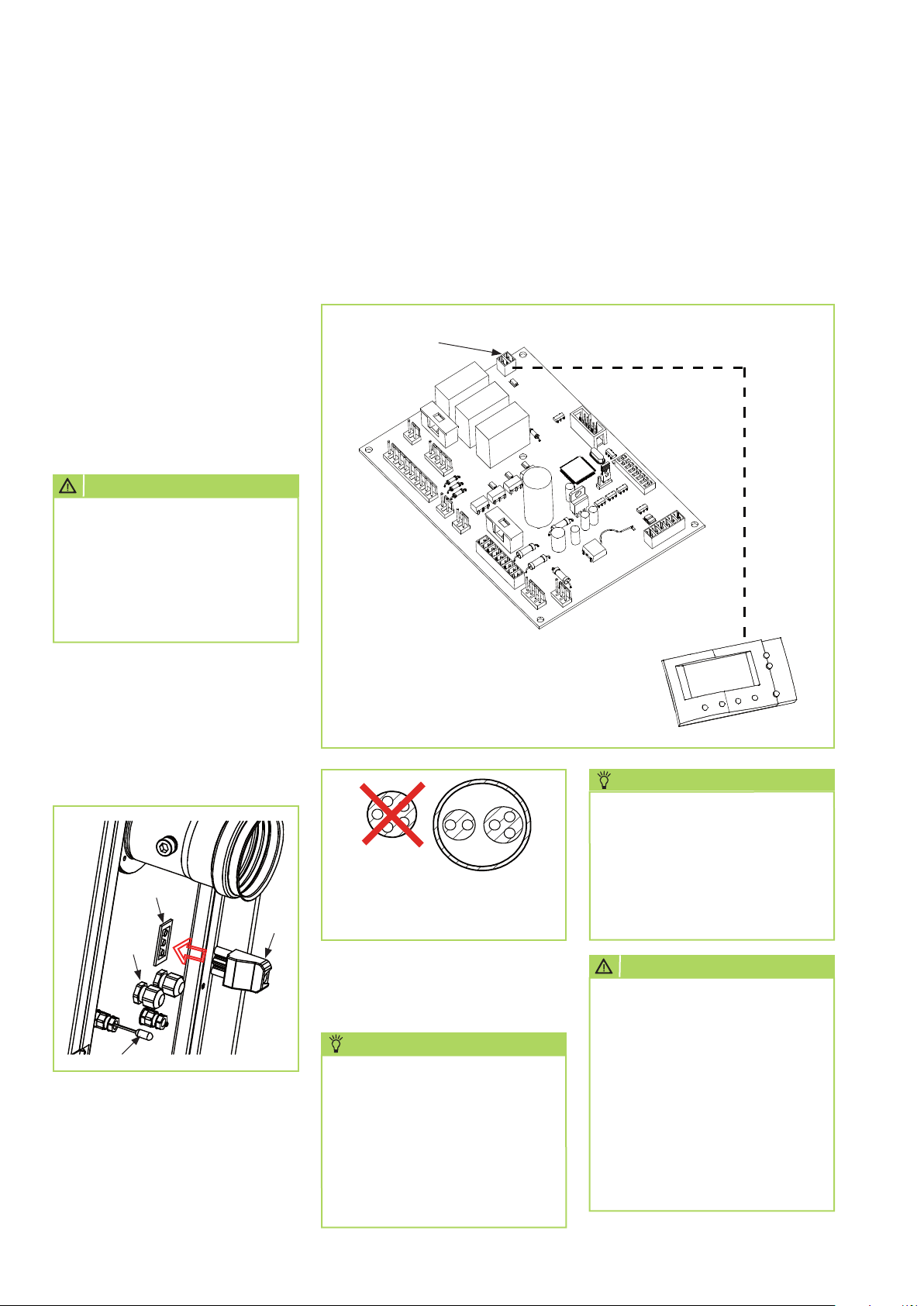

Electronic temperature regulation ATR-6 connection to the control PCB

Connect the plug of the electronic temperature regulation to the customer-installed bus cable, pull out the 2-pole plug connector [CN] with resistor from the control PCB and re-connect the installed plug with bus cable.

Plug CN

Control PCB

The units may only be connected to the mains through outlets/plugs with reverse polarity protection. Electrical supply 230/1~/50, Minimum cross-section of the mains supply 1.5 mm².









Rear panel legend:



= Unit power outlet



= Unit plug



= Cable guides



= Unit temperature sensor

Electronic temperature

regulation ATR-6

NEIN!

B = Bus cable S = live cable

NOTE

Phase and neutral lines may absolutely not be interchanged during connection, because the ﬂame monitoring device will otherwise interrupt unit operation for safety reasons. Fault F1 is displayed.

NOTE

The use of a multipolar wire that serves for both the electronic temperature regulation and power supply is not permitted for avoidance of electromagnetic disturbances.

ATTENTION

The main/emergency shutoff switch may only be used in emergency situations or with extended periods of non-use. If it is switched off during the operation of the unit, the electrical supply-air fan cannot cool the combustion chamber. This can result in damage to the unit.

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

Gas connection

The installation of the gas connection may only be executed by authorised technicians (authorised by the municipal gas supplier) in observance of the applicable provisions for the respective gas type. The cross-section of the ductwork should be determined according to the connection value of the unit, the total output resistance as well as the amount of gas supply pressure. The necessary gas supply pressure (depending on gas type) should be ensured on site. The necessary amount of gas and the necessary gas pressure must be continuously available during operation of the unit according to its output. The unit connection takes place through an R 3/4“ or R 1“ external thread connection. The gas supply should be executed with a suitable, removable screw connection free of voltage and vibration. The components described in the applicable gas guidelines as well as the locally required components in the gas supply, such as

gas pressure regulators, isolation devices, etc. are not included in the scope of delivery and must be provided by the customer. Installing a high-output compatible gas ﬁlter without pressure regulator is also recommended, because the ﬁlter area of the serial ﬁlter installed above the gas valve is limited. The applicable standards allow a maximum pressure of 60 mbar in the heating room; higher pressure values must be reduced prior to entrance to the heating or installation room of the unit. Prior to the initial commissioning, the gas supply line must be thoroughly cleaned and bled through appropriate measures. It must be ensured that the connection of the unit to the gas supply line is executed gas-tight. All screw connections of the unit and the gas supply must be inspected for leakage integrity. With use of leak detection sprays, they must correspond to DIN 30657 (non-corrosive).

ATTENTION

Installation work on the gas system and the supply lines may only be conducted by licensed technicians.

LEGEND

1 = Electrical gas solenoid valve

Main burner

2 = Electrical gas solenoid valve

Ignition burner

3 = Pressure regulator

4 = Electrical gas safety valve

5 = Gas ﬁlter (small ﬁlter area)

6 = Vibration-inhibiting connection

piece (customer-provided)

7 = Gas ﬁlter with large ﬁlter area

(customer-provided)

8 = Gas stopcock (customer-

provided)

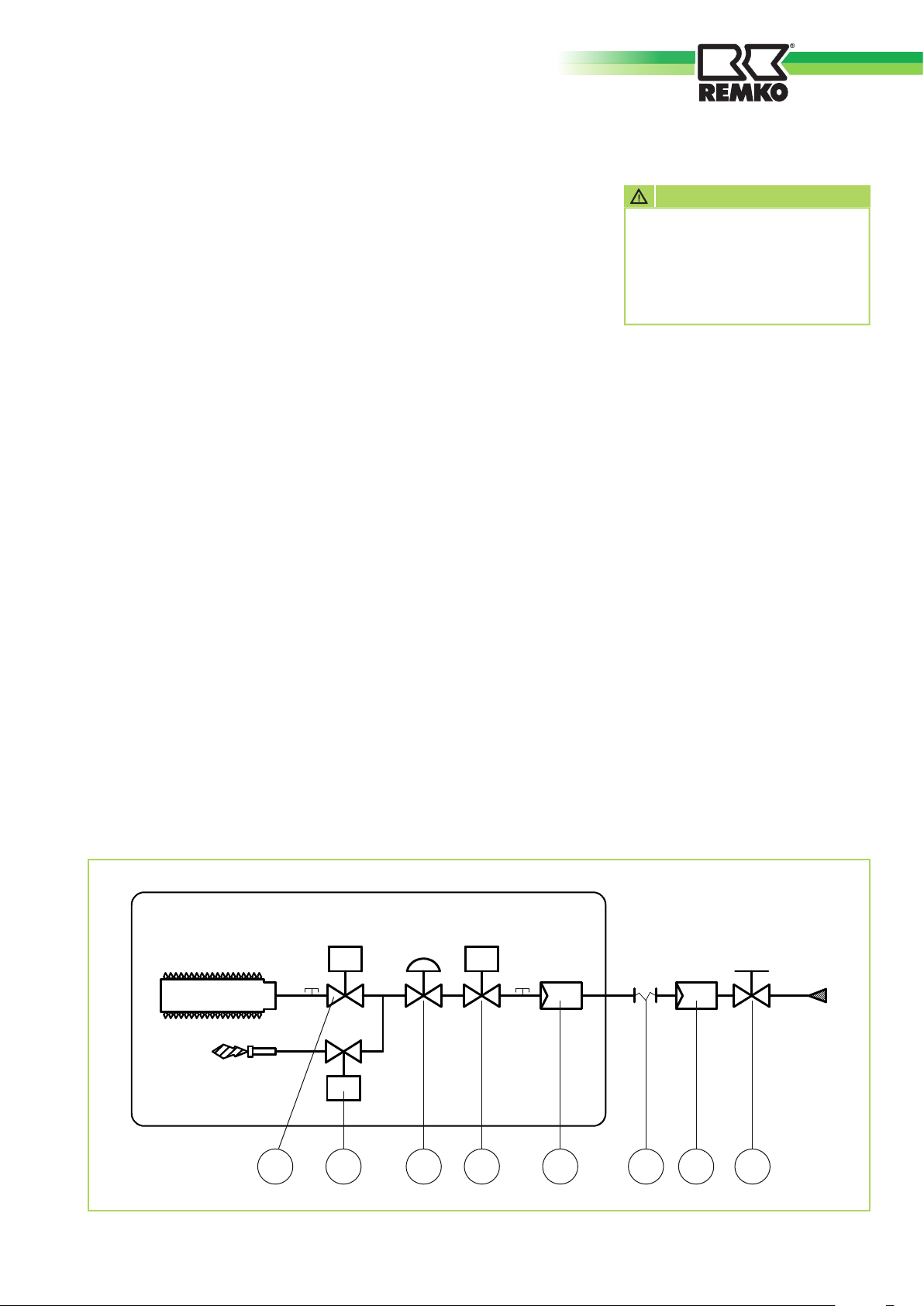

Schematic layout of the factory-supplied gas components

to be executed on-site by the installation company

1 2 3 4 5 6 7 8

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

REMKO GPM

Commissioning

The initial commissioning may only be carried out by a contract installation company or the factory customer service department. Carry out the following steps prior to the initial commissioning:

ATTENTION

Installation and maintenance work on the unit as well as the gas burner may only be carried out by authorised qualiﬁed technicians!

1. Inspect all connections and screw connections of the unit and the gas connections for leakage integrity.

2. Check all electrical screw and plug connections within reach.

3. Check the electrical connection for polarity and the voltage supply (230V/1~/50Hz).

It must be ensured that a gas supply pressure that conforms to standards is continuously present in accordance with the locally available gas type. The gas of the network must be consistent with the gas category to which the unit is adjusted.

For commissioning of the burner, proceed as follows:

1. Loosen the lock screw in the pressure tap of the burner. Do not unscrew completely!

2. Connect a suitable pressure measurement device, e.g. U-pipe pressure gauge, min. resolution 0.1 mbar.

3. Open the gas shut-off devices.

4. Switch on the main/emergency switch.

The appearance of a small ﬂame on the display indicates that the burner is switched on.

It is possible that the ignition burner does not ignite with the initial commissioning, because there is still are in the gas line, whereby the unit triggers a fault.

The unit must be unlocked and the starting procedure repeated.

ATTENTION

A functional inspection of the entire unit including leakage inspections of all gasconveying connections must be conducted.

Combustion analysis

4. Check whether the unit is properly connected to an effective grounding system that corresponds to the applicable safety standards. Only then is the electrical safety and function of the unit guaranteed.

ATTENTION

Gas lines may never be used for the grounding of electrical equipment!

5. Check whether the electronic temperature regulation ATR-6 is serviceably connected.

The units are delivered preadjusted from the factory according to the desired type of gas.

5. Set the room temperature requirement at the electronic temperature regulation ATR-6 to a higher value than the present room temperature.

6. Set the mode selector switch on the front side of unit to the "Heating" position.

7. Set electronic temperature regulation to "MANUAL MODE".

8. Make sure that the heating symbol illuminates on the display of the electronic temperature regulation (mode).

9. Set the heat requirement temperature higher than the temperature measured by the room thermostat or the electronic temperature regulation.

Start the burner and bring it up to "high output" after switching on the fan by holding the reset button on the front side of the unit depressed for 2-3 seconds.

High output mode is shown by a single ﬂash of the green LED on the front side of the unit.

Make sure that the gas pressure at the input to the gas valve corresponds to the prescribed value; otherwise make adjustments.

After approx. two minutes connect a ﬂue gas analytical device to the ﬂue gas pipe and read the CO2 value.

Compare this value to the information in the table "Gas settings" for the type of gas in use.

If the value lies beyond the indicated range, make adjustments with the CO2 regulating screw at the Venturi tube.

- When tightening, the gas ﬂow rate is reduced and the CO2 value along with it

To change the values, pull out the metal plug and use the regulating screw:

- When loosening, the CO2 value is reduced.

- When tightening, it increases.

If the unit is not set to "Normal" operation, the control PCB automatically resets the unit after 20 minutes.

This also happens if the power supply of the unit is switched off and then on again.

- When loosening, the CO2 value increases.

Then set the burner to "minimum output" by pressing the reset button again and holding it for 2-3 seconds.

The "minimum output" mode is displayed by two quick ﬂashes of the green LED.

Wait until the minimum output at the burner has stabilised and check that the CO2 value is the same or slightly below the CO2 value of the high ﬂow rate (up to -0.3%).

With deviating values, use the offset screw.

After any changes to the offset regulation the CO2 value at high output must be checked again through the steps indicated above.

After these steps, set the burner to "Normal" operation by pressing the reset button again and holding it for 2-3 seconds.

This mode is displayed through the continuous illumination of the green LED.

After completion of all steps for the initial commissioning, the user is instructed in the use of the unit and its regulation.

ATTENTION

The input of the Venturi tube may in no case be covered with your hands or other objects. This can lead to ﬂashback of the premix burner.

ATTENTION

If the unit should not be used for extended periods of time, the gas cocks must be closed and the main switch of the unit must be switched off.

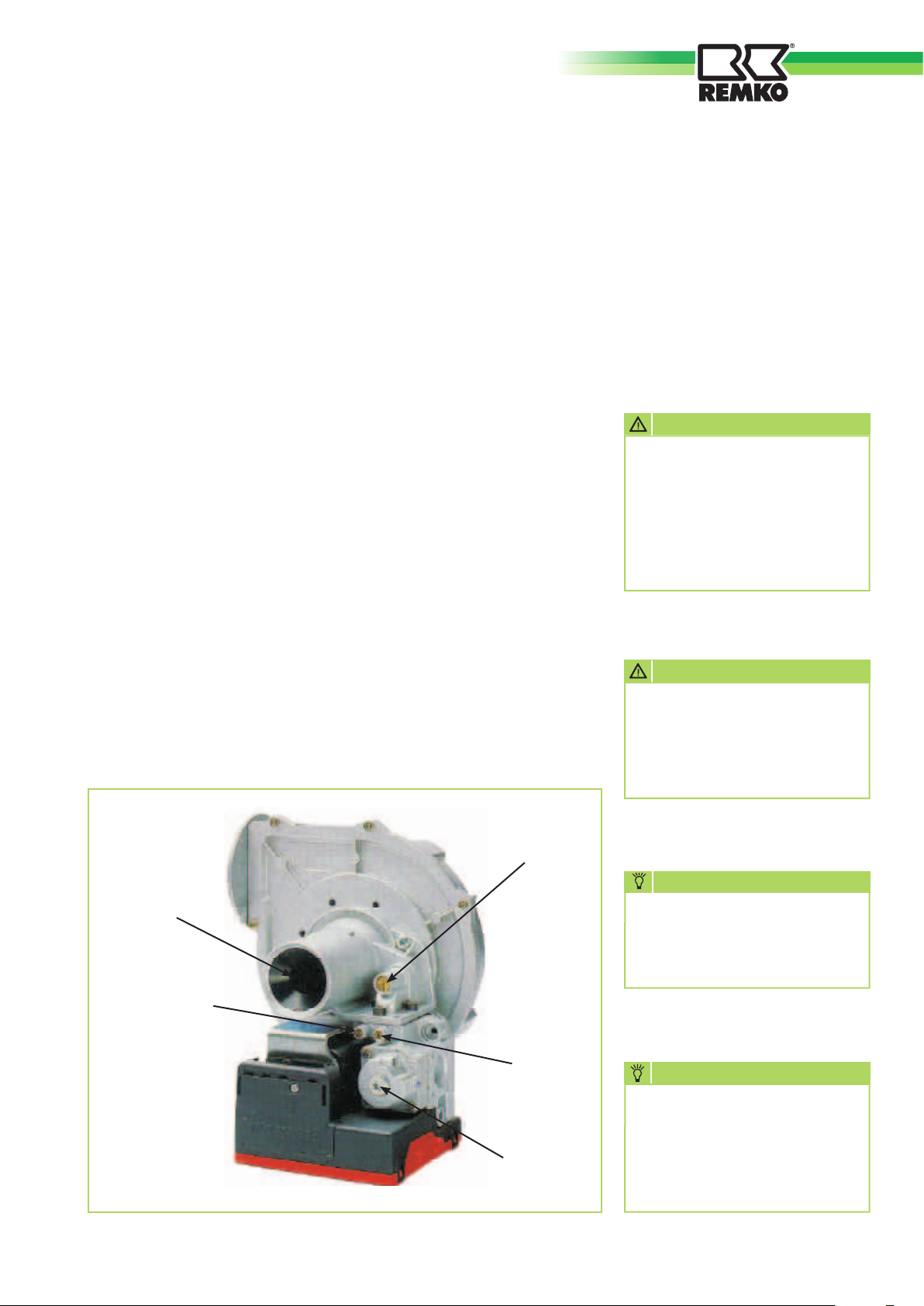

Regulating screw

Calibrated

Venturi tube

NOTE

The unit always conducts a follow-up ventilation prior to switching off the fans.

Pressure tap

Gas output

Pressure tap

Gas input

NOTE

If the unit is not set to "Normal" operation, the control PCB automatically

Offset regulation

resets the unit after 20 minutes.

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

REMKO GPM

Country table of gas types

The initial commissioning may only be conducted by authorised technicians. The initial commissioning also comprises the combustion analysis, which is mandatory. The units are permitted in EC countries and outside of the EC for the following types of gas listed below.

Country Category Natural gas Pressure Liquid gas Pressure

BE <70 kW

BE >70 kW

DK, FI, GR, SE

ES, GB, IE, PT

NO, HR

CY, MT

2H3B/P

2E(S)B,I3P

2E(R)B,I3P

2H3B/P

2ELL3B/P

2H3B/P

2H3P

2H3B/P

2Esi3P

2E3P

2L3B/P

2H3B/P

2HS3B/P

2H3B/P

3B/P

G20 20 mbar G30/G31 50 mbar

G20/G25 20/25 mbar G31 37 mbar

G20 20 mbar G30/G31 50 mbar

G20/G25 20 mbar G30/G31

50 mbar

G20 20 mbar G30/G31 30 mbar

G20 20 mbar G31

37 mbar

G20 20 mbar G30/G31 30 mbar

G20/G25 20/25 mbar G31 37 mbar

G20/G25 20 mbar G31 37/50 mbar

G25 25 mbar G30/G31 30 mbar

G20 20 mbar G30/G31 30 mbar

G20/G25.1 25 mbar G30/G31 30 mbar

G20 20 mbar G30/G31

30 mbar

G30/G31 30 mbar

EE, LT, LV

BG, RO, TR

2H3B/P

2ELwLs3B/P

G20 20 mbar G30/G31 30 mbar

G31 37 mbar

G20 20 mbar G30/G31 30 mbar

G20/G2,350 20/13 mbar G30/G31 37 mbar

Gas burner adjustment values / ﬂue gas analysis

Gas type G20 G25 G30 G31

Category according to country of destination (see table above)

Supply pressure (mbar)

(min.17-max.20)

(min.20-max.30)

30 - 50 30 -50

Ignition gas nozzle Ø (mm) 0.60 0.60 (0.65) 0.51 0.51

Carbon dioxide CO2 (%)

8.7 ±0.2 (cat.H)

8.9 ±0.2 (cat.E)

8.7 ±0.2 9.6 ±0.2 9.4 ±0.2

Maintenance

In order to preserve the performance and a long service life of the equipment, some mandatory inspections must be carried out once annually and in each case prior to the beginning of the heating season:

1) Check condition of the ignition

and monitoring electrodes as well as the ignition gas burner

2) Check condition of the supply

and ﬂue gas lines as well as the end pieces

3) Inspect Venturi tube for dirt

4) Inspect heat exchanger for dirt

5) Check gas pressure at the input

to the gas valve

6) Check function of the ﬂame

monitoring unit

7) Check of the safety

thermostat(s)

8) Inspection of the ionisation

current (>2 microamperes)

NOTE

With steps 1, 2, 3 and 4 the power and gas supply to the unit must be interrupted. Steps 5, 6, 7 and 8 take place in the unit heating mode.

1) Inspection of the electrodes

Completely disassemble the ignition burner and clean gas net and gas nozzle with compressed air. Check the ceramic of the electrodes for integrity. Carefully remove any oxidation accumulation on the metal part of the electrodes with ﬁne emery paper.

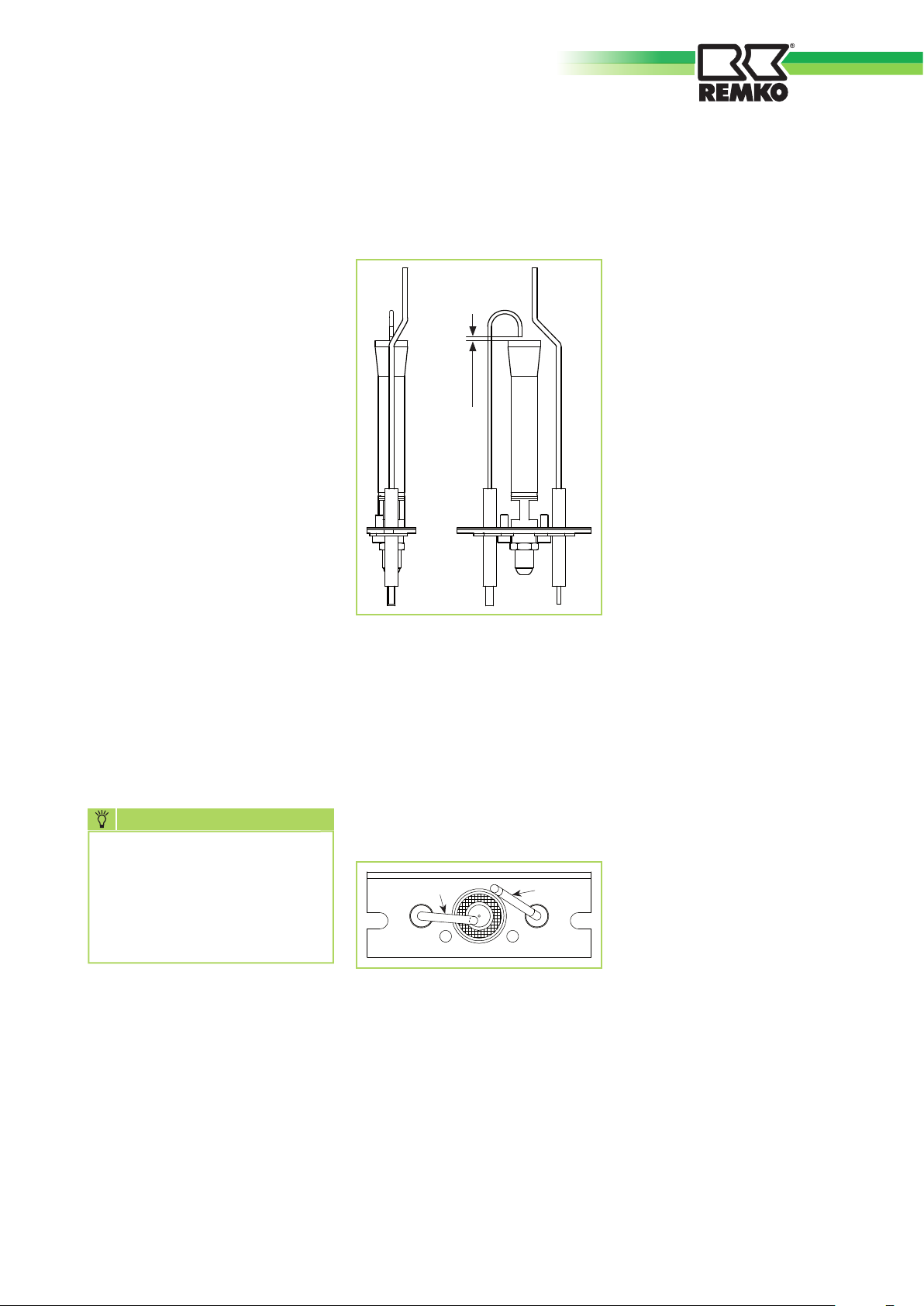

Check electrodes for their positioning according to instructions (see ﬁgure).

2-3 mm

It is important that the monitoring electrode [IO] lies tangential to the ignition burner head and not within it. The ignition electrode [Z] must discharge to the outside edge of the ignition burner at an appropriate distance to the monitoring electrode.

2) Inspection of the ﬂue gas and supply air lines

Carry out a visual inspection of the status of all lines and connectors. Remove any accumulation of dirt that has formed on the endpiece of the supply air line.

3) Inspection and cleaning of the Venturi tube

Remove the dirt at the input of the Venturi tube with a small brush or other suitable tool. Make sure that it does not fall into the Venturi tube.

4) Check of the gas input pressure

Make sure that the pressure at the input of the gas valve corresponds to the prescribed value for the respective gas type. This check must be carried out with the unit switched on at high output.

5) Inspection of the ﬂame monitoring unit.

Close the gas cock in the unit heating mode and make sure that the fault F1 occurs. Open the gas cock again, unlock and wait for the unit to restart.

6) Check of the safety thermostat(s)

The inspection must be carried out in the unit heating mode.

- Heat up the thermostat sensor

with a hot air gun or other suitable means until the fault F2 is displayed..

- Let the thermostat sensor cool

down and reset the unit again.

- This check should be carried out

at all existing thermostats.

REMKO GPM

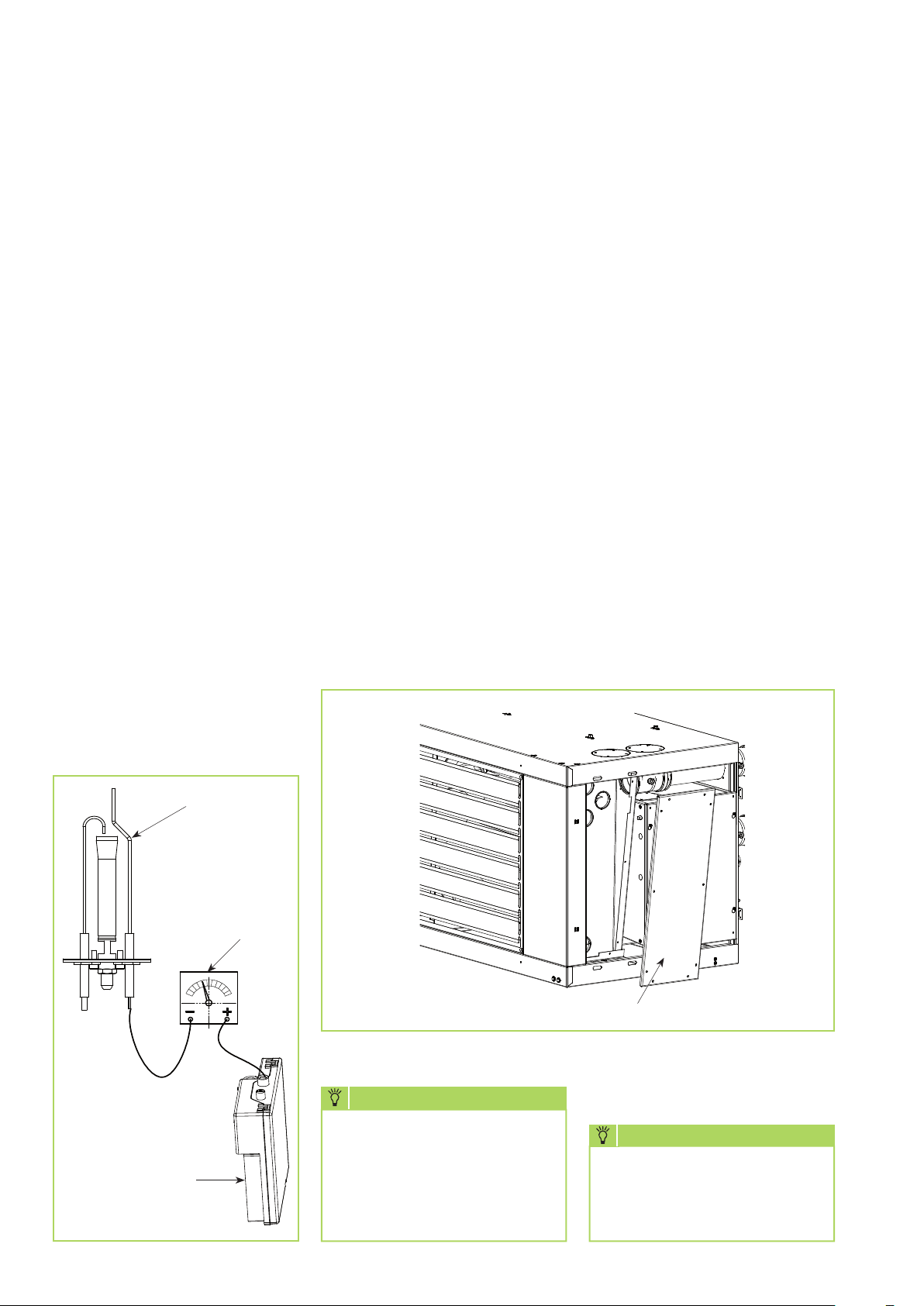

7) Inspection of the ionisation current

Carry out the inspection with a tester that is capable of detecting microampere values with DC.

- Interrupt power supply to the

unit.

- Disconnect cable from the ﬂame

monitoring unit and connect to the minus terminal of the tester.

- Connect a cable from the positive

terminal of the tester to the ﬂame monitoring unit.

- Switch on the unit again and

measure the ionisation current.

The value of the ionisation current must exceed 2 microamperes.

8) Inspection and cleaning of the heat exchanger

Thanks to the fault-free combustion of the unit, only minimal deposits normally accumulate. However, deposits may accumulate in the pipes of the heat exchanger over the course of time. Therefore, adherence to the normal maintenance intervals is mandatory.

A symptom of deposits in the heat exchanger may be the noticeable reduction of heat output.

To clean the heat exchanger, carry out the following steps:

- Allow the unit to cool down and disconnect from the mains supply.

- Open the side door of the unit.

- Remove the fastening screws of the cladding [A] of the ﬂue gas collector bin.

- Clean the interior of the pipe along the entire length with a suitable pipe brush, whereby the dirt should be advanced to the collector bin as far as possible, where it can then be suctioned out.

- After completion of cleaning, reinstall the cladding [A] of the ﬂue gas collector bin and check for tightness.

- After the work is completed, switch on the unit again and conduct a test run.

Lower values are a sign of poor positioning or oxidised electrodes.

Monitoring electrode

Micro-

amperemeter

NOTE

Flame

monitoring unit

Regular care and maintenance, at the latest after every heating period, is the basic requirement for a long service life and fault-free operation of the equipment.

NOTE

Adjustment and maintenance work may only be conducted by authorised service technicians.

Replacement of the control PCB

When replacing the control PCB, some inspections must be carried out and some parameters adjusted.

The programming of the parameters is necessary and depends on the selected operation mode.

For each mode of the unit a corresponding technical description is included. This is a list of the standard values programmed beforehand at the factory.

Please keep this list up to date with every change carried out on site so that any replacement PCB can be programmed accordingly.

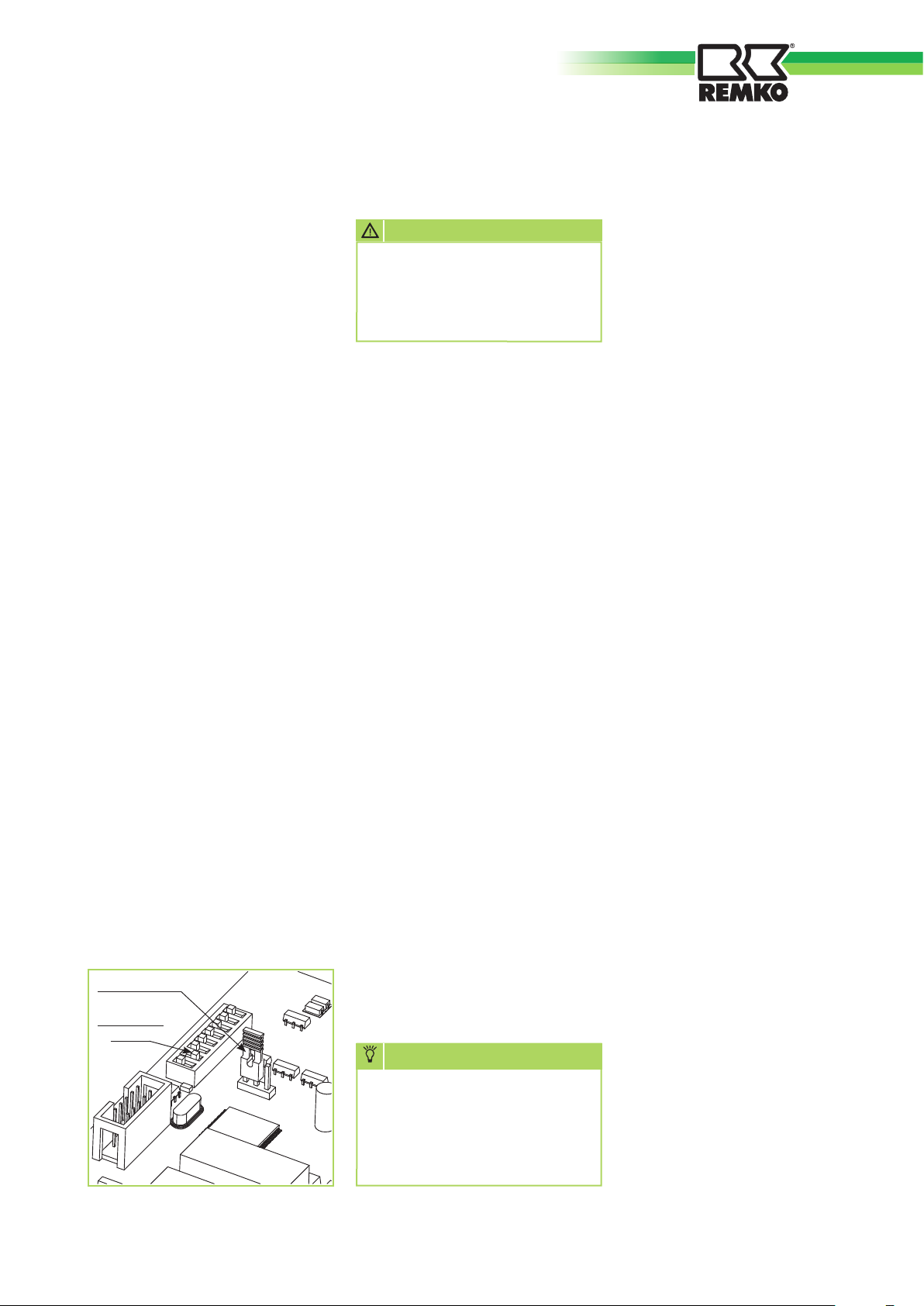

- Inspection of the hardwareconﬁguration of the PCB

Programming of the parameters

ATTENTION

If no electronic temperature regulation is being used, please contact the REMKO customer service department.

Programming of the parameters A1 and A2 is mandatory.

These parameters determine the heat output of the installed fanassisted heater.

With replacement PCBs the parameters A1 and A2 are not preprogrammed.

The values that must be set are indicated in the table below according to unit model.

Check with electronic temperature regulation

The bridge NTC/ VAN must be on NTC and the CR switch on ON, see ﬁgure below [to the inside edge of the card];

This conﬁguration is necessary in order to guarantee the proper function of the NTC1 sensor.

Bridge to NTC

CR switch

on ON

Model A1 A2 A3 GPM15 43 58 83 GPM25 58 72 83 GPM35 56 80 80 GPM55 65 93 70 GPM75 75 100 70

Other parameters:

For adjustment of possible functions of the unit there is a table on page 38 that contains all values of the control PCB with their factory settings, adjustment range and meaning.

NOTE

The values that can be seen and adjusted with the electronic temperature regulation are found in the column

PARAM K

REMKO GPM

Replacement of the gas valve and CO2 and offset regulation

Unit without electronic temperature regulation

With replacement of the gas valve, the CO2 and, if applicable, the offset value must be adjusted.

- Start the burner and bring it to "high output" after switching on the fan by holding the reset button on the rear side of the unit depressed for 2-3 seconds.

High output mode is shown by a single ﬂash of the green LED on the front of the unit. After approx. two minutes connect a ﬂue gas analytical device and read the CO2 value. Compare this value with the information in the table "Gas settings" for the type of gas in use.

- If the value lies beyond the indicated range, use the CO2regulating screw at the Venturi tube.

With deviating values, use the offset screw.

To change the values, unscrew the metal plug and use the regulating screw:

When loosening, the CO2 value decreases.

When tightening, it increases.

After any changes to the offset regulation, the CO2 value at high output must be checked again through the steps indicated above.

After these steps, set the burner to "Normal" operation by pressing the reset button again and holding it for 2-3 seconds.

This mode is displayed through the continuous illumination of the green LED.

NOTE

- Switch on the burner. After approximately two minutes after starting, it goes to its highest ﬂow rate.

Connect a ﬂue gas analytical device and read the CO2 value. Compare this value with the "Gas settings" (page 32) for the type of gas in use.

- If the value lies beyond

the indicated range, use the CO2regulating screw at the Venturi tube.

When tightening, the gas ﬂow rate is reduced and the CO2 value along with it.

When loosening, the CO2 value increases.

Then, at minimum output, set the burner to a value that lies below the measured temperature by adjusting the REG SAN value.

When tightening the adjusting screw the gas ﬂow rate is reduced and the CO2 value along with it

When loosening, the CO2 value increases.

Then set the burner to "minimum output" by pressing the reset button again and holding it for 2-3 seconds. The "minimum output" mode is displayed by two quick ﬂashes of the green LED.

- Wait until the minimum output at the burner has stabilised and check that the CO2 value is the same or slightly below the CO2 value of the high ﬂow rate (up to -0.3%).

If the unit is not set to "Normal" operation, the control PCB automatically resets the unit after 20 minutes.

This also happens if the power supply of the unit is switched off and then on again.

Unit with electronic temperature regulation

With replacement of the gas valve, the CO2 and, if applicable, the offset value must be adjusted.

- Adjust the regulation parameter of the sensor NTC1 ("REG SAN" on the electronic temperature regulation) higher than the value measured by the sensor NTC1 ("FLOW VL" on the electronic temperature regulation).

- Wait until the minimum output at the burner has stabilised and check that the CO2 value is the same or slightly below the CO2 value of the high ﬂow rate (up to -0.3%).

With deviating values, use the offset screw.

To change the values, unscrew the metal plug and use the regulating screw:

When loosening, the CO2 value decreases.

When tightening, it increases.

After any changes to the offset regulation, the CO2 value at high output must be checked again through the steps indicated above.

Conversion to liquid gas

The on-site conversion of the gas type may only be carried out by authorised, qualiﬁed technicians.

Prior to the conversion, the country-speciﬁc requirements must be fulﬁlled. The kit for conversion from natural gas to liquid gas is described in the following.

Kit scope of delivery:

■

Calibrated diaphragm

■

Ignition ﬂame nozzle

■

Notice sticker "Unit converted

to..."

After completion of settings, replace notice sticker "Unit set to ..." with the supplied sticker "Unit converted to ...".

Proceed as follows for the conversion:

■

Disconnect power supply of the

unit at all poles

■

Carefully replace ignition nozzle

■

Carefully insert the calibrated

diaphragm between gas valve and Venturi tube

■

Re-connect the power supply

of the unit and prepare the unit to start

■

Make sure during the ignition

process that no gas emerges at the copper pipe connection to the nozzle

If the burner is in operation and working at high output, check:

1) that the pressure at the input to the gas valve corresponds to the prescribed value for the respective gas type.

2) that the CO2 content corresponds to the prescribed values for the gas type.

If the measured value deviates, it must be adjusted with the CO2 regulating screw.

If it is screwed in, the CO2 value is reduced.

If it is unscrewed, the CO2 value is increased.

Check the leakage integrity of the gas circuit again.

NOTE

Adjustment and maintenance work may only be conducted by authorised service technicians.

ATTENTION

The fan-assisted heater supplied for operation with liquid gas is adjusted for the gas G31. When operating

Installation of the diaphragm of models GPM 15 / 25 / 35 / 55

Installation of the diaphragm of model GPM 75

with G30 the CO2 must be checked and possibly adjusted.

Gas type liquid gas G30 - G31

Model GPM15 GPM25 GPM35 GPM55 GPM 75

Ø Ignition nozzle mm 0.51 0.51 0.51 0.51 0.51

Ø Gas diaphragm mm 4.5 5.0 5.1 6.5 6.5

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

REMKO GPM

Control PCB parameter table

PARAM

1 A1 0 0 - 100 Minimum modulation value

2 A2 0 0 - 100 Maximum modulation value

3 A3 70 20 - 100 Starting output

4 A4 20 0 - 255 Value of the integral factor

5 A5 10 1 - 100 Value of the proportional factor

6 A11 25 25 - 255 Stabilisation time of the ﬂame

7 A17 4 0 - 4 Number of automatic resets after fault F1

8 A28 50 0 - 100 Percentage of OUT3 activation

9 A34 10 10 - 95 REG SAN minimum value

10 A35 0 0 - 1 Summer operation of the fan

11 C1 0 0 - 1 Room correction

12 C3 60 0 - 255 Delay time of the fan ON

13 C4 120 0 - 255 Delay time of the fan OFF

14 C5 0 0 - 1 Heating mode release

15 C8 0 0 - 1 Frost protection release

16 ST3 7.5 -5 + 30 Frost protection switchpoint temperature

TSP

Factory

setting

Standard Description

17 A12 0 0 - 1 Release of external room sensor

18 A16 90 1 - 99 Correction coefﬁcient

19 A24 1.5 1 - 20 Correction neutral range

20 A15 0 0 - 1 Selection of the PWM speed combination table

21 A31 2 2 - 3 Divisor for HALL message

REG SAN

ST1 21 10 - 95 Sensor NTC1 switchpoint

Parameter settings of the electronic temperature regulation

Parameter PARAM K

For access to the PARAM K parameter, press the key KM (Menu) for approximately 8-10 seconds.

The display shows:

INFO REG ERR >> K1 K2 K3 K4

Press key K4 >> the display shows:

LANG PAR PARK >> K1 K2 K3 K4

Press key K3 (PARK); the display shows:

<< PARAM K 1 >> K1 K2 K3 K4

The value of the adjusted parameter appears through key K4 and the corresponding  arrows; K3 indicates the number of parameters to be changed [PARM K].

Call up the parameters from 1 to 21 with the keys K1 (back) and K4 (forward); the values of the adjusted PARAM K parameter can be changed with + and – .

To leave the settings menu, press the key KM (Menu) for approximately 8-10 seconds. If no key is pressed for approximately 20 seconds, the electronic temperature regulation automatically leaves the settings menu and returns to the operation programme.

Parameters REG SAN and FLOW VL

The parameter "REG SAN" is the modulation set point of the NTC1 sensor found on the rear side of the unit;

"FLOW VL" is the value measured by the sensor.

Adjustment of "REG SAN" (unit sensor) Press key KM (menu); the display shows:

HTG SAN INFO >> K1 K2 K3 K4

Press key K4; the display shows:

PROG REG TIME >> K1 K2 K3 K4

By pressing the key K2 REG you arrive at the temperature settings. Continue with K4 until the following appears on the display:

<< REG SAN >> K1 K2 K3 K4

The set point appears through the arrows above key K4. Adjust the desired temperature value with the keys + and – (e.g. 18 °C). Then press key KM in order to return to the output menu.

Display of the value of the NTC1 sensor [param. "FLOW VL"]

In order to display the temperature measured by the sensor on the rear side of the unit, press key KM (Menu).

HTG SAN INFO >> K1 K2 K3 K4

Press key K3 (INFO); continue with key K4 (>>) until the following appears on the display:

<< FLOW VL >> K1 K2 K3 K4

The value that appears on the display over the arrows above the key K4 is the value that has been measured by the NTC sensor found on the rear side of the unit.

Display of output

In order to display the output with which the unit is working in percent, press key KM (Menu). The display shows:

HTG SAN INFO >> K1 K2 K3 K4

Press key K3 (INFO); continue with key K4 (>>) until the following appears on the display:

<< BURNER >> K1 K2 K3 K4

The value on the display corresponds to the output in %.

The reference values are: Burner at min. output 0%, Burner at max. output 100%. These values have no connection with the PWM value.

Fault display and reset

In case of malfunction, a ﬂashing triangle appears on the display with the message:

RESET BOILER >> K1 K2 K3 K4

By pressing the key K4 the type of fault (from 1 to 4) is displayed. Then press KM in order to arrive at the fault display (ﬂashing triangle). Now press key K1 and the malfunction is reset (the ﬂashing triangle disappears).

REMKO GPM

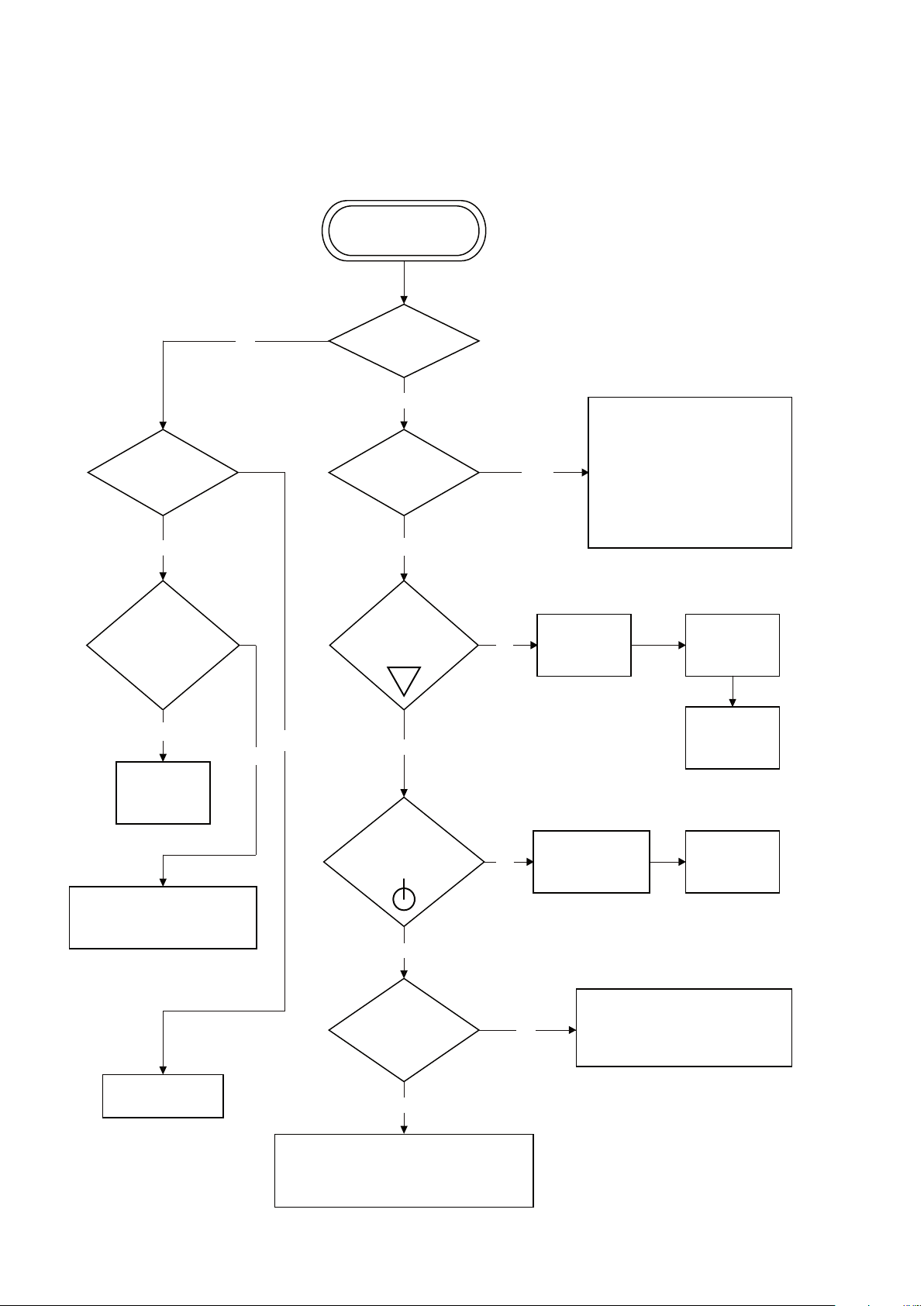

Troubleshooting

Fault-ﬁnding

Betrieb

Warmlufterzeuger

REMKO GPM

Ist die ausgeblasene

Umluft warm?

NEIN

Läuft der Brenner auf

Höchstleistung?

NEIN

Ist der Brenner eingeschaltet?

NEIN

Erscheint auf

dem Display die

Temperatur?

Blinkt dieses Symbol im Display der

Temperaturregelung

NEIN

Kontrollieren:

a) Netzanschluss b) Buskabelverbindung zwischenTemperaturregelung und Steuerplatine c) Elektromagnetische Störungen d) Temperaturregelung mit ent sprechender Taste zurückstellen e) Temperaturregelung defekt

Gerät

blockiert

Gerät

entriegeln

Siehe

Störungs-

ursachen

Wärmeleistung

unzureichend

Prüfen, dass der ST-Wert höher

als von dem NTC1 gemessenem

Wert eingestellt ist

BETRIEB NORMAL

Erscheint

dieses Symbol auf

dem Display?

NEIN

Erscheint

das Symbol

des Heizkörpers

im Display?

NEIN

Anzeige des Wasserhahn-Symbol:

An der Temperaturregelung

die Heizphase auf ON Handbetrieb oder

ON Automatikbetrieb stellen

Temperaturregelung

steht auf Stand-By

Kontrollieren:

a) Kontakt 7-9 geschlossen b) Parameter A35 = 0 c) Wechselschalter auf Winter

Temperaturregelung auf

ON Stellen

Type of faults

Brenner zündet nicht

Sicherheitsthermostat (STB)

Brennergebläse defekt

- Gasversorgung fehlt

- Phase- und Nullleiter vertauscht

- Erdleiter fehlt oder falsch angeschlossen

- Netzanschluss ohne korrekten Nullleiter

- Zündelektrode defekt oder falsch eingebaut

- Überwachungselektrode defekt oder falsch eingebaut

- Überwachungselektrode lose / verliert bei Wärme Masse

- Zündgasdüse verschmutzt oder falsche Dimension

- Umluftventilator defekt

- mangelhafte Kühlung des Wärmetauschers

- Kapillarohr oder Fühler defekt

- Fühlerposition zu nahe am Wärmetauscher

- Thermostat auf Durchgang überprüfen

- Dichtungen defekt, warme Abgase kommen an den Fühler Hinweis: Der Fühler ist nicht nur an der Spitze, sondern auf seiner gesamten Länge sensibel

- Niederspannungskabel zum Brennergebläse defekt oder nicht angeschlossen

- Parameter A1 und A2 müssen den Werten der Tabelle im Abschnitt “Auswechseln der Steuerplatine” entsprechen

- Brennergebläse defekt

ERR

nur mit

Temperatur-

regelung

Fühler NTC1 oder NTC2 werden falsch angezeigt

Verriegelung der Steuerplatine

Flammenüberwachungsgerät

Falsche Verbindung mit der Temperaturregelung

- Prüfen

- Korrekte Position der Brücke 7-9 auf Klemmleiste M1 prüfen

- Fühler NTC1 überprüfen

- Fühler NTC2 überprüfen (nur mit Temperaturregelung)

- Bei wiederholten Verriegelungen Steuerplatine ersetzen

- Kabelverbindung zwischen Flammenüberwachungsgerät und Steuerplatine überprüfen

- Flammenüberwachungsgerät defekt

- Fehlerhaftes Verbindungskabel

- Elektromagnetische Störungen

- Fehlerhafter Anschluss

REMKO GPM

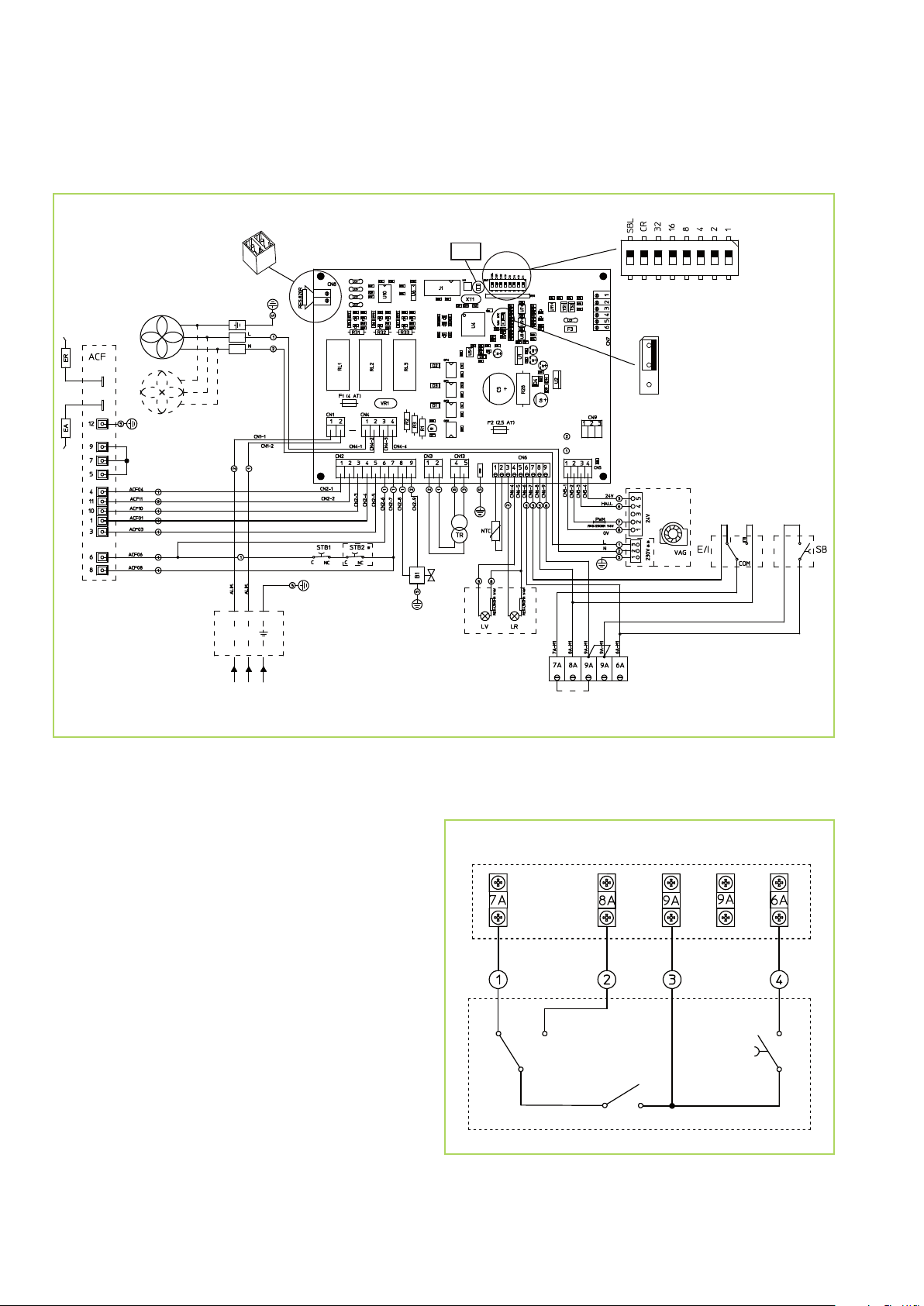

Electrical connection diagram

LED

VA1

VA2

L N

N L

230V 50Hz

NTC

Legend:

ACF = Flame monitoring unit B1 = Ignition burner solenoid valve CN = Electronic temperature regulation connection EA = Ignition electrode ER = Ionisation electrode E/I = Summer/winter toggle switch F1 = Fuse 4A F2 = Fuse 2.5A LR = Fault lamp LV = Operating lamp M1 = Terminal block NTC = Sensor NTC 1 SB = Fault clearing button STB = Safety thermostat (resetting) TR = Transformer 230/24V VA1 = Fan VA2 = Fan (only GPM 55/75) VAG = Burner fan

(SOMMER)

(WINTER)

(WECHSELSCHALTER)

Terminal block M1

(Ein / Aus)

(ENTRIEGELUNG)

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

Exploded view

13 7 811

When ordering spare parts, please state the computerised part no., unit number and type (see identiﬁcation plate)!

REMKO GPM

Venturi burner

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

Spare parts list

No. Designation GPM15 GPM25 GPM35 GPM55 GPM 75

1 Control PCB 1110440 1110441 1110442 1110443 1110444 2 F1 Fuse 4A 1110445 1110445 1110445 1110445 1110445 3 F2 Fuse 2.5A 1110446 1110446 1110446 1110446 1110446 4 Terminal block M1 1110447 1110447 1110447 1110447 1110447 5 Connection for potential equalisation 1110448 1110448 1110448 1110448 1110448 6 Transformer 1110449 1110449 1110449 1110449 1110449 7 RED control lamp 1110521 1110521 1110521 1110521 1110521 8 GREEN control lamp 1110522 1110522 1110522 1110522 1110522

9 Safety temperature limiter 1110452 1110452 1110452 1110452 1110452 10 Blind plug 1110453 1110453 1110453 1110453 1110453 11 Summer/Winter toggle 1110454 1110454 1110454 1110454 1110454 12 Electrical connection bush 1110455 1110455 1110455 1110455 1110455 13 Unlock key 1110456 1110456 1110456 1110456 1110456 14 Cable connections 1110457 1110457 1110457 1110457 1110457 15 Ignition gas pipe 1110458 1110458 1110458 1110458 1110459 16 Flame monitoring unit 1110460 1110460 1110460 1110460 1110460 17 Ignition burner solenoid valve 1110461 1110461 1110461 1110461 1110461 18 Gas valve 1110462 1110462 1110462 1110462 1110463 19 Venturi tube 1110464 1110465 1110465 1110466 1110466 20 Burner fan 1110467 1110467 1110467 1110468 1110469 21 Ignition cable 1110470 1110470 1110470 1110470 1110471 22 Ionisation cable 1110472 1110472 1110472 1110472 1110472 23 Inspection glass with seal 1110473 1110473 1110473 1110473 1110473 24 Ignition gas burner 1110474 1110475 1110476 1110477 1110478 25 Ignition electrode 1110479 1110479 1110479 1110479 1110479 26 Ionisation electrode 1110480 1110480 1110480 1110480 1110480 27 Burner ﬂange seal 1110481 1110481 1110481 1110481 1110481 28 Burner fan seal 1110482 1110482 1110482 1110482 1110483 29 Burner pipe seal 1110484 1110484 1110484 1110484 1110485 30 Natural gas ignition nozzle 1110486 1110487 1110488 1110489 1110490

30a Liquid gas ignition nozzle 1110491 1110492 1110493 1110494 1110495

31 Gas valve seal 1110496 1110496 1110496 1110496 1110496 32 Gas supply pipe 1110497 1110497 1110497 1110497 1110498 33 Gas supply pipe seal 1110499 1110499 1110499 1110499 1110500 34 Counter nut 1110501 1110501 1110501 1110501 1110502 35 Air outlet grid 1110503 1110504 1110504 1110505 1110506 36 Silicon seal 1110450 1110450 1110450 1110450 1110450 37 Flue gas connection 1110508 1110508 1110508 1110508 1110509 38 Closure 1110510 1110510 1110510 1110510 1110510 39 Air supply connection 1110511 1110511 1110511 1110511 1110512 40 Door hinge 1110513 1110513 1110513 1110513 1110513 41 Temperature sensor 1110514 1110514 1110514 1110514 1110514 42 Fan 1110515 1110516 1110517 1110518 1110519

o Fig.

Electrical connection plug 1110520 1110520 1110520 1110520 1110520

When ordering spare parts, please state the computerised part no., unit number and type (see identiﬁcation plate)!

REMKO GPM

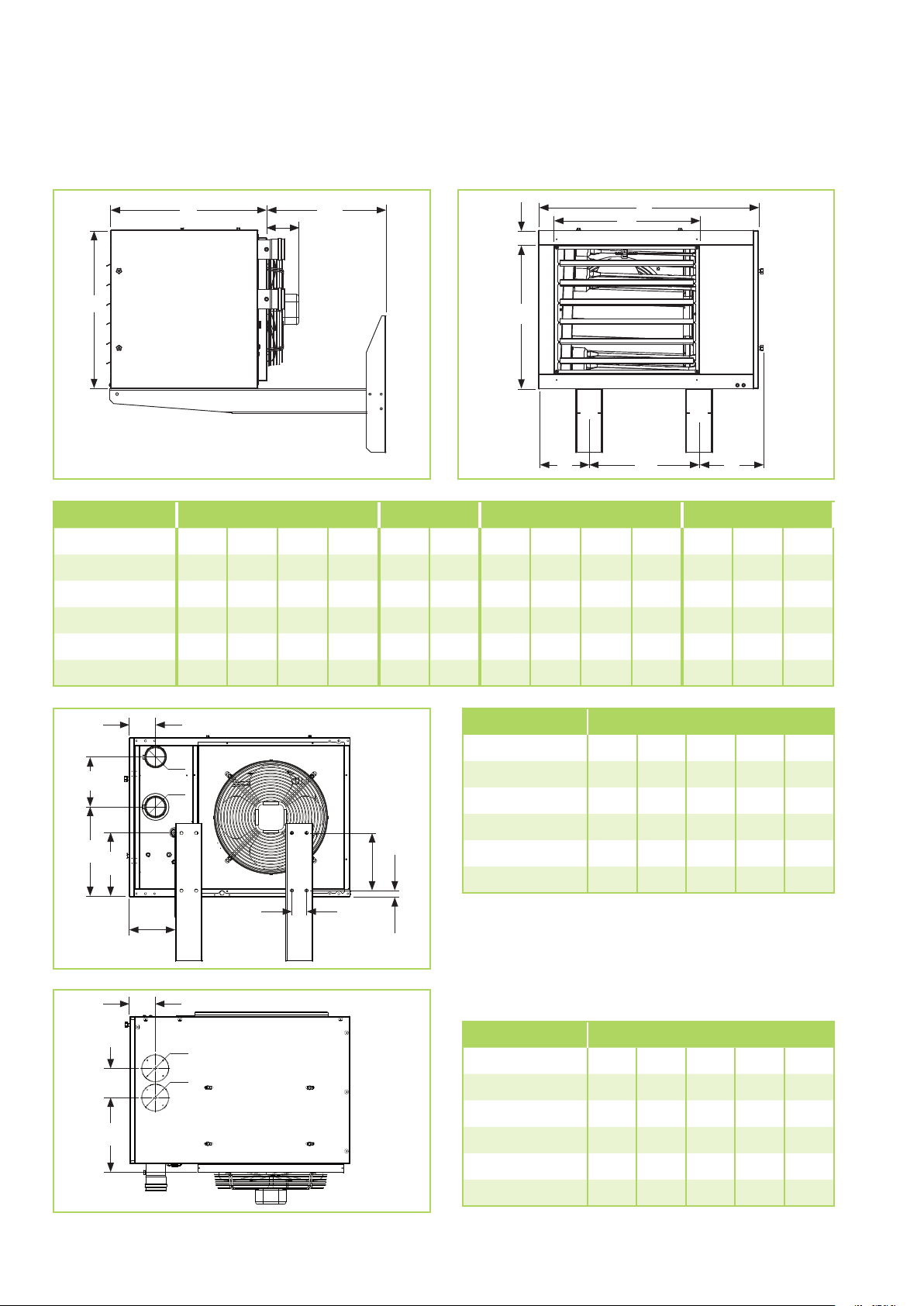

Unit dimensions

B DM

IMIS ID

Series Dimensions Opening Suspended unit Gas supply

L B H V HB LB IM IS ID DM GAS GO GV

GPM15 720 640 650 140 530 415 450 116 174 475 3/4“ 186 263

GPM25 900 640 650 140 530 595 450 206 264 475 3/4“ 186 263

GPM35 900 640 650 140 530 595 450 206 264 475 3/4“ 186 263

GPM55 1240 640 740 140 620 935 780 228 252 475 3/4“ 183 352

GPM 75 1400 750 810 140 690 1080 894 243 283 400 1“ 109 296

Series Horizontal discharge

A F AV TV L

ØF

ØA

GPM15 80 80 367 204 105

GPM25 80 80 367 204 105

GPM35 80 80 367 204 105

235

GPM55 80 80 457 204 105

GPM 75 100 100 511 204 130

A = Supply line

F = Flue gas line

ØF

Series Vertical discharge

A F AO TO L

ØA

GPM15 80 80 305 120 105

GPM25 80 80 305 120 105

AO TO

GPM35 80 80 305 120 105

GPM55 80 80 310 120 100

GPM 75 100 100 400 140 127

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

Technical data

Series GPM15 GPM25 GPM35 GPM55 GPM 75

min. max. min. max. min. max. min. max. min. max.

Nominal thermal load

Nominal thermal output

Nominal air ﬂow volume

Fuel

Efﬁciency

Gas connection

Air temperature increase

Gas ﬂow rate (natural gas H)

Gas ﬂow rate (natural gas L)

Gas ﬂow rate (liquid gas)

reqd. draft intensity

Available ﬂue gas pressure

Noise output LpA 6m

Voltage supply

Frequency

kW 12.5 16.5 20.0 26.5 24.0 34.8 40.0 58.0 58.0 78.0

kW 11.8 15.1 18.8 24.4 22.6 31.5 37.6 53.0 54.5 71.5

m3/h 2450 3050 3050 6250 6800

Natural gas or liquid gas

% 94.0 91.8 94.0 91.9 94.0 90.5 94.0 91.4 94.0 91.7

Inch ¾“ ¾“ ¾“ ¾“ 1“

°C 14.1 18.0 18.0 23.4 21.7 30.2 17.6 24.8 23.5 30.8

m3/h 1.32 1.75 2.12 2.80 2.54 3.68 4.23 6.14 6.14 8.25

m3/h 1.54 2.03 2.46 3.26 2.95 4.28 4.92 7.13 7.13 9.59

kg/h 0.79 1.05 1.27 1.68 1.52 2.21 2.54 3.68 3.68 4.95

Pa 0

Pa 50 50 90 120 120

dB(A) 42.9 46.9 46.9 50.5 50.5

V/Hz 230/1~

Hz 50

Nominal current

Power consumption

Combustion air connection ø

Flue gas connection ø

Weight

A 0.61 1.13 1.13 1.91 1.91

W 140 260 260 440 440

mm 80 80 80 80 100

kg 59 65 69 97 150

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

REMKO ACROSS EUROPE

… and in your area!

Proﬁt from our experience and advice

Consultancy

Intensive training means our consultants are always up-to-date with the latest developments. This has given us the reputation of being more than just a good and reliable supplier: REMKO, a partner who helps solve problems.

Sales

REMKO not only has a well-established

sales network at home and abroad, it also employs highly trained sales specialists.

REMKO-Our ﬁeld staff are more than

just salesmen: above all, they must advise our clients in the areas of air conditioning and heating technology.

REMKO GmbH & Co. KG. Klima- und Wärmetechnik

Customer service

Our equipment works with precision and reliability. However, should a fault should occur, REMKO customer service is quickly at your side. Our extensive network of experienced dealers guarantees quick and reliable service.

Im Seelenkamp 12 · D-32791 Lage Postfach 1827 ·D-32777 Lage Telephone +49 5232 606-0 Fax +49 5232 606-260 E-mail info@remko.de Internet www.remko.de

Subject to technical modiﬁcations, no responsibility taken for the correctness of information!

REMKO GPM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
