REMKO ATY 261 User Manual

REMKO ATY

ATY 261, ATY 351

Wall-mounted air conditioning unit

Operation · Technology · Spare parts

Edition GB – U01

Contents

Safety notes

Environmental protection and recycling

Warranty

Transportation and packaging

Description of the equipment

Combinations

Operation

Shutdown

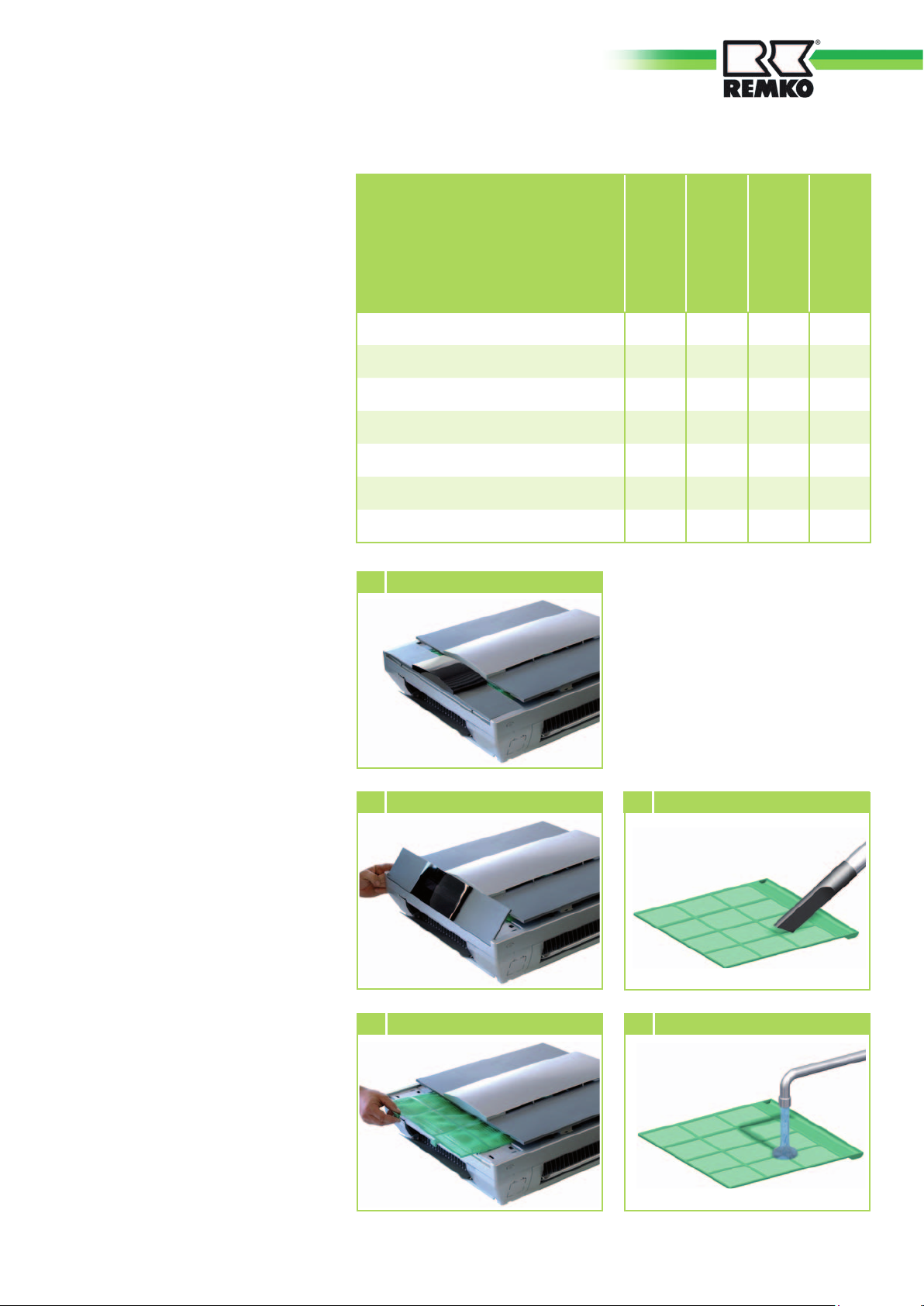

Care and maintenance

Troubleshooting and customer service

Installation instructions for qualified personnel

Installation

Condensation connection

4

4

4

5

5

5

6-13

14

14-15

16-17

18

19

20

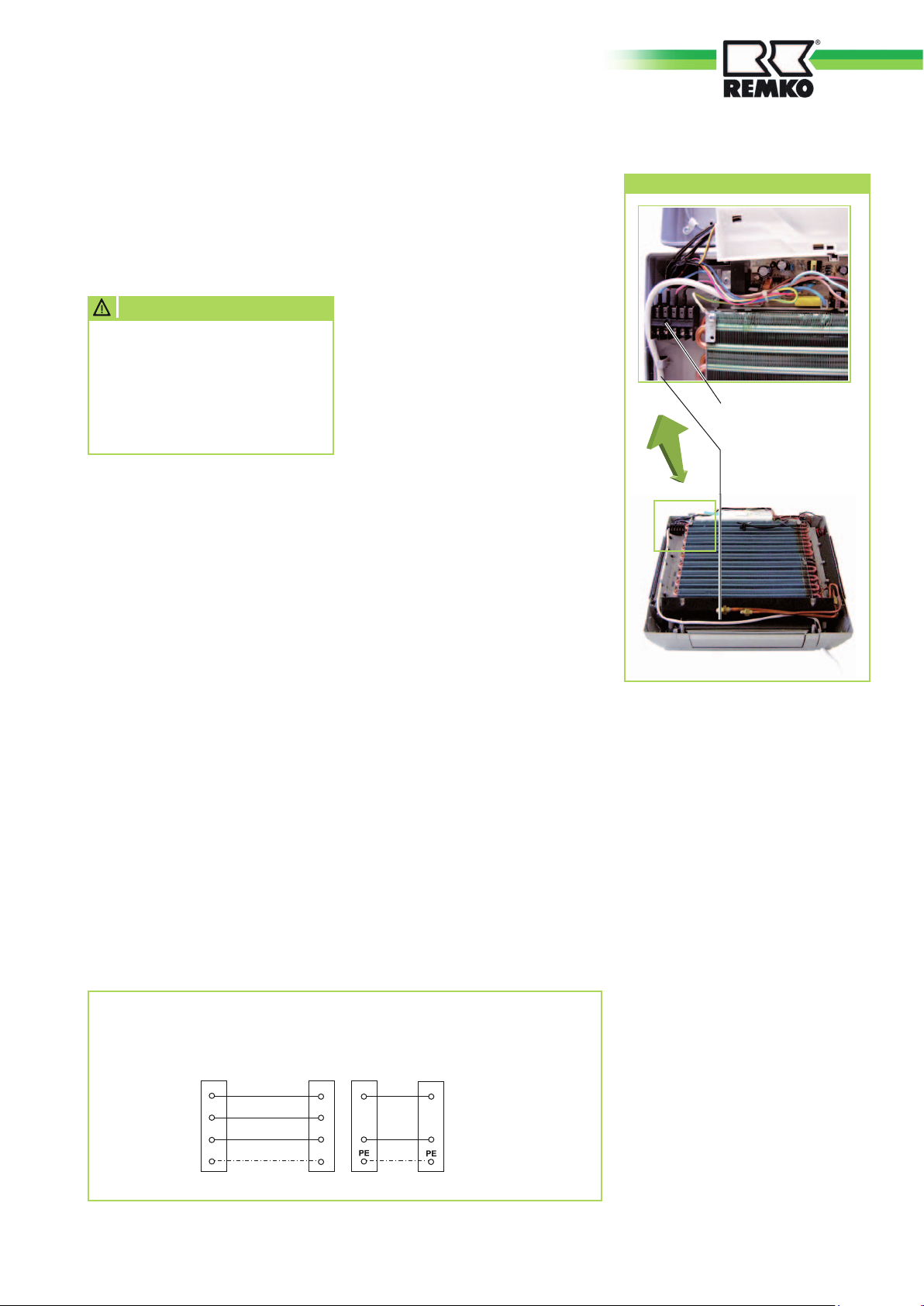

Electrical connection

Electrical connection diagram

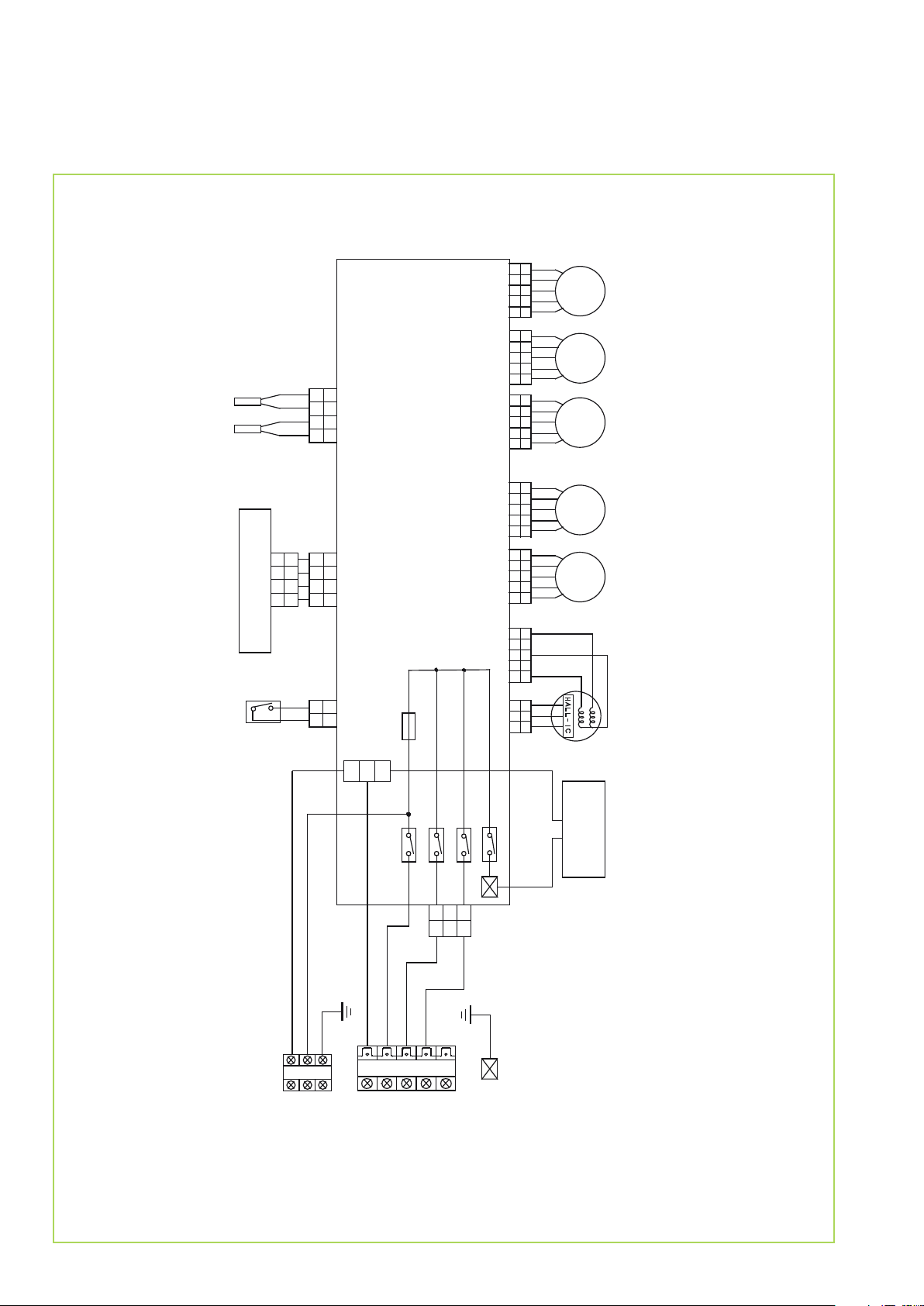

Electrical circuit diagram

Commissioning

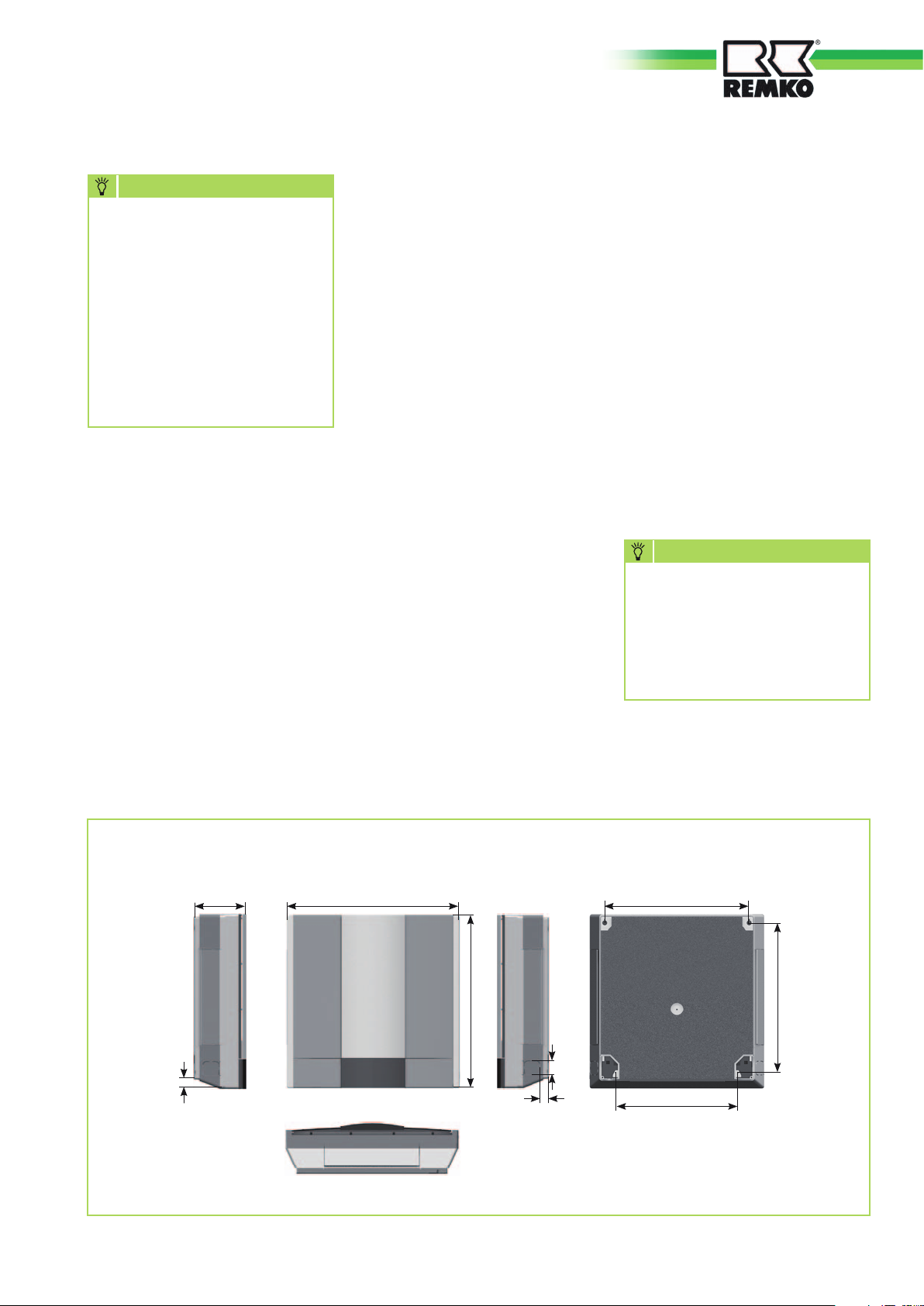

Unit dimensions

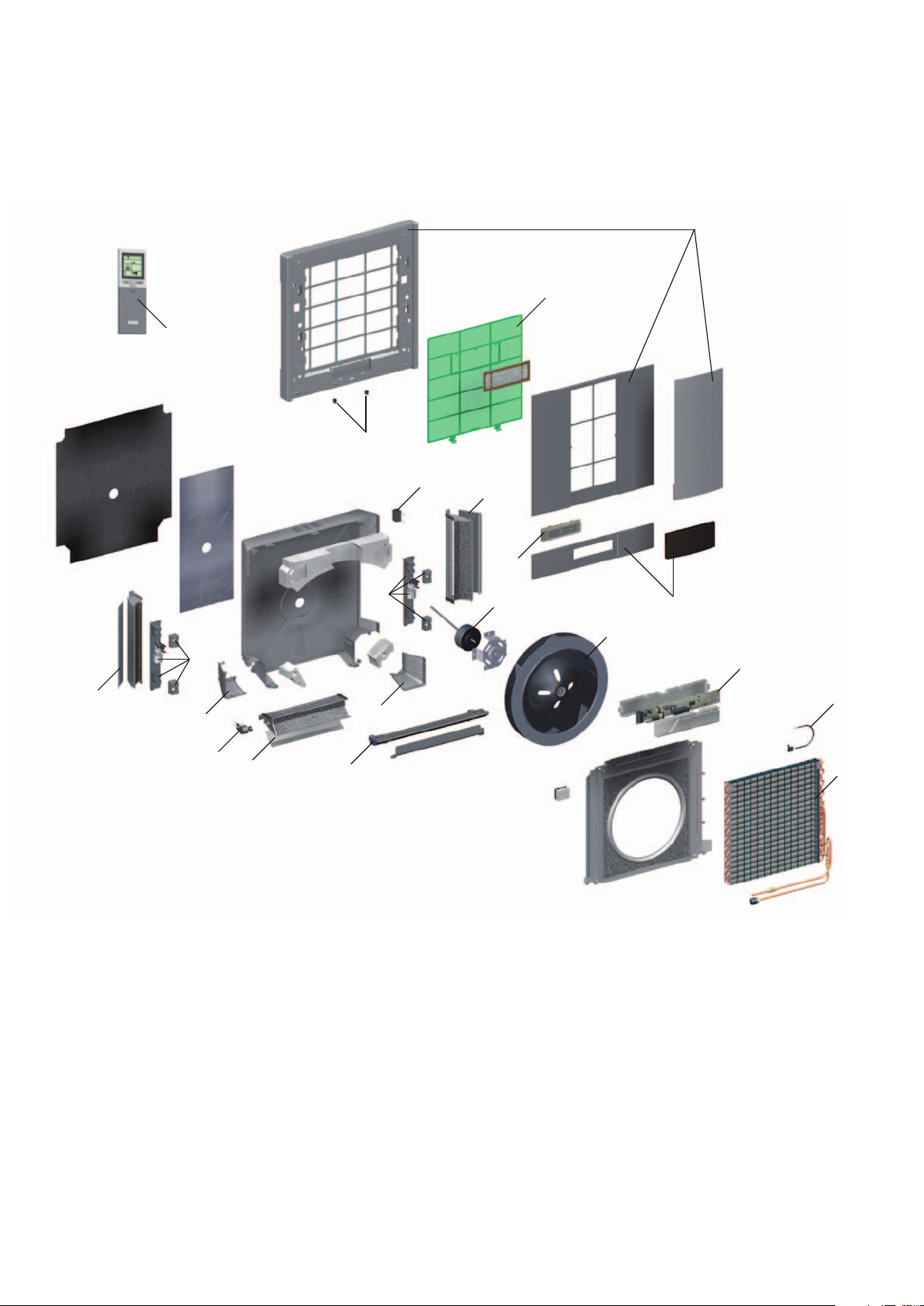

Exploded view

Spare parts list

Technical data

Carefully read this operating manual prior to commissioning or
using the equipment!

21

21

22

23

23

24-25

24-25

26

This manual is an integral part of the unit and must be stored at the
installation location or in the immediate vicinity.

Subject to modifications; No liability accepted for errors or misprints!

3

REMKO ATY

Safety notes

Carefully read this manual before
starting the unit for the first time. It
contains useful tips and notes as
well as hazard warnings to prevent
injury or material damage . Non­observance of this manual may
endanger persons, the environment
as well as the equipment itself and
will void any claims for liability.

■ Store this manual and the

refrigerant datasheet in the
vicinity of the unit.

■ The unit should only be set

up and installed by qualified
personnel.

■ The setup, connection and

operation of the unit and
its components must be in
accordance with the operating
conditions stipulated in this
manual and comply with all
applicable local regulations.

■ Units designed for mobile use

should be safely set up on a
suitable floor and in a vertical
position.Units designed for
stationary use should only be
operated in their permanently
installed state.

■ It is prohibited to make

modifications or changes to
equipment or components
supplied by REMKO as this may
cause malfunctions.

■ Equipment and components

should not be operated in areas
where there is a heightened
damage risk. Observe the
minimum clearances.

■ The electrical supply should

be adapted to fulfil the
requirements of the unit.

■ The operational safety of

equipment and components is
only assured providing they are
used as intended and in a fully
assembled state. Safety devices
should not be modified or
bypassed.

■ Do not operate equipment

or components with obvious
defects or signs of damage.

■ All housing parts and openings,

e.g. air inlets and outlets, must
not be blocked by foreign items,
fluids or gases.

■ The equipment and components

must be kept a safe distance
from inflammable, explosive,
combustible, agressive and dirty
areas or atmospheres.

■ Persons coming into contact

with equipment parts may suffer
burns or injury.

■ Installation, repair and

maintenance work should only
be carried out by authorised
specialists. Inspection and
cleaning can be performed
by the operator providing the
equipment is not under voltage.

■ < Take appropriate hazard

prevention measures when
performing installation, repair or
maintenance work or cleaning
the equipment.

■ The equipment and components

should not be exposed to any
mechanical stresses, extreme
levels of humdity or direct
exposure to sunlight.

Environmental
protection
and recycling

Disposal of packaging

All products are carefully packaged
using environmentally friendly
materials prior to transportation.
Make a valuable contribution to
reducing waste and sustaining
raw materials. Only dispose of
packaging at approved collection
points.

Disposal of
old equipment

Equipment manufacture is subject
to continuous quality control. Only
high-quality materials are used, the
majority of which can be recycled.
Help protect the environment by
only disposing of old equipment in
accordance with local regulations
and in an environmentally safe
manner, e.g. through authorised
disposal and recycling specialists or
at collection points.

Warranty

In order to make warranty claims, it
is essential that the ordering party
or their representative complete
and return the "certificate of
warranty" and commissioning
report to REMKO GmbH & Co. KG
at the time when the equipment
was purchased and commissioned.
The warranty conditions are
detailed in the "General terms
and conditions“. The contractual
parties can also agree additional
terms beyond the scope of the
above. In this case, first contact the
contractual partner.

4

Transportation and
packaging

The equipment has been shipped
in sturdy packaging. Immediately
check the equipment on delivery
and make a note of any damage or
missing parts on the delivery note.
Inform the forwarding agent and
contractual partner.

Warranty claims at a later date will
not be accepted.

Unit description

The indoor unit of the combined
split-design air conditioning
equipment absorbs the heat
extracted from the interior room
being cooled. The outdoor
component then expels this heat
into the outside air.

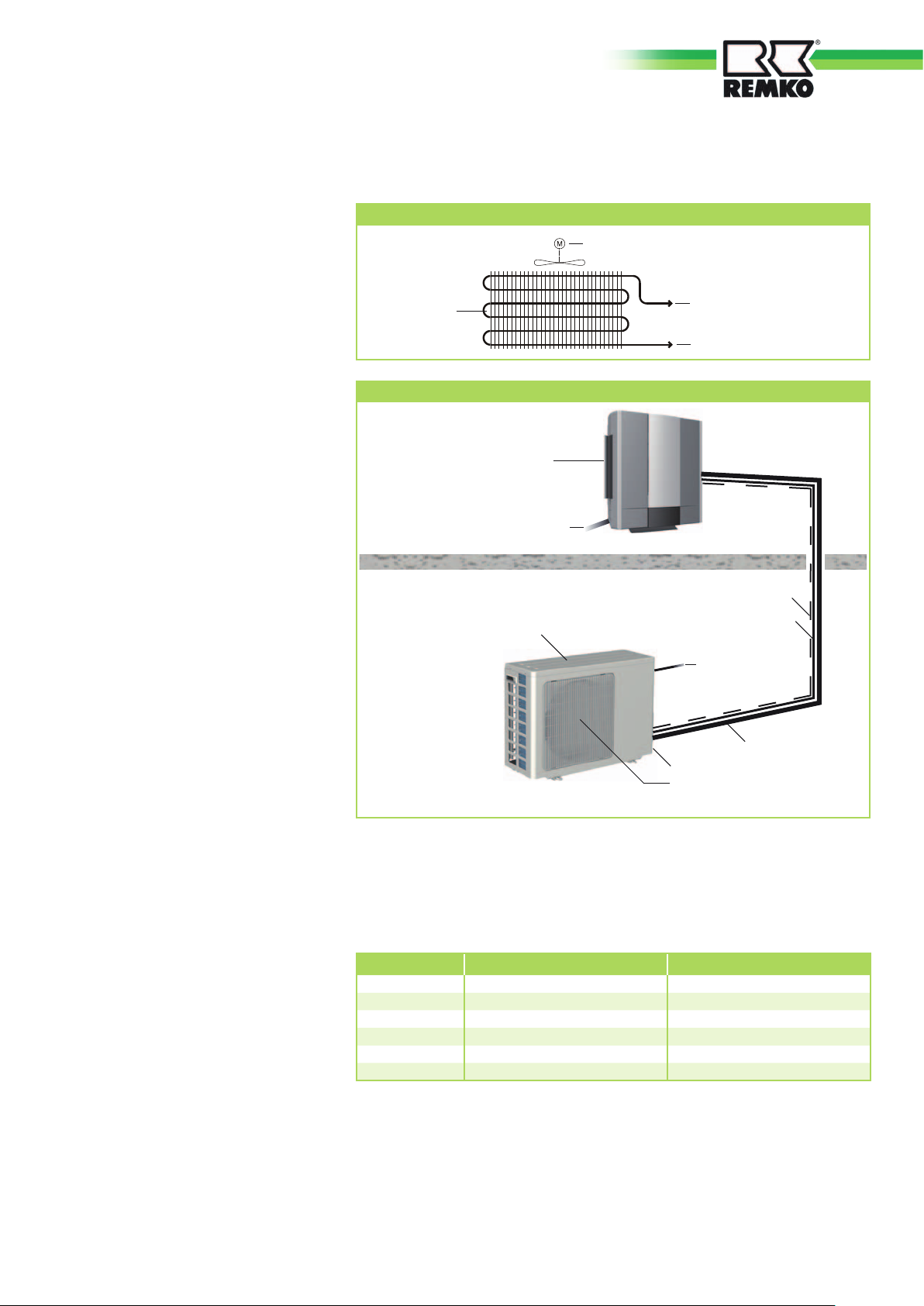

Schematic of refrigerant circuit

Vaporiser

System layout

Indoor area

Indoor unit

Condensation pipe

Outdoor area

Outdoor unit

Vaporiser fan

Connection to suction pipe

Connection to injection pipe

Control cable

Injection pipe

Mains cable

The unit is designed for indoor
installation, high up on walls. It is
operated by an infrared remote
control.

The indoor unit comprises a finned
vaporiser, vaporiser fan, controller
and condensation tray. The indoor
unit may be used in conjunction
with REMKO outdoor components
that provide the required cooling
output. The outdoor component is
controlled by the regulator in the
indoor unit.

Condensation pumps are also
available as accessories.

Suction pipe

Stop valve
Liquefier fan

Refrigerant pipes are used to connect the indoor unit to the outdoor
component.

Combinations

Cooling

ATY 261 ATY 351

RXM 226
RXM 235
RXM 326
RXM 335
RXM 426
RXM 435

••

••

•• •

•••

••••

••••

5

REMKO ATY

Operation

The indoor unit is easy to operate using an infrared remote control. This is supplied as standard.
The indoor unit beeps to acknowledge the correct transmission of data.
If it is not possible to program the indoor unit using the remote control, it can also be manually operated.

Manual operation

The indoor unit can also be started
manually. Press the button on
the right of the unit to activate
automatic mode.

The following settings apply to
manual mode:

Automatic mode:
above 21 °C = cooling mode,
set temperature 24 °C
fan speed AUTO

Pressing any button on the infrared
remote control interrupts manual
operation.

Infrared remote control

The infrared remote control can
send the programmed settings
from a distance of 6 m to the
receiver on the indoor unit.
Data will only be received correctly
if the remote control is pointed
at the receiver and no objects are
obstructing the transmission path.

First of all, insert the batteries
(two type AAA) supplied with the
remote control.
Remove the cover on the battery
compartment and insert the
batteries. Take into account the
correct polarity (see markings).

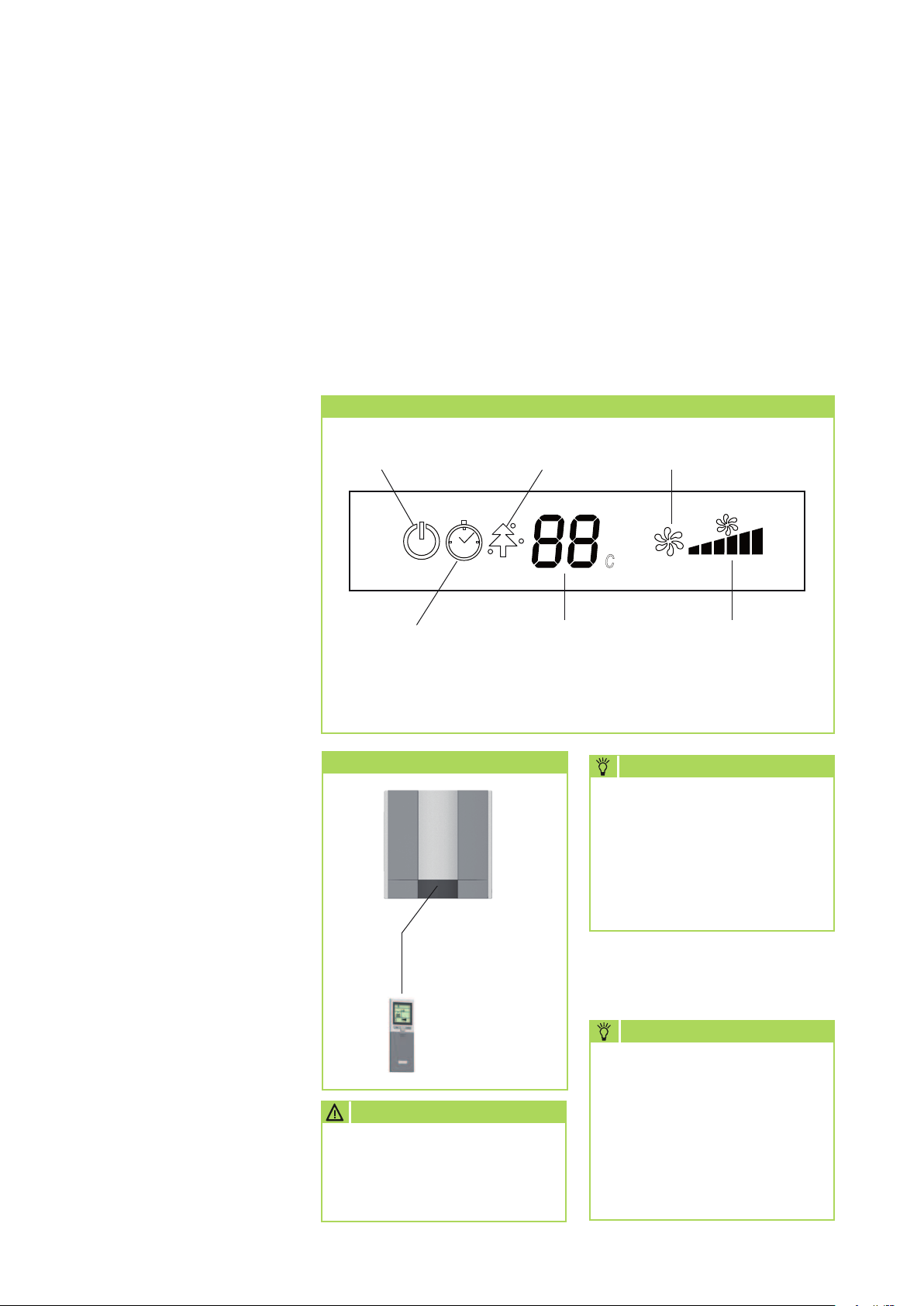

Display on indoor unit

The display is lit according to the
settings.

Display on indoor unit

Power

Unit switched on

Timer mode

Max. distance 6 m

max. 6 m

Ion generator

switched on

Used to display

coded error

messages, room

and target

temperature

CAUTION

Errors are displayed in coded
format (see chapter on
trouble-shooting and customer
service).

Display

Circulation mode

active

SET

TURBO

C

Fan speed

Levels 1, 2 and 3 and

Auto (flashing)

NOTE

Immediately replace flat
batteries with a new set,
otherwise there is a risk of
leakage. It is recommended
that the batteries are removed
if the equipment is shut down
for long periods

TIP

Help save on energy consump­tion in stand-by mode! If the
device, system or component
is not in use, we recommend
disconnecting the power sup­ply. Components with a safety
function is excluded from our
recommendation!

6

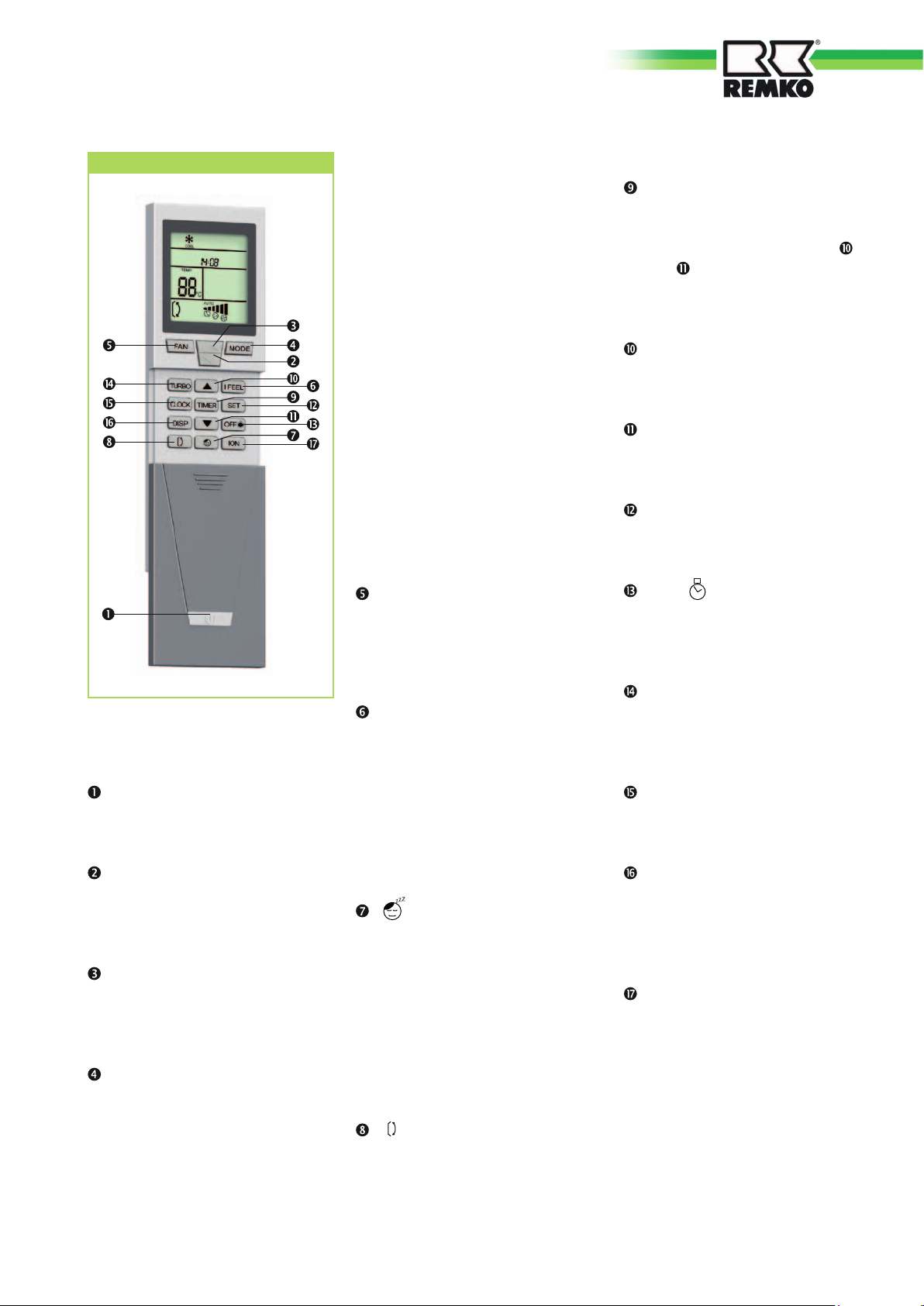

Buttons on the remote control

Buttons on the remote control

"ON/OFF" Button

Press this button to start the
equipment.

"" Button

Press this button to reduce the
desired temperature to a value
as low as 16 °C.

"" Button

Press this button to increase the
desired temperature to a value
as high as 30 °C.

"MODE" Button

Press this button to select the
operating mode. The indoor unit
has 5 modes:

1. Automatic mode
In this mode the equipment is
running in cooling mode.

2. Cooling mode
In this mode the room air is
cooled to the preset target
temperature.

3. Heating mode
Heating mode is not supported.

4

. Circulation mode
In this mode the room air is
circulated.

5

. Dehumidifying mode
In this mode the room is
mainly dehumidified, the set
temperature is maintained.

"FAN" Button

Press this button to set the
required fan speed. 4 levels
are available: Automatic, high,
medium and low fan speed.

"I FEEL" Button

Press this button to change
the point of room temperature
measurement to the remote
control.
The temperature measured
by the remote control is then
sent at regular intervals to the
indoor unit.

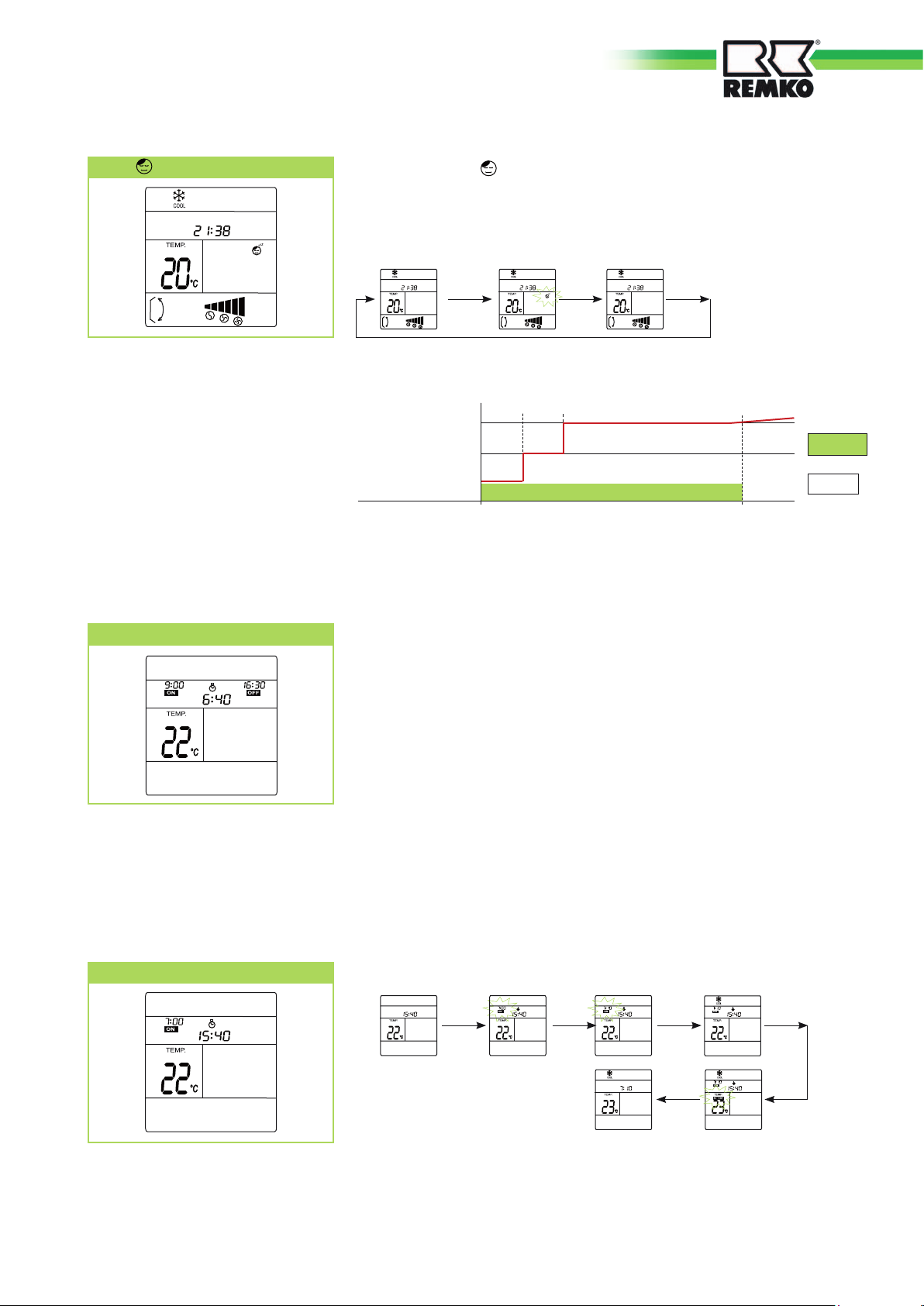

" " (SLEEP) Button

Press this button to activate
sleep mode. In cooling mode,
the target temperature is
automatically raised by 1
°C after 1 hour. After the
2nd hour, the temperature
automatically increases/
reduces by 2°C. This function
deactivates itself after 6 hours.

" " (SWING) Button

This button activates the
oscillating fin function
to provide improved air
distribution in the room.

"TIMER" Button

Press this button to activate the
automatic switch-on/off time
for the equipment. Buttons
and are used to program
these times at 10 minute
intervals.

"" Button

This button increases the value
when setting the clock or timer.

"" Button

This button decreases the value
when setting the clock or timer.

"SET" Button

Press this button to activate the
previously set timer.

"OFF " Button

Press this button to activate a
switch-off timer of 1/2, 1, 2 or
5 hours.

"TURBO" Button

Press this button to activate
maximum fan speed for 30
minutes.

"CLOCK" Button

Press this button to activate
clock setting mode.

"DISP" Button

Press this button to send the
current temperature of the
remote control to the indoor
unit using the I-Feel function.

"ION" Button

Press this button to switch on
the ion generator.

7

REMKO ATY

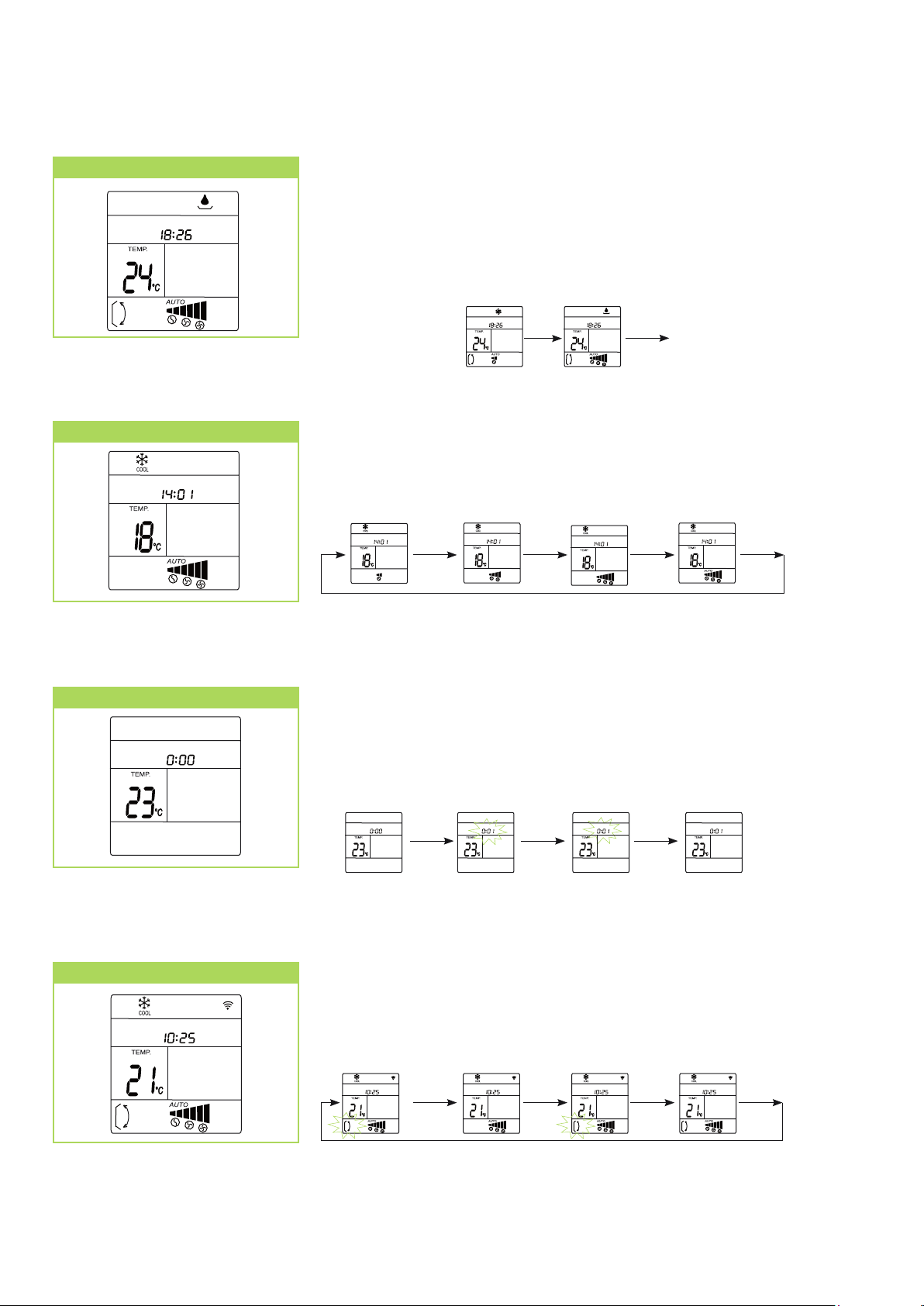

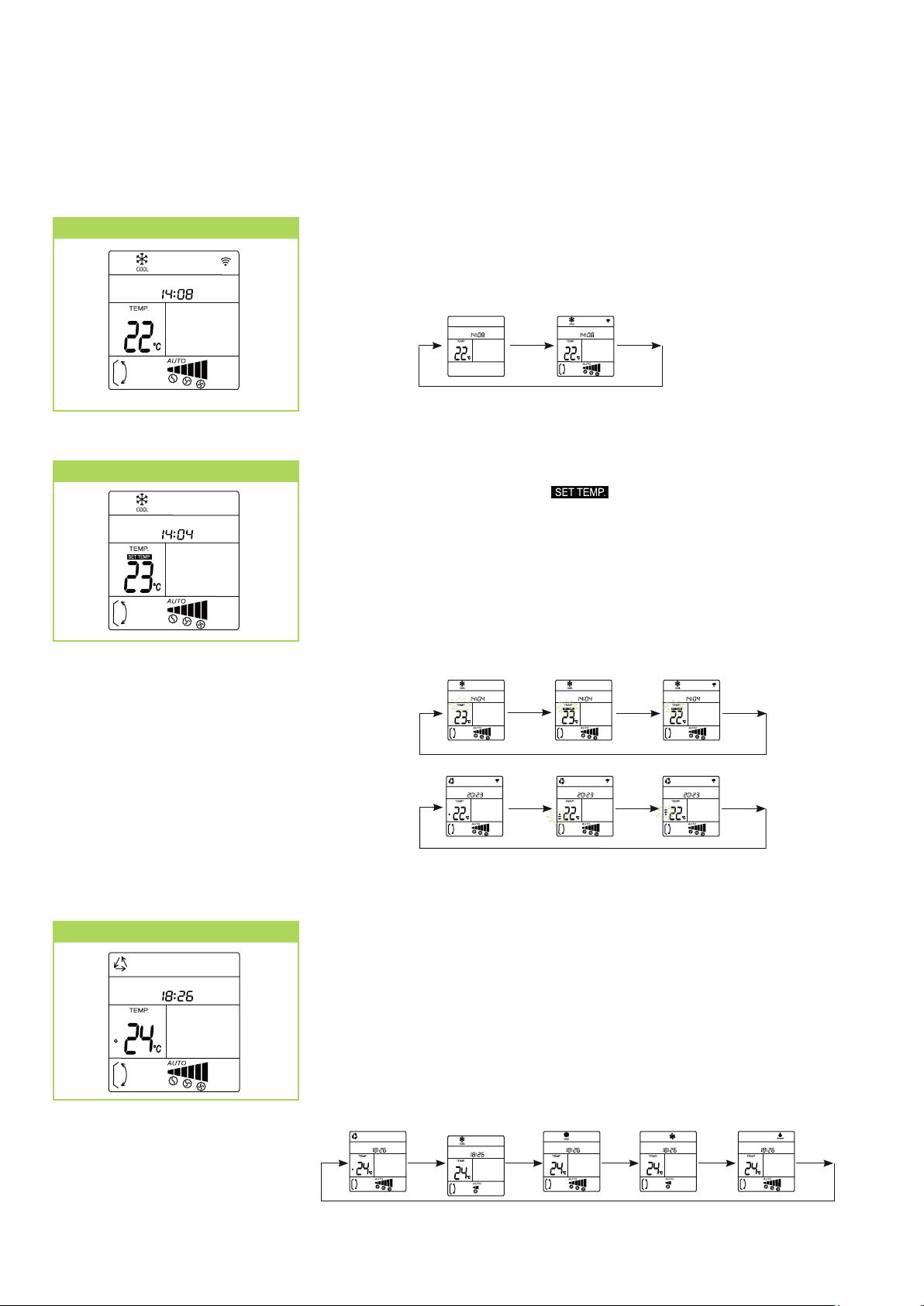

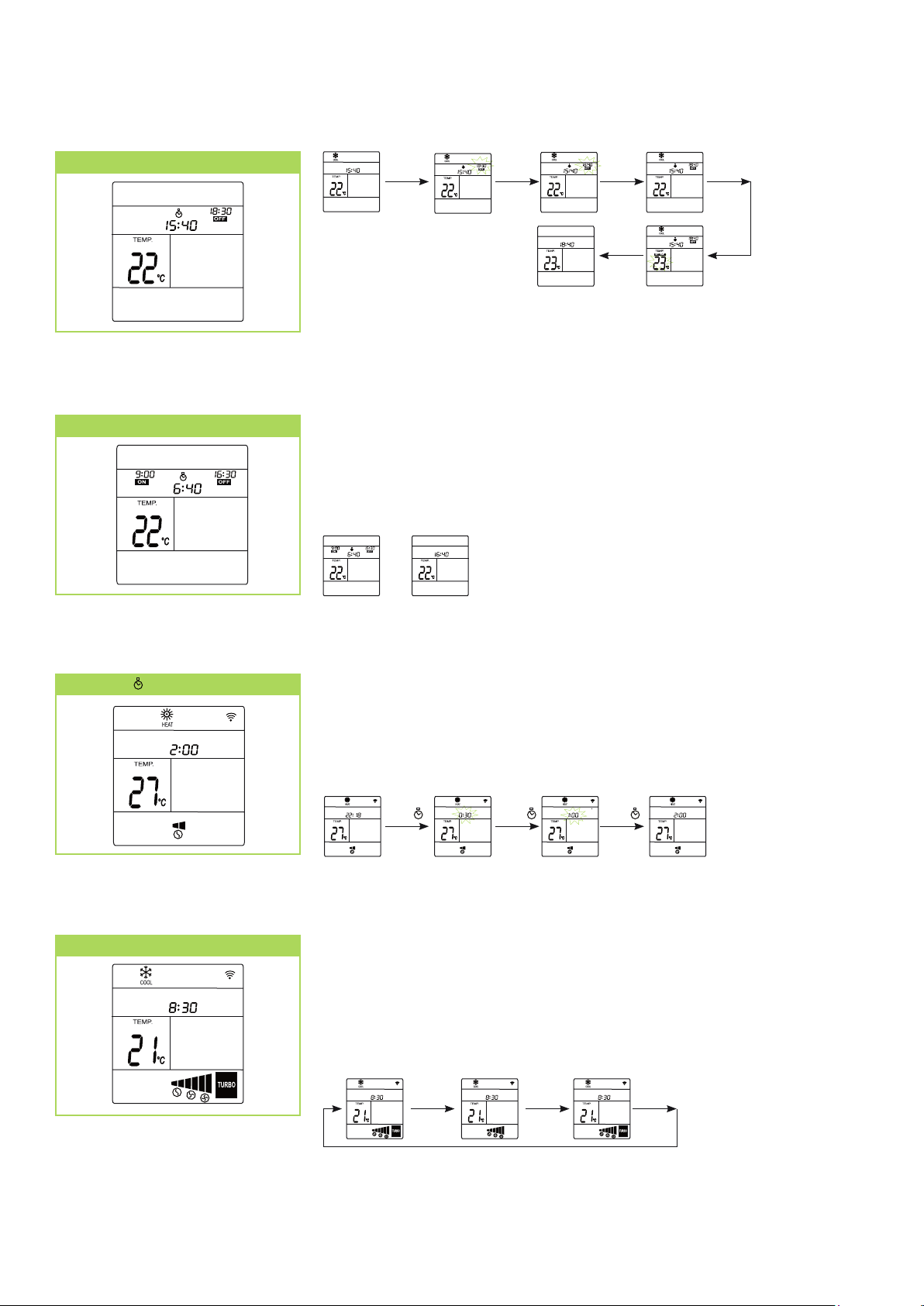

Button functions

A symbol is shown on the display to indicate that the settings are being transferred.

ON/OFF Button

/ Buttons

Press the ON / OFF button to activate or deactivate the unit.
The programmed settings and parameters are shown on the display
before the unit switches off.

ON/OFF ON/OFF

The remote control has its own temperature display. Press the /
buttons to change the display to . The  button reduces the
desired target temperature, the  button increases it. This setting is
only supported in cooling mode. In automatic mode, press the  button
to reduce the fixed temperature from 24 °C by 1 or 2 °C, press the 
button to increase it by 1 or 2 °C.
The current setting is displayed next to the temperature.

Temperature adjustment is not possible in dehumidifying mode.

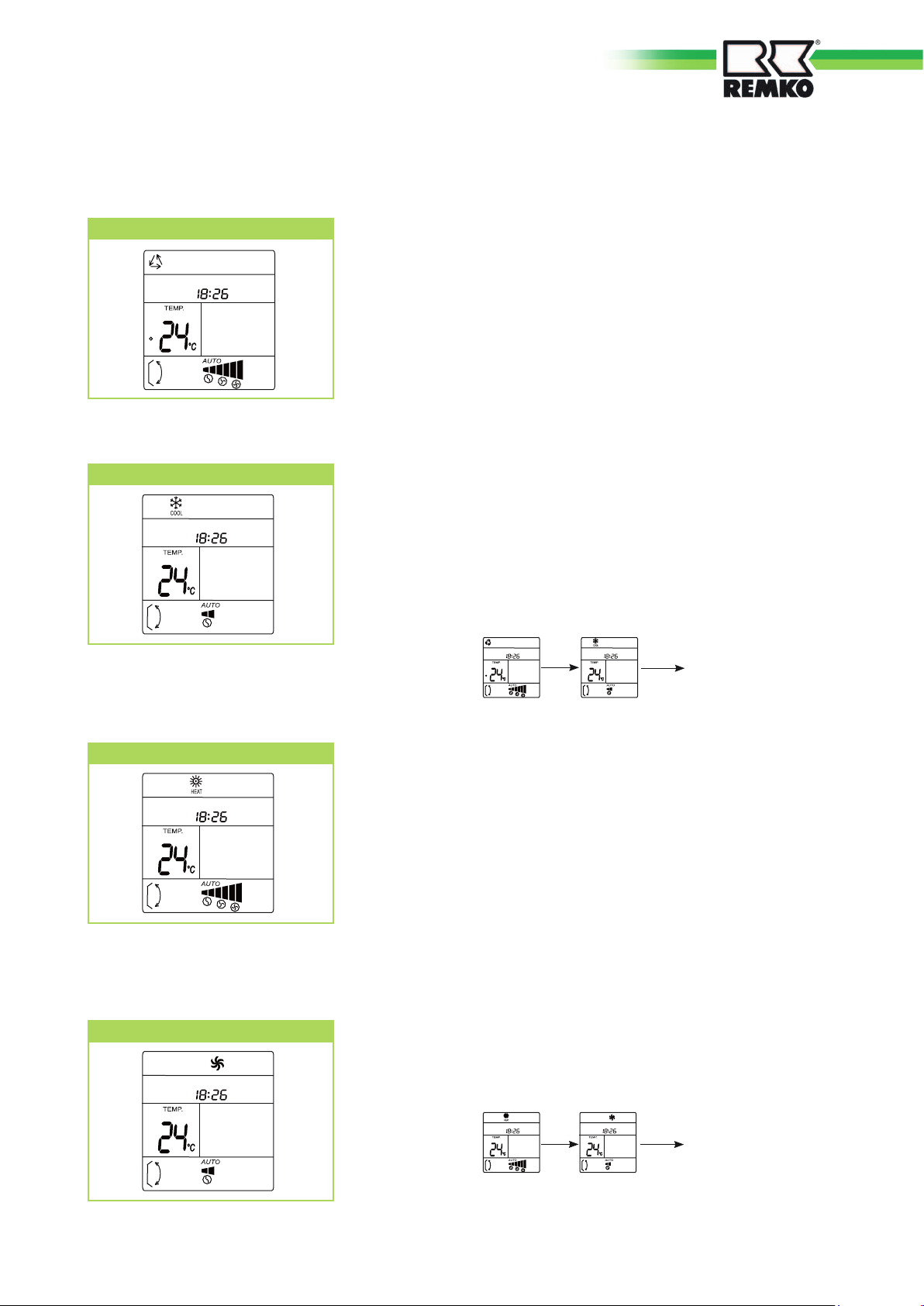

MODE Button

 

Cooling mode

... ... 

Automatic mode

Press the MODE button to switch between operating modes. A total of 5
modes are available:

1. Automatic automatically selects cooling mode

2. Cooling mainly used in summer

3. Heating not possible

4. Circulation for air circulation only

5. Dehumidify used in summer or winter

Automatic Cooling

Heating

Circulation Dehumidify

MODE

8

MODE MODE MODE MODE

AUTOMATIC Mode

This mode is not supported.

COOLING Mode

HEATING Mode

In cooling mode the room air is cooled to the preset target temperature.
The desired room temperature is set in 1 °C steps using the /
buttons. If the room temperature reaches 1 °C above the set target
temperature, the indoor unit starts to cool the room air. If the actual
temperature falls approx. 0.5 °C below the set room temperature, the
controller switches the cooling off. In order to protect the compressor, the
controller will only switch the cooling back on after a holding period of 3
minutes.

MODE

COOLING
MODE

This mode is not supported.

CIRCULATION Mode

In circulation mode only the room air is circulated.
The room temperature cannot be changed in this mode
Cooling is not activated

MODE

Circulation

9

REMKO ATY

DEHUMIDIFY Mode

FAN Button

In dehumidifying mode, the room temperature can be set between 18 °C
and 30 °C. The low refrigerant temperature causes the air temperature
at the finned heat exchanger to fall below the dew point. Any excess
humdity in the air condenses in the finned heat exchanger. As a result the
room is dehumidified. The fan speed cannot be altered.

MODE

DEHUMIDIFICATION
MODE

Press this button to set the fan speed. One can choose between low,
medium, high and automatic fan speed.

FANFANFAN FAN

CLOCK Button (hidden)

SWING Button (hidden)

Press the CLOCK button under the cover the program the time. The time
will flash on the display. Press the  and  buttons under the cover to
set the current time. Press the SET button to complete the programming
procedure< the display will stop flashing.

CLOCK



SET

Press this button to select the oscillating function for the air
outlet fins. This allows direct switching from a fixed position to the
oscillating function. The swing function improves air circulation in the
room.

SWINGSWINGSWING

SWING

10

SLEEP Button (hidden)

Press the buttons to activate a program which will raise the target
temperature in cooling mode by 1 °C and 2 °C after 1 and 2 hours
respectively.

SLEEPSLEEPSLEEP

Diagram of function

1 hr.

2 hrs. 6 hrs.

Target temperature +2°C

Target temperature +1°C

Operation

TIMER Button

(covered)

Unit operational

Stop

This button is used to program the switch-on and switch-off times.
Press the TIMER button several times to activate the switch-on, switch­off or combined switch-on/switch-off timer. The switch-on/off time
will flash. The Timer symbol on the indoor unit is lit. Press the  and
 buttons to set the desired switch-on/off time. If set successfully, the
Timer symbol will flash a further 15 seconds. Press the SET button to
complete programming. The unit automatically switches on or off once
the programmed time is reached. f the unit is switched on automatically,
the previously set mode, temperature and fan speed are activated.
The switch-on/off time can be prematurely cancelled by pressing
the appropriate Timer button. The timer symbol on the indoor unit
extinguishes.

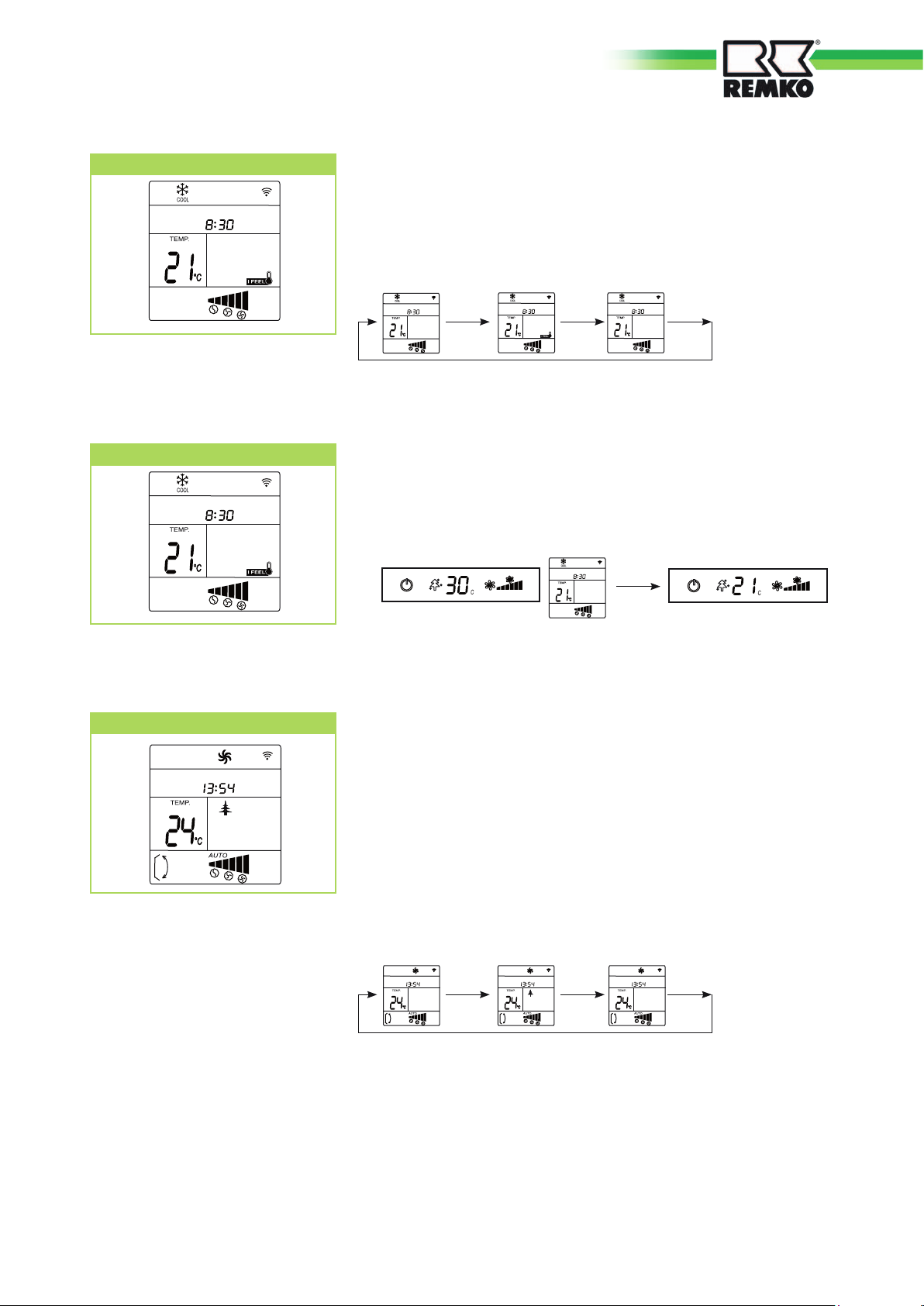

TIMER ON programming

Timer

 \

Unit in

operation

SET

Programmed
time reached

/

11

REMKO ATY

TIMER OFF programming

TIMER ON/OFF programming

TIMER

 

Unit shut

down

SET

Programmed
time reached



The controller switches the unit on and off at the programmed times.
During operation, all the settings are shown on the display. Only the
timer settings are visible when the unit is shut down.

Unit On Unit Off

Example:

The controller switches on at 09:00.
The unit remains operational until 16:30.

TIMER OFF

TURBO Button (hidden)

(hidden)

This button is used to program a countdown timer for switching off the
unitPress several times to set the timer to 30 minutes, 1 hour, 2 hours, 3
hours or 5 hours. The current time is replaced by the remaining time.

OFF OFF OFF

Press this button to increase the air flow rate in cooling or heating mode
for 30 minutes. This allows rapid cooling or heating of the room. Cooling
and humidifying mode cannot be reached, instead the unit switches to
automatic mode.

After 30 minutes the controller reverts to the last programmed settings.

TURBOTURBOTURBO

12

I FEEL Button (hidden)

The unit measures the temperature inside the wall-mounted equipment.
This may differ from the temperature near the remote control. Press this
button to send the temperature measured at the remote control to the
wall-mounted unit. The temperature is continually adjusted to the actual
temperature of the remote control (approx. every 5 minutes) providing
the function is switched on.

I FEELI FEELI FEEL

DISP Button (hidden)

ION Button (hidden)

In I FEEL mode the temperatures of the remote control and the display on
the unit may differ. Press this button to immediately send an adjustment
signal to the unit, the target temperature remains unchanged.

DISP

C

C

The unit includes an ion generator for generating negative ions.
High levels of negative ions may be found in mountain regions, near
waterfalls or in forests. Humans perceive such air to be "pure" when
they are breathing it in. In contrast, indoor rooms usually contain low
concentrations of ions. The ion generator enriches the oxygen molecules
in the circulated air to improve the air quality for humans. Suspended
particles and dust are bound in the air to facilitate natural air purification.
Ionisation causes the dust to settle on smooth surfaces where it can be
wiped away. Ensure the housing and filter are cleaned on a weekly basis
when using ionisation. This function is available in all operating modes.

IONIONION

13

REMKO ATY

Shutdown Care and maintenance

Temporary hutdown

1. Let the indoor unit run for 2 to
3 hours in circulation mode, or
in cooling mode at maximum
temperature, to extract any
residual humidity from the unit.

2. Shut down the unit using the
remote control.

3. Switch off the supply voltage
to the unit.

4. Check the unit for visible
signs of damage and clean as
described in the chapter "Care
and maintenance".

Permanent shutdown

Ensure that equipment and
components are disposed of
in accordance with local
regulations, e.g. through
authorised disposal and recycling
specialists or at collection points.

REMKO GmbH & Co. KG or their
authorised partners will be pleased
to provide details of specialists in
your area.

CAUTION

Ensure the unit is not under
voltage when performing care
and maintenance tasks.

Regular care and observance of
some basic points will ensure
trouble-free operation and a long
service life.

CAUTION

Prior to performing any
work, ensure the equipment
is isolated from the voltage
supply and secured to prevent
accidental switch-on!

Care

■

Ensure the indoor unit is
protected against dirt, mould
and other deposits.

■

Clean the indoor unit and
outdoor component using a
damp cloth. Do not use any
caustic, abrasive or solvent­based cleaning products.Do not
use a jet of water.

■

Clean the fins on the unit prior
to long shutdown periods.

Maintenance

■ It is recommended that you

take out a maintenance contract
with an annual service from an
appropriate specialist firm.

TIP

This ensures the operational
reliability of your equipment!

Cleaning the housing of the
indoor unit

1. Disconnect the supply voltage
to the equipment.

2. Clean the unit using a soft,
damp cloth.

3. Switch the supply voltage back
on.

Air filter for indoor unit

Clean the air filter at least every 2
weeks. Reduce this interval if the
air is especially dirty.

Cleaning the filter in the
indoor unit

The indoor unit is equipped with
a filter that has an antibacterial
coating. The filter removes dust
from the air and reduces the
spread of bacteria.

1. Switch the indoor unit to
circulation mode using the
remote control (open the front
cover for the air inlet!) (Fig 1).

2. Open the lower display cover
on the front of the unit by
pressing both stops and
carefully folding the cover
down to lift it out of the
support (Fig 2).

14

3. Press up the flaps on the filter
and pull it down and out by the
flaps (Fig 3).

4. Clean the filter using a normal
vacuum cleaner. The dirty side
should be face up(Fig. 4).

5. Clean off any dirt using
lukewarm water and mild
cleaning agents. The dirty side
should be face down(Fig. 5).

6. If water is used, let the filter
dry out properly in air before
replacing it in the unit.

Type of task

Check / Maintenance / Inspection

General

Measure voltage and current

Check fan is functioning correctly

Dirt on vaporiser

Check condensation drain

Test insulation

Commissioning

Monthly

Six-monthly

• •

• •

• •

• •

• •

• •

Yearly

7. Carefully insert the filter. Ensure
it locates correctly.

8. Close the lower display cover
in the opposite order to that
described above.

9. Set the desired operating mode.

Check moving parts

1 Open front cover

• •

Cleaning the condensation
pump (accessory)

The indoor unit may include a
built-in or separate condensation
pump for pumping the
condensation to a drain at a higher
level.
Observe the care and maintenance
instructions specified in the
separate manual.

4 Clean with a vacuum cleaner 2 Remove the display cover

3 Pull out the filter

5

Cleaning with lukewarm water

15

REMKO ATY

Troubleshooting and customer service

The equipment and components are manufactured using state-of-the-art production methods and tested several
times to verify their correct function. If malfunctions should occur, please check the functions as detailed in
the list below. In the case of equipment that includes an indoor unit and an outdoor component, observe the
chapters on "Troubleshooting and customer service" in both manuals. Please inform your dealer if the unit is still
not working correctly after all the functional checks have been performed!

Malfunction

Fault Possible cause Checks Remedial measures

The unit does not start or
switches itself off.

The unit does not respond to
the remote control.

Power outage, undervoltage,
defective mains fuse / main circuit
breaker switched off.

Damaged mains cable.

Waiting time after switch-on too short.

Temperate outside operating
temperature range.

Overvoltages caused by thunder
storms.

Fault in external condensation pump.
Transmission distance too far /

receiver affected by interference.

Defective remote control.

Receiver or transmitter unit exposed
to excessive solar radiation.

Electromagnetic fields are
interfering with transmission.

Button in remote control jammed /
two buttons pressed at same time.

Batteries in remote control are flat.

Filter is unclean / air inlet / outlet
blocked by foreign items.

Are all electrical installations
functioning correctly?

Are all electrical installations
functioning correctly?

Have approx. 5 minutes
elapsed since the restart?

Are the fans in the indoor unit
and outside component working
correctly?

Has there recently been lightning?

Did the pump shut down due to a fault?
Does the indoor unit beep when

pressing a button?
Is the unit running in manual

mode?
Does it function correctly in the

shade?
Does it function when

switching off possible sources of
interference?

Does the “Send” symbol appear
on the display?

Have new batteries been inserted?
Is the display incomplete?

Have the filters been cleaned? Clean the filters.

Check the voltage and if necessary
wait for it to come back on.

Repair by specialist.

Schedule longer waiting times.

Take into account the temperature
range for the indoor unit and
outside component.

Switch off the mains protection
and switch it back on.
Have it checked by a specialist.

Check and if necessary clean the pump.
Reduce the distance to less than 6

m or change position.

Replace the remote control.

Place the receiver or transmitter
unit in the shade.

Signal is not transmitted
when interference sources are
operational.

Release the button / only press
one button.

Insert new batteries.

The unit is running but only
provides reduced cooling
output.

Condensation is leaking out of
the unit.

16

Doors and windows open.
Heating/cooling output increases.

Cooling mode not selected.

Fins on outdoor component
blocked by foreign items.

Leaking refrigerant circuit.

Drainage pipe on collection
container clogged / damaged.

Faulty external condensation
pump or float.

Condensation has not drained
away and has collected in the
condensation pipe.

Condensation does not drain off.

Have modifications been made to
the building?

Does the cooling symbol appear
on the display?

Is the fan on the outdoor
component running? Are the
fins on the heat exchanger
unobstructed?

Are there signs of frost on the
connections to the outdoor unit?

Can the condensation drain off
without any
obstruction?

Is the collection tray full of water
and the pump not running?

Is there a steady fall on the
condensation pipe? Check there is
no blockage in the pipe.

Are the condensation pipes
unblocked and is there a steady
fall? Are the condensation pump
and float switch functioning
correctly?

Close windows and doors / install
additional units.

Correct the settings for the unit.

Check the fan or winter controller,
reduce the air resistance.

Repair by specialist.

Clean the drainage pipe and
collection container.

Call out a specialist to replace the
pump.

The condensation pipe must have a
fall. If necessary, clean the pipe.

The condensation pipe must have a
fall. If necessary, clean the pipe. A
faulty condensation pump or float
switch should be replaced.

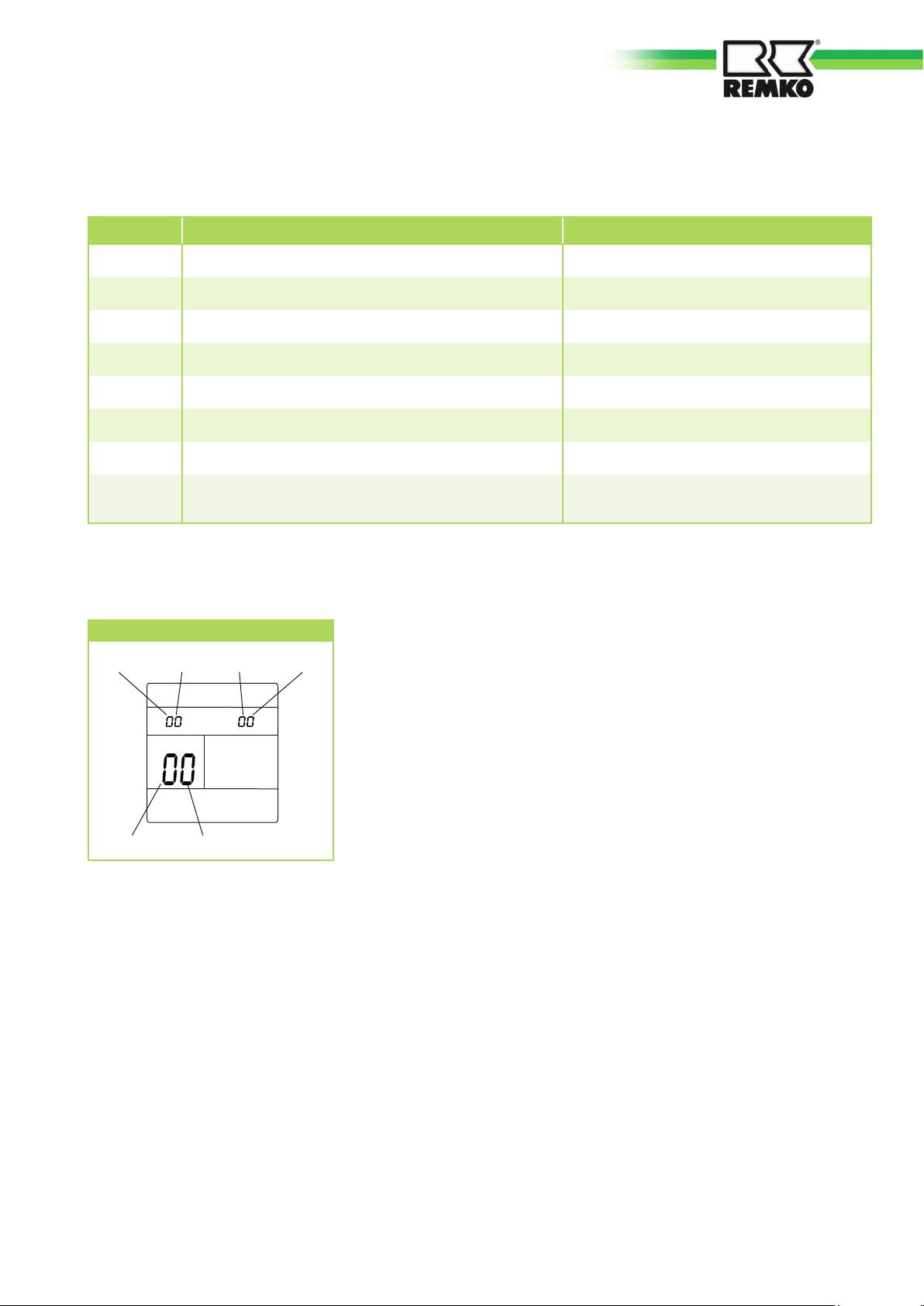

Error indicated by flashing code

Display Cause Required action

88 flashes Power outage for 3 minutes Switch off and switch back on

E1 flashes Communication error display controller Contact specialist dealer

E2 flashes Circulation sensor on indoor unit faulty/tripped Contact specialist dealer

E3 flashes Frost protection sensor on indoor unit faulty/tripped Contact specialist dealer

E4 flashes Vaporiser fan motor speed too low/faulty Contact specialist dealer

E5 flashes No cooling/heating output after 30 minutes. Contact specialist dealer

E6 flashes Undervoltage protection has tripped Contact specialist dealer

E7 flashes Communication error

Programming when error E7 is indicated

Programming E7

Digit III Digit IV Digit V Digit VI

"MODE" button until digit I
changes to "0".

5. Program the 1st communication
code for digits I to VI by
pressing the following buttons
several times:
ATY 261: 04 54 05
ATY 351: 04 54 05
Verify that the correct code

Digit I Digit II

is displayed before continuing
with the programming
procedure! 6. Press

If error 07 "Communication error"
occurs, perform the following

the"MODE" button to save the
settings.

programming procedure:

7. If the first digit is "1", proceed

1. Prepare to reset the unit by

to step "9".

removing the batteries from the
remote control.

8. If the first digit is "0", go back
to step "1." and repeat the

2. Press and hold / and put

programming procedure.

the batteries back in the remote
control.

"00 00 00"

The display will show

9. Program the 2nd
communication code for digits I
to VI by pressing the following

3. If digit I is "0", proceed to
step "5".

buttons several times:
ATY 261: 1A 00 EA
ATY 351: 1A 00 Fb

4. If digit I is "1", press the

Verify that the correct code

Reprogram (see chapter
“Programming when error E7 is indicated”)

is displayed before continuing
with the programming
procedure!

10.

Point the transmitter on the IR
remote control at the receiver
on the indoor unit and press the
"ON/OFF" button until a beep
acknowledges that the signal
has been received. The first LED
on the right side flashes.

11.

After the acknowledgement
beep has sounded, remove
the batteries from the remote
control for approx. 1 minute.
Re-insert the batteries to
complete the programming
procedure. You can now select
the desired operating mode.

17

REMKO ATY

Installation instructions for qualified personnel

Important points prior to
installation

When installing a complete
system, take into account the
manuals for the indoor unit and
outdoor component.

■

Transport the unit in its original
packaging as close as possible
to the installation location.This
avoids transportation damage.

■

Check that the packaged
contents are complete and
inspect the unit for any visible
signs of transportation damage.

Immediately notify any
deficiencies to the contractual
partner and forwarding agent.

■

Lift the unit by its corners
and not the refrigerant or
condensation connections.

■

Use caps or adhesive tape to
seal off the open refrigerant
pipes and prevent the ingress of
humidity. Never kink or push in
the refrigerant pipes.

■

Only use the union nuts
supplied with the refrigerant
pipes. These should only
be removed shortly before
connecting the refrigerant
pipes.

■

Establish all electrical
connections in accordance with
the relevant DIN- and VDE
standards.

■

Ensure the electrical cables
are properly connected to the
terminals,
otherwise there is a risk of fire.

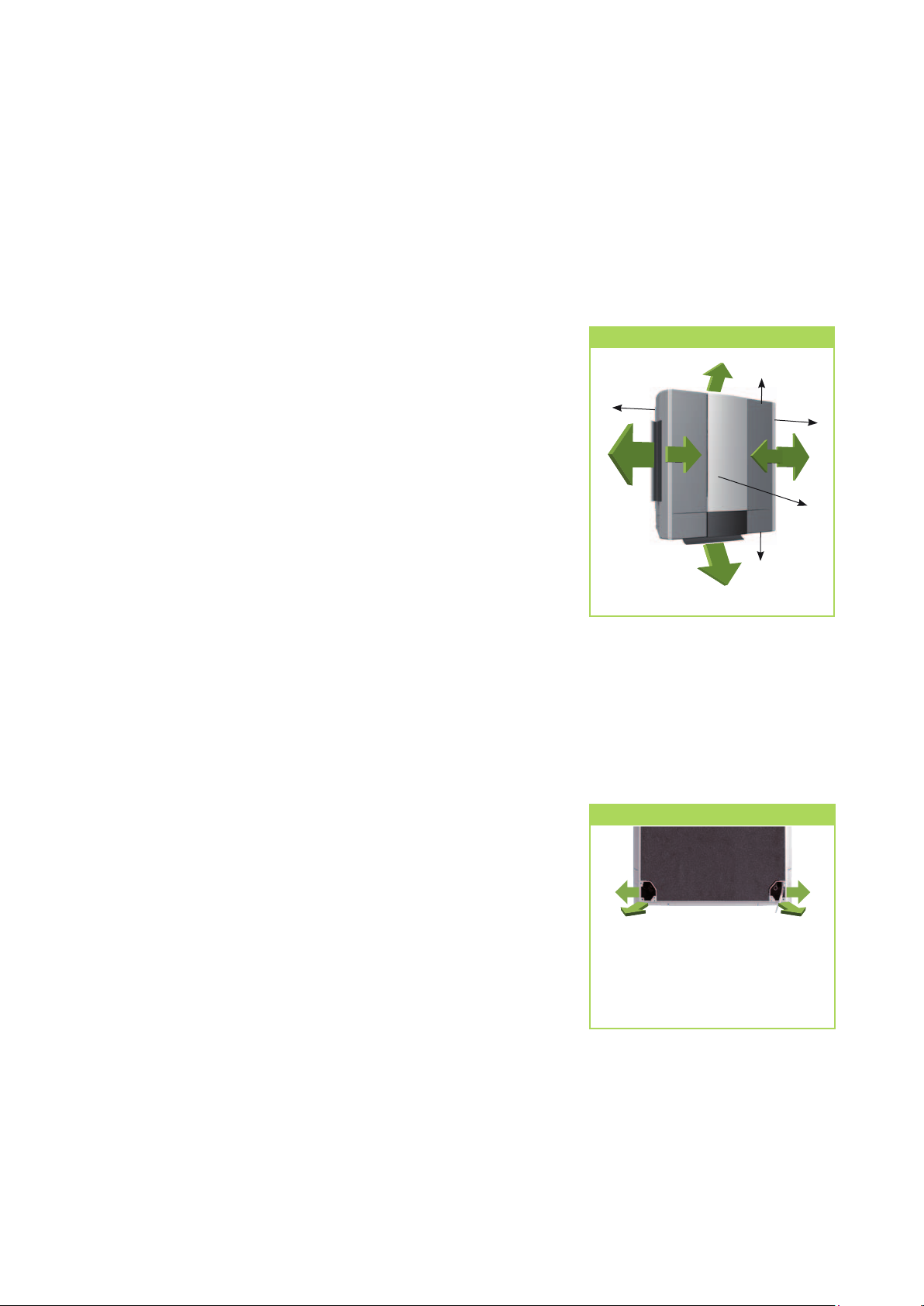

Minimum clearances

Observe the minimum clearances
to allow access for maintenance
and repair work and facilitate
optimum air distribution.

Minimum clearances

300

1000

1000

1000

1000

All values in mm

Connection options

■

Insulate the refrigerant pipes
(injection and suction pipe),
valves and connections to make
them tight against vapour
diffusion. If necessary, also
insulate the condensation pipe.

■

Select an installation location
which allows air to freely flow
through the inlet and outlet
(see section "Minimum
clearances").

■

Do not install the unit
adjacent to any hotspots. Unit
performance will be impaired if
installed next to hotspots.

Installation material

The indoor unit is fastened by the
back of its housing using 4 screws
to be provided by the customer.

Selecting the installation
location

The indoor unit is designed for
horizontal wall-mounting high up
on walls (min. 1.75 m above the
level of the floor).

The following connection options
are available for the condensation
pipes and control cables.

Connection options

1

2 3

1 Exit on wall, right
2 Exit through wall, right
3 Exit through wall, left
4 Exit on wall, left

Rear view

4

18

Installation

NOTE

Installation should only be
performed by authorised
specialists.

Installing the unit

The indoor unit is installed by
taking into account the position of
the air outlet. This can be at the
top or bottom as well as at the
sides.

1. Use the unit dimensions to
mark the fixing points on
structural parts approved to
support the static load.

6

Open the display cover

7

Remove the screws

Connecting the refrigerant
pipes

The connections to the refrigerant
pipes are made at the rear of the
unit (responsibility of customer).

It may be necessary to fit a reducer
or flared adapter to the indoor
unit.
These fittings are included as
standard.

Once installed, the connections
should be made tight against
vapour diffusion.

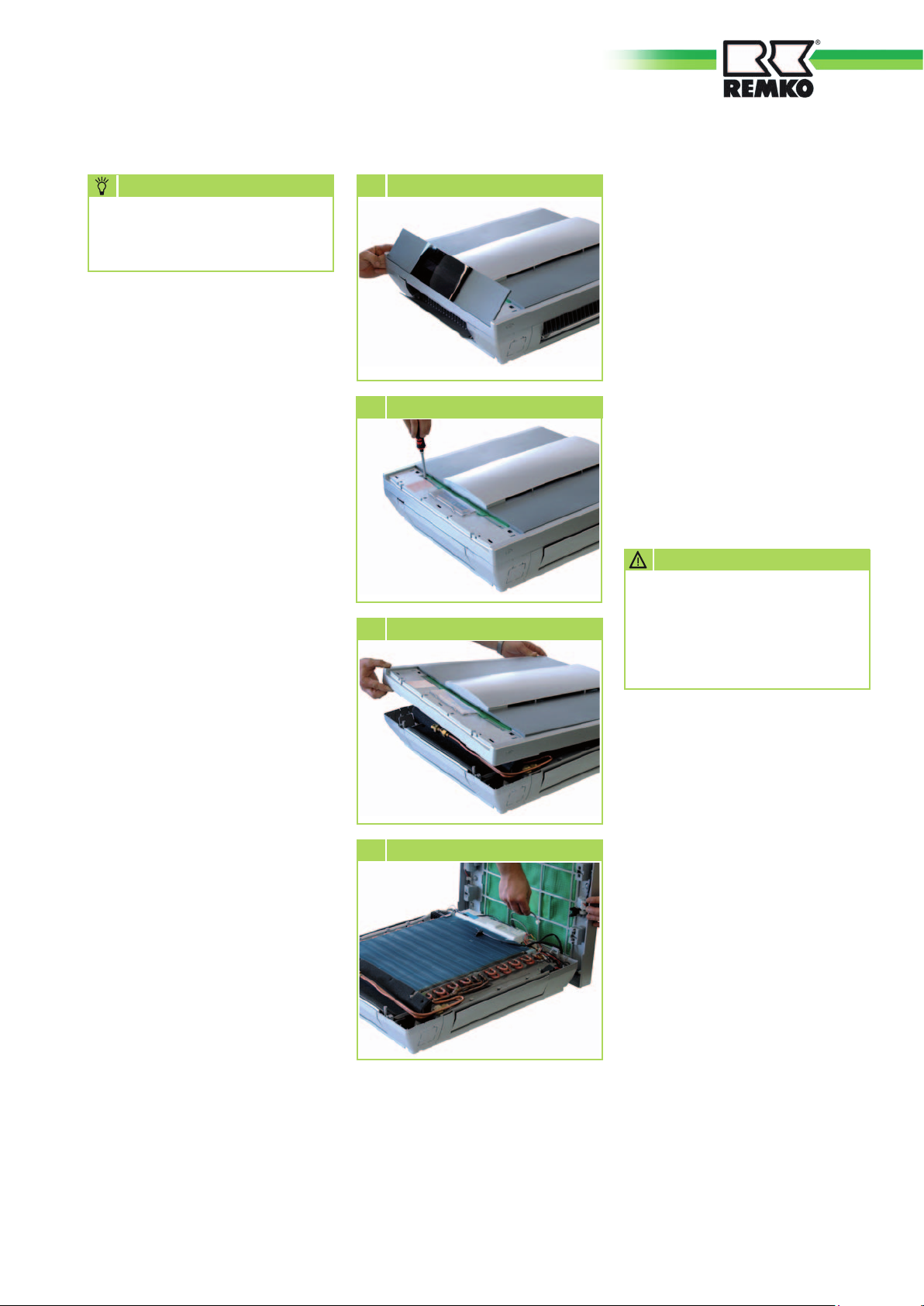

2. Open the display cover(Fig 6)
and remove the four screws
below the filter(Fig 7).

3. Dismantle the front of the unit:
lift up the front near the lower
part of the body by approx. 10
cm and fold it upwards (Fig 8).

4. Detach the front cover
connector by pulling it off the
circuit board (Fig 9).

5. If necessary, remove the break­outs on the housing.

6. Fit the unit to the wall.

7. Connect the refrigerant
pipes, electrical cables and
condensation pipe to the indoor
unit as described below.

8

U

ndo the front of the unit

9

Pull off the connector

CAUTION

The unit is factory filled with
dry nitrogen to check for leaks.
The pressurised nitrogen is
released when loosening the
union nuts.

8. Check that the unit is level.

9. Re-assemble the unit.

19

REMKO ATY

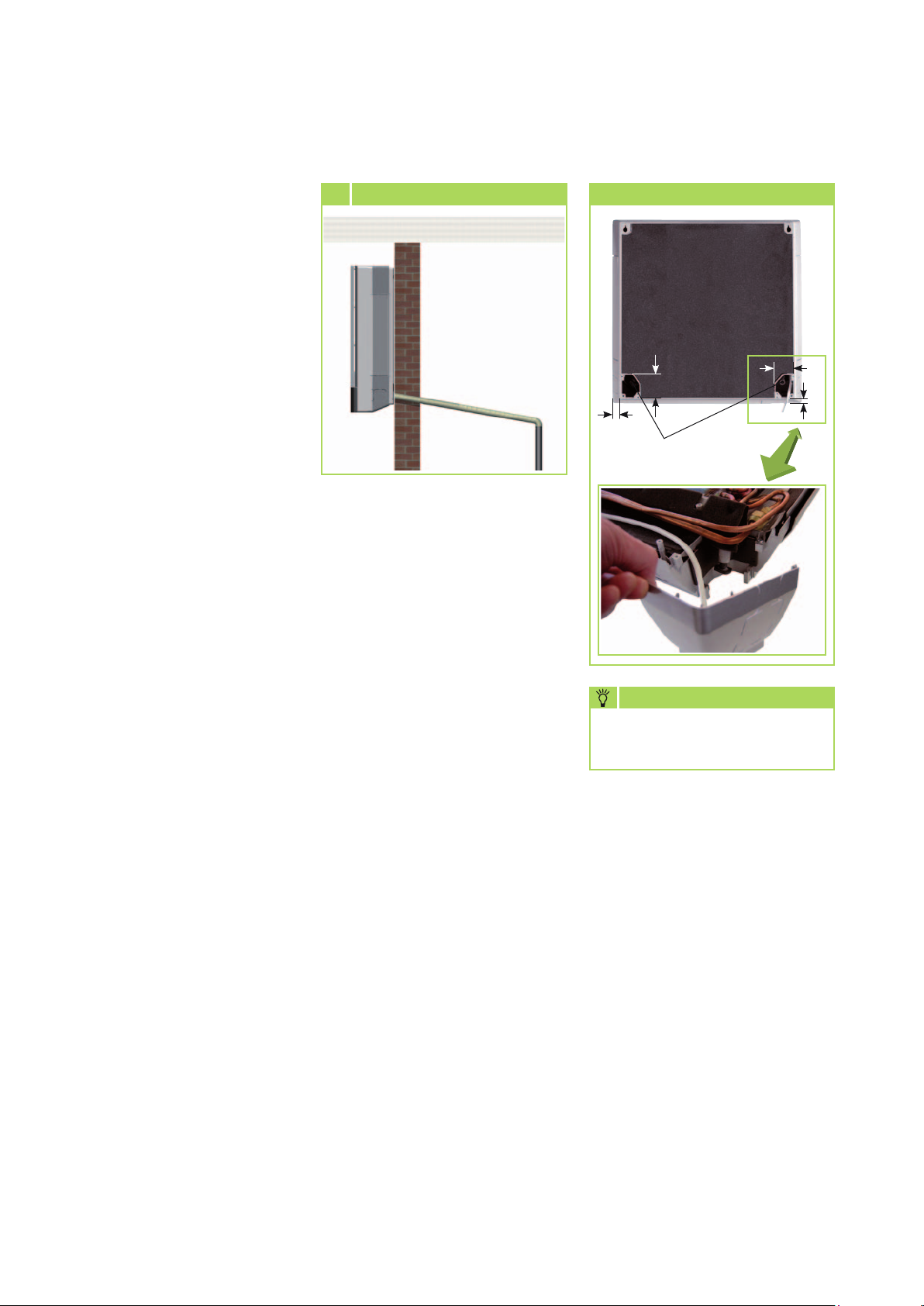

Condensation connection

If the temperature falls below the
dew point, condensation will form
on the vaporiser of the indoor unit
during cooling.

The collection tray below the
vaporiser should be connected to
the drain.

■

The condensation pipe should
have a fall of min. 2 %. This
is the responsibility of the
customer.(Fig 10). If necessary,
fit vapour diffusion tight
insulation.

■

The condensation pipe from
the unit should run freely
into the drainage pipe. If the
condensation runs directly
into a sewer pipe, fit a trap to
prevent any unpleasant odours.

10

Condensation connection

at least
2% fall

The standard condensation hose is
for connection to the left or right
side (as viewed from the front).
Remove the plug when making the
connection.

Condensation connection for indoor

50

65

45

Condensation connection
right or left

unit

40

■

When operating the unit at
outdoor temperatures below
0 °C, ensure the condensation
pipe is laid to protect it
against frost. If necessary, fit
supplementary pipe heating.

■

Once the pipe has been laid,
check the condensation drains
off and permanently seal it.

NOTE

The condensation pump
cannot be built into the unit.

20

Electrical connection

A protected mains supply and
control cable should be connected
to the outdoor component and
indoor unit respectively.

CAUTION

All electrical installation
work should be performed
by specialist contractors.
Isolate the voltage supply
when connecting the electrical
terminals.

■

We recommend that customers
install a main/repair switch
in the vicinity of the outdoor
component.

■

The terminal blocks for making
the connections are located at
the rear of the unit. When the
unit is installed, measurements
can be made from the front by
removing the cover.

Connecting the indoor unit

Make the connection as follows:

1. Dismantle the front of the unit
as described in the chapter
"Installing the unit".

2. Select the cable cross-section
according to the relevant
standards.

3. Connect the mains supply to
the unit and the control cable
to the outdoor component
(see electrical connection
diagram).

4. Re-assemble the unit.

Connecting the indoor unit

Terminal block/
control block

Mains cable

■

If an optional condensation
pump is used in conjunction
with the unit, it may be
necessary to install an
additional relay with a higher
contact rating after the switch­off contact on the pump to
switch off the compressor.

Electrical connection diagram

ATY 261 / ATY 351

Indoor unit Outdoor

L

Phase conductor

N

Neutral conductor

2

Control conductor

Compressor

PE

Earth conductor

component

L

N

1

PE

L

N

Mains cable

L1

230 V, 1~,
50 Hz,

N

L1 / N / PE

21

REMKO ATY

Electrical circuit diagram

ATY 261 / ATY 351

Swingmotor

1 2 3 4 5

1 2 3 4 5

CN 6 CN 8 CN 9 CN 10 CN 11 CN 1 CN 4

1 2 3 4 5

1 2 3 4 5

Lamelle 1

Swingmotor

Lamelle 2

Sensor Umluft

1 2 3 4

Sensor Frostschutz

Anzeigedisplay

1 2 3 4

1 2 3 4

1 2 3 4

Taste

manueller Betrieb

1 2

1 2 3 4

CN 5

1 2 3 4

CN 7

Sicherung

250V 3A

1 2

N3

N1

N2

1 2 3 4 5

1 2 3 4 5

1 2 3 4 5

1 2 3 4 5

1 2 3 4 5

1 2 3 4 5

1 2 3 4 5

1 2 3 4 5

1 2 3

1 2 3

Swingmotor

Lamelle 3

Hubmotor

Front 1

Hubmotor

Front 2

Vaporiser fan

Ionen-Generator

Colour code

WH = white
BU = blue
BN = brown

22

N L PE

Mains cable

Ry1

1N 2 3 4 5

not used

Compressor

Neutral

conductor

Control cable

Ry2

CN 3

1 2 3

1 2 3

not used

Ry3

Ry3

Commissioning

NOTE

Commissioning should only be
performed and documented by
specially trained personnel.

When starting up the
complete system, observe
the instructions given in the
manuals for the indoor unit
and outdoor component.

Functional test for
cooling mode

1. Switch on the supply voltage
on.

2. Use the remote control to
switch on the unit and select
the cooling mode, maximum
fan speed and lowest target
temperature.

3. Measure and record all
the required values in the
commissioning report and
check the safety functions.

4. Check the indoor unit
control system using the
functions described in the
chapter "Operation". Timer,
temperature setting, fan speeds
and switching to ventilation or
dehumidifying mode.

5. Check the correct function
of the condensation pipe by
pouring distilled water into the
condensation tray.
A bottle with a spout is
recommended for pouring the
water into the condensation
tray.

Final tasks

■

Re-fit all the dismantled parts.

■

Instruct the operator on how to
use the equipment.

NOTE

Check that the stop valves
and valve caps are tight after
carrying out any work on the
refrigerant circuit. If necessary,
use appropriate sealant
products.

Unit dimensions

ATY 260 IT / ATY 350 IT

148

45

We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.

567

567

47

25

470

495

396

All values in mm

23

REMKO ATY

Exploded view ATY 261 / ATY 351

17

15

1

3

13

5

5

7

14

6

7

14

8

7

4

11

10

2

12

16

9

We reserve the right to modify the dimensions and constructional design as part of the ongoing
technical development process.

24

Spare parts list

No. Designation ATY 261 ATY 351

1 Air inlet cover 1107400 1107400

2 Display cover 1107401 1107401

3 Air filter 1107402 1107402

4 Display board 1107403 1107403

5 Lifting motor, set 1107404 1107404

6 Swing motor 1107405 1107405

7 Outlet fins, set 1107406 1107406

8 Condensation tray 1107439 1107439

9 Finned vaporiser 1107408 1107409

10 Fan wheel, vaporiser 1107410 1107410

11 Fan motor, vaporiser 1107411 1107412

12 Control board 1107413 1107414

13 Ion generator 1107415 1107415

14 Housing bracket, set (right&left) 1107416 1107416

15 Cover fixing clip, set 1107417 1107417

16 Frost protection sensor / circulation sensor 1107418 1107418

17 IR remote control 1107419 1107419

When ordering spare parts, please also state the computerised part no., unit number and type (see identification plate)!

25

REMKO ATY

Technical data

Series ATY 261 ATY 351

Operating mode Wall-mounted air-conditioning unit for cooling applications

Nominal cooling output

Energy efficiency class, cooling

Energy efficiency ratio EER

Operating range (room volume), approx. m³ 80 110

Working range, indoor unit °C +16 to +32

Adjustment range, cooling °C +18 to +30 +18 to +30

Refrigerant R 410A

1)

1)

1)

kW 2.67 3.56

B C

3.06 2.87

Max. operating pressure / per refrigerant circuit

Air flow rate per stage m³/h 360/390/420 380/410/440

Noise output per stage

Voltage supply V/Hz 230 / 1~ / 50

Protection degree IP X0

Nom. electrical power consumption, cooling 1)kW 0.03 0.04

Nom. current consumption, cooling

Refrigerant connection, injection pipe Inches(mm) 1/4 (6.35)

Refrigerant connection, suction pipe Inches(mm) 3/8 (9.52) 1/2 (12.70)

Condensation connection mm 16 16

Dimensions Height mm 567 567

Width mm 567 567

Depth mm 148 148

Weight kg 12.0 12.0

Serial number 775... 776...

Computerised part no. 1621261 1621351

1) Air inlet temperature TK 27°C / FK 19°C, outdoor temperature TK 35 °C, FK 24 °C, max. air flow rate in combination with RXM 226 / RXM 335

2) Distance 1 m free air

3)

1)

kPa 4200 / 4200

dB(A) 33/36/40 35/37/41

A 0.16 0.20

26

Notes

REMKO ACROSS EUROPE

… and in your area!
Profit from our experience and advice

REMKO GmbH & Co. KG

Klima- und Wärmetechnik

Im Seelenkamp 12 · 32791 Lage

Postfach 1827 · 32777 Lage

Telephone [phone]

Telefax [phone]

E-mail [e-mail]

Internet www.remko.de

Hotline

Advice, sales air conditioning technology
[phone]

Advice, sales heating technology
[phone]

Spare parts sales
[phone]

Export
[phone]

Consultancy

Intensive training means

our consultants are always

up-to-date with the latest

developments. This has given

us the reputation of being more

than just a good and reliable

supplier:

REMKO, a partner who helps

solve problems.

Sales

REMKO not only has a well-

established sales network

at home and abroad, it also

employs highly trained sales

specialists.

REMKOOur field staff are more

than just salesmen: above all,

they must advise our clients in

the areas of air conditioning and

heating technology.

Customer service

Our equipment is precise and

reliable. However, should a fault

should occur REMKO customer

service is quickly at your side.

Our comprehensive network of

experienced dealers guarantees

quick and reliable service.

Service
[phone]

Subject to technical modifications, no responsibility taken for the correctness of information!
