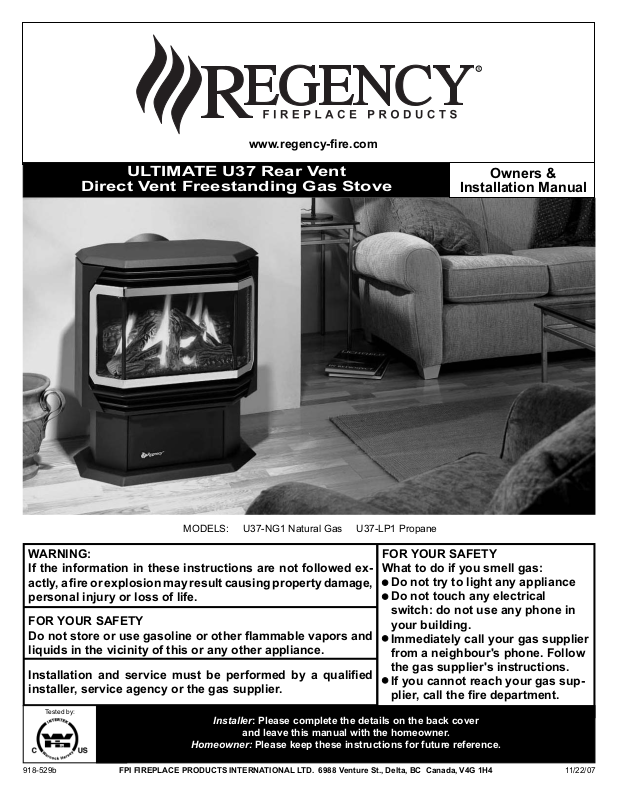

Regency U37-NG1, U37-LP1 User Manual
www.regency-fi re.com
ULTIMATE U37 Rear Vent
Direct Vent Freestanding Gas Stove
Owners &
Installation Manual
MODELS: U37-NG1 Natural Gas U37-LP1 Propane
WARNING:
If the information in these instructions are not followed exactly, a fi re or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
Tested by:
918-529b
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical
switch: do not use any phone in
your building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas sup-
plier, call the fi re department.
11/22/07
To the New Owner:
Congratulations! You are the owner of a state-of-the-art ULTIMATE Rear Vent Direct Vent Gas Stove by FPI Fireplace
®
Products International. The Regency
Gas Series of hand crafted appliances has been designed to provide you with
all the warmth and charm of a woodstove, at the fl ick of a switch. The models U37-NG1, and U37-LP1 of this series
has been approved by Warnock Hersey for both safety and effi ciency. As it also bears our own mark, it promises to
provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to
acquaint yourself with these instructions and the many features of your ULTIMATE Rear Vent Direct Vent Freestand-
ing Gas Stove.
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: ANSI Z21.88b2003/CSA 2.33b-2003, and CAN/CGA-2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations,
Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow
the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA
B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This Regency® Mobile/Manufactured
Home Listed appliance comes factory
equipped with a means to secure the
unit.
This Regency
®
Mobile/Manufactured
Home listed appliance comes equipped
with a dedicated #8 ground lug to which an
8 gauge copper wire from the steel chassis
ground must be attached.
2 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove
TABLE OF CONTENTS
SAFETY LABEL
Copy of Serial No. Decal ...............................................4
REQUIREMENTS
MA Code - CO Detector ................................................5
INSTALLATION
Important Message ......................................................6
Specifi cations ................................................................6
Before You Start ............................................................6
General Safety Information ...........................................6
Installation Checklist ......................................................7
Manufactured Mobile Home Additional Requirements ..7
Clearances to Combustibles .........................................7
Locating Your Gas Stove ...............................................7
Combustion and Ventilation Air .....................................7
Venting ..........................................................................7
Exterior Vent Terminal Locations ...................................8

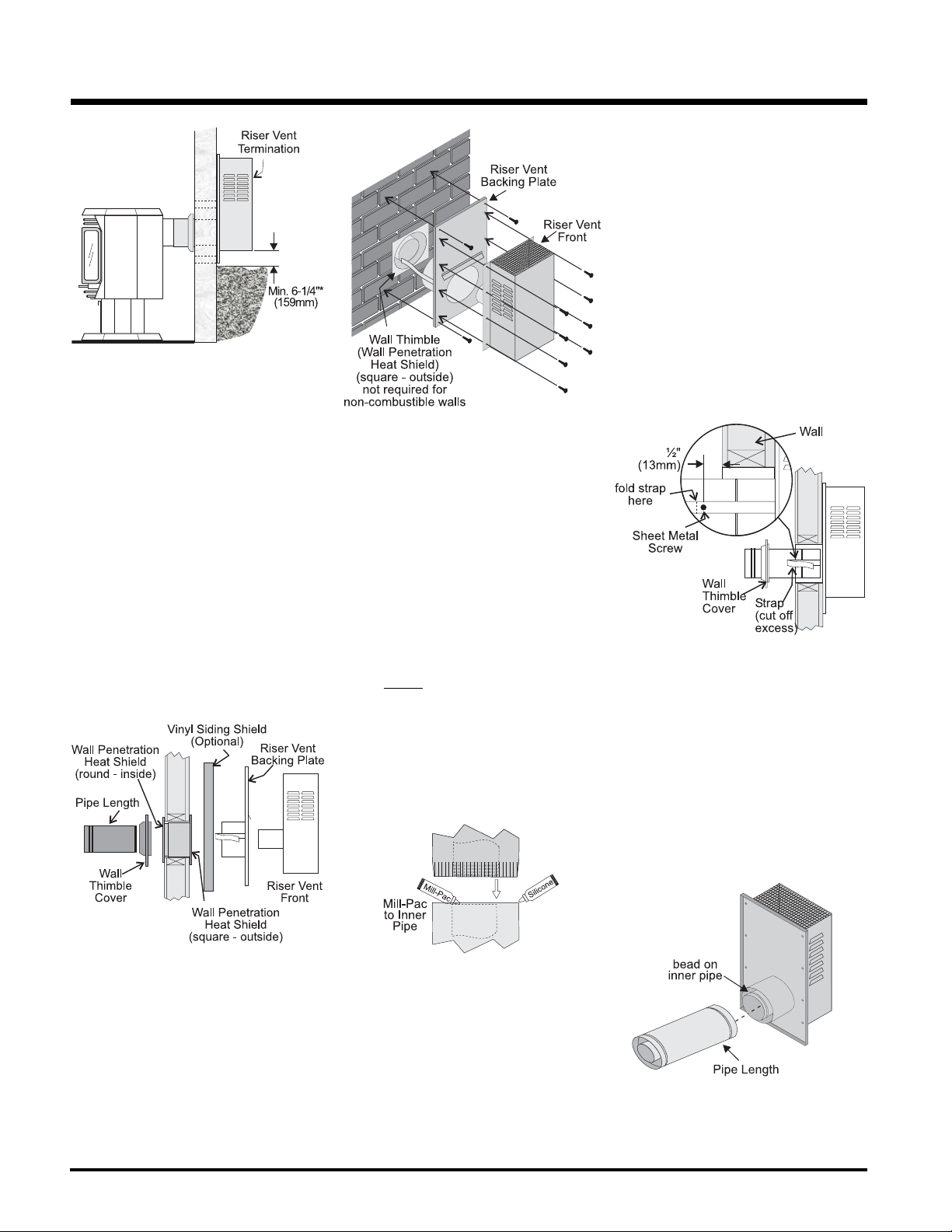

Venting Installation .......................................................9
Precautions ...................................................................9
Safety Precautions for the Installer ...............................9
Planning Your Venting Installation .................................9
4” x 6-5/8” Rigid Pipe Cross Reference Chart .............10
Rigid Pipe Venting - Vertical Terminations .................. 12
Residential and Manufactured Homes /
Mobile Homes Installations .........................................13
Horizontal Terminations ...............................................13
Vertical Termination with Co-linear Flex System .........15

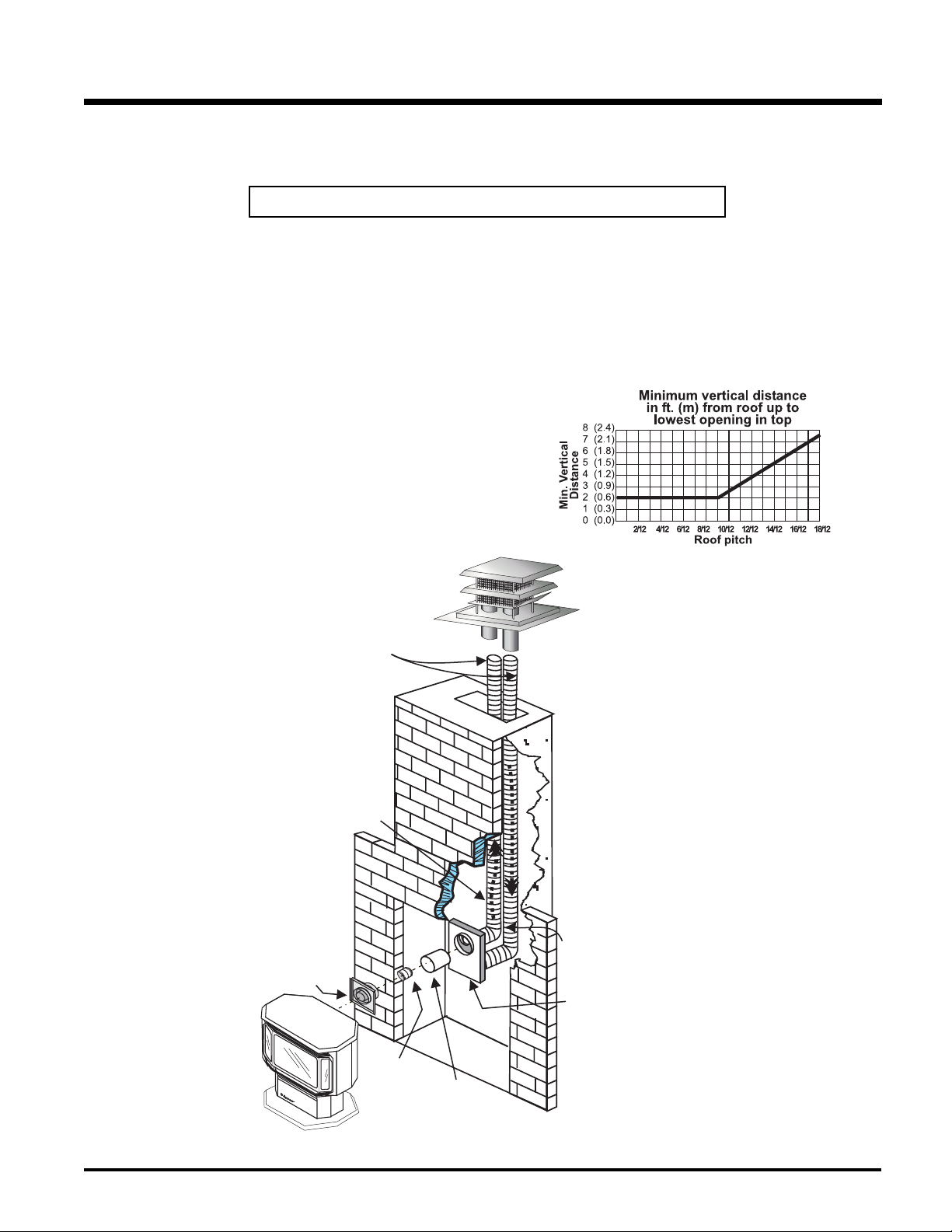

Converting Class-A Metal Chimney or
Masonry Chimney to Direct Vent System ....................16
Converting Masonry Chimney .....................................17
Conversion Kit# 514-969 from NG to LP .....................18
Gas Connection ...........................................................20
High Elevation .............................................................20

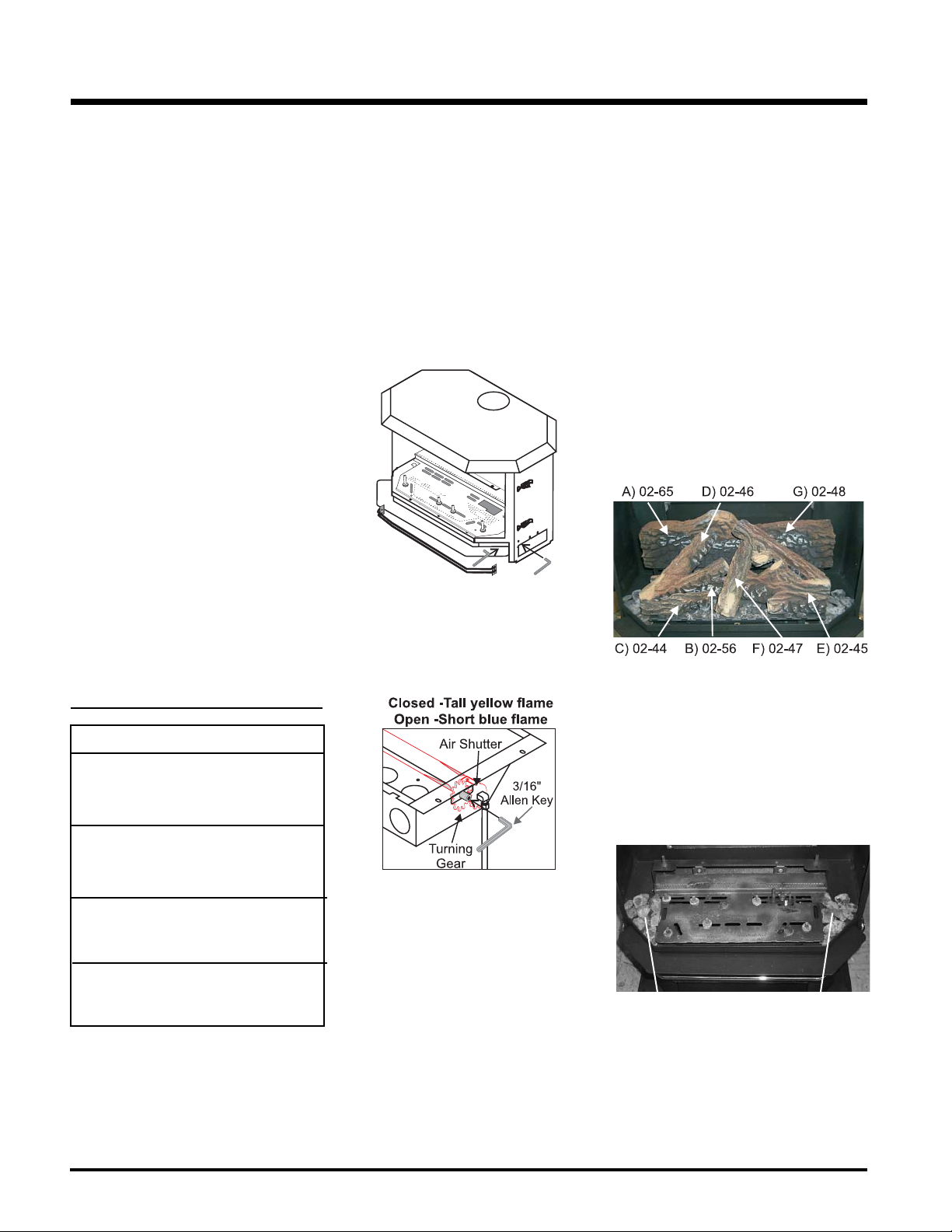

Aeration Adjustment ....................................................20

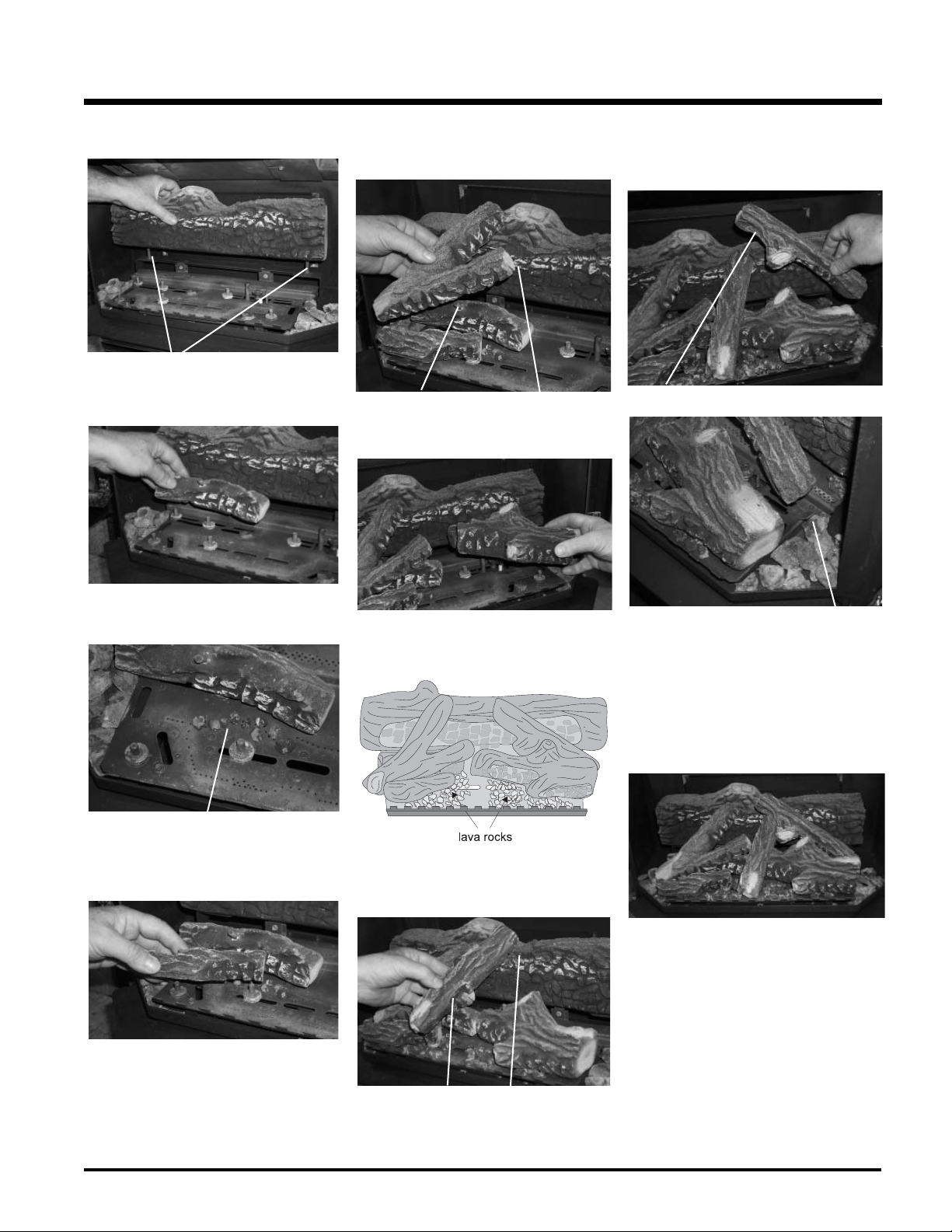

Log Set Installation ......................................................20
Door Installation ..........................................................22
Gas Pipe Pressure Testing ..........................................22
Louver Installation .......................................................23
Wall Thermostat .........................................................23
Optional Remote Control ............................................23
Final Check .................................................................23

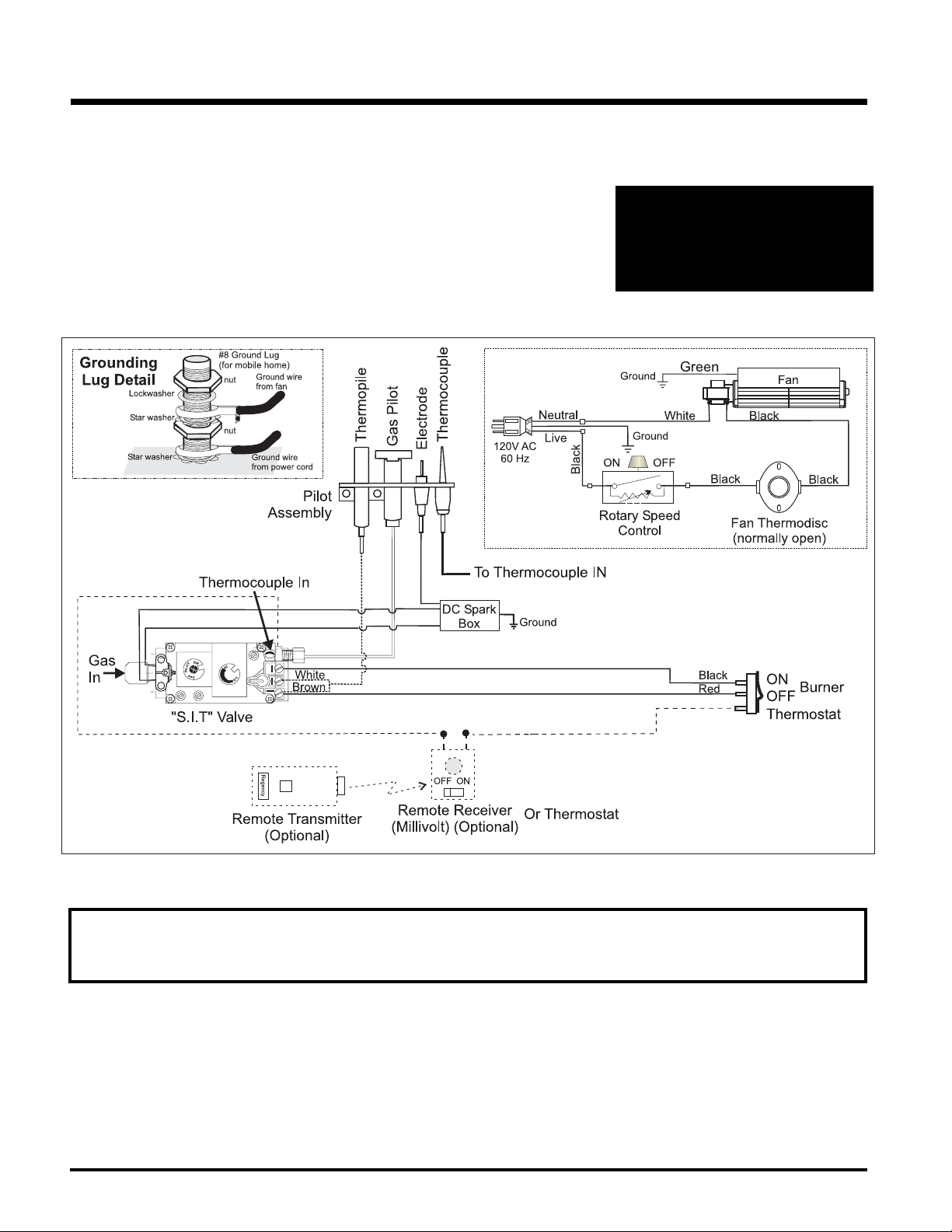

Wiring Diagram ............................................................24
OPERATING INSTRUCTIONS
Operating Instructions .................................................25
Lighting Procedure ......................................................25
Shutdown Procedure ...................................................25
First Fire ......................................................................25
Convection Fan Operation ..........................................25
Normal Operating Sounds of Gas Appliances .............25
Copy of the Lighting Plate Instructions .......................26
MAINTENANCE
Maintenance Instructions ............................................27
General Vent Maintenance ..........................................27
Log Replacement ........................................................27
Gold-Plated Doors .......................................................27
Door Gasket ...............................................................27
Latch Adjustment .........................................................28
Glass Replacement .....................................................28
Fan Maintenance .........................................................29
Removing Valve ...........................................................29
DC Sparker Battery Replacement ...............................30
PARTS LIST

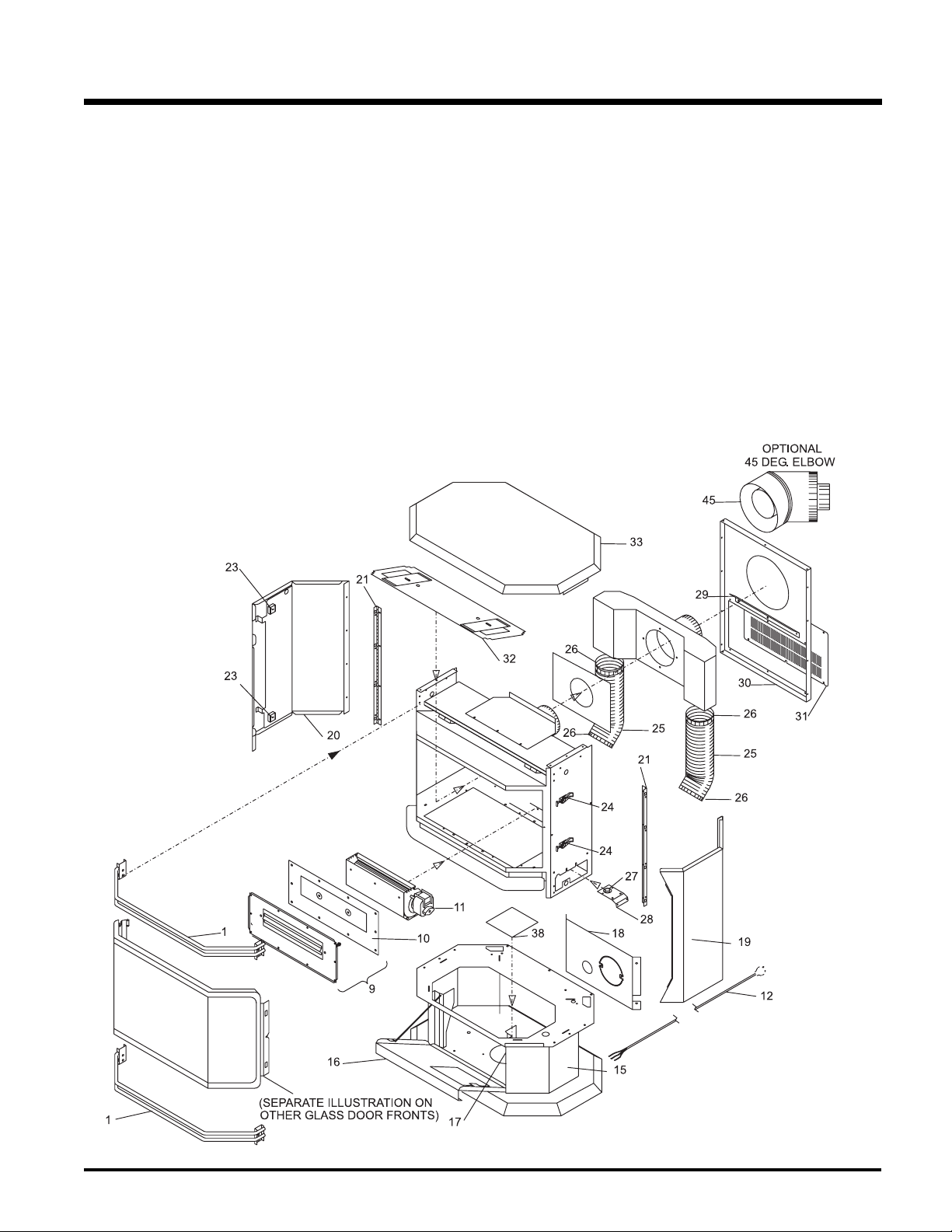

Main Assembly ............................................................31
Burner & Log Assembly ...............................................32
Door Assemblies .........................................................33
WARRANTY
Warranty ......................................................................35
U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 3
SAFETY LABEL
This is a copy of the label that accompanies
each ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove. We have printed a copy
of the contents here for your review. The safety
label is located on the inside of the drop down
pedestal door.
NOTE: Regency® units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.

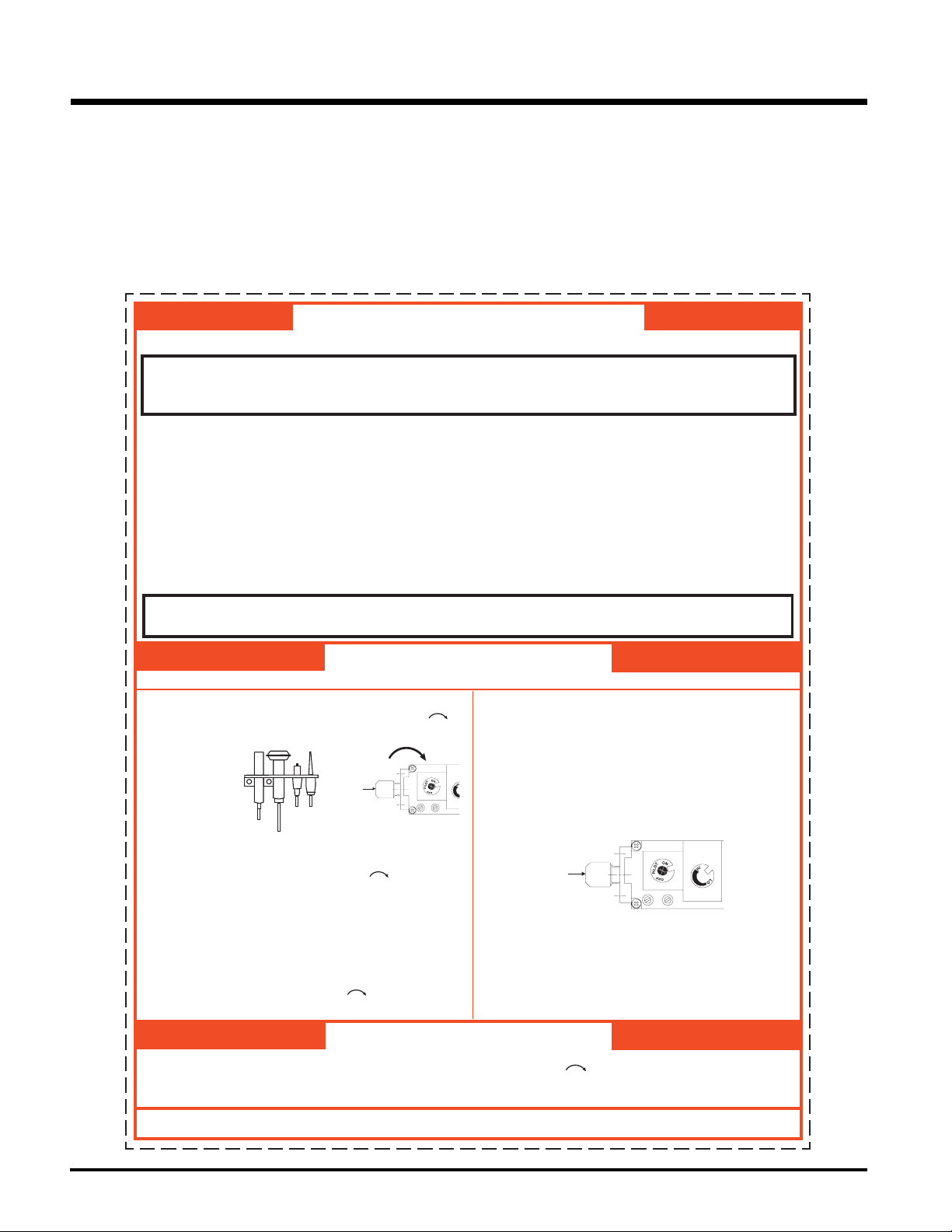

Copy of Safety Label for U37
Listed: GRAVITY DIRECT VENT WALL FURNACE
Certifi ed for/Certifi ée pour: CANADA AND U.S.A.
Tested to: CGA 2-17-M91, ANSI Z21.88b-2003/CSA 2.33b-2003
REPORT NO. 476-1846-00 (Oct. 2000)
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE
FACTORY EQUIPPED FOR NATURAL GAS: Model U37-NG1
Min. supply pressure 5.0" WC/C.E. (1.24Kpa)
Model/Modele:
U37-NG1
Manifold pressure High 3.8" WC/C.E. (0.947Kpa)
Manifold pressure Low 1.1" WC/C.E. (0.27Kpa)
Orifi ce size #37 DMS
Altitude 0-4500 ft/pi (0-1370m)
Maximum Input 30,000 Btu/h (8.79Kw/h)
Minimum Input 15,000 Btu/h (4.39Kw/h)
FACTORY EQUIPPED FOR PROPANE: Model U37-LP1
Min. supply pressure 12" WC/C.E. (3.00Kpa)
Model/Modele:
U37-LP1
Manifold pressure High 11" WC/C.E. (2.74Kpa)
Manifold pressure Low 2.9" WC/C.E. (0.72Kpa)
Orifi ce size #52 DMS
Altitude 0-4500 ft/pi (0-1370m)
Maximum Input 30,000 Btu/h (8.79Kw/h)
Minimum Input 15,000 Btu/h (4.39Kw/h)
ÉQUIPÉ À L'UISINE POUR GAZ NATURAL:
Pression d’alimentation minimum
Pression à la tubulure d’échappement élevée
Pression à la tubulure d’échappement élevée
Dimensions de l’orifi ce
L’altitude
Débit calorifi que maximum selon
Débit calorifi que minimum selon
ÉQUIPÉ À L'UISINE POUR GAZ PROPANE:
Pression d’alimentation minimum
Pression à la tubulure d’échappement élevée
Pression à la tubulure d’échappement élevée
Dimensions de l’orifi ce
L’altitude
Débit calorifi que maximum selon
Débit calorifi que minimum selon
Serial No./No de serie
313
DO NOT REMOVE THIS LABEL /
NE PAS ENLEVER CETTE ÉTIQUETTE
Minimum Clearances
to Combustibles/
Degagement Minimum
Des Materiaux
Combustibles
VENTING: Only for direct discharge without duct connection. This appliance must be installed in accordance
with the manufacturer's installation instructions and with local codes, if any; if not, follow the current ANSI
Z223.1 in the USA or the current CAN/CGA-B149 in Canada. For Manufactured Home Installation: This Direct
Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for
Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and
with CAN/CSA Z240 MH Mobile Home Standard in Canada.
Electrical supply 115VAC, 1.13 A, 60 Hz. Not for use with solid fuel.
FPI Fireplace Products International Ltd., Delta, BC, Canada MADE IN CANADA / FABRIQUE AU CANADA
DOOR SEAL ADJUSTMENT:
For the State of Massachusetts, installation and repair must be
done by a plumber or gasfi tter licensed in the Commonwealth
of Massachusetts.
For the State of Massachusetts, fl exible connectors shall not
exceed 36 inches in length.
For the State of Massachusetts, the appliances individual
manual shut-off must be a t-handle type valve.
The State of Massachusetts requires the installation of a
carbon monoxide alarm in accordance with NFPA 720 and a
CO alarm with battery back up in the same room where the
gas appliance is installed.
Please check that door is properly sealed.
Periodic adjustment of latch may be required.
918-507
A 7-1/2" /190 mm
B 3" /76 mm
E 4-1/2" /114 mm
Min. Ceiling
Height from top of
unit / Min. Plafond
Hauteur en haut
de l'appareil:
36" / 914 mm
4 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove
REQUIREMENTS
MA Code - CO Detector
(for the State of Massachusetts only)
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 5
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove must be installed in accordance
with these instructions. Carefully read all the
instructions in this manual fi rst. Consult the
building authority having jurisdiction to determine the need for a permit prior to starting the
installation.
Note: Failure to follow the instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and/or property damage. Failure to follow these
instructions may also void your fi re
insurance and/or warranty.
SPECIFICATIONS
Fuels: U37-NG1 is approved for use with
natural gas.
U37-LP1 is approved for use with liq-
uefi ed petroleum gases (propane).
Electrical: 120 V A.C. system.
Circulation Fan: Variable speed, 125/75.
Log Sets: Ceramic fi bre, 7 per set.
Vent System:
Axial (6-5/8" outer / 4" inner liner) rigid
fl ue and Riser Vent Terminal.
BEFORE YOU START
Safe installation and operation of this appliance requires common sense, however, we
are required by the Canadian Safety Standards
and ANSI Standards to make you aware of the
following:
INSTALLATION AND REPAIRS
SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THIS APPLIANCE SHOULD BE INSTALLED,
REPAIRED, INSPECTED BEFORE
USE AND AT LEAST ANNUALLY
BY A QUALIFIED SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO
EXCESSIVE LINT FROM CARPETING, ETC. IT IS IMPERATIVE THAT
THE CONTROL COMPARTMENT,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES,
THE APPLIANCE SHOULD BE
LOCATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING: FAILURE TO INSTALL
THIS APPLIANCE CORRECTLY
WILL VOID YOUR WARRANTY AND
MAY CAUSE A SERIOUS HOUSE
FIRE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD
STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT
BE PLACED ON OR NEAR THE
APPLIANCE.
1) Provide adequate clearances for servicing,
proper operation and around the air openings
into the combustion chamber.
2) The appliance must be installed on a fl at,
solid, continuous surface (e.g. wood, metal,
concrete). This may be the fl oor, or it can be
raised up on a platform to enhance its visual
impact. The appliance may be installed on
carpeting, tile, wood fl ooring or other combustible material, because the appliance's
metal pedestal base extends the full width
and depth of the appliance. The ULTIMATE
Rear Vent Direct Vent Freestanding Gas
Stove can be installed in a wide variety of
ways and will fi t nearly any room layout.
It may be installed in a recessed position,
framed out into the room, or across a corner.
3) The ULTIMATE Rear Vent Direct Vent
Freestanding Gas Stove is approved for
manufactured home installations, see
"Clearances to Combustible" to "Rigid Pipe
Venting - Vertical Terminations" section for
the required vent arrangements. If installed
into a manufactured home the unit must be
bolted down to the fl oor.
4) We recommend that you plan your instal-
lation on paper using exact measurements
for clearances and fl oor protection before
actually installing this appliance. Have a
qualifi ed building inspector review your plans
before installation.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with
local Canadian Electrical Code.
2) The appliance when installed, must be
electrically grounded in accordance with
local codes, or in the absence of local codes
with the current National Electrical Code,
ANSI/NFPA 70 or CSA C22.1 Canadian
Electrical Code.
3) The appliance should be inspected for
shipping damage before use and serv-
iced annually by a professional service
person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc. It is imperative
that control compartments, and circulating
air passageways of the appliance be kept
clean and free from excessive lint from
carpeting.
4) See general construction and assembly
instructions. The appliance and vent should
be enclosed when installed in or passing
through a living area, where children may
come in contact with it.
5) This appliance must be connected to the
specifi ed vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fi tted as per the instructions starting in the "Venting" section.
6) Inspect the venting system annually for
blockage and any signs of deterioration.
7) Venting terminals shall not be recessed into
a wall or siding.
8) Any safety glass removed for servicing
must be replaced prior to operating the appliance.
9) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fi replace.
Emissions from burning wood or gas could
contain chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm.
6 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove
INSTALLATION
INSTALLATION
CHECKLIST
1) Locate your appliance. Refer to the following
sections:
a. Clearances to Combustibles
b. Locating your Ultimate Gas Stove
c. "Venting" to "Rigid Pipe Venting -
Vertical Terminations" sections.
2) Install venting. See "Planning Your Venting
Installation" to "Vertical Termination with
Co-Linear Flex System" sections.
3) Make gas connections. Refer to the "Gas
Connection" section.
Test the pilot. Must be as per diagram in the
"Maintenance Instructions" section.
4) If necessary, convert from Natural Gas to
Propane. Refer to the "Conversion Kit from
NG to LPG" section.
5) Installl standard and optional features. Refer
to the following sections where applicable:
a. Log Set Installation
b. Door Installation
c. Louver Installation
d. Wall Thermostat
e. Remote Control
6) Final check. Refer to the "Final Check" sec-
tion.
Before leaving this unit with the customer, the
installer must ensure that the appliance is fi ring correctly and operation fully explained
to customer.
This includes:
1) Clocking the appliance to ensure the correct
fi ring rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the fl ame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
2) Ensure proper grounding using the #8 ground
lug provided.
3) Appliance must be anchored to the fl oor with
the supplied anchoring methods.
CLEARANCES TO
COMBUSTIBLES
The clearances listed are MINIMUM distances.
Measure the clearance to both the appliance and
the chimney connector. The farthest distance is
correct if the two clearances do not coincide.
For example, if the appliance is set as indicated
in one of the diagrams but the connector is too
close, move the stove until the correct clearance
to the connector is obtained.
This appliance may be installed only with the
clearances as shown in the situations pictured.
Do not combine clearances from one type of
installation with another in order to achieve
closer clearances.
This unit can be installed on a solid combustible
surface like a wood fl oor. This unit can also be
installed directly on carpeting or vinyl when the
bottom pedestal cover plate (provided with unit)
is installed.
Use the minimum clearances shown in the diagrams below:
Clearances
A Side Wall to Unit 7-1/2" / 190 mm
B Back Wall to Unit 3" / 76 mm
E Side Wall to Unit 4-1/2" / 114 mm
Reference Dimensions
C Floor to Flue Centerline 25" / 635 mm
D SideWall to Flue Centerline20-1/2" / 521 mm
LOCATING YOUR
GAS STOVE
When selecting a location for your stove, ensure
that the clearances listed above are met as well
as ensuring that there is adequate accessibility
for servicing and proper operation.

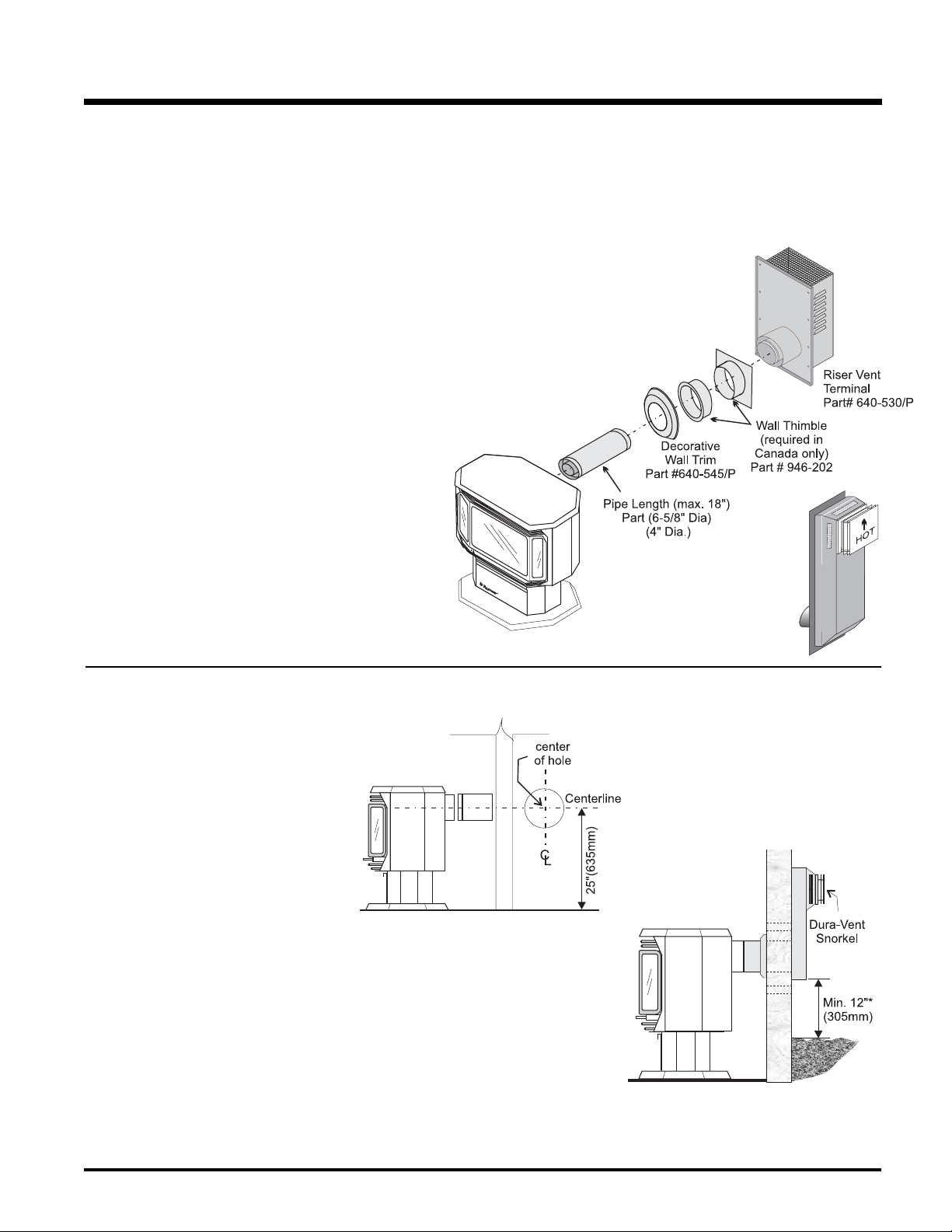

For Vent Termination requirements, see the
"Exterior Vent Terminal Locations" section.
This appliance is Listed for bedroom installations
when used with a Listed Millivolt Thermostat.
Some areas may have further requirements,
check local codes before installation.
This appliance is Listed for Alcove installations,
maintain minimum Alcove clearances as follows,
minimum ceiling height of 66"(1.7m), minimum
width of 41"(1.0m) and a maximum depth of
36"(0.9m).
A) Cross Corner
B) Flush with Wall/Alcove
C) Flat on Wall Corner
D) Flat on Wall
COMBUSTION AND
VENTILATION AIR
The combustion air from this appliance is drawn
from outside the building through the outer fl ue.
Extra provision for combustion air inside the
room is not required.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 7
Minimum ceiling height
is 36" / 914 mm from
top of unit.
The Regency® Direct Vent System (Horizontal
Termination Kit (640-944) and the Vertical
Termination with the Co-linear Flex System in
combination with the ULTIMATE Direct VentRear Freestanding Gas Stoves (U37-NG1 and
U37-LP1) have been tested and listed as direct
vent heater systems by Warnock Hersey.
The Horiz. Termination Kit (640-944) includes
everything required for a straight through the
wall installation, or add a 45o elbow for a corner
installation. If a snorkel termination is required,
the Simpson Dura-Vent Direct Vent System
Model DVGS terminals are available.
VENTING
INSTALLATION
EXTERIOR VENT TERMINAL LOCATIONS
H= Not to be installed above a meter/regulator assembly within
(3'/90cm) horizontally from the centerline of the regulator.
J= Clearance to service regulator vent outlet *(min. 36"/90cm)
K= Clearance to non-mechanical air supply inlet to building
or the combustion air inlet to any other appliance *(12"/30cm) #(9"/23cm)
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)
#3' (91cm) above if within 10' (3m) horizontally.
M= **Clearance above paved sidewalk or a paved driveway located
on public property *(min. 84"/2.1m)
N= Clearance under veranda, porch, deck, or balcony *(min.
12"/30cm)***
Note: * As specifi ed in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.
**A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
***Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the fl oor.
# In accordance with the current ANSI Z223.1/NFPA 54, National Gas Code
distance of (24"/60cm) from the centerline of the terminal (min. 22"/55cm) check with
local code.
E= Clearance to unventilated soffi t (min. 12"/30cm)
F= Clearance to outside corner (12"/30cm)
A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)
B= Clearance to window or door that may be opened *(12"/30cm) #(9"/23cm)
C= Clearance to permanently closed window *(min. 12"/30cm)
D= Vertical clearance to ventilated soffi t located above the terminal within a horizontal
8 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove
G= Clearance to inside corner (12"/30cm)
INSTALLATION
IMPORTANT
Read all instructions carefully before starting
the installation. Failure to follow these instructions may create a fi re or other safety hazard,
and will void the warranty. Be sure to check the
venting and clearance to combustible requirements in "Clearances to Combustibles" to "Rigid
Pipe Venting - Vertical Termination" sections.
Consult your local building codes before beginning installation.
The location of the termination cap must conform to the requirements in the" Exterior Vent
Terminal Locations" section.
VENTING
INSTALLATION
PRECAUTIONS
The Regency® Direct Vent System and the
Vertical Termination with the Co-linear Flex
System are engineered products that have
been designed and tested for use with the
U37-NG1, and U37-LP1. The Regency® warranty will be voided and serious fi re, health or
other safety hazards may result from any of the
following actions:
1) Installation of any damaged Direct Vent
component
2) Unauthorized modifi cation of the Direct Vent
System
3) Installation of any component part not
manufactured or approved by Regency®
Industries Ltd.
4) Installation other than as instructed by
Regency® Industries Ltd.
Warning: Always maintain required
clearances (air spaces) to nearby combustibles to prevent a fi re hazard. Do
not fi ll air spaces with insulation.
The minimum clearance requirements between
the outer wall of the vent pipe and nearby combustible surfaces is 1-1/4 inch. Be sure to check
the vent termination clearance requirements
from decks, windows, soffi ts, gas regulators, air
supply inlets and public walkways as specifi ed
in the "Exterior Vent Terminal Locations" section
and in your local building codes.
The gas appliance and vent system
must be vented directly to the outside
of the building, and never be attached
to a chimney serving a separate solid
fuel or gas-burning appliance.
Each direct vent gas appliance must use its own
separate vent system. Common vent systems
are prohibited.
SAFETY PRECAUTIONS
FOR THE INSTALLER
1) Wear gloves and safety glasses for protec-
tion.
2) Exercise extreme caution when using lad-
ders or on roof tops.
3) Be aware of electrical wiring locations in
walls and ceilings.
PLANNING YOUR VENTING INSTALLATION
See the "Exterior Vent Terminal Locations"
section for the requirements. .
When planning your installation, it will be necessary to select the proper length of vent pipe
for your particular requirements. Determine the
minimum clearance to combustibles from the
rear of the unit to the wall. It is also important to
note the wall thickness. Before cutting the vent
hole through the wall ensure that ALL vent and
termination clearances (see the "Exterior Vent
Terminal Locations" section) will be met.
NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.
*If this is an outside corner, the minimum distance between the vent and the outside corner
is 12" (30cm). See "F" on the diagram in the "Exterior Vent Terminal Locations" section.
For corner installation, Restrictor must
be set at 1-1/4" open.
For straight rear installation, Restrictor
must be set at 1-1/8" open.
U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 9
INSTALLATION
4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.
Description
6” Pipe Length, Galvanized
6” Pipe Length, Black
7” Pipe Length, Galvanized
7” Pipe Length, Black
9” Pipe Length, Galvanized
9” Pipe Length, Black
12” Pipe Length, Galvanized
12” Pipe Length, Black
18” Pipe Length, Galvanized
18” Pipe Length, Black
24” Pipe Length, Galvanized
24” Pipe Length, Black
36” Pipe Length, Galvanized
36” Pipe Length, Black
48” Pipe Length, Galvanized
48” Pipe Length, Black
60” Pipe Length, Galvanized
60” Pipe Length, Black
Adjustable Length 3”-10”, Galvanized
Adjustable Length 3”-10”, Black
Adjustable Length 11”-14”, Galvanized
Adjustable Length 11”-14”, Black
Adjustable Length 17”-24”, Galvanized
Adjustable Length 17”-24”, Black
Adjustable Length 7”, Galvanized
Adjustable Length 7”, Black
Extension Pipe 8-1/2”, Galvanized
Extension Pipe 8-1/2”, Black
Adjustable Length 12”, Galvanized
Adjustable Length 12”, Black
Extension Pipe 16”, Galvanized
Extension Pipe 16”, Black
Simpson
Direct Vent Pro
46DVA-06 908 4DT-6 N/A 4D6 SV4L6
46DVA-06B 908B 4DT-6B N/A 4D6B SV4LB6
N/A N/A N/A 4D7 N/A N/A
N/A N/A N/A 4D7B N/A N/A
46DVA-09 907 4DT-9 N/A N/A N/A
46DVA-09B 907B 4DT-9B N/A N/A N/A
46DVA-12 906 4DT-12 4D12 4D12 SV4L12
46DVA-12B 906B 4DT-12B 4D12B 4D12B SV4LB12
46DVA-18 N/A 4DT-18 N/A 4D18 SV4LA
46DVA-18B N/A 4DT-18B N/A 4D18B SV4LA
46DVA-24 904 4DT-24 4D2 4D24 SV4L24
46DVA-24B 904B 4DT-24B 4D2B 4D24B SV4LB24
46DVA-36 903 4DT-36 4D3 4D36 SV4L36
46DVA-36B 903B 4DT-36B 4D3B 4D36B SV4LB36
46DVA-48 902 4DT-48 4D4 4D48 SV4L48
46DVA-48B 902B 4DT-48B 4D4B 4D48B SV4LB48
46DVA-60 N/A N/A N/A N/A N/A
46DVA-60B N/A N/A N/A N/A N/A
N/A N/A N/A N/A 4DAL N/A
N/A N/A N/A N/A 4DALB N/A
Disc - See 46DV-08A N/A 4DT-AJ N/A N/A N/A
Disc - See 46DV-08AB 911B 4DT-AJB N/A N/A N/A
Disc - See 46DV-16A 917 - N/A from FPI N/A N/A N/A N/A
Disc - See 46DV-16AB 917B N/A N/A N/A SV4LBA24
N/A N/A N/A 4D7A N/A N/A
N/A N/A N/A 4D7AB N/A N/A
46DVA-08A N/A N/A N/A N/A N/A
46DVA-08AB N/A N/A N/A N/A N/A
N/A N/A N/A 4D12A N/A SV4LA12
N/A N/A N/A 4D12AB N/A SV4LBA12
46DVA-16A N/A N/A N/A N/A N/A
46DVA-16AB N/A N/A N/A N/A N/A
®
Simpson
Direct Vent GS
Discontinued
®
Selkirk
Direct-Temp™
American Metal
Products
Amerivent Direct
®
Metal-Fab
Sure Seal
®
Security
Secure Vent
®
45º Elbow, Galvanized
45º Elbow, Black
45º Elbow, Swivel, Galvanized
45º Elbow, Swivel, Black
90º Elbow, Galvanized
90º Elbow, Black
90º Elbow, Swivel, Galvanized
90º Elbow, Swivel, Black
90º Starter Elbow, Swivel, Galvanized*
Adaptor*
Ceiling Support
Cathedral Support Box
Wall Support/Band
Offset Support
Wall Thimble, Black
Wall Thimble Support Box/Ceiling Support
Firestop Spacer
Trim Plate, Black
Masonry Chimney Flashing
Brass Trim for Wall Thimble/Ceiling Support
46DVA-E45 945 4DT-EL45 4D45L N/A N/A
46DVA-E45B 945B 4DT-EL45B 4D45LB N/A N/A
Disc - See 46DVA-E45 945G N/A N/A 4D45L SV4E45
Disc - See 46DVA-
E45B
46DVA-E90 990 4DT-EL90S 4D90LS N/A N/A
46DVA-E90B 990B
Disc - See 46DVA-E90 990G N/A N/A 4D90L SV4E90-1
Disc - See 46DVA-
E90B
N/A N/A N/A N/A 4D90A N/A
N/A N/A N/A N/A 4DDA N/A
N/A 949 - N/A from FPI 4DT-CS 4DFSP 4DSP SV4SD
46DVA-CS 941 4DT-CSS 4DRSB 4DRS SV4CSB
46DVA-WS 988 4DT-WS/B 4DWS 4DWS SV4BM
46DVA-ES - N/A from FPI
46DVA-WT 942 4DT-WT 4DWT 4DWT SV4RSM
46DVA-DC N/A N/A N/A N/A SV4PF
46DVA-FS 963 4DT-FS 4DFSP 4DFS SV4BF
N/A N/A 4DT-TP 4DFPB 4DCP SV4LA
N/A N/A N/A N/A N/A N/A
DISC. 3951 N/A N/A N/A N/A
945BG N/A N/A 4D45LB SV4EB45
4DT-EL90SB
990BG N/A N/A 4D90LB SV4EB90-1
989 - N/A from FPI 4DT-OS N/A N/A SV4SU
4D90LBS N/A SV4EBR90-1
10 U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove
INSTALLATION
4” x 6-5/8” Rigid Pipe Cross Reference Chart (Cont.)
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.
Description
Attic Insulation Shield 12”
Attic Insulation Shield - Cold Climates 36”
Simpson
Direct Vent Pro
46DVA-IS - N/A from FPI
N/A N/A N/A 4DAIS36 N/A N/A
®
Simpson
Direct Vent GS
Discontinued
N/A N/A 4DAIS12 N/A SV4RSA
®
Selkirk
Direct-Temp™
American Metal
Products
Amerivent Direct
®
Metal-Fab
Sure Seal
®
Security
Secure Vent
®
Basic Horizontal Termination Kit (A)
Horizontal Termination Kit (B)
Vertical Termination Kit
High Wind Vertical Cap
High Wind Horizontal Cap
Horizontal Square Termination Cap
Vertical Termination Cap
Storm Collar
Adjustable Flashing, 0/12-6/12
Adjustable Flashing, 6/12-12/12
Vinyl Siding Standoff
Vinyl Siding Shield Plate
Snorkel Termination 14”
Snorkel Termination 36”
Restrictor Disk
Extended Vertical Termination Cap
Chimney Conversion Kit A
Chimney Conversion Kit B
Chimney Conversion Kit C
Chimney Conversion Kit Masonry
Mansonry Chimney Conversion Kit
(includes: Cap Adapter 18”x18” Flashing)
Wall Firestop
Colinear Flex Connectors
FPI
946-506/P Vent Guard (Optional) for AstropCap 946-205 Vinyl Siding Shield for Riser Vent Terminal
510-994 Rigid Pipe Adapter (Must use with all Rigid Piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal
640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap
DISC. 970 4DT-HKA 4DHTK2 4DHTKA SV - SHK
46DVA-KHA
(Changed Components)
DISC. 978 4DT-VKC 4DVTK 4DVTK SV - FK
46DVA-VCH 991 N/A N/A N/A N/A
46DVA-HC 985 N/A N/A N/A N/A
Disc - See 46DVA-HC 984 4DT-HHC 4DHC 4DHT SV4CHC-1
46DVA-VC 980 4DT-HVC 4DVC 4DVT SV4CGV-1
46DVA-SC 953 4DT-SC 4DSC 4DSC SV4FC
46DVA-F6 943 4DT-AF6 4DF 4DF SV4FA
46DVA-F12 943S 4DT-AF12 4DF12 4DF-12 SV4FB
46DVA-VSS 950 4DT-VS N/A 4DVS SV4VS
N/A N/A 4DT-VSP N/A N/A SV4VS
46DVA-SNK14 982 4DT-ST14 4D12S 4DST14 SV4STC14
N/A 981 4DT-ST36 4D36S 4DST36 SV4STC36
46DVA-RD 929 N/A N/A N/A N/A
46DVA-VCE 930 N/A N/A N/A N/A
46DVA-KCA 931 N/A N/A N/A N/A
46DVA-KCB 932 N/A N/A N/A N/A
46DVA-KCC 933 N/A N/A N/A N/A
46DVA-KMC 934 N/A N/A N/A N/A
46DVA-KCT 935 N/A N/A N/A N/A
46DVA-WFS 947 N/A N/A N/A N/A
46DVA-ADF 923F N/A N/A N/A N/A
971 4DT-HKB 4DHTK1 4DHTKB SV - HK
946-206 Vinyl Siding Standoff for AstroCap
*NOTE: When using Metal-Fab Sure Seal Rigid Piping please note that either the Adaptor (4DDA) or 90º Starter Elbow (4D90A)
must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).
Offset Pipe Selection:
Use this table to determine offset pipe lengths.
Pipe Length
0”(0mm) 4-7/8”(124mm) 13-3/8”(340mm)
6”(152mm) 8”(203mm) 16-1/2”(419mm)
9”(229mm) 10-1/8”(257mm) 18-5/8”(473mm)
12”(305mm) 12-1/4”(311mm) 20-3/4”(527mm)
24”(610mm) 20-5/8”(524mm) 29-1/8”(740mm)
36”(914mm) 29”(737mm) 37-1/2”(953mm)
48”(1219mm) 37-7/16”(951mm) 45-15/16”(1167mm)
NOTE: Horizontal runs of vent must be level, or have a 1/4 inch rise for every 1 foot of run towards
the termination. Never allow the vent to run downward. This could cause high temperatures and
may present a possible fi re hazard.
U37-1 Regency® ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove 11
4” x 6-5/8” Venting
Run (X) Rise (Y)
L
Y
X
For specifi c instructions or details on particular
venting components please visit the following
websites:
Simpson Direct Vent Pro: www.duravent.com
Selkirk Direct-Temp: www.selkirkcorp.com
American Metal Products Amerivent Direct:
www.americanmetalproducts.com
Metal-Fab Sure Seal: www.mtlfab.com
Security Secure Vent: www.securitychimneys.com
Loading...
