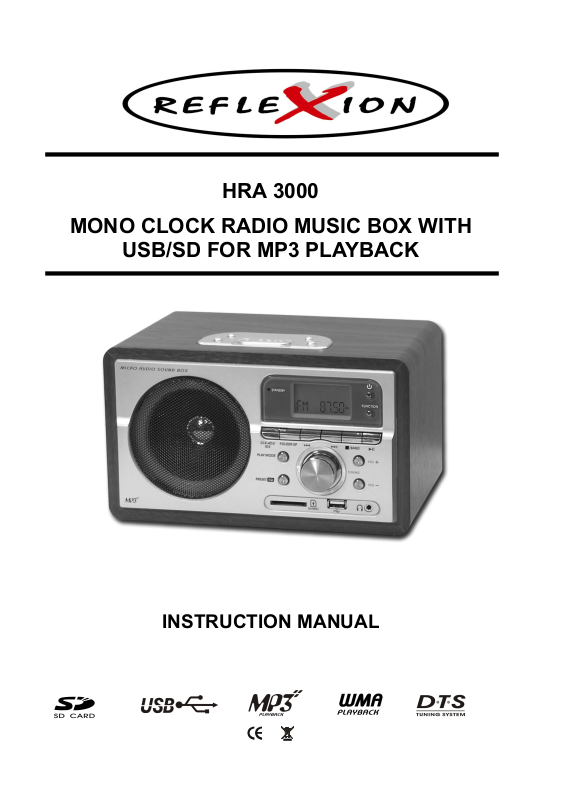

HRA 3000
MONO CLOCK RADIO MUSIC BOX WITH
USB/SD FOR MP3 PLAYBACK
INSTRUCTION MANUAL
E-1
LOCATION OF CONTROLS
1) SNOOZE/DISPLAY BUTTON
2) DIMMER CONTROL BUTTON
3) SLEEP FUNCTION BUTTON
4) STANDBY LED INDICATOR
5) SPEAKER
6) CLOCK-ADJUST/ID3 BUTTON
7) PLAY MODE BUTTON
8) PRE-SET EQ BUTTON
9) SD/MMC CARD SLOT
10) ALARM 2 ON/OFF BUTTON
11) ALARM 1 ON/OFF BUTTON
12) FOLDER UP BUTTON
13) TRACK SKIP DOWN
BUTTON
14) LCD DISPLAY
15) TRACK SKIP UP
16) BAND / STOP
BUTTON
BUTTON
17) POWER ON/STANDBY BUTTON
18) FUNCTIONS BUTTON
19) PLAY/PAUSE
BUTTON
20) VOLUME UP + BUTTON
21) TUNING KNOB
22) VOLUME DOWN – BUTTON
23) STEREO HEADPHONE JACK
24) USB SOCKET
25) FM WIRE ANTENNA
26) AUXILIARY INPUT JACK
27) AC POWER CORD
CAUTION:
USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE PERSONNEL.
PRECAUTIONS FOR USE
INSTALLATION
• UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL.
• DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAIN VOLTAGE AND BEFORE ALL
OTHER CONNECTIONS HAVE BEEN MADE.
• DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL CENTIMETERS AT
THE BACK OF THE UNIT FOR VENTILATION.
CONNECTION
1. CONNECT THE POWER CORD (27) TO AC OUTLET
2. WHEN YOU FIRST PLUG THE UNIT INTO THE MAINS, THE UNIT WILL GO INTO STANDBY MODE AND THE
STANDBY LED INDICATOR (4) WILL LIGHT UP, THE CLOCK AT LCD DISPLAY WILL SHOW “ 00 : 00 ”.
3. TURN ON THE POWER (17), IF THE LCD DISPLAY IS ON WITH BACKLIGHTING, IT MEANS THE POWER
SUPPLY IS NORMAL. NOW YOUR SYSTEM IS READY TO PLAY THE MUSIC.
SETTING THE CLOCK
1. SET UNIT AT STANDBY MODE.
2. PRESS THE “ CLK-ADJ/ID3 ” BUTTON (6) TO ENTER CLOCK ADJUST MODE, THENPRESS
BUTTON (13,15) TO SELECT THE APPROPIATE AREA HOUR (12H/24H)
3. PRESS “ CLK-ADJ/ID3 ” BUTTON (6) AGAIN, THE FIRST SECOND DIGIT OF “00” IS FLASHING. PRESS
BUTTON (13,15) TO SET THE CORRECT HOUR. PRESS ” CLK-ADJ/ID3 ” BUTTON (6)TO STORE THE
CORRECT HOUR.
4. THE THIRD FOURTH DIGIT OF “00” IS FLASHING, PRESS THE
CORRECT MINUTES. THEN PRESS “CLK-ADJ/ID3” (6) TO STORE THE CORRECT MINUTE.
OR BUTTON (13,15) TO SET THE
¾ THE PRE-SET TIME WILL BE RE-SET COMPLETELY IF DIS-CONNECTING THE MAIN POWER
SUPPLY. YOU ARE RECOMMENDED TO SWITCH THE SYSTEM INTO STANDBY MODE FOR
CONVENIENCE USAGE.
E-2
OR
OR
LISTENING TO RADIO
OPERATION
1. PRESS THE FUNCTION BUTTON (18) TO SELECT TUNER MODE.
2. PRESS “
TO SET THE STATION FREQUENCY AS DESIRED.
3. ADJUST VOLUME CONTROL (20,22) FOR THE DESIRED VOLUME LEVEL.
/ BAND ” BUTTON (16) TO SELECT DESIRED BAND (AM OR FM).TURN THE TUNING KNOB (21)
HINTS FOR BEST RECEPTION:-
- AM : THE RECEIVER HAS A BUILT-IN AM BAR ANTENNA. IF AM RECEPTION IS WEAK, SLIGHTLY ROTATE OR
RE-POSITIONING OF THE UNIT WILL USUALLY IMPROVE THE AM RECEPTION.
- FM : THE RECEIVER HAS A BUILT-IN FM WIRE ANTENNA HANGING AT THE REAR CABINET. THIS WIRE
SHOULD BE TOTALLY UNRAVELED AND EXTENDED FOR BEST RECEPTION.
PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA OR MEMORY CARD
CONNECTING
THE SYSTEM IS ABLE TO DECODE AND PLAYBACK ALL MP3 FILE WHICH STORED IN THE MEMORY MEDIA
WITH USB CONNECTING PORT, MULTI- MEDIA CARD (MMC) OR SECURE DIGITAL (SD) MEMORY CARD.
1. PRESS THE FUNCITON BUTTON (18) & SELECT EITHER “ USB “ OR
“ CARD “ MODE
2. PLUG-IN THE USB PLUG WITH THE FACE UP & MAKE SURE IT GOING
INTO COMPLETELY OR INSERT THE MEMORY CARD (SD/MMC) IN THE
DIRECTION OF THE ARROW AS SHOWN IN THE LABEL ON THE
UNDERSIDE OF THE MEMORY CARD SLOT COVER. INSERT STRAIGHT
WITHOUT BENDING.
z CONNECTING THE USB / MEMORY CARD (SD/MMC) UPSIDE DOWN OR
BACKWARDS COULD DAMAGE THE AUDIO SYSTEM OR THE STORAGE
MEDIA (USB / MEMORY CARD). CHECK TO BE SURE THE DIRECTION IS
CORRECT BEFORE CONNECTION.
3. THE SYSTEM WILL START READING THE STORAGE MEDIA
AUTOMATICALLY AFTER CONNECTING, AND LCD DISPLAY (14) WILL
SHOW THE TOTAL NUMBER OF MP3/WMA FILES AND TOTAL NUMBER
OF FOLDER BEING DETECTED.
REMARK
- THE SYSTEM CAN DETECT AND READ THE FILE UNDER MP3 AND WMA FORMAT ONLY THOUGH THE USB
PORT/MEMORY CARD SLOT.
- IF CONNECT THE SYSTEM TO MP3 PLAYER VIA THE USB SOCKET, DUE TO VARIANCES IN MP3 ENCODING
FORMAT, SOME MP3 PLAYER MAY NOT BE ABLE TO PLAY VIA THE USB SOCKET. IN THESE CASES
PLEASE USE THE MP3 PLAYER CONNECTED TO THE AUX-IN SOCKETS AT THE REAR OF THE UNIT.
- USB PORT DOES NOT SUPPORT CONNECTION WITH USB EXTENSION CABLE AND IS NOT DESIGNED
FOR COMMUNICATION WITH COMPUTER DIRECTLY.
OEPRATION
PLAY / PAUSE MODE
1. PRESS THE “PLAY/PAUSE” BUTTON (19) TO START PLAYBACK, THE FIRST TRACK WILL START PLAYBACK.
2. TO INTERRUPT, PRESS THE “PLAY/PAUSE” BUTTON (19) ONCE, AND THE PLAYING TIME WILL BE FREEZE &
FLASHING ON THE LCD DISPLAY (14). PRESS AGAIN TO RESUME NORMAL PLAYBACK.
z STOP MODE
1. IF “ STOP/BAND” BUTTON (16) IS PRESSED DURING PLAY OR PAUSE MODE, SYSTEM WILL GO TO STOP
MODE.
z SKIP MODE (SKIP UP / SKIP DOWN )
1. DURING PLAY OR PAUSE MODE, IF “SKIP UP ” BUTTON (15) IS PRESSED. IT WILL GO TO NEXT TRACK
AND DISPLAY THE TRACK NO. AND THEN REMAIN THE PLAYBACK MODE.
2. DURING PLAY OR PAUSE MODE, IF “SKIP DOWN
BEGINNING OF THE TRACK, ORIGINAL TRACK NO. IS DISPLAY AND REMAIN PLAYBACK MODE.
3. AFTER STEP 2, PRESS “SKIP DOWN ” BUTTON (13) AGAIN WILL GO TO THE PREVIOUS TRACK AND
REMAIN PLAYBACK MODE.
z FOLDER UP
1. PRESS “ FOLDER UP “ BUTTON (12) DURING PLAYBACK MODE, THE SYSTEM WILL START PLAYBACK THE
ST
1
TRACK IN THE NEXT FOLDER
” BUTTON (13) IS PRESSED. IT WILL GO BACK TO THE
E-3
z REPEAT/RANDOM MODE
PRESS THE “ PLAY MODE” BUTTON (7) BEFORE OR DURING PLAYBACK, A SINGLE TRACK, SINGLE FLODER
OR ALL THE TRACKS CAN BE REPEATED. EACH PRESS SWITCH THE REPEAT/RANDOM MODE AS FOLLOW:-
(1) REPEAT ALL TRACK
REPEAT MODE ON LCD DISPLAY
REPEAT ALL TRACK
REPEAT SINGLE TRACKS
REPEAT CURRENT FOLDER
RANDOM RAN.
(2) REPEAT 1 TRACK (3) REPEAT FOLDER (4) RANDOM
REPEAT INDICATOR
ALL
REMOVING OF USB / MEMORY CARD
TO REMOVE THE USB / MEMORY CARD, TURN OFF THE POWER OR SWITCH THE FUNCTION MODE TO EITHER
AUX OR TUNER FIRST. FOR USB PORT – UN-PLUG IT BY PULLING OUT THE USB SOCKET DIRECTLY, FOR
MEMORY CARD – PRESS THE MEMORY CARD INWARD & THEN RELEASE, NOW THE CARD BEING PARTIALLY
EJECT AND YOU CAN REMOVE IT BY HAND.
SLEEP / ALARM CLOCK SET UP
A. SLEEP SETTING
1. PRESS “SLEEP” BUTTON (3) AND “ SLEEP ” INDICATOR SHOWN ON THE LCD (14).
2. KEEP PRESSING THE BUTTON TO ADJUST THE SLEEP TIMER IN THE ORDER OF 90 > 80 >70….10 MINUTES.
3. SYSTEM WILL STOP AND GOTO STANDBY MODE AUTOMATICALLY AFTER THE SELECTED TIMING.
4. TO CANCEL THE SLEEP MODE, PRESS “SLEEP” BUTTON UNTIL THE “SLEEP” INDICATOR DISAPPEAR ON
LCD DISPLAY.
B. ALARM CLOCK SETTING
THIS FUNCTION ALLOWS THE SYSTEM TO TURN ON AUTOMATICALLY AND WAKE YOU UP BY MODE OF TUNER
/ CARD / USB / BUZZER SOUND RESPECTIVELY
FIRST, PRESS AND HOLD THE “ ALARM 1 “ BUTTON (11) TO ENTER SETTING MODE.:--
1) WAKE UP TIME : PRESS THE SKIP UP
THEN PRESS AGAIN “ ALARM 1 ” BUTTON (11) TO SET THE MINUTES.
2) WAKE UP MODE : PRESS THE “ ALARM 1 “ BUTTON (11) & THEN SKIP UP
BUTTON (13,15) TO SELECT THE WAKE UP MODE FROM BUZZER / USB / CARD/ TUNER
RESPECTIVELY.
3) VOLUME LEVEL : PRESS THE “ ALARM 1 “ BUTTON (11) & THEN SKIP UP
(13,15) TO SELECT THE DESIRE VOLUME LEVEL. THEN PRESS AGAIN “ ALARAM 1 ”
BUTTON TO COMPLETE THE SETTING
z ACTIVE/DE-ACTIVE TIMER FUNCTION
1. PRESS THE “ALARM 1” BUTTON (11) TO ACTIVE THE ALARM FUNCTION. THE TIMER INDICATOR “ ” IS
SHOWN ON LCD DISPLAY (14).
2. TO CANCEL ALARM FUNCTION BY PRESS AGAIN “ ALARM 1” BUTTON (11)UNTIL THE TIMER INDICATOR
“ ” DISAPPEAR.
REMARK:-
OR SKIP DOWN BUTTON (13,15) TO SET THE HOUR AND
OR SKIP DOWN
OR SKIP DOWN BUTTON
A) THE SYSTEM PROVIDE DUAL ALARM SETTING “ ALARM 2 ” , YOU CAN PRESET ANOTHER WAKE UP
TIME INDIVIDUALLY BY USING “ ALARM 2 “ BUTTON (10).
B) IF THERE IS NO USB STICK OR SD/MMC CARD BEING DETECTED AFTER SETTING BY ALARM WAKE UP
MODE. THE SYSTEM WILL DEFULT TO “ BUZZER ” SOUND FOR WAKE UP MODE AUTOMATICALLY.
C) FOR TUNER WAKE UP, THE SYSTEM WILL PRESET AT THE LATEST RADIO FRQUENCY BEING LISTENED
BEFORE SWITCHING OFF.
E-4
z SNOOZE FUNCTION
PRESS ONCE TO TERMINATE THE ALARM MODE TEMPORARILY, AND SYSTEM WILL RE-START AGAIN AFTER
10 MINUTES ON EACH PRESS. TO CANCEL THE ALARM MODE, PRESS THE POWER OFF BUTTON (17) WHILE
SYSTEM IS ON.
MORE FEATURES
DIMMER CONROL
PRESS THE DIMMER CONTROL BUTTON (2) TO SELECT 4 LEVEL FOR LCD BACKLIGHT FROM BRIGHTNESS >
NORMAL > DIM MODE > BACKLIGHT OFF REPEATLY.
PRE-SET EQ FUNCTION
THIS UNIT PROVIDES 5 DIFFERENCES SOUND MODE TO ENHANCE YOUR LISTENING EXPERIENCE. YOU CAN
SELECT THE DESIRED EFFECT BY PRESSING THE “ PRESET EQ” BUTTON (8) REPEATEDLY AT FOLLOWING
SEQUENCE:-
FLAT JAZZ ROCK POP CLASSIC
DISPLAY FUNCTION
FOR CONVERIENCE USAGE, PRESS AND HOLD THE “ SNOOZE/DISPLAY “ BUTTON (1), THE LCD WILL
DISPLAY THE CURRENT TIME DURING USB/CARD/AUX OR TUNER MODE RESPECTIVELY.
B) AUX-IN ENCODING
CONNECT ANOTHER AUDIO DEVICE, E.G. (PORTABLE) CD PLAYER, MP3 PLAYER, (PORTABLE), IPOD, ETC. TO
THIS SYSTEM VIA A CORD WITH 3.5MM DIA JACK PLUGS TO RCA JACK (NOT SUPPLIED).
CONNECT ONE END OF THIS CORD TO THE 3.5MM DIA. HEADPHONE JACK ON THE EXTERNAL DEVICE AND
THE OTHER END TO THE RCA AUX-IN JACK (26) ON THE BACK OF THE UNIT.
WHEN CONNECTED IN THIS WAY IT IS POSSIBLE TO:
• PLAY BACK THE MUSIC ALREADY ON THE CONNECTED DEVICE.
FOLLOW THE SAME ENCODING PROCEDURE AS DESCRIBED IN THIS MANUAL.
E-5
SPECIFICATIONS
POWER SUPPLY
AC : 230V ~ 50Hz
POWER CONSUMPTION 12W
STANDBY 2.5W
FREQUENCIES
UKW (FM): 88 – 108 MHz
MW (AM): 540 – 1600 KHz
DESIGH AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
