Raymarine ST8002 User Manual
ST8002
SmartPilot
Controller
Operating Guide
Document reference: 81271 -1
Date: December 2005
Autohelm, HSB (High Speed Bus), SailPilot, SeaTalk and SportPilot are registered trademarks of Raymarine Ltd.
Raymarine, AST (Advanced Steering Technology), AutoAdapt, AutoLearn, AutoRelease, AutoSeastate, AutoTack, AutoTrim,
FastTrim, GyroPlus, RayGyro, RayPilot and WindTrim are trademarks of Raymarine Ltd.
Raymarine and SeaTalk are trademarks of Raymarine Ltd
Handbook contents © Raymarine Ltd. 2005.
Important Information
About the documentation provided
Welcome to Raymarine SmartPilot. The autopilot system that will steer your boat
to a heading automatically, accurately, reliably and comfortably.
SmartPilot documentation is arranged so that you can install, commission and
quickly use your SmartPilot, keeping to hand only the information necessary.
• Installation Sheets - One per element of the system, these easy to understand sheets guide you through the installation process. These can be discarded once the installation is complete.
• SmartPilot Commissioning Guide - Describes how to connect, commission and configure the system. Supplied with systems only.
• Quick Start Guide - Once commissioned, use your Smart Pilot right away
with this handy guide to the main operations.
• Operating Guide - This handbook. Contains a detailed description of the
SmartPilot’s features and functions.
Warranty
To register your new Raymarine product, please take a few minutes to fill out the
warranty card. It is important that you complete the owner information and
return the card to us to receive full warranty benefits. You can also register online
at
www.raymarine.com
i
Safety notices
WARNING: Calibration
We supply this product calibrated to default settings that should
provide initial stable performance for most boats. To ensure
optimum performance on your boat, you must complete the
procedures in
WARNING: Navigation aid
Although we have designed this product to be accurate and
reliable, many factors can affect its performance. As a result, it
should only be used as an aid to navigation and should never
replace common sense and navigational judgement. Always
maintain a permanent watch so you can respond to situations as
they develop.
SmartPilot Commissioning Guide
before use.
ii ST8002 SmartPilot Controller Operating Guide
Your Raymarine SmartPilot will add a new dimension to your boating enjoyment.
However, it is the skipper’s responsibility to ensure the safety of the boat at all
times by following these basic rules:
• Ensure that someone is present at the helm AT ALL TIMES, to take manual
control in an emergency.
• Make sure that all members of crew know how to disengage the autopilot.
• Regularly check for other boats and any obstacles to navigation – no matter
how clear the sea appears, a dangerous situation can develop rapidly.
• Maintain an accurate record of the boat’s position by using either a navigation aid or visual bearings.
• Maintain a continuous plot of your boat’s position on a current chart. Ensure
that the locked autopilot heading will steer the boat clear of all obstacles.
Make proper allowance for tidal set – the autopilot cannot.
• Even when your autopilot is locked onto the desired track using a navigation
aid, always maintain a log and make regular positional plots. Navigation signals can produce significant errors under some circumstances and the autopilot will not be able to detect these errors.
Product disposal
Waste Electrical and Electronic (WEEE) Directive
The WEEE Directive requires the recycling of waste electrical and
electronic equipment.
Whilst the WEEE Directive does not apply to some of Raymarine's products, we
support its policy and ask you to be aware of how to dispose of this product.
The crossed out wheelie bin symbol, illustrated above, and found on our products
signifies that this product should not be disposed of in general waste or landfill.
Please contact your local dealer, national distributor or Raymarine Technical
Services for information on product disposal.
EMC Conformance
All Raymarine equipment and accessories are designed to the best industry
standards for use in the recreational marine environment. Their design and
manufacture conforms to the appropriate Electromagnetic Compatibility (EMC)
standards, but correct installation is required to ensure that performance is not
compromised.
Important Information iii
Handbook information
To the best of our knowledge, the information in this handbook was correct when
it went to press. However, Raymarine cannot accept liability for any inaccuracies
or omissions it may contain. In addition, our policy of continuous product
improvement may change specifications without notice. As a result, Raymarine
cannot accept liability for any differences between the product and the
handbook.
iv ST8002 SmartPilot Controller Operating Guide
Contents
Important Information ................................................................................................. i
About the documentation provided ........................................................................ i
Warranty ................................................................................................................. i
Safety notices .......................................................................................................... i
WARNING: Calibration ................................................................................ i
WARNING: Navigation aid......................................................................... i
Product disposal ..................................................................................................... ii
EMC Conformance ................................................................................................. ii
Handbook information .......................................................................................... iii
Contents ............................................................................................................................ v
Chapter 1: SmartPilot Operation ............................................................................... 1
1.1 Introduction ..................................................................................................... 1
SmartPilot Functions ........................................................................................ 1
Extended systems ............................................................................................. 2
1.2 Using the control unit ....................................................................................... 2
Switching on and off......................................................................................... 2
Start-up mode.......................................................................................... 3
Keypad functions .............................................................................................. 3
What does the display tell me? ......................................................................... 4
1.3 Using the SmartPilot to steer your boat ............................................................ 5
CAUTION: Maintain a permanent watch................................................. 5
How do I automatically steer to a heading?...................................................... 5
How do I return to hand steering? .................................................................... 5
How do I change course in Auto mode?............................................................ 5
Can I dodge an obstacle and then resume course? ........................................... 6
Can I use the SmartPilot to power-steer my boat? ............................................ 6
How do I activate power steering? .......................................................... 7
How do I quickly center the rudder? ........................................................ 7
How do I leave Power Steer mode? .........................................................7
1.4 How do I adjust the performance of my SmartPilot? ........................................ 8
Off Course warning......................................................................................... 10
1.5 Can I adjust the display lighting & contrast? .................................................. 10

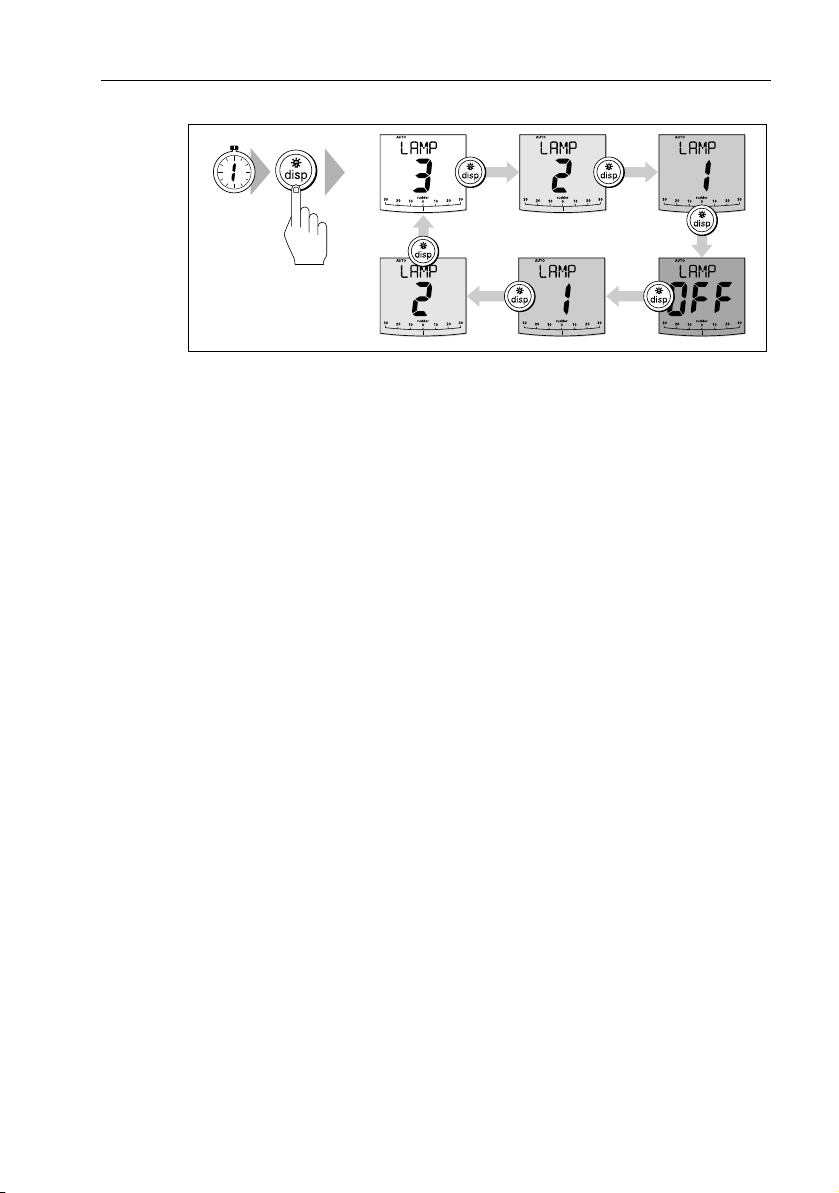

How do I adjust the lights? ............................................................................. 10
How do I adjust the contrast? ......................................................................... 11
v
vi ST8002 SmartPilot Controller Operating Guide
Chapter 2: Advanced Operation ...............................................................................13
2.1 How do I follow a route set on a Chartplotter? ............................................... 13
How do I activate Track mode?........................................................................ 13
CAUTION: Make suitable preparations for entering track mode.13
How do I leave Track mode?............................................................................ 14
What is Cross track error? ...............................................................................14
Tidal stream compensation .............................................................................15
How do I dodge an obstacle in Track mode?.................................................... 15
What happens when I arrive at a waypoint? ................................................... 16
How do I skip a waypoint? (SeaTalk chartplotters) ................................ 16
WARNING: Ensure navigation safety17
What is the Waypoint Advance warning? ............................................. 17
What happens when I get to the end of the route?..........................................17
2.2 Using Wind Vane mode – sail boats ...............................................................18
What is Wind Vane mode? ..............................................................................18
Wind information............................................................................................ 18
True and apparent wind......................................................................... 18
WindTrim ...............................................................................................18
How do I select Wind Vane mode? ..................................................................18
How do I leave Wind Vane mode? ...................................................................19
How do I dodge an obstacle in Wind Vane mode?........................................... 19
What is a Wind Shift warning? ........................................................................20
Operating hints for Wind Vane mode .............................................................. 20
2.3 How do I display boat data? ...........................................................................20
Can I display Waypoint names?.......................................................................21
Warning messages..........................................................................................22
Shallow warning (SHALLOW).............................................................. 22
Man Overboard warning (MOB) ........................................................... 22
2.4 User Calibration Options ................................................................................22
How do I access User Calibration settings? .....................................................22
User Calibration pages....................................................................................23
AutoTack angle (SAILBOAT only) ........................................................... 23
Gybe inhibit (SAILBOAT only)................................................................. 23
Wind selection (SAILBOAT only)............................................................. 23
WindTrim (SAILBOAT only)..................................................................... 23
Response level .......................................................................................23
Contents vii
Chapter 3: Fault Finding & Maintenance ............................................................... 25
3.1 Fault finding ................................................................................................... 25
SmartPilot alarm messages ............................................................................ 26
3.2 General maintenance ..................................................................................... 28
Routine checks................................................................................................ 28
CAUTION: Do not dismantle SmartPilot products ............................. 28
Cleaning the display ....................................................................................... 28
CAUTION: Avoid damage when cleaning.............................................. 28
EMC advice..................................................................................................... 29
Product support .............................................................................................. 29
World wide web..................................................................................... 29
Telephone help line................................................................................ 29
Help us to help you ................................................................................ 30
Product details table .............................................................................. 31
Specifications ................................................................................................................ 33
ST8002 control unit .............................................................................................. 33
SmartPilot computer functions ............................................................................. 33
Glossary........................................................................................................................... 34
Index ................................................................................................................................. 37
viii ST8002 SmartPilot Controller Operating Guide
Chapter 1: SmartPilot Operation
1.1 Introduction
DISP
RESP
TRAC
K
W
V
RES'M
AUTO
D8529-1
1
The SmartPilot controller is a SeaTalk® compatible autopilot control unit. It is
designed as the main controller for the SmartPilot system.
The SmartPilot controller operates in the following modes:
• Standby: SmartPilot off. You have manual control of the boat.
• Auto: The SmartPilot steers the boat to maintain a locked heading.
• Track: The SmartPilot steers the boat to maintain a track between two waypoints created on a navigation aid.
• Wind Vane: The SmartPilot steers the boat to maintain a course relative to a
true or apparent wind angle.
The SmartPilot controller also provides:
• automatic tack (AutoTack) in Auto and Wind Vane modes.
• waypoint advance feature in Track mode.
SmartPilot Functions
The functions provided with your SmartPilot system depend on whether the
SmartPilot computer contains an internal GyroPlus yaw sensor.
2 ST8002 SmartPilot Controller Operating Guide
:
S1G, S2G and S3G systems
(with GyroPlus)
Non-G systems
(without GyroPlus)
Internal GyroPlus yaw sensor provides
enhanced course keeping using AST
(Advanced Steering Technology)
Steering to true and apparent wind in
Wind Vane mode
Equipped with AutoLearn, Raymarine’s
self-learning calibration system
Full basic functionality: uses Raymarine
steering algorithm without AST
Steering to true and apparent wind in
Wind Vane mode
Extended systems
You can connect the SmartPilot controller to other Raymarine SeaTalk equipment
so it can send and receive SeaTalk data:
• it can use waypoint information from a SeaTalk navigation instrument to provide track control.
• it can use boat speed from a SeaTalk speed instrument to optimize track-keeping performance.
• it can use wind information from a SeaTalk wind instrument for Wind Vane
steering.
You can also use the SmartPilot with any navigator or wind instrument that
transmits National Marine Electronics Association (NMEA) 0183 data.
The SmartPilot control unit can display SeaTalk and NMEA instrument data in a
user-defined selection of data pages.
For further information on other connections to your system see
Commissioning Guide.
SmartPilot
1.2 Using the control unit
Switching on and off
All the time that power is applied to the SmartPilot controller, you can use the
disp button to switch the instrument off and on as follows:
• To switch the SmartPilot controller off, ensure it is in the Standby mode, then
hold down the
switch off count down of 4 seconds occurs. Keep the
during this period, to switch off the instrument.
• To switch the instrument back on, hold down the
imately 1 second.
disp button for approximately 5 seconds. After this time, a
disp button pressed
disp button for approx-
Chapter 1: SmartPilot Operation 3
When the power supply is switched off, the SmartPilot controller buttons have no
effect.
Notes: (1)
Each time power to the SmartPilot controller is switched on, the control-
ler is initially in the on condition. You do not need to use the
disp
button to switch the controller on.
(2)
When the SmartPilo t controller is on, the operation of the
disp
button
will perform other operating functions, as described below.
Start-up mode
The SmartPilot always powers up in Standby mode with the display showing the
boat’s current compass heading.
Note:
You can press
standby
at any time to return to manual steering.
Keypad functions
The SmartPilot is controlled using simple push-button and rotary control
operations, all of which are confirmed with a short beep. In addition to the main
single-button functions, there are several dual-button operations.
disp
Press to display
data pages
Press for 1 second
for lamp adjust
Press for 3 seconds
for contrast adjust
Press for 9 seconds
(in Standby mode)
for power down
When powered
down, press for 1
second to power up
resp
Press to display response level
Press for 1 second for rudder gain
track
Press for Track mode from Auto mode
(if a navigator is connected)
Press to accept waypoint advance
Press for 1 second to skip waypoint
mode
Press to select Power Steer mode
res'm
Press to resume previous course
mode
standby
Press for Standby mode
Press for 2 seconds
to enter Calibration mode
standby plus auto
Press for Wind Vane mode
(if a wind vane is connected)
&
Press to scroll through
calibration parameters.
Press to adjust
response and gain
rotary control
In Auto mode, turn to
change locked heading.
In Power Steer mode:
turn to steer boat.
press in to center
rudder.
auto
Press for Auto mode
D6337-2
4 ST8002 SmartPilot Controller Operating Guide
What does the display tell me?
The SmartPilot display screen provides the following information:
Autopilot mode indicators
GyroPlus indicator (appears if a
yaw sensor is connected to the autopilot)
Variable text area (up to 9 characters)
Distance units:
• no units = kilometres
• nm = nautical miles
• SM = statute miles
Heading indicators
Port and Starboard
direction-to-steer
indicators
Calibration mode indicator
(displayed on calibration pages)
Rudder position indicator
The bar graph at the bottom of the screen indicates the current position of the
rudder, as measured by the rudder position sensor.
D5458-2
Chapter 1: SmartPilot Operation 5
1.3 Using the SmartPilot to steer your boat
CAUTION: Maintain a permanent watch
Automatic course control makes it easier to sail a boat, but it is
NOT a substitute for good seamanship. ALWAYS maintain a
permanent watch by the helm.
How do I automatically steer to a heading?
1. Steady the boat on the required heading.
2. Press auto.
The SmartPilot is now in AUTO mode and will steer to the chosen heading,
shown on the display. This mode is often known as “point-and-shoot”.
D5515-2
How do I return to hand steering?
Press standby to disengage the SmartPilot:
•in STANDBY mode, you have manual control of the boat and the display
shows the boat’s current compass heading.
How do I change course in Auto mode?
In Auto mode, use the rotary control to change the locked heading. For example,
turn the rotary control anti-clockwise for a course change to port.
D4209-3
